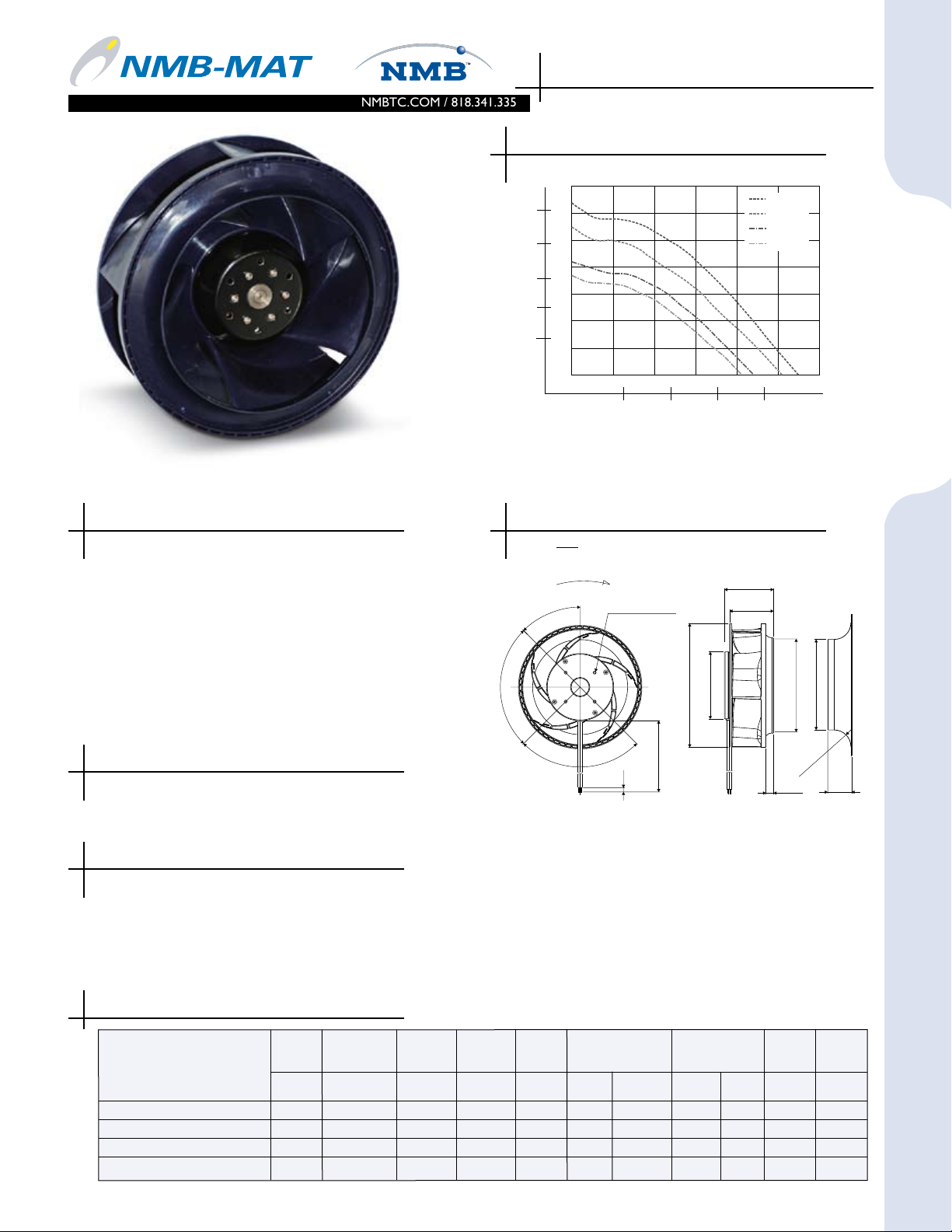

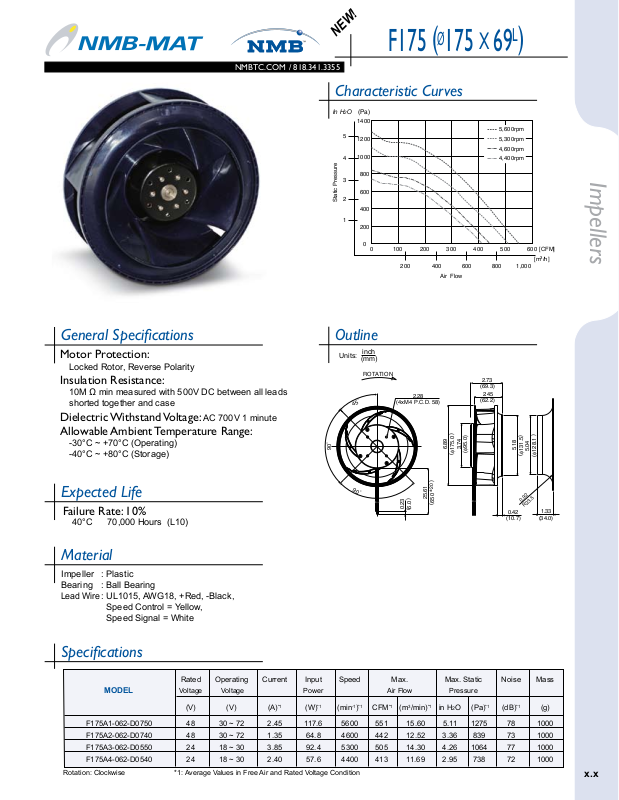

Characteristic Curves
X
69
L
)
Impellers
General Specications
Motor Protection:
Outline
inch
Units:
(mm)
Locked Rotor, Reverse Polarity
Insulation Resistance:
10MΩminmeasuredwith500VDCbetweenallleads
shorted together and case
Dielectric Withstand Voltage: AC 700V 1 minute
Allowable Ambient Temperature Range:
-30°C ~ +70°C (Operating)
-40°C ~ +80°C (Storage)
Expected Life
Failure Rate: 10%
40°C 70,000 Hours (L10)
Material
Impeller : Plastic
Bearing : Ball Bearing
Lead Wire
Speed Control = Yellow,
Speed Signal = White
Specications
Rated Operating Current Input Speed Max. Max. Static Noise Mass
MODEL Voltage Voltage Power Air Flow Pressure
F175A1-062-D0750 48 30 ~ 72 2.45 117.6 5600 551 15.60 5.11 1275 78 1000
F175A2-062-D0740 48 30 ~ 72 1.35 64.8 4600 442 12.52 3.36 839 73 1000
F175A3-062-D0550 24 18 ~ 30 3.85 92.4 5300 505 14.30 4.26 1064 77 1000
F175A4-062-D0540 24 18 ~ 30 2.40 57.6 4400 413 11.69 2.95 738 72 1000
Rotation: Clockwise *1: Average Values in Free Air and Rated Voltage Condition
: UL1015, AWG18, +Red, -Black,
(V) (V) (A)
*1
(W)*1 (min-1)
*1
CFM
*1
(m3/min)
*1
in H2O (Pa)*1 (dB)*1 (g)
