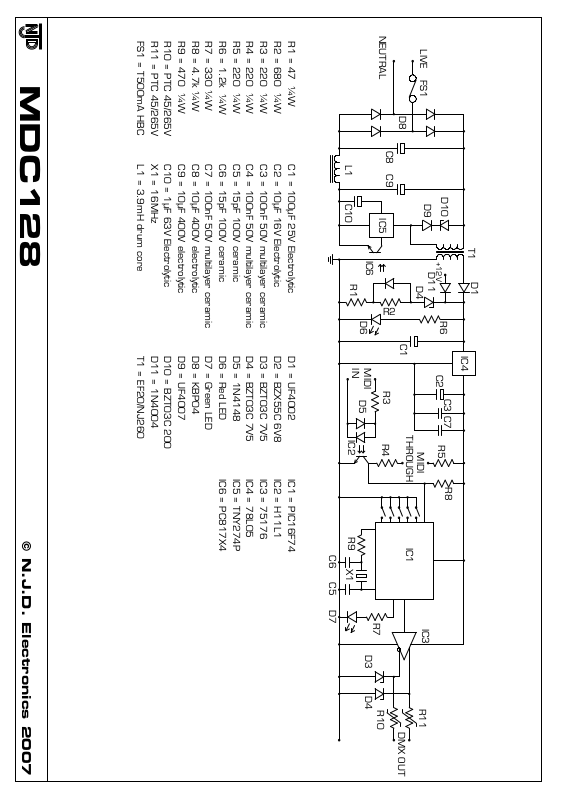

MDC128
© N.J.D. Electronics 2007
FS1
D8
C8 C9
L1
C10
IC5
IC6
D10
D9
T1
D1
D11
D4
R2
R1
C1
IC4
C2
C3 C7
R5
R4
IC2
D5
R3
IC1
R9
C6
X1
C5
IC3
D3
D4
R10
R11
DMX OUT
MIDI
IN
MIDI
THROUGH
R8
LIVE
NEUTRAL
+12V
R6
D6
R7
D7
R1 = 47 ¼W
R2 = 680 ¼W
R3 = 220 ¼W
R4 = 220 ¼W
R5 = 220 ¼W
R6 = 1.2k ¼W
R7 = 330 ¼W
R8 = 4.7k ¼W
R9 = 470 ¼W
R10 = PTC 45/265V
R11 = PTC 45/265V
C1 = 100µF 25V Electrolytic
C2 = 10µF 16V Electrolytic
C3 = 100nF 50V multilayer ceramic
C4 = 100nF 50V multilayer ceramic
C5 = 15pF 100V ceramic
C6 = 15pF 100V ceramic
C7 = 100nF 50V multilayer ceramic
C8 = 10µF 400V electrolytic
C9 = 10µF 400V electrolytic
X1 = 16MHz
D1 = UF4002
FS1 = T500mA HBC
D2 = BZX55C 6V8
D3 = BZT03C 7V5
D4 = BZT03C 7V5
D5 = 1N4148
D6 = Red LED
D7 = Green LED
D8 = KBP04
D9 = UF4007
D10 = BZT03C 200
D11 = 1N4004
L1 = 3.9mH drum core
IC1 = PIC16F74
IC2 = H11L1
IC3 = 75176
IC4 = 78L05
IC5 = TNY274P
IC6 = PC817X4
C10 = 1µF 63V Electrolytic
T1 = EF20/NJ260
