Nipro Surdial Maintenance part list

MAINTENANCE PARTS LIST

SINGLE PATIENT DIALYSIS MACHINE

ＳＵＲＤＩＡＬ

Manufacturer NIPRO CORPORATION

3-9-3, Honjo-Nishi, Kita-Ku, OSAKA 531-8510, JAPAN

PHONE [phone] / FAX [phone]

0R6114-1003

Preface

Thank you for purchasing NIPRO SINGLE PATIENT DIALYSIS UNIT SURDIAL.

This maintenance part list offers information on the person straightening of SURDIAL that is
checked and repaired. When parts of this unit are exchanged, it is necessary to peruse the
service manual, and to understand the content enough.

Copyright of this Maintenance Parts List for SURDIAL is protected and owned by the
manufacturer. Copying, duplicating, or translating any pages of this instruction manual
without the manufacturer’s permission is prohibited.

CONTENT

Preface

1. How to use of this maintenance part list.

2. Hydraulic Part

2.1. Input components

2.1.1………Conductivity cell Assy (CD1/CD2)

2.1.2………Dialysate pressure sensor Assy (PD)

2.1.3………Blood leak sensor Assy (BLD)

2.1.4………Pressure SW (PS)

2.1.5………Temperature sensor (T)

2.1.6………Air bubble detector Assy

2.2. Output components

2.2.1………Two way electromagnetic valve: AV-3202-318-SC (V2/V3/V12/V13/V14
(V15/V17))

2.2.2………Two way electromagnetic valve: (V4/V11)

2.2.3………Two way electromagnetic valve：(V10)

2.2.4 ……...Three way electromagnetic valve: AV-3302-63-S (V5/V6/V7/V8/V9)

2.2.5………Bellowphragm pump: VCP-60 (VPa/VPb)

2.2.6………Blood pump Assy (BP/BPC)

2.2.7………P1/P2 Assy (P1/P2)

2.2.8………Venous clamp Assy (CLV)

2.2.9………Syringe pump Assy (SP)

2.3. Other components

2.3.1………Deaeration tank Assy (AS1)

2.3.2………Deaeration tank Assy (AS2)

2.3.3………Buffer tank W Assy (BTW)

2.3.4………Buffer tank D Assy (BTD1/BTD2)

2.3.5………Check valve

2.3.6………Filter (F)

2.3.7………Flow meter Assy (FM/FS)

2.3.8………Pressure regulator Assy: (PR)

2.3.9………Relief valve

2.3.10……..Sample port Assy (SL)

2.3.11……..Chamber Assy (VCa / VCb)

2.3.12……..Concentrate tank connectors

2.3.13……..Rinse port

2.3.14……..Coupler Assy

2.3.15……..Needle valve (NV1/NV2)

2.3.16……..Other hydraulic parts

3. Electric part

3.1…….. Power Box

3.2…….. Harness

3.3…….. Printed Circuit Boards

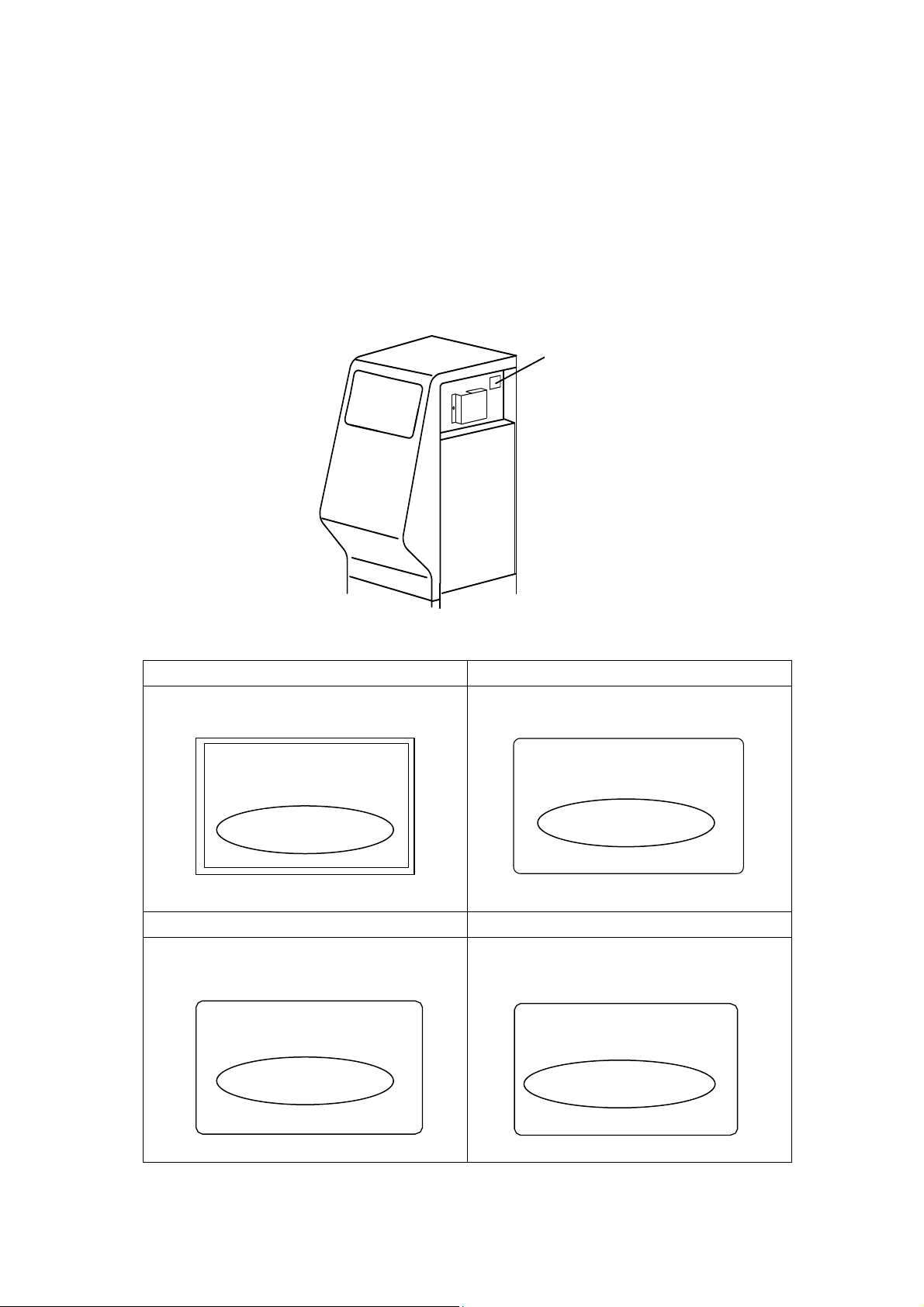

1.How to use this Maintenance Part List

Maintenance Parts List informs you Model

code, Minimum order quantity, and Unit

price. Some item are for AC110V or

Check the “NIPRO ORDER CODE No”

Please check “NIPRO ORDER CODE No” to

order a component / components to NIPRO.

AC230V. Please kindly check which

component is exactly you need as per note

column.

Please do not hesitate to contact us if you

need the latest information about the price

and minimum order quantity.

↓

Order us necessary components.

Please inform us below details as you make an

order.

z Model name of the Machine
z Model code of the item
z Order code no.
z Quantity

↓

After you received our components

Please kindly confirm model name of the

machine (e.g. SURDIAL), Part code of the

item (which mentioned for each parts), and

Quantity as you make an order to us.

Please exchange / replace the parts as per
NIPRO SERVICE MANUAL.

1-1

NIPRO SERVICE MANUAL instructed

how to exchange / replace a brand-new good

with old / broken one. As you change any

parts new from default, please use NIPRO

SERVICE MANUAL.

2. Hydraulic Part

2.1. Input components

2.1.1. Conductivity cell Assy (CD1/CD2)

2.1.1.1 Type A

Fig.2.1.1-1 Conductivity cell Assy (CD) Type A

No. Component

Conductivity cell Assy

(CD)Type A
1 Sensor holder 931538111041 2-002-059 1
2 O-ring P3 2-002-058 1 Silicone rubber
3 Pin 931538121041 2-002-060 1

Pan head Phillips screw
4

(small)
5 Hose port 93742611001 4-023-030 1
6 CD harness 93447132102 0-202-001 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

SAS-08037 0-201-001 1

M3×8 0-201-085 1 SUS304

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

Without No.6
(CD harness)

2.1.1-1

2.1.1.2 Type B

Fig.2.1.1-2 Conductivity cell Assy (CD) Type B

No. Component

Conductivity cell Assy

(CD)Type B

1 Sensor holder 93153811104 2-002-059 1
2 O-ring P3 2-002-058 1 Silicone rubber
3 Pin 93153812104 2-002-060 1
4 Pan head Phillips

screw (small)

5 Plug P1/8B 0-201-220 1 SUS316
6 CD harness 93447132102 0-202-001 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

SAS-08038 0-204-046 1

M3×8 0-201-085 1 SUS304

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

Without No.6
(CD harness)

2.1.1-2

2.1.1.3 Type C

Fig.2.1.1-3 Conductivity cell Assy (CD) Type C

No. Component

Conductivity cell Assy

(CD) Type C
1 Sensor holder 93613811002 0-202-100 1
2 O-ring P3 2-002-058 1 Silicone rubber
3 Pin 93153812104 2-002-060 1

Pan head Phillips screw
4

(small)

SAS-08039 0-204-047 1

M3×8 0-201-085 1 SUS304

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

Without No.5
(CD harness)

5 CD harness 93447132102 0-202-001 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

2.1.1-3

2.1.1.4 Type D

Fig.2.1.1-4 Conductivity cell Assy (CD) Type D

No. Component

Conductivity cell

Assy(CD)Type D
1 Holder A 01930500027 0-202-101 1
2 Nut M3 0-202-102 1
3 O-ring P3 2-002-058 1
4 Pin 01930400224 0-202-103 1
5 CD harness CD harness. Refer 3.2
6 Screw M3×10 0-202-104 1 SUS304
7 Screw M3×25 0-202-105 1 SUS304
8 O-ring P8 0-504-018 1
9 Holder B 01930500026 0-202-106 1

SAS-08040 0-204-048 1

Code

No./Requirement

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

NIPRO order

code

Minimum

order quantity

Note

Without No.5
(CD harness)

2.1.1-4

2.1.2. Dialysate pressure sensor Assy (PD)

2.1.2.1. TYPE I

Fig.2.1.2-1 Dialysate pressure sensor Assy (Type I)

No. Component

Dialysate pressure

sensor Assy TYPE I
1 Sensor BKT --- --- ---
2 Cover --- --- ---

Dialysate pressure
3

sensor board
4 Spacer --- --- ---
5 Spring washer --- --- ---

Small pan head Phillips
6

screw

Small pan head Phillips
7

screw

Small pan head Phillips
8

screw

Small pan head Phillips
9

screw

10 Manifold --- --- ---
11 Holder --- --- ---
12 Hose port --- --- ---
13 Pressure sensor --- --- ---
14 O-ring --- --- --- Silicone rubber

Small pan head Phillips

15

screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

--- --- ---

--- --- ---

--- --- ---

--- --- ---

--- --- ---

--- --- ---

--- --- ---

NIPRO order

code

Minimum

order quantity

Note

With spring/flat
washers
With spring/flat
washers
With spring/flat
washers
With spring/flat
washers

With spring/flat
washers

2.1.2-1

2.1.2.2. TYPE II (Type A)

Fig.2.1.2-2 Dialysate pressure sensor Assy Type II (Type A)

No. Component

Dialysate pressure

sensor Assy Type II
(Type A)
Small pan head Phillips

1

screw
Manifold

2

Packing

3

O-ring

4

Pressure sensor

5

Base plate

6

Dialysate pressure

7

sensor board
Small pan head Phillips

8

screw
Cover

9

Small pan head Phillips

10

screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

SAS-08042 0-204-039 1

M3×18 0-201-089 1
01930200055 4-030-018 1

93532934001 4-030-015 1
AS568-016 4-030-017 1

--- --- ---

--- --- ---

--- --- ---

M3×16 0-201-209 --­93532933100 0-204-044 1
M3x8 0-201-091 1

NIPRO order

code

Minimum

order quantity

Note

2.1.2-2

2.1.2.3. TYPE II (Type B)

Fig.2.1.2-3 Dialysate pressure sensor Assy TYPE II (Type B)

No Component

Dialysate pressure

sensor Assy for TYPE II

(Type B)
1 Manifold 93882911 0-504-025 1
2 O-ring S-16 0-504-026 1 Viton
3 Pressure sensor --- --- ---
4 Base plate --- --- ---
5 Spacer --- --- ---

Dialysate pressure
6

sensor board
7 Screw M3 × 12 0-504-031 1
8 Board cover 93882914 0-504-032 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

PD-02 0-504-024 1

Code

No./Requirement

--- --- ---

NIPRO order

code

Minimum

order quantity

Note

2.1.2-3

2.1.3. Blood leak sensor Assy (BLD)

2.1.3.1. TYPE I : RK-GR1

Fig.2.1.3-1 Blood leak sensor Assy Type I: RK-GR1

№ Component

Blood leak sensor Assy

1 Upper body cover --- --- ---
2 Body casing --- --- ---
3 Light receiver holder --- --- ---
4 Light emitter holder --- --- ---
5 Condensing lens --- --- ---
6 Rear body cover --- --- ---

７ O-ring (1) --- --- ---

8 O-ring (2) --- --- ---

9 Light emitter element --- --- ---
10 Light receiver element --- --- ---
11 Light receiver board --- --- ---
12 Light emitter board --- --- ---
13 Main board --- --- ---
14 L-shaped hose port 93283912001 0-201-002 1
15 Knob --- --- ---
16 Jagged tight --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

RK-GR1 --- ---

Code

No./Requirement

NIPRO order

code

Minimum order

quantity

Note

Production
discontinued

2.1.3-1

2.1.3.2. TYPE II : RK-GR2

Fig.2.1.3-2 Blood leak sensor Assy Type II RK-GR2

No Component

Blood leak sensor Assy RK-GR2 --- ---

1 Base --- --- --- Heat resistant ABS
2 Cartridge --- --- --- PES

Small pan head Phillips

3

screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

--- --- --- SUS

NIPRO order

code

Minimum

order quantity

Note

Production
discontinued

2.1.3-2

2.1.3.3 TYPE II : BLD-01

Fig.2.1.3-3 Blood leak sensor Assy TYPE II BLD-01

No Component

Blood leak sensor Assy BLD-01 4-030-078 1

1 Base --- --- ---
2 Cover --- --- ---

3 BLD Cartridge 93444823100 0-504-034 1

4 O-ring --- --- ---

Hexagon head bolt with

5

a cross recess

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

--- --- ---

NIPRO order

code

Minimum

order quantity

Note

With spring /
Flat washer

2.1.3-3

2.1.4 Pressure SW (PS)

Fig.2.1.4-1 Pressure SW

№ Component Code No./Requirement

Pressure SW Assy AW-3200-63-A 2-002-014 1

1 Screw --- --- ---

2 Bonnet --- --- ---
3 Spring holder --- --- ---
4 Spring --- --- ---
5 Shaft --- --- ---
6 Casing --- --- ---
7 Diaphragm D3A090 4-023-021 1
8 Valve body D3B1181 2-004-023 1

9 Screw M3×30 0-201-237 1

NIPRO

order code

Minimum order

quantity

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Note

With spring/flat
washers

With spring/flat
washers
MM3X30P4U

2.1.4-1

2.1.5. Temperature sensor Assy (T)

2.1.5.1. PT-HST-1000

Fig.2.1.5-1 Temperature sensor Assy :PT-HST-1000

No Component

Temperature sensor

Assy(PT-HST-1000)
1 T-tube 93613911100 2-004-039 1
2 Silicone tube --- --- --- φ5×φ11x40L
3 Temperature

sensor(T1.2.3)

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

SAS-08043 2-004-050 1

PT-HST-1000 0-201-054 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

2.1.5-1

2.1.5.2 PT100-HSTA-900

OR

OR

Fig.2.1.5-2 Temperature sensor Assy: PT100-HSTA-900

No Component

Temperature sensor

Assy(PT100-HSTA-900)

Teflon tube TF185 --- ---

Hose port 01930600070 0-501-116 1

Temperature sensor
2

holder -new type-

(T1.2.3)

Temperature sensor
3

(T1.2.3)

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

SAS-08044

93742513100 4-060-004 1

PT100-HSTA-900 4-060-005 1

NIPRO order

code

0-204-051

Minimum

order quantity

1 Hose port type

Production
discontinued 1

Note

2.1.5-2

2.1.6. Air bubbles detector Assy

Fig.2.1.6 Air bubbles detector Assy

No. Component

Air bubbles sensor Assy SAS-08045 0-204-049 1
1 Cover --- --- ---
2 Pusher --- --- ---
3 Base --- --- ---
4 Screw --- --- ---
5 Screw --- --- ---
6 Spring --- --- ---
7 Packing 93446315100 0-204-038 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

2.1.6-1

2.2 Output components

2.2.1 Two way electromagnetic valve:
AV-3202-318-SC (V2/V3/V12/V13/V14 (V15/V17))

Fig.2.2.1-1 Two way electromagnetic valve

№ Component

Two way

electromagnetic valve
1 Actuator Assy --- --- ---
2 Spring --- --- ---
3 Diaphragm holder --- --- ---
4 Plunger

Plunger
5

Assy
6

7 Spacer --- --- --- Valve body Assy
8 Valve body --- --- --- Valve body Assy
9 Screw M3X12 0-201-190 1 MM3x12P4

10 Nut --- --- --- Valve body Assy

Valve body Assy D3Y230 0-201-006 1 No. 7, 8 and 10

Diaphragm 0-201-005
Seat

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

AV-3202-318-SC 0-201-003 1

D3Y180

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

1

Note

Named Plunger Assy
Disassemble not
allowed

2.2.1-1

2.2.2 Two way electromagnetic valve: (V4/V11)

2.2.2.1 TYPE I : AV-3202-63-S (V4/V11)

Fig.2.2.2-1 Two way electromagnetic valve

No. Component

Two way

electromagnetic valve
1 Actuator Assy --- --- ---
2 Back-less pipe --- --- ---
3 Spring --- --- ---
4 Plunger --- --- ---
5 Diaphragm D3A090 4-023-021 1
6 Valve body D3B1181 2-004-021 1

7 Screw M3×25 0-201-196 1

Code

No./Requirement

AV-3202-63-S 4-023-004 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

NIPRO order

code

Minimum order

quantity

With spring/flat washer
MM3X25P4U

Note

2.2.2-1

2.2.2.2. TYPE II : SVB-2B (V4/V11)

Fig.2.2.2-2 Two way electromagnetic valve

No. Component

Two way
electromagnetic valve
Small pan head Phillips

1

screw
2 Actuator Assy --- --- ---
3 Plate -M.Killer --- --- ---
4 Tube --- --- ---
5 Spring --- --- ---
6 Plunger --- --- ---
7 Retainer --- --- ---
8 Valve diaphragm 95-A011 0-201-172 50
9 Valve body 5-A520 0-201-173 50

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

SVB-2B 0-201-171 1

Code

No./Requirement

--- --- --- With spring/flat washer

NIPRO order

code

Minimum

order quantity

Note

2.2.2-2

2.2.2.3 TYPE II: SV2-322-S (V4/V11)

Fig.2.2.2-3 Two way electromagnetic valve Type II

No Component

Two way valve TYPE II SV2-322-S 2-006-008 1
1 Actuator Assy --- --- ---
2 Core --- --- ---
3 Spring --- --- ---
4 Plunger Assy --- --- --- With pack less pipe
5 Diaphragm retainer --- --- ---
6 Diaphragm D3A540 0-501-117 1
7 Valve body D3B1810 0-501-118 1
8 Screw M3×45 0-201-228 50

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

2.2.2-3

2.2.3 Two way electromagnetic valve: (V10)

2.2.3.1 Type A AV-3202-63-SH (V10)

Fig.2.2.3-1 High vacuum electromagnetic valve Type A

№ Component

High vacuum

electromagnetic valve
1 Actuator Assy --- --- ---
2 Back-less pipe --- --- ---
3 Spring --- --- ---
4 Plunger --- --- ---
5 Diaphragm D3A090 4-023-021 1
6 Valve body D3B1180 2-004-021 1

7 Screw M3×25 0-201-196 1

AV-3202-63-SH 2-002-041 1

Code

No./Requirement

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

NIPRO order

code

Minimum

order quantity

Note

With spring/flat
washer
MM3X25P4U

2.2.3-1

2.2.3.2 Type B SAV-3202-33-SB (V10)

Fig.2.2.3-2 High vacuum electromagnetic valve Type B

No Component

Two way valve Type B SAV-3202-33-SB 0-501-001 1
1 Actuator Assy --- --- ---
2 Spring --- --- ---
3 Plunger --- --- ---
4 Diaphragm D3A240 2-006-009 1
5 Valve body D3Y290 2-006-010 1
6 Attachment base --- --- ---

Small pan head Phillips

7

screw

M3×23 0-201-229 1

Code

No./Requirement

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

NIPRO order

code

Minimum

order quantity

With spring/flat
washer
MM3X23P4U

Note

2.2.3-2

2.2.3.3 TYPE C SV2-322-S (V10)

Fig.2.2.3-3 High vacuum electromagnetic valve Type C

No Component

Two way valve Type C

(SV2-322-S)
1 Actuator Assy - -
2 Core - -
3 Spring - -
4 Plunger Assy - - With pack less pipe
5 Diaphragm retainer - -
6 Diaphragm D3A540 0-501-117 1
7 Valve body D3B1810 0-501-118 1
8 Screw M3×45 0-201-228 1

Code

No./Requirement

SV2-322-S 2-006-008 1

NIPRO order

code

Minimum

order quantity

Note

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

2.2.3-3

2.2.4 Three way electromagnetic valve: AV-3302-63-S (V5/V6/V7/V8/V9)

Fig.2.2.4-1 Three way electromagnetic valve

No Component

Three way

electromagnetic valve
1 Actuator Assy --- --- ---
2 Push rod --- --- ---
3 Diaphragm D3A090 4-023-021 1
4 Valve body D3B1190 2-004-022 1
5 Stem D3I670 4-023-073 1
6 Diaphragm D3A090 4-023-021 1
7 Spring holder --- --- ---
8 Spring --- --- ---
9 Base --- --- ---

10 Screw M3×50 0-201-199 1

AV-3302-63-S 4-023-009 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Note

With spring washer
MM3x50P2U

2.2.4-1

2.2.5 Bellowphragm pump: VCP-60（VPa/VPb）

Sensor guide rod: Pin TYPE 1

Fig.2.2.5-1a Bellowphragm pump Assy Pin Type I

No Component

Bellowphragm pump

Assy
1 Upper part of cylinder --- --- ---
2 Middle part of cylinder --- --- ---
3 Lower part of cylinder --- --- ---
4 BF diaphragm --- --- ---
5 Piston --- --- ---
6 BF diaphragm --- --- ---
7 Sensor guide rod --- --- ---
8 Rotation detection plate --- --- ---
9 Drive shaft --- --- ---

10 Photo sensor board --- --- ---
11 Water proof cover --- --- ---
12 Motor --- --- ---

Grease:

For ball and roller

bearing which made by

NOK.

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code
No./Requirement

--- --- ---

--- --- ---

NIPRO
order code

Minimum

order quantity

Note

Production
discontinued

2.2.5-1

Sensor guide rod: Plate TYPE

Fig.2.2.5-1b Bellowphragm pump Assy Plate Type

No Component

Bellowphragm pump

(Plate type)
1 Upper part of cylinder --- --- ---
2 Middle part of cylinder --- --- ---
3 Lower part of cylinder --- --- ---
4 BF diaphragm --- --- ---
5 Piston --- --- ---
6 BF diaphragm --- --- ---

7-1 Sensor guide rod --- --- ---
7-2 Sensor guide pin --- --- ---

8 Rotation detection plate --- --- ---
9 Drive shaft --- --- ---

10 Photo sensor board --- --- ---
11 Water proof cover --- --- ---
12 Motor(Revised code) --- --- ---

Grease:

For ball and roller

bearing which made by

NOK.

Code

No./Requirement

--- --- ---

--- --- ---

NIPRO order

code

Minimum

order quantity

Production
discontinued

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Note

2.2.5-2

Sensor guide rod: Pin TYPE 2

Fig.2.2.5-1c Bellowphragm pump Assy Pin Type2

No Component

Bellowphragm pump

(Pin Type 2)
1 Upper part of cylinder --- --- ---
2 Middle part of cylinder --- --- ---
3 Lower part of cylinder --- --- ---
4 BF diaphragm --- --- ---
5 Piston --- --- ---
6 BF diaphragm --- --- ---
7 Sensor guide rod --- --- ---
8 Rotation detection plate --- --- ---
9 Drive shaft --- --- ---

10 Photo sensor board --- --- ---
11 Water proof cover --- --- ---
12 Motor(Revised code) --- --- ---
13 Green label --- --- ---

Grease:

For ball and roller

bearing which made by

NOK.

Code

No./Requirement

--- --- ---

--- --- ---

NIPRO order

code

Minimum

order quantity

Production
discontinued

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Note

2.2.5-3

Sensor guide rod : Pin TYPE 3

Fig.2.2.5-1d Bellowphragm pump Assy Pin Type 3

No Component

Bellowphragm pump VCP-60 0-203-001 1

1 Upper part of cylinder --- --- ---
2 Middle part of cylinder --- --- ---
3 Lower part of cylinder --- --- ---
4 BF diaphragm --- --- ---
5 Piston --- --- ---
6 BF diaphragm --- --- ---
7 Sensor guide rod --- --- ---
8 Rotation detection plate --- --- ---
9 Drive shaft --- --- ---

10 Photo sensor board SBY0176 0-501-131 1
11 Water proof cover 01930600092 0-202-158 1
12 Motor(Revised code) KL56LM4-012 0-203-030 1

Grease:

For ball and roller

bearing which made by

NOK.

Code

No./Requirement

--- --- ---

NIPRO order

code

Minimum

order quantity

Note

Manufactured by
Shibuya (compatible
with old pump)

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

2.2.5-4

2.2.6 Blood pump Assy (BP/BPC)

Fig.2.2.6-1 Blood pump Assy

2.2.6-1

2.2.6.1. Type M3

No Component

Blood pump Assy --- --- --- Type M3

BP roller Assy SAS-10001 0-204-015 1 No6x1 + No14x2
1 Cover 93146123114 0-204-010 1 Metal plate inserted
2 Hinge shaft 91936116010 0-204-011 1
3 Shaft A 93146117185 0-204-012 1
4 Shaft B 93146119102 0-204-013 1
5 BP rotor(For M3 type) --- --- --- M3
6 Roller 01930100175 0-204-080 1
7 Housing 93446111100 0-204-016 1 Including No24x2
8 Rubber cap 93146127100 0-204-017 1
9 Packing 93146128197 0-204-018 1

10 Rubber sheet cover 93146112001 0-204-019 1
11 Magnet BKT (2) 93146129219 0-204-020 1
12 Pin 93146113237 0-204-021 1
13 Brush-less DC motor FE6PF10G-314 0-204-022 1
14 Bearing DDL-1470ZZ 0-204-070 1

15 Limit SW --- --- ---

Small pan head Phillips

16

screw
Small pan head Phillips

17

screw
Small pan head Phillips

18

screw
Small pan head Phillips

19

screw
Small pan head Phillips

20

screw
Set screw with

21

hexagonal cavity
Set screw with

22

hexagonal cavity
Set screw with

23

hexagonal cavity
24 Guide B --- --- ---
25 Ring type magnet φ14×φ4×3 0-204-024 1
26 Magnet holder 93386121120 0-204-025 1
27 E-ring E-5 0-204-026 1 SUS304
28 Seal 91936121010 0-000-042 1

Small pan head Phillips
29

screw
30 Receiver metal --- --- ---

Set screw with
31

hexagonal cavity
32 Guide --- --- ---
33 Cover --- --- --- Order No1 Cover

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

M5×25

M5×12

M2.3×12

M3×8

M5×15

M4×12

M3×4

M3×4

M6×10

Code

No./Requirement

--- --- --- Attached with motor

NIPRO order

code

0-201-093

0-201-094

0-201-096

0-201-091

0-201-098

0-201-099

0-201-175

0-201-097

0-204-077

Minimum

order quantity

Attached with
harness.

1 SUS304

1 SUS304

1

1

1 SUS304

1

1

1 SUS304

1 SUS304

Note

2.2.6-2

2.2.6.2. Type M4

No Component

Blood pump Assy SAS-08047 0-204-009 1 Type M4

BP roller Assy SAS-10001 0-204-015 1 No6x1 + No14x2
1 Cover 93146123114 0-204-010 1 Metal plate inserted
2 Hinge shaft 91936116010 0-204-011 1
3 Shaft A 93146117185 0-204-012 1
4 Shaft B 93146119102 0-204-013 1
5 BP rotor(For M4 type) 93146116287 0-204-014 1
6 Roller 01930100175 0-204-015 1
7 Housing 93446111100 0-204-016 1 Including No24x2
8 Rubber cap 93146127100 0-204-017 1
9 Packing 93146128197 0-204-018 1

10 Rubber sheet cover 93146112001 0-204-019 1
11 Magnet BKT (2) 93146129219 0-204-020 1
12 Pin 93146113237 0-204-021 1
13 Brush-less DC motor FE6PF10G-314 0-204-022 1
14 Bearing DDl-1470ZZ 0-204-070 1
15 Limit SW --- --- --- Attached with harness.

Small pan head Phillips

16

screw
Small pan head Phillips

17

screw
Small pan head Phillips

18

screw
Small pan head Phillips

19

screw
Small pan head Phillips

20

screw
Set screw with

21

hexagonal cavity
Set screw with

22

hexagonal cavity
Set screw with

23

hexagonal cavity
24 Guide B --- --- ---
25 Ring type magnet φ14×φ4×3 0-204-024 1
26 Magnet holder 93386121120 0-204-025 1
27 E-ring E-5 0-204-026 1 SUS304
28 Seal 91936121010 0-000-042 1

Small pan head Phillips
29

screw
30 Receiver metal --- --- ---

Set screw with
31

hexagonal cavity
32 Guide --- --- ---
33 Cover --- --- --- Order No1 Cover

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

M5×25 0-201-093 1 SUS304

M5×12 0-201-094 1 SUS304

M2.3×12 0-201-096 1

M3×8 0-201-091 1

M5×15 0-201-098 1 SUS304

M4×12 0-201-099 1

M4×4 0-201-242 1

M3×4 0-201-097 1 SUS304

M6×10 0-204-077 1 SUS304

Code

No./Requirement

--- --- ---

NIPRO order

code

Minimum
order quantity

Note

Attached with motor

2.2.6-3

2.2.7 P1/P2

2.2.7.1 TYPE I : Micro gear pump Assy

Fig.2.2.7-1 Micro gear pump Assy

2.2.7-1

No Component

Micro gear pump Assy --- --- --- AC230V, Production

Micro gear pump Assy --- --- --- AC110V, Production

Spare kit for Maruyama

Pump
1 Gear casing --- --- ---
2 Mounting disk --- --- ---
3 End disk --- --- ---
4 Back casing --- --- ---
5 Inner magnet --- --- ---
6 Outer magnet --- --- ---
7 Mounting plate --- --- ---
8 Drive gear shaft --- --- ---
9 Counter gear shaft --- --- ---

10 Drive gear --- --- ---
11 Counter gear --- --- ---
12 Spring --- --- ---
13 Teflon seal --- --- ---
14 Gasket --- --- ---
15 Motor flange --- --- ---
16 Set screw with

hexagonal cavity

17 Small pan head Phillips

screw

18 Small pan head Phillips

screw

19 Small pan head Phillips

screw

20 Motor --- --- ---
21 Hexagon headed bolt --- --- ---
22 Spring washer --- --- ---
23 Crown washer --- --- ---
24 Small pan head Phillips

screw

25 Insulation collar --- --- ---
26 Spring washer --- --- ---
27 Capacitor cover --- --- ---
28 Small pan head Phillips

screw

29 Capacitor --- --- ---
30 Soundproof sheet --- --- ---
31 Small pan head Phillips

screw

32 Hose port --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

--- --- --- Set of No.10, 11,13

--- --- ---

--- --- ---

--- --- ---

--- --- ---

--- --- ---

--- --- ---

--- --- ---

NIPRO order

code

Minimum

order quantity

Note

discontinued

discontinued

etc.

2.2.7-2

2.2.7.2. TYPE II : Magnet gear pump Assy

Fig.2.2.7-2 Magnet gear pump Assy

2.2.7-3

No Component Code No./Requirement

Magnet gear pump for
TYPE II (AC230V)

Magnet gear pump for
TYPE II (AC110V)

Magnet gear pump
Assy for TYPE II
(AC230V)

Magnet gear pump
Assy for TYPE II
(AC110V)

1 Motor for 230V For MDG-R2RA230-33

1 Motor for 110V For MDG-R2RA115-32 0-201-163 1 For AC110V
2 Magnet ring
5 Rear casing
6 Magnet can
7 Mounting plate
8 Bracket

9 Drive gear SK-R2N Included in spare kit
10 Slave gear SK-R2N Included in spare kit
11 Gear case
12 Flat pin MDG0528
13 Front bearing SK-R2N Included in spare kit
14 Rear bearing SK-R2N Included in spare kit
15 Front plate SK-R2N Included in spare kit
16 Rear plate SK-R2N Included in spare kit
17 Pump top body
18 Gasket A SK-R2N Included in spare kit
19 Gasket B
20 Packing B
21 Packing C
22 Retinas spring
23 O-ring SK-R2N Included in spare kit
31 Name plate
32 Small screw M3×20

35 Small screw M3×16
36 Small screw M3×8
37 Hose port #9193 42 12 002 3 4-023-030 1

Spare kit SK-R2N

Casing Pump head Without No.1,31,37
Bracket set 0-201-168 1
Cushion 0193 96 00 018 0 0-201-169 1
Pump Bracket 9344 26 15 130 0 0-201-170 1
Hexagon headed

Phillips screw with
washer

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

MDG-R2RA230-33

MDG-R2RA115-32

MDG-R2RA230-33 etc

MDG-R2RA115-32 etc

M4×25

NIPRO order

code

0-201-101

4-030-020

Minimum
order quantity

For AC230V
Without hose port,
shock rubber and
bracket.
For AC110V
Without hose port,
shock rubber and
bracket.
For AC230V
Aseembled with hose
port, shock rubber and
bracket.
For AC110V
Aseembled with hose
port, shock rubber and
bracket.

1 For AC230V

SW/PW 付

1 No.9,10,13,14,15,16,1

8,23

Note

2.2.7-4

№

1 Motor for 230V 1430089800 0-201-101 1 For 230V

2 Clip for magnet MDG0519 0-501-131 1

5 Rear casing - - -

6 Magnet can - - -

7

8 Bracket - - -

9 Drive gear - - -

10 Slave gear - - -

11 Gear case - - -

12 Locate pin MDG0528 0-201-238 1

13 Front bearing - - -

14 Rear bearing - - -

15 Front plate - - -

16 Rear plate - - -

17 Pump head - - -

18 Gasket A - - -

19 Gasket B - - -

20 Packing B - - -

21 Packing C - - -

22 Retainer spring - - -

23 O ring - - -

31 Name plate - - -

32 Small screw - - -

35 Small screw - - -

36 Small screw - - -

37 Hose port 93742611001 4-023-030 1

Component

Mounting plate

Magnet gear pump
for TYPE II
A(AC231V)

MDG-R2RA230-33 0-201-237 1

MDG-R2RA115-32 - -

Code

No./Requirement

- - -

NIPRO

order code

Minimum

order

quantity

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

Special order product

Discontinued

Note

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

№

Casing Pump head For MDG-R2RA 0-201-167 1 Exclude No.1 and 37

Component

Spare kit for
MDG-R2RA230-33/11
5-32

SK-R2N 4-030-020 1

Code

No./Requirement

NIPRO

order code

Minimum

order

quantity

This kit contains
No. 9,10,13,14,15,16,
18,23

2.2.7-5

Note

2.2.7.3 TYPE II : Magnet gear pump (Type A)

Fig.2.2.7-3 Magnet gear pump Assy Type A

2.2.7-6

№

Component

Code

No./Requirement

NIPRO

order code

Minimum

order

quantity

Note

1 Motor

2 Magnet ring MDG0519 0-501-131 1

Rear casing

5

Magnet can

6

Mounting plate

7

Bracket

8

Drive gear

9

Slave gear

10

Gear case

11

Flat pin

12

Front bearing

13

Rear bearing

14

Front plate

15

Rear plate

16

Pump top body

17

Gasket A

18

Gasket B

19

Packing B

20

Packing C

21

Retinas spring

22

O-ring

23

Name plate

31

Small screw

32

Small screw

35

Small screw

36

37 Hose port 93742611001 4-023-030 1

Magnet gear pump

1430089800 0-201-101 1 For 230V

1430089900 0-201-163 1 For 110V

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

- - -

MDG-R2RA230-33A 0-201-075

MDG-R2RA115-32A 0-201-076

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

Included in spare kit

1

1

For 230V

For 110V

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

№

Spare kit SK-R2N-34A 4-030-020 1

Casing Pump head For MDG-R2RA 0-201-167 1 Exclude No.1,37

Component

Code

No./Requirement

NIPRO

order code

Minimum

order

quantity

This kit contains
No. 9,10,13,14,15,16,
18,23

2.2.7-7

Note

2.2.8 Venous clamp Assy (CLV)

Fig.2.2.8-1 Venous clamp Assy

2.2.8-1

No Component

Venous clamp Assy SAS-08048 0-204-028 1
1 Solenoid BKT 93446211002 0-204-029 1
2 Solenoid base 93446212100 0-204-030 1
3 Head guide 93146223232 0-204-031 1
4 Clamp guide 93446214002 0-204-032 1
5 Head 93446215002 0-204-033 1
6 Solenoid RGY-AC0505DNP 0-204-034 1
7 O-ring P6 0-204-035 1 VMQ
8 Spring №1112 0-204-036 1

9 Hexagon headed bolt M3×8 0-201-117 1

Small pan head Phillips

10

screw
Small pan head Phillips

11

screw
12 Hexagon nut M5 0-201-119 1
13 Hexagon headed bolt M3×20 0-201-120 1 SUS304
14 Hexagon nut M3 0-201-121 1
15 Sensor plate 93146216001 0-204-037 1

Small pan head Phillips
16

screw
17 Hexagon headed bolt M3×10 0-201-122 1 SUS304
18 Hexagon nut M3 0-201-121 1

19 Limit SW --- --- ---

Small pan head Phillips
20

screw

Small pan head Phillips
21

screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

M3×6 0-201-095 1

M4×6 0-201-118 1

M3×6 0-201-087 1

M2.3×12 0-201-096 1

M5×10 0-201-125 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

With spring/flat
washers , SUS304

With spring washer,
SUS304

Attached to the
harness

2.2.8-2

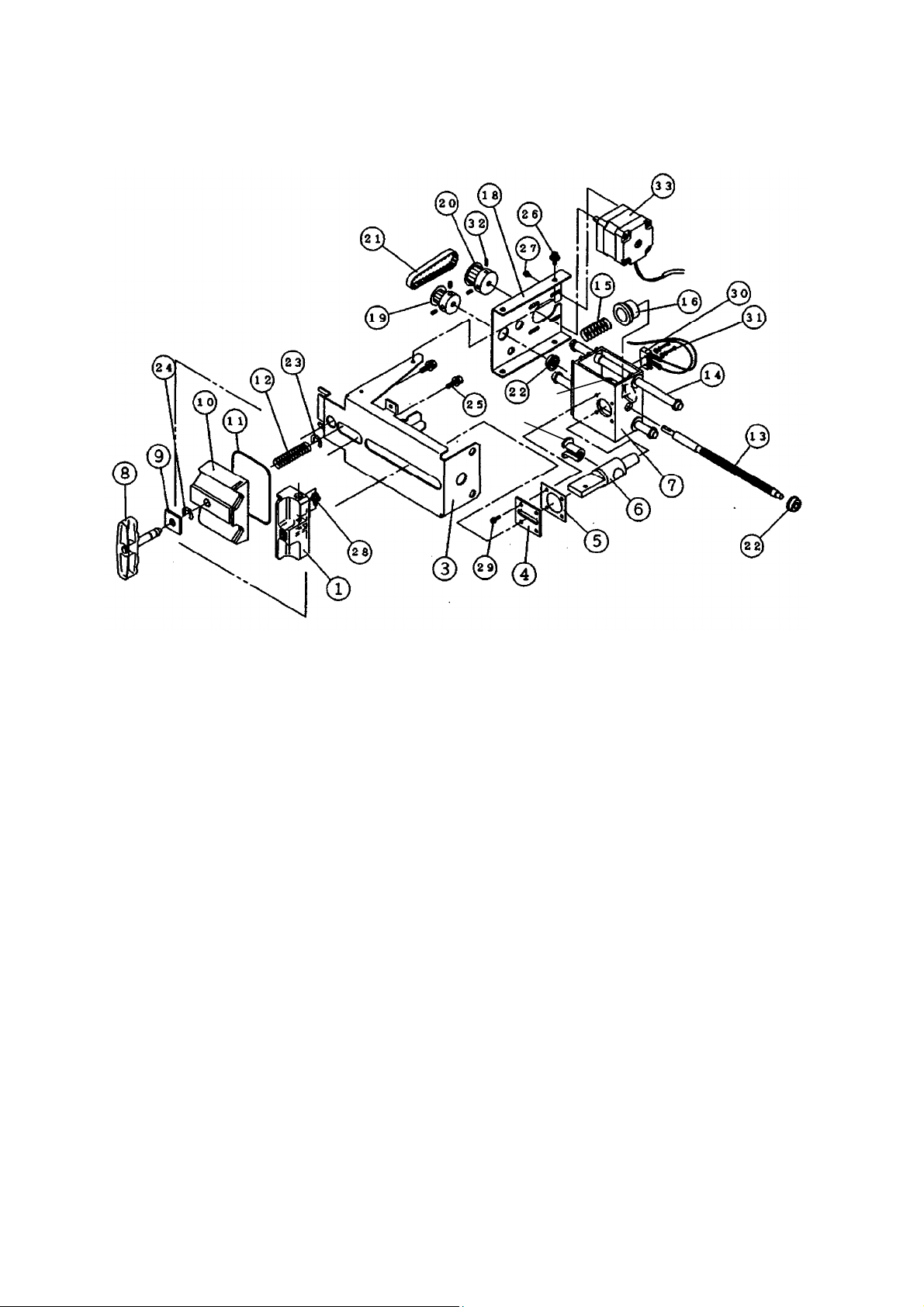

2.2.9. Syringe pump Assy (SP)



Fig.2.2.9-1 Syringe pump Assy



2.2.9-1

No Component Code No./Requirement

Syringe pump Assy 93446500 0-204-038 1
1 Pusher 93146511002 0-204-045 1
3 Chassis 93449014100 0-204-053 1
4 Plate 93536520144 0-204-054 1
5 Plate2 91936527010 0-204-055 1
6 Shaft 93449019002 0-204-056 1
7 Housing 93536516100 0-204-057 1
8 Syringe retainer 93536513100 4-024-062 1
9 Rubber plate 93536525100 0-201-203 1

10 Syringe base 93146538001 0-201-204 1
11 Packing 93146537197 0-204-058 1
12 Lock spring 93146528001 0-201-205 1
13 Feed screw 93146517001 0-204-059 1
14 Guide shaft 91936515010 0-204-060 1
15 Clutch spring 91936523010 0-204-061 1
16 Spring case 93146521251 0-204-062 1
17 Half nut 91936519010 0-204-063 1
18 Motor plate 93886515100 0-204-064 1
19 Pulley 12XL037 0-504-063 1
20 Pulley D 10XL037 0-504-062 1
21 Timing belt 70-XL-025U 0-204-043 1
22 Bearing RF-1450ZZ 0-504-076 1
23 E Ring E-6 0-201-206 1 SUS304
24 E Ring E-6 0-201-206 1 SUS304

Small hexagonal head

25

Phillips bolt
Small hexagonal head

26

Phillips bolt

27 Small pan head Phillips

screw

28 Small hexagonal head

Phillips bolt

29 Small pan head Phillips

screw
30 Limit SW --- --- --­31 Small pan head Phillips

screw
32 Set screw with

hexagonal cavity
33 Stepping motor KT42JM4-004 4-028-013 1
34 Nut 93886523001 0-204-069 1

M5×12 0-204-065 1

M4×10 0-204-066 1

M3×8 0-204-067 1

M4×10 0-204-066 1

M3×10 0-204-068 1

M2.3×12 0-201-096 1

M4×6 0-504-065 1 SUS304

NIPRO order

code

Minimum
order quantity

Attached to the
harness

Note

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

2.2.9-2

2.2.10. Heater (H1/H2)

Fig2.2.10 Heater Assy

No Component

N96241501 0-201-312 1

1 Heater

N96241601 0-201-313 1

2 Thermostat 03EP-151064-60/50 0-201-314 1

Small pan head Phillips

3

screw
4 Heater Bracket 93442511102 0-201-316 1
5 Hexagon headed bolt M5×10 0-201-317 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

M3×6 0-201-315 1 SUS

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

For 230V,
w/o thermostat
For 110V,
w/o thermostat

2.2.10-1

2.3 Other components

2.3.1 Deaeration bath Assy (AS1)

Fig.2.3.1-1 Deaeration bath Assy

No Component

Deaeration bath Assy 93442300 0-201-009 1
1 Casing (1) 91933411006 0-201-010 1
2 Casing (2)-L 91933412006 0-201-011 1
3 Float 93442313115 0-201-012 1
4 Metal mesh 91933015002 0-201-013 1
5 O-ring G50 9-001-121 1 Viton rubber

Small pan head Phillips

6

screw
7 Hexagon nut M4 0-201-127 1
8 Flat washer M4 0-201-132 1

Small truss Phillips
9

screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

M4×15 0-201-126 1 SUS304

M4×8 0-201-070 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

With Nylon washer,
SUS304

2.3.1-1

2.3.2. Deaeration bath Assy (AS2)

Fig.2.3.2-1 Deaeration bath AS2 Assy

№ Component

Deaeration bath AS2

Assy

1 Casing 93312412134 0-201-015 1
2 Casing (1) 91933411006 0-201-010 1
3 Packing 01930200088 0-201-016 1
4 Mesh 01930200089 0-501-030 1
5 Metal mesh 91933015002 0-201-013 1
6 Plate 01939700069 0-201-017 1
7 O-ring G50 9-001-121 1 Viton rubber
8 Float SW OLV-2P-1 0-201-018 1

Small pan head Phillips

9

screw

10 Hexagon nut M4 0-201-127 1

Small truss Phillips

11

screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component

93442400 0-201-014 1

M4×20 0-201-133 1

M4×8 0-201-070 1

Code

No./Requirement

NIPRO order

code

Minimum
order quantity

Note

SUS304

With Nylon washer,
SUS304

2.3.2-1

2.3.3 Buffer tank W Assy (BTW)

Fig.2.3.3-1 Buffer tank W Assy

№ Component

Buffer tank W Assy 93443500 0-201-019 1
1 Lower tank 91936937004 0-201-020 1
2 Upper tank (B) 91936955004 0-201-021 1
3 BTW bracket 93443513100 0-201-022 1
4 O-ring G70 9-001-123 1 Viton

Small pan head

5

Phillips screw

6 Hexagon nut M4 0-201-127 1

Hexagon headed

7

Phillips bolt
Hexagon headed

8

Phillips bolt

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code
No./Requirement

M4×15 0-201-126 1 SUS304

M4×10 0-201-128 1

M4×10 0-201-128 1

NIPRO order

code

Minimum
order quantity

Note

2.3.3-1

2.3.4 Buffer tank D Assy (BTD1/BTD2)

Fig.2.3.4-1 Buffer tank D Assy

No Component

Buffer tank D Assy 93444500 0-201-023 1
1 Lower tank 91936937004 0-201-020 1
2 Upper tank (A) 91936936004 0-201-024 1
3 BTD bracket 93444514100 0-201-025 1
4 O-ring G70 9-001-123 1 Viton

Small pan head Phillips

5

screw

6 Hexagon nut M4 0-201-127 1

Hexagon headed

7

Phillips screw
Small truss Phillips

8

screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

M4×15 0-201-126 1

M4×10 0-201-128 1

M4×8 0-201-070 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

SUS304

With spring/flat
washers
With Nylon washer,
SUS304

Note

2.3.4-1

2.3.5. Check valve

2.3.5.1. Dialysate check valve : #919342300041(AC-2200-55-S) (C1)

Fig.2.3.5-1 Dialysate check valve

No Component

C1 Dialysate check

valve S
1 Body ACB060 0-501-173 1
2 Seat holder ACY04 0 0-501-174 1 Check valve seat Assy
3 Spring ACK290 0-201-232 1 Check valve se at Assy
3 Lock nut --- --- ---
4 O-ring P9DC 0-201-222 1
6 Sub-body --- --- ---

Lock nut & Sub-body

set

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

AC-2200-55-S 0-201-026 1

ACY050

Code

No./Requirement

NIPRO order

code

0-201-231 1

Minimum

order quantity

Note

* No 4 and 6

2.3.5-1

2.3.5.2. Viscous pump check valve (C2)

AC-2200-53-S

Fig.2.3.5-2 Viscous pump check valve

No Component

Viscous pump check

valve

1 Casing --- --- ---
2 Diaphragm --- --- ---
3 Spring receiver --- --- ---
4 Spring --- --- ---
5 Valve body --- --- ---
6 Hose port --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

--- --- ---

NIPRO order

code

Minimum

order quantity

Note

Production
discontiunied

2.3.5-2

AC-4200-53-A

OUT

VP から

Fig.2.3.5-3 Viscous pump check valve

No Component

Viscous pump check

valve
1 Body ACB260 0-201-233 1
2 Sheet
3 Sheet holder
4 Spring ACK160 0-201-234 1
5 O-ring P9DC 0-201-222 1
6 Nut
7 Sub body
8 Face plate --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

AC-4200-53-A 0-201-027 1

ACY040 0-501-174 1

ACY050 0-201-231 1 Sub bod y Assy

Code

No./Requirement

NIPRO order

code

Minimum order

quantity

IN

Note

Check Sheet Assy

2.3.5-3

2.3.1 Filter

2.3.6.1 Supply water filter (F)

Material; Polypropylene

Fig.2.3.6-1 Supply water filter, Polypropylene

No Component

Supply water filter assy --- --- ---
1 Cap --- --- ---
2 Mesh 91934222002 2-002-051 1
3 Packing 93142017002 4-025-032 1
4 Filter CF200 4-005-050 1
5 Body --- --- ---
6 Arrow mark seal --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

2.3.6-1

GVS Filter

Fig.2.3.6-2 GVS Filter

No Component

Water supply GVS filter

(F / F7)
1 Cap 93619318100 0-201-210 1
2 Hose port 93619319100 0-201-212 1
3 Packing 01939900124 4-030-066 1
4 Filter FI116ATERP265A00 0-201-213 1
5 Body 93619320100 0-201-211 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

93532000 4-030-060 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

2.3.6-2

2.3.6.2. Coupler line filter (F7)
GVS filter

Fig.2.3.6-3 GVS Filter

No Component

Water supply GVS filter

(F / F7)
1 Cap 93619318100 0-201-210 1
2 Hose port 93619319100 0-201-212 1
3 Packing 01939900124 4-030-066 1
4 Filter FI116ATERP265A00 0-201-213 1
5 Body 93619320100 0-201-211 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

93532000 4-030-060 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

CL filter

Note

No Component

Water supply CL filter

(F7)

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Fig.2.3.6-4 CL filter

Code

No./Requirement

SSM-3010 0-501-112 1

NIPRO order

code

Minimum

order quantity

Note

2.3.6-3

2.3.7 Flow meter Assy (FM/FS)

2.3.7.1 A-Type

Fig.2.3.7-1 Flow meter Assy

No Component

Flow meter Assy SAS-08050 0-201-053 1
1 Flow meter SI-1AC 0-000-107 1 FM
2 L-shaped hose port 93283912001 0-201-002 1
3 Hose port 93742611001 4-023-030 1
4 FM Bracket 93443113003 0-201-032 1

Small pan head Phillips

5

screw

6 Photo-micro sensor EE-SPY-412 0-000-111 1 FS

Hexagon headed Phillips

7

screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

M3×6 0-201-087 1

M3×16 0-201-090 1

Code

No./Requirement

NIPRO order

code

Minimum order

quantity

Note

2.3.7-1

2.3.7.2 B TYPE

Fig2.3.7-2 Flow meter Assy B type

No Component

Flow meter Assy

(FM/FS) B type
1 Flow meter SI-6 0-504-153 1 FM
2 FM Bracket 93443114100 0-201-235 1

Hexagon headed
3

Phillips screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

93443100 0-201-221 1

M4☓10 0-201-128 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

2.3.7-2

2.3.8 Pressure regulator Assy (PR)

RW83 type

Fig.2.3.8-1 Pressure regulator RW83

№ Component

Pressure regulator Assy --- --- ---

1 Pressure regulator --- --- ---
2 Flange 93442113002 0-201-034 1
3 PR hose port 93282116113 0-201-035 1
4 Hose port 93312116129 0-201-036 1

5 Small truss Phillips screw M4×8 0-201-070 1

Code
No./Requirement

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

NIPRO order

code

Minimum order

quantity

Production
discontinued

With Nylon washer,
SUS304

Note

2.3.8-1

ERO884ZBS8

Fig.2.3.8-2 Pressure regulator ER0884ZBS8

No Component

Pressure regulator

Assy
1 Pressure regulator ER0884ZBS8 2-002-038 1
2 Flange 93442113002 0-201-034 1
3 PR hose port 93282116113 0-201-035 1
4 Hose port 93312116129 0-201-036 1

Small truss Phillips
5

screw

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

93442100 0-201-033 1

M4×8 0-201-070 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

With a nylon washer,
SUS304

Note

2.3.8-2

2.3.9 Relief valve

2.3.9.1 Relief valve 1 & 2: Type I AC-2200-55-TA / AC-2200-55-P (RV1/RV2)
Type II AC-2200-53B (RV1/RV2)

Fig 2.3.9-1 Relief valve 1 and 2

No Component

Relief valve 1 & 2 Assy

1 Body ACB060 0-501-173 1
2 Seat holder/ Seat ACY040 0-501-174 1 Check seat Assy

3 Spring

4 Lock nut - - -
5 O-ring P9DC 0-201-222 1
6 Sub-body - - -

Lock nut/ Sub-body

Assy

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code
No./Requirement

AC-2200-55-TA --- --­AC-2200-55-P --- --­AC-2200-53B 4-042-011 1

ACK330 0-201-236 1 For AC-2200-55-TA
ACK160 0-201-234 1 For AC-2200-55-P
ACK420 0-501-175 1 For AC-2200-53B

ACY050

NIPRO order

code

0-201-231

Minimum

order quantity

1

Note

Production
discontinued

No 4 and 6

2.3.9-1

2.3.9.2 Relief valve 3: AC-3200-63H-T (RV3)

Fig. 2.3.9-2 Relief valve 3

No Component

Relief valve 3 Assy AC-3200-63H-T 0-20 1-038 1
1 Valve body ACB220 0-101-105 1
2 Seat --- --- ---
3 Packing ACL040 0-101-107 1
4 Seat holder --- --- ---
5 Spring ACK330 0-201-236 1
6 Lock nut --- --- ---
7 Casing --- --- ---
8 Name plate --- --- ---

Seat/ Seat holder Assy ACY06 0 0-501-177 1 No 2 and 4

Case Assy ACY070 0-501-178 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code
No./Requirement

NIPRO order

code

Minimum

order quantity

Note

2.3.9-2

2.3.9.3 Relief valve 4 (RV4)

AC-4200-53-S

From V2

To chamber

Fig.2.3.9.3 Relief valve 4

No Component

Relief valve 4 Assy

(RV4)
1 Body --- --- ---
2 Seat
3 Seat holder
4 Spring --- --- ---
5 O-ring --- --- ---
6 Nut
7 Sub-body
8 Name plate 93742611001 0-504-119 1 PT1/8

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

--- --- ---

---

---

--- --- ---

NIPRO order

code

---

---

Minimum

order quantity

---

---

Production
discontinued

Check seat Assy

Sub-body Assy

Note

2.3.9-3

AC-4200-53-SA

No Component

Relief valve 4 Assy

(RV4)
1 Body ACB260 0-201-233 1
2 Seat
3 Seat holder
4 Spring ACK160 0-201-234 1
5 O-ring P9DC 0-201-222 1
6 Nut
7 Sub-body
8 Name plate --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code
No./Requirement

AC-4200-53-SA 0-201-207 1

ACY040 0-501-174 1 Check se at Assy

ACY050 0-201-231 1 Sub-body Assy

From V2

Fig.2.3.9-4 Relief valve 4

NIPRO order

code

To chamber

Minimum

order quantity

Note

2.3.9-4

2.3.10 Sample port Assy (SL)

Sample port

Sample port

Fig. 2.3.10-1 Sample port Assy

No Component

Sample port Assy 93443400 0-201-039 1

1 Packing 93313418100 0-201-040 1
2 Bracket 93443416100 0-201-041 1

Small pan head Phillips

3

screw

4 Syringe holder 01930400085 0-201-042 1
5 Packing (B) 01939800472 0-000-060 1
6 Valve 90403411001 0-201-043 1
7 Spring 91938867004 2-002-063 1
8 Body 01930400069 0-201-044 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

M3×6 0-201-087 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

No.1,2 and 3 are not
included.

With spring/flat
washers

2.3.10-1

2.3.11 Chamber Assy (VCa / VCb)

2.3.11.1 Chamber Assy

Fig. 2.3.11-1 Chamber Assy (Overall)

2.3.11-1

No Component

Chamber Assy 0-203-003 1
1 Chamber frame #9344 10 11 100 1 0-203-004
2 Rubber sheet #9314 10 36 001 0 0-203-005
3 Sheet #9331 10 28 002 0 0-203-006
4 Bellowphragm pump VCP-60 0-203-001
5 T-pipe #9361 39 11 100 0-203-007
6 Plug #9193 11 11 0100 0-203-008

Polyurethane tube US code 15-10 0-203-009 Yellow

7

Polyurethane tube US code 25-10 0-203-031 Clear

Snapper SNP-4 0-203-010

8

Tube Code 26 Blue
Hexagon head Phillips

9

bolt

10 T-pipe 198-19-21-02E φ6 0-203-011

11 Silicone tube φ1×φ3 2-002-071

12 Snapper SNP1.510C2 0-203-029
13 Nylon string T18R 0-201-131

Hexagon head Phillips

14

bolt
Hexagon head Phillips

15

bolt

Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code
No./Requirement

M4×12

M4×10 0-201-132

M4×10 0-201-133

NIPRO order

code

0-201-130

Minimum

order quantity

Note

White

With spring/flat
washers

Φ3xφ6x80L
Φ3xφ6x190L
Φ3xφ6x1300L

With spring/flat
washers
With spring/flat
washers

2.3.11-2

№

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

Component

Chamber Assy

Chamber frame

Rubber sheet

Sheet

Bellowphragm pump

T-pipe

Plug

Polyurethane tube

Polyurethane tube

Snapper

Tube

Hexagon head Phillips
bolt

T-pipe

Silicone tube

Snapper

Nylon string

Hexagon head Phillips
bolt
Hexagon head Phillips
bolt

Code
No./Requirement

93441000 0-203-003 1

- - -

- - -

- - -

-

- - -

- - -

- - - Yellow

- - - Clear

- - - White

- - - Blue

-

- - -

-

- - -

- - -

-

-

NIPRO

order code

-

-

-

-

-

Minimum

order

quantity

-

-

-

-

-

Note

See 2.2.5. Bellowphragm

pump

φ3×φ6×80L
φ3×φ6×190L
φ3×φ6×300L

With spring/flat washers

With spring/flat washers

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

2.3.11-3

2.3.11.2 Chamber Assy (Viscous chamber)

Fig. 2.3.11-2 Chamber Assy

2.3.11-4

No Component

1 Diaphragm --- --- ---
2 Inner spacer --- --- ---
3 Outer spacer --- --- ---
4 Chamber 93611015001 0-203-015 1 1 slit; fresh dialysate
5 Chamber 93611016001 4-025-049 1 3 slits; used dialysate
6 Silicone oil HF450-100* 4-023-031 1L
7 Clamp --- --- ---
8 Clamp fitting --- --- ---

9 Shaft --- --- ---
10 E-ring --- --- ---
11 Bolt with thrust pad --- --- ---
12 T-pipe 93441025100 4-030-104 1
13 Orifice 93311029100 0-203-023 1
14 Valve bracket 93441015002 0-203-025 1
15 Plate 93531020144 4-025-043 1
16 Hose port with flange 93531035100 4-025-033 1
17 O-ring P10 4-023-027 1

3 way electromagnetic

18

valve
Small pan head Phillips

19

screw
20 Hexagon headed bolt --- --- ---
21 Spring washer --- --- ---
22 Snapper --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

AV-3302-63-S 4-023-009 1

Code

No./Requirement

--- --- ---

NIPRO order

code

Minimum

order quantity

Note

2.3.11-5

2.3.12 Concentrate tank connectors

2.3.12.1 Concentrate tank connector (for A or B solution)

Black Female Coupler

Fig 2.3.12-1a Concentrate tank connector (for A and B solution)

No Component

Previous Concentrate

tank connector Assy for

A.

Previous Concentrate

tank connector Assy for

B.

Socket

1

(Black female coupler)

2 Silicone tube --- --- --- Φ5×φ11x50L
3 FEP tube --- --- --- Length 330L
4 Pink color tape --- --- --- For A solution
5 Orange color tape --- --- --- For B solution
6 Hose port --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

--- --- ---

--- --- ---

--- --- ---

NIPRO order

code

Minimum

order quantity

Note

Recommend New type
(0-201-151) not this
type.
Recommend New type
(0-201-152) not this
type.

２

.3.12-1

Red Female Coupler / Blue Female Coupler (Hose port separated type)

Fig 2.3.12-1b Concentrate tank connector (for A solution; Red and B solution; Blue)

No Component

Concentrate tank

connector

(For A solution)

Concentrate tank

connector

(For B solution)

Socket (Red) --- --- ---

1

Socket (Blue) --- --- ---

2 Silicone tube --- --- --- φ5×φ11×50L
3 FEP tube --- --- --- Length 330L
4 Hose port --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

Code

No./Requirement

--- --- ---

--- --- ---

NIPRO order

code

Minimum

order quantity

Note

For A solution

For B solution

２

.3.12-2

Red Female Coupler / Blue Female Coupler (Hose port unified type)

Fig.2.3.12-1c Concentrate tank connector (for A solution; Red and B solution; Blue)

No Component

Concentrate tank

connector 2 (For A

solution)

Concentrate tank

connector 2 (For B

solution)

1 Socket

2 Silicone tube --- --- --- φ5×φ11×50mm
3 FEP tube TF185 0-201-048 1 φ6×φ8×330L

SAS-08055 0-201-151 1

SAS-08056 0-201-152 1

QJ-2P-H-2, Red
silicone rubber
(Sleeve: red)
QJ-2P-H-3, Red
silicone rubber
(Sleeve: blue)

Code

No./Requirement

NIPRO order

code

0-201-217 1 For A concentrate.

0-201-218 1 For B concentrate

Minimum

order quantity

Note

Without Hose port.
Recommend New type
below.
Without Hose port.
Recommend New type
below.

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

.3.12-3 ２

2.3.12.2 Concentrate tank connector (for disinfectant solution)

Fig. 2.3.12-2 Concentrate tank connector (for disinfectant solution)

No Component

Disinfectant

Concentrate tank

connector Assy.

1 Connector holder 91936940004 2-002-068 1
2 Packing 91936944004 2-002-066 1
3 Holder base 91936941004 2-002-067 1
4 Nut 91933311010 0-000-075 1
5 Silicone tube --- --- ---
6 FEP tube TF185 0-201-048 1 Length 330L
7 Green Color seal 91935931010 0-201-052 1 Green

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

SAS-08057 0-201-051 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

２

.3.12-4

2.3.13 Rinse port

2.3.13.1 Rinse port No.1 (for A and B solution)

Fig.2.3.13-1 Rinse port No.1 (for A and B solution)

№ Component

Rinse port No.1

1 Body (Black) --- --- ---
2 O-ring QJR22 9-001-103 1
3 Washer - - -
4 Gasket QJR21 9-001-102 1
5 Valve QJT24 0-201-137 1
6 Valve spring QJS23 0-201-138 1
7 Adapter - - -

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

QJ-23P, Red silicone
rubber

Code

No./Requirement

NIPRO order

code

0-201-074 1

Minimum

order quantity

Note

2.3.13-1

2.3.13.2 Rinse port No.2 (for A and B solution)

Fig.2.3.13-2 Rinse port No.2 (for A and B solution)

No Component

Rinse port No.2 for A

solution

Rinse port No.2 for B

solution

Body for A solution --- --- --- Red
1

Body for B solution --- --- --- Blue
2 O-ring QJR22 9-001-103 1
3 Washer --- --- ---
4 Gasket QJR21 9-001-102 1
5 Valve QJT24 0-201-137 1
6 Valve spring QJS23 0-201-138 1
7 Adapter --- --- ---
8 Adapter nut --- --- ---
9 Hose port #9193 42 23 002 1 4-024-066 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

QJ-2P, NPT1/8,Red
silicone rubber
(Sleeve : Red)
QJ-2P, NPT1/8,Red
silicone rubber
(Sleeve : Blue)

Code

No./Requirement

NIPRO order

code

Please order

0-201-217

Please order

0-201-218

Minimum

order quantity

Red; A solution

1

Blue; B solution

1

Note

2.3.13-2

2.3.13.3. Rinse port 3 (for A and B solution)

Fig.2.3.13-3 Rinse port No.3 (for A and B solution)

No Component

Rinse port No.3 for A

solution

Rinse port No.3 for B

solution

Body for A solution --- --- ---
1

Body for B solution --- --- ---
2 O-ring QJR22 9-001-103 1 Red silicone rubber
3 Washer --- --- ---
4 Gasket QJR21 9-001-102 1 Red silicone rubber
5 Valve QJT24 0-201-137 1
6 Valve spring QJS23 0-201-138 1
7 Adapter --- --- ---
8 Adapter nut --- --- ---

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

QJ-2P-H-2 Red
silicone rubber
(sleeve: red)
QJ-2P-H-3 Red
silicone rubber
(sleeve: Blue)

Code

No./Requirement

NIPRO

order code

0-201-217 1

0-201-218 1

Minimum

order quantity

For A concentrate.

For B concentrate.

Note

2.3.13-3

2.3.13.4 Rinse port (For disinfectant solution)

Fig.2.3.13-4 Rinse port (For

disinfectant solution)

No Component

Rinse port Assy for

disinfectant
1 Connector holder 91936940004 2-002-068 1
2 Packing (A) 91936944004 2-002-066 1
3 Holder base 91936941004 2-002-067 1
4 Holder bracket 93313318100 0-201-238 1

5 Screw M4×8 0-201-239 1

6 Grommet 91936945004 0-101-120 1
7 Tube connector 91936939004 0-101-061 1
8 Color seal (Green) 91935925010 0-201-240 1 Green

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

SAS-08058 0-201-219 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

No.4, 5 and 6 are not
included.

With a nylon washer,
SUS304

Note

2.3.13-4

2.3.14 Dialysate coupler Assy

2.3.14.1. Type A

Fig.2.3.14-1 Dialysate coupler Assy Type A

No Component

Dialysate coupler Assy

(Only Arterial side)

Dialysate coupler Assy

(Only Bicarb side)
1 Body --- --- ---
2 --- --- --- (Red) R-φ6

Ｌ-slider

3 Stopper ring --- --- ---
4 Coil spring --- --- ---
5 Steel Ball --- --- ---
6 O-ring for coupler P12.5 4-030-052 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

(Red) R-φ6 --- --- Production discontinued

(Blue) B-φ6 --- --- Production discontinued

Code

No./Requirement

--- --- --- (Blue) B-φ6

NIPRO order

code

Minimum

order quantity

Note

2.3.14-1

2.3.14.1. Type B

Fig.2.3.14-2 Dialysate coupler Assy Type B

No Component

Dialysate coupler Assy

(Only Arterial side)

Dialysate coupler Assy

(Only Bicarb side)
1 Body 90363011001 0-501-208 1
2 Ｌ-slider R 90363014001 0-501-209 1 Red

Ｌ-slider B 90363013001 0-501-210 1 Blue

3 Stopper ring 90363012001 0-501-211 1
4 Coil spring 91933314001 0-501-212 1
5 Steel Ball MDM-3006 0-501-213 1
6 O-ring for coupler 91933312001 0-501-214 1

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

SAS-08033 0-501-206 1

SAS-08034 0-501-207 1

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Red

Blue

Note

2.3.14-2

2.3.15 Needle valve (NV1/NV2)

2.3.15.1 AM-1200-55A (#9315 27 13 120) (NV1/NV2)

Fig.2.3.15.1 Needle Valve

No Component

Needle Valve (NV1/NV2) --- --- ---
1 Body --- --- ---
2 O-ring --- --- ---
3 Stem --- --- ---
4 Guide --- --- ---
5 Case --- --- ---
6 Lock nut --- --- ---

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

2.3.15-1

2.3.15.2 SAS-08001 (NV1/NV2)

Fig.2.3.15.2 Needle Valve

No Component

Needle Valve (NV1/NV2) SAS-08001 0-501-215 1 PES
1 Body 01930700103 --- ---
2 O-ring P5 --- ---
3 Stem 01930500275 --- ---
4 Guide 01930700106 --- ---
5 Case 01930700104 --- ---
6 Lock nut 01930700105 --- ---

Code

No./Requirement

NIPRO order

code

Minimum

order quantity

Note

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

2.3.15-2

2.3.16 Other hydraulic parts

No Component

1 Hose connector

2 Silicone tube 1x3

3 T-type pipe

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

93613911100

Fig.2.3.16 Hydraulic parts

Code

No./Requirement

01930500296

-

NIPRO order

code

Minimum

order quantity

0-501-113 1

9-004-041 1

2-004-039 1

Note

φ1×φ3×150

2.3.16-1

No Component

Middle connector for
Dialysate coupler

Coupler holder 93535017100 0-201-069 1

ACETATE

CONNECTOR (MALE)
Oriffice17A 93313921100 - 1
Bypass orifice 93113922100 - 1
Pressure port 93532114100 4-030-115 1
Oriffice14A 93443918130 - 1
Shaft 01930300032 - 1
Block 01930300045 - 1
T-pipe 198-19-21-02E ﾊﾟｲ 6 0-203-011 1
Hose joint 01930200028 4-030-061 1
Cap 93315030100 - 1
Cap 93315031100 - 1
Water proof cover 93445025100 0-201-145 1
O-ring P12.5 - 1 Viton
Grommet C-30-SG-30B - 1

Air filter with cover for

SURDIAL
Button for coupler switch 93443012102 0-201-182 1
Hunger holder 01939600165 0-201-144 1 Standard, China
Pole 93445017100 0-201-143 1 Standard, China
Alarm Lamp cap 91934051004 0-201-146 1 Standard, China
Alarm lamp Assy MS-24 0-201-164 1 Standard, China
Hunger 93147222238 - 1 Taiwan
Pole A 01939900043 - 1 Taiwan

Alarm lamp MT102 (#B-046)

Plastic screw M5×9 - 1
Silicone tube Φ5×Φ11 9-004-038 1 50 Meter
Silicone tube Φ3×Φ6 2-002-071 1 50 Meter
Silicone tube Φ1×Φ3 - 1 50 Meter
Tube R-3603, Φ3×Φ5 - 1 15 Meter

93443011100

P-23P

FL8

Code

No./Requirement

NIPRO order

code

0-202-077 1

0-101-023 1

0-201-184 1

- 1 Taiwan Production

Minimum

order quantity

discontinued

Note

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

2.3.16-2

3. Electric Part

3.1 Power Box

There are FOUR different types (Type A to D) of power box.
Please read this section carefully and order the appropriate type of power box when placing the order.

To Confirm the Types of power box

Open the sides cover at the right side and you can see the label.

Label

ラベル

Type A Type B

Serial number is described by number only.

合　格

ＳＵＲＤＩＡＬ

No.000000

松下エコシステムズ(株)藤沢工場

Type C Type D
Serial number is described by alphabet,
number and “-E”.

合　　格

Serial number described by alphabet and
number.

合　　格

SURDIAL

SRD11N-H0000

（株）北計工業　開発センター

Serial number is described by alphabet,
number and “-H20”.

合　　格

SURDIAL

SRD11N-H0000-E

（株）北計工業　開発センター

SURDIAL

SRD11N-H0000-H20

（株）北計工業　開発センター

3.1-1

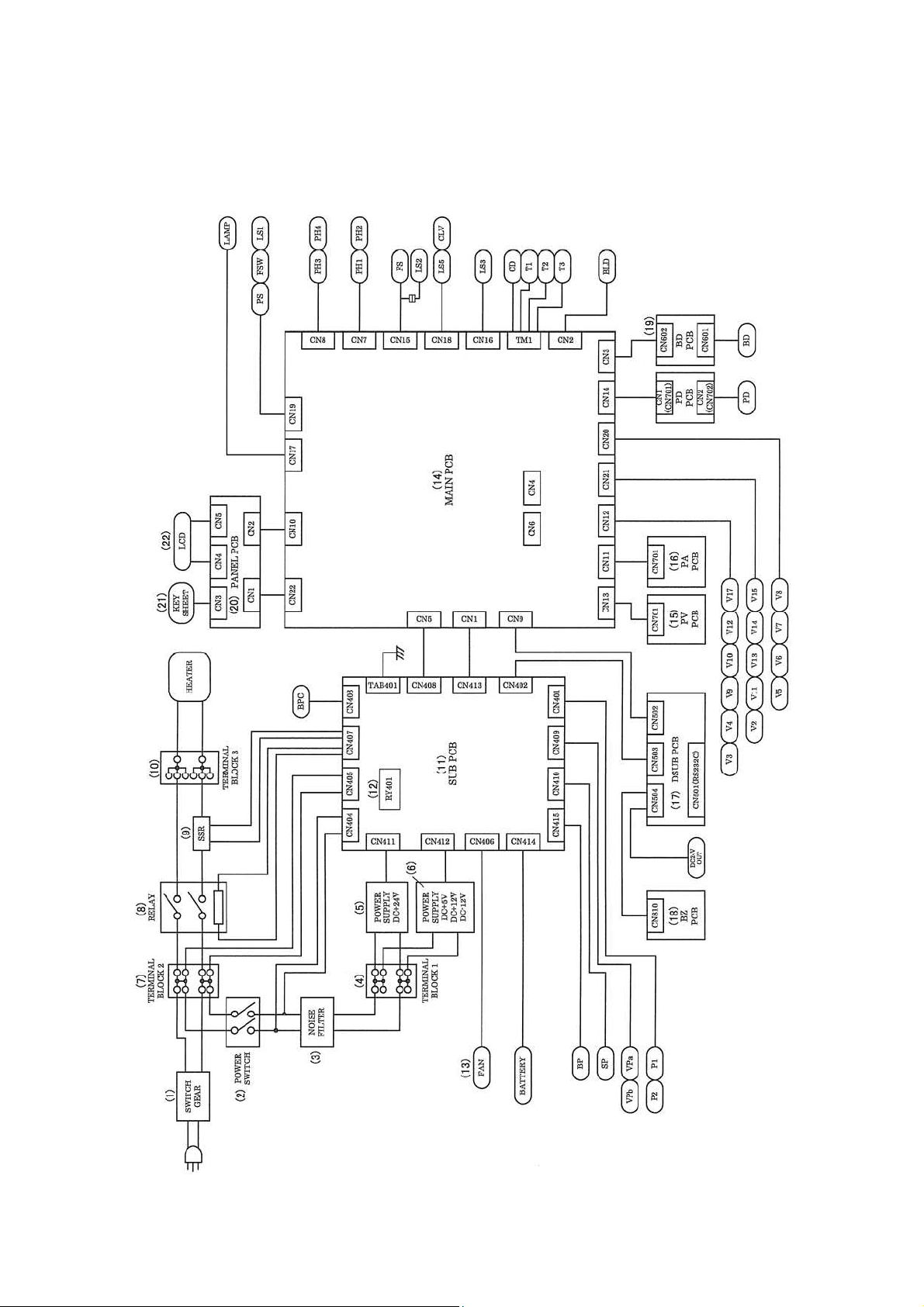

3.2 Harness

<Type A Power Box>

PH2

LAMP

FSW LS1PS

PH4

PH1

PH3

CLV

(38)

FS

LS2

LS5

LS3

CD

T1T2T3

BLD

(11)

(12)(13)

BD

PCB

CN602

BDPD

CN601

(3)

(5)

(6)

(7)

(8)

(9)

(10)

CN2

TM1CN16CN 18CN15CN7CN8

(4)

PD

CN1

CN2

CN14 CN3

CN19CN10CN22

CN17

MAIN PCB

CN5

LCD

PANEL PCB

(1) (2)

CN1 CN2

CN3 CN4

KEY

SHEET

HEATER

(37)

BPC

TAB401

(27)

(31)

CN5 CN 1

(26)

CN413CN408

(25)

CN9

CN402

CN6 CN4

CN13 CN11 CN12 CN21 CN20

(23)

(17)

(24)

(CN701)

PA

PV

PCB

PCB

PCB

(CN702)

(15)

(16)

(14)

V15V14V13V11

V2

V8V7V6V5

V17

V12V10V9V4V3

(29)(30) (30)

CN503 CN502

CN801 CN504

DSUB PCB

CN501(RS232C)

OUT

DC24V

BZ

PCB

BLOCK 3

TERMINAL

(36)

(35)

CN404 CN405 CN407 CN403

CN411 CN 412 CN406 CN414

(33)

POWER

DC+24V

SUPPLY

SSR

RELAY

SUB PCB

CN415 CN410 CN409 CN401

(22)

(34)

DC+5V

DC-12V

POWER

DC+12V

SUPPLY

(31)

BLOCK 2

TERMINAL

NOISE

FILTER

POWER

SWITCH

GEAR

SWITCH

(29)

BLOCK 1

TERMINAL

(32)

FAN

BATTERY

(18)

BP

(19)

(21)

(20)

VPaVPb

P1 CN701 CN701

P2

SP

(28)

Fig.3.2-1 Type A Power Box

3.2-1

<Type B Power Box>

PH2

LAMP

FSW LS1PS

PH4

PH3

PH1

CLV

(38)

FS

LS2

LS5

T1T2T3

CD

LS3

BLD

LCD

KEY

SHEET

HEATER

(3)

CN5

CN3 CN4

(5)

(10)

CN2

TM1CN16CN18CN15CN7CN8

(9)

(8)

(7)

(6)

(11)

(12)(13)

BD

PCB

CN602

CN601

BDPD

(4)

PD

CN1

CN2

CN14 CN3

CN19CN10CN22

CN17

(CN701)

PCB

(CN702)

MAIN PCB

(16)

CN6 CN4

PA

PCB

PANEL PCB

(37)

(1) (2)

CN1 CN2

CN5 CN1

(26)

(31-3)

TAB401

(27)

BPC

CN413CN408

CN9

(25)

CN402

CN13 CN11 CN12 CN21 CN20

(17)

PV

PCB

(24)

(23)

(14)

(15)

V15V14V13V11

V2

V8V7V6V5

V17

V12V10V9V4V3

CN503 CN 502

DSUB PCB

CN501(RS232C)

OUT

DC24V

BZ

PCB

CN801 CN50 4

POWER

SUB PCB

CN415 CN4 10 CN409 CN401

(22)

(34)

DC+5V

DC-12V

DC+12V

SUPPLY

BLOCK 3

TERMINAL

(36)

(35)

CN404 CN4 05 CN407 CN403

CN411 CN412 CN406 CN414

(33)

POWER

DC+24V

SUPPLY

SSR

(29-2)

RELAY

(31-2)

BLOCK 2

TERMINAL

(30-2) (29-3)

NOISE

FILTER

(30-1) (30-3)

POWER

SWITCH

GEAR

SWITCH

(29-1)

(31-1)

BLOCK 1

TERMINAL

(32)

FAN

BATTERY

(19)

(18)

BP

(21)

(20)

SP

P1 CN701 CN701

VPaVPb

P2

(28)

Fig.3.2-2 Type B Power Box

3.2-2

<Type C Power Box>

LCD

KEY

SHEET

HEATER

(29-2)(30-1) (30-3)

RELAY

BLOCK 2

TERM INAL

(30-2) (29-3)

SWITCH

(28)

SSR

GEAR

PH2

LAMP

FSW LS 1PS

PH4

PH1

PH3

(6)

(5)

(3)

(4)

CN19CN10CN22

CLV

(38)

FS

LS2

LS5

T1T2T3

CD

LS3

BLD

(9)

(8)

(7)

(10)

TM1CN 16CN1 8CN1 5CN7CN8

CN2

(11)

(12)(13)

BD

PCB

CN602

BDPD

CN601

CN14 CN3

PD

CN1

CN2

PCB

(CN701)

(CN702)

CN17

CN5

PANEL PCB

(1) (2)

CN1 CN2

CN3 CN4

(31-3)

(37)

BPC

TAB401

(27)

MAIN PCB

CN5 CN1

(26)

CN41 3CN408

(16)

CN9

CN6 CN4

PA

PCB

(17)

CN13 CN11 CN12 CN21 CN20

PV

PCB

(14)

(15)

V17

V12V10V9V4V3

V8V7V6V5

V15V14V13V11

(25)

CN402

(24)

V2

BLOCK 3

TERM INAL

(36)

CN404 CN405 CN407 CN403

CN41 1 CN412 CN40 6 CN4 14

(35)

(33)

SUB PCB

CN415 CN410 CN409 CN401

(22)

(34)

DSUB PCB

DC+5V

DC-12V

POWER

SUPPLY

DC+24V

DC+12V

DC-DC PCB

CN801 CN504 CN503 CN502

BZ

PCB

(31-2)

BLOC K 1

TERM INAL

NOIS E

FILTER

FAN

POWER

SWITCH

BATTERY

(19)

(18)

BP

(21)

(20)

SP

P1 CN701 CN701

VPaVPb

P2

(29-1)

(31-1)

Fig.3.2-3 Type C Power Box

3.2-3

<Type D Power Box>

PH2

LAMP

FSW LS1PS

PH4

PH1

PH3

CLV

(38)

FS

LS2

LS5

T1T2T3

CD

LS3

BLD

CN2

(11)

(12)(13)

BD

PCB

CN602

PD

CN1

CN14 CN 3

PCB

(CN701)

BDPD

CN601

CN2

(CN702)

(5)

(3)

(4)

CN19CN10CN22

CN17

(10)

TM1CN16CN18CN15CN7CN8

(9)

(8)

(7)

(6)

MAIN PCB

CN5

LCD

PANEL PCB

(1) (2)

CN1 CN2

CN3 CN4

KEY

SHEET

HEATER

(47)

(27)

BPC

CN5 CN 1

(26)

CN413CN408

(51)

CN9

CN402

CN6 CN4

(15)

PA

PCB

(17)

CN13 CN11 CN12 CN21 CN2 0

(50)

PV

VR PCB

PCB

(16)

(14)

V17

V12V10V9V4V3

V8V7V6V5

V15V14V13V11

V2

(43)(40) (41)

(42)

(39)

BLOCK

TERMINAL

SSR

(46)

only 230V

CN404 CN407 CN403

Trans

former

(46)

RELAY

FUSE 6.3A

FUSE 6.3A

(48)

FUSE 6.3A

FUSE 6.3A

(44) (45)

NOISE

FILTER

POWER

SWITCH

CN411

(49)

POWER

SUPPLY

SUB PCB

DC+24V

CN406 CN414

FAN

BZ

PCB

CN801 CN503

CN415 CN410 CN409 CN401

(18)

(19)

(20)

(21)

SP

BP

BATTERY

P1 CN701 CN 701

VPaVPb

P2

Fig.3.2-1 Type D Power Box

3.2-4

No Component

Operation 1

1

harness
Operation 2
harness for type A
(MOREX)

2

Operation 2
harness for type B
(OMRON)

3 LAMP harness 93447120 0-202-004 1 O O O O
4 PS harness 93447114 0-202-005 1 O O O O
5 PHB harness 93447116 0-202-006 1 O O O O
6 PHA harness 93447115 0-202-007 1 O O O O
7 FS harness 93447117 0-202-008 1 O O O O
8 CLV harness 93447118 0-202-009 1 O O O O
9 LS3 harness 93449039 0-202-010 1 O O O O

10 CD harness 93447132 0-202-011 1 O O O O

BLD harness
(TYPE I)

11

BLD harness
(TYPE II)

12 BD harness 93447112 0-202-013 1 O O O O

PD harness
(TYPE I)

13

PD harness
(TYPE II)

14 Valve 1 harness 93447121 0-202-015 1 O O O O
15 Valve 2 harness 93447122 0-202-016 1 O O O O
16 Valve 3 harness 93447123 0-202-017 1 O O O O

Connector Assy I NCUX_0638 --- --- O --- --- ---

17

Venous pressure
harness

18 BP harness
19 SP harness 93449038 0-202-019 1 O O O O

20 VP harness 93447129 0-202-020 1 O O O O
21 Pump harness 93447130 0-202-021 1 O O O －

Pump harness 9039V330 0-202-166 1 --- --- --- O

Connector setup K NCUX_0640 --- --- O － － －

22

Buzzer harness 09852210021 0-202-022 1 --- O --- --­Buzzer harness 09852210030 0-202-137 1 --- --- O ---
Connector setup J NCUX_0639 --- --- O --- --- ---

23

SUB-DSUB
harness
Connector setup I NCUX_0638 --- --- --- O --- ---

24

MAIN-DSUB
harness
Connector setup H NCUX_0637 --- --- O --- --- ---

25

MAIN-SUB Power
harness
Connector setup G
(MOREX)

26

MAIN-SUB signal
harness

Code No./

Requirement

93447124 0-202-002 1 O O O O

93447125 --- --- O --- --- ---

93457144 0-202-135 1 --- O O O

93447111 0-202-012 1 O O O O

93447142 0-202-078 1 O O O O

93447113 0-202-014 1 O O O O

93447143 0-202-079 1 O O O O

09852210024 0-202-018 1 --- O O O

FE6PF10G-31

4

09852210019 0-202-023 --- --- O --- ---

09852210020 0-202-018 1 O --- --- --- With compatible

09852210023 0-202-024 1 --- O O ---

NCUX_0636 --- --- O --- --- ---

09852210022 0-202-141 1 --- O O O

NIRPO order

code

--- --- O O O O

Min order

qty

Used for Type

ABCD

For Type 1

For Type II

For Type I

For Type II

Note

With compatible

With compatible

With compatible

With compatible

3.2-5

(OMRON)

27 BPC harness 93447126 0-202-026 1 O O O O

Power code 230V
(For A)
Plug harness
230V (For B)
Power code 110V
(For A)

28

Plug harness
110V (For B)
Power code (For
China) (For A)
Power code (For
China) (For B)

29 Lead wire A NCUX_0645 - --- O --- --- ---

Noise filter

29-1

harness 1

Heater relay
harness 1

29-2

NCUX_0620 --- --- O --- --- ---

09852210002 0-202-027 1 --- O O ---

NCUX10620 - --- O --- --- ---

09852210001 0-202-028 1 --- O O －

NCUX60620 - --- O --- --- ---

09852210026 0-202-144 1 --- O O ---

09852210005 0-202-146 1 --- O O ---

O1

O2

10

30V---

09852210010 0-202-147 1 ---

V2
30

V

With compatible

With compatible

With compatible

Heater relay
harness 2

29-3 SSR harness 2 09852210011 0-202-148 1 --- O O ---

30 Lead wire B NCUX_0646 - - O － － ---

30-1 Breaker harness 09852210003 0-202-149 1 --- O O ---

Power SW

30-2

harness
Heater relay

30-3

harness 1

31 Lead wire C NCUX_0647 --- --- O --- --- ---

Noise filter

31-1

harness 2

31-2 24V input harness 09852210014 0-202-153 1 --- O O ---

Earth tub 401

31-3

harness
Connector setup C NCUX_0632 --- --- O --- --- ---

32

5V input harness 09852210015 0-202-155 1 --- O --- ---
Connector setup D NCUX_0633 --- --- O --- --- ---
24V output

33

harness
24V output
harness
Connector setup E NCUX_0634 --- --- O --- --- ---

34

5V output harness 09852210017 0-202-157 1 --- O --- ---
5V output harness 09852210029 0-202-139 1 --- --- O ---
Connector setup B NCUX_0631 --- --- O --- --- ---

35

AC input harness
2
Connector setup A NCUX_0630 --- --- O --- --- ---

36

AC input harness
1
Connector setup F NCUX_0635 --- --- O --- --- ---

37

Relay control
harness

09852210010-

1

09852210004 0-202-150 1 --- O O ---

09852210007 0-202-151 1 --- O O ---

09852210006 0-202-152 1 --- O O ---

09852210013 0-202-154 1 --- O O ---

09852210016 0-202-156 1 --- O --- ---

09852210028 0-202-138 1 --- --- O ---

09852210009 0-202-035 1 --- O O ---

09852210008 0-202-036 1 --- O O ---

09852210012 0-202-037 1 --- O O ---

0-202-136 1 --- ---O110V---

With compatible

With compatible

With compatible

3.2-6

38 LS2 harness 93447131 0-202-083 1 O O O O

Plug harness 230V 09852210057 0-202-110 1 --- --- --- O

39

Plug harness 110V 09852210056 0-202-111 1 --- --- --- O

40 Breaker harness 09852210058 0-202-112 1 --- --- --- O

Relay primary

41

harness
Relay secondary

42

harness
SSR secondary

43

harness
Fuse primary

44

harness
Fuse bridge

45

harness
Transformer
harness

46

Pump harness 09852210044 0-202-119 1 --- --- --- O
Relay control

47

harness
Switching power

48

supply input
harness
Switching power

49

supply output
harness

50 BZVR harness 09852210066 0-202-123 1 --- --- --- O

Main power supply

51

harness

Meshed Parts are not allowed receiving order from you basically. If you need it, order whole component.

09852210059 0-202-113 1 --- --- --- O

09852210062 0-202-114 1 --- --- --- O

09852210063 0-202-115 1 --- --- --- O

09852210060 0-202-116 1 --- --- --- O

09852210061 0-202-117 1 --- --- --- O

09852210043 0-202-118 1 --- --- --- O

09852210064 0-202-120 1 --- --- --- O

09852210042 0-202-121 1 --- --- --- O

09852210045 0-202-122 1 --- --- --- O

09852210065 0-202-124 1 O

For 230V
For 110V

3.2-7

3.3. Printed Circuit Boards

<Type A>

Fig.3.3-1 Connection diagram (Type A)

3.3-1

(a) TYPE I (b) TYPE II

Fig.3.3-2 Upper part (Type A)

(a) Left (b) Right

Fig.3.3-3 Inside of Power Box (Type A)

3.3-2

<Type B>

Fig. 3.3-4 Connection diagram (Type B)

3.3-3

Fig.3.3-5 Upper part (Type B)

(a) Left (b) Right

Fig.3.3-6 Inside of Power Box (Type B)

3.3-4

<Type C>

Fig. 3.3-7 Connection diagram (Type C)

3.3-5

Fig.3.3-8 Upper part (Type C)

(a) Left (b) Right

Fig.3.3-9 Inside of Power Box (Type C)

3.3-6

<Type D>

Fig. 3.3-10 Connection diagram (Type D)

3.3-7
