NILFISK SC900 ST-28D Parts List

SC900 ST

PARTS LIST

Models: 56115201(SC900 ST-28D) 56115202(SC900 ST-34D), 56115203(SC900 ST-32C)

1/2016 FORM NO. 56042634 REV A

PARTS LIST

GENERAL VIEW

6

4

2

9

5

11

3

10

1

8

7

Kit Item Ref. No. Qty Description

1 1 Chassis System 2 1 Control System 3 1 Detergent Kit 4 1 Electrical System 5 1 On Board Charger Assembly 6 1 Recovery System 7 1 Scrub System-Disc 28D, 34D 8 1 Scrub System-Cylindrical 32C 9 1 Solution System 10 1 Squeegee Mount System 11 1 Squeegee Assy

ii SC900 ST - 56042634 1/2016

TABLE OF CONTENTS

DESCRIPTION PAGE

Chassis System ......................................................................................2-3

Control System ........................................................................................ 4-5

Decal System .......................................................................................... 6-7

Detergent Kit ...........................................................................................8-9

Electrical System ................................................................................. 10-11

On Board Charger Assembly ..............................................................12-13

Recovery System ................................................................................ 14-15

Scrub System-Cylindrical .................................................................... 16-17

Scrub System-Disc .............................................................................. 18-19

Solution System ..................................................................................20-21

Squeegee Assy ...................................................................................22-23

Squeegee System ............................................................................... 24-25

Ladder Diagrams ................................................................................. 26-27

Options & Accessories ............................................................................. 28

Recommended Spare Parts ..................................................................... 29

Brush Selector Guide-Disc ....................................................................... 30

Brush Selector Guide-Cylindrical ............................................................. 31

Squeegee Blade Selector Guide .............................................................. 32

PARTS LIST

WHEN ORDERING PARTS

* Use the part numbers from the “Ref. No.” columns in this parts list. If the “Ref. No.” column is blank; look

under the “Kit” column to identify which kit contains the part in question, then use the kit callout, for example “K1”, to ﬁ nd the “Ref. No.” for that kit.

Kit Item Ref. No. Qty Description

K1 1 16 Washer Flat 3/16 Zinc Plat K1 2 2 Screw-BHS-Brass-10-32x3/8-MS K1 3 3 Washer EPDM 7/32 X 1/8

4 805 1 Chain-Cover

5 905 2 Caster Swivel 4 Gray Non MA K1 6 2 Nut, Hex Nyl Loc 10-24 K1 7 3 Scr- Hex SS 1/4-20 X .75 K1 8 16 Scr, Hex Hd Loc 1/4-20 x .50 K1 9 3 Wsh, Flt SS .260 X 1.000 X .074

10 56113012 1 Solution Tank 11 56113034 2 Hinge Plate

K1 56113103 1 Kit-Hardware Solution Tank

* Specify the model and serial number of the machine.

* Use the space below to record the model and serial number for future reference.

Model Serial No.

1/2016 1 56042634 - SC900 ST

PARTS LIST

CHASSIS SYSTEM

12

1

5

FRONT

7

5

8

2

3

2

4

3

9

6

10

11

3

2 SC900 ST - 56042634 1/2016

Kit Item Ref. No. Qty Description

K1,K4 1 1 Wsh-Flt Sae Ss 1/4 K1,K2 2 12 Wsh, Flt Ss 8mm K1,K2 3 16 Scr Hex Loc Ss M8-1.25x20mm K1 4 4 Nut Hex Ss M8-1.25 K1,K4 5 2 Scr, Hex Thd Form 1/4-20 X .38 K1,K3 6 6 Nut- Lug 1/2-20 7 56115240 1 Chassis Weldment K2 8 2 Caster-Swivel-5.00x2.00 K3 9 2 Wheel-Drive-13 Inch Diameter 10 56115378 1 Transaxle-36 Volts M1 [ ] 56315676 1 Motor [ ] 56315677 4 Carbon Brush [ ] 56315678 2 Neoprene Mounting Sleeve [ ] 56380164 1 Kit-Coupling [ ] 56381779 1 Transaxle Service Kit 11 56315202 2 Plate, Transaxle Mount K4 12 1 Chain

Service Kits

K1 56115390 1 Hardware-Chassis-Kit K2 56115391 1 Castor Wheel-Kit K3 56115392 1 Wheel-Drive-Kit K4 56115393 1 Chain-Grounding-Kit

PARTS LIST

CHASSIS SYSTEM

1/2016 3 56042634 - SC900 ST

PARTS LIST

4

CONTROL SYSTEM

6

11

10

8

13

5

13

3

7

9

12

1

2

FRONT

4 SC900 ST - 56042634 1/2016

CONTROL SYSTEM

Kit Item Ref. No. Qty Description

K1 1 5 Scr-Hex M8-1.25 X 50mm K1 2 5 Wsh-Flt Ss .344 X 1.00 X .109 56115384 1 Handle Assy K1 3 11 Scr, Pan Phil Plastite 10-14 X .50 4 56115296 1 Gauge-Battery-Hour (P2) 5 56115303 1 Handle-Front-Control 6 56115304 1 Handle-Back-Control 7 56115305 1 Knob-2.00 X .62 K2 8 1 Button-Reverse-Yellow K3 9 1 Harness-Handle (R1) K2 10 2 Button-Go-Yellow K2 11 4 Switch, Spdt Snapaction (S2,S3,S6,S7) 12 1462888000 1 Switch, Key With Water Proof Cup (S1) [ ] 1462887000 1 Key 2 PCS K2 13 6 Spring, Switch

Service Kits

K1 56115400 1 Hardware-Control-Kit K2 56115401 1 Switch/Button-Kit K3 56115409 1 Handle Potentiometer Kit

PARTS LIST

[ ] = Not Shown

1/2016 5 56042634 - SC900 ST

PARTS LIST

DECAL SYSTEM

1

2

5

3

4

FRONT

6 SC900 ST - 56042634 1/2016

DECAL SYSTEM

Kit Item Ref. No. Qty Description

1 56014601 1 Decal, Caution 2 56016324 1 Decal, Charger 3 56115371 1 Decal – Circuit Breaker 4 56115323 1 Decal-SC900 (STD Models) 56115386 1 Decal-SC900-EcoFlex (EcoFlex Models) 5 56016730 1 Decal, Advance

PARTS LIST

1/2016 7 56042634 - SC900 ST

PARTS LIST

DETERGENT KIT

10

13

9

17

19

8

15

5

3

4

12

1

2

11

18

16

6

20

7

14

8 SC900 ST - 56042634 1/2016

FRONT

DETERGENT KIT

Kit Item Ref. No. Qty Description

1 56002098 1 Wsh, Flt Sae 1/4 2 56002539 2 Scr, Pan Phil Thd Form 6-32 X .31 3 56003196 4 Scr, Pan Phil Plastite 6-18 X .38 4 56003627 1 Scr-Pan Phil M6-1 X 16mm 5 56104189 1 Insert-Dry Break 6 56104408 1 Chemical Bottle Assembly 7 56111511 1 Hose, Chem. Resistant 8 56112126 1 Bracket-Pump Mount 9 56115347 1 Cover-Detergent Module 10 56115359 2 Knob-1.25 X .63 11 56115363 1 Module-Detergent 12 56115376 1 Gasket-Detergent Cover 13 56115382 1 Decal-Detergent Module 14 56314983 1 Tee Assembly 15 56315241 1 Pump, Chemical 16 56315517 1 Cap, Raw 17 56315523 1 Cap Dry Break 1/8 Barb 18 56315524 1 Hose, Chem Resistant, 7.50 19 56478246 1 Tie, Cable 20 71489a 1 Label,Chemical Settings

PARTS LIST

1/2016 9 56042634 - SC900 ST

PARTS LIST

3

12

13

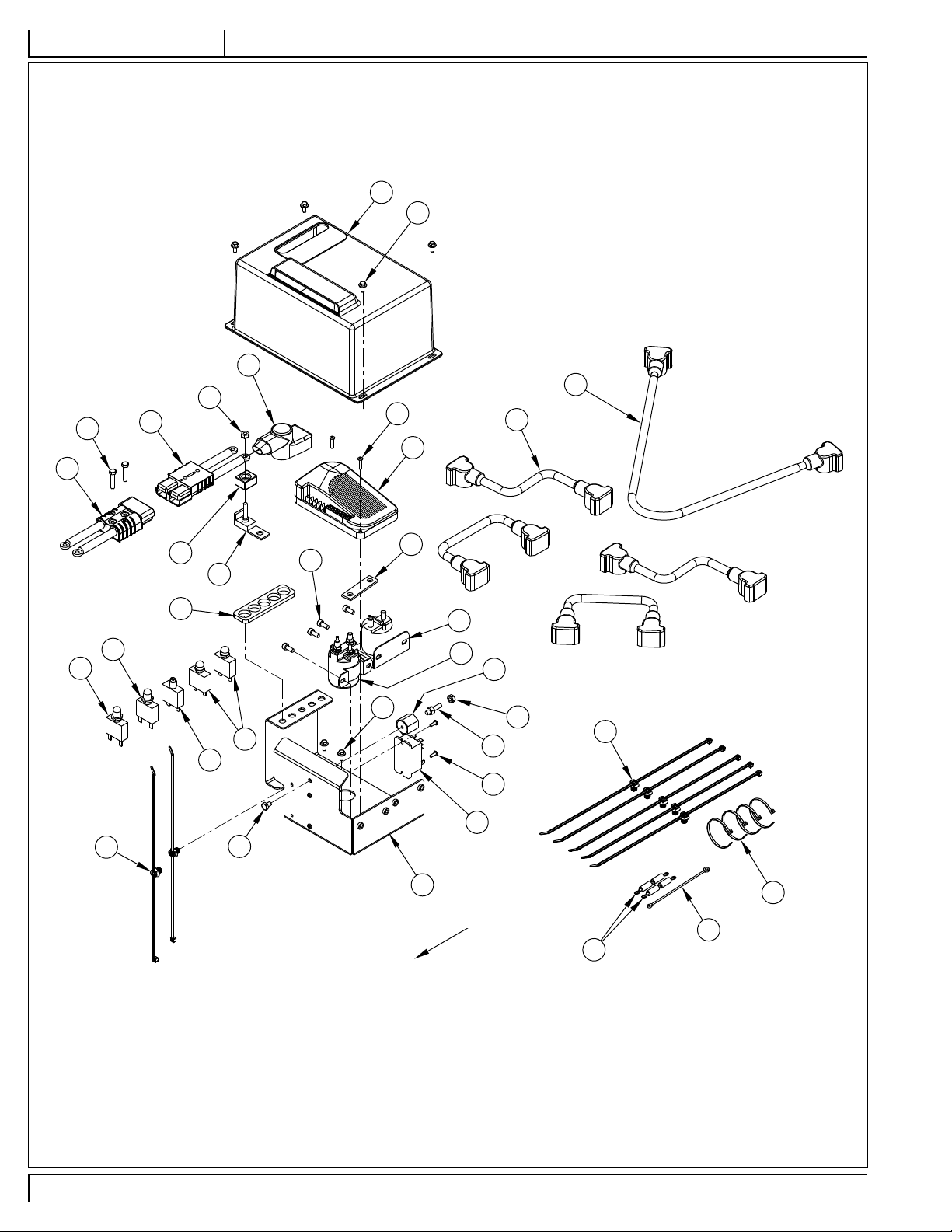

ELECTRICAL SYSTEM

8

7

18

2

6

20

31

11

14

21

22

16

10

26

17

29

1

30

4

25

24

27

7

15

FRONT

2

21

33

5

32

28

19

23

10 SC900 ST - 56042634 1/2016

ELECTRICAL SYSTEM

Kit Item Ref. No. Qty Description

K1 1 1 Scr-Hex 1/4-20 X .38 K1 2 2 Nut, Hex W/ Shprf 1/4-20 K1 3 2 Screw 6mm X 1.00 X 30mm Lg K1 4 4 Scr Soc Ss M6-1x14mm K1 5 2 Scr-Button Soc Ss M4-0.7x12 K1 6 2 Scr-Button Soc Ss M4-0.7x20 K1 7 6 Scr-Hex Flange Ss M5-.8x12 8 56115255 1 Cover-Electrical-Black [9] 56115278 1 Harness 10 56115341 1 Gasket-Circuit Breaker 11 56115349 1 Cable Battery 12 56115356 1 Harness-Battery Machine 13 56115357 1 Harness-Battery Power 14 56115385 1 Breaker-Circuit-2.5 Amp (CB5) 15 56115389 1 Panel-Electrical 16 56115432 1 Fuse-150 Amp (F1) 17 56115433 1 Holder-Fuse 18 56115434 1 Boot-Fuse Holder 19 56115441 1 Diode Assy-36v-Tvs 20 56115443 1 Controller-Speed (P1) 21 56116611 7 Cable Tie-Mount 22 56315256 1 Circuit Breaker, 30 Amp (CB1) 23 56389265 2 Rectiﬁ er Assy 24 56395450 1 Contactor 36v (K2) 25 56395455 1 Contactor 36v, 100 Amp (K3) 26 56413822 1 Circuit Breaker, 20 Amp (CB4) 27 56469858 1 Electrical Mount 28 56478246 4 Tie, Cable 29 56509623 2 Circuit Breaker-25 Amp (CB2,CB3) 30 56510285 1 Bus Bar-Contactor 31 40172A 4 Cable,Battery 32 40892A 1 Relay Dpdt 36vdc (K1) K1 33 1 Stud, 1/4-20

PARTS LIST

Service Kits

K1 56115403 1 Electrical Hardware Kit

[ ] = Not Shown

1/2016 11 56042634 - SC900 ST

PARTS LIST

10

ON BOARD CHARGER ASSEMBLY

9

7

5

1

8

2

4

9

FRONT

3

6

12 SC900 ST - 56042634 1/2016

ON BOARD CHARGER ASSEMBLY

Kit Item Ref. No. Qty Description

1 56003403 4 Nut-Hex Nyl Loc M6-1 2 56003431 4 Scr-Hex Ss M6-1 X 16mm 3 56003840 2 Scr-Hex Loc Ss M5-0.8 X 16mm 4 56009096 2 Wsh, Flt .193 X .875 X .060 5 56115374 1 Bracket-On Board Charger 6 56115375 1 Cord-Charger-Yellow- Us 7 56116611 2 Cable Tie-Mount 8 56315774 1 Charger-On Board 36v 9 56478246 5 Tie, Cable 10 9095149000 1 Cable Support

PARTS LIST

1/2016 13 56042634 - SC900 ST

PARTS LIST

RECOVERY SYSTEM

12

10

9

14

4

15

FRONT

11

22

26

24

16

8

25

24

7

6

28

29

5

20

26

19

26

2

21

27

23

3

1

18

26

FRONT

17

13

14 SC900 ST - 56042634 1/2016

RECOVERY SYSTEM

Kit Item Ref. No. Qty Description

K1,K3 1 2 Wsh-Flt Sae Ss #10 K1,K2 2 3 Wsh-Flt Sae Ss 5/16 K1,K3 3 2 Scr-Hex Ss M6-1 X 12mm K1,K2 4 3 Scr, Hex Loc M6-1 X 16mm K1 5 2 Scr-Hex Loc M5-0.8 X 5mm K1,K4 6 2 Wsh, Flt Std Ss #10 K1,K4 7 2 Scr-Hex Loc Ss M5-0.8 X 16mm K5 8 1 Debris Cage K5 9 1 Debris Tray Cover 10 56104164 1 Gasket-Recovery Tank 11 56115292 1 Tank-Recovery-Light Gray 12 56115299 1 Lid-Recovery Tank-Light Gray 13 56115343 1 Vac Hose Assy K2 14 1 Plate-Vacuum Mount 15 56115369 1 Tube-Exhaust 16 56115451 2 Plate-Retainer-Nylon 17 56115436 1 Hose-Drain-Pu * 56601411 1 Drain Hose Cap Kit K3 18 1 Cable Assy K2 19 1 Motor-Vacuum 36vdc (M4) [ ] 56116107 1 Vacuum Motor Brush Kit K2 20 1 Seal-Vacuum Motor Inlet K3 21 2 Bushing K2 22 56315141 3 Mount, Vibration K2 23 1 Clamp, Hose Support K4 24 2 Cage, Float K4 25 1 Ball- Float 26 56440213 2 Clamp- Hose Sae #32 27 56456797 1 Clamp- Hose Sae #36 K4 28 1 Support Float System K4 29 1 Gasket Float Support

PARTS LIST

Service Kits

K1 56115396 1 Hardware-Recovery-Kit K2 56115397 1 Motor-Vac-Kit K3 56115398 1 Cable-Recovery-Kit K4 56115399 1 Cage-Ball-Kit K5 56104360 1 Debris Cage Kit

[ ] = Not Shown * = Optional, Not Included

1/2016 15 56042634 - SC900 ST

PARTS LIST

SCRUB SYSTEM-CYLINDRICAL

29

5

18

27

25

40

23

19

28

34

16

2

39

32

31

36

28

9

33

6

47

11

7

45

46

8

37

43

41

15

44

13

17

5

30

4

35

38

12

3

14

24

20

1

26

42

10

FRONT

22

4

21

13

ROTATION

16 SC900 ST - 56042634 1/2016

SCRUB SYSTEM-CYLINDRICAL

Kit Item Ref. No. Qty Description

K2 1 4 Scr, Soc Set Loc 5/16-18 X .25 K2 2 2 Screw M6-1 X 12 Hex Hd. C.S. K2 3 6 Scr-Hex Loc Ss 1/4-20 X .75 K2 4 8 Nut, Hex Nyl Loc Ss M6-1 K3 5 2 Nut, Hex Nyl Loc Ss M12-1.75 K2 6 2 Wsh, Flt Ss 6mm K2 7 2 Scr-Hex Ss M6-1 X 95mm K2 8 2 Nut-Hex Nyl Loc Ss M4-0.7 K2,K4 9 1 Scr Flt Soc Ss M8-1.25x16mm K2,K3 10 1 Scr Hex Ss M12-1.75x150mm K2,K3 11 1 Scr Hex Ss M12-1.75x100mm K2 12 2 Scr-Button Soc Ss M4-0.7x12 K2 13 3 Scr, Hex Thd Form 1/4-20 X .38 14 56112166 2 Sheave-Poly-V K1 15 8 Bushing 16 56112771 2 Clamp- Hose Sae #10 17 56115267 1 Housing Weldment-32 Inch Cyl K3 18 2 Spring-Compression 7 Pound K4 19 1 Lever-Deck-Cyl 20 56115314 2 Guard Assy-Belt 21 56115315 2 Belt-Auto Tension 22 56115318 2 Drive End Assy K4 23 56115337 1 Knob-M8-1.25 24 56115344 2 Idler End Assy 25 56115350 1 Cover-Front-Cyl K3 26 3 Spacer-Nylon K3 27 2 Tube-Spring 28 56115381 2 Jumper-Molex Connector 29 56115431 1 Bracket-Spring K5 30 1 Valve-Solenoid-36vdc (L1) 31 56305760 1 Tee, Barb 3/4 X 1/2 X 1/2 32 56315611 2 Motor, 36 Vdc, .75 Hp, 1800 Rpm (M2,M3) * 56412287 2 Motor Brush/Spring Kit 33 56315616 1 Hopper Assembly, 32” 34 56315647 2 Manifold, Pvc 32 35 56324041 1 Hose, .75 Clear Pvc 36 56409538 4 Insulator, Terminal 37 56412176 2 Bushing 38 56412459 2 Wheel 39 56455735 1 Spring, Extension K4 40 1 Mat, Pedal K1 41 4 Lever, Brush Head Lift K3 42 4 Guide, Spring K1,K2 43 8 Nut, M10-1.5 Nylock K1,K2 44 8 Screw, M10xm12x16mm S.B.S.H. K4 45 1 Bushing .32x.50x.35 K4 46 1 Scr Hex Ss M8-1.25x35mm K4 47 1 Nut, Hex Nyl Loc Ss M8-1.25

PARTS LIST

Service Kits

K1 56115406 1 Link Arm Scrub Kit K2 56115410 1 32C Harware Kit K3 56115411 1 32C Spring Kit K4 56115412 1 32C Lever Kit K5 56116891 1 Solenoid Seal-Kit

1/2016 17 56042634 - SC900 ST

PARTS LIST

SCRUB SYSTEM-DISC

16

27

23

2

1

10

33

30

11

24

32

31

34

8

15

21

5

22

26

5

25

4

6

38

37

17

40

12

13

3

14

46

41

9

45

43

39

19

14

44

29

3

9

42

14

28

18

20

35

7

9

FRONT

36

ROTATION

18 SC900 ST - 56042634 1/2016

SCRUB SYSTEM-DISC

PARTS LIST

Kit Item Ref. No. Qty Description

K1 1 8 Wsh-Flt Sae Ss 3/8 K1 2 8 Scr-Hex Loc Ss 3/8-16 X .75 K1,K4 3 1 Nut, Hex Nyl Loc Ss M8-1.25 K1,K6 4 1 Scr-Hex Ss M8-1.25 X 40mm K1,K2 5 2 Nut, Hex Nyl Loc Ss M12-1.75 K1,K6 6 3 Wsh, Flt Ss 8mm K1 7 2 Scr-Soc Hd 5/16-18 X 1.25 Zinc K1 8 2 Scr-Hex Loc Ss M5-0.8 X 16mm K1 9 6 Nut-Hex Nyl Loc Ss M4-0.7 K1 10 2 Nut Hex Nyl Loc Ss M5-0.8 K1,K4 11 1 Scr Flt Soc Ss M8-1.25x16mm K1,K2 12 1 Scr Hex Ss M12-1.75x150mm K1,K2 13 1 *Scr Hex Ss M12-1.75x100mm K1 14 6 Scr-Button Soc Ss M4-0.7x12 K1 15 1 Scr, Hex Thd Form 1/4-20 X .38 K6 16 1 Button Plug-1.25 17 56112259 1 Brush Skirt Assy-28d Left (28D) 56112261 1 Brush Skirt Assy-34d Left (34D) 18 56112260 1 Brush Skirt Assy-28d Right (28D) 56112262 1 Brush Skirt Assy-34d Right (34D) [ ] 56112306 1 Kit-Bristle Skirt 28 (28” models / Includes two skirts and mounting hardware) [ ] 56112307 1 Kit-Bristle Skirt 34 (34” models / Includes two skirts and mounting hardware) K3 19 8 Bushing 20 56115248 1 Deck Weldment-28 In Disc (28D) 56115245 1 Deck Weldment-34 In Disc (34D) K4 21 1 Lever-Deck-Disc K2 22 2 Spring-Compression 25 Pound 23 56115298 1 Cover-Front-Disc K4 24 56115337 1 Knob-M8-1.25 K2 25 3 Spacer-Nylon K2 26 2 Tube-Spring 27 56115377 2 Motor-Gear-Unit 36 Volt (M2,M3) * 56397139 4 Carbon Brush * 56397138 4 Brush Spring 28 56115427 1 Latch Assembly K5 29 1 Valve-Solenoid-36vdc (L1) 30 56305760 1 Tee, Barb 3/4 X 1/2 X 1/2 31 56324041 1 Hose, .75 Clear Pvc 32 56397207 2 Hose Pvc .500 X 7 (28D) 56397382 2 Hose Pvc .500 X 8 (34D) 33 56442003 2 Clamp-P K4 34 1 Mat, Pedal 35 56601276 1 Brush Plate Assy 36 56601384 1 Brush Plate Assy K6 37 1 Wheel, 4.00 Od K6 38 1 Bushing, Nylon K3 39 4 Lever, Brush Head Lift K2 40 4 Guide, Spring

Kit Item Ref. No. Qty Description

41 55451A 1 Keeper, Latch 42 69186A 1 Tab, Latch, Brush K1,K3 43 8 Nut, M10-1.5 Nylock K1,K3 44 8 Screw, M10xm12x16mm S.B.S.H. K4 45 1 Scr Hex SS M8-1.25x35mm K4 46 1 Bushing .32x.50x.35

Service Kits

K1 56115404 1 Hardware-28D/34D-Kit K2 56115405 1 Spring-28D/34D-Kit K3 56115406 1 Link Arm-Scrub-Kit K4 56115407 1 Lever-28D/34D-Kit K5 56116891 1 Solenoid Seal-Kit K6 56115448 1 Wheel Brush Skirt-Kit

[ ] = Not Shown * = Optional, Not Included

1/2016 19 56042634 - SC900 ST

PARTS LIST

SOLUTION SYSTEM

FRONT

39

13

23

13

41

39

22

15

9

11

36

17

8

41

24

7

41

26

7

39

13

FRONT

19

21

16

27

32

4

29

6

25

12

1

20

37

3

30

40

7

5

10

33

38

35

31

34

38

28

14

18

44

43

2

42

20 SC900 ST - 56042634 1/2016

SOLUTION SYSTEM

Kit Item Ref. No. Qty Description

1 722030 6 Clamp, Hose K1,K4 2 1 Nut-Hex Nyl Loc Ss 6-32 K1,K4 3 1 Scr Pan Phil Ss 6-32 X .50 K1 4 2 Wsh-Flt Sae Ss #10 K1 5 4 Scr-Hex Ss M6-1 X 12mm K1 6 2 Scr, Pan Phil Plastite 10-14 X .62 K1,K2 7 7 Wsh, Flt Ss 6mm K1,K4 8 4 Scr- Truss Phil Blk M5-0.8 X 12mm K1,K2 9 1 Scr-Hex Loc Ss M5-0.8 X 16mm K1 10 4 Scr-Pan Phil Ss M3-0.5x20mm K1 11 4 Scr-Soc Hd Ss M8-1.25x20mm K1 12 4 Nut Hex Nyl Loc Ss M3-0.5 K1 13 3 Scr-Button Soc Ss M5-0.8x10 K1 14 2 Scr-Button Soc Ss M4-0.7x12 K1 15 1 Wsh-Flt Ss .260 X 1.000 X .074 K1,K4 16 2 Scr, Pan Phil Type B 6 X .38 K1 17 4 Wsh-Flt Ss .344 X 1.000 X .109 18 56111385 1 Hose.Spiral .500 19 56115447 1 Plate-Retainer 20 56115257 1 Support-Deck Lever 21 56115291 1 Tank-Solution-Dark Gray K2 22 1 Cap-Solution-Fill-Yellow 23 56115308 1 Plate-Retainer K4 24 1 Solution Control Cable Assy 25 56115336 2 Switch-Sealed (S4,S5) K4 26 1 Cover-Solution Lever-Table 27 56115355 1 Hose-Solenoid Adapter 28 56115388 1 Ball Valve-1/2 X 1/2 29 56115413 1 Coupler-Barb-1/2 X 1/2 30 56115439 1 Hose-Sprial-.500 31 56115440 1 Hose-.75x27.00 32 56115444 1 Retainer-Drain Hose 33 56115445 1 Clamp-Plastic-Gray 34 56244969 1 Clamp- Hose Sae #12 35 56315625 1 Barb, Coupler 1/2 X 3/4 K2 36 1 Bushing .32x.50x.35 37 56478246 1 Tie, Cable 38 9095286000 2 Gasket 39 9096595000 3 Flat Tie Holder K3 40 1 Filter Water K1 41 4 Screw, Hex Thd To Hd M5x12 K1 42 2 Screw M6-1 X 16Mm Phd Ph Ss K1,K4 43 1 Wsh Flt Sae Ss 6 K4 44 1 Spacer-Nylon-.25x.14x.18

PARTS LIST

Service Kits

K1 56115394 1 Hardware Solution Kit K2 56115395 1 Cap Solution Fill Kit K3 56104351 1 Solution Filter Kit K4 56115446 1 Solution Control Lever-Kit

1/2016 21 56042634 - SC900 ST

PARTS LIST

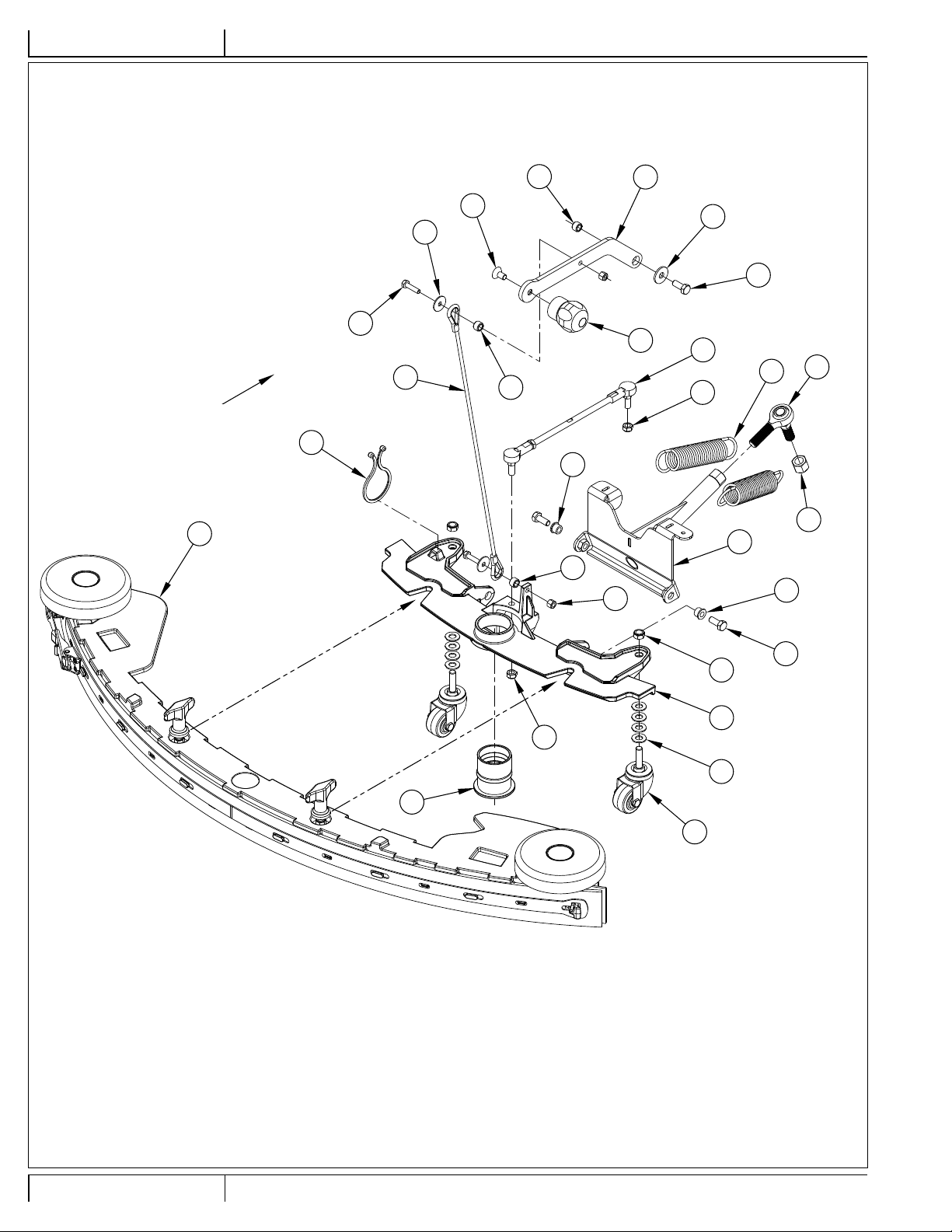

SQUEEGEE ASSY

7

4

5

12

9

3

8

11

FRONT

14

2

4

6

13

1

10

22 SC900 ST - 56042634 1/2016

SQUEEGEE ASSY

Kit Item Ref. No. Qty Description

56115428 1 Squeegee Assy-42-Gum 28” & 34” Disc Models 56115380 1 Squeegee Assy-42-Red Gum 32” Cylindrical Model 1 56115334 1 Squeegee Kit-Blade-Gum 28” & 34” Disc Models NOTE 1 56115333 1 Squeegee Kit-Blade-Red Gum 32” Cylindrical Model NOTE 1 2 56002856 2 Nut-Hex Nyl Loc Ss 5/16-18 3 56003405 2 Nut, Hex Nyl Loc Ss M8-1.25 K1 4 2 Scr Hex Ss M8-1.25x35mm K1 5 6 Wsh, Flt Ss 8mm 6 56003736 2 Scr-Hex Thd To Hd Ss 5/16-18 X 3.00 K1 7 2 Button Plug-1.25 K1 8 2 Wheel 9 56115271 1 Casting-Squeegee-Alum 10 56115293 1 Strap Assy-Squeegee-Rear-42 11 56370711 2 Nut Thumb K1 12 2 Bushing, Nylon 13 54647a 2 Knob, M8 X 30 14 60546a 1 Strap,Front Squeegee 42

Squeegee Blade Kits for 56115428 56115334 1 Squeegee Kit-Blade-Gum NOTE 1 * 56115333 1 Squeegee Kit-Blade-Red Gum NOTE 1 * 56115335 1 Squeegee Kit-Blade-Pu NOTE 1

PARTS LIST

Squeegee Blade Kits for 56115380 56115333 1 Squeegee Kit-Blade-Red Gum NOTE 1 * 56115334 1 Squeegee Kit-Blade-Gum NOTE 1 * 56115335 1 Squeegee Kit-Blade-Pu NOTE 1

Service Kits

K1 56115449 1 Wheel Squeegee Kit

* = Optional, Not Included

NOTE 1: All squeegee blade kits include both front and rear squeegee blades.

1/2016 23 56042634 - SC900 ST

PARTS LIST

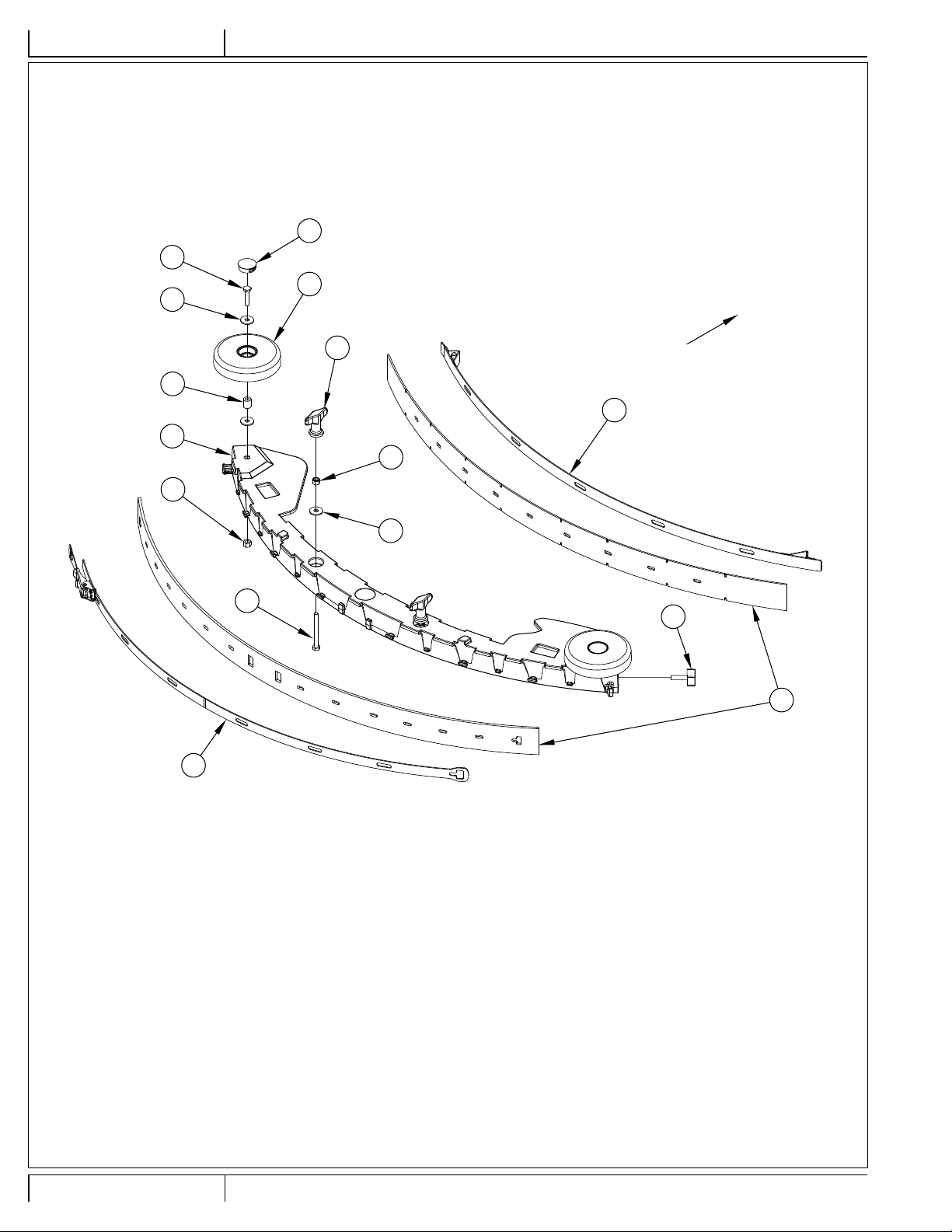

SQUEEGEE SYSTEM

FRONT

20

19

23

9

17

7

8

10

6

21

18

23

16

4

22

14

13

2

15

23

5

13

24

10

1

12

4

3

11

24 SC900 ST - 56042634 1/2016

SQUEEGEE SYSTEM

Kit Item Ref. No. Qty Description

K1 1 2 Nut, Hex Nyl Loc-Thin Ss 3/8-16 K1 2 1 Nut, Hex Nyl Loc Ss 1/2-20 K1 3 4 Wsh-Flt Sae Ss 3/8 K1 4 2 Nut, Hex Nyl Loc-Thin Ss 5/16-24 K1 5 2 Nut, Hex Nyl Loc Ss M6-1 K1 6 2 Scr-Hex Ss M6-1 X 25mm K1,K2 7 1 Wsh, Flt Ss 8mm K1 8 2 Wsh-Flt Ss .266 X .906 X .060 K1,K2 9 1 Scr Flt Soc Ss M8-1.25x16mm K1,K2 10 3 Scr Hex Loc Ss M8-1.25x20mm 11 56104231 2 Caster Wheel 12 56115261 1 Squeegee-Mount-Aluminum 13 56115262 2 Bearing-Flange 14 56115284 1 Rod End-1/2 15 56115285 1 Bracket Weldment-Squeegee 16 56115287 1 Turnbuckle Assembly-9.40 Inch K2 17 1 Lever-Squeegee-Lift K2 18 1 Knob-M8-1.25 19 56115366 1 Cable Tie-Reusable 20 56115428 1 Squeegee Assy-42-Gum 28” & 34” Disc Models / Includes Gum Rubber Blades 56115380 1 Squeegee Assy-42-Red Gum 32” Cylindrical Models / Includes Red Gum Rubber Blades 21 56115429 1 Cable Assy 22 56315295 2 Spring Extension K2 23 3 Bushing .32x.50x.35 24 9099781000 1 Sleeve Drain Hose

PARTS LIST

Service Kits

K1 56115414 1 Hardware Squeegee Kit K2 56115415 1 Lever Squeegee Kit

1/2016 25 56042634 - SC900 ST

PARTS LIST

LADDER DIAGRAM

FUSE, 150A

RED

S1

SW, SPST KEY

L1

12

COIL, SOLENOID

VIO/WHT

PNK/WHTVIO

F1

VIO/GRN

36 VDC

+-

REDRED

BLK

S3

S, REV

L2

12

PUMP,DETERGENT

D3

K3

COIL, VAC

WHT/RED

WHT/RED RED/BRN BLKWHT/RED

GRA

X5a3

GND

1

PNK

B+ B-

CB5

2.5A

PNK

X4a3

RED

CHARGER, DELTA Q 36V, 21A

CB1

30A

BRN

D2

K2

COIL, BRUSH

K1 RELAY, LVC

D1

K2

BRUSH CONTACT

K3

VAC C ONTA CT

RED

E1

~

1

RED

GRN

RED

VIO

BRN

VIO

RED

RED GRA/RED ORN/VIO

NOTES:

3. IF TELEMATICS UNIT IS NOT INSTALLED, X44A CONNECTS TO X44.

2. IF A DETERGENT MODULE IS NOT INSTALLED, X87A WILL CONNECT TO HARNESS.

1.

IF CHARGER IS INSTALLED, THE GREEN INTERLOCK WIRE CONNECTS TO CB5 INSTEAD OF RED B+ WIRE.

BLK

VIO/RED

X4b3

PNK/BLU

GRA/VIO

X5b3

CB2 30A

CB3 30A

CB4 20A

P1

6

5

17

14

BLK

RED

B+

BRAKE-

KSI

CURTIS 1228

REV

BRAKE+

M2

M

RED/GRN YEL/BLK

M1

MOTOR, DRIVE

DETERGENT MODULE (OPTIONAL)

P3

1

B+

6

BRAKE+

4

DET- OUT

3

SOL- OUT

2

SOL IN

P2

3

FET DRAIN

2

ENABLE

8

B+

BATTERY GAUGE WITH HOURMETER

RED/GRN BLK

SPD POT

THR POT

POT LO

-+

HM1

HM2

BLK

B-

POT HI

B-

M1M2M1

3

18

4

13

5

B-

2

7

6

VIO/WHT

4

BRN/VIO

WHT

BLU

YEL

R1

ORN

S6

S2

SW, GO LEFT SW, GO MID

S7 SW, GO RT

X87A

1

2

3

4

5

6

VIO/WHT

M2

-+

M

MOTOR, BRUSH LEFT

M3

-+

M

MOTOR, BRUSH RIGHT

12

M4

M

MOTOR, VAC

POT.

5K OHM

PNK/BLU

VIO/WHT

RED

BRN

GRA

BLK

3

RED/YEL

TELEMATICS CONNECTOR

8

B-

3

B+

7

KEY

2

INTERLOCK

1

INTERLOCK

6

DRIVE

5

SCRUB

4

VAC

K1

1

2

3 4

PNK/BLU

5

6

RELAY, LVC

PNK/BLU

BLK

BLKBLKBRN

BLKBLK

X44

X44A

8

BLK

3

7

2

1

VIO

6

5

4

S4

SW, BRUSH

S5

SW, VAC

26 SC900 ST - 56042634 1/2016

LADDER DIAGRAM

Kit Item Ref. No. Qty Description

BAT Battery-36VDC CB1 56315256 1 Circuit Breaker, 30 Amp CB2 56509623 1 Circuit Breaker-25 Amp CB3 56509623 1 Circuit Breaker-25 Amp CB4 56413822 1 Circuit Breaker, 20 Amp CB5 56115385 1 Breaker-Circuit-2.5 Amp E1 Delta Q Charger (Optional) F1 56115432 1 Fuse-150 Amp K1 40892A 1 Relay Dpdt 36vdc K2 56395450 1 Contactor 36v (Brush) K3 56395455 1 Contactor 36v, 100 Amp (Vacuum) L1 56116891 1 Solenoid Seal Kit L2 Detergent Pump (Optional) M1 56115378 1 Transaxle-36 Volts M2 56115377 1 Motor-Gear-Unit 36 Volt (Disc) 56315611 1 Motor, 36 Vdc, .75 Hp, 1800 Rpm (Cylindrical) M3 56115377 1 Motor-Gear-Unit 36 Volt (Disc) 56315611 1 Motor, 36 Vdc, .75 Hp, 1800 Rpm (Cylindrical) M4 56115397 1 Motor-Vac-Kit P1 56115443 1 Controller-Speed P2 56115296 1 Gauge-Battery-Hour P3 Detergent Module (Optional) R1 56115409 1 Potentiometer Kit S1 1462888000 1 Switch, Key With Water Proof Cup S2 56115401 1 Switch / Button-Kit S3 56115401 1 Switch / Button-Kit S4 56115336 1 Switch-Sealed S5 56115336 1 Switch-Sealed S6 56115401 1 Switch / Button-Kit S7 56115401 1 Switch / Button-Kit

PARTS LIST

Color Codes

BLK Black BLU Blue BRN Brown GRA Gray GRN Green ORN Orange PNK Pink RED Red VIO Violet WHT White YEL Yellow

1/2016 27 56042634 - SC900 ST

PARTS LIST

OPTIONS & ACCESSORIES

Item Ref. No. Qty Description Options

* 56115373 1 Charger-On Board-Kit * 56115383 1 Detergent-Kit * 56115416 1 Track Clean SC900 Kit-US RDR * 56115417 1 Track Clean SC900 Kit-US Accessories * 56397453 6 Indicator-Battery Level (1 per battery) * 56314981 1 Kit Battery Watering * 56383571 1 Programmer-User * 56383572 1 Programmer-Cable-Molex * 56104190 1 EcoFlex Bottle Assy 56044686 1 Literature Pack Kits Squeegee Blade Kits for 56115428 (See Squeegee Blade Selector Guide) 56115334 1 Squeegee Kit-Blade-Gum NOTE 1 * 56115333 1 Squeegee Kit-Blade-Red Gum NOTE 1 * 56115335 1 Squeegee Kit-Blade-Pu NOTE 1

Squeegee Blade Kits for 56115380 (See Squeegee Blade Selector Guide) 56115333 1 Squeegee Kit-Blade-Red Gum NOTE 1 * 56115334 1 Squeegee Kit-Blade-Gum NOTE 1 * 56115335 1 Squeegee Kit-Blade-Pu NOTE 1

28” Disc Scrub Brushes (See Brush Selector Guide) * 56505800 2 Short Trim Pad Holder * 56505801 2 Magna Grit 46 * 56505802 2 Dyna Grit 80 * 56505803 2 AgLite Grit 500 * 56505804 2 Prolene * 56505805 2 ProLite * 56505806 2 Union Mix * 56505807 2 MidGrit 240 * 56505808 2 MidLite Grit 180 * 56505195 2 Pad Retainer for 56505750

34” Disc Scrub Brushes (See Brush Selector Guide) * 56505780 2 Short Trim Pad Holder * 56505781 2 Magna Grit 46 * 56505782 2 Dyna Grit 80 * 56505783 2 AgLite Grit 500 * 56505784 2 Prolene * 56505785 2 ProLite * 56505786 2 Union Mix * 56505787 2 MidGrit 240 * 56505788 2 MidLite Grit 180 * 56505195 2 Pad Retainer for 56505750

32” Cylindrical Scrub Brushes (See Brush Selector Guide) * 56407473 2 Soft Nylon * 56407474 2 Hard Nylon * 56407475 2 Prolene * 56407476 2 MidLite Grit 180 * 56407477 2 Dyna Grit 80 * 56407478 2 Magna Grit 46

* = Optional, Not Included

NOTE 1: All squeegee blade kits include both front and rear squeegee blades.

28 SC900 ST - 56042634 1/2016

RECOMMENDED SPARE PARTS

Item Ref. No. Qty Description

WEAR PARTS 56315677 4 Carbon Brush 56116107 1 Vacuum Motor Brush Kit 56115315 2 Belt-Auto Tension 56412287 2 Motor Brush/Spring Kit 56397139 4 Carbon Brush 56397138 4 Brush Spring 56115334 1 Squeegee Kit-Blade-Gum NOTE 1 56115333 1 Squeegee Kit-Blade-Red Gum NOTE 1 56115335 1 Squeegee Kit-Blade-Pu NOTE 1 56115333 1 Squeegee Kit-Blade-Red Gum NOTE 1 56115334 1 Squeegee Kit-Blade-Gum NOTE 1 56115335 1 Squeegee Kit-Blade-Pu NOTE 1 56112306 1 Kit-Bristle Skirt 28 (28” models / Includes two skirts and mounting hardware) 56112307 1 Kit-Bristle Skirt 34 (34” models / Includes two skirts and mounting hardware)

ORDINARY MAINTENANCE 56115391 1 Castor Wheel-Kit 56115395 1 Cap Solution Fill Kit 56104351 1 Solution Filter Kit

EXTRA ORDINARY MAINTENANCE 56115393 1 Chain-Grounding-Kit 56115305 1 Knob-2.00 X .62 1462888000 1 Switch, Key With Water Proof Cup (S1) 56115401 1 Switch/Button-Kit 56115409 1 Handle Potentiometer Kit 56115385 1 Breaker-Circuit-2.5 Amp (CB5) 56115432 1 Fuse-150 Amp (F1) 56115443 1 Controller-Speed (P1) 56315256 1 Circuit Breaker, 30 Amp (CB1) 56395450 1 Contactor 36v (K2) 56395455 1 Contactor 36v, 100 Amp (K3) 56413822 1 Circuit Breaker, 20 Amp (CB4) 56509623 2 Circuit Breaker-25 Amp (CB2,CB3) 40892A 1 Relay Dpdt 36vdc (K1) 56104164 1 Gasket-Recovery Tank 56115343 1 Vac Hose Assy 56115436 1 Hose-Drain-Pu 56115406 1 Link Arm Scrub Kit 56115411 1 32C Spring Kit 56116891 1 Solenoid Seal-Kit 56115337 1 Knob-M8-1.25 56115405 1 Spring-28D/34D-Kit 56115406 1 Link Arm-Scrub-Kit 56116891 1 Solenoid Seal-Kit 56115448 1 Wheel Brush Skirt-Kit 56115449 1 Wheel Squeegee Kit 56115293 1 Strap Assy-Squeegee-Rear-42 56370711 2 Nut Thumb 56104231 2 Caster Wheel 9099781000 1 Sleeve Drain Hose

PARTS LIST

NOTE 1: All squeegee blade kits include both front and rear squeegee blades.

1/2016 29 56042634 - SC900 ST

PARTS LIST

BRUSH SELECTOR GUIDE - DISC

We provide brushes and pad holders that will give you the best possible performance between machine and ﬂ oor. Following are descriptions of the materials and their applications.

ProLite: Bristles are made from light-duty polypropylene for general scrubbing when you do not want to scratch or remove ﬁ nish from

the ﬂ oor. Recommended for use in place of red pads.

Prolene: Polypropylene material for medium-duty scrubbing on concrete, terrazzo and vinyl ﬂ oor tile. Recommended for use in place of

green or blue pads.

Union Mix: Medium grade natural ﬁ bers for polishing ﬁ nished ﬂ oors with standard-speed equipment. Recommended for use in place of

white pads.

AgLite Grit 500: For light scrubbing when used wet; bufﬁ ng or polishing when used dry on urethane coated, sealed concrete or other resilient

hard surface ﬂ oors. Recommended for use in place of red or white pads.

MidGrit 240: For general purpose scrubbing when you need a lighter action for sealed or unsealed concrete, stone, terrazzo, quarry tile and

other resilient hard ﬂ oor surfaces. Recommended for use in place of green or blue pads.

MidLite Grit 180: For general purpose scrubbing of sealed or unsealed concrete, stone, terrazzo, quarry tile and other resilient hard ﬂ oor surfaces.

Recommended for use in place of green or blue pads. Dyna Grit 80: For aggresive, heavy-duty scrubbing or stripping of ﬂ oors. Recommended for use in place of brown pads. Magna Grit 46: For extreme heavy-duty scrubbing or stripping of ﬂ oors. This brush has extra large diameter silicon carbide grit impregnated

synthetic bristles. Recommended for use in place of black pads. Short Trim Pad Holder: Made with a structural foam block and center ring for correct pad centering. It has a “shower feed” design for getting solution

to the ﬂ oor.

SC900 28” DISC BRUSHES

56505800 - Short Trim Pad Holder 56505801 - Magna Grit 46 56505802 - Dyna Grit 80 56505803 - AgLite Grit 500 56505804 - Prolene 56505805 - ProLite 56505806 - Union Mix 56505807 - MidGrit 240 56505808 - MidLite Grit 180 56505195 - Pad Retainer for 56505800

SC900 34” DISC BRUSHES

56505780 - Short Trim Pad Holder 56505781 - Magna Grit 46 56505782 - Dyna Grit 80 56505783 - AgLite Grit 500 56505784 - Prolene 56505785 - ProLite 56505786 - Union Mix 56505787 - MidGrit 240 56505788 - MidLite Grit 180 56505195 - Pad Retainer for 56505800

DISC BRUSH APPLICATION GUIDE (SUGGESTION ONLY)

46 80 180 240 500 Union Application Grit Grit Grit Grit Grit Prolene Prolite Mix Stripping:

Concrete X X Terrazzo X X Ceramic/Quarry tile X Vinyl tile X

General Scrubbing:

Concrete XXXX X Terrazzo XXXX Ceramic/Quarry tile XXXX Marble X X Vinyl tile X X X Raised-rubber tile X X

Polishing:

Raised Disc Tile X Marble X Vinyl tile X

30 SC900 ST - 56042634 1/2016

PARTS LIST

BRUSH SELECTOR GUIDE - CYLINDRICAL

We provide brushes and pad holders that will give you the best possible performance between machine and ﬂ oor. Following are descriptions of the materials and their applications.

Soft Nylon: Least aggressive brush available. Used on soft-ﬁ nish ﬂ oors where a more aggressive brush would leave

scratch marks, or in applications requiring very light cleaning.

Stiff Nylon: Cleaning action similar to polypropylene. More durable and wear-resistant than polypropylene.

Prolene: Low cost, yet effective in cleaning many common ﬂ oor surfaces.

MidLite Grit 180: Least aggressive grit brush. Used for daily cleaning of hard-ﬁ nished ﬂ oors.

Dyna Grit 80: Medium aggressive grit brush. Good all-around brush for medium to heavy buildup removal. Can also be

used for general stripping operations.

Magna Grit 46: Most aggressive grit brush. Used primarily to clean heavy buildup on concrete ﬂ oors in factories, or for

heavy stripping of ﬁ nish.

SC900 32” Cylindrical BRUSHES

56407473 - Soft Nylon 56407474 - Hard Nylon 56407475 - Prolene 56407476 - MidLite Grit 180 56407477 - Dyna Grit 80 56407478 - Magna Grit 46

CYLINDRICAL BRUSH APPLICATION GUIDE (SUGGESTION ONLY)

Application Grit Grit Grit pylene Nylon Nylon Stripping:

Concrete X X Terrazzo X X Ceramic/Quarry tile X Vinyl tile X

General Scrubbing:

Concrete XXXXX Terrazzo XXXX Ceramic/Quarry tile XXXX Marble X X X Vinyl tile XXXX Raised-rubber tile X X

46 80 180 Polypro- Stiff Soft

1/2016 31 56042634 - SC900 ST

PARTS LIST

SQUEEGEE BLADE SELECTOR GUIDE

Gum Rubber: Provides superior wiping action on tile, terrazzo, and polished ﬂ oors.

Red Gum Rubber: Provides longest life on ﬁ nished or unﬁ nished concrete ﬂ oors.

Polyurethane: Oil resistance provides superior life in applications with oily ﬂ oors.

SQUEEGEE BLADE APPLICATION GUIDE(SUGGESTION ONLY)

Gum Rubber

Performance Traits

Tear Strength X X

Abrasion Resistance X X

Applications

Oil Resistant Applications X

Appearance Tan Red Translucent

(Natural Rubber)

Red Gum Rubber

(Natural Rubber)

Polyurethane/

Pentathane

32 SC900 ST - 56042634 1/2016

A Nilﬁ sk Brand

NILFISK SC900 ST-28D Parts List

Specifications and Main Features

Frequently Asked Questions

User Manual
