SC351
PARTS LIST
Advance model: 9087342020
9099868000(1)2013-03
PARTS LIST
TABLE OF CONTENTS
ENG PAGE
GENERAL VIEW 2 - 3
COVER AND TANKS 4 - 5
FRAME SYSTEM 6 - 7
HANDLE SUPPORT SYSTEM 8 - 9
HANDLE BAR SYSTEM 10 - 11
MOTOR AND DECK SYSTEM 12 - 13
BRUSH DECK SYSTEM 14 - 15
ACCESSORIES 16 - 17

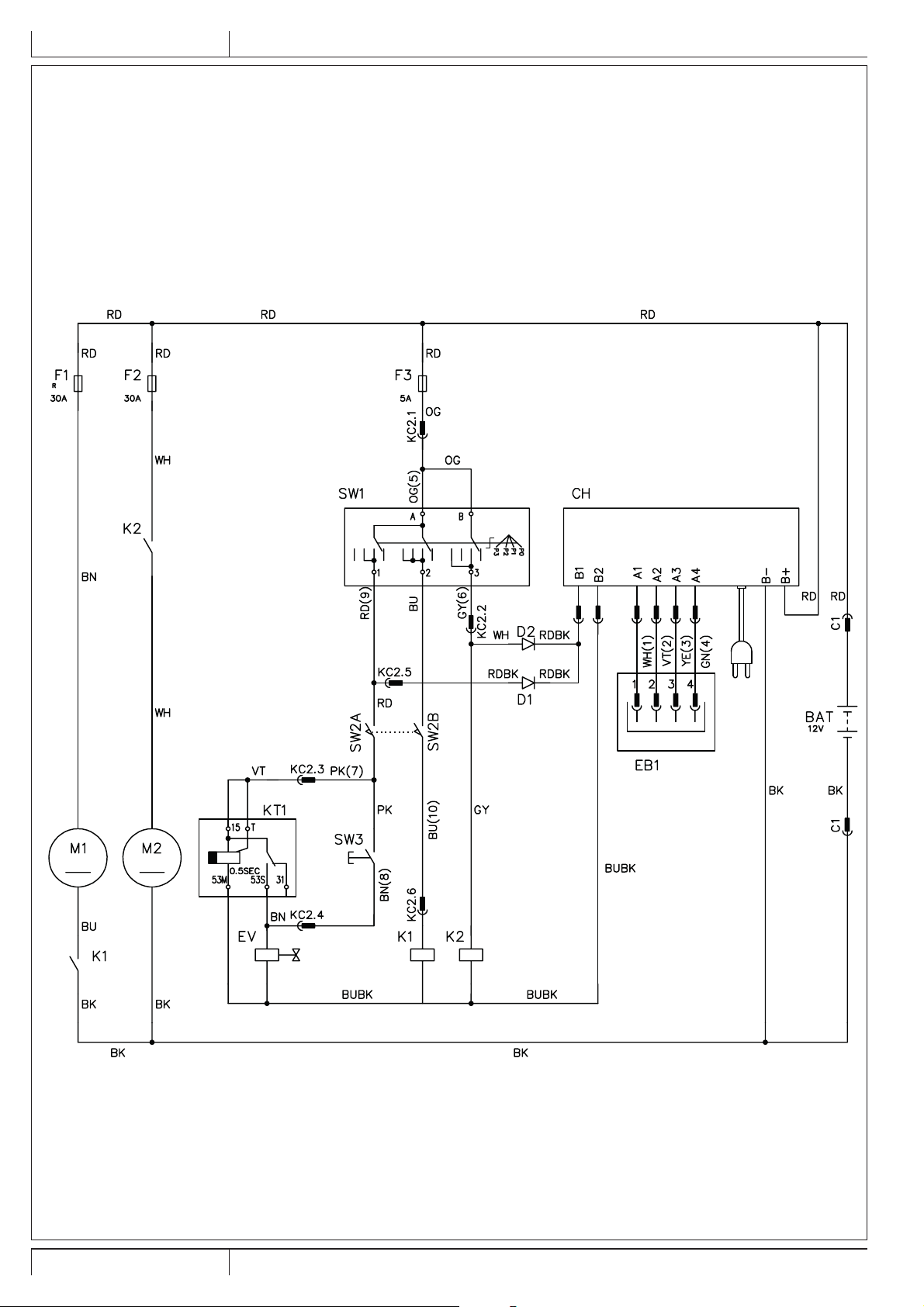

ELECTRICAL DIAGRAM 18 - 19
RECOMMENDED SPARE PARTS 20
OPTIONALS AND ACCESSORIES 21
WHEN ORDERING PARTS
* Use the part numbers from the “Ref. No.” columns in this parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model Serial No.
* = Optional
# = Modied item No. or New item No.
[ ] = Not shown
03/2013 9099868000 - SC351 1
PARTS LIST
GENERAL VIEW
79
11
3
10
2
5
8
4
6
13
12
1
2 SC351 - 9099868000 03/2013
GENERAL VIEW
KIT ITEM REF. NO. QTY DESCRIPTION
1 - 1 BRUSH DECK
2 - 1 SOLUTION TANK
3 - 1 COVER TANK
4 - 1 FRAME
5 - 1 BATTERY COVER
6 - 1 RECOVERY TANK
7 - 1 HANDLE
8 9100000080 1 DECALS ADVANCE SC351 KIT
9 1464853000 1 BATTERY 12V 84AhC5 AGM
10 9099301000 1 HARDWARE GENERAL VIEW KIT
11 9096914000 1 CABLE EXTENSION US
12 9099706000 1 VACUUM PIPE D.25
13 9098991000 1 RINGS SPRING KIT
PARTS LIST
03/2013 9099868000 - SC351 3
PARTS LIST
COVER AND TANKS
10
9
8
2
4
6
K1
1
5
3
7
22
19
13
23
14
11
12
15
16
24
17
11
18
20
21
4 SC351 - 9099868000 03/2013
COVER AND TANKS
KIT ITEM REF. NO. QTY DESCRIPTION
K1 1 1 COVER TANK
K1 2 1 CAGE FLOAT
K1-K2 3 6 SCREW 3.5X10 THD FORMING
K1 4 1 BALL FLOATING
K1 5 1 CAP TANK COVER
K1 6 9099127000 1 GASKET TANK COVER KIT
K1 7 1 GASKET MOUSSE D.4MM
8
9098318000 1 BATTERY COVER
9 145 1147 000 1 WASHER 10,2X18,8X0,35
10 146 2449 000 1 PLUNGER INDEXING
K2 11 10 SCREW CYL HD 5X16 SELF L.
K2 12 6 WASHER
K2 13 2 BUSH
14 9098309000 1 SUPPORT BATTERY COVER
15 9098149000 1 TANK SOLUTION RAL 7001
9100000104
16
17 9099155000 1 CAP THREADED 70X5
18 9098621000
19
9098473000 2 COVER PIN
K2 20
K2 21 4 SCREW 3.5X12
22 9098148000
23 9100000103 1 HANDLE RECOVERY TANK
24* 9099011000 1 HOSE FILLING KIT
K1 9098989000 1 COVER KIT
[K2] 9098990000 1 HARDWARE COVER AND TANKS KIT
1 HANDLE DETERGENT TANK
2
PLATE HANDLE TANK
WASHER M4 UNI6592
4
1
TANK RECOVERY RAL 7001
PARTS LIST
03/2013 9099868000 - SC351 5
PARTS LIST
FRAME SYSTEM
25
9
29
15
17
47
16
28
19
21
24
13
2
14
23
5
20
26 1 10 27
IN
K1
11
OUT
3
6
8
22 18
6 SC351 - 9099868000 03/2013
12
FRAME SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION
K1 1 1 REDUCTION WATER
K2 2 2 WASHER FLAT XL 6.6X24.0X2.0
K2 3 2 SCREW, PAN PHIL THD FORM PU 3.9X9.5
K2 4 3 NUT SELF L. M6 UNI7474 SS
K2 5 2 PLUG BLACK CLICK d.38.1
K2 6 2 WASHER 6X18 UNI6592
K2 7 2 SCREW M6X20 UNI5731
K2
K2 9 4 SCREW SOC. HD M5X30
K1 10 1 FITTING
K2 11 2 WASHER, EXT. SHPRF Ø 4 SS
K2 12 2 SCREW
K2 14 2 WASHER, SPLIT LOCK d.6
K1 18 1 CLAMP
K2 21 2 SCREW THREAD ROLLING 5x16
K1 22 1 HOSE D.12 L=500 MM
K2 23 2 SCREW, HEX THD TO HD M6x16
K2
K1 26
K1 27 1 PIPE 6X11
K2 28 1 CLAMP 290X4.8
K2 29 4 WASHER FLAT XL 5.5X15.0X1.6 SS
8 3 WASHER
13 9099732000 2 WHEEL Ø214
15 9099794000 1 CHARGER BATTERY 12V 12A (CH)
9098319000 1 GASKET
16
17 146 3054 000 1 BELT BATTERY FIXING
19
9099719000 1 SUPPORT FOR GASKET
20 9098697000 1 VALVE WATER COMPLETE
24
25 9099352000 1 PIN WHEEL
K1 9098992000 1 PIPES KIT
[K2] 9100000083 1 HARDWARE FRAME KIT
2 WASHER 12.5X34X3 NYLON
1 HOSE D. 12
PARTS LIST
03/2013 9099868000 - SC351 7
PARTS LIST
4030 3 42
HANDLE SUPPORT SYSTEM
23
29 33 414
27
24
18
28
35
36
37
20
97
13
15
16
2
32
31
512
3
38
34
17
11
10
22
10
8
39
19
14
6
26
25
17
21
41
44
1
43
8 SC351 - 9099868000 03/2013
HANDLE SUPPORT SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION
1 9098760000 2 CONNECTOR 50A GREY
2 9098924000 2 FUSE HOLDER
K1 3 5 NUT SELFLOCKING LOW M8 UN
4 909 6542 000 2 GROMMET
K1 5 2 SCREW M3X16 UNI7687
K1 6 3 SCREW 3.5X10 THD FORMING
K1 7 4 WASHER M8 UNI6592 SS
K1
K1 9 4 SCREW M8X20 UNI5739 SS
K1 10 8 WASHER M6 UNI6592 SS
K1 11 2 SCREW SOC. HD M6X16
K1 12 2 WASHER, EXT. SHPRF Ø 3 SS
K1 13 2 SCREW, CARRIAGE M6x35
K1 15 2 SCREW, HEX THD TO HD M6x16 SS
K1
K1
K1 35 2 SCREW M6X12 UNI5931 SS
K1
K1 40 1 SCREW, BUTTON SOC M8X55
K1 41 4 CLAMP
K1 42 2 SCREW, BUTTON SOC M 10X25 SS
8
14 9098441000 1 RELAY 12V (K2)
9099802000 1 BREAKER CIRCUIT 35A (F1)
16
17 4 SCREW M5X10 DIN7500
18 9098111000 1 MOTOR VACUUM 12V 200W (M2)
19
9098112000 1 SOLENOID VALVE 12V (EV)
20 9098185000 2 BRACKET HANDLE
21 9098267000 1 SUPPORT HANDLE
22 9098268000 1 SUPPORT VACUUM MOTOR
23 9098319000 1 GASKET
24
9098327000 1 GASKET VACUUM MOTOR
25 9098365000 1 COVER RELAY
9098482000 1 BRACKET PLUNGER BLOCK
26
27 9098483000 1 COVER VACUUM MOTOR
28 9098554000 1 GASKET VACUUM MOTOR
29 9098375000 1 TIMER CYCLICAL (KT1)
30
31
145 8513 000
32
145 9852 000
146 3113 000 1 RELAY 12V (K1)
33
34 9099731000 1 CIRCUIT BRAKE SUPPORT
36
37 9098559000 1 SPACER SUPPORT VACUUM MOTOR
38 9098656000 1 CASING VACUUM MOTOR
39 9098925000 1 CASING LOWER VACUUM MOTOR
43 9099330000 1 HARNESS MACHINE
44 9098849000 1 HARNESS BATTERY
[K1]
9100000084 1 HARDWARE HANDLE BAR SUPP. KIT
8 NUT SELF L. M6 UNI7474 SS
2 CLAMP
1 FUSE BLADE 30A UL (F2)
1 FUSE 5A (F3)
3 WASHER, EXT. SHPRF Ø 6 SS
PARTS LIST
03/2013 9099868000 - SC351 9
PARTS LIST
HANDLE SYSTEM
2322 5
20 21
K5
28K4 49 27 45 53 40 32 36 41
43
47
51
1
48
54
K3
25
19
35
13
8
12
7
4
10
9
K5
58 56
34
20
24
23
14
15
K5
17
16
11 18
50
55
37
42
39
38
44
K2
33
26
57
K1
29
46
30
31
K5
6
52
10 SC351 - 9099868000 03/2013
HANDLE SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION
K3 1 3 WASHER
2 L08603153 1 SWITCH PUMP (SW3)
3 L08603154 1 CAP PROTECTION
K5 4 2 WASHER 6X18X1.5 UNI6593
K5 5 2 SCREW M3X8 UNI7688
K5 6 1 CLAMP 290X4.8
K5 7 2 WASHER
K5 8
K5 9 2 SCREW 3.9X9.5 UNI6955
K5 10 2 INSERT M6X15 UNI9203
11 146 3073 000 1 BOARD. LED (EB1)
K5 12 2 SCREW M6X16 UNI7687 SS
13 909 5149 000 1 SUPPORT CABLE
14 9097283000 1 KNOB CONTROL FUNCTIONS
K5 15 1 SCREW GRUB M3X3 DIN916
K5 16
K5 17 1 SEAL O-RING
18 9099331000 1 HARNESS HANDLE BAR
19
9099332000 1 SWITCH ROTATIVE 4 POSITIONS (SW1)
20 9100000101 1 COVERS HANDLE GREY KIT
21 9099733000 1 DECAL CONTROL PANEL
22 9098616000 1 DECAL BATTERY LED
23 9098812000 1 CAP FOR HANDLE
24
9098813000 1 CAP D.18.5/D.40MM BLACK
25 9098835000 1 TUBE HANDLE
26 9098836000 1 ROD INDEX
K4 27
K4 28 1 LEVER
K1 29 1 CAP RUBBER
K1 30 1 COVER REAR
K1 31 1 COVER FRONT
K4
K4
K2 37
K2
K2
K4 40
K4 41
K2 42 1 GEAR INDEX
K3 43 1 HANDLE SUPPORT
K2 44 2 PLATE, GEAR HOUSING
K4 45 2 SCREW M3X25
K1 46
K3 47
K3 48 1 NUT LOCK M5 SS HEX
K4 49 1 NUT LOCK M4 SS HEX
K2 50 4 NUT LOCK M6 SS HEX
K3 51 1 SCREW M5X40 SS PAN HEAD PHILLIPS
K5 52
K4 53 3 SCREW M4X10 SS PAN HEAD PHILLIPS
K3 54 6 SCREW M5X12 TRUSS HEAD PHILLIPS
K2 55 4 SCREW M6X40 SS HEX HEAD
32
33 VF47033 1 RETAINER
34 VF54041 1 HANDLE PLUG
35 40263A 1 SWITCH DPDT (SW2)
36
38 1 GEAR
39 1 HOUSING GEAR INDEX
56
57
58
K1
K2
K3
K4
K5
80398A 2 SCREW M5x35 SS HEAD PHILLIPS
VV13609 1 NUT LOCK M6 SS HEX
80407A 4 SCREW M5X25 SS FLAT HEAD PHILLIPS
11271A 1 LOWER COVER KIT
11272A 1 BOX HOUSING GEARS KIT
11273A 1 HANDLE SUPPORT KIT
11274A 1 HANDLE SWITCH LEVER KIT
9098995000 1 HARDWARE HANDLE BAR KIT
2 CLAMP
2 SCREW 2.9X25 UNI6954 THD
2 LEVER SWITCH
1 BUTTON INTERLOCK
1 SPRING INTERLOCK BUTTON
1 SPRING COMPRESSION
1 CLAMP CORD
4 PIN HANDLE SUPPORT
4 SCREW ST4.2-1.4
1 SCREW M5X43
2 SCREW M4X8 UNI7688
PARTS LIST
03/2013 9099868000 - SC351 11
PARTS LIST
MOTOR AND DECK SYSTEM
12
17
16
14
1
19
18
8
32
30
24
31
20
24
25
26
34
K1
21 28
27
23
22
29
SEE
BRUSH DECK
SYSTEM
33
34
9
10
11
5
13
2
3
15
7
4
6
12 SC351 - 9099868000 03/2013
MOTOR AND DECK SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION
1 L08812203 2 KNOB
2 L08812306 1 HOUB.BRUSH R.GEARMOTOR RIGHT
3 L08812480 1 HUB, BRUSH
K2 4 1 SCREW, HEX THD TO HD M8x20 SS
K2 5 4 SCREW SOC. HD M6X50
K2 6 1 WASHER FLAT XL 9.0X32.0X2.5 SS
K2 7 3 SCREW SOC. HD M6x20 SS
8 9098557000 2 PIN, BRUSH PLATE FIXING
K1 9 1 SQUEEGEE
10 9099717000 1 FLANGE DECK
11 9099736000 1 SPACER LIMIT
12 9099181000 1 REDUCTION MOTOR GEAR 12V 260W (M1)
145 8024 000 1 KEY 5X 5X25
13
K2 14 2 WASHER, FLAT 5.3x10x1 SS
K2 15 3 WASHER NORD LOCK M6
K2 16 2 NUT, HEX NYL LOC THIN M5 SS
17 L08812426 2 CAP
K2 18 2 WASHER FLAT XL 10X30X2 - RUBBER
K2 19 4 WASHER FLAT 9,5X27X2.5
20 9099718000 1 SUPPORT DECK
21 L08601624 1 HOLDER RUBBER 1/4 D.10
22 L08812213 2 SHOCK ABSORBER
23 L08812779 2 PLATE, VIBRATION DAMPING
K2 24 2 ROND GREMB 8X24
K2 25 1 SCREW, HEX THD TO HD M8x12
K2 26 4 SCREW SOC. HD M6X25 SS
K2 27 4 NUT, HEX NYL LOC HVY M6
K2 28 4 NUT, HEX NYL LOC THIN M6
K2 29 4 SCREW, HEX THD TO HD M6x35 SS
K2 30 1 NUT, HEX NYL LOC THIN M8 SS
31 9097184000 1 SHOCK ABSORBER 40x30 M8 TYPE EI - 60 Sh
K1 32 9099707000 1 REAR STRAP ELASTIC
K1 33 9099708000 1 RUBBER BLADE RETAINER
K1 34 9100000077 1 BLADES SQUEEGEE KIT
K1
9100000085 1 SQUEEGEE KIT
9100000086 1
[K2]
HARDWARE MOTOR AND DECK KIT
PARTS LIST
03/2013 9099868000 - SC351 13
PARTS LIST
8 7 1 14
BRUSH DECK SYSTEM
9
10
6
13
15
12
3
5
151115
7
1
13
8
17
212
164
14 SC351 - 9099868000 03/2013
BRUSH DECK SYSTEM
KIT ITEM REF. NO. QTY DESCRIPTION
1 L08603665 2 WHEEL D51 SQUEEGEE
K2 2 2 SCREW FLAT SOCKET HEAD M8X20.0
K2 3 2 NUT, HEX THIN M6
K2 4 2 SCREW, CARRIAGE M6x25
K2 5 2 WASHER FLAT XL 6.6X24.0X2.0
K2 6 1 NUT, HEX NYL LOC THIN M10
K2 7 4 THREAD ROLLING SCR 5x16
K2 8 2 PIN D.8
9 9099163000 1 CASTOR WHEEL ø42
10 9099712000 1 COVER BRUSH DECK
11 9099713000 1 FLANGE CENTRAL
K1 12 2 CLUTCH SUPPORT
K1 13 2 CLUTCH
14 9100000040 1 COUNTERWEIGHT
15 9099720000 3 SPRING TRACTION
16 30048A 2 GUIDE, WHEEL
K2 17 2 WASHER 15
K1 9100000087 1 CLUTCH KIT
K2 9100000088 1 HARDWARE BRUSH DECK KIT
PARTS LIST
03/2013 9099868000 - SC351 15
PARTS LIST
ACCESSORIES
1
2
3
5
4
6
16 SC351 - 9099868000 03/2013
ACCESSORIES
KIT ITEM REF. NO. QTY DESCRIPTION
1
9099999000 1 BRUSH D.370MM 14” PROLENE PPL
1*
9100000001 1 BRUSH D.370MM 14” PROLITE PPL
1*
9100000000 1 BRUSH D.370MM 14” UNION MIX
1*
9100000002 1 BRUSH D.370MM 14” MID GRIT 240
1*
9100000003 1 BRUSH D.370MM 14” MIDLITE GRIT 180
2*
9099672000 1 PAD HOLDER GRIP 14”
3 L08603966 1 RING NYLON
4 L08837030 1 RETAINER PAD
5 L08603965 1 SEAL O-RING
6*
6*
6*
6*
10001918 1 PAD 14 355MM BROWN 5 PCS
10001920 1 PAD 14 355MM RED 5 PCS
10001921 1 PAD 14 355MM WHITE 5 PCS
10001919 1 PAD 14 355MM GREEN 5 PCS
PARTS LIST
03/2013 9099868000 - SC351 17
PARTS LIST
WIRING DIAGRAM
18 SC351 - 9099868000 03/2013
WIRING DIAGRAM
PARTS LIST
KEY
BAT 1464853000
CH 9099794000
D1 -
D2 -
EB1 146 3073 000
EV 9098112000
F1 9099802000 BRUSH MOTOR CIRCUIT BREAKER (35 A)
F2 145 8513 000 VACUUM MOTOR FUSE (30 A)
F3 145 9852 000 ROTATIVE SWITCH FUSE (5 A)
K1 146 3113 000
K2 9098441000
KT1
M1 9099181000 BRUSH MOTOR
M2 9098111000 VACUUM MOTOR
SW1 9099332000
SW2 40263A
SW3 L08603153 DETERGENT SWITCH
REF. NO.
9098375000
DESCRIPTION
BATTERY 12V 84AhC5 AGM
BATTERY CHARGER
DIODE
DIODE
BATTERY LEVEL BOARD
DETERGENT SOLENOID VALVE
BRUSH MOTOR RELAY
VACUUM MOTOR RELAY
SOLENOID VALVE TIMER
ROTATIVE SWITCH
SWITCH BRUSH MOTOR-SOLENOID VALVE
KEY COLOUR COLORE
KEY COLOUR
BK BLACK NERO
BK BLACK
BU LIGHT BLUE AZZURRO
BU LIGHT BLUE
BN BROWN MARRONE
BN BROWN
GN GREEN VERDE
GN GREEN
GY GREY GRIGIO
GY GREY
OG ORANGE ARANCIONE
OG ORANGE
KEY COLOUR COLORE
KEY COLOUR
PINK
PK
PK
RD
RD
VT
VT
WH
WH
YE YELLOW GIALLO
YE YELLOW
PINK
RED
RED
VIOLET
VIOLET
WHITE
WHITE
ROSA
ROSSO
VIOLA
BIANCO
03/2013 9099868000 - SC351 19
PARTS LIST
RECOMMENDED SPARE PARTS
REF. NO. QTY DESCRIPTION
NORMAL WEAR
9100000077 1 BLADES SQUEEGEE KIT
9099999000 1 BRUSH D.370MM 14” PROLENE PPL
ORDINARY MAINTENANCE
9099707000 1 REAR STRAP ELASTIC
9099708000 1 RUBBER BLADE RETAINER
9099127000 1 GASKET TANK COVER KIT
9098319000 2 GASKET
9098111000 1 MOTOR VACUUM 12V 200W (M2)
9098327000 1 GASKET VACUUM MOTOR
9098655000 1 FILTER VACUUM MOTOR
9099181000 1 REDUCTION MOTOR GEAR 12V 260W (M1)
L08812480 1 HUB.BRUSH
9099706000 1 VACUUM PIPE D.25
L08603665 2 WHEEL D51 SQUEEGEE
9099163000 1 CASTOR WHEEL ø42
9100000087 1 CLUTCH KIT
9100000085 1 SQUEEGEE KIT
EXTRA-ORDINARY MAINTENANCE
9099712000 1 COVER BRUSH DECK
30048A 2 GUIDE, WHEEL
9099732000 2 WHEEL Ø214
9099794000 1 CHARGER BATTERY 12V 12A (CH)
9098697000 1 VALVE WATER COMPLETE
9098992000 1 PIPES KIT
9098760000 2 CONNECTOR 50A GREY
9099802000 1 BREAKER CIRCUIT 35A (F1)
9098112000 1 SOLENOID VALVE 12V (EV)
146 3113 000 1 RELAY 12V (K1)
9098441000 1 RELAY 12V (K2)
9098375000 1 TIMER CYCLICAL (KT1)
145 8513 000 1 FUSE BLADE 30A UL (F2)
145 9852 000 1 FUSE 5A (F3)
9099332000 1 SWITCH ROTATIVE 4 POSITIONS (SW1)
40263A 1 SWITCH DPDT (SW2)
L08603153 1 SWITCH PUMP (SW3)
20 SC351 - 9099868000 03/2013
OPTIONALS AND ACCESSORIES
REF. NO. QTY DESCRIPTION
9099011000 1 HOSE FILLING KIT
9100000001 1 BRUSH D.370MM 14” PROLITE PPL
9100000000 1 BRUSH D.370MM 14” UNION MIX
9100000002 1 BRUSH D.370MM 14” MID GRIT 240
9100000003 1 BRUSH D.370MM 14” MIDLITE GRIT 180
9099672000 1 PAD HOLDER GRIP 14”
10001918 1 PAD 14 355MM BROWN 5 PCS
10001920 1 PAD 14 355MM RED 5 PCS
10001921 1 PAD 14 355MM WHITE 5 PCS
10001919 1 PAD 14 355MM GREEN 5 PCS
PARTS LIST
03/2013 9099868000 - SC351 21
A Nilfisk-Advance Brand
14600 21st Avenue North
Plymouth, MN 55447-3408
www.advance-us.com
Phone: 800-989-2235
Fax: 800-989-6566
©2013 Nilfisk-Advance, Inc.
Loading...
