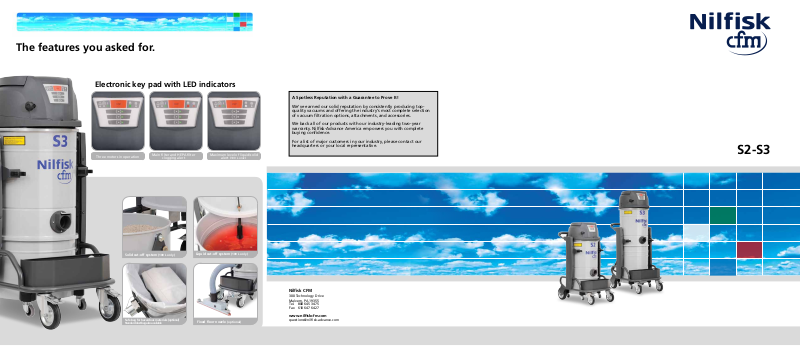

Nilfisk S2, S3 BROCHURE
The features you asked for.
Electronic key pad with LED indicators
Three motors in operation
Main filter and HEPA filter
clogging alert
Maximum level of liquid/solid
alert (100 L only)
A Spotless Reputation with a Guarantee to Prove It!
We’ve earned our solid reputation by consistently producing topquality vacuums and offering the industry’s most complete selection
of vacuum filtration options, attachments, and accessories.
We back all of our products with our industry-leading two-year
warranty. Nilfisk-Advance America empowers you with complete
buying confidence.
For a list of major customers in your industry, please contact our
headquarters or your local representative.
S2-S3
Solid cut-off system (100 L only)
Safe bag for hazardous materials
Standard dust bag also available
(optional)
Liquid cut-off system (100 L only)
Fixed floor nozzle (optional)
Nilfisk CFM
300 Technology Drive
Malvern, PA 19355
Tel. 800 645 3475
Fax 610 647 6427
www.nilfiskcfm.com
questions@nilfisk-advance.com
Nilfisk CFM introduces the next generation of industrial vacuums
S2 and S3 Single-Phase Vacuums Endless possibilities! Overcome all your cleaning challenges.
Construction: The S2 and S3 are constructed of heavy-
duty steel and polypropylene. Stainless steel models
are also available.
Filtration systems: The main filter is available in:
Standard Polyester, Polyurethane or PTFE Membrane,
Nomex and Antistatic. Oversized versions are also
available.
The new S2 and S3 single-phase industrial vacuums
have been designed to meet a wide range of
industrial cleaning challenges. Available in a variety
of configurations, these machines feature strong, solid
construction and cutting-edge innovations such as an
electronic keypad with LED indicators that monitor
the performance of the main and HEPA filters.
The S2 comes with a 50 liter (13 gallon) collection
container, while the S3 is available with 50 or 100 liter
(26 gallon) collection capacities. Extremely ergonomic,
this line of vacuums features a modular design for
easy modifications, upgrades and servicing.
Parameter
Voltage @ 60Hz volts 120 120 120 120
Type of Power no. of phases 1 1 1 1
Power, max. kW 2 1.6 2.4 2.4
Current Draw, rated amps 14.5 11.5 15.8 15.8
Waterlift, max. inches H2O 83.1 71.5 71.5 71.5
Airflow, max. cfm 198 180 270 270
Filter Area, main sq. ft. 21 21 21 21
Filter Area, optional HEPA (upstream) sq. ft. 37.7 37.7 37.7 37.7
Noise Level, @ 3'3" (1 meter) dB(A) 70 70 71 71
Protection Class IP 44 44 44 44
Insulation Class Class F F F F
Tank Capacity gallons/liters 13/50 13/50 13/50 26/100
Machine Inlet mm 70 70 70 70
Dimensions (l x w x h) inches 31.5 x 23.6 x 51.2 31.5 x 23.6 x 51.2 31.5 x 23.6 x 51.2 31.5 x 23.6 x 62.2
Weight lbs. 139 139 150 157
Cord Length ft. 30 30 30 30
Filter Efficiency, HEPA MPPS tested 99.995% @ 0.18 micron 99.995% @ 0.18 micron 99.995% @ 0.18 micron 99.995% @ 0.18 micron
Units S2N1 (50 liter) S2N6 (50 liter) S3N1 (50 liter) S3N1 (100 liter)
The S2 and S3 machines have been approved for
electrical safety by a Nationally Recognized Testing
Laboratory. They can be equipped with multi-stage
filtration, including an optional HEPA filter to capture
99.97% of particulate, down to and including 0.3
microns. Other features include:
• Manual filter shaker to quickly clean the main filter
• Oversized handle for easy push/pull transport
• Accessory storage tray and cable holder
• Liquid and Solid Level LED sensors (100 L machines
only) that automatically shut off the machine when
maximum capacity is achieved
S3 with Longopac System
Filter cleaning systems: The S2 and S3 come standard
with a manual filter shaker, but can also be equipped
with an electric filter shaker or automatic reverse
purge cartridge system.
Collection options: For safe collection and easy
disposal, the S2 and S3 are available with a dust bag,
safe bag, or Longopac® , which allows the collection
of material in a continuous bag that can be filled
with the desired quantity and then cut, disposed and
immediately restored for a new use.
Manual filter shaker
