Nilfisk ATTIX 40-0M PC TYPE 22 OPERATING INSTRUCTIONS

ATTIX 40-0M PC TYPE 22
Quick Start Guide

107400334 E

ATTIX 40-0M PC TYPE 22

A

2.

1.

3.*

1.

*)

2

Option / Optional accessories

A

2.

ATTIX 40-0M PC TYPE 22

3.

1.

1.

5.

4.

5.

3

ATTIX 40-0M PC TYPE 22

A

2.

3.

1.

1.

4.

5.

6.

4

6.

B

1.

ATTIX 40-0M PC TYPE 22

2.

4.

3.

ø27 ø27
ø32 ø32
ø36 ø36
ø38 ø38

0 = 
I = 

5

ATTIX 40-0M PC TYPE 22

B

Filter Cleaning System

6

C

ATTIX 40-0M PC TYPE 22

1.

5.

2.

3.

4.

3.

7.

6.

7.

7

ATTIX 40-0M PC TYPE 22

C

2.

3.

1.

1.

4.

5.

6.

8

6.

C

ATTIX 40-0M PC TYPE 22

5.

1.

2.

3.

6.

4.

3.

9

ATTIX 40-0M PC TYPE 22

C

1.

2.

3.

3.

4.

5. 6.

10

D

1.

2.

ATTIX 40-0M PC TYPE 22

3.

11

ATTIX 40-0M PC TYPE 22

S

T

G

H

U

U

GB

NL

I

This document

This document contains the safety information
relevant for the appliance along with a quick
reference guide.

Prior to using the appliance for the
fi rst time, be sure to read this
document through and keep it ready
to hand.

Further support

• safe disposal of the picked up material

1. Do not use any unsafe work techniques.

2. Never use the vacuum cleaner without the
fi lter element.

3. Switch off the appliance and disconnect
the mains plug in the following situations:

- Prior to cleaning and servicing

- Prior to replacing components

- Prior to changing over the appliance

- If foam develops or liquid emerges

NO

Detailed information on the appliance can

Besides the operating instructions and the
binding accident prevention regulations valid
in the country of use, observe recognised

SV

be found in the operating instructions,
which you can download from our web site
at www.nilfi sk-alto.com.

regulations for safety and proper use.

For further queries, please contact the Nilfi sk-

FI

Alto service representative responsible for
your country. See reverse of this document.

Purpose and intended use

Since 1997, there is a new division of
hazardous dusts and their assigned vacuum
machines. These are regulated by IEC 60335-

Important safety instructions

2-69 (world wide) and by EN 60335-2-69
(European wide).

L

Symbols used to mark instructions

Dust Class M (medium).

R

SL

HR

SK

DANGER

Danger that leads directly to seri­ous or irreversible injuries, or even
death.

WARNING

with OEL values
dust. The machine is tested in its entirety by
vacuums for this dust class. The maximum
degree of permeability is 0.1% and the
disposal must be low dust.

The dusts which belong
to this class are: dusts

1)

> 0.1 mg/m³ as well as saw

Danger that can lead to serious

C

injuries or even death.

Machines to be used in Zone 22 are
marked as Type 22 vacuums.

L

H

RO

B

R

V

CAUTION

Danger that can lead to minor
injuries and damage.

The appliance must

• only be used by persons, who have been
instructed, trained and informed in its cor­rect usage and explicitly commissioned with
the task of operating it

• only be operated under supervision

• not be used by children

• not be used by mentally or physically disa­bled persons.

• These machines may be used for
picking up dust from dust class
L, M or H.

• Zone 22 is defi ned as environments
where fl ammable dusts are present for
short periods only (e.g. less than 10
hours per year).

• Type 22 machines are suitable for use as
dust extractors.

The air fl ow in Safety Vacuum systems has
to be strictly controlled to achieve a minimum
fl ow rate of V

= 20 m/s in the suction hose.

min

The vacuum cleaner ATTIX 40-0M PC TYPE

Before starting work, the operating staff must
be informed on and trained within:

Z

• use of the vacuum cleaner

22 is suitable for picking up:

• Non fl ammable liquids (fl ashpoint 55 °C
or higher)

• risks associated with the material to be

O

12

picked up

1)

OEL =Occupational Exposure Limit

Original instruction

ATTIX 40-0M PC TYPE 22

S

T

G

H

U

U

• Sawdust and dusts hazardous to
health, including dusts with OEL values
0.1 mg/m³

• Flammable, dry dust in Zone 22

Use the cleaner only if it is certain that no ac­tive sources of ignition can be sucked in.

Conductive extraction equipment, e.g. extrac­tion hoods on machines and conductive parts
of machining equipment (e.g. equipment
in protective class II) that are not earthed
through the cleaner, must be earthed in some
other way to prevent electrostatic charges.

When picking up fl ammable dust in Zone 22,
the dirt tank must be emptied as required, but
always after use.

It must be assured that dust not accumulate
on the appliance by regular cleaning.

The vacuum cleaner must be used only, if all
fi lters, as well as the fi lter for the motor cool­ing air, are attached and without damage.

The cleaner is not suitable for extraction on
machining equipment in operation that could
produce sources of ignition.

When dust removers are used, the rate at
which air is exchanged in the room must be
adequate if the exhaust air from the vacuum
cleaner is blown into the room (please ob­serve regulations valid in your country).

The appliance is suitable for commercial use,
such as e.g. in

• Hotels, Schools, Hospitals, Factories,

Shops, Offi ces, Hire shops

Any other use is considered as improper use.
The manufacturer accepts no liability for any
damage resulting from such use. The risk for
such use is borne solely by the user.
Proper use also includes proper operation,
servicing and repairs as specifi ed by the
manufacturer. See operating instructions.

Type of dust Filter bag/waste bag/

fi lter element

• Dusts with OEL
values > 0.1 mg/m
(observe any ad­ditional national
regulations)

3

Waste bag
(5 pcs.)
Order No.
30200804

• Explosive dust,
dust explosion
class St1, St2, St3
in Zone 22

• Wood dusts &
concrete dusts

• Dusts with OEL
values > 0.1 mg/m
(observe any ad­ditional national
regulations)

3

Filter bag
Order No.
302004004

• Explosive dust,
dust explosion
class St1, St2, St3
in Zone 22

• Wood dusts &
concrete dusts

• Dusts with OEL
values > 0.1 mg/m
(observe any ad­ditional national
regulations)

3

Filter ele­ment “M”:
Order No.
302000490

• Explosive dust,
dust explosion
class St1, St2, St3
in Zone 22

• Wood dusts &
concrete dusts

• Dusts with OEL
values > 0.1 mg/m
(observe any ad­ditional national
regulations)

3

Motor cool­ing fi lter
“TYPE 22”

Order No.

107400453

• Explosive dust,
dust explosion
class St1, St2, St3
in Zone 22

• Wood dusts &
concrete dusts

GB

FR

NL

I

NO

SV

FI

L

R

SL

HR

SK

C

L

H

RO

B

R

V

Operation

Depending on how hazardous the dust is, the
cleaner must be fi tted with appropriate fi lters:

Before picking up dust with occupational expo­sure limit values:

Z

1. Check that all the fi lters are present and
properly fi tted.

1)

OEL =Occupational Exposure Limit

Original instruction

13

O

ATTIX 40-0M PC TYPE 22

S

T

G

H

U

U

GB

NL

I

NO

SV

FI

L

R

SL

HR

SK

C

L

H

RO

B

R

V

Z

O

2. Do not use the cleaner with damaged or
missing antistatic clamp. Risk of explosion
due to static discharge in explosive atmos­pheres.

3. The hose diameter and the setting for the
suction hose diameter must be the same.

4. When the motor is running, hold the suction
hose shut. For safety reasons, an acoustic
warning sounds if the air speed in the suction
hose drops to below 20 m/s.

Transport

1. Before transporting the dirt tank, close all the
locks.

2. Do not tilt the cleaner if there is liquid in the
dirt tank.

3. Do not use a crane hook to lift the cleaner.

Storage

1. Store the appliance in a dry place, protected
from frost.

Electrical connection

1. IIt is recommended that the vacuum cleaner
should be connected via a residual current
circuit breaker.

2. When picking up fl ammable dust in zone 22,
extension lines, couplings and adapters must
not be used.

3. Arrange the electrical parts (sockets, plugs
and couplings) and lay down the extension
lead so that the protection class is main­tained.

4. Connectors and couplings of power supply
cords and extension leads must be water­tight.

Extension lead

1. As an extension lead, only use the version
specifi ed by the manufacturer or one of a
higher quality. See operating instructions.

2. When using an extension lead, check the
minimum cross-sections of the cable:

Cable length Cross section

< 16 A < 25 A

up to 20 m 1.5 mm

20 to 50 m 2.5 mm

2

2

2.5 mm

4.0 mm

2

2

Maintenance, cleaning and repair

During the following work, ensure that dust is
not unnecessarily spread around. Wear a P2
breathing mask.

Only carry out maintenance work described in

the operating instructions.

Always pull out the mains plug before cleaning
and maintenance of the vacuum cleaner.

During maintenance and cleaning, handle the
vacuum cleaner in such a manner that there
is no danger for maintenance staff or other
persons.

In the maintenance area

1. Use fi ltered compulsory ventilation

2. Wear protective clothing

3. Clean the maintenance are so that no harm­ful substances get into the surroundings.

Before removing the vacuum cleaner from the
area contaminated with harmful substances:

1. Clean the outside of the vacuum cleaner,
wipe it clean or pack the vacuum cleaner in
well sealed packaging

2. and avoid spreading deposited harmful dust.

During maintenance and repair work all contami­nated parts that could not be cleaned satisfacto­rily must be:

1. packed in well sealed bags

2. disposed of in a manner that complies with
valid regulations for such waste removal.

A dust test must be performed at least once
every year by Nilfi sk-Alto service or a trained
person. This test includes, for example, whether
there is damage to the fi lter, the vacuum cleaner
is sealed to the air and the control equipment
works properly.

Warranty

Our general conditions of business are applica­ble with regard to the guarantee.
Unauthorised modifi cations to the appliance, the
use of incorrect brushes in addition to using the
appliance in a way other than for the intended
purpose exempt the manufacturer from any
liability for the resulting damage.

Tests and approvals

Electrical tests must be per formed in accord­ance with the provisions of safety regulations
(BGV A3) and to DIN VDE 0701 Part 1 and Part

3. In ac cord ance with DIN VDE 0702 these tests

must be performed at regular intervals and after
repairs or modifi cations.

1)

14

OEL =Occupational Exposure Limit

Original instruction

ATTIX 40-0M PC TYPE 22

S

T

G

H

U

U

Risks

Electrical components

DANGER

Electric shock due to faulty mains
connecting lead.

Touching a faulty mains connect­ing lead can result in serious or
even fatal injuries.

1. Do not damage the mains
power lead (e.g. by driving over
it, pulling or crushing it).

2. Regularly check whether the
power cord is damaged or
shows signs of ageing.

3. Have the faulty mains con­necting lead replaced by your
Nilfi sk-Alto service representa­tive or a qualifi ed electrician
prior to using the appliance
again.

DANGER

The upper section of the vacuum
cleaner contains live components.

Contact with live components leads
to serious or even fatal injuries.

1. Never spray water on to the
upper section of the vacuum
cleaner.

CAUTION

Damage due to unsuitable mains
voltage.

The appliance can be damaged as
a result of being connected to an
unsuitable mains voltage.

1. Ensure that the voltage shown
on the rating plate corresponds
to the voltage of the local mains
power supply.

Picking up liquids

Picking up liquids.

Do not pick up fl ammable liquids.

1. Before liquids are picked up,
always remove the fi lter bag/
waste bag and check that the
fl oat or the water level limit
works properly.

2. The use of a separate fi lter ele­ment or fi lter screen is recom­mended.

3. If foam appears, stop work imme­diately and empty the tank.

Hazardous materials

Hazardous materials.

Picking up hazardous materials
can lead to serious or even fatal
injuries.

1. The following materials must
not be picked up by the vacuum
cleaner:

- hot materials (burning ciga­rettes, hot ash, etc.)

- fl ammable, explosive, ag­gressive liquids (e.g. petrol,
solvents, acids, alkalis, etc.)

- mixtures of fl ammable dusts
with liquids

- explosive substances or
substances considered to
be similar in §1 of the law on
explosives

- fl ammable dusts with an ex­tremely low minimum ignition
energy <1 mJ (also observe
national regulations).

- Highly reactive dusts or
dusts with a high affi nity to
oxygen

GB

CAUTION

FR

NL

I

NO

SV

FI

WARNING

L

R

SL

HR

SK

C

L

H

RO

B

R

WARNING

For dusts like titanium and mag­nesium additional requirements
apply, consult your national labour
authorities or the manufacturer of
the vacuum cleaner.

1)

OEL =Occupational Exposure Limit

Original instruction

15

V

Z

O

ATTIX 40-0M PC TYPE 22

S

T

G

H

U

U

GB

NL

I

NO

SV

FI

L

R

SL

HR

SK

Spare parts and accessories

CAUTION

Spare parts and accessories.

For picking up fl ammable dust in
Zone 22: Only use accessories
which are certifi ed by the manu­facturer of the Type 22 machine.
The use of other accessories can
cause danger of explosion.

The use of non-genuine spare
parts and accessories can impair
the safety of the appliance.

1. Only use spare parts and ac­cessories from Nilfi sk-Alto.

2. Use only the brushes sup­plied with the vacuum cleaner
or specifi ed in the operating
manual.

Inserting the disposal bag

WARNING

On a Type 22 machine the earth
connection between the head and
the container should be kept at
any times to prevent static build up.

The earth connection is kept
through a brass clamp on the
machine head when touching the
inlet fi tting on the container.

As specifi ed in European Direc­tive 2002/96/EC on old electrical
and electronic appliances, used
electrical goods must be collected
separately and recycled ecologi­cally. Contact your local authorities
or your nearest dealer for further
information.

Quick reference guide

Pages 2 – 11 feature a pictorial quick refer-
ence guide, which is designed to help you
when starting up, operating and storing the
appliance.
This quick reference guide does not replace
the separate operating instructions, which de­scribes the appliance in detail. The operating
instructions also contain further information
on the operation, maintenance and repair of
the appliance.

Meaning of the symbols

The instructions for actions are subdivided
into 7 sections, which are represented by
symbols.

A Before starting

B Control / Operation

C

L

H

RO

B

R

V

Z

O

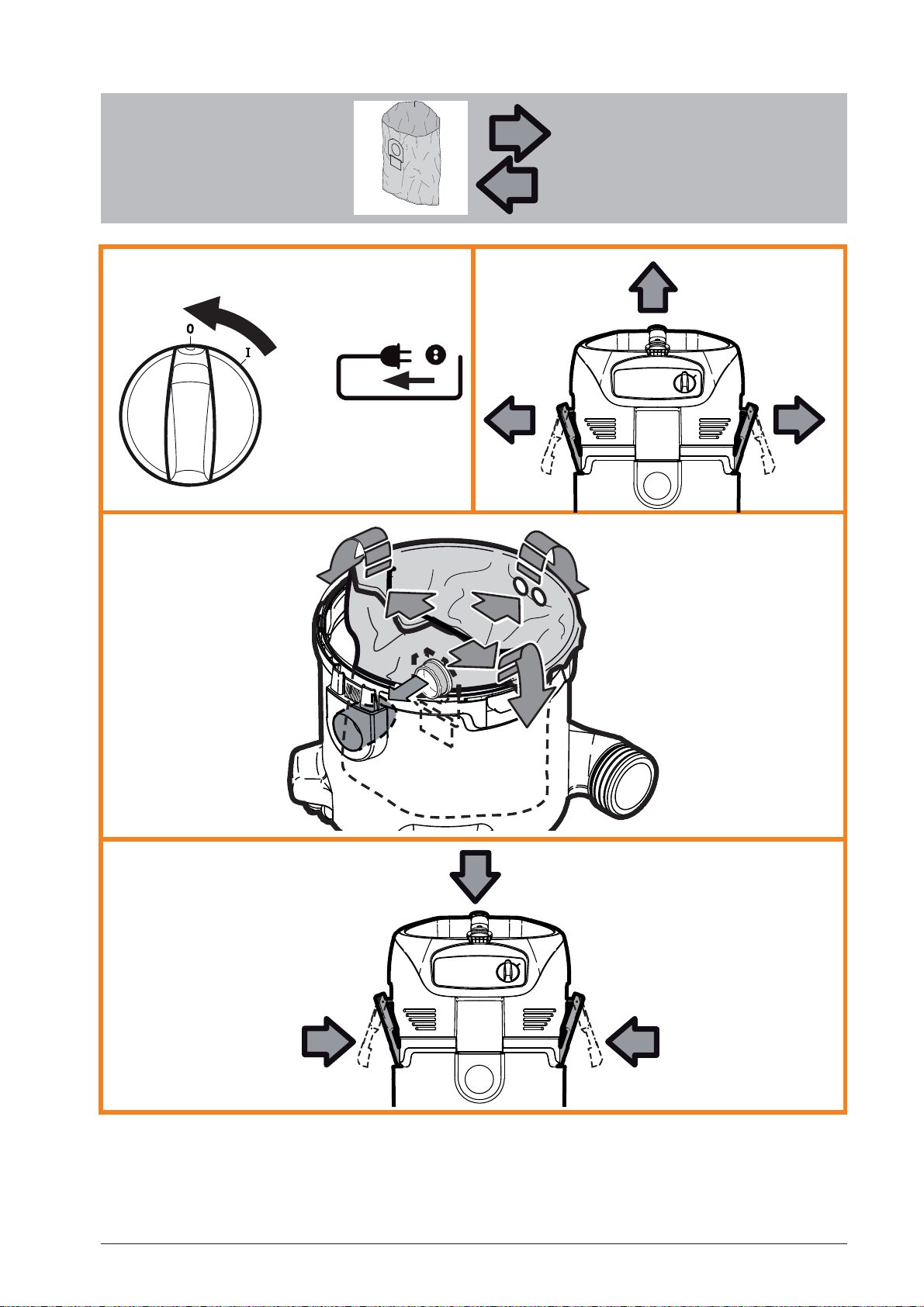

When inserting the disposal bag
make sure the bag is placed so
it does not interfere with the anti­static clamp.

Emptying dirt tank

CAUTION

Picking up environmentally haz­ardous materials.

Materials picked up can present a
hazard to the environment.

1. Dispose of the dirt in accord­ance with legal regulations.

Recycling the cleaner

Make the old cleaner unusable immediately.

1. Unplug the cleaner.

2. Cut the power cord.

3. Do not discard of electrical appliances with
household waste.

C Replacement of fi lter bag

C Replacement of disposal bag

C Replacement of fi lter element

C Replacement of motor

cooling fi lter

D After fi nishing work

1)

16

OEL =Occupational Exposure Limit

Original instruction

ATTIX 40-0M PC TYPE 22 - EU -

Voltage V 230

Mains frequency Hz 50

Fuse A 16

ATTIX 40-0M PC TYPE 22

Power consumption

Total connected load W 1100

Air flow rate

Vacuum

Sound pressure level at a distance
of 1 m, EN 60704-1

Working sound level dB(A) 60 ± 2

Power cord: Type H07RN-F 3G1,5

Protection class I

Type of protection IP 54

IEC

W 1100

ATTIX 40-0M PC TYPE 22

3

/h

m
l/min

hPa/mbar

kPa

dB(A) 63 ± 2

CAUTION! Only use the cable mentioned

192

3200

230

23

EC conformity declaration

NILFISK-ADVANCE A/S
Sognevej 25
DK-2605 Brøndby

Product:

Model:

Description:

The design of this appliance complies
with the following provisions:

Applied harmonized standards:

Applied national standards and
technical specifi cations:

Anton Sørensen
General Manager EAPC
Technical Operations Brøndby, 02.10.2009

Vacuum cleaner for wet and dry operation

ATTIX 40-0M PC TYPE 22

230-240V~, 50-60Hz
Dust Class M
ATEX Z o n e 22

II 3D Ex tD A22 T135 °C IP54

EC - Machine directive 2006/42/EC
EC - Directive EMC 2004/108/EC
EC - Explosive Atmosphere directive 94/9/EC „ATEX“

EN ISO 12100-1 (2004), EN ISO 12100-2 (2004),
EN 55014-1 (2006), EN 55014-2 (2001),
EN 61000-3-2 (2006), EN 1127-1 (2007),
EN 61241-10 (2004)

EN 60335-2-69 (2009)
IEC 60335-2-69 (2008)

169

Nilfisk-ALTO

www.nilfisk-alto.com
