AquaSpot
PARTS LIST
Advance MODEL 56220000
10/98 revised 2/03 FORM NO. 56042346
98-10
02-3
TABLE OF CONTENTS
AquaSpot
DESCRIPTION PAGE
™
3
AQUASPOT
™
..........................................................................................................................................................
4-5
CART ASSEMBLY (OPTIONAL) .............................................................6-7
WIRING DIAGRAM.................................................................................... 7
WHEN ORDERING PARTS
* Use the 8 digit numbers from the “Ref. No.” columns in this parts list.
* Specify the model and serial number of the machine.
* Use the space below to record the model and serial number for future reference.
Model Serial No.
FORM NO. 56042346
AQUASPOT
4
AquaSpot
™
™
98-10
01-2
27
FRONT
16
33
39
40
34
29
35
44
45
15
18
42
36
41
31
47
14
32
38
28
26
11
4
7
25
17
20
21
22
46
FORM NO. 56042346
48
12
30
19
23
24
1
37
5
3
13
43
9
10
6
2
8
98-10
03-2
AQUASPOT
AquaSpot
™
™
5
Item Ref. No. Qty Description
56220000 1 AquaSpot™
1 56001993 4 Scr, Pan Phil 10-24 x .50
2 56002124 1 Scr, Pan Phil 10-24 x .62
3 56002140 4 Wsh, Flt SAE #8
4 56002396 2 Scr, Flt Phil 8-32 x .50
5 56002865 4 Nut, Hex Nyl Loc-Thin 8-32
6 56002876 4 Scr, Pan Phil SS 8-32 x .50
7 56003018 8 Scr, Pan Phil SS 8-32 x .38
8 56003189 9 Scr, Pan Phil SS 10-24 x .38
9 56009009 2 Nut, Hex Machine 10-24
10 56009011 2 Wsh, Int Shprf #10
11 56009218 1 Wsh, Flt .688 x 1.250 x .125
12 56756364 4 Clamp, Hose SAE #4
13 56157376 2 Grommet
14 56172075 1 Nipple 1/4NPT x 5/8-18
15 56220001 1 Switch, Rocker
16 56220002 1 Tank, Recovery
17 56220003 1 Tank, Solution
18 56220004 1 Panel, Front Molded
19 56220006 1 Pump
20 56220007 1 Gasket, Vac Seal Upper
21 56220008 1 Gasket, Vac Seal Lower
22 56220009 1 Vac Mount Plate
23 56220016 1 Panel, Bottom
24 56220021 1 Foam Air Difusser
25 56220023 2 Latch
* 56220024 1 Wire Assy (Blk 11")
26 56220025 1 Foam, Vac Intake
* 56220026 1 Wire Assy (Wht 6")
* 56220027 1 Wire Assy (Grn/Yel 14")
* 56220028 1 Wire Assy (Blk 4")
* 56220029 1 Wire Assy (Blk 4" & Blk 5")
27 56220066 1 Cap
28 56742552 1 O-Ring -114 NBR 70
Item Ref. No. Qty Description
29 56745860 2 Nut, Jam, 5/8-18 Brass
30 56755726 2 Barb, Hose Male
31 56756360 1 Barb, Hose Female
32 56220034 1 Screen, Vac Intake
33 56220035 1 Hose Assy TSBUS2003-839 / NOTE 1
* 56220046 1 Solution Hose Assy
* 56220047 1 Vacuum Hose Assy
* 56478246 6 Tie, Cable
34 56220036 1 Gasket, Tank Seal
35 56220037 1 Hand Tool TSBUS2003-839
56220109 1 Upholstery Tool Assembly TSBUS2003-839
36 56220041 A/R Electrostat Exht. Filter (Pkg 10)
37 56220043 2 Solution Feed Hose
38 56220045 1 Vac Motor Assy
** 56220065 1 Carbon Brush Set
39 56220048 1 Strainer
40 56220049 1 Tube
41 56220050 1 Bezel, Filter
42 56220052 1 Grill, Filter
43 56220053 1 Bracket, Kit
44 56220055 1 Plug
45 56220058 1 FTG 1/8NPT x 1/4 Barb
46 56220061 1 Cord Set, 16/3 x 25' Yel
47 56220062 1 Foam, Vac Exhaust
48 56220063 1 Cord, Pigtail Assy
* 56163228 1 Bell Nut
** 56220070 1 Upholstery Tool (requires 56220075 before SN1646179)
** 56262207 1 Stand-Up Wand Kit (requires 56220075 before SN1646179)
** 56220075 1 Quick Disconnect Adapter Kit (only required for machines built prior to SN1646179)
* = Not Shown
** = Optional Accessory
NOTE 1: When using the new style Hose Assembly PN56220035 with the old style Hand Tool PN56220037, you will need to remove one of the quick
disconnect fittings from the solution hose.
FORM NO. 56042346
CART ASSEMBLY (OPTIONAL)
6
AquaSpot
™
98-10
01-2
9
4
10
8
11
FRONT
1
12
3
5
FORM NO. 56042346
7
2
6
98-10
01-2

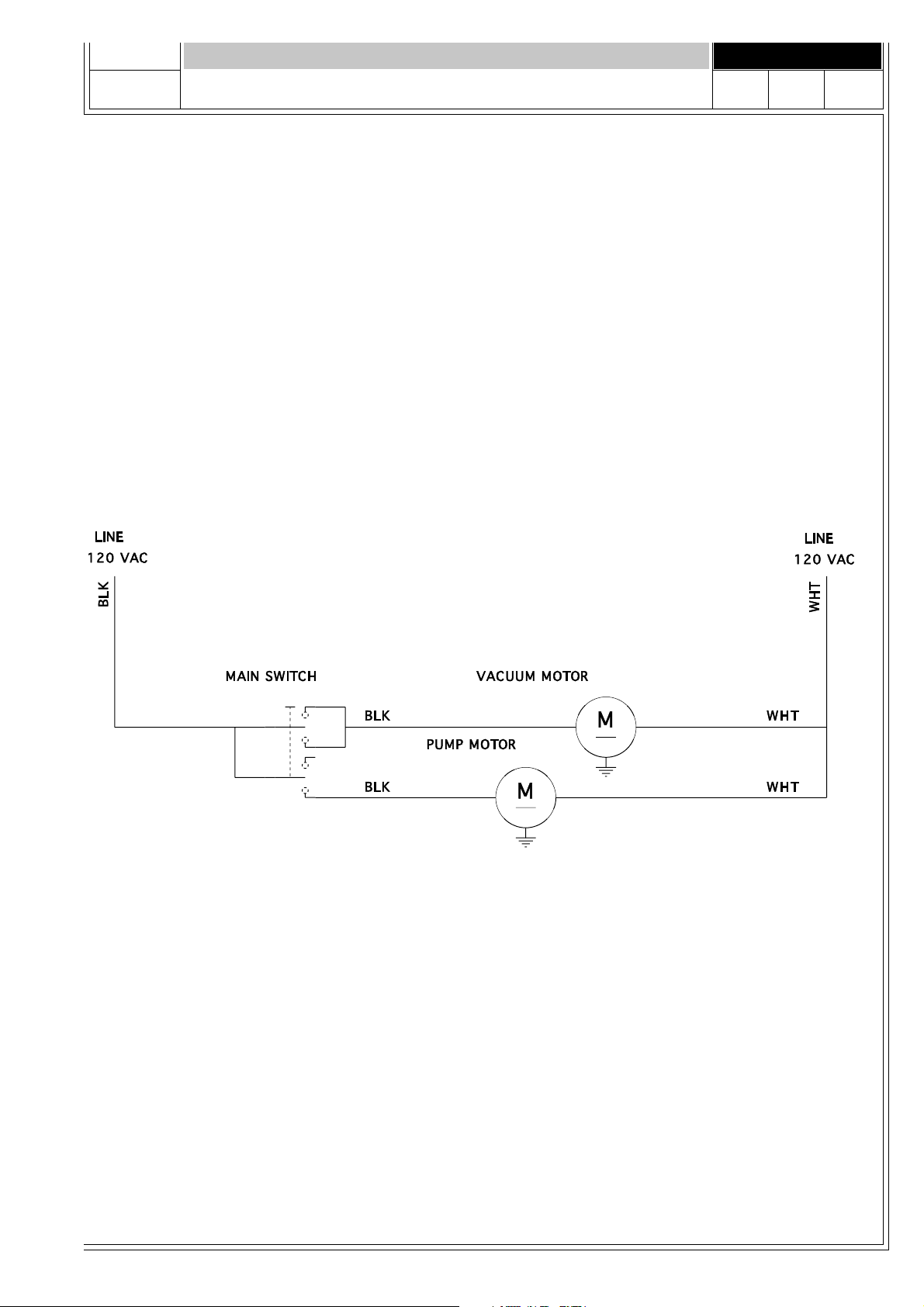

CART ASSEMBLY (OPTIONAL) / WIRING DIAGRAM
AquaSpot
™
Item Ref. No. Qty Description
56220018 1 Cart Assembly
1 56001879 2 Wsh, Flt SAE 1/2
2 56002503 4 Scr, Hex Hd 10-24 x .50
3 56002768 4 Nut, Hex Nyl Loc 10-24
4 56009030 6 Scr, Pan Phil Thd Form 10-24 x .38
5 56009097 2 Nut, Push Cap 1/2
6 56201693 1 Caster Swiv 3.0 x .81
7 56220017 1 Chassis Weld’t
8 56220020 1 Handle Weld’t
9 56220022 1 Molded Tray
10 56262518 2 Hook, Cord
11 56262535 1 Strain Relief
12 56346594 2 Wheel, 8 Inch
7
Item Ref. No. Qty Description
56220001 1 Main Switch
56220045 1 Vacuum Motor
** 56220065 1 Carbon Brush Set
56220006 1 Pump Motor
** = Optional Accessory
FORM NO. 56042346
Nilfisk-Advance, Inc.
14600 21st Avenue North
Plymouth, MN, 55447-3408
www.nilfisk-advance.com
Phone: 800-989-2235
Fax: 800-989-6566
©2002 Nilfisk-Advance, Inc.,
Plymouth, MN 55447-3408
Printed in the U.S.A.
