Nikon PROSTAFF P3 CROSSBOW Instruction Manual

Crossbow scope/Lunette de visée pour arbalète

En

Fr

3×32

Instruction manual/Mode d'emploi

Congratulations on your choice of a Nikon crossbow scope. Your new scope is the finest example of Nikon’s rugged and durable construction and precision bright optics; important qualities for a serious crossbow shooter’s En scope.

Whether you use your scope for target shooting or for hunting, the procedure for mounting is identical. A set of high-quality steel mounting rings which have a standard diameter of 1 in. (25.4 mm) are required to mount the scope. Follow the ring manufacturer’s instructions for mounting procedures. After mounting the scope on your crossbow, follow the procedures for reticle alignment.

WARNING:

IMPROPER MOUNTING OF YOUR NIKON SCOPE CAN CAUSE SERIOUS INJURY.

THUS IT IS IMPORTANT THAT YOUR NIKON SCOPE IS MOUNTED PROPERLY BEFORE USING. TO ENSURE PROPER MOUNTING OF YOUR NIKON SCOPE, PLEASE HAVE IT MOUNTED AND/OR CHECKED BY AN EXPERIENCED GUNSMITH BEFORE USING.

THE USER ASSUMES ALL RESPONSIBILITY AND LIABILITY FOR HAVING THE SCOPE PROPERLY MOUNTED TO A CROSSBOW AND FOR USING THE SCOPE PROPERLY. ALWAYS CHECK THE CONDITION OF YOUR SCOPE AND YOUR MOUNTING SYSTEM BEFORE USING YOUR CROSSBOW.

SUPPLIED ITEM(S)

Body·························································· 1 piece

Eyepiece cap············································· 1 pair* Objective cap···········

*Rubber band linked (This type connects the objective and eyepiece caps using a rubber band.)

2

Caution	En
(1) Do NOT look at the sun through the crossbow scope. It will permanently damage your eye. This precaution applies to all optical devices, such as cameras and binoculars.

(2)Do NOT mount this scope on any firearms because this is a crossbow scope.

(3)The crossbow scope is effectively sealed against moisture and dust. You may use your scope safely either in the rain or in dusty climates. To preserve the appearance of the scope, we recommend that it be dried and cleaned prior to storage. Use a soft cloth for cleaning metal surfaces and use photographic lens tissue to clean the scope’s lenses.

Notice for customers in the State of California

WARNING: This product contains chemicals including Lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

When setting the reticle for shooting or hunting, you should determine your standard range and then adjust the reticle based upon that target distance. For targets which vary from that standard distance, according to personal preference, you may simply adjust the position of the reticle in relation to your target, or you may wish to use the procedure for trajectory compensation.

We hope that you will enjoy your new Nikon crossbow scope for many years to come. Enjoy using it, and above all, always follow safe shooting procedures.

N.B. Export of the products* in this manual may be controlled under the laws and relatives of the exporting country. Appropriate export procedure, such as obtaining of export license, shall be required in case of export. *Products: Hardware and its technical information (including software)

3

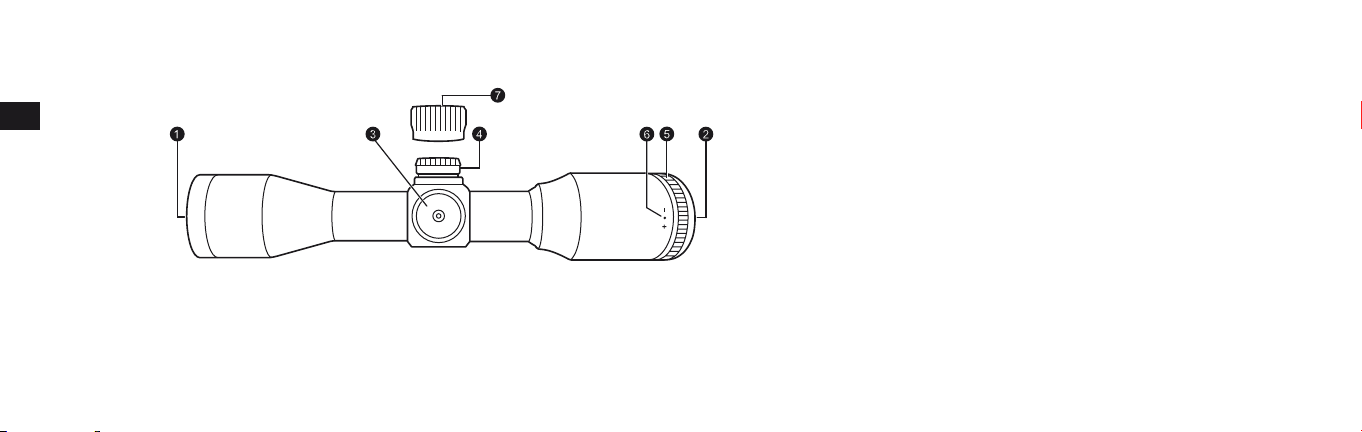

1. Nomenclature

En

1Objective lens

2Eyepiece lens

3Elevation adjustment turret

4Windage adjustment turret

5Eyepiece adjustment

6Diopter index dot

7Turret cap

Fig. 1

4

2. Specifications

Model		PROSTAFF P3 CROSSBOW 3×32
Reticle		BDC 60
Actual magnification	(×)	3
Effective objective diameter	(mm)	32
Exit pupil	(mm)	10.7
Eye relief	(in.)/(mm)	3.4/87
Tube diameter	(in.)/(mm)	1.0/25.4
Objective outside diameter	(in.)/(mm)	1.6/40.5
Eyepiece outside diameter	(in.)/(mm)	1.6/41
Adjustment graduation		1 click: 1 MOA*
		1 revolution: 48 MOA*
		1 revolution: 48 clicks
Max. internal adjustment	(MOA)*	130
Parallax setting	(yd.)/(m)	20/18.3
Field of view at 100 yd.	(ft)	35.6
Field of view at 100 m	(m)	11.9
Length (a)	(in.)/(mm)	8.2/209.0
Mount length (b)	(in.)/(mm)	1.2/29.6
Mount length (c)	(in.)/(mm)	1.3/33.0
Mount length (d)	(in.)/(mm)	1.1/28.3
Weight	(oz)/(g)	10.9/310
Structure		Waterproof (up to 3 ft 3 in. (1 m) for 10 minutes) and nitrogen gas purged

* MOA = Minute of Angle

En

Objective Eyepiece

b	c	d
	a

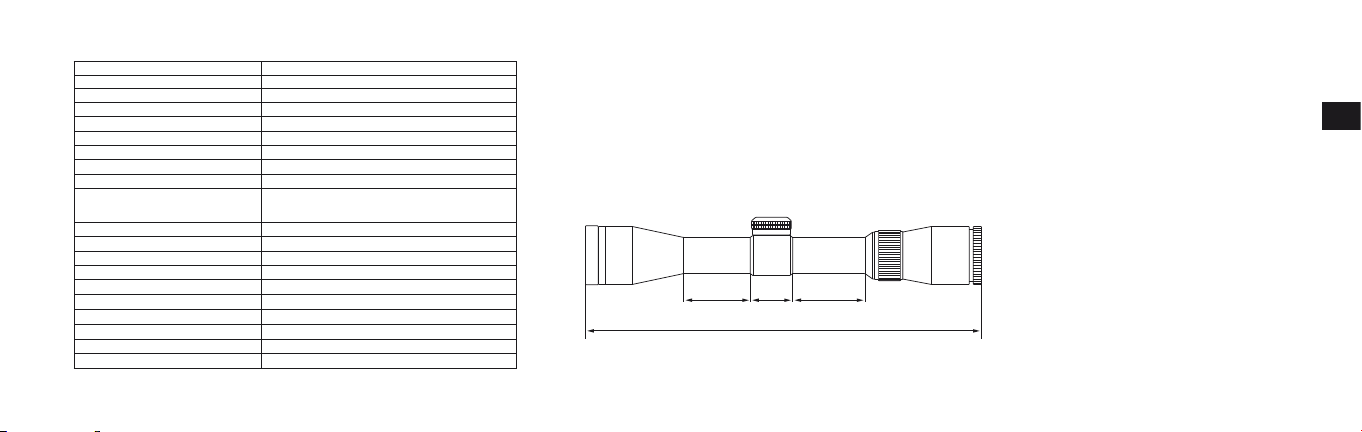

Letters a to d in the diagram above refer to lengths (a) to (d) shown in the Specifications table.

5

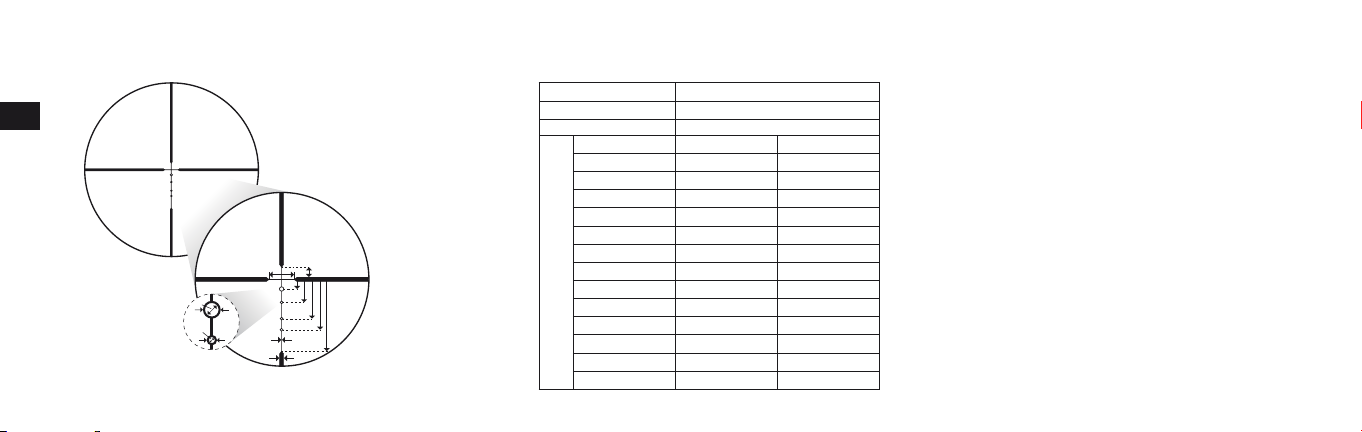

	Reticle subtension chart
En	BDC 60 reticle

B G

H D C I

FE A J KL M

Letters A to M in the diagram above refer to the reticle subtensions of units A to M shown on the table to the right.

	Model	PROSTAFF P3 CROSSBOW 3×32
Reticle			BDC 60
Magnification (×)			3
	Unit	(in.)		(cm)
	A	0.25		0.70
<![if ! IE]> <![endif]>20 yards)	B	6.0		16.68
	C	0.75		2.09
<![if ! IE]> <![endif]>at
	D	1.25		3.48
<![if ! IE]> <![endif]>metres/inches
	F	1.0		2.78
	E	0.5		1.39
<![if ! IE]> <![endif]>at 20
	G	3.0		8.34
<![if ! IE]> <![endif]>(cm
	H	2.75		7.65
<![if ! IE]> <![endif]>subtensions
	I	6.5		18.07
<![if ! IE]> <![endif]>Reticle	J	11		30.58
	K	14		38.92
	L	20		55.60
	M	1		2.78

6

3. Instructions

(1)Focusing

1Look through the eyepiece with your eye positioned about 3-4 in. (7.5-10 cm) away from the eyepiece to see the BDC 60 reticle (Fig. 3).

Be sure your eye is positioned with proper alignment and with proper eye relief, otherwise the view will“black out.”

2Point the objective end of the scope at the sky (do NOT point it at the sun) or at a plain unpatterned wall.

3Turn the eyepiece adjustment counter-clockwise and then turn it clockwise until the reticle appears sharp.

Notice: Reticle images shown in this manual are representation only. Actual images may vary.

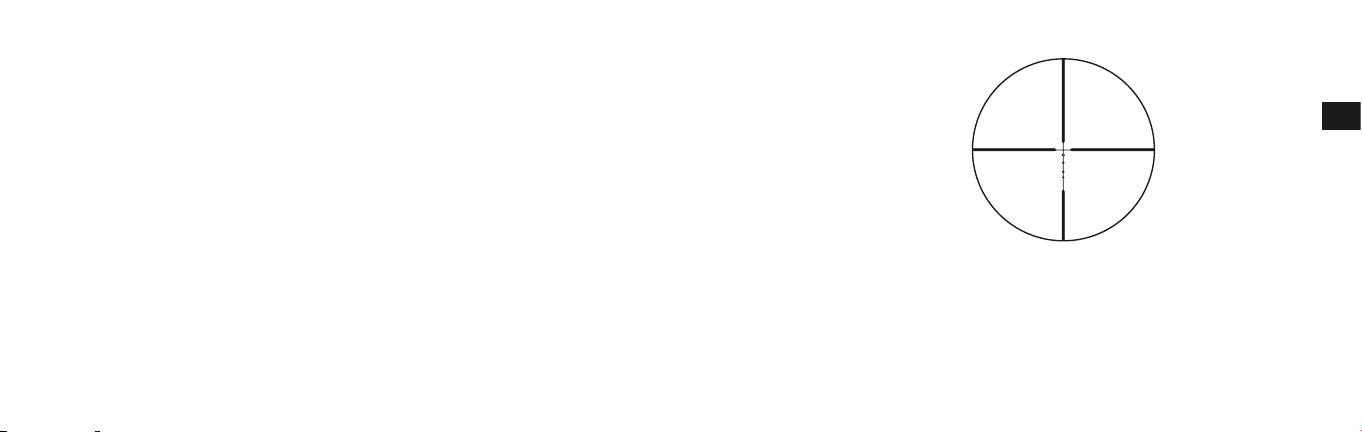

BDC 60 reticle

En

Fig. 3

7

		(2) Adjustment of the crossbow scope
	En	Sighting through the crossbow scope, align the crossbow with your aiming point on the target and shoot a trial bolt. If the bolt does not hit the aiming point, adjust the elevation and windage adjustment turrets as follows:
		•If the bolt hits under the aiming point, turn the elevation adjustment turret (counter-clockwise) in the direction of the arrow marked“U” for up. If the bolt hits high, turn the elevation adjustment turret (clockwise)
		in the direction of the arrow marked“D” for down.

•If the bolt hits to the right of the aiming point, turn the windage adjustment turret (clockwise) in the direction of the arrow marked“L” for left. If the bolt hits to the left of the aiming point, turn the windage adjustment turret (counter-clockwise) in the direction of the arrow marked“R” for right.

•After the reticle has been adjusted to the point of impact, replace the turret cap for both the elevation and windage adjustment turrets.

Note:

•The windage and elevation scales of PROSTAFF P3 CROSSBOW scopes are calibrated in divisions of 1 minute of angle (MOA) with a click at intervals of 1 minute of angle (1 division).

•When adjusting the reticle to the point of aim, remember that 1 minute of angle equals approximately 1 in. (2.54 cm) at 100 yd. (91.44 m).

Therefore, if the impact point is 2 in. (5.08 cm) low and 1 in. (2.54 cm) right at 100 yd. (91.44 m) parallax setting, you should adjust 2 minutes of angle up and 1 minute of angle left. In the case of 60 yd. (54.86 m) parallax setting, the adjusting value is 3×.

(3) Zero resetting of adjustment turret

The elevation adjustment and windage adjustment turrets have a retracting system. After the reticle has been adjusted to match the point of impact, pull up the elevation adjustment or windage adjustment turret to disengage. The turret can now be turned freely. Align the zero number to the index line to set the zero setting, and then release the turret. The turret automatically retracts to the original position.

8

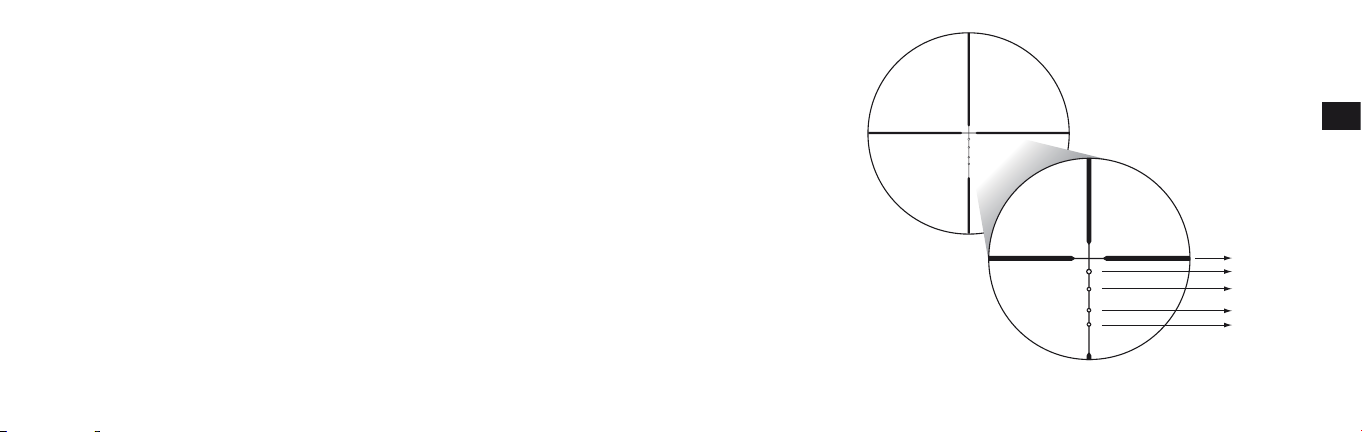

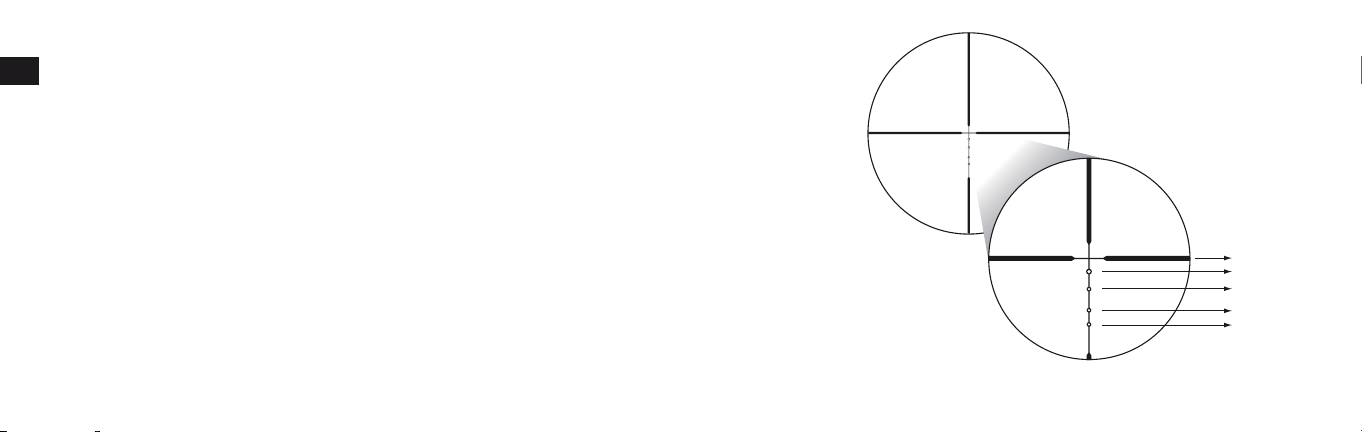

Utilizing the BDC 60 reticle

En

The BDC 60 reticle was specifically designed to match the trajectory of today’s modern crossbows and provide bolt drop compensation out to 60 yards, which we feel is the maximum ethical range for crossbow hunting. It is important that you determine the actual velocity of your crossbow using a chronograph as manufacturers’ specifications can vary. Most local archery pro shops have chronographs readily available for you to obtain accurate velocities from your set up.

The reticle is designed to be zeroed at 20 yards with a 400 grain bolt (including a 100 grain field point, bullet point or broadhead) with the crossbow having an average velocity of approximately 305 fps. The ballistic circles would then provide bolt drop for 30, 40, 50 and 60 yards as seen on the next page.
