Nikon M-300 Instruction Manual
En
Fr
Manufacturer:
3-25, Futaba 1-chome, Shinagawa-ku, Tokyo 142-0043, Japan
Printed in the Philippines (775C)1E/1307
Instruction manual/Mode d'emploi
1.5-6×42 1.5-6×42 IL
3
En
Congratulations on your choice of a Nikon M-300 BLK Riflescope. Your new scope is the finest example of Nikon's rugged and durable construction and precision bright optics; important qualities for a serious shooter's
riflescope.
Whether you use your scope for hunting or for target shooting, the procedure for mounting is identical. A set of high-quality steel mounting rings which have a standard diameter of 30 mm (1.2 in) are required to mount
the scope. Follow the ring manufacturer's instructions for mounting procedures. After mounting the scope on your rifle, follow the procedures for reticle alignment.
IMPORTANT INFORMATION
IT IS IMPORTANT THAT YOUR NIKON RIFLESCOPE IS MOUNTED PROPERLY AND THAT CAREFUL CONSIDERATION BE GIVEN WHEN MOUNTING YOUR NIKON RIFLESCOPE ON A FIREARM.
WE HIGHLY RECOMMEND THAT YOUR NIKON RIFLESCOPE BE MOUNTED ON YOUR FIREARM BY AN EXPERIENCED, REPUTABLE GUNSMITH.
THE USER ASSUMES ALL RESPONSIBILITY AND LIABILITY FOR HAVING THE NIKON RIFLESCOPE PROPERLY MOUNTED TO A FIREARM AND USING THE NIKON RIFLESCOPE PROPERLY.
ALWAYS CHECK THE CONDITION OF YOUR MOUNTING SYSTEM PRIOR TO USING YOUR FIREARM.
SUPPLIED ITEM(S)
Body ················································1 piece Cleaning cloth ·················································································1 piece
Eyepiece cap ····················
··············· 1 pair
Battery (3V Lithium battery: CR2032) (IL model only) ················ 1 piece
Objective cap···················
4
En5En
Caution
(1) Do NOT look at the sun through the riflescope. It will permanently damage your eye. This precaution applies to all optical devices, such as cameras and binoculars.
(2) The riflescope is effectively sealed against moisture and dust. You may use your scope safely either in the rain or in dusty climates. To preserve the appearance of the scope, we recommend that it be dried and
cleaned prior to storage. Use a soft cloth for cleaning metal surfaces and use photographic lens tissue to clean the scope's lenses.
(3) Never leave the device in the sun for extended periods without the Eyepiece/Objective cap. The objective lens and eyepiece can function as a burning glass and damage the interior components.

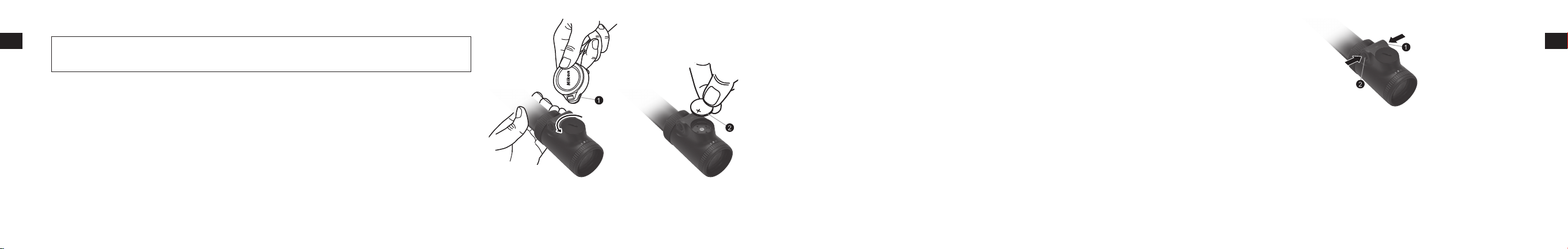

(4) When not in use for an extended period, please remove the battery from the body.
(5) If the battery compartment cover is damaged, or if it emits a strange sound due to dropping or some other cause, remove the battery immediately and stop using.
Caution (Lithium battery)
If handled incorrectly, the battery may rupture and leak, corroding equipment and staining clothing. Be sure to observe the following:
• Install the battery with the + and - poles positioned correctly.
• The battery should be removed when exhausted or during extended periods of non-use.
• Do not short the end terminal of the battery chamber.
• Do not carry together with keys or coins in a pocket or bag, it may short and cause overheating.
• Do not expose the battery to water, or a flame. Never disassemble the battery.
• Do not charge the lithium battery.
• If liquid from a damaged battery comes into contact with clothing or skin, rinse immediately with plenty of water. If liquid from a damaged battery enters the eyes, rinse immediately with clean water, then consult a doctor.
• When disposing of the battery, follow your local area regulations.
6
En7En
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules and to EU EMC directive. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Symbol for separate collection applicable in European countries Symbol for separate collection applicable in European countries
This symbol indicates that this battery is to be collected separately.
The following apply only to users in European countries.
• This battery is designated for separate collection at an appropriate collection point. Do
not dispose of as household waste.
• For more information, contact the retailer or the local authorities in charge of waste
management.
This symbol indicates that this product is to be collected separately.
The following apply only to users in European countries.
• This product is designated for separate collection at an appropriate collection point. Do
not dispose of as household waste.
• For more information, contact the retailer or the local authorities in charge of waste
management.
When setting the reticle for hunting, you should determine your standard range and then adjust the reticle based upon that target distance. For targets which vary from that standard distance, according to personal
preference, you may simply adjust the position of the reticle in relation to your target, or you may wish to use the procedure for trajectory compensation.
We hope that you will enjoy your new Nikon M-300 BLK Riflescope for many years to come. Enjoy using it, and above all, always follow safe shooting procedures.
N.B. Export of the products* in this manual may be controlled under the laws and relatives of the exporting country. Appropriate export procedure, such as obtaining of export license, shall be required in case of export.
*Products: Hardware and its technical information (including software)
8
En9En

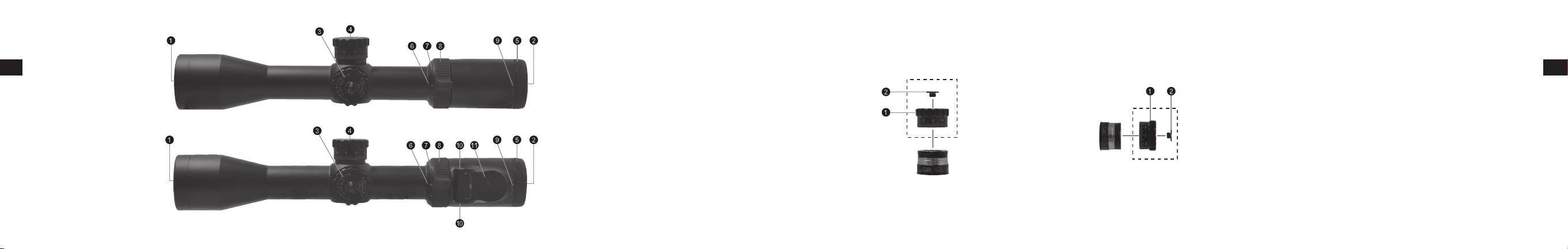

1. Nomenclature
Fig. 1-1
1 Objective lens
2 Eyepiece lens
3 Elevation adjustment turret
4 Windage adjustment turret
5 Eyepiece adjustment
6 Power index
7 Power scale
8 Power selector ring
9 Diopter index dot
0 Illumination adjustment buttons
a Battery compartment cover
Fig. 1-2
1.5-6×42
1.5-6×42 IL

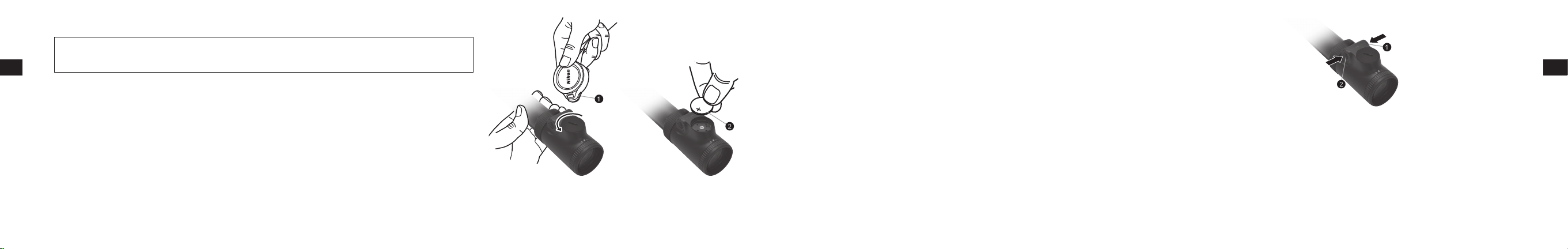

Fig. 1-4
Shipped attached to
riflescope
1 Turret
2 Screw for turret
Shipped
attached to
riflescope
Elevation adjustment Windage adjustment
Fig. 1-3
10
En11En

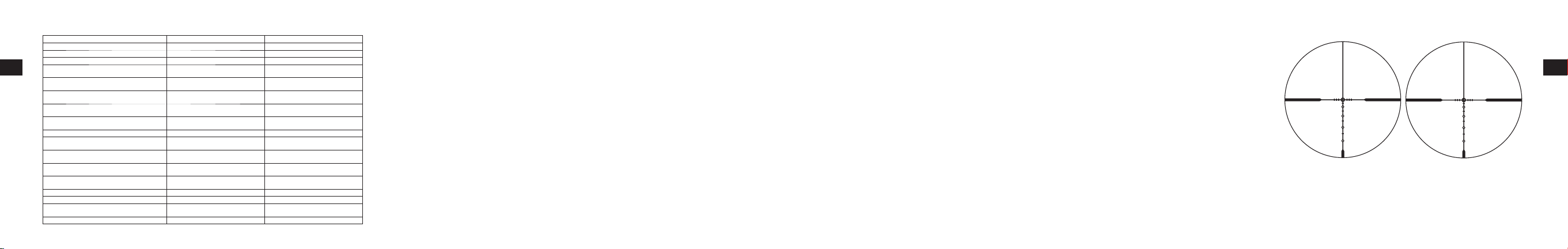

2. Specifications
Model 1.5-6×42 1.5-6×42 IL
Actual Magnification 1.5-6× 1.5-6×
Objective Diameter (mm) 42 42
Exit Pupil * (mm) 7 7
Eye Relief ** (mm)
(in)
96.5-94.0
3.8-3.7
96.5-94.0
3.8-3.7
Tube Diameter (mm)
(in)
30
1.2
30
1.2
Objective Tube Diameter (mm)
(in)
49.3
1.9
49.3
1.9
Outside Diameter of Eyepiece (mm)
(in)
44
1.7
44
1.7
Adjustment Graduation 1 click: 7 mm @ 100 m
1 click: 1/4 in @ 100 yd
1 click: 7 mm @ 100 m
1 click: 1/4 in @ 100 yd
Max Internal Adjustment (Elevation & Windage) ***(MOA) 156 156
Parallax Setting (m)
(yd)
91.44
100
91.44
100
Field of View at 100 m/yd ** (m)
(ft)
26.4-6.6
79.2-19.7
26.4-6.6
79.2-19.7
Length (mm)
(in)
311
12.2
311
12.2
Weight (g)
(oz)
570
xx.x
595
xx.x
Power Source – 3-Volts Lithium CR2032
Reticle Intensity Adjustment – 33 position (OFF to 32)
EMC
–
FCC Part 15 Subpart B Class B,
EU:EMC directive, AS/NZS
Environment – RoHS, WEEE
* at maximum magnification ** (at minimum magnification)-(at maximum magnification) *** MOA = Minute of Angle
3. Instructions
(1) Focusing
1 Look through the eyepiece with your eye positioned about 10 cm (4 in) away from the eyepiece to see the BDC SuperSub Reticle
(Fig. 3-1) or Illuminated BDC SuperSub Reticle with Dot (Fig. 3-2). Be sure your eye is positioned with proper alignment and with
proper eye relief, otherwise the view will “black out.”
2 Point the objective end of the scope at the sky (do NOT point it at the sun) or at a plain unpatterned wall.
3 Turn the eyepiece adjustment counter-clockwise and then turn it clockwise until the reticle appears sharp.
(2) Magnification
• The M-300 BLK Riflescope has variable magnification. For details, see “2. Specifications”.
To change powers, rotate the power selector ring until the desired magnification appears adjacent to the power index dot.
IL BDC SuperSub Reticle w/ Dot
Fig. 3-2
BDC SuperSub Reticle
Fig. 3-1
