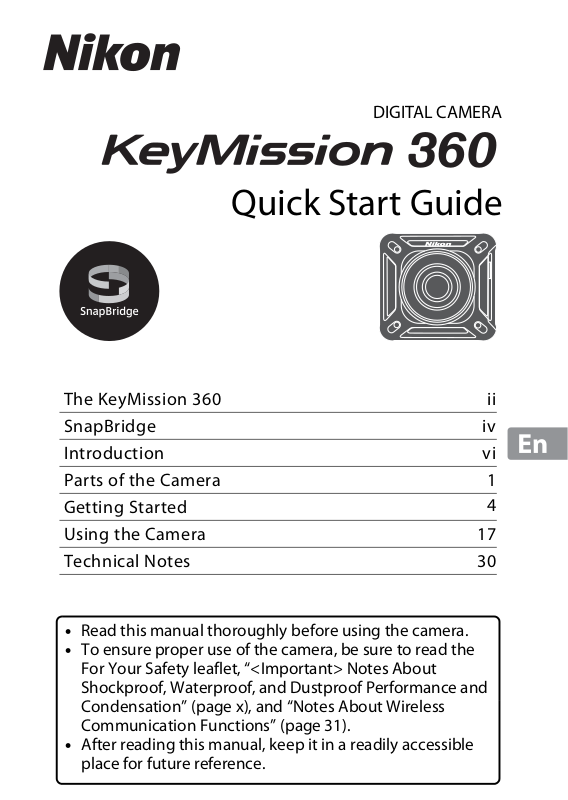

Nikon KeyMission 360 Quick Start Guide

DIGITAL CAMERA

Quick Start Guide

The KeyMission 360 ii

SnapBridge iv

Introduction vi

Parts of the Camera 1

Getting Started

4

Using the Camera 17

Technical Notes 30

• Read this manual thoroughly before using the camera.

• To ensure proper use of the camera, be sure to read the

For Your Safety leaflet, “<Important> Notes About
Shockproof, Waterproof, and Dustproof Performance and
Condensation” (page x), and “Notes About Wireless
Communication Functions” (page 31).

• After reading this manual, keep it in a readily accessible
place for future reference.

The KeyMission 360

KeyMission 360 Model Name: N1529

The KeyMission 360 is a new concept camera that is slightly
different from the cameras before it.

• Create 360° content

The camera combines two images captured by lenses
with an angle of view of about 180 degrees so that you
can enjoy creating 360° content (except when shooting
underwater).

• Easy shooting with just one button

You can press a button to simultaneously turn on the
camera and shoot.

• Connect to a smart device

Perform various operations and settings using a dedicated app due to the camera's
lack of a screen.

• A wide variety of accessories that expands shooting capabilities

The Images

The two captured images are processed in the camera and saved as a single image.
You can shoot at a 4K UHD size.

• The camera may be unable to capture subjects within about 60 cm (2 ft) from the
camera’s top, bottom, or sides.

• Under some shooting conditions, the boundaries of the composited areas may be
noticeable.

• Under some shooting conditions, images may not match perfectly at the
composite boundaries.

ii

The KeyMission 360

Playing Back Images

• Playing back using the SnapBridge 360/170 app, the KeyMission 360/170
Utility, or a TV (HDMI connection):

Part of the single image that was processed in the camera is displayed and you can
play back while moving the point of view.

• Playing back using other software:

The single image that was processed in the camera is displayed. You cannot move
the point of view during playback.

Operations Available with the SnapBridge 360/170 App

• Remote photography

Release the shutter from places away from the camera.

• Changing camera settings

Change settings related to the camera’s date and time, shooting, or lamp
brightness.

• Image playback and editing

Play back images, crop still images, edit movies, or extract still images from movies.

See the SnapBridge 360/170 app online help for more information.

The KeyMission 360

iii

SnapBridge

Your images. The world. Connected

Welcome to SnapBridge — Nikon’s new family of services to enrich
your image experience. SnapBridge connects your camera and
compatible smart device, through a combination of Bluetooth® low
energy (BLE) technology and a dedicated app. The stories you
capture with your Nikon camera and lenses are automatically
transferred to the device as they are taken. They can even be
uploaded effortlessly to cloud storage services, inviting access
across all your devices.

* Wireless communication is not available when the camera is underwater.

Download the SnapBridge app to get started!

The dedicated app “SnapBridge 360/170”
is required to set up this camera, use
remote photography, play back images,
change settings, and more.

Before setting up the camera, install the
dedicated app on your smartphone or
tablet.

Through a few simple steps, this app
connects your Nikon cameras with a
compatible iPhone®, iPad® and/or iPod
touch® or smart devices running on the

TM

Android
(http://snapbridge.nikon.com), Apple App Store® and Google Play
For the latest information on SnapBridge, visit the Nikon website for
your area (Aviii).

operating system. The app is available free from the website

TM

.

iv

SnapBridge

The exciting image experience that SnapBridge 360/170 offers…

Automatic picture transfer from camera to smart

1

thanks to the constant connection

device
between the two devices — making online photo
sharing easier than ever

Upload of photos and thumbnail images to the
NIKON IMAGE SPACE cloud service

1

Movies cannot be automatically transferred.

2

NIKON IMAGE SPACE does not support the viewing of 360° content by moving the point
of view.

2

A range of services that enriches your imaging life, including:

• Camera remote control

• Automatic update of camera’s date and

time info and location info

• Receive camera’s firmware updates

SnapBridge

v

Introduction

Scan this image with your smart device’s QR code reader.

Read This First

Thank you for purchasing the Nikon KeyMission 360 digital camera.

Using “SnapBridge 360/170”

The dedicated app “SnapBridge 360/170” is required to set up this camera, use remote
photography, play back images, change settings, and more.

Before setting up the camera, install the dedicated app on your smartphone or tablet
(Aiv).

Downloading the “Reference Manual”

The Reference Manual (PDF format) is available in various languages. Use your smart
device or computer to refer to it along with this manual. Download the Reference
Manual from our Download Center at the URL below.

• The Reference Manual can be viewed using Adobe PDF Reader, iBooks, or other
software. Adobe PDF reader can be downloaded from the Adobe website.

Downloading “KeyMission 360/170 Utility”

KeyMission 360/170 Utility is free software that enables you to transfer images and
movies to your computer for viewing and editing. You can also change the camera’s
settings. Download the software from our Download Center at the URL below.

Visit Our Download Center

Visit the website below to download the Reference Manual and software for this
camera.
http://downloadcenter.nikonimglib.com

Nikon User Support

Visit the site below to register your camera and keep up-to-date with the latest
product information. You will find answers to frequently asked questions (FAQs) and
can contact us for technical assistance.

http://www.europe-nikon.com/support

vi

Introduction

Confirming the Package Contents

In the event that any items are missing, please contact the store where you purchased
the camera.

KeyMission 360
Digital Camera

EN-EL12 Rechargeable
Li-ion Battery

CF-AA1 BK Silicone Jacket AA-1A Base Adapter AA-2 Base Mount (Flat)

AA-3 Base Mount
(Curved)

Quick Start Guide
(this manual)

1

Attached to the camera at time of factory shipment.

2

A plug adapter is included if the camera was purchased in a country or region that
requires a plug adapter. The shape of the plug adapter varies with the country or region
of purchase (A6).

Two AA-14A Lens

1

Protectors

EH-73P Charging AC

2

Adapter

Warranty (printed on the
back cover of this manual)

Two AA-15A Underwater
Lens Protectors

UC-E21 USB Cable

For Your Safety

NOTE: A memory card is not included with the camera. microSD, microSDHC, and
microSDXC memory cards are referred to as “memory cards” in this manual.

Introduction

vii

Information and Precautions

Holographic seal: Identifies this

device as an authentic Nikon product.

Life-Long Learning

As part of Nikon’s “Life-Long Learning” commitment to ongoing product support and
education, continually updated information is available online at the following websites:

• For users in the U.S.A.: http://www.nikonusa.com/

• For users in Europe: http://www.europe-nikon.com/support/

• For users in Asia, Oceania, the Middle East, and Africa: http://www.nikon-asia.com/

Visit these websites to keep up-to-date with the latest product information, tips, answers to
frequently asked questions (FAQs), and general advice on digital imaging and photography.
Additional information may be available from the Nikon representative in your area. Visit the
website below for contact information.

http://imaging.nikon.com/

Use Only Nikon Brand Electronic Accessories

Nikon digital cameras are designed to the highest standards and include complex electron ic
circuitry. Only Nikon brand electronic accessories (including battery chargers, batteries, AC
adapters, and USB cables) certified by Nikon specifically for use with this Nikon digital
camera are engineered and proven to operate within the operational and safety
requirements of this electronic circuitry.

THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA AND

MAY VOID YOUR
The use of third-party rechargeable Li-ion batteries not bearing the Nikon holographic seal

could interfere with normal operation of the camera or result in the batteries overheating,
igniting, rupturing, or leaking.

For more information about Nikon brand accessories, contact a local authorized Nikon
dealer.

Before Taking Important Pictures

Before taking pictures on important occasions (such as at weddings or before taking the
camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon
will not be held liable for damages or lost profits that may result from product malfunction.

NIKON WARRANTY.

viii

Introduction

About the Manuals

• No part of the manuals included with this product may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form, by
any means, without Nikon’s prior written permission.

• Illustrations and screen content shown in this manual may differ from the actual product.

• Nikon reserves the right to change the specifications of the hardware and software

described in these manuals at any time and without prior notice.

• Nikon will not be held liable for any damages resulting from the use of this product.

• While every effort was made to ensure that the information in these manuals is accurate

and complete, we would appreciate it were you to bring any errors or omissions to the
attention of the Nikon representative in your area (address provided separately).

Comply with Copyright Notices

Under copyright law, photographs or recordings of copyrighted works made with the
camera can not be used without the permission of the copyright holder. Exceptions apply
to personal use, but note that even personal use may be restricted in the case of
photographs or recordings of exhibits or live performances.

Disposing of Data Storage Devices

Please note that deleting images or formatting data storage devices such as memory cards
does not completely erase the original image data. Deleted files can sometimes be
recovered from discarded storage devices using commercially available software, potentially
resulting in the malicious use of personal image data. Ensuring the privacy of such data is
the user’s responsibility.

Before discarding a data storage device or transferring ownership to another person, erase
all data in the device using commercial deletion software, or format the device using
c Camera M Camera settings M Format card in the SnapBridge 360/170 app (A24),
and then completely refill it with images containing no private information such as images
of empty sky (c Camera M Camera settings M Location data M turn off Download
from device and then take pictures).

Next, reset all of the camera’s settings in c Cam era M Camera settings M Reset all in
the SnapBridge 360/170 app.

Care should be taken to avoid injury or damage to property when physically destroying
memory cards.

Introduction

ix

<Important> Notes About Shockproof, Waterproof,
and Dustproof Performance and Condensation

• The shockproof, waterproof, and dustproof performance described here do not
guarantee that the camera will remain completely waterproof or free from damage
and trouble under all conditions.

• Do not subject the camera to excessive shock, vibration or pressure by dropping it,
hitting it, or placing a heavy object on it. Failure to observe this precaution could
deform the camera, cause water to seep inside, or damage the airtight seals,
resulting in camera malfunction.

• Your Nikon warranty may not cover troubles caused by water seeping inside the
camera due to improper handling of the camera.

Notes About Shockproof Performance

This camera has passed Nikon’s in-house test (drop test from a height of 200 cm (6 ft
6 in.) on a 5 cm (2 in.) thick plywood panel) compliant with the MIL-STD 810F Method

516.5-Shock1 standard.

Changes in appearance, such as paint peeling off and deformation of the camera, are
not measured in Nikon’s in-house test.

1

U.S. Department of Defense test method standard.
This drop test drops 5 cameras in 26 directions (8 edges, 12 corners, and 6 faces) from a
height of 122 cm (4 ft) to make sure that one to five cameras pass the test (if any defect is
detected during the test, another five cameras are tested to make sure that the test
criteria are satisfied for one to five cameras).

2

When the lens protectors or underwater lens protectors are attached.

Notes About Waterproof and Dustproof Performance

The camera is rated equivalent to JIS/IEC waterproof class 8 (IPX8) and JIS/IEC
dustproof class 6 (IP6X) and can shoot images underwater at a depth of 30 m (100 ft)
for up to 60 minutes.

1

This rating indicates that the camera has been designed to withstand the specified water
pressure for the specified period of time when the camera is used according to the
methods defined by Nikon.

2

The camera can be used up to a water depth of about 20 m (65 ft) when the lens
protectors are attached.

- The waterproof performance of this camera was tested in fresh water (swimming
pools, rivers, and lakes) and salt water only.

- The inner portion of this camera is not waterproof. Water seeping inside the camera
could cause the components to rust, resulting in high repair costs or irreparable damage.

2

1, 2

B Precautions When Cleaning

• Do not puncture the microphone or speaker openings with a sharp implement. If the
inside of the camera is damaged, the waterproof performance will deteriorate.

• Do not use soap, neutral detergents, or chemicals such as benzene for cleaning.

x

Introduction

Notes About Shockproof, Waterproof, and Dustproof
Performance

• Do not drop the camera, strike it against a hard object such as a rock, or throw it
against a water surface.

• Do not subject the camera to shock when using it underwater.

- Do not subject the camera to water pressure by exposing it to rapids or waterfalls.

- Do not expose to depths greater than 30 m (100 ft) underwater.

- Make sure not to drop the camera underwater. This camera does not float in

water.

• Do not continuously use the camera underwater for 60 minutes or more.

• Do not insert a wet memory card or battery in the camera.

- Do not open the battery-chamber/memory card slot cover when the camera or

your hands are wet. Doing so may cause water to seep inside the camera or
result in camera malfunction.

• Do not open the battery-chamber/memory card slot cover underwater.

• If moisture such as water droplets adheres to

the outside of the camera or inside of the
battery-chamber/memory card slot cover,
immediately wipe it off with a soft dry cloth.

- If a foreign substance adheres to the

outside of the camera or inside of the
battery-chamber/memory card slot cover,
immediately remove it with a blower or a
soft cloth.

• Do not leave the camera in cold conditions or
in hot conditions of 40°C (104°F) or more for a
long period of time.

- Doing so could cause deterioration of the waterproof performance.

- When using the camera underwater, make sure the water temperature is from

0°C to 40°C (32°F to 104°F).

• Do not use the camera at hot springs.

Before Using the Camera Underwater

Check the items below before using the camera underwater.

• Make sure that there are no foreign substances inside the battery-chamber/
memory card slot cover.

• Make sure that the waterproofing packing of the battery-chamber/memory card
slot cover is not cracked or deformed.

- Make sure that the waterproofing packing is not detached from the camera.

• Make sure that the battery-chamber/memory card slot cover is firmly closed.

- Make sure that the battery-chamber/memory card slot cover latch is in the LOCK

position (A4).

Introduction

xi

Notes About Operating Temperature, Humidity, and
Condensation

The operation of this camera has been tested at temperatures from −10°C to +40°C
(14°F to 104°F).
When you use the camera in cold climate regions or at high altitudes, observe the
following precautions.

• Battery performance deteriorates temporarily when cold. Keep the camera and
batteries warm under your clothing before use.

● Environmental conditions that are likely to cause condensation

Fogging (condensation) may occur on the inside of the lenses, lens protectors, or
underwater lens protectors when there are sharp temperature changes or high
humidity, such as in the environmental conditions described below. This is not a
malfunction or defect.

• The camera is suddenly immersed in cold water after being in a hot place on land.

• The camera is brought to a warm place such as inside a building after being in the

cold outdoors.

• The battery-chamber/memory card slot cover is opened or closed in a high­humidity environment.

• The camera, lens protector, or underwater lens protector are still wet when they are
attached to each other.

• The camera is used for an extended period of time in a low-temperature
environment.

● Clearing the fogging

• Turn off the camera and open the battery-chamber/memory card slot cover while
in a place where the ambient temperature is stable (avoid places with high
temperature, high humidity, sand, or dust).
To clear the fogging on the lens, remove the battery and memory card, and leave
the battery-chamber/memory card slot cover open to allow the camera to adjust
to the ambient temperature. When a lens protector or underwater lens protector is
fogged, remove the protector, and attach it to the camera again after the fogging
has cleared.

Inspection and Repair

• If the camera is exposed to shock, it is recommended to consult your retailer or
Nikon-authorized service representative to confirm the waterproof performance
(charged service).

• If the waterproofing packing begins to deteriorate, consult your retailer or Nikon­authorized service representative. The waterproof performance of the
waterproofing packing may start to deteriorate after one year.

• If water seeps inside the camera, immediately stop using it and take it to your
Nikon-authorized service representative.

xii

Introduction

Parts of the Camera

1

2

1817

16

15

45

13

12

11

10

3

9

8

7

6

14

2

1

Front

Back Bottom

1

Lens protector mounting mark

2

Lens

3

Speaker

4

Status lamp

5

Movie button

6

Power-on lamp

7

Battery-chamber/memory card slot
cover latch release

8

Battery-chamber/memory card slot
cover latch

9

Battery-chamber/memory card slot
cover

10

Waterproofing packing

11

Micro-USB connector

12

Airplane mode switch

13

HDMI micro connector (Type D)

14

Microphone (stereo)

15

Photo button

16

N-Mark (NFC antenna)

17

Tripod socket

18

Eyelet for fall prevention cord

The Camera Body

Parts of the Camera

1

Lamp Display

You can check the status of the camera by looking at the lamps.
Use c Camera M Camera settings M LED brightness in the SnapBridge 360/170

app (A24) to change the brightness of the lamps.

Power-On Lamp

Status Color Description

Green

• The battery level is within 30% to 100%.

• The camera is detecting a computer.

Quick flashing

2

On

Flashing

Off

Parts of the Camera

Orange The battery level is within 10% to 30%.

• The battery is charging. Turns off when

Green

Red

Green The battery cannot be charged (A6).

–The camera is off.

charging is complete.

• The camera is connected to a computer with
a USB cable.

The battery is exhausted. Charge or replace the
battery (A6).

Status Lamp

Status Color Description

Green

The camera is connected to a TV with an HDMI
cable.

On at the same time

Alternately flashing

Flashing at the same

time

Quick flashing at the

same time

Red The camera is recording a movie.

Green The camera is on standby for pairing (A9).

Green

Red

Red/Green The firmware is being updated.

Red

• Pairing is complete.

• The camera is capturing a still image.

• The self-timer is counting down.

• The camera is saving a movie.

• Pairing failed.

• A memory card is not inserted (A4).

• The insid e of the cam era has bec ome hot. The

camera turns off automatically. Wait until the
camera or battery temperature has cooled
before resuming use.

• The firmware version update failed.

Parts of the Camera

3

Getting Started

1

2

3

4

5

6

7

8

9

Battery latch Memory card slot

Inserting the Battery and Memory Card

• Unlock the battery-chamber/memory card slot cover latch (1), move the battery-
chamber/memory card slot cover latch release to the y position (2), and then
open the battery-chamber/memory card slot cover (3).

• With the battery’s positive and negative terminals oriented correctly, move the
orange battery latch (4), and fully insert the battery (5).

• Slide the memory card in until it clicks into place (6).

• Be careful not to insert the battery or memory card upside-down or backward, as

this could cause malfunction or damage to the camera or memory card.

• Close the cover (7), move the battery-chamber/memory card slot cover latch
release to the z position (8), and then move the battery-chamber/memory
card slot cover latch to the LOCK position (9).

• Check that the battery-chamber/memory card slot
cover latch and battery-chamber/memory card slot
cover latch release are positioned as shown in the
figure on the right, and that their orange indicator
marks are not visible.

B Notes About Waterproof and Dustproof Performance

See “Notes About Shockproof, Waterproof, and Dustproof Performance” (Axi) for more
information.

4

Getting Started

B Formatting a Memory Card

The first time you insert a memory card that has been used in another device into this
camera, make sure to format it with this camera.

• Note that formatting a memory card permanently deletes all images and other
data on the memory card. Be sure to make copies of any images you wish to keep

before formatting the memory card.

• Insert the memory card into the camera, and select c Camera M Camera settings M
Format card in the SnapBridge 360/170 app (A24).

Removing the Battery or Memory Card

Turn the camera off and make sure that the power-on lamp and status lamps have
turned off, and then open the battery-chamber/memory card slot cover.

• Move the battery latch to eject the battery.

• Gently push the memory card into the camera to partially eject the memory card.

• Be careful when handling the camera, battery, and memory card immediately after

using the camera, as they may be hot.

• To prevent yourself from accidentally pressing the movie button or photo button

and unintentionally shooting, we recommend that you take out the battery when
carrying the camera.

Memory Cards That Can Be Used

The camera supports microSD, microSDHC, and microSDXC memory cards.

• UHS-I is supported.

• microSDXC memory cards with an SD Speed Class rating of 6 or faster are

recommended for recording movies.

- Memory cards with a UHS Speed Class rating of 3 or faster are recommended
when the image size/frame rate is 2160/24p (4K UHD) or 1920/24p.

- When using a memory card with a lower Speed Class rating, movie recording
may stop unexpectedly.

• If you use a card reader, make sure that it is compatible with your memory card.

• Contact the manufacturer for information on features, operation, and limitations

on use.

Getting Started

5

Charging the Battery

Power-on lamp

Electrical outlet

USB cable (included)

Charging AC Adapter

1

If a plug adapter* is included with your camera, securely connect it to the Charging AC
Adapter. Once the two are connected, attempting to forcibly remove the plug adapter
could damage the product.

* The shape of the plug adapter varies according to the country or region in which the

camera was purchased.
This step can be omitted if the plug adapter comes permanently bonded to the
Charging AC Adapter.

• Charging starts when the camera is connected to an electrical outlet while the
battery is inserted, as shown in the illustration. The power-on lamp slowly flashes
green while the battery is charging.

• When charging is complete, the power-on lamp turns off. Unplug the Charging AC
Adapter from the electrical outlet, and disconnect the USB cable.
Charging time is about 2 hours and 20 minutes for a fully exhausted battery.

• The battery cannot be charged when the power-on lamp quickly flashes green,
possibly due to one of the reasons described below.

- The ambient temperature is not suited to charging.

- The USB cable or Charging AC Adapter is not properly connected.

- The battery is damaged.

B Notes About the USB Cable

• Do not use a USB cable other than the UC-E21. Using a USB cable other than the UC-E21
could result in overheating, fire or electric shock.

• Check the shape and direction of the plugs and do not insert or remove the plugs at an angle.

B Notes About Charging with the Charging AC Adapter

The camera can be operated while the battery is charging, but the charging time increases.

6

Getting Started

B Notes About Charging with a Computer

When c Camera M Camera settings M Charge by computer is set to Auto in the
SnapBridge 360/170 app (A24), connecting the camera to a computer that is running will
automatically charge the battery inserted into the camera using power supplied by the
computer.

• When connected to a computer, the camera turns on and starts charging. The camera
cannot be operated with buttons during this time.

• About 3 hours and 30 minutes are required to charge a fully exhausted battery. Charging
time increases when images are transferred while the battery is charging.

• The camera turns off automatically if there is no communication with the computer for 30
minutes after the battery has finished charging.

Getting Started

7

Turning the Camera On or Off

Power-on lamp

Turning On the Camera

• Press and hold down the movie button for about
3 seconds to turn on the camera.

• Shooting starts when the camera turns on by
pressing the movie button or photo button.

• When the camera turns on, the power-on lamp
turns on.

• You can check the battery level by looking at the
power-on lamp (A2) or the SnapBridge 360/170
app screen.

Turning Off the Camera

• If you press and hold down the movie button for
about 3 seconds when the camera is on, the
camera turns off.

• By default, if the camera is not operated for about
30 seconds, the camera turns off automatically
(auto off). You can change the setting using the
SnapBridge 360/170 app.

• When the camera turns off, the power-on lamp turns off.

B Turning Off the Camera During Remote Photography

The buttons of the camera are disabled during remote photography with the SnapBridge
360/170 app. To turn off the camera, exit remote photography.

See the SnapBridge 360/170 app online help for details about remote photography.

8

Getting Started

Pairing with a Smartphone or Tablet

Here, pairing refers to the setting used to connect the camera and smartphone or
tablet (below, “smart device”) through Bluetooth.

• The smart device screen and buttons may differ from the actual screen.

Preparing for Pairing

Prepare for pairing in advance.

• Smart device:

- Install the SnapBridge 360/170 app on your smart device (Aiv).

- Enable Bluetooth and Wi-Fi on the smart device.

- When using NFC on an NFC-compatible Android device, enable
NFC.

• Camera:

- Turn off the camera (A8). The camera cannot enter pairing
standby mode when the camera is on.

- Turn off the airplane mode switch (A1). You cannot pair when it is on.

Start pairing when preparations are complete.
The pairing procedure varies depending on how you use the camera. Proceed from
“Initial Pairing” (A10) or “Re-pairing” (A12).

Getting Started

9

Initial Pairing

Status lamps

Perform initial pairing in the following situations:

• When pairing for the first time after purchasing the camera

• When pairing for the first time after updating the camera’s firmware

1 Prepare for pairing (A9).
2 Press the movie button or photo button

to put the camera into pairing standby
mode.

• When the status lamps flash green at the same
time for a while and then alternately flash green,
the camera enters pairing standby mode.

• If the camera cannot find the smart device, the
camera turns off automatically after remaining in
pairing standby mode for about 4 minutes.

3 Start pairing.

• For iOS or NFC-incompatible Android devices:

Start the SnapBridge 360/170 app.

• For NFC-compatible Android devices:

Tap the NFC antenna of the smart device to the
Y (N-Mark) on the camera to start the SnapBridge
360/170 app.
When Camera name acquired. Connect? is
displayed, select OK and proceed to step 5.
If the SnapBridge 360/170 app download site is
displayed on the smart device screen, repeat this
operation after installation.

10

Getting Started

4 Follow the on-screen instructions and when

For iOS or
NFC-incompatible
Android devices

For
NFC-compatible
Android devices

Connect to Camera

the screen shown on the right is displayed, tap
KeyMission 360_xxxxxxxx.

• “xxxxxxxx” varies depending on the camera.

Camera name

KeyMission 360_xxxxxxxx

5 When a confirmation dialog for pairing is displayed, tap Pairing

on the lower right of the screen (the button name varies
depending on the model of the smart device).

• If pairing is successful, the screen shown
on the right is displayed.

• If pairing is successful, the smart device is
automatically paired simply by starting
the SnapBridge 360/170 app when the
camera is turned on next time (except
when End pairing is selected).

• If pairing fails, the status lamps flash red
six times at the same time. When a
message indicating that pairing has failed is displayed on the screen, tap OK and
repeat the procedure from step 1.

B Where the Use of Wireless Devices Is Prohibited

Turn on the airplane mode switch on the
camera. This will temporarily interrupt the
constant connection with the smart device,
but the connection is automatically re­established when airplane mode is turned
off.

Connect to Camera

Connected to KeyMission 360_xxxxxxxx

Connect

C The Display Language

The display language of the SnapBridge 360/170 app is automatically set according to the
display language of the smart device. If the display language of the smart device is not
supported by the SnapBridge 360/170 app, it is set to English.

C Shooting/Playback/Setting with the SnapBridge 360/170 App

See the SnapBridge 360/170 app online help for more information.

Getting Started

11

Re-pairing

Status lamps

Perform re-pairing in the following situations:

• When pairing the same smart device again after unpairing using End pairing in
the SnapBridge 360/170 app

• When pairing with a second smart device or more

1 Prepare for pairing (A9).
2 Press and hold down the movie button

for about 7 seconds to put the camera
into pairing standby mode.

• When the status lamps flash green at the same
time for a while and then alternately flash green,
the camera enters pairing standby mode.

• If the camera cannot find the smart device, the
camera turns off automatically after remaining in
pairing standby mode for about 4 minutes.

3 Start pairing.

• For iOS or NFC-incompatible Android devices:

Start the SnapBridge 360/170 app.

• For NFC-compatible Android devices:

Tap the NFC antenna of the smart device to the
Y (N-Mark) on the camera to start the
SnapBridge 360/170 app.
When Camera name acquired. Connect? is
displayed, select OK and proceed to step 5.
If the SnapBridge 360/170 app download site is
displayed on the smart device screen, repeat this
operation after installation.

12

Getting Started

4 Tap e in a Connect, and

then tap
KeyMission360_xxxxxxxx on

Conn ect Connection options

Select camera…

KeyMission 360_xxxxxxxx

Select a camera for Bluetooth pairing

the displayed screen.

• “xxxxxxxx” varies depending on the
camera.

5 When a confirmation dialog for pairing is displayed, tap Pairing

on the lower right of the screen (the button name varies
depending on the model of the smart device).

• If pairing is successful, the screen shown on the right is
displayed.

• If pairing fails, the status lamps flash red six times at the same
time. When a message indicating that pairing has failed is
displayed on the screen, tap OK and repeat the procedure
from step 1.

Connect

KeyMission 360

Getting Started

13

Attaching the Silicone Jacket

We recommend attaching the silicone jacket to soften physical impacts to the
camera.
Attach by inserting the camera from the side of the silicone jacket so that the Nikon
logos of the camera and silicone jacket overlap.

• If the Nikon logos do not overlap, the silicone jacket may appear in the images.

• When using the camera underwater, remove the silicone jacket because it may

shift out of place and appear in the images.

B Notes About the Silicone Jacket

• The silicone jacket is made of silicone. Cracking may occur from areas that are damaged.

• The silicone jacket may stretch or break if subjected to excessive force.

• Do not store in locations exposed to direct sunlight or high temperatures or humidity.

• Wash in fresh water only.

• Do not clean with hard brushes or with alcohol, thinner, or other volatile substances.

• This silicone jacket cannot completely protect the camera or lenses from falls or other

physical shocks.

14

Getting Started

The Lens Protector/Underwater Lens Protector

Make sure to attach the lens protectors or underwater lens protectors to protect the
lens because they are made of glass.

• Lens protector:
Used to protect the lens (attached to the camera at time
of factory shipment). Although the camera can be used
underwater because it is waterproof, captured images

may be blurred. The lens protectors can be used up to a water depth of about 20 m
(65 ft).

• Underwater lens protector:
The camera can focus easily for shooting underwater. The
underwater lens protectors can be used up to a water
depth of 30 m (100 ft).

Attaching the Lens Protectors/Underwater Lens
Protectors

The lens protectors are used here as an example. Turn off the camera before
attachment or removal.

1 Align the marks of the lens

protector and camera (R).

2 Rotate the lens protector to align

the mark of the lens protector
and mark at the center of the
camera (S).

• Check that the protector is securely
attached.

• Attach the same type of protector to
both lenses.

• For removal, follow the procedure for attachment in reverse order.

Getting Started

15

B Notes About the Lens Protectors and Underwater Lens Protectors

On land Underwater

Visualization of shooting underwater with the underwater lens
protectors attached

• Be careful not to subject the protectors to physical impacts or rubbing. Doing so could
cause scratches or damage.

• When you are not using the camera, insert it into a case made of soft cloth material with
the lens protectors or underwater lens protectors attached.

B Notes About Attaching the Lens Protector or Underwater Lens Protector

Use a soft cloth or air duster to remove foreign substances such as water or dust from the
camera, lens protector, or underwater lens protector. If the camera, lens protector, or
underwater lens protector are still wet when they are attached to each other, this could
cause condensation.

B Notes About the Underwater Lens Protectors

When the underwater lens protectors are attached, there are black borders or bands in the
images because the protectors appear in the images.

B Using the Camera Underwater

• Set Underwater in the SnapBridge 360/170 app to Yes (A26).

• Wireless communication is not available when the camera is underwater.

• There are shooting ranges that cannot be

captured underwater because the images
are magnified compared to images
captured on land. Therefore you cannot
capture 360° content.

16

Getting Started

Using the Camera

Status lamps

Recording Movies or Shooting Still Images

Before shooting, check the orientation of the camera (the side with the Nikon logo is
the front).

• Your hands will appear in images during hand-held photography because this
camera captures 360° content. To reduce the appearance of hands, use the base
adapter (A27) to stabilize the camera and shoot.

• The camera may be unable to capture subjects within about 60 cm (2 ft) from the
camera’s top, bottom, or sides because the subjects are outside the angle of view
(i.e., the area visible in the frame). Point the lens toward important subjects when
shooting.

• If stains such as fingerprints are on the lens protector or underwater lens protector,
they will appear in the images or make images look fogged. Wipe off the stains
with a soft dry cloth before shooting.

Shooting with the Camera Only

1 Press the movie button or photo

button.

• Pressing the movie button or photo button when
the camera is off automatically turns on the
camera and shooting begins.

• The status lamps light red at the same time while
recording movies. To end movie recording, press
the movie button again.

• When the photo button is pressed, the shutter
sound is produced. When Self-timer is set to 2 s
or 10 s, the camera beeps to indicate that the
self-timer is activated, and then the shutter sound
is produced. The status lamps flash green at the
same time while the still image is being saved.

• You can change the volume of sounds during operation using the SnapBridge 360/
170 app.

Using the Camera

17

Shooting with a Smart Device

1 Pair the camera and the smart device (A9).
2 Tap c Camera M Remote photography in the SnapBridge

360/170 app.

• When a confirmation dialog for the Wi-Fi connection is displayed, tap OK.

3 To record a movie, tap . To shoot a still image, tap .

• The status lamps light red at the same time while recording movies. To stop
recording a movie, tap .

• When is tapped, the shutter sound is produced. When Self-timer is set to 2 s or
10 s, the camera beeps to indicate that the self-timer is activated, and then the

shutter sound is produced. The status lamps flash green at the same time while the
still image is being saved.
You can change the volume of sounds during operation using the SnapBridge 360/170 app.

•

• Still images captured are automatically sent to the smart device.

B Notes About Saving Movies or Images

The status lamps light in red at the same time or flash green at the same time while movies
or images are being saved. Do not open the battery-chamber/memory card slot cover
or remove the battery or memory card. Doing this could result in loss of data, or in
damage to the camera or the memory card.

B Notes About Exposure

When the contrast is high between subjects in the front lens and back lens, the camera
cannot obtain the appropriate exposure. Adjust the brightness using c Camera M

Camera settings M Shooting options M Shooting options M Exposure
compensation in the SnapBridge 360/170 app (A24).

B Notes About the Composited Areas of Two Images

• Under some shooting conditions , the boundaries of the composited areas may be noticeable.

• Under some shooting conditions, images may not match perfectly at the composite

boundaries.

C Number of Images That Can Be Saved

• The approximate number of images that can be saved can be checked on the shooting
screen of the SnapBridge 360/170 app.

• Note that due to JPEG compression, the number of images that can be saved may vary
greatly depending on the image content, even when using memory cards with the same
capacity and the same image size settings. In addition, the number of images that can be
saved may vary depending on the make of the memory card.

18

Using the Camera

Maximum Movie Recording Time

The available recording time for a single movie depends on the remaining space in a
memory card.

• The remaining recording time for a single movie is displayed on the shooting
screen of the SnapBridge 360/170 app.

• The actual remaining recording time may vary depending on the movie content,
subject movement, or type of memory card.

• microSDXC memory cards with an SD Speed Class rating of 6 or faster are
recommended for recording movies.

- Memory cards with a UHS Speed Class rating of 3 or faster are recommended

when the image size/frame rate is 2160/24p (4K UHD) or 1920/24p.

- When using a memory card with a lower Speed Class rating, movie recording

may stop unexpectedly.

B Camera Temperature

• The camera may become hot when recording movies for an extended period of time or

when the camera is used in a hot area.

• If the inside of the camera becomes extremely hot when recording movies, the status

lamps will quickly flash red and the camera will automatically stop recording.
After the camera stops recording, it turns itself off.
Leave the camera off until the inside of the camera has cooled.

C Movies Over 4 GB in Size

When a movie with a file size of more than 4 GB is recorded, the movie is divided into files
with a maximum size of 4 GB each.

Notes About Movie Recording

B Notes About Recorded Movies

• The following phenomena may be saved in movies.

- Banding may occur in images under fluorescent, mercur y-vapor, or sodium-vapor
lighting.

- Subjects that move quickly from one side of the frame to the other, such as a moving
train or car, may appear skewed.

- The entire movie image may be skewed when the camera is panned.

- Lighting or other bright areas may leave residual images when the camera is moved.

• Depending on the distance to the subject, colored stripes may appear on subjects with
repeating patterns (fabrics, lattice windows, etc.) during movie recording and playback.
This occurs when the pattern in the subject and the layout of the image sensor interfere
with each other; it is not a malfunction.

Using the Camera

19

Selecting a Movie Mode

Select the desired type of movie to record by using Movie mode (A25) in the
SnapBridge 360/170 app.

• Standard movie:

Record normal movies.

• Superlapse movie:

The camera records movies and saves them in fast motion (960/30p or 960/25p).
Use to record a movie while moving the camera. The camera compresses the time
of changes in the subject and saves the movie.
At 6×, a movie recorded for six minutes is played back as a one-minute movie.

• Loop recording:

After recording a movie for a specified time, the camera continues recording the
movie while deleting the recorded movie data from the beginning (the movie is
recorded as five separate files). Only the most recent data is saved on the memory
card, resulting in a movie of the specified length.
When playing back the recorded movies saved in the camera on a TV, split movies
are played back continuously.

20

Using the Camera

• Time-lapse movie:

The camera can automatically capture still images at a specified interval to create
time-lapse movies.
When NTSC/PAL (A25) is set to NTSC, 300 images are captured. When set to
PAL, 250 images are captured.

Type Interval time

2 s 2 s

5 s (default setting) 5 s

10 s 10 s

30 s 30 s

1

Night sky

1

Suited for recording the movement of stars.

2

The exposure lock (Yes or No for AE lock only) can be set.

2

2

2

2

30 s 2 h 30 min 2 h 5 min

Time required for shooting

NTSC PAL

10 min 8 min 20 s

25 min 20 min 50 s

50 min 41 min 40 s

2 h 30 min 2 h 5 min

B Notes About Time-lapse Movie

• If the battery is not sufficiently charged, the camera may not be able to capture all of the
images.

• Use a tripod to stabilize the camera when recording time-lapse movies.

• Sound is not recorded.

Using the Camera

21

Playing Back Images

Playing Back Images Saved in the Camera

1 Pair the camera and the smart device (A9).
2 Tap c Camera M Download selected pictures in the

SnapBridge 360/170 app.

• When a confirmation dialog for the Wi-Fi connection is displayed, tap OK.

• Multiple images saved in the camera are displayed.

3 Tap the image that you want to play back.

• To transfer images to the smart device, follow the procedures described below
while playing them back.

-For iOS: Tap Download, and then follow the on-screen instructions.

- For Android: Tap i M Download, and then follow the on-screen instructions.

22

Using the Camera

Playing Back Images Transferred to a Smart Device

1 Tap b Gallery in the SnapBridge 360/170 app.
2 Select Latest download or Pictures on device.

• Latest download: Multiple new images transferred from the camera are displayed.

• Pictures on device: All images transferred from the camera are displayed.

3 Tap the image that you want to play back, and then tap h on

the displayed screen.

• The image is played back. Drag the screen during playback to move the point of
view.

• You can also edit images such as cropping. See the SnapBridge 360/170 app online
help for details.

C Playback on a TV or Computer

You can play back images on a TV or computer. See the Reference Manual (PDF format) for
details (Avi).

C Editing Images on a Computer

If you transfer captured images to a computer, you can edit the images using KeyMission
360/170 Utility.

See the KeyMission 360/170 Utility online help for more information.

Using the Camera

23

Changing the Settings

Perform the following operations in the SnapBridge 360/170 app to change the
camera settings.
Pair the camera and smart device in advance (A9).

• c Camera M Camera settings

Option Description

Date and time Set the camera clock.

Sound settings

Auto off

Format card Format a memory card.

LED brightness

Charge by computer

Image Comment

Copyright information

Location data

Reset all Reset the camera's settings to their default values.

Firmware version View the current camera firmware version.

Set the volume of sounds during operation.

• High, Normal (default setting), Low, Off

Set the amount of time that elapses after shooting
until the camera turns off.

• 2 s, 5 s, 30 s (default setting), 1 min, 5 min

Set the brightness of the lamps.

• High, Normal (default setting), Low, Off

Set whether or not the battery in the camera is
charged when the camera is connected to a
computer.

A comment registered with Input comment is
attached to images.

Copyright information registered with Artist and
Copyright is attached to images.

Set whether or not to add shooting location
information to the images that you take.

24

Using the Camera

Option Description

Network menu

Send while shooting

Wi-Fi Configure Wi-Fi connection settings.

Bluetooth Configure Bluetooth connection settings.

Restore default settings

Shooting options Change settings related to shooting.

Movie mode
(A20)

Movies

Still images

Movie options

NTSC/PAL Select the frame rate used when recording movies.

Wind noise
reduction

ge size

Ima

Self-timer

Configure the wireless network settings to connect
the camera and a smart device.

Set whether to automatically upload captured
images to a smart device.
Movies cannot be uploaded using Send while
shooting. To transfer movies to a smart device, use
the SnapBridge 360/170 app.

Restore all Network menu settings to their default
values.

Select the desired movie option to record.

• Standard movie

• Superlapse movie: 2×, 4×, 6×, 10×, 15×

• Loop recording: 5 min, 10 m in, 30 min, 60 min

• Time-lapse movie: 2 s, 5 s, 10 s, 30 s, Night sky

Set the movie image size.

• When NTSC/PAL is set to NTSC
2160/24p, 1920/24p (default setting), 960/30p,
640/120p, 320/240p

• When NTSC/PAL is set to PAL
2160/24p, 1920/24p (default setting), 960/25p,
640/100p, 320/200p

Set whether or not to reduce wind noise during
movie recording.

Set the

still image size.

• 7744×3872 (default setting), 3872×1936

Automatically capture still images when a preset time
has elapsed.

• Off, 2 s (default setting), 10 s

Using the Camera

25

Option Description

Underwater Set to Yes when shooting underwater.

Shooting
options

Active
D-Lighting

White balance

Color options

Exposure
compensation

Restore default
settings

Reduce the loss of details in highlights and shadows.

Adjust white balance to suit the light source in order
to make the colors in images match what you see
with your eyes.

• Auto (default setting): White balance is
automatically adjusted.

• Daylight: Use under direct sunlight.

• Incandescent: Use under incandescent lighting.

• Fluorescent: Use under fluorescent lighting.

• Cloudy: Use under overcast skies.

Change the color tone of images that will be saved.

• Standard (default setting): Standard processing
for balanced results. Recommended for most
situations.

• Vivid: Images are enhanced for a vivid, photoprint
effect. Select for images that emphasize primary
colors, such as blue, red, and green.

• Monochrome: Images are captured in black-and-
white.

Adjust overall image brightness (–2.0 – +2.0 EV in
steps of 1/3 EV).

Restore all Shooting options settings to their
default values.

• c Camera M Remote options

Option Description

Choose connection

Pair remote

Select Camera & smart device or Camera &
remote.

Use to register a remote control that is not paired
with the camera, to the camera.

• Certain menu options cannot be set depending on the state of the camera.

• See the SnapBridge 360/170 app online help for more information.

26

Using the Camera

Using the Base Adapter and Base Mount

Attaching the base adapter to the camera allows you to use special accessories such
as a base mount.

• To increase the adhesive strength, attach the base mount for 24 hours or longer
before using the camera.

1 Align the camera screw with the

tripod socket of the camera (1), and
tighten the screw knob (2).

2 Attach the buckle of the base adapter

to the base mount.

• While holding the two protrusions of the buckle
at the same time, slide the buckle until it clicks
into place.

• When removing the buckle, hold the two
protrusions at the same time, and slide them in
the direction opposite of that for attachment.

Using the Camera

27

3 Adjust the camera angle.

• Loosen the plate lock (1), set the camera angle
(2), and then tighten the lock (3).

4 Make sure that there are no foreign substances on the surface to

which the base mount will be attached.

• If there are foreign substances such as dust or water, remove them.

5 Peel off the release liner from the back of the base mount, and

firmly press the base mount so that the entire surface is
attached.

28

Using the Camera

Base Mount

The base mount is an accessory that is used to easily attach and detach a base adapter
mounted with the camera.
Attach the base mount to places where you want to mount the camera.

Use the flat or curved type depending on the surface to which the base mount will be
attached.

The base mount is not designed for use on vehicles. Do not attach it on vehicles.

• Base mount (flat):

Use to attach to flat surfaces.

• Base mount (curved):

Use to attach to curved surfaces such as helmets.

B Notes About Using the Base Adapter and Base Mount

• Do not use the base adapter and base mount so that they are subjected to sudden loads,
such as directly attaching them to skis or snowboards. Subjecting them to sudden loads
will damage the accessories or detach the base mount.

• You cannot reuse a base mount after it has been attached and then removed.

• The surface may be damaged or the paint may peel off depending on the material to

which the base mount is attached. Care should be taken when attaching the base mount.

• The base mount is not suited for attachment to surfaces made of rough material such as
wood or concrete.

Using the Camera

29

Technical Notes

Notices

Notices for Customers in Europe

CAUTIONS

RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.

DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS.

This symbol indicates that electrical and electronic equipment is to be
collected separately.

The following apply only to users in European countries:

• This product is designated for separate collection at an appropriate
collection point. Do not dispose of as household waste.

• Separate collection and recycling helps conserve natural resources and
prevent negative consequences for human health and the environment that might
result from incorrect disposal.

• For more information, contact the retailer or the local authorities in charge of waste
management.

This symbol on the battery indicates that the battery is to be collected
separately.

The following apply only to users in European countries:

• All batteries, whether marked with this symbol or not, are designated
for separate collection at an appropriate collection point. Do not
dispose of as household waste.

• For more information, contact the retailer or the local authorities in charge of waste
management.

30

Technical Notes

Notes About Wireless Communication
Functions

Restrictions on Wireless Devices

The wireless transceiver included in this product conforms to wireless regulations in
the country of sale and is not for use in other countries (products purchased in the EU
or EFTA can be used anywhere within the EU and EFTA). Nikon does not accept
liability for use in other countries. Users who are unsure as to the original country of
sale should consult with their local Nikon service center or Nikon-authorized service
representative. This restriction applies to wireless operation only and not to any other
use of the product.

Security

Although one of the benefits of this product is that it allows others to freely connect
for the wireless exchange of data anywhere within its range, the following may occur
if security is not enabled:

• Data theft: Malicious third-parties may intercept wireless transmissions to steal user
IDs, passwords, and other personal information.

• Unauthorized access: Unauthorized users may gain access to the network and alter
data or perform other malicious actions. Note that due to the design of wireless
networks, specialized attacks may allow unauthorized access even when security is
enabled. Nikon is not responsible for data or information leaks that may occur
during data transfer.

• Do not access networks that you are not permitted to use, even if they are
displayed on your smartphone or tablet. Doing so may be regarded as
unauthorized access. Only access networks that you are permitted to use.

Personal Information Management and Disclaimer

• User information registered and configured on the product, including wireless LAN
connection settings and other personal information, is susceptible to alteration
and loss resulting from operational error, static electricity, accident, malfunction,
repair or other handling. Always keep separate copies of important information.
Nikon is not responsible for any direct or indirect damages or lost profits resulting
from alteration or loss of content that is not attributable to Nikon.

• Before discarding this product or transferring it to another owner, perform
c Camera M Camera settings M Reset all in the SnapBridge 360/170 app
(A24) to delete all user information registered and configured with the product,
including wireless LAN connection settings and other personal information.

• Nikon is not responsible for any damages resulting from unauthorized use of this
product by third parties in the event that the product is stolen or lost.

Technical Notes

31

Precautions When Exporting or Carrying This Product Abroad

This product is controlled by the United States Export Administration Regulations
(EAR). The permission of the United States government is not required for export to
countries other than the following, which as of this writing are subject to embargo or
special controls: Cuba, Iran, North Korea, Sudan, and Syria (list subject to change).

Notice for Customers in Europe

Declaration of Conformity (Europe)

Hereby, Nikon Corporation, declares that KeyMission 360 is in compliance with the
essential requirements and other relevant provisions of Directive 1999/5/EC. The
declaration of conformity may be consulted at
http://imaging.nikon.com/support/pdf/DoC_KeyMission_360.pdf.

32

Technical Notes

Caring for the Product

Observe the precautions described below in addition to the warnings in the For Your
Safety leaflet, “<Important> Notes About Shockproof, Waterproof, and Dustproof
Performance and Condensation” (Ax), and “Notes About Wireless Communication
Functions” (A31) when using or storing the device.

The Camera

Do Not Apply Strong Impact to the Camera

The product may malfunction if subjected to strong shock or vibration. In addition, do not
touch or apply force to the lens.

Avoid Sudden Changes in Temperature

Sudden changes in temperature, such as when entering or leaving a heated building
on a cold day, can cause condensation to form inside the device. To prevent condensation,

place the device in a carrying case or a plastic bag before exposing it to sudden changes in
temperature.

Keep Away from Strong Magnetic Fields

Do not use or store this device in the vicinity of equipment that generates strong
electromagnetic radiation or magnetic fie lds. Doing so could result in loss of data or camera
malfunction.

Do Not Point the Lens at Strong Light Sources for Extended
Periods

Avoid pointing the lens at the sun or other strong light sources for extended periods when
using or storing the camera. Intense light may cause the image sensor to deteriorate or
produce a white blur effect in photographs.

Turn the Product Off Before Removing or Disconnecting the
Power Source or Memory Card

Do not remove the battery while the product is on, or while images are being saved or
deleted. Forcibly cutting power in these circumstances could result in loss of data or in
damage to the memory card or internal circuitry.

Technical Notes

33

The Battery

Precautions for Use

• Note that the battery may become hot after use.

• Do not use the battery at ambient temperatures below 0°C (32°F) or above 40°C (104°F) as

this could cause damage or malfunction.

• If you notice any abnormalities such as excessive heat, smoke, or an unusual smell coming
from the battery, immediately discontinue use and consult your retailer or Nikon­authorized service representative.

• After removing the battery from the camera or optional battery charger, put the battery in
a plastic bag, etc. in order to insulate it.

Charging the Battery

Check the battery level before using the camera and replace or charge the battery if
necessary.

• Charge the battery indoors with an ambient temperature of 5°C to 35°C (41°F to 95°F)
before use.

• A high battery temperature may prevent the battery from charging properly or
completely, and may reduce battery performance. Note that the battery may become hot
after use; wait for the battery to cool before charging.
When charging the battery inserted into this camera using the Charging AC Adapter or a
computer, the battery is not charged at battery temperatures below 0°C (32°F) or above
50°C (122°F).

• Do not continue charging once the battery is fully charged as this will result in reduced
battery performance.

• The battery temperature may increase during charging. However, this is not a
malfunction.

Carrying Spare Batteries

Whenever possible, carry fully charged spare batteries when taking pictures on important
occasions.

Using the Battery When Cold

On cold days, the capacity of batteries tends to decrease. If an exhausted battery is used at a low
temperature, the camera may not turn on. Keep spare batteries in a warm place and exchange as
necessary. Once warmed, a cold battery may recover some of its charge.

Battery Terminals

Dirt on the battery terminals may prevent the camera from functioning. Should the battery
terminals become dirty, wipe them off with a clean, dry cloth before use.

34

Technical Notes

Charging an Exhausted Battery

Turning the camera on or off while an exhausted battery is inserted in the camera may result
in reduced battery life. Charge the exhausted battery before use.

Storing the Battery

• Always remove the battery from the camera or optional battery charger when it is not
being used. Minute amounts of current are drawn from the battery while it is in the
camera, even when not in use. This may result in excessive battery drain and complete
loss of function.

• Recharge the battery at least once every six months and completely exhaust it before
returning it to storage.

• Put the battery in a plastic bag, etc. in order to insulate it and store it in a cool place. The
battery should be stored in a dry location with an ambient temperature of 15°C to 25°C (59°F
to 77°F). Do not store the battery in hot or extremely cold locations.

Battery Life

A marked drop in the time a fully charged battery retains its charge, when used at room
temperature, indicates that the battery needs to be replaced. Purchase a new battery.

Recycling Used Batteries

Replace the battery when it no longer holds a charge . Used batteries are a valuable resource.
Please recycle used batteries in accordance with local regulations.

The Charging AC Adapter

• The EH-73P Charging AC Adapter is for use only with compatible devices. Do not use with
another make or model of device.

• Do not use any USB cable other than the UC-E21. Using a USB cable other than the UC-E21
could result in overheating, fire or electric shock.

• Do not, under any circumstances, use another make or model of charging AC adapter
other than the EH-73P Charging AC Adapter, and do not use a commercially available
USB-AC adapter or a battery charger for a mobile phone. Failure to observe this precaution
could result in overheating or in damage to the camera.

• The EH-73P is compatible with AC 100–240 V, 50/60 Hz electrical outlets. When using in
other countries, use a plug adapter (commercially available) as necessary. For more
information about plug adapters, consult your travel agency.

• The symbols on this product represent the following:
D AC, E DC, F Class II equipment (The construction of the product is double-insulated.)

Technical Notes

35

Cleaning and Storage

Cleaning after Using the Camera Underwater

Follow the procedure below to rinse the camera with fresh water within 60 minutes after
using it underwater or at the beach. The underwater lens protectors are used here as an
example.

1. Check that the battery-chamber/memory card
slot cover is securely closed (locked).

• Check that the battery-chamber/memory card slot

cover latch and battery-chamber/memory card slot
cover latch release are positioned as shown in the
figure on the right, and that their orange indicator
marks are not visible.

2. Wash with fresh water while the underwater lens
protectors are attached.

Immerse the camera in a shallow basin filled with fresh
water for 10 minutes.

• Immerse the camera in fresh water and shake it

sufficiently in the water to remove any foreign
substances from the camera. If foreign substances
still remain, remove them with a cotton swab, etc.

• When the camera is immersed in the water, a few air

bubbles may come out from the water drain holes
of the camera such as openings in the microphone or speakers. This is not a
malfunction.

3. Wrap the camera with a soft dry cloth to wipe off water droplets, and dry
the camera in a well-ventilated and shady place.

• Place the camera on a dry cloth to dry it.

• Do not dry the camera with hot air from a hair dryer or clothes dryer.

4. Check that there are no water droplets, remove the underwater lens
protectors, and then remove any water droplets or sand remaining on the
inner side of the underwater lens protectors with a soft dry cloth.

• Attaching an underwater lens protector while the inner side is still wet could

cause condensation or a malfunction.

5. After making sure that there are no water droplets on the camera, open
the battery-chamber/memory card slot cover and use a soft dry cloth to
gently wipe off any water or sand remaining on the waterproofing packing
or inside the camera.

• If the cover is closed when the inside is wet, this could cause condensation or a

malfunction.

36

Technical Notes

Cleaning after Using the Camera in Conditions Other
than Underwater

Use a blower or air duster to remove any dust or lint that adheres to the lenses, lens
protectors, silicone jacket, camera body, special accessories, etc. To remove fingerprints or
other stains, gently wipe the parts with a soft dry cloth. If you wipe with too much pressure
or with a rough cloth, it may damage the camera or cause a malfunction.

Storage

If you do not intend to use the camera for an extended period, remove the battery and
avoid storing the camera in any of the following types of locations:

• Places that are poorly ventilated or subject to humidity of over 60%

• Places exposed to temperatures above 50°C (122°F) or below –10°C (14°F)

• Places next to equipment that produces strong electromagnetic fields, such as

televisions or radios
To prevent mold or mildew, take the camera out of storage at least once a month,
and turn it on and release the shutter a few times before putting it away again.
Completely exhaust the battery before storing it, and recharge it at least once every
six months. Also, place the battery in a container such as plastic bag in order to
insulate it, and store it in a cool place.

Technical Notes

37

Troubleshooting

If the camera fails to function as expected, check the list of common problems below
before consulting your retailer or Nikon-authorized service representative.
Also, refer to the Reference Manual (PDF format) (Avi).

Camera Issues

Problem Cause/Solution

• Wait for recording to end.

• If the problem persists, turn the camera off.

If the camera does not turn off, remove and reinsert the

The camera is on
but does not
respond.

The camera does
not turn on.

Cannot take
pictures or record
movies.

The camera turns
off without
warning.

The camera
becomes hot.

battery or batteries or, if you are using an AC adapter,
disconnect and reconnect the AC adapter.
Note that although any data currently being recorded will
be lost, data that have already been recorded will not be
affected by removing or disconnecting the power source.

• The buttons of the camera are disabled during remote
photography. To operate the buttons of the camera, exit
remote photography.

The battery is exhausted. 6, 34

• During remote photography, images cannot be captured
only with the camera. Exit remote photography.

• Disconnect the HDMI cable or USB cable.

• Insert a memory card with sufficient free space.

• The camera automatically turns off to save power (auto off

function).

• The camera and battery may not work properly at low
temperatures.

• The inside of the camera has become hot. Leave the
camera off until the inside of the camera has cooled, and
then try turning it on again.

The camera may become hot when used for an extended
period of time such as to shoot movies, or when used in a hot
environment; this is not a malfunction.

A

–

–

–
4

8

34

–

–

38

Technical Notes

Problem Cause/Solution

• The battery is exhausted.
Out of memory. Insert a memory card with sufficient free space.

•

The camera beeps
three times.

• The camera has run out of file numbers. Change the
memory card, or format the memory card.

• An error occurred while accessing the memory card.

- Use an approved memory card.

- Check that the terminals are clean.

- Confirm that the memory card is correctly inserted.

SnapBridge 360/170 App Issues

Problem Cause/Solution

• Enable Bluetooth and Wi-Fi on the smart device. When
using NFC on an NFC-compatible Android device, enable

The camera
cannot be paired.

The camera
cannot be
operated via the
smart device.

Cannot take
pictures or record
movies remotely.

NFC.

• Turn off the camera. The camera cannot enter pairing
standby mode when the camera is on.

• Turn off the airplane mode switch on the camera.

• Disconnect the HDMI cable or USB cable.

• The camera battery is exhausted.

• Per form pairing.

• If pairing has already been performed, select Camera &

smart device using c Cam era M Remote options M
Choose connection in the SnapBridge 360/170 app.

• Enable Wi-Fi on the smart device.

• Disconnect the HDMI cable or USB cable.

• Insert a memory card with sufficient free space.

A

6, 34
4
4

4, 5

A

–

8

1
–
6, 34

9
24

–
–
4

Technical Notes

39

Trademark Information

• Windows is either a registered trademark or trademark of Microsoft
Corporation in the United States and/or other countries.

• The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc. and any use of such marks by Nikon Corporation is under
license.

• Apple®, App Store®, the Apple logos, Mac, OS X, iPhone®, iPad®, iPod touch®
and iBooks are trademarks or registered trademarks of Apple Inc., in the U.S.
and other countries.

• Android and Google Play are trademarks or registered trademarks of Google
Inc. The Android robot is reproduced or modified from work created and
shared by Google and used according to terms described in the Creative
Commons 3.0 Attribution License.

• iOS is a trademark or registered trademark of Cisco Systems, Inc., in the United
States and/or other countries and is used under license.

• Adobe, the Adobe logo, and Reader are either trademarks or registered
trademarks of Adobe Systems Incorporated in the United States and/or other
countries.

• The microSD, microSDHC, and microSDXC logos are trademarks of SD-3C, LLC.

• HDMI, HDMI logo and High-Definition Multimedia Interface are trademarks or

registered trademarks of HDMI Licensing, LLC.

• Wi-Fi and the Wi-Fi logo are trademarks or registered trademarks of the Wi-Fi
Alliance.

• The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the
United States and in other countries.

• All other trade names mentioned in this manual or the other documentation
provided with your Nikon product are the trademarks or registered trademarks
of their respective holders.

40

Technical Notes

AVC Patent Portfolio License

“Made for iPod,” “Made for iPhone,” and “Made for iPad” mean that an electronic
accessory has been designed to connect specifically to iPod, iPhone, or iPad,
respectively, and has been certified by the developer to meet Apple performance
standards. Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards. Please note that the use of this
accessory with iPod, iPhone, or iPad may affect wireless performance.

This product is licensed under the AVC Patent Portfolio License for the personal and
non-commercial use of a consumer to (i) encode video in compliance with the AVC
standard (“AVC video”) and/or (ii) decode AVC video that was encoded by a consumer
engaged in a personal and non-commercial activity and/or was obtained from a video
provider licensed to provide AVC video. No license is granted or shall be implied for
any other use. Additional information may be obtained from MPEG LA, L.L.C.

See http://www.mpegla.com.

Technical Notes

41

Warranty Terms - Nikon Europe Service
Warranty

Dear Nikon Customer,
We thank you for your purchasing this Nikon product. Should your Nikon
product require warranty service, please contact the dealer from whom it
was purchased or a member of our authorized service network within the
sales territory of Nikon Europe B.V. (e.g. Europe/Russia/others). See details
under:
http://www.europe-nikon.com/support

In order to avoid any unnecessary inconvenience, we advise you to read the
user manuals carefully before contacting the dealer or our authorized
service network.
Your Nikon equipment is guaranteed against any manufacturing defects for
one full year from the date of original purchase. If during this period of
guarantee the product proves defective due to improper material or
workmanship, our authorized service network within the sales territory of
Nikon Europe B.V. will, without charge for labor and parts, repair the
product in the terms and conditions set as below. Nikon reserves the right
(at its sole discretion) to replace or repair the product.

1. This warranty is only provided upon presentation of the completed

warranty card and original invoice or purchase receipt indicating the date
of purchase, product type and dealer’s name, together with the product.
Nikon reserves the right to refuse free-of-charge warranty service if the
above documents cannot be presented or if the information contained
in it is incomplete or illegible.

2. This warranty will not cover:

• necessary maintenance and repair or replacement of parts due to
normal wear and tear.

• modifications to upgrade the product from its normal purpose as
described in user manuals, without the prior written consent of Nikon.

• transport costs and all risks of transport relating directly or indirectly to
the warranty of the products.

42

Technical Notes

• any damage resulting from modifications or adjustments which may
be made to the product, without the prior written consent of Nikon, in
order to comply with local or national technical standards in force in
any other country than the ones for which the product was originally
designed and/or manufactured.

3. The warranty will not be applicable in the case of:

• damage caused by misuse including but not limited to failure to use
the product for its normal purpose or according to the user
instructions on the proper use and maintenance, and to installation or
use of the product inconsistent with the safety standards in force in
the country where it is used.

• damage caused by accidents including but not limited to lightning,
water, fire, misuse or neglect.

• defacing, illegibility or removal of the model or serial number on the
product.

• damage resulting from repairs or adjustments which have been
conducted by unauthorized service organizations or persons.

• defects in any system into which the product is incorporated or with
which it is used.

4. This service warranty does not affect the consumer’s statutory rights
under applicable national laws in force, nor the consumer’s right against
the dealer arising from their sales/purchase contract.

Notice: An overview of all authorized Nikon Service Stations can be found

online by following this Link
(http://www.europe-nikon.com/service/).

Technical Notes

43

CT6J03(11)

6MQA1711-03

No reproduction in any form of this manual, in whole or in part
(except for brief quotation in critical articles or reviews), may be
made without written authorization from NIKON CORPORATION.
