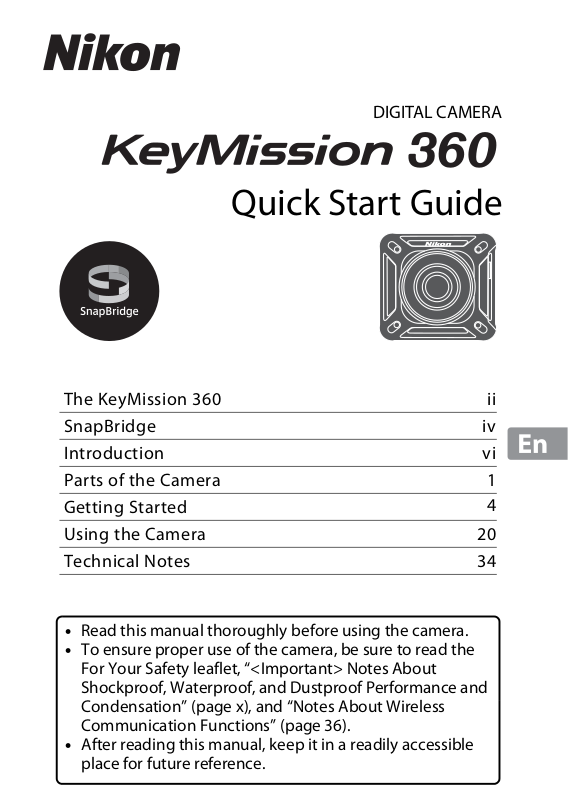

Nikon KeyMission 360 Quick Start Guide

DIGITAL CAMERA

Quick Start Guide

The KeyMission 360 ii

SnapBridge iv

Introduction vi

Parts of the Camera 1

Getting Started

4

Using the Camera 20

Technical Notes 34

• Read this manual thoroughly before using the camera.

• To ensure proper use of the camera, be sure to read the

For Your Safety leaflet, “<Important> Notes About
Shockproof, Waterproof, and Dustproof Performance and
Condensation” (page x), and “Notes About Wireless
Communication Functions” (page 36).

• After reading this manual, keep it in a readily accessible
place for future reference.

The KeyMission 360

KeyMission 360 Model Name: N1529

The KeyMission 360 is a new concept camera that is slightly
different from the cameras before it.

• Create 360° content

The camera combines two images captured by lenses
with an angle of view of about 180 degrees so that you
can enjoy creating 360° content (except when shooting
underwater).

• Easy shooting with just one button

You can press a button to simultaneously turn on the
camera and shoot.

• Connect to a smart device

Perform various operations and settings using a dedicated app due to the camera's
lack of a screen.

• A wide variety of accessories that expands shooting capabilities

The Images

The two captured images are processed in the camera and saved as a single image.
You can shoot at a 4K UHD size.

• The camera may be unable to capture subjects within about 60 cm (2 ft) from the
camera’s top, bottom, or sides.

• Under some shooting conditions, the boundaries of the composited areas may be
noticeable.

• Under some shooting conditions, images may not match perfectly at the
composite boundaries.

ii

The KeyMission 360

Playing Back Images

• Playing back using the SnapBridge 360/170 app, the KeyMission 360/170
Utility, or a TV (HDMI connection):

Part of the single image that was processed in the camera is displayed and you can
play back while moving the point of view.

• Playing back using other software:

The single image that was processed in the camera is displayed. You cannot move
the point of view during playback.

Operations Available with the SnapBridge 360/170 App

• Remote photography

Release the shutter from places away from the camera.

• Changing camera settings

Change settings related to the camera’s date and time, shooting, or lamp
brightness.

• Image playback and editing

Play back images, crop still images, edit movies, or extract still images from movies.

See the SnapBridge 360/170 app online help for more information.

The KeyMission 360

iii

SnapBridge

Your images. The world. Connected

Welcome to SnapBridge — Nikon’s new family of services to enrich
your image experience. SnapBridge connects your camera and
compatible smart device, through a combination of Bluetooth® low
energy (BLE) technology and a dedicated app. The stories you
capture with your Nikon camera and lenses are automatically
transferred to the device as they are taken. They can even be
uploaded effortlessly to cloud storage services, inviting access
across all your devices.

* Wireless communication is not available when the camera is underwater.

Download the SnapBridge app to get started!

The dedicated app “SnapBridge 360/170”
is required to set up this camera, use
remote photography, play back images,
change settings, and more.

Before setting up the camera, install the
dedicated app on your smartphone or
tablet.

Through a few simple steps, this app
connects your Nikon cameras with a
compatible iPhone®, iPad® and/or iPod
touch® or smart devices running on the

TM

Android
(http://snapbridge.nikon.com), Apple App Store® and Google Play
For the latest information on SnapBridge, visit the Nikon website for
your area (Aviii).

operating system. The app is available free from the website

TM

.

iv

SnapBridge

The exciting image experience that SnapBridge 360/170 offers…

Automatic picture transfer from camera to smart

1

thanks to the constant connection

device
between the two devices — making online photo
sharing easier than ever

Upload of photos and thumbnail images to the
NIKON IMAGE SPACE cloud service

1

Movies cannot be automatically transferred.

2

NIKON IMAGE SPACE does not support the viewing of 360° content by moving the point
of view.

2

A range of services that enriches your imaging life, including:

• Camera remote control

• Automatic update of camera’s date and

time info and location info

• Receive camera’s firmware updates

SnapBridge

v

Introduction

Scan this image with your smart device’s QR code reader.

Read This First

Thank you for purchasing the Nikon KeyMission 360 digital camera.

Using “SnapBridge 360/170”

The dedicated app “SnapBridge 360/170” is required to connect the camera and your
smartphone or tablet.

Before setting up the camera, install the dedicated app on your smartphone or tablet
(Aiv).

Downloading the “Reference Manual”

The Reference Manual (PDF format) is available in various languages. Download the
Reference Manual from our Download Center at the URL below and save it on your
smartphone, tablet or computer for reference.

• The Reference Manual can be viewed using Adobe Acrobat Reader (downloadable
from the Adobe website) or iBooks (an iOS app).

Downloading “KeyMission 360/170 Utility”

KeyMission 360/170 Utility is free computer software that enables you to transfer images
and movies to your computer for viewing and editing. You can also change the
camera’s settings. Download the software from our Download Center at the URL below.

Visit Our Download Center

http://downloadcenter.nikonimglib.com

Visit our website to download manuals for Nikon imaging products, computer
software, or firmware.

Nikon User Support

If you need any technical assistance with the operation of your Nikon product(s),
please contact one of the Nikon representatives. For information on the Nikon
representatives in your area, please visit
http://www.nikon-asia.com/support.

vi

Introduction

Confirming the Package Contents

In the event that any items are missing, please contact the store where you purchased
the camera.

KeyMission 360
Digital Camera

EN-EL12 Rechargeable
Li-ion Battery

CF-AA1 BK Silicone Jacket AA-1A Base Adapter AA-2 Base Mount (Flat)

AA-3 Base Mount
(Curved)

1

Attached to the camera at time of factory shipment.

2

A plug adapter is included if the camera was purchased in a country or region that
requires a plug adapter. The shape of the plug adapter varies with the country or region
of purchase (A6).

3

The EH-73PCH Charging AC Adapter may be included instead of the EH-73P, depending
on the country or region where you purchased the camera.

Two AA-14A Lens

1

Protectors

EH-73P Charging AC

2, 3

Adapter

Quick Start Guide
(this manual)

For Your Safety

Two AA-15A Underwater
Lens Protectors

UC-E21 USB Cable

Warranty

NOTE: A memory card is not included with the camera. microSD, microSDHC, and
microSDXC memory cards are referred to as “memory cards” in this manual.

Introduction

vii

Information and Precautions

Holographic seal: Identifies this

device as an authentic Nikon product.

Life-Long Learning

As part of Nikon’s “Life-Long Learning” commitment to ongoing product support and
education, continually updated information is available online at the following websites:

• For users in the U.S.A.: http://www.nikonusa.com/

• For users in Europe: http://www.europe-nikon.com/support/

• For users in Asia, Oceania, the Middle East, and Africa: http://www.nikon-asia.com/

Visit these websites to keep up-to-date with the latest product information, tips, answers to
frequently asked questions (FAQs), and general advice on digital imaging and photography.
Additional information may be available from the Nikon representative in your area. Visit the
website below for contact information.

http://imaging.nikon.com/

Use Only Nikon Brand Electronic Accessories

Nikon digital cameras are designed to the highest standards and include complex electron ic
circuitry. Only Nikon brand electronic accessories (including battery chargers, batteries, AC
adapters, and USB cables) certified by Nikon specifically for use with this Nikon digital
camera are engineered and proven to operate within the operational and safety
requirements of this electronic circuitry.

THE USE OF NON-NIKON ELECTRONIC ACCESSORIES COULD DAMAGE THE CAMERA AND

MAY VOID YOUR
The use of third-party rechargeable Li-ion batteries not bearing the Nikon holographic seal

could interfere with normal operation of the camera or result in the batteries overheating,
igniting, rupturing, or leaking.

For more information about Nikon brand accessories, contact a local authorized Nikon
dealer.

Before Taking Important Pictures

Before taking pictures on important occasions (such as at weddings or before taking the
camera on a trip), take a test shot to ensure that the camera is functioning normally. Nikon
will not be held liable for damages or lost profits that may result from product malfunction.

NIKON WARRANTY.

viii

Introduction

About the Manuals

• No part of the manuals included with this product may be reproduced, transmitted,
transcribed, stored in a retrieval system, or translated into any language in any form, by
any means, without Nikon’s prior written permission.

• Illustrations and screen content shown in this manual may differ from the actual product.

• Nikon reserves the right to change the specifications of the hardware and software

described in these manuals at any time and without prior notice.

• Nikon will not be held liable for any damages resulting from the use of this product.

• While every effort was made to ensure that the information in these manuals is accurate

and complete, we would appreciate it were you to bring any errors or omissions to the
attention of the Nikon representative in your area (address provided separately).

Comply with Copyright Notices

Under copyright law, photographs or recordings of copyrighted works made with the
camera can not be used without the permission of the copyright holder. Exceptions apply
to personal use, but note that even personal use may be restricted in the case of
photographs or recordings of exhibits or live performances.

Disposing of Data Storage Devices

Please note that deleting images or formatting data storage devices such as memory cards
does not completely erase the original image data. Deleted files can sometimes be
recovered from discarded storage devices using commercially available software, potentially
resulting in the malicious use of personal image data. Ensuring the privacy of such data is
the user’s responsibility.

Before discarding a data storage device or transferring ownership to another person, erase
all data in the device using commercial deletion software, or format the device using
c Camera M Camera settings M Format card in the SnapBridge 360/170 app (A28),
and then completely refill it with images containing no private information such as images
of empty sky (c Camera M Camera settings M Location data M turn off Download
from device and then take pictures).

Next, reset all of the camera’s settings in c Cam era M Camera settings M Reset all in
the SnapBridge 360/170 app.

Care should be taken to avoid injury or damage to property when physically destroying
memory cards.

Introduction

ix

<Important> Notes About Shockproof, Waterproof,
and Dustproof Performance and Condensation

• The shockproof, waterproof, and dustproof performance described here do not
guarantee that the camera will remain completely waterproof or free from damage
and trouble under all conditions.

• Do not subject the camera to excessive shock, vibration or pressure by dropping it,
hitting it, or placing a heavy object on it. Failure to observe this precaution could
deform the camera, cause water to seep inside, or damage the airtight seals,
resulting in camera malfunction.

• Your Nikon warranty may not cover troubles caused by water seeping inside the
camera due to improper handling of the camera.

Notes About Shockproof Performance

This camera has passed Nikon’s in-house test (drop test from a height of 200 cm (6 ft
6 in.) on a 5 cm (2 in.) thick plywood panel) compliant with the MIL-STD 810F Method

516.5-Shock1 standard.

Changes in appearance, such as paint peeling off and deformation of the camera, are
not measured in Nikon’s in-house test.

1

U.S. Department of Defense test method standard.
This drop test drops 5 cameras in 26 directions (8 edges, 12 corners, and 6 faces) from a
height of 122 cm (4 ft) to make sure that one to five cameras pass the test (if any defect is
detected during the test, another five cameras are tested to make sure that the test
criteria are satisfied for one to five cameras).

2

When the lens protectors or underwater lens protectors are attached.

Notes About Waterproof and Dustproof Performance

The camera is rated equivalent to JIS/IEC waterproof class 8 (IPX8) and JIS/IEC
dustproof class 6 (IP6X) and can shoot images underwater at a depth of 30 m (100 ft)
for up to 60 minutes.

1

This rating indicates that the camera has been designed to withstand the specified water
pressure for the specified period of time when the camera is used according to the
methods defined by Nikon.

2

The camera can be used up to a water depth of about 20 m (65 ft) when the lens
protectors are attached.

- The waterproof performance of this camera was tested in fresh water (swimming
pools, rivers, and lakes) and salt water only.

- The inner portion of this camera is not waterproof. Water seeping inside the camera
could cause the components to rust, resulting in high repair costs or irreparable damage.

2

1, 2

B Precautions When Cleaning

• Do not puncture the microphone or speaker openings with a sharp implement. If the
inside of the camera is damaged, the waterproof performance will deteriorate.

• Do not use soap, neutral detergents, or chemicals such as benzene for cleaning.

x

Introduction

Notes About Shockproof, Waterproof, and Dustproof
Performance

• Do not drop the camera, strike it against a hard object such as a rock, or throw it
against a water surface.

• Do not subject the camera to shock when using it underwater.

- Do not subject the camera to water pressure by exposing it to rapids or waterfalls.

- Do not expose to depths greater than 30 m (100 ft) underwater.

- Make sure not to drop the camera underwater. This camera does not float in

water.

• Do not continuously use the camera underwater for 60 minutes or more.

• Do not insert a wet memory card or battery in the camera.

- Do not open the battery-chamber/memory card slot cover when the camera or

your hands are wet. Doing so may cause water to seep inside the camera or
result in camera malfunction.

• Do not open the battery-chamber/memory card slot cover underwater.

• If moisture such as water droplets adheres to

the outside of the camera or inside of the
battery-chamber/memory card slot cover,
immediately wipe it off with a soft dry cloth.

- If a foreign substance adheres to the

outside of the camera or inside of the
battery-chamber/memory card slot cover,
immediately remove it with a blower or a
soft cloth.

• Do not leave the camera in cold conditions or
in hot conditions of 40°C (104°F) or more for a
long period of time.

- Doing so could cause deterioration of the waterproof performance.

- When using the camera underwater, make sure the water temperature is from

0°C to 40°C (32°F to 104°F).

• Do not use the camera at hot springs.

Before Using the Camera Underwater

Check the items below before using the camera underwater.

• Make sure that there are no foreign substances inside the battery-chamber/
memory card slot cover.

• Make sure that the waterproofing packing of the battery-chamber/memory card
slot cover is not cracked or deformed.

- Make sure that the waterproofing packing is not detached from the camera.

• Make sure that the battery-chamber/memory card slot cover is firmly closed.

- Make sure that the battery-chamber/memory card slot cover latch is in the LOCK

position (A4).

Introduction

xi

Notes About Operating Temperature, Humidity, and
Condensation

The operation of this camera has been tested at temperatures from −10°C to +40°C
(14°F to 104°F).
When you use the camera in cold climate regions or at high altitudes, observe the
following precautions.

• Battery performance deteriorates temporarily when cold. Keep the camera and
batteries warm under your clothing before use.

● Environmental conditions that are likely to cause condensation

Fogging (condensation) may occur on the inside of the lenses, lens protectors, or
underwater lens protectors depending on environments of sharp temperature
changes or high humidity, or the condition of the camera, such as described below.
This is not a malfunction or defect.

• The camera is suddenly immersed in cold water after being in a hot place on land.

• The camera is brought to a warm place such as inside a building after being in the

cold outdoors.

• The battery-chamber/memory card slot cover is opened or closed in a high­humidity environment.

• The camera, lens protector, or underwater lens protector are still wet when they are
attached to each other.

• The camera is used for an extended period of time in a low-temperature
environment.

● Reducing condensation

• Open the battery-chamber/memory card slot cover, put the camera and a
commercially-available desiccant in a container such as a plastic bag, and seal the
container.
Condensation is less likely to occur if the humidity inside the camera is reduced.

• Avoid storing the camera in places where the camera may become hot (such as
places exposed to direct sunlight) before using it underwater.
Taking the camera underwater while it is hot causes condensation due to sudden
changes in temperature.

● Clearing the fogging

• Turn off the camera and open the battery-chamber/memory card slot cover while
in a place where the ambient temperature is stable (avoid places with high
temperature, high humidity, sand, or dust).
To clear the fogging on the lens, remove the battery and memory card, and leave
the battery-chamber/memory card slot cover open to allow the camera to adjust
to the ambient temperature. When a lens protector or underwater lens protector is
fogged, remove the protector, and attach it to the camera again after the fogging
has cleared.

xii

Introduction

Inspection and Repair

• If the camera is exposed to shock, it is recommended to consult your retailer or
Nikon-authorized service representative to confirm the waterproof performance
(charged service).

• If the waterproofing packing begins to deteriorate, consult your retailer or Nikon­authorized service representative. The waterproof performance of the
waterproofing packing may start to deteriorate after one year.

• If water seeps inside the camera, immediately stop using it and take it to your
Nikon-authorized service representative.

Introduction

xiii

xiv

Introduction

Parts of the Camera

1

2

1817

16

15

45

13

12

11

10

3

9

8

7

6

14

2

1

Front

Back Bottom

1

Lens protector mounting mark

2

Lens

3

Speaker

4

Status lamp

5

Movie button

6

Power-on lamp

7

Battery-chamber/memory card slot
cover latch release

8

Battery-chamber/memory card slot
cover latch

9

Battery-chamber/memory card slot
cover

10

Waterproofing packing

11

Micro-USB connector

12

Airplane mode switch

13

HDMI micro connector (Type D)

14

Microphone (stereo)

15

Photo button

16

N-Mark (NFC antenna)

17

Tripod socket

18

Eyelet for fall prevention cord

The Camera Body

Parts of the Camera

1

Lamp Display

You can check the status of the camera by looking at the lamps.
Use c Camera M Camera settings M LED brightness in the SnapBridge 360/170

app (A28) to change the brightness of the lamps.

Power-On Lamp

Status Color Description

Green

• The battery level is within 30% to 100%.

• The camera is detecting a computer.

Quick flashing

2

On

Flashing

Off

Parts of the Camera

Orange The battery level is within 10% to 30%.

• The battery is charging. Turns off when

Green

Red

Green The battery cannot be charged (A6).

–The camera is off.

charging is complete.

• The camera is connected to a computer with
a USB cable.

The battery is exhausted. Charge or replace the
battery (A6).

Status Lamp

Status Color Description

Green

The camera is connected to a TV with an HDMI
cable.

On at the same time

Alternately flashing

Flashing at the same

time

Quick flashing at the

same time

Red

Green The camera is on standby for pairing (A9).

Green

Red

Red/Green The firmware is being updated.

Red

The camera is recording a movie in Standard
movie or Time-lapse movie mode.

• Pairing is complete.

• The camera is capturing a still image.

• The self-timer is counting down.

• The camera is recording a movie in

Superlapse movie or Loop recording
mode.

• The camera is saving a movie (slightly quick
flashing).

• Pairing failed.

• A memory card is not inserted (A4).

• Out of memory.

• The insid e of the cam era has bec ome hot. The

camera turns off automatically. Wait until the
camera or battery temperature has cooled
before resuming use.

• The firmware version update failed.

Parts of the Camera

3

Getting Started

1

2

3

4

5

6

7

8

9

Battery latch Memory card slot

Inserting the Battery and Memory Card

• Unlock the battery-chamber/memory card slot cover latch (1), move the battery-
chamber/memory card slot cover latch release to the y position (2), and then
open the battery-chamber/memory card slot cover (3).

• With the battery’s positive and negative terminals oriented correctly, move the
orange battery latch (4), and fully insert the battery (5).

• Slide the memory card in until it clicks into place (6).

• Be careful not to insert the battery or memory card upside-down or backward, as

this could cause malfunction or damage to the camera or memory card.

• Close the cover (7), move the battery-chamber/memory card slot cover latch
release to the z position (8), and then move the battery-chamber/memory
card slot cover latch to the LOCK position (9).

• Check that the battery-chamber/memory card slot
cover latch and battery-chamber/memory card slot
cover latch release are positioned as shown in the
figure on the right, and that their orange indicator
marks are not visible.

B Notes About Waterproof and Dustproof Performance

See “Notes About Shockproof, Waterproof, and Dustproof Performance” (Axi) for more
information.

4

Getting Started

B Formatting a Memory Card

The first time you insert a memory card that has been used in another device into this
camera, insert the memory card into the camera, and make sure to format it using the
SnapBridge 360/170 app.

• Note that formatting a memory card permanently deletes all images and other
data on the memory card. Be sure to make copies of any images you wish to keep

before formatting the memory card.

• Insert the memory card into the camera, and select c Camera M Camera settings M
Format card in the SnapBridge 360/170 app (A28).

Removing the Battery or Memory Card

Turn the camera off and make sure that the power-on lamp and status lamps have
turned off, and then open the battery-chamber/memory card slot cover.

• Move the battery latch to eject the battery.

• Gently push the memory card into the camera to partially eject the memory card.

• Be careful when handling the camera, battery, and memory card immediately after

using the camera, as they may be hot.

• To prevent yourself from accidentally pressing the movie button or photo button

and unintentionally shooting, we recommend that you take out the battery when
carrying the camera.

Memory Cards That Can Be Used

The camera supports microSD, microSDHC, and microSDXC memory cards.

• UHS-I is supported.

• Use microSDXC memory cards with an SD Speed Class rating of 6 or faster for

recording movies.

- Use memory cards with a UHS Speed Class rating of 3 or faster when the image
size/frame rate is 2160/24p (4K UHD) or 1920/24p.

- When using a memory card with a lower Speed Class rating, movie recording
may stop unexpectedly.

• If you use a card reader, make sure that it is compatible with your memory card.

• Contact the manufacturer for information on features, operation, and limitations

on use.

Getting Started

5

Charging the Battery

Power-on lamp

Electrical outlet

USB cable (included)

Charging AC Adapter

1

If a plug adapter* is included with your camera, securely connect it to the Charging AC
Adapter. Once the two are connected, attempting to forcibly remove the plug adapter
could damage the product.

* The shape of the plug adapter varies according to the country or region in which the

camera was purchased.
This step can be omitted if the plug adapter comes permanently bonded to the
Charging AC Adapter.

• Charging starts when the camera is connected to an electrical outlet while the
battery is inserted, as shown in the illustration. The power-on lamp slowly flashes
green while the battery is charging.

• When charging is complete, the power-on lamp turns off. Unplug the Charging AC
Adapter from the electrical outlet, and disconnect the USB cable.
Charging time is about 2 hours and 20 minutes for a fully exhausted battery.

• The battery cannot be charged when the power-on lamp quickly flashes green,
possibly due to one of the reasons described below.

- The ambient temperature is not suited to charging.

- The USB cable or Charging AC Adapter is not properly connected.

- The battery is damaged.

B Notes About the USB Cable

• Do not use a USB cable other than the UC-E21. Using a USB cable other than the UC-E21
could result in overheating, fire or electric shock.

• Check the shape and direction of the plugs and do not insert or remove the plugs at an angle.

B Notes About Charging with the Charging AC Adapter

The camera can be operated while the battery is charging, but the charging time increases.

6

Getting Started
