Introduction

Thank you for purchasing this Nikon product. This instruction manual is intended for users of the Nikon ECLIPSE 50i and 55i microscopes. To ensure correct use, please read this manual carefully before operating the product.

• This manual may not be reproduced or transmitted in whole or in part without Nikon's express consent.

• The contents of this manual are subject to change without notice.

• Although every effort has been made to ensure the accuracy of this manual, errors or inconsistencies

may remain. If you note any points that are unclear or incorrect, please contact your nearest Nikon representative.

• Some of the products described in this manual may not be included in the set you have purchased.

• Make sure you have read the manuals for any other products attached to or to be used with this product

(super high-pressure mercury lamp power supply, high-intensity light source, etc.).

Warning/Caution symbols used in this manual

Although Nikon products are designed to provide the utmost safety, ignoring safety precautions or improper use may result in personal injury or property damage, as well as voiding the terms of the warranty. To ensure safe use, please read the instruction manual carefully and thoroughly before trying to operate the instrument. Do not discard this manual. Store in a convenient location near the product for ready reference. In this manual, safety precautions are indicated by the following symbols. For safe, correct use of the product, always follow the instructions indicated by these symbols.

Symbol Meaning

Disregarding instructions indicated by this symbol may result in death or serious injury.

Disregarding instructions indicated by this symbol may result in injury or property damage.

WARNING

CAUTION

Introduction

Meaning of symbols used on the product

When appearing on the product, the symbols below indicate the need for caution at all times during use. Consult the instruction manual and read the relevant instructions before attempting to use or adjust any part to which the symbol has been affixed.

Caution! Biohazard

This symbol found on the stage indicates the following:

•

WARNING: Contact between sample and the product may result in biohazard risks.

•

To avoid biohazard contamination, avoid touching the contaminated portion with bare hands..

•

Decontaminate the contaminated part according to the standard procedure specified for your laboratory.

Caution for heat

This symbol found on the lamphouse of the ECLIPSE 50i indicates the following:

•

The lamp and surrounding areas (including the lamphouse) become very hot during and immediately after a period of illumination.

•

Risk of burns. Do not touch the lamp or surrounding areas during or immediately after a period of illumination.

•

Make sure the lamp and surrounding areas have cooled sufficiently before attempting to replace the lamp

Caution

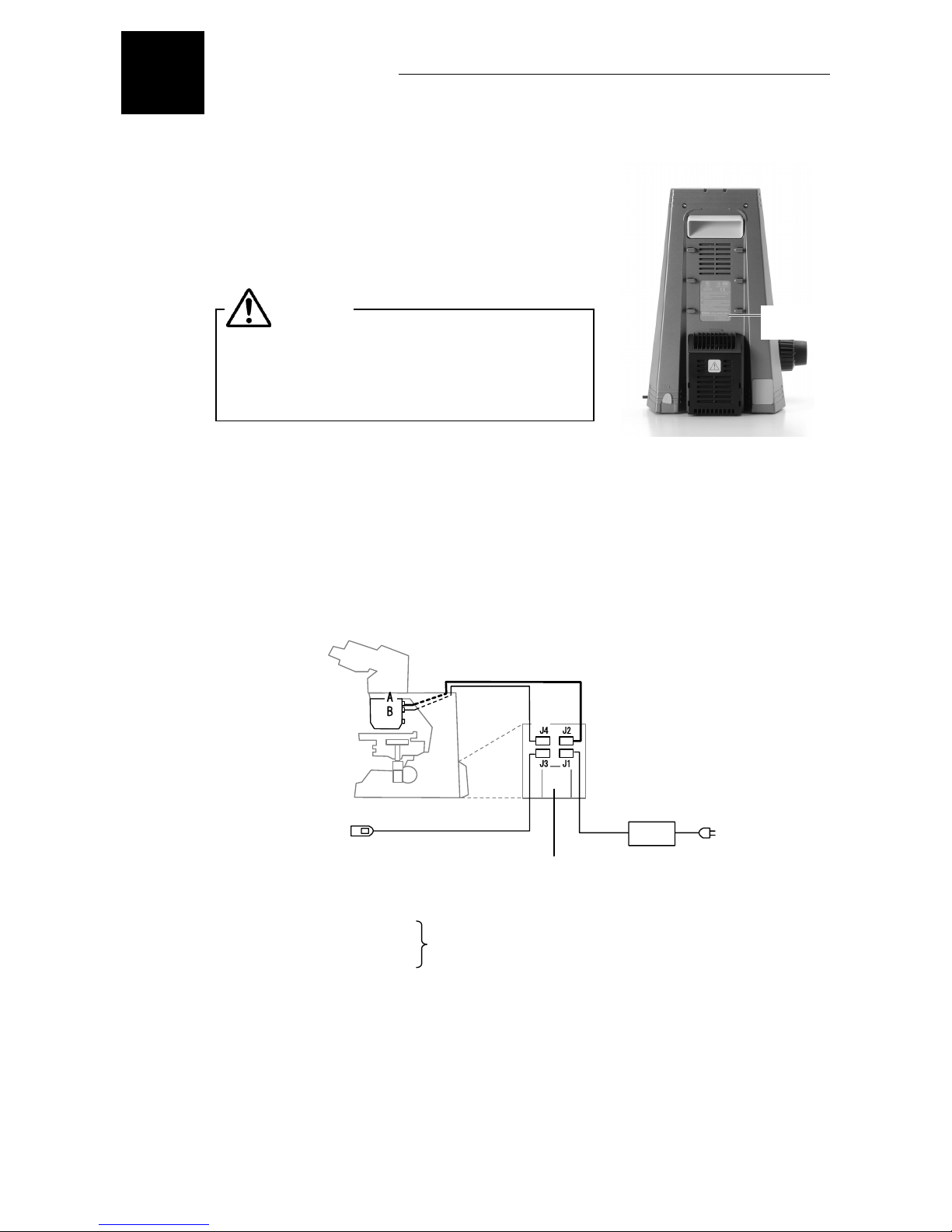

This symbol found on the wiring cover of the ECLIPSE 55i indicates the following:

• Always connect the specified battery and cables to the appropriate terminals. Failure to do so may result in malfunction.

• Do not remove the wiring cover.

Do not remove the cover except for when assembling the product or replacing batteries. Using the system without the cover may cause a short, resulting in abnormal heat. Always use the product with the wiring cover on.

Safety Precautions

Please follow the safety precautions given below.

1. Intended use of the product

This product is intended primarily for microscopic observations and image capture of cells and tissue set on glass slides using diascopic (transmitted) and episcopic (reflected) illumination. It is intended for use in experimentation and observation of cells and tissue in the fields of pathology and cytology in hospital and other laboratory settings.

2. Do not disassemble.

Disassembly may result in malfunctions and/or electrical shock and will void the terms of the warranty. Never attempt to disassemble any part other than the parts described in this manual. If you experience problems with the product, contact your nearest Nikon representative.

3. Read the instruction manuals carefully.

To ensure safety, carefully read this manual and the manual provided with any other equipment used with this product. Observe all warnings and cautions given at the beginning of each manual.

When the J-FL 50i55i Epi-fluorescence attachment is mounted on the product:

The mercury lamp (or xenon lamp) for Epi-fl microscopy requires special care during handling. Make sure you have read the instruction manual for the light source (super high-pressure mercury lamp power supply or high-intensity light source).

4. Power cord for ECLIPSE 50i and the power cord for AC adapter

Use one of the power cords specified. Using the wrong power cord may result in fire or other hazards. The product is classified as subject to Class I protection against electrical shock. Make sure it is connected to an appropriate ground terminal. Refer to Chapter 8 for the power cords specified. To prevent electric shock, always turn off the main power switch (press it to the "{" position) of the product before attaching or detaching the power cord.

5. Use the specified AC adapter (when using the ECLIPSE 55i) (when using J-CY cytodiagnostic unit).

The ECLIPSE 55i and the J-CY cytodiagnostic unit are powered by an AC adapter. Use only the specified adapter model meeting the requirements. Using any other type of adapter may result in malfunction, overheating, and/or fire. Refer to Chapter 8 for the adapter specified.

• To prevent malfunctions and/or fire, use the AC adapter in a well-ventilated location. To ensure proper heat radiation and to prevent overheating, never cover or place any object on the adapter.

• To prevent malfunctions, always turn off the power switch (press it to the "{" position) of the product before attaching the AC adapter.

WARNING

Safety Precautions

6. Heat from the light source (when using the ECLIPSE 50i)

The lamp and surrounding areas (including the lamphouse) will become very hot during and immediately after a period of illumination.

• Risk of burns. Never touch the lamp or surrounding areas during or immediately after a period of illumination

• Always attach the lamphouse cover when using the product.

• Make sure the lamp and surrounding areas have cooled sufficiently before attempting to replace the

lamp

• To avoid risk of fire, do not place fabric, paper or highly flammable volatile materials such as gasoline, petroleum benzine, paint thinner or alcohol near the lamphouse while the lamp is lit or during a period of around thirty minutes after the lamp has been turned off.

7. Mercury lamps and xenon lamps (when the J-FL 50i55i Epi-fluorescence attachment is attached)

The mercury lamp (or xenon lamp) used for J-FL 50i55i Epi-fluorescence attachment requires special care during handling. For safe and correct use of this system, carefully read the warnings below. Keep in mind all potential hazards. Additionally, carefully read the manual for the super high-pressure mercury lamp power supply (or high-intensity light source) and the manual (if provided) from the lamp manufacturer, then follow the instructions given therein.

Hazards of mercury lamps and xenon lamps

1) When lit, mercury (and xenon) lamps radiate ultraviolet light that can damage the eyes and skin. Direct viewing of the light may result in blindness.

2) The lamps contain sealed gas under very high pressure, pressure that increases when the lamp is on. If the lamp is scratched, fouled, subjected to high external pressure or physical impact, or used beyond its service life, the sealed gas may escape or the lamp may burst, resulting in gas inhalation, injury from glass, or other injury.

3) When the lamp is lit, the lamp and surroundings will become extremely hot. Touching the lamp with bare hands may result in burns; flammable materials placed near the lamp may ignite.

4) Using the wrong lamp type may result in accidents, including bursting of the lamp.

Safety is a top design priority for Nikon products. The preceding hazards should pose no danger as long as the user observes all of the warnings and cautions given in the manuals, and uses the system only for its intended purpose. However, failure to heed the warnings and cautions given in the manuals, subjecting the system to shock or impact, or attempting to disassemble the system may result in accidents and injury. Make sure you are familiar with and adhere to all warnings and cautions.

8. Always turn off the lamp when changing filter cubes (when the J-FL 50i55i Epi-fluorescence attachment is attached to the product).

When changing filter cubes, always turn off the light source of the Epi-fl attachment. Leaving the lamp on may result in ultraviolet exposure.

9. Hazardous sample

This product is intended primarily for microscopic observations and image capture of cells and tissue set on glass slides. Check to determine whether a sample is hazardous before handling. Handle hazardous samples according to the standard procedure specified for your laboratory. If the sample is potentially infectious, wear rubber gloves and avoid touching samples. If contact occurs between a sample and the product, decontaminate the contaminated portion according to the standard procedure specified for your laboratory.

WARNING

Safety Precautions

1. Isolate the products from the power source during assembly, connection/disconnection of cords, lamp replacement, and maintenance.

To prevent electric shock and/or malfunctions, always turn off the power switch(es) of the product (press to the "{" position) and unplug the power cord from the wall outlet before assembly, connecting or disconnecting of cords, lamp replacement, and cleaning of the product and the objective.

2. Lamp replacement precautions (when using the ECLIPSE 50i)

To avoid burns, wait at least 30 minutes after the lamp is turned off to give it sufficient time to cool. To avoid electric shock or malfunctions, never attempt to replace the lamp without first turning off the power switches for the product and the peripheral devices (press them to the "{" position) and unplugging the power cord from the wall outlet. Make sure the lamphouse cover is securely fitted to the lamphouse after lamp replacement. Never turn on the lamp while the lamphouse cover is open. Do not break up used lamps; instead, dispose of them as special industrial waste or as specified by local regulations.

3. Use the specified lamp (when using the ECLIPSE 50i).

The product's built-in power source is used for the halogen lamp that is a light source for the diascopic illumination. A halogen lamp up to 6V-30W can be lit. Always use the specified halogen lamp. Using an unspecified lamp may cause malfunctions.

Specified lamp: 6V-30W (PHILIPS 5761)

4. Avoid contact with water.

Never allow water to come into contact with the product, and keep the product away from liquids. Splashing water onto the product may cause a short, resulting in malfunction or abnormal heating. If water is splashed onto the product, immediately turn off the power switch (press to the "{" position) and remove the power cord from the receptacle. Then wipe off moisture with a dry cloth or something similar. If water enters the product, do not use; in this case, contact your nearest Nikon representative.

5. Do not place any object on top of the product.

Do not place any object on top of the product or cover it with a cloth or the like. The system temperature will rise, resulting in malfunctions.

CAUTION

Safety Precautions

6. Cautions on assembling, installing, and carrying the product

• Take care to avoid pinching your fingers or hands during product assembly.

• Scratches or fouling such as fingerprints on optical components (such as lens and filters) will

degrade microscope images. Be careful to avoid scratches or direct contact with the lens and filters.

• The main unit weighs about 9 kg. Grasp the main unit by the handle on the back of the product and the recess at the base on the opposite side from the handle.

• Remove all attachments (if mounted) from the microscope before carrying the microscope.

• Do not install the product in a locker or cabinet.

7. Operating, transporting, and storage conditions

The product must be operated, transported, or stored under the following conditions. Using or storing the product in hot, humid locations may result in mildew formation or condensation on lenses, imparing performance or generating malfunction.

• Operating conditions: temperature (0 to 40°C), humidity (85% RH max., no condensation)

• Transporting/storage conditions: temperature (-20 to +60°C), humidity (90% RH max., no

condensation)

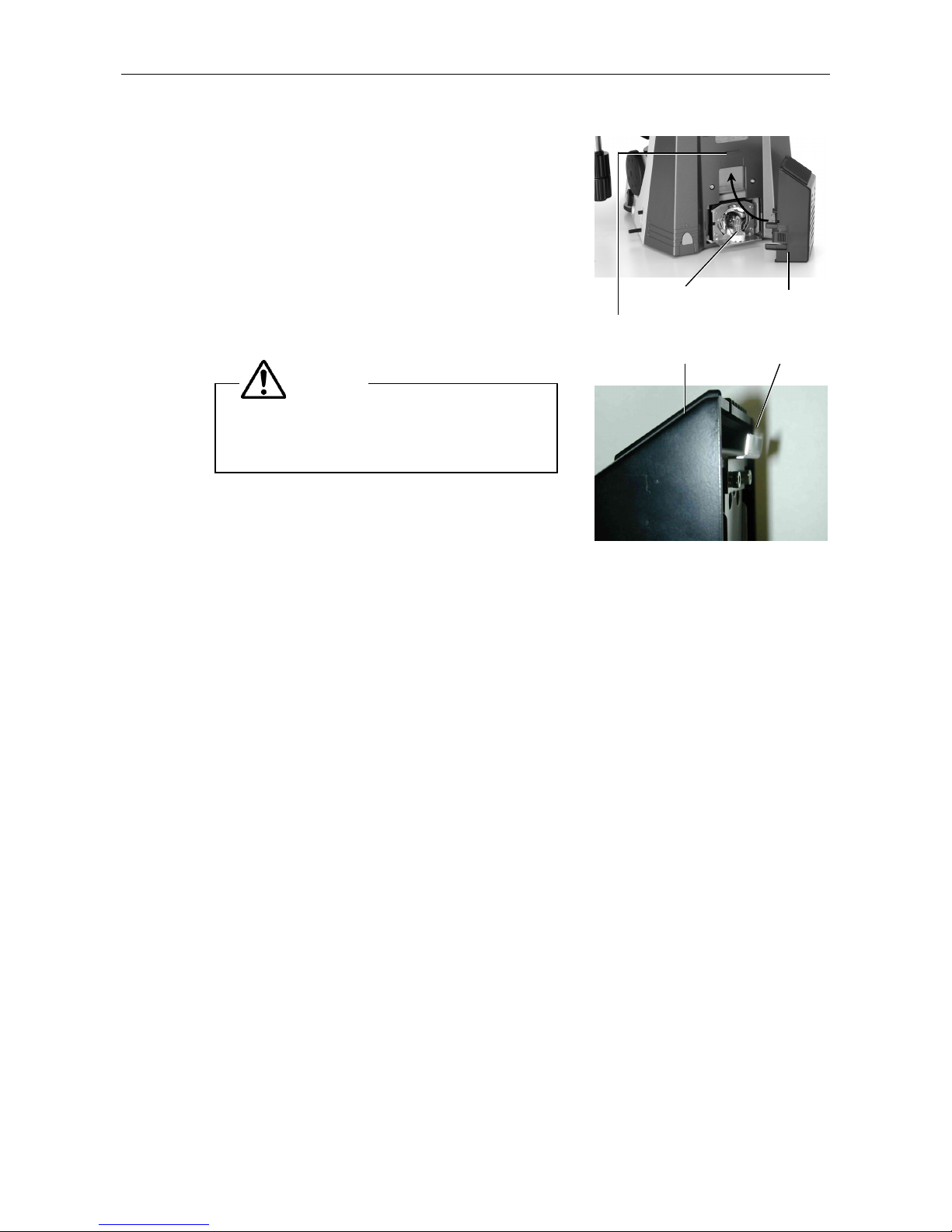

8. Use the product with the wiring cover (when using the ECLIPSE 55i).

Do not remove the wiring cover except when assembling the product or replacing batteries. Using the system without the wiring cover may cause a short, resulting in abnormal heat.

9. Remove any covers from the product before switching on.

Do not use the product while covered with a cloth, etc., as this will result in abnormal heat and fire hazards.

10. Caution concerning long, sustained observations

To relieve fatigue resulting from long observation sessions, limit continuous observations to one hour. Take at least 10- to 15-minute breaks between observation sessions. Adjust the layout of other equipment and the height of your chair.

11. Disposal of the product

To avoid biohazard risks, dispose of the product as contaminated equipment according to the standard procedure specified for your laboratory.

CAUTION

Safety Precautions

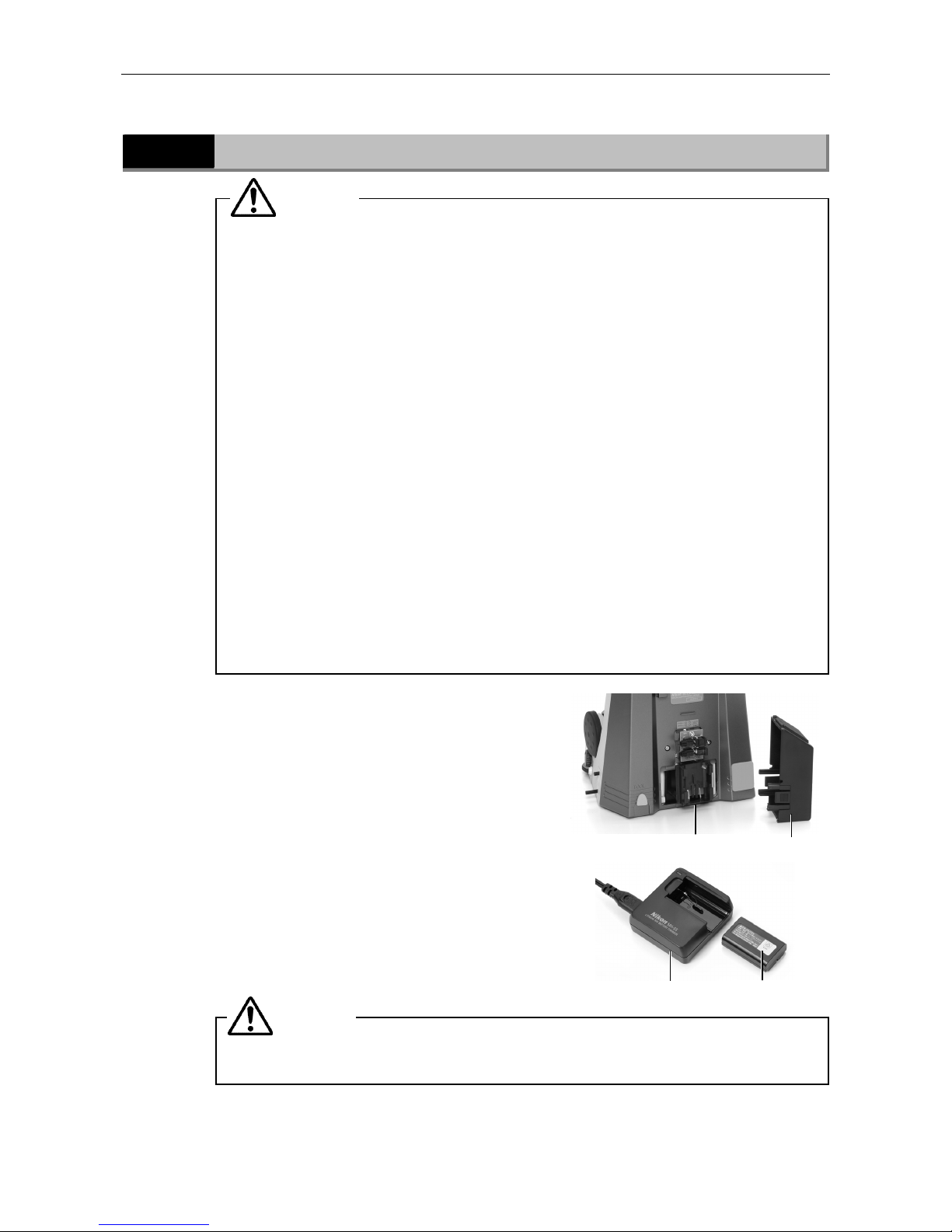

12. Rechargeable battery (when using the ECLIPSE 55i)

Use the Nikon EN-EL1 Li-ion rechargeable battery for the ECLIPSE 55i. Do not use any other type of battery. Although the EN-EL1 is designed for use with Nikon digital cameras, it can also be used for the ECLIPSE 55i.

Take the following precautions when handling the battery:

• Do not expose to open flames or excessive heat. The battery may become hot, leak, or burst.

• Do not short circuit or disassemble. The battery may become hot, leak, or burst.

• Always use the charger specified (e.g., MH-53). If a different charger is used, the battery may become hot, leak, or burst.

• The EN-EL1 is designed specifically for Nikon digital cameras and the ECLIPSE 55i. Do not use it for any other equipment. The battery may become hot or leak.

• Do not carry or store with metallic objects such as necklaces or hairpins. The battery may become hot, leak, or burst.

• Do not expose to direct sunlight, or leave inside a sun-heated car with all windows shut. The battery may become hot, leak, or burst.

• Do not drop or expose to strong impact. The battery may become hot, leak, or burst.

• Keep out of reach of small children. The battery can be swallowed by small children. If swallowed, consult a physician immediately.

• Do not immerse in water or allow to become wet. The battery may become hot or leak.

• Do not use if unusual features, such as discoloration or deformation, are present. The battery may become hot or leak.

• Do not exceed the charging period, even if battery is not fully charged. The battery may become hot or leak.

• Insulate the contacts with tape, etc., when disposing of the battery. The battery may become hot, burst, or ignite on contact with other metals.

• Observe local waste disposal regulations upon disposal.

• Please read the instruction manuals supplied with the EN-EL1 and the battery charger.

CAUTION

Notes on handling the product

1. Handle the product gently.

This product is a precision optical instrument and requires gentle handling. Avoid subjecting it to sudden impact and shocks. Even relatively minor impacts are capable of affecting the precision of the objective.

2. Weak electromagnetic waves

The product emits weak electromagnetic waves. Do not install the product near precision electronic devices to avoid degrading their performance. If the TV or radio reception is affected, move the TV or radio farther from the product.

3. Scratches, dirt, and foreign particles on the lens

Scratches or fouling such as fingerprints on optical components (such as lens and filters) will degrade microscope images. If these parts become dirty, clean them as described in chapter "7. Care and maintenance" at the end of this manual.

4. Dirt on the lamps (when using the ECLIPSE 50i)

Never touch the lamp with bare hands. Dirt or fingerprints on the lamp will result in uneven illumination and reduce the service life of the lamp. Always wear gloves when handling lamps.

5. Installation location

This product is a precision instrument. Use or storage in inappropriate environments may result in malfunctions or poor performance. Consider the following factors when selecting an installation location:

• Select a vibration-free location. Install the product on a level surface.

• Install the product at least 10 cm away from walls.

• Choose a location less exposed to hazards in the event of collisions, earthquakes, or other potential

disasters. To keep the product from falling, use strong rope or other means if necessary to secure it to the working desk or to another heavy, stable item.

• Avoid locations exposed to direct sunlight, locations immediately under room lights, and other bright locations.

• Avoid locations with excessive dust.

• To avoid splashes, do not use the product near water.

• Make sure the ambient temperature is 0 to 40°C and humidity is 85% or less. Installing the product

in hot, humid locations may result in mildew formation or condensation, impairing performance or generating malfunctions.

• Storage conditions for transportation are as follows: temperature (-20°C to +60°C), humidity (90% RH max., no condensation)

• Do not install the product in a locker or cabinet.

• Select a layout that allows easy removal of the power cord from the product's AC inlet in the event of

an emergency.

• Room lights just above the product may enter the objective as extraneous light. If possible, switch off room lights directly above the product when making observations.

• Do not use on a desk mat or the like.

Notes on handling the product

6. Focusing knobs

• Never turn the focus knobs on the left and right sides of the product in opposite directions at the same time. Doing so may damage the product.

• Turning the coarse focus knob past its farthest point will damage the product. Never use undue force when turning the knob.

7. Protect the ports from dust and extraneous light (when the trinocular eyepiece tube or the C-TE ergonomic binocular tube is attached).

To keep out extraneous light and dust, always attach the supplied cap to any port not currently in use.

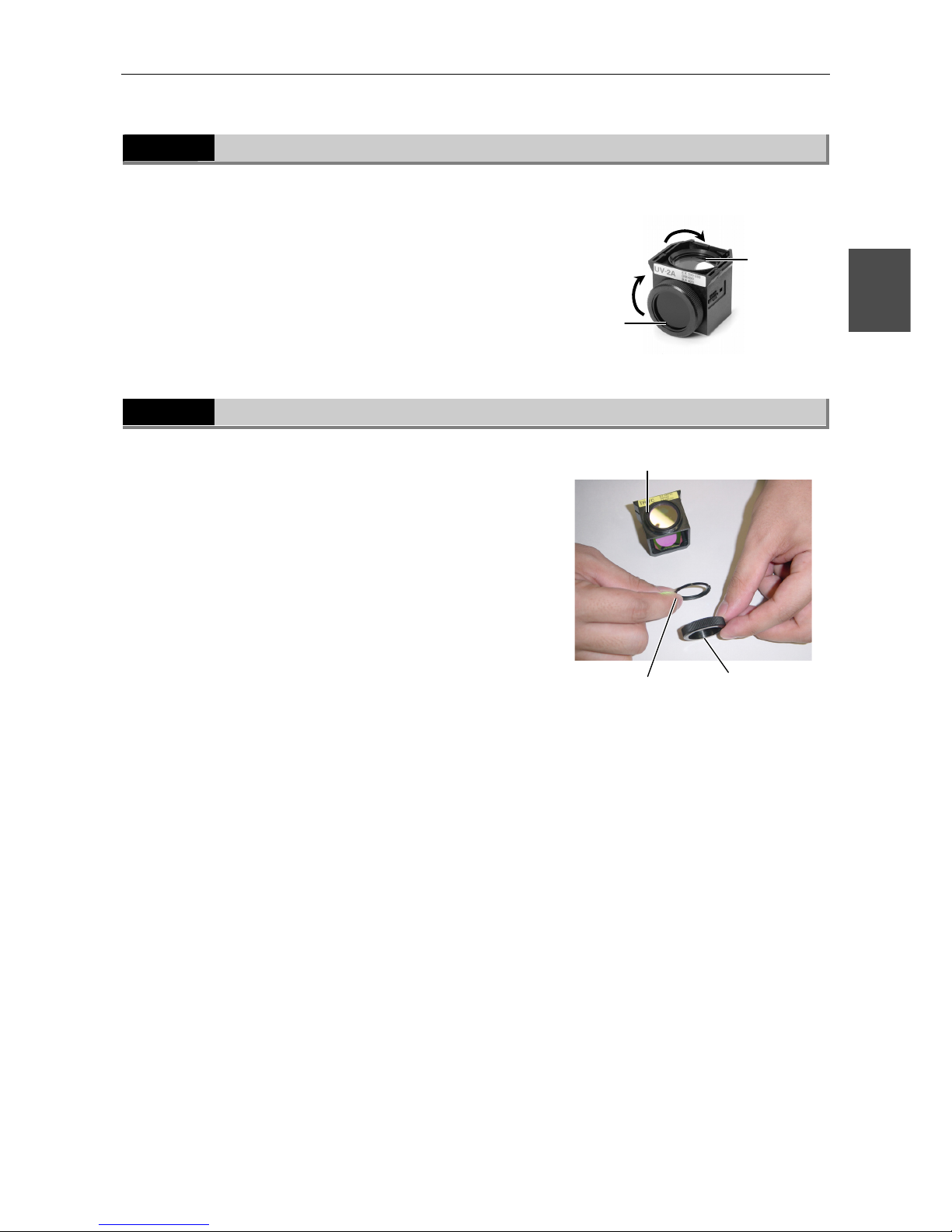

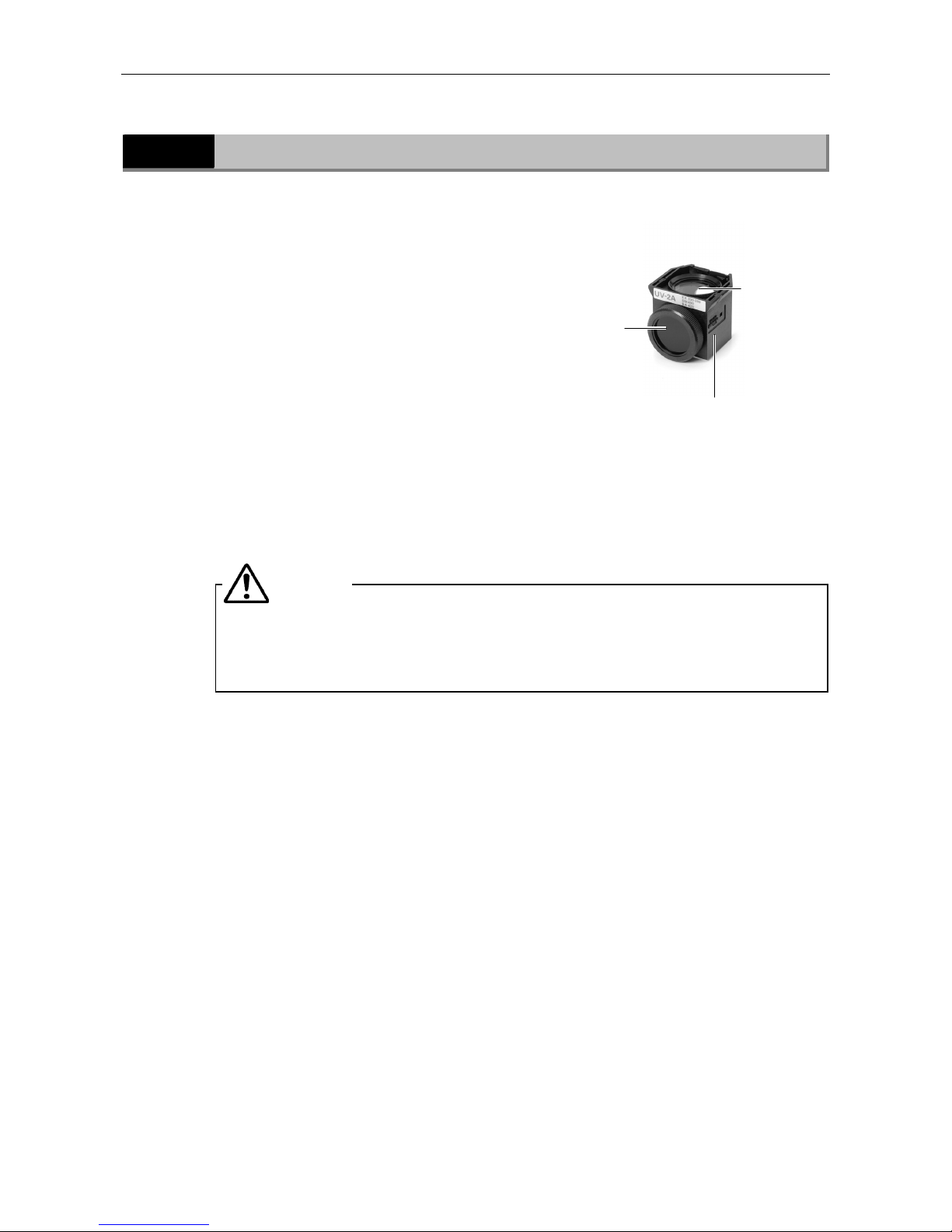

8. Handling of filters (when J-FL 50i55i Epi-fluorescence attachment is attached to the product)

• Interference filters (especially excitation filters, which are exposed to strong light) degrade over time. Replace them after the appropriate number of hours.

• Filter characteristics may alter if the filter is exposed to high humidity. To prevent changes in or degradation of filter characteristics, avoid using or storing the filters under conditions of high humidity or high temperature. Avoid subjecting filters to rapid temperature changes. When a filter is not in use, store in a desiccator or hermetically sealed container with a drying agent.

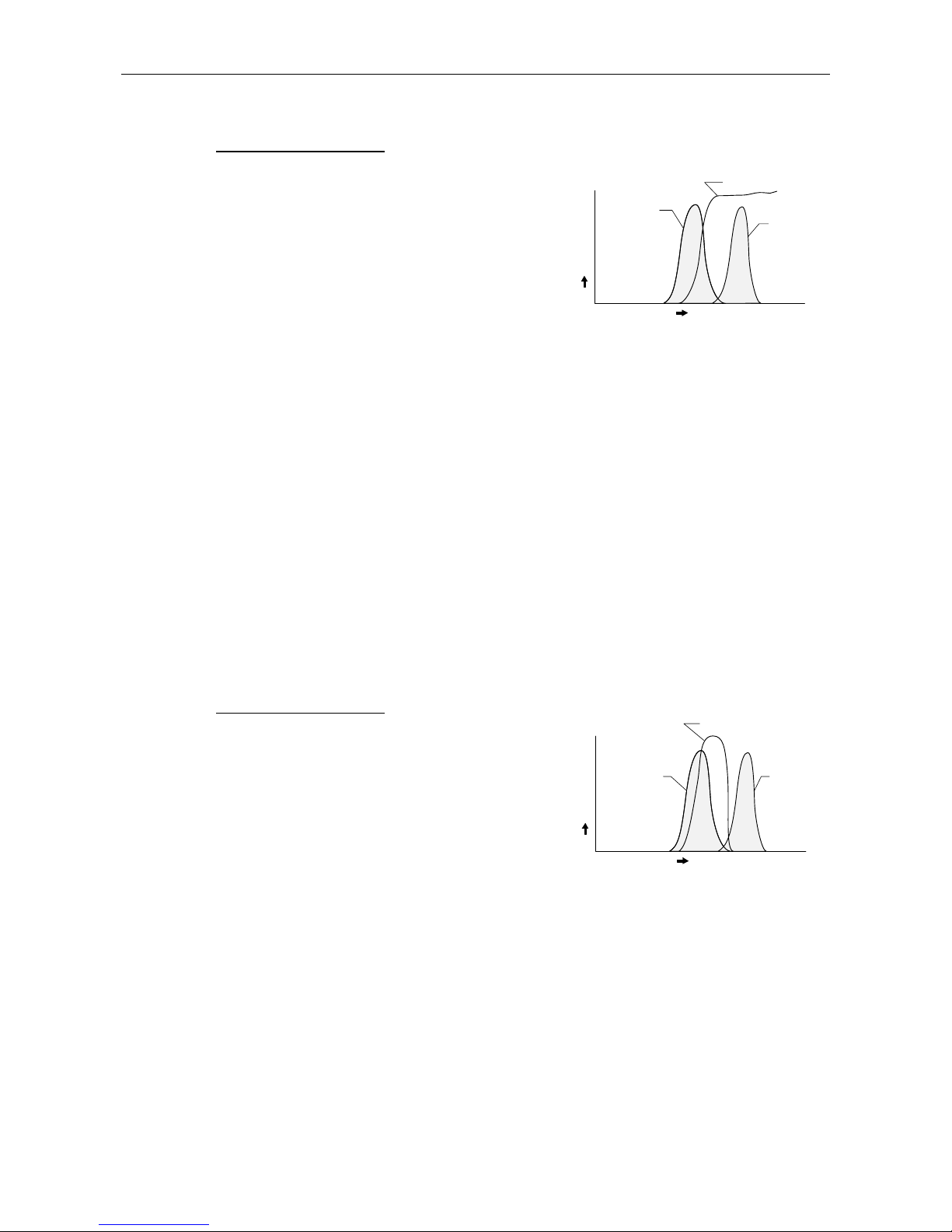

• The filters in the nine types of filter cubes listed below offer sharp, high-resolution waveform characteristics superior to normal filters. However, due to their sophisticated coatings, they must be handled with special care. In particular, take care to avoid abrasion from cleaning. (Follow the procedure described in section "1. Filter and lens cleaning" of chapter "7. Care and Maintenance.") Single-band filter cubes: DAPI, FITC, TxRed, GFP Multi-band filter cubes: F-R, F-T, D-F, D-F-R, D-F-T

Abbreviations Used in This Manual

The product names and abbreviations used in this manual are given below.

The manual uses the following abbreviations:

Name of device

Abbreviation

Microscope ECLIPSE 50i

50i

Microscope ECLIPSE 55i

55i

C-ER Eye Level Riser

Eye Level Riser

C-TE Ergonomic Binocular Tube

Ergonomic Binocular Tube

C-TEP DSC Port for Ergonomic Binocular Tube

DSC Port

J-FL 50i55i Epi-Fluorescence Attachment

Epi-fl Attachment

J-CY Cytodiagnostic Unit

Cytodiagnostic Unit

C-HS Hand switch

Hand Switch

DS Camera Head DS-5M

Camera Head

DS Camera Control Unit DS-L1

DS-L1

DS Camera Cable

Camera Cable

Super High Pressure Mercury Lamp Power Supply Mercury Lamp Power Supply

Super High Pressure Mercury Lamphouse

Mercury Lamphouse

Contents

Introduction ....................................................................................................... 1

Warning/Caution symbols used in this manual .................................................................. 1

Meaning of symbols used on the product ......................................................................... 2

Safety Precautions .............................................................................................. 3

WARNING.................................................................................................... 3

CAUTION..................................................................................................... 5

Notes on handling the product .............................................................................. 8

Abbreviations Used in This Manual........................................................................10

Chapter 1 Part Names.........................................................................................14

1.1 Names of Main Components ............................................................................... 14

1.2 Names of Parts Used to Make Adjustments........................................................... 15

1.2.1 Right view ................................................................................................ 15

1.2.2 Left view .................................................................................................. 16

1.2.3 Rear view (50i).......................................................................................... 17

1.2.4 Rear view (55i).......................................................................................... 18

1.2.5 Ergonomic binocular tube with camera attached ............................................19

1.2.6 With cytodiagnostic unit attached ................................................................ 20

1.2.7 With Epi-fl attachment mounted .................................................................. 21

Chapter 2 Microscopy .........................................................................................22

2.1 Bright-Field Microscopy ...................................................................................... 22

2.2 Microscopy with Cytodiagnostic Unit Attached ....................................................... 26

2.3 Microscopy with Epi-fl Attachment Mounted .......................................................... 29

2.4 Photomicroscopy ............................................................................................... 32

Chapter 3 Individual Operations ...........................................................................34

3.1 Power ON/OFF .................................................................................................. 35

3.1.1 Microscope................................................................................................ 35

3.1.2 Cytodiagnostic unit .................................................................................... 35

3.1.3 Light source of the Epi-fl attachment (mercury lamp) ..................................... 35

3.2 Brightness Adjustment....................................................................................... 36

3.2.1 Adjustment using the brightness control knob ............................................... 36

3.2.2 Adjustment using the preset switch ............................................................. 37

3.2.3 Adjustment with the ND filter IN/OUT lever (for 50i) ...................................... 37

3.2.4 Automatic adjustment after magnification change

(only for a 55i when a cytodiagnostic unit is attached) ................................... 38

3.2.5 Adjustment with the ND filter of the Epi-fl attachment.................................... 38

3.2.6 Transmitted image in fluorescence observation.............................................. 38

3.2.7 Camera adjustment (adjusting the brightness of the image on the monitor)...... 39

3.3 Optical Path Switching ....................................................................................... 39

3.3.1 Optical path distribution ............................................................................. 39

3.3.2 Disabling the clicking of the optical path switching lever ................................. 39

3.4 Vertical Stage Motion......................................................................................... 40

3.4.1 Prohibited actions ...................................................................................... 40

3.4.2 Knob rotation direction and stage motion direction ........................................ 40

3.4.3 Number of knob turns and distance of stage travel ........................................ 40

Contents

3.4.4 Adjusting the rotating torque of the coarse focus knob................................... 41

3.4.5 How to refocus.......................................................................................... 41

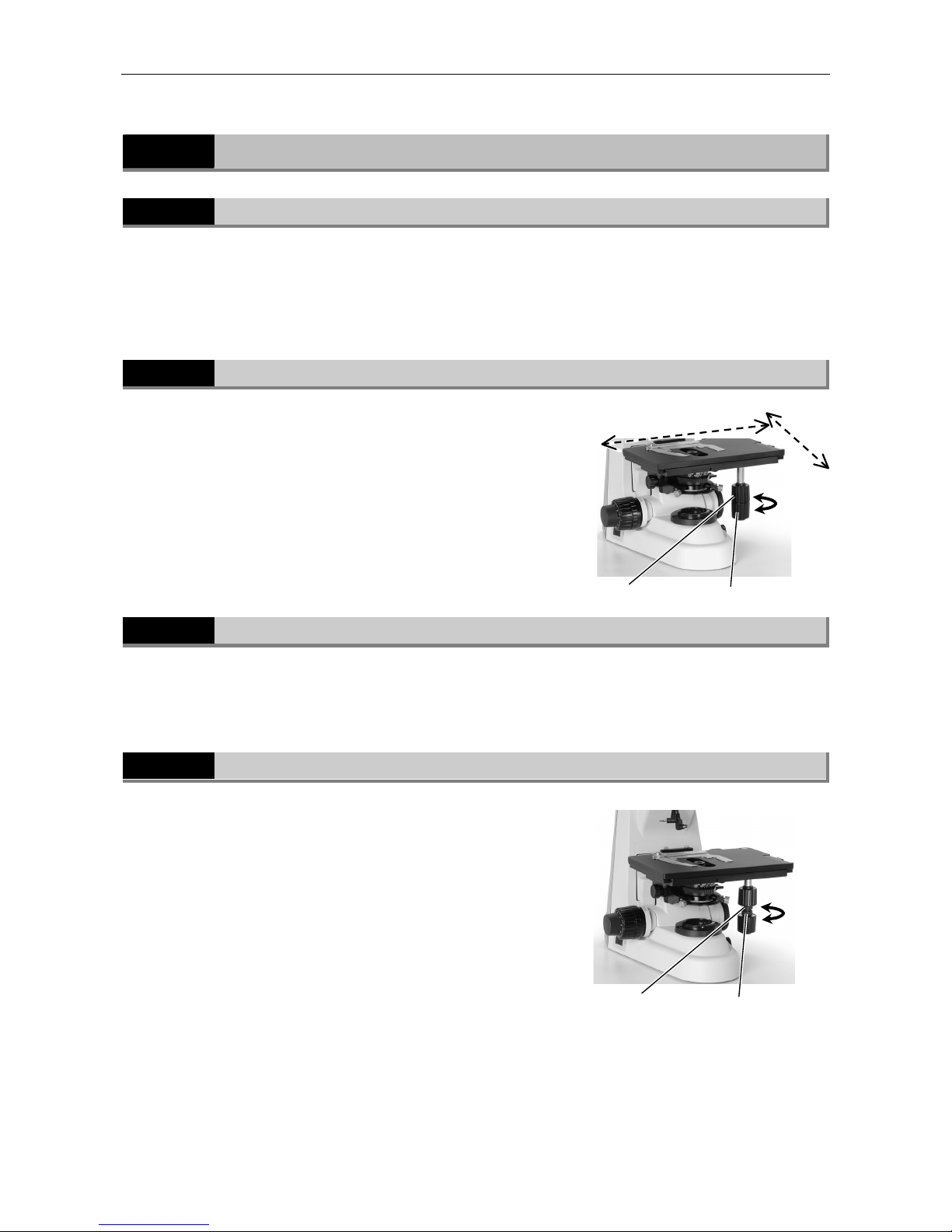

3.5 XY Stage Motion ............................................................................................... 42

3.5.1 Prohibited action........................................................................................ 42

3.5.2 Knob rotation direction and stage motion direction ........................................ 42

3.5.3 Adjusting the knob heights ......................................................................... 42

3.5.4 Adjusting the knob rotation torque............................................................... 42

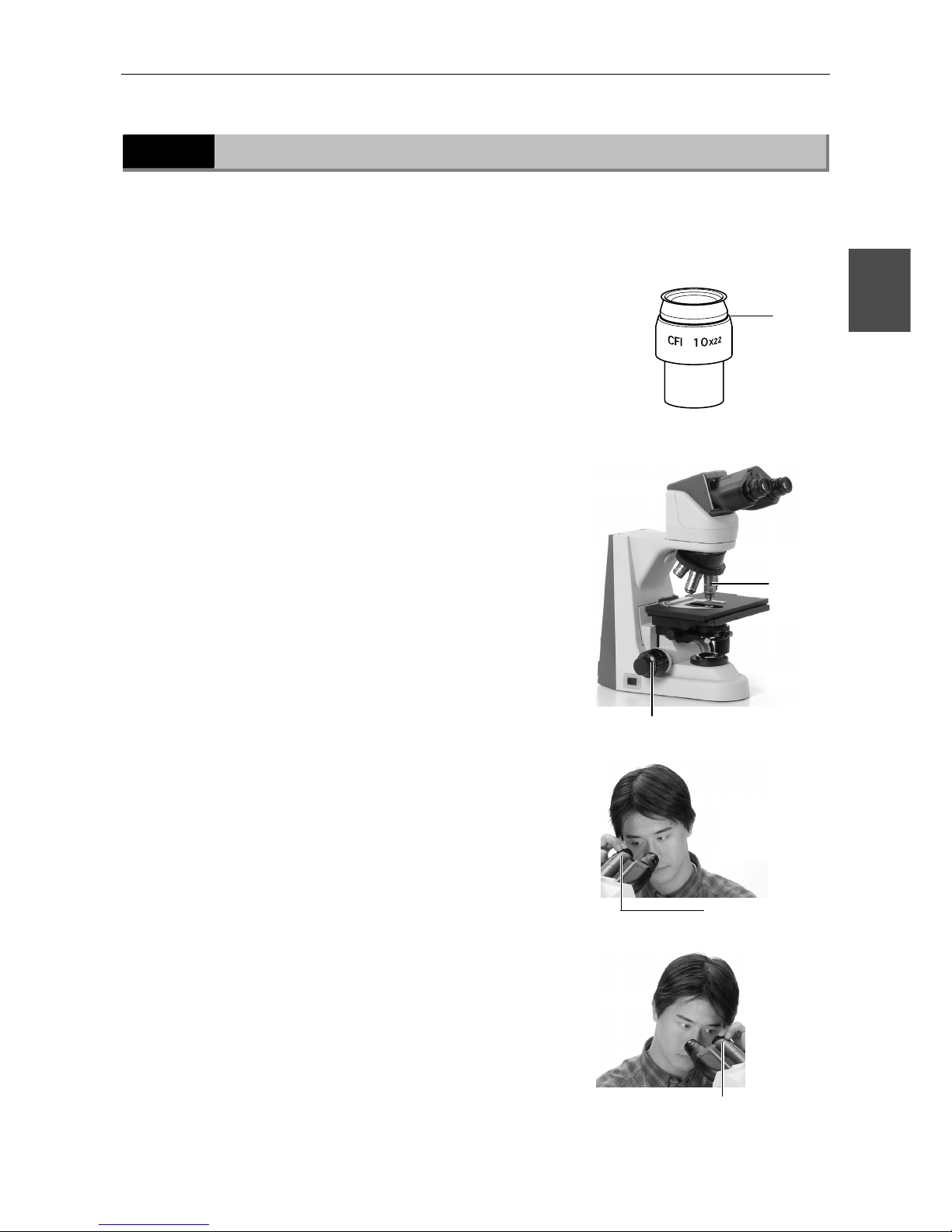

3.6 Diopter Adjustment ........................................................................................... 43

3.7 Interpupillary Adjustment .................................................................................. 44

3.8 Adjusting the Observation Position ...................................................................... 44

3.9 Adjusting the Condenser Position ........................................................................ 45

3.10 Adjusting the Aperture Diaphragm ...................................................................... 46

3.10.1 Adjusting the aperture diaphragm opening using the condenser scale .............. 46

3.10.2 Adjusting the aperture diaphragm opening using the centering telescope

(optional) ................................................................................................. 46

3.11 Selecting a Condenser ....................................................................................... 47

3.12 Adjusting the Field Diaphragm ............................................................................ 47

3.13 Oil Immersion Operation .................................................................................... 48

3.14 Water Immersion .............................................................................................. 49

3.15 Using the Cytodiagnostic Unit ............................................................................. 50

3.15.1 Magnification switching............................................................................... 50

3.15.2 Marking specimens .................................................................................... 50

3.16 Fluorescence Observation................................................................................... 51

3.16.1 Warning.................................................................................................... 51

3.16.2 Shutter of the Epi-fl attachment .................................................................. 51

3.16.3 Light shielding plate of the Epi-fl attachment................................................. 51

3.16.4 Field diaphragm of the Epi-fl attachment ...................................................... 51

3.16.5 Switching excitation methods ...................................................................... 52

3.16.6 Inserting and removing the filter cubes ........................................................ 52

3.16.7 ND filters of the Epi-fl attachment................................................................ 53

3.17 Selecting Fluorescent Filters ............................................................................... 54

3.17.1 Selecting excitation filters (EX filters)........................................................... 55

3.17.2 Selection of barrier filter (BA filter) .............................................................. 55

3.17.3 Replacing excitation and barrier filters .......................................................... 57

3.17.4 Filter cube internal spacers ......................................................................... 57

3.18 Image Capture ................................................................................................. 58

3.18.1 Adjusting light intensity .............................................................................. 58

3.18.2 Adjusting the condenser ............................................................................. 58

3.18.3 Confirming the photomicrographic range ...................................................... 58

3.18.4 Confirming focus ....................................................................................... 58

3.18.5 Making adjustments to keep out extraneous light .......................................... 59

3.18.6 Anti-vibration measures.............................................................................. 59

3.18.7 Fluorescence photomicrography................................................................... 59

Chapter 4 Assembly ...........................................................................................60

Chapter 5 Replacing Consumables ........................................................................71

5.1 Replacing the lamp (for the 50i).......................................................................... 71

5.2 Recharging the battery (for the 55i) .................................................................... 72

Contents

5.3 Refilling Cytodiagnostic Unit Ink .......................................................................... 73

Chapter 6 Troubleshooting...................................................................................74

6.1 Optical............................................................................................................. 74

6.2 Operational ...................................................................................................... 75

6.3 Electrical .......................................................................................................... 75

Chapter 7 Care and Maintenance..........................................................................76

7.1 Lens Cleaning ................................................................................................... 76

7.2 Cleaning the Product ......................................................................................... 76

7.3 Disinfecting the Product ..................................................................................... 76

7.4 Storage............................................................................................................ 77

7.5 Periodic Inspections (fee charged)....................................................................... 77

Chapter 8 Technical Specifications ........................................................................78

8.1 Specifications ................................................................................................... 78

Part Names

1.1

Names of Main Components

Eyepiece tube

Eyepiece

Microscope (main bod

Objective

Specimen holder

Condenser

Stage

Revolving nosepiece

Chapter 1 Part Names

1.2 Names of Parts Used to Make Adjustments

1.2

Names of Parts Used to Make Adjustments

1.2.1

Right view

Optical path switching lever

Diopter adjustmen

rin

Refocusing lever

Aperture diaphragm

knob

X stage knob

Y stage knob

Brightness control knob

Field diaphragm knob

Preset switch

Preset brightness control knob

50i: ND filter IN/OUT lever 55i: Color compensating filter IN/OUT lever

Chapter 1 Part Names

1.2 Names of Parts Used to Make Adjustments

1.2.2

Left view

Power switch

Condenser focus knob

Condenser centering screws

Fine focus knob

Coarse focus knob

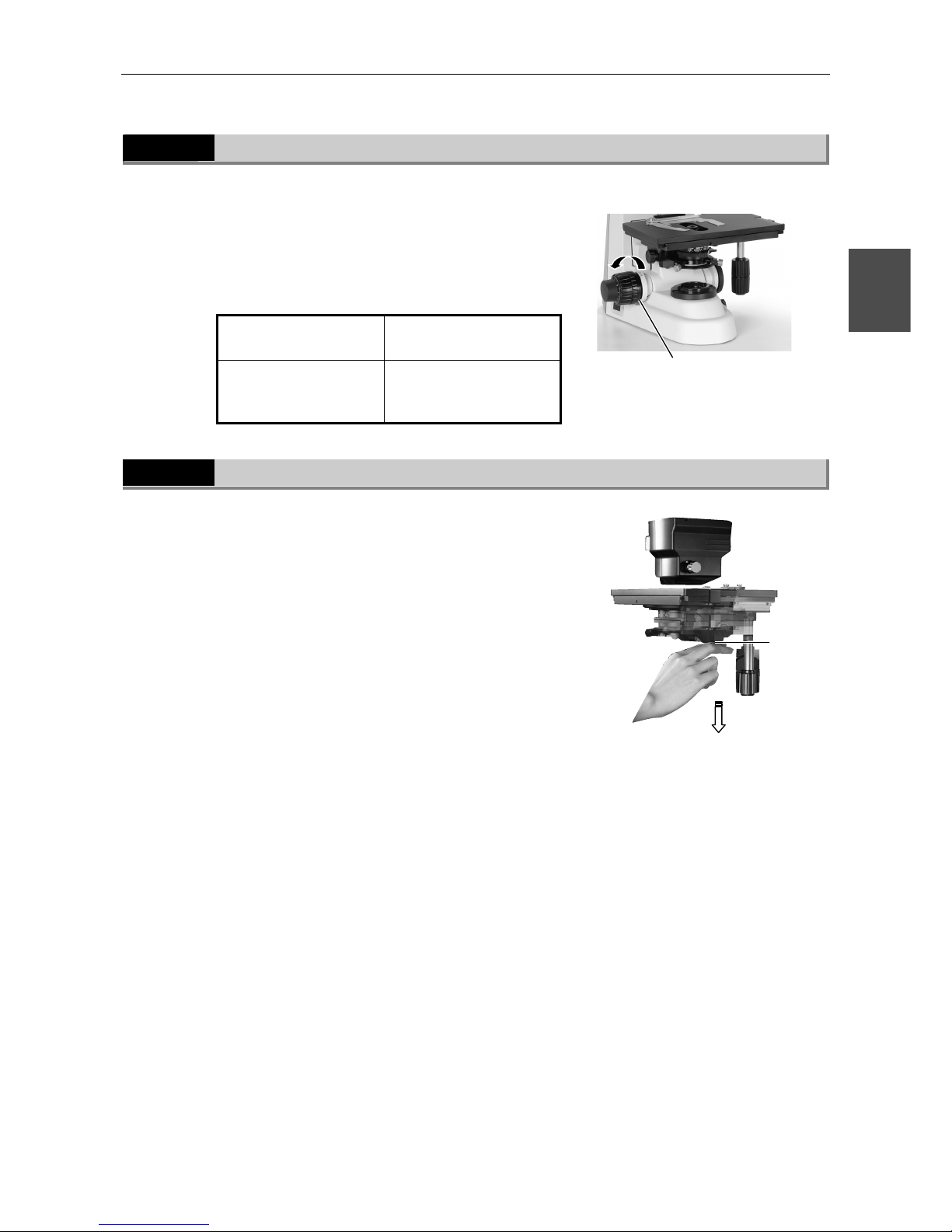

Coarse focus torque

adjustment knob

Chapter 1 Part Names

1.2 Names of Parts Used to Make Adjustments

1.2.3

Rear view (50i)

50i with lamphouse cover open

Tool

Handle

Wiring guides

Lamphouse

Halogen lamp

AC inlet

Input voltage indication

Lamphouse cover

Chapter 1 Part Names

1.2 Names of Parts Used to Make Adjustments

1.2.4

Rear view (55i)

55i with wiring cover open

55i with cables connected

Wire guides

Tool

Handle

Wire guides

Wiring cover

Connector J4

(

for cytodiagnostic

unit si

nal cable

)

Connector J2 (for cytodiagnostic unit power supply cable)

Connector J3

(

for cytodiagnostic

unit hand switch

)

Connector J1 (for AC adapter)

Battery holder

Cytodiagnostic uni

signal cable

Cable fo

rcy

todiagnostic uni

hand switch

Cytodiagnostic unit power supply cable

AC adapter cable

Chapter 1 Part Names

1.2 Names of Parts Used to Make Adjustments

1.2.5

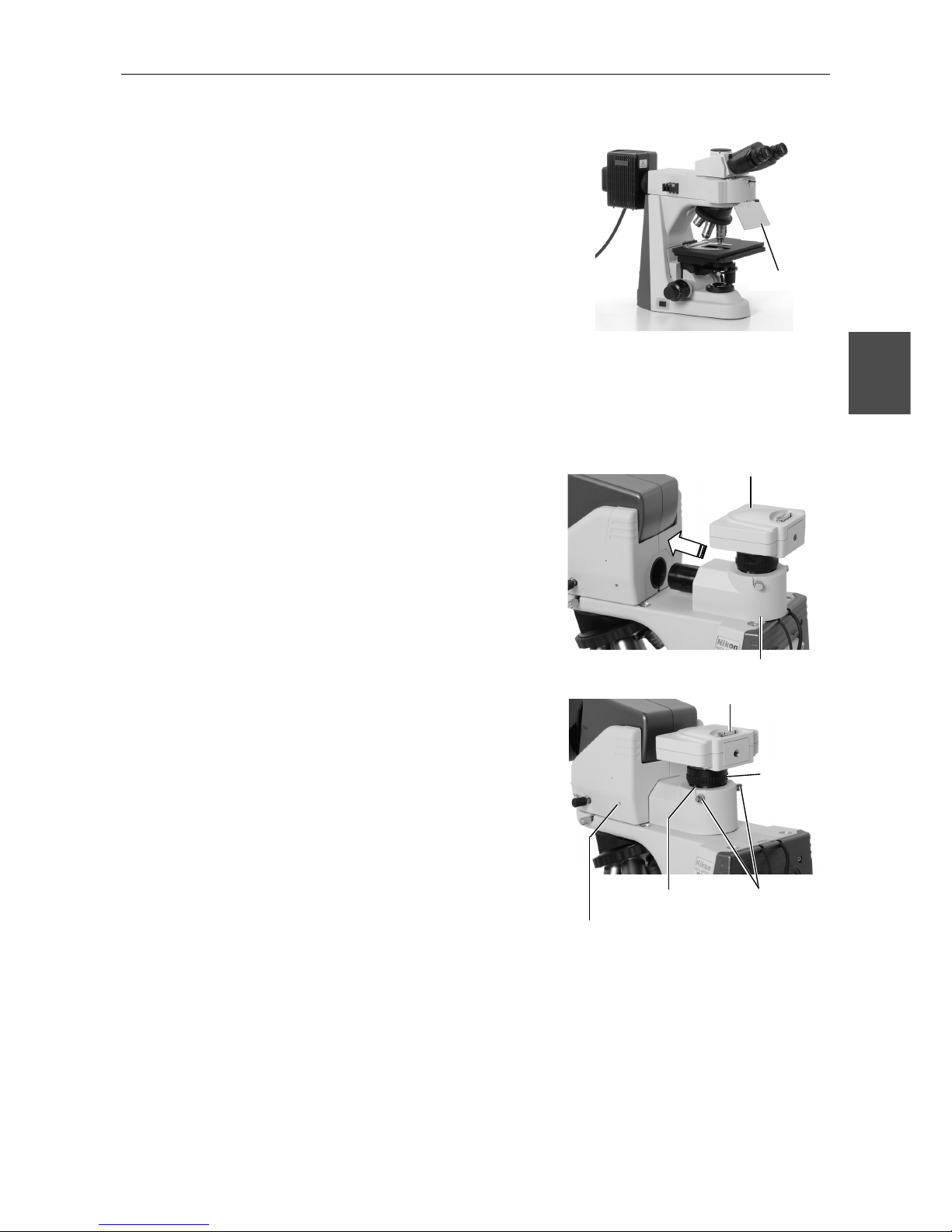

Ergonomic binocular tube with camera attached

Camera centering screws

Camera fine focus adjustment ring

C mount

Camera head

Camera cable connector

Attachment guide fixing screw

Chapter 1 Part Names

1.2 Names of Parts Used to Make Adjustments

1.2.6

With cytodiagnostic unit attached

Side and rear views of cytodiagnostic unit

Object marker knob

Magnification indicato

Hand switch

50i:

AC adapter cable (thick)

55i:

J-CY/PS Power supply cable (thick)

50i:

Hand switch cable (thin)

55i:

J-CY/SG Signal cable (thin)

Cytodiagnostic unit power switch

Ink cartridge

Chapter 1 Part Names

1.2 Names of Parts Used to Make Adjustments

1.2.7

With Epi-Fl attachment mounted

(Mercury lamp requires a separate mercury lamp power supply.)

ND filters

Filter cube replacement cover

Field diaphragm lever

Mercury lamphouse

Filter cube motion restricting lever

Shutter

Light shielding plate

Filter cube switching knob

Optical path switching lever

Microscopy

2.1

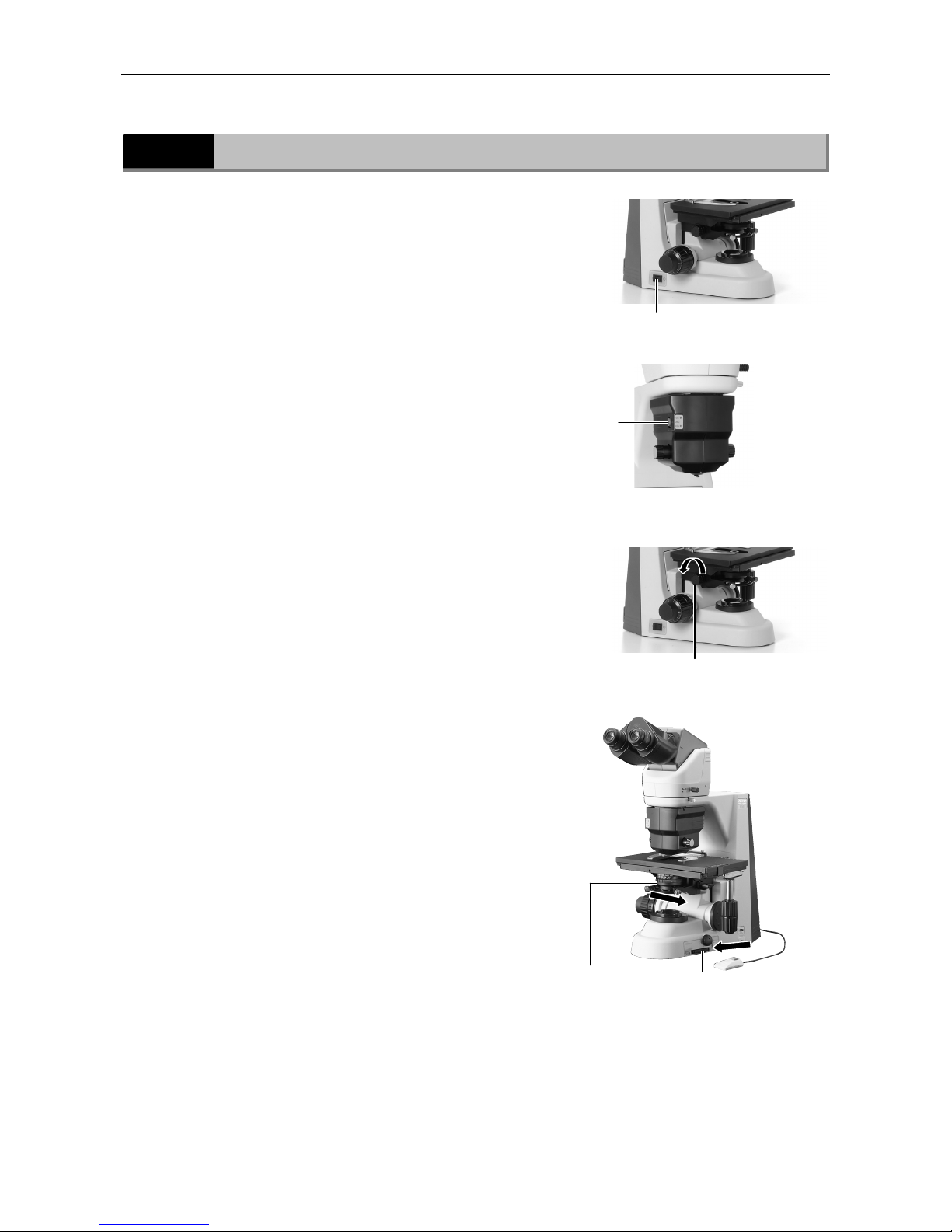

Bright-Field Microscopy

The ECLIPSE 55i with the low magnification objective may result in uneven illumination in the field of view. (If the cytodiagnostic unit is attached, refer to the directions in the following section entitled “2.2 Microscopy with Cytodiagnostic Unit Attached.”)

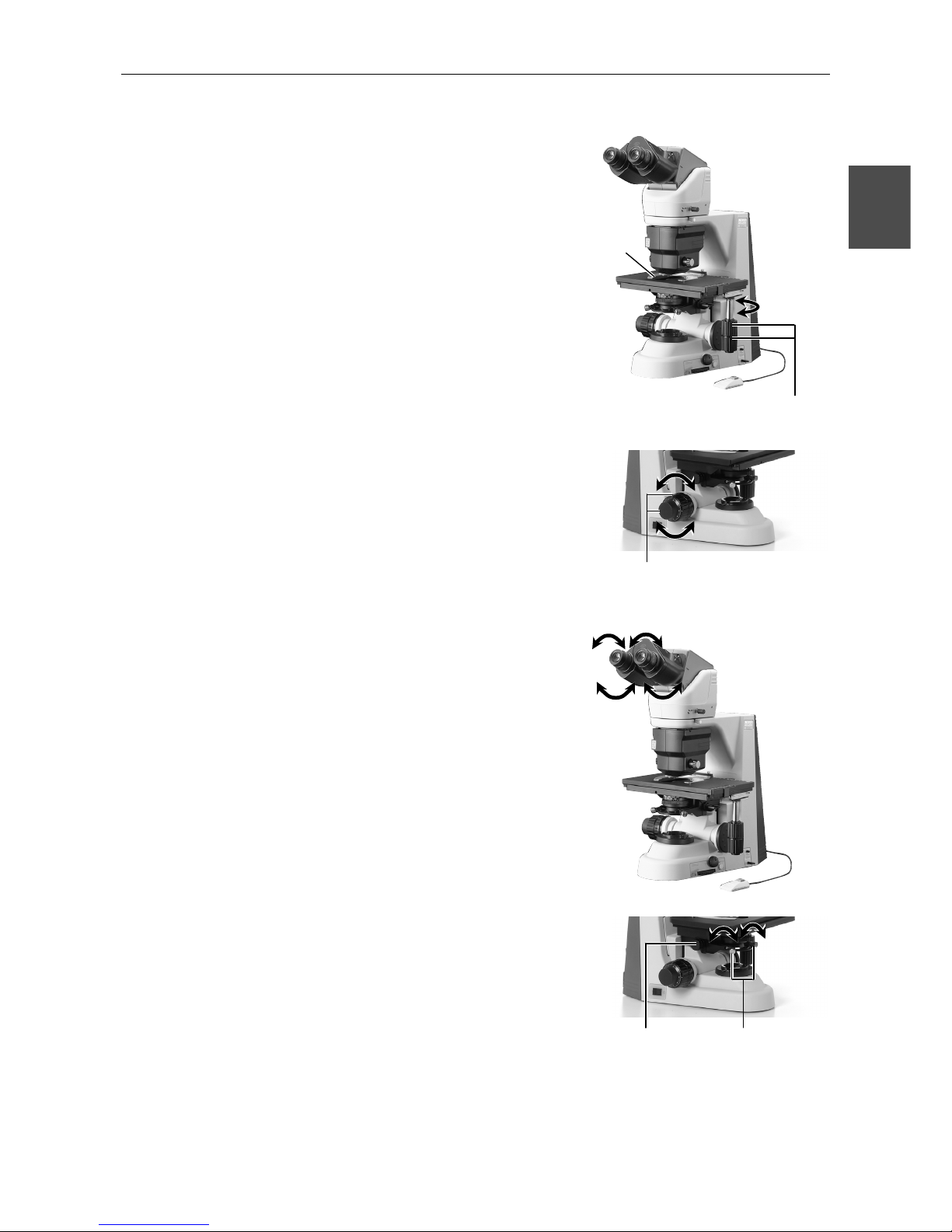

Turn on power.

⇒ P.35

Raise the condenser to the uppermost position.

Fully open the field diaphragm and aperture diaphragm.

Raise the condenser using the condenser focus knob.

Fully open the aperture diaphragm using the aperture diaphragm knob.

Fully open the field diaphragm using the field dia

hragm

knob.

Press the power switch to the “|” position.

Chapter 2 Microscopy

2.1 Bright-Field Microscopy

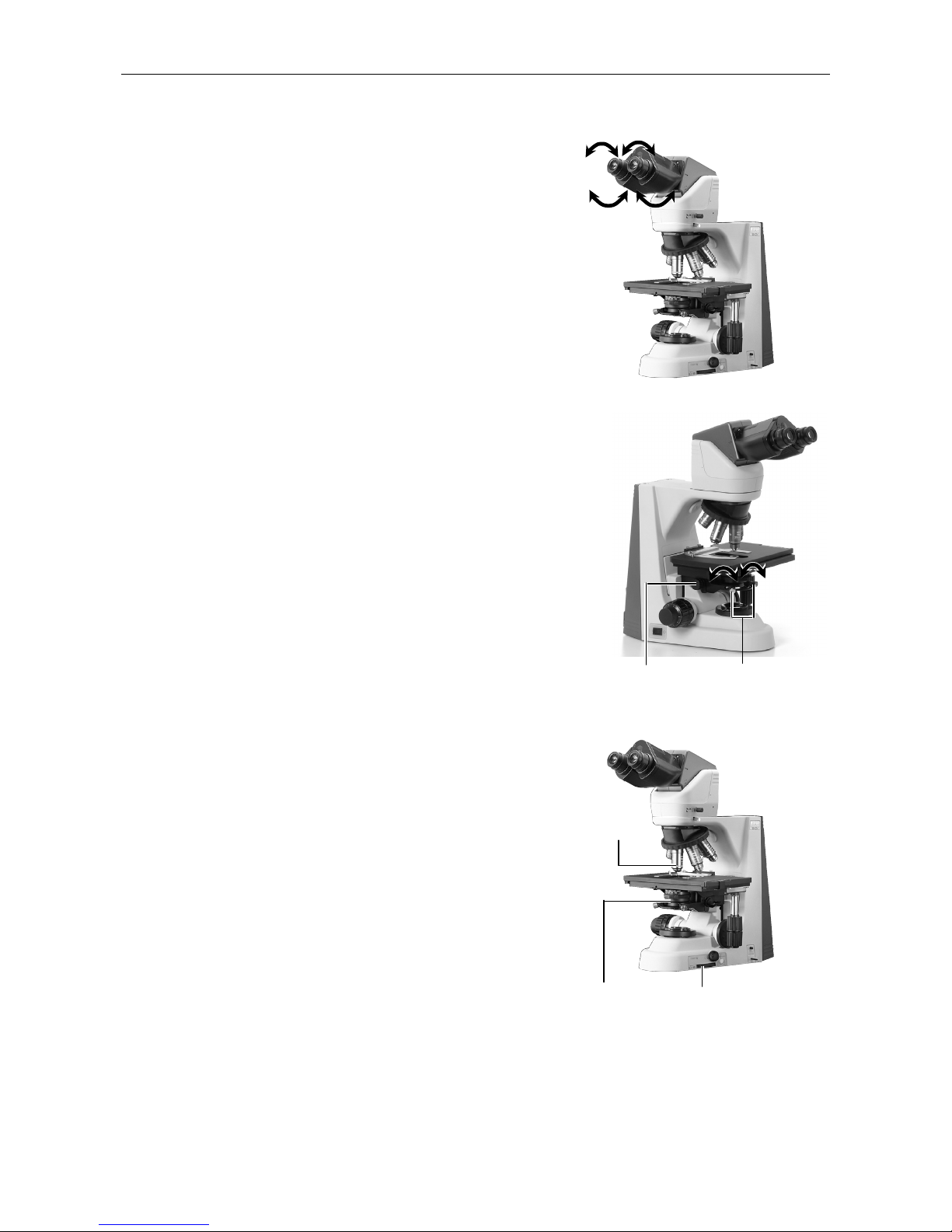

Set the 10x objective into the optical path.

Set a specimen and move the portion to be viewed into the optical path.

⇒ P.42

Focus on the specimen.

⇒ P.40

Select the 10x objective.

Set a specimen and secure in place using the specimen holder.

Move the portion to be viewed into the optical path using the XY stage knobs.

Focus on the specimen using the coarse and fine focus knobs.

+ 60 hidden pages

Nikon ECLIPSE 55i Instructions Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
