Nexo GEO M10, GEO M1025, MSub15, GEO M1012 Setup Manual

GEO M10 – MSUB15

GEO M1012 & GEO M1025 Tangent Array Modules

MSub15 Subwoofer

Setup Manual

GEO M10-MSUB15 User Manual V1.02
DP2659 2017/15/02

Page 2/79 PLEASE READ CAREFULLY BEFORE PROCEEDING

GEO Technology is radically new thinking

The GEO R&D Project has, to date, resulted in the following patent applications:

The GEO Hyperboloid Reflective Wavesource™ differs radically from the megaphone-variant type horns
you know and love (or hate). “Tried and true” methods will produce entirely unexpected results. HRW

technology produces precise and predictable results.
The Configurable Directivity Flange. A waveguide that allows the operator to alter its behaviour. An

unprecedented NEXO development that is easy to use – once you know how and when.
The Phase Directivity Device needs no operator input to function, but it is reassuring to know that the

coupling of the midrange of the system is considered as important as the high frequencies…
DSP-driven Directional Sub-bass devices are a new approach to controlling LF/VLF acoustic energy.

GEO is not hard to use when you understand how…

The technology behind GEO is revolutionary, but it is grounded in years of practical experience with the
problems of delivering high quality professional sound to large audiences at high SPL levels. The GEO
toolbox includes NS-1 - a simple yet powerful and highly predictive design tool. The array assembly
system is keyed to the design software and will easily enable you to deploy your design with great
precision. NEXO Digital TDcontroller technology provide driver protection and system optimization for the
GEO M and MSUB series.

GEO is a high precision system

The GEO HRW™ controls acoustic energy more precisely than other multiple element waveguides. It
also makes GEO less forgiving of mistakes. Whilst conventional horns never combine into a coherent
array, they may deliver acceptable results even if the design and deployment of the system is less than
optimal. This is not the case with GEO where careless installation produces catastrophic results.

A GEO Tangent Array is not a “line array”

GEO Technology is equally effective in designing and deploying tangent curved vertical arrays. For best
results in a specific application the user needs to know how multi-speaker arrays interact with audience
geometry, along with the benefits and drawbacks of curved vertical arrays and horizontal arrays.

Curved tangent arrays require different design techniques

In the past, sound reinforcement professionals have worked with horizontal arrays that use conventional
horns to deliver [more or less] ‘equal power to equal angles’. Curved vertical arrays are now designed to
deliver [more or less] equal power to equal areas’. When arrays use conventional horns, the lack of
precision, overlap and interference masks errors in array design and aiming. The highly precise GEO
wavesource responds accurately, consistently and predictably to the design and deployment of a curved
vertical tangent array. This is why the GEO rigging system is designed to control angular splay to 0.1°
precision.

GEO curved tangent arrays require different operational techniques

Over the years, system designers and operators have developed a number of signal processing

techniques to disguise and partly overcome the limitations of horn design. “Frequency shading,”
“amplitude shading,” “High Frequency compensation”, all of these are tools of the advanced sound system

operator. NONE OF THESE TECHNIQUES ARE APPLICABLE TO GEO TANGENT ARRAYS. Instead
of enhancing the array’s performance they will severely degrade it.

Take time to learn how to get great results with GEO Technology. It is an investment that will pay off in
more satisfied clients, more efficient operating procedures and more recognition for your skill as a sound
system designer and operator. A comprehensive understanding of GEO theory, tangent arrays, and
specific features of the GEO M Series will help you to operate your system at its full potential.

PLEASE READ CAREFULLY BEFORE PROCEEDING Page 3/79

PLEASE READ CAREFULLY BEFORE PROCEEDING

BASIC PRECAUTIONS

Do not open the speaker system or attempt to disassemble the internal parts or modify them in any way.

The speaker system contains no user-serviceable parts. If it should appear to be malfunctioning or
damaged, discontinue use immediately and have it inspected by qualified NEXO service personnel.

Water exposure: Do not expose the speaker system to direct rain, do not use it near water or in wet
conditions. Do not place containers with liquid on speaker system as they might spill into openings. If any
liquid such as water seeps into the speaker system, have it inspected by qualified NEXO personnel.

Sun exposure: Do not expose the speaker system to direct sun.
Operating temperature with temperate climate: 0°C to +40°C (-20°C to +60°C for storage).

SYSTEM DEPLOYMENT SAFETY RULES

Read User Manual before deployment. Before use of enclosed speaker system, please

ensure that anyone involved in system deployment understands the rigging – stacking –
pole mounting safety rules as described in the speaker system User Manual. Failure to

do this exposes people to potential injury or death.
Please check the web site nexo-sa.com for the latest update.
Always consult qualified NEXO personnel if the device installation requires construction work and make

sure to observe the following precautions:

Mounting precautions

- choose mounting hardware and an installation location that can support 4 times the weight of the

speaker system;

- do not use speaker system handles for suspended installation;

- do not expose speaker system to excessive dust or vibration, or extreme cold or heat to prevent

possibility of component damage;

- do not place the speaker system in an unstable position from which it might fall accidentally;

- if speaker systems use a stand, ensure that stand specifications are adapted, and that stand height

does not exceed 1.40m/55”; never move the stand while the speaker is in position.

- in case of wind greater than 8 on Beaufort scale (72km/h – 45mph), a touring system has to be landed

or an additional securing has to be implemented.

- for fixed installations, wind loading has to be taken into account in accordance to the national

standards.

Connection and powering precautions

- remove all connected cables before moving the speaker system;

- turn off AC power of all power amplifier units before connecting the speaker system;

- when turning on the AC power to the audio system, always turn on the power amplifier last; when

turning the AC power off, always turn off the power amplifier first;

- when used in cold conditions, a gradual power ramp up should applied to the system on an 5 mn

period to allow the loudspeaker components to stabilize during the very first minutes of usage.

Inspect the speaker system periodically.

Page 4/79 PLEASE READ CAREFULLY BEFORE PROCEEDING

HIGH SOUND PRESSURE LEVELS

Exposure to extremely high noise levels may cause permanent hearing loss.

Individuals vary considerably in susceptibility to noise-induced hearing loss but nearly
everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient
period of time. The U.S. Government’s Occupational and Health Administration (OSHA)
has specified the following permissible noise level exposures: Sound Duration Per

Day In Hours

Sound Level dBA, Slow Response

8

90

6

92 4 95 3 97

2

100

1 ½

102

1

105 ½ 110

¼ or less

115

According to OSHA, any exposure in excess of the above permissible limits could result in some hearing
loss. Ear plugs or protectors to the ear canals or over the ears must be worn when operating this
amplification system in order to prevent permanent hearing loss, if exposure is in excess of the limits as
set forth above. To ensure against potentially dangerous exposure to high sound pressure levels, it is
recommended that all persons exposed to equipment capable of producing high sound pressure levels
such as this amplification system be protected by hearing protectors while this unit is in operation.

DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT

This symbol on the product or on its packaging indicates that it shall not be treated as
household waste. Instead it shall be handed over to the applicable collection point for
the recycling of electrical and electronic equipment. By ensuring this product is
disposed of correctly, you will help prevent potential negative consequence for the
environment and human health, which could otherwise be caused by inappropriate
waste handling of this product. The recycling of materials will help to conserve natural
resources. For more detailed information about recycling of this product, please
contact your local city office, your household waste disposal service or the shop where
you purchased the product.

CONTENTS Page 5/79

CONTENTS

PLEASE READ CAREFULLY BEFORE PROCEEDING ................................................................................................ 3

CONTENTS ........................................................................................................................................................................... 5

1 INTRODUCTION ....................................................................................................................................................... 7

2 GEO M10 GENERAL SET-UP INSTRUCTIONS .................................................................................................. 8

2.1 SPEAKER CONNECTION........................................................................................................................................................ 8

2.1.1 GEO M10 connectors ...........................................................................................................................................................8

2.1.2 MSUB15 connectors ............................................................................................................................................................8

2.2 CABLING ................................................................................................................................................................................ 9

2.3 GEO M10 & MSUB15 RECOMMENDED AMPLIFICATION ............................................................................................ 9

2.4 GEO M10 & MSUB15 SETUPS ON NEXO TD CONTROLLERS ................................................................................... 9

3 CONNECTION DIAGRAMS ................................................................................................................................... 10

3.1 MSUB15 & GEO M10 / DTDCONTROLLER & DTDAMP1.3 ................................................................................. 10

3.2 GEO M10 / NXAMP4X1 (4 CHANNELS) .................................................................................................................... 10

3.3 GEO M10 / NXAMP4X1 (BRIDGE STEREO) ............................................................................................................. 11

3.4 MSUB15 / NXAMP4X1 (BRIDGE STEREO) ............................................................................................................... 11

3.5 MSUB15 & GEO M10 / NXAMP4X1 (BRIDGE STEREO) ....................................................................................... 12

3.6 GEO M10 / NXAMP4X4 (4 CHANNELS) ................................................................................................................... 13

3.7 MSUB15 OMNI MODE / NXAMP4X4 (4 CHANNELS) .............................................................................................. 14

3.8 MSUB15 CARDIO MODE / NXAMP4X4 (4 CHANNELS) .......................................................................................... 15

3.9 MSUB15 & GEO M10 NXAMP4X4 (4 CHANNELS) ................................................................................................ 16

4 NS-1 SIMULATION SOFTWARE ........................................................................................................................ 17

5 CONFIGURABLE DIRECTIVITY DEVICE ......................................................................................................... 18

5.1 INSTALLING & REMOVING GEO’S CONFIGURABLE DIRECTIVITY DEVICES ............................................................. 18

5.2 WHEN & WHERE TO USE CONFIGURABLE DIRECTIVITY FLANGES ............................................................................ 19

6 GEO M10 HARDWARE SETUP PROCEDURE ................................................................................................. 20

6.1 SAFETY FIRST ................................................................................................................................................................ 20

6.1.1 Flown Systems Safety ...................................................................................................................................................... 20

6.1.2 Ground Stacking Safety .................................................................................................................................................. 21

6.1.3 Contacts ................................................................................................................................................................................. 22

6.2 GENERAL DESCRIPTION ................................................................................................................................................... 23

6.2.1 GEO M1012 and GEO M1025 ....................................................................................................................................... 23

6.2.2 GEO M10 rigging system ................................................................................................................................................ 23

6.2.3 GEO M10 “Left” and “Right” configuration ........................................................................................................... 24

6.2.4 MSUB15 rigging system ................................................................................................................................................. 24

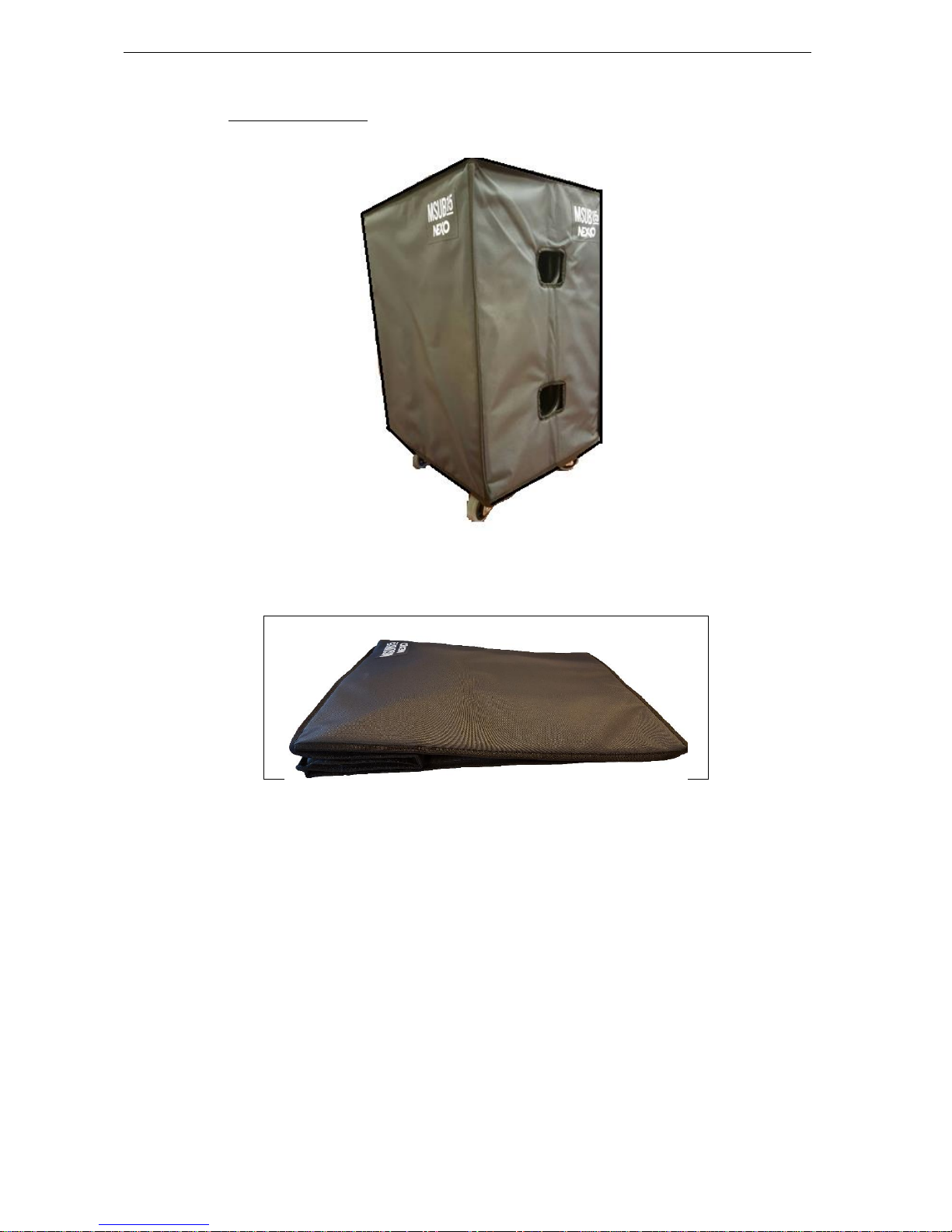

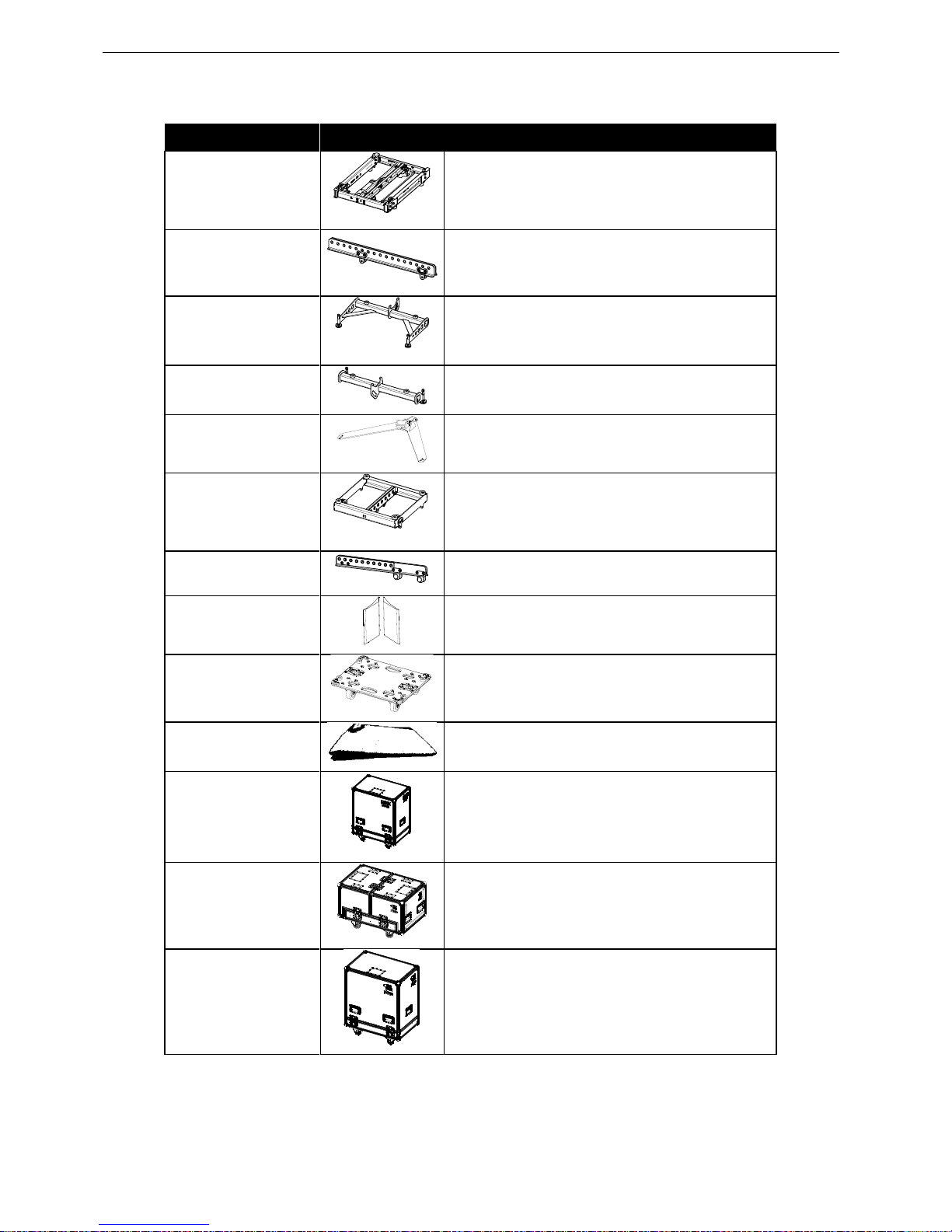

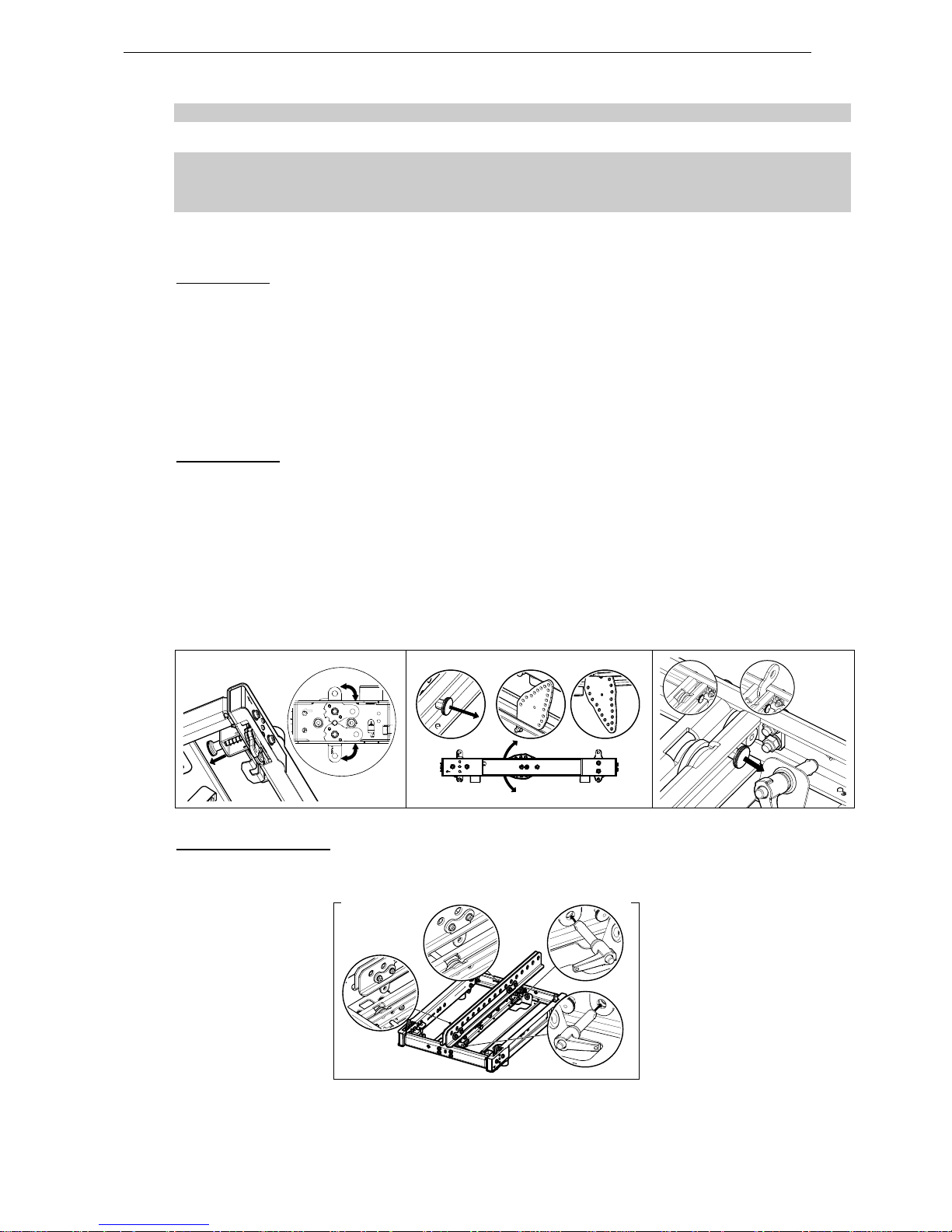

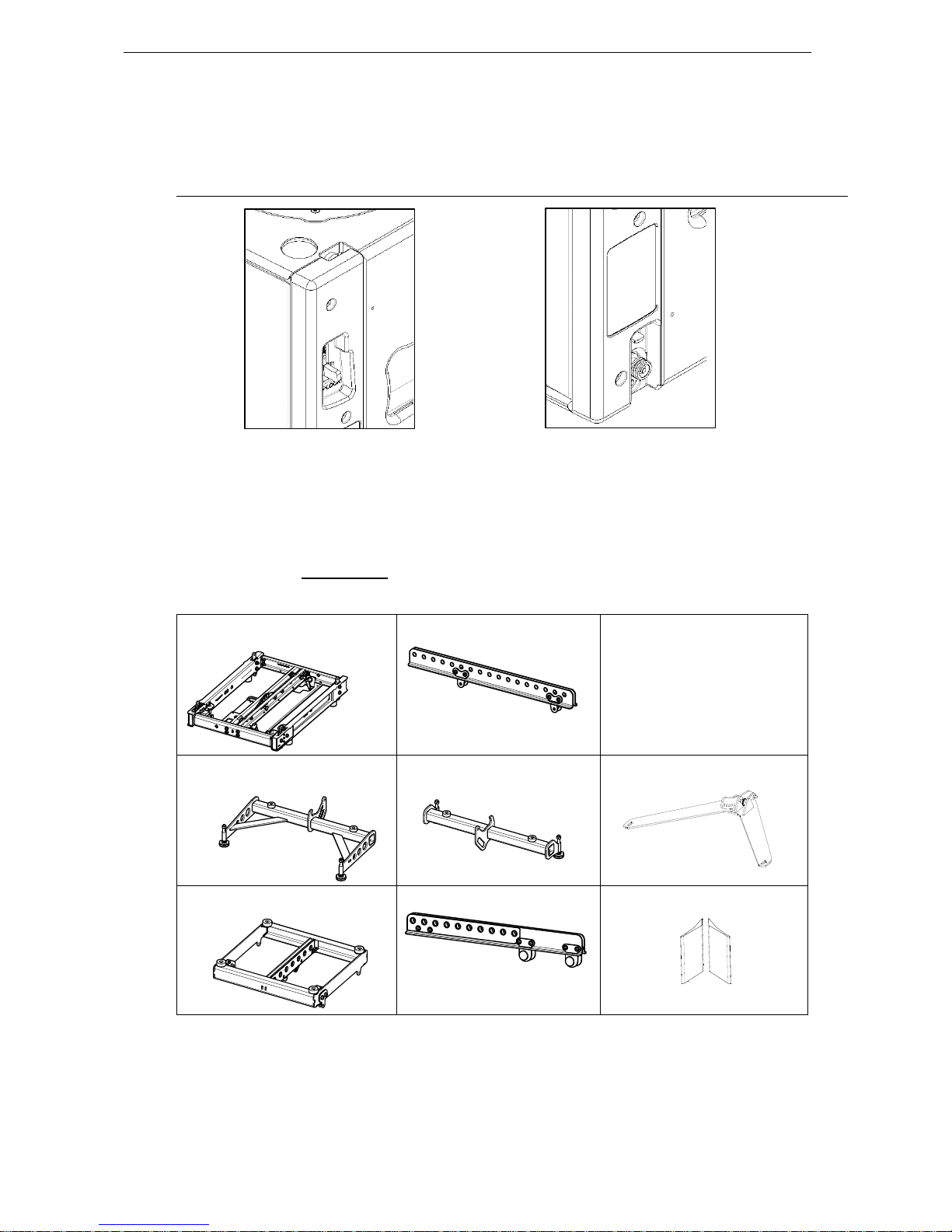

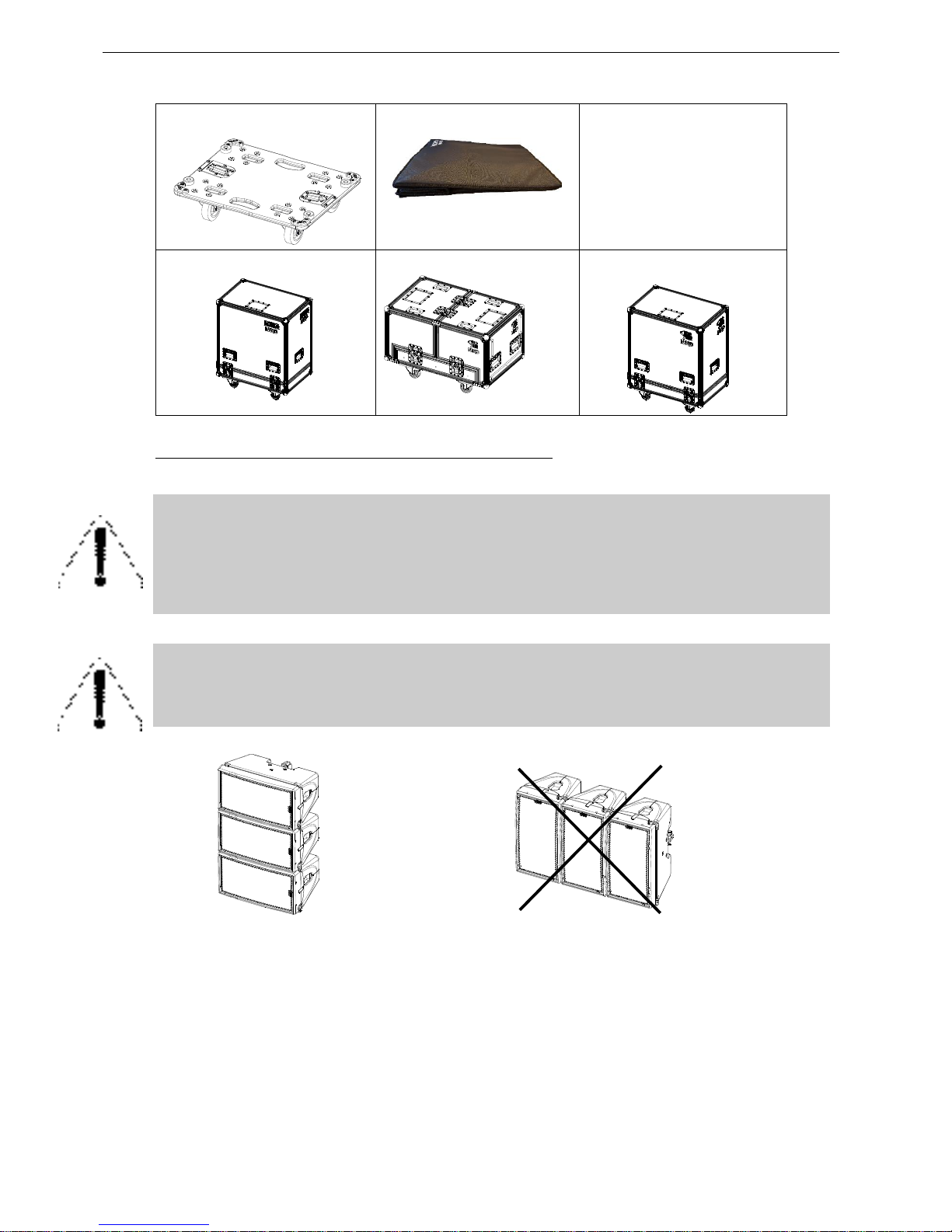

6.2.5 Accessories ........................................................................................................................................................................... 25

6.2.1 WARNINGS ON GEO M10 & MSUB15 ACCESSORIES ........................................................................................ 26

6.3 GROUND STACK SETUPS ................................................................................................................................................... 27

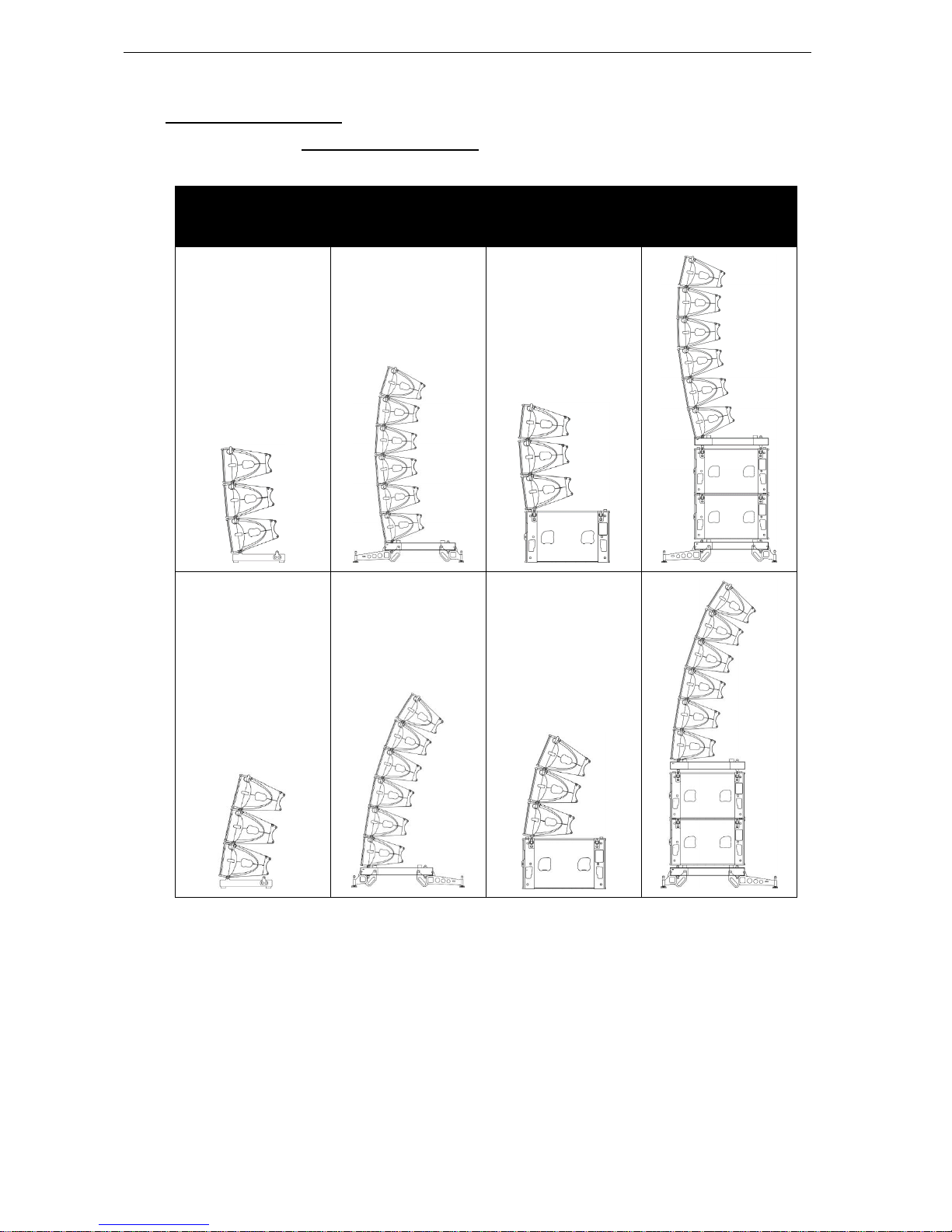

6.3.1 Described configurations............................................................................................................................................... 27

6.3.2 GEO M10 only on Lightweight Bumper .................................................................................................................. 28

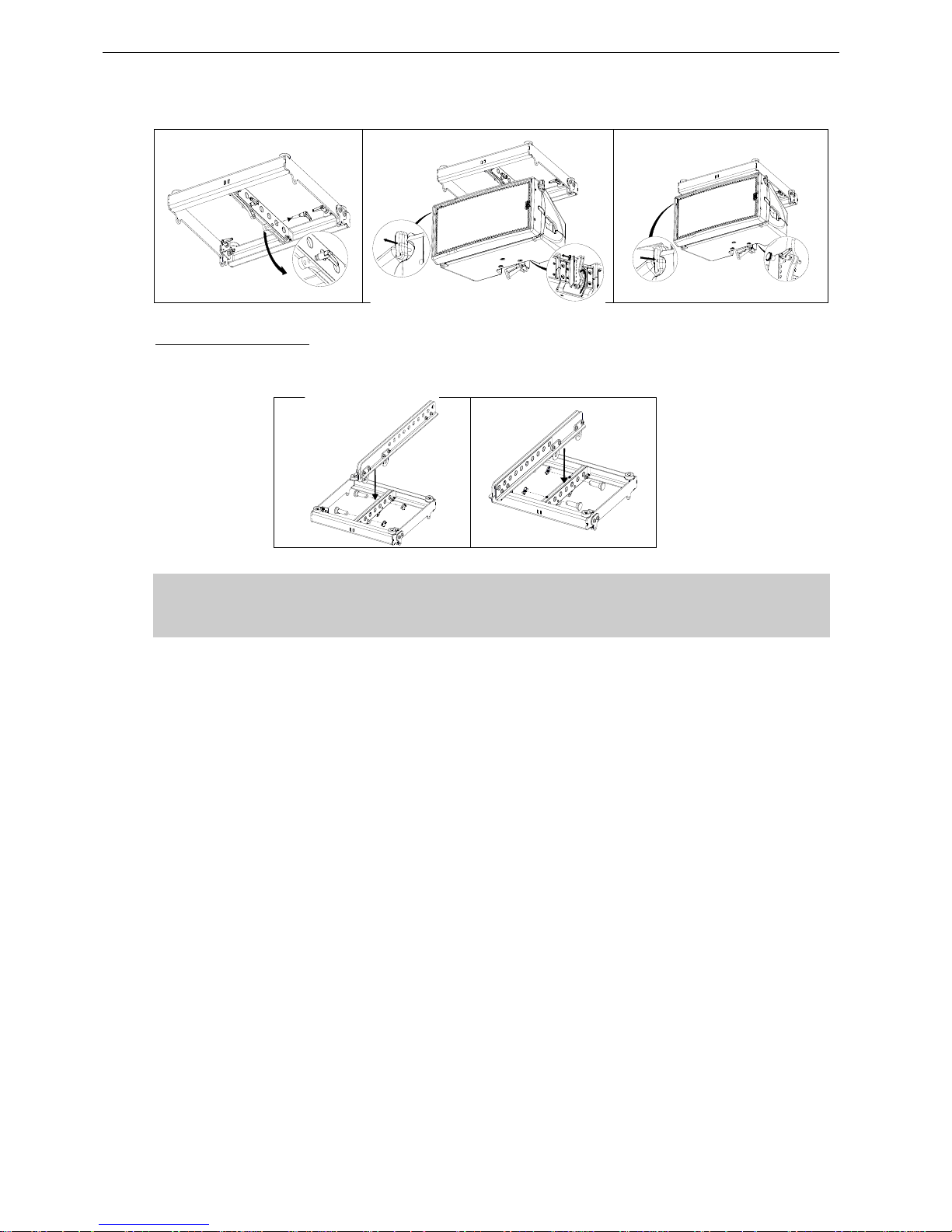

6.3.3 GEO M10 only on Touring Bumper with stacking extensions ...................................................................... 31

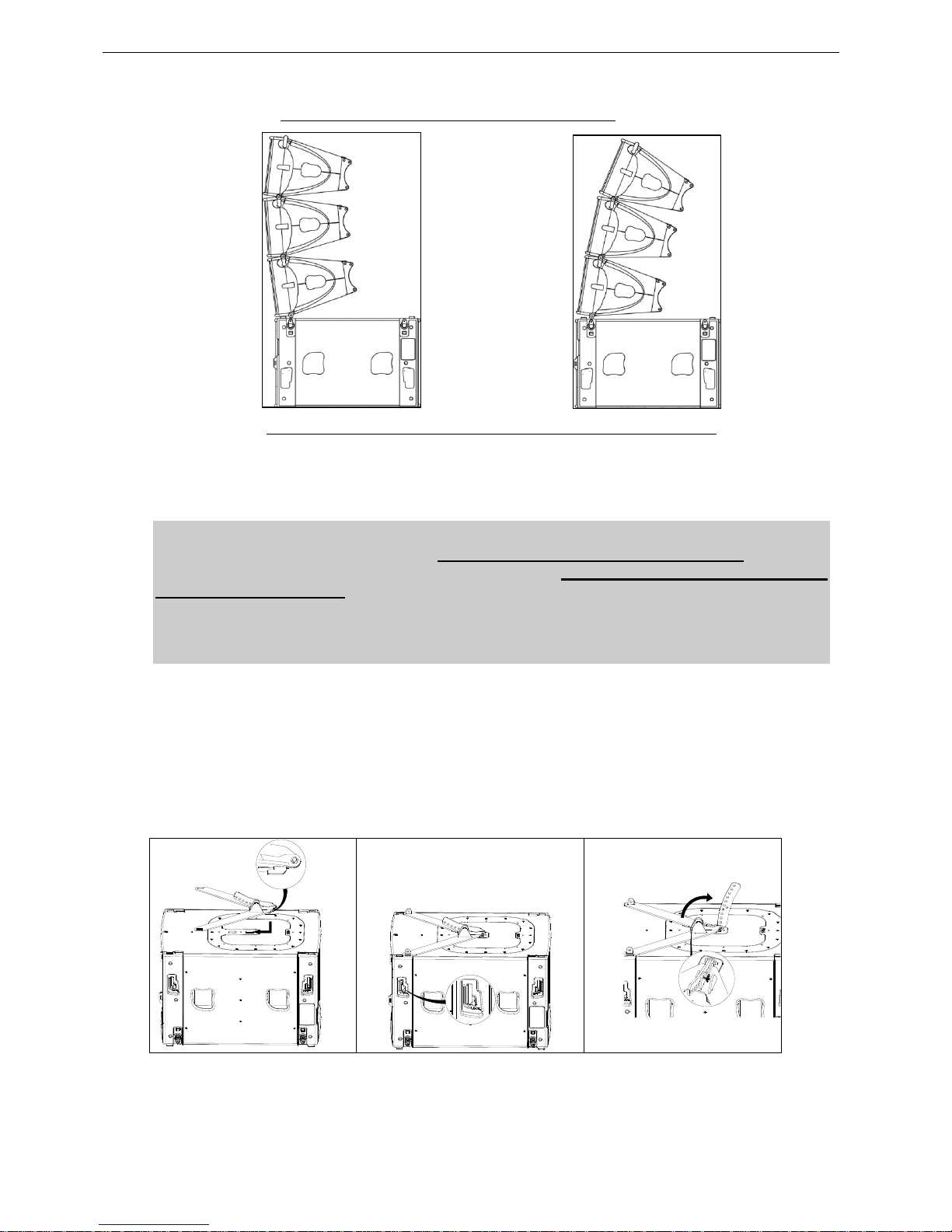

6.3.4 MSUB15 and GEO M10 with Ministack adaptor ................................................................................................. 34

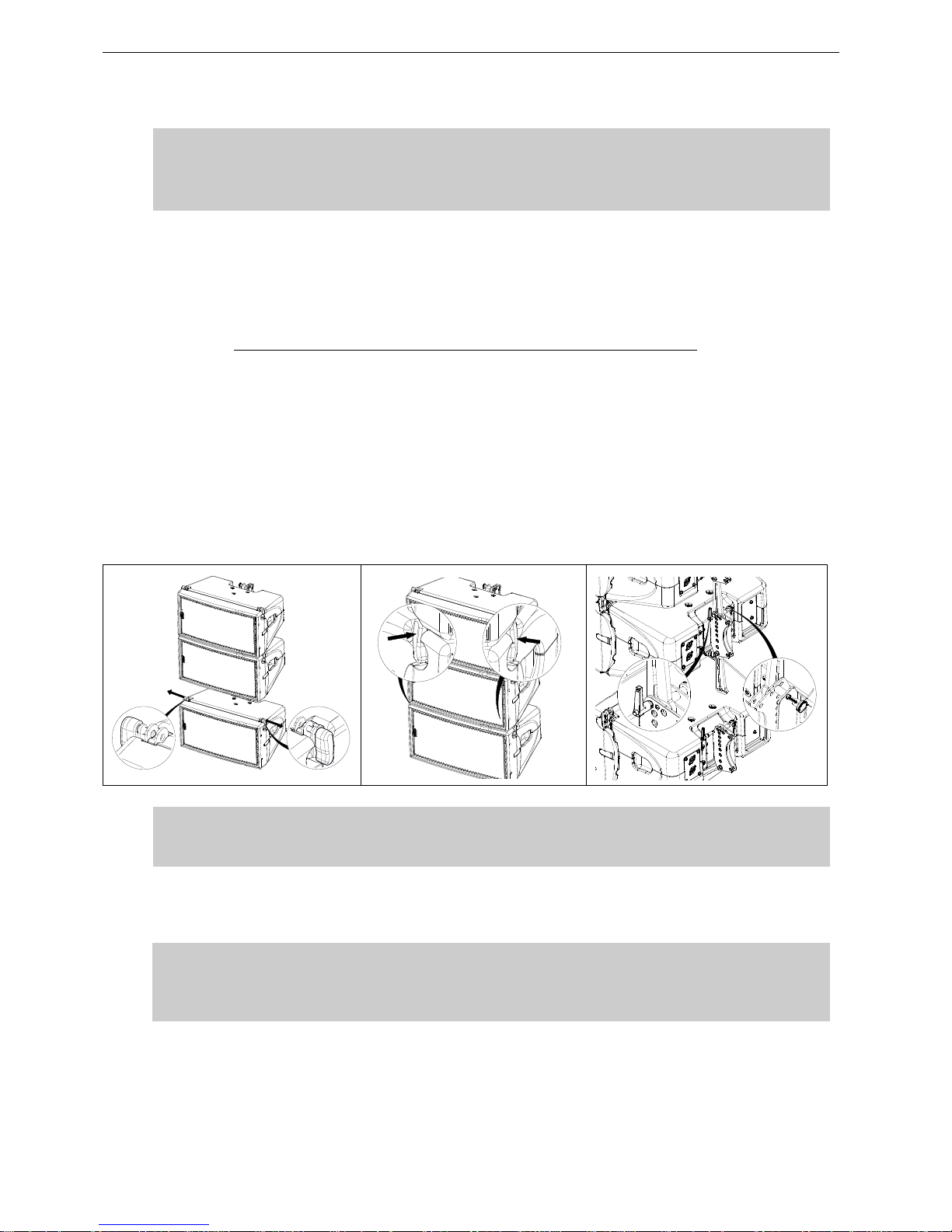

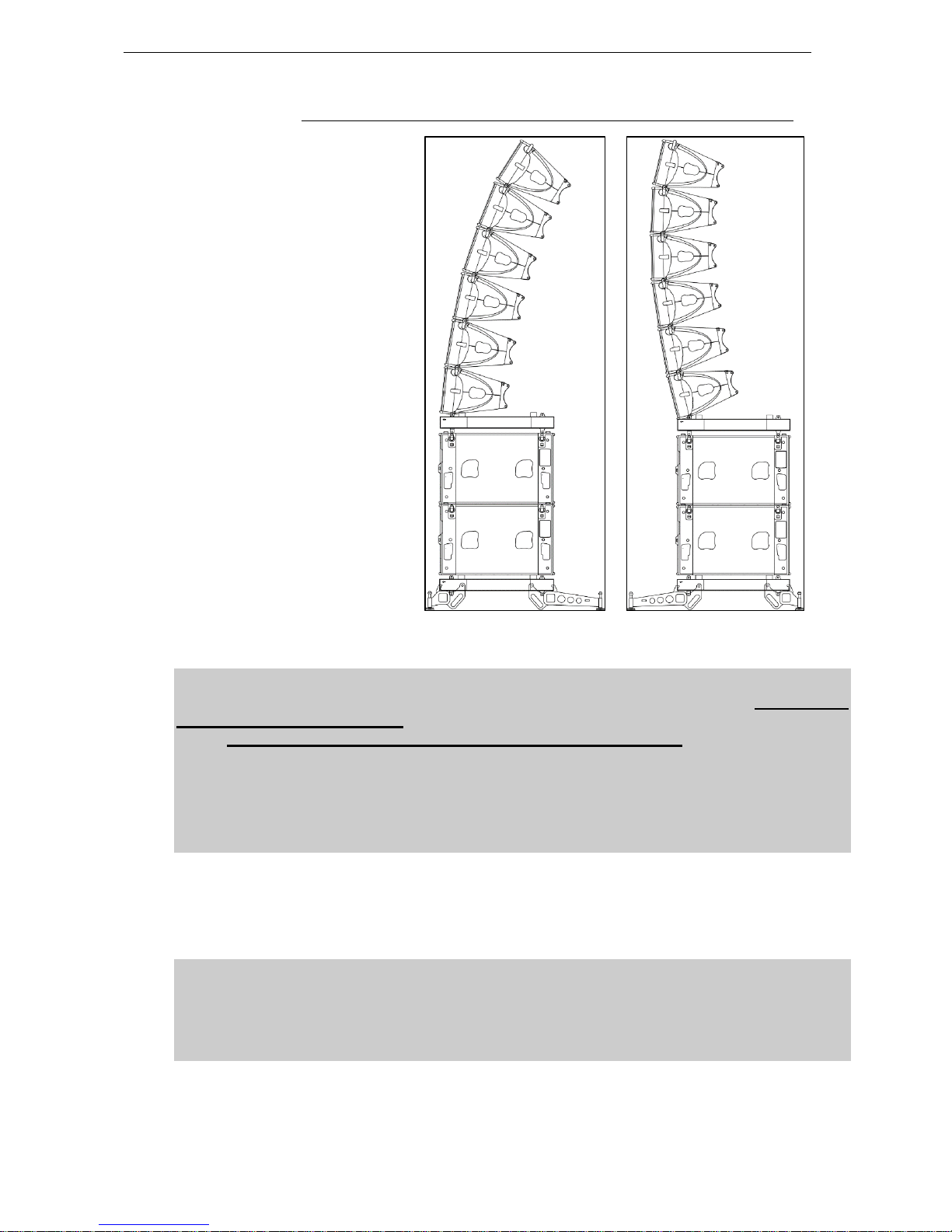

6.3.5 MSUB15 and GEO M10 on Touring Bumper with stacking extensions .................................................... 37

Page 6/79 CONTENTS

6.4 FLOWN CLUSTERS SETUPS ............................................................................................................................................... 41

6.4.1 Described configurations .............................................................................................................................................. 41

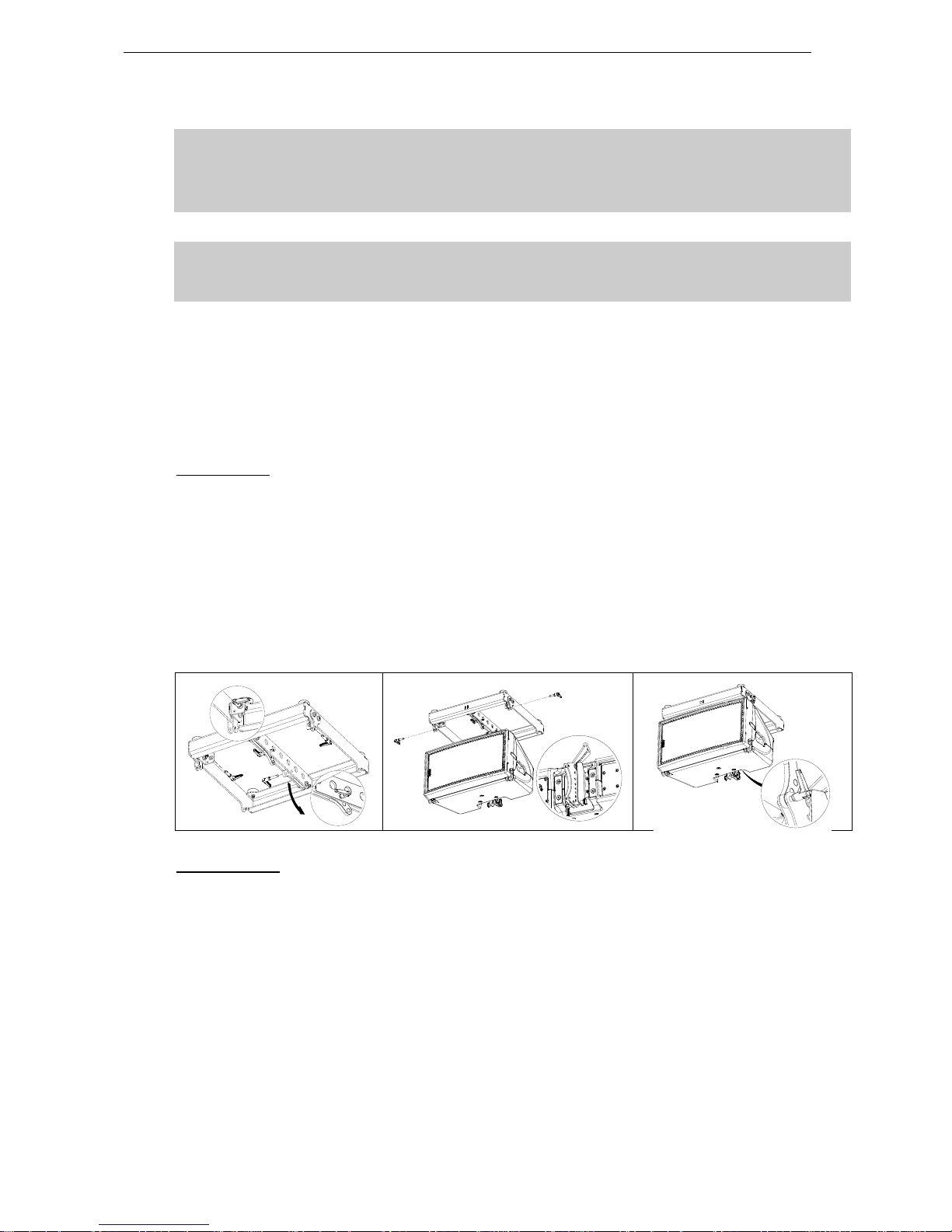

6.4.2 GEO M10 only flown with Lightweight Bumper ................................................................................................. 42

6.4.3 GEO M10 flown with Touring Bumper .................................................................................................................... 46

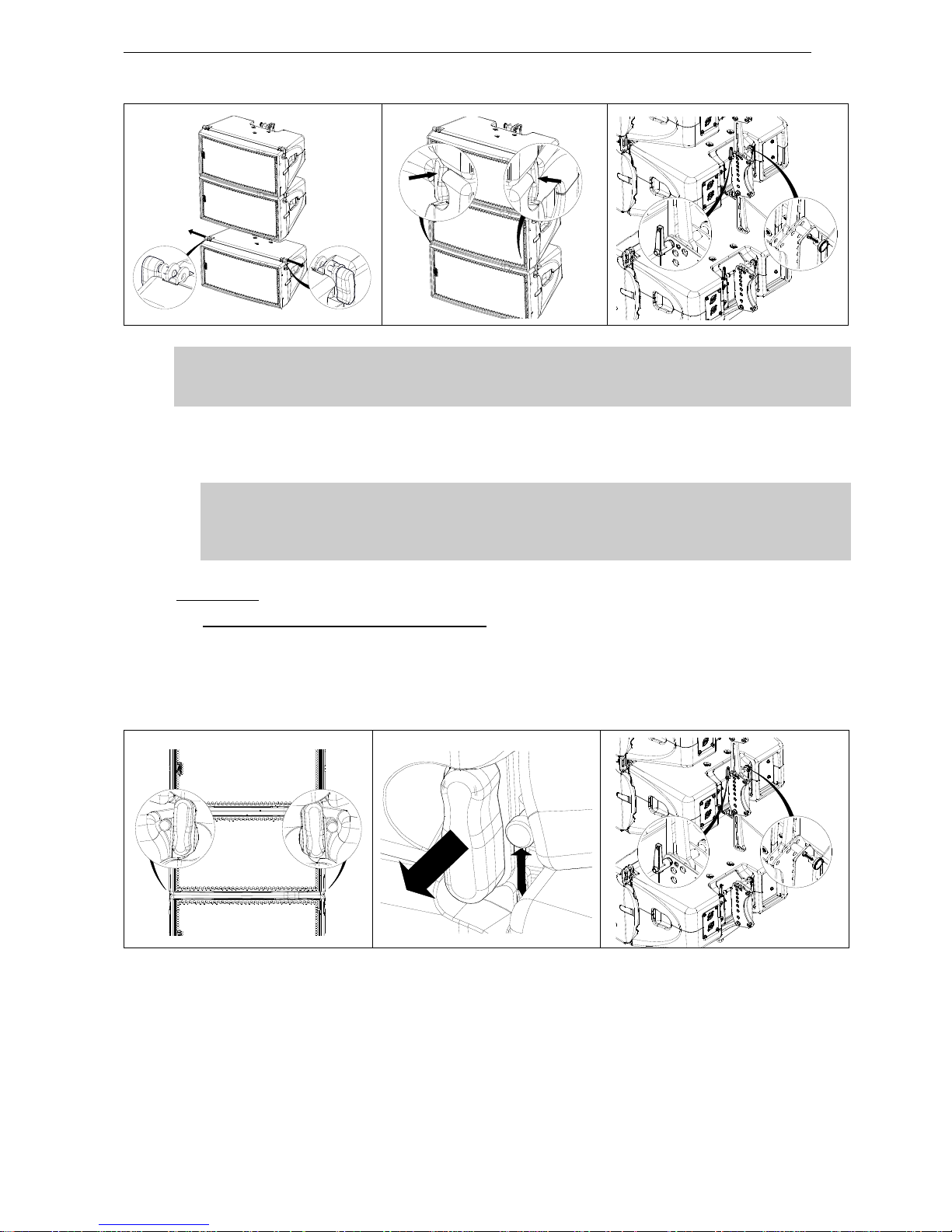

6.4.4 MSUB15 flown with Touring Bumper ..................................................................................................................... 50

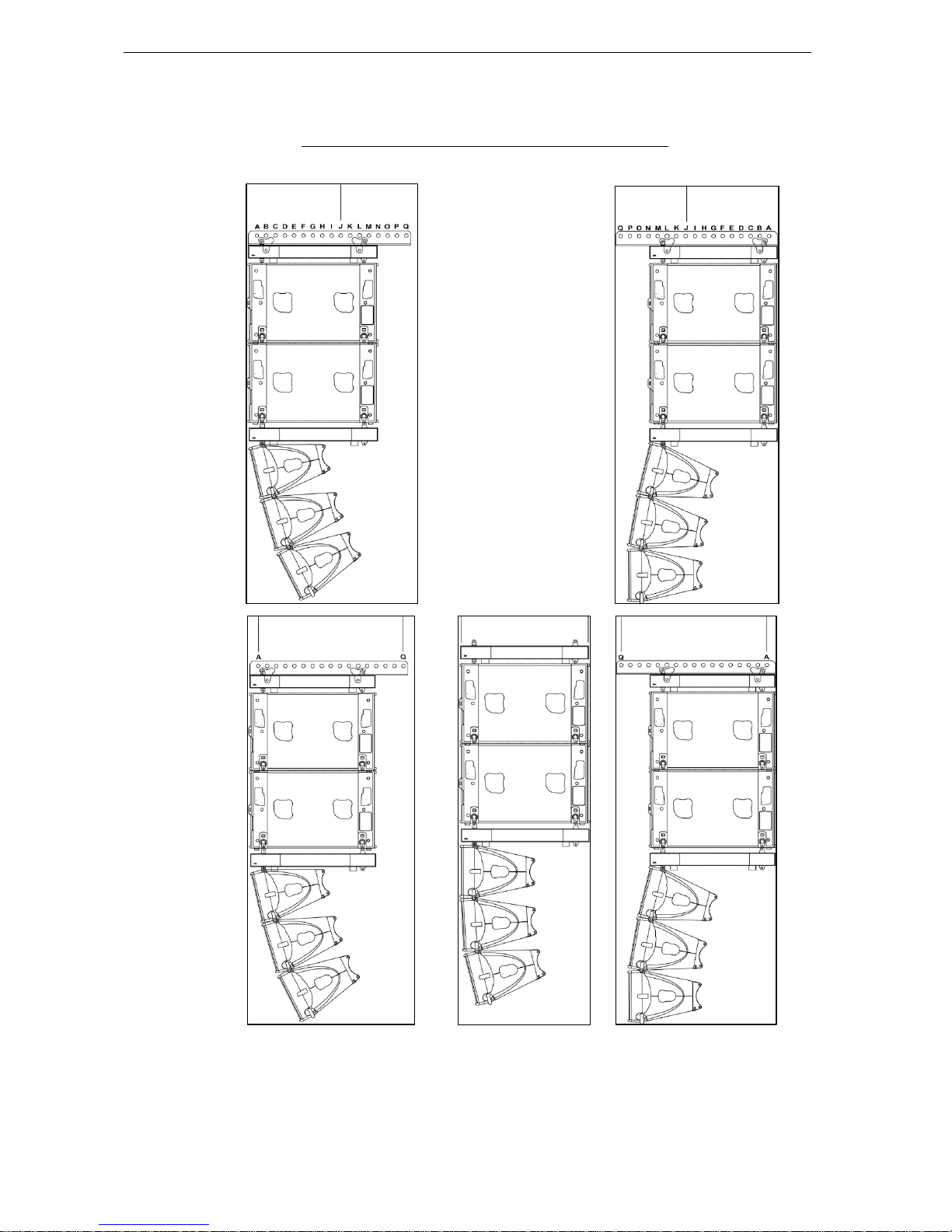

6.4.5 MSUB15 and GEO M10 flown with Touring Bumper ....................................................................................... 53

6.5 TESTING AND MAINTENANCE OF THE SYSTEM ............................................................................................................. 58

7 SYSTEM CHECK ALIGNMENT GUIDELINES ................................................................................................... 59

7.1 GEO M10 VERTICAL CLUSTER DESIGN......................................................................................................................... 59

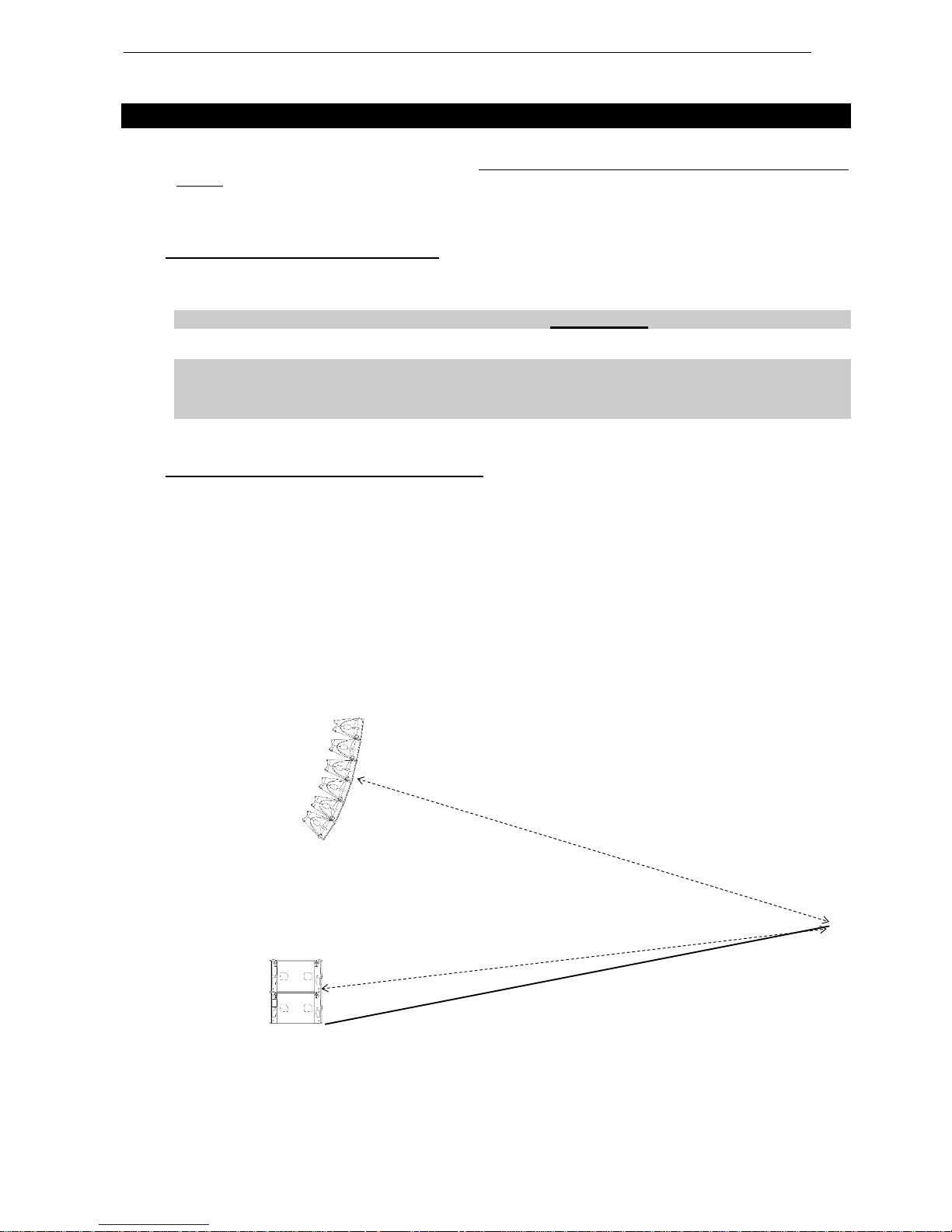

7.2 STACKED MSUB15 AND FLOWN GEO M10 ............................................................................................................... 59

7.3 DRIVING THE MSUB15S FROM THE AUX SEND .......................................................................................................... 60

7.4 RECOMMENDED INSTALLATION TOOLS AND EQUIPMENT .......................................................................................... 60

7.5 GEO M10 – MSUB15 SYSTEM CHECK LIST ............................................................................................................... 61

8 TECHNICAL SPECIFICATIONS ............................................................................................................................ 62

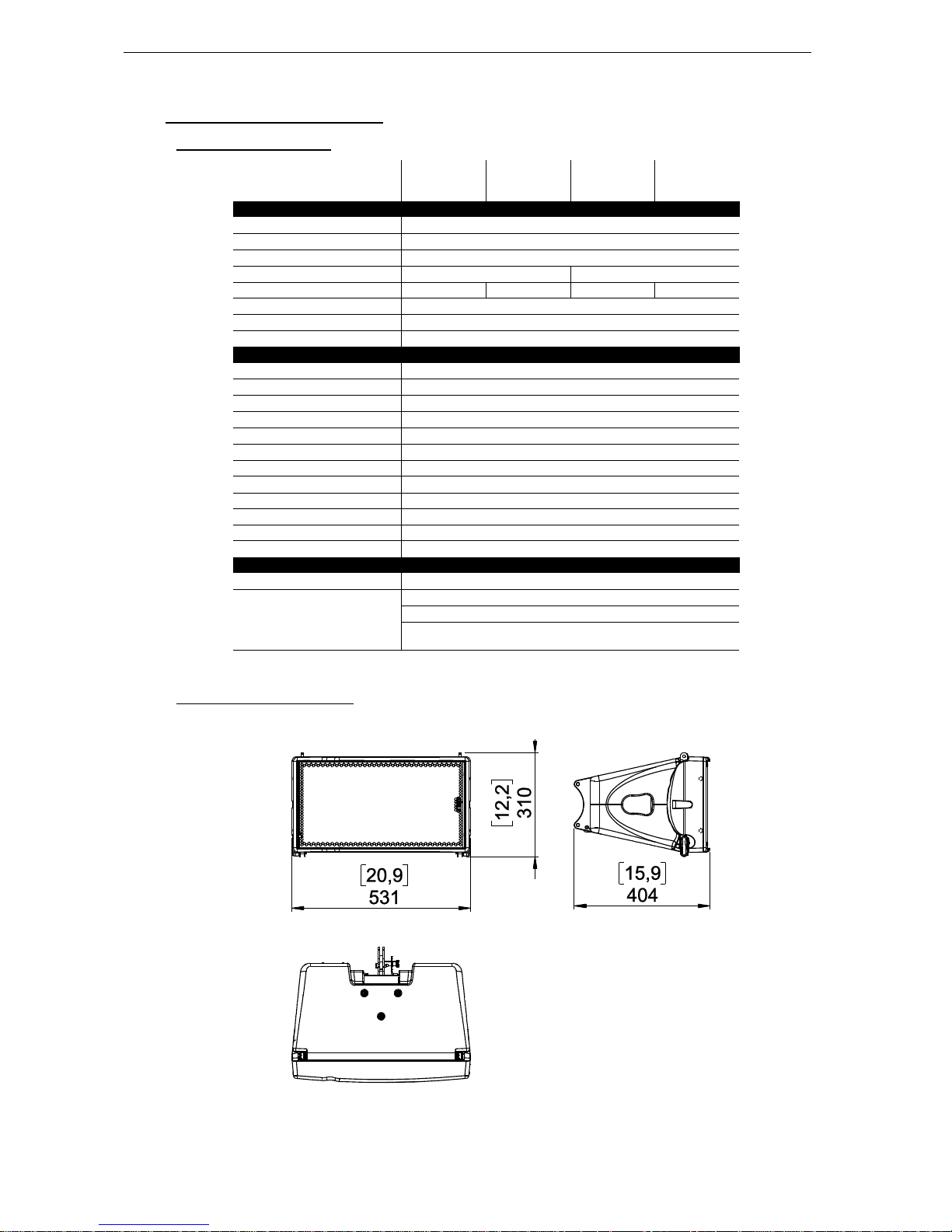

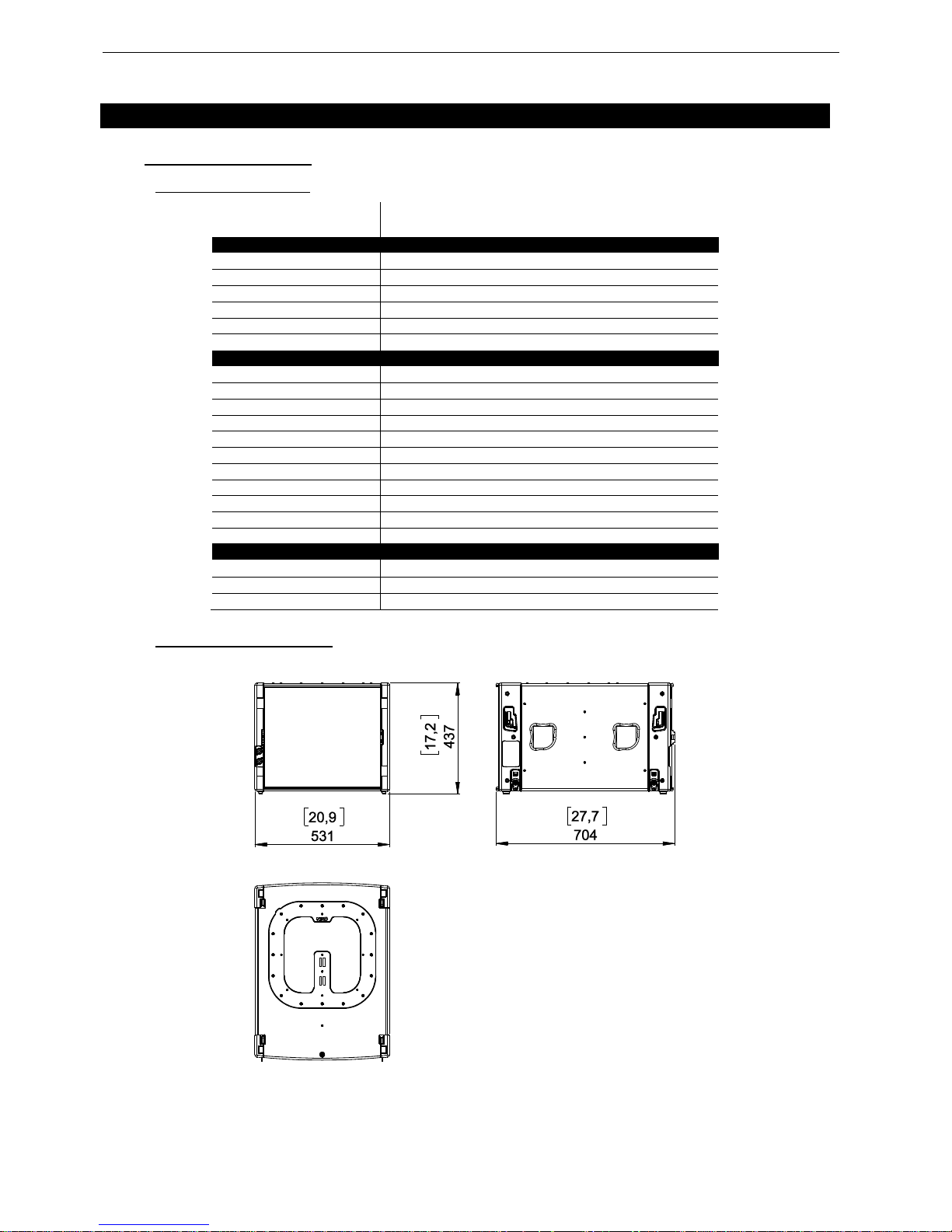

8.1 MSUB15 SUBWOOFER .................................................................................................................................................... 62

8.1.1 System specifications ...................................................................................................................................................... 62

8.1.2 Dimensions (mm/inches) .............................................................................................................................................. 62

8.2 GEO M1012 & GEO M1025 ........................................................................................................................................ 63

8.2.1 System specifications ...................................................................................................................................................... 63

8.2.2 Dimensions (mm/inches) .............................................................................................................................................. 63

8.3 GEO M10 ACCESSORIES .................................................................................................................................................. 64

8.3.1 VNT-BUMPM10 .................................................................................................................................................................. 64

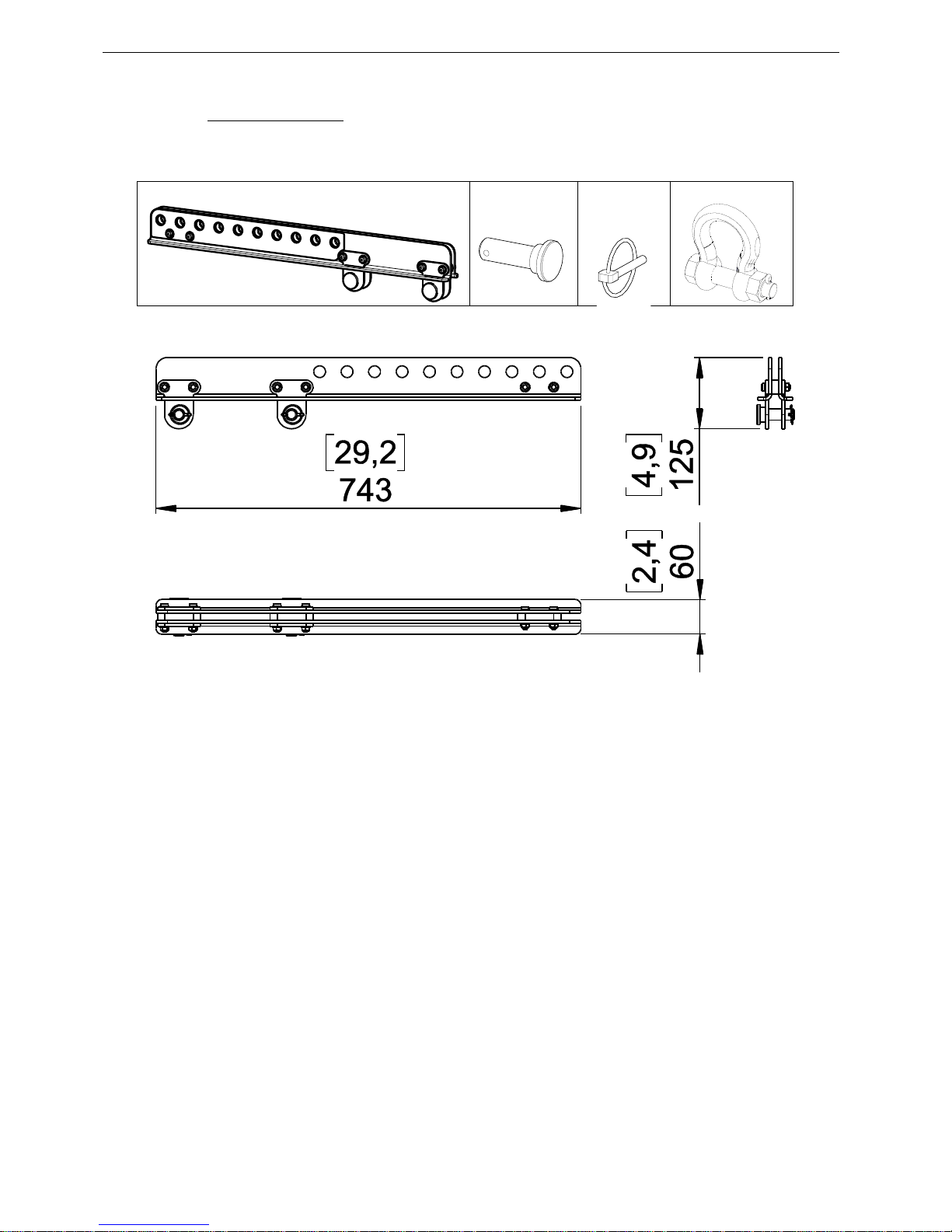

8.3.2 VNT-EXBARM10 ................................................................................................................................................................ 65

8.3.3 VNT-GSTKM10L ................................................................................................................................................................. 66

8.3.4 VNT-GSTKM10S ................................................................................................................................................................. 67

8.3.5 VNT-MNSTKM10 ............................................................................................................................................................... 68

8.3.6 GMT-LBUMPM10 .............................................................................................................................................................. 69

8.3.7 GMT-EXBARM10L ............................................................................................................................................................. 70

8.3.8 GMT-FLGM10 ...................................................................................................................................................................... 71

8.3.9 MST-WBMSUB15 .............................................................................................................................................................. 72

8.3.10 MST-COVMSUB15........................................................................................................................................................ 73

8.3.11 MST-2CASEMSUB15 ................................................................................................................................................... 74

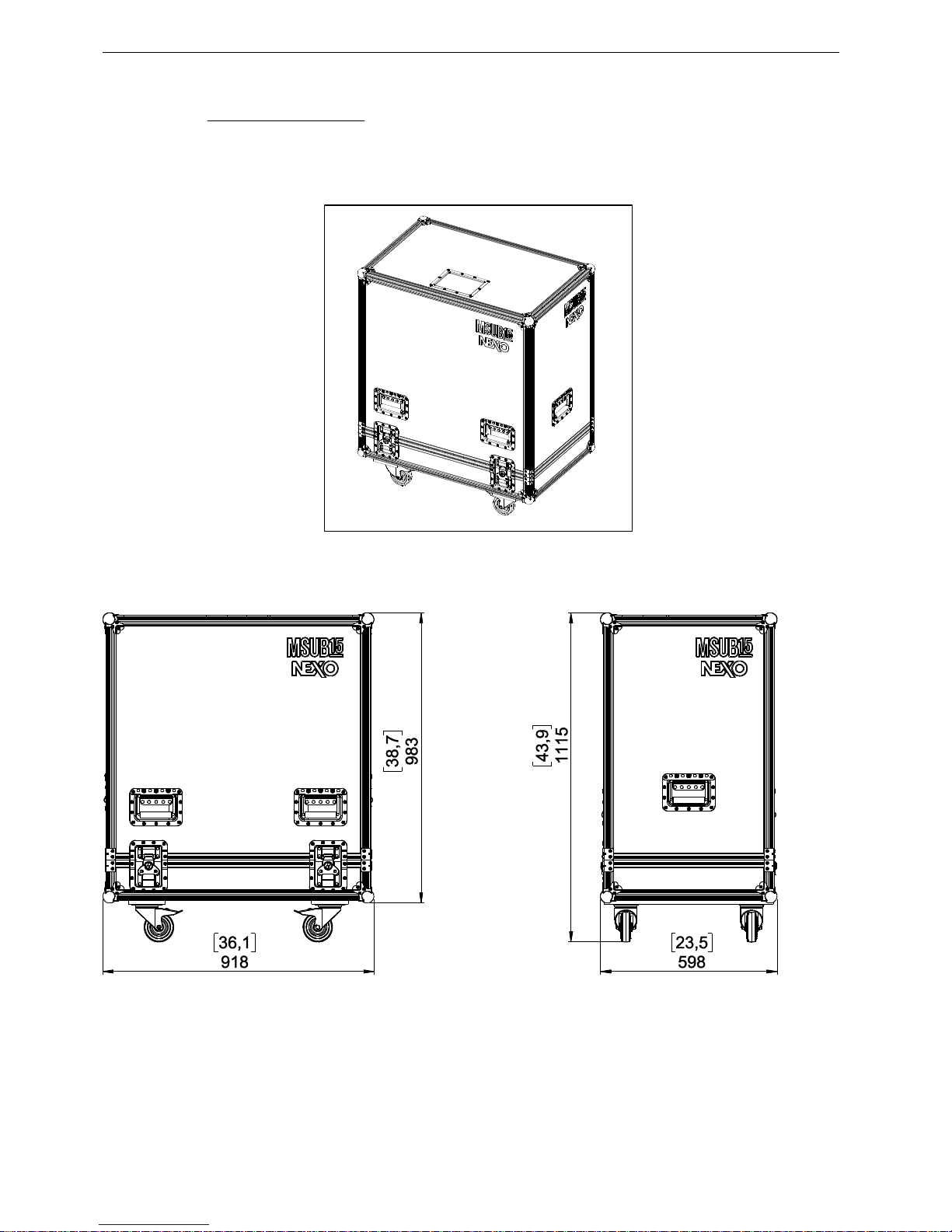

8.3.12 GMT-3CASEM10 ........................................................................................................................................................... 75

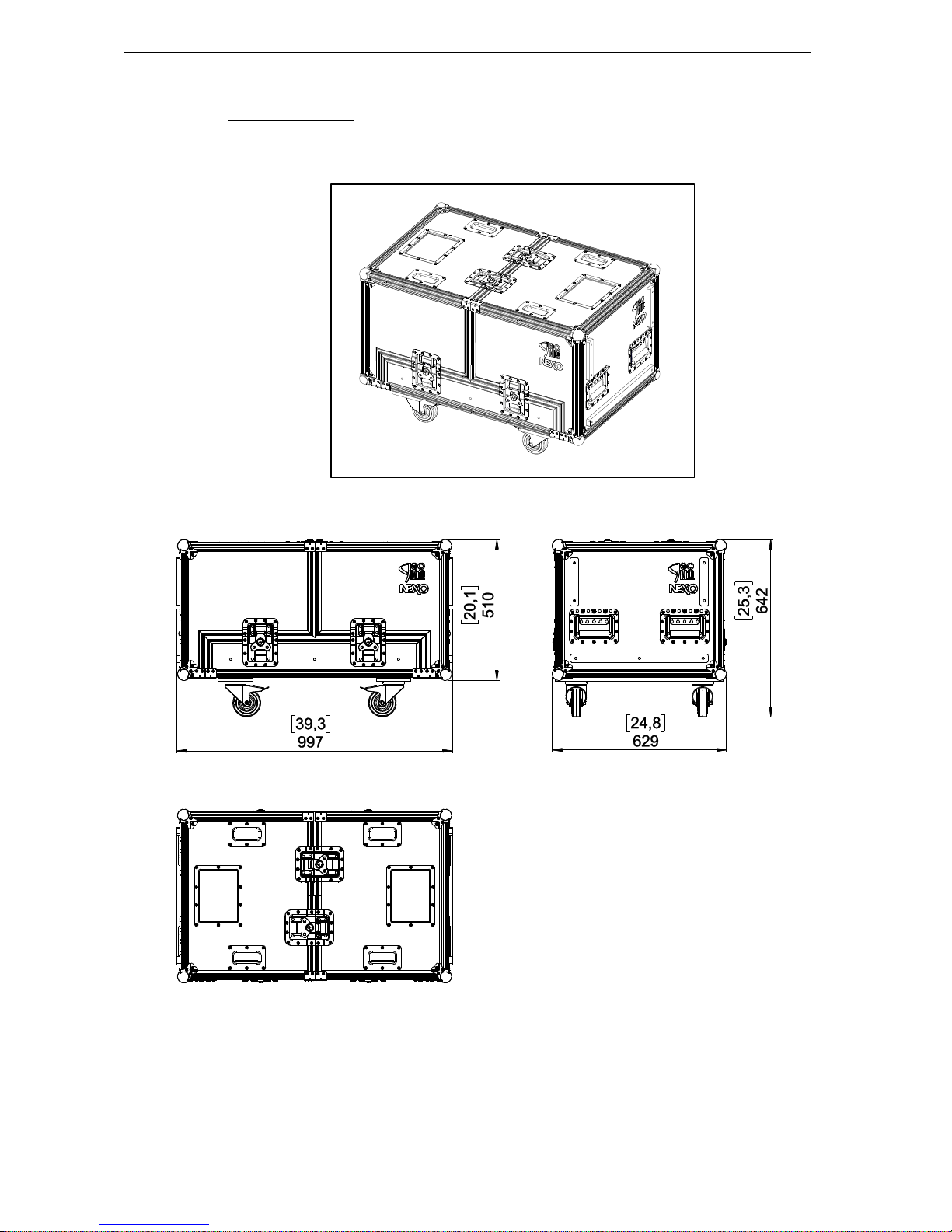

8.3.13 GMT-6CASEM10 ........................................................................................................................................................... 76

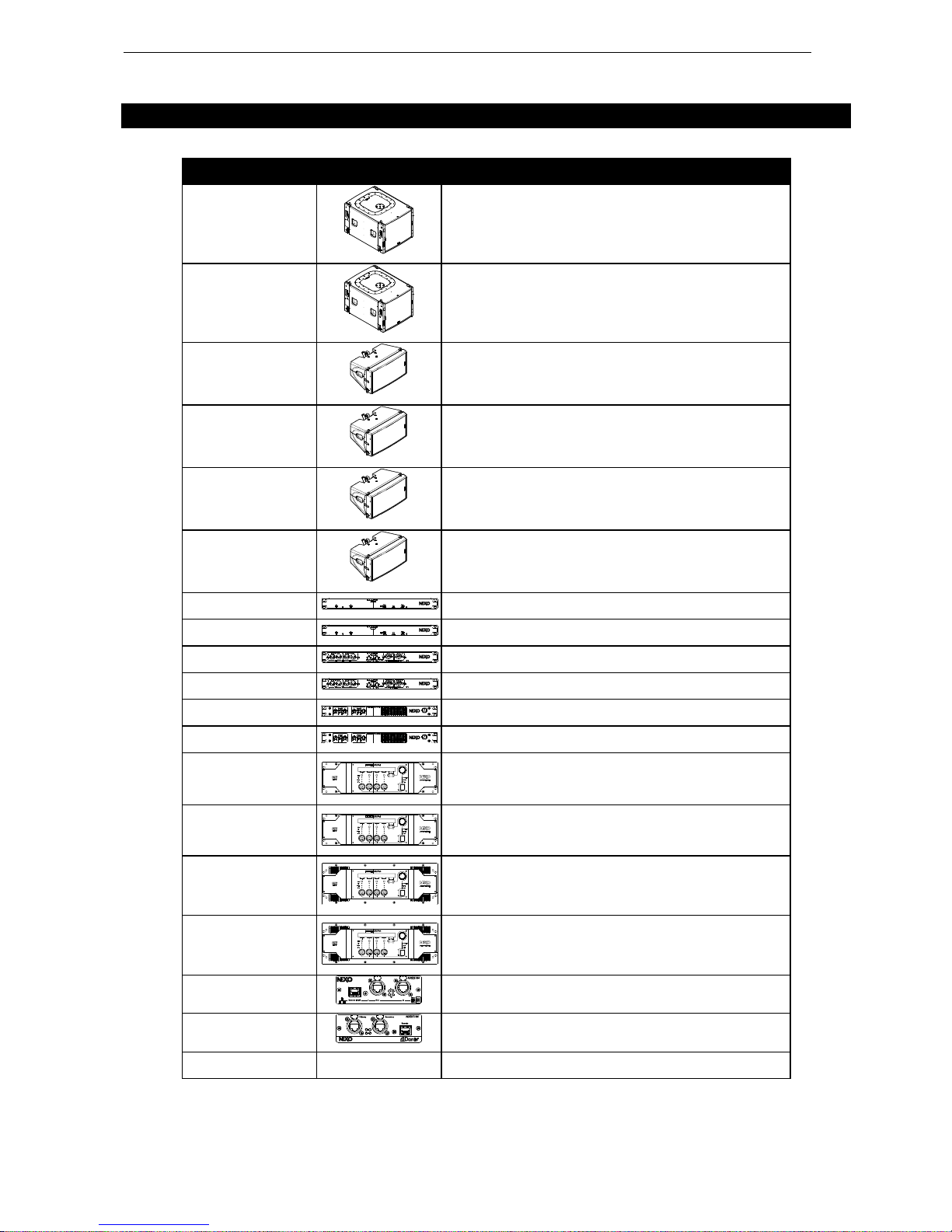

9 GEO M10 & MSUB15 MODULES & ACCESSORIES LIST .............................................................................. 77

10 USER NOTES ............................................................................................................................................................ 79

INTRODUCTION Page 7/79

1 INTRODUCTION

Thank you for selecting a NEXO GEO M10 Series Tangent Array System. This manual is intended to
provide you with necessary and useful information about your GEO M10 & MSub15 System, which
includes the following products:

 GEO M1012 is a 12.5° Tangent Array Module. It comprises 1x10”

(25cm) 8 ohms long excursion Neodymium LF/MF driver loaded
by a Phase Directivity Device (PDDTM) and 1x1.4” throat 1driver
16 Ohm HF Neodymium driver loaded by a 6° Hyperboloid
Reflective Wavesource (HRW™).

 GEO M1025 is a 25° Tangent Array Module. It comprises 1x10”

(25cm) 8 ohms long excursion Neodymium LF/MF driver loaded
by a Phase Directivity Device (PDDTM) and 1x1.4” throat 1driver
16 Ohm HF Neodymium driver loaded by a 25° Hyperboloid
Reflective Wavesource (HRW™).

 MSUB15 is GEO M10 companion subwoofer. It comprises 1x15’’

(38cm) long excursion Neodymium driver, and features very high
efficiency as well as high acoustic output. MSUB15 has fittings for
transporting, flying and stacking.

 A full range of accessories provides safe, flexible and simple

means of installing GEO M10 and MSUB15 in fixed installation as
well as in touring applications.

 GEO M10 and MSUB15 are controlled, powered and monitored

by NEXO TDcontrollers. For a complete description of these
controllers, please refer to User Manuals. NEXO TDcontrollers
DSP algorithms and parameters are fixed in software and
updated regularly: Please consult the NEXO web site (nexo­sa.com) for the latest software releases.

 NS-1 simulation software assists in the design and

implementation of vertical tangent GEO arrays. Please consult
the NEXO web site (nexo-sa.com) for the latest software
releases.

 Available for Mac, iPad and iPhone, NEXO NeMo provides full

remote control over a digital audio network from anywhere in the
venue, thanks to an intuitive and graphically attractive user
interface. NeMo is available on iTunes.

Please devote your time and attention to reading this manual. A comprehensive understanding of GEO
M10 and MSUB15 specific features will help you to operate your system at its full potential.

Page 8/79 GEO M10 GENERAL SET-UP INSTRUCTIONS

2 GEO M10 GENERAL SET-UP INSTRUCTIONS

2.1 Speaker connection

GEO M10 and MSUB15 are connected with Speakon NL4FC plugs (not supplied). A wiring diagram is
printed on the connection panel located on the back of each cabinet. The 4 pins of the Speakon sockets
identified in / out are connected in parallel within the enclosure.

Either connector can be used to connect amplifier or to link to an additional GEO M10 cabinet or to link
to an optional MSUB15 (if present). Therefore, a single 4-conductor cable can connect two amplifier
channels to various GEO M10s and/or MSUB15 subwoofers.

2.1.1 GEO M10 connectors

2.1.2 MSUB15 connectors

MSUB15 features 2 connector panels with 2 Speakon NL4 each so that cabling is always done at the
back independently of cabinet being set frontwards or rearwards for cardioid configurations.

Speakon Connector

M1012 & M1025

1(-)



Through

1(+)



Through

2(-)



GEO M10 (-)

2(+)



GEO M10 (+)

Speakon Connector

MSUB15

1(-)



MSUB15 (-)

1(+)



MSUB15 (+)

2(-)



Through

2(+)



Through

GEO M10 GENERAL SET-UP INSTRUCTIONS Page 9/79

2.2 Cabling

NEXO recommends the exclusive use of multi-conductor cables to connect the system: the cable kit is
compatible with all the cabinets, and there is no possible confusion between LF, MF and HF sections.

Cable choice consists mainly of selecting cables of the correct sectional dimension (size) in relation to
the load resistance and the cable length. Too small a cable section will increase both its serial resistance
and its capacitance; this reduces the electrical power delivered to the loudspeaker and can also induce
response (damping factor) variations.

For a serial resistance less or equal to 4% of the load impedance (damping factor = 25), the recommended
cable length is given by:

L

max

= Z x S S in mm2, Z in Ohm, L

max

in meters

The table below indicates these values, for 3 common sizes.

Load Impedance ()

2 3 4 6 8

Cable section

Maximum Length (meters)

1,5 mm² (AWG #14)

3m/10ft

4.5m/13ft

6m/20ft

9m/30ft

12m/39ft

2,5 mm² (AWG #12)

5m/16ft

7.5m/23ft

10m/33ft

15m/49ft

20m/66ft

4 mm² (AWG #10)

8m/26ft

12m/39ft

16m/52ft

24m/79ft

32m/105ft

Maximum allowed length is 4 times recommended length.
Example:
GEO M10 module has a 8  nominal impedance. When connecting 4 modules in parallel, total load

impedance become 2.
Recommended length for 4mm2 / (AWG#10) is 8 m / 26 ft, maximum allowed length is 32 m / 105 ft.

IMPORTANT

Long speaker cables induce capacitive effects – up to hundreds of pF depending on the

quality of the cable - with a low-pass effect on high frequencies. If long speaker cables

must be used, ensure that they do not remain coiled while in use.

2.3 GEO M10 & MSUB15 recommended amplification

NEXO TD Controllers

Recommended amplification

DTD Controller + DTDAMP4x1.3

(4x1.3 kW/4)

2 x GEO M10 per channel

1x MSUB15 per channel

NXAMP4x1 Powered Controller 4 channels mode

(4x1300W/2)

1 x GEO M10 per channel

NXAMP4x1 Powered Controller Bridged Stereo mode

(2x2600W/4)

2 x GEO M10 per bridged channel

2 x MSUB15 per bridged channel

NXAMP4x4 Powered Controller 4 channels

(4x4kW/2)

4 x GEO M10 per channel

3 x MSUB15 per channel

2.4 GEO M10 & MSUB15 setups on NEXO TD Controllers

Please consult nexo-sa.com for NEXO TD Controllers firmware information.

Page 10/79 CONNECTION DIAGRAMS

3 CONNECTION DIAGRAMS

3.1 MSUB15 & GEO M10 / DTDController & DTDamp1.3

3.2 GEO M10 / NXAMP4x1 (4 channels)

CONNECTION DIAGRAMS Page 11/79

3.3 GEO M10 / NXAMP4x1 (Bridge Stereo)

3.4 MSUB15 / NXAMP4x1 (Bridge Stereo)

Page 12/79 CONNECTION DIAGRAMS

3.5 MSUB15 & GEO M10 / NXAMP4x1 (Bridge Stereo)

CONNECTION DIAGRAMS Page 13/79

3.6 GEO M10 / NXAMP4x4 (4 Channels)

Page 14/79 CONNECTION DIAGRAMS

3.7 MSUB15 Omni Mode / NXAMP4x4 (4 channels)

CONNECTION DIAGRAMS Page 15/79

3.8 MSUB15 Cardio Mode / NXAMP4x4 (4 channels)

Page 16/79 CONNECTION DIAGRAMS

3.9 MSUB15 & GEO M10 NXAMP4x4 (4 channels)

NS-1 SIMULATION SOFTWARE Page 17/79

4 NS-1 SIMULATION SOFTWARE

NS-1 software is a R&D simulation tool derived application. It processes measured speaker data with
complex mathematical algorithms to assist the user in optimizing system design. Due to the complexity
of the interaction of multiple cabinets, it is simply not possible to reliably design curved vertical arrays
without using the processing power of a computer to predict the optimum array structure for a given
audience geometry. The design logic is far more complex than looking at a section drawing of the venue,
measuring the overall angle needed to cover the audience from the cluster location, and dividing by 12
degrees to determine the required amount number of GEO M1012 cabinets.

NS-1 is an easy to use tool that allows to shape the energy leaving the cluster to fit the audience. It
predicts pressure levels radiated from the system to ensure enough cabinets are provided for the
application, as well as mechanical constraints for safe flown systems.

In addition, it provides mechanical information for all clusters in agreement with Structural Analysis
Reports (available in the Help section): dimensions, weight, gravity center position, forces, moments,
working load and safety factor.

GEO M10 and MSUB15 Structural Analysis Report is currently being certified by German Certification
Organization RWTUV systems GmbH.

NS-1 installation package includes all NEXO User Manuals, Structural Analysis Reports and Certificates
PDF files (which can be found in the last section of User Manuals).

NS-1 is a freeware available on nexo-sa.com

IMPORTANT

Never install a GEO M10 and/or MSUB15 cluster without checking its acoustical
performances and mechanical safety in NS-1 prior to installation.

Any question or bug report please contact [e-mail]

NS-1 GEO M10 ACOUSTIC PAGE

Page 18/79 CONFIGURABLE DIRECTIVITY DEVICE

5 CONFIGURABLE DIRECTIVITY DEVICE

The GEO Wavesource controls dispersion of acoustic energy using a hyperboloid acoustical reflector in

the “coupling plane” (the vertical plane of a curved vertical tangent array) and a diffraction slot in the “non­coupling plane” (the horizontal plane of a curved vertical tangent array). The patented Configurable
Directivity Device consists of flanges that alter the diffraction slot’s exit flare rate.

5.1 Installing & removing GEO’s Configurable Directivity Devices

GEO M10 are shipped in the 80° dispersion configuration, 120° CDDTM flanges are an optional accessory
(GMT-FLGM10).

To change dispersion in the non-coupling plane to 120°:

- Pull the lever to remove the grille on the side (attached with a sling);

- Position the CDDTM flanges on the waveguide output magnetic clips;

- Reinstall the grille and lock it with the lever

To remove the 120° CDDTM flanges:

- Pull the lever to remove the grille on the side (attached with a sling)

- Remove the CDDTM flanges from the waveguide output magnetic clips

- Reinstall the grille and lock it with the lever

NB: In case of GEO M10-I versions, proceed as above by removing the side grille screws

CONFIGURABLE DIRECTIVITY DEVICE Page 19/79

5.2 When & where to use Configurable Directivity flanges

The diagrams show audience area coverage for a stereo system. While the GEO cluster will deliver even

SPL from the front to the rear of this audience area, there are “holes” near the front in the centre and at

the outside edges. We cannot fill the outside coverage gaps without enlarging the centre gap, and vice
versa (left figure below).

If 120° Configurable Directivity Devices are installed at the bottom cabinet of the clusters, coverage will
look more like the pattern in right figure below.

-6dB coverage, all GEO M10 in 80° configuration

-6dB coverage, bottom GEO M10 in 120° configuration

In curved vertical arrays, the 120° Configurable Directivity Device can be used:

 On the bottom row of curved vertical arrays, to fill in coverage gaps in the front rows.
 On all rows of curved vertical arrays, in cases where 120° of horizontal coverage is preferred

to 80°.

IMPORTANT

Installing or removing one of the two flanges anticipating asymmetrical coverage will
degrade both coverage and frequency response.

Page 20/79 GEO M10 HARDWARE SETUP PROCEDURE

6 GEO M10 HARDWARE SETUP PROCEDURE

Before proceeding with assembly of GEO M10 & MSUB15 arrays, please ensure that the components
are present and undamaged. A component list is appended to this manual. In the event of any shortage,
please contact your supplier.

For maximum efficiency the GEO M10 & MSUB15 rigging system requires three experienced persons for
set-up: typically one motor hoist operator, and one operator per side of the array. Good synchronisation
and crosscheck between the operators are key elements for a reliable and safe set-up.

6.1 SAFETY FIRST

GEO M10 & MSUB15 Rigging System structural computations and related documents are available in
NS-1 or at Nexo ([e-mail]) upon request.

We include this section to remind you of safe practice when flying the GEO M10 & MSUB15 system.
Please read it carefully. However, user must always apply his or her knowledge, experience and common
sense. If in any doubt, seek advice from your supplier or NEXO agent.

This manual offers guidance only for GEO M10 & MSUB15 loudspeaker systems. References in this
manual to other rigging equipment such as motor hoists, steels, shackles etc. are made to clarify the
description of rigging procedures. The user must ensure that operators are properly trained by other
agencies in the use of these items.

The GEO M10 & MSUB15 Rigging System has been optimised for the deployment of curved vertical
tangent arrays of GEO M10 & MSUB15 loudspeakers. Angle adjustment between cabinets has been
limited to specific settings to ensure correct acoustic coupling.

The GEO M10 & MSUB15 Rigging System is a professional precision tool set, and should be handled
with extreme care. Only persons who are fully conversant with the operation of the GEO M10 & MSUB15
Rigging System and provided with suitable safety equipment should deploy GEO Arrays. Misuse of the
GEO M10 & MSUB15 Rigging System could lead to dangerous consequences.

Used and maintained correctly, the GEO M10 & MSUB15 Rigging System will give many years of reliable
service in portable systems. Please take the time to read and understand this manual. Always use NS-1
to determine the optimum angle settings for a particular venue, hang point and curved vertical GEO M10
& MSUB15. Applied forces and moments are strongly cabinet quantity and angle configuration
dependent. Cluster configuration must be implemented and validated in NS-1 prior to installation.

6.1.1 Flown Systems Safety

Always inspect all the rigging components and cabinets for damage before assembly. Pay special
attention to the lifting points, and safety clips. If you suspect that any of the components are damaged or
defective, DO NOT USE THE AFFECTED PARTS. Contact your supplier for replacements.

Read this manual carefully. Also be familiar with the manuals and safe working procedures for any
ancillary equipment that will be used with the GEO M10 & MSUB15 Rigging System.

Applied forces and moments are strongly cabinet quantity and angle configuration dependent. Cluster
configuration must be implemented and validated in NS-1 prior to installation.

Ensure that all local and National regulations regarding the safety and operation of flying equipment are
understood and adhered to. Information on these regulations can usually be obtained from Local
Government Offices.

When deploying a GEO M10 & MSUB15 system always wear protective headwear, footwear and eye
protection.

Do not allow inexperienced persons to handle a GEO M10 & MSUB15 system. Installation personnel
should be trained in loudspeaker flying techniques and should be fully conversant with this manual.

GEO M10 HARDWARE SETUP PROCEDURE Page 21/79

Ensure that motor hoists, hoist control systems and ancillary rigging components are currently certified
as safe and that they pass a visual inspection prior to use.

Ensure that public and personnel are not allowed to pass beneath the system during the installation
process. The work area should be isolated from public access.

Never leave the system unattended during the installation process.
Do not place any object, no matter how small or light, on top of the system during the installation

procedure. The object may fall when the system is flown and is likely to cause injury.
Secondary safety steels must be installed once the system has been flown to the operating height.

Secondary steels must be fitted irrespective of requirements of the local safety standards applicable to
the territory.

Ensure that the system is secure and prevented from pivoting around the motor hoist.
Avoid any form of excessive dynamic loading to the assembly (structural computations on GEO M10 &

MSUB15 Rigging System are based on a 1/1.2 factor for hoist or motor acceleration).
NEVER attach any item to the GEO M10 & MSUB15 system other than the GEO M10 & MSUB15

accessories.
When flying outdoor systems ensure that the system is not exposed to excessive wind or snow loads and

is protected from rainfall.
In case of wind greater than 8 on Beaufort scale (72km/h – 45mph), a touring system has to be landed or

an additional securing has to be implanted.
For fixed installations, wind loading has to be taken into account in accordance to the national standards.
The GEO M10 & MSUB15 Rigging System requires regular inspection and testing by a competent test

centre. NEXO recommend that the system is load tested and certified annually or more frequently if local
regulations require.

When de-rigging the system ensure that the same duty of care is given to the procedure as for the
installation. Pack GEO M10 & MSUB15 components carefully to prevent damage in transit.

6.1.2 Ground Stacking Safety

Statistically, many more injuries occur due to unstable ground stacked PA systems than those associated
with flown systems. There are several reasons for this fact, however the message is clear:

Always survey the supporting structure upon which a ground stack is to be built. Always look beneath PA
wings to inspect the deck support and if necessary ask for the stage scrims and dressings be removed to
allow access.

If the stage surface slopes, as it does in some theatres, ensure that the system is prevented from sliding
forwards due to vibration. This may require the fitting of timber battens to the stage floor.

For outdoor systems ensure that that the system is protected from wind forces which might cause the
ground stack to become unstable. Wind forces can be huge, especially upon large systems, and should

never be underestimated. Observe meteorological forecasts, calculate the “worst case” effect upon the

system prior to erection and ensure that the system is secured appropriately.
Take care when stacking cabinets. Always employ safe lifting procedures and never attempt to build

stacks without sufficient personnel and equipment.
Never allow anyone, whether operators, artists or members of the public to climb onto a ground stacked

PA system. Anyone who needs to climb over 2m (6 ft) high should be fitted with suitable safely equipment
including a clip-on harness. Please refer to local Health and Safety legislation in your territory. Your dealer
can help with advice on access to this information.

Page 22/79 GEO M10 HARDWARE SETUP PROCEDURE

Apply the same attention to all safety matters when de-stacking systems.
Be aware that safety procedures are as important in the truck and in the warehouse as they are at the

venue.

6.1.3 Contacts

Correct training is fundamental to safe practise when working with loudspeakers flying systems. NEXO
recommend that users contact local industry associations for information on specialist course.

Information for International training agencies can be obtained by contacting either:

The Production Services Association

(PSA),
School Passage,
Kingston-upon-Thames,
KT1 SDU Surrey,
ENGLAND
Telephone: [phone]
www.psa.org.uk/

Rigstar Training and Testing Center

82 Industrial Dr. Unit 4

Northampton, Massachusetts

01060 U.S.A.
Phone: [phone]
www.rigstar.com/

ESTA
Entertainment Services & Technology

Association
875 Sixth Avenue, Suite 1005
NEW YORK, NY 10001 USA
Phone: [phone]
www.esta.org

GEO M10 HARDWARE SETUP PROCEDURE Page 23/79

6.2 General Description

6.2.1 GEO M1012 and GEO M1025

IMPORTANT

GEO M1012 & GEO M1025 share the same geometry and fittings, but different wavefront
curvatures. In order to distinguish one from the other,

GEO M1012 is marked with the following sign on its sides:

GEO M1025 is marked with the following sign on its sides:

6.2.2 GEO M10 rigging system

GEO M10 features a 3 points rigging system, 2 for front connection, and 1 for rear connection and angle
splay settings.

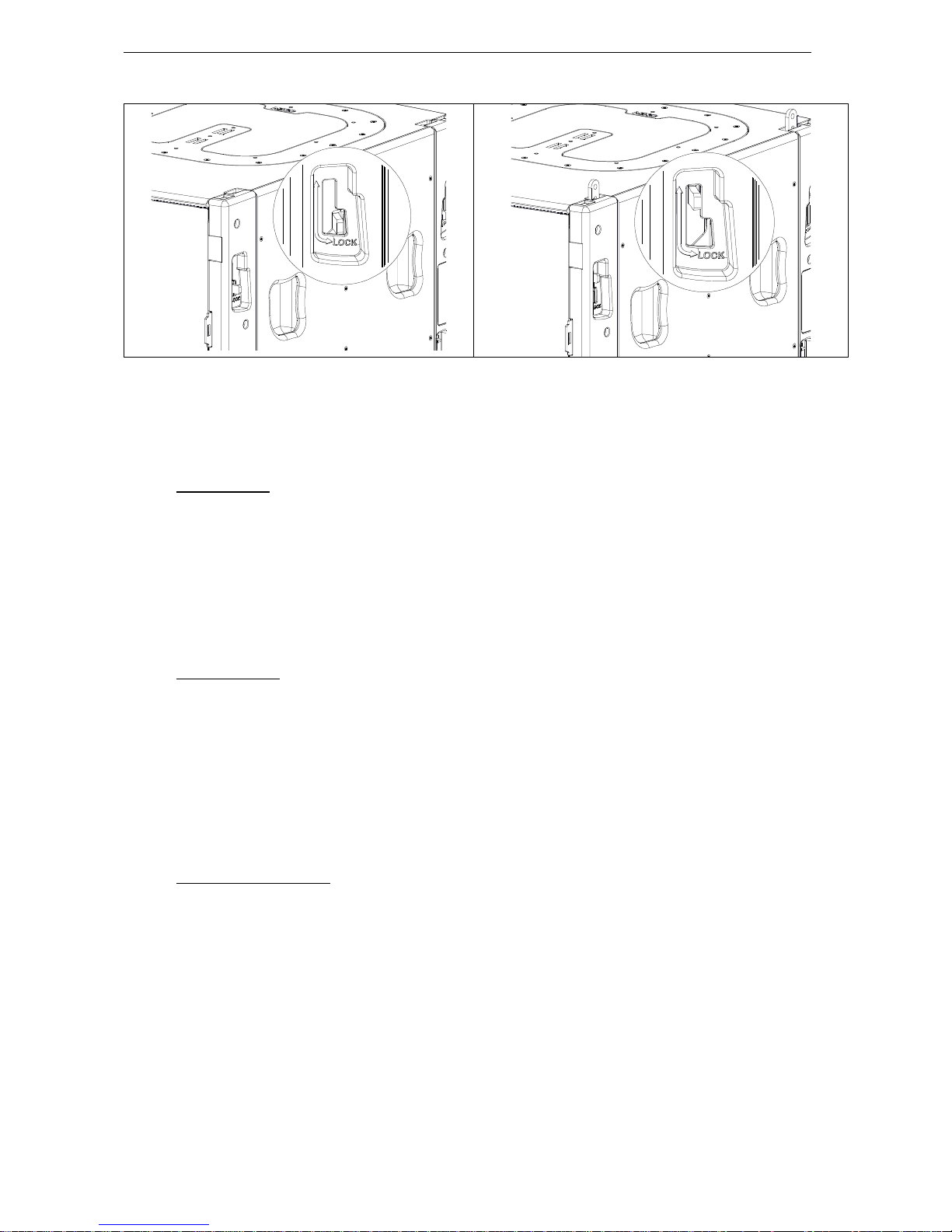

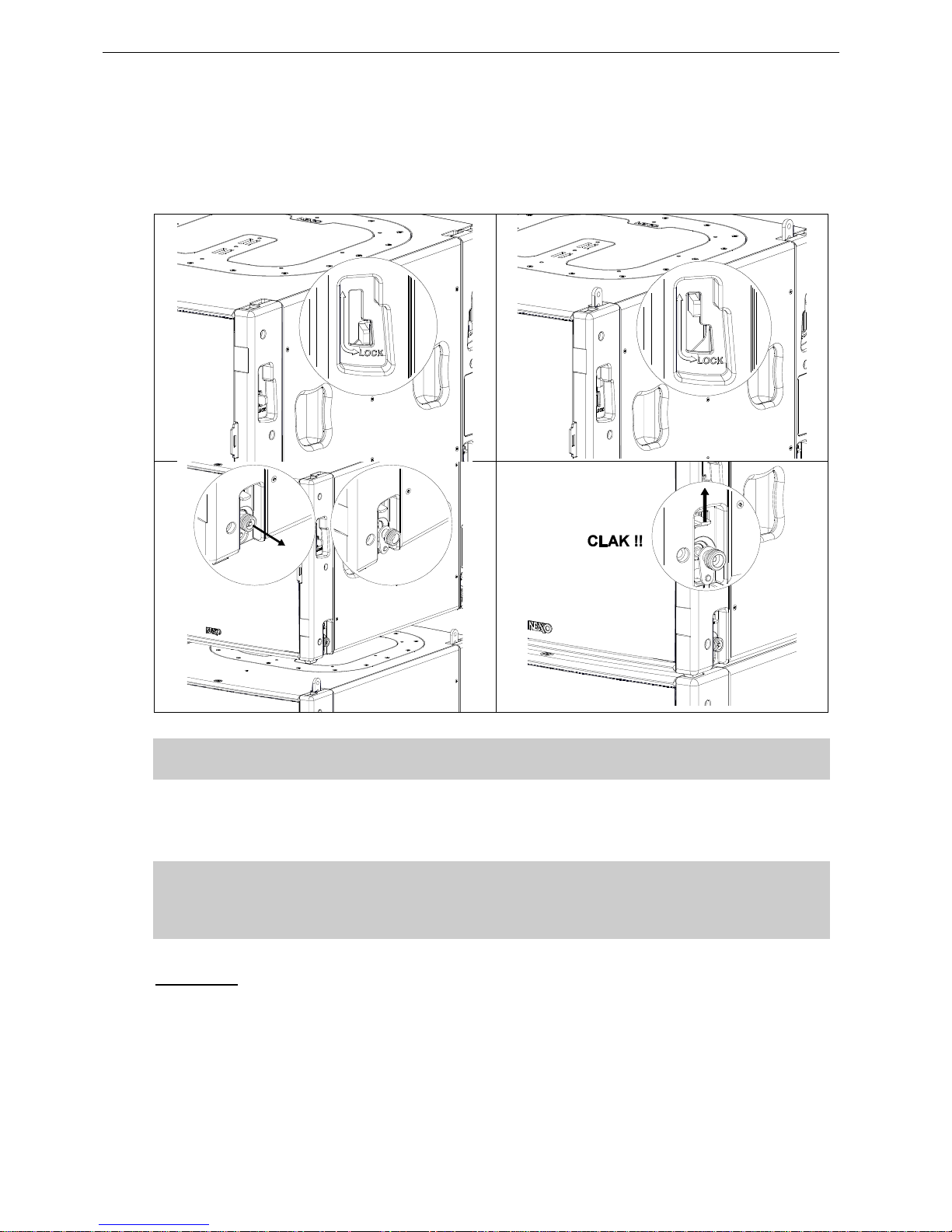

- Front connection of two subsequent modules is ensured by an AutoRigTM system, with 3 positions:
open / ready to lock / locked (only on touring version).

- Rear connection of two subsequent modules is ensured by a link bar, with one safety point on a latch
and one quick release pin to adjust angle settings.

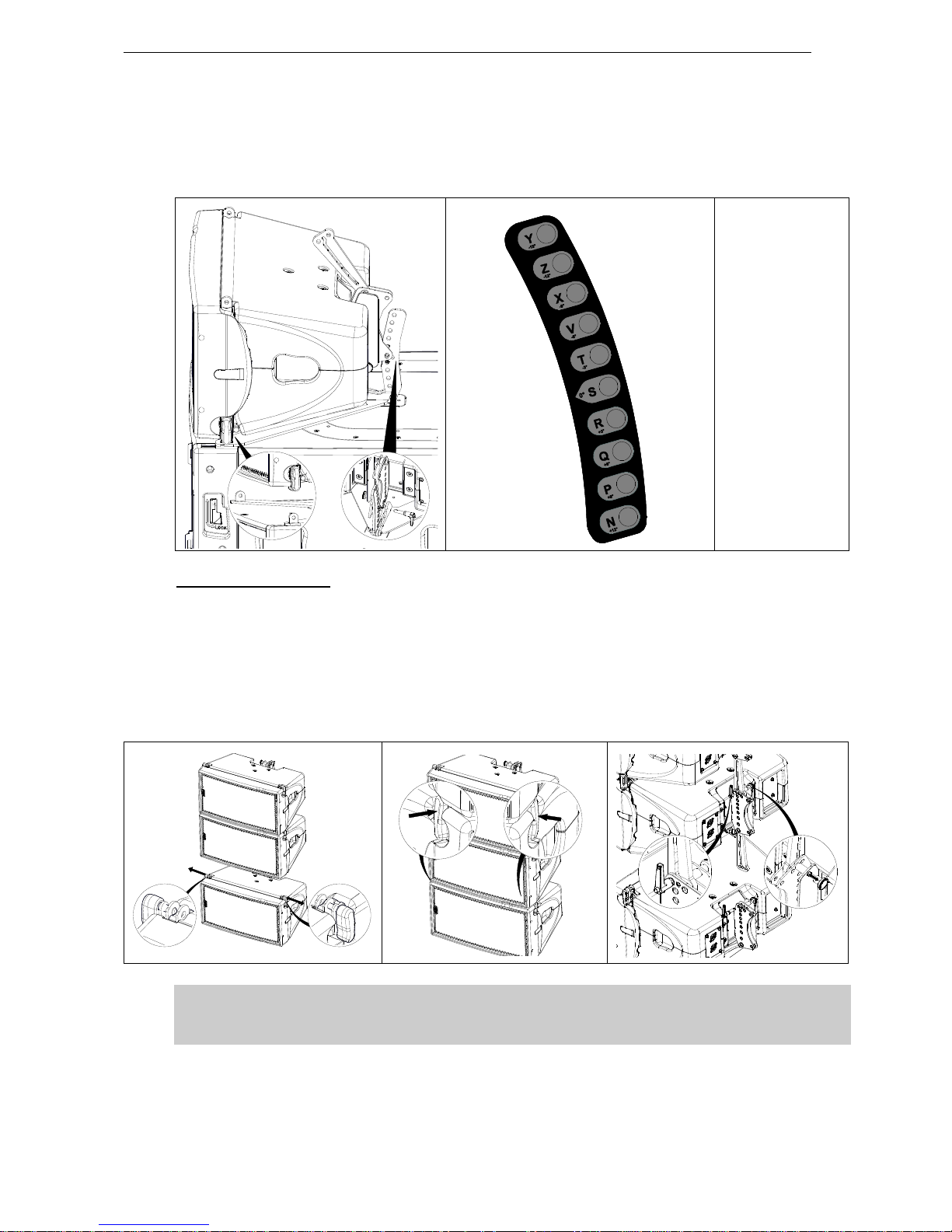

GEO M10 front rigging points GEO M10 rear rigging points GEO M10 angle settings

Page 24/79 GEO M10 HARDWARE SETUP PROCEDURE

Angle splay setting sequences are as follow:

- GEO M1012 to GEO M1012: 0.6° (A) / 1.6° (B) / 3.2° (C) / 6.3° (D) / 9.5° (E) / 12.5° (F)

- GEO M1012 to GEO M1025: 12.5° (F) / 16° (G)

- GEO M1025 to GEO M1025: 16° (G) / 20° (H) / 25° (I)

6.2.3 GEO M10 “Left” and “Right” configuration

GEO M10 can be installed “Left” or “Right”:

- “Left” means HF waveguide is left as seen from front

- “Right” means HF waveguide is right as seen from front
GEO M10 can be connected to bumpers “Left” or “Right” by simply flipping the cabinets.
Whenever possible, NEXO recommends symmetrical designs (preferably HF waveguide

inwards in stereo configurations)

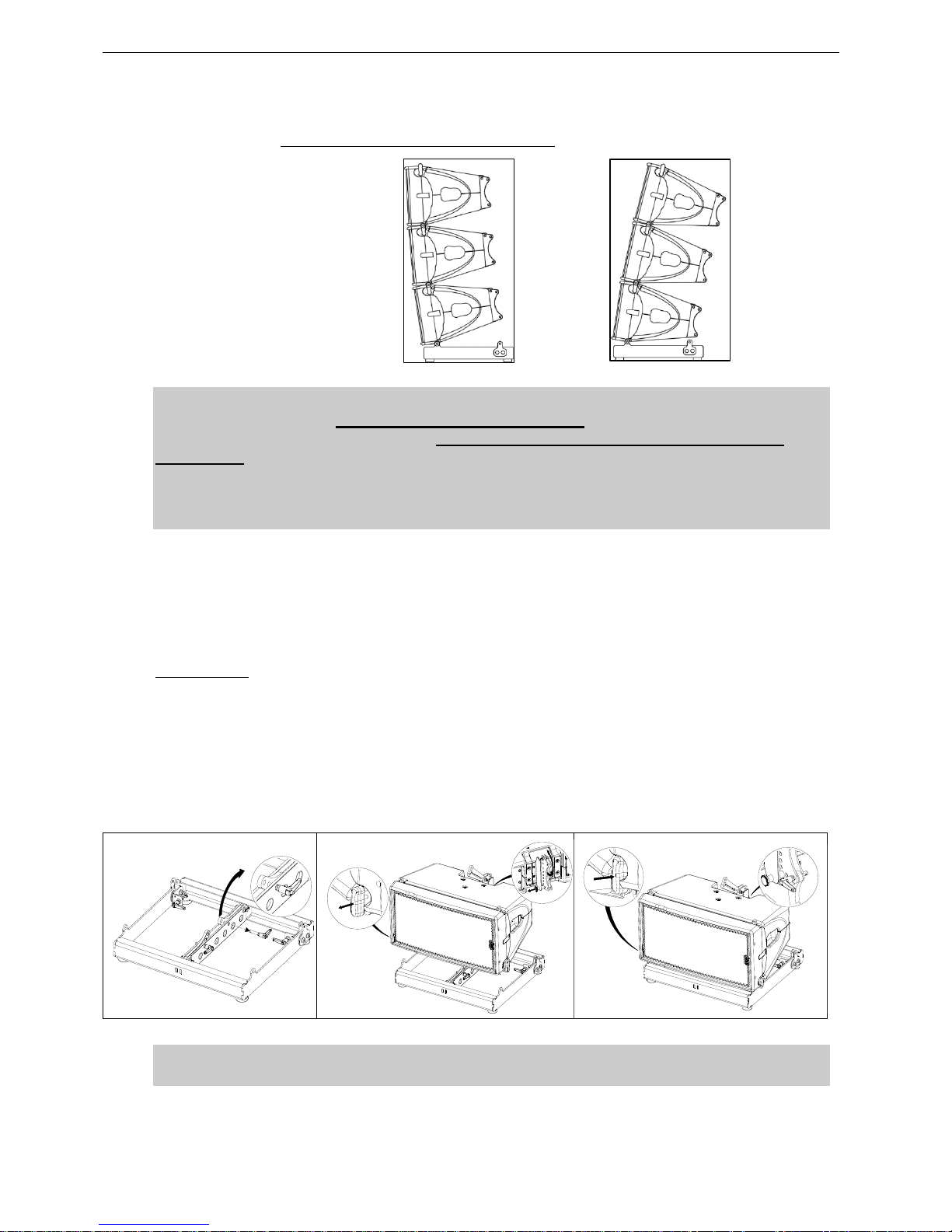

GEO M10 “Left” GEO M10 “Right”

6.2.4 MSUB15 rigging system
