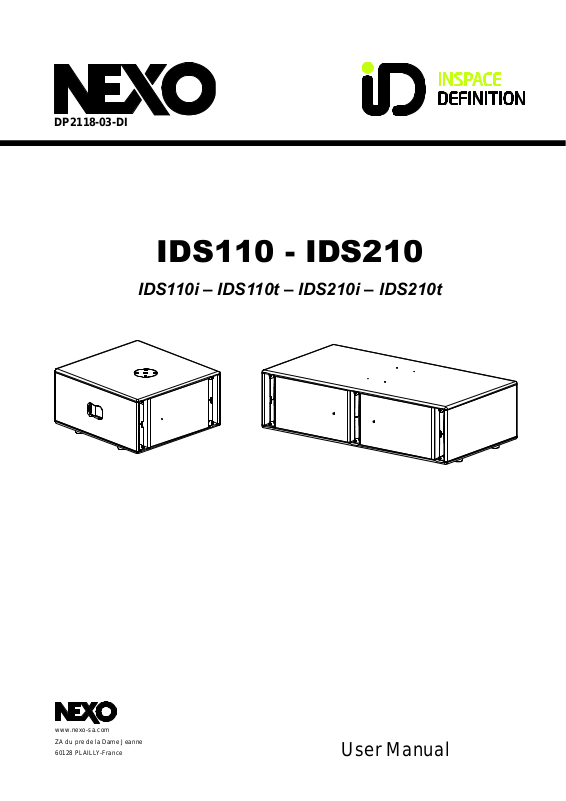

User Manual
www.nexo-sa.com
ZA du pre de la Dame Jeanne
60128 PLAILLY-France
DP2118-03-DI
IDS110 - IDS210
IDS110i – IDS110t – IDS210i – IDS210t
Page 2/8 CONTENTS
1 CONTENTS
1 CONTENTS ................................................................................................................................................................. 2
2 WARNINGS ................................................................................................................................................................. 3
3 IDS110 - IDS210 – ACCESSORIES ....................................................................................................................... 4
4 DESCRIPTION ........................................................................................................................................................... 5
5 SETTING RANGE ...................................................................................................................................................... 6
6 ARRAY EQ................................................................................................................................................................... 6
7 TECHNICAL SPECIFICATIONS .............................................................................................................................. 7
8 USER NOTES .............................................................................................................................................................. 8
EU Conformity declaration
We, NEXO SA
ZA DU PRE DE LA DAME JEANNE
60128 PLAILLY – France
Declare under our sole responsibility that the product Loudspeaker
Type IDS110 – IDS210
Serial number On the product
Is in conformity with the provisions of the following 2006/95/CE (Low Voltage Directive)
directive including all applicable amendments :
Applied rules and standards : EN ISO 12100, EN 60065
Plailly, December 18th, 2015 Joseph CARCOPINO, R&D Director
WARNINGS Page 3/8
2 WARNINGS
PRECAUTIONS
Do not open the speaker, do not try to disassemble it, neither to modify it in any way. The system doesn’t include any user-repairable
part. If the system seems to be malfunctioning or damaged, stop using it at once and have it repaired by a NEXO-accredited technician.
Do not expose the system directly to the rain, do not immerse it into fluids, do not place objects filled with liquid on the system. If a liquid
gets into the system, please have it inspected by a NEXO-accredited technician.
The connection of IDS110i and IDS210i should be performed by qualified technician, by ensuring that power is off.
Operating temperature with temperate climate:0°C to + 40°C (-20°C to +60°C for storage)
SAFETY INFORMATIONS
Read this manual before using the speaker.
Keep this manual available for further reference.
Observe all warnings and cautions.
Please check the NEXO Web site, www.nexo-sa.com, to get the most up-to-date version of this manual.
Ensure you are aware of the safety rules applying to rigging, stacking or installing on tripod or speaker stand. Failure to observe these
rules may expose persons to potential wounds or even death.
Only use the system with accessories specified by NEXO.
Please always consult a NEXO-accredited technician if the installation needs architectural works and observe following precautions:
Mounting Precautions:
- Please select screws and mounting location supporting the system weight.
- Do not hang the system by its handles.
- Do not expose the system to excessive dust, vibrations, to extreme cold or hot temperatures, to reduce the risk of damaging
components.
- Do not place the system in an unstable position: it could fall accidentally.
- If the system is used on a tripod, please ensure the tripod’s specifications are adapted and that it’s height does not exceed
1.40m/55”. Do not move the tripod with the system in position.
Connection and Powering Precautions:
- Unplug connected cables before moving the system.
- Power off the system before connecting the system.
- When switching on the installation, the amplifier must be powered last; when switching the installation off, shut off the
amplifier first.
- If you work by cold temperatures, progressively raise the level to nominal value during the first minutes of use, to allow the
system components to stabilize.
Please check regularly the system condition.
HIGH ACOUSTIC PRESSURE LEVELS
Exposure to very high sound pressure levels may cause permanent hearing losses. Degrees of hearing losses may be different from
one person to another, but almost everybody will be affected if exposed to high sound pressure levels during a long period of time. The
OSHA (Occupational Safety and Health Administration) American Agency specified the following maximal exposures:
Number o hours
Sound Pressure Level (dBA), Slow Response
8
90
6
92
4
95 3 97
2
100
1 ½
102
1
105
½
110
¼ ou moins
115
Page 4/8 IDS110 - IDS210 – ACCESSORIES
WASTE OF ELECTRIC OR ELECTRONIC EQUIPMENTS
This symbol on the product or its packaging indicates that this product must not be treated as household waste.
Instead, it is your responsibility to hand it over to a designated collection point for the recycling of waste
electrical and electronic equipment. By ensuring your waste equipment is recycled, you will help prevent
potential negative consequences for the environment and human health, which could appear if this product was
not recycled. Recycling helps spare natural resources. For more information about the recycling of this product,
please contact your local city office, your household waste disposal service or your reseller.
3 IDS110 - IDS210 – ACCESSORIES
IDT-COVER110: Cover for IDS110t
IDI-SWM01: Rigging accessories for IDS110i – IDS210i (wall mounting and eyebolts supplied, black version)
IDI-SWM01PW: Rigging accessories for IDS110i – IDS210i (wall mounting and eyebolts supplied, white version)
Ceiling or wall mouting
Rigging with eyebolts
WARNING : Height H must not exceed 2 m (6.6 ft).
The M20 base plate located on IDS110t and IDS210t should be used only with speakers like
ID24 with the IDT-TVP accessory attached
The distance rod M20 – 35mm is not supplied.
DESCRIPTION Page 5/8
4 DESCRIPTION
- The IDS110 and the IDS210 are two compact and powerful subwoofers, ideally complementing the ID24 speakers. Their lowprofile design is elegant, and allows placement in various places (in walls, staircases, under furniture or benches…).
- IDS110 : 1x10’’ loudspeaker
- IDS210 : 2x10’’ loudspeakers
- Versions:
o IDS110t: for ‘Touring’ applications; Handles – M20 threaded base
o IDS110i: for fixed installation.
o IDS210t: for ‘Touring’ applications; Handles – M20 threaded base
o IDS210i: for fixed installation.
- Connectors:
o IDS110t: The subwoofer is equipped with two Speakon NL4 connectors, with parallel-wired pins – the IDS110t uses the
1+/1- pins.
o IDS110i – IDS210i: The subwoofer is supplied with a fixed cable (HO7ZZ-F), 2 x 2.5mm2 section, length 2m.
(+) : brown ; (-) : blue
- Amplification:
o The IDS110 and IDS210 subwoofers MUST be used with a NEXO processor to handle EQ, phase alignment, crossover
and excursion/thermal protection for the system loudspeakers. There are two NEXO processor series supporting the
IDS110 and IDS210 subwoofers: NXAMP (4-channel) amplified processors and DTD processors DTD (stereo + sub).
DTD processors ensure optimal performances when used with DTDAMP power amplifiers (IDS110 only).
o The following table shows the number of IDS110 / IDS210 subwoofers usable with each solution.
NXAmp 4x1
NXAmp 4x4
DTD + DTDAmp 4x0.7
DTD + DTDAmp 4x1.3
IDS110
1 or 2 per channel
1 or 2 per channel
1 per channel
1 per channel
IDS210
1 per channel
1 per channel
1+ /-
2+/-
1+/-
Page 6/8 SETTING RANGE
5 SETTING RANGE
There are two setting ranges for surrounding speakers IDS110 and IDS210:
- “OMNI” setups (available on NXAMP and DTD) ; For a traditional use of the subwoofer in omnidirectional radiation (require at
least one subwoofer and a channel of amplifier).
- “CARDIO” setups (only available on NXAMP) ; For a directional use (cardioid) of subwoofers (require at least two subwoofers and
two channels of amplifier):
o Setup “FR” (Front) for the subwoofer pointed at the audience.
o Setup “BA” (Back) for the subwoofer turned around.
“OMNI” Assembly “CARDIO” Assembly
For both of these ranges, choose the crossover frequency value to application:
- 85Hz Recommended for a use with speakers type PS10R2 or PS15R2.
- 120Hz Recommended for a use with speakers type ID24.
6 ARRAY EQ
The ArrayEQ allows to adjust the system frequency response in its lower range (see curves below, with different ArrayEQ values):
TECHNICAL SPECIFICATIONS Page 7/8
7 TECHNICAL SPECIFICATIONS
IDS WITH NEXO ELECTRONICS
Model
IDS110
IDS210
Frequency Range
43Hz – 130Hz (+/- 3dB)
43Hz – 130Hz (+/- 3dB)
Sensitivity (1W / 1m)
97dB SPL Nominal
103dB SPL Nominal
Operating voltage
45Vrms (180Vpeak)
45Vrms (180Vpeak)
Peak SPL Level (1m)
125dB Peak
131dB Peak
Crossover Frequency
85Hz / 120Hz
85Hz / 120Hz
Nominal Impedance
4Ω
2Ω
Recommended Amplification
400 to 650W
800 to 1300W
SPECIFICATIONS
Model
IDS110
IDS210
Components
1x 10’’ - Long excursion
2x 10’’ - Long excursion
Material
Finnish birch plywood
Finnish birch plywood
Finish
Black structured paint
Black structured paint
Rigging
4x M6 Inserts
M20 flange (t version only)
4x M6 Inserts
M20 flange (t version only)
Weight
21 kg – 47 lb
37 kg – 82 lb
Dimensions
11,22
285
20,67
525
21,65
550
11,2
285
41,3
1050
21,7
550
Page 8/8 USER NOTES
8 USER NOTES
France
Nexo S.A.
Parc d’activité de la Dame Jeanne
F-60128 PLAILLY
Tel: +33 3 44 99 00 70
Fax: +33 3 44 99 00 30
E-mail: info@nexo.fr
www.nexo-sa.com
