VTC 7100-D1K
User Manual
117 pgs10.86 Mb1

NEXCOM VTC 7100-D1K User Manual

Download
NEXCOM International Co., Ltd.
Mobile Computing Solutions

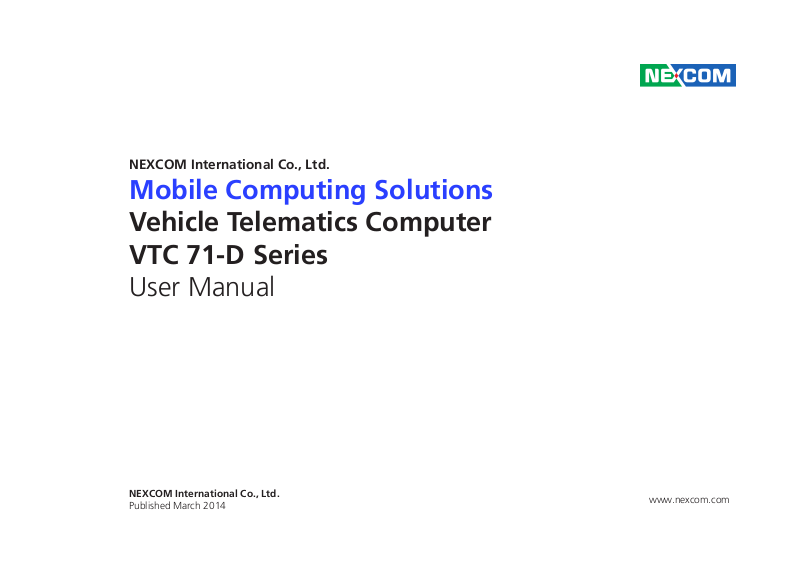

Vehicle Telematics Computer VTC 71-D Series
User Manual
NEXCOM International Co., Ltd.
Published March 2014
www.nexcom.com
Contents
Contents
Preface
Copyright .............................................................................................. v
Disclaimer .............................................................................................. v
Acknowledgements ............................................................................... v
Regulatory Compliance Statements ........................................................ v
Declaration of Conformity ....................................................................... v
RoHS Compliance .................................................................................. vi
Warranty and RMA ................................................................................vii
Technical Support and Assistance ............................................................ x
Conventions Used in this Manual ............................................................ x
Global Service Contact Information ........................................................ xi
Package Contents ................................................................................. xiii
Chapter 1: Product Introduction
Overview ................................................................................................1
Key Features ...........................................................................................2
Hardware Specifications ..........................................................................3
VTC 7100-D1K/ 7110-D1K/ 7120-D1K ................................................3
Connector Numbering ............................................................................5
VTC 7100-D1K .................................................................................... 5
VTC 7110-D1K & VTC 7120-D1K ........................................................6
Chapter 2: External Connectors Pinout Description
Power Button ......................................................................................7
Power On & SSD or HD Active LED ......................................................7
WLAN & WWAN Active LED ................................................................8
USB 2.0 Port ........................................................................................ 8
Reset Button ........................................................................................9
SIM Card Connector-3.5G Wakeup ......................................................9
CFast Card Connector .......................................................................10
Line-out .............................................................................................10
Mic-in ...............................................................................................11
Mic-in2, Line-out2 ............................................................................. 11
RS232 Connector ..............................................................................12
LVDS Connector ................................................................................ 12
LAN Connectors ................................................................................13
USB Connector .................................................................................. 13
RS422/485 Connector .......................................................................14
VGA Connector ................................................................................. 14
GPIO Connector ................................................................................15
External 12V (4A) & Car Battery (4A) Power and SMBUS .................... 15
Power Input .......................................................................................16
RS232 Connector ..............................................................................16
RS422/485 Connector .......................................................................17
Dual OBDII Module Connector ...........................................................17
DI/DO Connector ............................................................................... 18
Analog Input Connector .................................................................... 18
Chapter 3: Jumpers and Switches
Before You Begin ................................................................................. 19
Precautions ..........................................................................................19
ii
VTC 71-D Series User Manual
Contents
Jumper Settings ....................................................................................20
VTC 71 Series Jumpers Setting .............................................................. 23
CMOS Clear Select ............................................................................23
RS232 – Enable Select .......................................................................23
LVDS Power input Voltage Select .......................................................23
CMOS Input Voltage Select ................................................................23
PCI-104 VI/O Voltage Setting .............................................................23
RS232 Connector ..............................................................................24
LVDS Connector+USB0 ...................................................................... 24
GPS I-PEX Connector ......................................................................... 25
DVI+VGA Connector ........................................................................25
SATA PWR Connector ........................................................................ 26
SATA Connector ................................................................................ 26
Mini-PCIe (WWAN) ............................................................................27
Mini-PCIe (WLAN) ..............................................................................28
PCI-104 Connector ........................................................................... 29
MCU Programmer PIN Header ...........................................................30
MCU COM Port ................................................................................. 30
GAL Programmer PIN Header .............................................................31
Super I/O Temperature Sensor ............................................................ 31
MCU Temperature Sensor .................................................................. 32
LVDS Power Connector ...................................................................... 32
GPS Connector .................................................................................. 33
Port80 Connector .............................................................................. 33
Bluetooth Connector ......................................................................... 34
Button Power ....................................................................................34
RTC Battery Connector ...................................................................... 35
Hi-speed Board to Board Connector ..................................................36
High Speed Board-to-Board Connector:
COM Express Row A and Row B ........................................................37
High Speed Board-to-Board Connector:
COM Express Row C and Row D ........................................................40
DI/DO board placement ........................................................................43
Connector Specification & Jumper Setting ............................................. 44
MCU Download Port .........................................................................44
MCU Debug ...................................................................................... 44
CPLD Download Port ......................................................................... 45
OBDII Module Input Port ....................................................................45
OBDII Module Output Port .................................................................46
GPO and GPI In/Output Switch ..........................................................47
VIOB-DIOC GPIO, CAN I/O Setting ..................................................... 47
Chapter 4: Mechanical Dimensions
VTC 7100-D1K .................................................................................. 48
VTC 7110-D1K & VTC 7120-D1K ......................................................49
Chapter 5: System Setup
Removing the Chassis Cover ................................................................50
Installing a GPRS/UMTS/HSDPA Module ...............................................51
Installing a Wireless LAN Module ..........................................................55
Installing a SATA SSD Drive ...................................................................57
Installing the PCI-104 Module ............................................................... 59
Rackmount Brackets .............................................................................61
Chapter 6: Driver Installation.................................62
Appendix A: Software Demo Utility for I/O Ports of Function Control
Menu Screen .....................................................................................63
1.1 Status ........................................................................................ 64
1.2 GPIO .........................................................................................64
1.3 WDT Setting .............................................................................. 65
1.4 Output Power ............................................................................65
1.5 Power On Delay Time ................................................................ 66
1.6 Power Off Delay Time ................................................................ 66
iii
VTC 71-D Series User Manual
Contents
1.7 3G Module ................................................................................ 66
1.8 WLAN Module ...........................................................................66
1.9 Wake Up Function .....................................................................67
Appendix B: Using the GPS Feature
u-blox NEO-6Q GPS Module Specification ............................................. 68
Setup and Using GPS Information .........................................................68
Appendix C: Signal Connection of GPO, GPI, Analog Voltage Input and Analog Current Input
Digital Input .......................................................................................... 72
Digital Output ....................................................................................... 73
Analog Input .........................................................................................74
Appendix D: Signal Connection of DI/DO
GPIO Pinout Description ........................................................................ 75
Digital Input .......................................................................................... 75
Digital Output ....................................................................................... 76
Appendix E: Vehicle Power Management Setup
External Power Output Setting .............................................................. 78
Startup and Shutdown Voltage Setting .................................................78
Power-on Delay Setting .........................................................................80
Power-off Delay Setting ........................................................................82
J1939 Raw Data Protocol (HEX CODE) ..................................................88
J1708 Raw Data Protocol (HEX CODE) ..................................................88
J1939 Packaged Messages Protocol ......................................................89
J1708 Packaged Messages Protocol ......................................................97
J1708 Command Example ..................................................................101
Appendix G: Pin Definition for GPS Dead Reckoning Module
-- VIOB-GPS-DR01
S2532DR Overview .............................................................................102
Technical Specifications ....................................................................... 102
Appendix F: OBDII Module Setup and Command
OBDII Module .......................................................................................84
VIOX-CAN01 Setup ...............................................................................84
AT Command Summary ........................................................................85
Simple Data Protocol: (ASCII CODE) ......................................................86
Simple Data Protocol: (HEX CODE) ........................................................87
iv
VTC 71-D Series User Manual
Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
VTC 7100-D1K, VTC 7110-D1K and VTC 7120-D1K are trademarks of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
v
VTC 71-D Series User Manual
Preface
e13 Mark
The “e” mark is the proof of compliance with directives (laws) required by the European Union. The Council of European communities in Brussels issues these directives and all members must accept approved products. e13 - Luxembourg For more information, visit http://www.tuv.com/jp/en/_e_mark_and_e_ mark_homologation_for_vehicles_vehicle_components_.html.
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green
products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment. RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <
0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name. All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.
vi
VTC 71-D Series User Manual
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
▪ Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
▪ Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
▪ Customers can send back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
▪ Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
▪ Component fee: NEXCOM will only charge for main components such as
SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
▪ Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
▪ Replace with 3rd party products if needed.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Board Level
▪ Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
▪ Any products returned by NEXCOM to other locations besides the
customers’ site will bear an extra charge and will be billed to the customer.
vii
VTC 71-D Series User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A grounding strap
• An anti-static pad
Using your fingers can disconnect most of the connections. It is recom­mended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
viii
VTC 71-D Series User Manual
Preface
Safety Precautions
▪ Read these safety instructions carefully.
▪ Keep this User Manual for later reference.
▪ Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
▪ For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
▪ Keep this equipment away from humidity.
▪ Put this equipment on a stable surface during installation. Dropping it or
letting it fall may cause damage.
▪ Do not leave this equipment in either an unconditioned environment or
o
in a above 40
C storage temperature as this may damage the equipment.
▪ The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
▪ Make sure the voltage of the power source is correct before connecting
the equipment to the power outlet.
▪ Place the power cord in a way so that people will not step on it. Do not
place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
▪ All cautions and warnings on the equipment should be noted.
▪ If the equipment is not used for a long time, disconnect it from the power
source to avoid damage by transient overvoltage.
▪ Never pour any liquid into an opening. This may cause fire or electrical
shock.
▪ Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
▪ If one of the following situations arises, get the equipment checked by
service personnel: a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work
according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.
▪ Do not place heavy objects on the equipment.
▪ The unit uses a three-wire ground cable which is equipped with a third
pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
▪ CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
▪ The computer is provided with CD drives that comply with the appropriate
safety standards including IEC 60825.
ix
VTC 71-D Series User Manual
Preface
CAUTION!
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
CAUTION!CAUTION!
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
x
VTC 71-D Series User Manual
Preface
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com
America
USA NEXCOM USA
2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com
Asia
Taiwan Central Taiwan Office
16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw
Japan NEXCOM Japan
9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com
China NEXCOM China
2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-6599 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn
Shanghai Office
Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn
xi
VTC 71-D Series User Manual
Preface
Shenzhen Office
Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn
Wuhan Office
1-C1804/ 1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn
Chengdu Office
9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn
Europe
Italy NEXCOM ITALIA S.r.l
Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it
United Kingdom NEXCOM EUROPE
10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu
xii
VTC 71-D Series User Manual
Preface
Package Contents
Before continuing, verify that the VTC 71xx-DX series package that you received is complete. Your VTC 71xx-DX series package should have all the items listed in the following table.
Item P/N Name Specification Qty
1 4NCPM00302X00 (T)Terminal Blocks 3P Phoenix Contact:1777992 5.08mm Male DIP Green 1
2 50311F0110X00 (H)Flat Head Screw Long FEI:F3x5ISO+NYLOK NIGP F3x5 NI NYLOK 4
3 60233PW134X00
4 60233SAM05X00
Power Cable for VTK33B SMBus Signal EDI:356206060201-RS
GPS Antenna ARKNAV:A-130 GPS Antenna 5M SMA180P R1 L3
5 602DCD0527X00 Driver CD 1
6 4NCPF00513X00 (N)Terminal Blocks 5P ANYTEK:TJ0531520000G 3.81mm Female DIP Green 1
7 4NCPF01006X00 (N)Terminal Blocks 10P ANYTEK:TJ1031520000G 3.81mm Female DIP Green 2
Note: Item 6 and 7 are only for VTC 7100-D1K, VTC 7110-D1K and VTC 7120-D1K.
ATX Power Con. 6P TO 6P PITCH:4.2mm L:200mm 1
FOR VTC 5M/SMA180P 1
xiii
VTC 71-D Series User Manual
Preface
Ordering Information
The following provides ordering information for VTC 71xx-Dx series.
• VTC 7100-D1K (P/N: 10V00710004X0)
®
Atom™ D2550 1.86GHz, 2GB DDR3 SODIMM, LVDS/ VGA Output,
Intel 1 RS-232, 1 RS-422/485 with isolation DI/DO, COM and 1x OBDII module (SAE J1939 or J1708)
• VTC 7110-D1K (P/N: 10V00711007X0)
®
Intel
Core™ i7 1.5GHz, 2GB DDR3 SODIMM, LVDS/ VGA Output, 1 RS-232, 1 RS-422/485 with isolation DI/DO, COM and 1x OBDII module (SAE J1939 or J1708)
• VTC 7120-D1K (P/N: 10V00712002X0)
®
Intel
Celeron® 847E 1.1GHz, 2GB DDR3 SODIMM, LVDS/ VGA Output, 1 RS-232, 1 RS-422/485 with isolation DI/DO, COM and 1x OBDII module (SAE J1939 or J1708)
xiv
VTC 71-D Series User Manual
Chapter 1: Product Introduction
Chapter 1: Product Introduction
Overview
VTC 7100-D1K
VTC 7110-D1K & VTC 7120-D1K
Front View
Front View
Rear View
Rear View
1
VTC 71-D Series User Manual
Chapter 1: Product Introduction
VTC 71xx-DX series, adopting the Intel® high performance processor, is a new generation of VTC series. In addition to keeping the advantage of existing VTC series, it offers dual LAN ports for redundancy, two high speed interface for storage, 2.5” SATA and CFast. The storage is easily accessible from the front side for maintenance concern. Furthermore, it offers OBDII module (SAE J1939/J1708) for heavy duty truck. What’s remarkable is its flexible designs that can reserve the space and interface to extend the required features for application such as 4-channel POE with second storage interface.
VTC 71xx-DX series fulfills vehicle industry requirements. The design itself is compliant with vehicle industrial standard such as eMark. More features required for in-vehicle operations, such as power ignition delay control, low-power protection and SMBus connection, etc., are continued from NEXCOM’s other in-vehicle computer products. The GPS function navigates drivers to ultimate fleet management. Optional 802.11b/g/n, 3.5G, GPRS, and Bluetooth availability make VTC 71xx-DX series ready for wider coverage and future trend. Multiple display connections make VTC 71xx-DX series an ideal choice for in-vehicle signage platforms as well.
Key Features
• Built-in Intel® processor
• Support two Ethernet LAN ports
• Removal 2.5" SSD tray
• OBDII module supporting SAE J1939 or J1708
• Optional isolation digital input and output
• 9~36V wide range DC power input
• Smarter ignition power on/off, delay-time and low voltage protection
• Rugged fanless design to meet MIL standard
• Voice communication and SMS wake up function with CM8000 WWAN
module
2
VTC 71-D Series User Manual
Chapter 1: Product Introduction
Hardware Specifications
VTC 7100-D1K/ 7110-D1K/ 7120-D1K
CPU
▪ VTC7100 series: Intel® Atom™ D2550 1.86GHz ▪ VTC7110 series: Intel ▪ VTC7120 series: Intel
Main Chipset
▪ VTC7100 series: ICH10R ▪ VTC7110 series: QM67 ▪ VTC7120 series: QM67
Memory
▪ VTC 7110 and VTC 7120 series: One 204-pin SO-DIMM DDR3 1333 up to 8GB
2GB (default)
▪ VTC 7100 series: One 204-pin SO-DIMM DDR3 1066 up to 4GB
2GB (default)
Expansion
▪ 1x Mini-PCIe socket (PCIe + USB) for WLAN option ▪ 1x Mini-PCIe socket (USB) for WWAN option ▪ 1x Bluetooth module for option ▪ 1x onboard uBlox NEO-6Q GPS module or optional GPS module with dead
reckoning
I/O Interface-Front
▪ 1x Line-out, 1x Mic-in (for WWAN CM8000 voice communication) ▪ 2x SIM card socket (selectable) ▪ 1x System reset button ▪ 1x USB 2.0 host type A connector ▪ 1x Power button ▪ 1x CFast with protection cover ▪ 1x Accessible 2.5” SATA II SSD tray ▪ 4x LED’s for power, storage, WLAN/ WWAN and GPIO
®
Core™ i7 2610UE 1.5GHz
®
Celeron® 847E 1.1GHz
I/O Interface-Rear
▪ 1x 9~36VDC input with Ignition ▪ 1x 12V/4A DC output, SMBus ▪ 1x DB26 LVDS interface with 12V and USB2.0 ▪ 1x DB15 VGA ▪ 1x DB9 RS-232 (default) or OBDII (optional) ▪ 1x DB9 RS-422/ 485
▪ 1x DB9 female connector for 4x DI and 4x DO (Digital Input) Input Voltage (Internal Type): 5VDC TTL (default) Input Voltage (Source Type): 0~30 VDC (Digital Output) Digital Output (Sink Type): 5VDC TTL (default), max current: 20mA Digital Output (Source Type): 0~30VDC, max current: 250mA
▪ 2x USB 2.0 host type A connector
▪ 2x RJ45 with LEDs for 10/ 100/ 1000Mbps Ethernet
▪ 10-Pin terminal block for 8x DI and 8x DO Isolation: 5K Vrms (Isoated Digital Input) Input Voltage (Internal Type): 5VDC TTL (default) Input Voltage (Source Type): 0~30 VDC (Isoated Digital Output) Digital Output (Sink Type): 5VDCTTL (default), max current: 20mA Digital Output (Source Type): 0~30VDC, max current: 250mA
▪ 5-Pin terminal block for 3x analog input Isolation: 2K Vrms 2x isolated analog voltage input 12VDC (Max.) 1x isolated analog current input 10A (Max.)
▪ 1x Line-out, 1x Mic-in
▪ 1x SMA-type GPS antenna connector
▪ 4x Antenna hole reserved for SMA-type antenna connector (WWAN/
WLAN/ BT)
▪ 1x DB9 male connector for 1x OBDII module (default) and 2x OBDII
module (optional)
3
VTC 71-D Series User Manual
Chapter 1: Product Introduction
Others
▪ 1x PCI-104 ▪ 1x G Sensor
Note: If PCI-104 card & 2.5” SSD installation are required, 2.5” SSD will be internal type and front panel will be changed.
Power Management
▪ Selectable boot-up & shut-down voltage for low power protection by
software ▪ Setting 8-level on/off delay time by software ▪ Status of ignition and low voltage status can be detected by software ▪ Support S3/ S4 suspend mode
Dimensions
▪ VTC 7100-D1K: 260mm (W) x 176mm (D) x 73.6mm (H)
(10.24”x 6.93”x 2.9”) 4 Kg (7.47 Lb)
▪ VTC 7110-D1K: 260mm (W) x 176mm (D) x 90.1mm (H)
(10.24”x 6.93”x 3.51”) 3.89 Kg (8.57 Lb)
▪ VTC 7120-D1K: 260mm (W) x 176mm (D) x 90.1mm (H)
(10.24”x 6.93”x 3.51”) 3.89 Kg (8.57 Lb)
Construction
▪ Aluminum enclosure with fanless design
Environment
▪ Operating temperatures:
Ambient with air: -30°C to 50°C (VTC 7110 / 7120 series) Ambient with air: -30°C to 55°C (VTC 7100 series)
▪ Storage temperatures: -35°C to 85°C ▪ Relative humidity: 10% to 90% (non-condensing) ▪ Vibration (random): 1g@5~500 Hz (in operation, SSD) ▪ Vibration (SSD):
Operating: MIL-STD-810G, Method 514.6, Category 4, common carrier US highway truck vibration exposure Storage: MIL-STD-810G, Method 514.6, Category 24, minimum integrity test
▪ Shock (SSD):
Operating: MIL-STD-810G, Method 516.6, Procedure I, functional shock=20g Non-Operating: MIL-STD-810G, Method 516.6, Procedure V, crash hazard
shock test=75g
Certifications
▪ CE approval ▪ FCC Class A ▪ e13 Mark
Power Management
▪ Power-on delay time is selectable by BIOS to disable and enable in 10sec /
30sec / 1min / 5min / 10 min / 15min / 30min / 1hr.
▪ Power-off delay time is selectable by BIOS to disable and enable in 20sec /
1min / 5min / 10min / 30min / 1hr / 6hr / 18hr. ▪ S3, S4 suspend mode ▪ Ignition On/Off status detectable by SW ▪ Low battery status detectable by SW ▪ Ignition enable/disable is jumper selectable ▪ Shut down system automatically when the system’s internal temperature
is over 80C. ▪ VTC 71 series will automatically shut down 5 minutes after the duration
of low battery voltage is over 60 sec. User can detect this situation via
software. ▪ If the ignition is off and the system is still on after 3 minutes, VTC 71
series will shut down automatically. ▪ If the ignition is off, the user can detect this status via the software. ▪ If the ignition is turned on again and the power-off delay is in progress,
VTC 71 series will cancel the delay function and will continue to operate
normally. ▪ If the ignition is turned on again and the power-off delay ended,
VTC 71 series will shut down completely will power-on again
automatically. ▪ If the ignition is turned off again and power-on delay is in progress,
VTC 71 series will cancel the delay and stay in power-off status. ▪ If the ignition is turned off again and the power-on delay ended (entered
OS already), VTC 71 series will continue to operate normally. ▪ If the ignition is turned off again and the power-on delay ended (in BIOS
process), VTC 71 series will shut down immediately. ▪ If VTC 71 series is off, only below 10mA is used.
4
VTC 71-D Series User Manual
Chapter 1: Product Introduction
Connector Numbering
The following diagrams indicate the numbers of the connectors. Use these numbers to locate the connectors’ respective pinout assignments on chapter 2 of the manual. Please note that connector numbers 6, 10, and 13 pinouts are not available.
VTC 7100-D1K
5
VTC 71-D Series User Manual
Chapter 1: Product Introduction
VTC 7110-D1K & VTC 7120-D1K
6
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
Chapter 2: External Connectors Pinout Description
Power Button
Connector Number: 1
1
1
4
4
A1A1C1
MH1
MH1
Pin Definition Pin Definition
1 GND 2 NC 3 +V3.3ALW 4 NC
A1 VCC5_S C1 GND
MH2
2
2
3
3
C1
MH2
Power On & SSD or HD Active LED
Connector Number: 2
T1
B1
Pin Function Description
T1 POWER LED B1 HD LED
7
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
WLAN & WWAN Active LED
Connector Number: 2
T1
B1
Pin Function Description
T1 WWAN LED B1 WLAN LED
USB 2.0 Port
Connector Number: 3
1 4
Pin Definition Pin Definition
1 VCC 2 DATA1­3 DATA1+ 4 GND
8
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
Reset Button
Connector Number: 4
1 2
Pin Function Description
1 GND 2 RST_BTN#
SIM Card Connector-3.5G Wakeup
Connector Number: 5
C5
C6
C7
SW SW
Pin Definition Pin Definition
C1 POWER VOLTAGE C2 RESET SIGNAL C3 CLOCK SIGNAL C5 GND
vedC6 VPP:PROGRAM VOLTAGE C7 I/O
SW Contact present switch
NOTE: Only SIM CARD 1 (top side) can support SMS wake up function with CM8000 WWAN module.
C1
C2
C3
9
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
CFast Card Connector
Connector Number: 7
S1 S7 PC1 PC17
Pin Definition Pin Definition
S1 GND S2 SATA_TXP S3 SATA_TXN S4 GND S5 SATA_RXN S6 SATA_RXP
S7 GND PC1 CFAST_CDI PC2 GND PC3 NC PC4 NC PC5 NC PC6 NC PC7 GND PC8 CFAST_LED1 PC9 CFAST_LED2 PC10 NC
PC11 NC PC12 NC PC13 VCC3 PC14 VCC3 PC15 GND PC16 GND PC17 CFAST_CDO
Line-out
Connector Number: 8
Pin Definition Pin Definition
1 FRONT_OUT_RC 2 FRONT_JD 3 NC 4 FRONT_OUT_LC 5 GND 6 GND
10
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
Mic-in
Connector Number: 8
Pin Definition Pin Definition
1 NC 2 MIC_JD 3 NC 4 MIC_OUT-L 5 GND 6 GND
Mic-in2, Line-out2
Connector Number: 9
Pin Definition Pin Definition
1 LINE_OUT_L 2 SURR_JD 3 NC 4 LINE_OUT_R
5 GND 6 GND 22 GND 23 NC 24 MIC_JD 25 MIC_OUT
11
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
RS232 Connector
Connector size: DB9, Male Connector Number: 11
1 5
9 6
Pin Definition Pin Definition
1 DCD 2 RXD 3 TXD 4 DTR 5 GND 6 DSR 7 RTS 8 CTS 9 RI
LVDS Connector
Connector size: DB26, Female Connector Number: 12
19
1926
Pin Definition Pin Definition
1 Panel_ EN 2 Panel_control
3 VDD 4 VDD
5 LCDD09(OUT3) 6 LCDD01(OUT0)
7 LCDD08(OUT3#) 8 LCDD00(OUT0#)
9 LCDD_GND 10 LCDD_GND
11 LCDD07(CLK) 12 LCDD03(OUT1) 13 LCDD06(CLK#) 14 LCDD02(OUT1#) 15 LVDS_GND 16 LCDD_GND 17 LCDD05(OUT2) 18 Power on push button 19 LCDD04(OUT2#) 20 Panel_backlight 21 LCDD_GND 22 Panel-Gnd 23 USB_0# 24 Contact_DET# 25 USB_0 26 USB_VCC
NOTE: maximum resolution up to 1280x768 @ 60Hz
12
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
LAN Connectors
Connector size: RJ-45 Connector Number: 14
18
Pin Definition Pin Definition
1 TX+ 2 TX­3 RX+ 4 N/C1 5 N/C2 6 RX­7 N/C3 8 N/C4
USB Connector
Connector Number: 15
1 4
5 8
Pin Definition Pin Definition
1 VCC 2 DATA1-
3 DATA1+ 4 GND
5 VCC 6 DATA-
7 DATA+ 8 GND
13
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
RS422/485 Connector
Connector size: DB9, Male Connector Number: 16
1 5
9 6
Pin Definition Pin Definition
1 RS422_RX+ / RS485_+ 2 RS422_RX- / RS485_­3 RS422_TX+ 4 RS422_TX­5 GND 6 NC 7 NC 8 NC 9 NC
VGA Connector
Connector size: DB15, Male Connector Number: 17
5 1
15 11
Pin Definition Pin Definition
1 RED 2 GREEN
3 BLUE 4 Gnd
5 Gnd 6 Gnd
7 Gnd 8 Gnd
9 VCC 10 Gnd
11 Gnd 12 DDCDAT 13 Hsync 14 Vsync 15 DDCCLK 16 OPEN
14
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
GPIO Connector
Connector size: DB9, Female Connector Number: 18
1 5
8 6
Pin Definition Pin Definition
1 INPUT_1 PORT 2 INPUT_2 PORT 3 INPUT_3 PORT 4 INPUT_4 PORT 5 GND 6 OUTPUT_1 PORT 7 OUTPUT_2 PORT / 8 OUTPUT_3 PORT 9 OUTPUT_4 PORT
External 12V (4A) & Car Battery (4A) Power and SMBUS
Connector Number: 19
6 4
3 1
Pin Definition Pin Definition
1 Car battery(4A) 2 VCC12(4A)
3 SMBCLK 4 GND
5 GND 6 SMBDATA
15
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
Power Input
Connector size: 3W3 3PIN 6.85mm DIP Connector Number: 20
3 2 1
Pin Definition
1 GND 2 VIN(9V~36V) 3 IGNITION
RS232 Connector
Connector size: DB9, Male Connector Number: 24
1 5
9 6
Pin Definition Pin Definition
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI
16
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
RS422/485 Connector
Connector size: DB9, Male Connector Number: 25
1 5
9 6
Pin Definition Pin Definition
1 RS485_+ 2 RS485_­3 RS422_TX+ 4 RS422_TX­5 GND 6 NC 7 NC 8 NC 9 NC
Dual OBDII Module Connector
Connector size: DB9, Male Connector Number: 26
1 5
9 6
Pin Definition Pin Definition
1 C1708_2_L 2 CAN2_L
3 CAN1_L 4 C1708_1_L
5 GND 6 C1708_2_H
7 CAN2_H 8 CAN1_H
9 C1708_1_H
17
VTC 71-D Series User Manual
Chapter 2: External Connectors Pinout Description
DI/DO Connector
Connector size: Terminal Blocks 10-pin, Male Connector Number: 27
101
Pin Definition Pin Definition
1 GND 2 GPI1 / GPO1 3 GPI2 / GPO2 4 GPI3 / GPO3 5 GPI4 / GPO4 6 GPI5 / GPO5
7 GPI6 / GPO6 8 GPI7 / GPO7 9 GPI8 / GPO8 10 GND
101
Analog Input Connector
Connector size: Terminal Blocks 5-pin, Male Connector Number: 28
1 5
Pin Definition Pin Definition
1 GND 2 VIN1
3 VIN2 4 I-OUT
5 I-IN
18
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Chapter 3: Jumpers and Switches
This chapter describes how to set the jumpers on the motherboard.
Before You Begin
▪ Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep small components separated.
▪ Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad
▪ Using your fingers can disconnect most of the connections. It is
recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
▪ Before working on internal components, make sure that the power is off.
Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or yourself:
▪ Always disconnect the unit from the power outlet whenever you are
working inside the case.
▪ If possible, wear a grounded wrist strap when you are working inside the
computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
▪ Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
▪ Leave all components inside the static-proof packaging that they shipped
with until they are ready for installation.
▪ Use correct screws and do not over tighten screws.
19
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 are Short
3
2
1
1
3
2
20
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
VTC 71 Series Connector Specification & Jumper Setting
VTC 71 Series carrier board placement
The figure below is the VTCB 71 series carrier board which is the board used in the VTC 71 series system. It shows the locations of the jumpers and connectors.
Top View
21
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Bottom View
22
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
VTC 71 Series Jumpers Setting
CMOS Clear Select
SW2: Power-on Button SW3: Reset Button
Item B. Start-up & Shut down voltage control
(*) for default seeting
SW1: Voltage setup selection
2
1
O
N
setup voltage
SW1
12V 24V
SW1.1 OFF OFF ON SW1.2 OFF ON Don’t Care
SW4: Voltage setup selection
214
3
O
N
9V~36V (*)
all can start
RS232 – Enable Select
Connector location: JP8
Pin Status Function Description
1-2 Short Disable RS232
1-2(*) NC Enable RS232
LVDS Power input Voltage Select
Connector location: JP1
Pin Status Function Description
1-2 Short +5V IN
2-3(*) Short* +3.3V IN
CMOS Input Voltage Select
Connector location: JP6
Pin Status Function Description
1-2(*) Short* VBAT IN
2-3 Short Clear CMOS
PCI-104 VI/O Voltage Setting
Connector location: J15
2 4 6
SW1
setup voltage
ON(*) OFF
SW4.1 GPO0 PULL UP 5V Don’t Care SW4.2 GPO1 PULL UP 5V Don’t Care SW4.3 GPO2 PULL UP 5V Don’t Care SW4.4 GPO3 PULL UP 5V Don’t Care
1 3 5
Pin Status Function Description
(1-3)(2-4) (*) Short +3.3V
(3-5)(4-6) Short +5V
23
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
RS232 Connector
Connector size:2 x 5 = 10Pins PIN Header, ( 2.0 mm Pitch ) Connector location: CN11, CN15
1
9
(CN15USE TTL SINGNAL)
(CN11Standard RS232 interface)
2
Pin Definition Pin Definition
1 VCC5 2 VCC12 3 NC 4 NC 5 GND 6 GND 7 CAN_DI 8 CAN_DO 9 TXD1 10 RXD1
Pin Definition Pin Definition
1 DCD1 2 RXD1 3 TXD1 4 DTR1 5 Gnd1 6 DSR1 7 RTS1 8 CTS1 9 RI1
LVDS Connector+USB0
Connector size: 2 X 15 (2.0mm) Connector location: CN12
21
3029
Pin Definition Pin Definition
1 LVDS_CLK 2 LVDS_DAT
3 Panel_VDD 4 LVDS_1(OUT0)
5 LVDS_9(OUT3) 6 LVDS_0(OUT0#)
7 LVDS_8(OUT3#) 8 Panel_VDD
9 LVDS_GND 10 LVDS_GND
11 LVDS_7(CLK) 12 LVDS_3(OUT1) 13 LVDS_6(CLK#) 14 LVDS_2(OUT1#) 15 LVDS_GND 16 LVDS_GND 17 LVDS_5(OUT2) 18 Panel_backlight(+12V) 19 LVDS_4(OUT2#) 20 Panel_backlight(+12V) 21 LVDS_GND 22 Power on push buttom 23 USB_2# 24 USB_GND 25 USB_2 26 USB_VCC (+5V) 27 USB_GND 28 USB_GND 29 Panel_backlight(+12V) 30 GND
24
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
GPS I-PEX Connector
Connector location: CN13
32
1
Pin Definition Pin Definition
1 RF_IN_F 2 GND 3 GND 4
DVI+VGA Connector
Connector size: 2 x 15 = 30Pins PIN Header, ( 1.0 mm Pitch ) Connector location: CN14
1
1
3
3
5
5
7
7
9
9
11
11
13
13
15
15
17
17
19
19
21
21
23
23
25
25
27
27
29
29
MH1 MH2
GND GND
Pin Definition Pin Definition
1 CH_CLK_N 2 DVI_I_5V
3 CH_CLK_P 4 HPDET_I
5 CH_TX0_N 6 DVI_I_DDC_D_R
7 CH_TX0_P 8 DVI_I_DDC_C_R
9 CH_TX1_N 10 CH_GND
11 CH_TX1_P 12 CH_GND 13 CH_TX2_N 14 CH_GND 15 CH_TX2_P 16 CH_GND 17 NC 18 NC 19 NC 20 NC 21 CH_GND 22 VGA1_HSYNC 23 VGA1_RED 24 VGA1_VSYNC 25 VGA1_BLUE 26 VGA1_DDCDAT 27 VGA1_GREEN 28 VGA1_DDCCLK 29 M_DET 30 VGA1_PWR_L
2
2
4
4
6
6
8
8
10
10
12
12
14
14
16
16
18
18
20
20
22
22
24
24
26
26
28
28
30
30
25
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
SATA PWR Connector
Connector location: CN16
14
Pin Definition Pin Definition
1 VCC12 2 GND 3 GND 4 VCC5
SATA Connector
Connector location: CN17
Pin Definition Pin Definition
1 GND 2 SATA_TXP0 -
3 SATA_TXN0 4 GND
5 SATA_RXN0 6 SATA_RXP0
7 GND
26
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Mini-PCIe (WWAN)
Connector location: CN18
1 2
51 52
Pin Definition Pin Definition
1 MIC + 2 +V3.3S 3 MIC - 4 GND 5 SPK + 6 NC 7 GND 8 USIM PWR
9 GND 10 USIM DATa 11 VCC_MSM26_DIG 12 USIM CLK 13 NC 14 USIM RST 15 GND 16 NC 17 NC 18 GND 19 NC 20 W_DISABLE# 21 GND 22 NC 23 NC 24 NC 25 NC 26 GND
Pin Definition Pin Definition
27 GND 28 NC 29 GND 30 NC 31 NC 32 NC 33 RESET 34 GND 35 GND 36 USB_D­37 GND 38 USB_D+ 39 +V3.3S 40 GND 41 +V3.3S 42 LED_WWAN# 43 GND 44 NC 45 NC 46 NC 47 NC 48 NC 49 NC 50 GND 51 NC 52 +V3.3S
27
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Mini-PCIe (WLAN)
Connector location: CN19
1 2
51 52
Pin Definition Pin Definition
1 WAKE# 2 +V3.3S
3 NC 4 GND
5 NC 6 +V1.5S
7 CLKREQ# 8 NC
9 GND 10 NC 11 REFCLK- 12 NC 13 REFCLK+ 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 DISABLE# 21 GND 22 PERST# 23 PERn0 24 +3.3S 25 PERp0 26 GND
Pin Definition Pin Definition
27 GND 28 +V1.5S 29 GND 30 SMB_CLK 31 PETn0 32 SMB_DATA 33 PETp0 34 GND 35 GND 36 USB_D­37 NC 38 USB_D+ 39 NC 40 GND 41 NC 42 LED_WWAN# 43 NC 44 LED_WLAN# 45 NC 46 LED_WPAN# 47 NC 48 +V1.5S 49 NC 50 GND 51 NC 52 +V3.3S
28
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
PCI-104 Connector
Connector location: CN20
1 2 29 30 Row A Row B Row C Row D
1 2 29 30
Pin A B C D
1 GND Reserved +5 AD00 2 VI/O AD02 AD01 +5V 3 AD05 GND AD04 AD03 4 C/BE0# AD07 GND AD06 5 GND AD09 AD08 GND 6 AD11 VI/O AD10 M66EN 7 AD14 AD13 GND AD12 8 +3.3V C/BE1# AD15 +3.3V
9 SERR# GND Reserved PAR 10 GND PERR# +3.3V Reserved 11 STOP# +3.3V LOCK# GND 12 +3.3V TRDY# GND DEVSEL# 13 FRAME# GND IRDY# +3.3V 14 GND AD16 +3.3V C/BE2# 15 AD18 +3.3V AD17 GND
Pin A B C D
16 AD21 AD20 GND AD19 17 +3.3V AD23 AD22 +3.3V 18 IDSEL0 GND IDSEL1 IDSEL2 19 AD24 C/BE3# VI/O IDSEL3 20 GND AD26 AD25 GND 21 AD29 +5V AD28 AD27 22 +5V AD30 GND AD31 23 REQ0# GND REQ1# VI/O 24 GND REQ2# +5V GNT0# 25 GNT1# VI/O GNT2# GND 26 +5V CLK0 GND CLK1 27 CLK2 +5V CLK3 GND 28 GND INTD# +5V RST# 29 +12V INTA# INTB# INTC# 30 -12V REQ3# GNT3# GND
29
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
MCU Programmer PIN Header
Connector location: JP2
1 5
Pin Definition Pin Definition
1 +3.3ALW 2 C2D 3 MRST 4 C2CK 5 GND
MCU COM Port
Connector location: JP3
1 3
Pin Function Description
1 TX 2 RX 3 GND
30
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
GAL Programmer PIN Header
Connector location: JP4
1 6
Pin Definition Pin Definition
1 VCC3 2 GND 3 TCK 4 TDO 5 TD1 6 TMS
Super I/O Temperature Sensor
Connector location: JP5
1 2
Pin Function Description
1 SENSOR+ 2 GND
31
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
MCU Temperature Sensor
Connector location: JP7
1 2
Pin Function Description
1 SENSOR+ 2 GND
LVDS Power Connector
Connector location: J8
16
Pin Definition Pin Definition
1 Panel_backlight 2 Panel_VDD 3 GND 4 GND 5 LVDS_PANEL 6 LVDS_BIASON
32
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
GPS Connector
Connector location: J9
16
Pin Definition Pin Definition
1 +V3.3S 2 GND 3 SP_RX1 4 SP_TX1 5 GPS_LED# 6 GPS_BAT
NOTE: Onboard uBlox NEO-6Q GPS module can’t be used with optional GPS dead reckoning module (VIOB-GPS-DR01) at the same time.
Port80 Connector
Connector location: J10
110
Pin Definition Pin Definition
1 GND 2 CB_RESET# 3 SIO_CLK 4 LPC_FRAME# 5 LPC_AD3 6 LPC_AD2 7 LPC_AD1 8 LPC_AD0 9 VCC3 10 VCC3
33
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Bluetooth Connector
Connector location: J11
110
Pin Definition Pin Definition
1 GND 2 USB_6P_L 3 USB_6N_L 4 NC 5 NC 6 BT_AUDIO_EN_R 7 NC 8 BT_3.3V 9 NC 10 GND
Button Power
Connector location: J13
2 1
NO
Pin Function Description
1 GND 2 3.3V
34
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
RTC Battery Connector
Connector location: J14
12
Pin Definition Pin Definition
1 GND 2 VBAT1
35
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Hi-speed Board to Board Connector
V_MIN= CAR BATTERY OR POE POWER Connector location: J17
Pin Definition Pin Definition Pin Definition Pin Definition
A1 V_MIN A2 GND A3 V_MIN A4 GND A5 V_MIN A6 GND A7 V_MIN A8 GND
A9 V_MIN A10 GND A11 V_MIN A12 GND A13 V_MIN A14 GND A15 V_MIN A16 IGNITION_X A17 V_MIN A18 A19 V_MIN A20 A21 V_MIN A22 A23 V_MIN A24 A25 V_MIN A26 A27 V_MIN A28 A29 V_MIN A30 A31 V_MIN A32 A33 V_MIN A34 PM_SLP_S5# A35 V_MIN A36 PM_SLP_S4# A37 V_MIN A38 PM_SLP_S3# A39 V_MIN A40 I/O POK
Pin Definition Pin Definition Pin Definition Pin Definition
B1 MINI_CLKP3 B2 MINI_CLKP4 B3 MINI_CLKN3 B4 MINI_CLKN4
B5 GND B6 GND B7 PCIE_TXP2 B8 PCIE_RXP2
B9 PCIE_TXN2 B10 PCIE_RXN2 B11 GND B12 GND B13 PCIE_TXP3 B14 PCIE_RXP3 B15 PCIE_TXN3 B16 PCIE_RXN3 B17 GND B18 GND B19 SATA_TXP2 B20 SATA_RXP2 B21 SATA_TXP2 B22 SATA_RXN2 B23 GND B24 GND B25 USB_7P_L B26 LPC_AD0 B27 USB_7N_L B28 LPC_AD1 B29 GND B30 LPC_AD2 B31 SMB_DATA B32 LPC_AD3 B33 SMB_CLK B34 LPC_FRAME# B35 GND B36 SIO_CLK B37 NC B38 CB_RESET# B39 NC B40 NC
A11 A13 A15 A17 A19 A21 A23 A25 A27 A29 A31 A33 A35 A37 A39
B11 B13 B15 B17 B19 B21 B23 B25 B B29 B31 B33 B35 B37 B39
A1
A1
A3
A3
A5
A5
A7
A7
A9
A9 A11 A13 A15 A17 A19 A21 A23 A25 A27 A29 A31 A33 A35 A37 A39
B1
B1
B3
B3
B5
B5
B7
B7
B9
B9 B11 B13 B15 B17 B19 B21 B23 B25
27
B27 B29 B31 B33 B35 B37 B39
GND1GND2
GND1
GND2
GND3
GND4
GND5
G1G2G3G4G5G6G7
GND6
GND7
G8
A2
A2
A4
A4
A6
A6
A8
A8
A10
A10
A12
A12
A14
A14
A16
A16
A18
A18
A20
A20
A22
A22
A24
A24
A26
A26
A28
A28
A30
A30
A32
A32
A34
A34
A36
A36
A38
A38
A40
A40
B2
B2
B4
B4
B6
B6
B8
B8
B10
B10
B12
B12
B14
B14
B16
B16
B18
B18
B20
B20
B22
B22
B24
B24
B26
B26
B28
B28
B30
B30
B32
B32
B34
B34
B36
B36
B38
B38
B40
B40
GND8
36
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
High Speed Board-to-Board Connector: COM Express Row A and Row B
Connector size: 2 X 110 = 220 Pin Connector location: J12A
5
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B1B2B3B4B5B6B7B8B9
B1B2B3B4B5B6B7B8B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B2
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B47
B41
B42
B43
B44
B45
B46
B47
Row B
COM Express Connector
Row A
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
B83
B84
B85
B86
B87
B88
B89
B90
B91
B92
B93
B94
B95
B96
B97
B98
B99
B100
B101
B102
B103
B104
B105
B106
B107
B108
B109
B110
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
B83
B84
B85
B86
B87
B88
B89
B90
B91
B92
B93
B94
B95
B96
B97
B98
B99
B100
B101
B102
B103
B104
B105
B106
B107
B108
B109
B110
MH2
MH2
MH1
MH1
A1A2A3A4A5A6A7A8A9
A1A2A3A4A5A6A7A8A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
A43
Row A
Pin Definition Pin Definition
A1 GND A2 GBE0_MDI3­A3 GBE0_MDI3+ A4 NC A5 NC A6 GBE0_MDI2­A7 GBE0_MDI2+ A8 GBE0_LINK#
A9 GBE0_MDI1- A10 GBE0_MDI1+ A11 GND A12 GBE0_MDI0­A13 GBE0_MDI0+ A14 GBE0_CTREF
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
A83
A84
A85
A86
A87
A88
A89
A90
A91
A92
A93
A94
A95
A96
A97
A98
A99
A100
A101
A102
A103
A104
A105
A106
A107
A108
A109
A110
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
A83
A84
A85
A86
A87
A88
A89
A90
A91
A92
A93
A94
A95
A96
A97
A98
A99
A100
A101
A102
A103
A104
A105
A106
A107
A108
A109
A110
Row B
Pin Definition Pin Definition
B1 GND B2 GBE0_ACT# B3 LPC_FRAME# B4 LPC_AD0 B5 LPC_AD1 B6 LPC_AD2 B7 LPC_AD3 B8 NC
B9 NC B10 LPC_CLK B11 GND B12 PWRBTN# B13 SMB_CK B14 SMB_DAT
37
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Pin Definition Pin Definition
A15 SUS_S3# A16 SATA0_TX+ A17 SATA0_TX- A18 SUS_S4# A19 SATA0_RX+ A20 SATA0_RX­A21 GND A22 NC A23 NC A24 SUS_S5# A25 NC A26 NC A27 BATLOW# A28 ATA_ACT# A29 AC_SYNC A30 AC_RST# A31 GND A32 AC_BITCLK A33 AC_SDOUT A34 NC A35 NC A36 USB6­A37 USB6+ A38 USB_6_7_OC# A39 USB4- A40 USB4+ A41 GND A42 USB2­A43 USB2+ A44 USB_2_3_OC# A45 USB0- A46 USB0+ A47 VCC_RTC A48 NC A49 NC A50 NC A51 GND A52 NC A53 NC A54 NC A55 NC A56 NC A57 GND A58 NC A59 NC A60 GND A61 NC A62 NC A63 GPI1 A64 NC A65 NC A66 GND A67 NC A68 PCIE_TX0+ A69 PCIE_TX0- A70 GND
Pin Definition Pin Definition
B15 SMB_ALERT# B16 NC B17 NC B18 SUS_STAT# B19 NC B20 NC B21 GND B22 NC B23 NC B24 PWR_OK B25 NC B26 NC B27 NC B28 NC B29 NC B30 AC_SDIN0 B31 GND B32 SPKR B33 I2C_CK B34 I2C_DAT B35 THRM# B36 NC B37 NC B38 USB_4_5_OC# B39 USB5- B40 USB5+ B41 GND B42 USB3­B43 USB3+ B44 USB_0_1_OC# B45 USB1- B46 USB1+ B47 NC B48 NC B49 SYS_RESET# B50 CB_RESET# B51 GND B52 NC B53 NC B54 NC B55 NC B56 NC B57 NC B58 NC B59 NC B60 GND B61 NC B62 NC B63 GPO3 B64 NC B65 NC B66 NC B67 NC B68 PCIE_RX0+ B69 PCIE_RX0- B70 GND
38
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Pin Definition Pin Definition
A71 LVDS_A0+ A72 LVDS_A0­A73 LVDS_A1+ A74 LVDS_A1+ A75 LVDS_A2+ A76 LVDS_A2+ A77 LVDS_VDD_EN A78 LVDS_A3+ A79 LVDS_A3+ A80 GND A81 LVDS_A_CK+ A82 LVDS_A_CK­A83 LVDS_I2C_CK A84 LVDS_I2C_DAT A85 NC A86 NC A87 NC A88 PCIE0_CK_REF+ A89 PCIE0_CK_REF- A90 GND A91 RSVD A92 RSVD A93 NC A94 RSVD A95 RSVD A96 GND A97 VCC_12V A98 VCC_12V
A99 VCC_12V A100 GND A101 VCC_12V A102 VCC_12V A103 VCC_12V A104 VCC_12V A105 VCC_12V A106 VCC_12V A107 VCC_12V A108 VCC_12V A109 VCC_12V A110 GND
Pin Definition Pin Definition
B71 NC B72 NC B73 NC B74 NC B75 NC B76 NC B77 NC B78 NC B79 LVDS_BKLT_EN B80 GND B81 NC B82 NC B83 LVDS_BKLT_CTRL B84 VCC_5V_SBY B85 VCC_5V_SBY B86 VCC_5V_SBY B87 VCC_5V_SBY B88 RSVD B89 NC B90 GND B91 NC B92 NC B93 NC B94 NC B95 NC B96 NC B97 NC B98 NC
B99 NC B100 GND B101 VCC_12V B102 VCC_12V B103 VCC_12V B104 VCC_12V B105 VCC_12V B106 VCC_12V B107 VCC_12V B108 VCC_12V B109 VCC_12V B110 GND
39
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
High Speed Board-to-Board Connector: COM Express Row C and Row D
Connector size: 2 X 110 = 220 Pin Connector location: J12B
5
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B41
B42
B43
B44
B45
B46
B1B2B3B4B5B6B7B8B9
B1B2B3B4B5B6B7B8B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B2
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21
B22
B23
B24
B25
B26
B27
B28
B29
B30
B31
B32
B33
B34
B35
B36
B37
B38
B39
B40
B47
B41
B42
B43
B44
B45
B46
B47
Row D
COM Express Connector
Row C
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
B83
B84
B85
B86
B87
B88
B89
B90
B91
B92
B93
B94
B95
B96
B97
B98
B99
B100
B101
B102
B103
B104
B105
B106
B107
B108
B109
B110
B48
B49
B50
B51
B52
B53
B54
B55
B56
B57
B58
B59
B60
B61
B62
B63
B64
B65
B66
B67
B68
B69
B70
B71
B72
B73
B74
B75
B76
B77
B78
B79
B80
B81
B82
B83
B84
B85
B86
B87
B88
B89
B90
B91
B92
B93
B94
B95
B96
B97
B98
B99
B100
B101
B102
B103
B104
B105
B106
B107
B108
B109
B110
MH2
MH2
MH1
MH1
A1A2A3A4A5A6A7A8A9
A1A2A3A4A5A6A7A8A9
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A10
A11
A12
A13
A14
A15
A16
A17
A18
A19
A20
A21
A22
A23
A24
A25
A26
A27
A28
A29
A30
A31
A32
A33
A34
A35
A36
A37
A38
A39
A40
A41
A42
Row C
Pin Definition Pin Definition
C1 GND C2 IDE_D7 C3 IDE_D6 C4 IDE_D3 C5 IDE_D15 C6 IDE_D8 C7 IDE_D9 C8 IDE_D2
C9 IDE_D13 C10 IDE_D1 C11 GND C12 IDE_D14 C13 IDE_IORDY C14 IDE_IOR#
A42
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
A83
A84
A85
A86
A87
A88
A89
A90
A91
A92
A93
A94
A95
A96
A97
A98
A99
A100
A101
A102
A103
A104
A105
A106
A107
A108
A109
A110
A43
A44
A45
A46
A47
A48
A49
A50
A51
A52
A53
A54
A55
A56
A57
A58
A59
A60
A61
A62
A63
A64
A65
A66
A67
A68
A69
A70
A71
A72
A73
A74
A75
A76
A77
A78
A79
A80
A81
A82
A83
A84
A85
A86
A87
A88
A89
A90
A91
A92
A93
A94
A95
A96
A97
A98
A99
A100
A101
A102
A103
A104
A105
A106
A107
A108
A109
A110
Row D
Pin Definition Pin Definition
D1 GND D2 IDE_D5 D3 IDE_D10 D4 IDE_D11 D5 IDE_D12 D6 IDE_D4 D7 IDE_D0 D8 IDE_REQ
D9 IDE_IOW# D10 IDE_ACK# D11 GND D12 IDE_IRQ D13 IDE_A0 D14 IDE_A1
40
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Pin Definition Pin Definition
C15 NC C16 NC C17 NC C18 NC C19 NC C20 PCI_GNT0# C21 GND C22 PCI_REQ0# C23 PCI_RESET# C24 PCI_AD0 C25 PCI_AD2 C26 PCI_AD4 C27 PCI_AD6 C28 PCI_AD8 C29 PCI_AD10 C30 PCI_AD12 C31 GND C32 PCI_AD14 C33 PCI_C/BE1# C34 PCI_PERR# C35 PCI_LOCK# C36 PCI_DEVSEL# C37 PCI_IRDY# C38 PCI_C/BE2# C39 PCI_AD17 C40 PCI_AD19 C41 GND C42 PCI_AD21 C43 PCI_AD23 C44 PCI_C/BE3# C45 PCI_AD25 C46 PCI_AD27 C47 PCI_AD29 C48 PCI_AD31 C49 PCI_IRQA# C50 PCI_IRQB# C51 GND C52 PEG_RX0+ C53 PEG_RX0- C54 NC C55 NC C56 NC C57 NC C58 NC C59 NC C60 GND C61 NC C62 NC C63 NC C64 NC C65 NC C66 NC C67 NC C68 NC C69 NC C70 GND
Pin Definition Pin Definition
D15 IDE_A2 D16 IDE_CS1# D17 IDE_CS3# D18 IDE_RESET# D19 NC D20 NC D21 GND D22 PCI_AD1 D23 PCI_AD3 D24 PCI_AD5 D25 PCI_AD7 D26 PCI_C/BE0# D27 PCI_AD9 D28 PCI_AD11 D29 PCI_AD13 D30 PCI_AD15 D31 GND D32 PCI_PAR D33 PCI_SERR# D34 PCI_STOP# D35 PCI_TRDY# D36 PCI_FRAME# D37 PCI_AD16 D38 PCI_AD18 D39 PCI_AD20 D40 PCI_AD22 D41 GND D42 PCI_AD24 D43 PCI_AD26 D44 PCI_AD28 D45 PCI_AD30 D46 PCI_IRQC# D47 PCI_IRQD# D48 PCI_CLKRUN# D49 PCI_M66EN D50 PCI_CLK D51 GND D52 SDVOB_RED+ D53 SDVOB_RED- D54 PEG_LANE_RV# D55 SDVOB_GREEN+ D56 SDVOB_GREEN­D57 NC D58 SDVOB_BLUE+ D59 SDVOB_BLUE- D60 GND D61 SDVO_CLK+ D62 SDVO_CLK­D63 NC D64 NC D65 NC D66 NC D67 GND D68 NC D69 NC D70 GND
41
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Pin Definition Pin Definition
C71 NC C72 NC C73 NC C74 NC C75 NC C76 GND C77 NC C78 NC C79 NC C80 GND C81 NC C82 NC C83 NC C84 GND C85 NC C86 NC C87 GND C88 NC C89 NC C90 GND C91 NC C92 NC C93 GND C94 NC C95 NC C96 GND C97 NC C98 NC
C99 NC C100 GND C101 NC C102 NC ­C103 GND C104 VCC_12V C105 VCC_12V C106 VCC_12V C107 VCC_12V C108 VCC_12V C109 VCC_12V C110 GND
Pin Definition Pin Definition
D71 NC D72 NC D73 SDVO_CLK D74 NC D75 NC D76 GND D77 IDE_CBLID# D78 NC D79 NC D80 GND
D81 NC D82 NC D83 NC D84 GND D85 NC D86 NC D87 GND D88 NC D89 NC D90 GND D91 NC D92 NC D93 GND D94 NC D95 NC D96 GND D97 PEG_ENABLE# D98 NC D99 NC D100 GND
D101 NC D102 NC D103 GND D104 VCC_12V D105 VCC_12V D106 VCC_12V D107 VCC_12V D108 VCC_12V D109 VCC_12V D110 GND
42
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
DI/DO board placement
The figure below is the DI/DO board which is the board used in the VTC 71xx-DX series system. It shows the locations of the jumpers and connectors.
JP1
JP3
J1 (J2 on the back)
SW2
JP4
SW1
JP6
JP5
JP8
JP7
43
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
Connector Specification & Jumper Setting
MCU Download Port
Connector size: Connector size: Pin Header 1*5 2.54mm DIP Connector location: JP1
1 5
Pin Definition
1 VCC3 2 C2D 3 MRST 4 C2CK 5 GND
MCU Debug
Connector size: Pin Header 1*3 2.54mm DIP Connector location: JP3
31
Pin Definition
1 TX 2 RX 3 GND
44
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
CPLD Download Port
Connector size: Pin Header 1*6 2.54mm DIP Connector location: JP4
61
Pin Definition Pin Definition
1 VCC3 2 GND 3 TCK 4 TDO 5 TDI 6 TMS
OBDII Module Input Port
Connector size: Pin Header 2*5 2.0mm DIP Connector location: JP5/7
2 10
1 9
Pin Definition Pin Definition
1 TX 2 RX 3 CAN_DI 4 CAN_DO 5 GND 6 GND 7 NC 8 NC 9 VCC5 10 VCC12
45
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
OBDII Module Output Port
Connector size: Pin Header 2*5 2.0mm DIP Connector location: JP6/8
2 10
1 9
Pin Definition Pin Definition
1 CAN_H 2 C1708_H 3 CAN_L 4 C1708_L 5 GND 6 GND 7 NC 8 NC 9 NC 10 NC
46
VTC 71-D Series User Manual
Chapter 3: Jumpers and Switches
GPO and GPI In/Output Switch
Connector size: 8bit DIP Switch SMT Connector location: SW1~2
N
O
7
3
4
1
2
5
Pin Definition Pin Definition
1~8 ON
GPI Input =Pull High
GPO Output = Pull High
8
6
1~8 OFF
GPI Input =NC(Low)
GPO Output = NC(Low)
VIOB-DIOC GPIO, CAN I/O Setting
GPI State: 0ED1h
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
GPI8 GPI7 GPI6 GPI5 GPI4 GPI3 GPI2 GPI1
GPO State: 0ED2h
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
GPO8 GPO7 GPO6 GPO5 GPO4 GPO3 GPO2 GPO1
CAN BUS State: 0ED3h
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
CAN
Power
Reset 0=No Reset
1= Reset
N/A N/A
CAN2 Link State 0=No link
1=Link
CAN1 Link State 0=No link
1=Link
RS422/485 Switch: 0ED4h
Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
N/A N/A N/A N/A N/A N/A
CAN2
Reset 0=No Reset
1= Reset
CAN1
Reset 0=No Reset
1= Rese
RS422/
485_2 0=RS485 1=RS422
RS422/
485_1 0=RS485 1=RS422
N/A
47
VTC 71-D Series User Manual
Chapter 4: Mechanical Dimensions
Chapter 4: Mechanical Dimensions
VTC 7100-D1K
260.00 176.00
73.62
48
VTC 71-D Series User Manual
Chapter 4: Mechanical Dimensions
VTC 7110-D1K & VTC 7120-D1K
286.40
274.40
Ø4
92.00
132.00
172.00
Ø4
260.00
90.10
96.10
49
176.00
VTC 71-D Series User Manual
Chapter 5: System Setup
CAUTION!
Chapter 5: System Setup
Removing the Chassis Cover
Prior to removing the chassis cover, make sure the unit’s power
CAUTION!CAUTION!
is off and disconnected from the power sources to prevent electric shock or system damage.
Bottom View
Front View
Rear View
50
VTC 71-D Series User Manual
Chapter 5: System Setup
Installing a GPRS/UMTS/HSDPA Module
1. When you want to install the Mini PCI Express card, you have to remove the SSD tray and bracket.
First, remove the SSD tray.
2. Remove the SSD bracket.
51
VTC 71-D Series User Manual
Chapter 5: System Setup
3. The Mini PCI Express slot shown below is used to install a 3.5G communication module such as GPRS, UMTS or HSDPA module.
Mini PCI Express slot
4. Insert the module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.
GPRS/UMTS/ HSDPA module
52
VTC 71-D Series User Manual
Chapter 5: System Setup
5. Push the module down then secure it with mounting screws.
6. Attach one end of the RF cable onto the module.
Attach RF cable to the modul
53
VTC 71-D Series User Manual
Chapter 5: System Setup
7. Mount the other end of the cable to the antenna mounting hole located at the front panel of the chassis.
54
VTC 71-D Series User Manual
Chapter 5: System Setup
Installing a Wireless LAN Module
1. The Mini PCI Express slot shown below is used to install a wireless LAN module.
Mini PCI Express slot
2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot.
Wireless LAN module
55
VTC 71-D Series User Manual
Chapter 5: System Setup
3. Push the module down then secure it with mounting screws. 4. Attach one end of the RF cable onto the module.
Attach RF cable to the module
56
VTC 71-D Series User Manual
Chapter 5: System Setup
Installing a SATA SSD Drive
1. Remove the SSD tray.
2. Place the SDD drive into the tray and then tighten the four screws.
57
VTC 71-D Series User Manual
Chapter 5: System Setup
3. Installing the HDD tray, and then tighten the screws to secure the drive to the chassis.
58
VTC 71-D Series User Manual
Chapter 5: System Setup
Installing the PCI-104 Module
1. When you want to install the PCI-104 card, you have to remove the SSD tray and bracket. First, remove the SSD tray.
2. Remove the SSD bracket.
59
VTC 71-D Series User Manual
Chapter 5: System Setup
3. The PCI-104 slot shown below is used to install a PCI-104 module.
Mini PCI Express slot
60
VTC 71-D Series User Manual
Chapter 5: System Setup
Rackmount Brackets
The rackmount brackets provide a convenient and economical way of
mounting the system on the wall.
1. The mounting holes are located at the bottom of the system. Secure the brackets on each side of the system using the provided mounting screws.
2. Now mount the system on the wall by fastening screws through the bracket’s mounting holes.
61
VTC 71-D Series User Manual
Chapter 6: Driver Installation
Chapter 6: Driver Installation
When you want to install the VTC 71 series driver, please refer to the following steps, it will help you with the driver installation.
Note: Please change the path according to the product name.
Step 1. Installing the Intel® Chipset driver Please access the folder: \\VTC7110\Chipset Driver After successful installation, please restart the VTC
Step 2. Installing the Graphic driver Please access the folder: \\VTC7110\Graphic Driver After successful installation, please restart the VTC
Step 3. Installing the ME driver Please access the folder: \\VTC7110\ME Driver
Step 4. Installing the LAN driver Please access the folder: \\VTC7110\LAN Driver
Step 5. Installing the Audio driver Please access the folder: \\VTC7110\Audio Driver After successful installation, please restart the VTC
Step 7. Installing the WLAN module driver Please access the folder: \\VTC7110\Module Driver\WLAN Module\
After the driver is sucessfully installed, 8 sets will be added under the COM ports section in Windows “Device Manager”.
COM9 is for CAN1(9600bps) COM10 is for CAN2(9600bps) COM11 is for Analog sensor(115200bps) COM12~14 is for RS-232(CN5~CN7) COM15~16 is for RS-422/485(CN8~CN9)
Step 8. Installing the WWAN module driver Please access the folder: \\VTC7110\Module Driver\WWAN Module\
62
VTC 71-D Series User Manual
Appendix A: Software Demo Utility for I/O Ports of Function Control
Appendix A: Software Demo Utility for I/O Ports of Function Control
NEXCOM’s software demo utility enables users to test and control different I/O port functions on the VTC 71 Series. This document shows how to use the utility.
There are also source code files of the utility in the CD. Users can refer to the source codes to develop their applications.
Menu Screen
63
VTC 71-D Series User Manual
Appendix A: Software Demo Utility for I/O Ports of Function Control
1.1 Status
1.1.1 Ignition Status
Press the button of Ignition Status, the signal of ignition will be shown. ON …… Signal of ignition is high. OFF ….. Signal of ignition is low.
1.1.2 Battery Status
Press the button of Battery Status, the status of battery voltage will be shown. Low voltage …… Signal of ignition is high.
OFF .......…......... Signal of ignition is low.
1.1.3 Input Voltage
Shows the setting of input voltage in BIOS.
1.2 GPIO
1.2.1 GPO Setting
Press the button of Ignition Status, the signal of ignition will be shown. ON …… Signal of ignition is high. OFF ….. Signal of ignition is low.
1.2.2 GPI Reading
Reads the status of GPI.
64
VTC 71-D Series User Manual
Appendix A: Software Demo Utility for I/O Ports of Function Control
1.3 WDT Setting
Enables or disables the WDT function. There are 8 selections of time. The timer of WDT can also be cleared by button.
1.4 Output Power
1.4.1 External +12V
Enables or Disables the output of 12VDC.
1.4.2 Bypass Car Battery Power
Reads the status of GPI.
65
VTC 71-D Series User Manual
Appendix A: Software Demo Utility for I/O Ports of Function Control
1.5 Power On Delay Time
Enables or disables the power on delay time function. There are 8 selections of delay time.
1.6 Power Off Delay Time
Enables or disables the power off delay time function. There are 8 selections of delay time.
1.7 3G Module
Enables or disables WWAN module function. SIM card 1 or SIM card 2 can also be selected for the WWAN module on mini-PCIe socket (CN18).
1.8 WLAN Module
Enables or disables WLAN function for the WLAN module on mini-PCIe socket (CN19).
66
VTC 71-D Series User Manual
Appendix A: Software Demo Utility for I/O Ports of Function Control
1.9 Wake Up Function
1.9.1 3G
Enables or disables the wake up function for the WWAN module on mini-PCIe socket (CN18).
1.9.2 RTC
Enables or disables the RTC wake up function. The timer setting of RTC is located in BIOS setting.
67
VTC 71-D Series User Manual
Appendix B: Using the GPS Feature
Appendix B: Using the GPS Feature
u-blox NEO-6Q GPS Module Specification
Receiver Type 50-channel u-blox 6 engine
GPS L1 C/A code
SBAS: WAAS, EGNOS, MSAS
Navigation Update Rate Up to 5 Hz
Accuracy Position: 2.5 m CEP
SBAS: 2.0 m CEP
Acquisition Cold starts: 26s
Aided starts2: 1s
Hot starts: 1s
Sensitivity Tracking: –162 dBm
Cold starts: –148 dBm
Hot starts: –157 dBm
The VTC has a built-in u-blox NEO-6Q GPS receiver module by default. Global Positioning System (GPS) uses a constellation of 50 medium earth orbit satellites to transmit and receive microwave signals to determine its current location.
You need to install the third-party GPS navigation software to take advantage of the GPS feature.
Setup and Using GPS Information
Users can use the GPSinfo.exe program to verify that the GPS is correctly configured and working properly. Also, users can use the GPSinfo.exe pro­gram to enable WAAS/EGNOS and power saving mode.
1. Go to Device Manager to ensure the device is installed correctly.
68
VTC 71-D Series User Manual
Appendix B: Using the GPS Feature
2. Insert the Installation Disc into CD-Rom drive and execute the “Gpsinfo. exe” file (the file also saved in C:\Utility\GPS_Utility).
3. Follow the given instructions to complete the installation.
4. When the setup complete, press <Finish>.
5. Once the installation is completed, installation of GPS Information onto PDA device will be launched automatically. Select <Yes> to continue.
69
VTC 71-D Series User Manual
Appendix B: Using the GPS Feature
Setup Window Screenshot
Double click GpsInfo_Vista icon from Desktop to start GPS.
Com Port Selection Baud Rate Selection
Scan Com Port
Cold Start
Tab Menu
Start GPS button VTG check box WAAS/EGNOSPower Save
Main GPS data Window
• Scan Com Port” - Scan all available communication port for GPS recep-
tion
• “Cold Start” - Cold start the GPS receiver
• “Power Save” - Check the box to enable/disable the Power Save Mode
(the option is available only when a GPS device is found)
• “Tab Menu” - Switch between Setup and GPSINFO windows
• “Com Port Selection” - Select the appropriate communication port
where GPS receiver is configured (it may be necessary to try several com­munication ports until the right one is found)
• “Baud Rate Selection” - Select the appropriate transferring rate (Please
set the baud rate at 9600)
• “Start GPS button” - Turn on/off the GPS device
• “VTG check box” - Some navigation or map software requires to receive
VTG data output for during operation. Check the box to activate the VTG data output.
• “WAAS/EGNOS” - Check the box to activate WAAS/EGNOS in order to
increase the accuracy of positioning
• “Main GPS data Window” - Display data received by GPS device.
GPS Info Window Screenshot
Date
Time
Satellite
Distribution
Map
Latitude
Satellite Status
Chart
Direction
Speed
Positioning Status
Horizontal Accuracy
Position Accuracy
Longitude
• “Satellite Distribution Map” – Display the position of all connected
Satellites
• A unique number is assigned to each satellite.
• Red circle indicates that the satellite location is known from almanac
information; however, the satellite is not currently being tracked.
• Green circle indicates that the satellite is being tracked; how ever, it is
not being used in the current position solution.
• Blue circle indicates that is being tracked and is being used in the cur-
rent position.
70
VTC 71-D Series User Manual
Appendix B: Using the GPS Feature
• “Latitude” – User’s current latitude is displayed in N/S degree (North/
South Hemisphere) format
• “Satellite Status Chart” – display the status of each connected satellite
• The number under each bar marks corresponding Satellite, and the
height of each bar represents the strength of the satellite.
• Red bar indicates that the satellite location is known from almanac
information; however, the satellite is not currently being tracked.
• Green solid bar indicates that the satellite is being tracked; however, it
is not being used in the current position solution.
• Blue bar indicates that the tracked and is being used in the current
position.
• “Date” – display the current date in (dd/mm/yy) format.
• “Time” – display the current (UTC) time in (hh:mm:ss) format.
• “Direction” – display the current direction from 000.0° to 359.9°
• “Speed” – Display the current moving speed in km/hour
• “Positioning Status”- Three Modes
1. No Fix
2. 2D Positioning
3. 3D Positioning
• “Horizontal Accuracy” - Range from 0.5 to 99.9, the smaller the better
• “Position Accuracy” - Range from 0.5 to 99.9, the smaller the better
• “Longitude” – Display current longitude in E/W (East/West Hemisphere)
Time (hhmmss)
GPS Information Instructions
1. Make sure that the GPS device is properly inserted.
2. Start GPS Information Software.
3. Choose and select the proper communication port. (It might be neces-
sary to try each available port to find the right one since the default communication port varies according to different hardware device.)
4. Click “Start GPS button” to activate the GPS receiver.
5. Upon successful connection, GPS output data should be displayed in
“Main GPS data Window”. If no data is observed, make sure the GPS receiver is working and properly inserted. Otherwise choose another communication port.
6. Satellite status can be observed in the “GPS Info Window”. Use the
“Tab Menu” to switch between Setup window and GPS info window.
7. Please make sure to de-activate the GPS device before exiting this pro-
gram.
71
VTC 71-D Series User Manual
Appendix C: Signal Connection of GPO, GPI, Analog Voltage Input and Analog Current Input
Appendix C: Signal Connection of GPO, GPI, Analog
Voltage Input and Analog Current Input
VTC 7100-D1K/ 7110-D1K/ 7120-D1K is equipped with VIOB-DIOC that support isolated COM ports, isolated GPIO and analog inputs. Its digital input/ output and analog input is through the screw terminal connectors. CN1 connector contains analog voltage and analog current signal, CN2 for eight digital input signal and CN3 for eight digital output signal. For the connector specification and jumper setting, please refer the section of connector specification VTC 7100-D1K/ 7110-D1K/ 7120-D1K.
To ensure your application is sending and receiving data correctly, please refer the signal connection.
Digital Input
CN2 connector for GPI signal ( digital signal input ) The CN2 has 8 isolated digital input channels. Each channel can accept 0~30Vdc voltage input. The signal connection of CN2 support two connected methods for input signal type.
Dry Contact: The SW2 to need switch to “ON” state. The GPI signal will have a pull up resistor to 5V internally when you switch “SW2” to “ON” state.
Switch SW2 to”ON state”
ISO1_VCC5
G_ | _1 G_ | _2 G_ | _3 G_ | _4 G_ | _5 G_ | _6 G_ | _7 G_ | _8
1 2 3 4 5 6 7 8
DIP SW 2XB
SW2
16
G_ | _1U
NO
15
G_ | _2U
14
G_ | _3U
13
G_ | _4U
12
G_ | _5U
11
G_ | _6U
10
G_ | _7U
9
G_ | _8U
RN3
RN6
YES YES
4 3 2 1
4 3 2 1
5 6 7
8
1K 1K
5
6
7
8
The figure below shows how to connect an external output source to one of isolated input channel.
External Internal
ISO1_VCC5
4
5
3
6
2
7
1
8
YES YES
4
5
3
6
2
7
1
8
ON==>GND OFF==>OPEN
CN2
1 2 3 4 5 6 7 8 9 10
Terminal-10-90-3.81mm
ISO1_GND
GP|1 GP|2 GP|3 GP|4 GP|5 GP|6 GP|7 GP|8
1K 1K
72
VTC 71-D Series User Manual
Appendix C: Signal Connection of GPO, GPI, Analog Voltage Input and Analog Current Input
Wet Contact: The SW2 need to switch to “OFF” state. The GPI signal will have no pull up resistor internally when you switch “SW2” to “OFF” state.
In this case, the external input signal will have a voltage of high level by itself. The maximum voltage of high level can be accepted up to 30Vdc.
The figure below shows how to connect an external output source to one of isolated input channel.
External Internal
CN2
1 2
GP|1
3
GP|2
4
GP|3
5
External Device
Hight voltage is driven from external device Low voltage is GND driven from external device
Terminal-10-90-3.81mm
GP|4
6
GP|5
7
GP|6
8
GP|7
9
GP|8
10
ISO1_GND
Digital Output
CN3 connector for GPO signal ( digital signal output ) The CN3 has 8 isolated digital output channels. Each channel can accept 0~30Vdc voltage. And it is able to drive 500mA current for low level. The signal connection of CN3 support two connected methods for output signal type.
Dry Contact: The SW1 to need switch to “OFF” state. The GPO signal will no have a pull up resistor internally when you switch “SW1” to “OFF” state.
The output signal will has two state, one is low level (driven to 0V from GPO signal ) other is open ( high voltage is provided from external device).
Switch SW1 to”OFF state”
ISO1_VCC5
SW1
G_ O _1 G_ O _2 G_ O _3 G_ O _4 G_ O _5 G_ O _6 G_ O _7 G_ O _8
1 2 3 4 5 6 7 8
DIP SW 2XB
16
G_O1U
NO
15
G_O2U
14
G_O3U
13
G_O4U
12
G_O5U
11
G_O6U
10
G_O7U
9
G_O8U
R124 R125 R126 R127 R131 R132 R133 R134
0805 0805 0805 0805 0805 0805 0805 0805
300E 300E 300E 300E 300E 300E 300E 300E
The figure below shows how to connect an external input source to one of isolated output channel.
External Internal
External power
Resistor
Input
External Device
ISO1_GND
CN3
1 2 3 4 5 6 7 8 9 10
Terminal-10-90-3.81mm
ISO1_GND
GPO1 GPO2 GPO3 GPO4 GPO5 GPO6 GPO7 GPO8
M17
5
6
7
8
4
3
2
1
ISO1_GND
G_OUT1
G_OUT2
73
VTC 71-D Series User Manual
Appendix C: Signal Connection of GPO, GPI, Analog Voltage Input and Analog Current Input
Wet Contact: The SW1 to need switch to “ON” state. The GPO signal will have a pull up resistor to 5V internally when you switch “SW1” to “ON” state. The output signal will has two state, one is low level (driven to 0V from GPO signal ) other is high level (driven to 5V from GPO signal).
The figure below shows how to connect an external input source to one of isolated output channel.
External Device
External Internal
CN3
1 2
GPO1
3
GPO2
4
GPO3
5
GPO4
6
GPO5
7
GPO6
8
GPO7
9
GPO8
10
Terminal-10-90-3.81mm
ISO1_GND
ISO1_VCC5
0805
300E
0805
300E
M17
5
6
7
8
4
3
2
1
ISO1_GND
G_OUT1
G_OUT2
Analog Input
CN1 connector for analog input signal The CN1 has two single end input of analog voltage and one differential input of analog current. Analog voltage can accept 0~12Vdc voltage input. And analog current can accept 0~10A current input
1. Single end of analog voltage contacts from external device.
External Internal
A_GND
CN1
1 2 3 4 5
Terminal-5-90-3.81mm
External Device
Analog voltage1
Analog voltage2
GND
A-VIN1 A-VIN2 A-I-OUT A-I-IN
2. Differential signal of analog current contacts from external device.
External Internal
CN1
1
A_GND
2 3 4 5
Terminal-5-90-3.81mm
External Device
Current
source
Current ow
A-VIN1 A-VIN2 A-I-OUT A-I-IN
74
VTC 71-D Series User Manual
Appendix D: Signal Connection of DI/DO
ExternalInternal
SIO-F-90-5.08mm
SIO-F-90-5.08mm
Appendix D: Signal Connection of DI/DO
GPIO Pinout Description
The figure below shows how to connect an external output source to one
G_IN1 G_OUT1 G_IN2 G_OUT2 G_IN3 G_OUT3 G_IN4 G_OUT4
GPIO_GND
Digital Input
CN18 connector for GPI signal (digital signal input) The CN18 has 4 digital input channels.
Dry Contact (default) The GPI signals have a pull up resistor to 5V internally.
1 6 2 7 3 8 4 9 5
CN1
CN18
of the input channel.
VCC5
5
6
RN11KRN1 1K
1 8
4
273
1C 2C 3C 4C 5C 6C 7C COM
1
1B
2
2B
3
3B
4
4B
5
5B
6
6B
7
7B
8
E
GPIO_G
G_IN1 G_IN2 G_IN3 G_IN4
ND
16 15 14 13 12 11 10
9
ULN2003ADRULN2003ADR
Wet Contact: Please contact sales for further information.
G_IN1 G_OUT1 G_IN2 G_OUT2 G_IN3 G_OUT3 G_IN4 G_OUT4
GPIO_GND
SIO-F-90-5.08mm
SIO-F-90-5.08mm
1 6 2 7 3 8 4 9 5
CN1
CN18
ON==>GND OFF==>OPEN
75
VTC 71-D Series User Manual
Appendix D: Signal Connection of DI/DO
Digital Output
CN18 connector for GPO signal (digital signal output) The CN18 has 4 digital output channels. Each channel can accept 0~30Vdc voltage. And it is able to drive 250mA current for low level. The signal connection of CN18 support two connected methods for output signal type.
The output signal has two states, one is low level (driven to 0V from GPO signal) other is open (high voltage is provided from external device).
VCC5
SW4
SW4
G_OUT1 G_OUT2 G_OUT3 G_OUT4
1 2 3 4
DIP SW 2X4
DIP SW 2X4
8 7 6 5
Z12003 Z12004 Z12005 Z12006
330E0603
330E0603 330E0603 330E0603 330E0603 330E0603 330E0603 330E0603
GPO (SW4)
On Pull up VCC5
Don’t CareO
Wet Contact (default) The SW4 needs to switch to “ON” state. The GPO signal will have a pull up resistor to 5V internally when you switch “SW1” to “ON” state. The output signal has two states, one is low level (driven to 0V from GPO signal ) other is high level (driven to 5V from GPO signal).
The figure below shows how to connect an external input source to one of the isolated output channel.
VCC5
GPO0
GPO1
GPO2
GPO3
1
2
3
4
EMB17A03GEMB17A03G
1
2
3
4
EMB17A03GEMB17A03G
G_OUT1 G_OUT2 G_OUT3 G_OUT4
8
7
6
5
8
7
6
5
G_OUT1
G_OUT2
G_OUT3
G_OUT4
330E0603 330E0603 330E0603 330E0603 330E0603 330E0603 330E0603 330E0603
76
VTC 71-D Series User Manual
Appendix D: Signal Connection of DI/DO
ExternalInternal
Dry Contact The SW4 needs to switch to “OFF” state. The GPO signal will no have a pull up resistor internally when you switch “SW4” to “OFF” state.
The figure below shows how to connect an external input source to one of the output channel.
GPO0
GPO1
GPO2
GPO3
1
2
3
4
1
2
3
4
EMB17A03GEMB17A03G
EMB17A03GEMB17A03G
8
7
6
5
8
7
6
5
G_OUT1
G_OUT2
G_OUT3
G_OUT4
G_IN1 G_OUT1 G_IN2 G_OUT2 G_IN3 G_OUT3 G_IN4 G_OUT4
GPIO_GND
SIO-F-90-5.08mm
SIO-F-90-5.08mm
1 6 2 7 3 8 4 9 5
CN1
CN18
External power
Resistor
Input
External Device
GND
77
VTC 71-D Series User Manual
Appendix E: Vehicle Power Management Setup
Appendix E: Vehicle Power Management Setup
External Power Output Setting
VTC 7110 has four modes for external power output setting.
1. External +12V and By Pass Car Battery Turn On Simultaneously
2. External +12V and By Pass Car Battery Turn Off Simultaneously
3. External +12V Turn On Only
4. By Pass Car Battery Turn On Only
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
External Power Turn On Booth Turn Off Booth Turn On +12V Turn On By Pass Car Battery
External +12V & By Pass Car Battery Power Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Startup and Shutdown Voltage Setting
Set the startup voltage to 11.5V or 23V and the shutdown voltage to 10.5V or 21V If the input voltage is 12V: the startup voltage to 11.5V and the shutdown voltage to 10.5V. If the input voltage is 24V: the startup voltage to 23V and the shutdown voltage to 21V.
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
Startup,Shutdown (11.5, 10.5) / (23,21) (12.0, 11.0) / (24,22) (12.5, 11.0) / (25,22) (12.5, 11.5) / (25,23)
Startup,Shutdown Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
78
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
VTC 71-D Series User Manual
Appendix E: Vehicle Power Management Setup
Set the startup voltage to 12.0V or 24V and the shutdown volt­age to 11.0V or 22V
If the input voltage is 12V: the startup voltage to 12V and the shutdown voltage to 11V. If the input voltage is 24V: the startup voltage to 24V and the shutdown voltage to 22V.
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
Startup,Shutdown (11.5, 10.5) / (23,21) (12.0, 11.0) / (24,22) (12.5, 11.0) / (25,22) (12.5, 11.5) / (25,23)
Startup,Shutdown Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Set the startup voltage to 12.5V or 25V and the shutdown volt­age to 11.0V or 22V
If the input voltage is 12V: the startup voltage to 12.5V and the shutdown voltage to 11V. If the input voltage is 24V: the startup voltage to 25V and the shutdown voltage to 22V.
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
Startup,Shutdown (11.5, 10.5) / (23,21) (12.0, 11.0) / (24,22) (12.5, 11.0) / (25,22) (12.5, 11.5) / (25,23)
Startup,Shutdown Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
79
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
VTC 71-D Series User Manual
Appendix E: Vehicle Power Management Setup
Set the startup voltage to 12.5V or 25V and the shutdown volt­age to 11.0V or 22V
If the input voltage is 12V: the startup voltage to 12.5V and the shutdown voltage to 11.5V. If the input voltage is 24V: the startup voltage to 25V and the shutdown voltage to 23V.
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
Startup,Shutdown (11.5, 10.5) / (23,21) (12.0, 11.0) / (24,22) (12.5, 11.0) / (25,22) (12.5, 11.5) / (25,23)
Startup,Shutdown Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Power-on Delay Setting
Disable Power-on Delay
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
[Disable]
[Disable]
External +12V & By Pass Car Battery Poewer Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
80
VTC 71-D Series User Manual
Appendix E: Vehicle Power Management Setup
Enable Power-on Delay
Delay time can be set at 10sec/30sec/1min./5min./10min./15min./30min./1hour.
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
Power On Delay Disable Enable
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
Power On Delay Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Delay On Time Selection
Power Off Delay
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
Delay On Time selection 10 sec 30 sec
01 min 05 min
10 min 15 min 30 min
01 hour
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
Delay On Time Selection Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
81
VTC 71-D Series User Manual
Appendix E: Vehicle Power Management Setup
Power-off Delay Setting
Disable Power-off Delay
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
[Disable]
[Disable]
External +12V & By Pass Car Battery Poewer Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Enable Power-off Delay
Delay time can be set at 20sec/1min./5min./10min./30min./1hour/6hour/ 18hour.
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
Power Off Delay Disable Enable
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
Delay Off Delay Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
82
VTC 71-D Series User Manual
Appendix E: Vehicle Power Management Setup
Aptio Setup Utility - Copyright (C) 2010 America Megatrends, Inc.
Advanced
Power Management Conguration
** External +12V & By Pass Car Battery Setting **
External Power
** External +12V & By Pass Car Battery Setting ** Input Voltage
Startup.Shutdown
**Delay Time Setting**
Power On Delay
Power Off Delay
Delay Off Time Selection
[Turn On Both]
9-36V
[(11.5.10.5)/(23,21)]
Delay On Time selection 20 sec
01 min 05 min
10 min 30 min
01 hour 06 hour
18 hour
Delay Off Time Selection Setting
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.14.1219. Copyright (C) 2010 American Megatrends, Inc.
83
VTC 71-D Series User Manual
Appendix F: OBDII Module Setup and Command
Appendix F: OBDII Module Setup and Command
OBDII Module
You can also type HEX code instead: “41”, “54”, “5A”, “0D”
If you see the strange characters instead of “>”, you may set the incorrect baud rate. Please check baud rate. If you send the incorrect command, the device will show a single question mark (“?”) to indicate your input is not understood. If VTC fails to link to the BUS, it will show “PLEASE REBOOT”.
VTC series offer an option to integrate the OBDII module, VIOX-CAN01, into VTC system. The form factor of this VIOX-CAN01 is proprietary and it can support either SAE J1939 or SAE J1708 via connection in the first time. The maximum VIOX-CAN01 installed in VTC series is up to three units. Please note they are factory option.
VIOX-CAN01 Setup
When you start connecting VTC device to CAN bus device, you need a terminal program to send and receive data. To use the terminal program, please follow the setting below. (1) Set the proper corresponding “COM” port and its data rate is 9600 (2) Set data bits at 9, stop bit at 1 and no parity bits.
After the setting, you will see the prompt with “>” character. This indicates that the device is in the idle state and ready to receive characters on the COM port.
If you do not see prompt string, please reset the device with ATR (reset) command and then press the return key: >ATR or >AT R (spaces are optional; and case is in-sensetive).
Once VTC connect to BUS, it will start to try which protocol is connected either J1939 or J1708. Once it is determined, it will only accept the successful protocol next time unless using ATR command to reset it. This means you can change the protocol by reset command. After the reset command, please power off the device and turn on it again.
In case, the device cannot find correct protocol after 180 seconds, it will enter sleeping mode for power saving.
There are several output format available for the different application including: (1) Simple Data by ASCII Code (2) Raw Data (3) Packaged Messages by ASCII or HEX code.
The default setting is Simple Data Format. The device will send messages out after it communicates with vehicle successfully. The output format can be changed via setting the AT command. Please refer the following section of AT command.
84
VTC 71-D Series User Manual
Appendix F: OBDII Module Setup and Command
AT Command Summary
@1 AT@1: Display version information
Setting RS232 baud rate. xy is baud rate parameter. ATBR09: 9600 ATBR19: 19200
BRxy
ATBR38: 38400 ATBR57: 57600 ATBR99: 115200
ATE0: echo off(Default)
Eh
ATE1; echo on
T ATT: Terminate sending. To use ATS will continue it.
ATI : Request vehicle ID, the length is variable.
1.) J1708: Output format: ASCII code Byte 0:0x2A Byte 1: Vehicle ID byte 1 Byte 2: Vehicle ID byte 2 Byte N:Vehicle ID byte N Byte N+1: Check Sum=Byte 1+Byte2+…….+Byte N Byte N+2:0x0D Byte N+3:0x0A
I
N: Max 20
2.)J1939 Byte 0:0x2A Byte 1: Vehicle ID byte 1 Byte 2: Vehicle ID byte 2 Byte N:Vehicle ID byte N Byte N+1: Check Sun= Byte1+Byte2 +…..ByteN Byte N+1:0x0D Byte N+2:0x0A N: Max 35
PA ATPA: Print data by ASCII CODE format PH ATPH: Print data by HEX CODE format
ATRJ: Request J1939 FMS High Resolution Total Vehicle Distance
RJ
#33~#36
RH ATRH: Request Hino Truck Total vehicle distance (#33~#36)
ATS: Continue auto-send data every 100~200ms. To use ATT
S
will terminal it. ATSS: Auto- send Simple Data every 100~200 ms.
SS
Refer to Simple Data format Protocol ATSP: Auto-send Packaging Messages every 100~200 ms.
SP
Refer to Packaging Messages protocol. ATSR: Auto-send J1939/J1708 Raw Data, Refer to Raw Data
SR
Protocol. ATX: Request to send data of alternate, data format as
ATS/ATSP command. For J1939 protocol:
X
Packing1→Packing2→Packing 3→Packing4→Packing5→ Packing6→Packing1 For J1708 protocol: Packing1→Packing2→Packing 3→Packing4→Packing5→ Packing1
AT#xy: The command will print designated data by ASCII code. “xy” is data address, it is decimal.
#xy
J1708: 00~53 J1939: 00~99. EX: AT#01 , to get speed high byte.
85
VTC 71-D Series User Manual
Appendix F: OBDII Module Setup and Command
Simple Data Protocol: (ASCII CODE)
Data Description HEAD @ Byte 0 , Byte 1 Speed , (0~255) KM/HR Byte 2 , Byte 3 RPM High Byte (RPMHB) Byte 4 , Byte 5 RPM Low Byte(RPMLB) , RPM=RPMHB*256+RPMLB Byte 6 , Byte 7 Engine Loading, (0~100%) Byte 8 , Byte 9 Battery Voltage (BV), = (BV+100)/10 (v)
Byte 10 , Byte 11 Engine Temperature( ET), =ET-40°C Byte 12 , Byte 13 Throttle position 0~100 % Byte 14 , Byte 15 Status , Note 2 Byte 16 , Byte 17 MAF (0~255), MAF RATE= MAF * 3; Byte 18 , Byte 19 Distance : D1 Byte 20 , Byte 21 Distance: D2 Byte 22 , Byte 23 FU, Average Fuel Economy (km/L) =Fu /10 Byte 24 ,
Check sum (odd numbers)= Byte1+ Byte3+Byte5+
Byte 25
Byte7+Byte9+Byte11+ Byte13+ Byte15+Byte17+
Byte19+Byte21+Byte23 Byte 26 Carry return ( 0x0D ) Byte 27 Line feed ( 0x0A)
86
VTC 71-D Series User Manual
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
