NEXCOM VTC 6100 User Manual

Download

NEXCOM International Co., Ltd.

Mobile Computing Solutions

Vehicle Telematics Computer VTC 6100/VTC 6100-DK

User Manual

NEXCOM International Co., Ltd.

Published February 2015

www.nexcom.com

Contents

Preface

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance .................................................................................. vi

Warranty and RMA ................................................................................vii

Safety Information ................................................................................vii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information .............................................................................xv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................2

Hardware Specifications ..........................................................................2

COM Express CPU Module and Carrier Board ..........................................5

Physical Features .....................................................................................6

Front Panel ...........................................................................................6

Rear Panel ............................................................................................8

Mechanical Dimensions .........................................................................12

Chapter 2: Jumpers And Connectors

Before You Begin .................................................................................. 13

Precautions ...........................................................................................13

Jumper .................................................................................................14

Locations of the Jumpers and Connectors ............................................. 15

ICEB 6100 ..........................................................................................15

Jumper Settings ....................................................................................16

SW5: Input Voltage Selection ..............................................................16

SW6: COM Port Mode Selection ......................................................... 16

CF (IDE0) Primary Master/Slave Select (JP4)..........................................16

LVDS Power Input Voltage Select (JP9) ................................................16

CMOS Input Voltage Select (J6)...........................................................16

BIOS Function Select (J1) ..................................................................... 16

DC Input Voltage Select (JP1) ..............................................................16

Temp Sensor (JP8) ............................................................................... 17

Auto Power Select (JP2) ...................................................................... 17

PCI-104 VI/O Select Voltage (J13) ........................................................17

MCU Download (JP6) .........................................................................17

GAL Download (JP5) ........................................................................... 17

MCU COM Port (JP3) .......................................................................... 17

Connectors ........................................................................................... 18

COM Express Row A and Row B .........................................................18

COM Express Row C and Row D .........................................................20

CompactFlash Connector....................................................................22

GPIO Connector .................................................................................23

RS232 Connector: COM1, COM2 ....................................................... 23

VTC 6100 User Manual

Contents

RS232/485 Connector: COM3 ............................................................ 24

GAL Programmer PIN Header ..............................................................24

MCU Programmer Pin Header .............................................................25

VGA Connector .................................................................................. 25

LVDS Connector + USB0 ..................................................................... 26

LAN Connector ................................................................................... 27

USB Connector USB 1 ......................................................................... 27

USB Connector USB 2 ......................................................................... 28

LVDS Power Connector ....................................................................... 28

External 12V & 5V Power and SMBUS Connector ...............................29

Mic-in ................................................................................................. 29

Line-out .............................................................................................. 30

PCI-104 VI/O Voltage Setting ..............................................................30

PCI-104 Connector ............................................................................. 31

Power Button .....................................................................................31

Reset Button ....................................................................................... 31

MCU COM Port .................................................................................. 32

ACC_ON LED .....................................................................................32

Temp Sensor ....................................................................................... 33

DC Power Input Connector ................................................................. 33

Power On and IDE Active LED .............................................................34

GPIO and UMTS LEDs .........................................................................34

Serial ATA ........................................................................................... 35

Serial ATA Power Input .......................................................................35

Mini-PCIe Socket (for 3.5G module) PCIe Interface..............................36

Mini-PCIe Socket (for WLAN module) USB + PCIe Interface ................. 36

SIM Card Connector ...........................................................................37

Installing a CompactFlash Card .............................................................45

Installing the PCI-104 Module ............................................................... 47

Installing a SATA Hard Drive ..................................................................49

Installing the SODIMM .......................................................................... 53

Installing the USB Cable Holder ............................................................. 55

Rackmount Brackets .............................................................................56

Appendix A: I/O Address Function

I/O Address Function .............................................................................57

Appendix B: ICES 270 COM Express CPU Module

Overview ..............................................................................................60

Key Features .........................................................................................60

Specifications ........................................................................................ 60

Mechanical Dimensions .........................................................................63

PCI Routing ...........................................................................................64

Connectors ........................................................................................... 65

Appendix C: ICEB 6100 Carrier Board

Specifications ........................................................................................ 70

Jumpers and Connectors .......................................................................71

Jumper Settings ....................................................................................72

Connectors ........................................................................................... 74

Appendix D: Vehicle Power Management Setup

Vehicle Power Management Setup ........................................................94

Chapter 3: System Setup

Removing the Chassis Cover ................................................................38

Installing a GPRS/UMTS/HSDPA Module ................................................39

Installing a Wireless LAN Module ..........................................................42

Appendix E: Power Consumption

Power Consumption ...........................................................................101

iii

VTC 6100 User Manual

Preface

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

VTC 6100 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

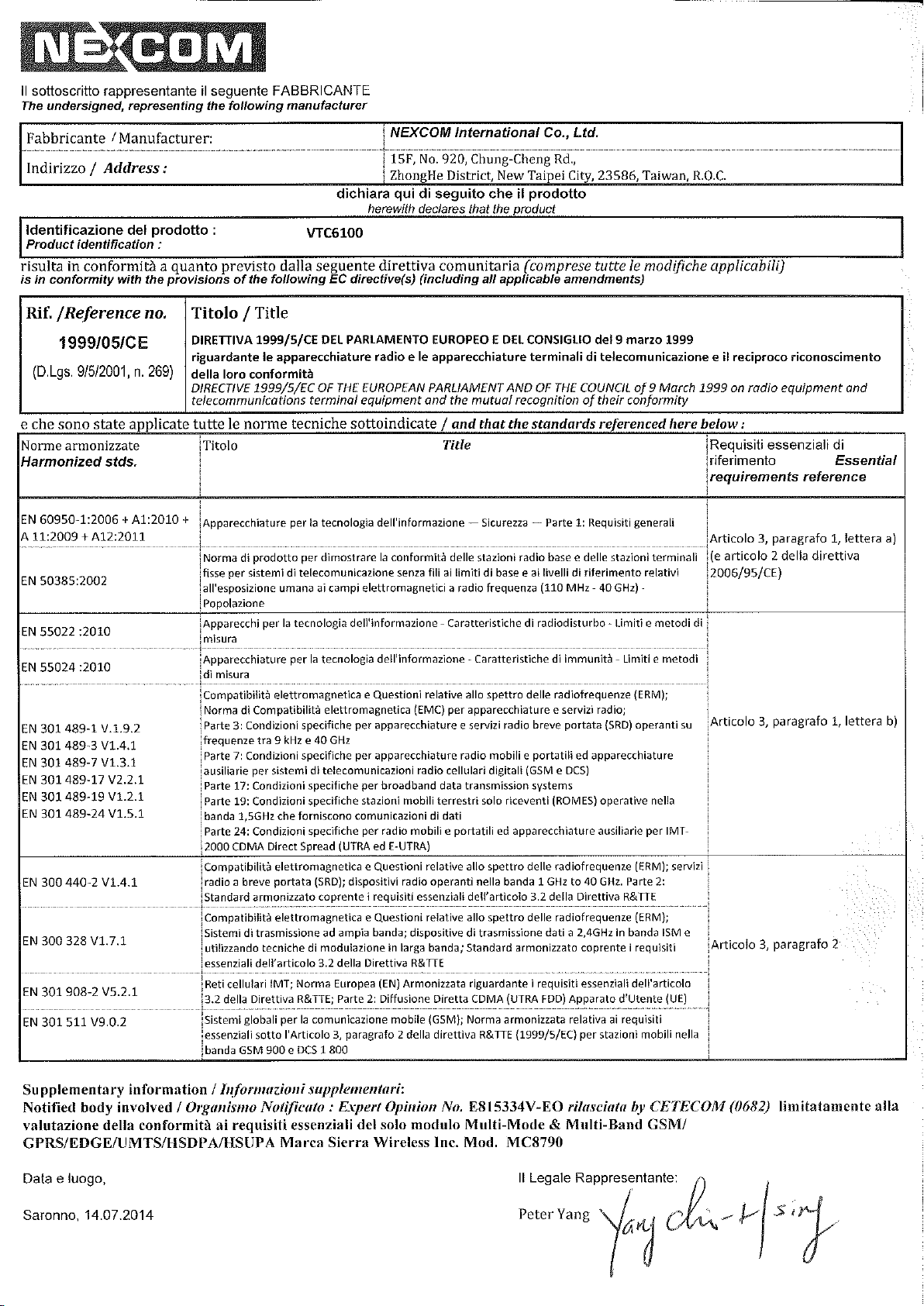

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

VTC 6100 User Manual

Preface

e13 Mark

The “e” mark is the proof of compliance with directives (laws) required by the European Union. The Council of European communities in Brussels issues these directives and all members must accept approved products.

e13 - Luxembourg

For more information, visit http://www.tuv.com/jp/en/_e_mark_and_e_ mark_homologation_for_vehicles_vehicle_components_.html.

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

VTC 6100 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

? Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3rd party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

? If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

VTC 6100 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

VTC 6100 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it

or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40 equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

C storage temperature as this may damage the

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

VTC 6100 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

VTC 6100 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: sales@nexcom.com.tw

www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

VTC 6100 User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

xii

VTC 6100 User Manual

Preface

Package Contents

Before continuing, verify that the VTC 6100 package that you received is complete. Your VTC 6100 package should have all the items listed in the following table.

Item P/N Name Specification Qty

1 4NCPM00302X00 POWER CON 3P PHOENIX CONTACT 1

2 5060100017X00 DAMPER 6mm/OUTSIDE DIA .12mm H: 9mm TPS(BLACK) 4

3 50311F0119X00 I HEAD BOLTS SCREW LONG I3x12.5 AXISx 8.5mm SCREWx 4mm 4

4 60233PW134X00 (N)POWER CABLE FOR VTK33B SMBUS SIGNAL 1

5 60233ATA20X00 SATA CABLE L: 80mm 1

6 60233PW102X00 SATA POWER CABLE SATA 15PIN TO 3022H-04 4PIN PITCH 5.08mm ,L: 80mm 1

7 5042220027X00 (N)WIRE MOUNT 19.1x8.4x1.3 NYLON66 3

8 50311F0150X00 (N)F HEAD SCREW LONG #6-32X8 NI NYLOK 3

9 60233SAM05X00 GPS ANTENNA 5M /SMA180P 1

10 50311F0100X00

ROUND HEAD SCREW W/SPRING+FLAT WASHER LONG

P3x6 iso/SW6x0.5 NI 4

xiii

VTC 6100 User Manual

Preface

Item P/N Name Specification Qty

11 5043330247X00 HDD BRACKET 129.5x97x 1mm 1

12 5043330246X00 HDD BRACKET FOR CUSHION LEFT 123.3x44.5x 14.7mm 1

13 5043330245X00 HDD BRACKET FOR CUSHION RIGHT 128.5x17x 1mm 1

14 50344C0067X00 COPPER POST LONG WITH MALE/FEMALE (FEMALE)16mmx(MALE)5mmxM3 4

15 5060100012X00 HIGH-END DAMPER INSIDE 11.1mm H: 10.8mm TPS(BLACK) 4

16 50311F0107X00 I HEAD BOLTS SCREW LONG I3x14 AXISx 10mm SCREWx 4mm (BLACK) 4

17 CD driver 1

xiv

VTC 6100 User Manual

Preface

Ordering Information

The following provides ordering information for VTC 6100.

• VTC 6100 (P/N:10V00610000X0)

- with Atom™ N270 1.6GHz, 1GB DDR2 memory, GPS module and GPS

antenna

• VTC 6100-DK (P/N: 10V00610011X0)

- with Atom™ N270 1.6GHz, 1GB DDR2 memory , GPS receiver with

dead reckoning feature and GPS antenna.

VTC 6100 User Manual

Chapter 1: Product Introduction

Overview

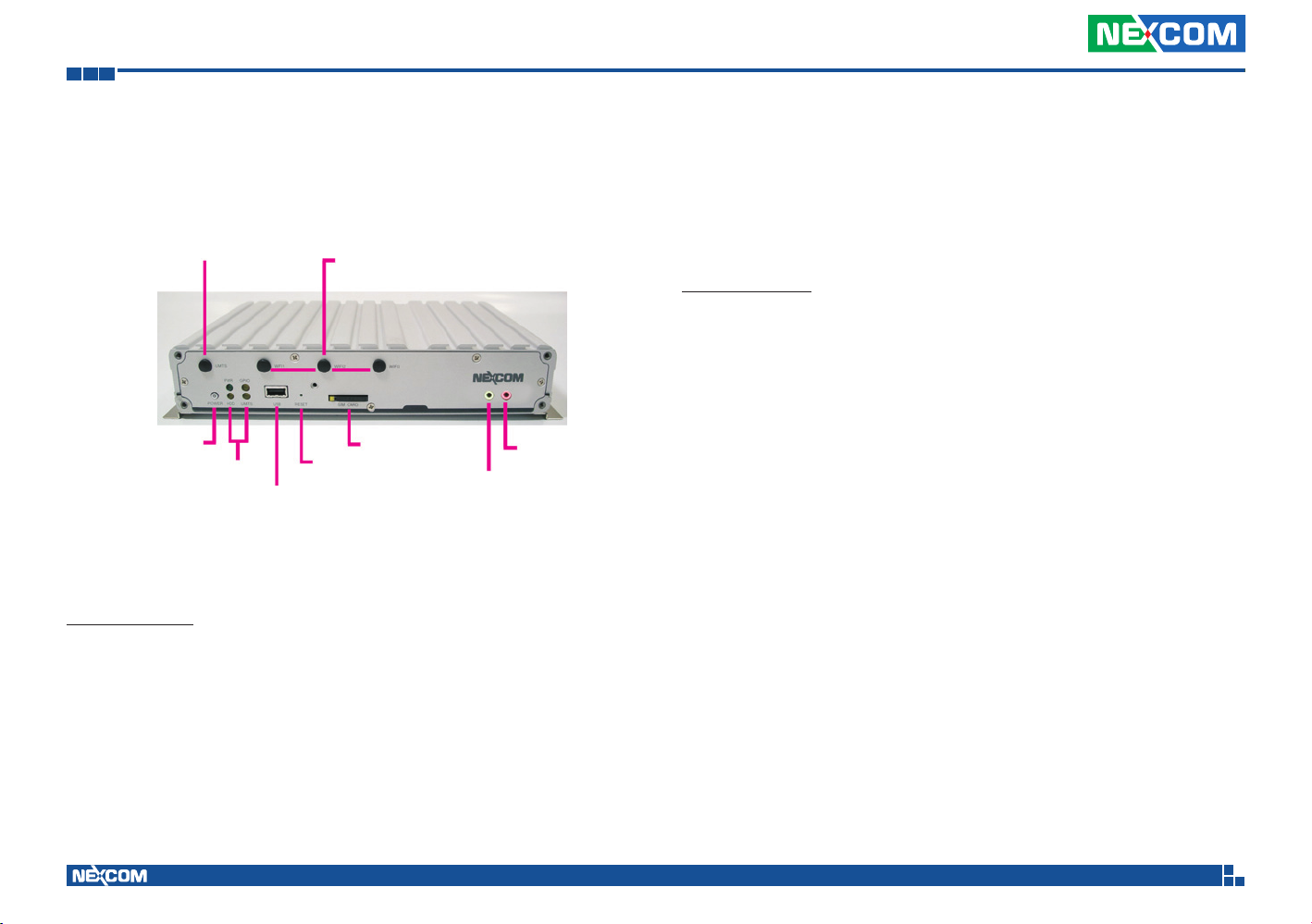

Front View

Rear View

The VTC6100 is an innovative in-vehicle computer for use in any car, truck, or even for maritime applications. The design itself makes the system available as a complete system allowing the user to easily define and build requirements. Thanks to the extremely-low power consumption nature from Intel Atom processor, the VTC6100 mechanical design is even more compact yet reach wider operating temperature range than ever.

VTC6100 fulfills vehicle industry requirements. The design itself is in compliance with vehicle industrial standard such as eMark. More features required for in-vehicle operations, such as power ignition delay control, low-power protection and SMBus connection, etc., are continued from NEXCOM’s other in-vehicle computer products.

The GPS function navigates drivers to ultimate the fleet management. Optional 802.11b/g/n, 3.5G and GPRS availability make VTC6100 ready for wider coverage and future trend. Multiple display connections make VTC6100 an ideal choice for in-vehicle signage platforms as well.

VTC 6100 User Manual

Chapter 1: Product Introduction

Key Features

• Fanless design with ruggedized aluminum chassis

• 2 Mini PCI Express and 1 PCI-104 expansions

• Wide range DC input from 6V to 36V

• Power ignition on/off delay controlled by software

• Low battery power protection setting by software

• External smart battery back-up support

• S3 & S4 suspend mode support

• Availability of GPS, GPRS/UMTS/HSDPA

• Multiple display connections thru VGA, DVI-D and LVDS

• Optional IP65 enclosure

• e13 Mark certification

Hardware Specifications

COM Express CPU Module (ICES 270)

• ATOM N270 CPU 1.6GHz

• VGA/PCI/PCIe/LVDS/Audio/COM/LPT/USB2.0/LAN interface

Memory

• Supports DDR2 400/533 non-ECC, non-registered SDRAM

• One 200-pin SO-DIMM supports up to 2GB memory

Chipset

• Intel 945GSE / ICH7M

Expansion

• 2 Mini PCI Express slots

- 1 x (PCIe + USB) for WLAN card

- 1 x PCIe for HSDPA module or GPRS module

• 1 PCI-104 slot

I/O Interfaces - Front

• Logo plate

• 1 x Power button (w/ LED)

• 1 x Reset button

• 1 x SIM card socket

• 1 x USB 2.0

• 1 x Power LED

• 1 x HDD LED

• 1 x GPIO LED - programmable for alarm or other application specific

purposes

• 1x LED for COMM (WLAN/HSDPA) status

• Antenna mounting holes for 4x SMA-type (WLAN, HSDPA and GPS)

• 1 x Line-out

• 1 x Mic-in

I/O Interfaces - Rear

• COM ports

- 1 x DB9 COM1 RS232/ or 1 x DB15 Odo. Sensor (VTC6100-DK)

- 1 x DB9 COM2 RS232

- 1 x DB9 COM3 RS232/485 w/ auto flow control

• 1 x DB26 LVDS (w/ +12V for backlight power and USB2.0)

• 1 x DB15 VGA

• 1 x DVI-D

• 2 x USB

• 1 x Realtek 10/100/1000 Ethernet

• 2 x Mic-in and 2 Line-out (ALC888-VC2-GR HD Codec, AC’97 Compatible)

VTC 6100 User Manual

Chapter 1: Product Introduction

• 6V (15A) to 36V (5A) thru DC 3-pin power input connector (ignition,

power input and ground)

• 1 x DB9 Female for digital I/O with 4-input and 4-output

• +5 VDC (1A) and +12VDC (1A) power output and SMBus (w/o VTK

33M-01 connection)

+5 VDC (0.5A) and +12VDC (0.5A) power output and SMBus (w/ VTK

33M-01 connection)

Expandable Storage

• 1 x 2.5” SATA HDD drive bay

• 1 Type II CompactFlash socket (IDE)-

Contruction

• Aluminum enclosure with fanless design

Protection Class

• IP65 compliant (w/ optional IP65 kit)

Certifications

• CE, FCC Class B, e13 Mark

Dimensions

• 260mm(W) x 176mm(D) x 50mm(H) (10.24” x 7” x 1.97”)

Environment

W/O Vibration Kit

• Operating Temperatures: Ambient with air: -30°C to 60°C (CF/SSD); -30°C to 60C (Automotive

HDD)

• Storage temperature: -40°C to 80°C

• Relative humidity: 10% to 90% (Non-condensing)

• Vibration (random): 2g @ 5~500 Hz with CF/SSD; 1g @ 5~500 Hz with

Automotive HDD (in operation)

• Vibration Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle

– Highway Truck C-17, 0.04 g2/Hz at 20-1000 Hz, -6 dB/Octave at 1000-2000 Hz Tested MIL-STD-810F method 514.5 Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test Shock: Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-

trailers=20g Crash Hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground

equipment = 75g

OS Support

• Vista, XP, XPe, Linux 2.6

VTC 6100 User Manual

Chapter 1: Product Introduction

Power Management

• Power-on delay time is selectable by BIOS to disable and enable in 10sec / 30sec / 1min / 5min / 10 min / 15min / 30min / 1hr.

• Power-off delay time is selectable by BIOS to disable and enable in 20sec / 1min / 5min / 10min / 30min / 1hr / 6hr / 18hr.

• S3, S4 suspend mode

•IgnitionOn/OffstatusdetectablebySW

•LowbatterystatusdetectablebySW

• Ignition enable/disable is jumper selectable

• Shut down system automatically when the system’s internal temperature

is over 80C.

• VTC 6100 will automatically shut down 5 minutes after the duration of low battery voltage is over 60 sec. User can detect this situation via software.

• If the ignition is off and the system is still on after 3 minutes, VTC 6100 will shut down automatically.

• If the ignition is off, the user can detect this status via the software.

• If the ignition is turned on again and the power-off delay is in progress,

VTC 6100 will cancel the delay function and will continue to operate normally.

• If the ignition is turned on again and the power-off delay ended, VTC 6100 will shut down completely will power-on again automatically.

• If the ignition is turned off again and power-on delay is in progress, VTC 6100 will cancel the delay and stay in power-off status.

• If the ignition is turned off again and the power-on delay ended (entered OS already), VTC 6100 will continue to operate normally.

• If the ignition is turned off again and the power-on delay ended (in BIOS process), VTC 6100 will shut down immediately.

• If VTC 6100 is off, only below 10mA is used.

VTC 6100 User Manual

Chapter 1: Product Introduction

COM Express CPU Module and Carrier Board

The VTC 6100 system uses the ICES 270 COM Express CPU module and the ICEB 6100 carrier board.

ICES 270 COM Express CPU Module

ICES 270 is a COM Express CPU module that uses the Intel set and supports Intel

ATOM N270 1.6GHz CPU at 533MHz FSB.

The module also supports one unbuffered non-ECC 400/533 DDR2 SODIMM with maximum memory size up to 2GB. The Intel supports the following interfaces: PCI, PCIe, SATA, VGA, LVDS, LAN, Serial, USB, etc.

The ICES 270 module is based on the COM Express basic form factor Type 2 standard, x2 connections between the COM Express CPU module and the I/O carrier board.

The ICES 270 CPU module can easily integrate into most of the limitedspace devices such as industrial automation, data acquisition and equipment computers.

ICEB 6100 Carrier Board

945GSE chip-

945GSE chipset

Key features:

• Quick customizable COM Express architecture platform

• Wide varieties of built-in communication and I/O ports specially de-

signed for Transport Application

• Customizable delay time for power-on and power-off

• Three external serial port interfaces with two RS232 and one RS232/485

• Supports 10/100/1000 LAN,VGA Console, LVDS and GPIO

• 3 x USB 2.0 ports

• Supports PCI-104 expansion

VTC 6100 User Manual

Chapter 1: Product Introduction

Physical Features

Front Panel

GPRS/UMTS/HSDPA module antenna mounting holes

Power button

LEDs

USB

Power Button

There are 4 types of power on/off mode. Use JP1 and JP2 to select a mode. (refer to the Internal Jumpers and Connectors section for details).

Vehicle PC Mode

1. Mode A (default setting). When the ignition is from “low” to “high”, VTC 6100 will turn on automatically. When the ignition is “high”, press the power button to turn on/off VTC 6100.

When the ignition is from “high” to “low”, VTC 6100 will turn off auto-

matically. When the ignition is “low”, pressing the power button will not turn on VTC 6100.

WiFi module antenna mounting holes

SIM card socket

Reset button

Mic-in

Line-out

2. Mode B. When the ignition is from “low” to “high”, you can turn on VTC 6100 only by pressing the power button. When the ignition is “high”, you can press the power button to turn on/off VTC 6100.

If the ignition is from “high” to “low”, VTC 6100 will turn off automati-

cally. When the ignition is “low”, pressing the power button will not turn on VTC 6100.

Normal PC Mode

3. Mode C. When there is power input, you can turn on VTC 6100 only by pressing the power button. Ignition signal will not power on/off VTC

6100.

4. Mode D. When there is power input, VTC 6100 will turn on automatically. Ignition signal will not power on/off VTC 6100.

Startup and Shutdown Mode (Refer to SW5 setting)

The start up and shut down setting modes are as follows.

1. Mode A (default setting). When the input power voltage is 12V, use SW5 to select this voltage. Use the BIOS to select the start up and shut down voltages.

2. Mode B. When the input power voltage is 24V, use SW5 to select this voltage. Use the BIOS to select the start up and shut down voltages.

3. Mode C. The working input power voltage is 6V~36V. Start up and shut down voltages settings are disabled. When using external battery kit (VTK33B), mode C setting is required.

VTC 6100 User Manual

Chapter 1: Product Introduction

LEDs

GPIO I/O PORT Address : <Read/Write> #0EE0H Bit 0 :

0(Off) 1(On).

COMM WLAN/HSDPA Status

SIM Card Socket

VTC 6100 can be internally integrated with a 3.5G Mini Card module. The SIM card bracket is on the carrier board. When using the GPRS/UMTS/HSDPA function, insert the SIM card into the SIM card socket. Make sure to turn off VTC 6100 before inserting the SIM card.

USB Port

The USB port complies with USB 2.0 specifications.

WiFi Module Antenna Mounting Holes

The 3 external antenna mounting holes are used to mount and connect WiFi antenna to a WLAN module (Mini Card type).

GPRS/UMTS/HSDPA Module Antenna Mounting Hole

The antenna mounting hole is used to mount and connect an antenna to the GPRS/UMTS/HSDPA module.

Reset Button

Press this button to restart VTC 6100.

Line-out

Line-out is a stereo output for connecting external speakers.

Mic-in

Mic-in receives monophonic input from an external microphone.

VTC 6100 User Manual

Chapter 1: Product Introduction

Rear Panel

VTC 6100

VTC 6100-DK

LAN

USB

MIC-IN

GPS

COM3

LINE-OUT

COM3

COM2

DVI-D

COM2

COM1

VGA

Odo. Sensor

LVDS

GPIO

5V/12V/SMBUS

LVDS

DC IN 6V-36V

Power Input

DC Power Input Connector Connector location

3 2 1

Connector pin definition (CN1)

Pin No. Function Description

1 GND

2 VIN(6V~36V)

3 IGNITION

** Use power cable (+) with fuse for system protection

LAN

USB

MIC-IN

DVI-D

VGA

LINE-OUT

GPIO

5V/12V/SMBUS

DC IN 6V-36V

VTC 6100 User Manual

Chapter 1: Product Introduction

RS232/485 Connector COM3

The 9 pin D-Sub COM 3 port can be configured as RS232 or RS485 using the SW6 dip switch.

Connector size: DSUB-9 PIN Connector location

1 5

6 9

Connector pin definition

PIn Definition Pin Definition

1 DCD (RS232)

TX-/RX- (RS485)

2 RXD (RS232)

TX+/RX+ (RS485)

3 TXD (RS232) 4 DTR (RS232)

5 GND 6 DSR (RS232 )

7 RTS (RS232) 8 CTS (RS232)

9 RI (RS232)

RS232 Connector COM1 and COM2

Connector size: DSUB-9 PIN Connector location

1 5

Connector pin definition

PIn Definition Pin Definition

1 DCD 2 RXD

3 TXD 4 DTR

5 GND 6 DSR

7 RTS 8 CTS

9 RI

Odometer Sensor Connector (for VTC 6100-DK)

Connector size: DSUB-9 PIN Connector location

PIn Definition Pin Definition

1 DIR_N 6 GND

2 DIR_P 7 NC

3 NC 8 NC

4 PULSE_P 9 GND

5 PULSE_N

6 9

VTC 6100 User Manual

Chapter 1: Product Introduction

LVDS

Connector size: DB-26 PIN Connector location

Connector pin definition

Pin Definition Pin Definition

1 Panel_ EN 2 Panel_control

3 VDD 4 VDD

5 LCDD09(OUT3) 6 LCDD01(OUT0)

7 LCDD08(OUT3#) 8 LCDD00(OUT0#)

9 LCDD_GND 10 LCDD_GND

11 LCDD07(CLK) 12 LCDD03(OUT1)

13 LCDD06(CLK#) 14 LCDD02(OUT1#)

15 LVDS_GND 16 LCDD_GND

17 LCDD05(OUT2) 18 Power on push button

19 LCDD04(OUT2#) 20 Panel_backlight

21 LCDD_GND 22 Panel-Gnd

23 USB_0# 24 Contact_DET#

25 USB_0 26 USB_VCC

External SMBus, 12V and 5V Power Output

Connector location

6 4

3 1

Connector pin definition

PIn Definition Pin Definition

1 5V 2 12V

3 SMBus Clock 4 GND

5 GND 6 SMBus Data

+5 VDC (1A) and +12VDC (1A) power output and SMBus (w/o VTK 33M-01 connection)

+5 VDC (0.5A) and +12VDC (0.5A) power output and SMBus (w/ VTK 33M-01 connection)

VTC 6100 User Manual

Chapter 1: Product Introduction

VGA Port

The DB15 VGA port supports resolutions up to 1600x1200 @ 85 Hz, 2048x1536 @ 60Hz.

USB Port x 2

The two USB ports are compliant with USB 2.0 specifications.

LAN Port

The LAN port is an RJ45 interface with integrated LEDs and supports 10/100/1000Mbps Ethernet data transfer rates.

Audio Jacks (MIC-IN and LINE-OUT)

• MIC-IN jack receives monophonic input from an external microphone.

• LINE-OUT jack is the stereo output for connecting external speakers.

VTC 6100 User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

260.0

176.0

50.0

VTC 6100 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for all VTC 6100 series.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power

is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-

tronic components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

VTC 6100 User Manual

Chapter 2: Jumpers and Connectors

Jumper

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

VTC 6100 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

ICEB 6100

The figure on the right is the ICEB 6100 carrier board which is the board used in the VTC 6100 system. It shows the locations of the jumpers and connectors.

CN15

J13

CN14

SW7

J11

J12

CN16

WLAN

CN12

3.5G

CN 9

SW4SW5

CN 4

CN17

J14

BZ1

CON 1

CN 7

CN 6

J10

SW6

CN 5

SW2

LED1

SW3

USB1

LED2

SW1

JP6

JP5

JP4

JP8

JP7

JP3

JP2

JP1

313

CN3

COM1

CN2

CN 1

LAN1

USB2

CN11

CN 8

VTC 6100 User Manual
