NEXCOM VMD 3002 User Manual

NEXCOM International

Mobile Computing Solutions

Vehicle Mount Display VMD 3002

User Manual

NEXCOM International Published March 2014

www.nexcom.com

Contents

Preface

Copyright Notice .................................................................................... iii

Disclaimer .............................................................................................. iii

Acknowledgements ............................................................................... iii

Regulatory Compliance Statements ........................................................ iii

Declaration of Conformity ...................................................................... iii

Warranty and RMA

NEXCOM Warranty Period ...................................................................... v

NEXCOM Return Merchandise Authorization (RMA) ................................ v

Headquarters ....................................................................................... vi

Global Service Contact Information ........................................................ vi

Ordering Information

Chapter 1: Product Introduction

Overview ................................................................................................1

Specifications .......................................................................................... 2

VMD 3002 Dimensions ...........................................................................3

Chapter 2: VMD 3002 Hardware Functionality

Front Panel & Rear Panel Functions .........................................................4

Back Panel & Pigtail Multi-IO Cable .........................................................5

Cable Pinout Diagram ............................................................................. 6

Pin Assignment ....................................................................................... 7

Chapter 3: Hardware Installation

Assembling the Stand .............................................................................8

Chapter 4: OSD Function

Menu Structure of the Screen Adjustment...............................................9

OSD Menu Tree .....................................................................................10

OSD-PC Menu: Contrast, Brightness, Color Mode & Auto Config .......... 11

OSD-System Menu: Duration & Information .......................................... 13

OSD-Geometry Menu ...........................................................................14

Chapter 5: API of Controlling VMD 3002 - Initial Setup

Updating MCU Code ............................................................................18

Chapter 6: Table for MCU Protocol........................20

ii

VMD 3002 User Manual

Preface

Copyright Notice

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd.However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

VMD 3002 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

iii

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment. RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm. In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

How to Recognize NEXCOM RoHS Products

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name. All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver ▪ A flat-tipped screwdriver ▪ A grounding strap ▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Handling Precautions

▪ Always disconnect the unit from the power outlet whenever you are

installing or fixing a component inside the chassis.

▪ If possible, always wear a grounded wrist strap when you are installing or

fixing a component inside the chassis. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Do not flex or stress the circuit board.

▪ Use the correct screws and do not overly tighten them. ▪ Keep the original packaging and static-protective bag in case the unit has

to be returned.

iv

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 24 months beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

Customers shall enclose the “NEXCOM RMA Service Form” with the

▪

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or, without accessories

(manuals, cables, etc.) and any unnecessary components from the card, such as CPU and DRAM. If the components were suspected as part of the problems, please note clearly that which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible to for the safe packaging of defective

products are durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during the transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out of warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one is not

able to be repaired. Ex: motherboard, power supply, etc.

▪ Replaced with 3rd party products if needed. ▪ If RMA goods cannot be repaired, NEXCOM will return it to customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to customer

without any charge.

v

Warranty and RMA

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan Central Taiwan Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China NEXCOM China

2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-6599 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

vi

Warranty and RMA

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/ 1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Europe

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

vii

Ordering Information

The following provides ordering information for VMD 3002.

▪ VMD 3002-BS (P/N: 10VD0100002X2)

10.4” XGA vehicle mount display with touch screen, VGA and CVBS Interfaces

▪ Bundle Accessories

External Pigtail Cable for Multi-I/O Driver CD

viii

Chapter 1: Product Introduction

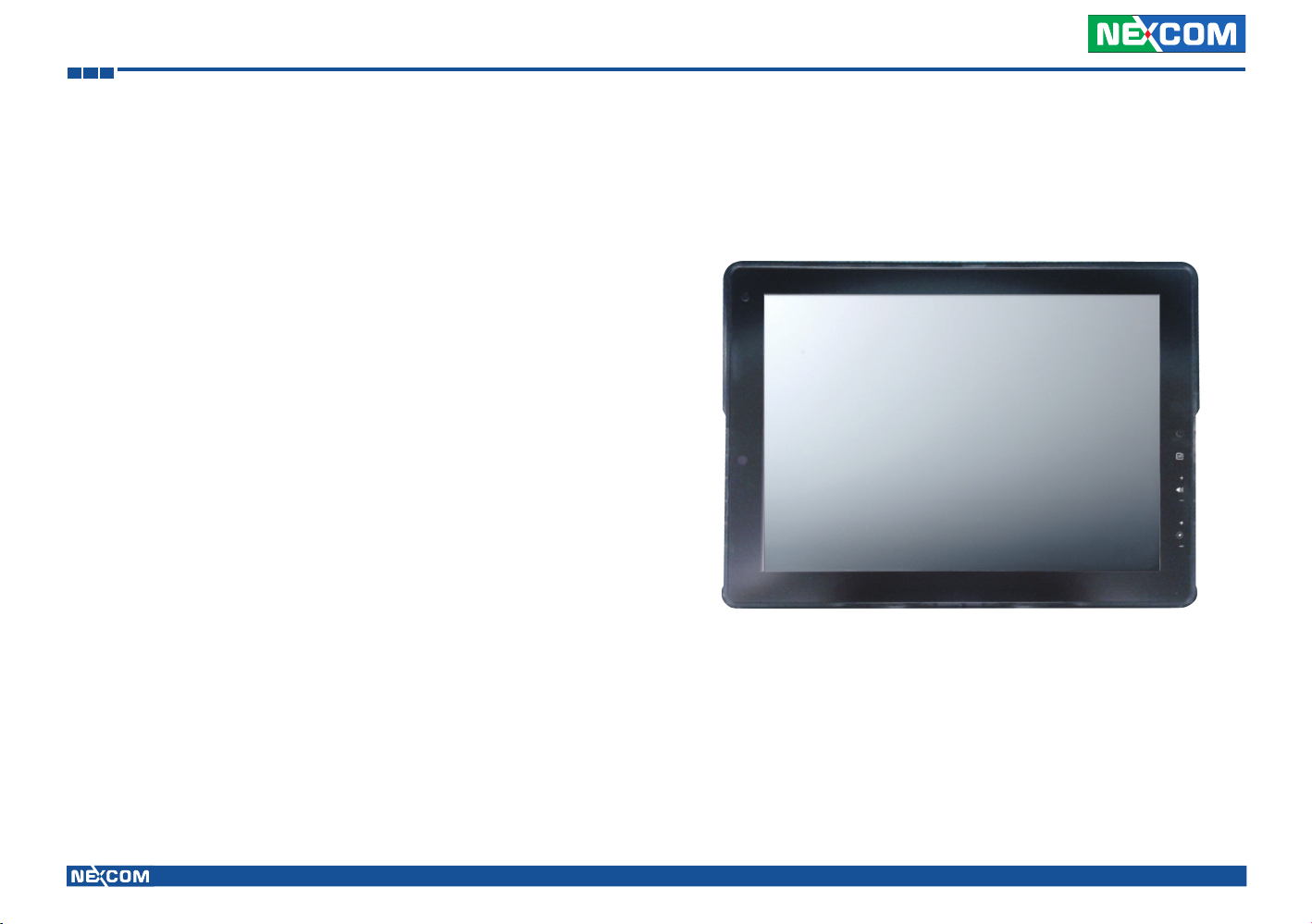

Overview

VMD 3002 is a robust 10.4-inch TFT LCD monitor with enhanced brightness, projected capacitive touchscreen, and high performance loud speaker. It is designed with a single cable to consolidate power, display, and other control signal to ease the installation and secure the connection. It also features four analog video inputs to feed the real time video from the rear view cameras to the display. VMD 3002 mechanical design is compliant with IP65. With the 1000nits ultra high brightness display and adaptive brightness control, it is an ideal solution for in-vehicle and outdoor

1

Chapter 1: Product Introduction

Specifications

General

▪ Enclosure: Plastic PC + ABS ▪ Mounting: Support VESA 75/100 ▪ Power Input: 9~36VDC ▪ Power Consumption: 18W ▪ Ingress Protection: IP65 ▪ Dimension: 256.5 x 202.1 x 31.5 mm ▪ Weight: 1.64Kg, 4.16Lb

LCD Panel

▪ 10.4-inch TFT LCD panel with LED backlight ▪ 1024 x 768 pixels (XGA) ▪ Brightness: 1200 cd/m² (typical, after touch screen is 1080cd/m ▪ Contrast Ratio: 500:1 (typical)

Touch Screen Sensor

▪ Projected capacitive touchscreen ▪ Surface Hardness: 6H ▪ Multiple touch

I/O Interface-Front

▪ 1x LED indicators (Power on/off, Auto Back-light, MCU update) ▪ IR remote sensor

I/O Interface-Lateral

▪ On screen display buttons x 7 ▪ Display power on/off ▪ OSD Menu ▪ Volume control (+/-)

▪ Brightness control (+/-) ▪ Auto Configuration

I/O Interface-Bottom

▪ Pigtail with multiple IO interface ▪ 4x CVBS connector ▪ 1x Line-in ▪ 1x VGA ▪ 1x USB ▪ 1x COM (TX/RX) ▪ 1x Power input connector (9 ~ 36Vdc)

Environment

▪ Operating temperature: -30°C to 60°C ▪ Storage temperature: -30°C to 80°C

2

)

▪ Vibration (random): 2.5g@5~500 Hz

▪ Vibration Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4, Ground Vehicle – Highway Truck Storage: MIL-STD-810G, 514.6 Procedure 1, Category 4, Integrity Test

▪ Shock Operating: MIL-STD-810G, Method 516.6, Procedure I, Trucks and semi-trailers= 20g Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, Ground equipment= 75g

Standards/ Certifications

▪ CE approval

▪ FCC Class B

2

Chapter 1: Product Introduction

VMD 3002 Dimensions

202.1

256.5

31.5

100.0

75.0

M5 (Screw hole), TYP.8

75.0

100.0

3

Chapter 2: VMD Series Hardware Functionality

Chapter 2: VMD 3002 Hardware Functionality

Front Panel & Rear Panel Functions

Front Panel

LED indicator

Power on/off

1

Auto back-light MCU update

Power button to turn on/off the display monitor

2

Menu

3

Volume up

4

Volume down

5

Brightness up

6

Brightness down

7

Auto configuration

8

4

Chapter 2: VMD Series Hardware Functionality

Back Panel & Pigtail Multi-IO Cable

5

6

4

7

8

9

1

1. VESA 75/100 Mounting

2

3

2. Connector for Multi-IO Interface

3. Pigtail Multi-IO Cable

4. CVBS Connector x 4

5. Power Connector

6. VGA

7. COM Port

8. Line-in

9. USB Touch

5

Chapter 2: VMD Series Hardware Functionality

Cable Pinout Diagram

6

Chapter 2: VMD Series Hardware Functionality

Pin Assignment

7

Chapter 3: Hardware Installation

Assembling the Stand

NOTE: Optional kit.

1. Fasten the black metal plate onto the rear panel with the 4 screws.

2. Attach and fasten the LCD panel onto the monitor stand.

8

VMD 3002 User Manual

Chapter 4: OSD Function

Menu Structure of the Screen Adjustment

Power On (Green Light) – Press once Power Off (Blind) – Press once Auto Mode (Orange Light) – Press twice

OSD Menu / Exit

Move (Left) – Main OSD Menu Adjustment (+) – Sub OSD Menu Enter to Sub Menu

Move (Right) – Main OSD Menu Adjustment (-) – Sub OSD Menu Enter to Sub Menu

Select (up)

Select (down)

Auto-Adjustment

PC

Contrast 50

Brightness 100

COLOR MODE

►

Auto Config

Factory Reset

► ►

Move

▲

Select

►

MENU

Exit

9

Chapter 4: OSD Function

OSD Menu Tree

Contrast (+/-)

Brightness (+/-)

PC

Color Mode

Color Temp. (User, Normal, Warm, Cool, sRGB)

Auto Config

Menu

Duration (+/-)

System

Information

H-Position (+/-)

Geometry

V-Position (+/-)

Clock (+/-)

10

Chapter 4: OSD Function

OSD-PC Menu: Contrast, Brightness, Color Mode & Auto Config

Contrast

PC

Contrast 50

50

► ►

Adjust

MENU

Exit

Brightness 90

Brightness

COLOR MODE

►

90

► ►

Adjust

MENU

Exit

Auto Config

Menu Description

Brightness Adjusts the brightness of the display

Contrast Adjusts the contrast of the display

► ►

Move

Menu Description

Auto Config Automatically adjusts every parameter

▲

Select

MENU

Exit

11

Chapter 4: OSD Function

PC

Color Temp. User

►

User - R 128

User - G 128

User - B 128

► ►

Move

Menu Description

Color Temp Adjusts the color temperature of the display

▲

Select

MENU

Exit

12

Chapter 4: OSD Function

OSD-System Menu: Duration & Information

PC PC

System System

Duration 15

INFORMATION

►

H: 48.2KHz V: 59.8 Hz RESOLUTION: 1024 x 768 CLOCK: 64.0 MHz

►► ► ►

Move Move

DURATION

Menu Description

Duration Adjusts duration

▲ ▲

▲▲

Select Select

MENU MENU

Exit Exit

60

Main Picture: PC

Version: 20131015-V0

Menu Description

Information Shows display information

13

Chapter 4: OSD Function

OSD-Geometry Menu

PC

Geometry

H-Position 50

V-Position 39

Clock 50

► ►

Move

▲

Select

MENU

Exit

PC

Geometry

H-Position

V-Position

Clock

Menu Description

H-Position Moves the position of the OSD Menu in horizontal direction

V-Position Moves the position of the OSD Menu in vertical direction

50

42

50

Clock Adjusts the clock of display

14

Chapter 5: API of Controlling VMD 3002

Chapter 5: API of Controlling VMD 3002 - Initial Setup

1. Select COM port (COM1 to COM6). 2. Click on “Connect”.

15

Chapter 5: API of Controlling VMD 3002

3. The information from VMD 3002 will be displayed. 4. Switching the Input Source: Select the input source you want to use, then press “Set” to switch to that input source.

16

Chapter 5: API of Controlling VMD 3002

5. Controlling the Function from Lateral Membrane Key: Select the item

that you want to control, then press “Set” to apply the function.

6. On/Off Panel: Select “Panel Off” then press “Set” to turn off panel backlight. Select “Panel On” then press “Set” to turn on panel backlight.

17

Chapter 5: API of Controlling VMD 3002

Updating MCU Code

1. Locate the firmware file and click on “Open”. 2. Click on “Update” once the correct firmware file is chosen.

18

Chapter 5: API of Controlling VMD 3002

3. A system pop-up message will appear once the update is completed. 4. Click on the “Read” button next to the FW version textbox to check the new firmware version.

19

Chapter 6: Table for MCU Protocol

Frame-based Protocol Command List

Start Code 0xF1

Command 1 Bytes

Data N Byte, N = 0~19

End Code 0xF2

Name Code

ReturnEraseFlash 0x11

ReturnWriteFlash 0x13

ReturnReadFlash 0x15

ReturnProgramState 0x21

ReturnFlashState 0x25

ReturnBSLInfo 0x31

ReturnReboot 0x37

ReturnUpdateMode 0x41

ReturnRequestUpdate 0x43

ReturnInvalidCommand 0x7F

Name Code

EraseFlash 0x10

WriteFlash 0x12

ReadFlash 0x14

ReadProgramState 0x20

Flash Unlock 0x24

ReadBSLInfo 0x30

IsRequestReboot 0x36

ReadUpdateMode 0x40

IsRequestUpdate 0x42

20

Chapter 6: Table for MCU Protocol

Command 0x10: Erase Flash

Direction: Host -> MCU

Data Structure Length Comment

Start address 2 The start address will be erased

Length 2 The length will be erased

Command 0x11: ReturnEraseFlash

Direction: Host -> MCU

Data Structure Length Comment

0x00: Erase Fail

EraseState 1

0x01: Erase OK 0x02: Erase Address Out of Range 0x03: Flash is Locked

Command 0x15: Return Read Flash

Direction: MCU -> Host The MCU sends this command in response to the command “Command 0x14: ReadFlash” sent by the Host.

Data Structure Length Comment

Start address 2 The start address will be read

Program data N The program data N

Command 0x21: Return Program State

Direction: MCU -> Host The MCU sends this command in response to the command “Command 0x21: ReturnProgramState” sent by the Soc.

Data Structure Length Comment

0x00: AP has not been updated yet.

ProgramState 1

0x01: AP has been updated. 0xFF: AP block data are mistake.

Command 0x24: Flash Unlock

Direction: Host -> MCU

Data Structure Length Comment

Password 7

Fixed Data as below: “Nexcom”

Command 0x25: Return Flash State

Direction: MCU -> Host The MCU sends this command in response to the command “Command 0x24: FlashUnlock”, “Command 0x10: EraseFlash”, “Command 0x12: WriteFlash” or “Command 0x14: ReadFlash” sent by the Host.

Data Structure Length Comment

Flash State 1

0x00: Lock 0x01: Unlock

Command 0x20: Read Program State

Direction: Host -> MCU The Command has no extra data.

Command 0x30: Read BSL Info

Direction: Host -> MCU The Command has no extra data.

21

Chapter 6: Table for MCU Protocol

Direction: MCU -> Host The MCU sends this command in response to the command “Command 0x30: ReadBSLInfo” sent by the Host.

Command 0x41: Return Update ModeCommand 0x31: Return BSL Info

Direction: MCU -> Host The MCU sends this command in response to the command “Command 0x41: ReadUpdateMode” sent by the Host.

Data Structure Length Comment

Product_Name 16 The Product Name will be read

MCU TYPE 16 The Device Family Type will be read

Flash Lock Password 8 The Flash Lock Password will be read

Boot Loader Version 8 The Boot loader version will be read

Application Version 8 The Application version will be read

Command 0x36: IsRequestReboot

Direction: Host -> MCU The Command has no extra data.

Command 0x37: Return Reboot

Direction: MCU -> Host The MCU sends this command in response to the command “Command 0x32: SendReboote” sent by the Host.

Data Structure Length Comment

State 1

0x01: Reboot (Wait for 3 sec) 0x00: Non

Command 0x40: ReadUpdateMode

Direction: Host -> MCU The Command has no extra data.

Data Structure Length Comment

State 1

0x01: Update mode 0x00: Normal mode

Command 0x42: IsRequestUpdate

Direction: Host -> MCU The Command has no extra data.

Command 0x43: Return Request Update

Direction: MCU -> Host The MCU sends this command in response to the command “Command 0x42: IsRequestUpdate” sent by the Host.

Data Structure Length Comment

Data 4

Fixed Data as below: 0x55 0xCC 0x00 0xFF

Command 0x7F: Return Invalid Command

Direction: Host -> MCU The Command has no extra data.

22

NEXCOM VMD 3002 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
