Nexcom VMC 3020 User Manual

NEXCOM International Co., Ltd.

Published January 2017

www.nexcom.com

Mobile Computing Solutions

Vehicle Mount Computer VMC 3020

User Manual

ii

VMC 3020 User Manual

Contents

Preface

Copyright .............................................................................................. v

Disclaimer .............................................................................................. v

Acknowledgements ............................................................................... v

Regulatory Compliance Statements ........................................................ v

Declaration of Conformity ....................................................................... v

RoHS Compliance .................................................................................. vi

Warranty and RMA ................................................................................vii

Safety Information ...............................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Headquarters ...................................................................................... xi

Package Contents .................................................................................xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

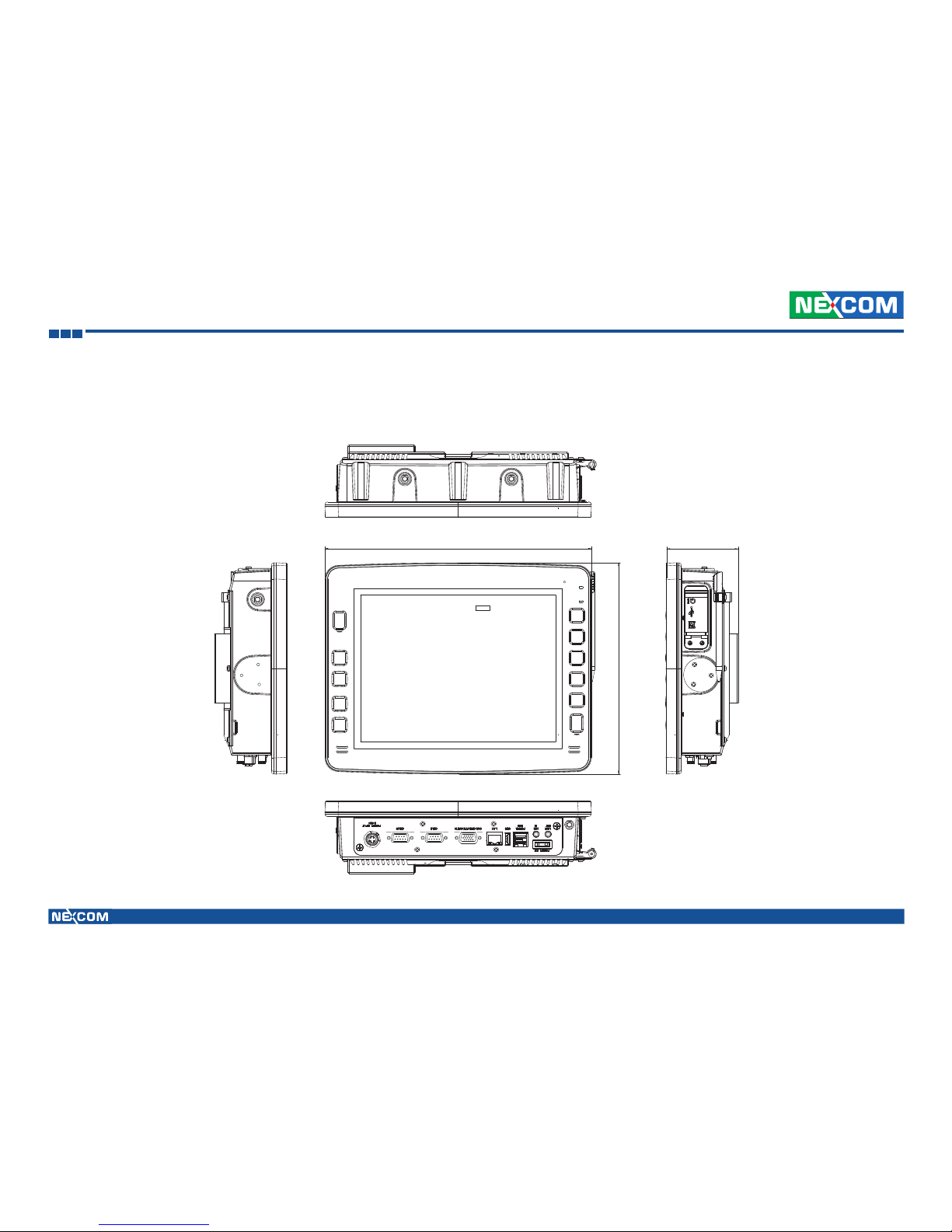

Mechanical Dimensions ...........................................................................4

VMC 3020 ..........................................................................................4

Getting to Know VMC 3020 ...................................................................5

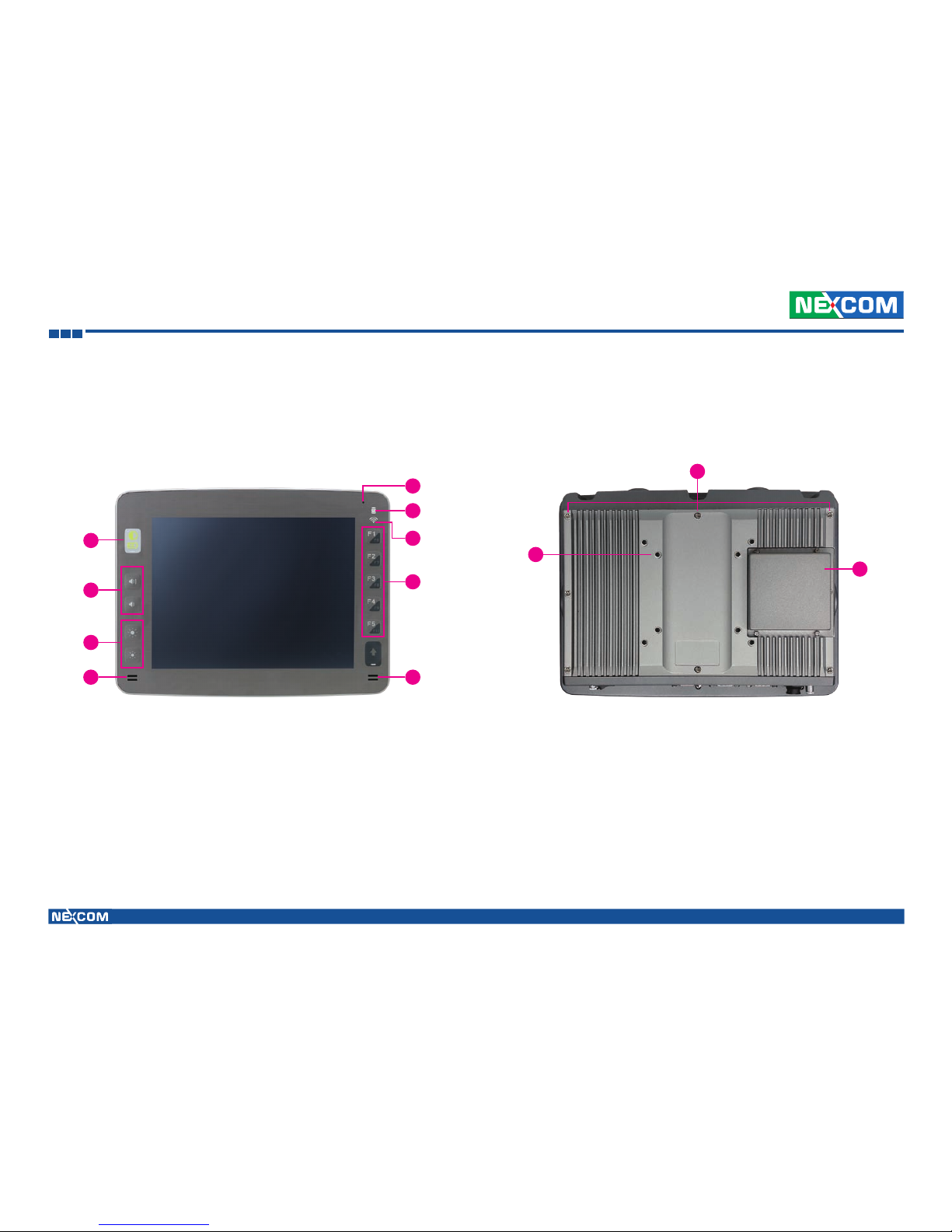

VMC 3020 Front View .........................................................................5

VMC 3020 Rear View .......................................................................... 5

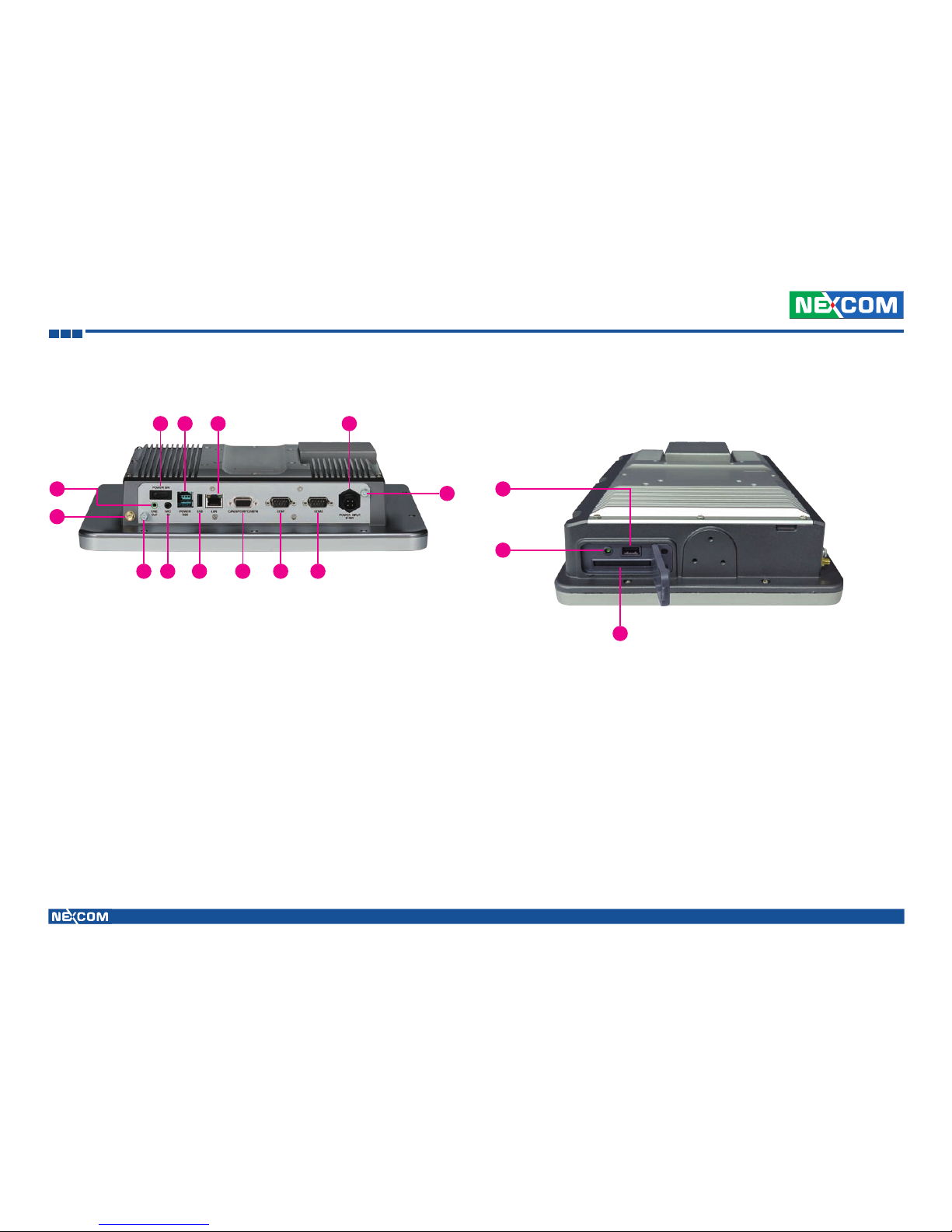

VMC 3020 Bottom I/O View ................................................................ 6

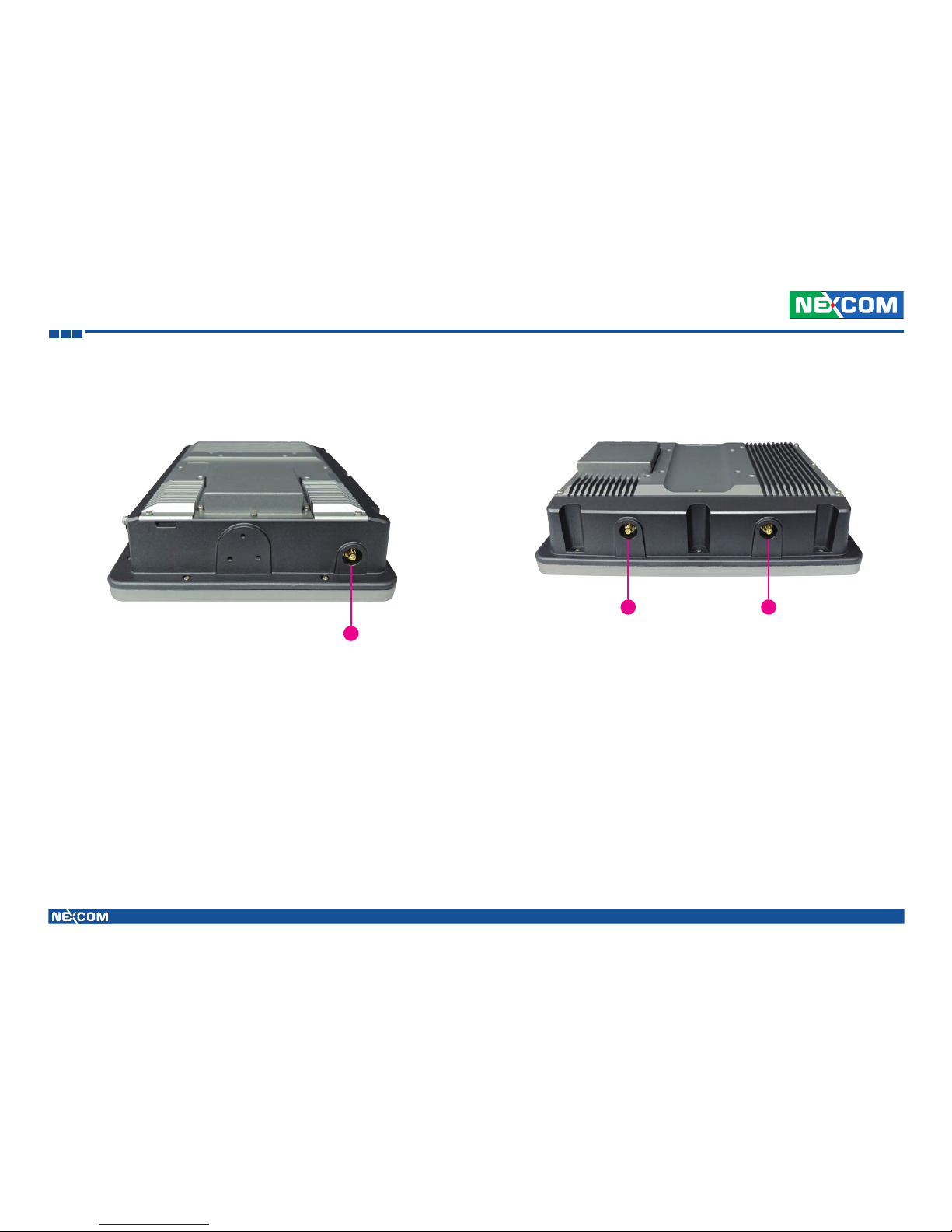

VMC 3020 Right I/O View ...................................................................6

VMC 3020 Left I/O View ......................................................................7

VMC 3020 Top I/O View ...................................................................... 7

Chapter 2: Jumpers and Connectors

Before You Begin ................................................................................. 12

Precautions ..........................................................................................12

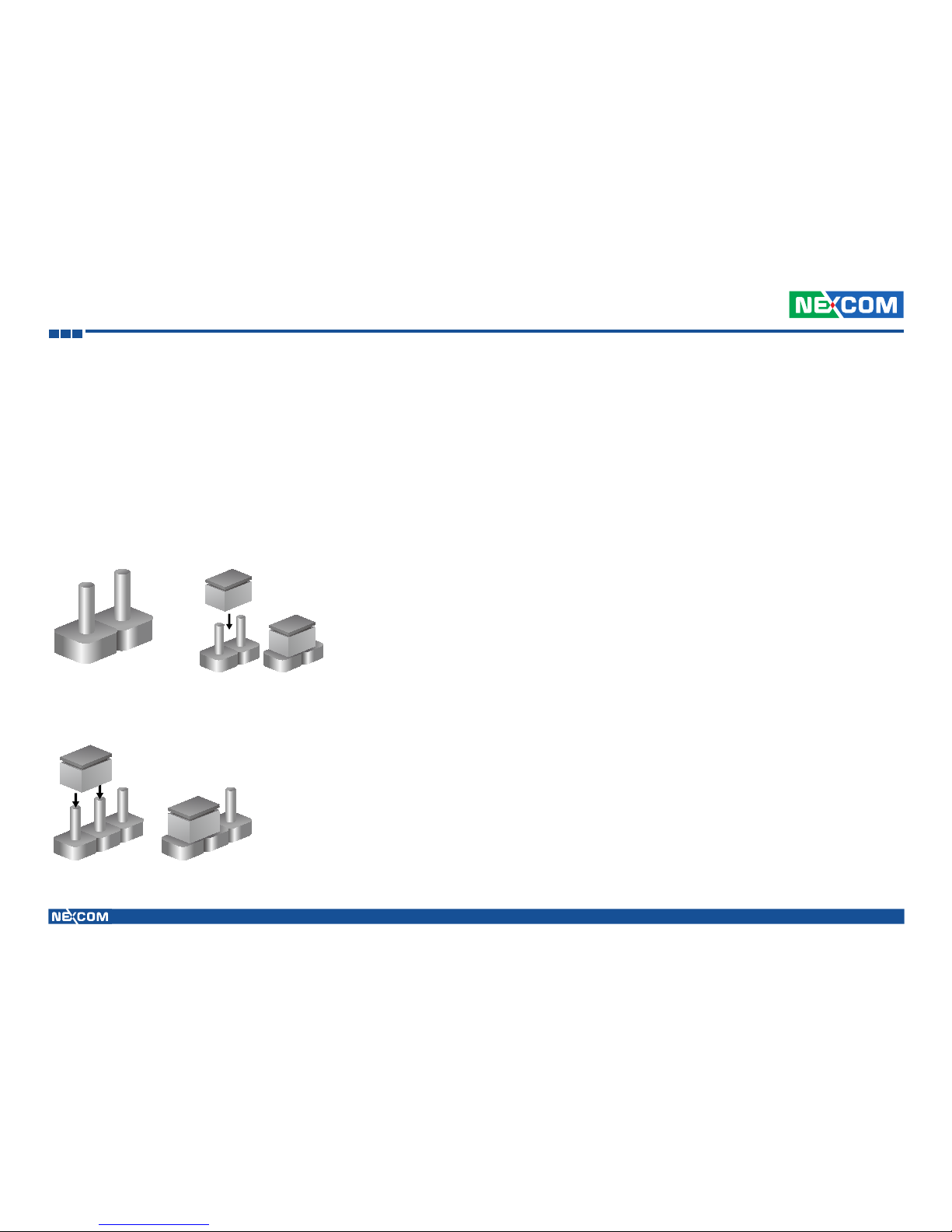

Jumper .................................................................................................13

Locations of the Jumpers and Connectors .............................................14

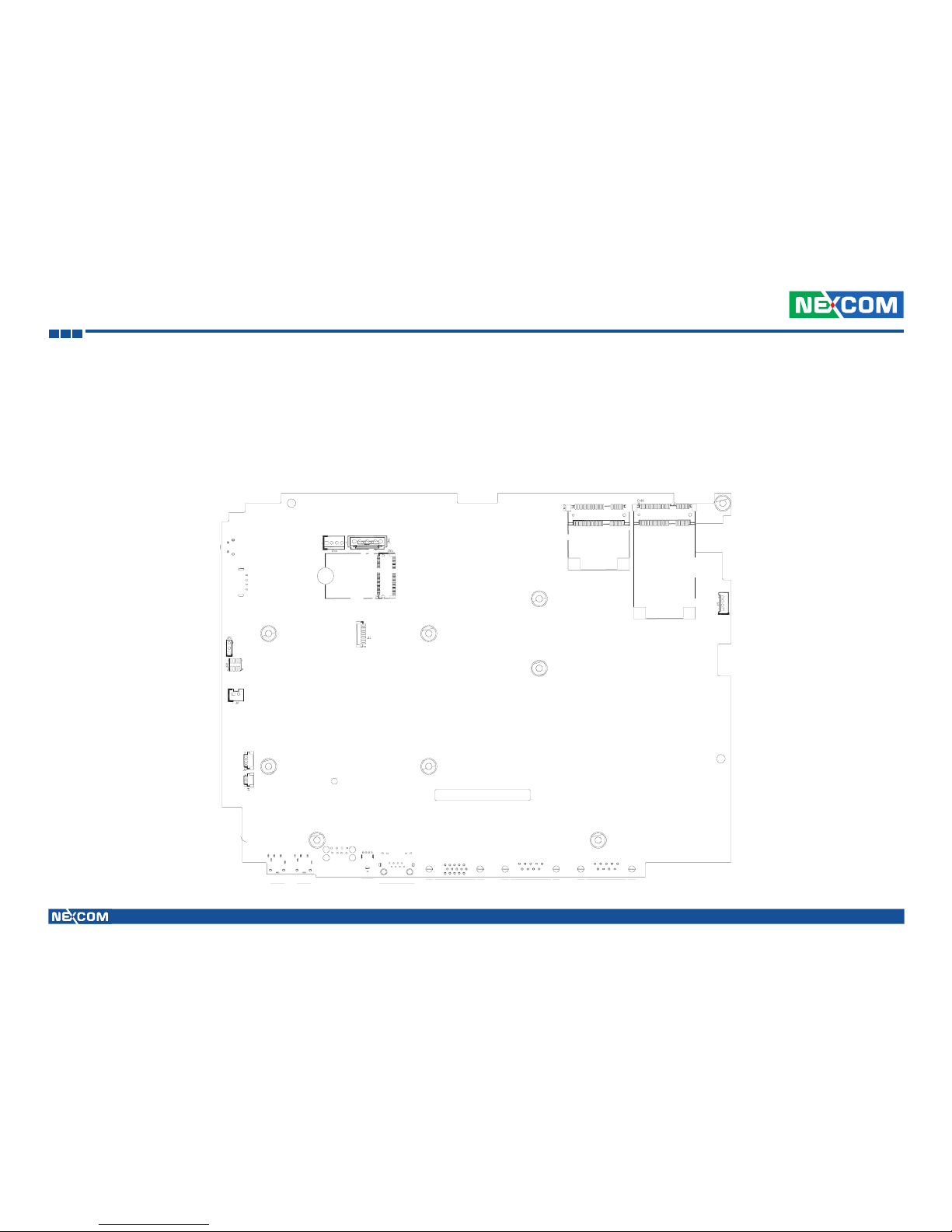

Mainboard ........................................................................................14

Internal Connectors and DIP Switch Settings ......................................... 15

WWAN Switch Selection .................................................................15

CANBus Impedance Control ............................................................16

GPIO High-Low Switch ....................................................................16

Power Input Voltage Selection & iButton/RFID Security On/Off .........17

Battery Connector ...........................................................................17

GPS or COM3 (Tx/Rx) Selection........................................................18

GPS Signal and Power .....................................................................18

GPS DR Function (Odometer and Direction) .....................................19

Debug Port .....................................................................................19

MCU Debug Port ............................................................................20

iii

VMC 3020 User Manual

Contents

MCU Download Port .......................................................................20

Heater Power ..................................................................................21

Half-size Mini-PCIe Connector (Wi-Fi and Bluetooth) .......................22

Full-size Mini-PCIe Connector (WWAN) ...........................................23

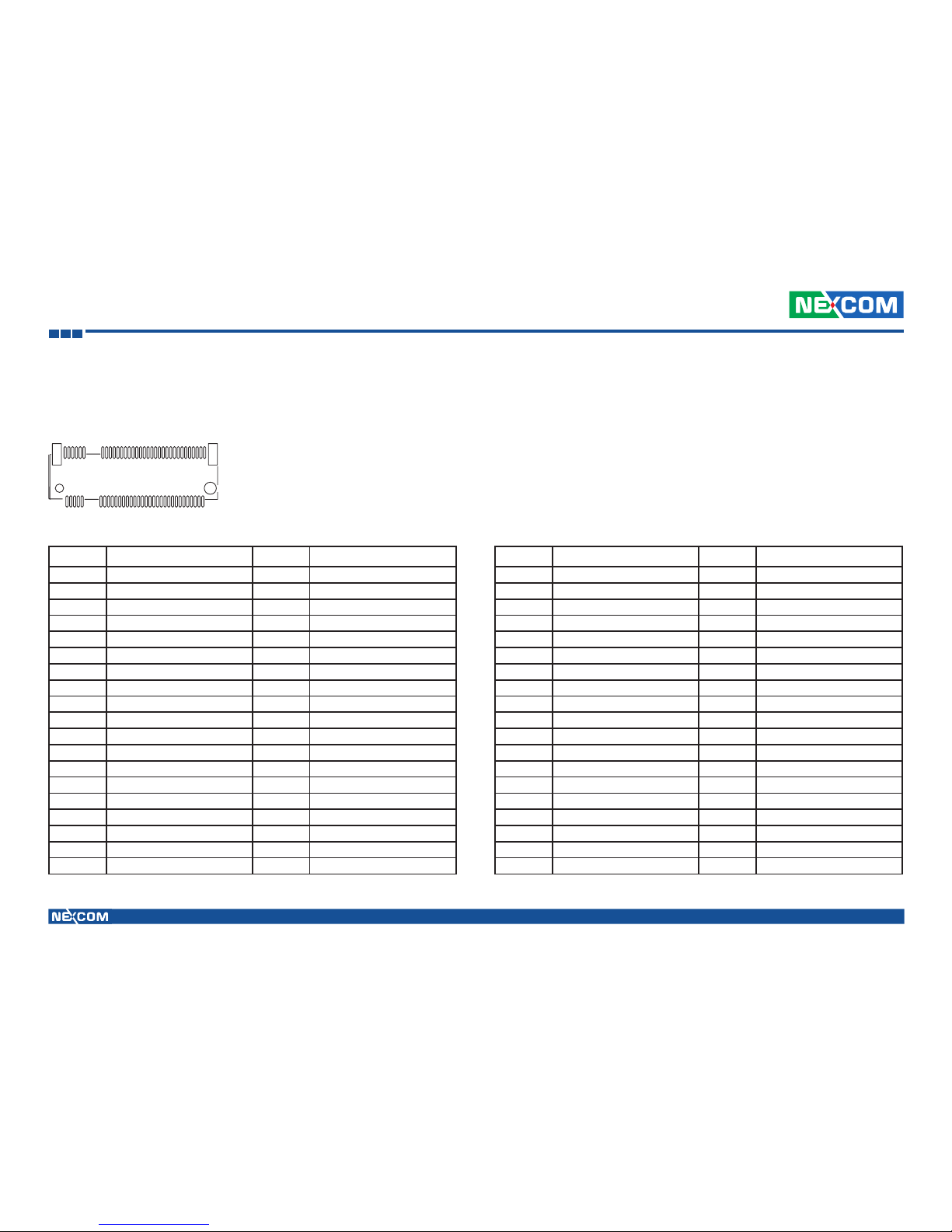

M.2 Connector ..............................................................................24

Chapter 3: Installation of SSD and Modules

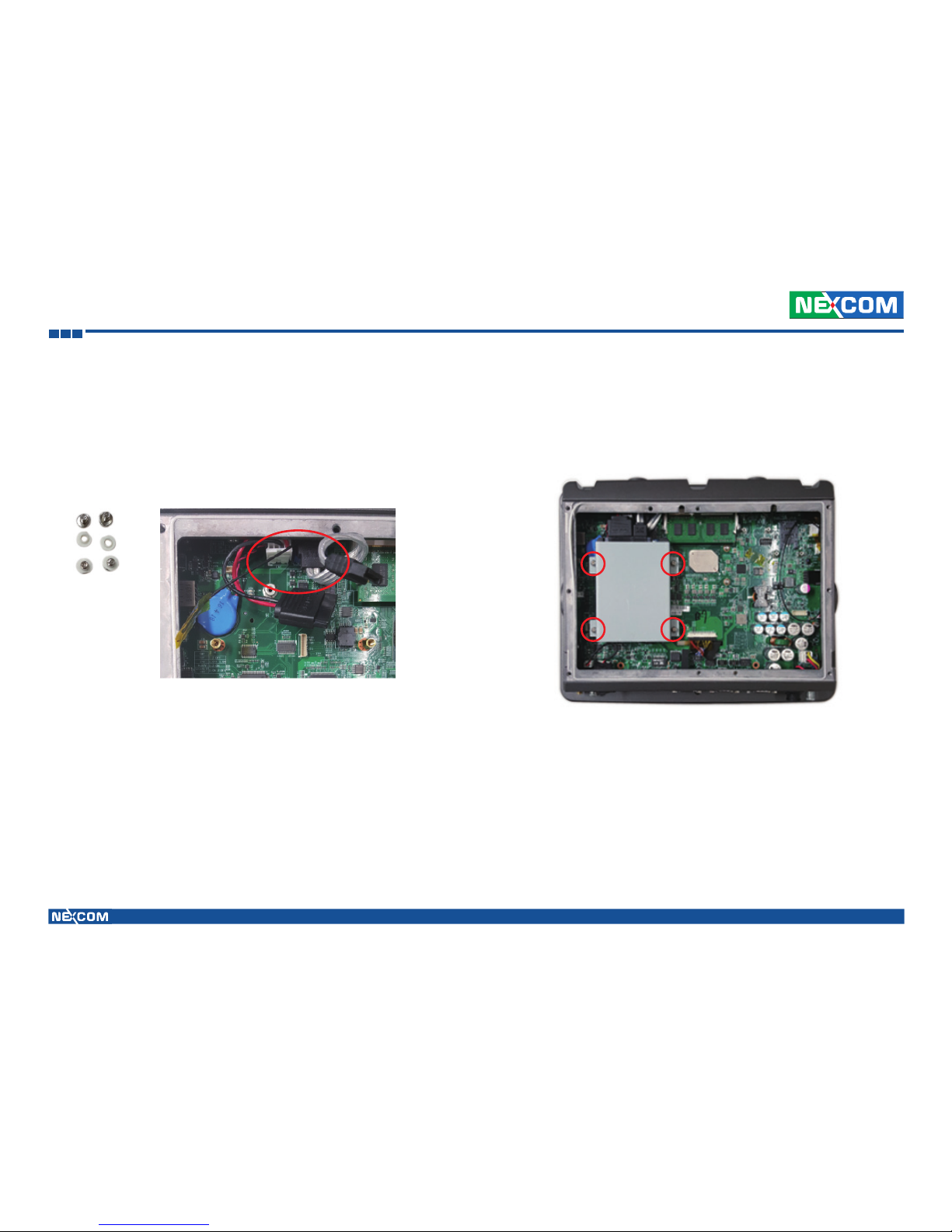

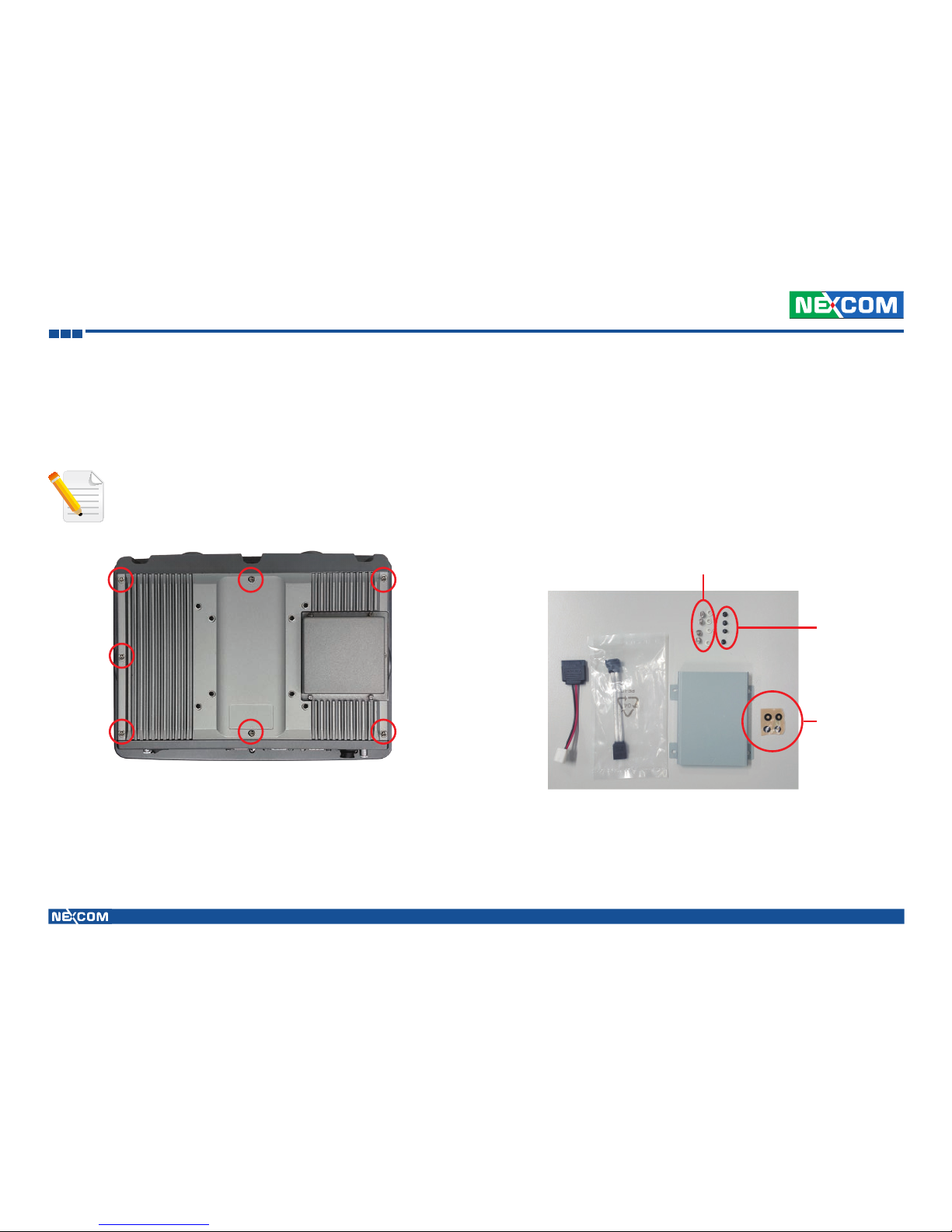

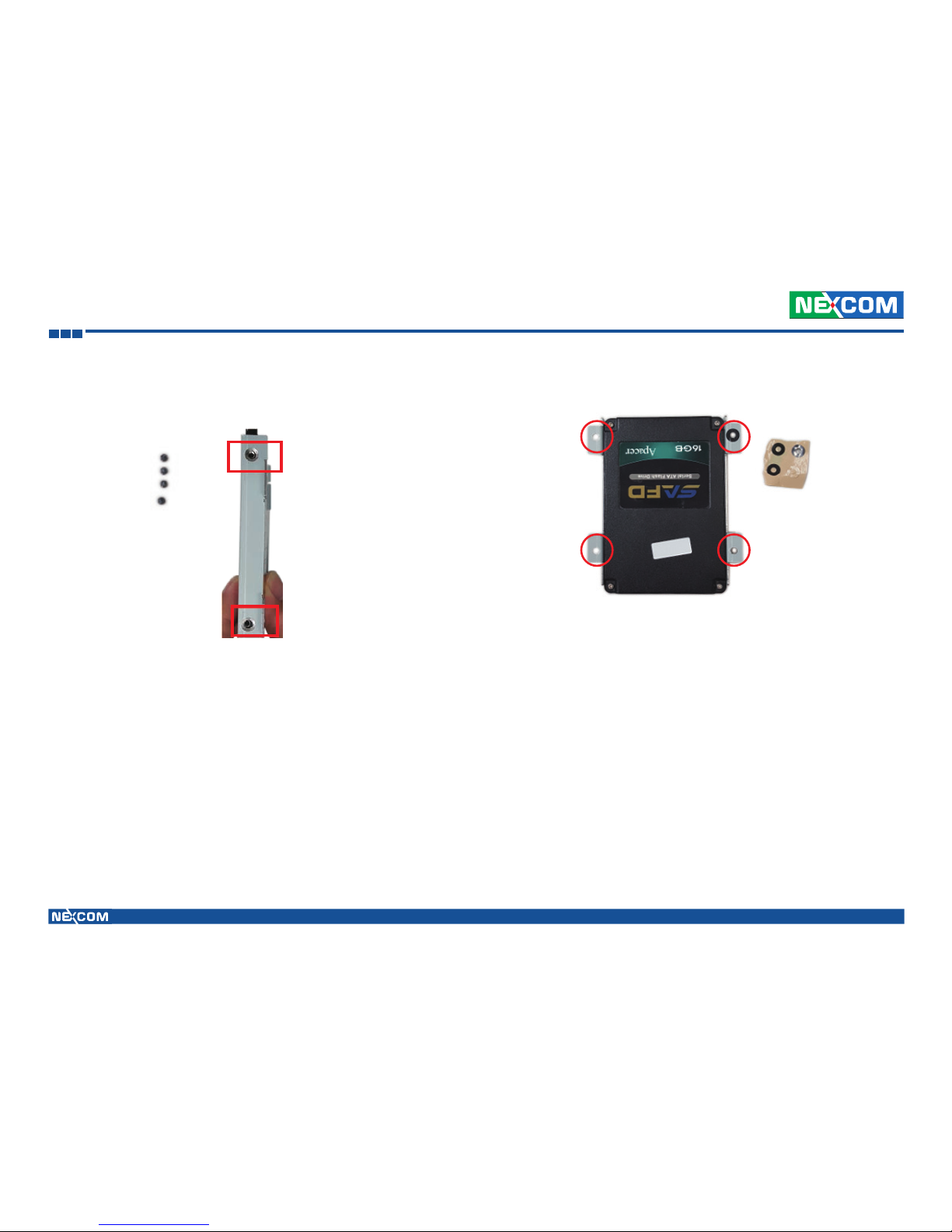

Installing a SSD .....................................................................................25

Installing a WLAN & Bluetooth Module .................................................28

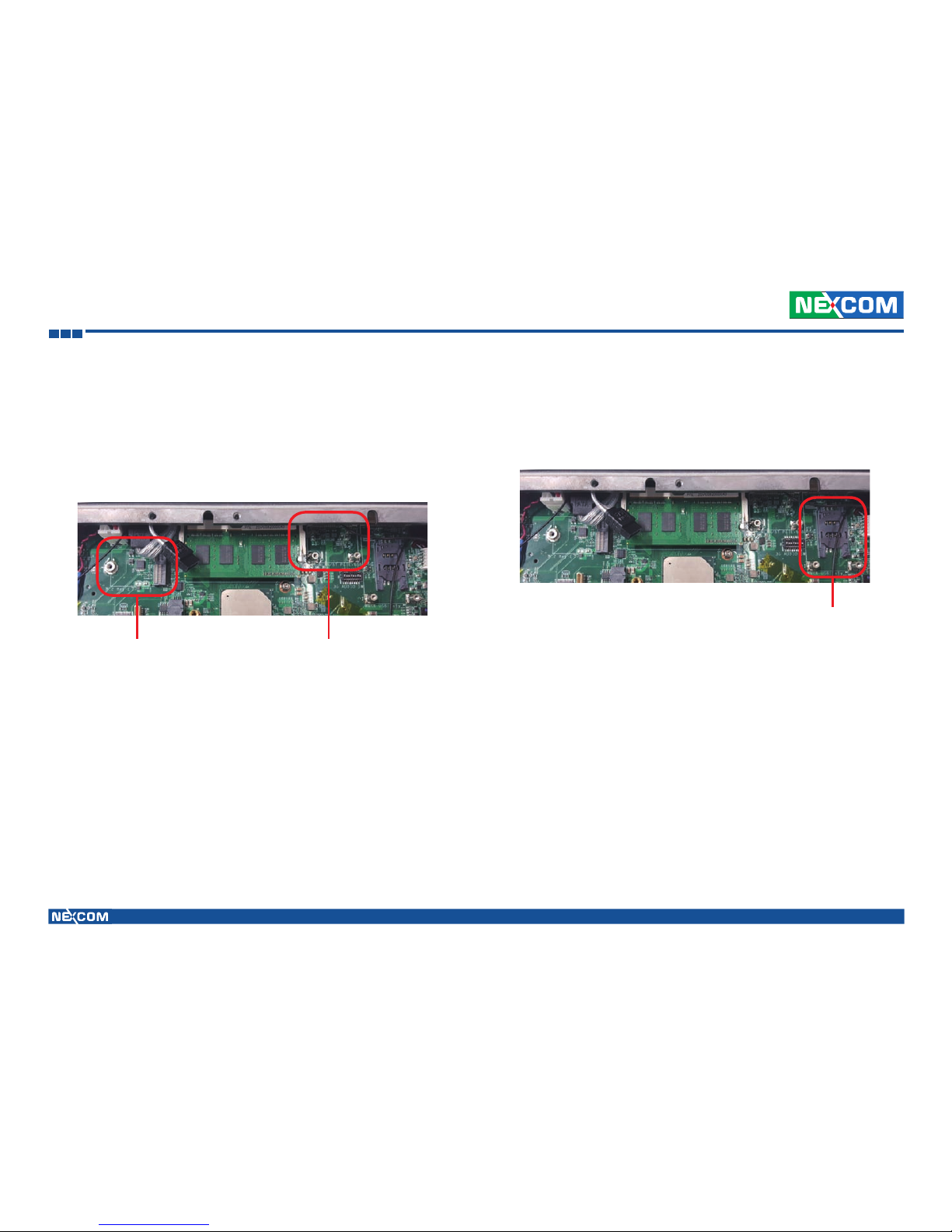

Installing a WWAN Module ...................................................................28

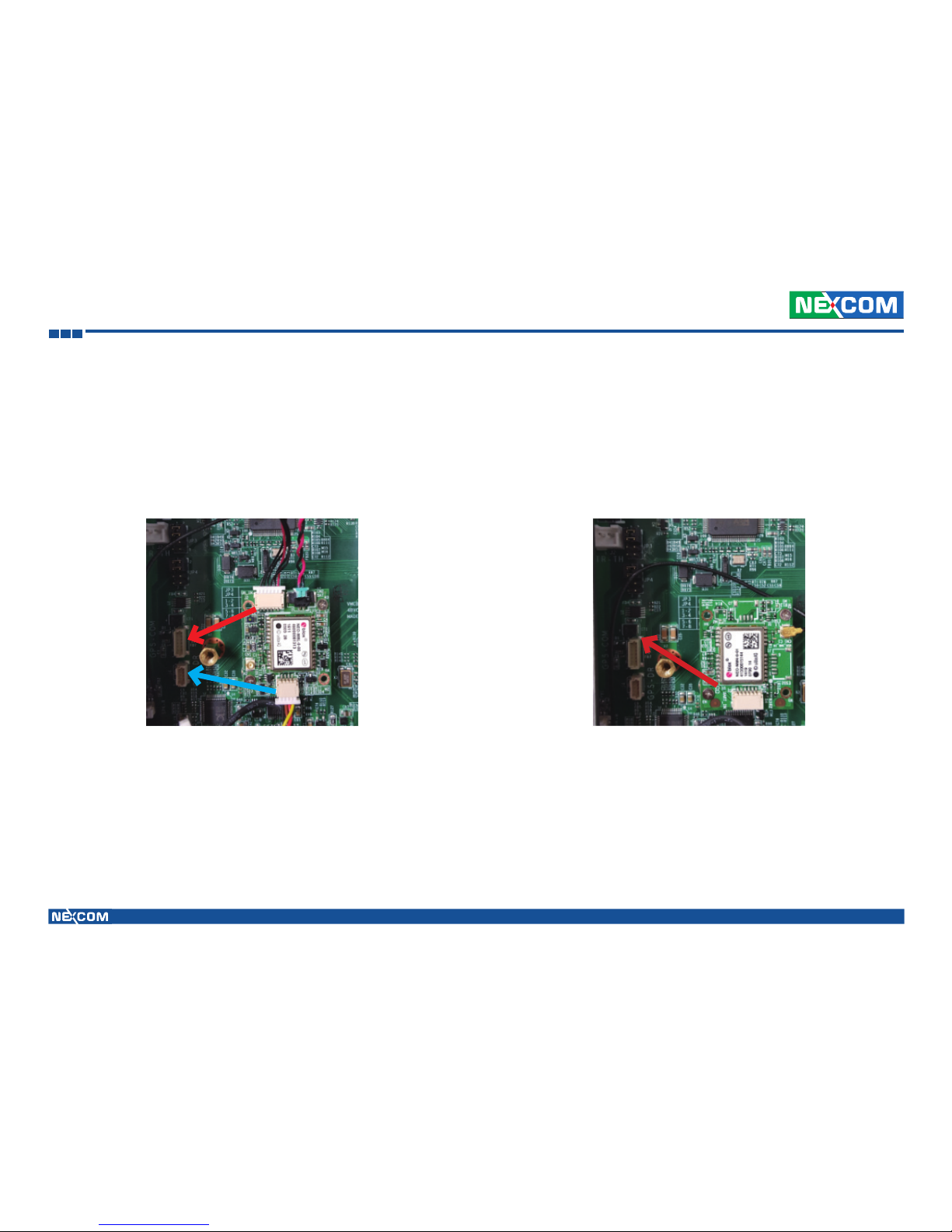

Installing a GPS Module ........................................................................29

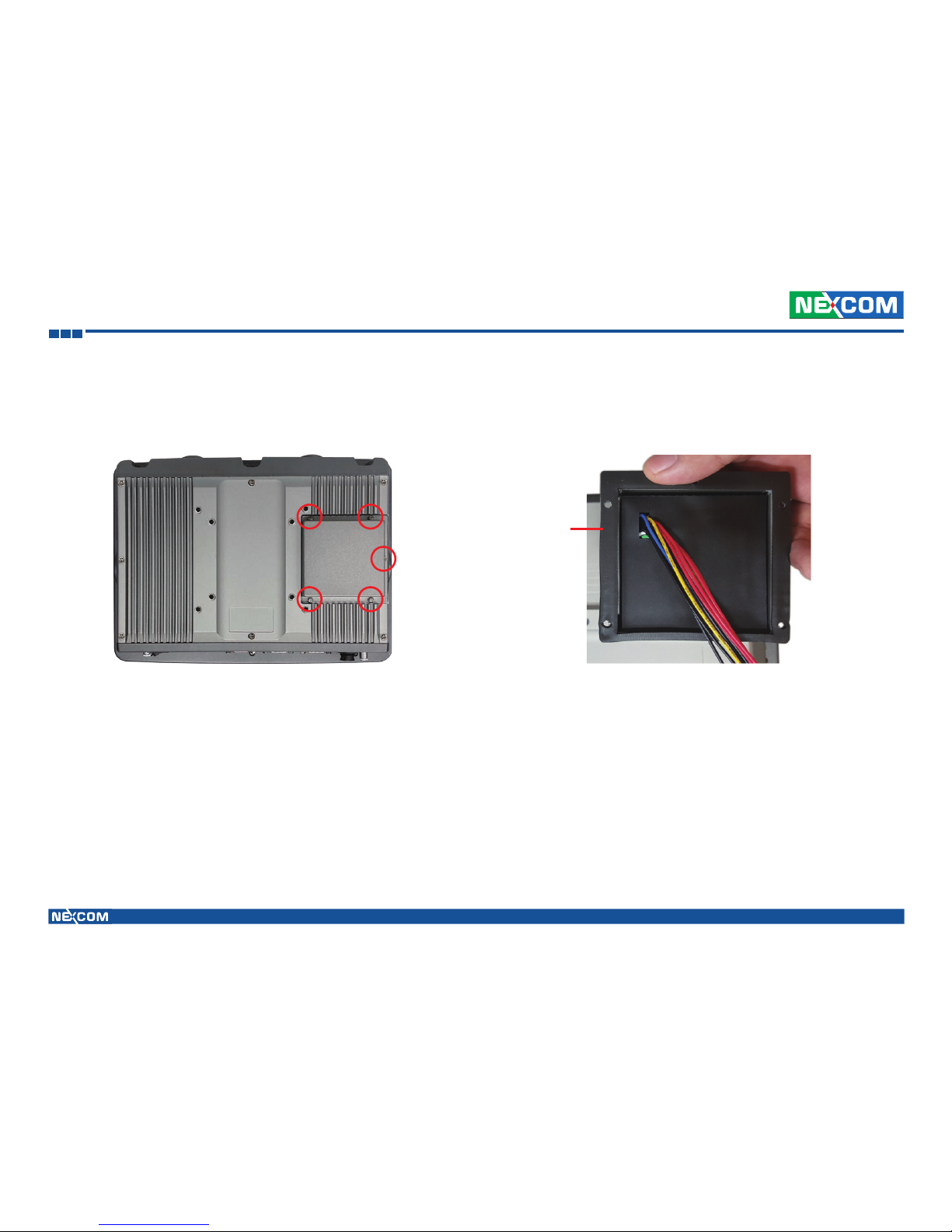

Installing a Battery ................................................................................30

Chapter 4: Software

Hotkey Setup Procedure ........................................................................32

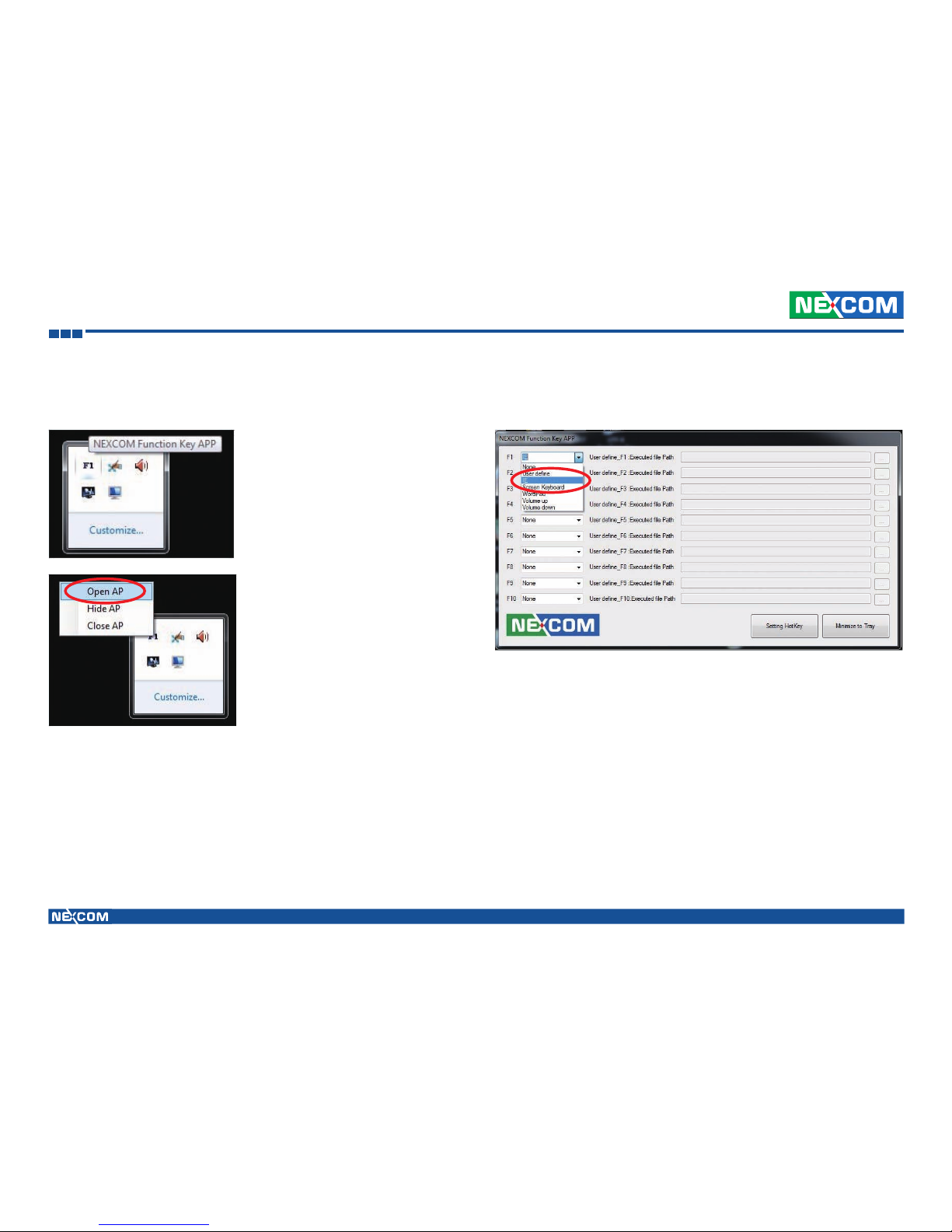

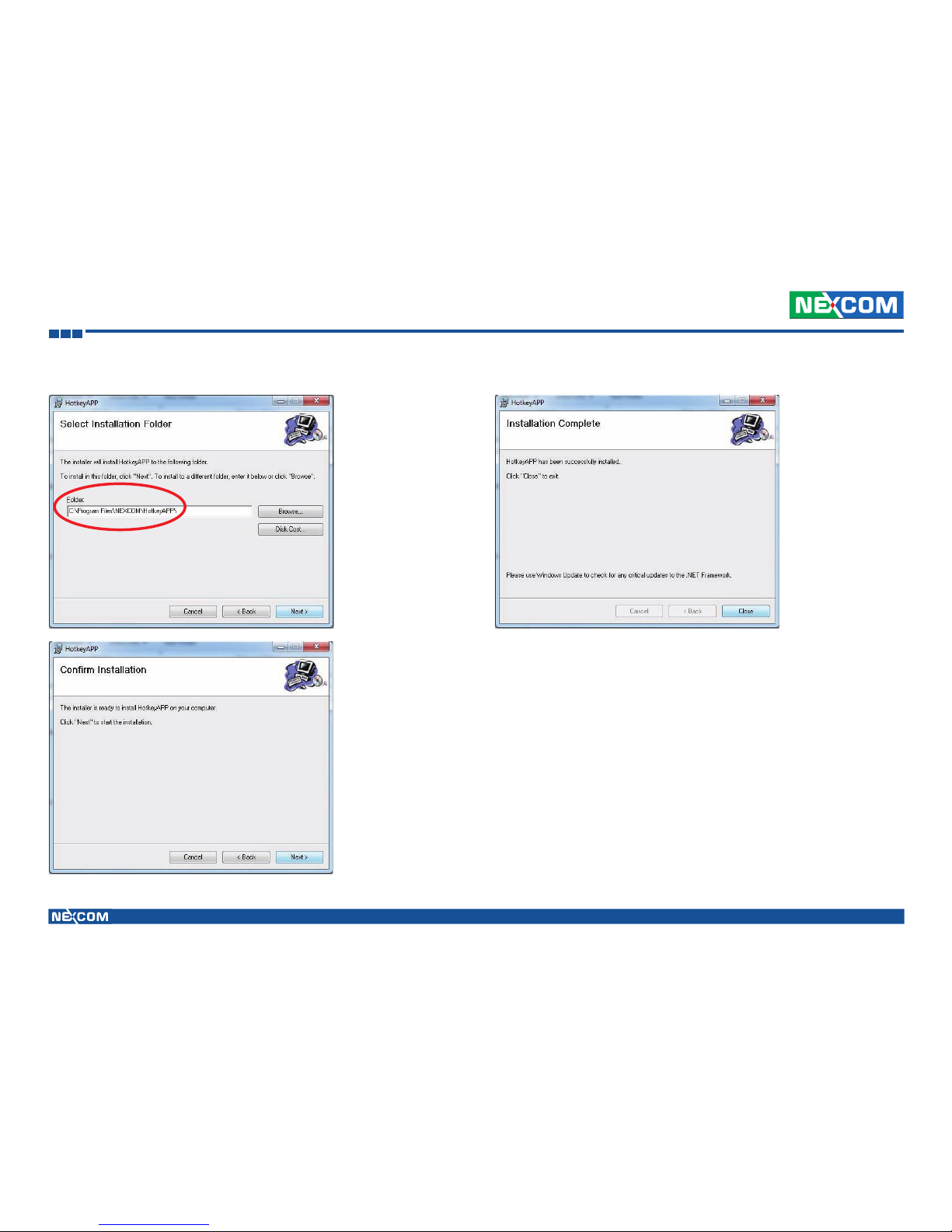

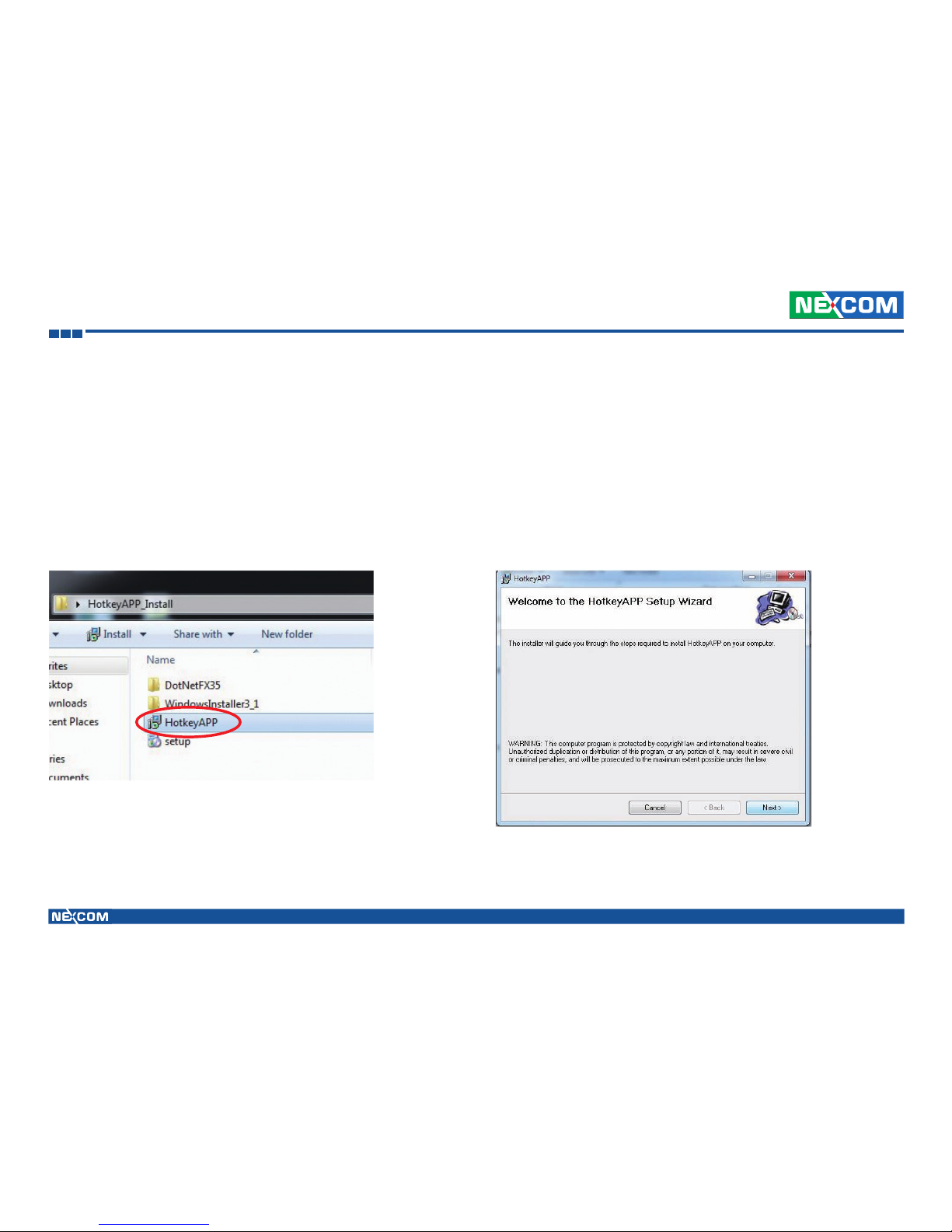

Installing NEXCOM Function Key App ................................................32

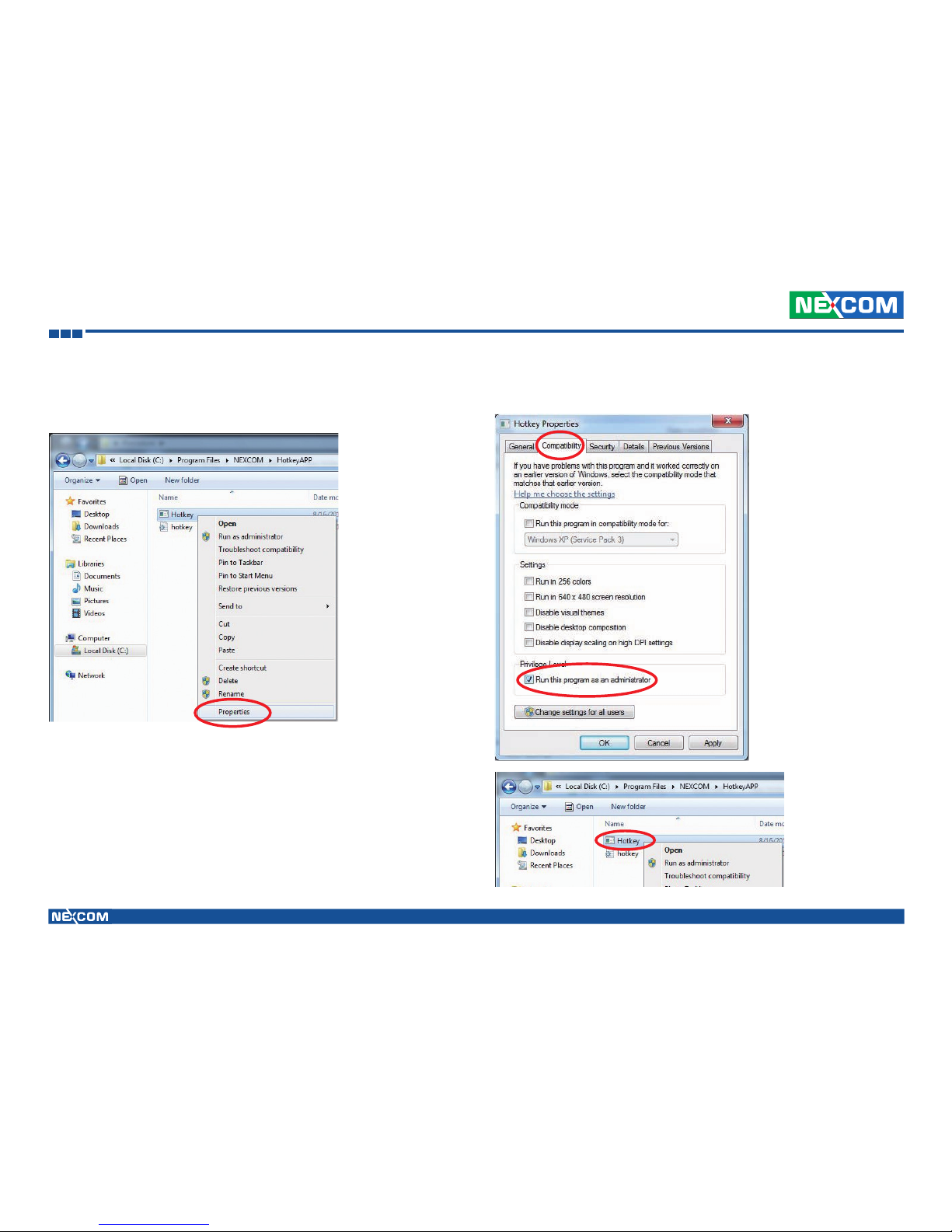

Applying Administrator Authority ......................................................34

Setup Hotkey Function ......................................................................35

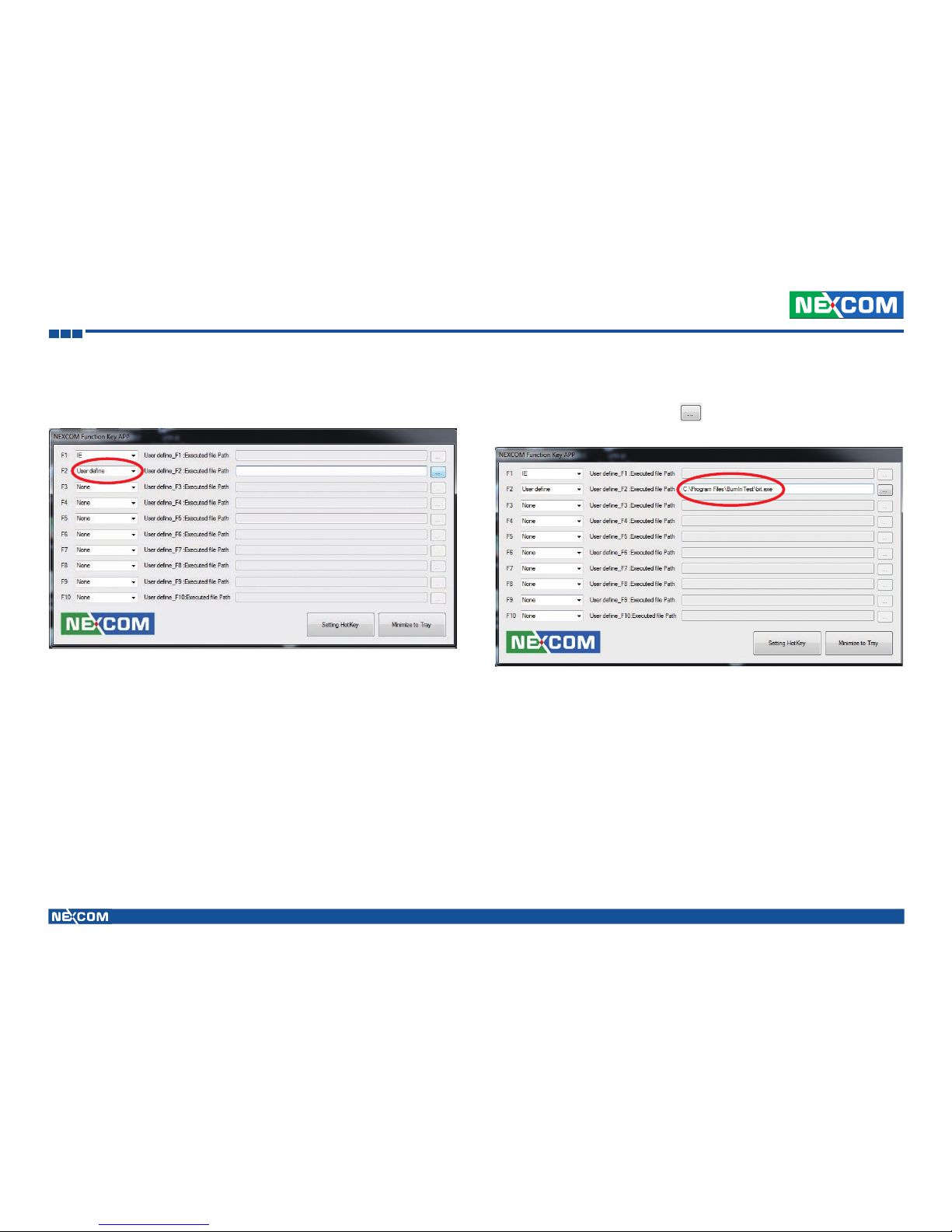

Setup Hotkey Function - User Define .................................................36

How to Switch Hotkey Button ...........................................................37

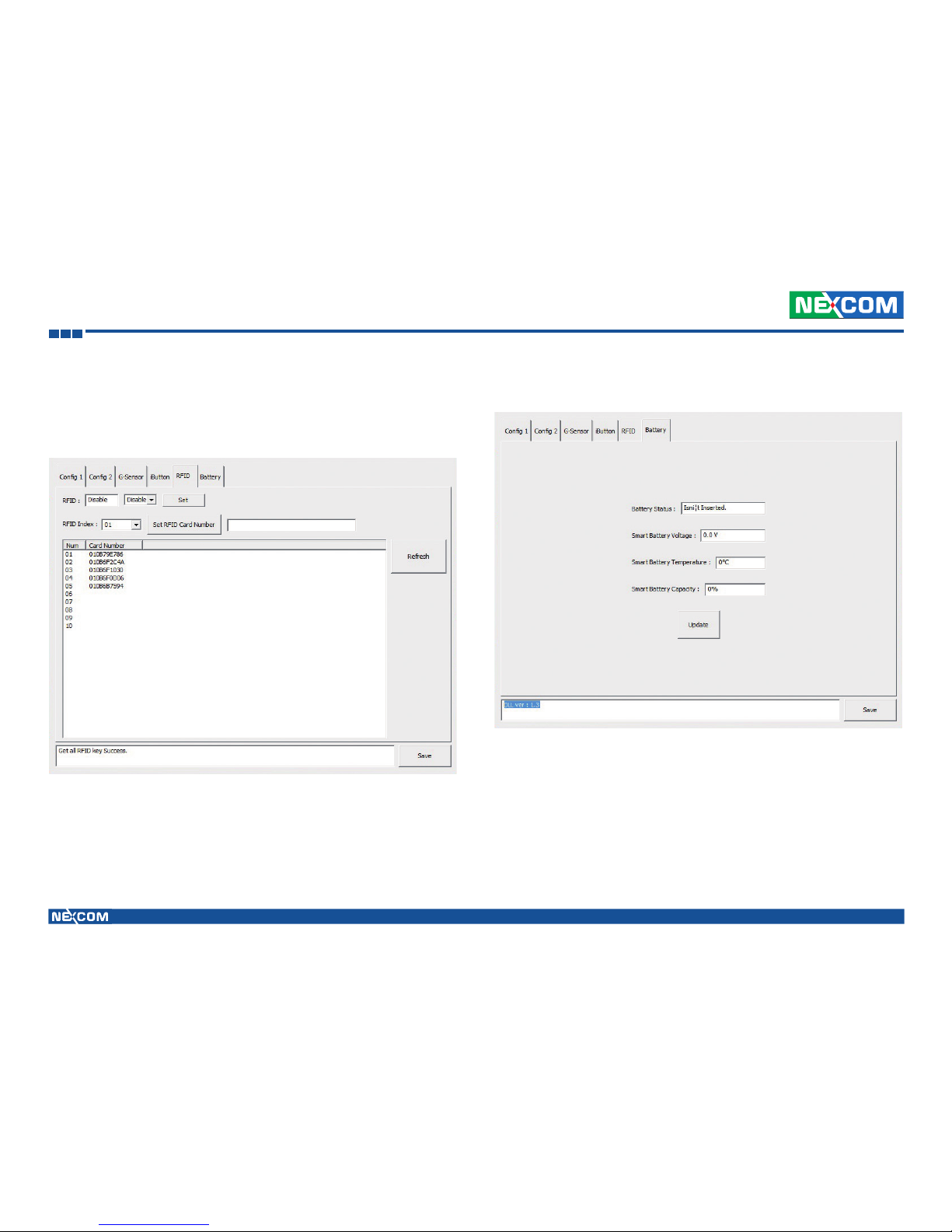

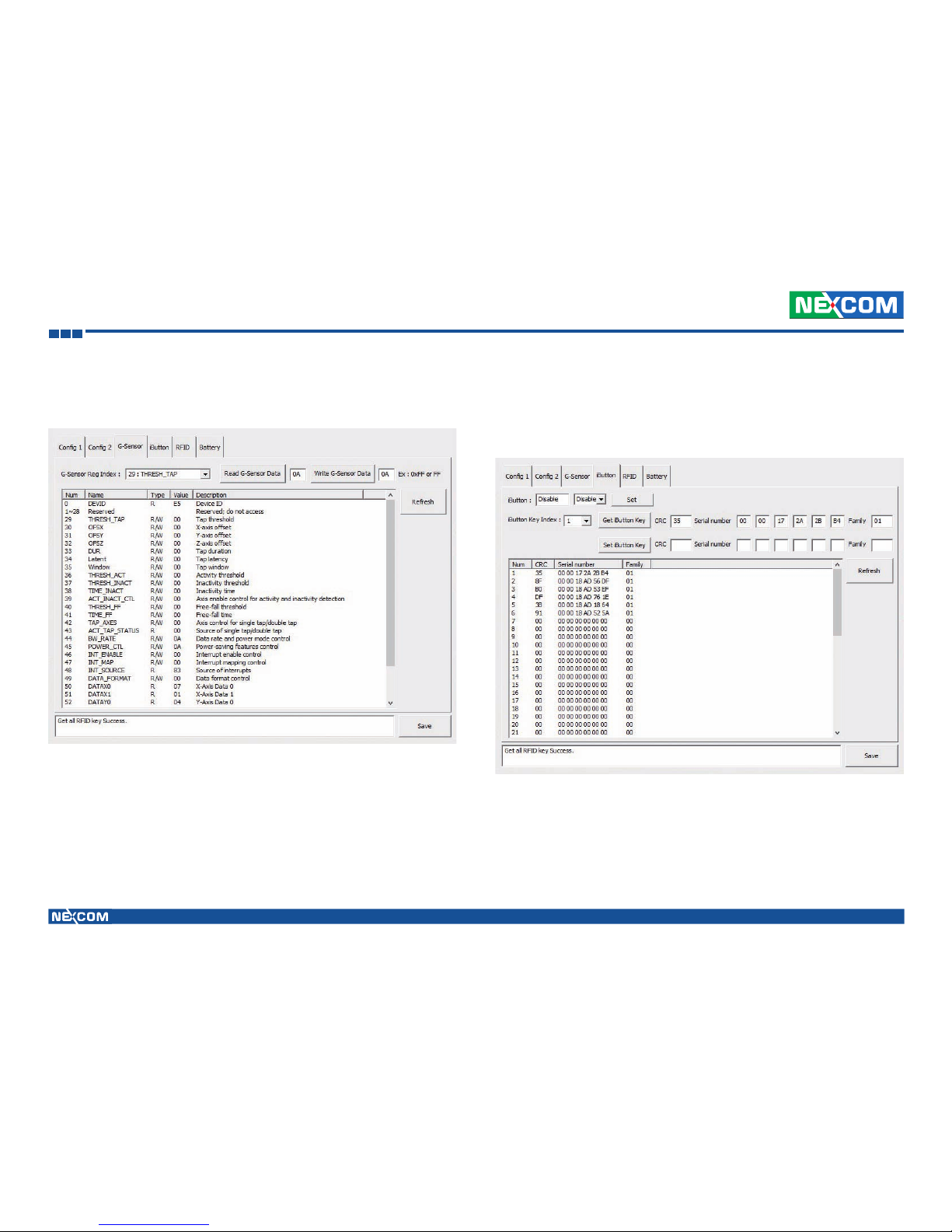

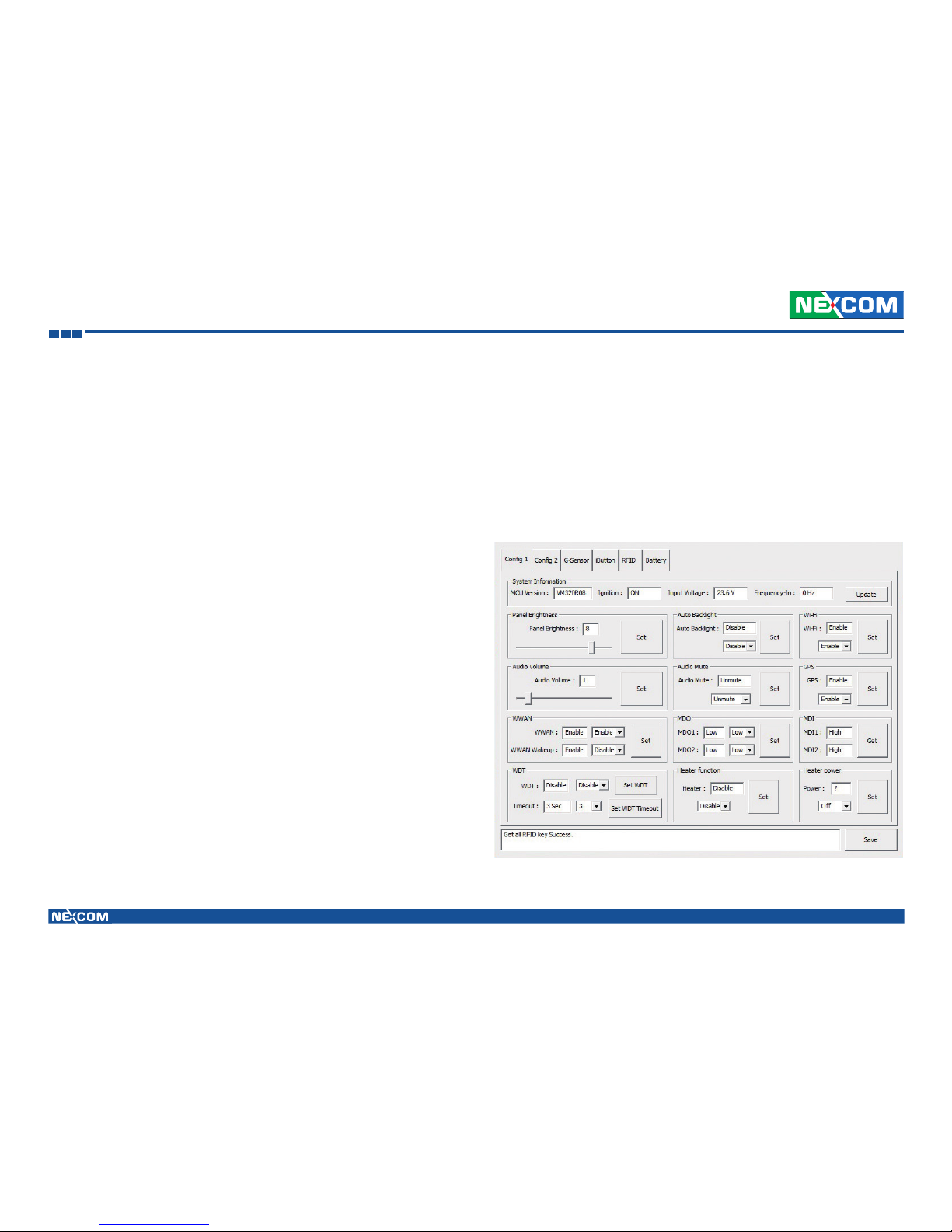

Demo Utility ..........................................................................................38

WWAN ...........................................................................................38

WWAN Wake Up ...........................................................................38

Heater Function ..............................................................................38

Heater Power .................................................................................38

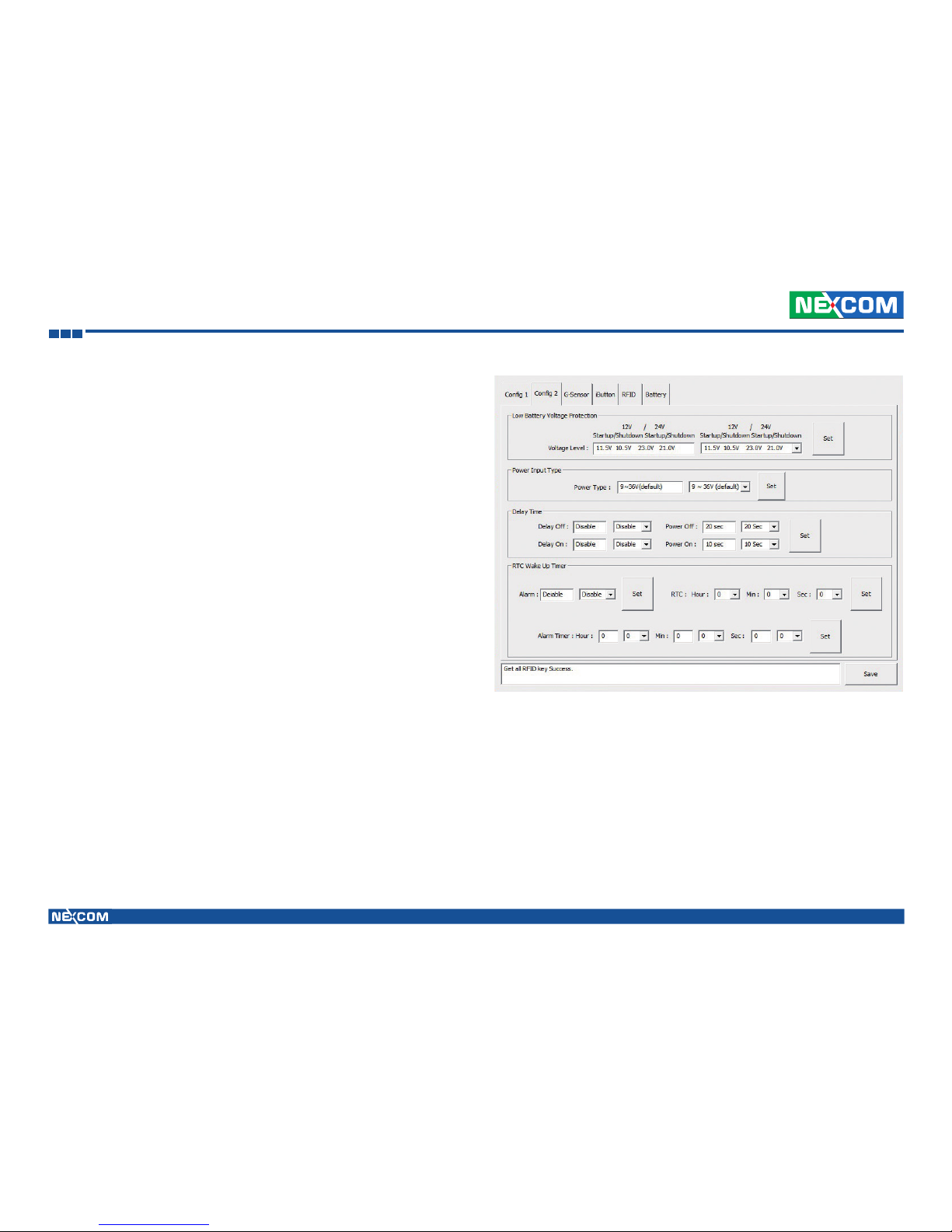

Low Battery Voltage Protection .......................................................39

Power Input Type ...........................................................................39

Delay Time ..................................................................................... 39

RTC Wake Up Timer .......................................................................39

BIOS Power Management .....................................................................42

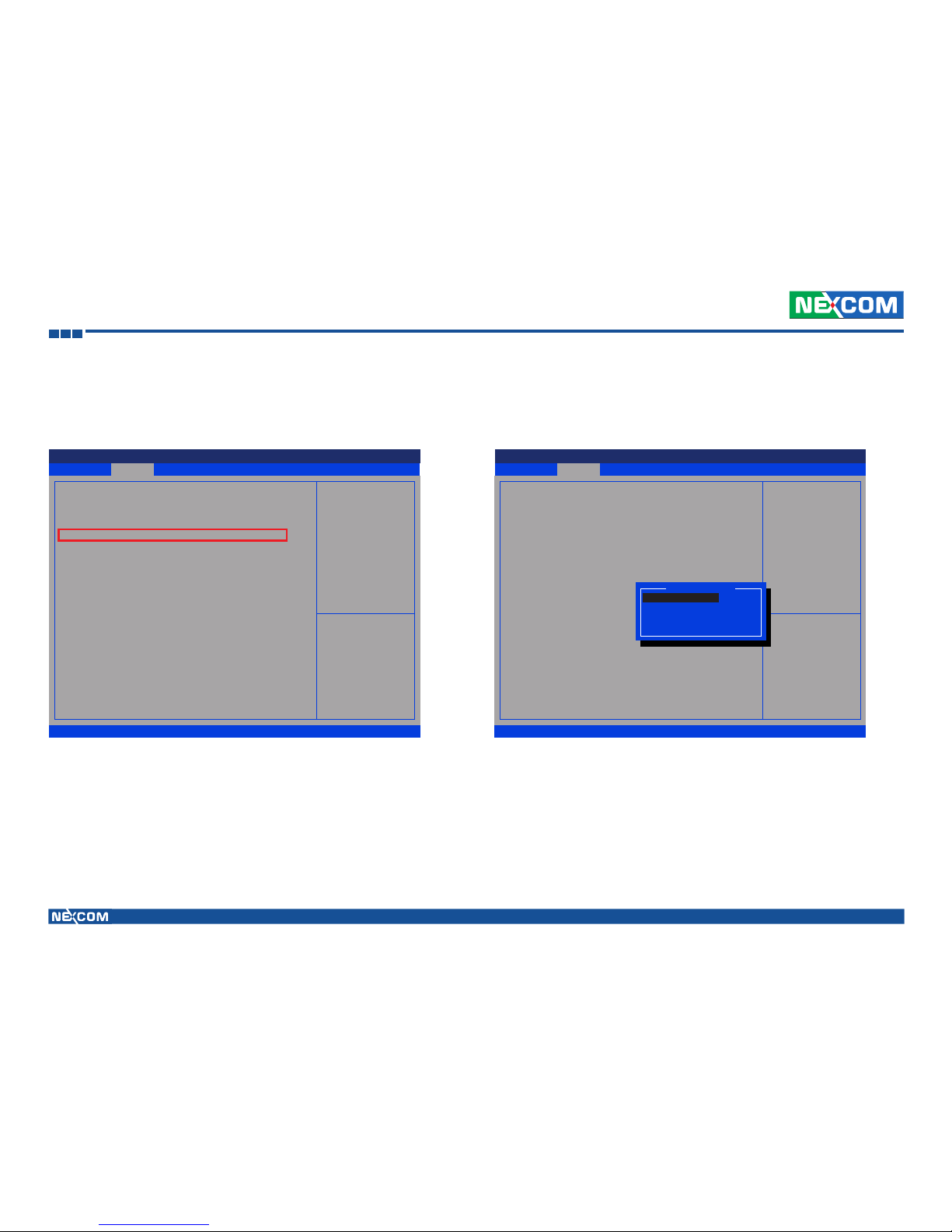

Entering BIOS ....................................................................................42

Voltage Setting for Turn-on or Turn-off of the System ........................43

Setting for Delay-on & Delay-off ........................................................44

Setting for Delay-on & Delay-off ........................................................45

WWAN Module Management ...........................................................46

Setting for Automatic Reboot ............................................................47

Touchscreen Driver Installation ..............................................................48

Installing PenMount Windows Universal Driver

(For 2000/XP/XPT/XPE/2003/VISTA/7/WES7/2008/8) ...........................48

Installing PenMount Mouse Driver in

Windows 2000/XP/XPT/XPE/2003/VISTA/7/WES7/2008/8 ...................50

Installing PenMount Digitizer Driver in

Windows XP/Vista/7/WES7/2008/8 ....................................................51

Configuring Touchscreen in PenMount Mouse Driver ......................... 51

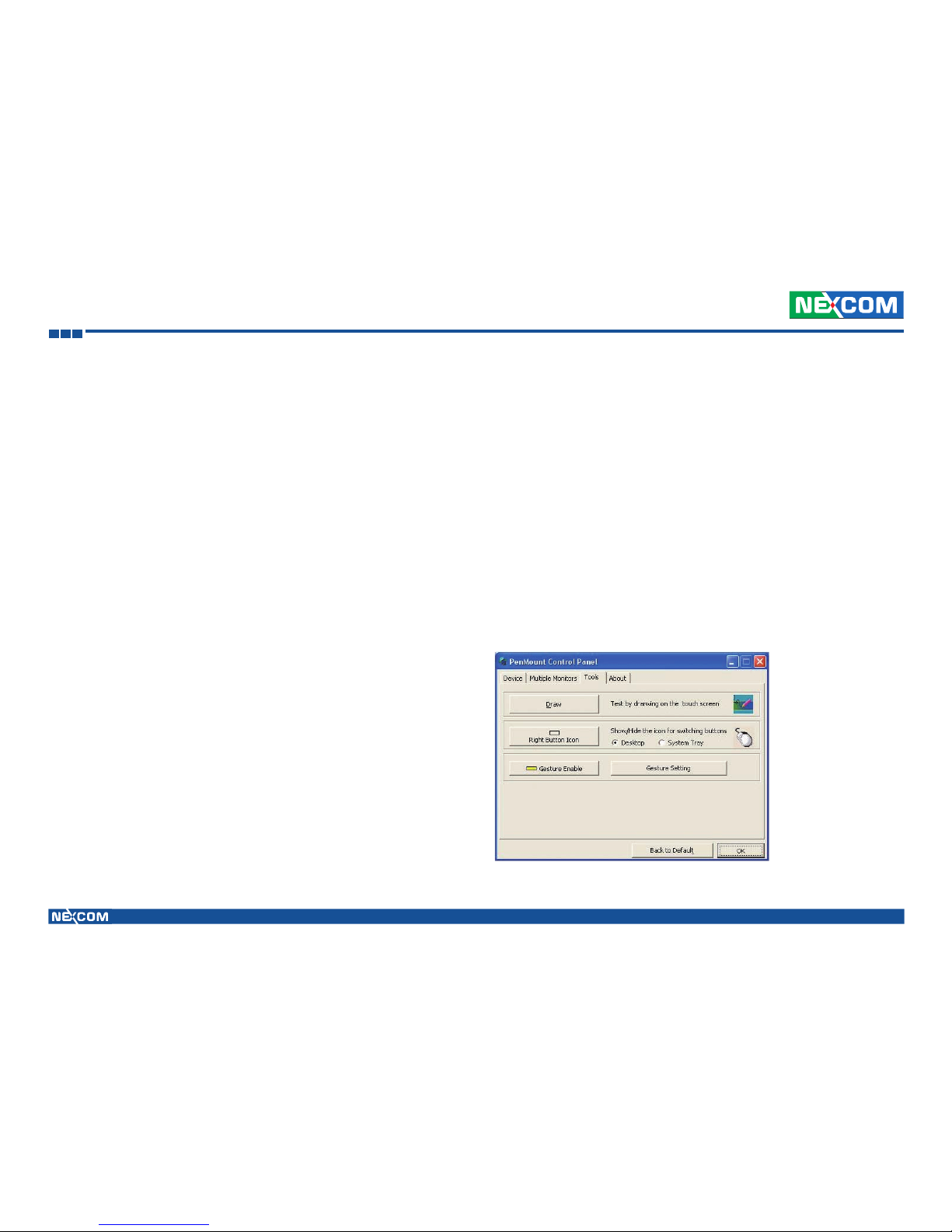

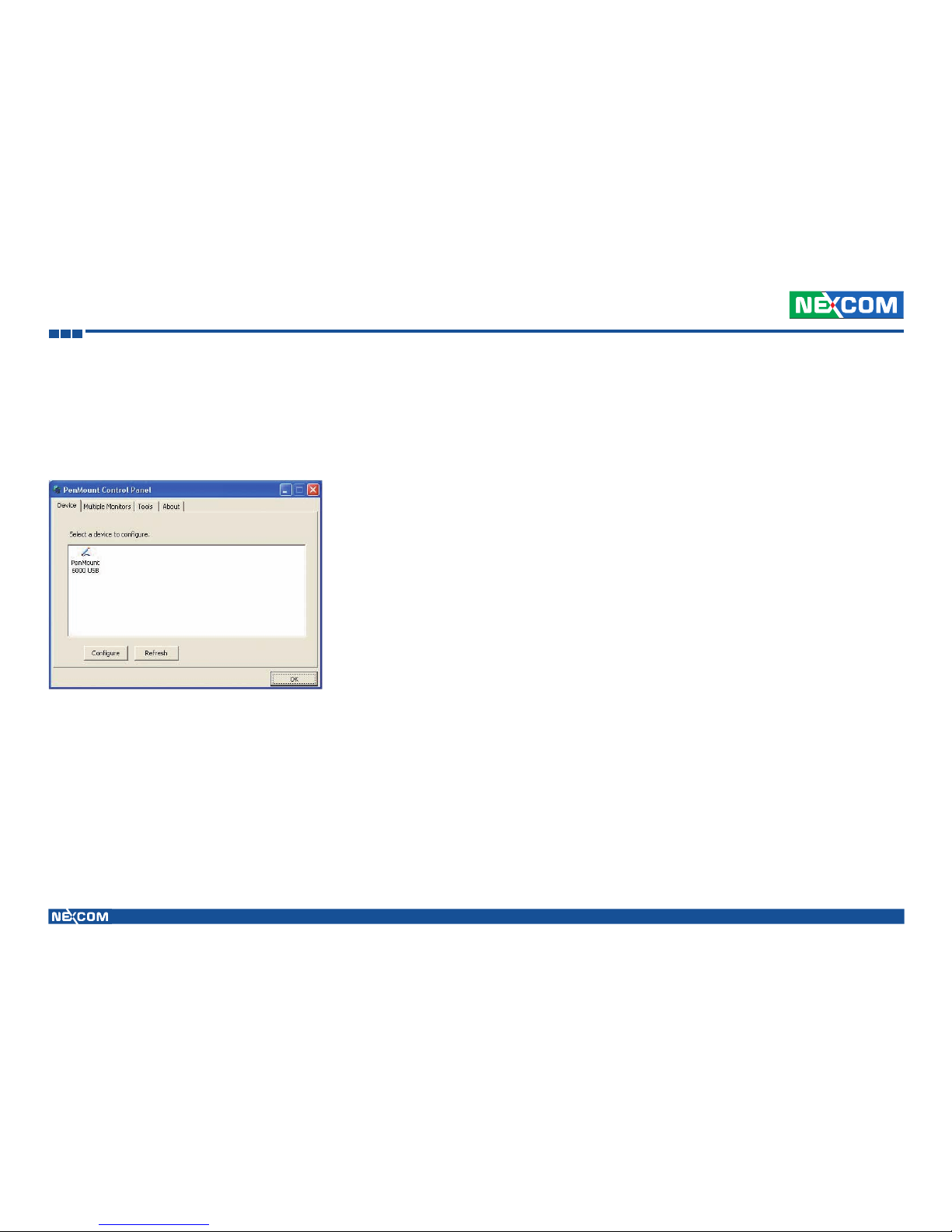

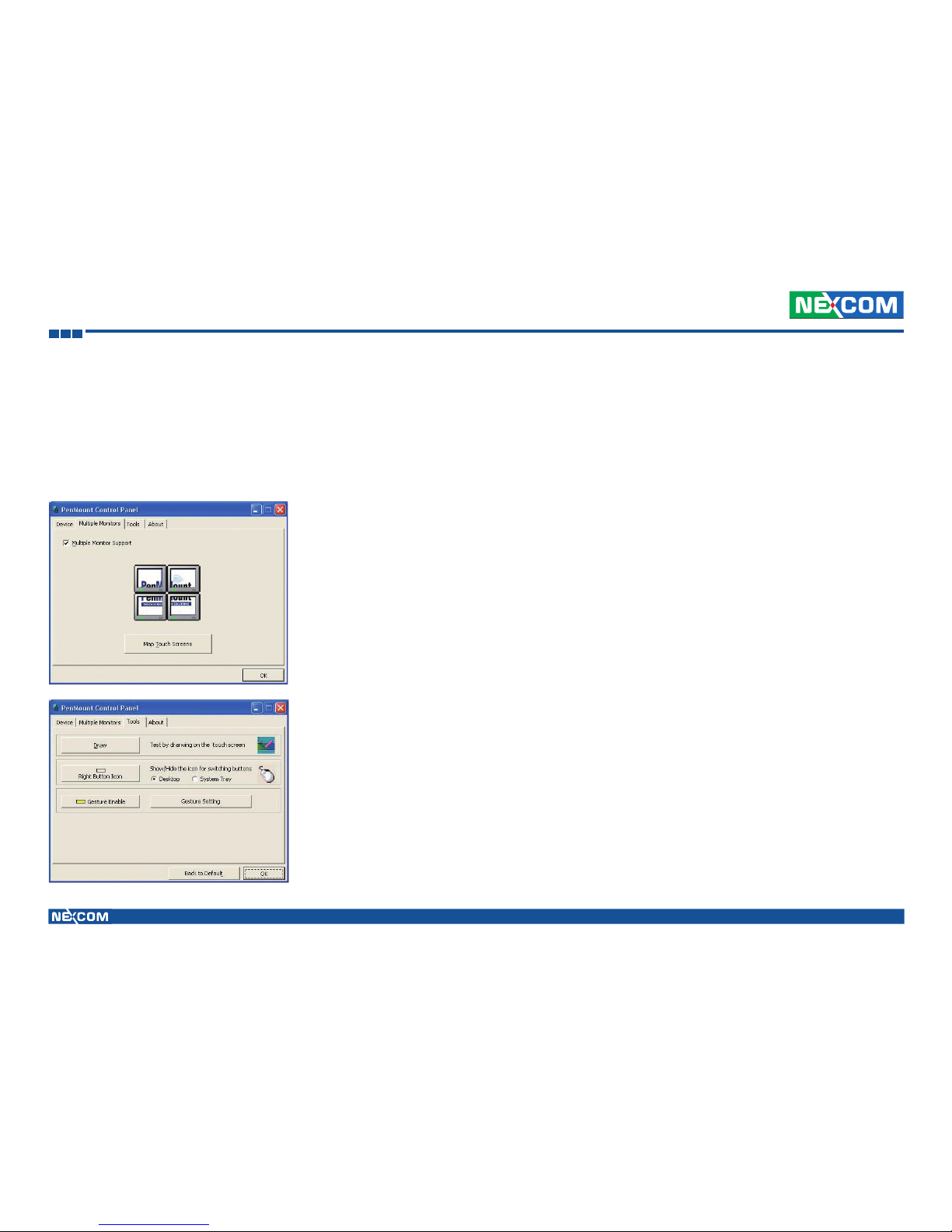

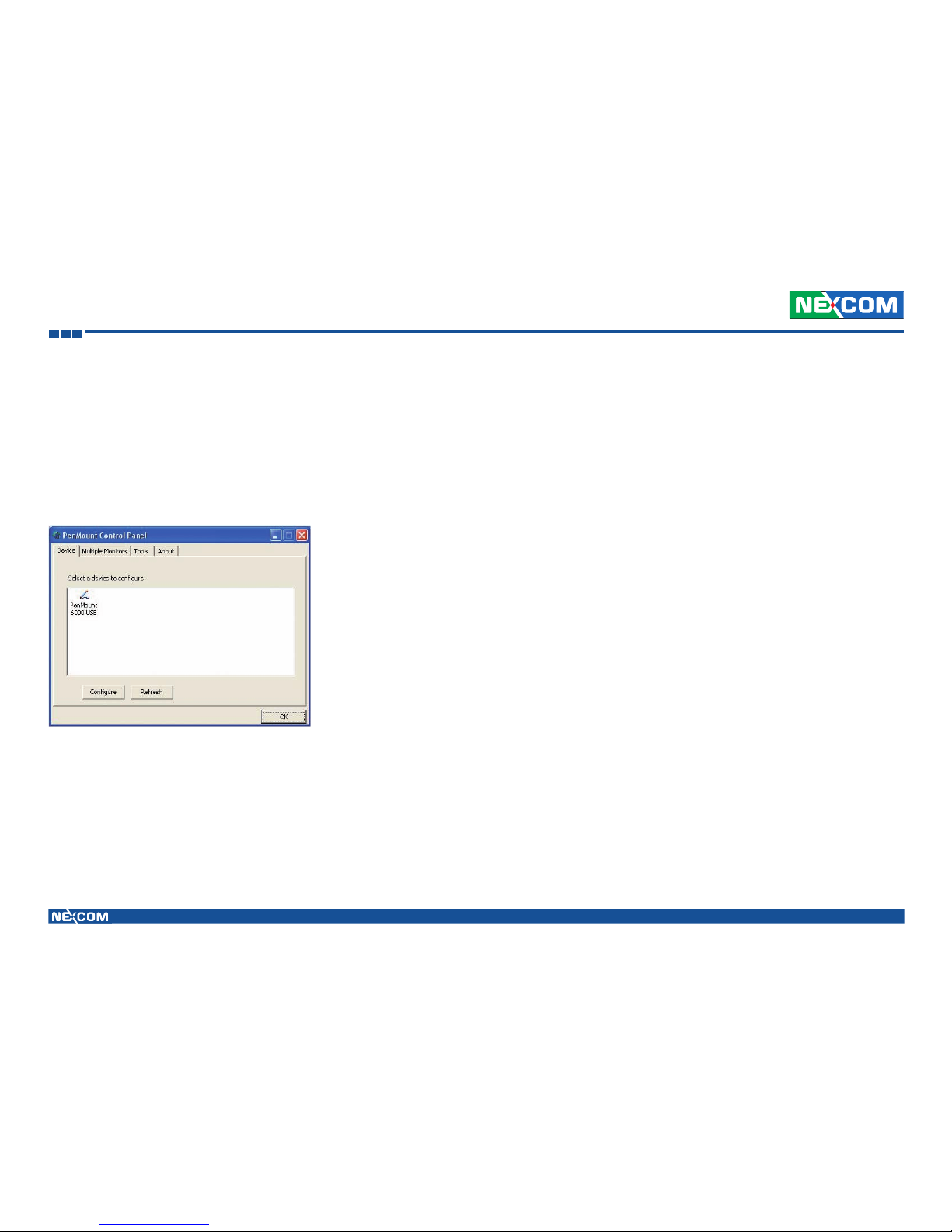

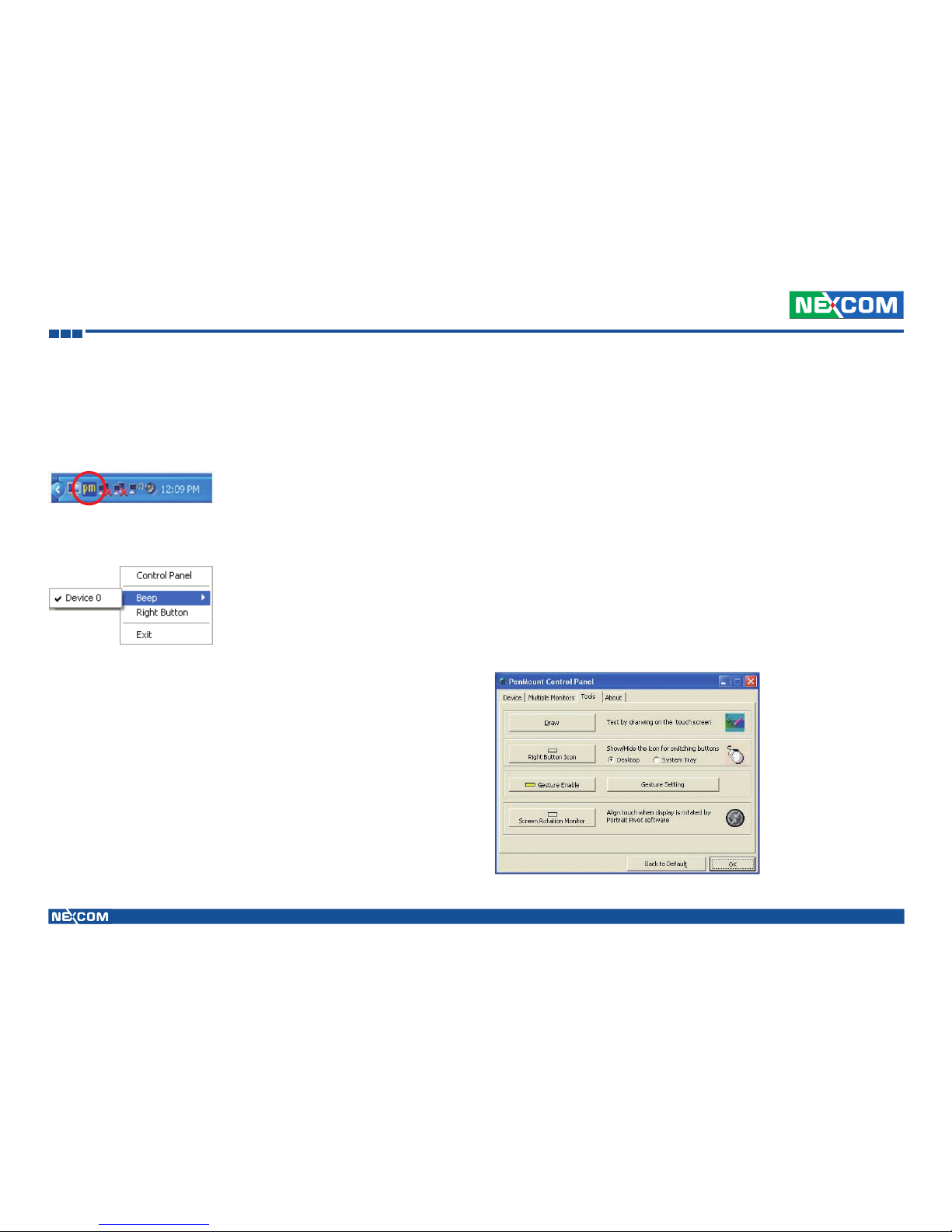

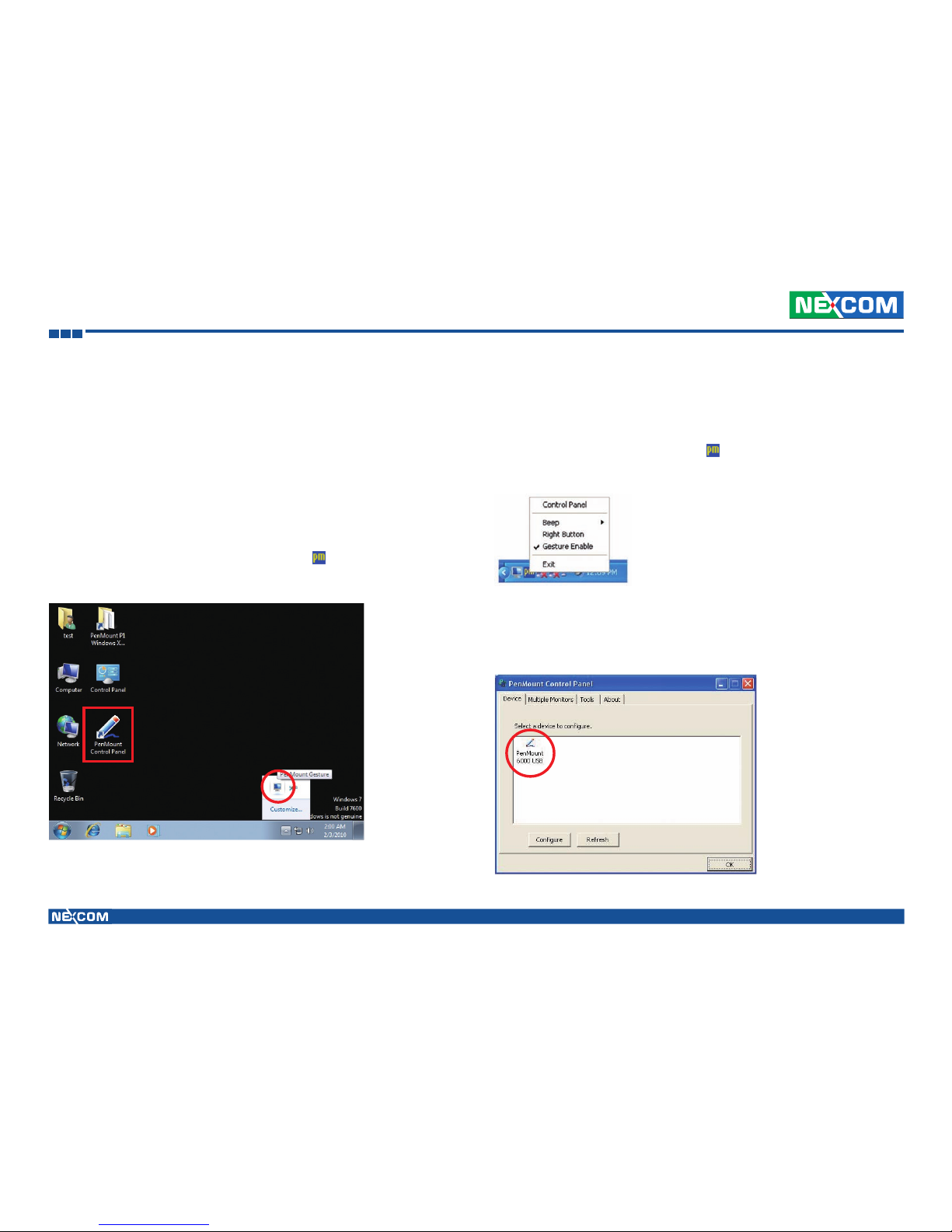

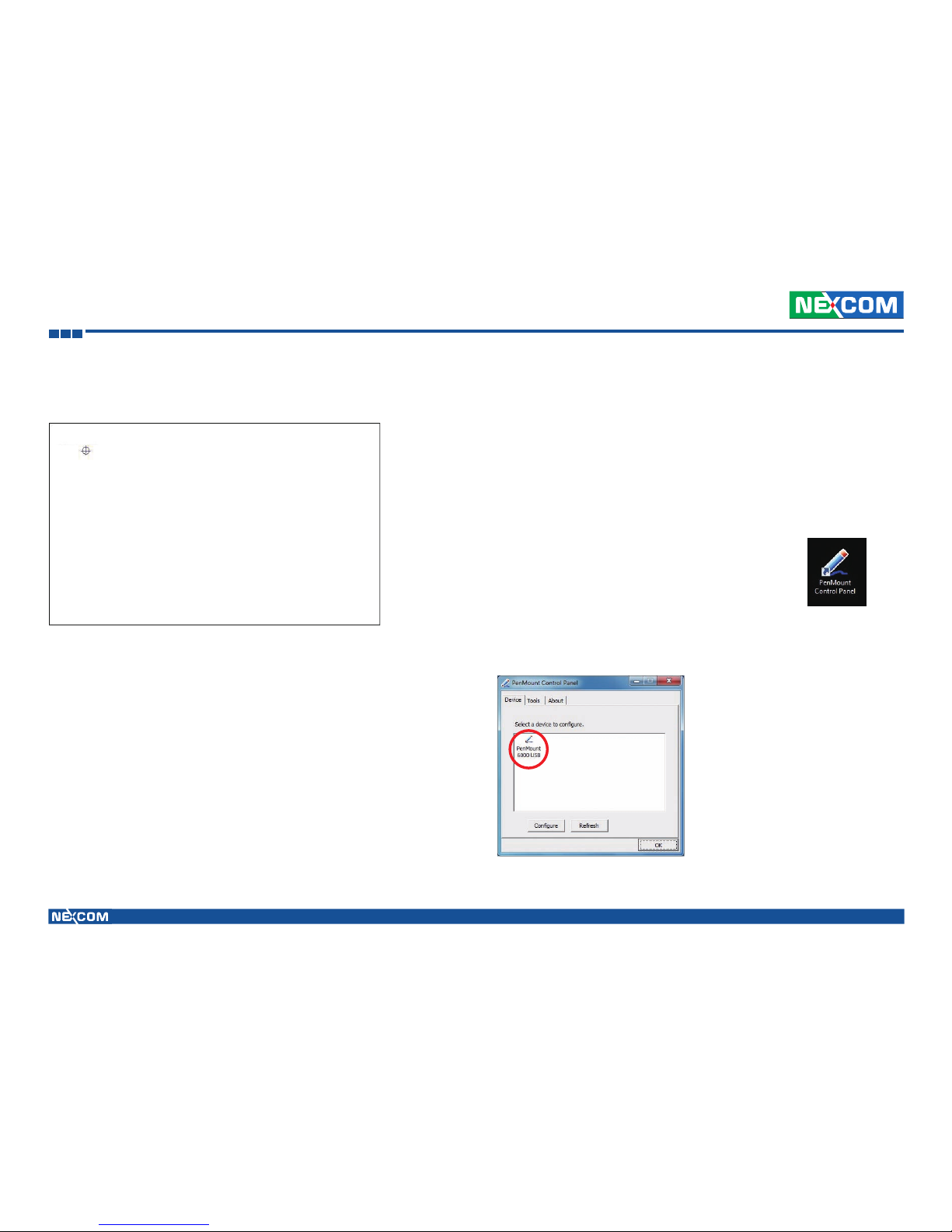

PenMount Control Panel ...................................................................52

PenMount Monitor Menu Icon ..........................................................56

PenMount Rotating Function .............................................................56

Touchscreen Configuration of PenMount Digitizer Driver ...................57

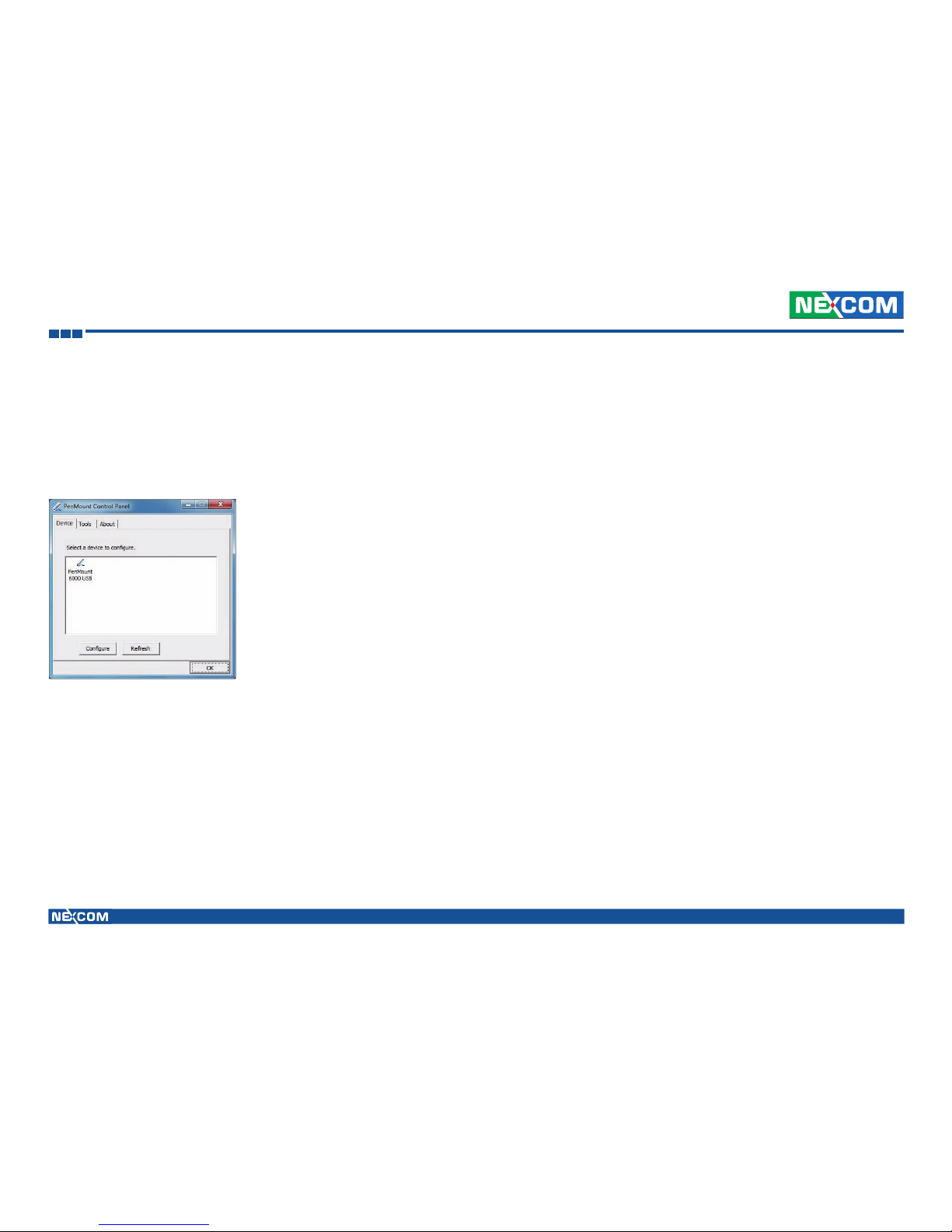

PenMount Control Panel .................................................................58

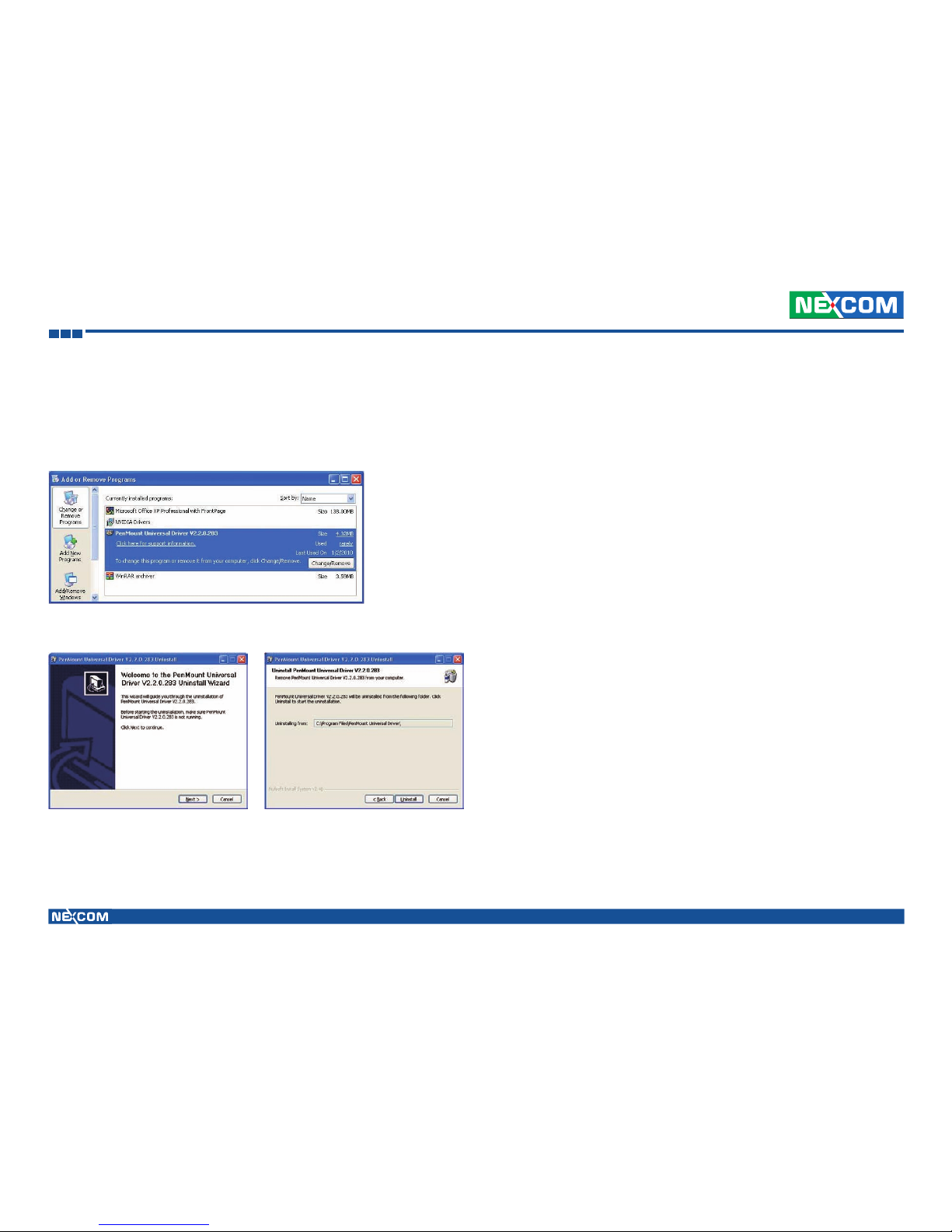

Uninstalling PenMount Windows Universal Driver .............................. 61

Installing PenMount Linux X Window USB Driver ............................... 62

Installing PenMount Linux X Window USB Driver ............................. 62

Calibration Utilities ..........................................................................62

Installing PenMount WinCE Driver ..................................................... 62

Installing PenMount WinCE Driver ................................................... 62

Touchscreen Driver Software Functions..................................................63

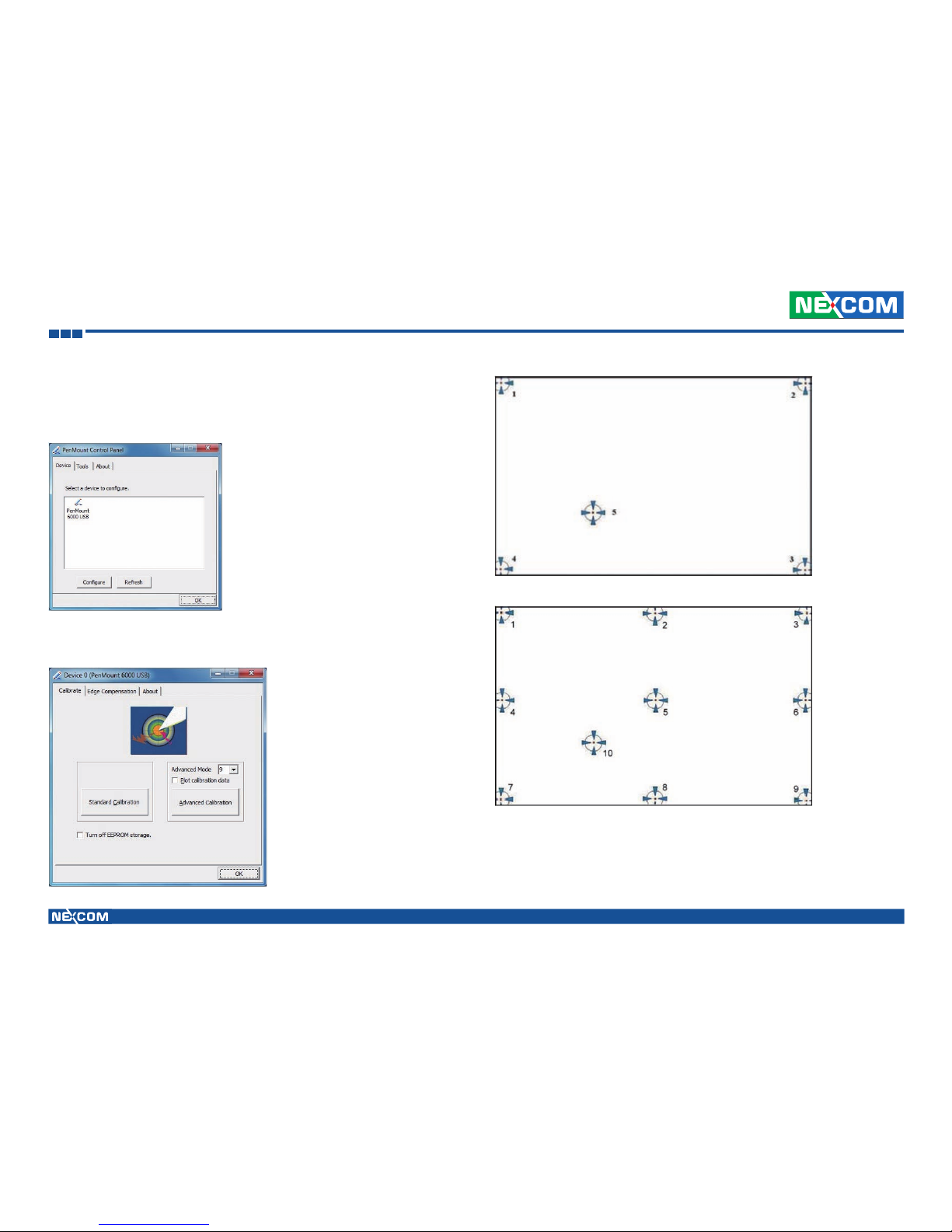

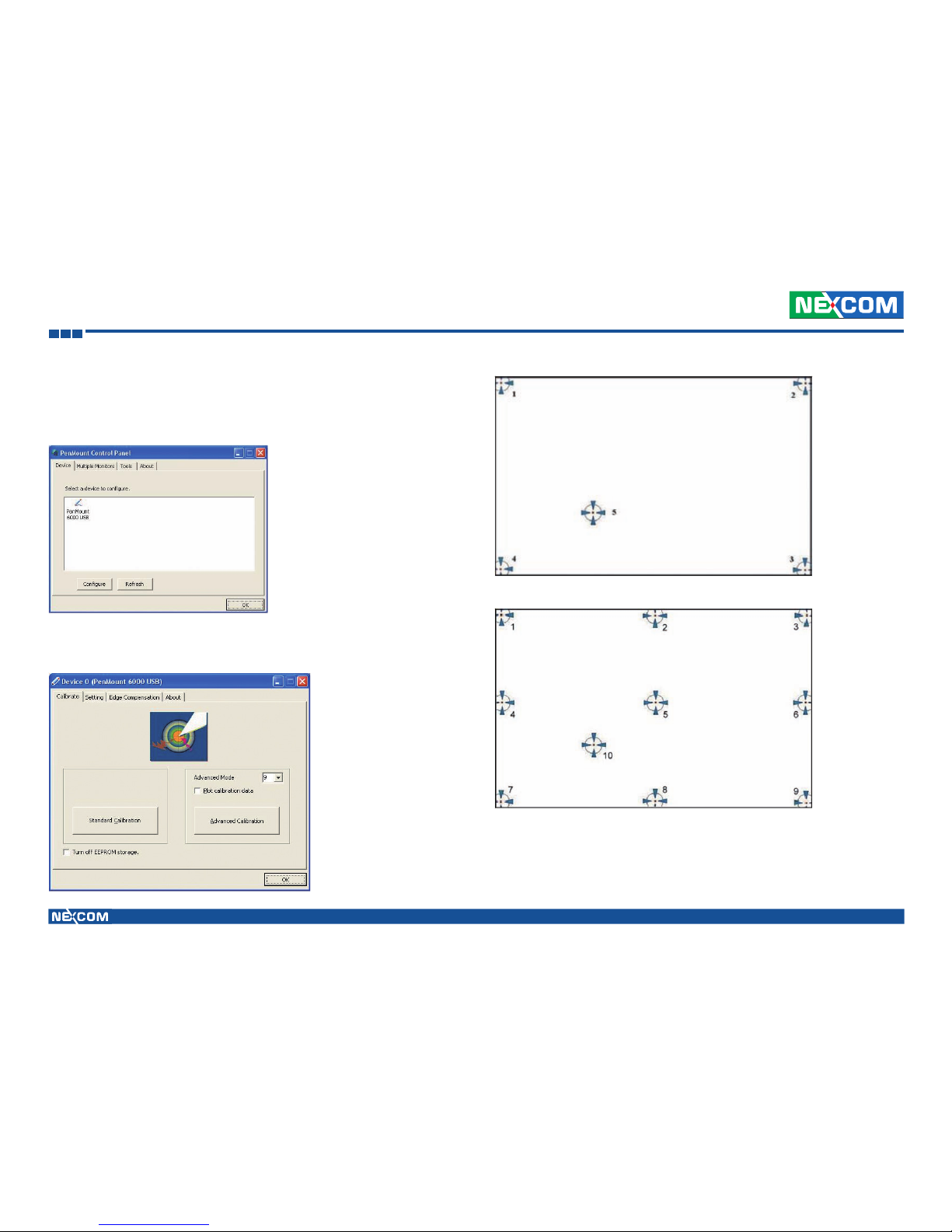

Standard Calibration ..........................................................................65

Advanced Calibration ........................................................................65

Rotation ............................................................................................65

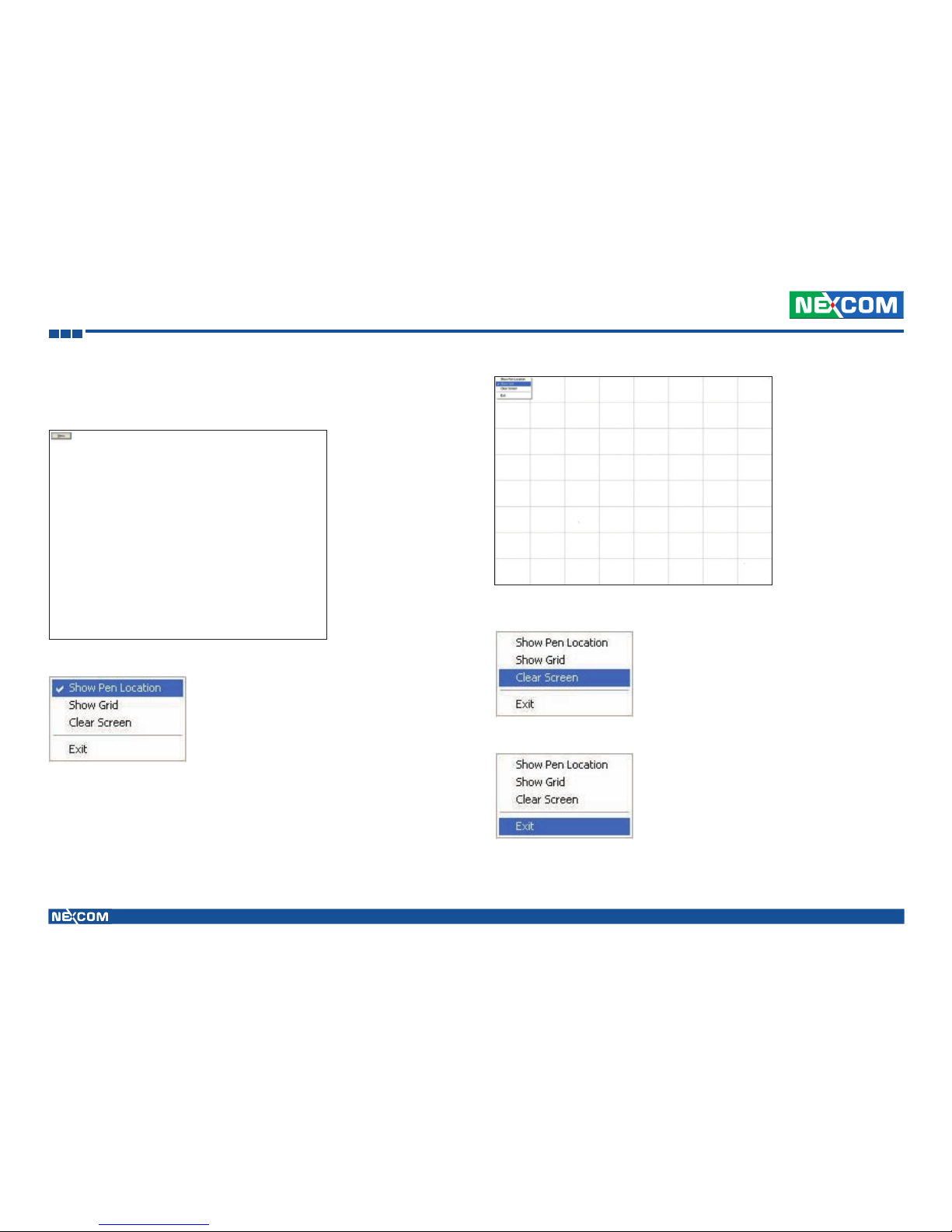

Draw .................................................................................................65

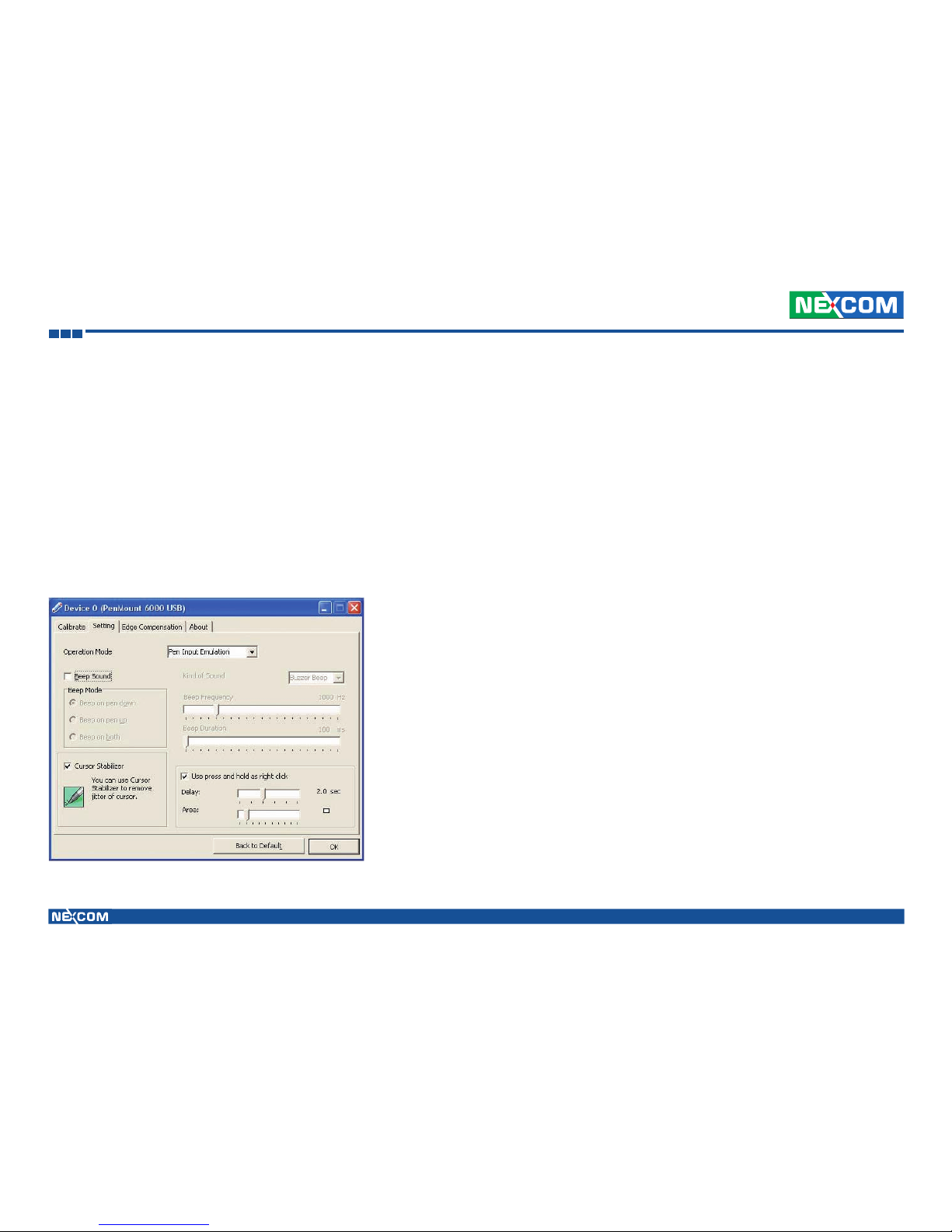

Mouse Operation Mode ....................................................................67

Beep Sound .......................................................................................67

iv

VMC 3020 User Manual

Contents

Beep Sound Adjustable ......................................................................67

Wake Up Function .............................................................................67

Plot Calibration Data .........................................................................67

Right Button ......................................................................................67

Hide Cursor .......................................................................................67

Cursor Offset .....................................................................................68

Double Click Area and Speed ............................................................68

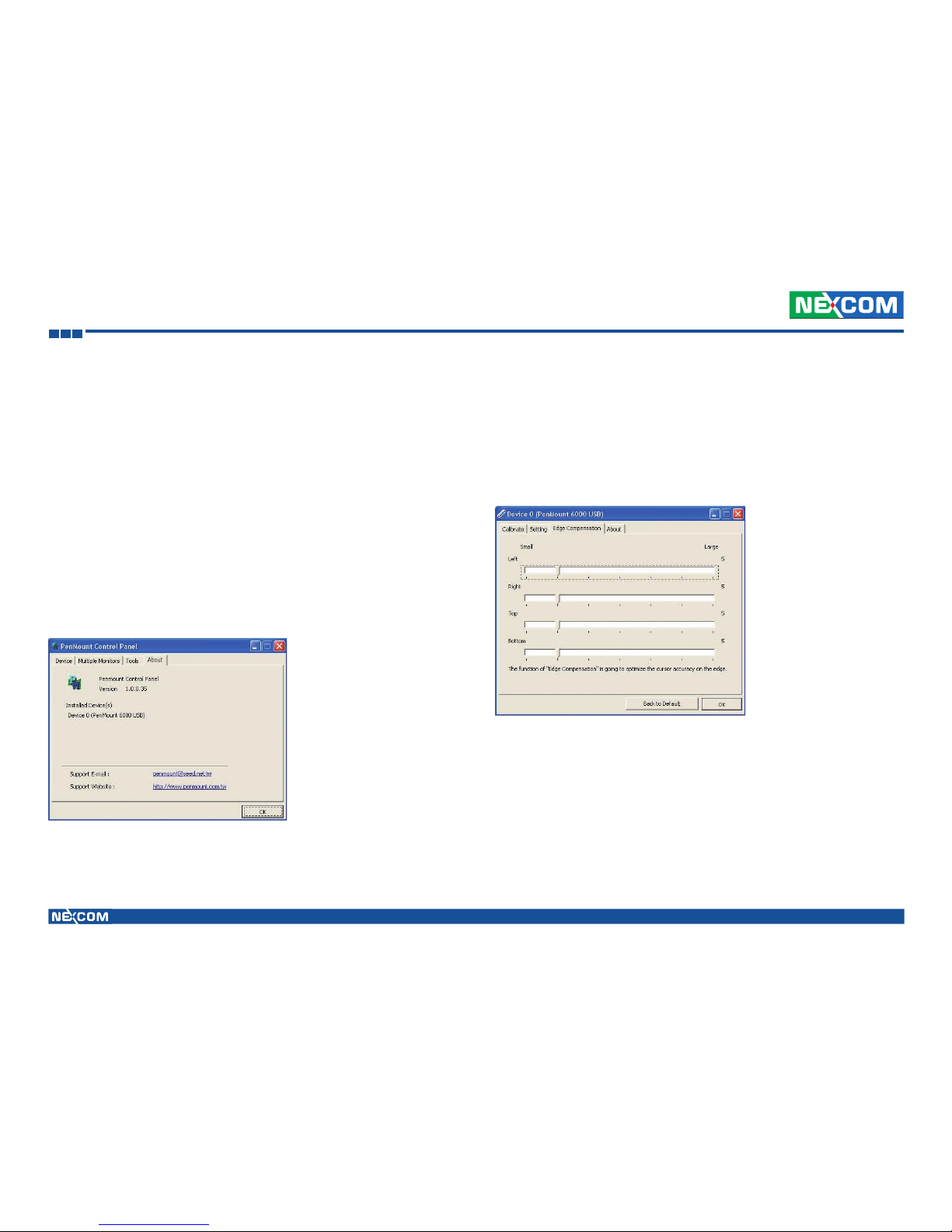

About ................................................................................................68

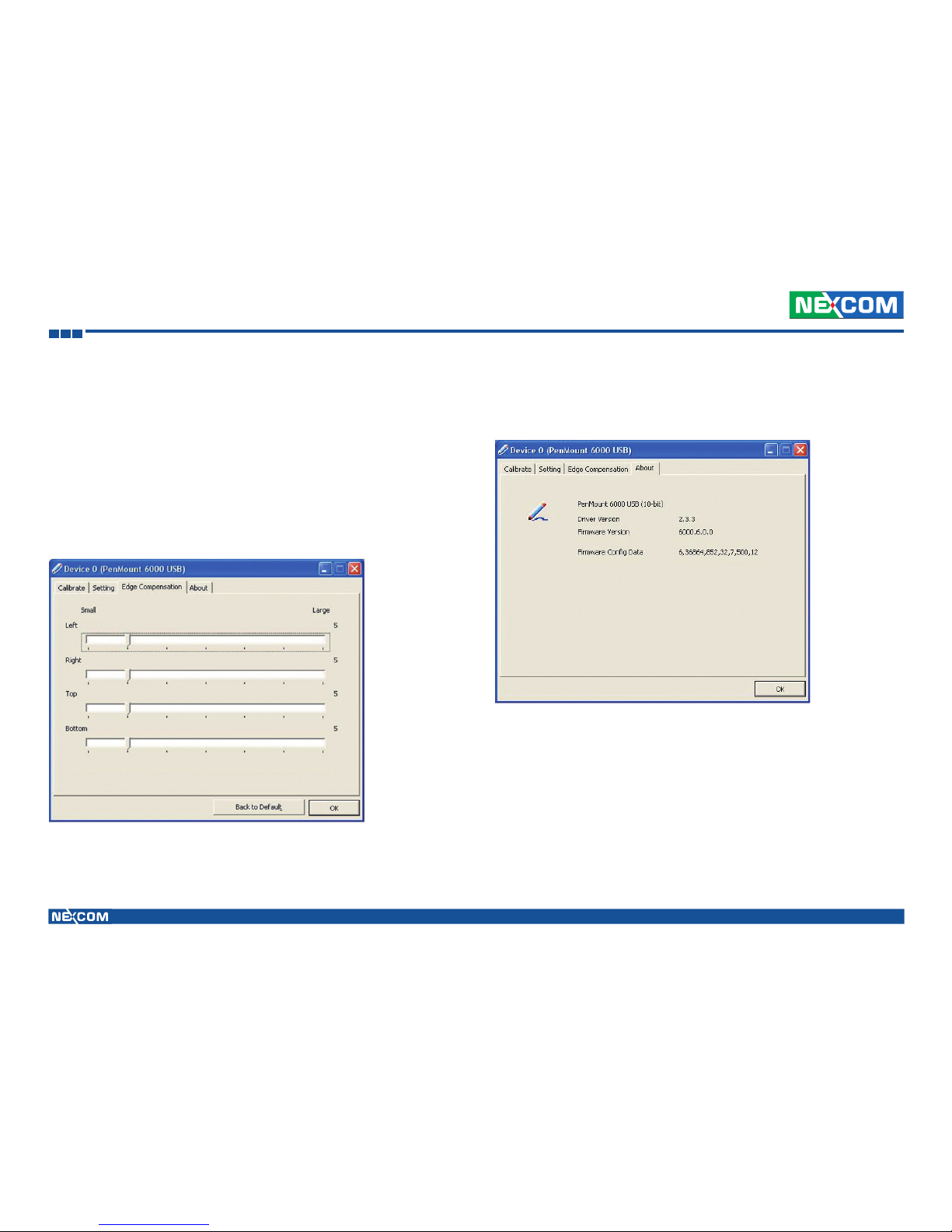

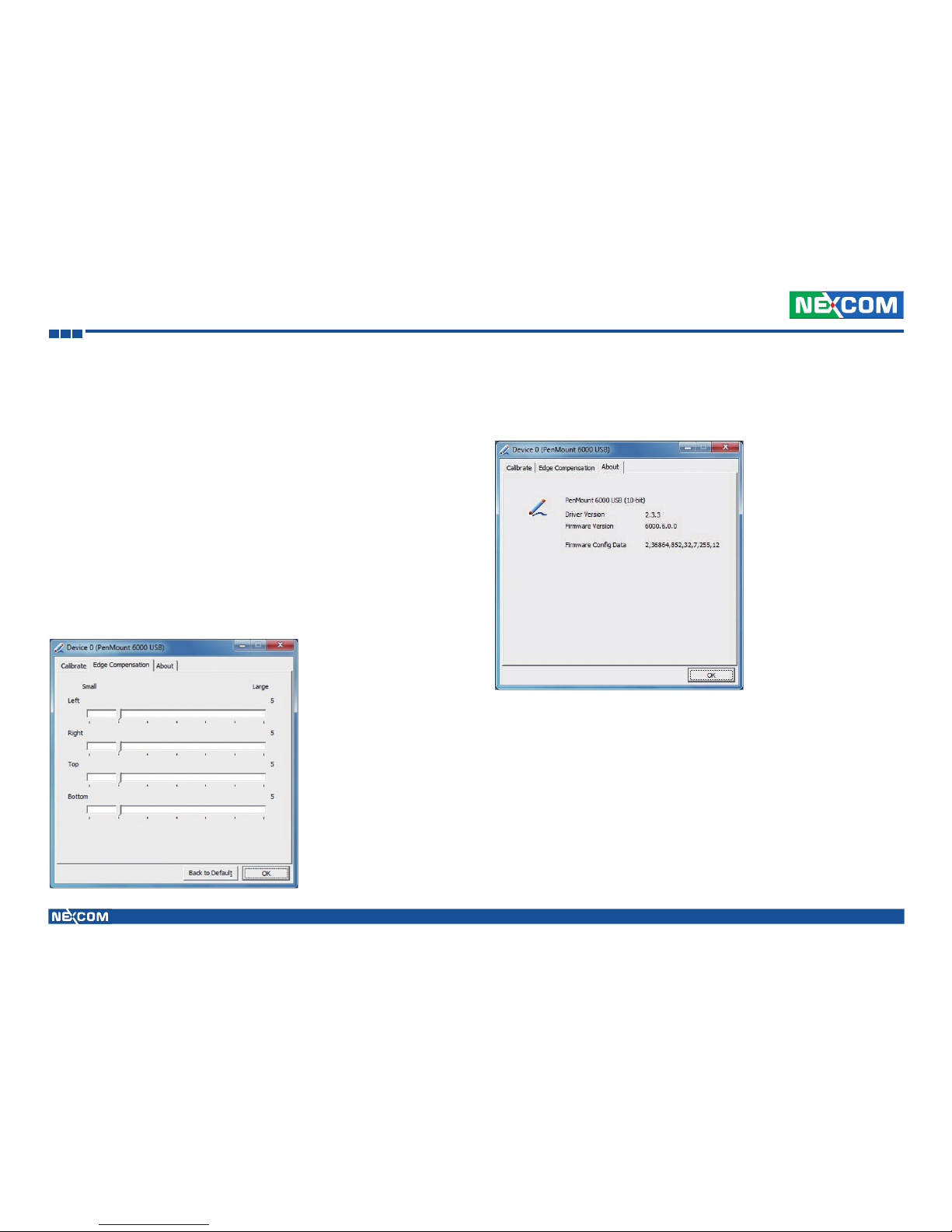

Edge Compensation ..........................................................................68

Refresh ..............................................................................................69

Appendix A: GPIO Connection

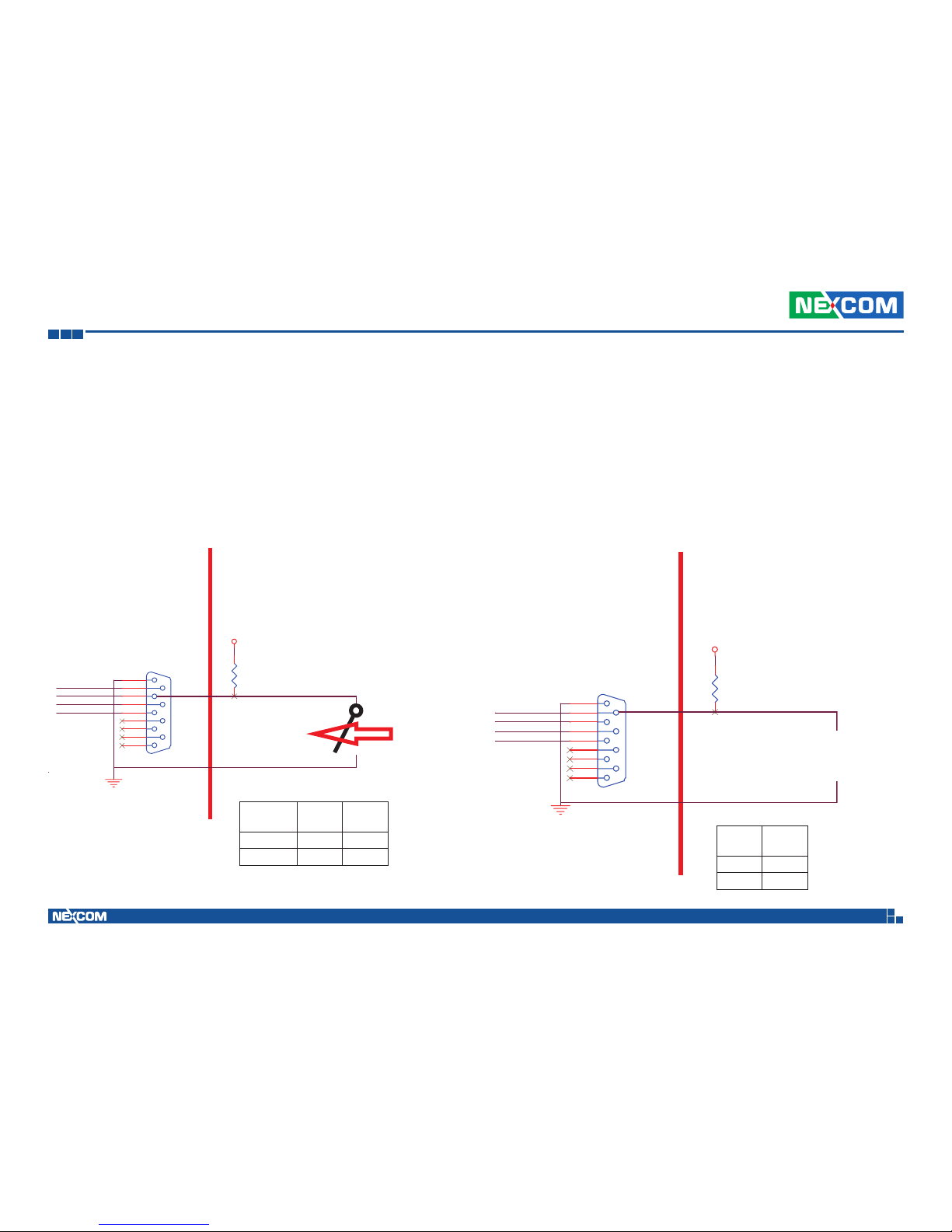

Digital Input ..........................................................................................70

Digital Output .......................................................................................70

Appendix B: Power Consumption

Configuration .......................................................................................71

Appendix C: GPS Feature

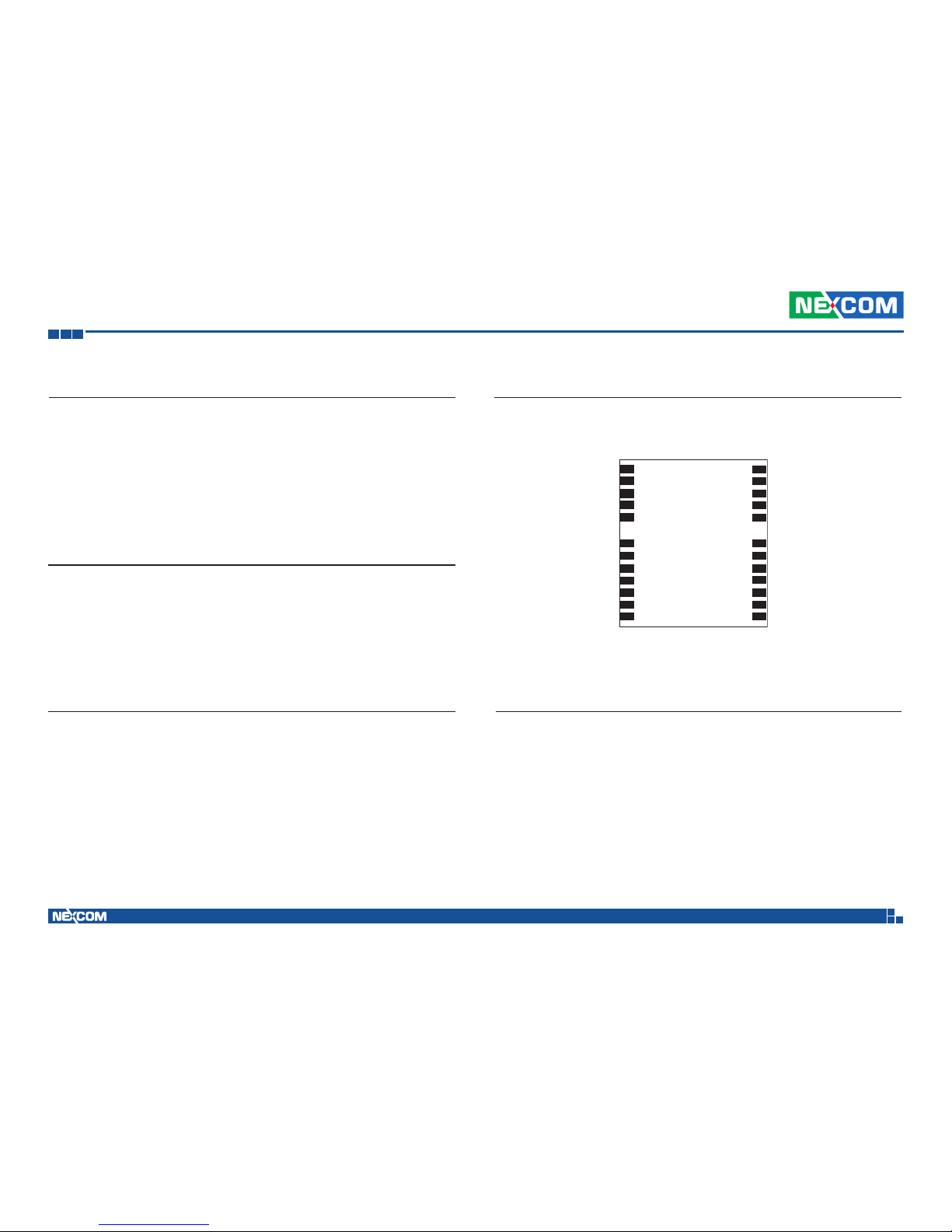

uBlox-NEO M8 Overview .......................................................................72

Test Software ........................................................................................ 72

Technical Specifications ......................................................................... 72

v

VMC 3020 User Manual

Preface

PrefaCe

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

VMC 3020 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

vi

VMC 3020 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/ EU, to be your trusted green partner and to protect

our environment.

vii

VMC 3020 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the re-

turned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3

rd

party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

viii

VMC 3020 User Manual

Preface

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

If RMA goods can not be repaired, NEXCOM will return it to the customer without any charge.

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts spec-

ified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

The computer is provided with a battery-powered real-time clock circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

ix

VMC 3020 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment or in a above 40

o

C storage temperature as this may damage the equip-

ment.

8. The openings on the enclosure are for air convection to protect the equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

x

VMC 3020 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Battery - Safety Measures

Caution

• Risk of explosion if battery is replaced by an incorrect type.

• Dispose of used batteries according to the instructions.

Safety Warning

This equipment is intended for installation in a Restricted Access Location only.

Note: Remember to reset the date and time upon receiving the product. You can set them in the AMI BIOS. Refer to chapter 4 for more information.

Resetting the Date and Time

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

xi

VMC 3020 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

9F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: sales@nexcom.com.tw www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-10-5704-2680 Fax: +86-10-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

xii

VMC 3020 User Manual

Preface

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625 570 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

NEXCOM Shanghai

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

NEXCOM Surveillance Technology

Room 209, Floor 2 East, No.2, Science & Technology industrial park of privately owned enterprises, Xili, Nanshan Dist., Shenzhen, 518055, China Tel: +86-755-8364-7768 Fax: +86-755-8364-7738 Email: steveyang@nexcom.com.tw www.nexcom.cn

NEXCOM United System Service

Hui Yin Ming Zun Building Room 1108, Building No. 11, 599 Yunling Road, Putuo District, Shanghai, 200062, China Tel: +86-21-6125-8282 Fax: +86-21-6125-8281 Email: frankyang@nexcom.cn www.nexcom.cn

xiii

VMC 3020 User Manual

Preface

Package Contents

Before continuing, verify that the package that you received is complete. Your package should have all the items listed in the following table.

Item Name Qty

1 System x 1 1

2 SSD bracket kit x 1 1

3 SATA power cable 1

4

SATA signal cable 1

5

Screw x 8 8

6

Washer for screws x 4 4

7

Washer for SSD bracket x 4 4

8 System power cable 1

9 DVD 1

xiv

VMC 3020 User Manual

Preface

Ordering Information

The following provides ordering information.

• VMC 3020-2A0 (P/N: 10VC0302000X0)

– 10.4” Rugged Vehicle Mount Computer with ATOM x5-E3930, 4GB

RAM, Resistive Touch and Front IP65 w/o Heater

1

VMC 3020 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

Overview

Key Features

• 10.4” XGA TFT LCD monitor

• Aluminum die-casting and fanless design

• Built-in Intel

®

Atom™ x5-E3930 processor, 1.8GHz

• Automatic/manual brightness control

• Heater supported (optional)

• On screen F1 ~ F10 programmable function keys

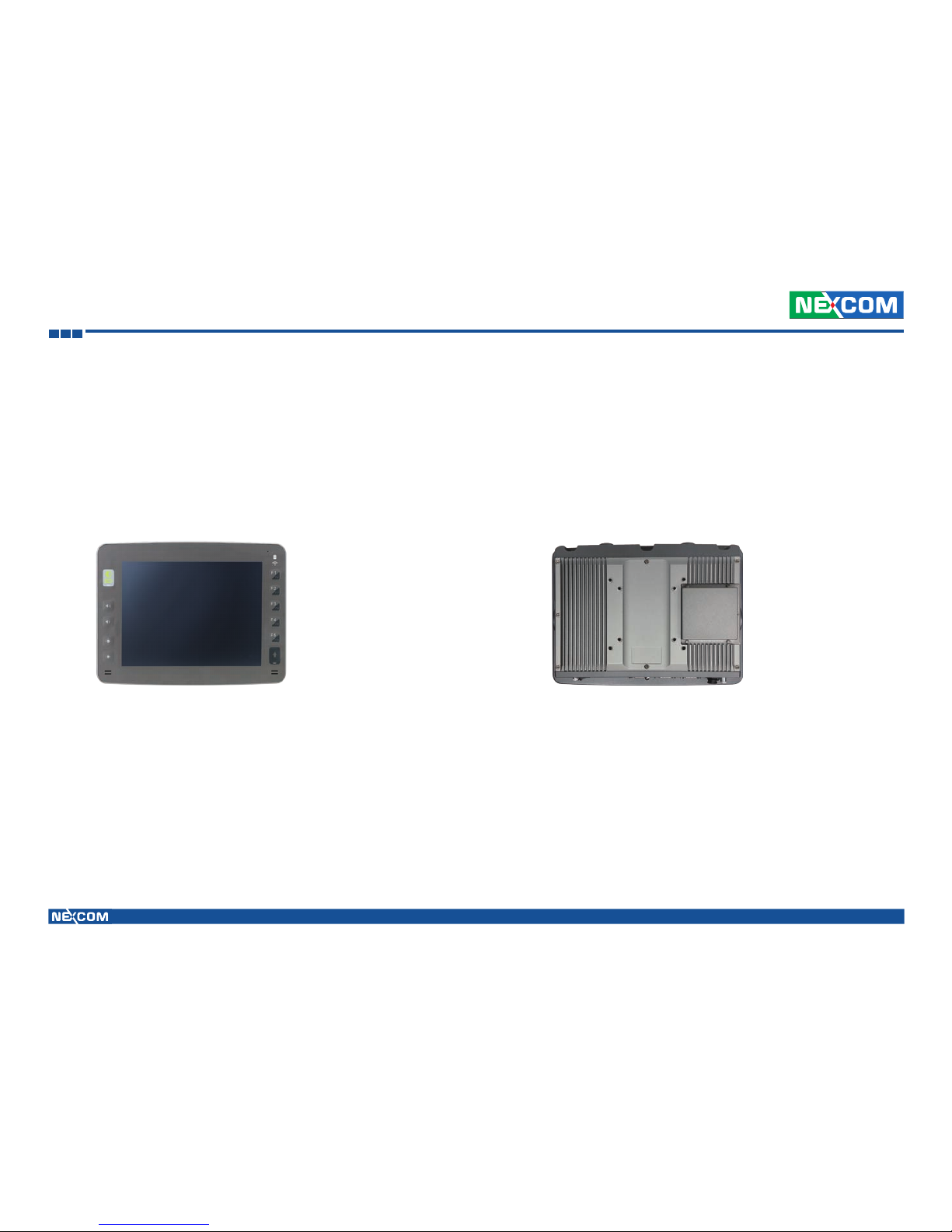

VMC 3020 Front View

VMC 3020 Rear View

• 5V/12V power supply for accessories

• Military standard for vibration and shock

• UPS Battery supported (optional)

• iButton and RFID for ID identification

• Wide range DC input from 9V~60V DC in

• Sunlight readable capability: 1,200nits LCD brightness

2

VMC 3020 User Manual

Chapter 1: Product Introduction

Hardware Specifications

LCD Panel

• 10.4-inch TFT LCD panel with LED backlight

• 1024 x 768 pixels (XGA)

• Brightness: 1200 cd/m² (typical)

• Viewing angle: 140° (H):120°(V)

• Contrast ratio: 500:1 (typical)

Touch Screen Sensor

• 5-wire resistant touch

• Anti-glare coating surface

• Transmission rate: 81 ± 3%

CPU & Chipset

• Intel

®

Atom™ x5-E3930 processor dual core 1.8GHz

Memory

• One 204-pin DDR3L 1600MHz SO-DIMM slot (Default: 4GB)

Expandable Storage

• 1x CFast

• 1x 2.5” SATA SSD bay

Expansion

• 1x half-size mini-PCIe socket (PCIe + USB) for WLAN option

• 1x full-size mini-PCIe socket (USB) x 1 for WWAN option

• 1x M.2 key-E (PCIe + SDIO + UART + USB) for WLAN option

• 1x SIM slot

I/O Interfaces - Front

• 5x on screen display buttons Power on/off Volume control (+/-) Brightness control (+/-)

• Light sensor

• 4x LED indicators (power/battery charging, WLAN, shift, storage)

• F1 ~ F10 programmable function keys

• 2x Built-in 2W speakers

I/O Interfaces - Lateral

• Right Side:

1x CFast card slot System reset button USB 2.0 host type A connector

• Left Side:

1x antenna for WWAN

I/O Interface-Bottom

• 1x Power Switch (ATX mode)

• Lockable power connector (power, ignition, ground)

• 2x RS232 (full signals, RI, 0V, 5V/1.5A, 12V/1.5A)

• 1x DB15

– 1x Isolated CAN 2.0B – 1x iButton – 1x RFID (12V/1A. 5V/1A, 4pin) – 1x Optional RS232 Tx/Rx (share with GPS UART) *

Note 1

– 2x GPI

Sink type: 5VDC TTL (default) Source type: 3 ~ 28VDC

3

VMC 3020 User Manual

Chapter 1: Product Introduction

– 2x GPO

Sink type: 5VDC TTL (default), max current: 20mA

Source type: 3 ~ 28VDC, max current: 150mA

• 1x Powered USB (5V/1.5A, 12V/1.5A)

• 1x USB Type A (5V/1A)

• 1x Mic-in, 1x Line-out

• 1x Antenna for GPS

I/O Interface-Top

• 2x Antenna for Wi-Fi

Mechanical

• Cooling system: Fanless

• Enclosure: Aluminum die casting

Mounting: VESA 75/100 & desktop mounting

• Ingress protection: front panel IP65

• Dimension: 289.98mm (W) x 229.97mm (H) x 77.95mm (D), including

battery

• Weight: 3kg, 6.61lb

Power Management

• 9V~60V DC in (UPS: 12V, 24V, 36V and 48V)

• Reverse protection/over voltage protection/under voltage protection

• Ignition On/Off control & programmable On/Off delay timing

• Wake up by SMS, RTC and ignition

Operating System

• Windows 10

• Linux: YOCTO

Environment

• Operating temperatures: Ambient with air -30°C to 60°C

• Storage temperatures: -30°C to 70°C

• Relative humidity: 10% to 90% (non-condensing)

• Vibration

Operating: MIL-STD-810G, 514.6 Procedure 1, Category 4 Storage: MIL-STD-810G, 514.6 Procedure 1, Category 24

• Shock

Operating: MIL-STD-810G, Method 516.6, Procedure I, trucks and semi-

trailers= 20g

Crash hazard: MIL-STD-810G, Method 516.6, Procedure V, ground

equipment= 75g

Standards/Certifications

• CE/FCC class B/E13

Note 1: When installing the GPS module (M8L) for DR function, Tx will change to direction and Rx will change to odometer. The original RS232 Tx and Rx cannot be used anymore.

4

VMC 3020 User Manual

Chapter 1: Product Introduction

289.98

229.97

77.95

Mechanical Dimensions

VMC 3020

5

VMC 3020 User Manual

Chapter 1: Product Introduction

Getting to Know VMC 3020

VMC 3020 Front View

20

22

21

VMC 3020 Rear View

1

2

8

7

6

5

4

3

4

6

VMC 3020 User Manual

Chapter 1: Product Introduction

VMC 3020 Bottom I/O View VMC 3020 Right I/O View

9

26

24

11 23

12

25

10 13 15 19

14 16 17 18

7

VMC 3020 User Manual

Chapter 1: Product Introduction

VMC 3020 Left I/O View VMC 3020 Top I/O View

27

28 28

8

VMC 3020 User Manual

Chapter 1: Product Introduction

Item Function Description

1

Power and Battery

LED Light

Green for power and Orange for battery status. Power:

▪ Power Off: LED off ▪ Power On: Steady Green ▪ POST to OS: Blinking Green ▪ Enter OS: Steady Green

Battery:

▪ Above 80%: Steady Orange ▪ Between 20% ~ 80%: LED off ▪ Below 20%: Blinking Orange

2 Volume Key Adjust volume up or down by 10 levels.

3 Brightness Key

We can change the setting between manual and auto (light sensor) in the utility. Manual (default):

▪ Adjust brightness up or down by 10 levels.

Auto:

▪ Adjust brightness up or down automatically, depending on the light sensor.

4 Speaker Two speakers inside VMC 3020, 2W for each.

5

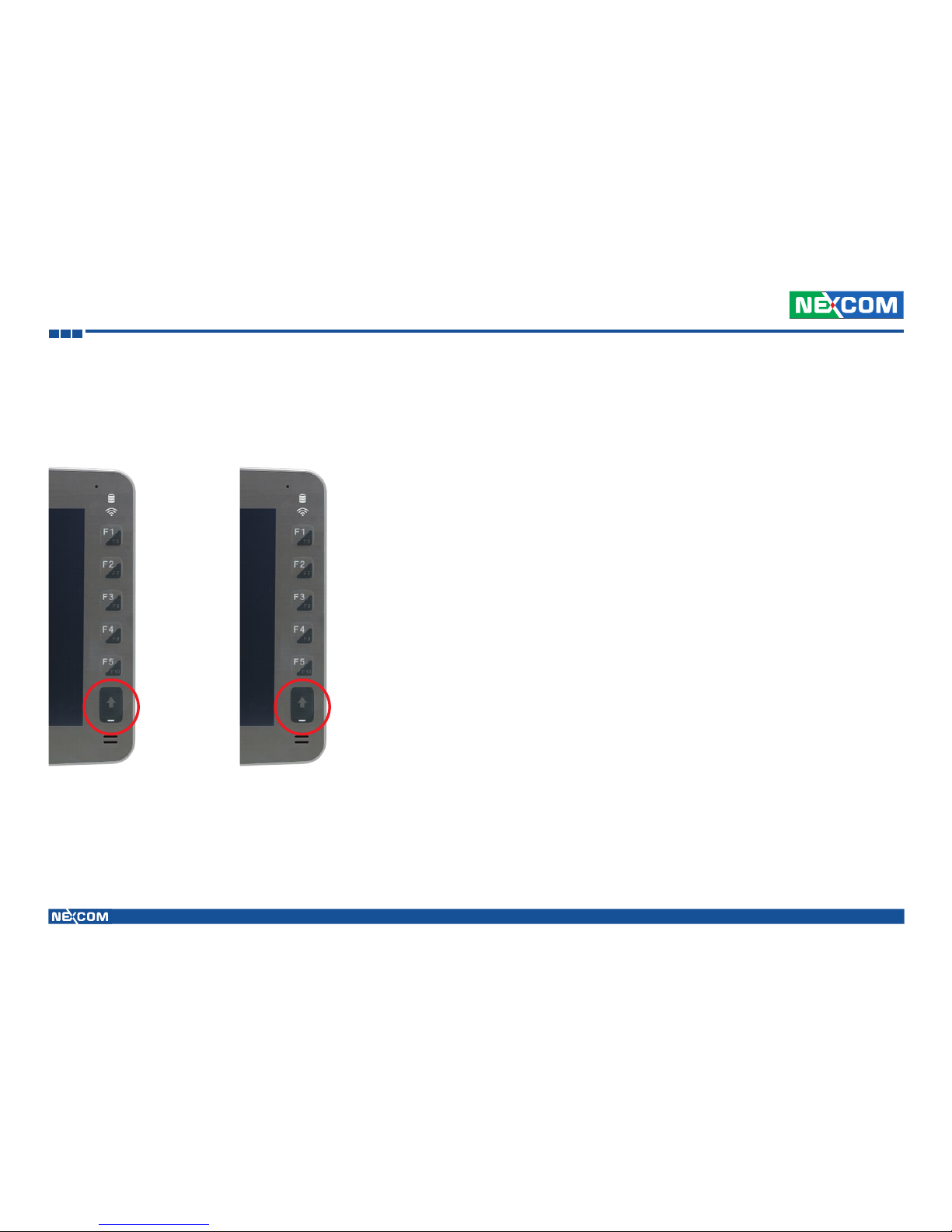

Function Keys and

Shift Key

Customer can customize by the utility. When pushing the shift key till it turns to blue light, function keys will change from F1~F5 to F6~F10.

6 WLAN LED Light

Wi-Fi on: Steady Orange (depending on module). Wi-Fi data activity: Blinking Orange (depending on module).

7 Storage LED Light Storage Activity: Blinking LED light (depending on SSD).

8 Light Sensor

When the light becomes brighter, the brightness of LCD panel will also become brighter accordingly. Brightness control needs to be set to “auto” instead of “manual”.

9 Grounding Screw For grounding purpose.

10 Power Switch

ATX mode. When power is received and ignition is turned on, the system will turn on automatically. When ignition is off, you need to push this power switch to turn on the system. We can turn off or turn on the system through this switch.

11 Line-out For audio/sound output.

12 Mic-in For voice/microphone input.

13 Powered USB

Powered USB: 12V/1.5A USB Type A: 5V/1A

9

VMC 3020 User Manual

Chapter 1: Product Introduction

14 USB USB Type A: 5/1A

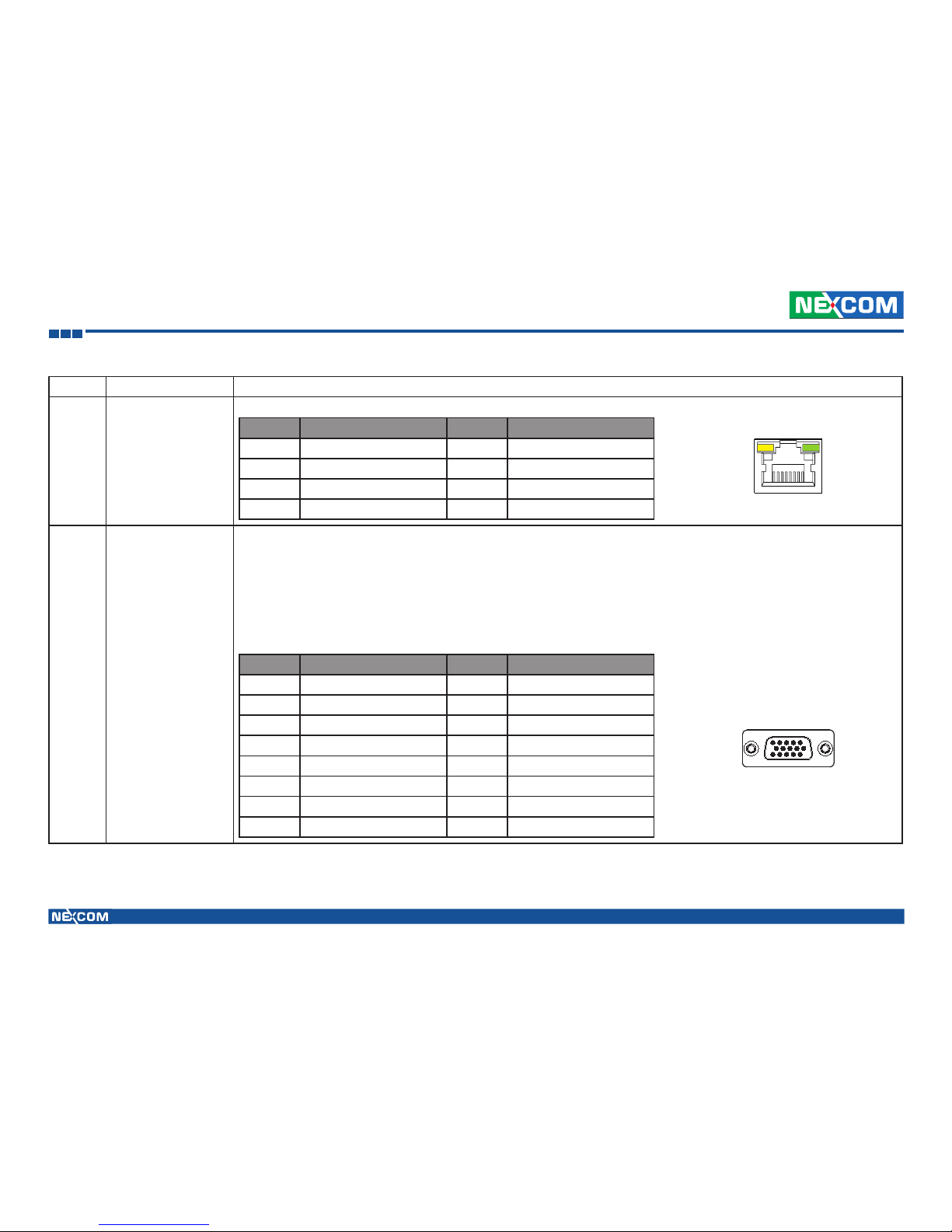

15 LAN

10/100/1000Mbps

Pin Definition Pin Definition

1 LAN_MDI_0P 2 LAN_MDI_0N

3 LAN_MDI_1P 4 LAN_MDI_2P

5 LAN_MDI_2N 6 LAN_MDI_1N

7 LAN_MDI_3P 8 LAN_MDI_3N

16

CANBus 2.0B/RFID/

RS232 (or GPS)/GPIO

1x DB15

▪ 1x Isolated CAN 2.0B ▪ 1x iButton (1-wire) ▪ 1x RFID (12V/5V, 4pin, 1A) ▪ 1x RS232 Tx/Rx: Default

When GPS module is installed, this pin becomes GPS UART.

Pin Definition Pin Definition

1 RFID_TX 2 RX5_ODOMETER

3 GPI1 4 GPO1

5 CAN1_L 6 RFID_RX

7 GND 8 1PPS

9 IBUTTON 10 CAN1_H

11 RFID_PWR 12 TX5_DIRECTION

13 GPI0 14 GPO0

15 ISO_GND

▪ 2x GPI

Sink type: 5VDC TTL (default) Source type: 3 ~ 28VDC

▪ 2x GPO

Sink type: 5VDC TTL (default), max current: 20mA Source type: 3 ~ 28VDC, max current: 150mA

5 1

18

15 11

10

VMC 3020 User Manual

Chapter 1: Product Introduction

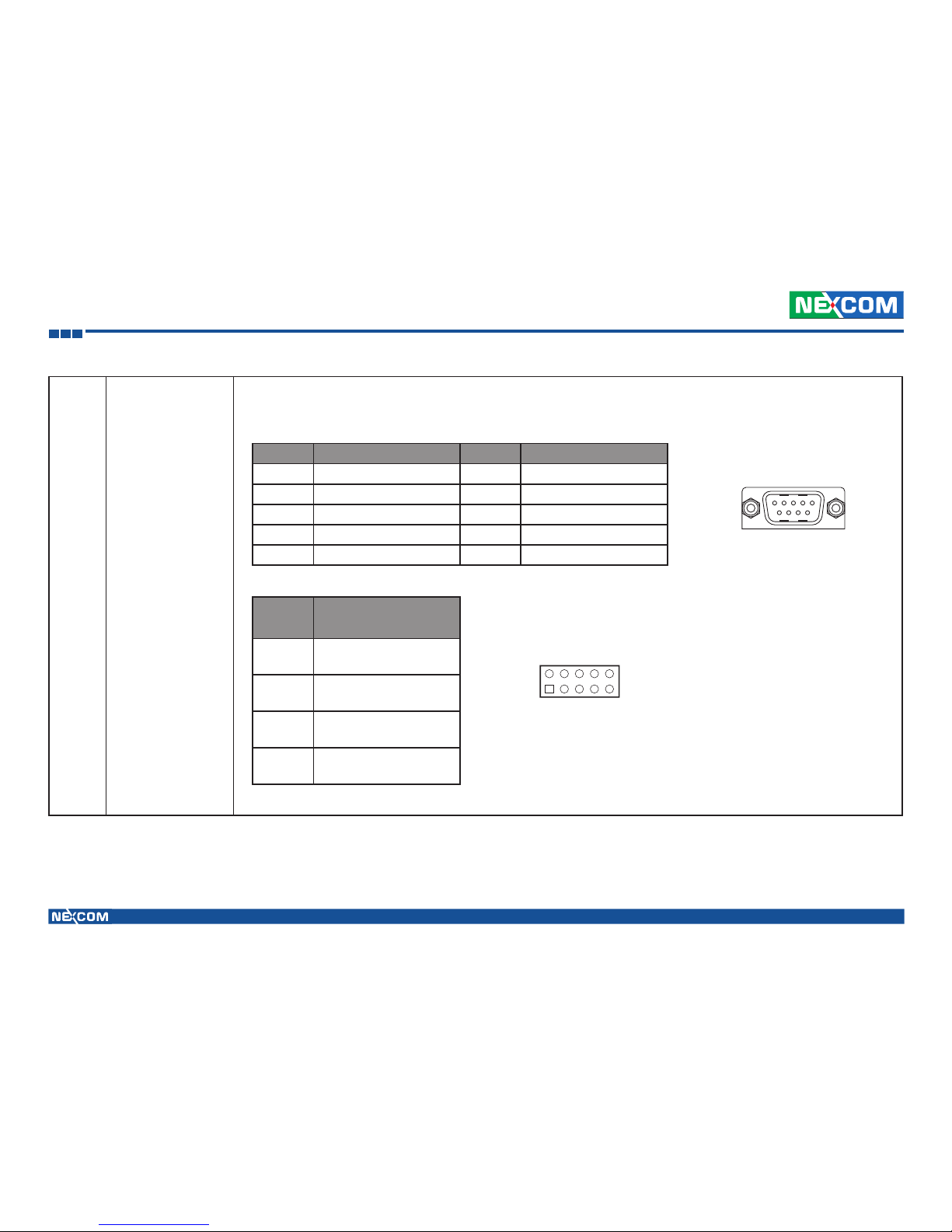

17, 18 RS232

2x DB9

▪ 2x DB9 RS232 (RI, 0V, 5V/1.5A, 12V/1.5A) by jumper setting

CN9 for COM1 CN12 for COM2

Pin Definition Pin Definition

1 DCD 2 RX

3 TX 4 DTR

5 GND 6 DSR

7 RTS 8 CTS

9 RI

▪ RS232 Power Jumper Selection

CN9

CN12

Function

1,2 3,4

OUTPUT 12V

3,4 5,6

RI

5,6 7,8

RI

7,8

9,10

OUTPUT 5V

1

1 9

102

6

COM1 & COM2

RS232 Power Jumper

5

9

11

VMC 3020 User Manual

Chapter 1: Product Introduction

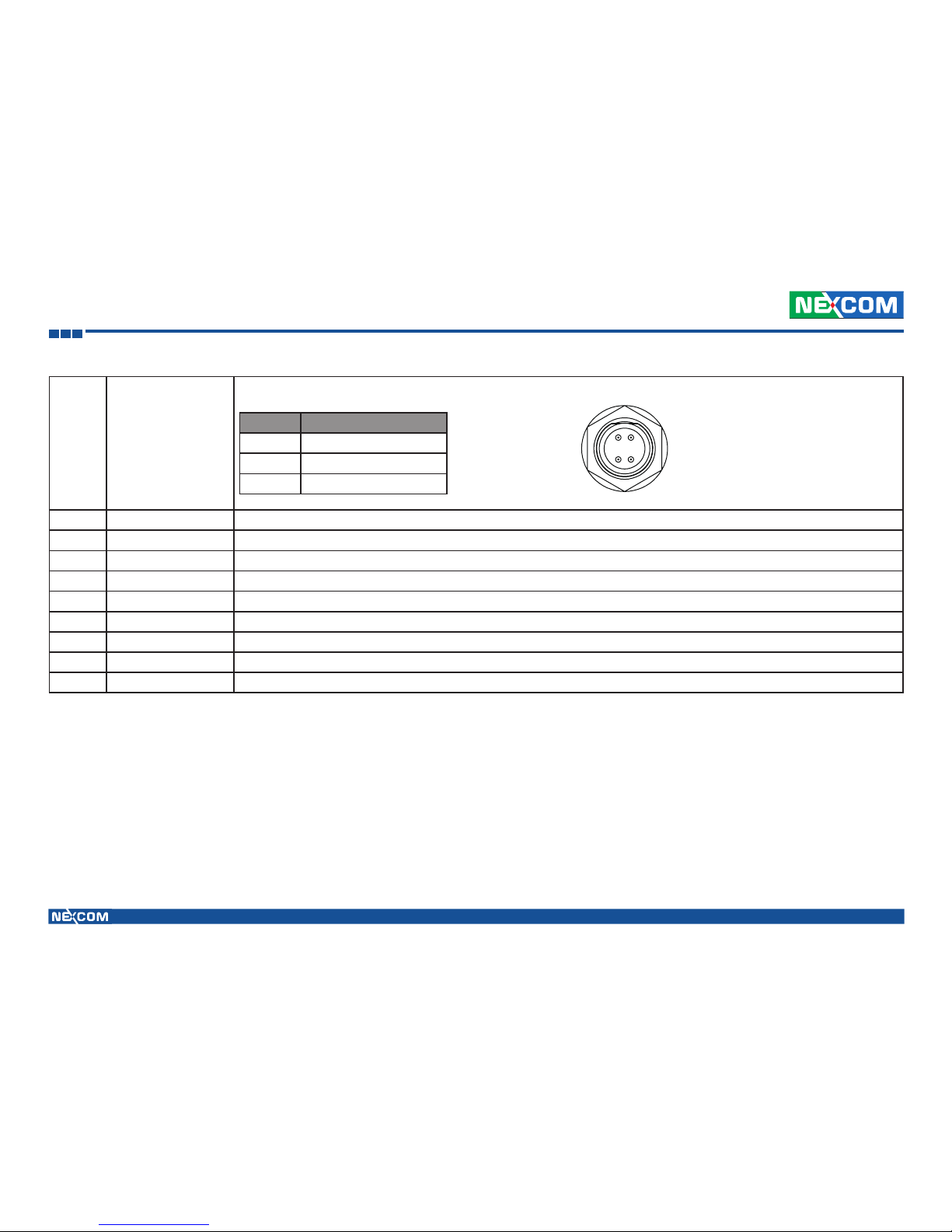

19 Power Input

9V~60V wide-range DC in for UPS: 12V, 24V, 36V and 48V.

Pin Definition

1 Power (+)

2 GND (-)

3 Ignition (I)

20 VESA Mounting Holes 75mm x 75mm, or 100mm x 100mm.

21 Screws for Bracket We provide special bracket for the purpose of cable-relief and pen mounting.

22 Battery Battery location.

23 USB Type A USB Type A: 5V/0.5A

24 Reset Button Turn off the system, and turn on automatically.

25 CFast Slot Location for CFast installation.

26 Antenna Hole Antenna hole for GPS.

27 Antenna Hole Antenna hole for WWAN.

28 Antenna Hole Antenna hole for WLAN.

3

41

2

12

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors

This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for VMC 3020.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic com-

ponents. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

• Use correct screws and do not over tighten screws.

13

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

Jumper

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

1

2

3

1

2

3

14

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The jumper and connector locations labeled below are for VMC 3020. All of the pin numbers are marked on the PCB.

J11

JP1

CN4 CN6

CN5

CN13

J19

CN16

JP2

J2

J3

J4

Mainboard

15

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors and DIP Switch Settings

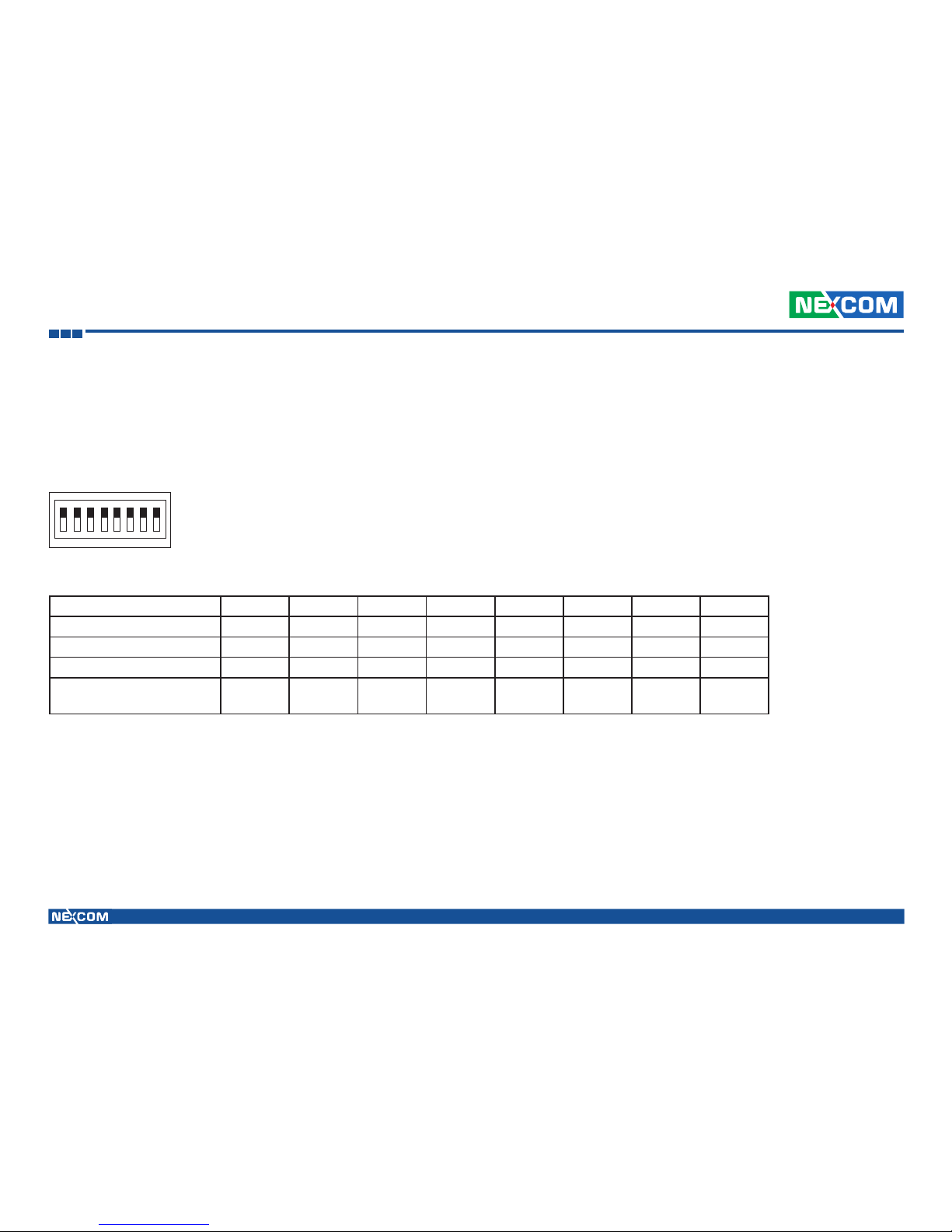

WWAN Switch Selection

Connector location: SW6

SW6.1 SW6.2 SW6.3 SW6.4 SW6.5 SW6.6 SW6.7 SW6.8

VIOB-WWAN-HDA0 (I2S) On Off Off On Off Off On Off

Telit HE910G (I2S) On Off Off On Off Off On Off

Telit LE910 (I2S) On Off Off On Off Off On Off

Sierra Wireless

MC7304(PCM)

Off On On Off Off Off On Off

1

O

N

2345678

16

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

CANBus Impedance Control

Connector location: SW4

Pin Function

1~2 ON 120 OHM

1~2 OFF Non

1

O

N

2

GPIO High-Low Switch

Connector location: SW5

Pin Definition

1~2 ON GPI Pull-High

3~4 ON GPO Pull-High

1

O

N

234

17

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

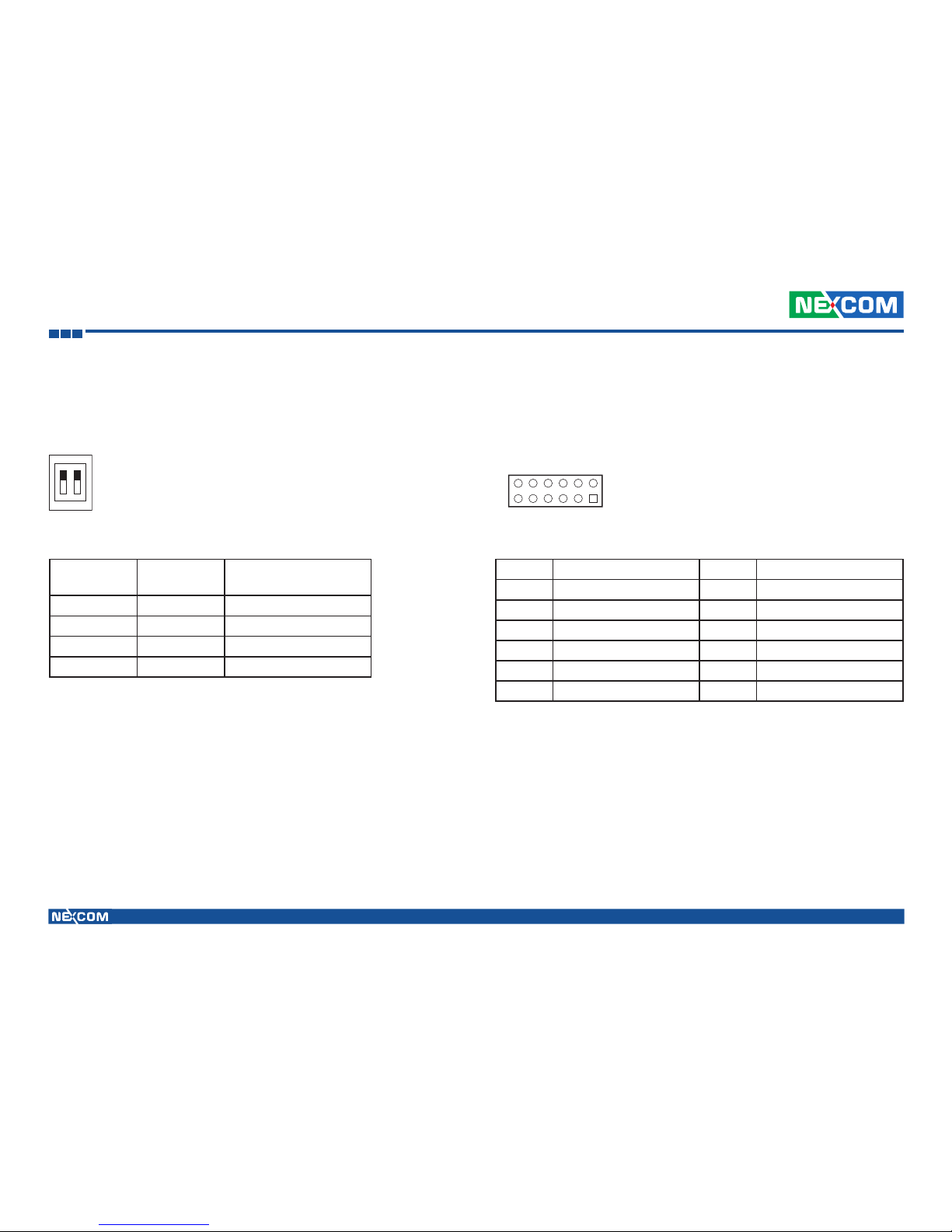

Pin Definition Pin Definition

1 BTA_SDA 2 BTA_SCL

3 BATT- 4 BATT+

5 BATT- 6 BATT+

7 BATT- 8 BATT+

9 BATT- 10 BATT+

11 INSERT DETECT 12 BAT_DISABLE

Battery Connector

Connector size: 2x6 12-pin header, 2.0mm pitch Connector location: CON17

Power Input Voltage Selection & iButton/RFID Security On/Off

Connector location: SW2

POWER SW

(Pin1)

12V24V

(Pin2)

Function

OFF OFF 12V

OFF ON 24V

ON ON 9-60V

ON OFF SECURITY OFF

1

O

N

2

212

111

18

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

17

28

JP3 & JP4 Function

1~2 3~4

DR Mode

5~6 7~8

RS232 Mode

GPS or COM3 (Tx/Rx) Selection

Connector size: 2x4 8-pin header, 2.0mm pitch Connector location: JP3 and JP4

GPS Signal and Power

Connector size: 1x6 6-pin header, 1.0mm pitch Connector location: J3

6 1

Pin Definition Pin Definition

1 GPS_BAT 2 LED Power

3 GPS_TXD 4 GPS_RXD

5 GND 6 VCC3

19

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

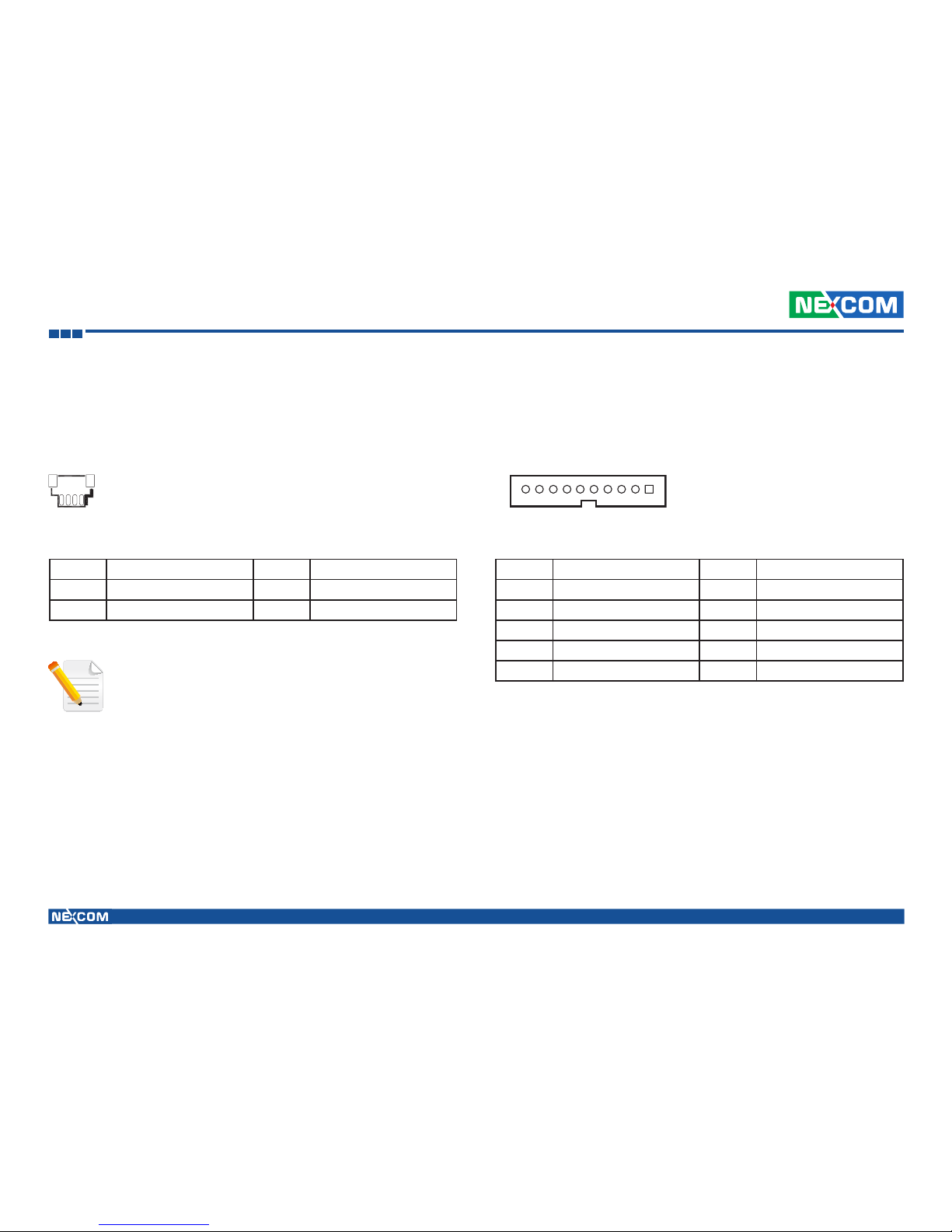

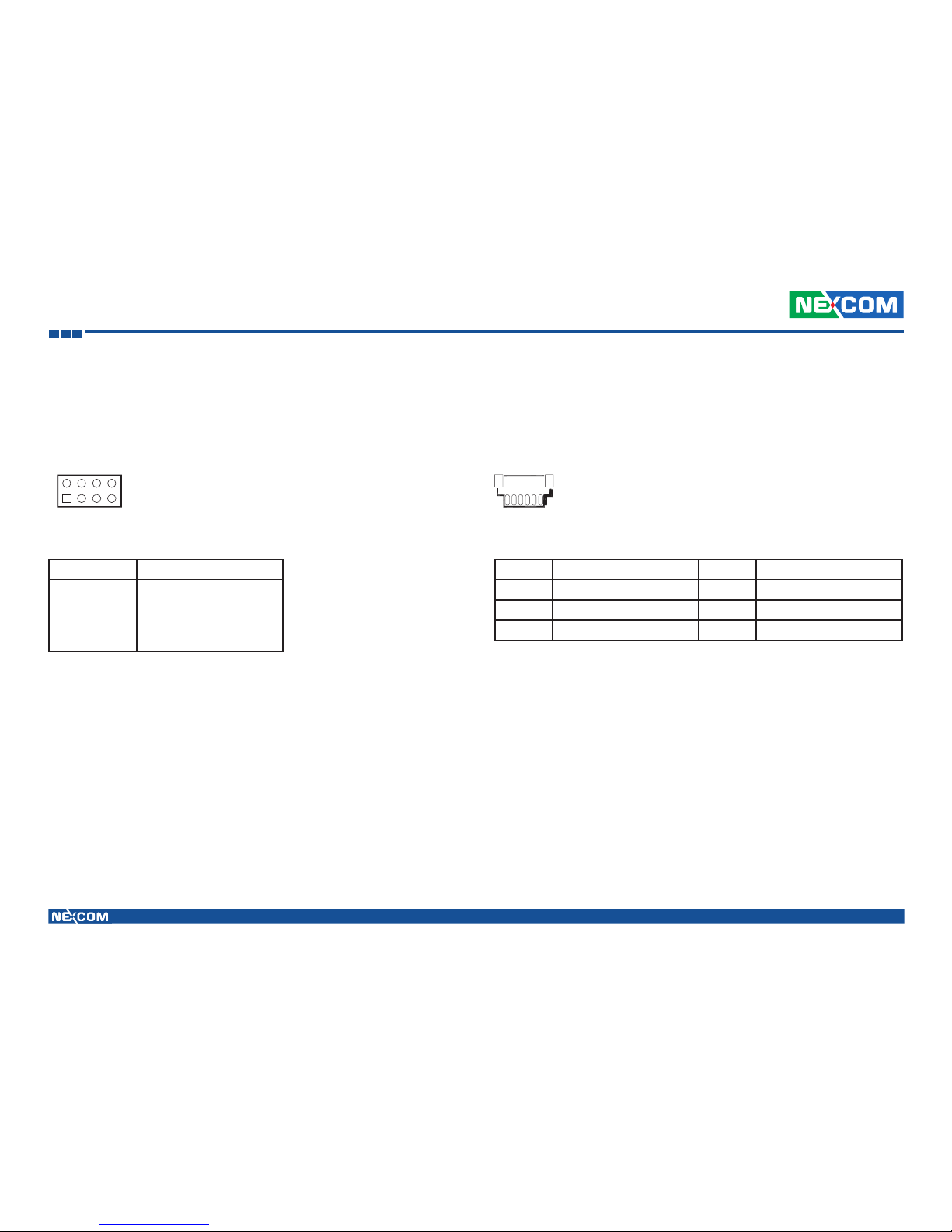

GPS DR Function (Odometer and Direction)

Connector size: 1x4 4-pin header, 1.0mm pitch Connector location: J4

4 1

Pin Definition Pin Definition

1 GND 2 1PPS

3 ODOMETER 4 DIRECTION

Debug Port

Connector size: 1x10 10-pin header, 1.0mm pitch Connector location: J11

10 1

Pin Definition Pin Definition

1 GND 2 PCIRST#

3 33M_CLK 4 LPC_FRAME#

5 LPC_AD3 6 LPC_AD2

7 LPC_AD1 8 LPC_AD0

9 VCC3 10 VCC3

When installing the GPS module (M8L) for DR function, Tx will change to direction and Rx will change to odometer. The original RS232 Tx and Rx cannot be used anymore.

20

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

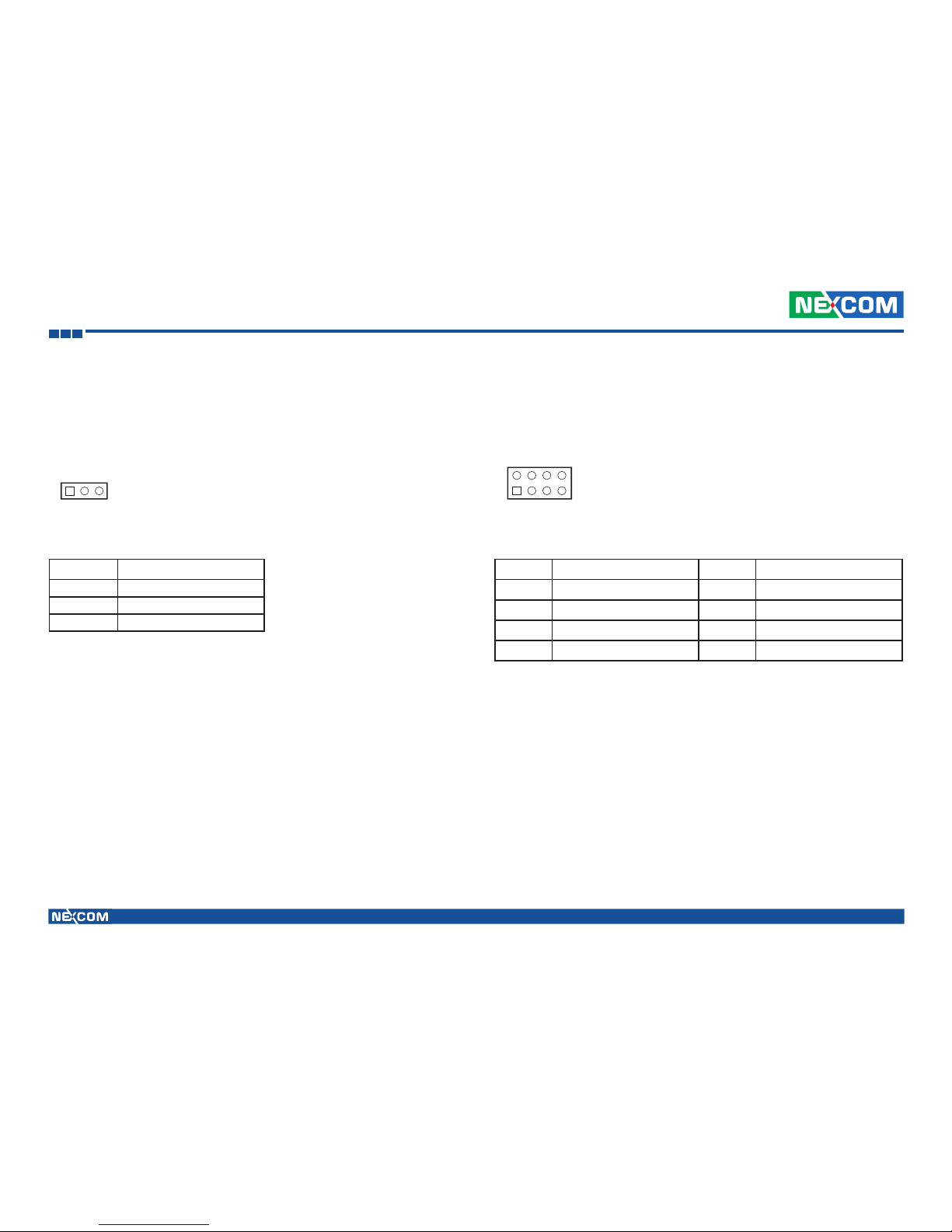

MCU Debug Port

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP1

Pin Settings

1 TX 2 RX 3 GND

1 3

MCU Download Port

Connector size: 2x4 8-pin header, 1.27mm pitch Connector location: JP2

17

28

Pin Definition Pin Definition

1 3.3V 2 MCU_TRST

3 MCU_TCK 4 MCU_TDO

5 MCU_RST 6 MCU_TDI

7 MCU_TMS 8 GMD

21

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

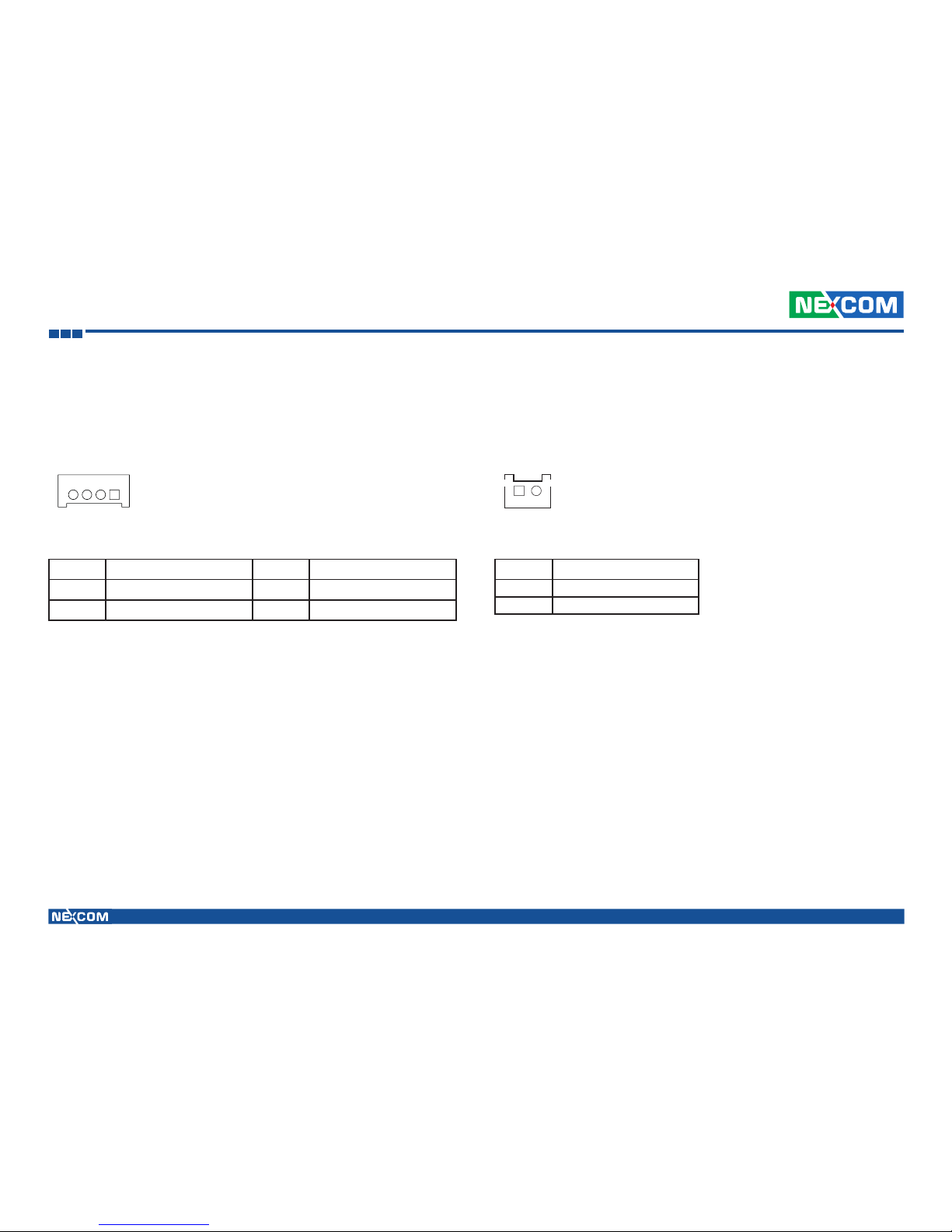

Heater Power

Connector size: 1x4 4-pin header, 2.0mm pitch Connector location: J19

Pin Definition Pin Definition

1 12V 2 12V

3 GND 4 GND

14

Heater Thermal Control

Connector type: 1x2 JST, 2-pin header, 2.5mm pitch Connector location: J2

Pin Definition

1 GND 2 Thermal

1 2

22

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

12

51 52

Pin Definition Pin Definition

1 PCIE_WAKE#0 2 3.3V 3 NC 4 GND 5 NC 6 1.5V 7 PCIE_CLKREQ0# 8 NC

9 GND 10 NC 11 PCIE_CLKN0 12 NC 13 PCIE_CLKP0 14 NC 15 GND 16 NC 17 MCU_TX2_3.5G 18 GND 19 MCU_RX2_3.5G 20 PCIE0_DIS# 21 GND 22 PLTRST_3P3# 23 PCIE_RXN0 24 3.3V 25 PCIE_RXP0 26 GND

Half-size Mini-PCIe Connector (Wi-Fi and Bluetooth)

Connector location: CN13

Pin Definition Pin Definition

27 GND 28 1.5V 29 GND 30 SMB_SOC_CLK 31 PCIE_TXN0 32 SMB_SOC_DATA 33 PCIE_TXP0 34 GND 35 GND 36 USB_3N 37 GND 38 USB_3P 39 3.3V 40 GND 41 3.3V 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 1.5V 49 NC 50 GND 51 BT_EN 52 3.3V

23

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

12

51 52

Pin Definition Pin Definition

1 SMS_RI_3.5G_R 2 3.3V

3 NC 4 GND

5 NC 6 NC

7 NC 8 UIM_PWR

9 GND 10 UIM_DAT 11 NC 12 UIM_CLK 13 NC 14 UIM_RST 15 GND 16 NC 17 MCU_TX2_3.5G 18 GND 19 MCU_RX2_3.5G 20 3.5G_DIS# 21 NC 22 3.5G_RST# 23 NC 24 3.3V 25 NC 26 GND

Full-size Mini-PCIe Connector (WWAN)

Connector location: CN16

Pin Definition Pin Definition

27 GND 28 GND 29 NC 30 3.5G_GPS_SMB_CLK 31 NC 32 3.5G_GPS_SMB_DATA 33 3.5G_RST# 34 GND 35 GND 36 USB_2N 37 GND 38 USB_2P 39 3.3V 40 GND 41 3.3V 42 NC 43 GND 44 3.5G_GPS_EXTINT 45 PCM_CLK 46 GPS_TXD_3.5G 47 PCM_RX 48 3.5G_GPSPWREN 49 PCM_TX 50 GND 51 PCM_SYNC 52 3.3V

24

VMC 3020 User Manual

Chapter 2: Jumpers and Connectors

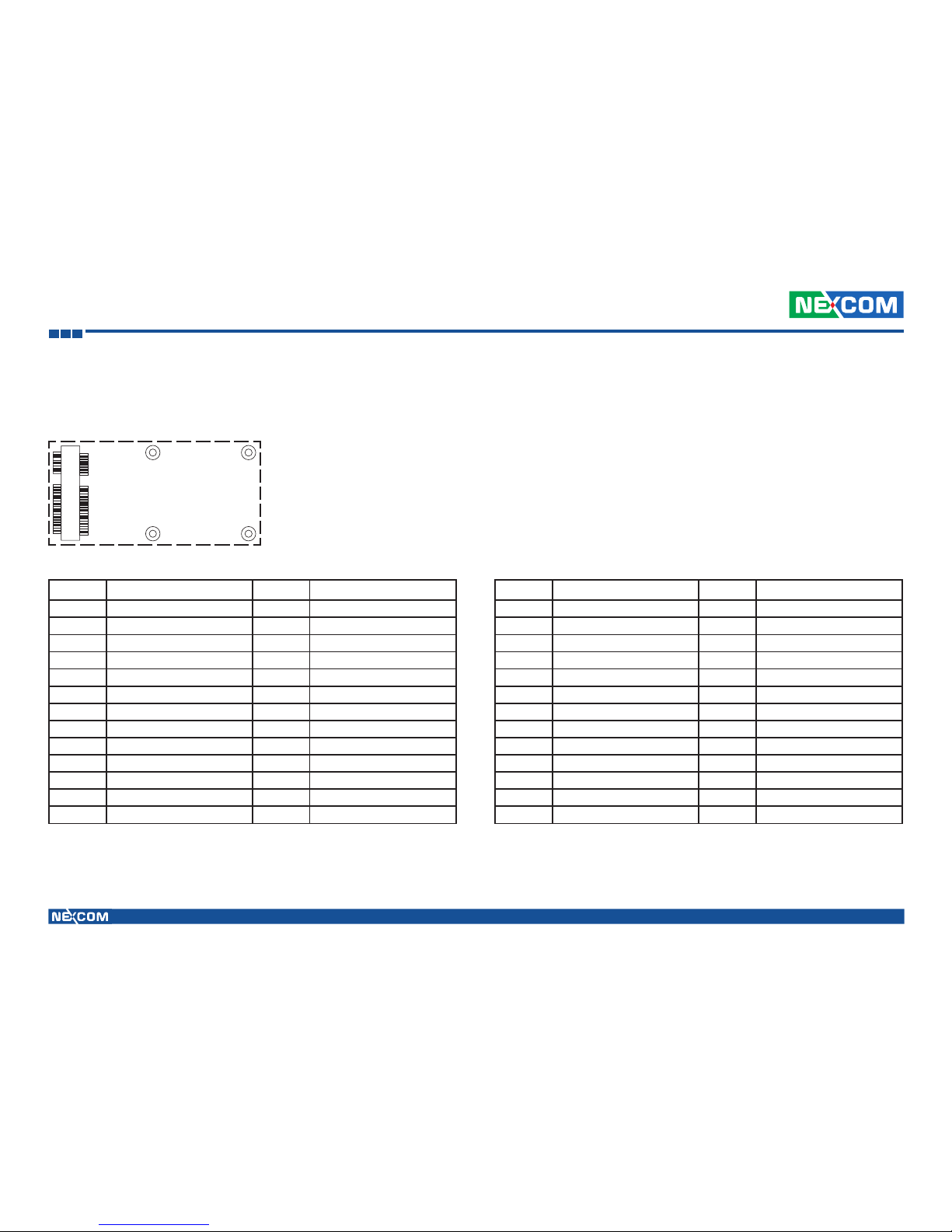

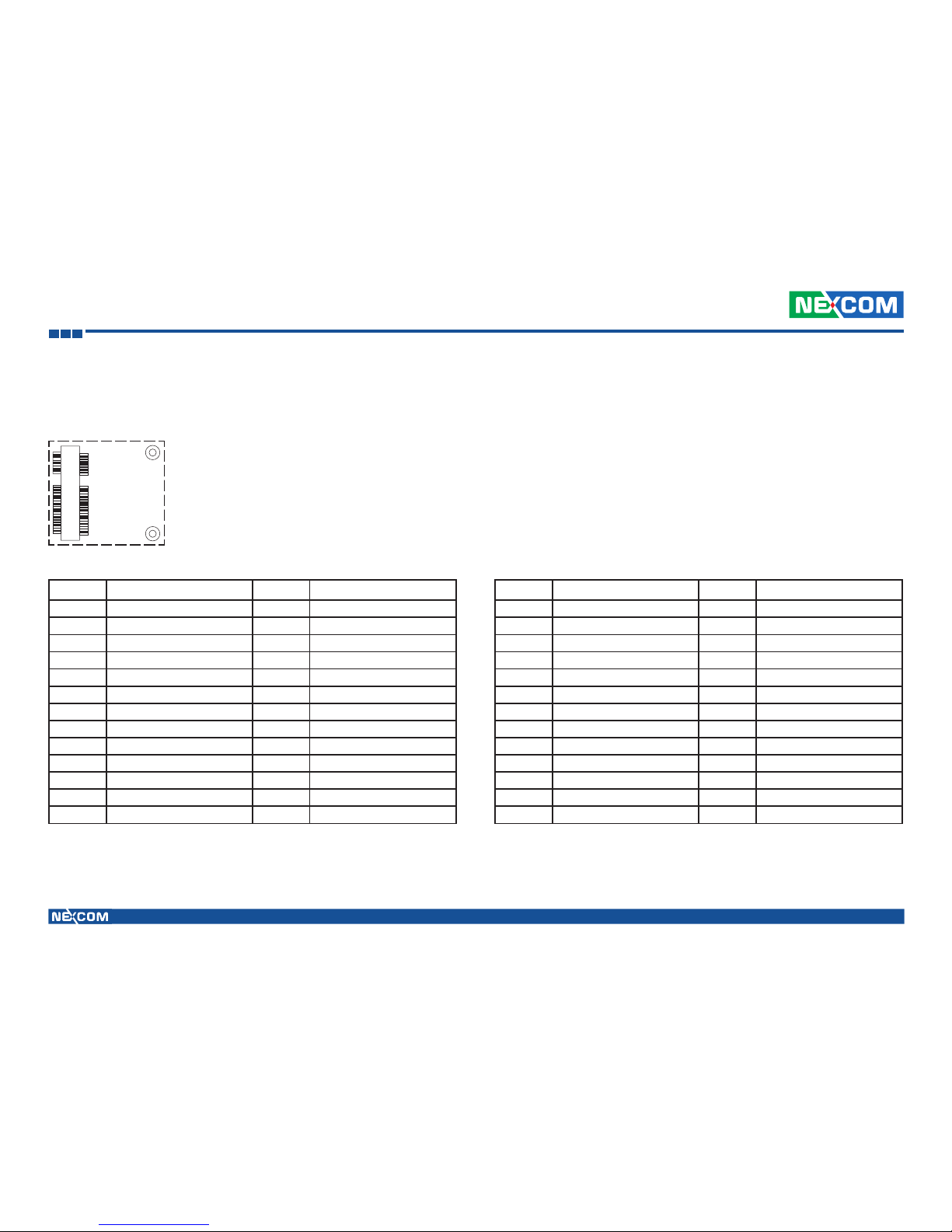

M.2 Connector

Connector location: CN5

1 75

742

Pin Definition Pin Definition

1 GND 2 NGFF_3V3

3 M2D+ 4 NGFF_3V3

5 M2D- 6 M2_WLAN_LED#

7 GND 8 NC

9 SDIO_CLK 10 NC

11 SDIO_CMD 12 NC 13 SDIO_DA0 14 NC 15 SDIO_DA1 16 NC 17 SDIO_DA2 18 GND 19 SDIO_DA3 20 UART_WAK# 21 NGFF_SDIO_WAKE_N 22 M2_RX 23 SDIO_RST# 24 NC 25 NC 26 NC 27 NC 28 NC 29 NC 30 NC 31 NC 32 M2_TX 33 GND 34 M2_CTS# 35 PCIE_T_P2 36 M2_RTS# 37 PCIE_T_N2 38 NC

Pin Definition Pin Definition

39 GND 40 NC 41 PCIE_R_P2 42 NC 43 PCIE_R_N2 44 NC 45 GND 46 NC 47 PCIE_C_R2 48 NC 49 PCIE_C_R#2 50 NC 51 GND 52 M2_RST#_R 53 CLKREQ#2 54 BT_DIS#_R 55 PEWAKE2N 56 WIFI_DIS#_R 57 GND 58 M2_I2C_DATA 59 NC 60 M2_I2C_CLK 61 NC 62 NC 63 GND 64 NC 65 NC 66 NC 67 NC 68 NC 69 GND 70 NC 71 NC 72 NGFF_3V3 73 NC 74 NGFF_3V3 75 GND

25

VMC 3020 User Manual

Chapter 3: Installation of SSD and Modules

ChaPter 3: InstallatIon of ssd and modules

Before installing any SSD or modules, please loosen the screws marked in red first. The motherboard inside VMC 3020 can be accessed after removing the screws.

Installing a SSD

1. The accessory box includes the following assembling parts below:

Washers between screws and SSD bracket

Screws for xing SSD onto the bracket

Screws and washer for xing bracket onto M/B

26

VMC 3020 User Manual

Chapter 3: Installation of SSD and Modules

2. Tighten the four black screws to the mounting holes marked in red to fix the SSD onto the bracket.

3. Attach the black washers onto the mounting holes.

27

VMC 3020 User Manual

Chapter 3: Installation of SSD and Modules

4.

a. Place the white washers on the screws. b. Insert the SATA power and signal cable onto the connectors marked

in red. c. Attach cable onto SSD. d. Fix (screws + white washer) the SSD with bracket onto the mounting

location, marked in red.

28

VMC 3020 User Manual

Chapter 3: Installation of SSD and Modules

Installing a WLAN & Bluetooth Module

The half-size mini-PCIe is used for WLAN module (USB + PCIe signal). The M.2 Key E slot is also used for WLAN module (PCIe + SDIO + UART + USB). Regarding the module support list, please consult with your local NEXCOM representative.

Installing a WWAN Module

The full-size mini-PCIe is used for WAN module (USB signal). Regarding the module support list, please consult with your local NEXCOM representative.

M.2 Half-size Mini-PCIe

Full-size Mini-PCIe

29

VMC 3020 User Manual

Chapter 3: Installation of SSD and Modules

Installing a GPS Module

1. When installing the GPS-02 (M8L) module for DR function, please insert the cable onto the correct connectors.

Red: GPS signal and power Blue: Odometer and direction

2. When installing the GPS-02 (M8N) module, please insert the cable onto the correct connectors.

Red: GPS signal and power

30

VMC 3020 User Manual

Chapter 3: Installation of SSD and Modules

Installing a Battery

1. Loosen the screws marked in red and remove the battery cover.

2. Place the battery into the battery cover.

For

waterproof

31

VMC 3020 User Manual

Chapter 3: Installation of SSD and Modules

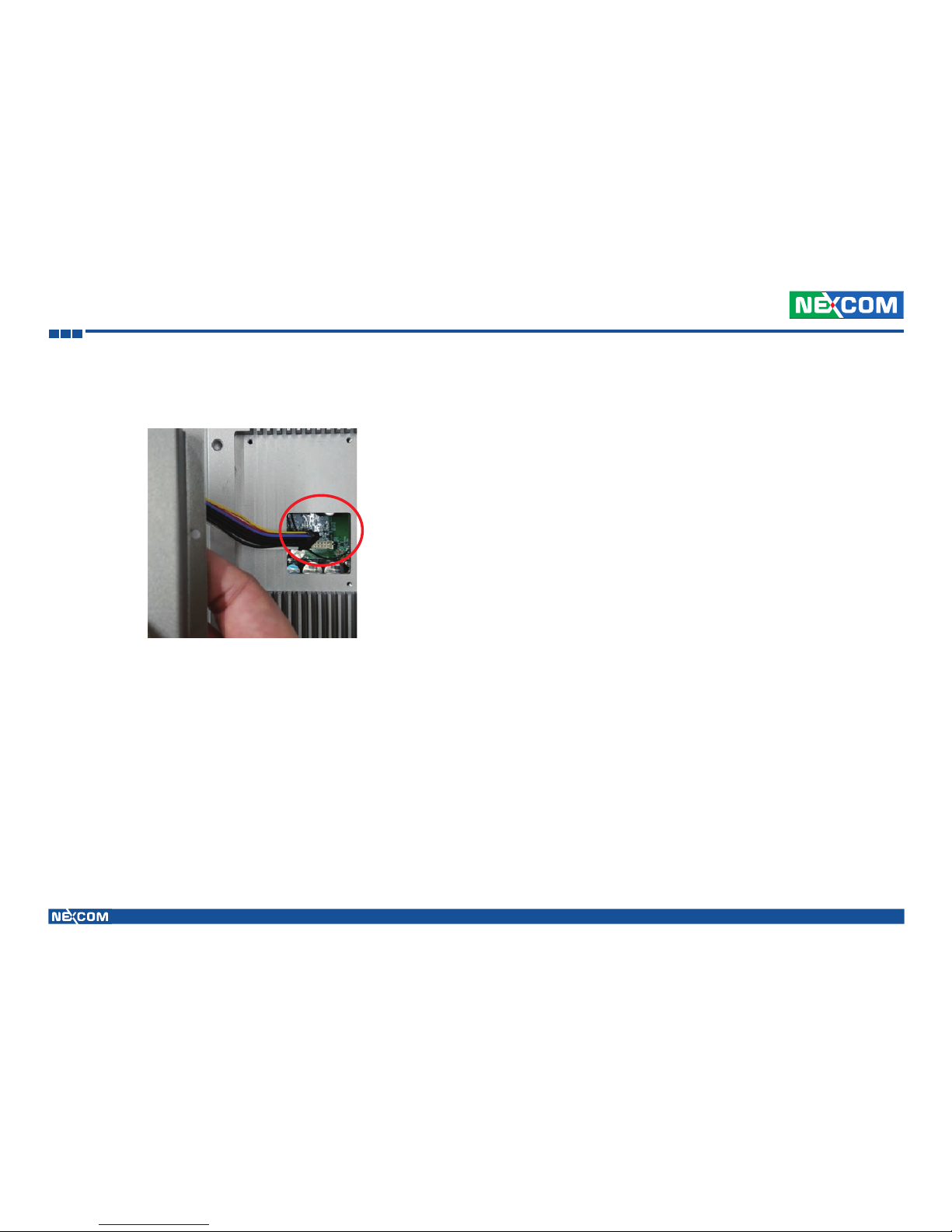

3. Insert the cable onto the connector marked in red. Then, screw the battery cover onto the system.

32

VMC 3020 User Manual

Chapter 4: Software

ChaPter 4: software

hotkey setuP ProCedure

Installing NEXCOM Function Key App

1. Double click “HotkeyAPP.exe”

33

VMC 3020 User Manual

Chapter 4: Software

2. Select the installation folder and complete the installation.

34

VMC 3020 User Manual

Chapter 4: Software

Applying Administrator Authority

1. Right click “Hotkey.exe” in installation folder, then select “properties”.

2. Switch to the Compatibility tab, then check “Run this program as an administrator”. Click “OK”, then execute “Hotkey.exe”.

35

VMC 3020 User Manual

Chapter 4: Software

1. Right click “F1 icon” in system bar, then select “Open AP”.

Setup Hotkey Function

2. Select function from dropdown list, F1 to F10

36

VMC 3020 User Manual

Chapter 4: Software

1. Select “User define” from dropdown list

Setup Hotkey Function - User Define

2. Select application program via button.

The “Executed file Path” will show the complete path.

37

VMC 3020 User Manual

Chapter 4: Software

How to Switch Hotkey Button

Normal mode: Shift function inactive Hotkey = F1 to F5

Shift mode: Shift function active (LED light is bright) Hotkey = F6 to F10

38

VMC 3020 User Manual

Chapter 4: Software

NEXCOM’s software demo utility helps users to test and control different functions on the VMC 3020. This section shows how to use the utility. Users can refer to the source codes in the CD to develop their applications.

WWAN

Enables or disables the power of the mini-PCIe slot, designed for WWAN function.

WWAN Wake Up

Enables or disables the wake-up function of WWAN module.

Heater Function

Heater will start to work when the low temperature reaches -20°C.

Heater Power

Heater starts to work immediately.

demo utIlIty

39

VMC 3020 User Manual

Chapter 4: Software

Low Battery Voltage Protection

Configures the protection level of the min. and max. voltages.

Power Input Type

Configures the value of power input.

Delay Time

Configures the timing of delay on and delay off.

RTC Wake Up Timer

Configures the timer settings.

Alarm: Set the timing of waking up the system.

RTC: Set the timing in MCU. Current timing on the MCU will not

be set until the users configures it.

40

VMC 3020 User Manual

Chapter 4: Software

Shows the value of the registers and brief description of these values. For further details, please contact with your local NEXCOM representative.

Configures and reads the value of iButton into the system. Max. is 50 sets.

If the password is forgotten, please refer to the setting of SW2 in chapter 2 of the user manual to turn the security off.

41

VMC 3020 User Manual

Chapter 4: Software

Configures and reads the value of RFID into the system. Max. is 10 sets.

If the password is forgotten, please refer to the setting of SW2 in chapter 2 of the user manual to turn the security off.

Reads the status of the battery.

42

VMC 3020 User Manual

Chapter 4: Software

BIos Power management

Entering BIOS

Enter the BIOS and go to Advanced  Power Management Configuration.

Advanced Security Boot Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Power Management Conguration

settings

Trusted Computing ACPI Settings

Power Management Conguration

Module Management

NCT61060 Super IO Conguration

NCT61060 HW Monitor

CPU Conguration SATA Conguration USB Conguration

43

VMC 3020 User Manual

Chapter 4: Software

Voltage Setting for Turn-on or Turn-off of the System

Configure the voltage of start-up or shutdown of the system. Click the Startup,Shutdown option marked in red.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Startup,Shutdown Setting

Power Management Conguration

** Startup & Shutdown Voltage Setting ** Input Voltage

Startup,Shutdown

** Delay Time Setting **

Power On Delay Power Off Delay

9-60V

[(11.5,10.5)/(23,21)]

[Disable] [Disable]

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Startup,Shutdown Setting

Power Management Conguration

** Startup & Shutdown Voltage Setting ** Input Voltage

Startup,Shutdown

** Delay Time Setting **

Power On Delay Power Off Delay

9-60V

[(11.5,10.5)/(23,21)]

[Disable] [Disable]

Startup,Shutdown (11.5, 10.5) / (23,21) (12.0, 11.0) / (24,22)

(12.5, 11.5) / (25,23)

(12.5, 11.0) / (25,22)

44

VMC 3020 User Manual

Chapter 4: Software

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Delay On Time selection Setting

Power Management Conguration

** Startup & Shutdown Voltage Setting ** Input Voltage

Startup,Shutdown

** Delay Time Setting **

Power On Delay

Delay On Time selection

Power Off Delay Delay Off Time selection

9-60V

[(11.5,10.5)/(23,21)]

[Enabled]

[10 sec]

[Enabled] [20 sec]

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Delay On Time selection Setting

Power Management Conguration

** Startup & Shutdown Voltage Setting ** Input Voltage

Startup,Shutdown

** Delay Time Setting **

Power On Delay

Delay On Time selection

Power Off Delay Delay Off Time selection

9-60V

[(11.5,10.5)/(23,21)]

[Enabled] [Disabled]

Delay On Time selection

10 sec 30 sec

01 min 05 min

10 min 15 min 30 min

01 hour

Setting for Delay-on & Delay-off

Enable the “Power On Delay” and the timing for delay-on will be available.

45

VMC 3020 User Manual

Chapter 4: Software

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Delay On Time selection Setting

Power Management Conguration

** Startup & Shutdown Voltage Setting ** Input Voltage

Startup,Shutdown

** Delay Time Setting **

Power On Delay

Delay On Time selection

Power Off Delay Delay Off Time selection

9-60V

[(11.5,10.5)/(23,21)]

[Enabled]

[10 sec]

[Enabled] [20 sec]

Setting for Delay-on & Delay-off

Enable the “Power Off Delay” and the timing for delay-off will be available.

Advanced

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Delay Off Time selection Setting

Power Management Conguration

** Startup & Shutdown Voltage Setting ** Input Voltage

Startup,Shutdown

** Delay Time Setting **

Power On Delay Delay On Time selection

Power Off Delay

Delay Off Time selection

9-60V

[(11.5,10.5)/(23,21)]

[Enabled]

[Disabled]

20 sec

01 min 05 min

10 min 30 min

01 hour 06 hour

18 hour

Delay Off Time selection

46

VMC 3020 User Manual

Chapter 4: Software

WWAN Module Management

Enter the BIOS and go to Advanced  Module Management.

Advanced Security Boot Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Trusted Computing ACPI Settings

Power Management Conguration

Module Management

NCT61060 Super IO Conguration

NCT61060 HW Monitor

CPU Conguration SATA Conguration USB Conguration

Advanced Security Boot Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Boot Option for WWAN Module.

Module Management

WWAN Module

WWAN Digital Voice (CN16) Wake On WWAN Module (CN16) Brightness Reboot when Ignition is On RTC Alarm Time

[Enable]

[Telit LE910 (I2S)] [Disable] 0 [Disable] [Disable]

It is required that the correct module name is selected if the user wants to use the function of “Voice” through WWAN module.

To use the wake-up function (SMS), the setting needs to be set to “enable”.

47

VMC 3020 User Manual

Chapter 4: Software

Setting for Automatic Reboot

Enter the BIOS and go to Advanced  Module Management.

Advanced Security Boot Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Trusted Computing ACPI Settings

Power Management Conguration

Module Management

NCT61060 Super IO Conguration

NCT61060 HW Monitor

CPU Conguration SATA Conguration USB Conguration

If the user wants to reboot the system automatically when the system turns off, the setting needs to be set to “enable”.

Advanced Security Boot Save & ExitMain

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable or Disable Boot Option for WWAN Module.

Module Management

WWAN Module

WWAN Digital Voice (CN16) Wake On WWAN Module (CN16) Brightness Reboot when Ignition is On RTC Alarm Time

[Enable]

[Telit LE910 (I2S)] [Disable] 0 [Disable] [Disable]

48

VMC 3020 User Manual

Chapter 4: Software

touChsCreen drIver InstallatIon

This section describes how to install drivers and other software that enables your touchscreen controller to work with various operating systems.

The touchscreen support the following operating systems:

• Windows 2000/XP/2003/Vista/7/8

• (Kernel 2.6 & X-Windows Mode

• Windows CE (4.2/5.0/6.0/7.0)

Installing PenMount Windows Universal Driver (For 2000/XP/XPT/XPE/2003/VISTA/7/WES7/2008/8)

Before installing PenMount Windows Universal Driver, you must have had installed one of the operating systems from Windows 2000/XP/XPT/ XPE/2003/VISTA/7/WES7/2008/8 in your computer, and one of PenMount control boards from 6200x, 6202B, 6300x, or 6500x must have been installed.

Before installing PenMount Windows Universal driver V2.4.0.306, you may modify the default options from \PenMount Universal Driver V2.4.0.306\ Driver\Install.ini:

Install USB 1. Install PenMount USB driver.

0. Uninstall PenMount USB driver.

COM 1. Install PenMount RS232 driver.

0. Uninstall PenMount RS232 driver.

MMonitor 1. Install PenMount driver for multi-device recognition.

0. Uninstall PenMount driver for multi-device recognition.

ENUM 1. Install PenMount driver for non-pnp device recognition.

0. Uninstall PenMount driver for non-pnp device recognition.

Option TouchReport 1. The default setting of Windows 2k/XP/Vista/7 is mouse

mode.

2. The default setting of Windows 2k/XP is mouse mode; the default setting of Windows 7/ Vista is digitizer mode.

EdgeOffset 0, 5, 10, 15, 20, 25, 30 are the default values for edge

compensation.

Smoothing 1. Turn on the smoothing function.

0. Turn off the smoothing function.

49

VMC 3020 User Manual

Chapter 4: Software

Operation The default settings of operating mode:

0. Pen Input Emulation 2. Mouse Emulation

1. Click on Touch 3. Click on Release

CalibOffset This function is unable to be modified.

RBtnPressNHold 0. Turn on long-pressed right key function.

1. Turn off long-pressed right key function.

Serial ScanAllPorts 1. Turn on “Scan All Ports” to confirm PenMount

RS232 device.

0. Turn off “Scan All Ports” for the confirmation of PenMount RS232 device.

COM3=xxxx,yyyy To set up the permanent system COM port for

PenMount RS232 driver. COM3-to correct it to be correspondent with the actual COM PORT. xxxx-the supporting item number: 9000/ 6000 or PCI. yyyy-the baud rate 19200 or 9600 of item 6000 or item 9000; baud rate 38400 is only for PCI items.

# Please note that the information above must be

correct, so that the device can just work normally, and ENUM must be set as 1. Example: COM1= PCI, 38400

# Permanently install PCI RS232 38400bps at COM1

COM3= 6000,19200

# Permanently install PM6000 RS-232 19200bps at

COM3 COM4=9000,9600

# Permanently install PM9000 RS-232 9600bps at

COM4

PS. Set the symbol”;” in front of the parameter, which means not to perform the parameter.

Example: ; TouchReport =2, it will not be installed as Digitizer mode directly in Windows 7, the user can select Digitizer or mouse mode during the installation procedure. ; COM1=PCI,38400, it will not install the driver at COM1 permanently.

50

VMC 3020 User Manual

Chapter 4: Software

Installing PenMount Mouse Driver in Windows 2000/ XP/XPT/XPE/2003/VISTA/7/WES7/2008/8

If you have an older PenMount driver installed on your system, uninstall it first and follow the steps below to install PenMount Windows Universal Driver:

Plug in your PenMount 6000 control board and install PenMount Windows Universal Driver. Make sure the driver is installed before control board is plugged. Then the driver will have the assigned COM port or USB port detect PenMount device.

To install the driver:

1. In folder PenMount Universal Driver, find “Setup.exe” and run it.

2. A License Agreement window appears. Click “I Agree” and “Next”.

3. When ready to install the program, click “Install”.

4. Installation takes some time.

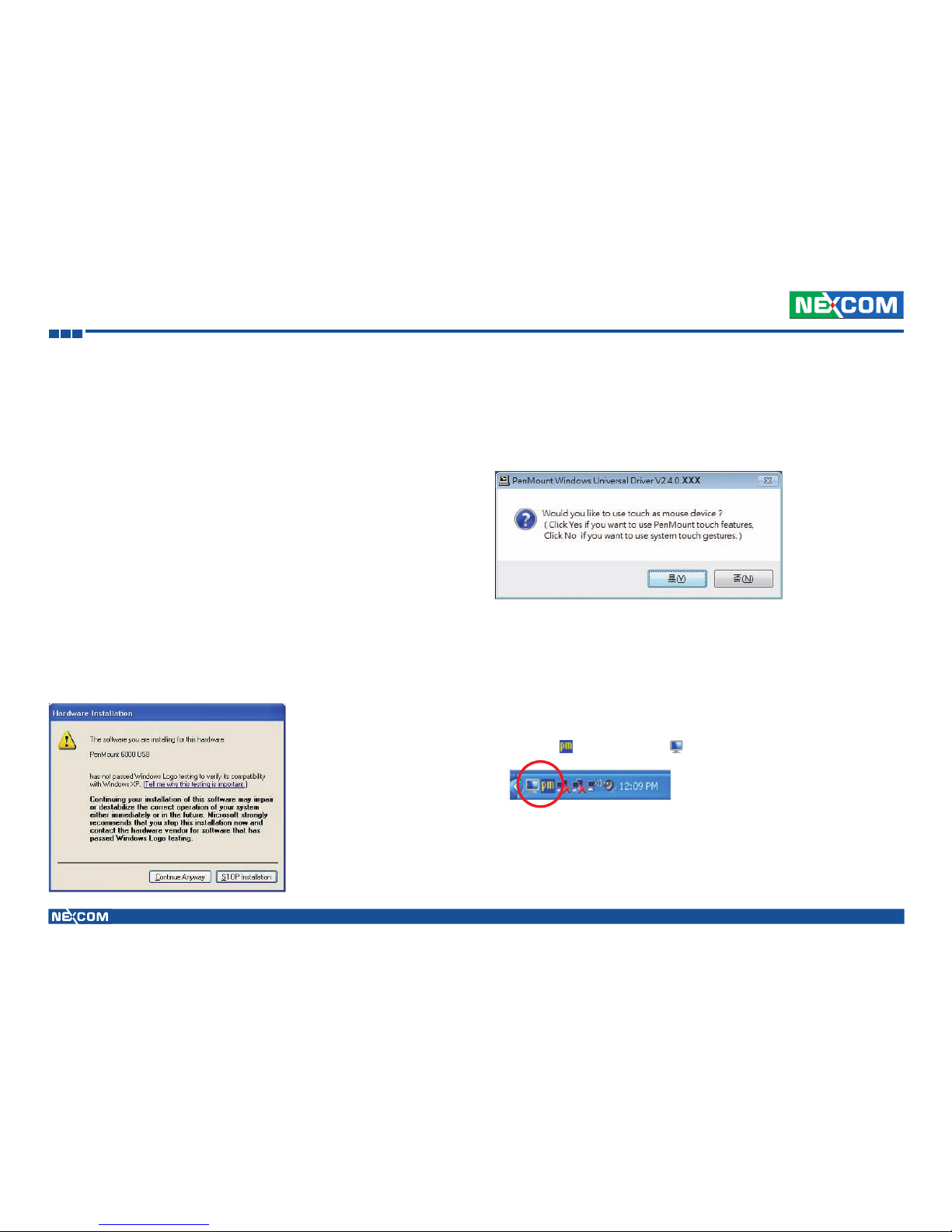

5. When the warning message screen appears, please click “Continue Anyway” to continue.

6. When the window below shows up, please select “yes” for installing PenMount as mouse mode; select “no” for digitizer mode. If your operating system doesn’t support Windows tablet input, digitizer device can’t be used, therefore you have to select “yes” here, otherwise after the installation the touch doesn’t work after re-booting.

7. A window notifying of installation completion appears. Click “Finish”.

NOTE: If you are installing the driver with Microsoft WHQL, you will see the screen in step 6 directly instead of step 5.

8. Then restart operating system.

As soon as driver installation finishes, both the icons of PenMount Monitor and Gesture AP show up in the notification area.

51

VMC 3020 User Manual

Chapter 4: Software

Installing PenMount Digitizer Driver in Windows XP/ Vista/7/WES7/2008/8

The installation steps of the default settings are consistent with XP. When you select “no” for step 6, PenMount will be installed as a digitizer device; If your operating system doesn’t support Windows tablet input, digitizer device can’t be used, therefore you have to select “yes” here, otherwise after the installation the touch doesn’t work after re-booting.

After the installation, you will see the difference that a PenMount Control Panel icon shows up on the desktop without a icon in the notification area. See the screenshot below:

Configuring Touchscreen in PenMount Mouse Driver

Click on the PenMount Monitor icon in the notification area and select Control Panel from the menu.

On PenMount Control Panel you are able to see the device of PenMount 6000 USB/RS-232 detected by your system under Device tab. Select a device and click the Configure button.

52

VMC 3020 User Manual

Chapter 4: Software

PenMount Control Panel

The functions under PenMount Control Panel are:

Device

In this window, you can find out how many devices are detected by your system.

Calibrate This function offers two ways to calibrate your touchscreen. ‘Standard Calibration’ adjusts most touchscreens while ‘Advanced Calibration’

adjusts aging touchscreens.

Standard Calibration

Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. To skip, press ‘ESC’.

Advanced Calibration

Advanced Calibration uses 9, 16 or 25 points to

effectively calibrate touch panel linearity of aged touchscreens. Click this button and touch the red squares in sequence with a stylus. To skip, press ‘ESC’.

Command Calibration

Command call calibration function. Use command mode call calibration function, this can uses 4, 9, 16 or 25 points to calibrate.

E.g. Please run ms-dos prompt or command prompt. c:\Program Files\PenMount Universal Driver\DMCCtrl.exe

-calibration 4 (Standard Calibration)

DMCCtrl.exe - calibration ($) 4=Standard Calibration 4 9=Advanced Calibration 9 16=Advanced Calibration 16 25=Advanced Calibration 25

53

VMC 3020 User Manual

Chapter 4: Software

To calibrate your touchscreen:

1. Please select a device then click “Configure”. You can also double click the device too.

2. Click “Standard Calibration” to start standard calibration or “Advanced Calibration” to start Advanced Calibration.

NOTE: The older a touchscreen is, the more calibration points of the Advanced Mode it needs. For an optimal accuracy we suggest to use a stylus to make the advanced calibration.

54

VMC 3020 User Manual

Chapter 4: Software

Plot Calibration Data

Check this function to have touch panel linearity comparison graph appear when you finish Advanced Calibration. The black lines reflect the ideal linearity assumed by PenMount’s application program while the blue lines show the approximate linearity calculated by PenMount’s application program as the result of user’s execution of Advance Calibration.

Turn off EEPROM storage

This function disables the write-in of calibration data in

Controller. This function is enabled by default.

Setting

Operation Mode

This mode enables and disables mouse’s ability of dragging on-screen icons—useful for configuring POS terminals.

Pen Input Emulation

Select this mode and mouse will emulate Windows Vista pen input device operation, by which no mouse event will be sent until the touch is dragged out of range or released from the screen.

Mouse Emulation

Select this mode and mouse functions as normal and allows dragging of icons.

Click on Touch

Select this mode and mouse only provides a click function, and dragging is disabled.

Click on Release

Select this mode and mouse only provides a click function when the touch is released.

Beep Sound Enable Beep Sound turns beep function on and

off.

Beep on Pen Down beep occurs when pen comes

down.

Beep on Pen Up beep occurs when pen is lifted

up.

Beep on both beep occurs when comes

down and is lifted up.

Beep Frequency modifies sound frequency.

Beep Duration modifies sound duration.

55

VMC 3020 User Manual

Chapter 4: Software

Edge Compensation

This page is the edge compensation settings. You can adjust the settings from 0 to 30 for accommodating the difference of each touch panel.

About

This panel displays information about the PenMount controller and driver version.

Cursor Stabilizer

Enable the function support to prevent cursor shake.

Use press and hold as right click

You can set the time out and area for you need

56

VMC 3020 User Manual

Chapter 4: Software

PenMount Monitor Menu Icon

PenMount Monitor icon (PM) appears in the notification area of Windows system when you turn on PenMount Monitor in PenMount utility.

PenMount Monitor has the following functions:

Control Panel Open PenMount Control Panel.

Beep Setting Beep function for each device.

Right Button When you select this function, a mouse icon appears

in the right-bottom of the screen. Click this icon to switch between Right and Left Button functions.

Exit Exits the PenMount Monitor function.

PenMount Rotating Function

PenMount Windows Universal Driver supports several display rotating

software packages and auto-detects rotate function (0°, 90°, 180°, 270°). The display rotating software package supported in Windows 2000, XP 32bit, Vista 32/64bit are:

1. Intel Display Driver Rotate Function.

2. ATI Display Driver Rotate Function.

3. nVidia Display Driver Rotate Function.

4. SMI Display Driver Rotate Function.

5. Portrait’s Pivot Screen Rotation Software.

Configure Rotate Function in Windows XP 64bit

1. There is a “Screen Rotation Monitor” button that appears only in the PenMount driver utilities for Windows XP 64bit system.

57

VMC 3020 User Manual

Chapter 4: Software

2. On enabling “Screen Rotation Monitor”, you will see a screen like below:

3. Choose rotate function (0°, 90°, 180°, 270°) in the 3rd party software. The calibration screen will appear automatically. Touch this point and rotation is mapped.

NOTE: Rotate function is disabled if you use Monitor Mapping.

Touchscreen Configuration of PenMount Digitizer Driver

With PenMount Windows Universal V2.2.0.283 and the later versions, since the touchscreen is automatically installed as a digitizer device in Windows Vista/7, the functions built in Windows Vista / 7 such as rotation, multimonitor, flicks, and context menu function (which launches a context menu by user’s long-pressing on touchscreen rather than clicking the right mouse button or pressing the application key on the keyboard) will be supported.

To configure touchscreen in PenMount Digitizer driver:

Double-click on the PenMount Control Panel icon on the Desktop.

On PenMount Control Panel you are able to see the device of PenMount 6000 USB/RS-232 detected by your system under Device tab. Select a device and click the Configure button.

58

VMC 3020 User Manual

Chapter 4: Software

PenMount Control Panel

The functions under PenMount Control Panel are:

Device

In this window, you can find out how many devices are detected on your system.

Calibrate This function offers two ways to calibrate your touchscreen. ‘Standard Calibration’ adjusts most touchscreens while ‘Advanced Calibration’

adjusts aging touchscreens.

Standard Calibration

Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. To skip, press ‘ESC’.

Advanced Calibration

Advanced Calibration uses 9, 16 or 25 points to

effectively calibrate touch panel linearity of aged touchscreens. Click this button and touch the red squares in sequence with a stylus. To skip, press ‘ESC’.

Command Calibration

Command call calibration function. Use command mode call calibration function, this can uses 4, 9, 16 or 25 points to calibrate.

E.g. Please run ms-dos prompt or command prompt. c:\Program Files\PenMount Universal Driver\DMCCtrl.exe

-calibration 4 (Standard Calibration)

DMCCtrl.exe - calibration ($) 4= Standard Calibration 4 9= Advanced Calibration 9 16= Advanced Calibration 16 25= Advanced Calibration 25

59

VMC 3020 User Manual

Chapter 4: Software

To calibrate your touchscreen:

1. Please select a device then click “Configure”. You can also double click the device too.

2. Click “Standard Calibration” to start standard calibration or “Advanced Calibration” to start Advanced Calibration.

NOTE: The older a touchscreen is, the more calibration points of the Advanced Mode it needs. For an optimal accuracy we suggest to use a stylus to make the advanced calibration.

60

VMC 3020 User Manual

Chapter 4: Software

Plot Calibration Data

Check this function to have touch panel linearity comparison graph appear when you finish Advanced Calibration. The black lines reflect the ideal linearity assumed by PenMount’s application program while the blue lines show the approximate linearity calculated by PenMount’s application program as the result of user’s execution of Advance Calibration.

Turn off EEPROM storage

This function disables the write-in of calibration data in Controller. This function is enabled by default.

Edge Compensation

This page is the edge compensation settings. You can adjust the settings from 0 to 30 for accommodating the difference of each touch panel.

About

This panel displays information about the PenMount controller and driver version.

61

VMC 3020 User Manual

Chapter 4: Software

Uninstalling PenMount Windows Universal Driver

1. Go to Control Panel. Click “Add/Remove program”. Select ”PenMount Universal Driver”. Click “Change/Remove” button.

2. Select ‘Uninstall’ to remove PenMount Windows Universal Driver.

62

VMC 3020 User Manual

Chapter 4: Software

Installing PenMount Linux X Window USB Driver

Before installing PenMount Linux X Window USB Driver, you must have had Linux X Window installed and running on your computer.

PenMount Linux X Window USB Drivers support the following operating systems:

USB

Ubuntu 6.06/ 6.10/ 7.04/ 7.10/ 8.04/ 8.10/ 9.04/ 9.10/ 10.04/ 10.10/

11.04/ 11.10/12.04 32_64bit



Debian 4.0/ 5.0 32_64bit/ 6.0



Debian 3.1



Fedora 4/5/6/7/89/10/11/12/13 /14/15/16/17 32_64bit



Fedora Core4_64bit



Fedora Core3



Fedora Core2



Slackware12.0/12.1



Slackware10.0



Red Hat 9.0



Red Hat 7.3/8.0



OpenSuse 10.1/ 10.2/ 10.3/ 11/ 11.1/ 11.2/ 11.3/ 11.4/ 12.1 32_64bit



Suse 10.0



Suse 9.2/9.3



Suse 8.0/9.0/9.1



Cent OS 5.2/ 5.3/ 5.4/ 5.5/ 6.0/ 6.2 32_64bit



Linux XFree86 4.x.x



Linux XFree86 3.3.6



Linux For GPM



QNX 6.4.1/ 6.5



QNX 6.3.2



QNX 6.2



Android



Installing PenMount Linux X Window USB Driver

See the readme file included in the driver folder.

Calibration Utilities

See the readme file included in the driver folder.

Installing PenMount WinCE Driver

Before installing PenMount WinCE Driver, you must have WinCE system installed and running in your device.

Installing PenMount WinCE Driver

Please see the readme file included in the driver folder.

63

VMC 3020 User Manual

Chapter 4: Software

touChsCreen drIver software funCtIons

This section will guide you to the special software functions that configure and adjust the PenMount controller and touchscreen hardware. Please note that not all of the functions are available for every driver. See the following table for drivers’ software functions and their availability for specific interface and systems:

Software Function DOS 2000/XP/2003 VISTA/7/8 WinCE Linux

Standard Calibration

    

Advanced Calibration

   

Multiple Monitors

 

Multi Device

 

Rotation

 

Operation Mode

 

Drawing mode

   

Beep Sound

   

Beep sound adjustable

 

Wake up function

 

Showing linearity

 

Right button

   

Hide cursor



Double click area and speed adjustable

 

About

 

Edge Compensation

 

Refresh

 

Remark: With PenMount Windows Universal

V2.2.0.283 and later versions, since the touchscreen is automatically installed as a digitizer device in Windows Vista/7/8, the functions which are built within Windows Vista/ 7/ 8 such as rotation, multi-monitors, flicks, and context menu function (which launches a context menu by user’s long-pressing on touchscreen rather than clicking the right-mouse button or pressing the application key on the keyboard) will be supported.

64

VMC 3020 User Manual

Chapter 4: Software

The following content in this section deals mainly with PenMount Windows Universal Driver (for 2000/XP/2003/VISTA/7/8). For this driver, the function of Tools should be made known to you first. When you click the PenMount icon in the notification area and select “Control Panel” from the menu, “PenMount Control Panel” with the four tags “Device”, “Multiple-Monitors”, “Tools”, “About” will appear as the screenshot below:

The buttons on such “PenMount Control Panel” have the following functions:

Draw Tests or demonstrates the PenMount

touchscreen operation.

Right Button Icon Enable right button function. The icon can

show on Desktop or in the notification

area.

Gesture Enable Enable/configure Gesture AP to support

PenMount gestures recognition.

Screen Rotation Monitor The function supports nVidia, Intel, SMI

or ATI and software such as Portrait Pivot Pro rotation automatic detection.

65

VMC 3020 User Manual

Chapter 4: Software

Standard Calibration

Standard Calibration function lets you match the touchscreen to your display so that the point you touch is accurately tracked on screen. Standard Calibration only requires four points for calibration and one point for

confirmation. Under normal circumstance Standard Calibration is all you need to perform an accurate calibration.

Advanced Calibration

Advanced Calibration function improves the accuracy of calibration by

using more involved engineering calculations. Use this function only if you have tried the Standard Calibration and there is still a discrepancy in the way the touchscreen maps to the display. You can choose 9, 16 or 25 points to calibrate, though we suggest that you first try 9 points, if it is still not tracking well then try 16 or 25 points. The more points you use for calibration, the greater the accuracy. Errors in calibration may occur due to viewing angle, or individual skill, and there may be little difference in using 16 or 25 points. Note that a stylus is recommended for the most accurate results.

Rotation

There are currently a number of software packages on the market that support rotating monitors 0°, 90°, 180°, and 270°. However you will not be able to use a touchscreen unless it is matched to the appropriate rotation. Our rotation configuration function allows you to easily match the touchscreen when you rotate your monitor.

If you use a rotating monitor you will need a display card such as from nVidia, Intel, SMI or ATI and software such as Portrait Pivot Pro. For software operation and features, please refer to your software manual.

Configuring the rotation function is easy. Select this option and a ‘point’ appears for you to touch. Once the point is touched the software driver understands which degree you plan to rotate your display. The rotation function supports 90, 180 and 270 degrees rotation.

Draw

Tests or demonstrates the PenMount touchscreen operation. The display shows touch location. Click Draw to start. Touch the screen with your finger or a stylus and the drawing screen registers touch activity such left, right, up, down, pen up, and pen down.

66

VMC 3020 User Manual

Chapter 4: Software

Touch the screen with your finger or a stylus and the drawing screen registers touch activity such left, right, up, down, pen up, and pen down.

Click Menu button for more functions.

Show Pen Location is to show the locations where pen comes down and lifted up on the monitor.

Show Grid is to show grid on the entire monitor. This is for linearity test.

Select Clear Screen to clear drawing.

Select Exit to quit draw function.

67

VMC 3020 User Manual

Chapter 4: Software

Mouse Operation Mode

Mouse Operation Mode enables and disables mouse’s ability of dragging

onscreen icons, which is applicable to the configuration of POS terminals.

Pen Input Emulation

Select this mode and mouse will emulate Windows Vista pen input device operation, by which no mouse event will be sent until the touch is dragged out of range or released from the screen.

Mouse Emulation

Select this mode and mouse functions as normal and allows dragging of icons.

Click on Touch Select this mode and mouse only provides a click

function, and dragging is disabled.

Click on Release Select this mode and mouse only provides a click

function when the touch is released.

Beep Sound

All of PenMount’s drivers support the beep sound function; however some PC systems may only offer a fixed buzzer sound.

Beep Sound Adjustable

Software drivers for Windows systems let the user adjust the frequency and length of the beep sound. The drivers let the user adjust the desired touchscreen sound, as well as turn the sound off.

Wake Up Function

Wake Up function lets the user touch the screen and wake the system up

from ‘suspend’ mode.

Plot Calibration Data

Plot Calibration Data function displays the touchscreen linearity map,

which is available if the PenMount driver provides an Advance Calibration function. When touchscreens age their touch linearity declines. This nonlinearity is apparent when the touched point on the touchscreen is not the same as the point on the display. The Plot Calibration Data function shows the linearity status of the touchscreen. This is only a support function for the user. The exact linearity of a touchscreen requires a linearity test machine.

Right Button

Right Button function simulates the right button function of a mouse.

Click the right button and the user can only touch the screen once and the driver changes the touch definition to the left button.

Hide Cursor

Hide Cursor function keeps the cursor arrow and other cursor symbols

from appearing when using the touchscreen. The cursor appears when user turns this function off.

68

VMC 3020 User Manual

Chapter 4: Software

Cursor Offset

Cursor Offset function lets the user adjust the position of the touch point

to a desired location away from the real touch point.

Double Click Area and Speed

Double Click Area and Speed function lets the user adjust the double click

area and speed to their personal preference.

About

This option shows the exact version of the drivers and controller firmware. Updated drivers are available for downloading on the PenMount website at http://www.penmount.com/

Edge Compensation

In PenMount Control Panel, when any of the detected PenMount device is selected and the Configure button is pressed, you will be able to see the Edge Compensation tag, which is for Advanced Calibration. You can adjust the settings from 0 to 30 for accommodating the difference of each touch panel. (Note: Edge Compensation is only supported by PenMount Windows Universal Driver (for Windows 2000/XP/2003/VISTA).)

69

VMC 3020 User Manual

Chapter 4: Software

Refresh

If you installed PenMount driver package 2.1.0.187 and after, you can click the Refresh button on PenMount Control Panel to detect the newly attached PenMount devices. (Note: Refresh is only supported by PenMount Windows Universal Driver (for Windows 2000/XP/2003/VISTA).)

70

Appendix A: GPIO Connection

VMC 3020 User Manual

aPPendIx a: gPIo ConneCtIon

Digital Input

The figure below shows how to connect an external output source to one of the input channel.

MCU-DI1

MCU-DI2 MCU-DO1

MCU-DO2

DB9-FEMALE-90-5.08mm

5 9 4 8 3 7 2 6 1

Internal External

External Power

External Resistor

External

Switch

Port

DI

Register

ON (Short) GND 0

OFF (Open) HIGH 1

The figure below shows how to connect an external input source to one of the output channel.

Digital Output

MCU-DI1

MCU-DI2 MCU-DO1

MCU-DO2

DB9-FEMALE-90-5.08mm

5 9 4 8 3 7 2 6 1

Internal External

External Power

External Resistor

DO

Register

Port

1 OPEN

0 GND

71

Appendix B: Power Consumption

VMC 3020 User Manual

aPPendIx B: Power ConsumPtIon

Configuration

1. Windows 10 64-bit + Burn in test.

2. Full + Load: Display brightness max. + Sound volume max. + 3G + Wi-Fi

(mini-PCIe) + Wi-Fi (M.2) + SSD + CFast + Play video + Loading (USB x2 + COM_PWR x2 + PowerUSB 12V/5V).

System Status Result

S0 State

Idle State

12V 1.28A 15.36W

24V 0.643A 15.432W

36V 0.453A 16.308W

48V 0.364A 17.472W

60V 0.317A 19.02W

Full Loading

24V 3.22A 77.28W

36V 2.07A 74.52W

48V 1.56A 74.88W

60V 1.30A 78W

72

Appendix C: GPS Feature

VMC 3020 User Manual

aPPendIx C: gPs feature

Technical Specifications

Test Software

Users can visit the uBlox website to download the test tool: u-center. In the website, users can find the user manual of this test tool.

uBlox-NEO M8 Overview

The NEO-M8 series of standalone concurrent GNSS modules is built on the exceptional performance of the u-blox M8 GNSS (GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS) engine in the industry proven NEO form factor.

The NEO-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power. The NEO-M8M is optimized for cost sensitive applications, while NEO-M8N and NEO-M8Q provide best performance and easier RF integration. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSShostile environments.

The NEO-M8 combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems. This makes NEO-M8 perfectly suited to industrial and automotive applications.

The DDC (I2C compliant) interface provides connectivity and enables synergies with most u-blox cellular modules. For RF optimization the NEO-M8N/Q features an additional front-end LNA for easier antenna integration and a front-end SAW filter for increased jamming immunity.

u-blox M8 modules use GNSS chips qualified according to AEC-Q100, are manufactured in ISO/TS 16949 certified sites, and fully tested on a system level. Qualification tests are performed as stipulated in the ISO16750 standard: “Road vehicles – Environmental conditions and testing for electrical and electronic equipment”.

Features

Receiver type 72-channel u-blox M8 engine

GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 SBAS L1 C/A: WAAS, EGNOS, MSAS Galileo-ready E1B/C (NEO-M8N)

Nav. update rate

1

Single GNSS: up to 18 Hz Concurrent GNSS: up to 10 Hz

Position accuracy 2.0 m CEP

NEO-M8N/Q NEO-M8M

Acquisition Cold starts: 26 s 27 s

Aided starts: 2 s 4 s Reacquisition: 1 s 1 s

Sensitivity Tracking & Nav: –167 dBm –164 dBm

Cold starts: –148 dBm –147 dBm Hot starts: –156 dBm –156 dBm

Assistance AssistNow GNSS Online

AssistNow GNSS Offline (up to 35 days) AssistNow Autonomous (up to 6 days) OMA SUPL & 3GPP compliant

Oscillator TCXO (NEO-M8N/Q),

Crystal (NEO-M8M)

RTC crystal Built-in

Noise figure On-chip LNA (NEO-M8M). Extra LNA for

lowest noise figure (NEO-M8N/Q)

73

Appendix C: GPS Feature

VMC 3020 User Manual

Features cont.

Anti jamming Active CW detection and removal. Extra

onboard SAW band pass filter (NEO-M8N/Q)

Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)

Supported antennas Active and passive

Odometer Travelled distance

Data-logger For position, velocity, and time (NEO-M8N)

1

For NEO-M8M/Q

Electrical data

Supply voltage 1.65 V to 3.6 V (NEO-M8M)

2.7 V to 3.6 V (NEO-M8N/Q)

Power consumption

2

23 mA @ 3.0 V (continuous) 5 mA @ 3.0 V Power Save Mode (1 Hz, GPS only)

Backup Supply 1.4 to 3.6 V

2

NEO-M8M

Interfaces

Serial interfaces 1 UART

1 USBV2.0 full speed 12 Mbit/s 1 SPI (optional) 1 DDC (I2C compliant)

Digital I/O Configurable timepulse

1 EXTINT input for Wakeup

Timepulse Configurable 0.25 Hz to 10 MHz

Protocols NMEA, UBX binary, RTCM

Package

24 pin LCC (Leadless Chip Carrier): 12.2 x 16.0 x 2.4 mm, 1.6 g

NEO-M8

Top View

1

2

3

4

5

6

7

8

9

10

11

12

24

22

21

20

19

18

17

16

15

14

13

23

GND

Reserved

D_SEL

TIMEPULSE

EXTINT

USB_DM

USB_DP

VDD_USB

RESET_N

VCC_RF

GND

RF_IN

GND

VCC

V_BCKP

RxD

TxD

SCL

SDA

Reserved

ANT_ON/Reserved

Pinout

Environmental data, quality & reliability

Operating temp. –40° C to 85° C

Storage temp. –40° C to 85° C (NEO-M8N/Q)

–40° C to 105° C (NEO-M8M)

RoHS compliant (lead-free)

Qualification according to ISO 16750

Manufactured and fully tested in ISO/TS 16949 certified production sites

Uses u-blox M8 chips qualified according to AEC-Q100

Nexcom VMC 3020 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
