NEXCOM VMC 1000 User Manual

NEXCOM International Co., Ltd.

Mobile Computing Solutions

Vehicle Mount Computer VMC 1000

User Manual

NEXCOM International Co., Ltd.

Published March 2014

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................vii

Installation Recommendations ................................................................vii

Safety Precautions .................................................................................viii

Technical Support and Assistance ........................................................... ix

Conventions Used in this Manual ........................................................... ix

Global Service Contact Information ......................................................... x

Package Contents ..................................................................................xii

Ordering Information ............................................................................xiii

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

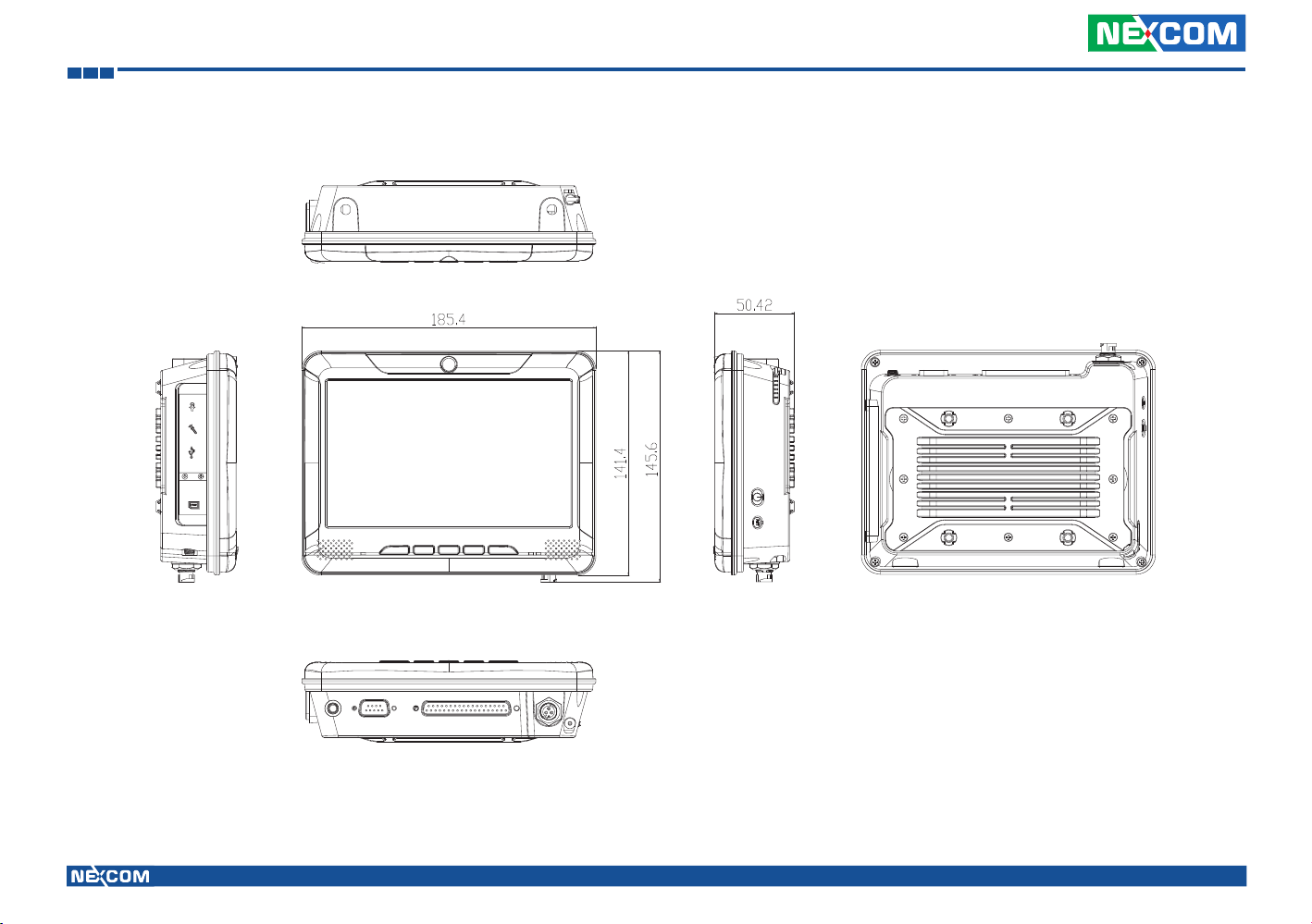

Hardware Specifications ..........................................................................3

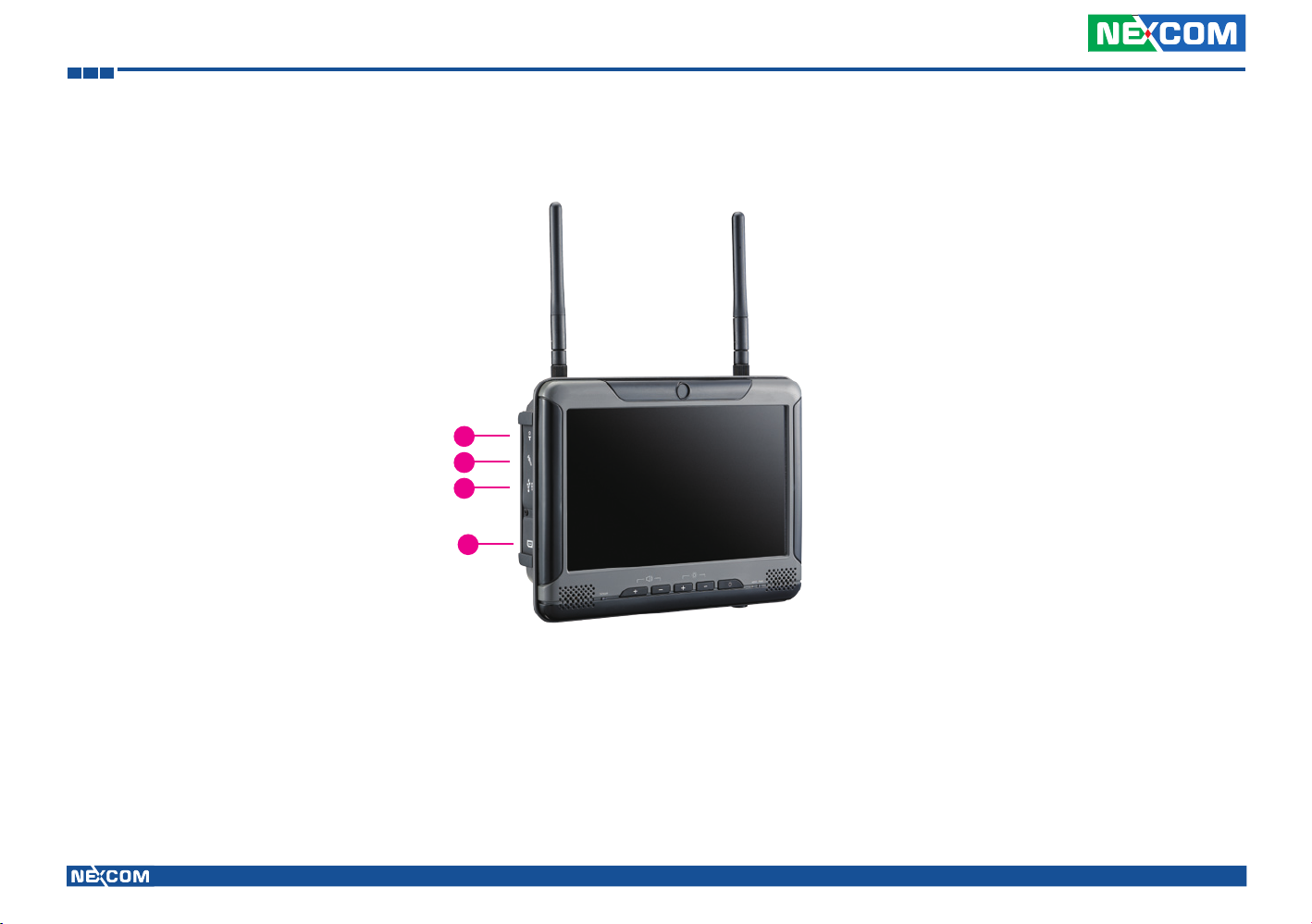

Getting to Know VTC 1000 ....................................................................7

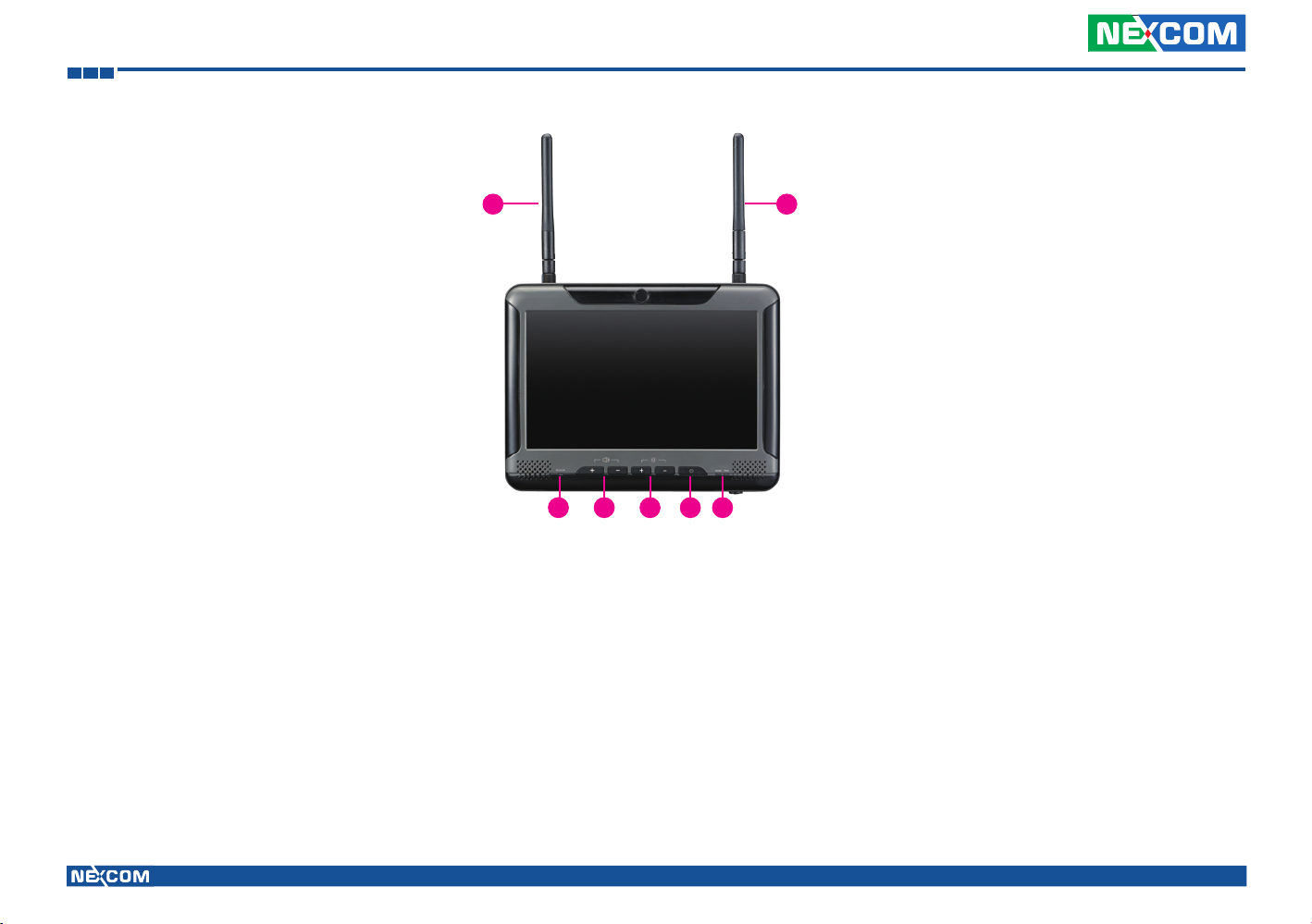

Front Panel .............................................................................................7

Rear Panel ...............................................................................................8

Lateral Side ............................................................................................ 9

I/O Connectors .......................................................................................0

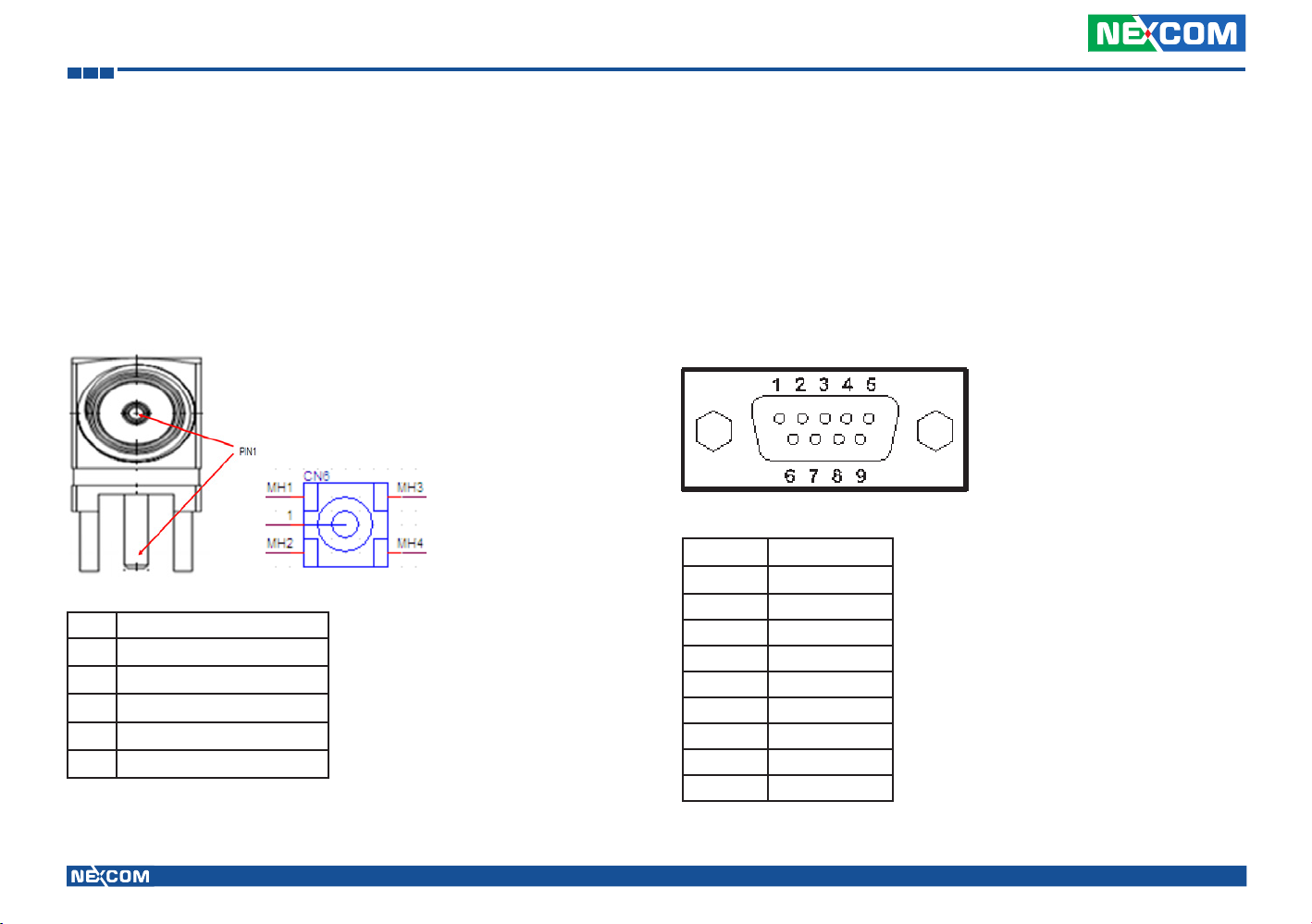

GPS Connector ..................................................................................10

Multi-Connector .................................................................................11

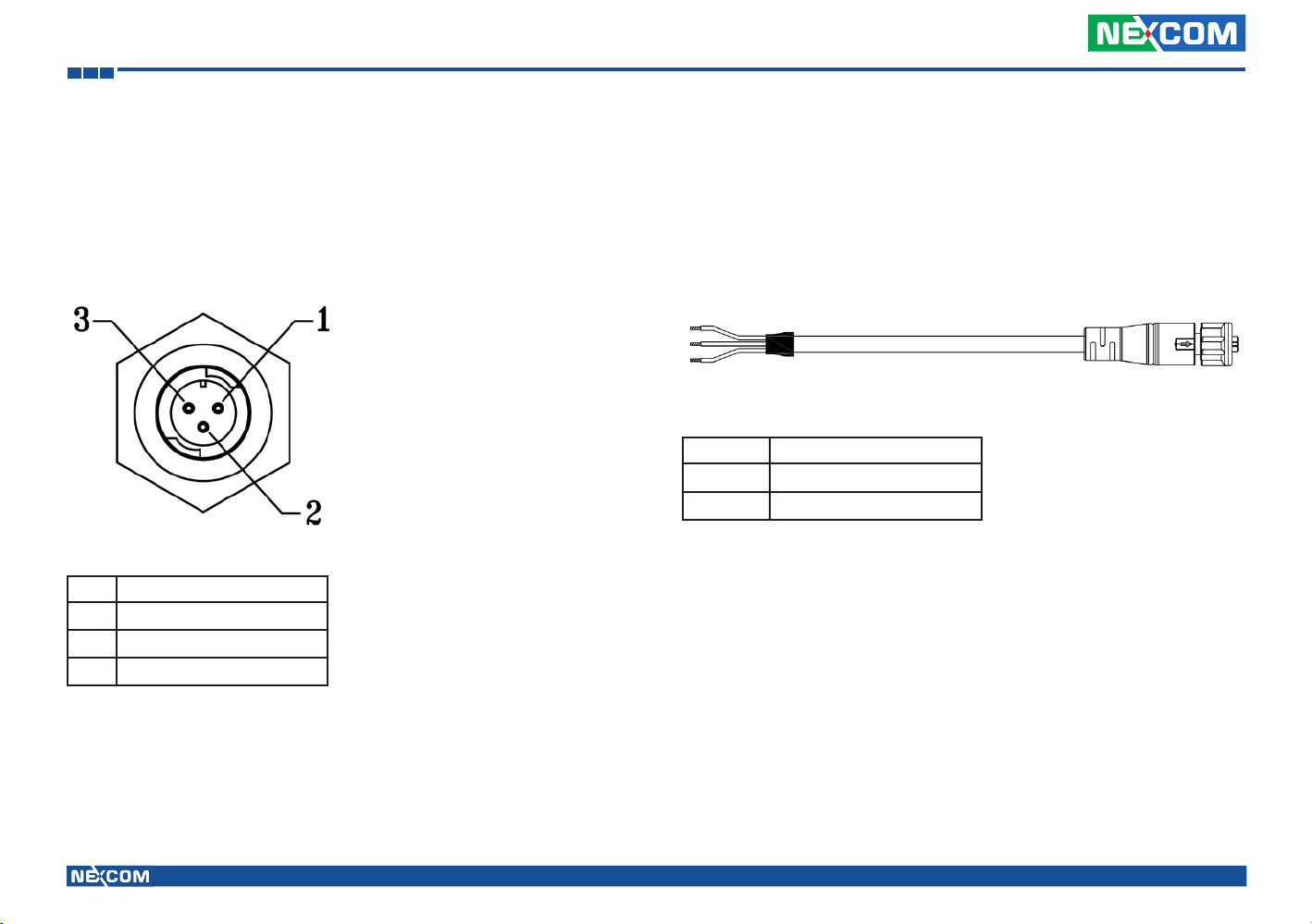

DC Power Connector ......................................................................... 12

DC Power Cable Connector ...............................................................12

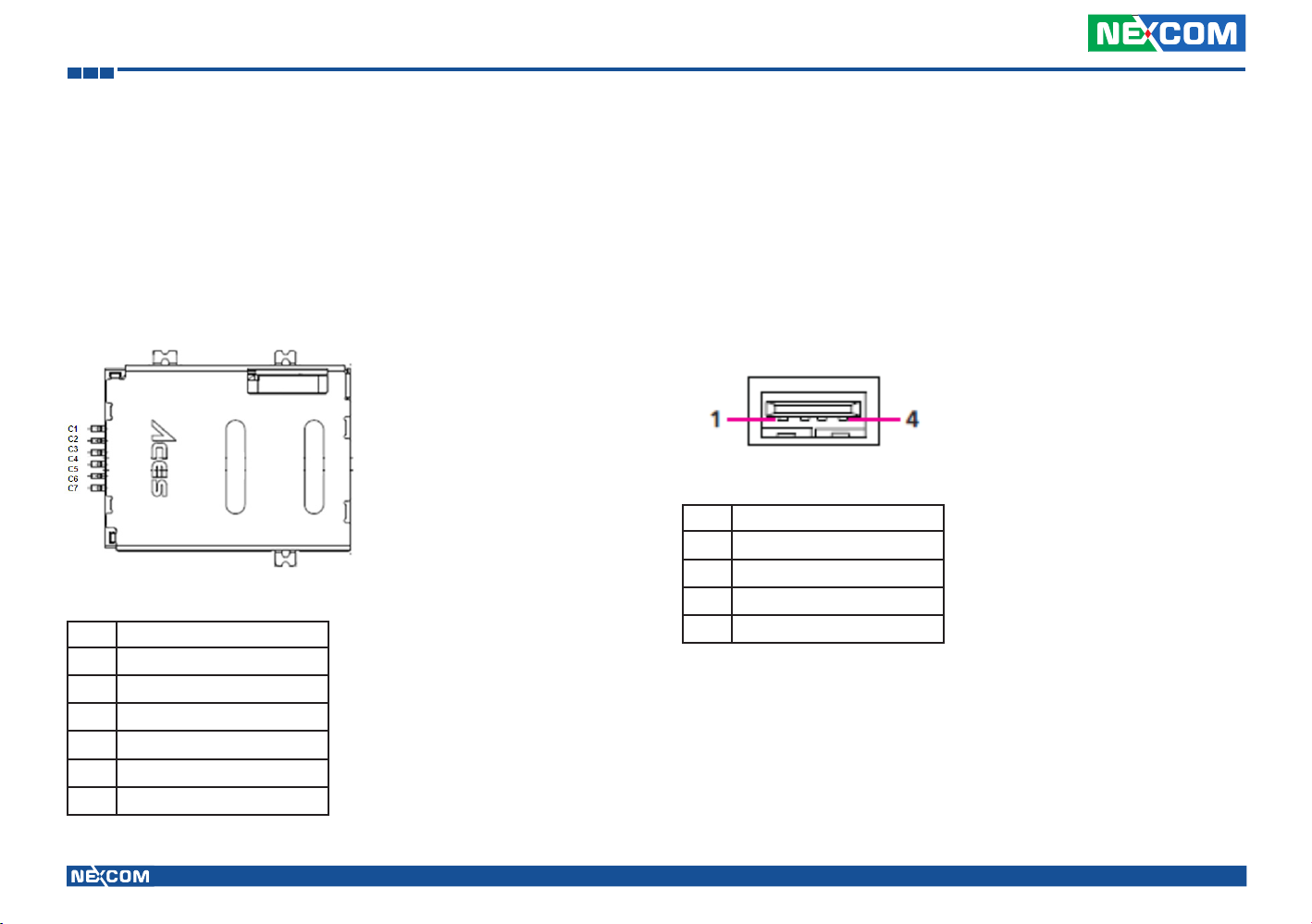

SIM CARD Connector ........................................................................13

USB Connector ..................................................................................13

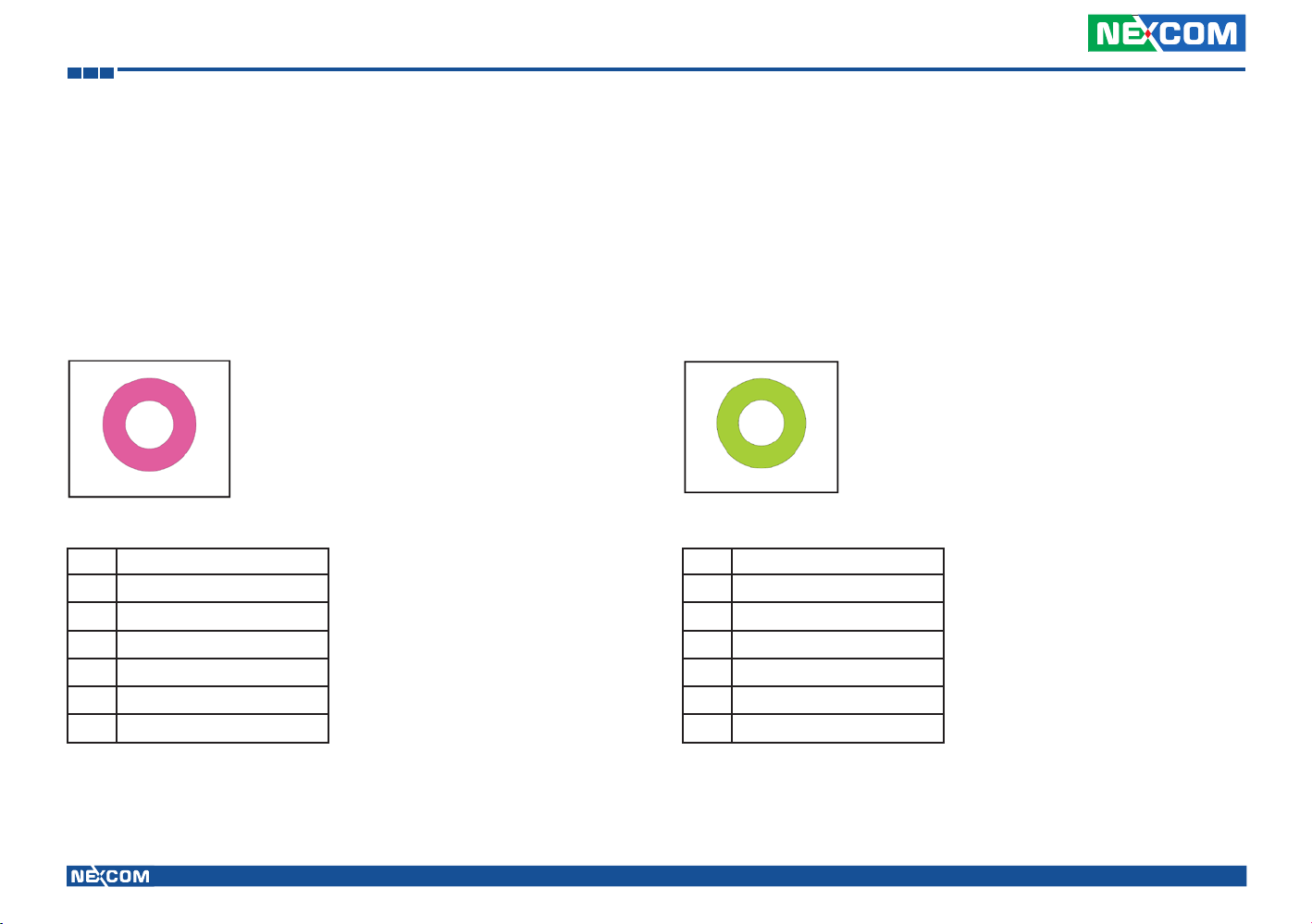

Mic in Jack ......................................................................................... 14

Line-out Jack ......................................................................................14

Chapter 2: Jumpers And Connectors

Before You Begin .................................................................................. 15

Precautions ...........................................................................................15

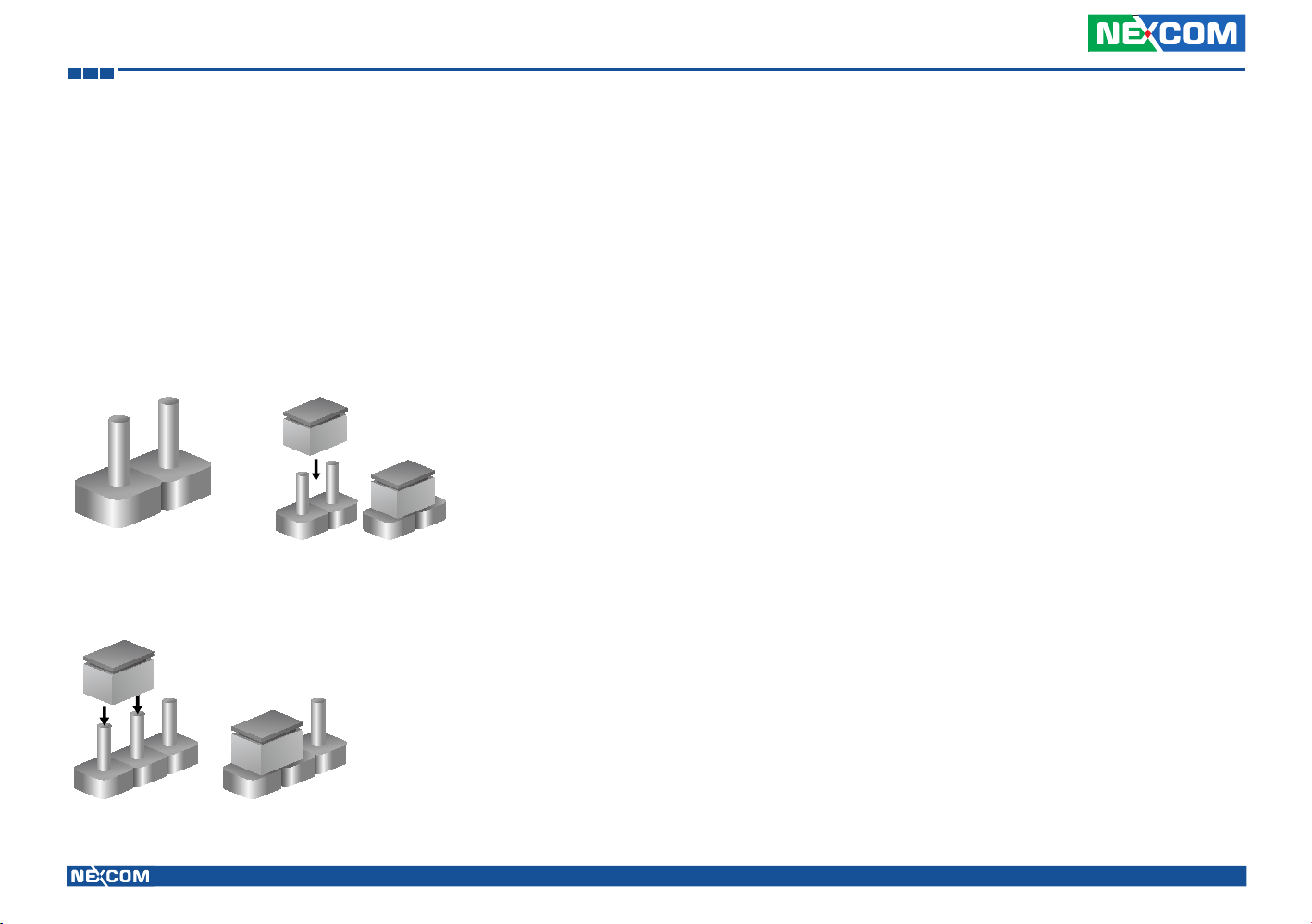

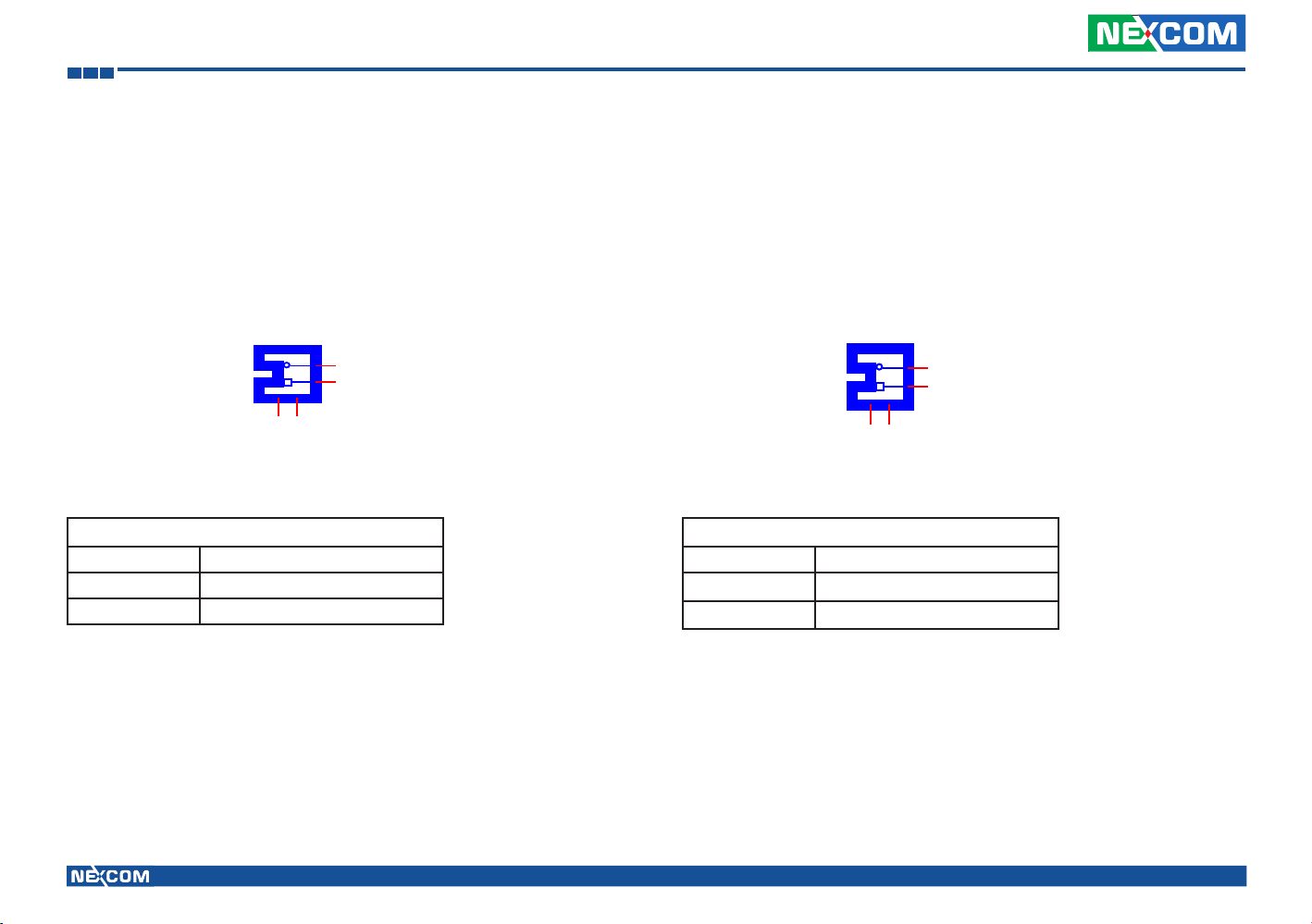

Jumper .................................................................................................16

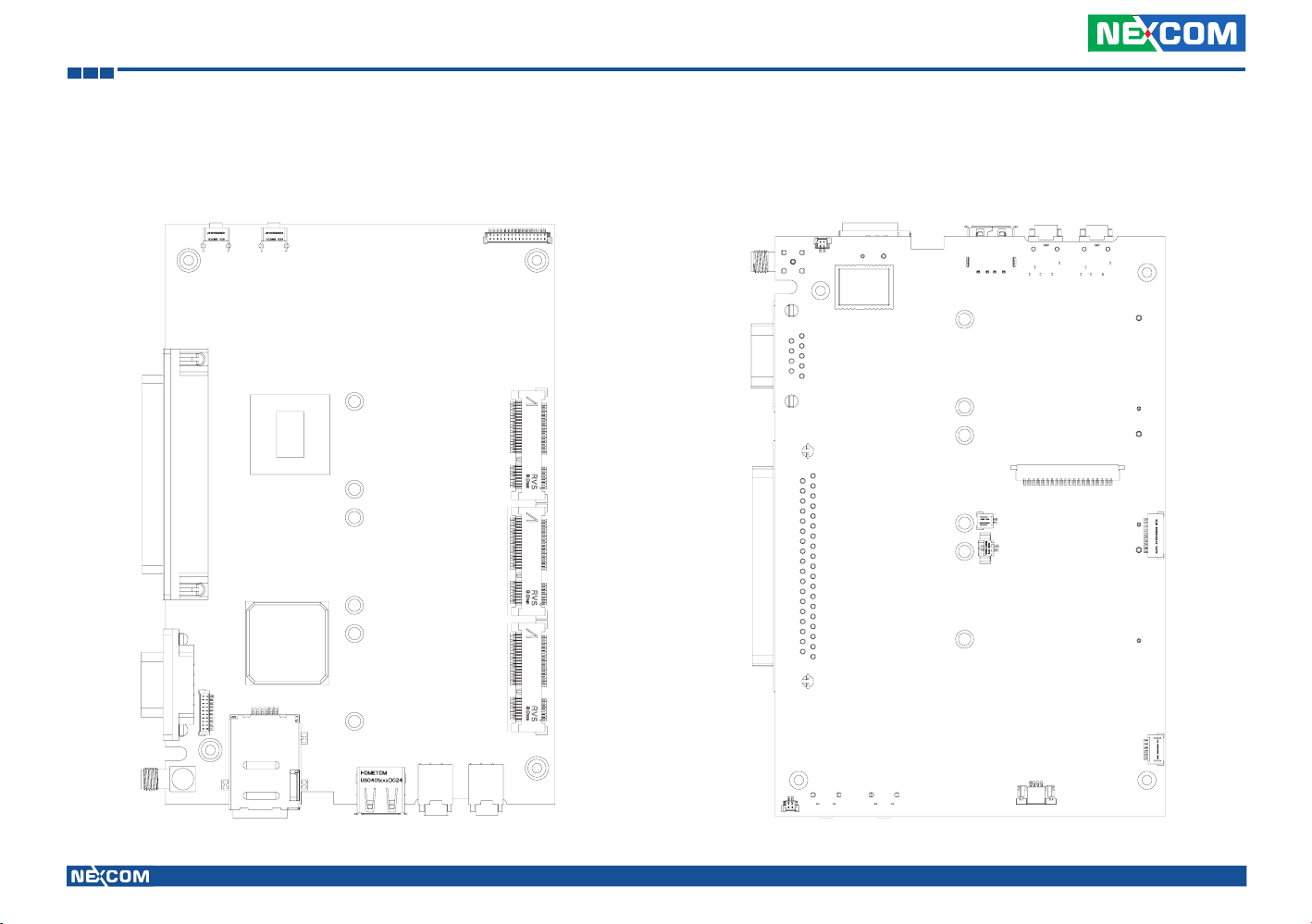

Locations of the Jumpers and Connectors ............................................. 17

Panel Connector ..................................................................................18

Touch Screen Connector . .....................................................................19

Button & Sensor & LED Connector .......................................................19

Speaker Connector ..............................................................................20

8051 Download Connector ..................................................................20

RTC Control Connector ........................................................................21

RTC Battery Connector ........................................................................21

Backlight Connector(power) .................................................................22

Backlight Connector(data) ....................................................................22

ii

VMC 1000 User Manual

Contents

CCD Conector .....................................................................................23

PORT 80 Connector .............................................................................23

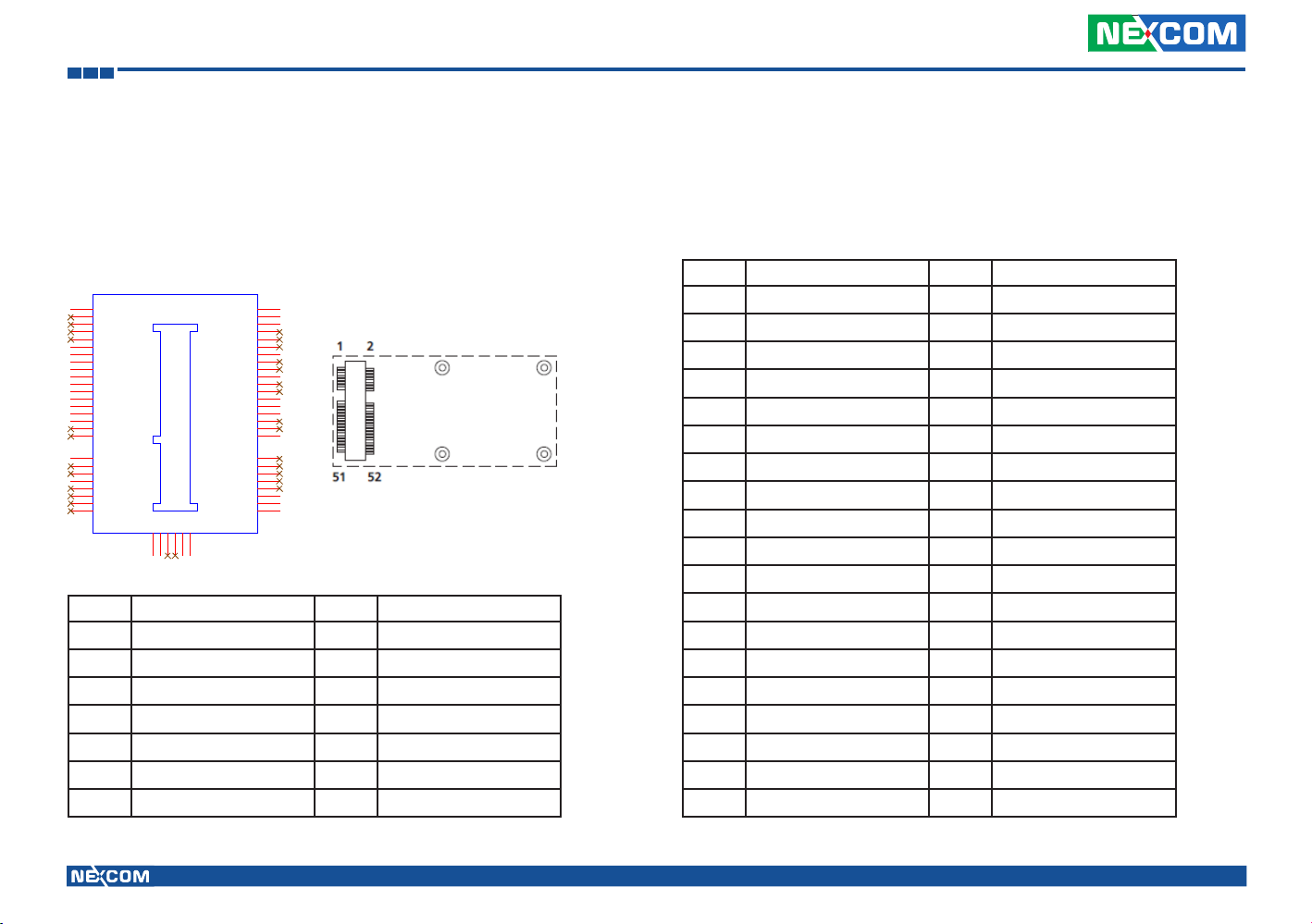

MINI PCIE Connector ...........................................................................24

GAL Download Connector ................................................................... 27

Input Voltage Control Switch ...............................................................27

POWER_IN Connector .......................................................................... 28

Chapter 3: System Setup

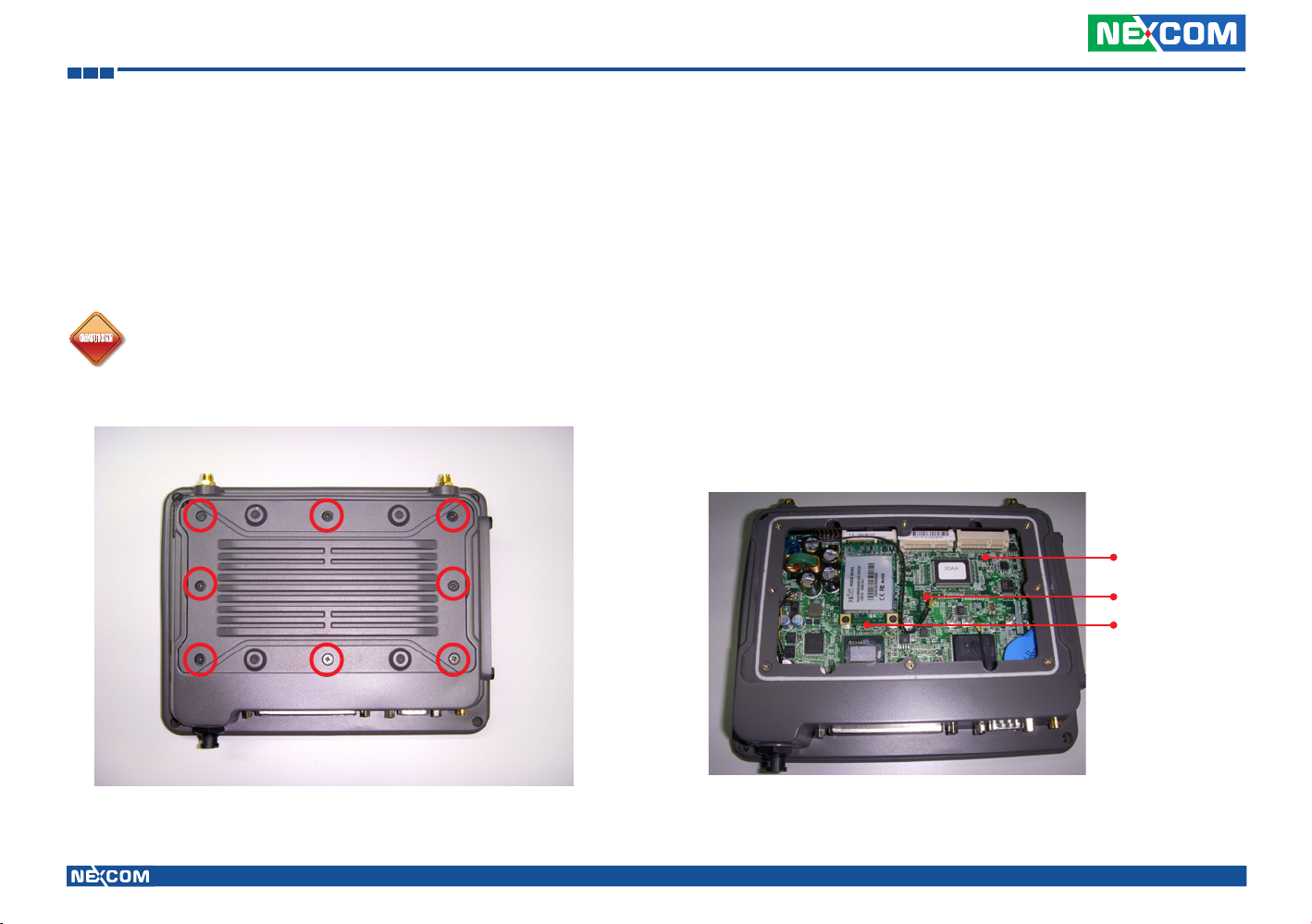

Installing a WLAN module or WWAN module ........................................29

Appendix A: I/O Address Function

I/O Address Function .............................................................................31

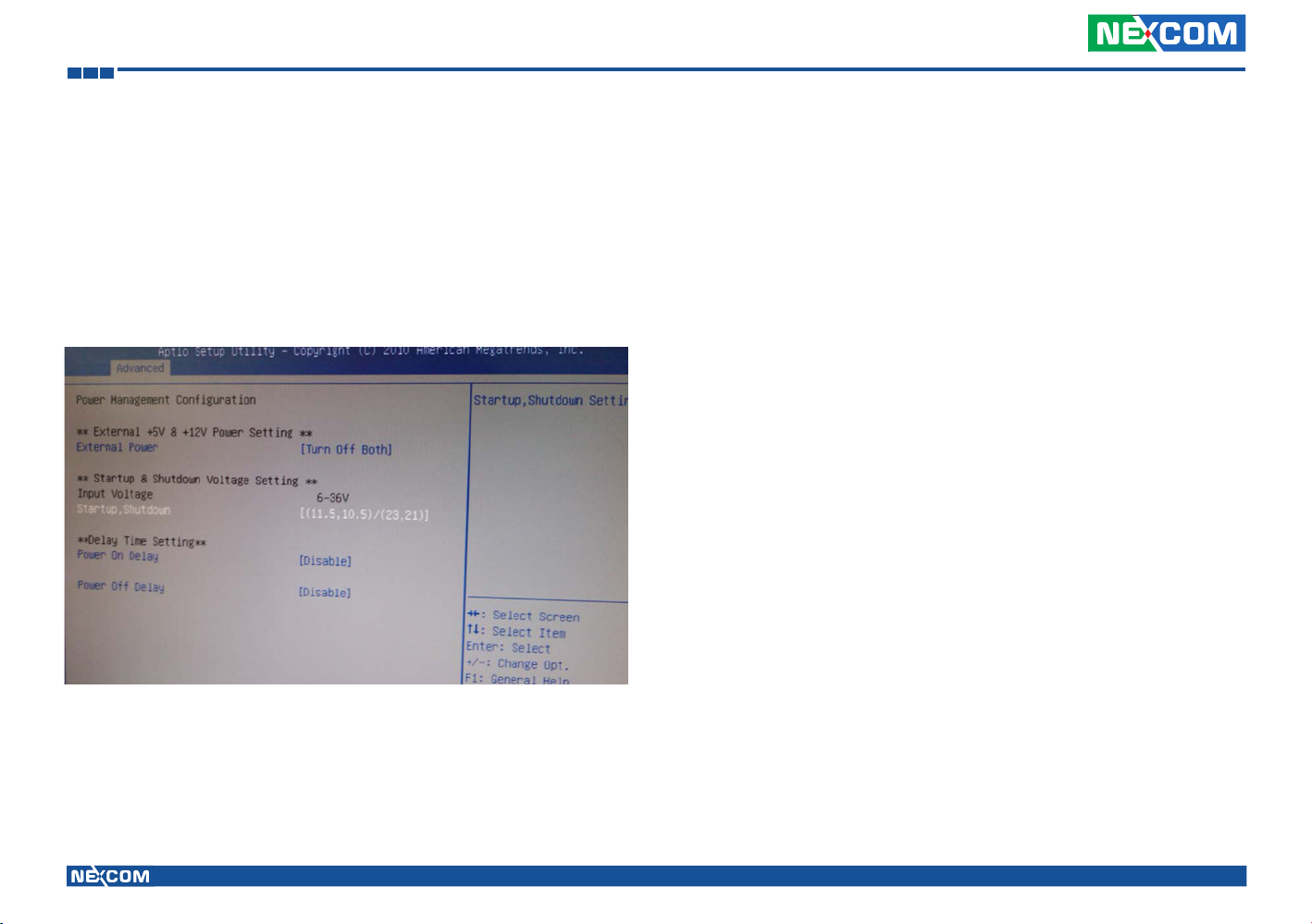

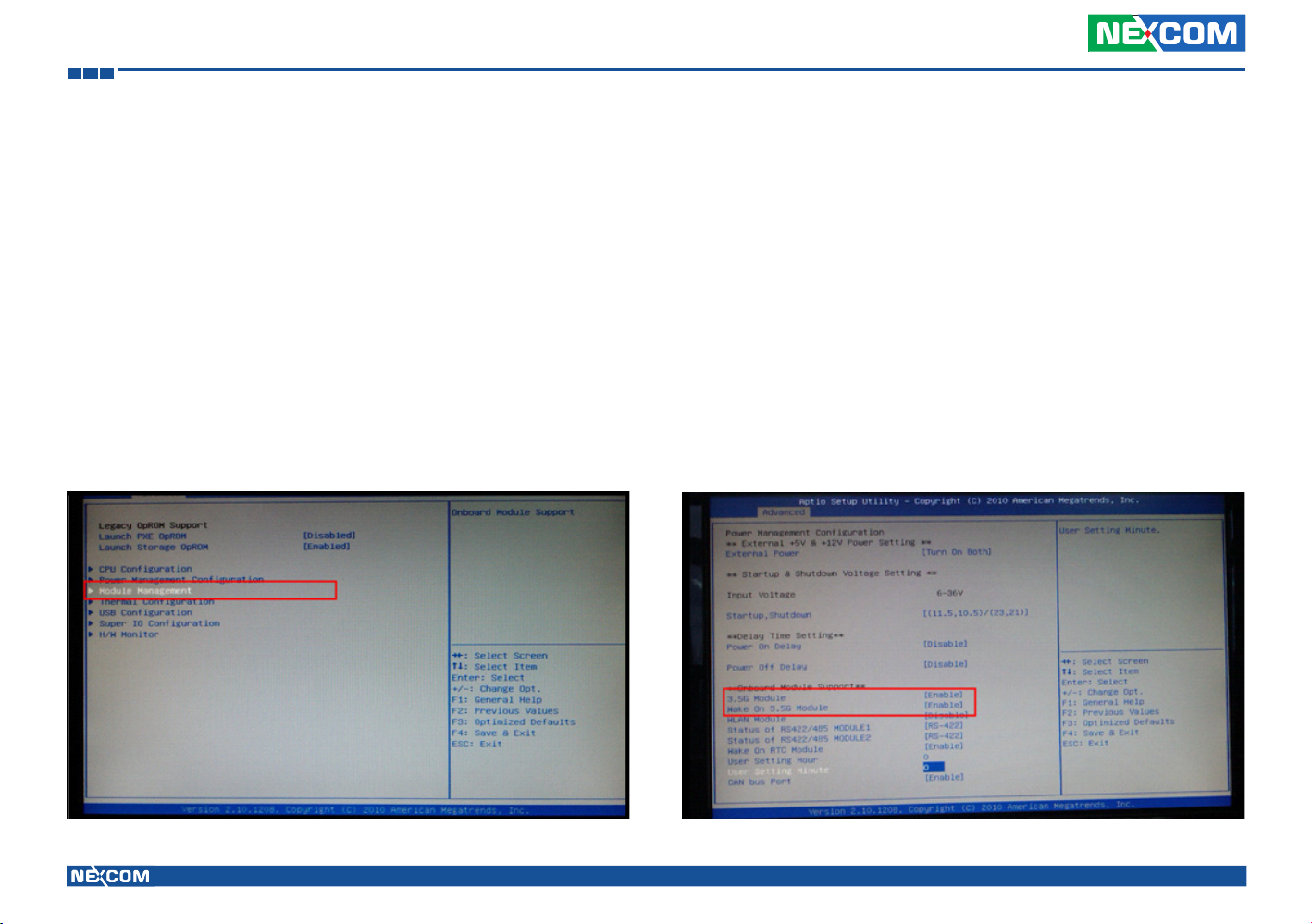

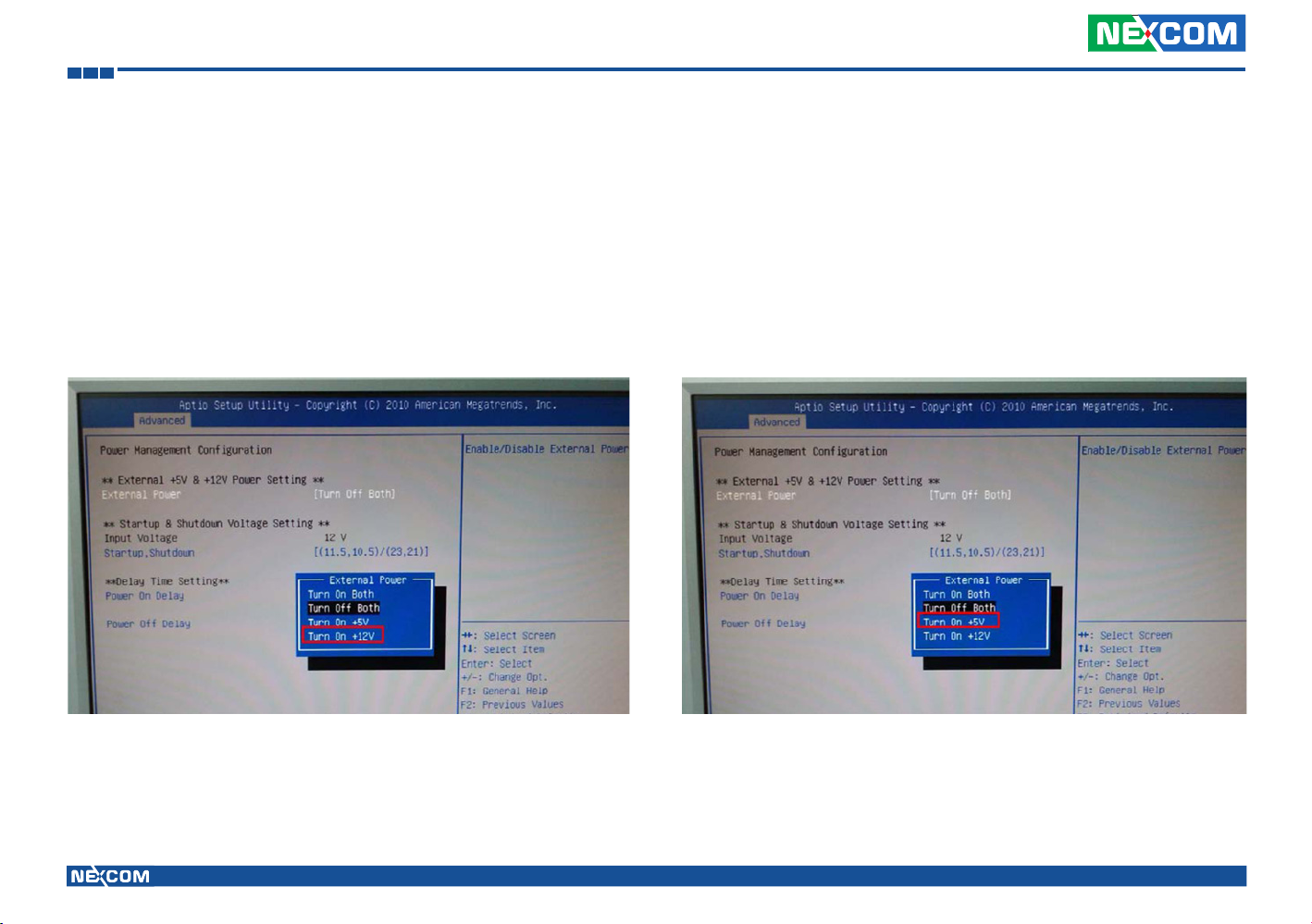

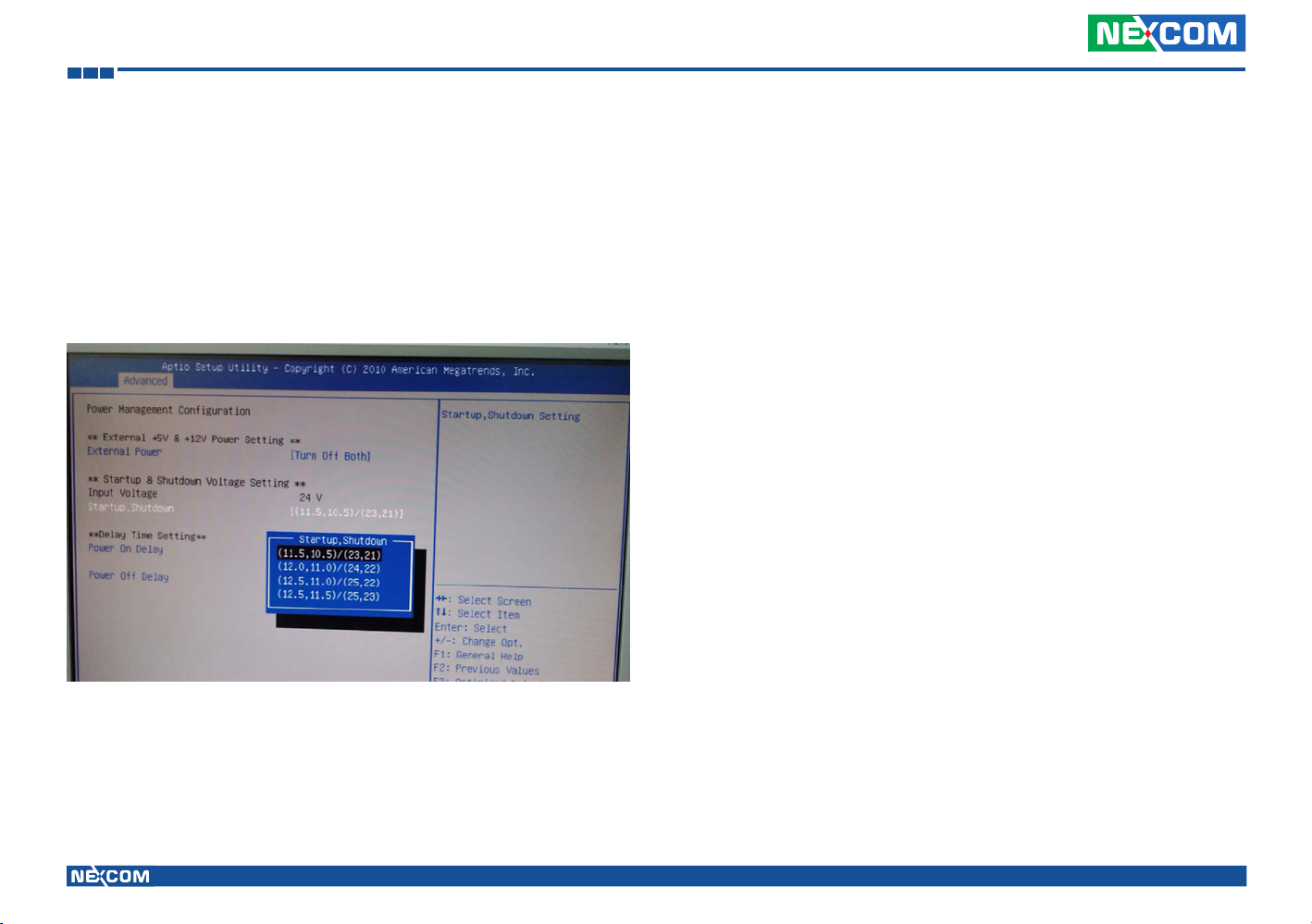

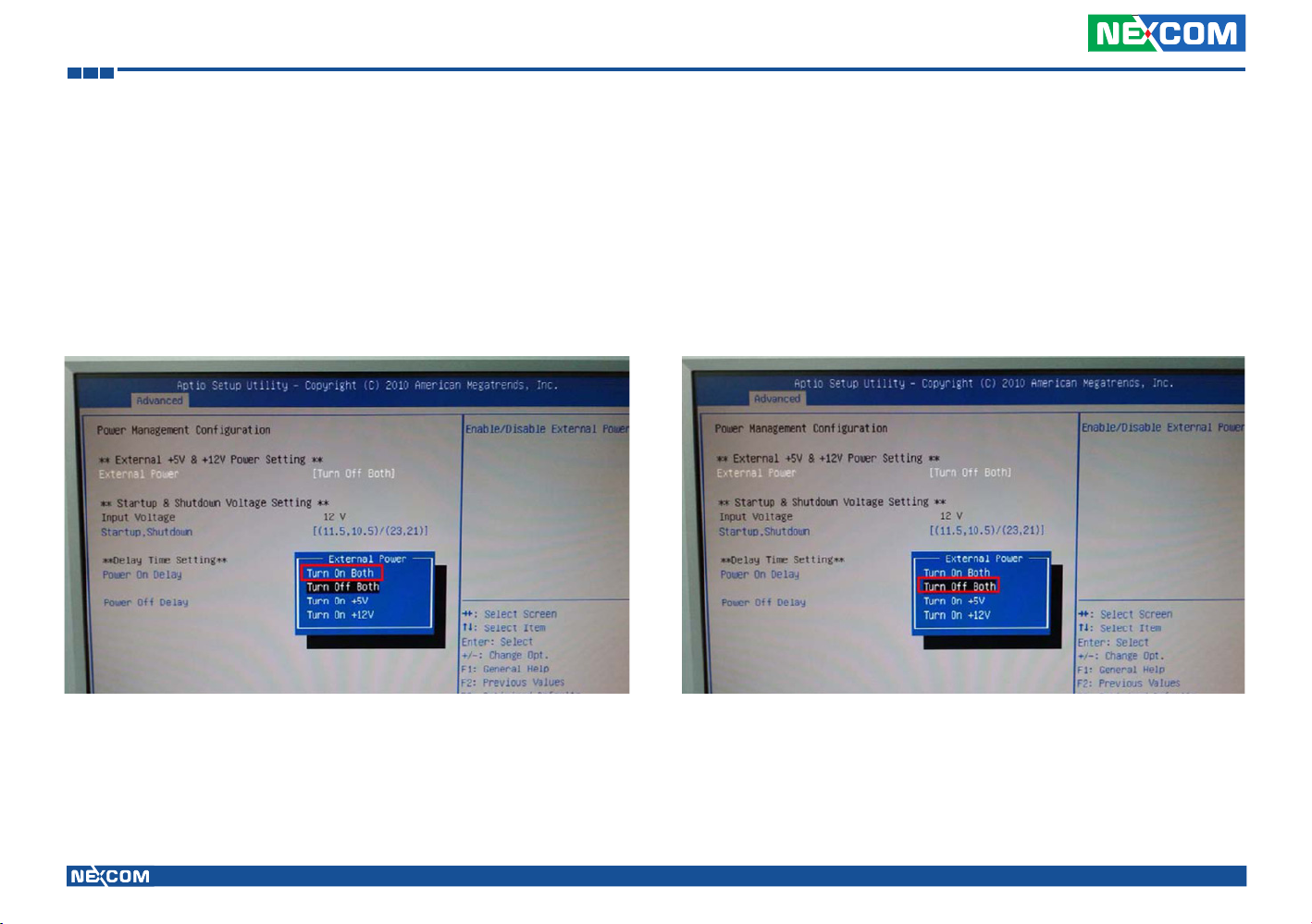

Appendix B: Vehicle Power Management Setup

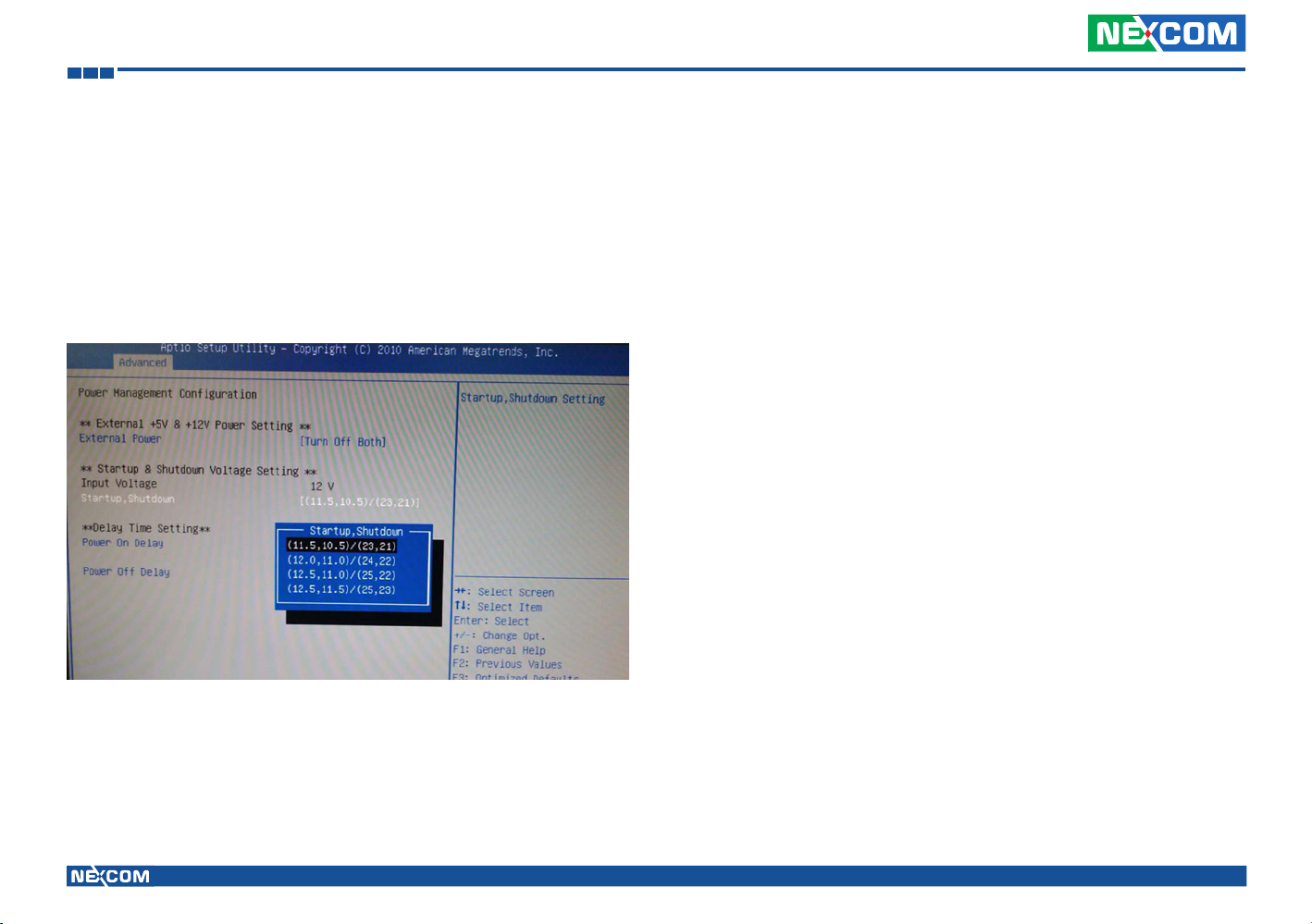

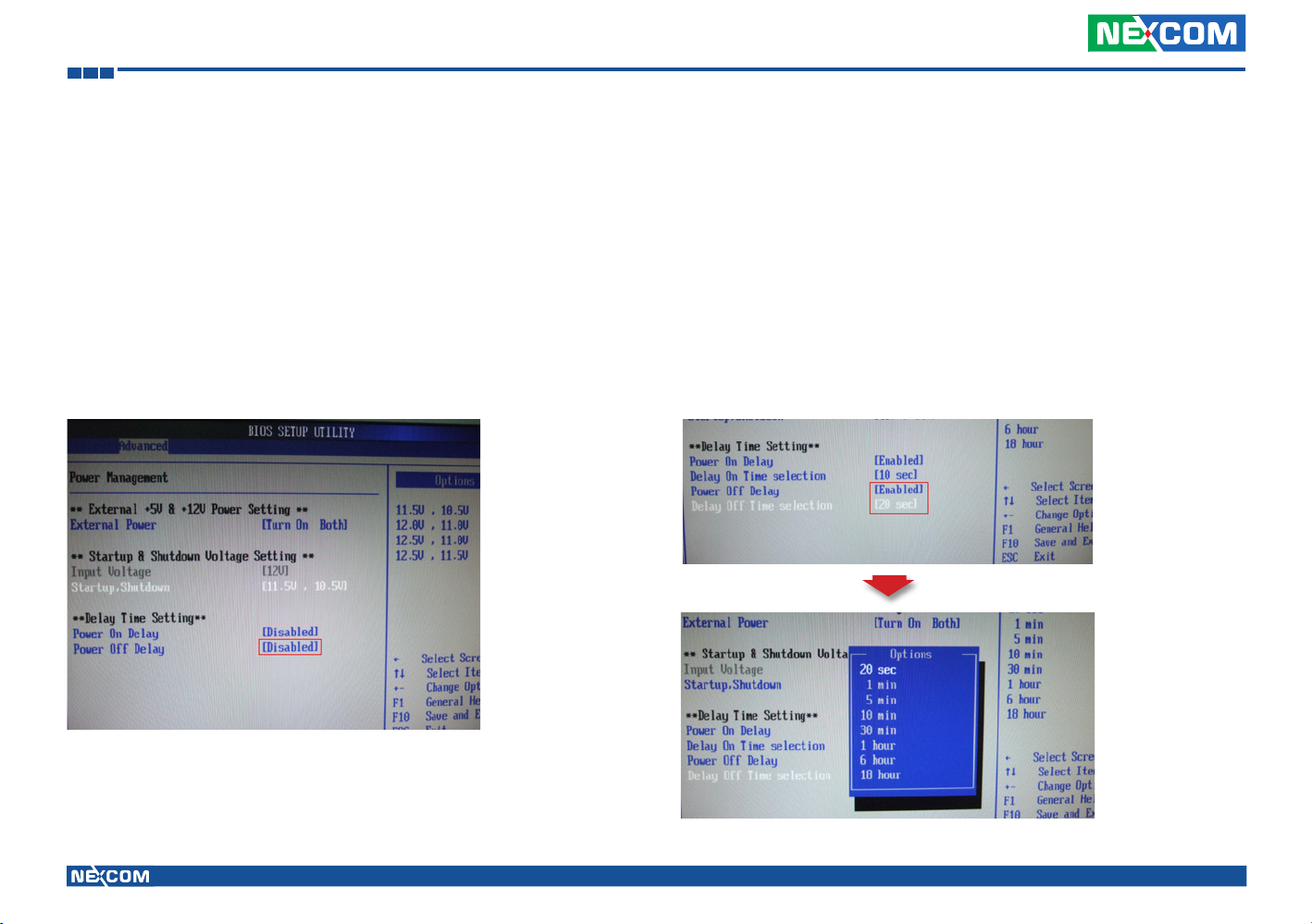

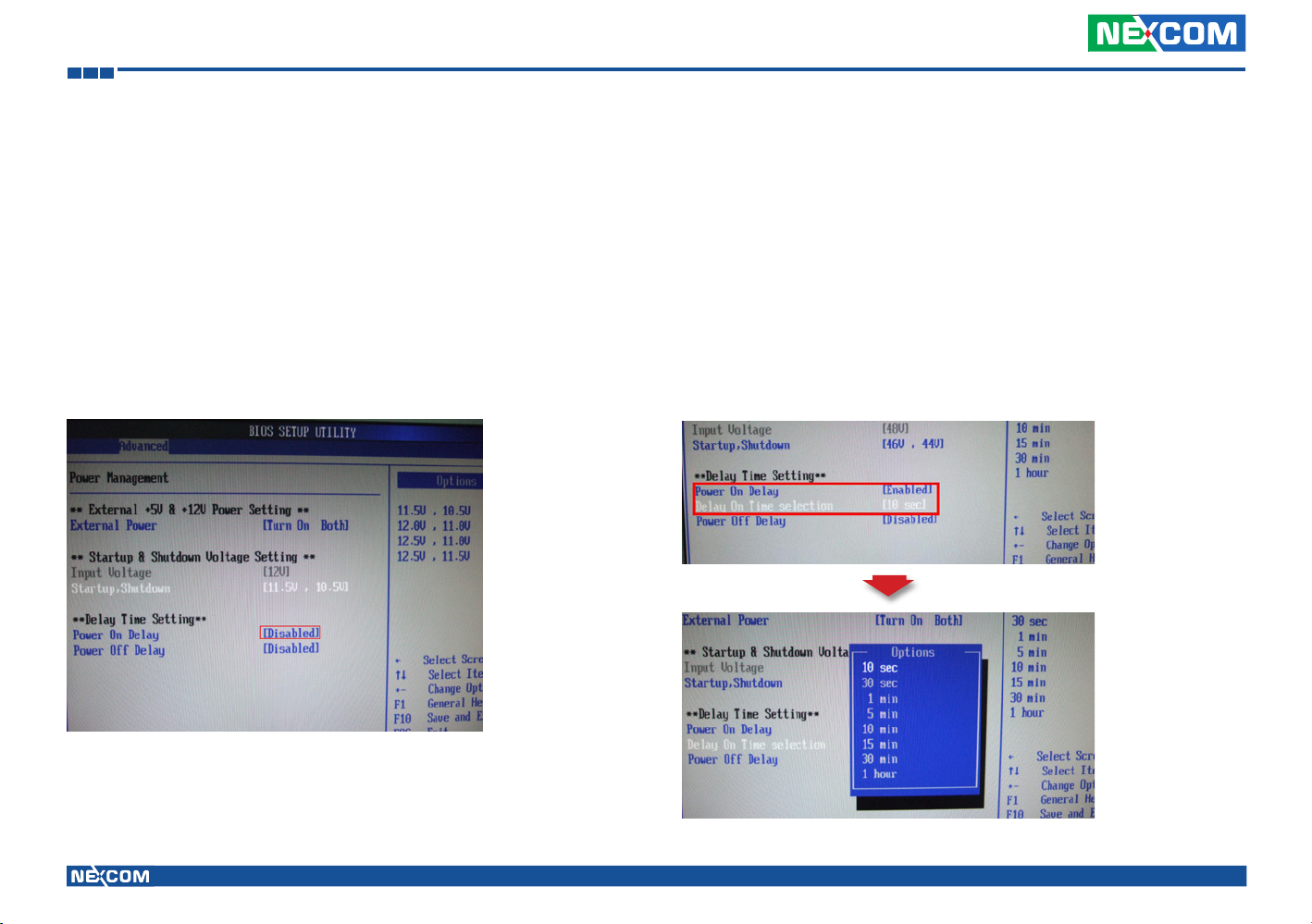

Vehicle Power Management Setup ........................................................37

Appendix C: Power Consumption

Power Consumption .............................................................................44

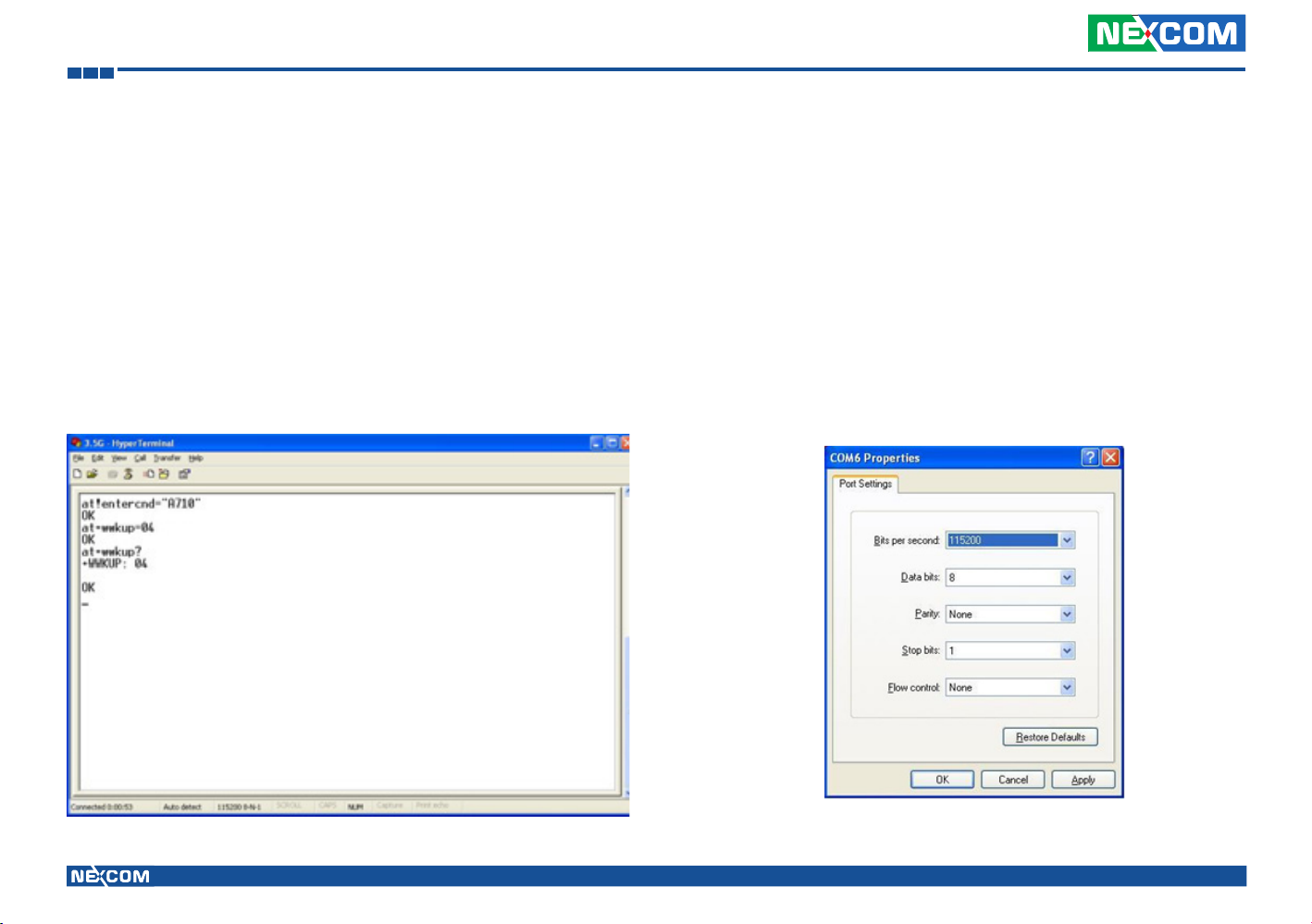

Appendix D: SMS Wake-up setting

SMS Wake-up setting ...........................................................................45

Appendix E: RTC Wake-up setting

RTC Wake-up setting ............................................................................51

iii

VMC 1000 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

VMC 1000 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

VMC 1000 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/ EU, to be your trusted green partner and to protect

our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

v

VMC 1000 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the re-

turned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3

? If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

rd

party products if needed.

vi

VMC 1000 User Manual

Preface

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

If RMA goods can not be repaired, NEXCOM will return it to the customer without any charge.

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ When replacing parts, ensure that your service technician uses parts spec-

ified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

The computer is provided with a battery-powered real-time clock circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only

with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual.

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

vii

VMC 1000 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment or in a above 40 ment.

8. The openings on the enclosure are for air convection to protect the equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

o

C storage temperature as this may damage the equip-

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

11. All cautions and warnings on the equipment should be noted.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

viii

VMC 1000 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

Battery - Safety Measures

Caution

•Risk of explosion if battery is replaced by an incorrect type.

•Dispose of used batteries according to the instructions.

Safety Warning

This equipment is intended for installation in a Restricted Access Location only.

Resetting the Date and Time

Note: Remember to reset the date and time upon receiving the product. You can set them in the AMI BIOS. Refer to chapter 4 for more information.

ix

VMC 1000 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan Central Taiwan Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China NEXCOM China

2F, Block 4, Venus Plaza, Bldg. 21, ZhongGuanCun Software Park, No. 8, Dongbeiwang West Rd., Haidian District, Beijing, 100193, China Tel: +86-10-8282-6599 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

x

VMC 1000 User Manual

Preface

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/ 1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Europe

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

xi

VMC 1000 User Manual

Preface

Package Contents

Before continuing, verify that the VMC 1000 package that you received is complete. Your VMC 1000 package should have all the items listed in the following table.

Item P/N Name Specification Qty

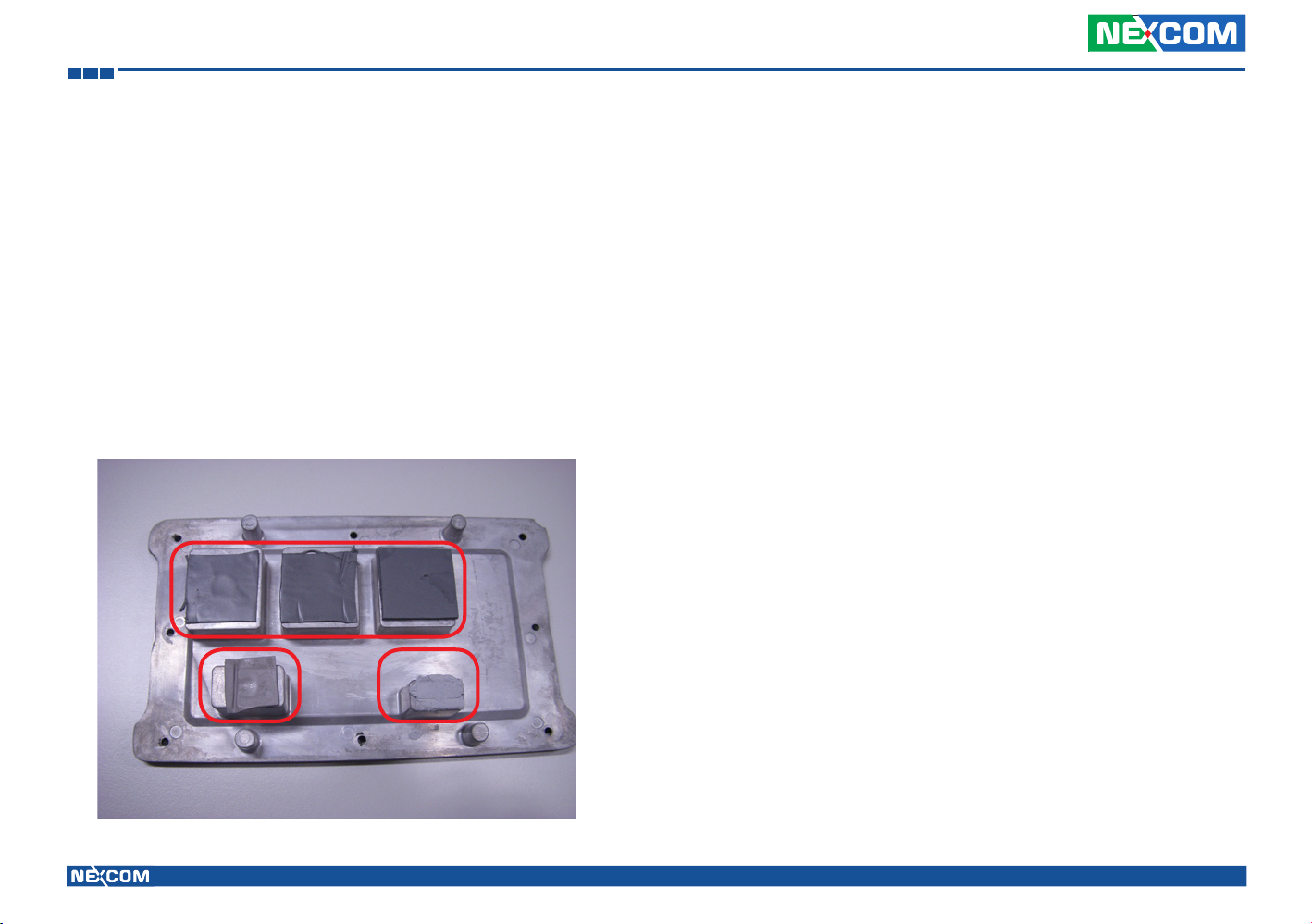

1 5044440135X00 THERMAL PAD E-LIN 25x25x1mm K=5w/mk TP-1800G 4

2 5044440303X00 THERMAL PAD FOR VMC1000 E-LIN:TP1800G 25x25x2mm K=5w/mk 1

3 6023303701X00 (N)DB37 CABLE FOR VMC1000 SUNJET:SL812822805 D-SUB M37P SR L=300mm 1

4 60233PW236X00 (N)POWER DOCKING CABLE FOR VMC1000

SUNJET:SL812822822

5 60233SAM05X00 GPS ANTENNA 5M /SMA180P 1

6 602DCD0405X00 CD DRIVER 1

UL2464 20AWG L=130mm 1

xii

VMC 1000 User Manual

Preface

Ordering Information

The following provides ordering information for VMC 1000.

• VMC 1000 (P/N: 10VC0100000X0)

- 7-inch All in One Vehicle Mount Computer with Touch Screen and Smart

Brightness Control and Intel DDR2, GPS module and GPS antenna

®

Atom™ E640 1.0Ghz processor with 1GB

xiii

VMC 1000 User Manual

Chapter 1: Product Introduction

Overview

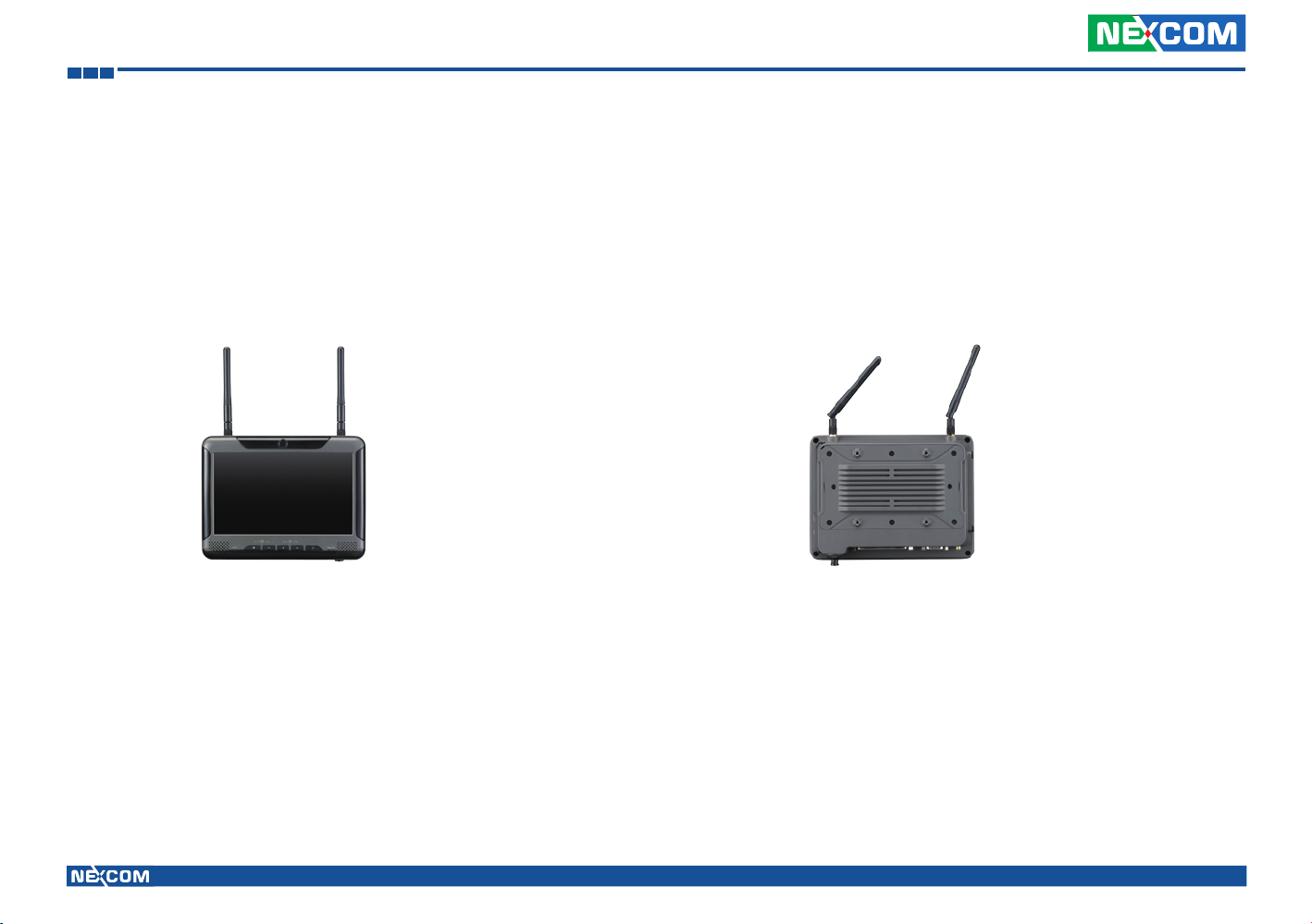

VMC 1000 Front View

Key Features

• 7” WVGA TFT LCD with LED backlight

• Compact and fanless design

• Built-in Intel® Atom™ E640 1.0GHz processor

• Wake on RTC /SMS

• GPS receiver on board

• Variety wireless communication options

• Wide Range DC input from 6~36V

• Compliant with IP54

• Certified by CE/ FCC/ e13 Mark

1

VMC 1000 Rear View

VMC 1000 User Manual

Chapter 1: Product Introduction

VMC 1000, a 7-inch all in one vehicle computer, is designed for the transportation application. Adopting the latest low power consumption processor, Intel® Atom™ E640, it integrates the high resolution LCD with the brightness of 400 nits and 4-wire resistive touch sensor.

VMC 1000 does not compromise with its space to scarify its functional features. It provides RS-232/422/485, USB 2.0, GPIO and LAN signal via DB37 connector to secure the cable simultaneously in the vehicle vibration. Its mounting hole is compatible with VESA75 and can be installed in the vehicle with limited space via RAM mount kits.

2

VMC 1000 User Manual

Chapter 1: Product Introduction

Hardware Specifications

Main Chipset

®

• Intel

EG20T

CPU

• Intel® Atom™ E640 1.0GHz

Memory

• On board 1GB DDR2 800MHz

Expansion

• Mini PCIe socket (USB) x 1 (for 3.5G module)

• 1 x GPS module

• Mini PCIe socket (PCIe + USB + SATA) x 1 (for WLAN module)

I/O Interfaces - Front

• On Screen Display Buttons x 5 Power On/ Off Volume Control (+/-)

Brightness Control (+/-)

• Light Sensor

• 2 x LED indicators

• 2 x Built-in Speakers (1W)

I/O Interfaces - Lateral Side

• 1 x Line-in

• 1 x Line-out

• 1 x USB

• 1 x SIM slot

• 1 x Power Button

• 1 x Reset Button

Bottom Side

• 1 x DB9 male connector (RS-232)

• 1 x DB37 female connector (1x LAN ; 2x USB ; 1x RS232 ; 1 x RS422/485 ;

6 x GPIO ; 1 x CAN)

• 6~36V Wide Range DC power input

• 1 x SMA connector for GPS antenna

Expandable Storage

• 1 x mSATA

Power Management

• Selectable boot-up & shut-down voltage for low power protection

• HW design ready for 8-level delay time on/off at user’s self configuration

• Power on/off ignition, software detectable

• Supports S3/S4 suspend mode ; wake on RTC/ SMS

3

VMC 1000 User Manual

Chapter 1: Product Introduction

Hardware Specifications

Dimensions

• 185.4 mm (W) x 141.4 mm (D) x 50.42 mm (H) (7.3” x 5.57” x 1.99”)

• 1 Kg (2.20 Lb)

Construction

• Plastic case with aluminum die casting heatsink

• Compliant with IP54

Environment

• Operating temperatures:

Ambient with air:

-20°C to 50°C

• Storage temperatures: -30°C to 80°C

• Relative humidity: 10% to 90% (Non-condensing)

• Vibration (random): 2g@5~500 Hz

• Vibration

Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test

• Shock (with SSD)

- Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g

- Crash Hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g

Certifications

• CE approval

• FCC Class B

• e13 Mark

Power Management

• Power-on delay time is selectable by BIOS to disable and enable in 10sec / 30sec / 1min / 5min / 10 min / 15min / 30min / 1hr.

• Power-off delay time is selectable by BIOS to disable and enable in 20sec / 1min / 5min / 10min / 30min / 1hr / 6hr / 18hr.

• S4 suspend mode

•IgnitionOn/OffstatusdetectablebySW

•LowbatterystatusdetectablebySW

• Ignition enable/disable is jumper selectable

4

VMC 1000 User Manual

Chapter 1: Product Introduction

• Shut down system automatically when the system’s internal temperature is over 80C.

• VMC 1000 will automatically shut down 5 minutes after the duration of low battery voltage is over 60 sec. User can detect this situation via software.

• If the ignition is off and the system is still on after 3 minutes, VMC 1000 will shut down automatically.

• If the ignition is off, the user can detect this status via the software.

• If the ignition is turned on again and the power-off delay is in progress,

VMC 1000 will cancel the delay function and will continue to operate normally.

• If the ignition is turned on again and the power-off delay ended, VMC 1000 will shut down completely will power-on again automatically.

• If the ignition is turned off again and power-on delay is in progress, VMC 1000 will cancel the delay and stay in power-off status.

• If the ignition is turned off again and the power-on delay ended (in BIOS process), VMC 1000 will shut down immediately.

• If VMC 1000 is off, only below 10mA is used.

5

VMC 1000 User Manual

Chapter 1: Product Introduction

6

VMC 1000 User Manual

Chapter 1: Product Introduction

Getting to Know VMC 1000

Front View

6 7

1.Power On/Off Control

Press this button for 4 seconds -- the monitor will turn on.

2.Brightness Control

There are two modes for Brightness Control: Manual Mode

LCD brightness can be adjusted in 4 levels using the “+” or “-” buttons.

Auto Mode

The built-in light sensor will detect environmental brightness and adjust LCD brightness automatically.

Switching between Manual Mode and Auto Mode

To toggle between Manual Mode and Auto Mode, press and hold the “+” or “-” buttons for 4 seconds.

1235 4

3.Volume Control

Audio volume can be adjusted in 8 levels using the buttons.

4.LED

PWR LED is turned on when VMD 1000 is powered on.

Mode LED is turned on when brightness control is in Auto Mode

5.Light Sensor

6.HSDPA Module Antenna Mounting Hole

7.WIFI Module Antenna Mounting Hole

7

VMC 1000 User Manual

Chapter 1: Product Introduction

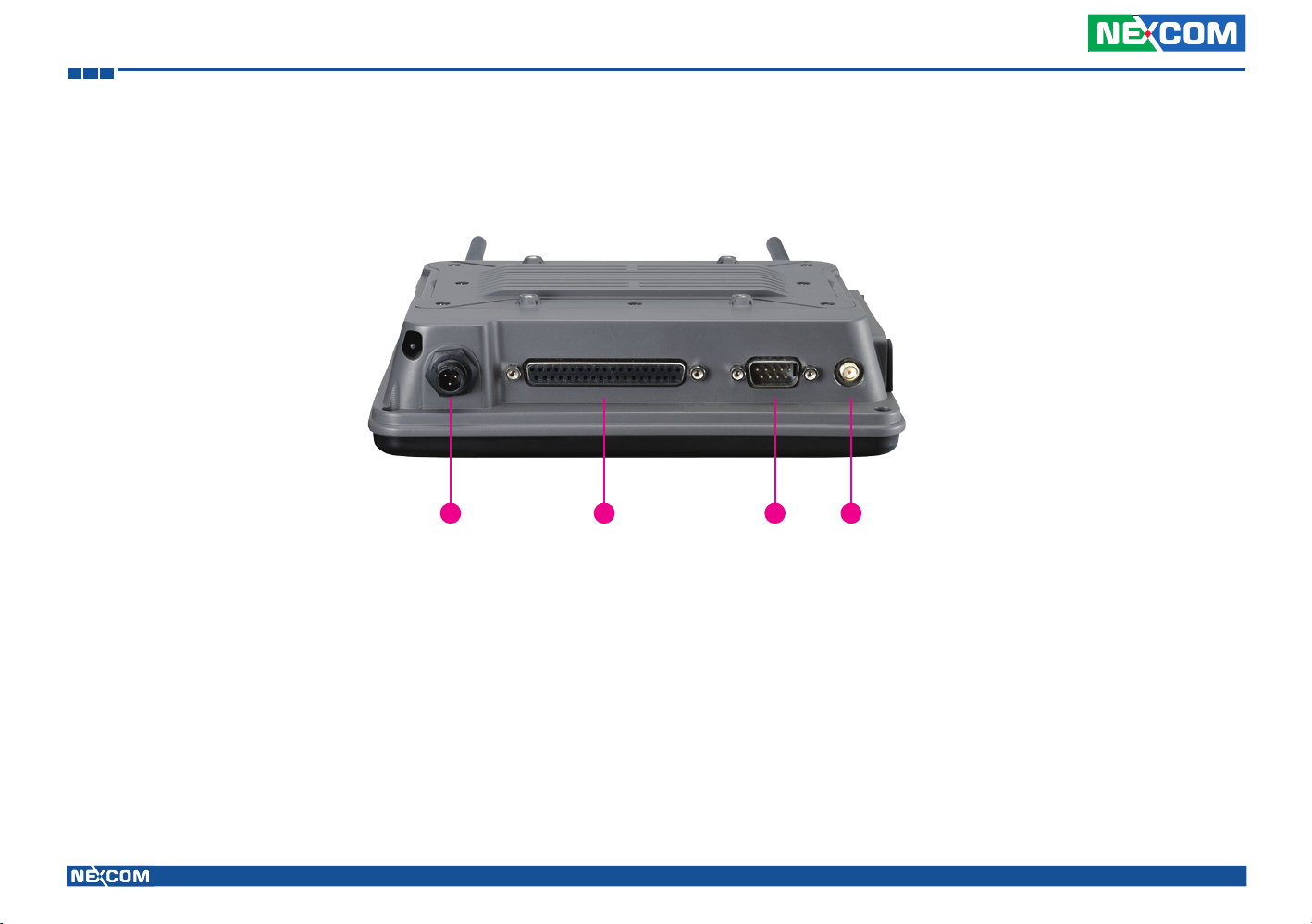

Rear View

4 123

1.GPS antenna mounting.

2.RS-232 Connector (DB9)

3.DB37 female connector (1x LAN ; 2x USB ; 1x RS232 ; 1 x

RS422/485 ;6 x GPIO ; 1x CAN)

4.6~36V Wide Range DC power input

8

VMC 1000 User Manual

Chapter 1: Product Introduction

Getting to Know VMC 1000

Lateral Side

8 7 6

5

1.SIM slot

2.USB 2.0/1.1

3.Mic-in

4.Line-out

Another side is power button and reset button3.Volume Control

9

VMC 1000 User Manual

Chapter 1: Product Introduction

Getting to Know VMC 1000

GPS Connector

Connector location: CN6

Connector size: GPS SMA Connector 5 Pin

Pin Definition

1

MH1

MH2

MH3

MH4

RF_IN_F

GND

RS232 Connector

Connector location: CN10

Connector size: Male DSUB-9 PIN

PIn Definition

1 SP_DCD_0

2 SP_RXD_0

3 SP_TXD_0

4 SP_DTR_0

5 CON0_GND

6 SP_DSR_0

7 SP_RTS_0

8 SP_CTS_0

9 SP_RI_0

10

VMC 1000 User Manual

Chapter 1: Product Introduction

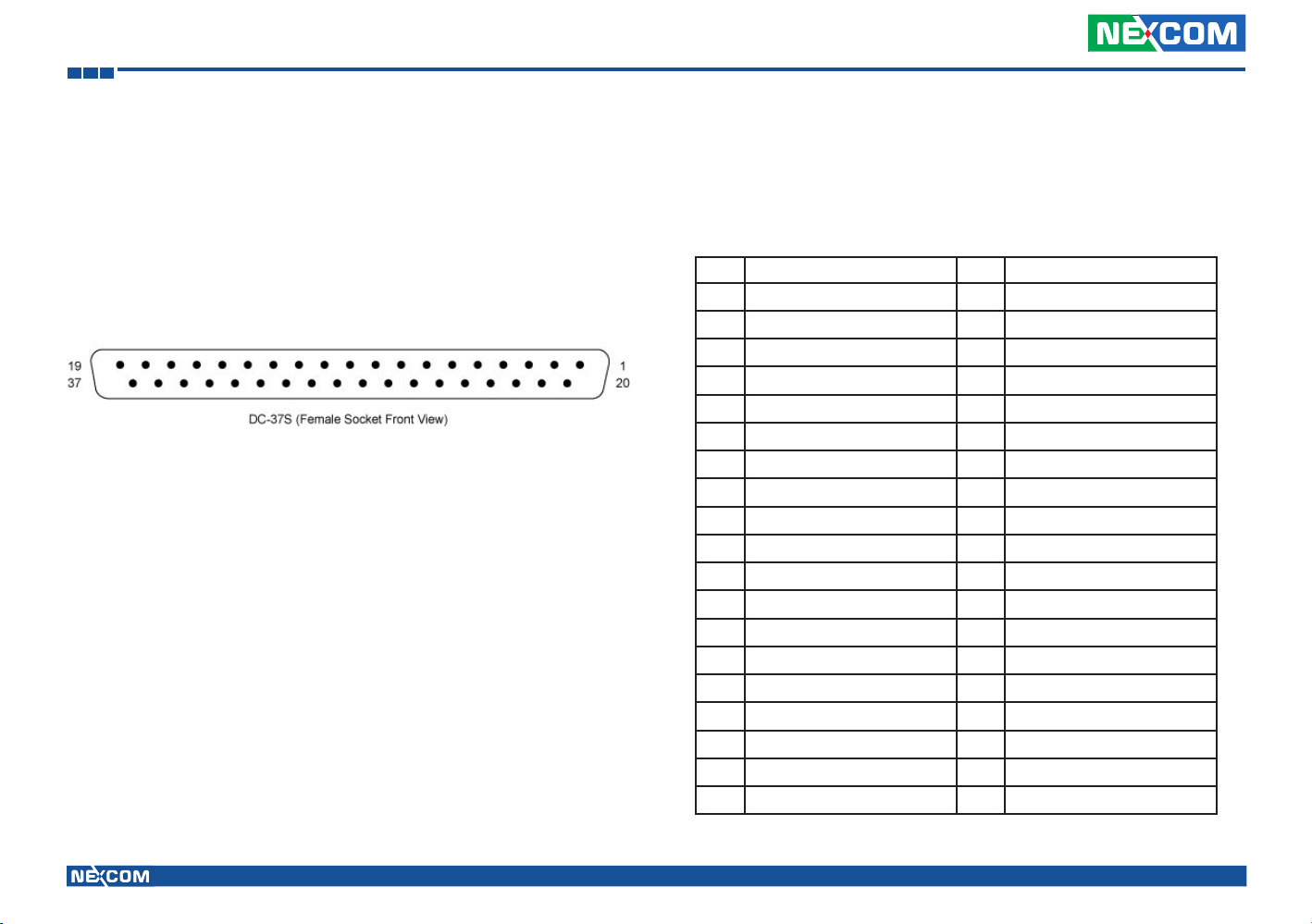

DB37 PIN Connector

Connector location: CN9

Connector size: Female DB37 PIN Connector

Pin Definition Pin Definition

1 LAN_M0P 20 LAN_M0N

2 LAN_M1P 21 LAN_M1N

3 LAN_M2P 22 LAN_M2N

4 LAN_M3P 23 LAN_M3N

5 L_GND 24 G_OUT1

6 G_IN1 25 G_OUT2

7 G_IN2 26 G_OUT3

8 G_IN3 27 USB_VCC5

9 USB_VCC5 28 HUSB_6N_R

10 HUSB_6P_R 29 HUSB_7N_R

11 HUSB_7P_R 30 RS422_TX+

12 U_GND 31 RS422_TX-

13 RS422_RX+ / RS485_+ 32 CANH

14 RS422_RX- / RS485_- 33 CANL

15 SP_RI_1 34 C_GND

16 SP_DCD_1 35 SP_RXD_1

17 SP_TXD_1 36 SP_RTS_1

18 SP_CTS_1 37 SP_DSR_1

19 SP_DTR_1

11

VMC 1000 User Manual

Chapter 1: Product Introduction

DC Power connector

Pin Definition

1 V_IN 6~36V

2 IGNITION

3 GND

DC Power cable connector

Pin color Definition

YEL, HT Solder together for V_IN

BLK GND

12

VMC 1000 User Manual

Chapter 1: Product Introduction

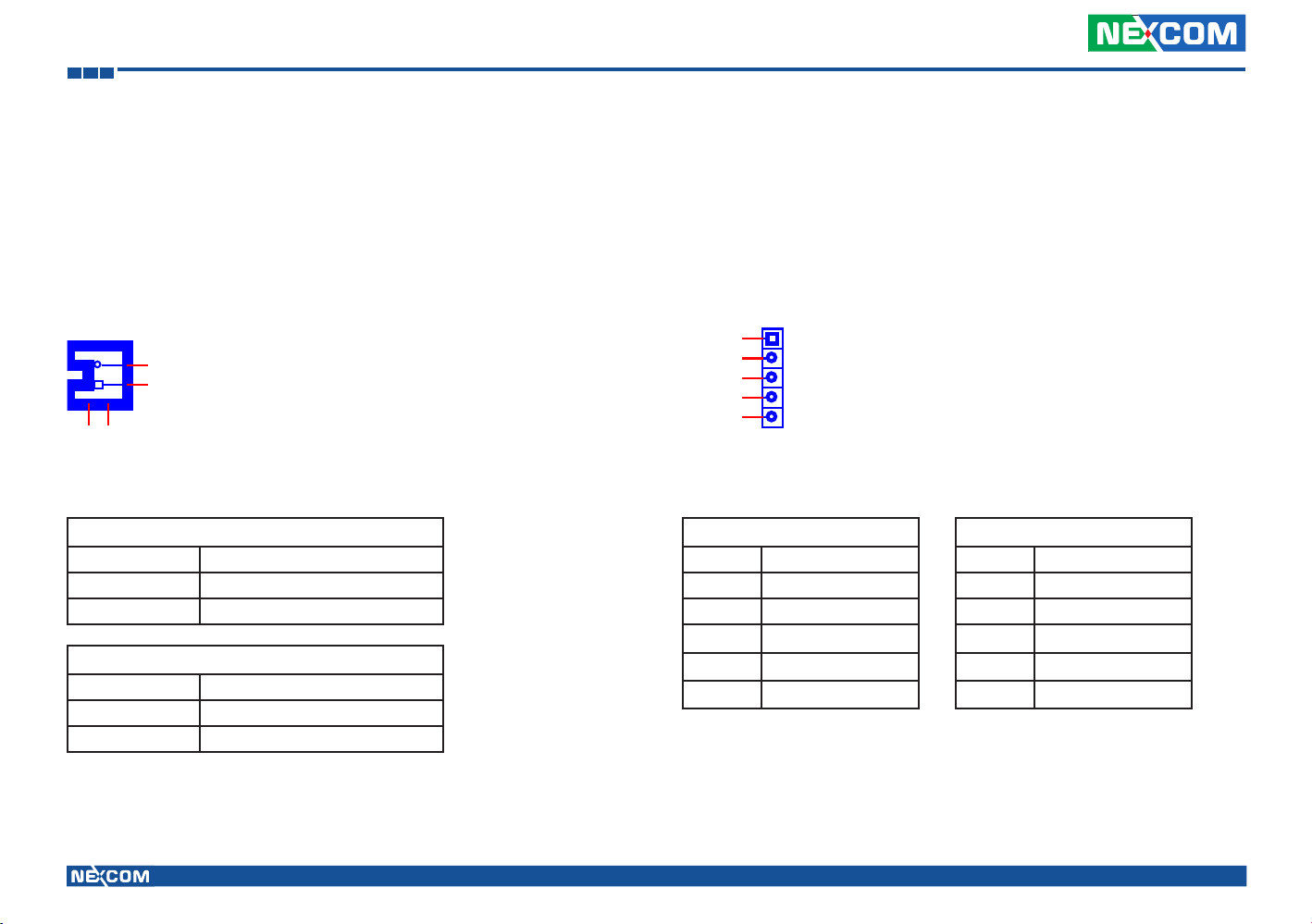

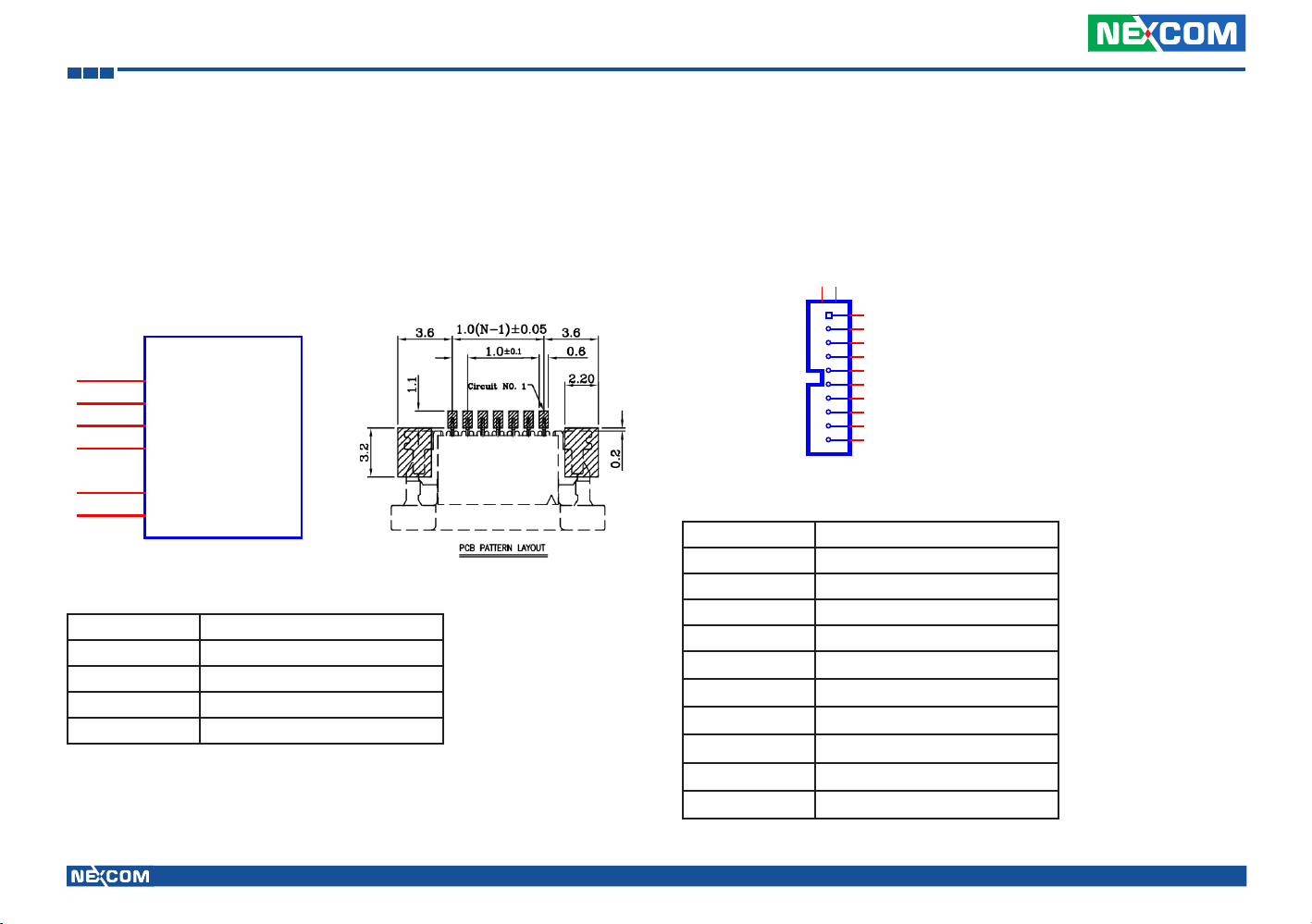

USB ConnectorSIM Card Reader Connector

Connector location: CN5

Pin Definition

C1

C2

C3

C5

C6

UIM_PWR2

UIM_RST2

UIM_CLK2

GND

NC

C7 UIM_DAT2

Connector location: USB1

Connector size: Single USB 4Pin

Pin Definition

1

2

3

4

VCC

DATA-( USB_0N)

DATA+( USB_0P)

GND

13

VMC 1000 User Manual

Chapter 1: Product Introduction

Line-out JackMic-in Jack

Connector location: CN7

Connector size: EAR PHONE JACK PINK

Pin Definition

1

2

3

4

5

FRONT_OUT_RC

LINE_OUTD

NC

FRONT_OUT_LC

ACON_GND

6 ACON_GND

Connector location: CN8

Connector size: EAR PHONE JACK GREEN

Pin Definition

1

2

3

4

5

NC

MIC_JD

NC

MIC_OUT-L

ACON_GND

6 ACON_GND

14

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for all VTC 1000 series.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic com-

ponents. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

• Use correct screws and do not over tighten screws.

15

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

Jumper

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

3

2

1

3

2

16

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below is the main board which is the board used in the VMC 1000 system. It shows the locations of the jumpers and connectors.

J12

SW2

SW1

J6

CN9

CN10

J5

CN6

CN5

USB1

CN8

CN2

CN3

CN4

CN7

J7

J10J8

CN1

J2

17

J9

J3

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

J7

LCD_CON _20P

NC

3

R X3 +

1

R X3 -

2

R X0 -

16

VCC_IN2

20

VCC_IN1

19

GND3

5

RXC+

6

FRC

4

GND2

8

R X2 +

9

RXC-

7

GND1

11

R X1 +

12

R X2 -

10

GND0

14

R X0 +

15

R X1 -

13

MH1

MH2

LR

17

UD

18

Internal Connectors and Jumper Settings

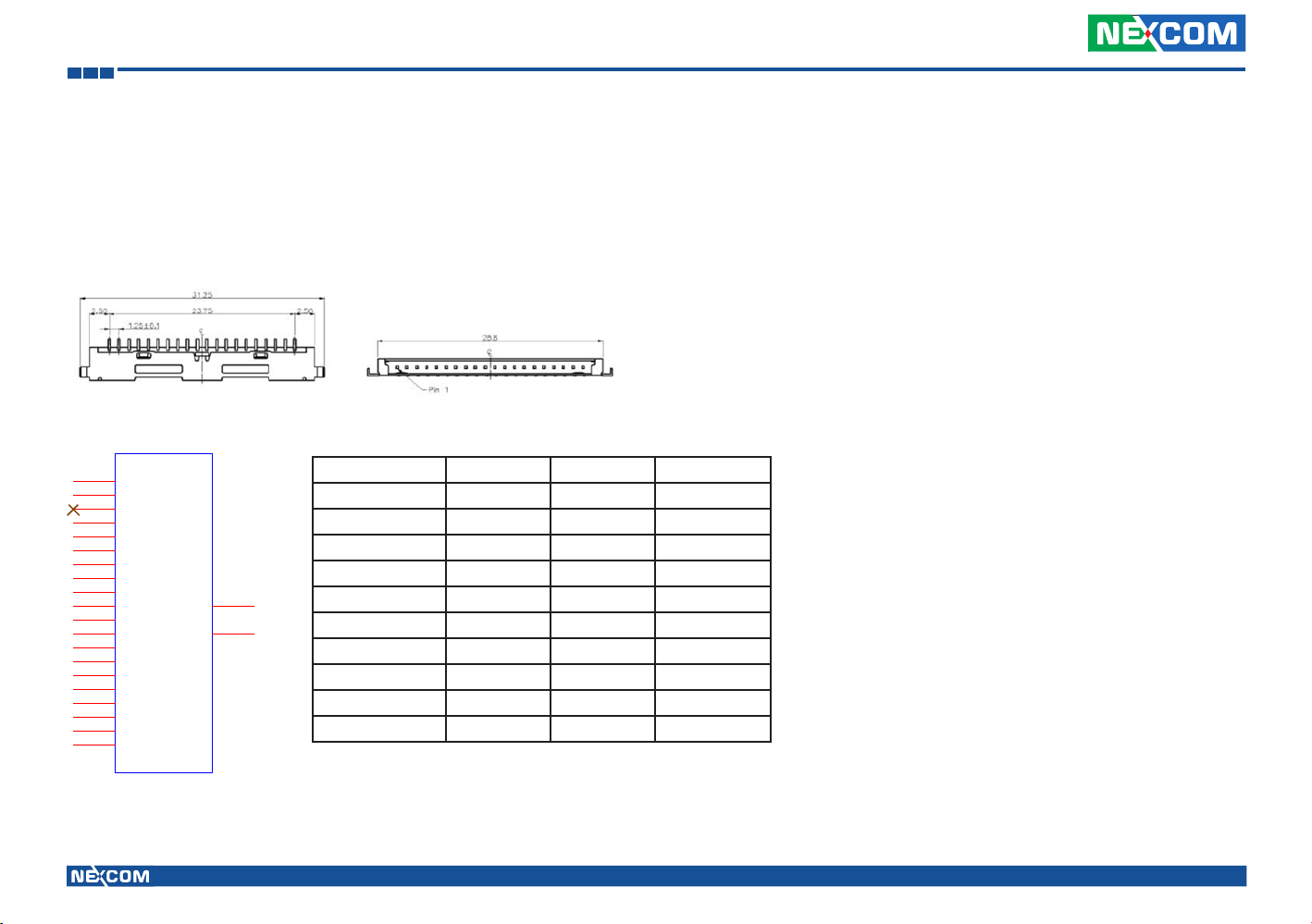

Panel Connector

Connector size: 1.25mm WAFER 20P Connector location: J7

PIN Definition PIN Definition

1 RX3+ 11 GND1

2 RX3- 12 RX1+

3 NC 13 RX1-

4 FRC 14 GND0

5 GND3 15 RX0+

6 RXC+ 16 RX0-

7 RXC- 17 LR(default:1)

8 GND2 18 UD(default:0)

9 RX2+ 19 VCC_IN1

10 RX2- 20 VCC_IN2

18

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

FPC CON 1mm

J5

WAFER-M-180-1mm

1 2 3

MH1

MH2

4

8

7

6

5

10

9

Touch Screen Connector

Connector size: FPC_1X4P-1mm Connector location: CN1

MH1 MH2

CN1

1

2

3

4

MH1 MH2

FPC_1X4P - 1 m m

PIN Definition

1 TOUCH_XL

2 TOUCH_YD

3 TOUCH_XR

4 TOUCH_YU

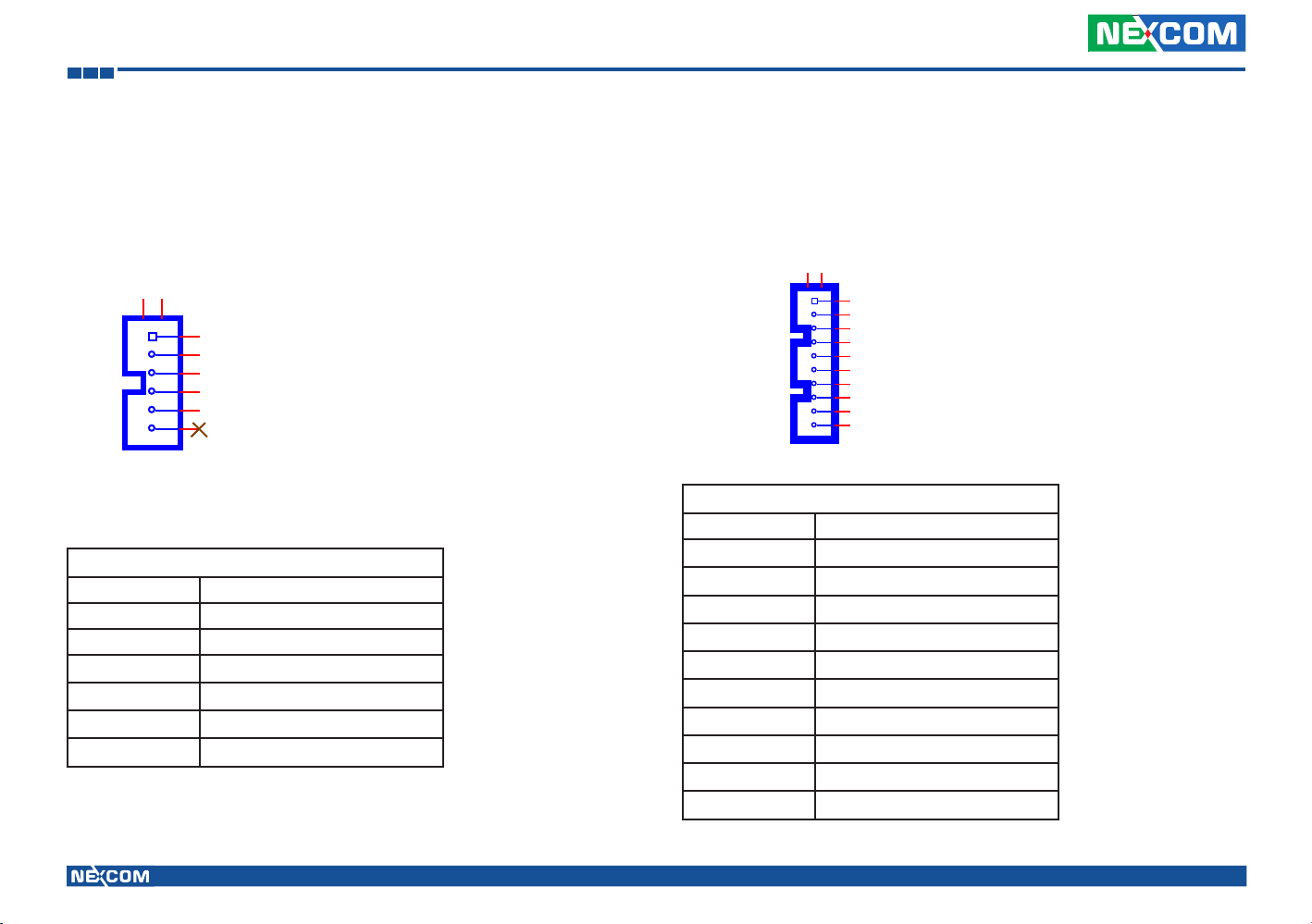

Button & Sensor & LED Connector

Connector size: 1mm Wafer 10 Pin180 Connector location: J5

PIN Definition

1 LS_D

2 LS_A

3 KEY_V+

4 KEY_V-

5 KEY_BL+

6 KEY_BL-

7 BOT_M_N

8 AUTO_BL_LED

9 POWER_LED

10 GND

19

O

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

J2

WAFER-M-90-1mm

1

2

MH1

MH2

Speaker Connector

Connector size: 1mm Wafer 2Pin 180 Connector location: J2, J6

J2

PIN Definition

1 FRONT_A_R+_R

2 FRONT_A_R-_R

J6

PIN Definition

1 FRONT_A_L+_R

2 FRONT_A_L-_R

8051 Download Connector

O

Connector size: 2.54mm PIN HEADER 5Pin 180

O

Connector location: JP3, JP5

JP3

1 2 3 4 5

PIN-M-180-2.54mm

JP3

PIN Definition

1 +V3.3ALW

2 C2D_1

3 MRST_1

4 C2CK_1

5 GND

PIN Definition

1 +V_MCU2

2 C2D_2

3 MRST_2

4 C2CK_2

5 GND

JP5

20

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

JP1

PIN-M-180-2.54mm

1 2 3

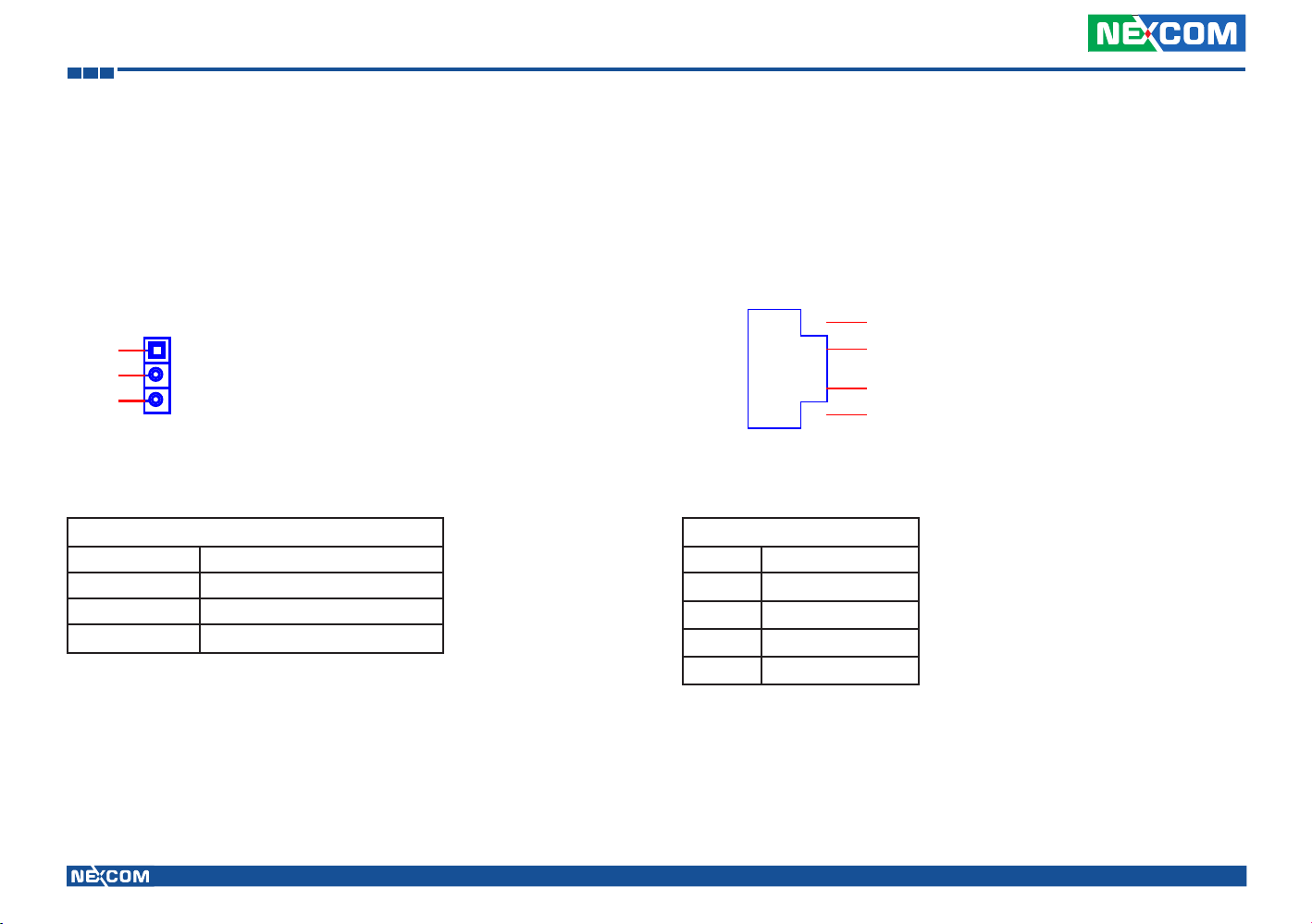

RTC Control Connector

PIN Definition

1 RTCRSTN

2 RTC_CLR

3 RTCGND#

JP1

RTC Battery Connector

Connector size: WAFER-M-180-1.25mm Connector location: J4

J4

WAFER-M-180-1.25m m

G2

G1

MH2

2

1

MH1

J4

PIN Definition

1

GND

2 VBAT1

MH1 GND

MH2 GND

21

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

J10

WAFER-M-90-1.25mm

1

2

MH1

MH2

Backlight Connector(power)

Connector size: 1.25mm Wafer 2 Pin 90 Connector location: J10

J10

PIN Definition

1 GND

2 Panel_backlight

Backlight Connector(data)

O

Connector size: 1mm Wafer 2Pin 90

O

Connector location: J8

J8

2 1

WAFER-M-90-1mm

PIN Definition

1

2 BK_EN

MH1

J8

MH2

Brightness

22

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

J3

WAFER-M-90-1mm

1 2 3

MH1

MH2

4 5 6

MH1

MH2

10

CCD Conector

Connector size: 1mm Wafer 6 Pin 90 Connector location: J3

J3

PIN Definition

1 CCD_PWR

2 HUSB_9N

3 HUSB_9P

4 GND

5 CCD_EN_L

6 NC

PORT 80 Connector

O

Connector size: 1mm Wafer 10 Pin 90

O

Connector location: J9

1 2 3 4 5 6 7 8 9

J9WAFER-M-90-1mm

J9

PIN Definition

1 VCC3_S

2 VCC3_S

3 LPC_AD0

4 LPC_AD1

5 LPC_AD2

6 LPC_AD3

7 LPC_FRAME#

8 LPC_CLK2

9 SIO_RST#

10 GND

23

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

MINI PCIE Connector

MINI PCIE Connector Interface: M-Sata Connector location: CN2

51

REV1

49

REV2

47

REV3

45

REV4

43

GND14

41

3.3VSB_5

39

3.3VSB_4

37

GND13

35

GND0

33

PETp0

31

PETn0

29

GND2

27

GND3

25

PERp0

23

PERn0

21

GND4

19

REV9/UIM_C4

17

REV10/UIM_C8

15

GND5

13

REFCLK+

11

REFCLK-

9

GND6

7

CLKREQ#

5

COEX2

3

COEX1

1

WAKE#

CN2

MINI PCIE CON Ver:1.2

MH1

MH2

MH3

MH4

MH5

MH6

MH1

MH2

MH3

MH4

MH5

MH6

PIN Definition PIN Definition

3.3VSB_2 GND7

1.5V_1

LED_WPAN#

LED_WLAN#

LED_WWAN#

GND8

USB_D+ USB_D-

GND9

SMBDAT SMBCLK

1.5V_2

GND10

3.3VSB_1

PERST#

W_DISABLE#

GND11

UIM_VPP

UIM_RESET

UIM_CLK

UIM_DATA

UIM_PWR

1.5V_3

GND12

3.3VSB_3

52 50 48 46 44 42 40 38 36 34 32 30 28 26 24 22 20 18

16 14 12 10 8 6 4 2

1 NC 27 GND

2 +3.3C_MINI 28 D15VS

3 NC 29 GND

4 GND 30 NC

5 NC 31 SATA_RXN1

6 D15VS 32 NC

7 NC 33 SATA_RXP1

PIN Definition PIN Definition

8 NC 34 GND

9 GND 35 GND

10 NC 36 NC

11 NC 37 GND

12 NC 38 NC

13 NC 39 +3.3C_MINI

14 NC 40 GND

15 GND 41 +3.3C_MINI

16 NC 42 NC

17 NC 43 NC

18 GND 44 NC

19 NC 45 NC

20 NC 46 NC

21 GND 47 NC

22 NC 48 D15VS

23 SATA_TXP1 49 NC

24 +3.3C_MINI 50 GND

25 SATA_TXN1 51 GND

26 GND 52 +3.3C_MINI

24

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

MINI PCIE Connector Interface: Starnd Mini-PCI-e/ M-Sata Connector location: CN3

PIN Definition PIN Definition

1 PCIE_WAKE# 27 GND

2 +3.3B_MINI 28 D15VS

3 NC 29 GND

4 GND 30 SMB_CLK

5 NC 31 mPCIE_TX_N

6 D15VS 32 SMB_DATA

7 CLKREQ# 33 mPCIE_TX_P

8 NC 34 GND

9 GND 35 GND

10 NC 36 USB_IN

11 MC_PCIE_CLK_N 37 GND

12 NC 38 USB_IP

13 MC_PCIE_CLK_P 39 +3.3B_MINI

14 NC 40 GND

15 GND 41 +3.3B_MINI

16 NC 42 NC

17 NC 43 GND

18 GND 44 LED_WLAN#

19 NC 45 NC

PIN Definition PIN Definition

20 MINICARD1_DIS# 46 NC

21 GND 47 NC

22 WLAN_RESET# 48 D15VS

23 mPCIE_RX_N 49 NC

24 +3.3B_MINI 50 GND

25 mPCIE_RX_P 51 PRE-DEC

26 GND 52 +3.3B_MINI

25

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

MINI PCIE Connector Interface: USB ONLY Connector location: CN4

PIN Definition PIN Definition

1 NC 27 GND

2 +3.3A_MINI 28 NC

3 NC 29 GND

4 GND 30 NC

5 NC 31 NC

6 NC 32 SMS_RI_3.5G

7 UMTS_GND 33 UMTS_RESET#

8 UIM_PWR2 34 GND

9 GND 35 GND

10 UIM_DAT2 36 USB_3N

11 VCC_MSM26_DIG 37 GND

12 UIM_CLK2 38 USB_3P

13 NC 39 +3.3A_MINI

14 UIM_RST2 40 GND

15 GND 41 +3.3A_MINI

16 NC 42 3.5G_LED#

17 NC 43 GND

18 GND 44 NC

19 NC 45 NC

PIN Definition PIN Definition

20 3.5G_DIS# 46 NC

21 GND 47 NC

22 NC 48 NC

23 NC 49 MINI_RXD_PCMDOUT_NC

24 NC 50 GND

25 NC 51 MINI_TXD_PCMSY_NC

26 GND 52 +3.3A_MINI

26

VMC 1000 User Manual

Chapter 2: Jumpers and Connectors

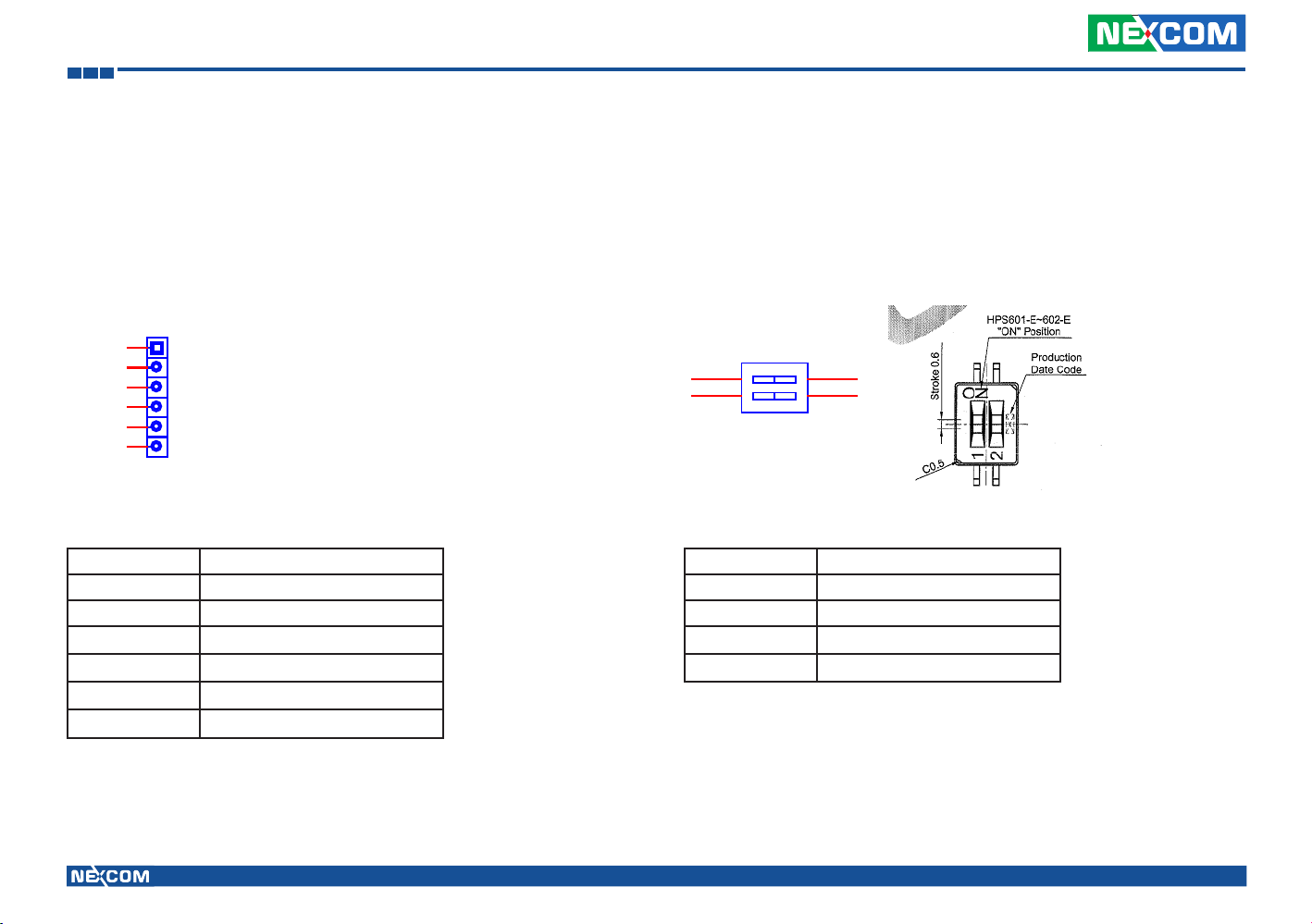

JP2

PIN-M-180-2.54mm

1 2 3 4 5 6

GAL Download Connector

Connector size: 2.54mm PIN HEADER 6Pin 180 Connector location: JP2

PIN Definition

1 V3P3_G

2 GND

3 TCK

4 TDO

5 TDI

6 TMS

Input Voltage Control Switch

O

Connector size: 2x2 DIP SWITCH 180

O

Connector location: SW3

SW3

1 2 3

PIN Definition

1 POWERSW

2 12V24V

ON

4

3 GND

4 GND

27

VMC 1000 User Manual

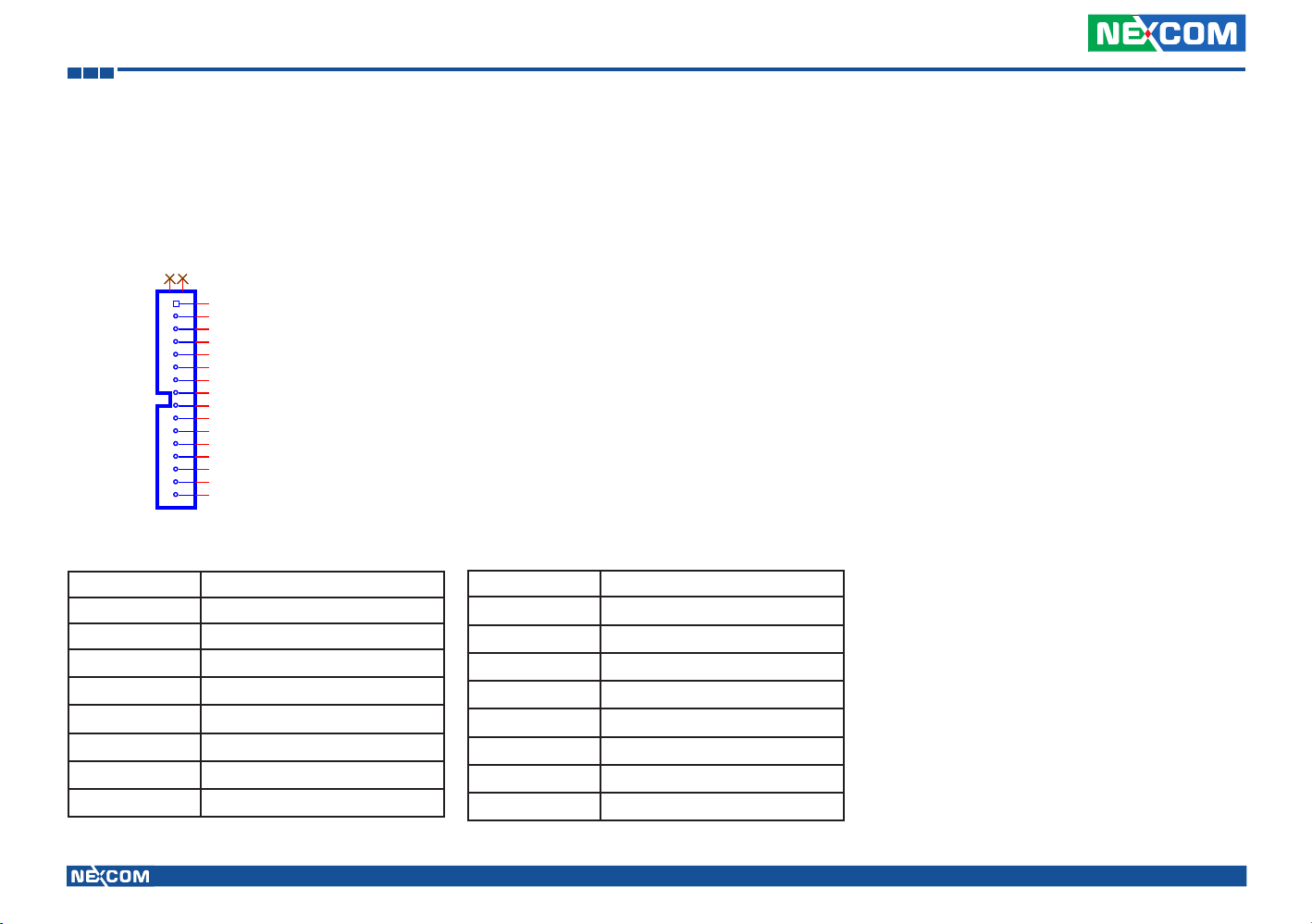

Chapter 2: Jumpers and Connectors

MH1

MH2

10 11 12 13 14 15 16

POWER_IN Connector

Connector size: 2.5mm Wafer 6 Pin 180 Connector location: J12

1 2 3 4 5 6 7 8 9

O

WAFER-M-180-1.0m m

J12

PIN Definition

1 V_IN

2 V_IN

3 V_IN

4 V_IN

5 V_IN

6 V_IN

7 V_IN

8 IGNITION

PIN Definition

9 IGNITION

10 V_GND

11 V_GND

12 V_GND

13 V_GND

14 V_GND

15 V_GND

16 V_GND

28

VMC 1000 User Manual

Chapter 3: System Setup

CAUTION!

Chapter 3: System Setup

Installing a WLAN module or WWAN module

CAUTION!CAUTION!

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

1. Remove these screws and put them in a safe place for later use.

2. Remove the rear cover of the VMC1000. The Mini PCI Express slot shown below is used to install a WLAN module or 3.5G commu-nication module such as GPRS, UMTS or HSDPA module.

For 3.5G module

For WLAN module

mS ATA

29

VMC 1000 User Manual

Chapter 3: System Setup

System Setup

3. Insert the module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the module completely disappears inside the slot. And then attach RF cable to the module.

4. Before you install the rear cover, please check the all thermal pads are on the heatsink.

30

VMC 1000 User Manual

Appendix A: I/O Address Function

(*) for default setting

GPIO LED / UMTS LED / Ignition Status I/O port : 0EE0H

Bit Function Description

Bit 0 GPIO LED (VMC1000 UNUSED)

0: OFF (*) 1: ON

Bit 1 UMTS LED (VMC1000 UNUSED)

0: LED for Wireless (*) 1: LED for 3.5G and Wireless

Bit 2 Ignition (read only)

0: OFF 1: ON

Bit 3 Status of Car Battery

0: Car Battery is OK 1: Car Battery is Low voltage

31

VMC 1000 User Manual

Appendix A: I/O Address Function

WDT I/O port : 0EE5H

Bit Function Description

Bit 3 WDT Disable/Enable

0: Disable (*) 1: Enable

Bit 2, 1, 0: Time Setting

Bit 2~0 Time (sec)

000 1 (*)

001 2

010 4

011 8

100 16

101 32

110 64

111 128

Auto clear WDT timer when reading/writing I/O port 0EE5H.

Onboard Module Disable/Enable(1) I/O port : 0EE6H

Bit Function Description

Bit 0 3.5G module

0: Disable 1: Enable (*)

Bit 1 WLAN module

0: Disable 1: Enable (*)

Bit 2 RESERVED

Bit 3 RESERVED

Bit 4 Wake on 3.5G module

0: Disable 1: Enable (*)

Bit 5 Wake on RTC module

0: Disable 1: Enable (*)

32

VMC 1000 User Manual

Appendix A: I/O Address Function

Delay On Time Setting

I/O port : 0EE7H Bit7: Power On Delay 0: DISABLE(*) 1: ENABLE Bit6: Power Off Delay 0: DISABLE(*) 1: ENABLE

Bit5~6 Function Description

000 10 sec

001 30 sec

010 1 min

011 5 min

100 10 min

101 15 min

110 30 min

111 1 hour

Delay Off Time Setting

Bit 2~0 Time (sec)

000 20 sec

001 1 min

010 5 min

011 10 min

100 30 min

101 1 hour

110 6 hour

111 18 hour

Startup and Shutdown Voltage Control I/O port : 0EE8H

Only set by switch on motherboard(read only)

Bit3~2 Input Voltage

11 12V

01 24V

10 6~36V

00 6~36V

When input voltage 12V

Bit1~0 Input Voltage 12V

00 Startup Shutdown

11.5V 10.5V

01 Startup Shutdown

12V 11V

10 Startup Shutdown

12.5V 11V

11 Startup Shutdown

12.5V 11.5V

33

VMC 1000 User Manual

Appendix A: I/O Address Function

Setup Command I/O port : 0EE9H

When input voltage 24V

Bit1~0 Input Voltage 24V

00 Startup Shutdown

23V 21V

01 Startup Shutdown

24V 22V

10 Startup Shutdown

25V 22V

11 Startup Shutdown

25V 23V

Restart the Setup Command

Enable byte

AA

Using end byte to tell the data flow end

Data End byte

(Delay time)(Startup/Shutdown voltage setting) 55

34

VMC 1000 User Manual

Appendix A: I/O Address Function

Onboard Module Disable/Enable(1) I/O port : 0EEAH

Bit Function Description

Bit 0 Status of RS422/485 MODULE1

0: RS-422 1: RS-485 (*)

GAL Download control I/O port : 0EEBH

Restart the Setup Command

Enable byte

AA

Startup Time Setting

I/O port: 0EECH(clock Timer)

Bit0~7: the hour value(binary)

I/O port: 0EEDH(clock Timer)

Bit0~7: the minute value(binary)

I/O port: 0EEEH( User setting Time)

Bit0~7: the hour value(binary)

I/O port: 0EEFH( User setting Time)

Bit0~7: the minute value(binary)

35

VMC 1000 User Manual

Appendix A: I/O Address Function

GPIO I/O port : 0EE4H, Default Value : 0x38H

Bit Function Description

Bit 0-2 GPO 0-2

Bit 3-5 GPI 0-2

36

VMC 1000 User Manual

Appendix B: Vehicle Power Management Setup

External Power Output Setting

External +12V and +5V Turn Off SimultaneouslyExternal +12V and +5V Turn On Simultaneously

37

VMC 1000 User Manual

Appendix B: Vehicle Power Management Setup

Vehicle Power Management Setup

External Power Output Setting

External +5V Turn On OnlyExternal +12V Turn On Only

38

VMC 1000 User Manual

Appendix B: Vehicle Power Management Setup

Vehicle Power Management Setup

Startup and Shutdown Voltage Setting

1.

If the input voltage setting is 12V : set the startup voltage to 11.5V and the shutdown voltage to 10.5V.

If the input voltage setting is 12V : set the startup voltage to 12V and the shutdown voltage to 11V.

If the input voltage setting is 12V : set the startup voltage to 12.5V and the shutdown voltage to 11.5V.

If the input voltage setting is 12V : set the startup voltage to 12.5V and the shutdown voltage to 11V.

39

VMC 1000 User Manual

Appendix B: Vehicle Power Management Setup

Vehicle Power Management Setup

Startup and Shutdown Voltage Setting

2.

If the input voltage setting is 24V : set the startup voltage to 23V and the shutdown voltage to 21V.

If the input voltage setting is 24V : set the startup voltage to 24V and the shutdown voltage to 22V.

If the input voltage setting is 24V : set the startup voltage to 25V and the shutdown voltage to 22V.

If the input voltage setting is 24V : set the startup voltage to 25V and the shutdown voltage to 23V.

40

VMC 1000 User Manual

Appendix B: Vehicle Power Management Setup

Vehicle Power Management Setup

Startup and Shutdown Voltage Setting

4.

If the input voltage setting is 6v~36V ignore the startup/shutdown setting.

41

VMC 1000 User Manual

Appendix B: Vehicle Power Management Setup

Vehicle Power Management Setup

Power-on Delay Setting

Disable Power-on Delay

Enable Power-on Delay

Delay time can be set at 10sec/30sec/1min./5min./10min./15min./30min./ 1hour.

42

VMC 1000 User Manual

Appendix B: Vehicle Power Management Setup

Vehicle Power Management Setup

Power-on Delay Setting

Disable Power-off Delay

Enable Power-off Delay

Delay time can be set at 20sec/1min./5min./10min./30min./1hour/6hour/ 18hour.

43

VMC 1000 User Manual

Appendix C: Power Consumption

Test Equipment/Tool

DUT#1: VMC1000 with 32GB mSATA DUT#2: VMC1000 with 32GB mSATA and 3.5G WWAN module Windows XP Burn-in Software: Version 5.0

Test Condition

Room temperature Power supply graduation: 12V 5A

Test Procedure:

1. Start of all function at DUT and measure power consumption.

2. Get system into suspend mode and measure power consumption.

Unit Idle Mode 100% Burn-in Mode S3 S4 S5

DUT#1 1.3A 1.33A 148mA 12mA 12mA

DUT#2 1.33A 1.35A

* Device: N/A

72mA 56.7mA 56.7mA

44

VMC 1000 User Manual

Appendix D: SMS Wake-up setting

Utilizing sleep mode on the Serra MC8970V 3.5G module and allowing for remote wake up via SMS. (The specification of MC8970V and AT command reference are in the CD-ROM)

Two process to setting the SMS wake-up mode for VTC1000. Please do the following to set it up.

A. BIOS setting

(1) Press <Enter> on “BIOS Setting” of the main menu screen. (2) Select “Module Management”

(3) Change the value to “Enable” for “3.5G Module” and “Wake On 3.5G Module”

45

VMC 1000 User Manual

Appendix D: SMS Wake-up setting

B. Module setting

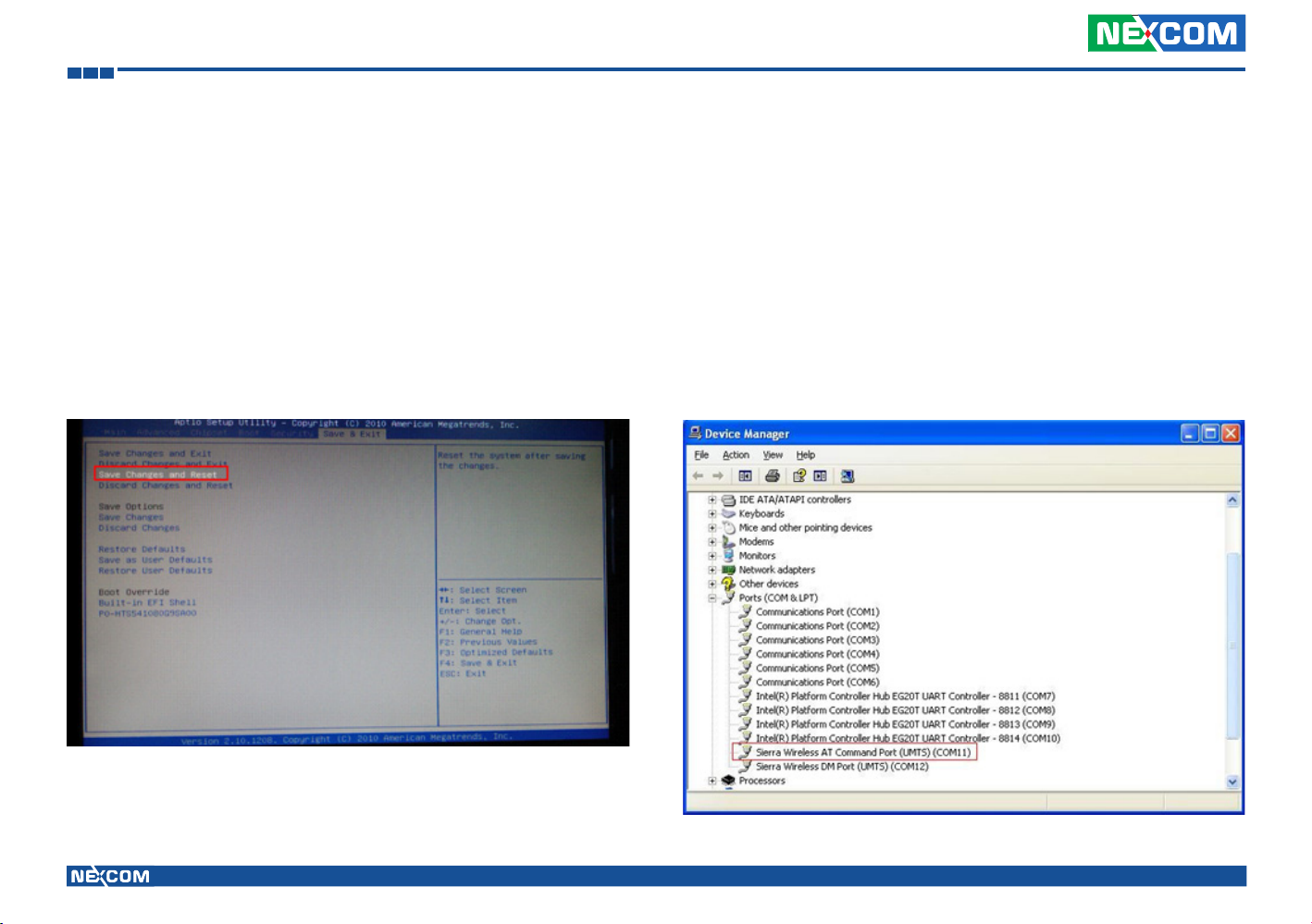

(4) After you have finished with the Setup, press <ESC> to go back to the main menu and then press <Enter> on “Save Changes and Reset”.

(1) Go into the System applet in the Windows Control Panel, and access “Device Manager”

(2) In the “Ports (COM & LPT)” section, you will find a port labeled “Sierra Wireless AT Command Port (UMTS)”, followed by a COM port number such as COM11.

46

VMC 1000 User Manual

Appendix D: SMS Wake-up setting

(3) Launch HyperTerminal. (Depending on your version of Windows and how it was installed, you can launch the program by selecting Start -> Programs -> Accessories -> Communications -> HyperTerminal

(4) Enter any name and select and icon in the Connection Description windows and click “OK”.

(5) Select the COM port to which the modem is connected (use COM11 in this sample) in the “Connect using” field, and click “OK”.

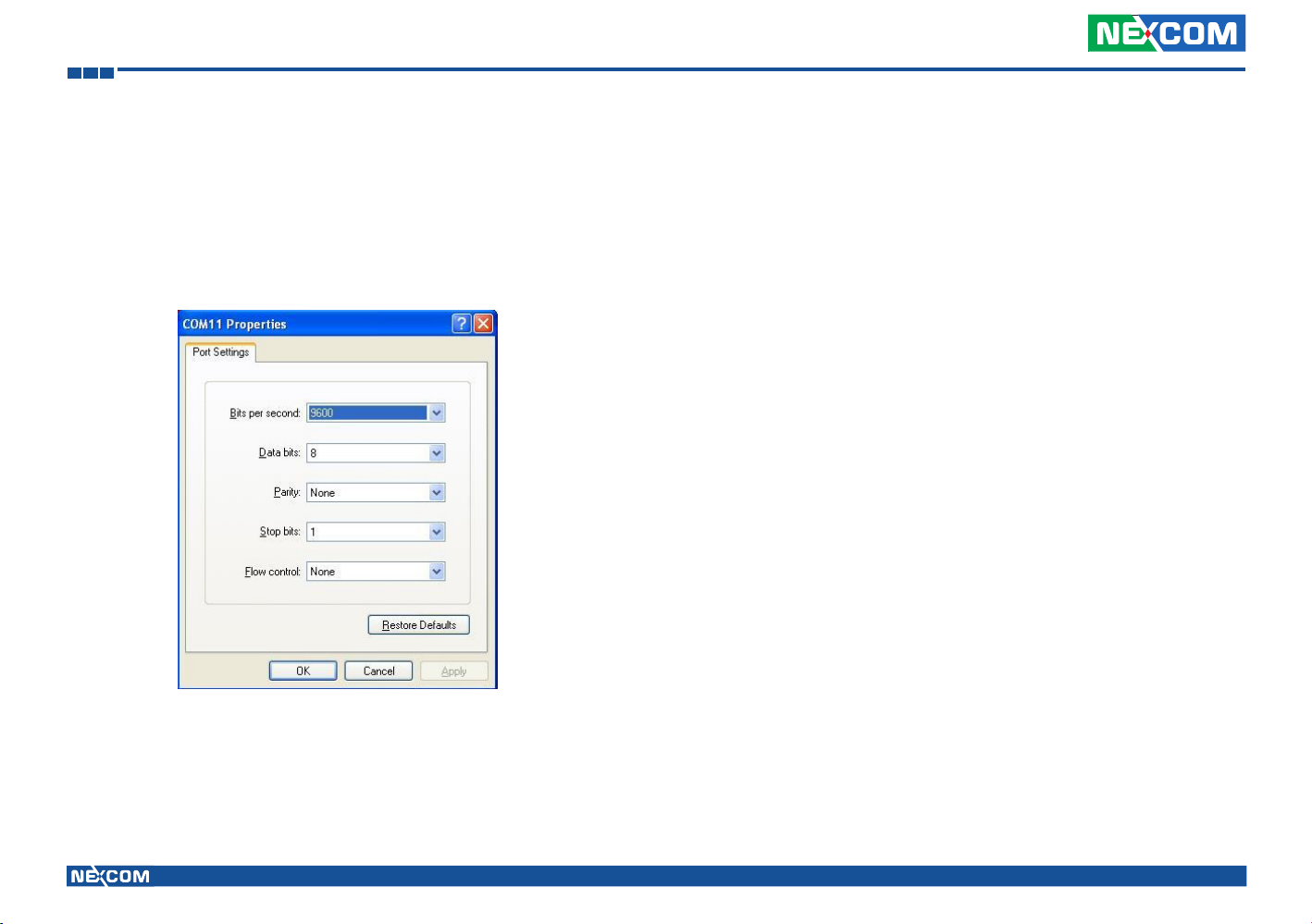

(6) Select these port settings, and click “OK”.

47

VMC 1000 User Manual

Appendix D: SMS Wake-up setting

(7) Enter the “at!entercnd=”A710”, and the response would be “OK”.

(8) Enter the “at!mapuart=1”, and the response would be “OK”.

(9) After completed the AT commands, restart your computer.

(10) Repeat the process (3) and (4).

(11) Select the COM port to which the modem is connected (use COM6) in the “Connect using” field, and click “OK”.

(12) Select these port settings, and click “OK”

48

VMC 1000 User Manual

Appendix D: SMS Wake-up setting

C. Return the default setting

(13) Enter the “at!entercnd=”A710”, and the response would be “OK”.

(14) Enter the “at+wwkup=04” (to setup wake on SMS), and the response would be “OK”.

(1) Lunch HyperTerminal. (Depending on your version of Windows and how it was installed, you can launch the program by selecting Start -> Programs -> Accessories -> Communications -> HyperTerminal

(15) Enter the “at+wwkup?”, and the response would be “+WWKUP: 04” and “OK”. (It mean the setting is completed)

Note. SMS wake-up function only works in S3, S4 or S5 mode and the ignition off.

(2) Select the COM port to which the modem is connected (use COM6) in the “Connect using” field, and click “OK

49

VMC 1000 User Manual

Appendix D: SMS Wake-up setting

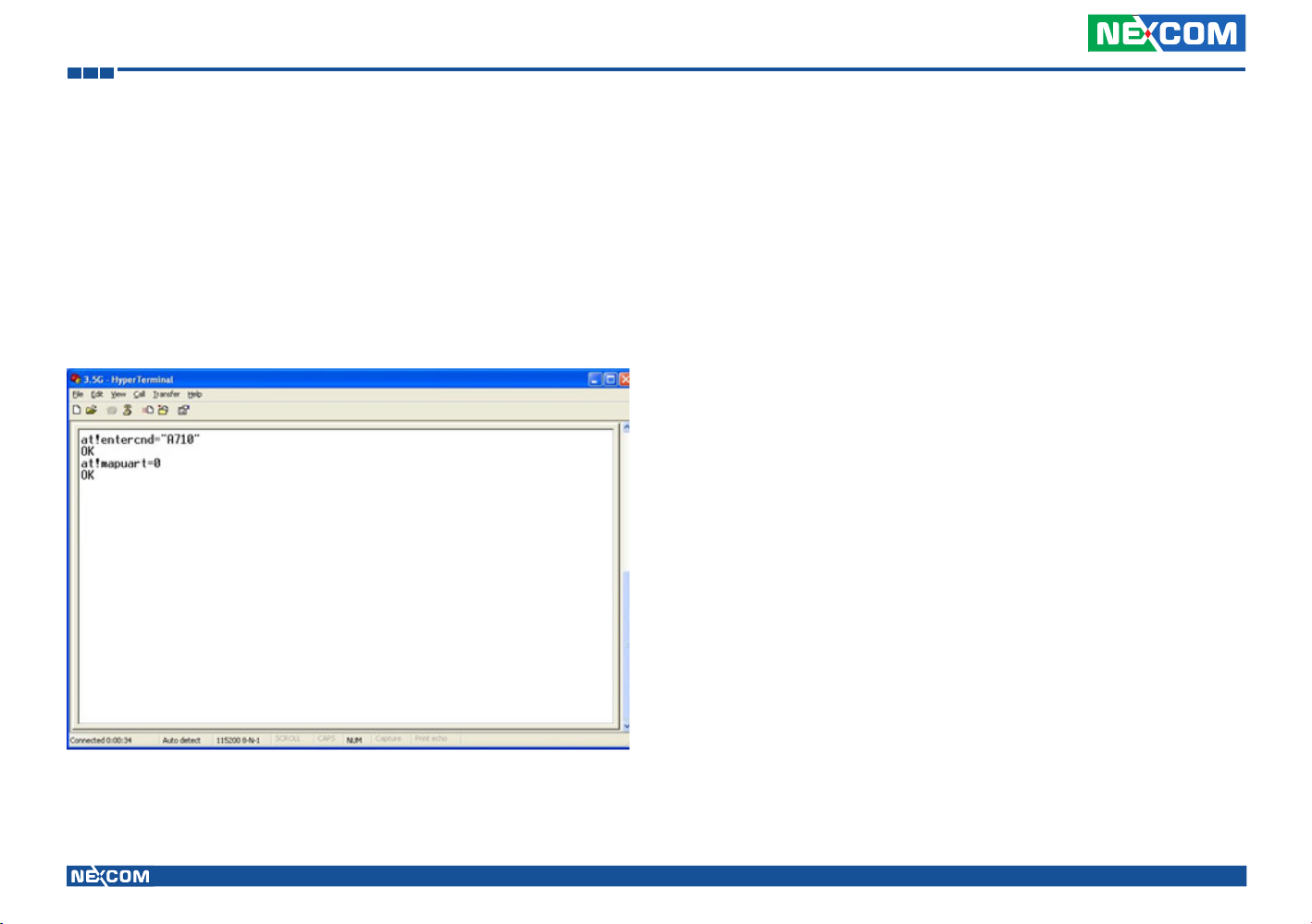

(3) Enter the “at!entercnd=”A710”, and the response would be “OK”.

(4) Enter the “at!mapuart=0”, and the response would be “OK”.

(5) Restart your computer.

50

VMC 1000 User Manual

Appendix E: RTC Wake-up setting

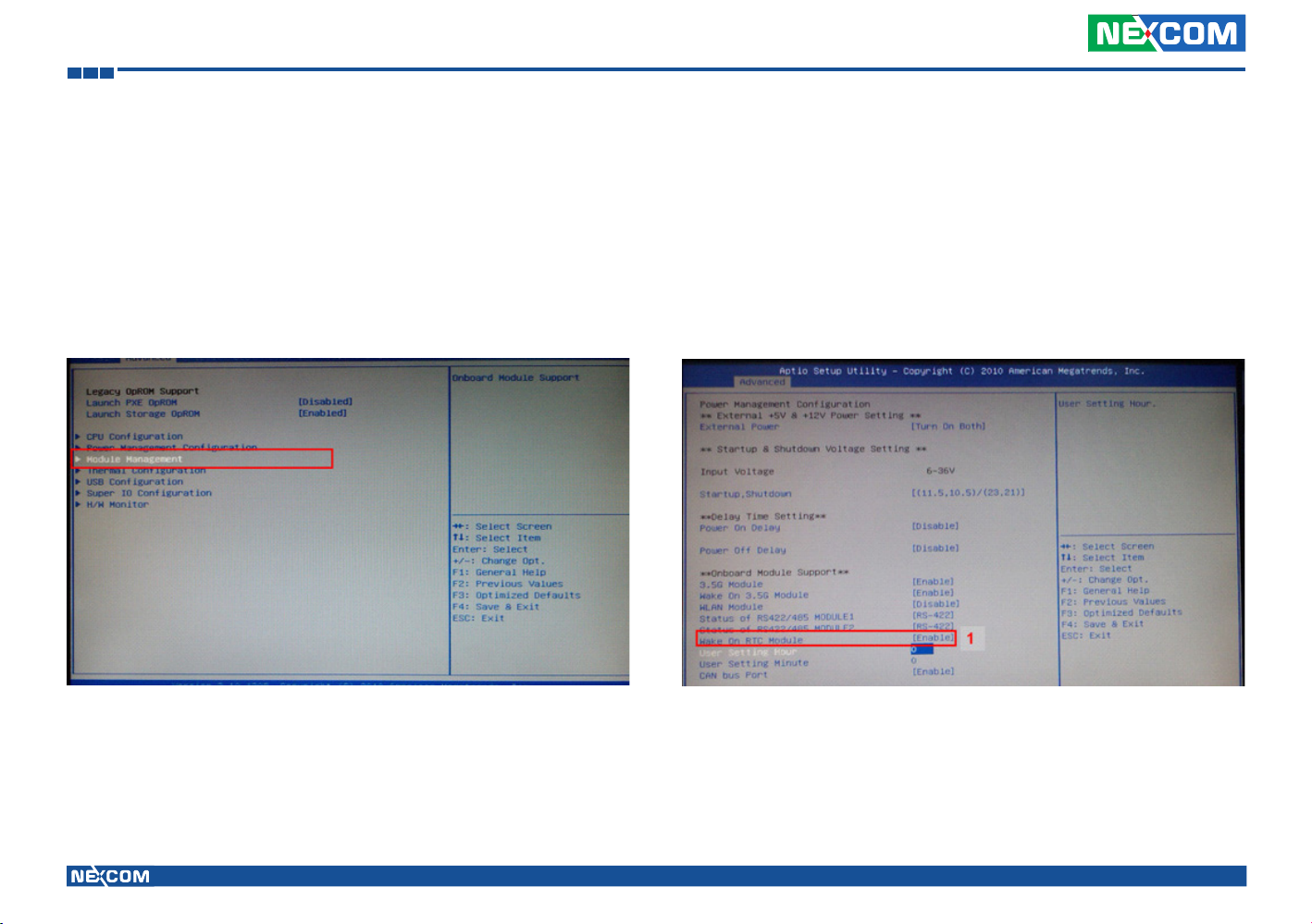

(1) Press <Enter> on “BIOS Setting” of the main menu screen.

(2) Select “Module Management”

(3) Change the value to “Enable” for “Wake On RTC Module”

51

VMC 1000 User Manual

Appendix E: RTC Wake-up setting

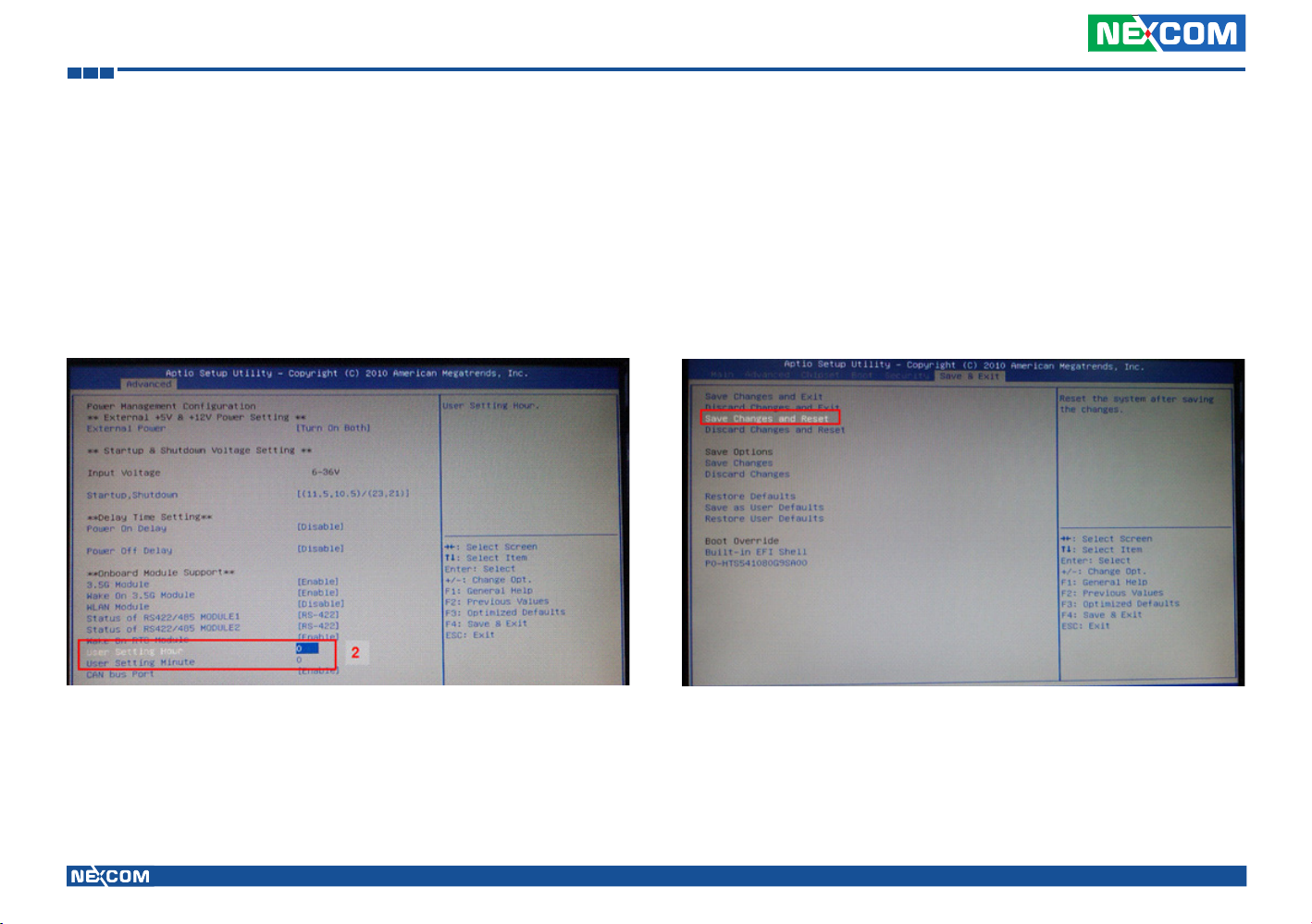

(4) You can key in the value for “User Setting Hour”(0~23) and “User Setting Minute” (0~59)

(5) After you have finished with the Setup, press <ESC> to go back to the main menu and then press “Enter” on “Save Changes and Reset”

Note. SMS wake-up function only works in S3, S4 or S5 mode and the ignition off.

52

VMC 1000 User Manual

NEXCOM VMC 1000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
