NEXCOM nTUF 600 User Manual

NEXCOM International Co., Ltd.

Industrial Computing Solutions

Fan-less Computer nTUF 600

User Manual

NEXCOM International Co., Ltd.

Published January 2013

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ........................................................................................1

Hardware Specifications ..........................................................................2

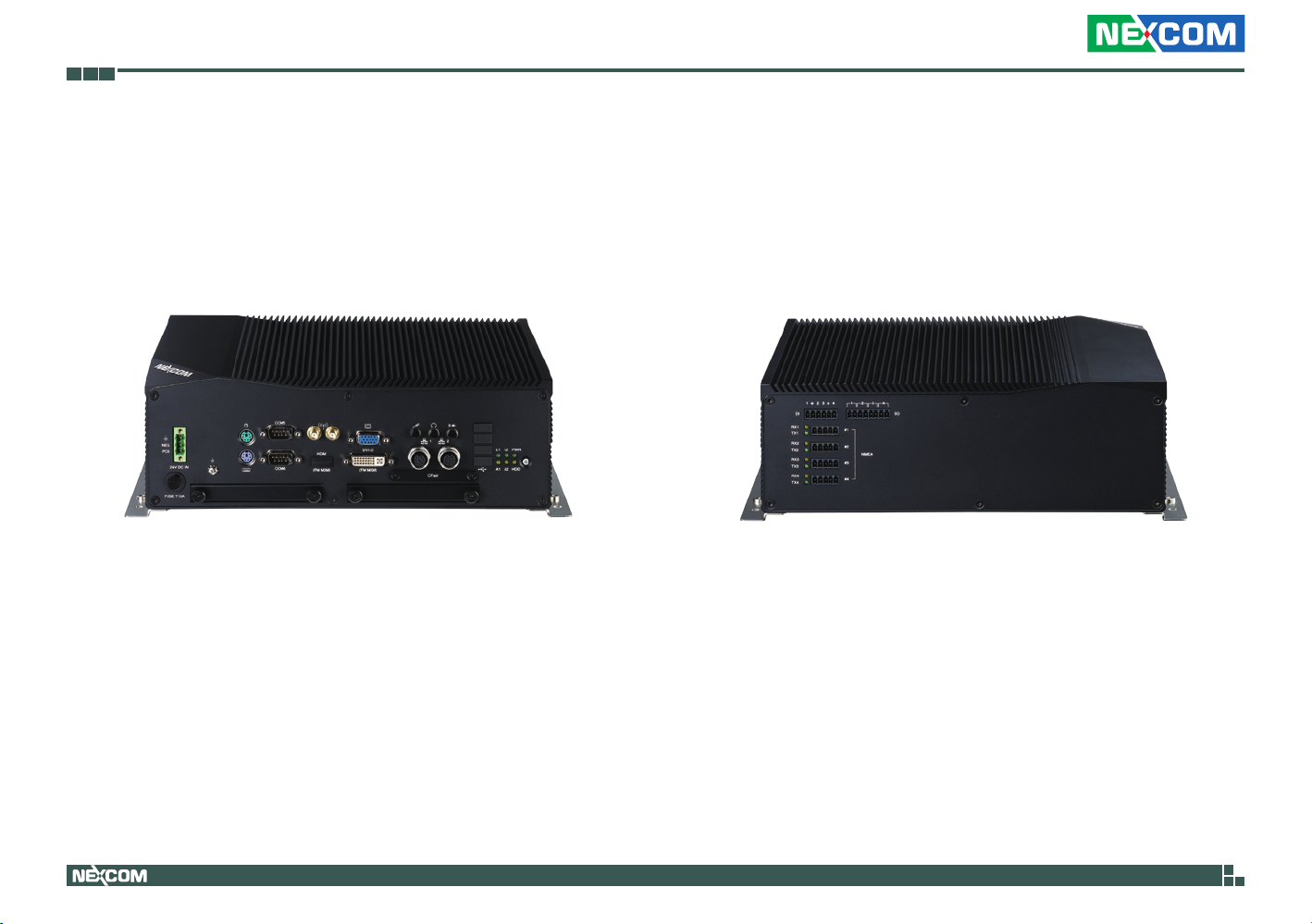

Knowing Your nTUF 600 ......................................................................... 4

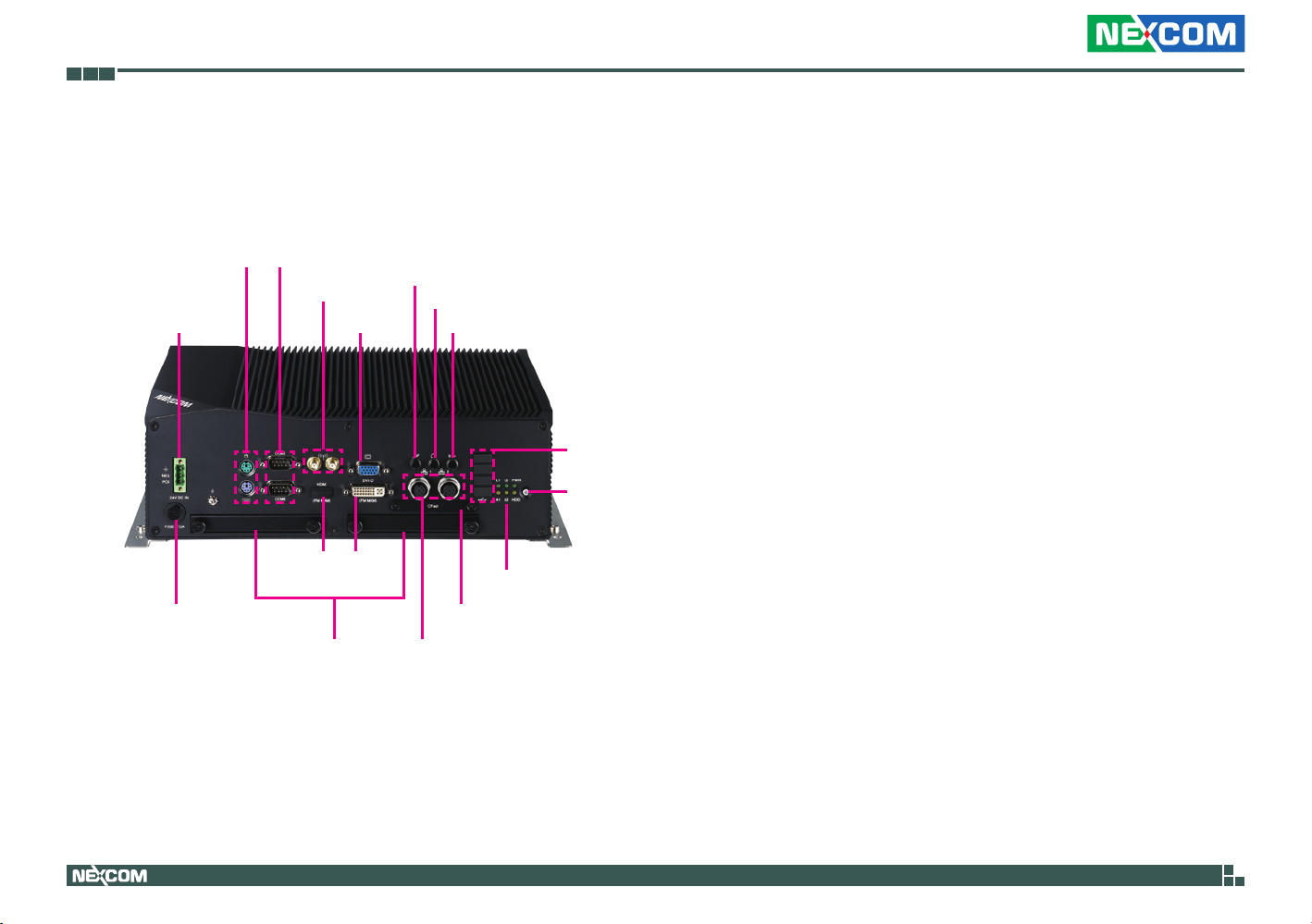

Front Panel ..........................................................................................4

Rear Panel ...........................................................................................6

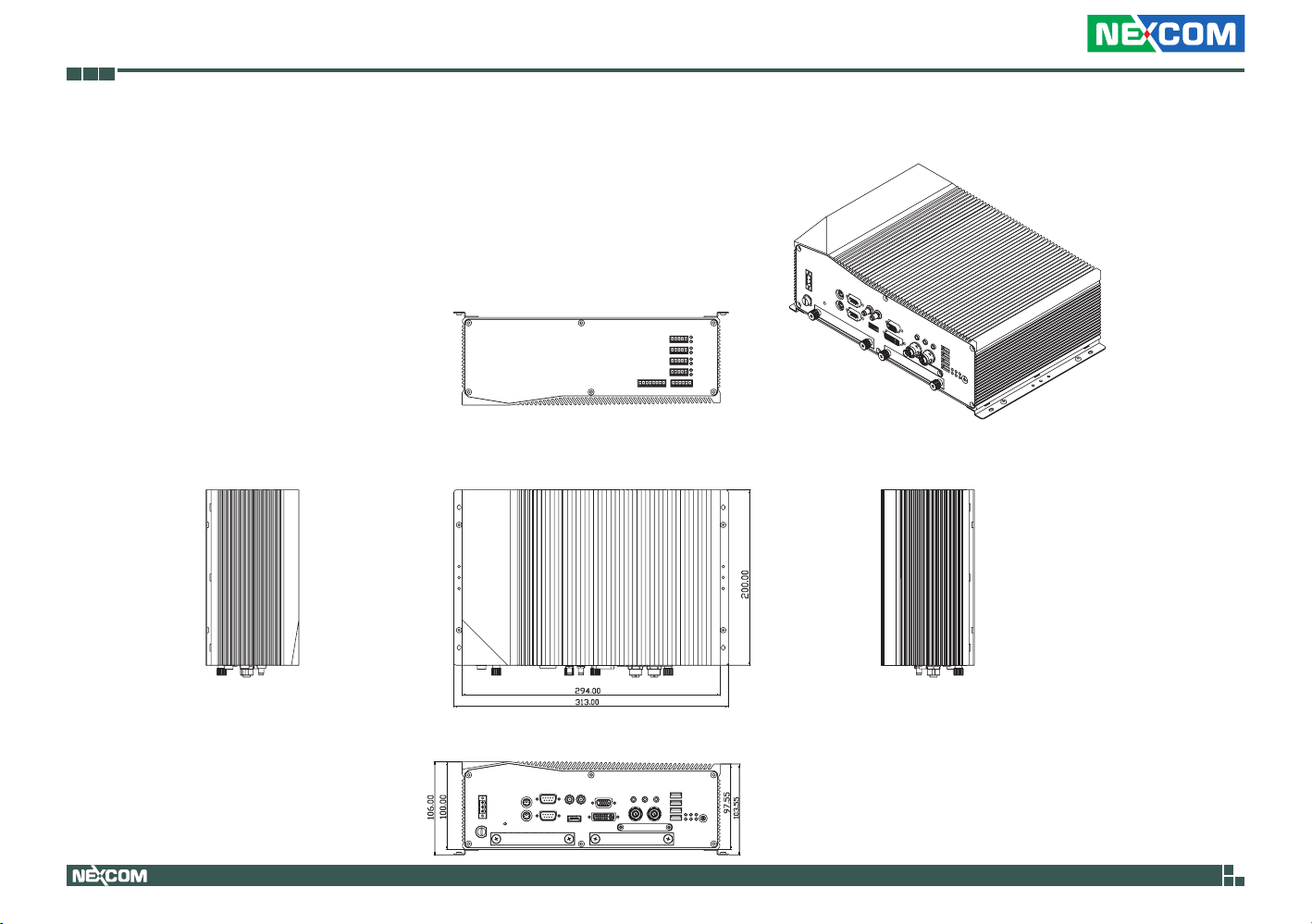

Mechanical Dimensions ...........................................................................7

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................8

Precautions ............................................................................................8

Jumper Settings ......................................................................................9

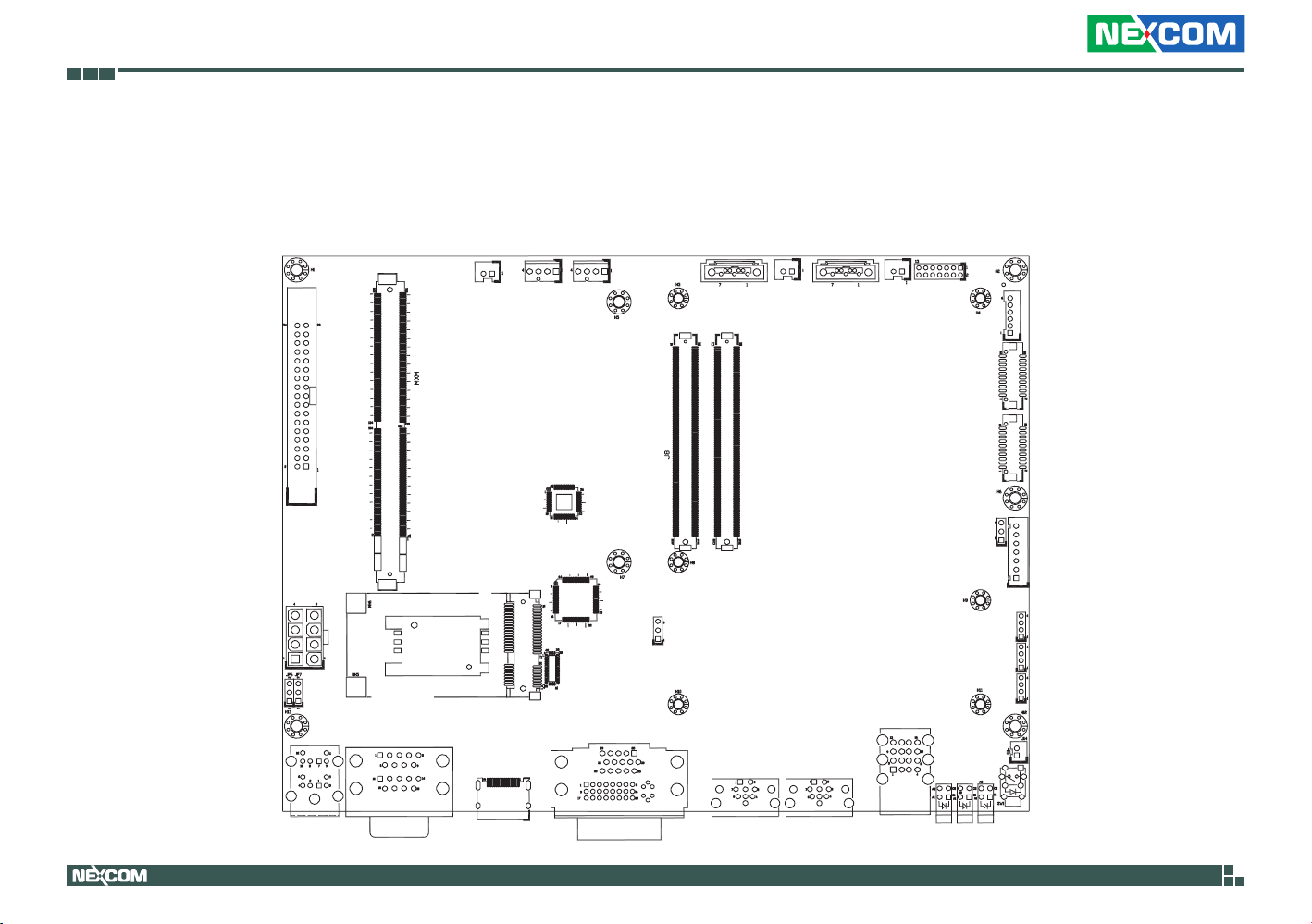

Locations of the Jumpers and Connectors for nROM600 ....................... 10

nROB600 ...........................................................................................10

Jumpers ................................................................................................ 11

RTC Clear .......................................................................................... 11

Pineview-D LVDS Backlight Power Select ............................................ 11

Connector Pin Definitions .....................................................................12

External I/O Interfaces - Front Panel ...................................................12

24V DC Input ................................................................................. 12

Keyboard and Mouse .....................................................................12

COM 5 and COM 6 Ports ............................................................... 13

HDMI ............................................................................................. 13

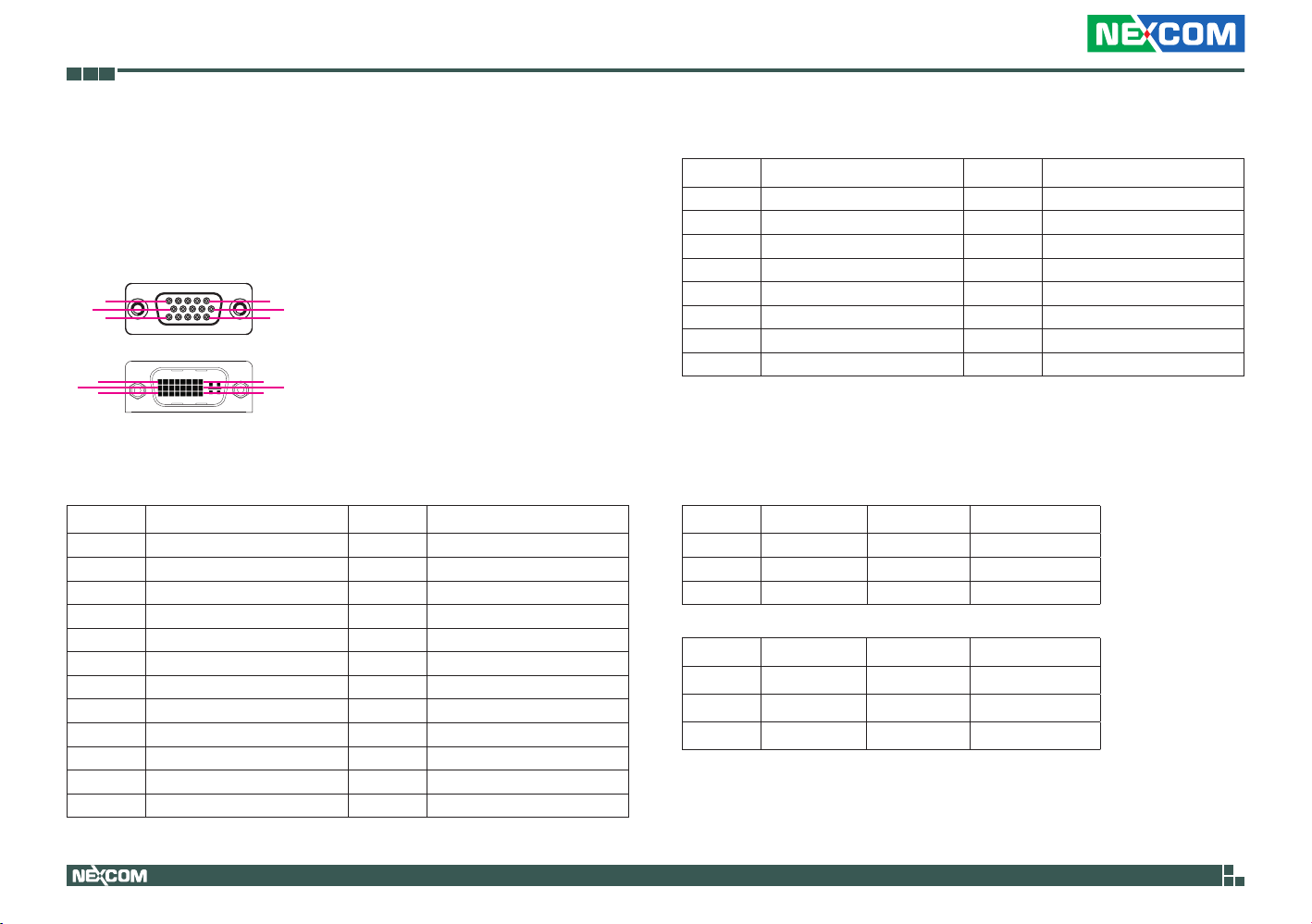

DVI & VGA Connector ....................................................................14

DVI ................................................................................................14

VGA ...............................................................................................14

Max. Resolution .............................................................................14

LAN 1 Connector ...........................................................................15

LAN 2 Connector ...........................................................................15

Quadruple USB Port .......................................................................16

LAN1/LAN2 Link/Active LEDs ..........................................................16

Power LEDs .................................................................................... 17

External I/O Interfaces - Rear Panel.....................................................18

ii

nTUF 600 User Manual

Content

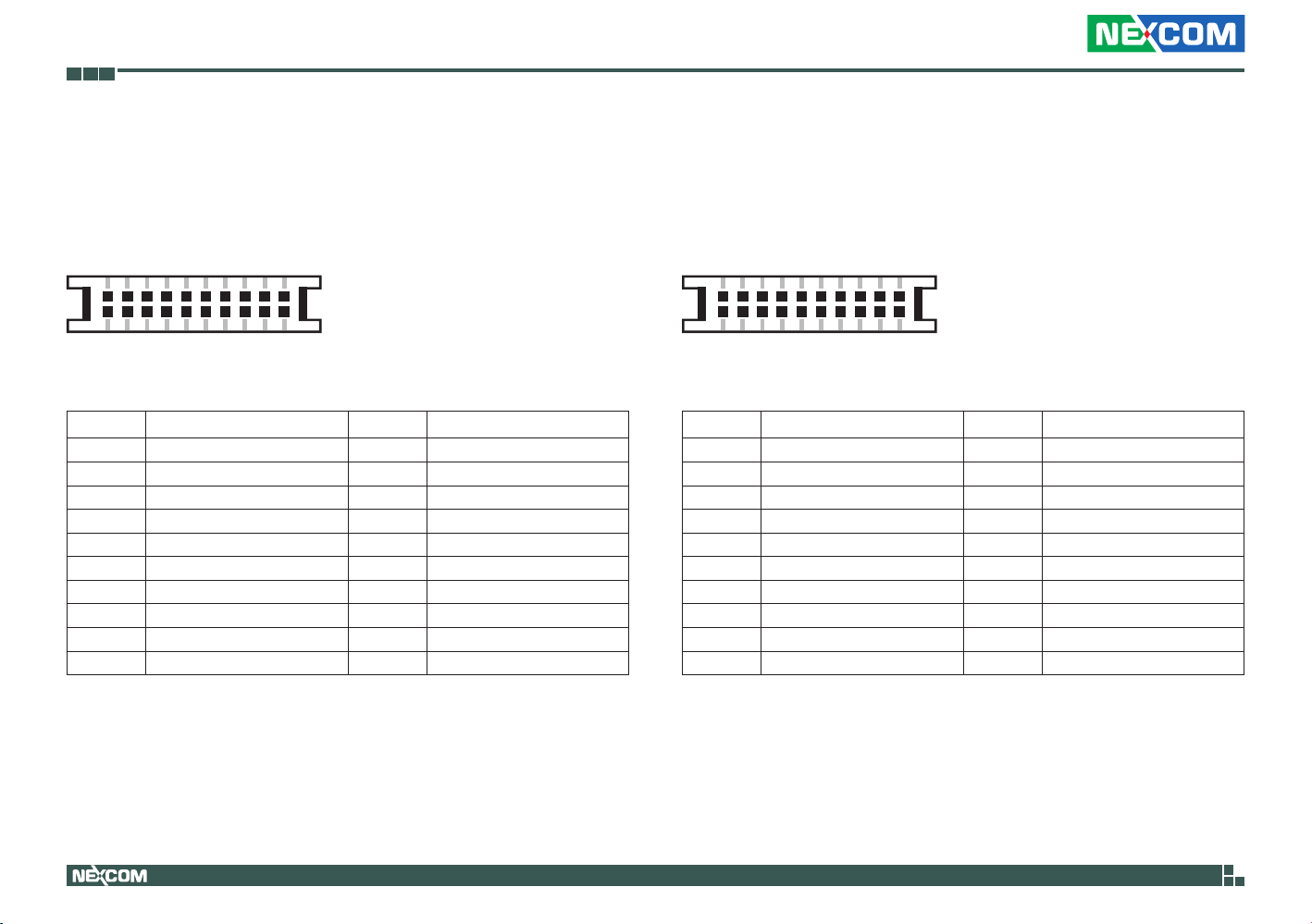

Digital Input Connector .................................................................. 18

Digital Output Connector ............................................................... 18

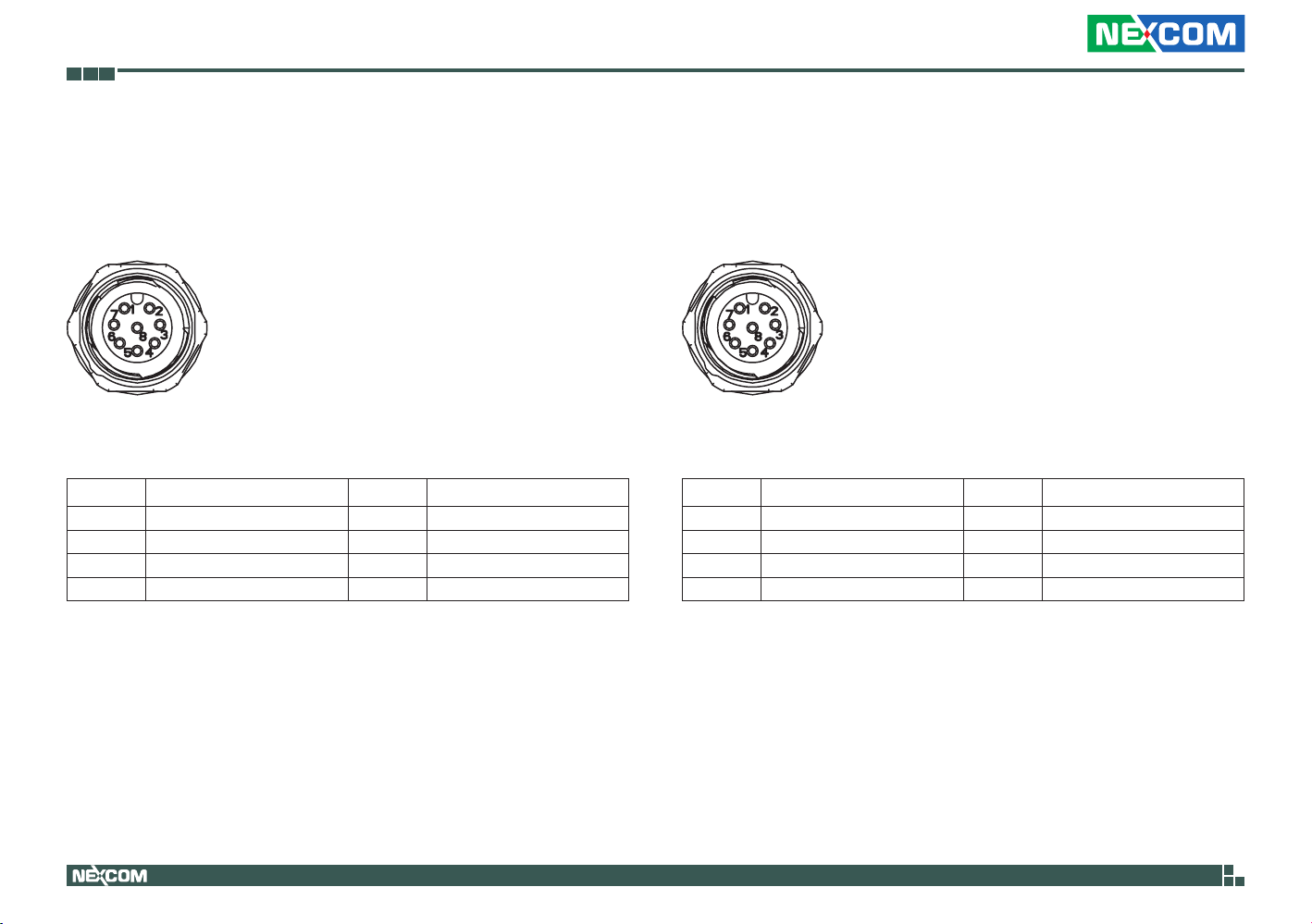

NMEA Port 1 .................................................................................. 19

NMEA Port 2 .................................................................................. 19

NMEA Port 3 .................................................................................. 20

NMEA Port 4 .................................................................................. 20

Internal Connectors ........................................................................... 21

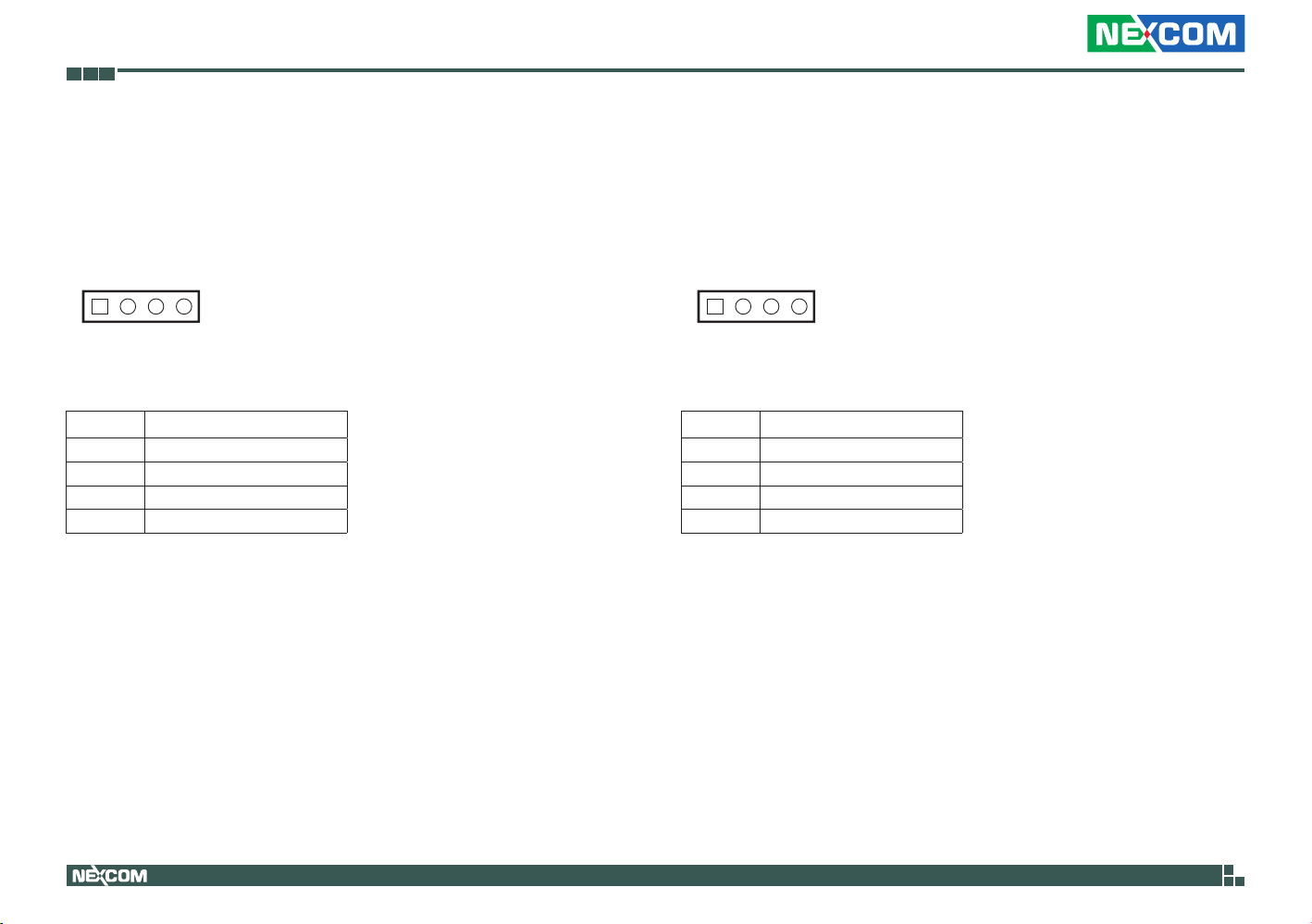

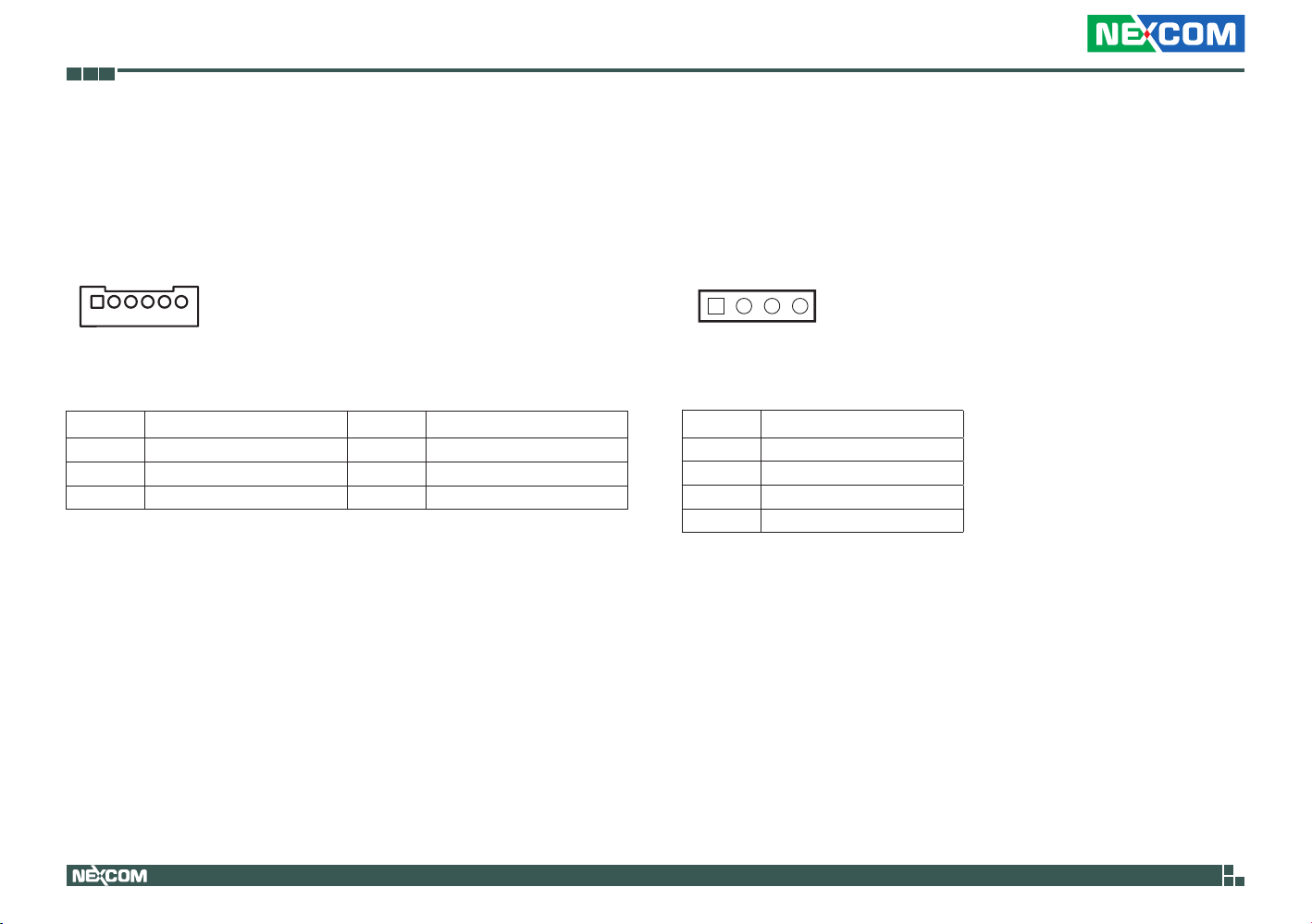

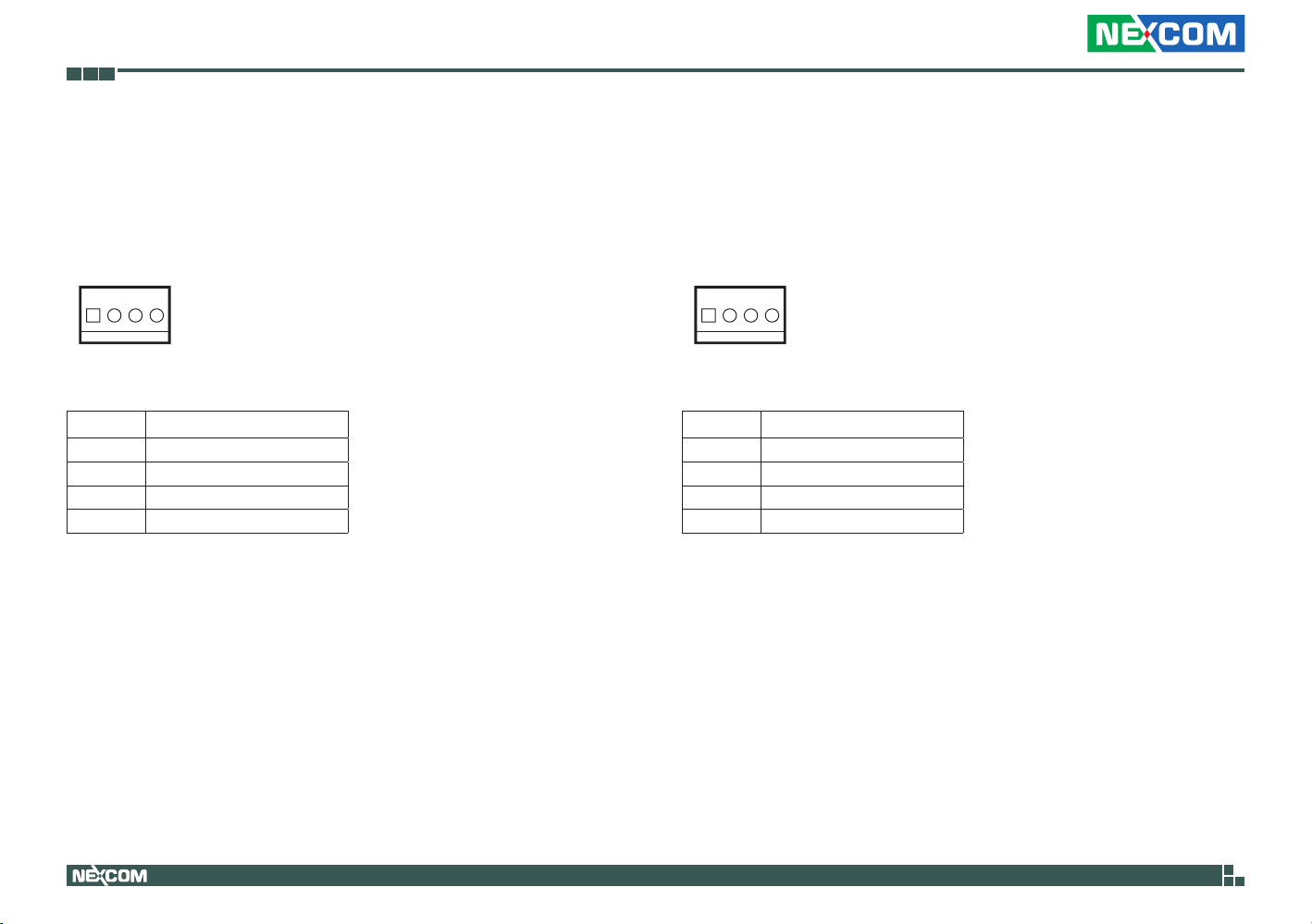

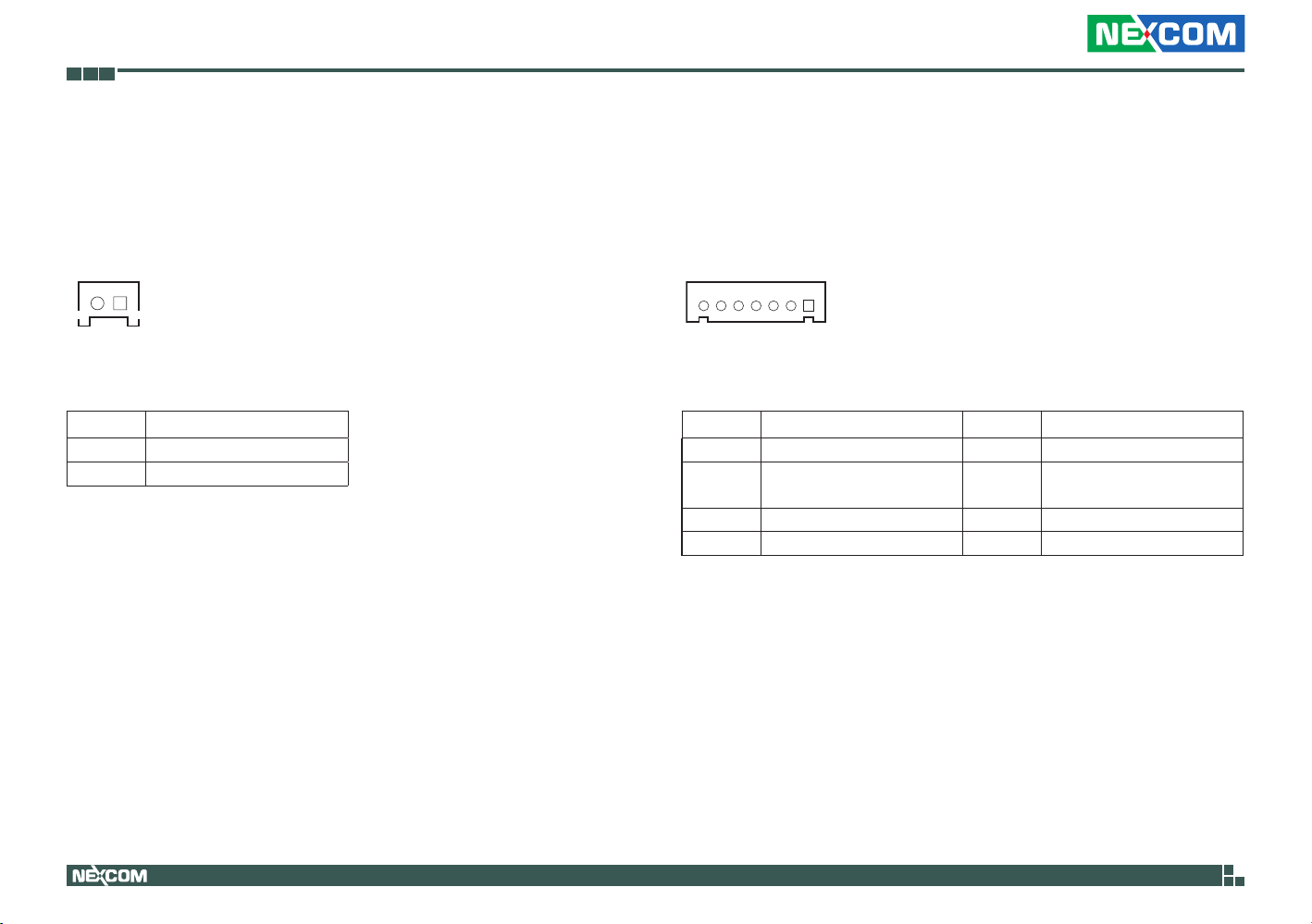

CPU Fan Connector ........................................................................21

System Fan Connector ...................................................................21

System Fan Connector ...................................................................22

LVDS Panel Backlight Connector ..................................................... 22

LVDS Connector ............................................................................. 23

USB Connector ..............................................................................24

Line-out Pin Header ........................................................................24

Mic-in Pin Header ...........................................................................25

Line-in Pin Header .......................................................................... 25

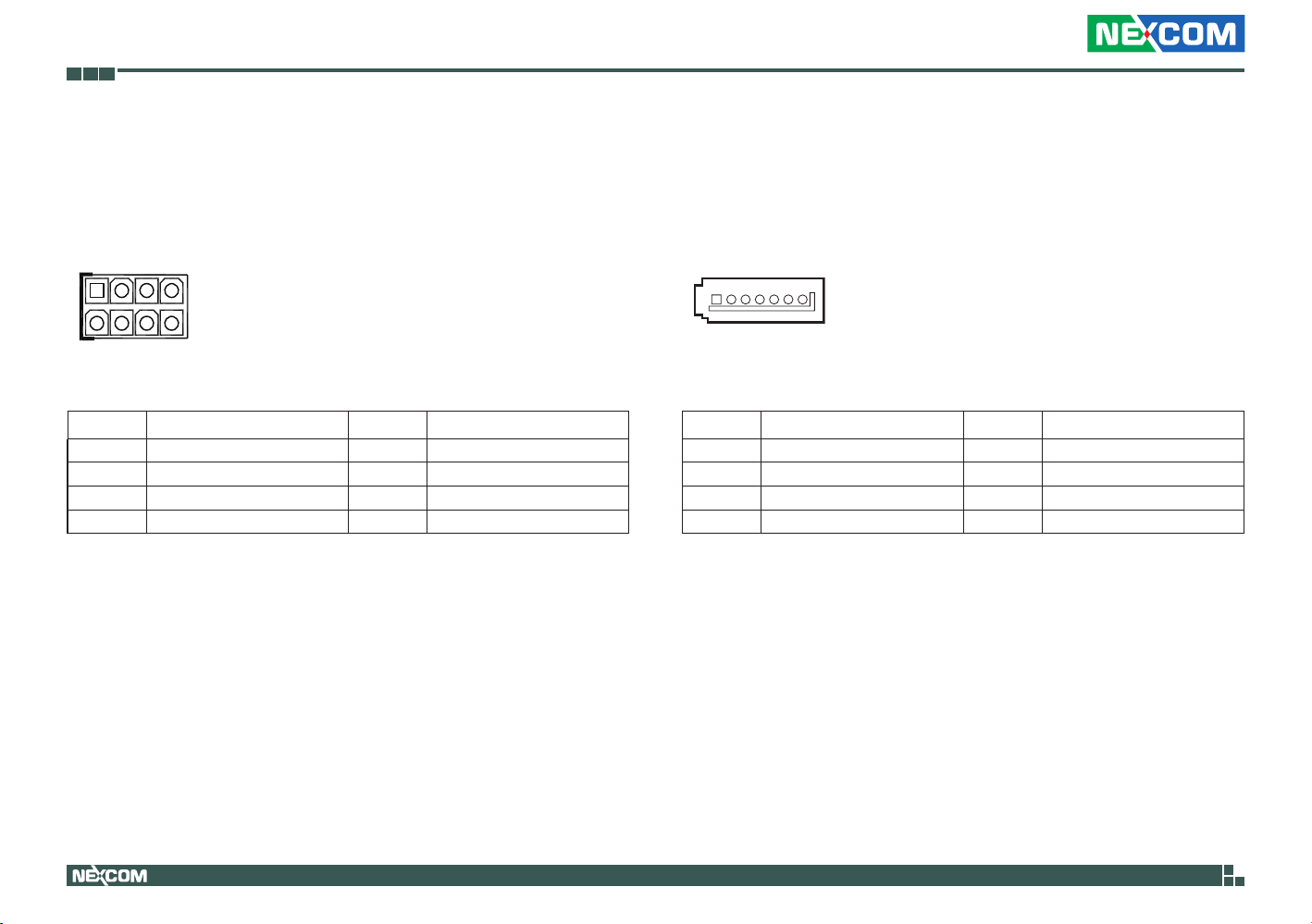

Power Connector ........................................................................... 26

SATA1 Connector ...........................................................................26

SATA2 Connector ...........................................................................27

SATA Power Connector ..................................................................27

SATA Power Connector ..................................................................28

CFast Connector ............................................................................28

Mini-PCIe Connector ...................................................................... 29

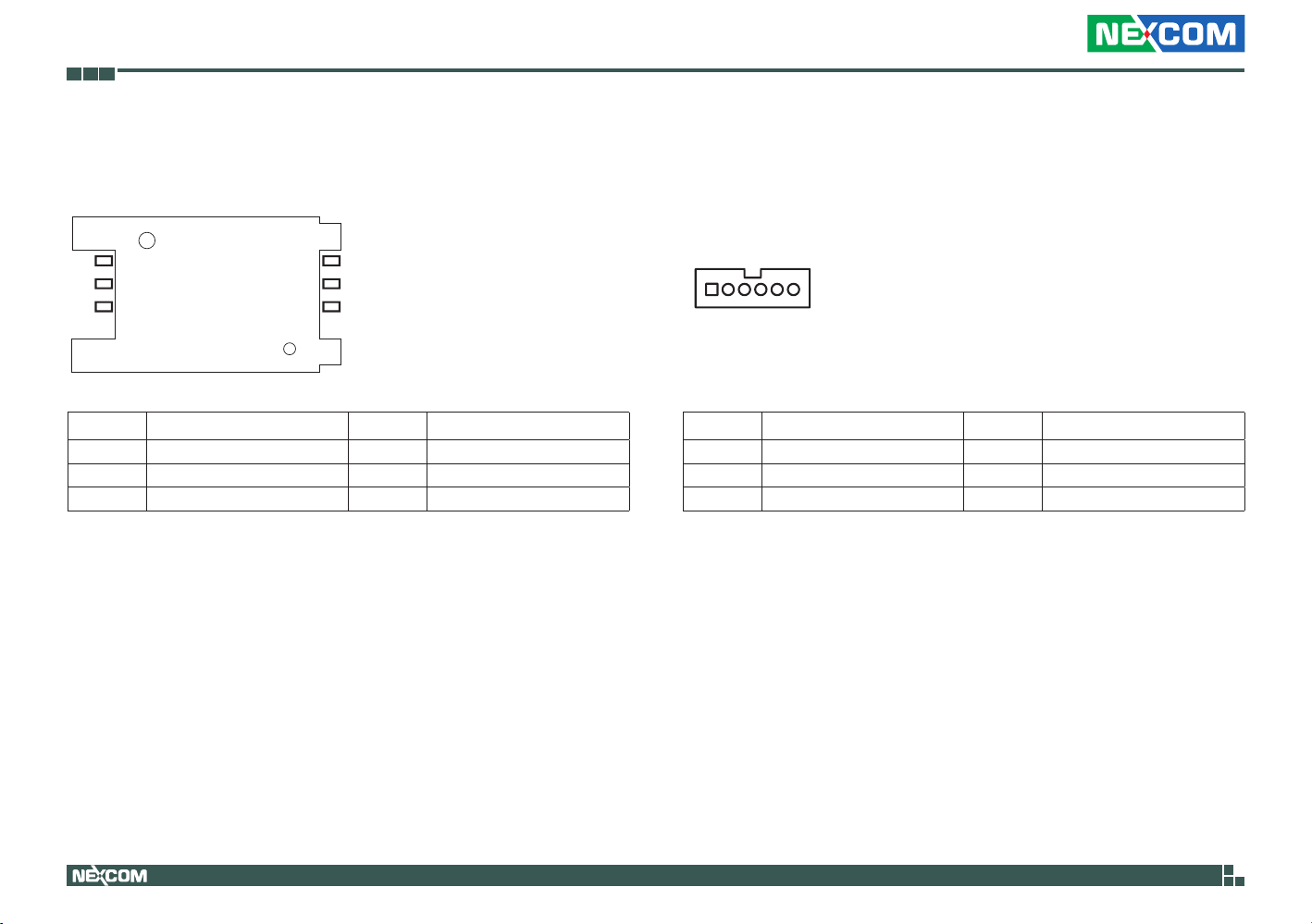

SIM Card Connector ......................................................................30

GPS Connector ..............................................................................30

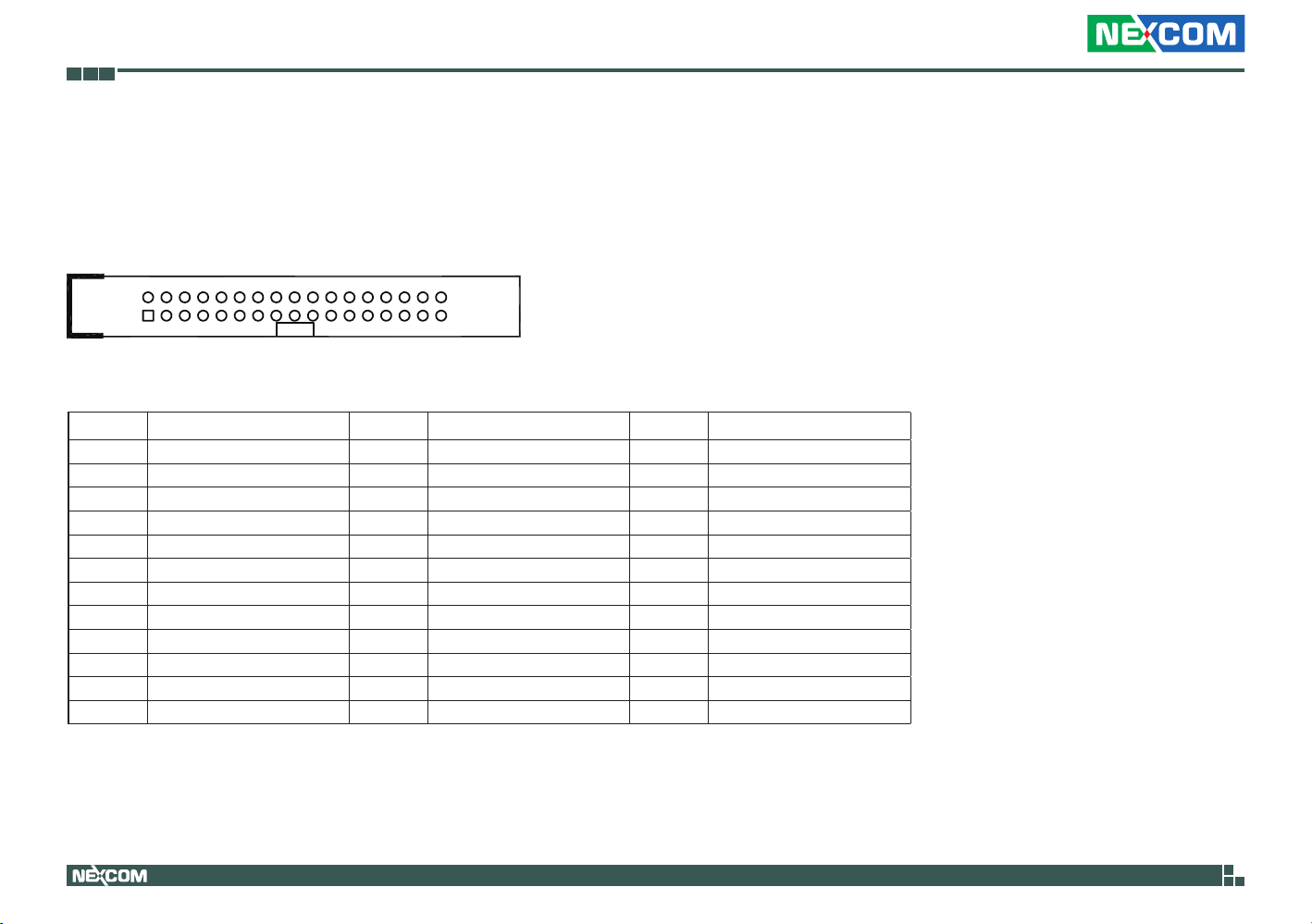

Box Header Connector ................................................................... 31

PWR_BT/RET_BT/LED/SM BUS Pin Header .......................................32

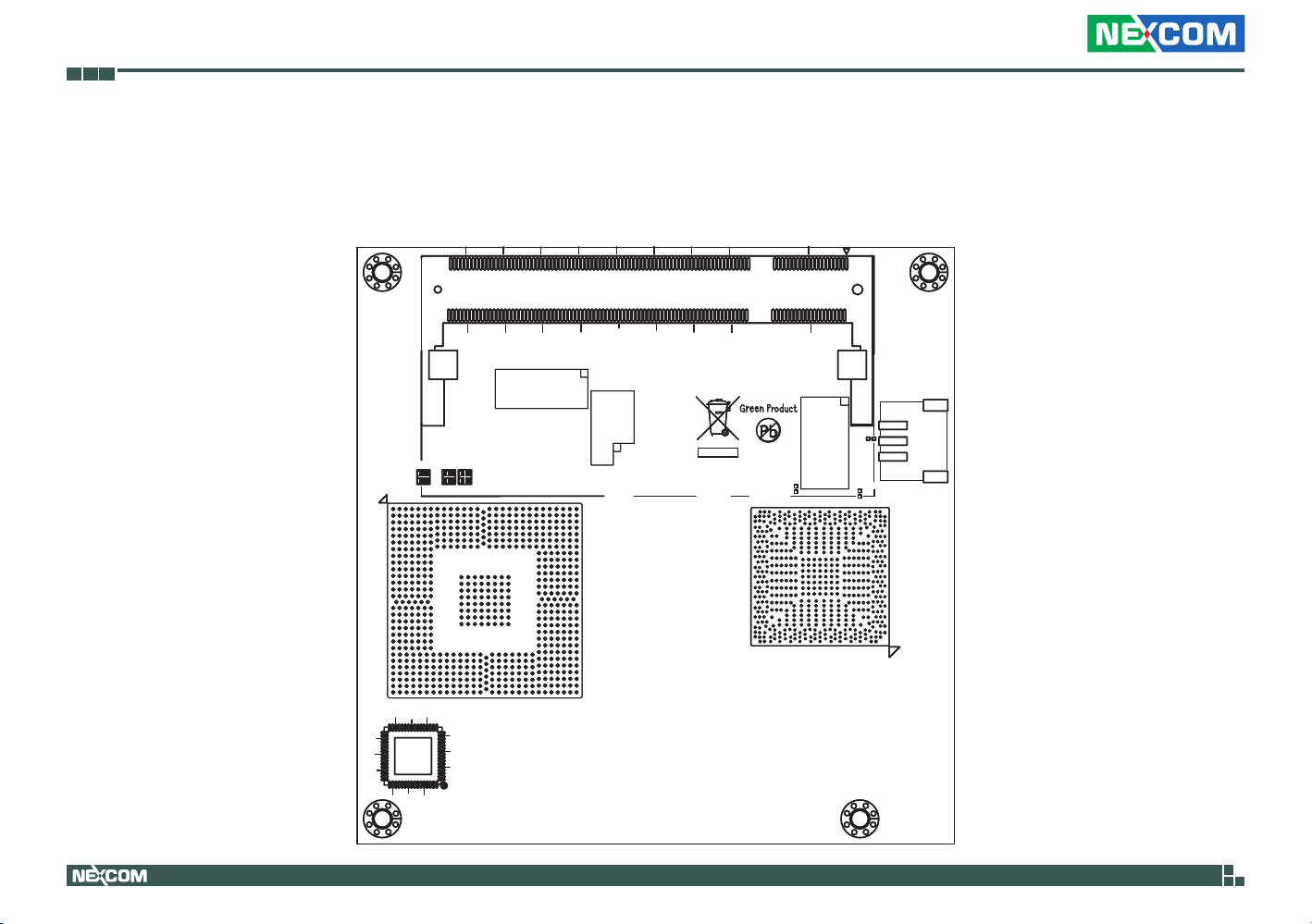

Locations of the Jumpers and Connectors for ICES253-600 ................... 33

ICES253-600 - Top .............................................................................33

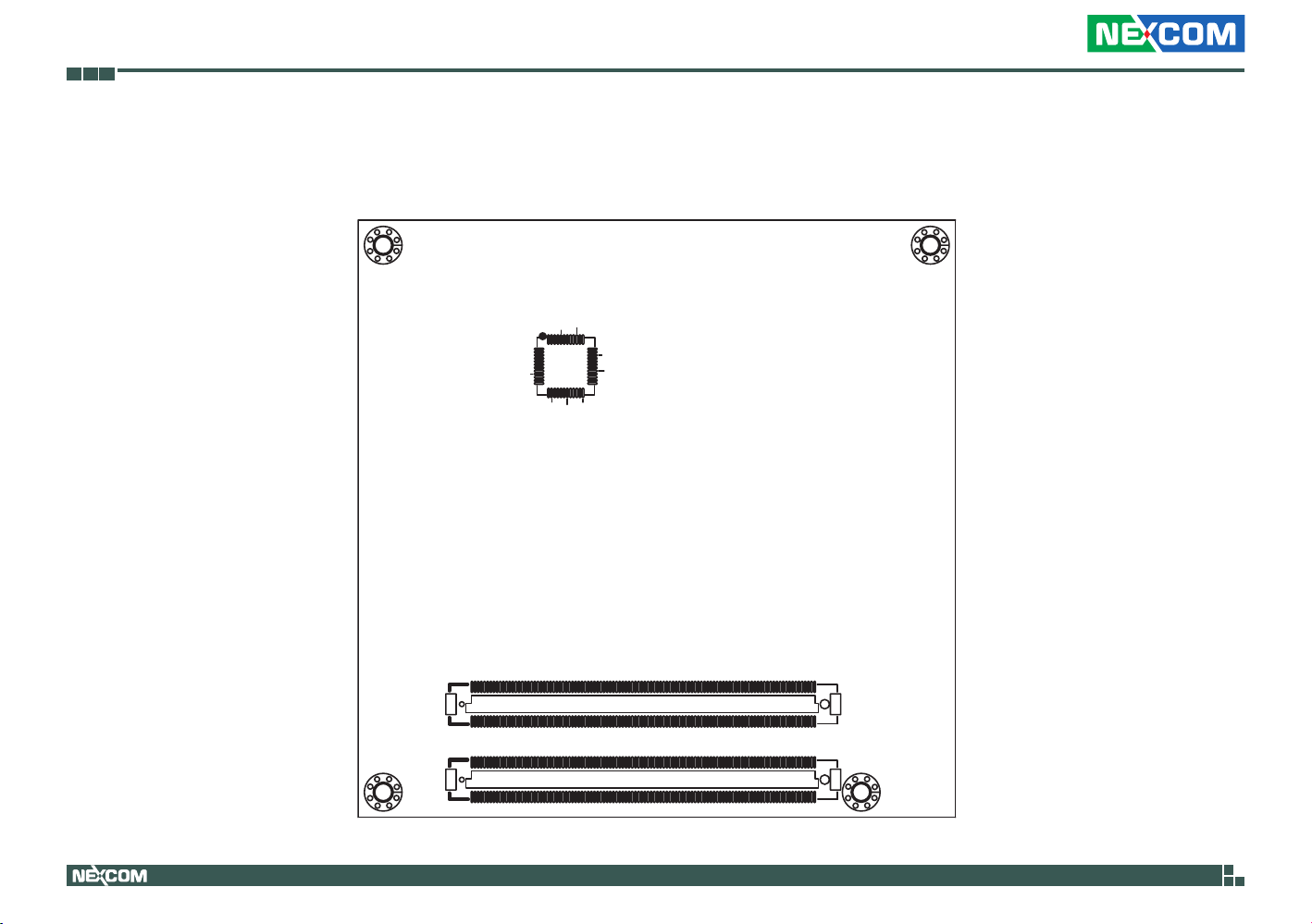

ICES253-600 - Bottom .......................................................................34

Connector Pin Definitions .....................................................................35

Internal Connectors ........................................................................... 35

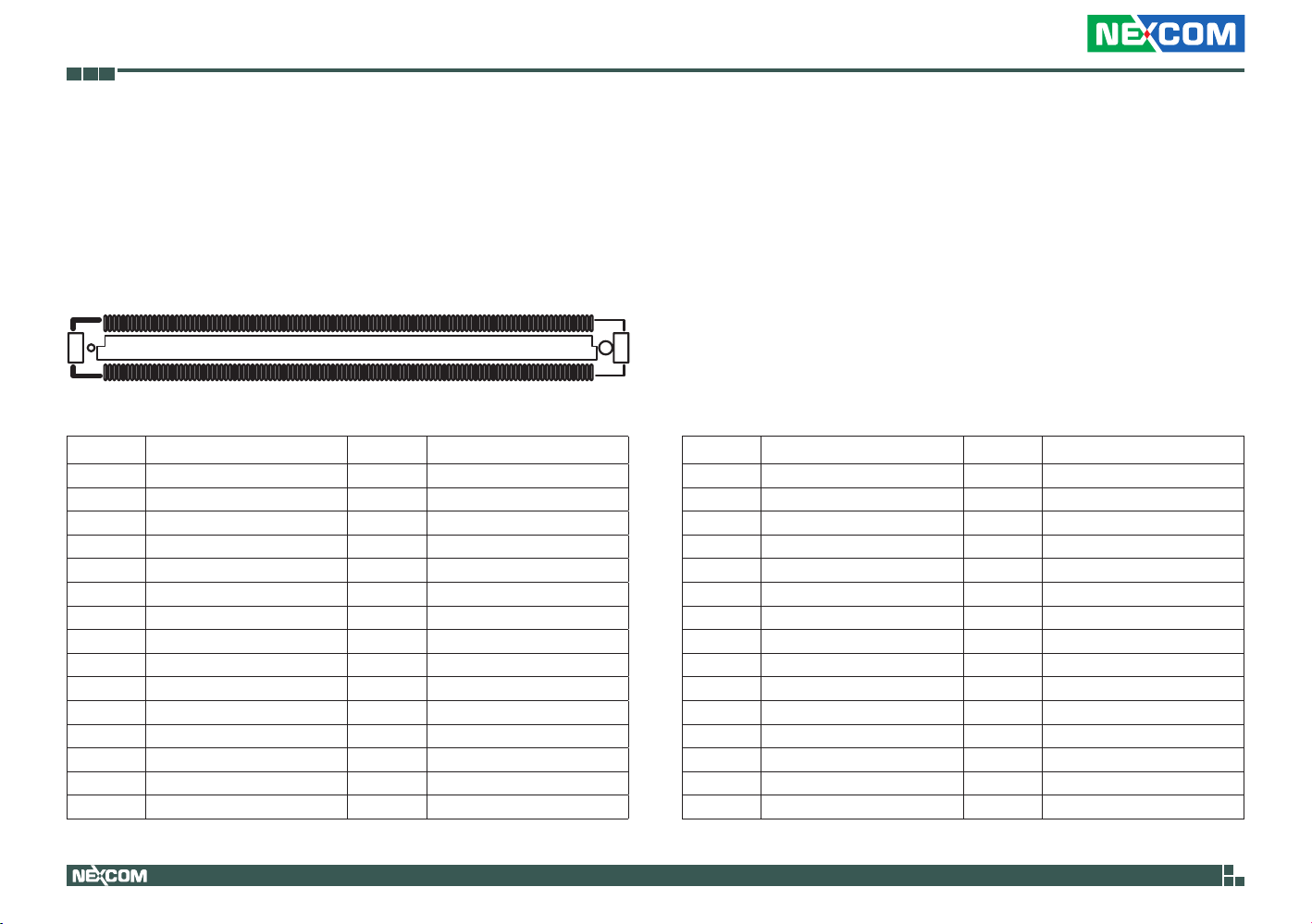

High Speed Board-to-Board Connector: Row A and B.....................35

High Speed Board-to-Board Connector: Row C and D ....................38

CPU FAN Connector .......................................................................40

Chapter 3: System Setup

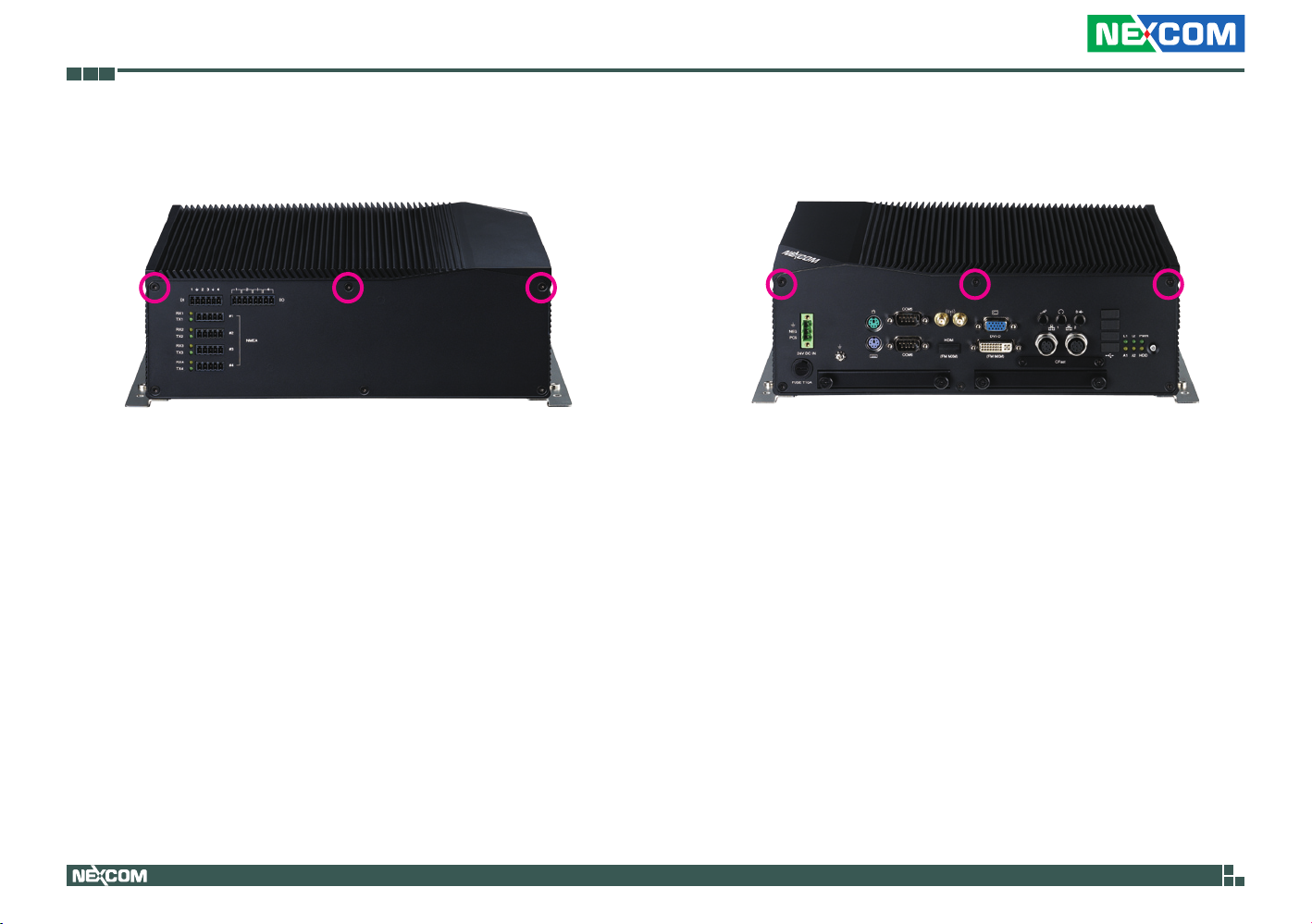

Removing the Chassis Cover ................................................................41

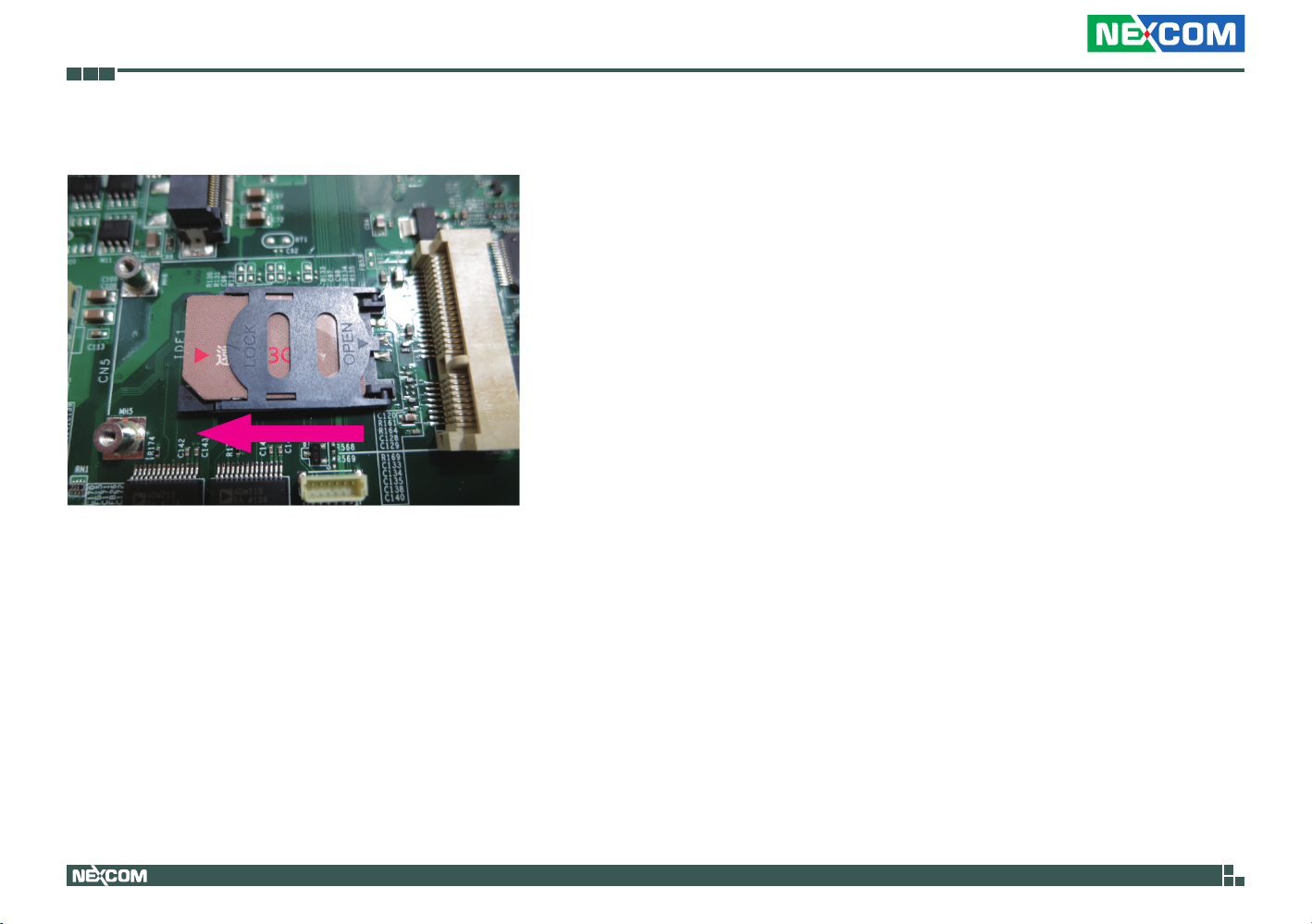

Installing the SIM Card ..........................................................................43

Installing a Wireless LAN Module ..........................................................45

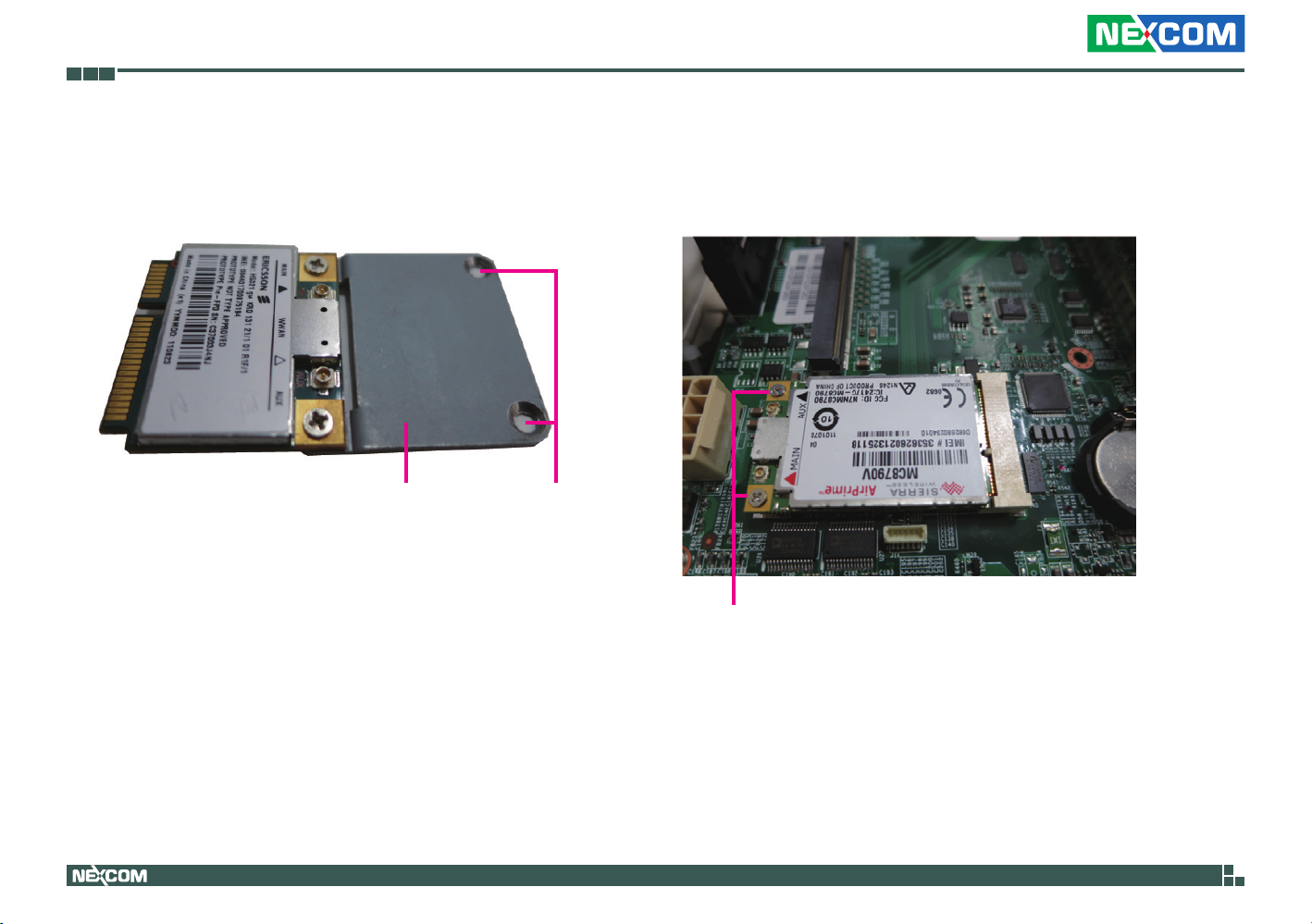

Installing a Wireless LAN Module (Bracket) ............................................ 47

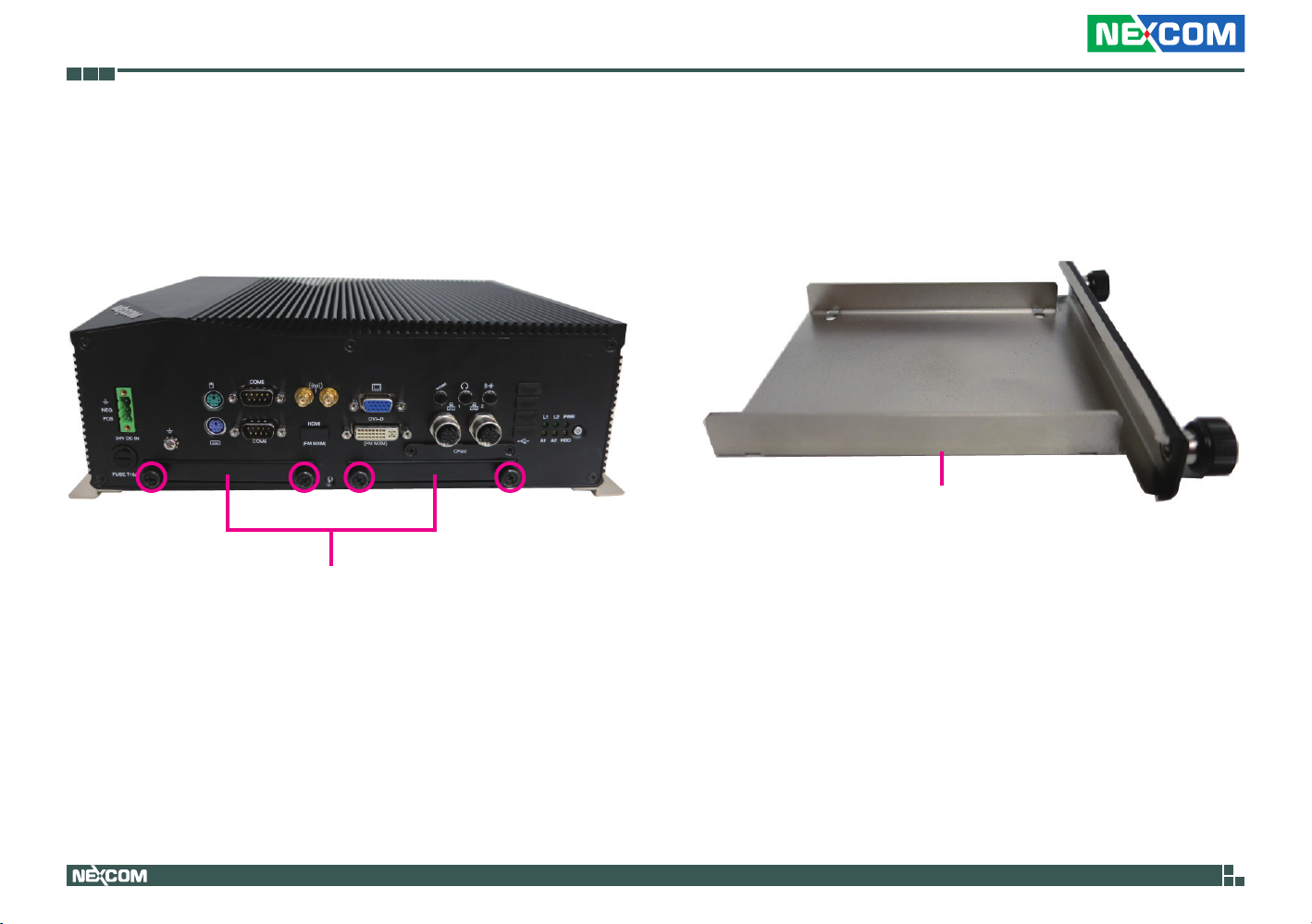

Installing a Hard Drive ...........................................................................48

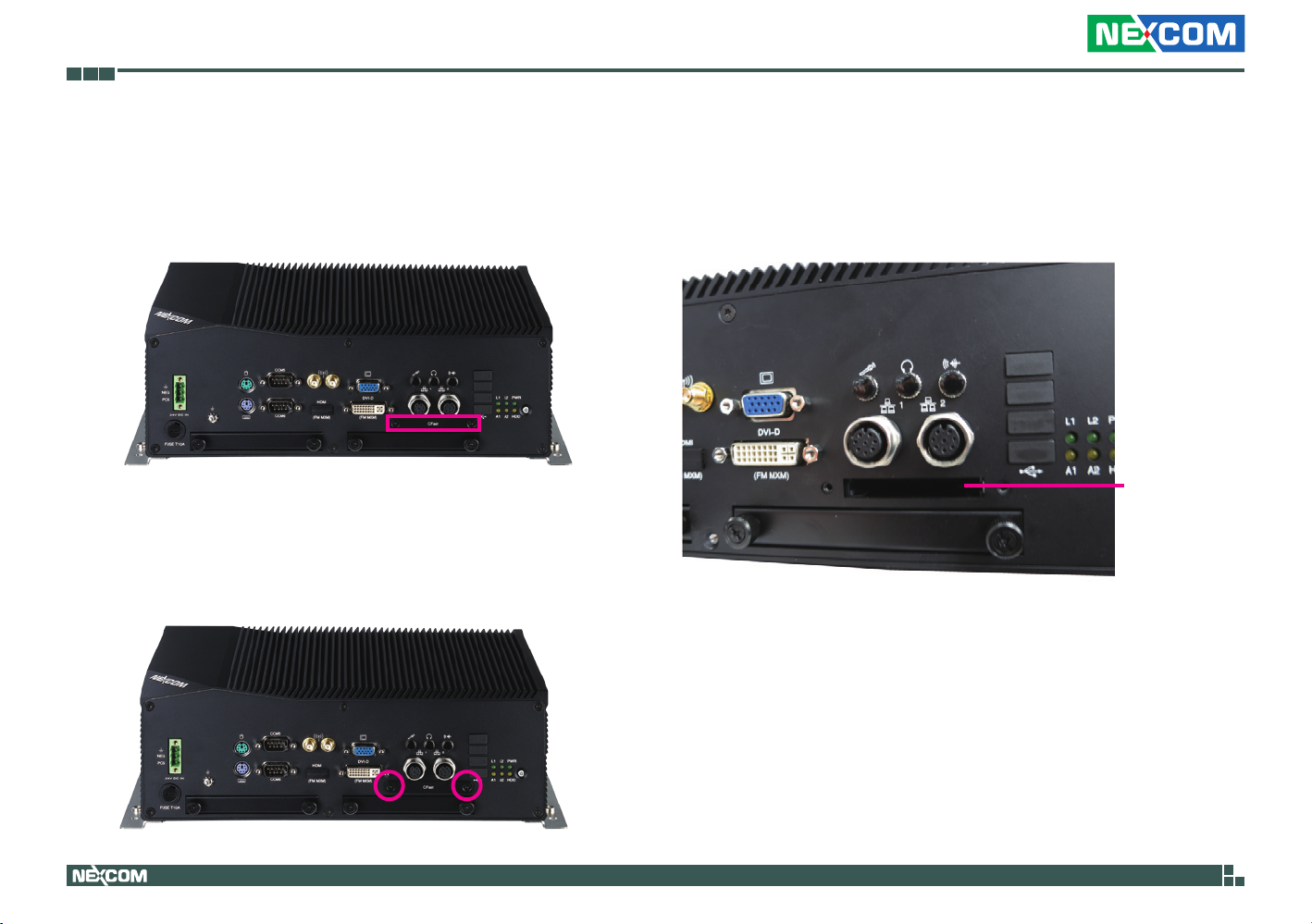

Installing a CFast Card ..........................................................................50

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 51

When to Configure the BIOS .................................................................51

Default Configuration ........................................................................... 52

Entering Setup ...................................................................................... 52

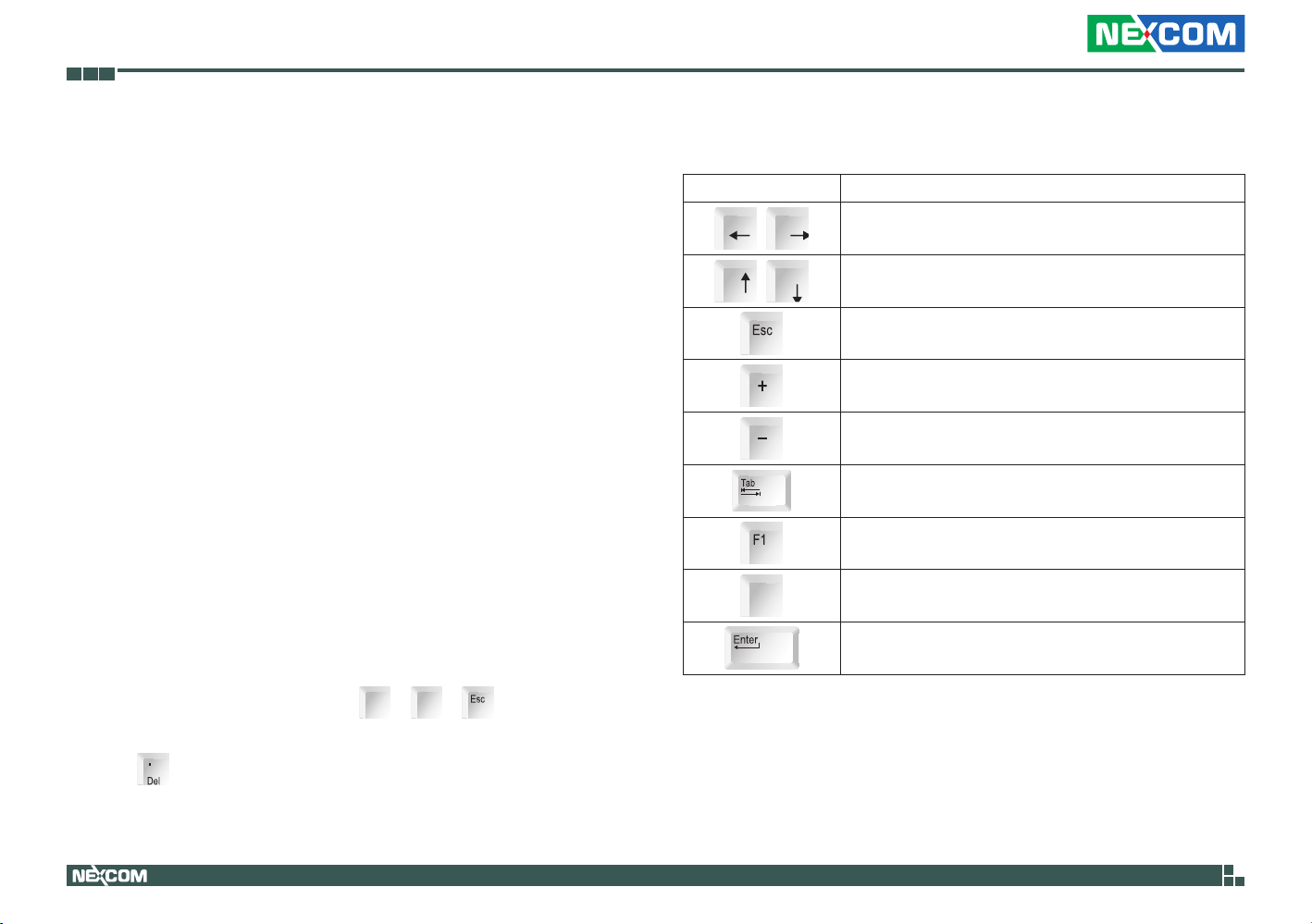

Legends ................................................................................................ 52

BIOS Setup Utility .................................................................................. 54

Main .................................................................................................54

Advanced ......................................................................................... 55

Boot .................................................................................................. 75

Chipset ..............................................................................................77

PCIPnP ...............................................................................................79

Security .............................................................................................80

Exit .................................................................................................... 81

Appendix A: Power Consumption.........................82

Appendix B: GPI/O Programming Guide...............84

Appendix C: Watchdog Timer Setting...................86

iii

nTUF 600 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

nTUF 600 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

nTUF 600 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

This publication, including all photographs, illustrations and software, is protected under international copyright

laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

nTUF 600 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

nTUF 600 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

nTUF 600 User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

nTUF 600 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

nTUF 600 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

nTUF 600 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com.tw

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 www.nexcom.com.tw

NEXCOM Japan

9F, Tamachi Hara Bldg.,4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China NEXCOM China

2F, Block 4, Venus Plaza, Building 21, ZhongGuanCun Software Park, No.8, Dongbeiwang West Road, Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 1505, Greenland He Chuang Bldg., No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

Nanjing Office

Hall C, Block 17, Tian Xing Cui Lang Bldg., No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 Email: sales@nexcom.cn www.nexcom.cn

Shenzhen Office

Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China Tel: +86-755-833 7203 Fax: +86-755-833 7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/1805,Mingze Liwan, No.519 South Luoshi Rd,Hongshan District, Wuhan,430070,China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

xi

nTUF 600 User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Europe

France NEXCOM France

La Grande Arche-Paroi Nord 92044 Paris La Défense France Tel: +33 (0) 1 40 90 33 35 Fax: +33 (0) 1 40 90 31 01 Email: sales.fr@nexcom.eu www.nexcom.eu

Germany

NEXCOM GmbH Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 Email: sales.de@nexcom.eu www.nexcom.eu

Italy

NEXCOM ITALIA S.r.l Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

xii

nTUF 600 User Manual

Preface

Package Contents

Before continuing, verify that the nTUF 600 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Description Qty

1 602DCD0477X00 (N)nTUF600 DVD DRIVER VER:1.0 1 2 60177A0263X00 (N)nROB600 QUICK REFERENCE GUIDE VER:A 1 3 5060900226X00 MINI PCIe BRACKET CHYUAN-JYH 1 4 50311F0295X00 FLAT HEAD SCREW LONG FEI:F2x4 NYLOK NIGP 2 5 50311F0294X00 I HEAD SCREW LONG FEI:I2x4 NYLOK NIGP 2 6 50311F0110X00 (H)FLAT HEAD SCREW LONG FEI:F3x5ISO+NYLOK NIGP 8 7 4NCPM00302X00 (T)TERMINAL BLOCKS 3P PHOENIX CONTACT:1777992 1 8 4NCPF00806X00 TERMINAL BLOCKS 8P PHOENIX CONTACT:1803633 1 9 4NCPF00611X00 TERMINAL BLOCKS 6P PHOENIX CONTACT:1803617 1

10 4NCPF00512X00 TERMINAL BLOCKS 5P PHOENIX CONTACT:1803604 4

xiii

nTUF 600 User Manual

Preface

Ordering Information

The following information below provides ordering information for nTUF 600 series.

• Barebone

nTUF 600 (P/N: 10M00060000X2)

- Intel® Atom™ Dual Core D525 1.8GHz Fanless Marine Computer

nTUF 605 (P/N: 10M00060500X0)

- Intel® Atom™ Dual Core D525 1.8GHz Marine Computer with DVD Combo

xiv

nTUF 600 User Manual

Chapter 1: Product Introduction

Overview

Key Features

▪ On-board Intel® Atom™ Dual Core D525 processor, 1.8 GHz

▪ 4x USB ports

▪ Dual M12 connector for Intel® 82574L GbE LAN ports

▪ 1x VGA display output

▪ 2x RS232

▪ 2x PS/2 for keyboard and mouse

▪ 1x external CFast socket

▪ 1x mini-PCIe with two Antenna Holes

▪ Support +24V DC power input

▪ Dual cold swappable 2.5” SSD tray

▪ Supports ATX Power Mode, WoL, LAN Teaming and PXE function

1

nTUF 600 User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ On-board Intel® Atom™ Dual Core processor D525, 1.8 GHz, 1M cache ▪ Intel® ICH8M PCHs chipset

Main Memory

▪ 1x DDR2 SO-DIMM sockets, support up to 2 GB DDR2 667/ 800 SDRAM,

un-buffered and non-ECC

I/O Interface-Front

▪ ATX power on/off switch ▪ HDD access/ power status LEDs ▪ LAN1 & LAN2 status LEDs ▪ 4x USB2.0 ports ▪ 2x M12 GbE LAN ports

Intel® 82574L GbE LAN controller on board with1.5KV surge protection ▪ 1x VGA output ▪ 1x DVI-D & 1x HDMI (only work when optional MXM 3.0 graphic module

is installed) ▪ Audio jack (speaker-out & Mic-in & Line-in) ▪ 2x antenna holes ▪ 2x DB9, RS232 ▪ 2x PS/2 for keyboard & mouse ▪ 2x cold swappable 2.5” HDD tray ▪ 1x external screwed type CFast socket ▪ 3-pin +24V DC input ▪ 1x external fuse;10A

I/O Interface-Rear

▪ 4x Digital Input: 6-pin screw terminals

Voltage level: 5V, TTL-level

▪ 4x Digital Output: 8-pin screw terminals

36V DC with 100mA relay

▪ 4x NMEA 0183 Interfaces

Signal: TX / RX signals 2KV optical isolation protection

Device

▪ 2x 2.5” SSD driver bay ▪ 1x external CFast socket ▪ 1 x mini-PCIe socket

Default: support optional Wi-Fi module Option: support optional 3.5G module

Power Requirements

▪ DC input range: 16V~30V DC input ▪ Nominal DC input: +24V DC input with 1.5KV isolation protection ▪ Pin definition: Positive, Negative and Chassis Ground

Dimensions

▪ 294mm (W) x 200mm (D) x 100mm (H) (11.6”x 7.9”x 3.94”)

Construction

▪ Aluminum chassis with fanless design

2

nTUF 600 User Manual

Chapter 1: Product Introduction

Environment

▪ Operating temperature:

Ambient with air flow: -25°C~55°C

(Based on IEC60945 4th edition, IACS E10 and DNV 2.4)

▪ Storage temperature: -30°C ~ 80°C ▪ Relative humidity: 10% to 93% (non-condensing)

Certifications

▪ IEC60945 ▪ IACS E10 ▪ DNV 2.4

3

nTUF 600 User Manual

Chapter 1: Product Introduction

Knowing Your nTUF 600

Front Panel

Mouse & Keyboard COM5&6: RS232

Antenna hole

DC Input

HDMI DVI-D

Fuse

VGA

HDD Tray

Mic-in

Line-out

Line-in

M12 LAN port

Power/HDD/LAN LED

CFast socket

USB

Power switch

DC Input

Used to plug a DC power cord.

Mouse & Keyboard

PS/2 connector for mouse and keyboard.

COM 5 & 6 Ports

Used to connect RS232 compatible devices.

Antenna Hole

Used to install external antennas.

VGA

Used to connect an analog VGA monitor.

Mic-in

Mic-in jack to connect microphones.

Line-out

Line-out jack to connect speakers or headphones.

Line-in

Line-in jack for audio input.

USB

4 USB2.0 ports to connect the system with USB2.0/1.1 device.

4

nTUF 600 User Manual

Chapter 1: Product Introduction

Fuse

A 10A fuse used to protect the system from overcurrent.

HDD Tray

Hard drive trays to install hard drives on.

HDMI

Used to connect a high-definition display. HDMI display output is active only when MXM Graphic card is installed. In addition, the air ventilation holes are necessary if MXM graphic card is installed.

DVI-D

Used to connect a digital LCD panel. DVI-D display output is active only when MXM Graphic card is installed. In addition, the air ventilation holes are necessary if MXM graphic card is installed.

M12 LAN Port

Dual M12 LAN ports used to connect the system to a local area network.

CFast Socket

Used to insert a CFast card.

Power/HDD/LAN LED

Indicates the power status, hard drive and LAN activity of the system.

Power Switch

Press to power-on or power-off the system.

5

nTUF 600 User Manual

Chapter 1: Product Introduction

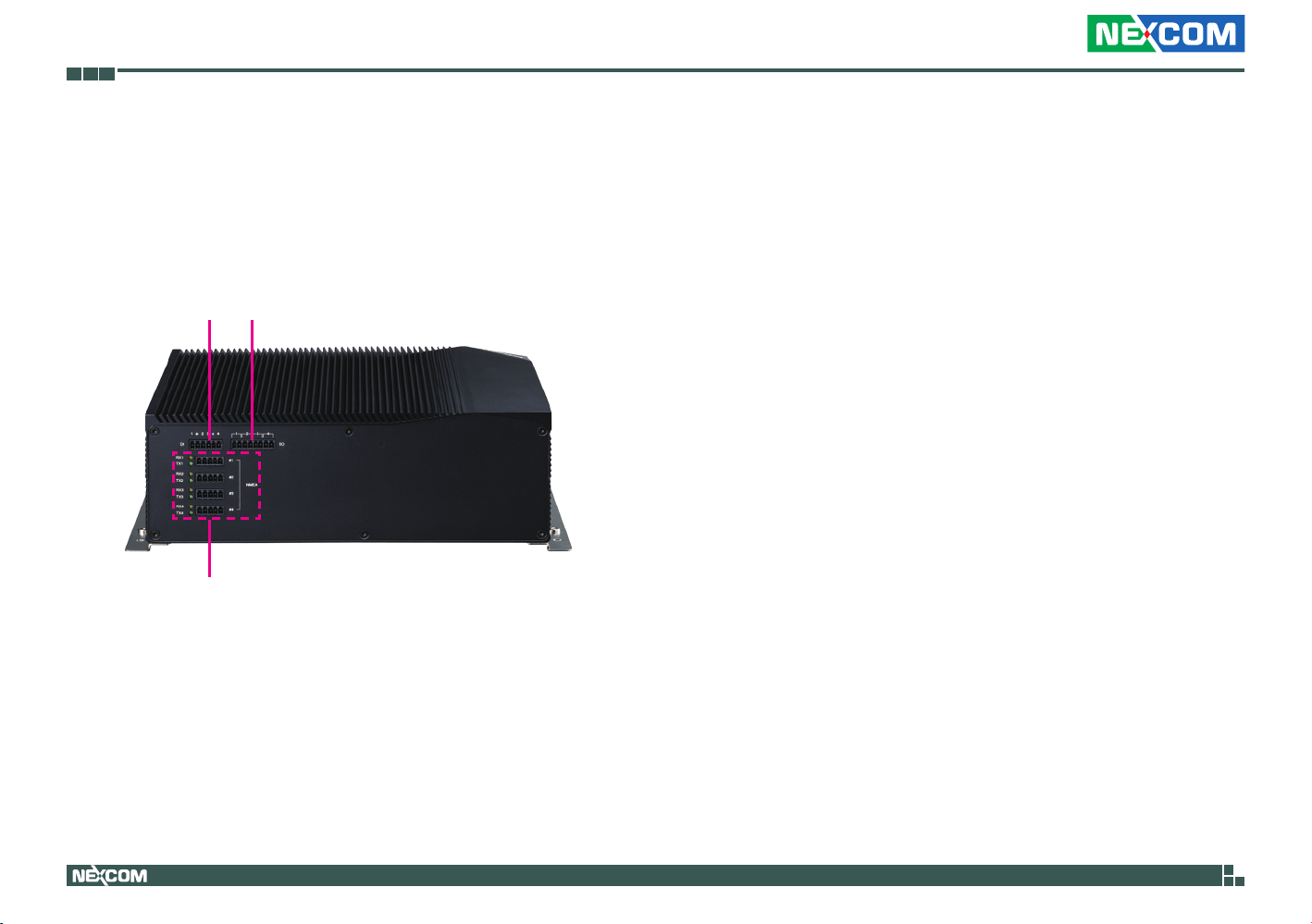

Rear Panel

Digital input Digital output

Digital Input and Output

Four channels of digital input and output used to connect to switches, detectors, lights or alarm triggers.

NMEA 0183 Interface

Four NMEA interfaces used to connect NMEA 0183 RS422 serial devices. (Please set the mode to RS485 in the BIOS menu if RS485 connection is used.)

NMEA 0183 interface

6

nTUF 600 User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

7

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the nTUF 600 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep

small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow

require only a few simple tools, including the following:

– A Philips screwdriver

– A flat-tipped screwdriver

– A set of jewelers screwdrivers

– A grounding strap

– An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect

connections as these can damage the soft metal or plastic parts of the

connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching

a metal object. Static electricity can damage many of the electronic

components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

8

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

9

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors for nROM600

nROB600

The figure below shows the location of the jumpers and connectors.

J11

J5 J6

J3 J4

J1

J2

JP1

J7

CN1

CN3

CN2

CN4

COM1A/COM1B

KM1

IDE1

CN5

J15

CN6A/CN6B

10

J10

LAN1 LAN2

USB1

JP2

LED1

LED2

J9

JP3

JP4

JP5

LED3

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

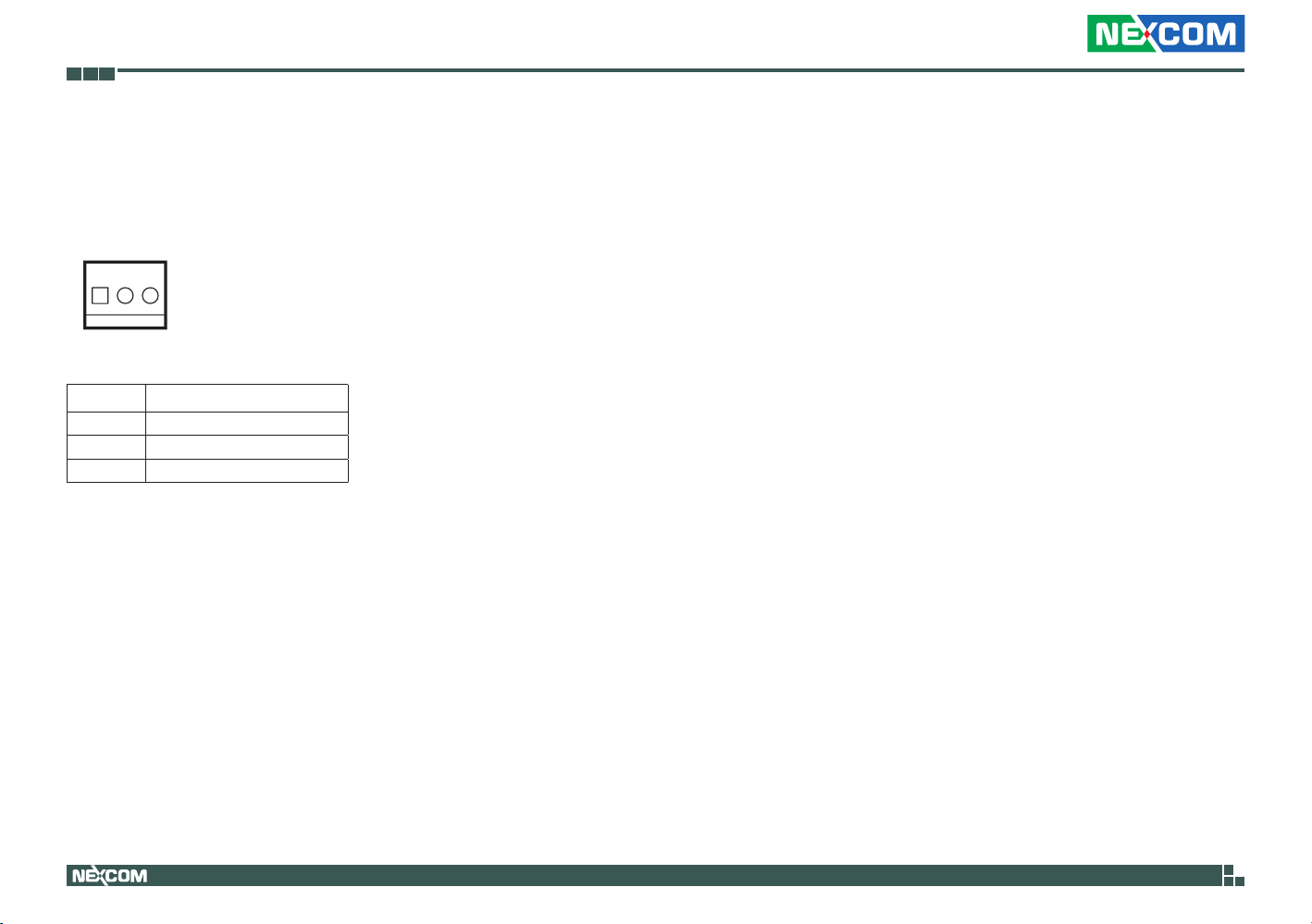

RTC Clear

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: J10

1 3 1 3

Pin Settings

1-2 On Normal 2-3 On Clear BIOS

1-2 On: default

Pineview-D LVDS Backlight Power Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP2

Pin Settings

1-2 On 3.3V 2-3 On 5V

1-2 On: default

11

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces - Front Panel

24V DC Input

Connector type: 3-pin terminal block

1 3

Pin Definition

1 + 2 3 GND

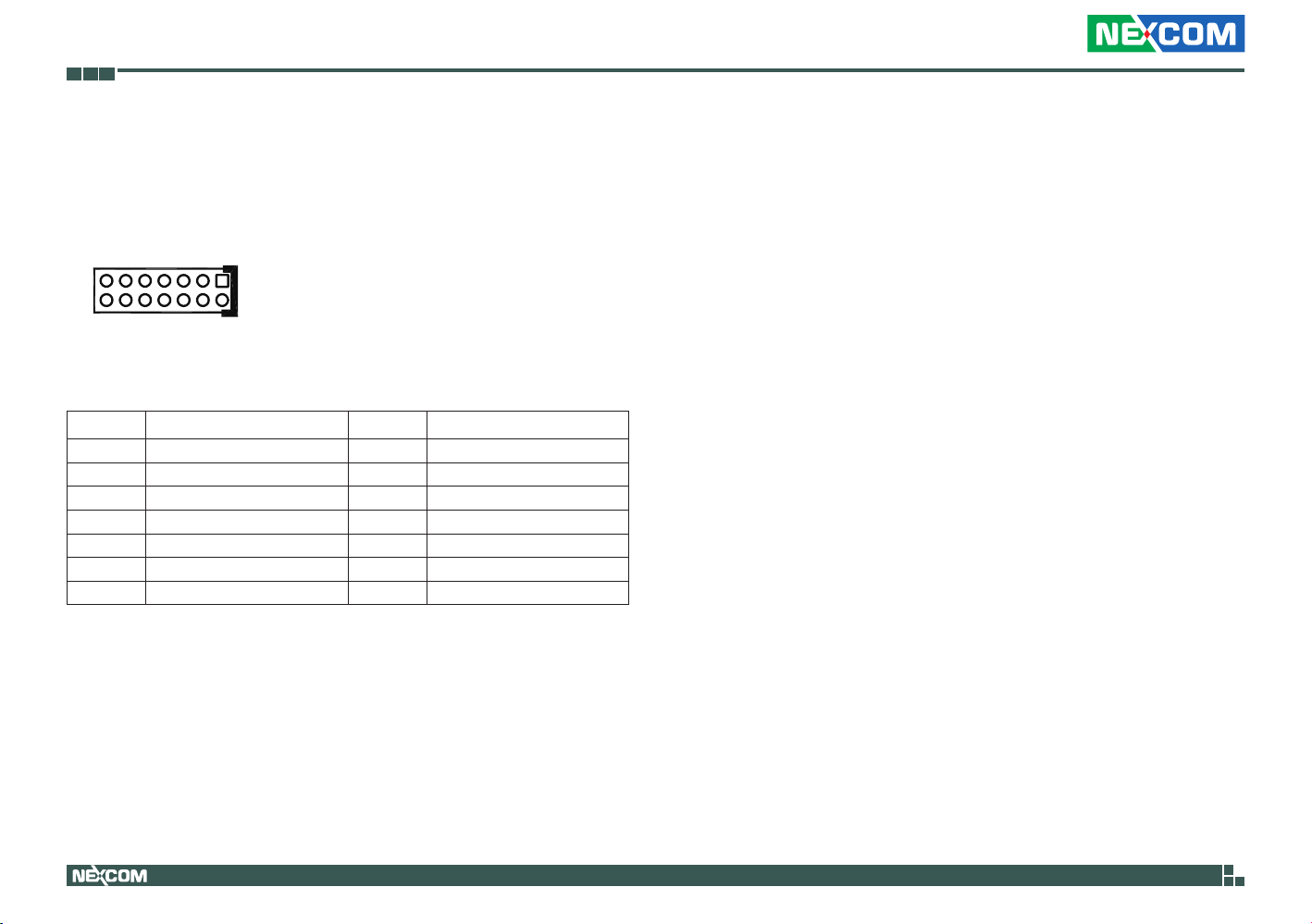

Keyboard and Mouse

Connector type: PS/2, Mini-DIN6 Connector location: KM1

PS/2 Mouse

1112

10

8

6

4

2

PS/2 Keyboard

Pin Definition Pin Definition

1 KB DATA 2 NC 3 GND 4 KBMSVCC 5 KBCLK 6 NC 7 MD ATA 8 NC 9 GND 10 KBMSVCC

11 MCLK 12 NC

9

7

5

3

1

12

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

COM 5 and COM 6 Ports

Connector type: DB-9 port, 9-pin D-Sub Connector location: COM1A, COM1B

COM 5

1 6

10 15

COM 6

Pin Definition Pin Definition

1 SP1_DCD 2 SP1_RXD 3 SP1_TXD 4 SP1_DTR 5 GND 6 SP1_DSR 7 SP1_RTS 8 SP1_CTS

9 SP1_RI 10 SP2_DCD 11 SP2_RXD 12 SP2_TXD 13 SP2_DTR 14 GND 15 SP2_DSR 16 SP2_RTS 17 SP2_CTS 18 SP2_RI

5 9

14 18

HDMI

Connector type: HDMI port Connector location: J15

1

2 18

Pin Definition Pin Definition

1 HDMI2_DATA2_P 2 GND 3 HDMI2_DATA2_N 4 HDMI2_DATA1_P 5 GND 6 HDMI2_DATA1_N 7 HDMI2_DATA0_P 8 GND

9 HDMI2_DATA0_N 10 HDMI2_CLK_P 11 GND 12 HDMI2_CLK_N 13 NC 14 NC 15 HDMI2_CTRL_CLK 16 HDMI2_CTRL_DATA 17 GND 18 HDMI2_VCC5 19 HDMI2_HPD_R 20

19

13

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

DVI & VGA Connector

Connector type: DB-15 port, 15-pin D-Sub (VGA) 24-pin D-Sub, 2.0mm-M-180 (DVI) Connector location: CN6A (DVI) and CN6B (VGA)

VGA

24

1

11

6

16

5

10

15

1 8

9

17

DVI

Pin Definition Pin Definition

1 TX2- 2 TX2+ 3 GND 4 NC 5 NC 6 DDC_CLK 7 DDC_DATA 8 NC

9 TX1- 10 TX1+ 11 GND 12 NC 13 NC 14 DVI_VCC(+5V) 15 GND 16 HotPlugDet 17 TX0- 18 TX0+ 19 GND 20 NC 21 NC 22 NC 23 TXCLK+ 24 TXCLK-

VGA

Pin Definition Pin Definition

25 RED 26 GREEN 27 BLUE 28 NC 29 GND 30 GND 31 GND 32 GND 33 +5V 34 GND 35 NC 36 DDCDATA_VGA 37 HSYNC_VGA 38 VSYNC_VGA 39 DDCCLK_VGA

Max. Resolution

nTUF 600 605 606

VGA 2048*1536 2048*1536 2048*1536

DVI X X 1920*1200

HDMI X X 1920*1200

nTUF 610 615 616

VGA 2048*1536 2048*1536 2048*1536

DVI 1920*1200 1920*1200 1920*1200

HDMI X X 1920*1200

14

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

LAN 1 Connector

Connector type: M12 port Connector location: LAN1

Pin Definition Pin Definition

1 LAN1M1P 2 LAN1M3P

3 LAN1M3N 4 LAN1M0N

5 LAN1M2P 6 LAN1M0P

7 LAN1M1N 8 LAN1M2N

LAN 2 Connector

Connector type: M12 port Connector location: LAN2

Pin Definition Pin Definition

1 LAN2M1P 2 LAN2M3P 3 LAN2M3N 4 LAN2M0N 5 LAN2M2P 6 LAN2M0P 7 LAN2M1N 8 LAN2M2N

15

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Quadruple USB Port

Connector type: Quadruple USB port, Type A Connector location: USB1

13

9

5

1

Pin Definition Pin Definition

1 +5V 2 USB_3N

3 USB_3P 4 GND

5 +5V 6 USB2N

7 USN2P 8 GND

9 +5V 10 USB1N 11 USB1P 12 GND 13 +5V 14 USB0N 15 USB0P 16 GND

16

12

8

4

LAN1/LAN2 Link/Active LEDs

Connector location: LED1 and LED2

L1

A1L2A2

Color Location LAN1 LAN2 LED status

Green Top

Yellow Bottom

Link

(L1)

Active

(A1)

Link

(L2)

Active

(A2)

Off: 10M Green: GbE

Blinking: Activity is occurring

16

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Power LEDs

Connector location: LED3

PWR

HDD

Status LED Color

PWR Green HDD Yellow

17

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

External I/O Interfaces - Rear Panel

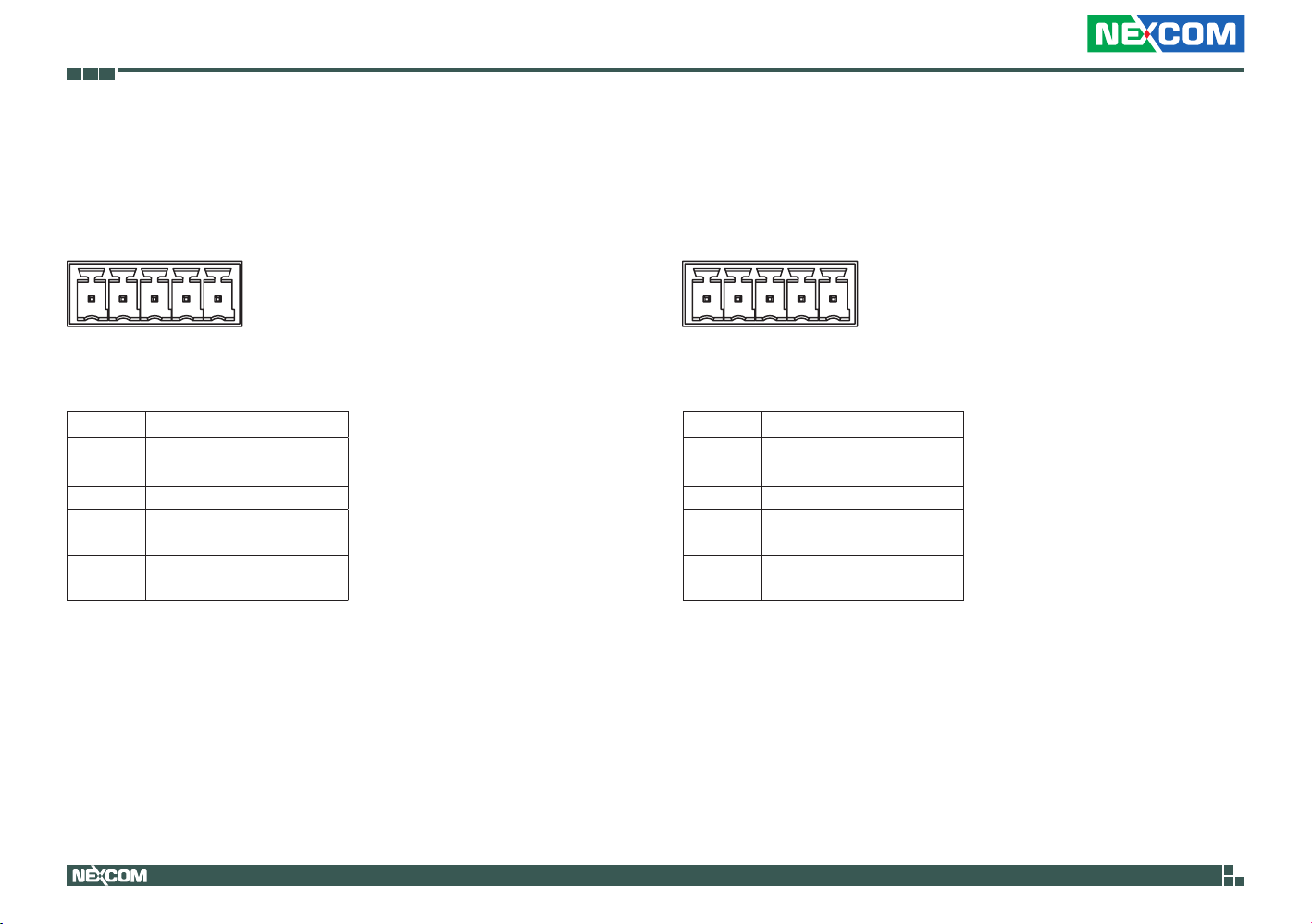

Digital Input Connector

Connector type: 6-pin switch Connector location: CN1

Digital Output Connector

Connector type: 8-pin switch Connector location: CN6

1 2 3 4

16

Pin Definition

1 GPI3_R

2 GND

3 GPI2_R

4 GPI1_R

5 GND

6 GPI0_R

1

Pin Definition

1 RELAY3_OUT 2 RELAY3_IN 3 RELAY2_OUT 4 RELAY2_IN 5 RELAY1_OUT 6 RELAY1_IN 7 RELAY0_OUT 8 RELAY0_IN

2 3 4

18

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

NMEA Port 1

Connector type: 5-pin switch Connector location: CN2

1

Pin Definition

1 RS422_RX3+

2 RS422_RX3-

3 ISO_GND

4

5

RS422_TX3+

RS485_D3+

RS422_TX3-

RS485_D3-

NMEA Port 2

Connector type: 5-pin switch Connector location: CN3

1 5

Pin Definition

1 RS422_RX4+ 2 RS422_RX43 ISO_GND

4

5

RS422_TX4+

RS485_D4+ RS422_TX4-

RS485_D4-

19

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

NMEA Port 3

Connector type: 5-pin switch Connector location: CN4

1

Pin Definition

1 RS422_RX5+

2 RS422_RX5-

3 ISO_GND

4

5

5 1 5

RS422_TX5+

RS485_D5+

RS422_TX5-

RS485_D5-

NMEA Port 4

Connector type: 5-pin switch Connector location: CN5

Pin Definition

1 RS422_RX6+ 2 RS422_RX63 ISO_GND

4

5

RS422_TX6+

RS485_D6+ RS422_TX6-

RS485_D6-

20

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

14

Internal Connectors

CPU Fan Connector

Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: J6

System Fan Connector

Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: J5

Pin Definition

1 GND

2 +12V

3 CPUFANIN

4 CPUFANOUT

21

Pin Definition

1 GND 2 +12V 3 SYSFANIN 4 SYSFANOUT

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

System Fan Connector

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: J11

12

Pin Definition

1 GND

2 +12V

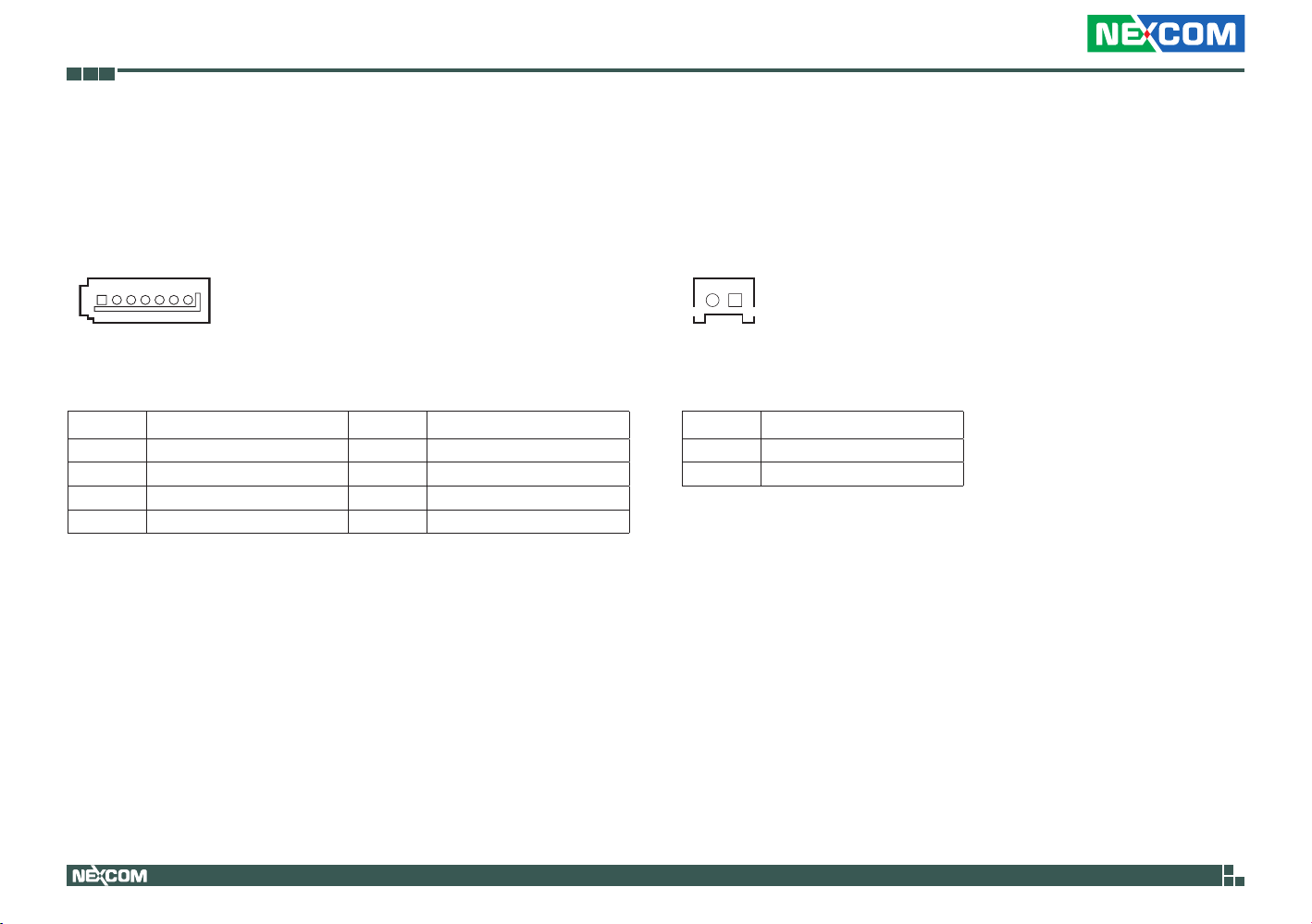

LVDS Panel Backlight Connector

Connector type: 1x7 JST, 7-pin header, 2.5mm pitch Connector location: J9

17

Pin Definition Pin Definition

1 +5V 2 V_INV(+12V)

3 V_INV(+12V) 4

5 GND 6 GND 7 Panel Backlight Enable

Panel Backlight

Brightness Control

22

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

11 22

LVDS Connector

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN1

9 0

Pin Definition Pin Definition

1 LVDS_I2CCLK 2 LVDS_I2CDAT

3 VCC_LCD 4 LVDSA_DATA0

5 LVDSA_DATA3 6 LVDSA_DATA0#

7 LVDSA_DATA3# 8 VCC_LCD

9 GND 10 LVDSA_DATA1 11 LVDSA_CLK 12 LVDSA_DATA1# 13 LVDSA_CLK# 14 GND 15 GND 16 V_INV(+12V) 17 LVDSA_DATA2 18 V_INV(+12V) 19 LVDSA_DATA2# 20 GND

LVDS Connector

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN3

9 0

Pin Definition Pin Definition

1 LVDS_I2CCLK 2 LVDS_I2CDAT 3 VCC_LCD 4 LVDSB_DATA0 5 LVDSB_DATA3 6 LVDSB_DATA0# 7 LVDSB_DATA3# 8 VCC_LCD

9 GND 10 LVDSB_DATA1 11 LVDSB_CLK 12 LVDSB_DATA1# 13 LVDSB_CLK# 14 GND 15 GND 16 V_INV(+12V) 17 LVDSB_DATA2 18 V_INV(+12V) 19 LVDSB_DATA2# 20 GND

23

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

16

14

USB Connector

Connector type: 1x6 JST, 6-pin header, 2.00mm pitch Connector location: J7

Pin Definition Pin Definition

1 +5V 2 USB4N 3 USB4P 4 USB5N 5 USB5P 6 GND

Line-out Pin Header

Connector type: 1x4 4-pin header, 2.00mm pitch Connector location: JP4

Pin Definition

1 FLOUT_L

2 LOUT_JD

3 GND

4 FLOUT_R

24

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

14

Mic-in Pin Header

Connector type: 1x4 4-pin header, 2.00mm pitch Connector location: JP3

Pin Definition

1 MIC_L 2 MIC_JD 3 GND 4 MIC_R

Line-in Pin Header

Connector type: 1x4 4-pin header, 2.00mm pitch Connector location: JP5

Pin Definition

1 FLIN_L

2 LIN_JD

3 GND

4 FLIN_R

25

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Power Connector

Connector type: 2x4 8-pin header Connector location: CN4

1 4

5 8

Pin Definition Pin Definition

1 +12VSB 2 +12VSB 3 +12VSB 4 POWER_STATUS 5 GND 6 GND 7 GND 8 GND

SATA1 Connector

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: J3

1 7

Pin Definition Pin Definition

1 GND 2 SATA_TXP0

3 SATA_TXN0 4 GND

5 SATA_RXN0 6 SATA_RXP0

7 GND

26

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

SATA2 Connector

Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: J4

1 7 12

Pin Definition Pin Definition

1 GND 2 SATA_TXP1 3 SATA_TXN1 4 GND 5 SATA_RXN1 6 SATA_RXP1 7 GND

SATA Power Connector

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J1

Pin Definition

1 +5V

2 GND

27

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

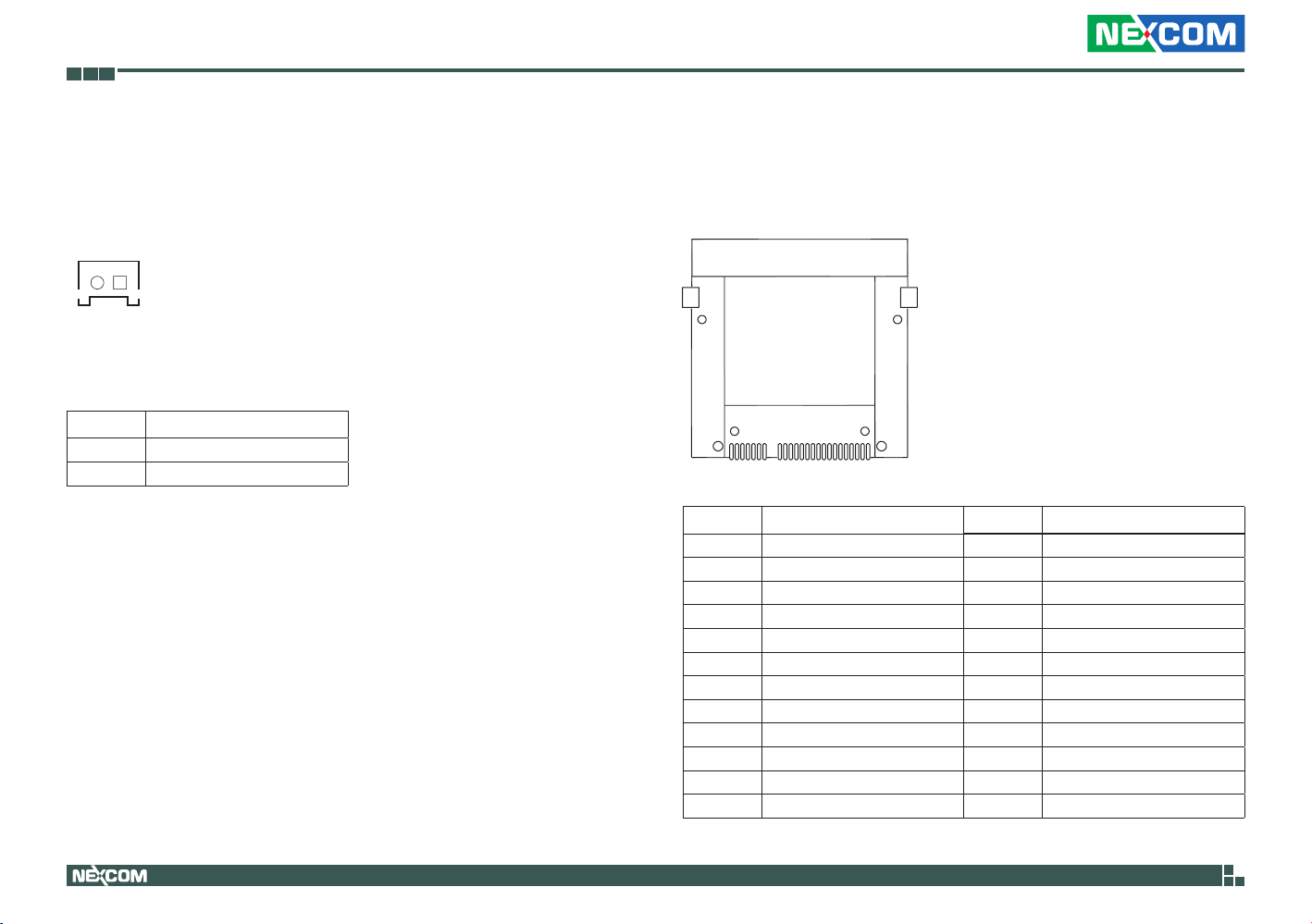

SATA Power Connector

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J2

12

Pin Definition

1 +5V 2 GND

CFast Connector

Connector type: Connector location: CN7

S1 S7 PC1 PC17

Pin Definition Pin Definition

S1 GND PC6 NC S2 SATA_TXP2 PC7 GND S3 SATA_TXN2 PC8 NC S4 GND PC9 CFAST_ACCESS S5 SATA_RXN2 PC10 NC S6 SATA_RXP2 PC11 NC S7 GND PC12 NC

PC1 CDI PC13 +3.3V PC2 GND PC14 +3.3V PC3 NC PC15 GND PC4 NC PC16 GND PC5 NC PC17 NC

28

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

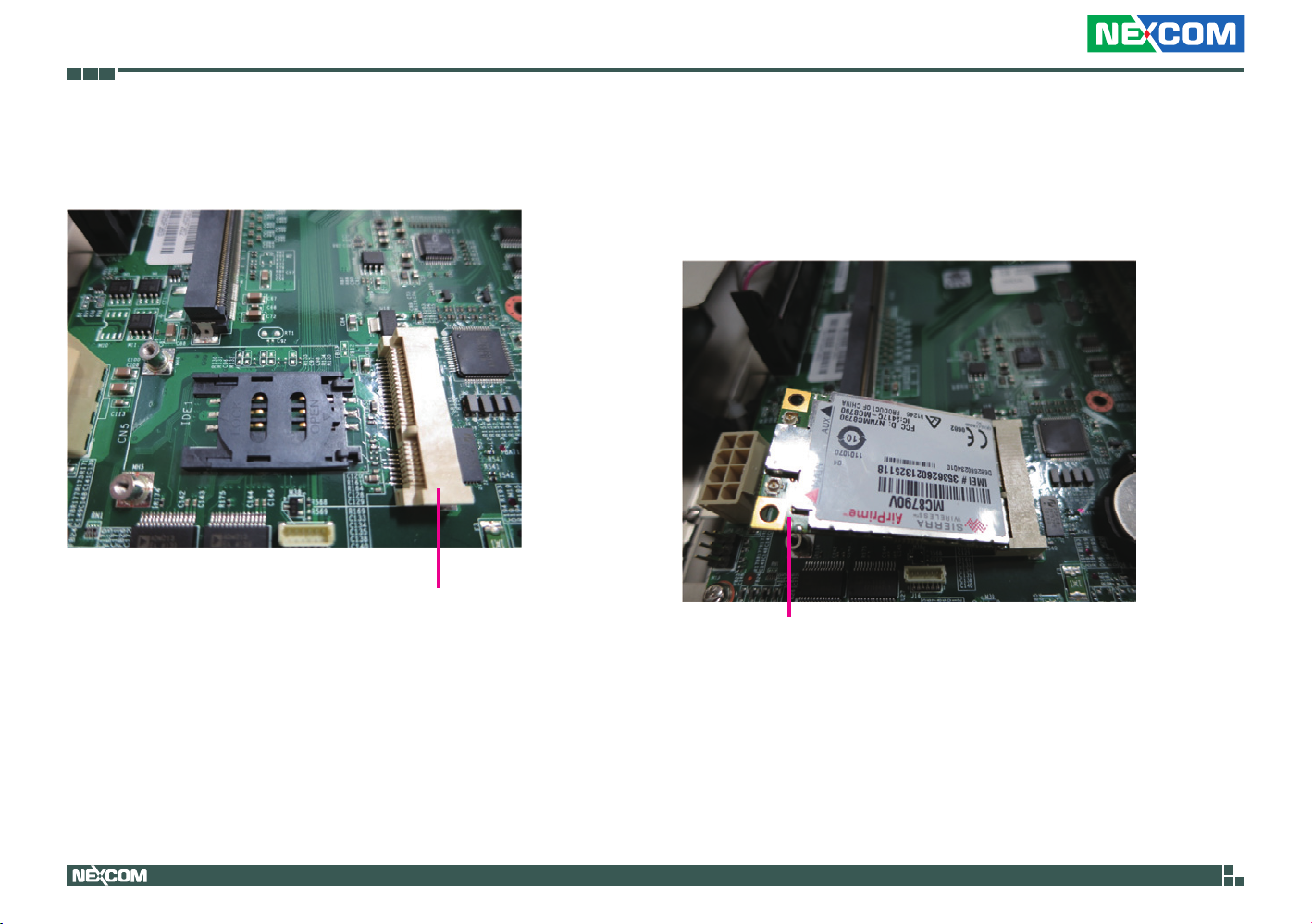

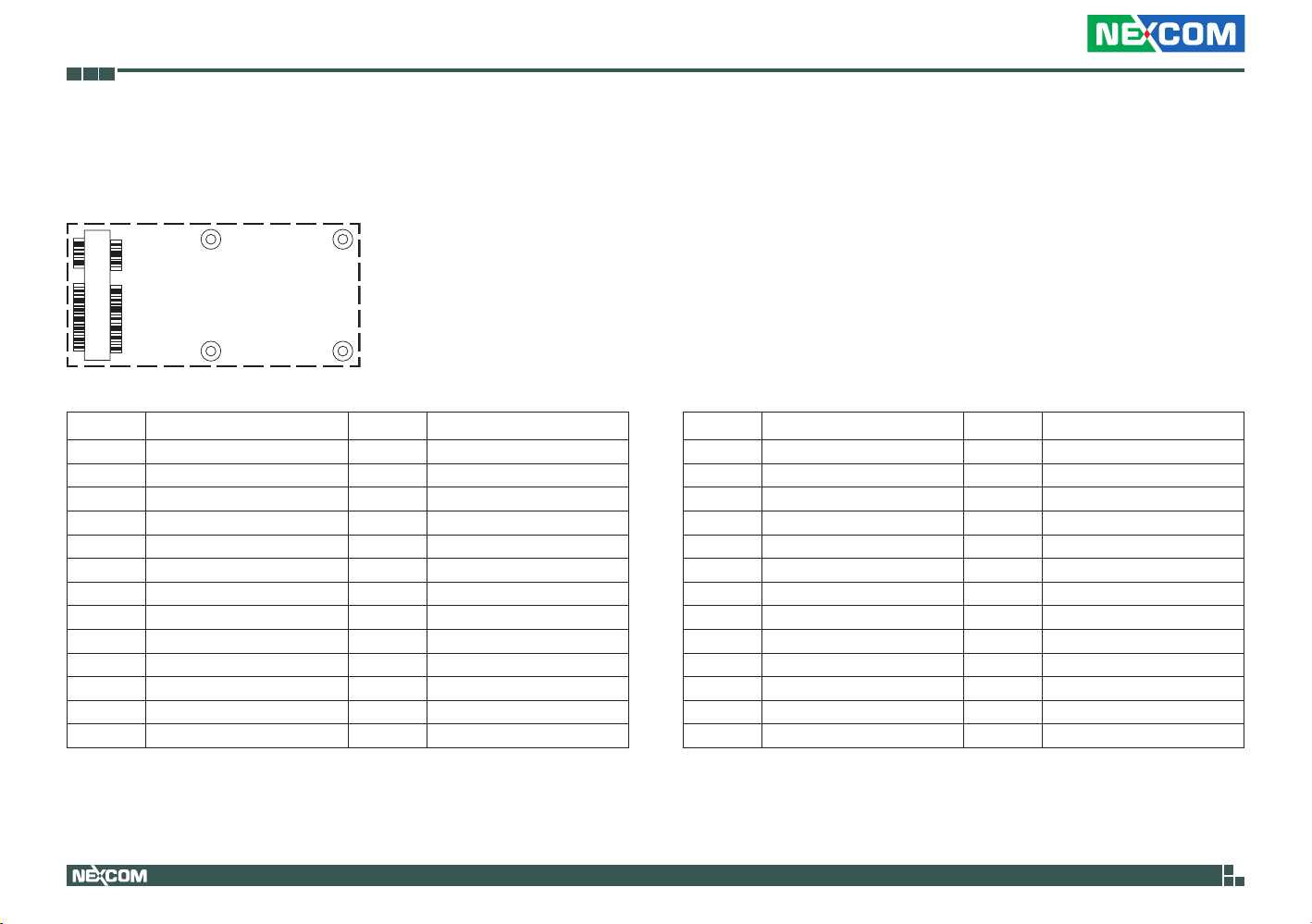

Mini-PCIe Connector

Connector location: CN5

12

51 52

Pin Definition Pin Definition

1 PCIEWAKE# 2 +3VSB 3 N/A 4 GND 5 N/A 6 +1.5V 7 CLKREQ# 8 N/A

9 GND 10 N/A 11 REF CLK- 12 N/A 13 REF CLK+ 14 N/A 15 GND 16 N/A 17 N/A 18 GND 19 N/A 20 Disable# 21 GND 22 RST# 23 PCIERX0- 24 +3VSB 25 PCIERX0+ 26 GND

29

Pin Definition Pin Definition

27 GND 28 +1.5V 29 GND 30 SMBCLK 31 PCIETX0- 32 SMBDATA 33 PCIETX0+ 34 GND 35 GND 36 USB_D37 GND 38 USB_D+ 39 +3VSB 40 GND 41 +3VSB 42 N/A 43 GND 44 N/A 45 N/A 46 N/A 47 N/A 48 +1.5V 49 N/A 50 GND 51 N/A 52 +3VSB

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

16

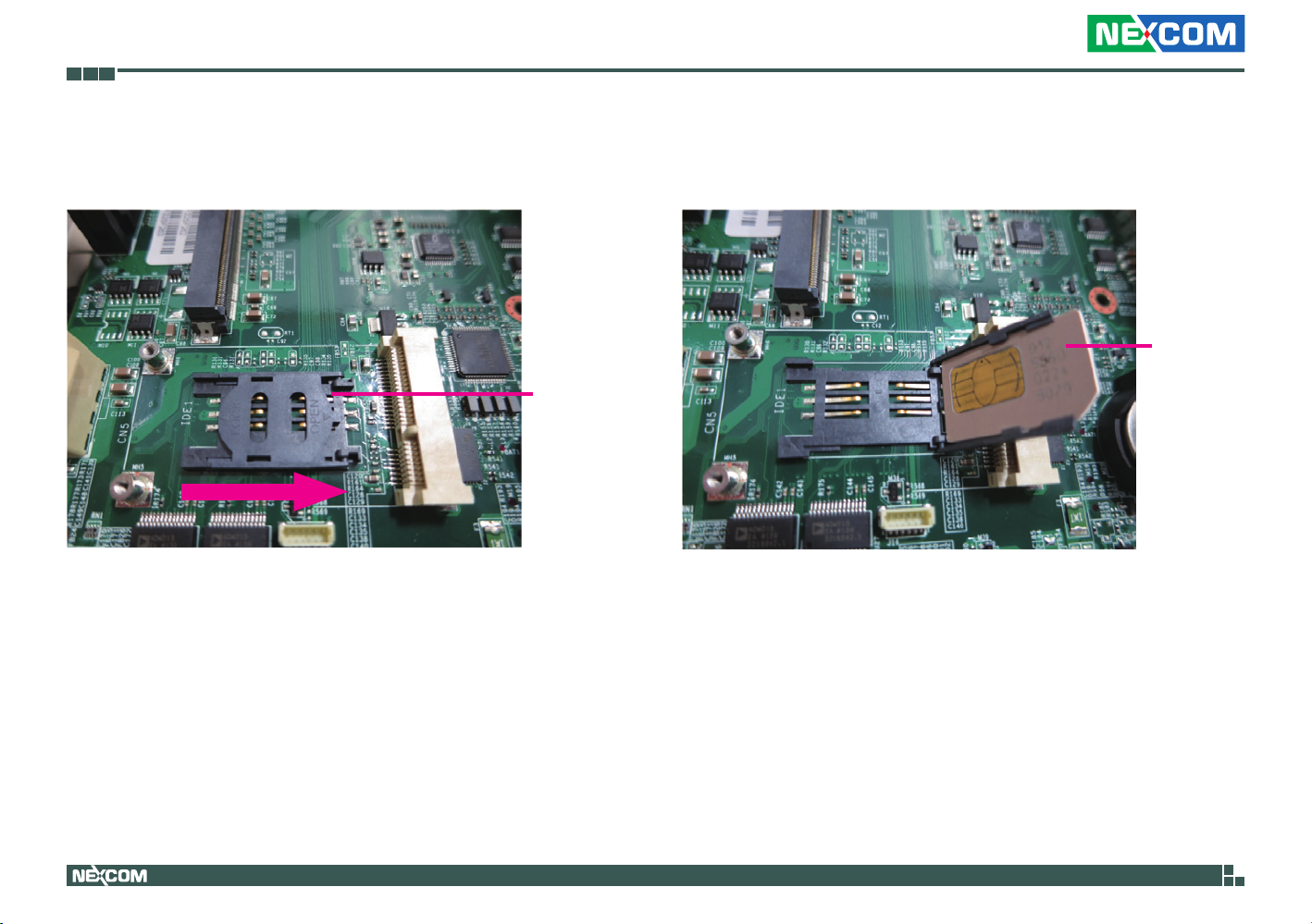

SIM Card Connector

Connector location: IDE1

C3 C2 C1

Pin Definition Pin Definition

C1 UIM_PWR C2 UIM_RESET C3 UIM_CLK C5 GND C6 UIM_VPP C7 UIM_DATA

C7 C6 C8

GPS Connector

Connector type: 1x6 6-pin header, 1.00mm pitch Connector location: J16

Pin Definition Pin Definition

1 +3VSB 2 NA 3 COM6_TXD 4 COM6_RXD 5 GND 6 +3.3V

30

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Box Header Connector

Connector type: 2x17 34-pin header, 2.54mm pitch Connector location: CN2 on carrier board & CN7 on IO module

2 34

1

33

Pin Signal Pin Signal Pin Signal

1 COM1_485_EN# 13 COM2_TXD 25 GPO2

2 COM1_RTS# 14 COM2_RXD 26 GPI2

3 COM2_485_EN# 15 COM3_TXD 27 GPO3

4 COM2_RTS# 16 COM3_RXD 28 GPI3

5 COM3_485_EN# 17 COM4_TXD 29 GND

6 COM3_RTS# 18 COM4_RXD 30 GND

7 COM4_485_EN# 19 GND 31 +5V

8 COM4_RTS# 20 GND 32 +5V

9 GND 21 GPO0 33 +5V

10 GND 22 GPI0 34 +5V 11 COM1_TXD 23 GPO1 12 COM1_RXD 24 GPI1

31

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

PWR_BT/RET_BT/LED/SM BUS Pin Header

Connector type: 2x17 34-pin header, 2.00mm pitch Connector location: JP1

113

214

Pin Definition Pin Definition

1 PWR_LED_N 2 PWR_LED_P

3 SATA_LED# 4 SATA_LED_P

5 SMB_C 6 SMB_D

7 VCC3V3 8 GND

9 PM_SLP_S3 10 PSON 11 POWER BOTTOM 12 GND 13 RESET BOTTOM 14 GND

32

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors for ICES253-600

ICES253-600 - Top

The figure below shows the location of the jumpers and connectors.

FAN1

33

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

ICES253-600 - Bottom

The figure below shows the location of the jumpers and connectors.

J1

J2

34

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

Internal Connectors

High Speed Board-to-Board Connector: Row A and B

Connector location: J2

Pin Definition Pin Definition

A1 GND B1 GND A2 GBE0_MDI3- B2 GBE0_ACT# A3 GBE0_MDI3+ B3 LPC_FRAME# A4 GBE0_LINK100# B4 LPC_AD0 A5 GBE0_LINK1000# B5 LPC_AD1 A6 GBE0_MDI2- B6 LPC_AD2 A7 GBE0_MDI2+ B7 LPC_AD3 A8 GBE0_LINK# B8 LPC_DRQ0#

A9 GBE0_MDI1- B9 LPC_DRQ1# A10 GBE0_MDI1+ B10 LPC_CLK A11 GND B11 GND A12 GBE0_MDI0- B12 PWRBTN# A13 GBE0_MDI0+ B13 SMB_CK A14 GBE0_CTREF B14 SMB_DAT A15 SUS_S3# B15 SMB_ALERT#

35

Pin Definition Pin Definition

A16 SATA0_TX+ B16 SATA1_TX+ A17 SATA0_TX- B17 SATA1_TXA18 SUS_S4# B18 SUS_STAT# A19 SATA0_RX+ B19 SATA1_RX+ A20 SATA0_RX- B20 SATA1_RXA21 GND B21 GND A22 SATA2_TX+ B22 NC A23 SATA2_TX- B23 NC A24 SUS_S5# B24 PWR_OK A25 SATA2_RX+ B25 NC A26 SATA2_RX- B26 NC A27 BATLOW# B27 NC A28 ATA_ACT# B28 AC_SDIN2 A29 AC_SYNC B29 AC_SDIN1 A30 AC_RST# B30 AC_SDIN0

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

A31 GND B31 GND A32 AC_BITCLK B32 SPKR A33 AC_SDOUT B33 I2C_CK A34 BIOS_DISABLE# B34 I2C_DAT A35 THRMTRIP# B35 THRM# A36 USB6- B36 USB7A37 USB6+ B37 USB7+ A38 USB_6_7_OC# B38 USB_4_5_OC# A39 USB4- B39 USB5A40 USB4+ B40 USB5+ A41 GND B41 GND A42 USB2- B42 USB3A43 USB2+ B43 USB3+ A44 USB_2_3_OC# B44 USB_0_1_OC# A45 USB0- B45 USB1A46 USB0+ B46 USB1+ A47 VCC_RTC B47 NC A48 EXCD0_PERST# B48 NC A49 EXCD0_CPPE# B49 SYS_RESET# A50 LPC_SERIRQ B50 CB_RESET# A51 GND B51 GND A52 NC B52 NC A53 NC B53 NC A54 GPI0 B54 GPO1 A55 PCIE_TX4+ B55 PCIE_RX4+ A56 PCIE_TX4- B56 PCIE_RX4A57 GND B57 GPO2 A58 PCIE_TX3+ B58 PCIE_RX3+

Pin Definition Pin Definition

A59 PCIE_TX3- B59 PCIE_RX3A60 GND B60 GND A61 PCIE_TX2+ B61 PCIE_RX2+ A62 PCIE_TX2- B62 PCIE_RX2A63 GPI1 B63 GPO3 A64 PCIE_TX1+ B64 PCIE_RX1+ A65 PCIE_TX1- B65 PCIE_RX1A66 GND B66 WAKE0# A67 GPI2 B67 WAKE1# A68 PCIE_TX0+ B68 PCIE_RX0+ A69 PCIE_TX0- B69 PCIE_RX0A70 GND B70 GND A71 LVDS_A0+ B71 NC A72 LVDS_A0- B72 NC A73 LVDS_A1+ B73 NC A74 LVDS_A1+ B74 NC A75 LVDS_A2+ B75 NC A76 LVDS_A2+ B76 NC A77 LVDS_VDD_EN B77 NC A78 NC B78 NC A79 NC B70 LVDS_BKLT_EN A80 GND B80 GND A81 LVDS_A_CK+ B81 NC A82 LVDS_A_CK- B82 NC A83 LVDS_I2C_CK B83 LVDS_BKLT_CTRL A84 LVDS_I2C_DAT B84 VCC_5V_SBY A85 GPI3 B85 VCC_5V_SBY A86 KBD_RST# B86 VCC_5V_SBY

36

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

A87 KBD_A20GATE B87 VCC_5V_SBY A88 PCIE0_CK_REF+ B88 NC A89 PCIE0_CK_REF- B89 VGA_RED A90 GND B90 GND A91 RSVD B91 VGA_GRN A92 RSVD B92 VGA_BLU A93 GPO0 B93 VGA_HSYNC A94 RSVD B94 VGA_VSYNC A95 RSVD B95 VGA_I2C_CK A96 GND B96 VGA_I2C_DAT A97 VCC_12V B97 NC A98 VCC_12V B98 NC A99 VCC_12V B99 NC

A100 GND B100 GND A101 VCC_12V B101 VCC_12V A102 VCC_12V B102 VCC_12V A103 VCC_12V B103 VCC_12V A104 VCC_12V B104 VCC_12V A105 VCC_12V B105 VCC_12V A106 VCC_12V B106 VCC_12V A107 VCC_12V B107 VCC_12V A108 VCC_12V B108 VCC_12V A109 VCC_12V B109 VCC_12V A110 GND B110 GND

37

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

High Speed Board-to-Board Connector: Row C and D

Connector location: J1

Pin Definition Pin Definition

C1 GND D1 GND

C2 IDE_D7 D2 IDE_D5

C3 IDE_D6 D3 IDE_D10

C4 IDE_D3 D4 IDE_D11

C5 IDE_D15 D5 IDE_D12

C6 IDE_D8 D6 IDE_D4

C7 IDE_D9 D7 IDE_D0

C8 IDE_D2 D8 IDE_REQ

C9 IDE_D13 D9 IDE_IOW# C10 IDE_D1 D10 IDE_ACK# C11 GND D11 GND C12 IDE_D14 D12 IDE_IRQ C13 IDE_IORDY D13 IDE_A0 C14 IDE_IOR# D14 IDE_A1 C15 PCI_PME# D15 IDE_A2 C16 PCI_GNT2# D16 IDE_CS1#

38

Pin Definition Pin Definition

C17 PCI_REQ2# D17 IDE_CS3# C18 PCI_GNT1# D18 IDE_RESET# C19 PCI_REQ1# D19 PCI_GNT3# C20 PCI_GNT0# D20 PCI_REQ3# C21 GND D21 GND C22 PCI_REQ0# D22 PCI_AD1 C23 PCI_RESET# D23 PCI_AD3 C24 PCI_AD0 D24 PCI_AD5 C25 PCI_AD2 D25 PCI_AD7 C26 PCI_AD4 D26 PCI_C/BE0# C27 PCI_AD6 D27 PCI_AD9 C28 PCI_AD8 D28 PCI_AD11 C29 PCI_AD10 D29 PCI_AD13 C30 PCI_AD12 D30 PCI_AD15 C31 GND D31 GND C32 PCI_AD14 D32 PCI_PAR

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

C33 PCI_C/BE1# D33 PCI_SERR# C34 PCI_PERR# D34 PCI_STOP# C35 PCI_LOCK# D35 PCI_TRDY# C36 PCI_DEVSEL# D36 PCI_FRAME# C37 PCI_IRDY# D37 PCI_AD16 C38 PCI_C/BE2# D38 PCI_AD18 C39 PCI_AD17 D39 PCI_AD20 C40 PCI_AD19 D40 PCI_AD22 C41 GND D41 GND C42 PCI_AD21 D42 PCI_AD24 C43 PCI_AD23 D43 PCI_AD26 C44 PCI_C/BE3# D44 PCI_AD28 C45 PCI_AD25 D45 PCI_AD30 C46 PCI_AD27 D46 PCI_IRQC# C47 PCI_AD29 D47 PCI_IRQD# C48 PCI_AD31 D48 PCI_CLKRUN# C49 PCI_IRQA# D49 PCI_M66EN C50 PCI_IRQB# D50 PCI_CLK C51 GND D51 GND C52 NC D52 NC C53 NC D53 NC C54 NC D54 NC C55 NC D55 NC C81 NC D81 NC C82 NC D82 NC C83 NC D83 NC

Pin Definition Pin Definition

C84 GND D84 GND C85 NC D85 NC C86 NC D86 NC C87 GND D87 GND C88 NC D88 NC C89 NC D89 NC C90 GND D90 GND C91 NC D91 NC C92 NC D92 NC C93 GND D93 GND C94 NC D94 NC C95 NC D95 NC C96 GND D96 GND C97 NC D97 NC C98 NC D98 NC

C99 NC D99 NC C100 GND D100 GND C101 NC D101 NC C102 NC D102 NC C103 GND D103 GND C104 VCC_12V D104 VCC_12V C105 VCC_12V D105 VCC_12V C106 VCC_12V D106 VCC_12V C107 VCC_12V D107 VCC_12V C108 VCC_12V D108 VCC_12V C109 VCC_12V D109 VCC_12V C110 GND D110 GND

39

nTUF 600 User Manual

Chapter 2: Jumpers and Connectors

CPU FAN Connector

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: FAN1

1 2

Pin Definition

1 GND 2 +12V 3 FAN_SENSOR

40

nTUF 600 User Manual

Chapter 3: System Setup

CAUTION!

Chapter 3: System Setup

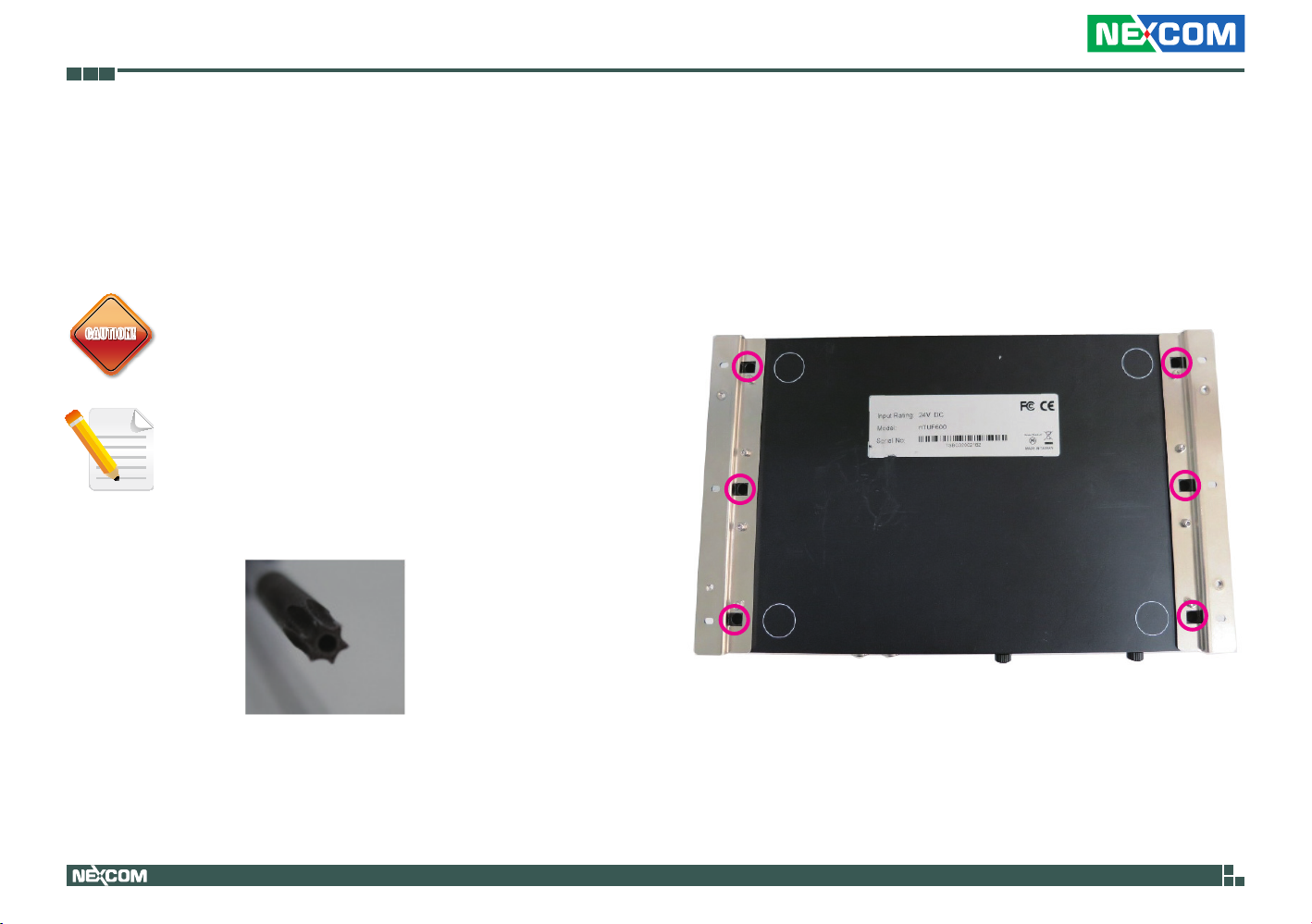

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

is off and disconnected from the power sources to prevent electric shock or system damage.

Before you stare, please kindly make sure that you have a torx screwdriver with you.

Torx Screwdriver

1. With the bottom side of the chassis facing up, remove the mounting screw of the bottom cover and then put them in a safe place for later use.

41

nTUF 600 User Manual

Chapter 3: System Setup

2. Remove 3 screws on the top of the rear panel and then put them in a safe place for later use.

3. Remove 3 screws on the top of the front panel and then put them in a safe place for later use.

4. Lift up the cover and remove it from the chassis.

42

nTUF 600 User Manual

Chapter 3: System Setup

Installing the SIM Card

1. Slide the SIM card holder to the “OPEN” position and left the card holder.

SIM card holder

2. Slide the SIM card into the SIM card holder.

SIM card

43

nTUF 600 User Manual

Chapter 3: System Setup

3. Move the holder down and then slide it to the “LOCK” position.

44

nTUF 600 User Manual

Chapter 3: System Setup

Installing a Wireless LAN Module

1. Locate for the Mini PCI Express slot on the board.

Mini PCI Express slot

2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degree angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

Wireless LAN module

45

nTUF 600 User Manual

Chapter 3: System Setup

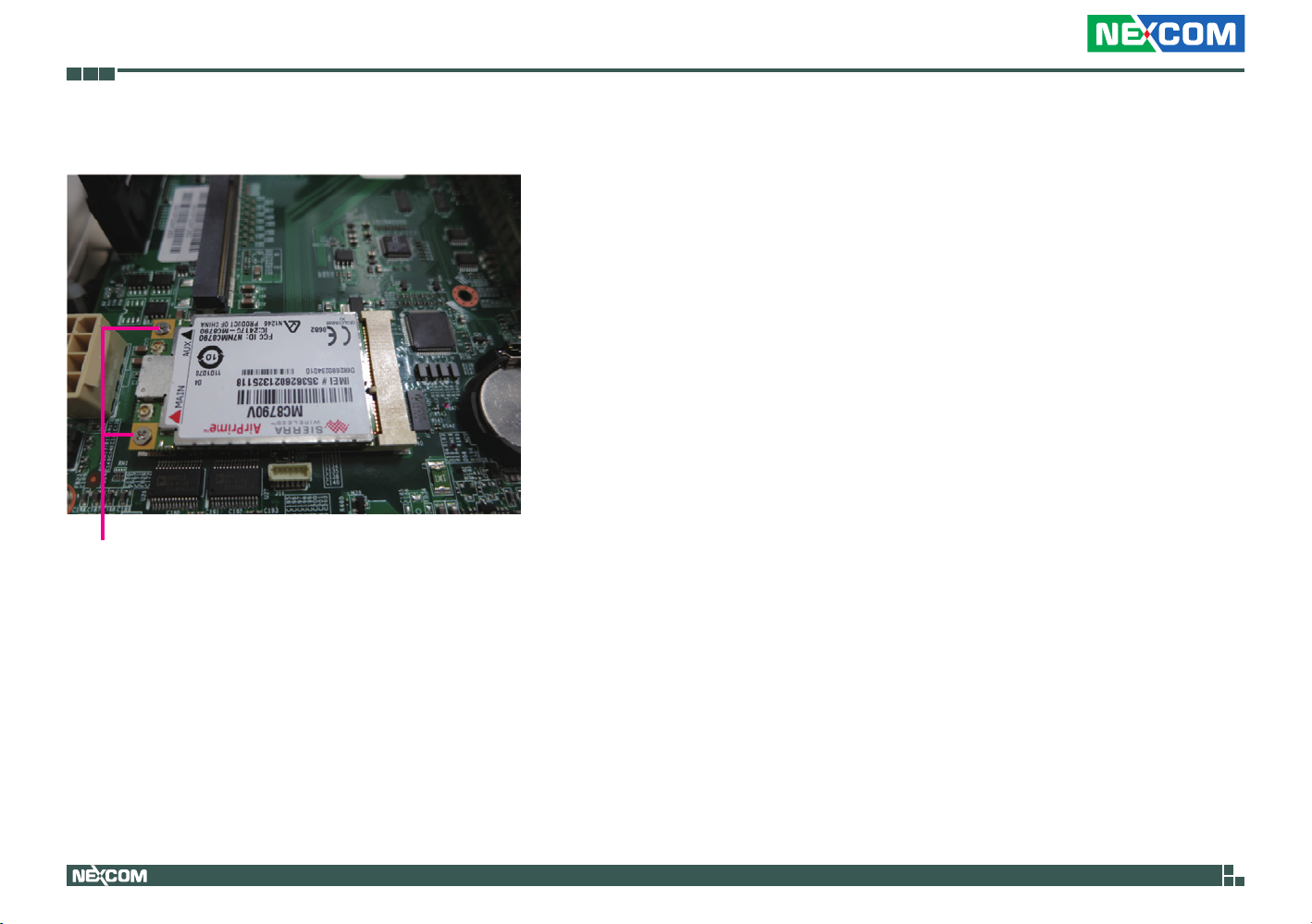

3. Push the module down and then secure it with mounting screws.

Mounting Screws

46

nTUF 600 User Manual

Chapter 3: System Setup

Installing a Wireless LAN Module (Bracket)

Bracket

Mounting Screws

1. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degree angle until the gold-plated connector on the edge of the module completely disappears inside the slot.

Mounting Screws

2. Push the module down and then secure it with mounting screws.

47

nTUF 600 User Manual

Chapter 3: System Setup

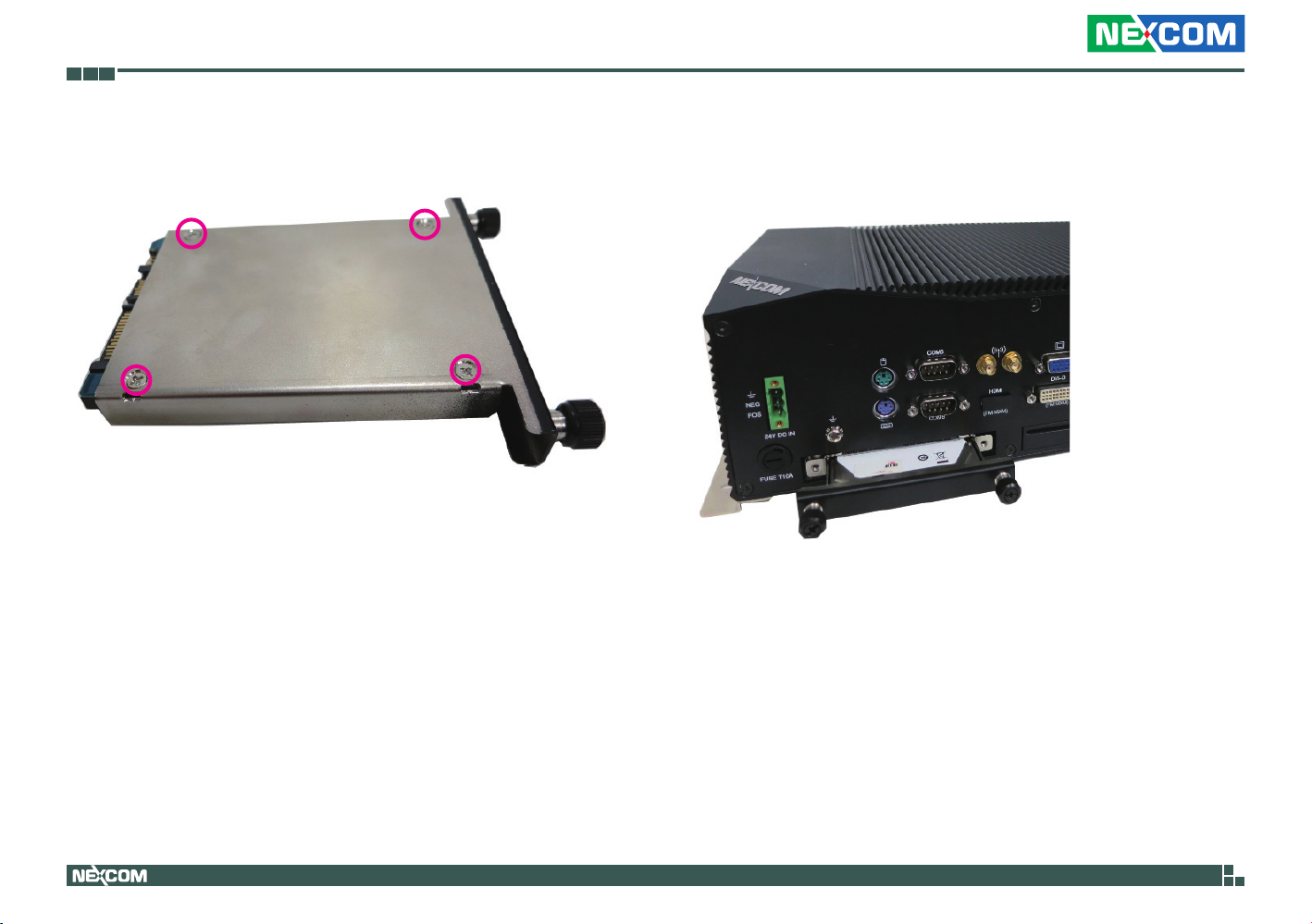

Installing a Hard Drive

1. Locate for the HDD tray in the front panel.

Released HDD Tray

HDD Tray

2. Loose both screws to release the HDD tray.

48

nTUF 600 User Manual

Chapter 3: System Setup

3. Use the provided screws to secure the drive in place. 4. Secure the HDD tray back to its original position.

49

nTUF 600 User Manual

Chapter 3: System Setup

Installing a CFast Card

1. The CFast socket is located at the front side of the chassis.

2. Remove the mounting screws of the CFast socket’s cover.

3. Remove the socket’s cover to access the CFast socket.

CFast socket

50

nTUF 600 User Manual

Chapter 4: BIOS Setup

This chapter describes how to use the BIOS setup program for the nTUF 600. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

51

nTUF 600 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

Legends

Key Function

F10

Moves the highlight left or right to select a menu.

Moves the highlight up or down between submenus or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub¬menu

TO ENTER SETUP BEFORE BOOT PRESS

Press the

key to enter Setup:

Ctrl

+

Alt

+

52

nTUF 600 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

53

nTUF 600 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

System Overview

AMIBIOS

Version :08.00.15 Build Date :03/22/12 ID :I253A017

Processor

Intel (R) Atom (TM) CPU D525 @ 1.80GHz Speed :1800MHz

System Memory

Size :2039MB

System Time

System Date

BIOS SETUP UTILITY

Advanced Boot Chipset PCIPnPMain

[15:19:12] [Fri 06/15/2012]

Security

Use [ENTER], [TAB]

or [SHIFT-TAB] to select a eld.

Use [+] or [-] to congure system

Time.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

54

nTUF 600 User Manual

Chapter 4: BIOS Setup

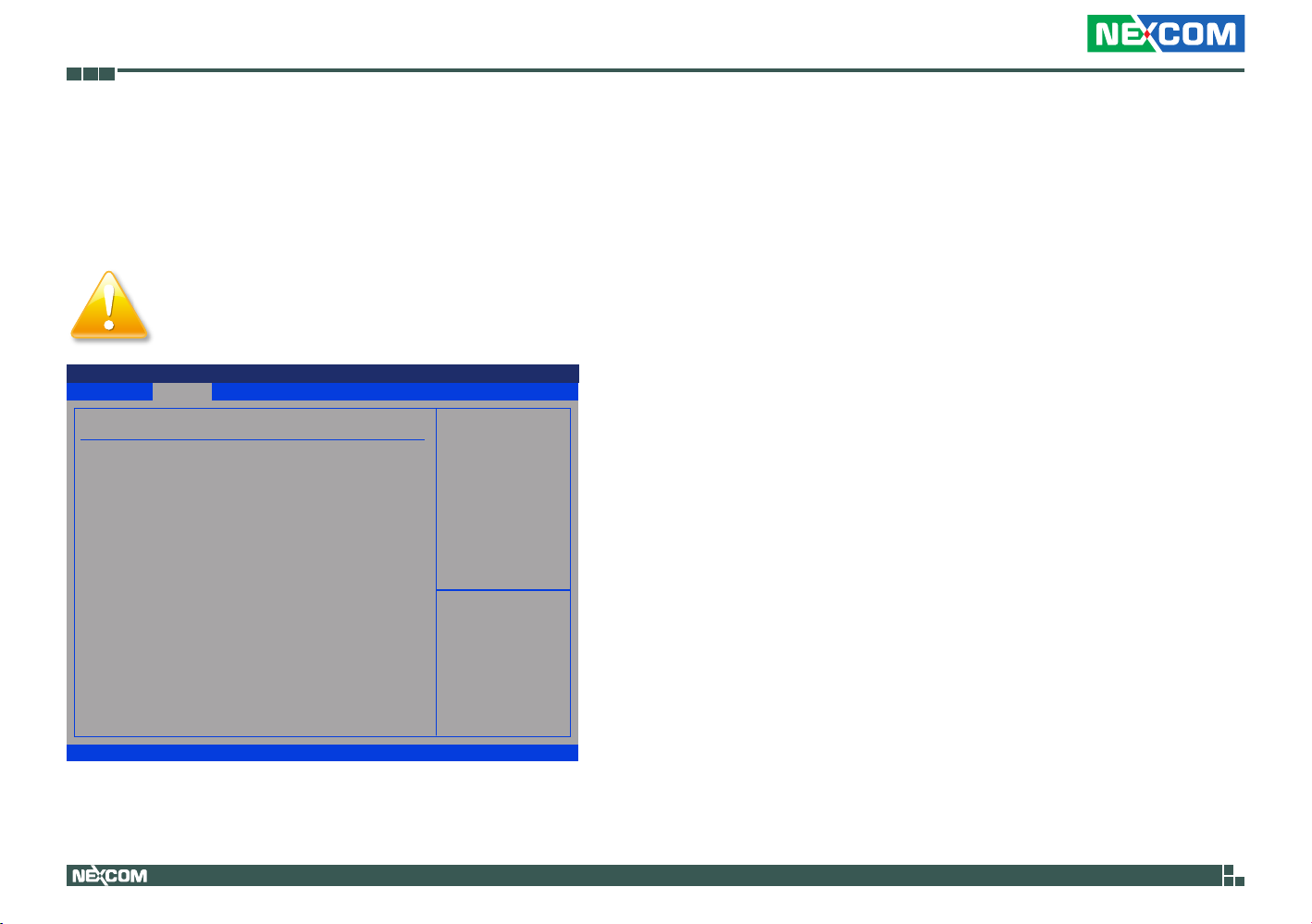

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Main

Advanced Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

► IDE Conguration

► USB Conguration ► ACPI Conguration ► SuperIO Conguration ► Hardware Health Conguration

LAN Boot ROM Hyper Threading Technology GPS Support

Advanced Boot Chipset PCIPnP

BIOS SETUP UTILITY

[Disabled] [Enabled] [Disabled]

Security

Congure the IDE

device(s).

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Exit

LAN Boot ROM

Enables or disables the LAN Boot Rom.

Hyper Threading Technology

Disable or Enable hyper-threading technology.

GPS Support

Enables or disables GPS function.

55

nTUF 600 User Manual

Chapter 4: BIOS Setup

IDE Configuration

This section is used to configure IDE devices.

BIOS SETUP UTILITY

Advanced

IDE Conguration

ATA/IDE Conguration

Congure SATA as

► Primary IDE Master ► Primary IDE Slave ► Secondary IDE Master

IDE Detect Time Out (Sec)

[Enhanced]

[IDE]

: [TS64GSSD25S-S] : [TS46GCFX500I]

Options

: [TOSHIBA MK167]

Disabled Compatible

[35]

Enhanced

Options

Disabled Compatible Enhanced

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

ATA/IDE Configuration

This field is used to configure the IDE drives. The options are Disabled, Compatible and Enhanced.

Configure SATA as

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

Primary IDE Master to Third IDE Master

When you enter the BIOS Setup Utility, the BIOS will auto detect the existing IDE devices then displays the status of the detected devices. To configure an IDE drive, move the cursor to a field then press <Enter>.

IDE Detect Time Out (Sec)

Selects the time out value for detecting ATA/ATAPI devices.

BIOS SETUP UTILITY

Advanced

IDE Conguration

ATA/IDE Conguration

Congure SATA as

► Primary IDE Master ► Primary IDE Slave ► Secondary IDE Master

IDE Detect Time Out (Sec)

[Enhanced]

[IDE]

: [TS64GSSD25S-S]

Options

0

: [TS46GCFX500I]

5

: [TOSHIBA MK167]

10 15

[35]

20 25 30 35

Select the time out value for detecting ATA/ATAPI device(s).

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

56

nTUF 600 User Manual

Chapter 4: BIOS Setup

Primary IDE Master

This section is used to configure the primary IDE master device.

Type

BIOS SETUP UTILITY

Advanced

Primary IDE Master

Device :Hard Disk Vendor :TS64GSSD25S-S Size :64.1GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type

LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

Options

Not Installed Auto CD/DVD ARMD

[Auto]

[Auto] [Auto] [Auto] [Auto] [Auto] [Enabled]

Select the type of device connected to the system.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Select the type of device connected to the system, the options are Not Installed, Auto, CD/DVD and ARMD.

LBA/Large Mode

BIOS SETUP UTILITY

Advanced

Primary IDE Master

Device :Hard Disk Vendor :TS64GSSD25S-S Size :64.1GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type

LBA/Large Mode

Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

Disabled Auto

[Auto]

[Auto] [Auto] [Auto] [Auto] [Enabled]

Options

Disabled: Disables LBA Mode. Auto: Enables LBA Mode if the device supports it and the device is not already formatted with LBA Mode disabled.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Disabled Disables LBA mode

Auto Enables LBA mode if the device supports it and the device is not already formatted with LBA mode disabled.

57

nTUF 600 User Manual

Chapter 4: BIOS Setup

Block

BIOS SETUP UTILITY

Advanced

Primary IDE Master

Device :Hard Disk Vendor :TS64GSSD25S-S Size :64.1GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode

Block (Multi-Sector Transfer)

PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

Disabled Auto

[Auto] [Auto]

[Auto]

[Auto] [Auto] [Auto] [Enabled]

Options

Disabled: The Data transfer from and to the device occurs one sector at a time. Auto: The Data transfer from and to the device occurs multiple sectors at a time if the device supports it.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Disabled The data transfer from and to the device occurs one sector at a time

Auto The data transfer from and to the device occurs multiple sectors at a time if the device supports it

PIO Mode

Advanced

Primary IDE Master

Device :Hard Disk Vendor :TS64GSSD25S-S Size :64.1GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer)

PIO Mode

DMA Mode S.M.A.R.T. 32Bit Data Transfer

Selects the PIO mode.

BIOS SETUP UTILITY

Options

Auto 0 1 2

[Auto]

3

[Auto]

4

[Auto]

[Auto] [Auto] [Enabled]

Select PIO Mode.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

58

nTUF 600 User Manual

Chapter 4: BIOS Setup

DMA Mode

BIOS SETUP UTILITY

Advanced

Primary IDE Master

Device :Hard Disk Vendor :TS64GSSD25S-S Size :64.1GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode

DMA Mode

S.M.A.R.T. 32Bit Data Transfer

Auto SWDMA0 SWDMA1 SWDMA2 MWDMA0 MWDMA1 MWDMA2 UDMA0 UDMA1 UDMA2 UDMA3 UDMA4 UDMA5 UDMA6

Selects the DMA mode.

Auto Auto detected

Options

[Auto] [Auto] [Auto] [Auto] [Auto] [Auto] [Enabled]

Select DMA Mode.

: Auto detected

Auto

: SingleWordDMAn

SWDMAn

: MultiWordDMAn

MWDMAn

: UltraDMAn

UDMAn

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

S.M.A.R.T.

BIOS SETUP UTILITY

Advanced

Primary IDE Master

Device :Hard Disk Vendor :TS64GSSD25S-S Size :64.1GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode

S.M.A.R.T.

32Bit Data Transfer

Auto Disabled Enabled

[Auto] [Auto] [Auto] [Auto] [Auto]

[Auto]

[Enabled]

Options

S.M.A.R.T. stands for Self-Monitoring, Analysis and Reporting Technology.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Enables, disables or automatically detect Self-Monitoring, Analysis and Reporting Technology.

SWDMAn SingleWordDMAn

MWDMAn MultiWordDMAn

UDMAn UltraDMAn

59

nTUF 600 User Manual

Chapter 4: BIOS Setup

32Bit Data Transfer

Advanced

Primary IDE Master

Device :Hard Disk Vendor :TS64GSSD25S-S Size :64.1GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T.

32Bit Data Transfer

BIOS SETUP UTILITY

Options

Disabled Enabled

[Auto] [Auto] [Auto] [Auto] [Auto] [Auto]

[Enabled]

Enable/Disable 32-bit Data Transfer.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Enables or disables 32-bt data transfer.

60

nTUF 600 User Manual

Chapter 4: BIOS Setup

Primary IDE Slave

This section is used to configure the primary IDE slave device.

Type

Advanced

IDE Conguration

ATA/IDE Conguration

Congure SATA as

► Primary IDE Master

► Primary IDE Slave

► Secondary IDE Master

IDE Detect Time Out (Sec)

BIOS SETUP UTILITY

[Enhanced]

[IDE]

: [TS64GSSD25S-S]

: [TS46GCFX500I]

: [TOSHIBA MK167]

[35]

While entering setup, BIOS auto detects the presence of IDE devices. This displays the status of auto detection of IDE devices.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

BIOS SETUP UTILITY

Advanced

Primary IDE Slave

Device :Hard Disk Vendor :TS4GCFX500I-S Size :3.9GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type

LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

Options

Not Installed Auto CD/DVD ARMD

[Auto]

[Auto] [Auto] [Auto] [Auto] [Auto] [Enabled]

Select the type of device connected to the system.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Select the type of device connected to the system, the options are Not Installed, Auto, CD/DVD and ARMD.

61

nTUF 600 User Manual

Chapter 4: BIOS Setup

LBA/Large Mode

BIOS SETUP UTILITY

Advanced

Primary IDE Slave

Device :Hard Disk Vendor :TS4GCFX500I-S Size :3.9GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type

LBA/Large Mode

Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

Disabled Auto

[Auto]

[Auto] [Auto] [Auto] [Auto] [Enabled]

Options

Disabled: Disables LBA Mode. Auto: Enables LBA Mode if the device supports it and they device is not already formatted with LBA Mode disabled.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Disabled Disables LBA mode

Auto Enables LBA mode if the device supports it and the device is not already formatted with LBA mode disabled.

Block

BIOS SETUP UTILITY

Advanced

Primary IDE Slave

Device :Hard Disk Vendor :TS4GCFX500I-S Size :3.9GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode

Block (Multi-Sector Transfer)

PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

Disabled Auto

[Auto] [Auto]

[Auto]

[Auto] [Auto] [Auto] [Enabled]

Options

Disabled: The Data transfer from and to the device occurs one sector at a time. Auto: The Data transfer from and to the device occurs multiple sectors at a time if the device supports it.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Disabled The data transfer from and to the device occurs one sector at a time

Auto The data transfer from and to the device occurs multiple sectors at a time if the device supports it

62

nTUF 600 User Manual

Chapter 4: BIOS Setup

PIO Mode

Advanced

Primary IDE Slave

Device :Hard Disk Vendor :TS4GCFX500I-S Size :3.9GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer)

PIO Mode

DMA Mode S.M.A.R.T. 32Bit Data Transfer

Selects the PIO mode.

BIOS SETUP UTILITY

Options

Auto 0 1 2 3

[Auto]

4

[Auto] [Auto]

[Auto]

[Auto] [Auto] [Enabled]

Select PIO Mode.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

DMA Mode

BIOS SETUP UTILITY

Advanced

Primary IDE Slave

Device :Hard Disk Vendor :TS4GCFX500I-S Size :3.9GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode

DMA Mode

S.M.A.R.T. 32Bit Data Transfer

Auto SWDMA0 SWDMA1 SWDMA2 MWDMA0 MWDMA1 MWDMA2 UDMA0 UDMA1 UDMA2 UDMA3 UDMA4 UDMA5 UDMA6

Selects the DMA mode.

Auto Auto detected

Options

[Auto] [Auto] [Auto] [Auto] [Auto] [Auto] [Enabled]

Select DMA Mode.

: Auto detected

Auto

: SingleWordDMAn

SWDMAn

: MultiWordDMAn

MWDMAn

: UltraDMAn

UDMAn

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

SWDMAn SingleWordDMAn

MWDMAn MultiWordDMAn

UDMAn UltraDMAn

63

nTUF 600 User Manual

Chapter 4: BIOS Setup

S.M.A.R.T.

BIOS SETUP UTILITY

Advanced

Primary IDE Slave

Device :Hard Disk Vendor :TS4GCFX500I-S Size :3.9GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode

S.M.A.R.T.

32Bit Data Transfer

Auto Disabled Enabled

[Auto] [Auto] [Auto] [Auto] [Auto]

[Auto]

[Enabled]

Options

S.M.A.R.T. stands for Self-Monitoring, Analysis and Reporting Technology.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Enables, disables or automatically detect Self-Monitoring, Analysis and Reporting Technology.

32Bit Data Transfer

BIOS SETUP UTILITY

Advanced

Primary IDE Slave

Device :Hard Disk Vendor :TS4GCFX500I-S Size :3.9GB LBA Mode :Supported Block Mode :Not Supported PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-6 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T.

32Bit Data Transfer

Disabled Enabled

[Auto] [Auto] [Auto] [Auto] [Auto] [Auto]

[Enabled]

Options

Enables or disables 32-bt data transfer.

Enable/Disable 32-bit Data Transfer.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

64

nTUF 600 User Manual

Chapter 4: BIOS Setup

Secondary IDE Master

This section is used to configure the secondary IDE master device.

Type

Advanced

IDE Conguration

ATA/IDE Conguration

Congure SATA as

► Primary IDE Master ► Primary IDE Slave

► Secondary IDE Master

IDE Detect Time Out (Sec)

BIOS SETUP UTILITY

[Enhanced]

[IDE]

: [TS64GSSD25S-S] : [TS46GCFX500I]

: [TOSHIBA MK167]

[35]

While entering setup, BIOS auto detects the presence of IDE devices. This displays the status of auto detection of IDE devices.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

BIOS SETUP UTILITY

Advanced

Secondary IDE Master

Device :Hard Disk Vendor :TOSHIBA MK1676GSX Size :160.0GB LBA Mode :Supported Block Mode :16Sectors PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-5 S.M.A.R.T :Supported

Type

LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

Options

Not Installed Auto CD/DVD ARMD

[Auto]

[Auto] [Auto] [Auto] [Auto] [Auto] [Enabled]

Select the type of device connected to the system.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Select the type of device connected to the system, the options are Not Installed, Auto, CD/DVD and ARMD.

65

nTUF 600 User Manual

Chapter 4: BIOS Setup

LBA/Large Mode

BIOS SETUP UTILITY

Advanced

Secondary IDE Master

Device :Hard Disk Vendor :TOSHIBA MK1676GSX Size :160.0GB LBA Mode :Supported Block Mode :16Sectors PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-5 S.M.A.R.T :Supported

Type

LBA/Large Mode

Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

Disabled Auto

[Auto]

[Auto] [Auto] [Auto] [Auto] [Enabled]

Options

Disabled: Disables LBA Mode. Auto: Enables LBA Mode if the device supports it and they device is not already formatted with LBA Mode disabled.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Disabled Disables LBA mode

Auto Enables LBA mode if the device supports it and the device is not already formatted with LBA mode disabled.

Block

BIOS SETUP UTILITY

Advanced

Secondary IDE Master

Device :Hard Disk Vendor :TOSHIBA MK1676GSX Size :160.0GB LBA Mode :Supported Block Mode :16Sectors PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-5 S.M.A.R.T :Supported

Type LBA/Large Mode

Block (Multi-Sector Transfer)

PIO Mode DMA Mode S.M.A.R.T. 32Bit Data Transfer

Disabled Auto

[Auto] [Auto]

[Auto]

[Auto] [Auto] [Auto] [Enabled]

Options

Disabled: The Data transfer from and to the device occurs one sector at a time. Auto: The Data transfer from and to the device occurs multiple sectors at a time if the device supports it.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Disabled The data transfer from and to the device occurs one sector at a time

Auto The data transfer from and to the device occurs multiple sectors at a time if the device supports it

66

nTUF 600 User Manual

Chapter 4: BIOS Setup

PIO Mode

Advanced

Secondary IDE Master

Device :Hard Disk Vendor :TOSHIBA MK1676GSX Size :160.0GB LBA Mode :Supported Block Mode :16Sectors PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-5 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer)

PIO Mode

DMA Mode S.M.A.R.T. 32Bit Data Transfer

Selects the PIO mode.

BIOS SETUP UTILITY

Options

Auto 0 1 2 3

[Auto]

4

[Auto] [Auto]

[Auto]

[Auto] [Auto] [Enabled]

Select PIO Mode.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

DMA Mode

BIOS SETUP UTILITY

Advanced

Secondary IDE Master

Device :Hard Disk Vendor :TOSHIBA MK1676GSX Size :160.0GB LBA Mode :Supported Block Mode :16Sectors PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-5 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode

DMA Mode

S.M.A.R.T. 32Bit Data Transfer

Auto SWDMA0 SWDMA1 SWDMA2 MWDMA0 MWDMA1 MWDMA2 UDMA0 UDMA1 UDMA2 UDMA3 UDMA4 UDMA5 UDMA6

Selects the DMA mode.

Auto Auto detected

Options

[Auto] [Auto] [Auto] [Auto] [Auto] [Auto] [Enabled]

Select DMA Mode.

: Auto detected

Auto

: SingleWordDMAn

SWDMAn

: MultiWordDMAn

MWDMAn

: UltraDMAn

UDMAn

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

SWDMAn SingleWordDMAn

MWDMAn MultiWordDMAn

UDMAn UltraDMAn

67

nTUF 600 User Manual

Chapter 4: BIOS Setup

S.M.A.R.T.

BIOS SETUP UTILITY

Advanced

Secondary IDE Master

Device :Hard Disk Vendor :TOSHIBA MK1676GSX Size :160.0GB LBA Mode :Supported Block Mode :16Sectors PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-5 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode

S.M.A.R.T.

32Bit Data Transfer

Auto Disabled Enabled

[Auto] [Auto] [Auto] [Auto] [Auto]

[Auto]

[Enabled]

Options

S.M.A.R.T. stands for Self-Monitoring, Analysis and Reporting Technology.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Enables, disables or automatically detect Self-Monitoring, Analysis and Reporting Technology.

32Bit Data Transfer

BIOS SETUP UTILITY

Advanced

Secondary IDE Master

Device :Hard Disk Vendor :TOSHIBA MK1676GSX Size :160.0GB LBA Mode :Supported Block Mode :16Sectors PIO :4 Async DMA :MultiWord DMA-2 Ultra DMA :Ultra DMA-5 S.M.A.R.T :Supported

Type LBA/Large Mode Block (Multi-Sector Transfer) PIO Mode DMA Mode S.M.A.R.T.

32Bit Data Transfer

Disabled Enabled

[Auto] [Auto] [Auto] [Auto] [Auto] [Auto]

[Enabled]

Options

Enables or disables 32-bt data transfer.

Enable/Disable 32-bit Data Transfer.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

68

nTUF 600 User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure USB devices.

Main

USB Conguration

Module Version - 2.24.3-13.4

USB Devices Enabled :

1 Mouse

Legacy USB Support

Port 64/60 Emulation USB 2.0 Controller Mode BIOS EHCI Hand-Off Hotplug USB FDD Support

► USB Mass Storage Device Conguration

Advanced Chipset PCIPnP Security

BIOS SETUP UTILITY

[Enabled]

[Disabled] [HiSpeed] [Enabled] [Auto]

Exit

Enables support for legacy USB. AUTO option disables legacy if no USB devices are connected.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Legacy USB Support

Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices.

Port 64/60 Emulation

Enables I/O port 60h/64h emulation support. This should be enabled for the complete USB keyboard legacy support for non-USB aware OSes.

USB 2.0 Controller Mode

Sets the USB 2.0 controller mode to HiSpeed (480 Mbps) or FullSpeed (12 Mbps).

BIOS EHCI Hand-Off

Enable this field when using operating systems without the EHCI handoff support.

Hotplug USB FDD Support

Enables support for USB FDD hot plug.

USB Mass Storage Device Configuration

Configuration for USB mass storage class devices.

If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.

69

nTUF 600 User Manual

Chapter 4: BIOS Setup

USB Mass Storage Device Configuration

Main

USB Mass Storage Device Conguration

USB Mass Storage Reset Delay

Device #1 USB Hotplug FDD

Emulation Type

Advanced Chipset PCIPnP Security

BIOS SETUP UTILITY

[20 Sec]

[Auto]

Exit

Number of seconds POST waits for the USB mass storage device after start unit command.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

USB Mass Storage Reset Delay

Configures the number of seconds POST waits for the USB mass storage device after start unit command.

Emulation Type

Selects the emulation type, in Auto, USB devices less than 530MB will be emulated as Floppy and remaining as hard drive. Force FDD option can be used to force a HDD formatted drive to boot as FDD. Other available options are Floppy, Hard Disk and CD ROM.

70

nTUF 600 User Manual

Chapter 4: BIOS Setup

ACPI Configuration

This section is used to configure ACPI Settings.

Main

ACPI Settings

Suspend mode

ACPI APIC support

Advanced Chipset PCIPnP Security

BIOS SETUP UTILITY

[S1 (POS)]

[Enabled]

Options

S1 (POS) S3 (STR)

Exit

Select the ACPI state used for System Suspend

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Suspend Mode

Selects the ACPI state used for system suspend, S1 (POS) enables the Power On Suspend function. S3 (STR) enables the Suspend to RAM function.

ACPI APIC support

Enables or disables the motherboard's Advanced Programmable Interrupt Controller (APIC).

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Main

Congure Ite8783 Super IO Chipset

Serial Port1 Address

Serial Port1 IRQ Serial Port1 Frequency Mode Serial Port1 Frequency selec Serial Port2 Address Serial Port2 IRQ Serial Port2 Frequency Mode Serial Port2 Frequency selec Serial Port3 Address Serial Port3 IRQ Serial Port3 Frequency Mode Serial Port3 Frequency selec Serial Port4 Address Serial Port4 IRQ Serial Port4 Frequency Mode Serial Port4 Frequency selec Serial Port5 Address Serial Port5 IRQ Serial Port6 Address Serial Port6 IRQ

Advanced Chipset PCIPnP Security

BIOS SETUP UTILITY

[3F8]

[4] [RS422] [115200 bps] [2F8] [3] [RS422] [115200 bps] [3E8] [5] [RS422] [115200 bps] [2E8] [7] [RS422] [115200 bps] [2F0] [10] [2E0] [11]

Exit

Allows BIOS to Select Serial Port1 Base Addresses.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Serial Port1 Address to Serial Port6 Address Auto

The system will automatically select an I/O address for the onboard serial port.

3F8, 2F8, 3E8, 2E8, 2F0, 2E0

Allows you to manually select an I/O address for the onboard serial port.

Disabled

Disables the onboard serial port.abled Disables the onboard serial port.

71

nTUF 600 User Manual

Chapter 4: BIOS Setup

Serial Port1 IRQ to Serial Port6 IRQ

These fields are used to select an IRQ for the onboard serial port 1, 2, 3, 4, 5 or 6. The options are 3, 4, 5, 7, 10 and 11.

4, 5 or 6.

Main

Congure Ite8783 Super IO Chipset

Serial Port1 Address

Serial Port1 IRQ

Serial Port1 Frequency Mode Serial Port1 Frequency selec Serial Port2 Address Serial Port2 IRQ Serial Port2 Frequency Mode Serial Port2 Frequency selec Serial Port3 Address Serial Port3 IRQ Serial Port3 Frequency Mode Serial Port3 Frequency selec Serial Port4 Address Serial Port4 IRQ Serial Port4 Frequency Mode Serial Port4 Frequency selec Serial Port5 Address Serial Port5 IRQ Serial Port6 Address Serial Port6 IRQ

Advanced Chipset PCIPnP Security

BIOS SETUP UTILITY

[3F8]

[4]

[RS422] [115200 bps]

Options

[2F8]

3

[3]

4

[RS422]

5

[115200 bps]

7

[3E8]

10

[5]

11

[RS422] [115200 bps] [2E8] [7] [RS422] [115200 bps] [2F0] [10] [2E0] [11]

Exit

Allows BIOS to Select Serial Port1 IRQ.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Serial Port1 to Serial Port4 Frequency Mode

This field is used to select the frequency mode of serial port 1, 2, 3 and 4. The options are RS422, RS485 and RS485Auto.

4, 5 or 6.

Main

Congure Ite8783 Super IO Chipset

Serial Port1 Address Serial Port1 IRQ

Serial Port1 Frequency Mode

Serial Port1 Frequency selec Serial Port2 Address Serial Port2 IRQ Serial Port2 Frequency Mode Serial Port2 Frequency selec Serial Port3 Address Serial Port3 IRQ Serial Port3 Frequency Mode Serial Port3 Frequency selec Serial Port4 Address Serial Port4 IRQ Serial Port4 Frequency Mode Serial Port4 Frequency selec Serial Port5 Address Serial Port5 IRQ Serial Port6 Address Serial Port6 IRQ

Advanced Chipset PCIPnP Security

BIOS SETUP UTILITY

[3F8] [4]

[RS422]

[115200 bps] [2F8] [3]

Options

RS422

[RS422]

RS485

[115200 bps]

RS485Auto

[3E8] [5] [RS422] [115200 bps] [2E8] [7] [RS422] [115200 bps] [2F0] [10] [2E0] [11]

Exit

Allows BIOS to Select Serial Port1 Frequency Mode.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

72

nTUF 600 User Manual

Chapter 4: BIOS Setup

Serial Port1 to Serial Port4 Frequency Select

This field is used to select the frequency (baud rate) of serial port 1, 2, 3 and

4. The options are 115200 bps and 921600 bps.4, 5 or 6.

Main

Congure Ite8783 Super IO Chipset

Serial Port1 Address Serial Port1 IRQ Serial Port1 Frequency Mode

Serial Port1 Frequency selec

Serial Port2 Address Serial Port2 IRQ Serial Port2 Frequency Mode Serial Port2 Frequency selec Serial Port3 Address Serial Port3 IRQ Serial Port3 Frequency Mode Serial Port3 Frequency selec Serial Port4 Address Serial Port4 IRQ Serial Port4 Frequency Mode Serial Port4 Frequency selec Serial Port5 Address Serial Port5 IRQ Serial Port6 Address Serial Port6 IRQ

Advanced Chipset PCIPnP Security

BIOS SETUP UTILITY

[3F8] [4] [RS422]

[115200 bps]

[2F8] [3]

Options

[RS422]

115200 bps

[115200 bps]

921600 bps

[3E8] [5] [RS422] [115200 bps] [2E8] [7] [RS422] [115200 bps] [2F0] [10] [2E0] [11]

Exit

Allows BIOS to Select Serial Port1 Frequency.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Hardware Health Configuration

This section is used to monitor hardware status such as temperature, fan speed and voltages.4, 5 or 6.

Main

Hardware Health Conguration

System Temperature CPU Temperature

VCORE VIN0 (+12V) VIN1 (+5V) VIN2 (+3.3V)

Advanced Chipset PCIPnP Security

BIOS SETUP UTILITY

:41°C/105°F :25°C/77°F

:1.174 V :12.103 V :5.041 V :3.308 V

Exit

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

CPU Temperature and System Temperature

Detects and displays the current temperature of the CPU and the internal temperature of the system.

73

nTUF 600 User Manual

Chapter 4: BIOS Setup

Vcore

Detects and displays the Vcore CPU voltage.

VIN0 (+12V)

Detects and displays 12V voltage.

VIN1 (+5V)

Detects and displays 5V voltage.

VIN2 (+3.3V)

Detects and displays 3.3V voltage.

74

nTUF 600 User Manual

Chapter 4: BIOS Setup

Boot

Advanced

Boot Settings

► Boot Settings Conguration

► Boot Device Priority ► Hard Disk Drives ► Removable Drives

BIOS SETUP UTILITY

Chipset PCIPnPMain

Boot

Security

Congure Settings during

System Boot.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Boot Settings Configuration

This section is used to configure settings during system boot.

Boot Device Priority

This section is used to select the boot priority sequence of the devices.

Hard Disk Drives

This section is used to select the boot priority sequence of the hard drives.

Exit

Boot Settings Configuration

This section is used to configure settings during system boot.

Main

Boot Settings Conguration

Quick Boot

Quiet Boot Bootup Num-Lock PS/2 Mouse Support System Keyboard Hit 'DEL' Message Display Interrupt 19 Capture

Advanced

BIOS SETUP UTILITY

Boot PCIPnP Security

[Enabled]

[Disabled] [On] [Enabled] [Present] [Enabled] [Disabled]

Exit

Allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Quick Boot

When Enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Removable Drives

This section is used to select the boot priority sequence of the removable drives.

75

nTUF 600 User Manual

Chapter 4: BIOS Setup

Bootup Num-Lock

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

PS/2 Mouse Support

The options are Auto, Enabled and Disabled.

System Keyboard

Detects the system keyboard.

Hit ‘DEL’ Message Display

When enabled, the system displays the “Press DEL to run Setup” message during POST.

Interrupt 19 Capture

When enabled, it allows the optional ROM to trap interrupt 19.

Boot Device Priority

This section is used to select the boot priority sequence of the devices.

Main

Boot Device Priority

1st Boot Device

2nd Boot Device

Advanced

BIOS SETUP UTILITY

Boot PCIPnP Security

[USB:USB Hotplug FDD]

[SATA:PM-TS64GSSD25]

Exit

Species the boot sequence from

the available devices.

A device enclosed in parenthesis has been disabled in the corresponding type menu.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

1st Boot Device to 2nd Boot Device

Selects the drive to boot first, and second in the “1st Boot Device” and “2nd Boot Device” fields respectively. The BIOS will boot the operating system according to the sequence of the drive selected.

76

nTUF 600 User Manual

Chapter 4: BIOS Setup

Chipset

This section is used to configure the system based on the specific features of the chipset.

Main

Advanced Chipset Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

► North Bridge Configuration

► South Bridge Configuration

Advanced

BIOS SETUP UTILITY

Boot

Chipset

PCIPnP

Security

Congure North Bridge features.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Exit

North Bridge Configuration

This section is used to configure the north bridge features.

Main

Advanced Chipset Settings

PCI MMIO Allocation: 4GB to 3072MB

Initate Graphic Adapter [MXM/IGD] Internal Graphics Mode Select [Enabled, 8MB]

PEG Port Configuration

DVMT Mode Select [DVMT Mode]

DVMT/FIXED Memory [256MB]

Boot Display Device [CRT]

Advanced

BIOS SETUP UTILITY

Boot

Chipset

PCIPnP

Security

Fixed Mode DVMT Mode

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Options

DVMT Mode Select

The options are Fixed mode and DVMT mode.

Exit

DVMT/Fixed Memory

This field is used to select the graphics memory size used by DVMT/Fixed mode.

77

nTUF 600 User Manual

Chapter 4: BIOS Setup

South Bridge Configuration

This section is used to configure the south bridge features.

Main

South Bridge Chipset Conguration

USB Functions [8 USB Ports]

USB 2.0 Controller [Enabled] HDA Controller [Enabled] SMBUS Controller [Enabled]

Restore on AC Power Loss

POWER TYPE

PCIE Ports Configuration Onboard LAN 1

Onboard LAN2 MINI PCIE port [Auto]

Advanced

BIOS SETUP UTILITY

Boot

Chipset

Disabled 2 USB Ports 4 USB Ports 6 USB Ports 8 USB Ports

Options

PCIPnP

Security

Disabled 2 USB Ports 4 USB Ports 6 USB Ports 8 USB Ports

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Options

USB Functions

Enables or disables USB devices.

HDA Controller

Enables or disables the onboard audio.

SMBUS Controller

Enables or disables the SMBUS.

Exit

Restore On AC Power Loss

Power Off When power returns after an AC power failure, the system’s power is off. You must press the Power button to power-on the system.

Power On When power returns after an AC power failure, the system will automatically power-on.

Last State When power returns after an AC power failure, the system will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.

Onboard LAN 1 to Onboard LAN 2

Enables or disables the onboard LAN 1 and LAN 2 controllers.

MINI PCIE Port

Enables or disables the mini PCIe controller.

USB 2.0 Controller

This field is used to enable or disable the Enhanced Host Controller Interface (USB 2.0).

78

nTUF 600 User Manual

Chapter 4: BIOS Setup

PCIPnP

This section is used to configure settings for PCI/PnP devices.

Main

Advanced PCI/PnP Settings

WARNING: Setting wrong values in below sections may cause system to malfunction.

Plug & Play O/S [No]

PCI Latency Timer [64]

IRQ3 [Available] IRQ4 [Available] IRQ5 [Available] IRQ7 [Available] IRQ9 [Available] IRQ10 [Available] IRQ11 [Available] IRQ14 [Available] IRQ15 [Available]

Advanced

Plug & Play O/S

Yes Configures Plug and Play (PnP) devices that are not required to boot in a Plug and Play supported operating system.

BIOS SETUP UTILITY

Boot

Chipset PCIPnP

Security

NO: lets the BIOS congure all

the devices in the system. YES: lets the operating system

congure Plug and Play (PnP)

devices not required for boot if your system has a Plug and Play operating system.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Exit

PCI Latency Timer

This feature is used to select the length of time each PCI device will control the bus before another takes over. The larger the value, the longer the PCI device can retain control of the bus. Since each access to the bus comes with an initial delay before any transaction can be made, low values for the PCI Latency Timer will reduce the effectiveness of the PCI bandwidth while higher values will improve it.

IRQ3 to IRQ15

Available The specified IRQ is available for PCI/PnP devices.

Reserved The specified IRQ is reserved for Legacy ISA devices.

No The BIOS configures all the devices in the system.

79

nTUF 600 User Manual

Chapter 4: BIOS Setup

Security

Main

Security Settings

User Password :Not Installed

Change User Password

Advanced

Boot

BIOS SETUP UTILITY

Chipset PCIPnP

Security

Install or Change the password.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Exit

Main

Security Settings

User Password :Not Installed

Change User Password

Advanced

Boot

Chipset PCIPnP

Enter New Password

Security

Install or Change the password.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Change User Password

This field is used to set or change the user password.

To set a new password:

BIOS SETUP UTILITY

Exit

1. Select the Change User Password field then press <Enter>.

2. Type your password in the dialog box then press <Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

4. When the Password Installed dialog box appears, select OK.

To change the password, repeat the same steps above.

80

nTUF 600 User Manual

Chapter 4: BIOS Setup

Exit

Main

Exit Options

Save Changes and Exit

Discard Changes and Exit Discard Changes

Load Optimal Defaults Load Failsafe Defaults

Advanced

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F10> to save and exit Setup.

BIOS SETUP UTILITY

Boot

Chipset PCIPnP

Security

Exit system setup after saving the changes.

F10 key can be used for this operation.

← Select Screen ↑↓ Select Item +/- Change Field Tab Select Field F1 General Help F10 Save & Exit ESC Exit

Exit

Discard Changes

To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.

Load Optimal Defaults

Loads the optimal default values from the BIOS ROM.

Load Failsafe Defaults

Loads the fail-safe default values from the BIOS ROM.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

81

nTUF 600 User Manual

Appendix A: Power Consumption

Test Configuration

System Configuration Sys#1

Chassis CHASSIS nTUF600 VER:B

CPU Intel® Atom™ processor D525 (1M Cache, 1.80 GHz)

Memory ADATA 2GB DDR2 800MHz SODIMM

HDD SSD 16GB TYPE: SLC Apacer (AP-SAFD254QA016GS-ETH)

FDD N/A

DVD-ROM 8x DVD±R/RW (DV-W28SS)

CFast Apacer CFast 16GB (81.3G040,DB30B)

Power Supply POWER ADAPTER FSP180-AAAN1

Add-on Card 3.5G module PCI-E Mini Card SIERRA WIRELESS:MC8790V

CPU Cooler ICES 253 CPU HEATSINK

System FAN N/A

Keyboard LEMEL B-5201-P

Mouse GENIVS EASY MOUSE USB

82

nTUF 600 User Manual

Appendix A: Power Consumption

Power Consumption Management

Purpose

The purpose of the power consumption test is to verify the power dissipation of system, and the loading of power supply.

Test Equipment

PROVA CM-07 AC/DC CLAMP METER

Device Under Test

DUT: sys#1/

Test Procedure

1. Power up the DUT, boot into Windows XP SP3

2. Entering standby mode (HDD power down)

3. Measure the power consumption and record it.

4. Run Burn-in test program to apply 100% full loading

5. Measure the power consumption and record it.

Test Data

Sys #1

+24V

Full-Loading Mode 1.53A

Total 36.72W

Standby S3Mode 0.18A

Total 4.32W

83

nTUF 600 User Manual

Appendix B: GPI/O Programming Guide

GPI/O (General Purpose Input/Output) pins are provided for custom system design. This appendix provides definitions and its default setting for the ten GPI/O pins in the NTUF-600 series. The pin definition is shown in the following table:

GPI/O mode PowerOn

Default

GPO0 Low 284h (Bit4) GPI0 High 284h (Bit0)

GPO1 Low 284h (Bit5) GPI1 High 284h (Bit1)

GPO2 Low 284h (Bit6) GPI2 High 284h (Bit2)

GPO3 Low 284h (Bit7) GPI3 High 284h (Bit3)

Control the GPO pins level from I/O port 284h bit (4/5/6/7). The bit is Set/Clear indicated output High/Low

Address GPI/O mode PowerOn

Default

Address

84

nTUF 600 User Manual

Appendix B: GPI/O Programming Guide

GPIO programming sample code

#define GPIO_PORT 0x284 #define GPO3 (0x01 << 4) #define GPO5 (0x01 << 5) #define GPO7 (0x01 << 6) #define GPO9 (0x01 << 7)

#define GPO3_HI outportb(GPIO_PORT, 0x10) #define GPO3_LO outportb(GPIO_PORT, 0x00) #define GPO5_HI outportb(GPIO_PORT, 0x20) #define GPO5_LO outportb(GPIO_PORT, 0x00) #define GPO7_HI outportb(GPIO_PORT, 0x40) #define GPO7_LO outportb(GPIO_PORT, 0x00) #define GPO9_HI outportb(GPIO_PORT, 0x80) #define GPO9_LO outportb(GPIO_PORT, 0x00) void main(void) { GPO3_HI; GPO5_LO; GPO7_HI; GPO9_LO; }

85

nTUF 600 User Manual

Appendix C: Watchdog Timer Setting

ITE8783 WatchDog Programming Guide

#define SUPERIO_PORT 0x2E #define WDT_SET 0x72 #define WDT_VALUE 0x73

void main(void) { #Enter SuperIO Configuration outportb(SUPERIO_PORT, 0x87); outportb(SUPERIO_PORT, 0x01); outportb(SUPERIO_PORT, 0x55); outportb(SUPERIO_PORT, 0x55);

# Set LDN outportb(SUPERIO_PORT,0x07); outportb(SUPERIO_PORT+1 ,0x07);

# Set WDT setting outportb(SUPERIO_PORT, WDT_SET); outportb(SUPERIO_PORT+1 , 0xC0); # Use the Second to come down # If choose the Minute, change value to 0x40

# Set WDT sec/min outportb(SUPERIO_PORT, WDT_VALUE); outportb(SUPERIO_PORT+1 , 0x05); #Set 5 seconds }
