NEXCOM NSA 5150 User Manual

NEXCOM International Co., Ltd.

Network and Communication Solutions

Network Security Appliance NSA 5150

User Manual

NEXCOM International Co., Ltd.

Published September 2014

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NSA 5150 ........................................................................ 3

Front Panel ..........................................................................................3

Rear Panel ...........................................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Jumper Settings ......................................................................................6

Locations of the Jumpers and Connectors ............................................... 7

Jumpers .................................................................................................. 8

RTC Clear ............................................................................................ 8

ATX/AT Select ......................................................................................8

Console Pin Header .............................................................................9

WDTO Pin Header ...............................................................................9

Connector Pin Definitions .....................................................................10

External I/O Interfaces ........................................................................ 10

Reset Button ..................................................................................10

RS232 Console Port .......................................................................10

Dual USB 3.0 Ports ......................................................................... 11

LAN Ports ....................................................................................... 12

Connector Pin Definitions .....................................................................14

Internal Connectors ........................................................................... 14

Digital IO (4 Input/4 Output) ...........................................................14

COM 2 Box Header Connector (RS232) .......................................... 14

BMC COM ..................................................................................... 15

USB2 Box Header ........................................................................... 15

HW Reset Pin Header .....................................................................16

Power Button Pin Header ...............................................................16

NMI Pin Header .............................................................................. 17

Bypass LED Pin Header ...................................................................17

ii

NSA 5150 User Manual

Content

Power LED Pin Header .................................................................... 18

HDD LED Pin Header ......................................................................18

GAL Programming Connector ........................................................19

BMC Programming Connector .......................................................19

BMC Reset Pin Header ...................................................................20

System Fan Connector (4-Pin) ......................................................... 20

System Fan Connectors (3-Pin) .......................................................21

Intrusion Detect Connector ............................................................21

Internal MO-297 Connector ........................................................... 22

SATA Connectors ...........................................................................22

SATA DOM Power Port ...................................................................23

Keyboard/Mouse Connector ...........................................................23

VGA Connector .............................................................................24

Parallel Interface for LCM Module ..................................................25

Keypad Pin Header ......................................................................... 25

PSMI Connector ............................................................................. 26

Power Connector ........................................................................... 26

Power Connector ........................................................................... 27

PCIe x4 Slot ....................................................................................28

LAN Module Slot ............................................................................ 29

Chapter 3: System Setup

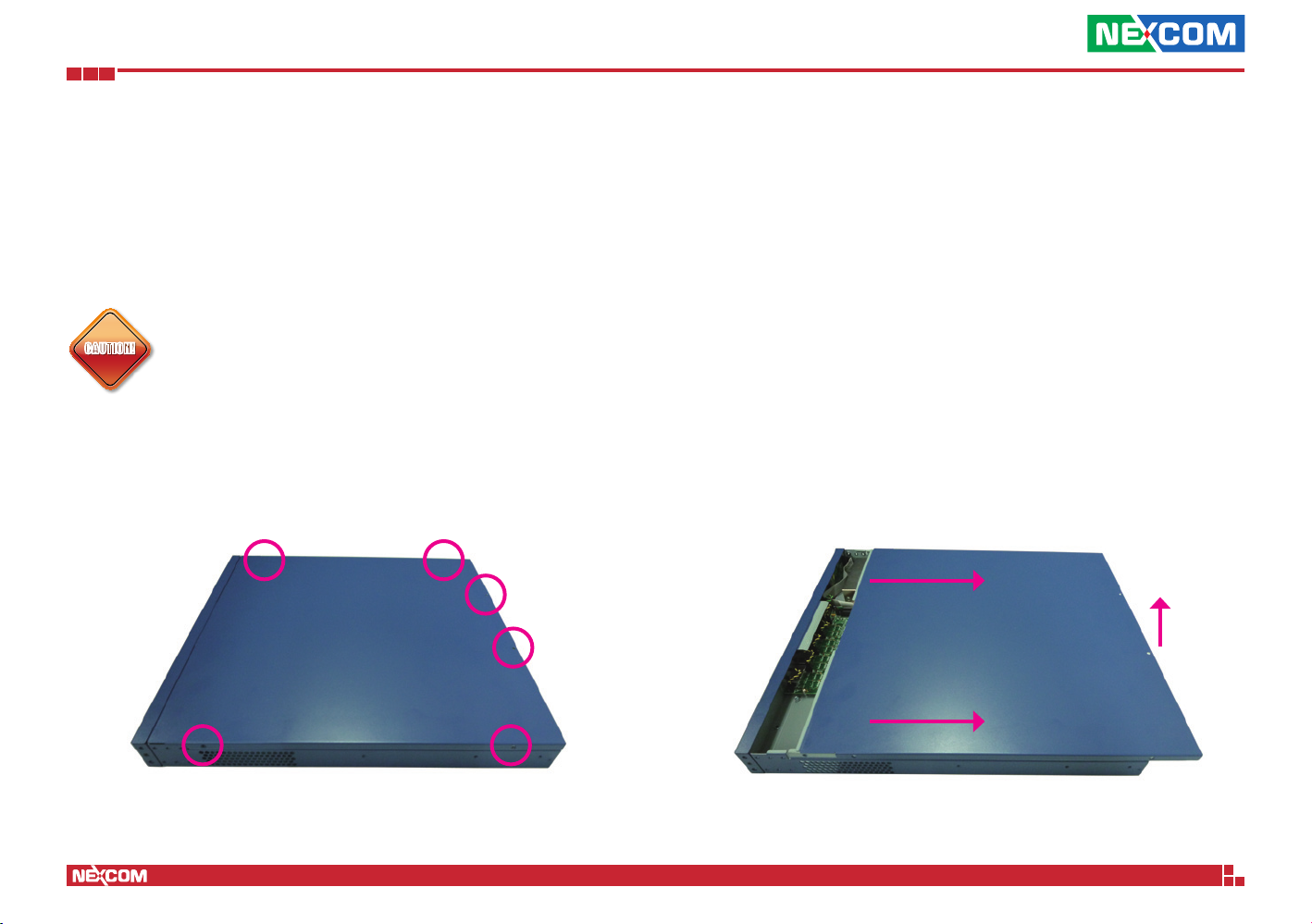

Removing the Chassis Cover .................................................................33

Installing a SATA DOM ..........................................................................34

Installing a MO-297 SSD Module ..........................................................37

Installing a SO DIMM ............................................................................39

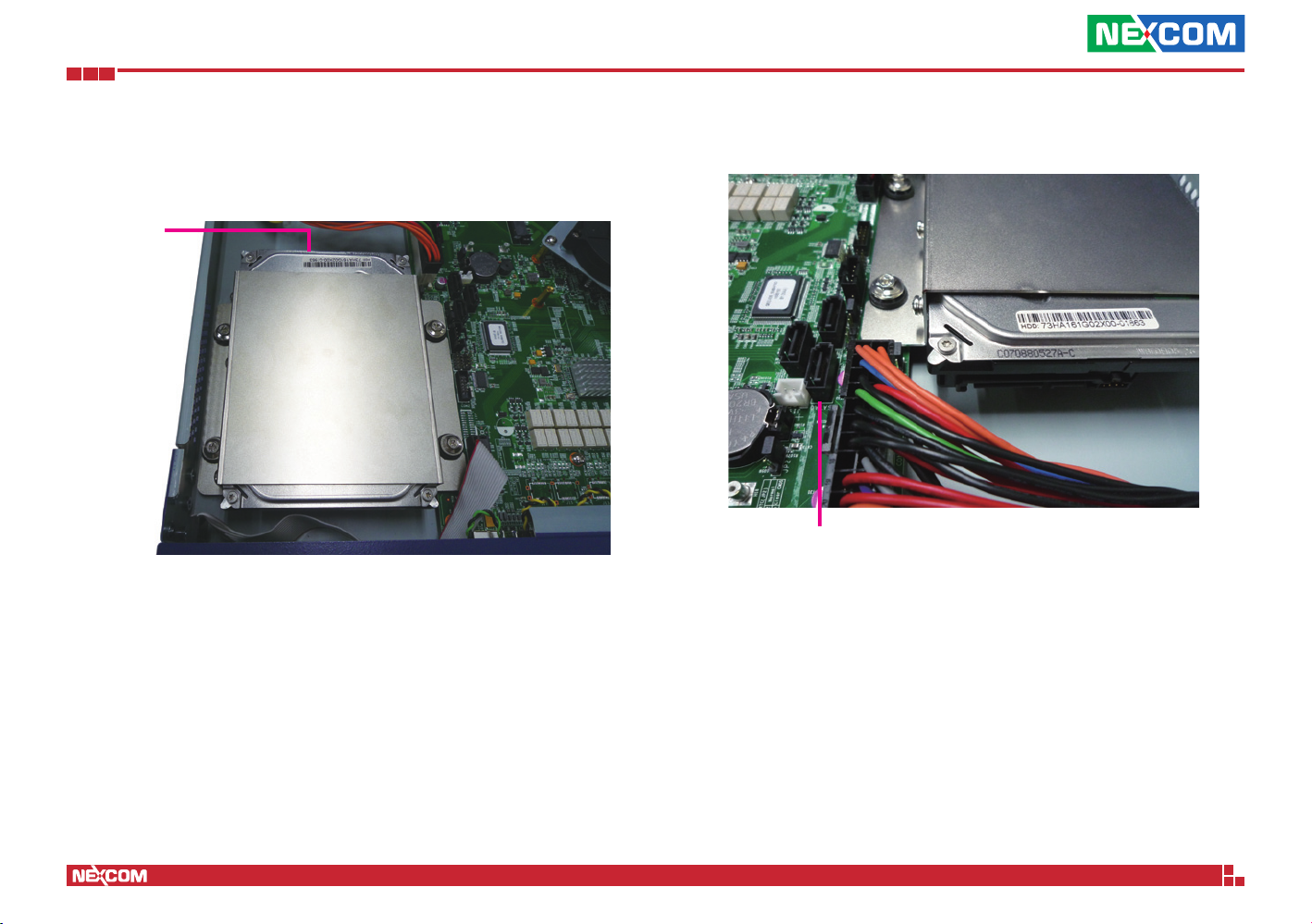

Installing a 3.5” SATA Hard Drive ..........................................................40

Installing a LAN Module ........................................................................ 44

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 46

When to Configure the BIOS .................................................................46

Default Configuration ........................................................................... 47

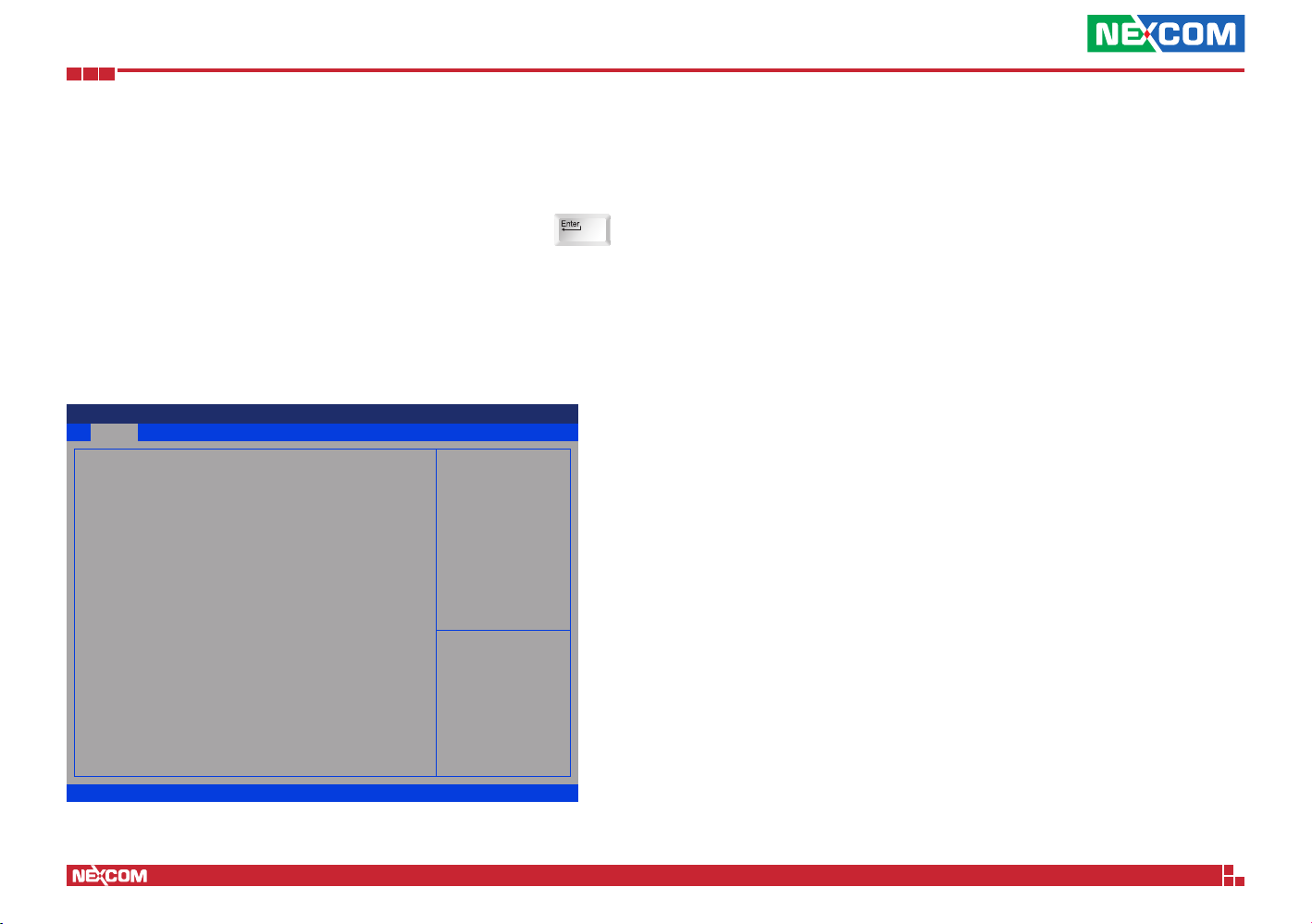

Entering Setup ...................................................................................... 47

Legends ................................................................................................ 47

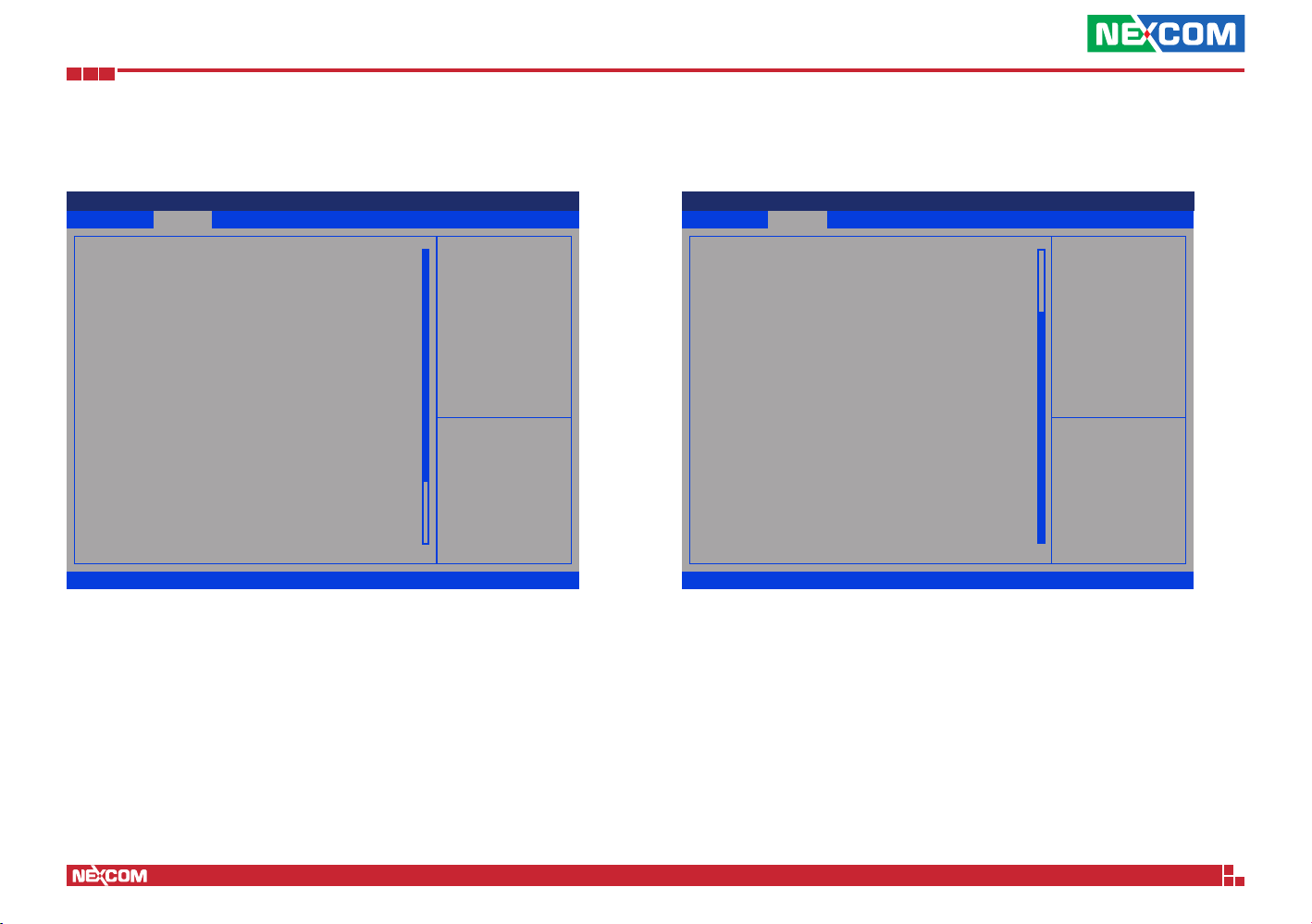

BIOS Setup Utility .................................................................................. 49

Main .................................................................................................49

Advanced ......................................................................................... 50

Chipset ..............................................................................................60

Boot .................................................................................................. 62

Security .............................................................................................63

Save & Exit ........................................................................................63

Server Mgmt .....................................................................................65

Appendix A: Bypass Register

Register Map ........................................................................................68

Register Bit Definitions .......................................................................... 69

iii

NSA 5150 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NSA 5150 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NSA 5150 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NSA 5150 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

NSA 5150 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NSA 5150 User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NSA 5150 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

NSA 5150 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

NSA 5150 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: sales@nexcom.com.tw

www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

xi

NSA 5150 User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

xii

NSA 5150 User Manual

Preface

Package Contents

Before continuing, verify that the NSA 5150 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 5044440031X00 Rubber Foot Kang Yang: RF20-5-4P 19.8x18x5.0mm 4 2 6012200052X00 PE Zipper Bag #8 170x240mm, W/China RoHS SYMBOL 1 3 6012200053X00 PE Zipper Bag #3 100x70mm, W/China RoHS SYMBOL 1 4 6023309081X00 Cable EDI: 232091081804-RS COM Port. DB9 Female To RJ45 8P8C L:1800mm 1 5 6029900037X00 DOW Corning 340 Silcone Heat Sink Compound(3g) 1 6 50311F0102X00 (H)Round Head Screw Long FEI: P6#32Tx 1/4/SW7*0.8 W/Spring+Flat Washer P6#32Tx 1/4/SW7x0.8 NI 4 7 60233AT133X00 SATA Cable ST: MD-6102042 SATA 7P 180D(LOCK) TO 7P 90D(LOCK) L=135mm 1 8 6014401754X00 NSA 5150 Membrane with LCM VER: A GREATWOOD 42x427.8x0.582mm 1

9 5060900301X00 NSA 5130 Ear Sets VER: A CHYUAN-JYH 79.5x43.5x26mm AL Pantone 295U 1 10 50311F0148X00 (H)Screw Long FEI: P4#40T*1/4 NIGP P#4-40TX6.35mm (NI) 1 11 602DCD0757X00 (E)NSA 5150 CD Driver VER: 1.0 JCL 1

xiii

NSA 5150 User Manual

Preface

Ordering Information

The following below provides ordering information for NSA 5150.

Barebone NSA 5150 (P/N: 10S00515000X0)

Support 4th generation Intel® Core™ processors, 4 DDR3 memory slots, 8PCIe GbE LAN ports, MO-297 socket, USB ports, VGA port, one PCIe x4 expansion slot, w/o LCM

xiv

NSA 5150 User Manual

Chapter 1: Product Introduction

Overview

Key Features

▪ 1U rackmount network platform

®

4th generation Core™ processors

▪ Intel

▪ Support four DDR3 1333/1600 memory, up to 32GB

▪ Support one PCIe x8 expansion

▪ Internal one 3.5” HDD bay/two 2.5” HDD bay (Optional)

1

NSA 5150 User Manual

Chapter 1: Product Introduction

Hardware Specifications

Main Board

▪ NSB 5150 ▪ Support 4th generation Intel

®

▪ Intel

C226

®

Core™ processors

Main Memory

▪ 4x 240-pin DDR3 1333/1600MHz DIMM sockets, up to 32GB ECC

SDRAM

LAN Features

▪ LAN Chip : Intel® I350 ▪ Support 10/100/1000 link speed ▪ LAN Bypass : 4pairs

Expansion

▪ 1x PCIe x4 slot ▪ 1x LAN module

I/O Interface-Front

▪ Power status/HDD status/LAN status/Bypass status LEDs ▪ 2x USB 2.0 ports ▪ 1x RJ45 type console port ▪ 8x copper LAN ports ▪ 1x LAN Module (Optional)

I/O Interface-Rear

▪ 1x expansion slot ▪ 2x USB 2.0 ports ▪ 1x VGA port

Devices

▪ 1x MO-297 socket ▪ 1x internal 3.5” HDD bay/two 2.5” HDD Bay (Optional) ▪ 1x SATA-DOM device space

Power Input

▪ 250W ATX power supply/200W 1+1 redundant power supply (Optional)

Chassis Dimensions

▪ Chassis Dimension : 430mm x 450mm x 44mm ▪ Carton Dimension : 560mm x 620mm x 190mm

Weight

▪ Without packing: 8Kg ▪ With packing: 12Kg

Certifications

▪ CE approval ▪ FCC Class A ▪ UL

2

NSA 5150 User Manual

Chapter 1: Product Introduction

Knowing Your NSA 5150

Front Panel

LCD

Power/HDD LEDs

Reset button

RJ45 type

console

serial port

Copper LAN ports

USB ports

LCD

2x16 characters LCD module, PIO interface.

Reset Button

Press to restart the system.

Power LED

Indicates the power status of the system.

HDD LED

Indicates the status of the hard drive.

RJ45 Type Console Serial Port

Used to connect RJ45 type console devices.

USB Ports

Used to connect USB 3.0/2.0 devices.

Copper LAN Ports

Used to connect LAN network devices.

3

NSA 5150 User Manual

Chapter 1: Product Introduction

Rear Panel

Expansion slot

(optional)

VGA

USB Ports

Expansion Slot

Used to install a PCI Express x8 card.

VGA

Used to connect an analog VGA monitor.

USB Ports

Used to connect USB 2.0/1.1 devices.

AC Power Socket

Plug an AC power cord here before turning on the system.

AC Power Socket

4

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the NSA 5150 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

5

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

6

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

J25

JP6

JP5

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

SW1

COM1

USB1

LAN4

LAN3

LAN2

LAN1

JWDTO

JPWRBTN1

SATA2

SATA1

JINTRUDER

JRST1

CON1 CON2

SATA0

JP2

J19

FAN3

U3

SATA3

JBMCRST

COM2

JKBMS1

J22

JPSMI1

J24

JP3

CN5

J18

J14

J10

J5

J1

JBMCCOM

JBMCPRO

JBMCVGA1

JUSB1

PCIE 1

JP1

JVGA1

FAN4

FAN2

FAN1

7

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

RTC Clear

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP2

1 3 1 3

Pin Function

1-2 Normal 2-3 Clear CMOS

Pin Definition

1 VCCRTC 2 RTC_RST# 3 GND

ATX/AT Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP5

Pin Function

1-2 ATX Mode 2-3 AT Mode

Pin Definition

1 NC 2 AT_ATX_SELECT 3 GND

8

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Console Pin Header

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP3

1 3 1 3

Pin Function

1-2 RTS to CTS 2-3 Normal

Pin Description

1 SP_RTS1_R 2 SP_CTS1_R 3 SP_CTS1_CON

WDTO Pin Header

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JWDTO

Pin Function

1-2 NMI at WDTO 2-3 Reset at WDTO

Pin Description

1 NMI_WDTO 2 SIO_WDTO 3 RST_WDTO

9

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

Reset Button

Connector location: SW1

1 2

Pin Definition

1 GND 2 SW_BTN_IN

RS232 Console Port

Connector type: RJ45 port Connector location: COM1

81

Pin Definition Pin Definition

1 SP_RTS1_R 2 SP_DTR1_R 3 SP_TXD1_R 4 GND 5 SP_DCD1_R 6 SP_RXD1_R 7 SP_DSR1_R 8 SP_CTS1_CON

10

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Dual USB 3.0 Ports

Connector type: Dual USB 3.0 ports Connector location: USB1

10 13

9

1

1418

5

4

Pin Definition Pin Definition

1 5VDUAL 2 USB23 USB2+ 4 GND 5 USB3_RX3- 6 USB3_RX3+ 7 GND 8 USB3_TX3-

9 USB3_TX3+ 10 5VDUAL 11 USB3- 12 USB3+ 13 GND 14 USB3_RX415 USB3_RX4+ 16 GND 17 USB3_TX4- 18 USB3_TX4+

11

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

ACT LINK

LAN Ports

Connector type: RJ45 with LEDs Connector location: LAN1, LAN2, LAN3 and LAN4

Act Status

Flashing Yellow Data activity

Off No activity

Link Status

18

LAN1 LAN2

Pin Definition Pin Definition

A1 PORT7_MDI0P A2 PORT7_MDI0N A3 PORT7_MDI1P A4 PORT7_MDI1N A5 LAN7_RJ_TC A6 GND A7 PORT7_MDI2P A8 PORT7_MDI2N

A9 PORT7_MDI3P A10 PORT7_MDI3N A11 PORT7_L1000_N A12 PORT7_L100_N A13 PORT7_ACT_N A14 PORT7_LINK_N

B1 PORT8_MDI0P B2 PORT8_MDI0N B3 PORT8_MDI1P B4 PORT8_MDI1N B5 LAN8_RJ_TC B6 GND B7 PORT8_MDI2P B8 PORT8_MDI2N

B9 PORT8_MDI3P B10 PORT8_MDI3N B11 PORT8_L1000_N B12 PORT8_L100_N B13 PORT8_ACT_N B14 PORT8_LINK_N

Steady Green 1G network link

Steady Yellow 100Mbps network link

Off No link

Pin Definition Pin Definition

A11 PORT5_L1000_N A12 PORT5_L100_N A13 PORT5_ACT_N A14 PORT5_LINK_N

B11 PORT6_L1000_N B12 PORT6_L100_N B13 PORT6_ACT_N B14 PORT6_LINK_N

A1 PORT5_MDI0P A2 PORT5_MDI0N A3 PORT5_MDI1P A4 PORT5_MDI1N A5 LAN5_RJ_TC A6 GND A7 PORT5_MDI2P A8 PORT5_MDI2N A9 PORT5_MDI3P A10 PORT5_MDI3N

B1 PORT6_MDI0P B2 PORT6_MDI0N B3 PORT6_MDI1P B4 PORT6_MDI1N B5 LAN6_RJ_TC B6 GND B7 PORT6_MDI2P B8 PORT6_MDI2N B9 PORT6_MDI3P B10 PORT6_MDI3N

12

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

LAN3 LAN4

Pin Definition Pin Definition

A1 PORT3_MDI0P A2 PORT3_MDI0N A3 PORT3_MDI1P A4 PORT3_MDI1N A5 LAN3_RJ_TC A6 GND A7 PORT3_MDI2P A8 PORT3_MDI2N

A9 PORT3_MDI3P A10 PORT3_MDI3N A11 PORT3_L1000_N A12 PORT3_L100_N A13 PORT3_ACT_N A14 PORT3_LINK_N

Pin Definition Pin Definition

A1 PORT1_MDI0P A2 PORT1_MDI0N A3 PORT1_MDI1P A4 PORT1_MDI1N A5 LAN1_RJ_TC A6 GND A7 PORT1_MDI2P A8 PORT1_MDI2N

A9 PORT1_MDI3P A10 PORT1_MDI3N A11 PORT1_L1000_N A12 PORT1_L100_N A13 PORT1_ACT_N A14 PORT1_LINK_N

B1 PORT4_MDI0P B2 PORT4_MDI0N B3 PORT4_MDI1P B4 PORT4_MDI1N B5 LAN4_RJ_TC B6 GND B7 PORT4_MDI2P B8 PORT4_MDI2N

B9 PORT4_MDI3P B10 PORT4_MDI3N B11 PORT4_L1000_N B12 PORT4_L100_N B13 PORT4_ACT_N B14 PORT4_LINK_N

B11 PORT2_L1000_N B12 PORT2_L100_N B13 PORT2_ACT_N B14 PORT2_LINK_N

B1 PORT2_MDI0P B2 PORT2_MDI0N B3 PORT2_MDI1P B4 PORT2_MDI1N B5 LAN2_RJ_TC B6 GND B7 PORT2_MDI2P B8 PORT2_MDI2N B9 PORT2_MDI3P B10 PORT2_MDI3N

13

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

19

21

Connector Pin Definitions

Internal Connectors

Digital IO (4 Input/4 Output)

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: J22

0

Pin Definition Pin Definition

1 VCC5 2 GND 3 SIO_GP32 4 SIO_GP06 5 SIO_GP03 6 SIO_GP07 7 SIO_GP04 8 SIO_GP76 9 SIO_GP05 10 SIO_GP77

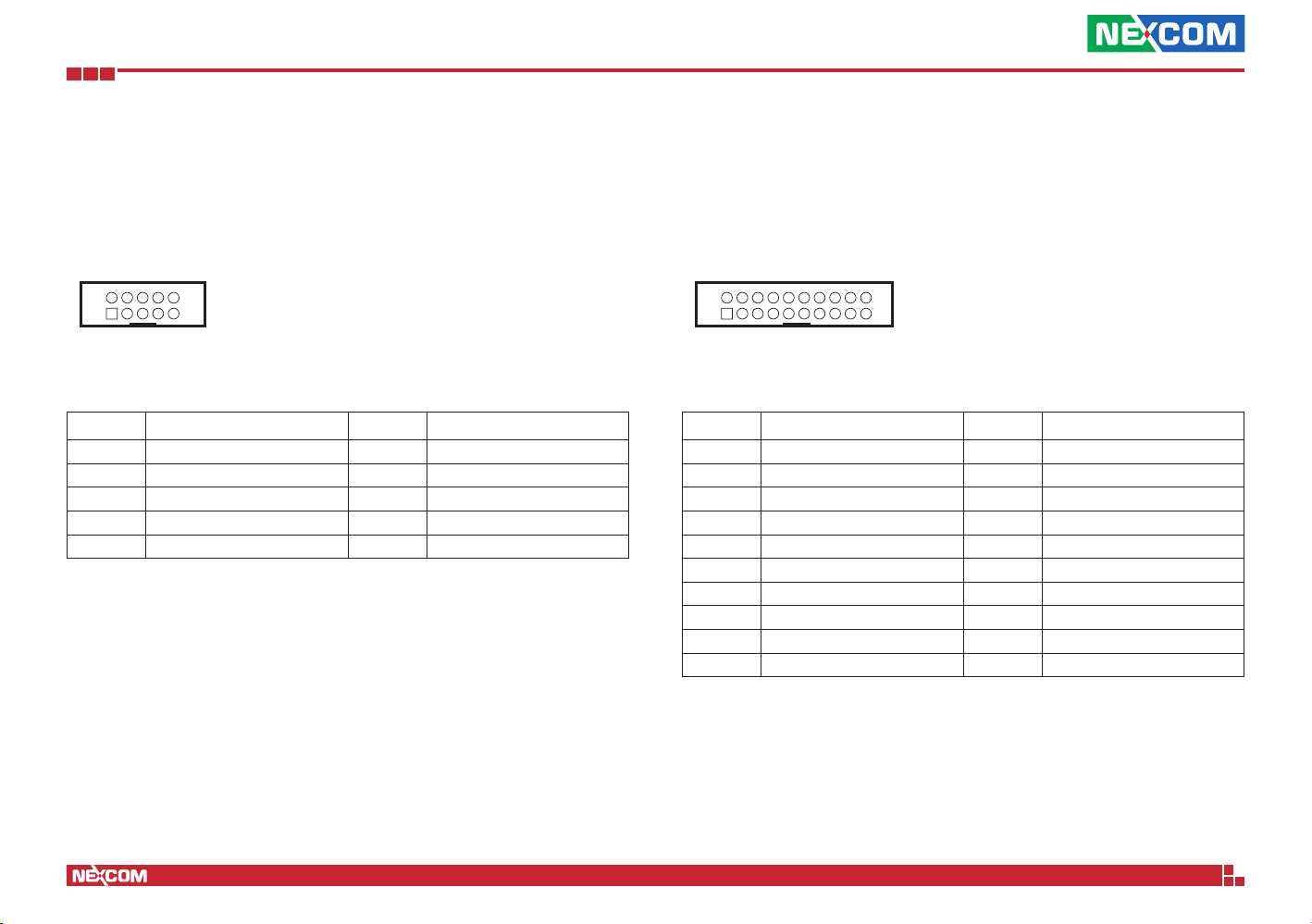

COM 2 Box Header Connector (RS232)

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM2

2 1

Pin Definition Pin Definition

1 SP_DCD2 2 SP_RXD2 3 SP_TXD2 4 SP_DTR2 5 GND 6 SP_DSR2 7 SP_RTS2 8 SP_CTS2 9 SP_RI2 10 GND

10

9

14

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

BMC COM

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: JBMCCOM

2 1

Pin Definition Pin Definition

1 NC 2 SP_RXD 3 SP_TXD 4 NC 5 GND 6 NC 7 NC 8 NC 9 NC 10 GND

10 9

USB2 Box Header

Connector type: 2x10 20-pin header, 2.0mm pitch Connector location: JUSB1

2 1

Pin Definition Pin Definition

1 5VDUAL 2 USB3_RX13 USB3_RX1+ 4 GND 5 USB3_TX1- 6 USB3_TX1+ 7 GND 8 USB_0-

9 USB_0+ 10 NC 11 USB_1+ 12 USB_113 GND 14 USB3_TX2+ 15 USB3_TX2- 16 GND 17 USB3_RX2+ 18 USB3_RX219 5VDUAL 20

20 19

15

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

HW Reset Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JRST1

12

Pin Definition

1 PCH_SYS_RESET_N_R 2 GND

Power Button Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JPWRBTN1

12

Pin Definition

1 GND

2 FP_PWRBTN_N

16

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

NMI Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JP1

12

Pin Definition

1 NMI_SW2 GND

Bypass LED Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: J1, J5, J10 and J14

12

J1

Pin Definition

1 VCC3

2 BYPASS_LED_S4

J5

Pin Definition

1 VCC3

2 BYPASS_LED_S3

J10

Pin Definition

1 VCC3

2 BYPASS_LED_S2

17

J14

Pin Definition

1 VCC3

2 BYPASS_LED_S1

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Power LED Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: J24

12 12

Pin Definition

1 VCC3 2 POWER_LED

HDD LED Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: J18

Pin Definition

1 VCC3

2 HDD_LED

18

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

16

15

GAL Programming Connector

Connector type: 1x6 6-pin header, 2.54mm pitch Connector location: J25

Pin Definition Pin Definition

1 3VSB 2 GND 3 GAL_TCK 4 GAL_TDO 5 GAL_TDI 6 GAL_TMS

BMC Programming Connector

Connector type: 1x5 5-pin header, 2.54mm pitch Connector location: JBMCPRO

Pin Definition Pin Definition

1 FLA_CS0 2 FLA_D0

3 FLA_D1 4 FLA_D2

5 FLA_D3 6

19

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

BMC Reset Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JBMCRST

12

Pin Definition

1 BMC_RESET_N 2 GND

System Fan Connector (4-Pin)

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: FAN2 and FAN4

1 4

Pin Definition

1 GND

2 VCC12

3 Sense

4 FANPWM

20

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

13

System Fan Connectors (3-Pin)

Connector type: 1x3 3-pin Wafer, 2.54mm pitch Connector location: FAN1 and FAN3

Pin Definition

1 GND 2 VCC12 3 Sense

Intrusion Detect Connector

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: JINTRUDER

1

Pin Definition

2

1 INTRUDER_N

2 GND

21

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Internal MO-297 Connector

Connector type: MO-297 Connector location: SATA3

Pin Definition Pin Definition

1 GND 2 SATA_TXP3 3 SATA_TXN3 4 GND 5 SATA_RXN3 6 SATA_RXP3 7 GND 8 NC

9 NC 10 NC 11 GND 12 GND 13 GND 14 VCC5 15 VCC5 16 VCC5 17 GND 18 NC 19 GND 20 NC 21 NC 22 NC

SATA Connectors

Connector type: Standard Serial ATA, 1.27mm pitch Connector location: SATA0, SATA1 and SATA2

1 7

SATA0

Pin Definition Pin Definition

1 GND 2 SATA_TX0P 3 SATA_TX0N 4 GND 5 SATA_RX0N 6 SATA_RX0P 7 GND

SATA1

Pin Definition Pin Definition

1 GND 2 SATA_TX1P 3 SATA_TX1N 4 GND 5 SATA_RX1N 6 SATA_RX1P 7 GND

SATA2

Pin Definition Pin Definition

1 GND 2 SATA_TX2P 3 SATA_TX2N 4 GND 5 SATA_RX2N 6 SATA_RX2P 7 GND

22

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

17

28

SATA DOM Power Port

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J19

1

Pin Definition

1 VCC5

2 GND

2

Keyboard/Mouse Connector

Connector type: 2x4 8-pin header, 2.54mm pitch Connector location: JKBMS1

Pin Definition Pin Definition

1 VCC5 2 VCC5 3 KDAT 4 MDAT 5 KCLK 6 MCLK 7 GND 8 GND

23

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

VGA Connector

Connector type: 2x8 16-pin header, 2.0mm pitch Connector location: JVGA1

2 1

Pin Definition Pin Definition

1 RED_VGA 2 GREEN_VGA

3 BLUE_VGA 4 NC

5 GND 6 GND

7 GND 8 GND

9 VGA_+5V 10 GND 11 NC 12 DDC_DATA_VGA 13 HSYNC_VGA 14 VSYNC_VGA 15 DDC_CLK_VGA 16 NC

16 15

VGA Connector

Connector type: 2x8 16-pin header, 2.0mm pitch Connector location: JBMCVGA1

2 1

Pin Definition Pin Definition

1 DACROA 2 DACGOA 3 DACBOA 4 NC 5 GND 6 GND 7 GND 8 GND

9 VGA_VCC 10 GND 11 NC 12 DDC_DATAO 13 AHSYNCO 14 AVSYNCO 15 DDC_CLKO 16 NC

16 15

24

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

14

Parallel Interface for LCM Module

Connector type: 2x8 16-pin header, 2.54mm pitch Connector location: CN5

2 1

Pin Definition Pin Definition

1 VCC5 2 GND 3 LPT_SLIN#R 4 LPT_RES 5 LPT_AFD#R 6 LPT_INIT#R 7 LPT_PDR1 8 LPT_PDR0

9 LPT_PDR3 10 LPT_PDR2 11 LPT_PDR5 12 LPT_PDR4 13 LPT_PDR7 14 LPT_PDR6 15 LPT_PW 16 VCC5

16 15

Keypad Pin Header

Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: JP6

Pin Definition Pin Definition

1 KEY_PIN1 2 KEY_PIN2 3 KEY_PIN3 4 KEY_PIN4

25

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

11

PSMI Connector

Connector type: 1x5 5-pin header, 2.54mm pitch Connector location: JPSMI1

15

Pin Definition Pin Definition

1 PMBUS_CLK 2 PMBUS_DATA

3 PMBUS_ALERT_N 4 GND

5 NC 6

Power Connector

Connector type: 2x12 24-pin header, 4.2mm pitch Connector location: CON1

2

13 24

Pin Definition Pin Definition

1 VCC3 2 VCC3 3 GND 4 VCC5 5 GND 6 VCC5 7 GND 8 ATXPWROK

9 5VSB 10 VCC12 11 VCC12 12 VCC3 13 VCC3 14 NVCC12 15 GND 16 SIO_PSON_N 17 GND 18 GND 19 GND 20 GND 21 VCC5 22 VCC5 23 VCC5 24 GND

26

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Power Connector

Connector type: 2x4 8-pin header, 4.2mm pitch Connector location: CON2

1

5 8

4

Pin Definition Pin Definition

1 GND 2 GND 3 GND 4 GND 5 VCC12_CPU 6 VCC12_CPU 7 VCC12_CPU 8 VCC12_CPU

27

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

PCIe x4 Slot

Connector type: PCIe x4 Slot Connector location: PCIE1

A1B1A11

B11

A12

B12

A32

B32

Pin Definition Pin Definition

A1 PRSNT1 B1 VCC12 A2 VCC12 B2 VCC12 A3 VCC12 B3 VCC12 A4 GND B4 GND A5 NC B5 SLOT_SMC A6 NC B6 SLOT_SMD A7 NC B7 GND A8 NC B8 VCC3

A9 VCC3 B9 NC A10 VCC3 B10 3VSB A11 RST_X4_SLOT_N B11 PCIE_WAKE_L A12 GND B12 NC A13 CK_SLOT2_DP B13 GND A14 CK_SLOT2_DN B14 PCH_PE_TXP5 A15 GND B15 PCH_PE_TXN5 A16 PCH_PE_RXP5 B16 GND

Pin Definition Pin Definition

A17 PCH_PE_RXN5 B17 PRSNT2_1 A18 GND B18 GND A19 NC B19 PCH_PE_TXP6 A20 GND B20 PCH_PE_TXN6 A21 PCH_PE_RXP6 B21 GND A22 PCH_PE_RXN6 B22 GND A23 GND B23 PCH_PE_TXP7 A24 GND B24 PCH_PE_TXN7 A25 PCH_PE_RXP7 B25 GND A26 PCH_PE_RXN7 B26 GND A27 GND B27 PCH_PE_TXP8 A28 GND B28 PCH_PE_TXN8 A29 PCH_PE_RXP8 B29 GND A30 PCH_PE_RXN8 B30 NC A31 GND B31 PRSNT2_2 A32 NC B32 GND

28

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

LAN Module Slot

Connector location: U3

B12B82

B12 B11

B1B82

B1B11

A82 A12

Pin Definition Pin Direction

A1 GND GND A2 LPC_AD0 LPC Multiplexed Command, Address, Data I/O A3 LPC_AD1 LPC Multiplexed Command, Address, Data I/O A4 LPC_AD2 LPC Multiplexed Command, Address, Data I/O A5 LPC_AD3 LPC Multiplexed Command, Address, Data I/O A6 LPC_FRAME_N LPC Frame O A7 GND GND A8 CK_33M_PCIE1 33MHz Clock output O A9 GNG GND

A10 PCIE1_SLOT_RST_N Platform Reset O

A11 GND GND A12 P5V 5V Power A13 P5V 5V Power A14 P5V 5V Power A15 P5V 5V Power A16 P5V 5V Power A17 P3V3 3.3V Power

Pin Definition Pin Direction

A18 P3V3 3.3V Power A19 P3V3 3.3V Power A20 P3V3 3.3V Power

A21 P3V3 3.3V Power

A22 P3V3 3.3V Power A23 P3V3 3.3V Power A24 P12V 12V Power A25 P12V 12V Power A26 P12V 12V Power A27 P12V 12V Power A28 P12V 12V Power

A29 ATX_PWROK_B1

A30 ATX_PWROK_B2

A31 GND GND A32 PCIE1_SMBCLK SMBus Clock. 4.7K pull-high to 3.3V I/O

A12A82

A11 A1

A1A11

Power good signal from ATX power supply

8.2K pull-high to 5VDual

Power good signal from ATX power supply

8.2K pull-high to 5VDual

O

29

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Direction

A33 PCIE1_SMBDAT SMBus Data. 4.7K pull-high to 3.3V I/O A34 GND GND A35 FAN_TAC4 Amplitude fan tachometer input I A36 GND GND A37 GND GND A38 GND GND A39 GND GND A40 GND GND A41 GND GND A42 GND GND A43 GND GND A44 GND GND

A45 HM_VTIN1

Temperature sensor input

10K pull-high to VREF

I

A46 MONITOR_GND Temperature sensor GND A47 GND GND A48 GND GND A49 GND GND A50 GND GND A51 ALL_PWRGD All power OK signal O A52 GND GND A53 N12V NC A54 GND GND A55 GND GND A56 PEG0_RX7P CPU Primary PCI Express Receive Differential A57 PEG0_RX7N I

Pair

I

Pin Definition Pin Direction

A58 GND GND A59 PEG0_TX7P CPU Primary PCI Express Transmit A60 PEG0_TX7N O

Differential Pair

O

A61 GND GND A62 PEG0_RX6P CPU Primary PCI Express Receive Differential A63 PEG0_RX6N I

Pair

I

A64 GND GND A65 PEG0_TX6P CPU Primary PCI Express Transmit A66 PEG0_TX6N O

Differential Pair

O

A67 GND GND A68 PEG0_RX5P CPU Primary PCI Express Receive Differential A69 PEG0_RX5N I

Pair

I

A70 GND GND A71 PEG0_TX5P CPU Primary PCI Express Transmit A72 PEG0_TX5N O

Differential Pair

O

A73 GND GND A74 PEG0_RX4P CPU Primary PCI Express Receive Differential A75 PEG0_RX4N I

Pair

I

A76 GND GND A77 PEG0_TX4P CPU Primary PCI Express Transmit A78 PEG0_TX4N O

Differential Pair

O

A79 GND GND A80 GND GND A81 GND GND A82 GND GND

30

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Direction

B1 GND GND B2 PCIE1_SEL1 High level (3.3VSB) (Identify for module) O B3 PCIE1_SEL2 Low level (GND) (Identify for module) O B4 PCIE1_SEL3 Low level (GND) (Identify for module) O B5 GND GND B6 GND GND

B7 GND GND

B8 PCIE1_SUSCLK 32KHz Clock output O

B9 P3V3_DUAL 3.3VSB Power B10 P3V3_DUAL 3.3VSB Power B11 P3V3_DUAL 3.3VSB Power B12 P5V 5V Power B13 P5V 5V Power B14 P5V 5V Power B15 P5V 5V Power B16 P5V 5V Power B17 P3V3 3.3V Power B18 P3V3 3.3V Power B19 P3V3 3.3V Power B20 P3V3 3.3V Power B21 P3V3 3.3V Power B22 P3V3 3.3V Power B23 P3V3 3.3V Power B24 P12V 12V Power B25 P12V 12V Power B26 P12V 12V Power B27 P12V 12V Power B28 P12V 12V Power B29 SMB_ALERT# SMBus ALERT# I

B30 PE_WAKE_N

PCI Express Device Wake Event signal

1K pull-high to 3VDual

I

Pin Definition Pin Direction

B31 ATX_PWROK_A1

B32 ATX_PWROK_A2

Power good signal from ATX power supply

8.2K pull-high to 5VDual

Power good signal from ATX power supply

8.2K pull-high to 5VDual

O

B33 GND GND B34 USB_4P Universal Serial Bus Port Differential signal I/O B35 USB_4N Universal Serial Bus Port Differential signal I/O B36 USB_OC45# USB device Over current Indicators I

B37 GND GND

B38 GND GND B39 GND GND B40 GND GND B41 GND GND B42 GND GND B43 GND GND B44 GND GND B45 GND GND B46 GND GND B47 GND GND B48 GND GND B49 GND GND B50 GND GND B51 GND GND B52 GND GND B53 GND GND B54 GND GND B55 GND GND B56 PEG0_RX3P CPU Primary PCI Express Receive Differential B57 PEG0_RX3N I

Pair

I

B58 GND GND

31

NSA 5150 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Direction

B59 PEG0_TX3P CPU Primary PCI Express Transmit B60 PEG0_TX3N O

Differential Pair B61 GND GND B62 PEG0_RX2P CPU Primary PCI Express Receive Differential B63 PEG0_RX2N I

Pair B64 GND GND

B65 PEG0_TX2P

B66 PEG0_TX2N O

CPU Primary PCI Express Transmit

Differential Pair B67 GND GND B68 PEG0_RX1P CPU Primary PCI Express Receive Differential B69 PEG0_RX1N I

Pair B70 GND GND B71 PEG0_TX1P CPU Primary PCI Express Transmit B72 PEG0_TX1N O

Differential Pair B73 GND GND B74 PEG0_RX0P CPU Primary PCI Express Receive Differential B75 PEG0_RX0N I

Pair B76 GND GND B77 PEG0_TX0P CPU Primary PCI Express Transmit B78 PEG0_TX0N O

Differential Pair B79 GND GND B80 CK_SLOT1_DP Differential PCI Express Clock O B81 CK_SLOT1_DN Differential PCI Express Clock O B82 GND GND

O

I

O

I

O

I

O

32

NSA 5150 User Manual

Chapter 3: System Setup

CAUTION!

Chapter 3: System Setup

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

is off and disconnected from the power sources to prevent electric shock or system damage.

1. Remove the screws on the chassis cover then put them in a safe place for later use.

2. Gently slide the cover outwards, then lift up the cover to remove it.

33

Lift here

NSA 5150 User Manual

Chapter 3: System Setup

Installing a SATA DOM

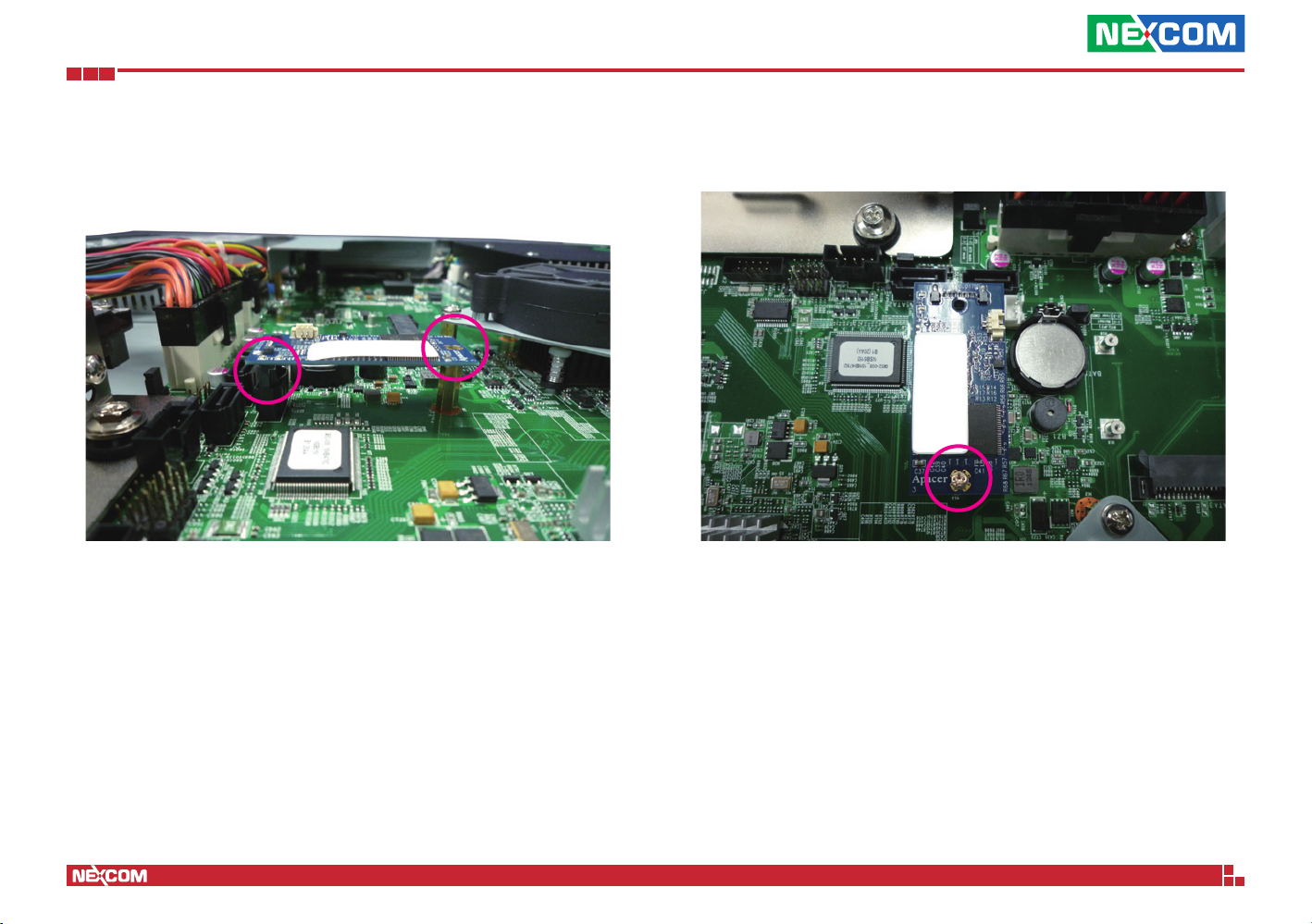

1. Locate the SATA DOM connector on the board.

2. Fasten a copper post on the mounting hole.

34

NSA 5150 User Manual

Chapter 3: System Setup

3. Install the SATA DOM to the connector with the mounting hole aligned to the copper post.

4. Fasten a screw on top of the copper post.

35

NSA 5150 User Manual

Chapter 3: System Setup

5. Connect the power cable to the power connector on the board.

36

NSA 5150 User Manual

Chapter 3: System Setup

Installing a MO-297 SSD Module

1. Locate the MO-297 connector on the board.

MO-297 connector

2. Insert the MO-297 SSD module until it is fully seated into the connector.

MO-297 module

37

NSA 5150 User Manual

Chapter 3: System Setup

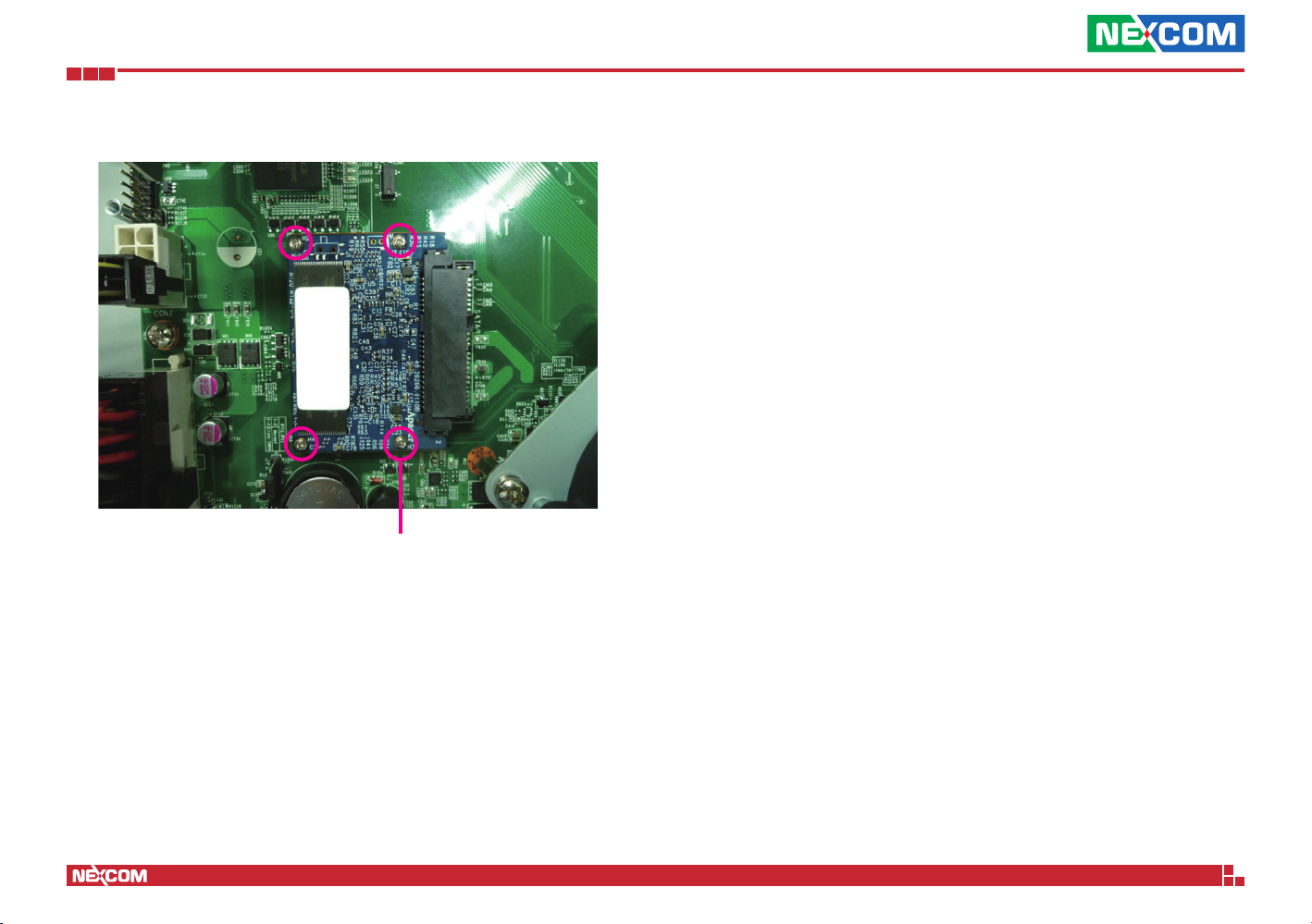

3. Secure the MO-297 SSD module with screws.

Mounting screw

38

NSA 5150 User Manual

Chapter 3: System Setup

Installing a SO DIMM

1. Locate the SO DIMM sockets on the board.

2. Release the locks on the SO DIMM sockets.

3. Insert the module into the socket at an 90 degree angle. Apply firm even pressure to each end of the module until it slips into the socket.

4. While pushing the SO DIMM into the position, the lock will close automatically.

39

NSA 5150 User Manual

Chapter 3: System Setup

CAUTION!

Installing a 3.5” SATA Hard Drive

CAUTION!CAUTION!

Please correctly follow the below instructions and noted items to avoid making unnecessary damages.

1. Remove the mounting screws that secure the hard drive bracket to the chassis. 2. Note the sides of the hard drive bracket. The longer side is designed to fit on the chassis’ standoff while the shorter side is designed to fit on the motherboard’s standoff.

Longer side Shorter side

Mounting screw

40

NSA 5150 User Manual

Chapter 3: System Setup

3. Place the SATA hard drive into the hard drive bracket with the SATA

connector facing outwards.

SATA data and power connector

4. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the hard drive bracket. Then use the provided mounting screws to secure the SATA drive in place.

5. Repeat step 4 for securing the screws on the other side of the hard drive bracket.

41

NSA 5150 User Manual

Chapter 3: System Setup

6. Place the drive into the chassis with the connector side facing the board, and then use the provided mounting screws to secure the hard drive bracket in place.

Connector

side

7. Locate the SATA data connector on the board.

SATA data connector

42

NSA 5150 User Manual

Chapter 3: System Setup

8. Plug the SATA data cable onto the connector, then plug the other end to the SATA data connector on the hard drive.

SATA data cable SATA data connector

9. Plug the SATA power cable to the SATA power connector on the hard drive.

SATA power cable

43

NSA 5150 User Manual

Chapter 3: System Setup

CAUTION!

Installing a LAN Module

The system is equipped with 1 LAN module bay. To install a LAN module, please follow the instructions below.

Please correctly follow the below instructions and noted items to avoid making unnecessary damages. Make sure the power

CAUTION!CAUTION!

supply is switched off and disconnected from the power sources before replacing or adding LAN modules to prevent electric shock or system damage.

1. Remove the screw on the cover plate of the LAN module then put them in a safe place for later use.

2. Place the LAN module into the tray making sure the connector side of the module is facing inwards.

Connector

side

Mounting screw Cover plate

44

NSA 5150 User Manual

Chapter 3: System Setup

CAUTION!

CAUTION!CAUTION!

The components on the bottom of the LAN module is mounted very close to the base plate of the chassis, you may damage the components if excessive force is used. When installing or removing, please handle the LAN module with care.

Base plate Components on bottom

3. Once the module is plugged into the LAN module connector, use the

provided screws to secure the module in place. Then replace the cover plate and the chassis cover to complete.

45

Important:

Before using Optical fiber for transferring data, make sure you have connected an approved Optical Transceiver Module. User needs to install appropriate and UL approved Laser Class I Transceivers, rated 3.3Vdc, max. 1W.

NSA 5150 User Manual

Chapter 4: BIOS Setup

This chapter describes how to use the BIOS setup program for the NSA 5150. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

46

NSA 5150 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing allows you to enter Setup.

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

47

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

NSA 5150 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

48

NSA 5150 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Chipset Boot SecurityMain

BIOS Information

BIOS Vendor Core Version Compliancy Project Version Build Date and Time

Total Memory Memory Frequency

System Language

System Date

System Time

Access Level

American Megatrends

4.6.5.4 UEFI 2.3.1; PI 1.2 G652- 0.10 x64 03/19/2014 13:21:01

4096 MB (DDR3) 1333 Mhz

[English]

[Wed 03/27/2014] [06:51:18]

Administrator

Save & Exit

Choose the system default language

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server Mgmt

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Access Level

Displays the access level of the current user in the BIOS.

49

NSA 5150 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Advanced Chipset Boot SecurityMain



PCI Subsystem Settings



ACPI Settings



Trusted Computing



CPU Conguration



Network Conguration



SATA Conguration



USB Conguration



AST2300 Second Super IO Conguration



Super IO Conguration



H/W Monitor



Serial Port Console Redirection



Network Stack

Save & Exit

PCI, PCI-X and PCI Express Settings.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server Mgmt

50

NSA 5150 User Manual

Chapter 4: BIOS Setup

PCI Subsystem Settings

This section is used to configure the PCI.

Advanced

PCI Bus Driver Versio

PCI Common Settings

PCI Latency Timer

VGA Palette Snoop PERR# Generation SERR# Generation

PCI Express Settings

►

V 2.05.02

[32 PCI Bus Clocks]

[Disabled] [Disabled] [Disabled]

Value to be programmed into PCI Latency Timer Register.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI Latency Timer

This feature is used to select the length of time each PCI device will control the bus before another takes over. The larger the value, the longer the PCI device can retain control of the bus. Since each access to the bus comes with an initial delay before any transaction can be made, low values for the PCI Latency Timer will reduce the effectiveness of the PCI bandwidth while higher values will improve it.

PERR# Generation

Enables or disables the PCI device to generate PERR#.

SERR# Generation

Enables or disables the PCI device to generate SERR#.

VGA Palette Snoop

Enables or disables the VGA palette registers snooping.

51

NSA 5150 User Manual

Chapter 4: BIOS Setup

ACPI Settings

This section is used to configure ACPI settings.

Advanced

ACPI Settings

Enable ACPI Auto Conf

Lock Legacy Resources

[Disabled]

Enable ACPI Auto Conf

Enables or disables BIOS ACPI auto configuration.

Lock Legacy Resources

Enables or disables lock of legacy resources

Enables or Disables BIOS ACPI

Auto Conguration.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Trusted Computing

This section is used to configure Trusted Platform Module (TPM) settings.

Advanced

Conguration

Security Device Support

Current Status Information SUPPORT TURNED OFF

[Disable]

Enables or Disables BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Security Device Support

Enables or disables BIOS support for security device. O.S will not show Security Device. TCG EFI protocol and INT1A interface will not be available.

52

NSA 5150 User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to configure the CPU.

Advanced

CPU Conguration

Intel(R) Xeon(R) CPU E3-1225 v3 @ 3.20GHz

CPU Signature Processor Family Microcode Patch FSB Speed Max CPU Speed Min CPU Speed CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit EIST Technology CPU C3 state CPU C6 state CPU C7 state

306c3 6 12 100 MHz 3200 MHz 800 MHz 3400 MHz 4 Supported Supported Supported Supported Supported Supported Supported Supported

▲

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

Hyper-Threading

Enable this field for Windows XP and Linux which are optimized for HyperThreading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.

Advanced

Intel VT-x Technology Intel SMX Technology 64-bit EIST Technology CPU C3 state CPU C6 state CPU C7 state

L1 Data Cache L1 Code Cache L2 Cache L3 Cache

Hyper-threading Overclocking lock Intel Virtualization Hardware Prefetcher EIST

Intel TXT(LT) Support

Supported Supported Supported Supported Supported Supported Supported

32 kB x 4 32 kB x 4 256 kB x 4 8192 kB

[Enabled] [Disabled] [Enabled] [Disabled] [Disabled]

[Disabled]

Hardware Prefetcher

Turns on or off the MLC streamer prefetcher

EIST

Enables or disables Intel® SpeedStep.

▲

Enables or Disables Intel(R) TXT(LT) support.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

Overclocking Lock

Enables or disables overclocking lock.

Intel® Virtualization

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Intel TXT(LT) Support

Enables or disables Intel TXT(LT).

53

NSA 5150 User Manual

Chapter 4: BIOS Setup

Network Configuration

This section is used to configure the network settings.

Advanced

Switch all ByPass Mode to

Network Conguration

Power_ON ByPass Mode

Power_OFF ByPass Mode

[ALL Disabled]

Enable/Disable after power on.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Power_ON ByPass Mode

Enables or disables the LAN module bypass mode after the system powers on.

Power_OFF ByPass Mode

Enables or disables the LAN module bypass mode after the system powers off.

SATA Configuration

This section is used to configure the SATA drives.

Advanced

▲

SATA Controller(s)

SATA Mode Selection SATA Test Mode Aggressive LPM Suppor SATA Controller Speed

Serial ATA Port 0 Software Preserve

Port 0 Hot Plug External SATA SATA Device Type Spin Up Device

Serial ATA Port 1 Software Preserve

Port 1 Hot Plug External SATA SATA Device Type Spin Up Device

[Enabled]

[AHCI] [Disabled] [Enabled] [Default]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Drive] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Drive] [Disabled]

Enable or Disable SATA Device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

SATA Controller(s)

Enables or disables the SATA controller.

SATA Mode Selection

Configures the SATA as IDE, AHCI or RAID mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

54

NSA 5150 User Manual

Chapter 4: BIOS Setup

Advanced

Port 1 Hot Plug External SATA SATA Device Type Spin Up Device

Serial ATA Port 2 Software Preserve

Port 2 Hot Plug External SATA SATA Device Type Spin Up Device

Serial ATA Port 3 Software Preserve

Port 3 Hot Plug External SATA SATA Device Type

Spin Up Device

[Enabled] [Disabled] [Disabled] [Hard Disk Drive] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Drive] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Drive]

[Disabled]

SATA Test Mode

Enables or disables SATA test mode.

Aggressive LPM Support

Enables or disables agressive LPM support.

▲

On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

External SATA

Enables or disables the external SATA option on SATA port 0 to port 3.

SATA Device Type

The options are Hard Disk Drive and Solid State Drive.

Spin Up Device

Enables or disables staggered spin up on devices connected to SATA port 0 to port 3.

SATA Controller Speed

Configures the SATA controller as Gen1, Gen2 or Gen3.

Port 0 to Port 3

Enables or disables SATA port 0 to port 3.

Hot Plug

Enables or disables hot plugging feature on SATA port 0 to port 3.

55

NSA 5150 User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Module Version

USB Devices:

1 Keyboard, 2 Hubs

Legacy USB Support

USB3.0 Support XHCI Hand-off EHCI Hand-off USB Mass Storage Driver

USB hardware delays a

USB transfer time-out Device reset time-out Device power-up delay

8.10.27

[Enabled]

[Enabled] [Enabled] [Disabled] [Enabled]

[20 sec] [20 sec] [Auto]

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

EHCI Hand-Off

This is a workaround for OSs that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

USB Mass Storage Driver

Enables or disables USB mass storage device driver support.

USB Transfer Time-out

The time-out value for control, bulk, and Interrupt transfers.

Device Reset Time-out

Selects the USB mass storage device’s start unit command timeout.

Device Power-up Delay

Maximum time the value will take before it properly reports it self to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

USB3.0 Support

Enables or disables USB 3.0 controller support.

XHCI Hand-off

This is a workaround for OSs that does not support XHCI hand-off. The XHCI ownership change should be claimed by the XHCI driver.

56

NSA 5150 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

AST2300 Second Super IO Conguration

AST2300 Second Super



Serial Port 0 Conguration

AST2300 SecondIo

Set Parameters of Serial Port O (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Super IO Chip

Displays the Super I/O chip used on the board.

Serial Port 0 Configuration

Configuration settings for serial port 0.

Super IO Configuration

This section is used to configure the serial ports.

Advanced

Super IO Conguration

Super IO Chip



Serial Port 0 Conguration



Serial Port 1 Conguration



Parallel Port Conguration

NCT6776F

Super IO Chip

Displays the Super I/O chip used on the board.

Serial Port 0 Configuration

Configuration settings for serial port 0.

Serial Port 1 Configuration

Configuration settings for serial port 1.

Set Parameters of Serial Port O (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Parallel Port Configuration

Configuration settings for parallel port.

57

NSA 5150 User Manual

Chapter 4: BIOS Setup

H/W Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

PC Health Status

System Temperature LAN Module Temperature CPU Temperature LAN Module Fan Speed Smart FAN1 Speed Smart FAN2 Speed PCH Fan Speed Fan1 Speed VCORE DRAM Voltage V_1P05_PCH VCC5 VCC12 AVCC VCC3 3VSB VCCRTC

: +26 C : N/A : +26 C : N/A : N/A : 2436 RPM : N/A : N/A : +1.768 V : +1.512 V : +1.039 V : +5.040 V : +12.288 V : +3.296 V : +3.280 V : +3.296 V : +3.248 V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Temperature

Detects and displays the current system temperature.

CPU Temperature

Detects and displays the current CPU temperature.

LAN Module Fan Speed

Detects and displays the fan speed of the LAN module.

Smart Fan1 Speed and Smart Fan2 Speed

Detects and displays the fan speed of smart fan1 and smart fan2.

PCH Fan Speed

Detects and displays the PCH fan speed.

Fan1 Speed

Detects and displays the Fan1 speed.

VCORE

Detects and displays the VCore voltage.

DRAM Voltage

Detects and displays the DRAM voltage.

V_1P05_PCH

Detects and displays the PCH voltage.

VCC5

Detects and displays 5V voltage.

VCC12

Detects and displays 12V voltage.

AVCC

Detects and displays AVCC voltage.

VCC3

Detects and displays 3.3V voltage.

3VSB

Detects and displays 3.3V standby voltage.

VCCRTC

Detects and displays VCCRTC voltage.

58

NSA 5150 User Manual

Chapter 4: BIOS Setup

Serial Port Console Redirection

This section is used to configure the serial port that will be used for console redirection.

Advanced

Console Redirection Enable

COM0

Console Redirection

Console Redirection Settings

►

COM1

Console Redirection Console Redirection Settings

►

BMC SOL COM

Console Redirection Console Redirection Settings

►

Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS)

Console Redirection

Console Redirection Settings

►

[Enabled]

[Disabled]

[Enabled]

or Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Console Redirection

Enables or disables the console redirection.

Network Stack

This section is used to configure the network stack.

Advanced

Network stack

[Disabled]

Network Stack

Enables or disables UEFI network stack.

Enable/Disable UEFI network stack

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

59

NSA 5150 User Manual

Chapter 4: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

Advanced Chipset Boot SecurityMain

PCH-IO Conguration

►

System Agent (SA) Conguration

►

Save & Exit

PCH-IO Configuration

This field is used to configure PCH parameters.

System Agent (SA) Configuration

This field is used to configure System Agent (SA) parameters.

Server Mgmt

PCH Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH-IO Configuration

This section is used to configure PCH-IO settings.

Chipset

Intel PCH RC Version Intel PCH SKU Name Intel PCH Rev ID

PCI Express Conguration

►

USB Conguration

Power Supply Type

SLP_S4 Assertion Width Restore AC Power Loss

1.6.0.0 C226 04/C1

[ATX]

[4-5 Seconds] [Power On]

PCI Express Conguration

settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SLP_S4 Assertion Width

Select a minimum assertion width of the SLP_S4# signal.

Restore AC Power Loss

Power Off When power returns after an AC power failure, the system’s power is off. You must press the power button to power-on the system. Power On When power returns after an AC power failure, the system will automatically power-on.

60

NSA 5150 User Manual

Chapter 4: BIOS Setup

System Agent (SA) Configuration

This section is used to configure System Agent (SA) settings.

Advanced Chipset Boot SecurityMain

System Agent Bridge N System Agent RC Version VT-d Capability

VT-d

Enable NB CRID BDAT ACPI Table Support

Graphics Conguration

►

Memory Conguration

►

Haswell

1.6.0.0 Supported

[Enabled]

[Disabled] [Disabled]

VT-d

Enables or disables the VT-d.

Enable NB CRID

Enables or disables NB CRID workaround.

Save & Exit

Check to enable VT-d function on MCH.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BDAT ACPI Table Support

Enables or disables BDAT ACPI Table support.

61

NSA 5150 User Manual

Chapter 4: BIOS Setup

Boot

This section is used to configure the boot features.

Advanced

Boot Conguration

Setup Prompt Timeout

Bootup NumLock State

Quiet Boot Fast Boot

Boot Option Priorities

CSM16 Parameters

►

CSM parameters

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Chipset

Boot

1

[On]

[Disabled] [Disabled]

SecurityMain

Save & Exit

Server Mgmt

Number of seconds to wait for setup activation key. 65535

(0xFFFF) means indenite

waiting.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Fast Boot

When enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

62

NSA 5150 User Manual

Chapter 4: BIOS Setup

Security

Advanced Chipset Boot SecurityMain

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User's password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights. The password length must be in the following range:

Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user's password.

Save & Exit

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server Mgmt

Save & Exit

Advanced Chipset Boot SecurityMain

Save Changes and Exit

Discard Changes and Exit Save Changes and Reset Discard Changes and Reset

Save Options

Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

Launch EFI Shell from lesystem device

Save & Exit

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Server Mgmt

Exit system setup after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

63

NSA 5150 User Manual

Chapter 4: BIOS Setup

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Save Changes

To save changes and continue configuring the BIOS, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes

To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Save as User Defaults

To use the current configurations as user default settings for the BIOS, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.

Launch EFI Shell From Filesystem Device

Launches the EFI shell.

Restore User Defaults

To restore the BIOS to user default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecing Yes.

64

NSA 5150 User Manual

Chapter 4: BIOS Setup

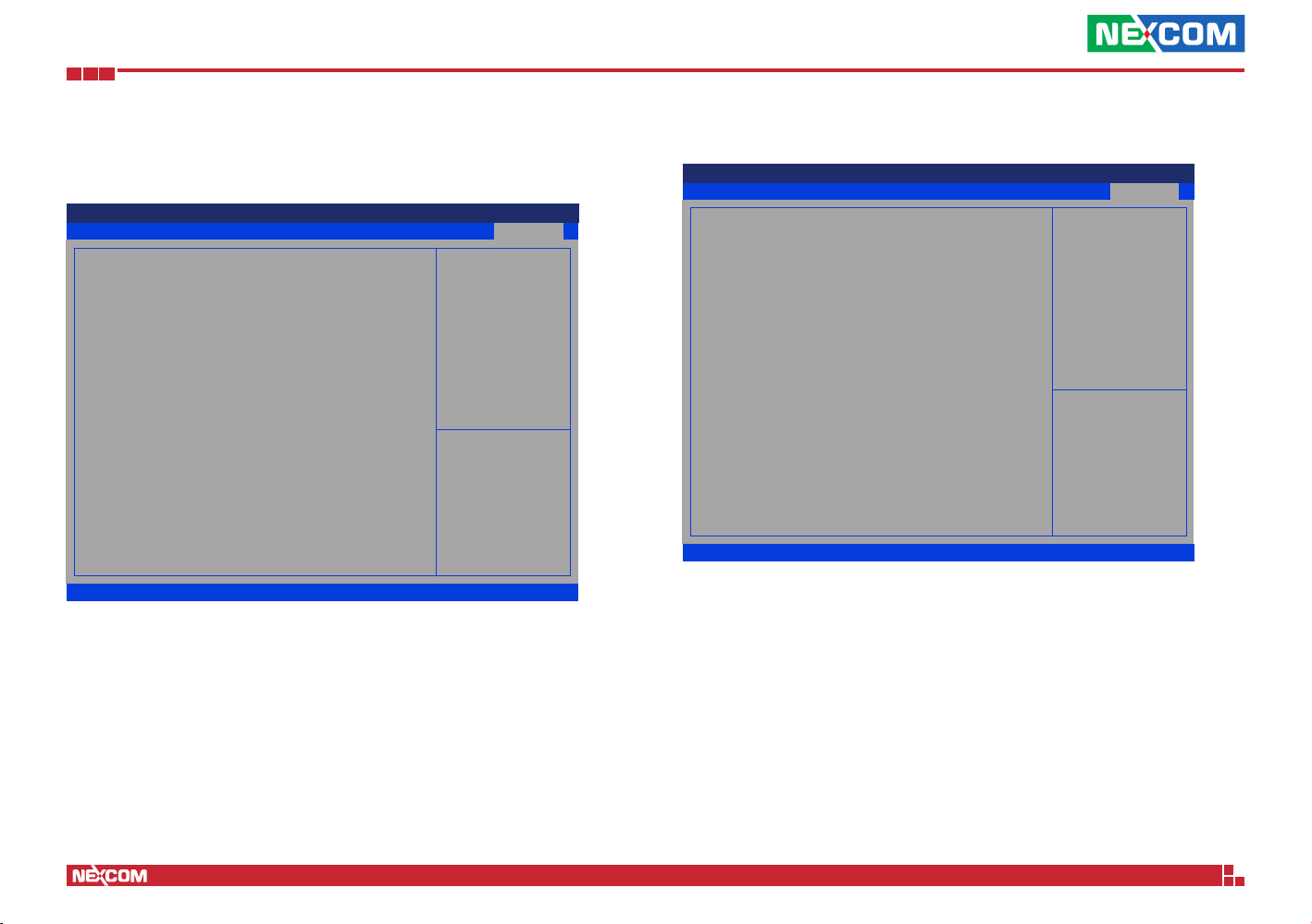

Server Mgmt

This section is used to configure the server features.

Advanced

BMC Self Test Status

BMC Support

Bmc self test log

►

System Event Log

►

View FRU information

►

BMC network conguration

►

BMC Support

Enables or disables interfaces to communicate with BMC.

Chipset

Boot

PASSED

[Enabled]

[Disabled] [Disabled]

SecurityMain

Save & Exit

Enable/Disable interfaces to communicate with BMC

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server Mgmt

BMC Self Test Log

Advanced

Log area usage = 00 out of 20 logs

Erase Log

When log is full

Log Empty

Erase Log

Chipset

Boot

SecurityMain

[Yes, On every reset]

[Clear Log]

Save & Exit

Configures the erase log options.

When Log is Full

Configures the action to perform when log is full.

Server Mgmt

Erase Log Options

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

65

NSA 5150 User Manual

Chapter 4: BIOS Setup

System Event Log View FRU Information

Advanced

Enabling/Disabling Options

SEL Components

Erasing Settings

Erase SEL When SEL is full

Custom EFI Logging Options

Log EFI Status Codes

NOTE: All values changed here do not take until computer is restarted.

Chipset

Boot

[Disabled]

[No] [Do Nothing]

[Both]

SecurityMain

Save & Exit

Server Mgmt Server Mgmt

Change this to enable or disable all features of System Event Logging during boot.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SEL Components

Enables or disables all the features of system event logging during boot.

Erase SEL

Configures the options for erasing SEL.

Advanced

FRU Information

System Manufacturer System Product Name System Version System Serial Number Board Manufacturer Board Product Name Board Version Board Serial Number Chassis Manufacturer Chassis Product Name Chassis Serial Number SDR Revision

Chipset

Boot

Intel EPGSVR

-

Intel

-

SecurityMain

Save & Exit

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

FRU Information

Displays the FRU (Field Replacement Unit) information.

When SEL is Full

Configures the action to perform when SEL is full.

Log EFI Status Codes

Configures the options for logging EFI status codes.

66

NSA 5150 User Manual

Chapter 4: BIOS Setup

BMC Network Configuration

Advanced

BMC network conguration

Lan channel 1

Conguration Address

Station IP address Subnet mask Station MAC address Router IP address Router MAC address

Chipset

Boot

[Unspecied]

00.00.00.00

00.00.00.00 00-10-f3-32-98-c8

00.00.00.00 00-00-00-00-00-00

SecurityMain

Save & Exit

Select to congure LAN

channel parameters statically or dynamically(by BIOS or

BMC). Unspecied option will

not modify any BMC network parameters during BIOS phase

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Server Mgmt

Configuration Address

Select to configure LAN channel parameters statically or dynamically (by BIOS or BMC). Unspecified option will not modify any BMC network parameters during BIOS phase.

67

NSA 5150 User Manual

Appendix A: Bypass Register

Register Map

The following tables are the Register Map for NSA 5150.

Bypass Timer Configuration Register

Offset 0xF2

7 6 5 4 3 2 1 0

R X X X X R/W

Timer

Expired

7 6 5 4 3 2 1 0

Bypass Mode Unused Unused Segment4 Segment3 Segment2 Segment1

Unused Unused Unused Unused Global Timeout Value

Power ON State Bypass Control Status Register

Offset 0xF3

W X X X X W W

Power OFF State Bypass Control Status Register

Offset 0xF7

7 6 5 4 3 2 1 0

X X X X X X W W

Unused Unused Unused Unused Segment4 Segment3 Segment2 Segment1

68

NSA 5150 User Manual

Appendix A: Bypass Register

Register Bit Definitions

Bypass Timer Configuration Register (F2)

Bit Field Name Value

000 = 0 second, timer immediately expired

001 = 1 second

010 = 2 second

011 = 4 second

100 = 8 second

101 = 16 second

110 = 32 second

111 = 64 second

Note: This is a write only field.

2:0

Timer

Value

Upon reads these bit values are undefined. A Timer value of 1 to 7 is required to be written before expiration of the hardware timer. When the timer expires, all segments which have been enabled in bits 2:0 of Power ON state Bypass Control Status Register set relays closed to form bypass segments. It is responsibility of software to keep track of time to ensure writes to this register occur no greater than TimerValueInSeconds / 2. A write of the timer value will automatically reset the expiration timer and set it to the value expressed in bit 2:0 .

3 Not used

4 Not used

5 Not used

6 Not used

Segment

7

Timer

Expired

No active taken if written, value is undetermined and not needed on read operation.

Read only bit:

0 = Timer has not expired 1 = Timer has expired, de-assert while leave Timer mode

Power ON State Bypass Control Status Register (F3)

Bit Field Name Value

Segment control bit mask. Each bit corresponds to a specific segment numbered 1 through 2.

Write:

1:0 Segment 1 to 2

If a segment mask bit is set to false (0) no action on that segment will take place. If a segment mask bit has been set to true (1), action will take place on this segment according to the bypass mode settings in bits 7:6.

2 Not used

3 Not used

4 Not used

5 Not used

No active taken if written, value is undetermined and not needed on read operation.

These two bits defined the bypass mode for one or more segments. These bits are Write only and on reads returns undetermined values which will be ignored by the driver.

Bypass Mode Table:

Bit 7 Bit 6 Action

0 0 Ignore, no action taken

7:6 Bypass Mode

0 1

1 0

1 1

Force Enable: Engage bypass relays on segments enabled in segment mask.

Force Disable: Disable bypass relays immediately on segments enabled in mask.

Timer Enable: Segments enabled in mask are under Timer control.

69

NSA 5150 User Manual

Appendix A: Bypass Register

Power OFF State Bypass Control Status Register (F7)

Bit Field Name Value

0 Segment 1

1 Segment 2

2 Segment 3

3 Segment 4

7:4 Unused

0 = Set segment bypass disable when power off 1 = Set segment bypass enable when power off

No active taken if written, value is undetermined and not needed on read operation.

70

NSA 5150 User Manual
