NEXCOM NSA 5130 User Manual

NEXCOM International Co., Ltd.

Network and Communication Solutions

Network Security Appliance NSA 5130

User Manual

NEXCOM International Co., Ltd.

Published April 2014

www.nexcom.com

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer ............................................................................................. iv

Acknowledgements .............................................................................. iv

Regulatory Compliance Statements ....................................................... iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................vii

Installation Recommendations ................................................................vii

Safety Precautions .................................................................................viii

Technical Support and Assistance ........................................................... ix

Conventions Used in this Manual ........................................................... ix

Global Service Contact Information ......................................................... x

Package Contents ..................................................................................xii

Ordering Information ............................................................................xiii

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features .........................................................................................1

Hardware Specifications ..........................................................................2

NSA 5130 System ................................................................................. 2

Main Board (NSB 5130) ........................................................................4

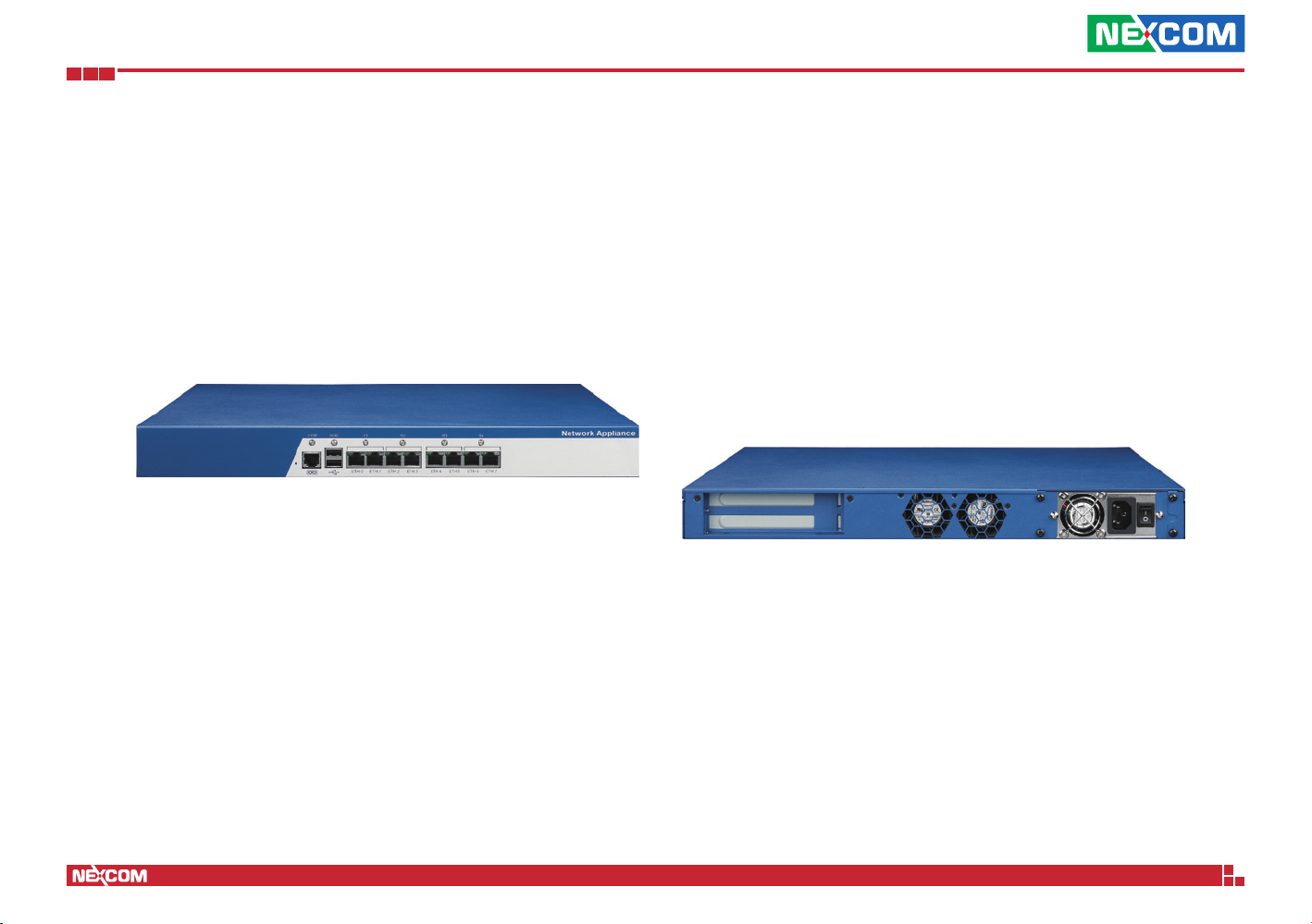

Getting to Know NSA 5130 ....................................................................7

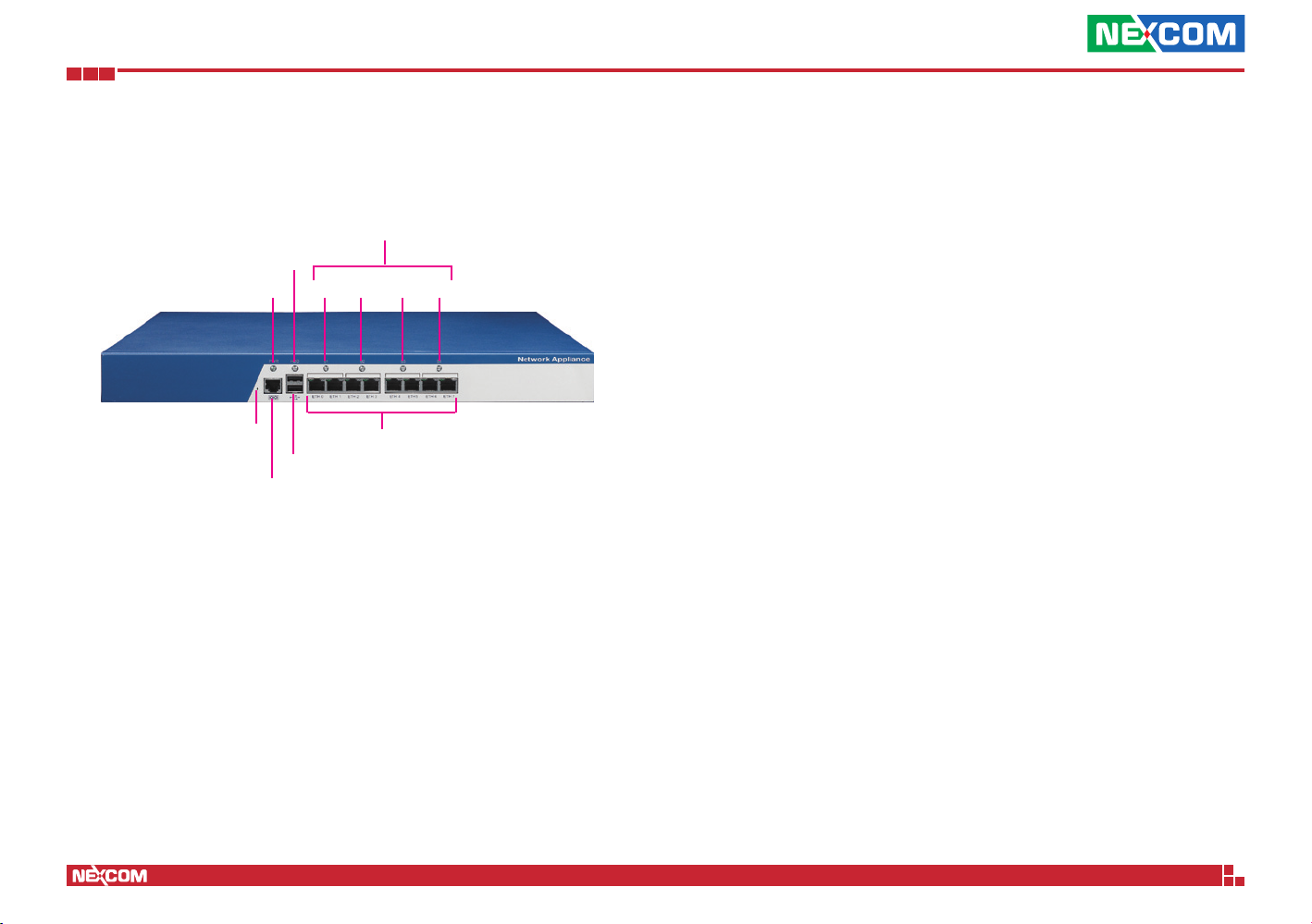

Front Panel ...........................................................................................7

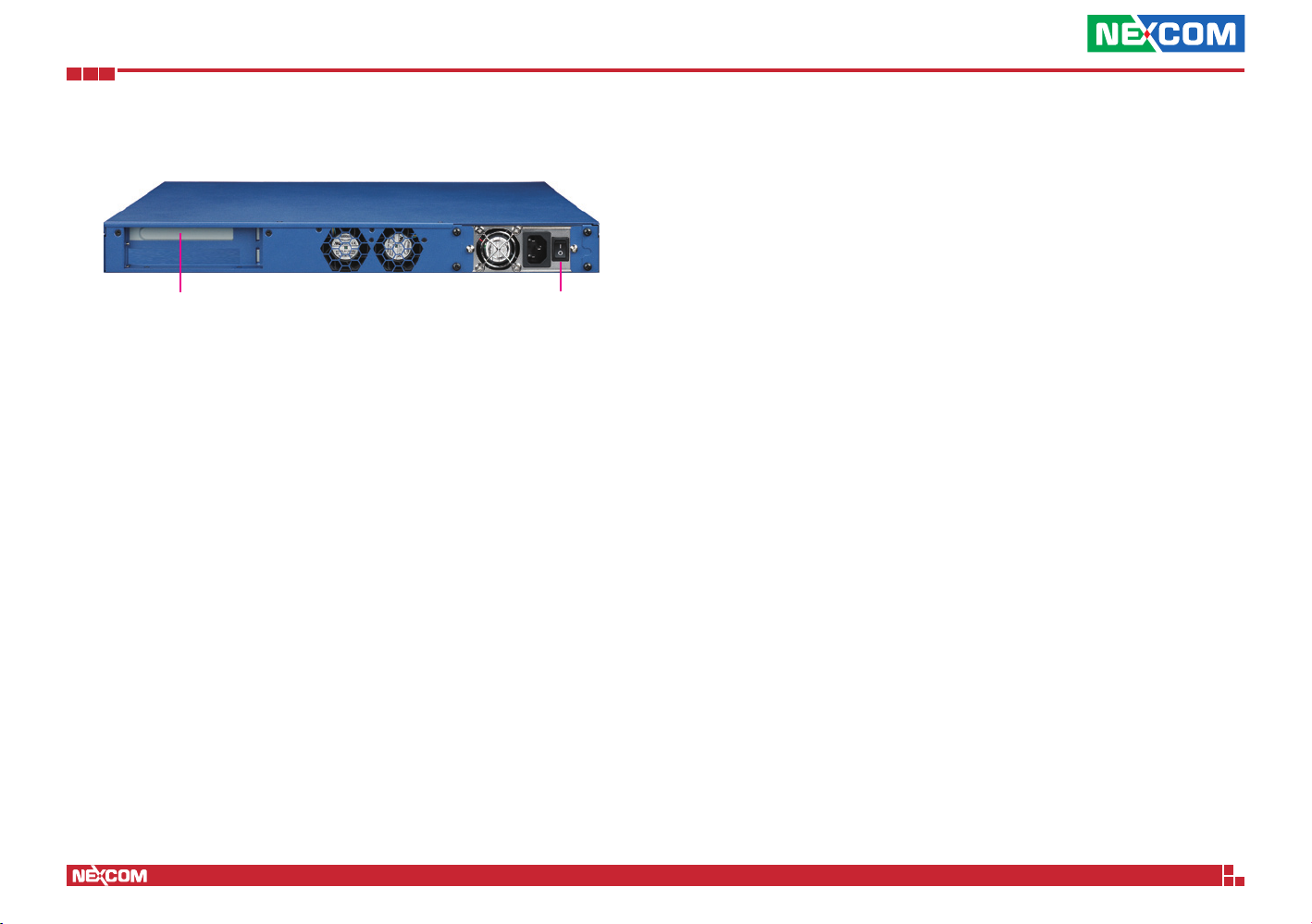

Rear Panel ............................................................................................8

Chapter 2: Jumpers And Connectors

Before You Begin ....................................................................................9

Precautions .............................................................................................9

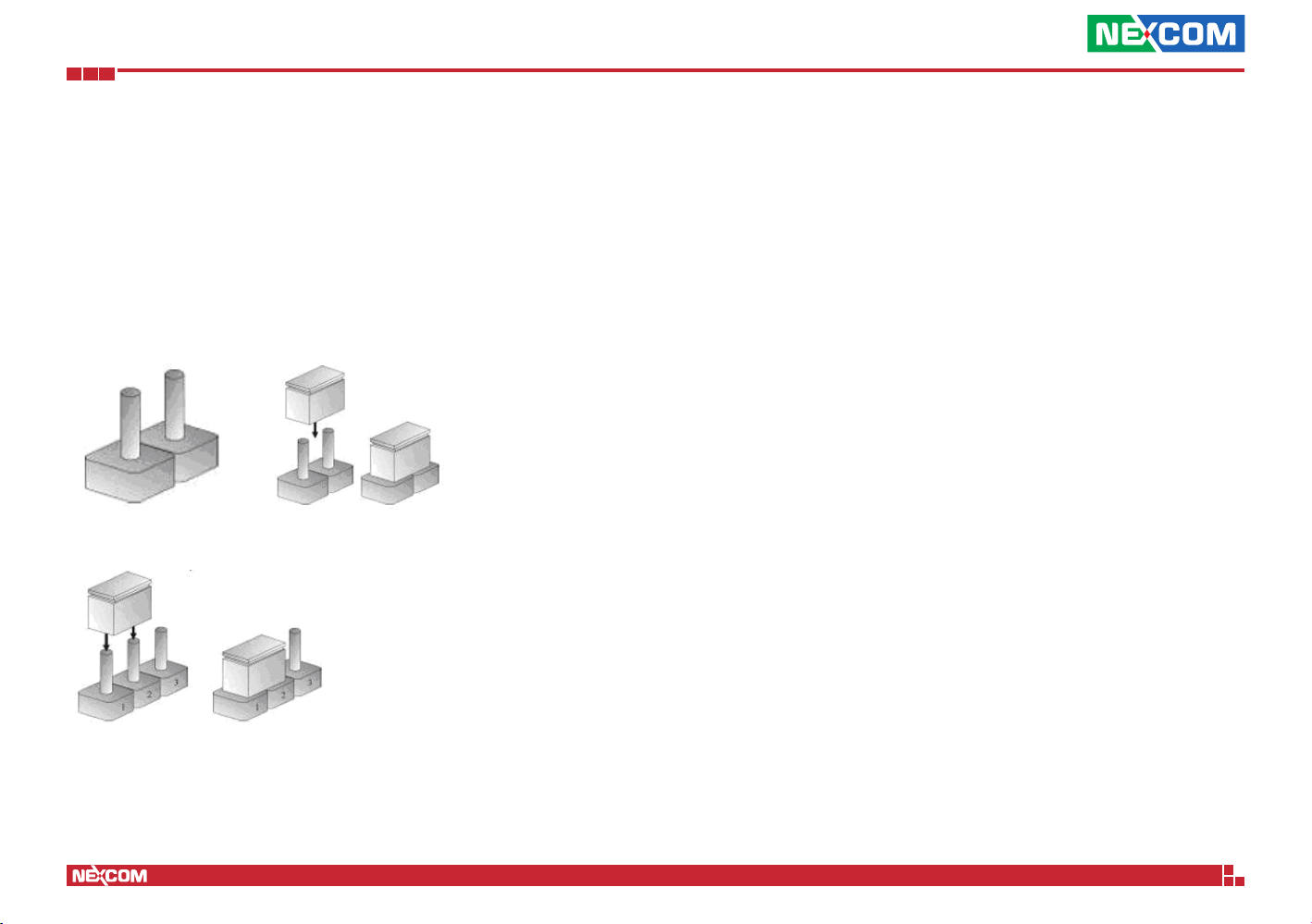

Jumper Settings ....................................................................................10

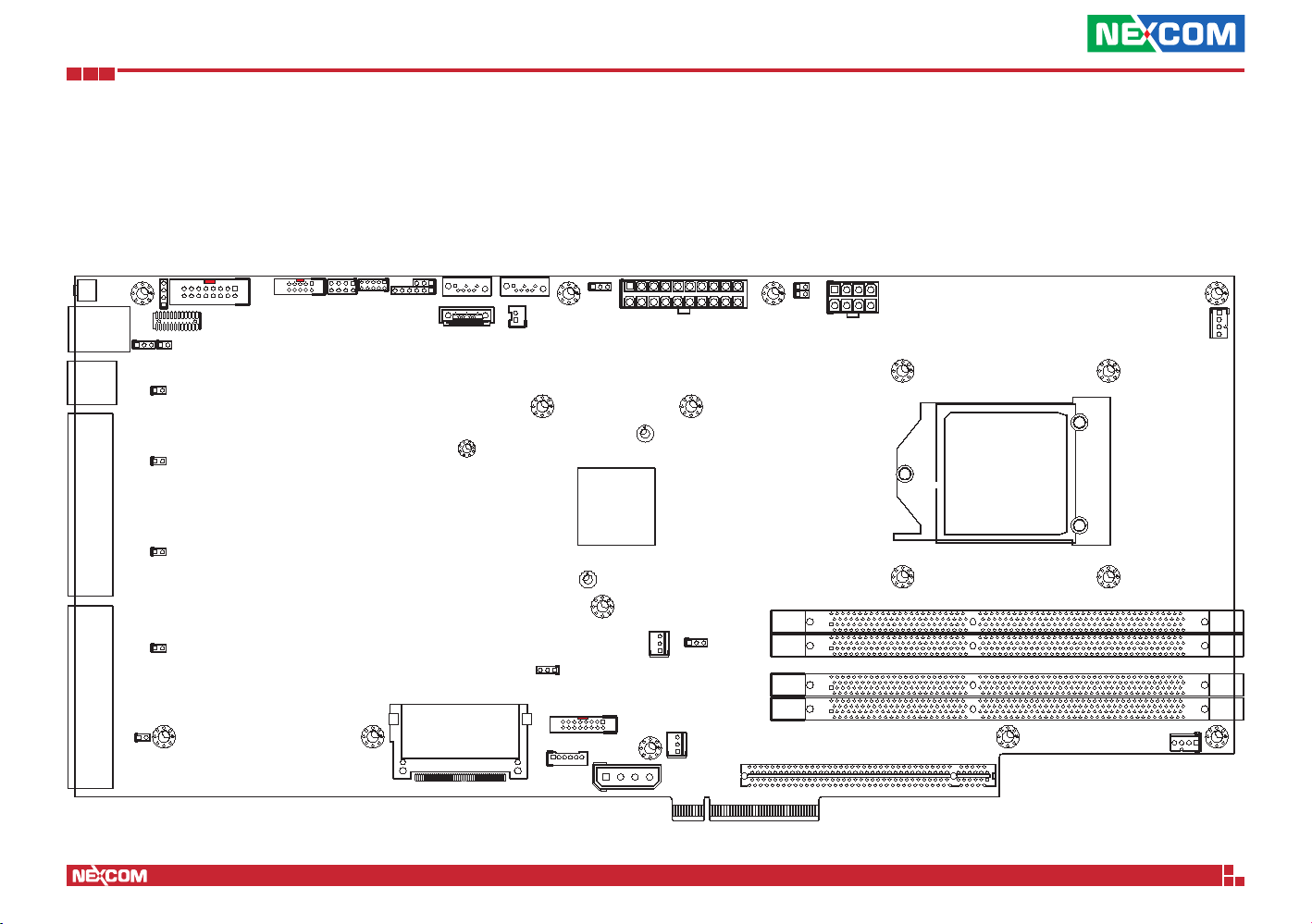

Locations of the Jumpers and Connectors ............................................. 11

NSB 5130 ........................................................................................... 11

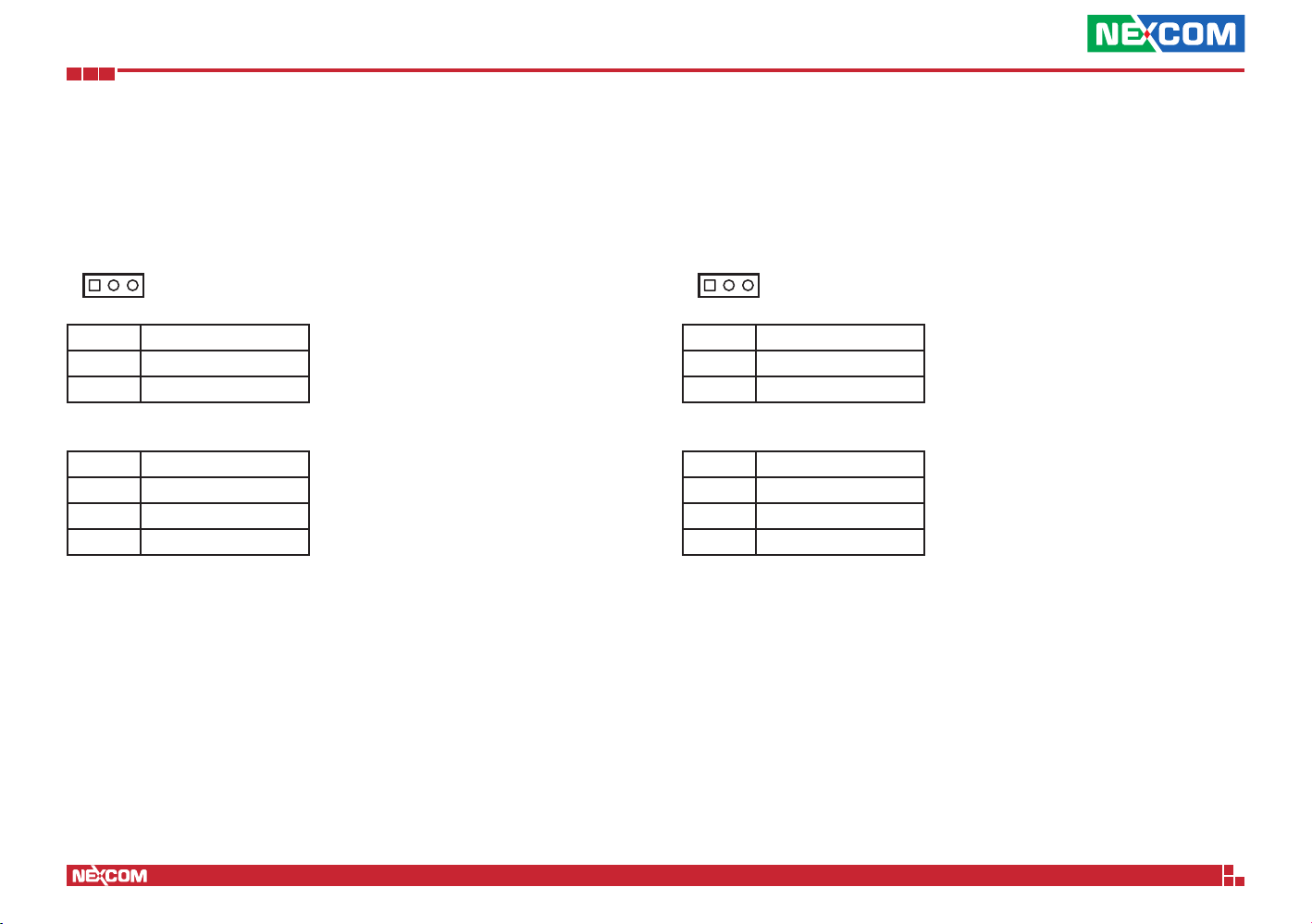

Jumpers ................................................................................................ 12

Connectors Pin Definitions .................................................................... 14

External I/O Interface ........................................................................ 14

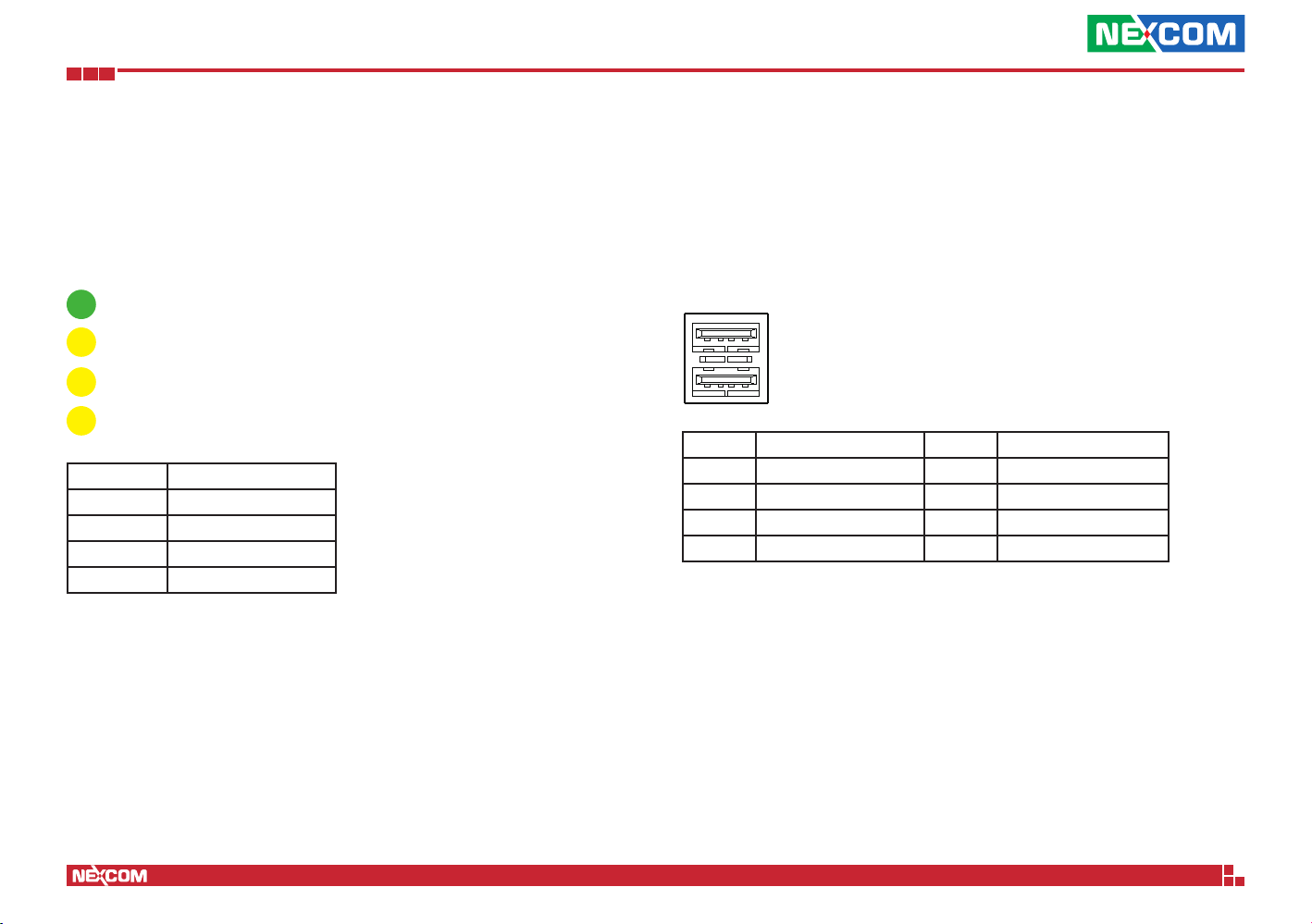

Status Indicators .............................................................................14

USB Ports ....................................................................................... 14

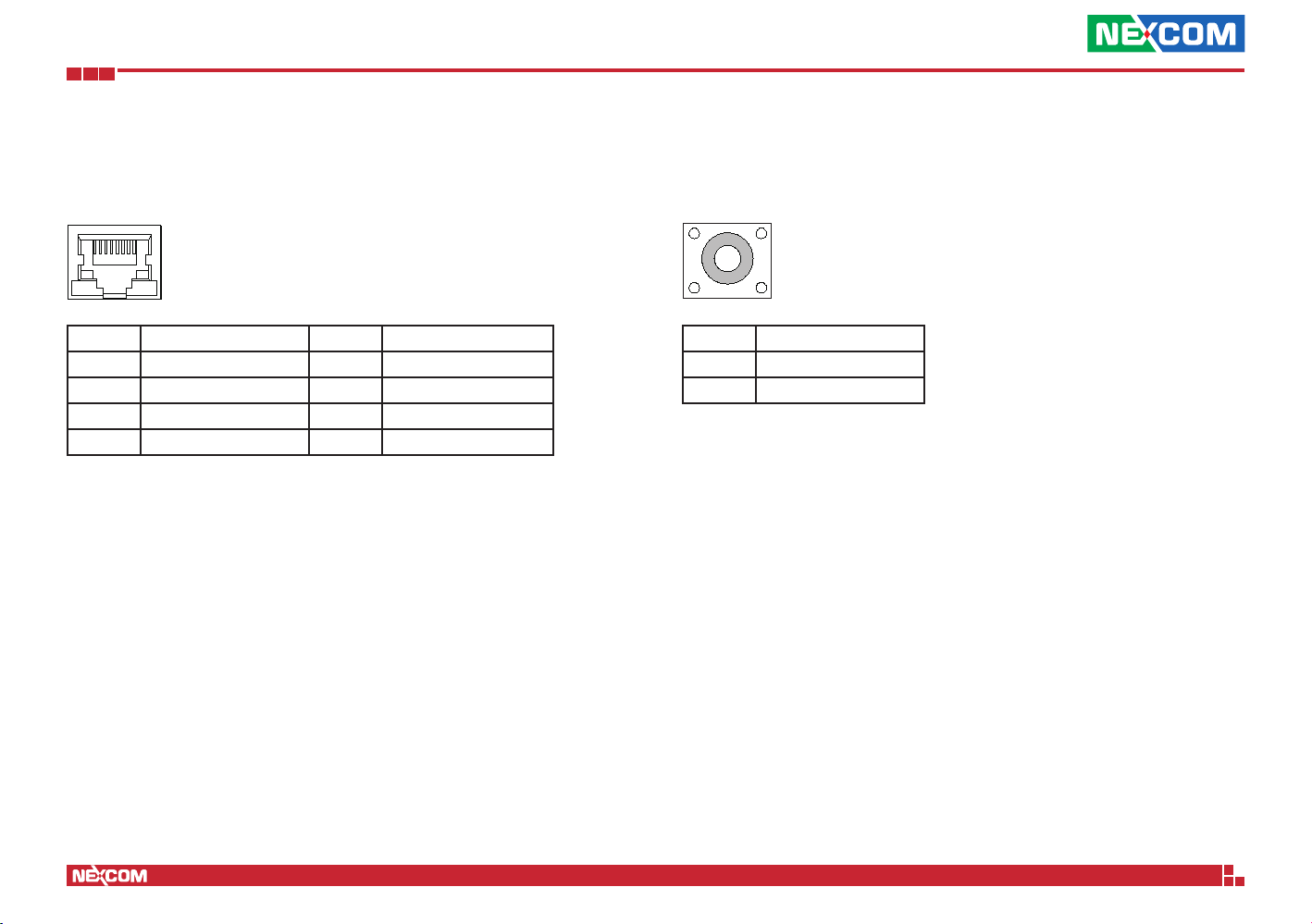

RJ45 Type Console Port ..................................................................15

Software Push Button ....................................................................15

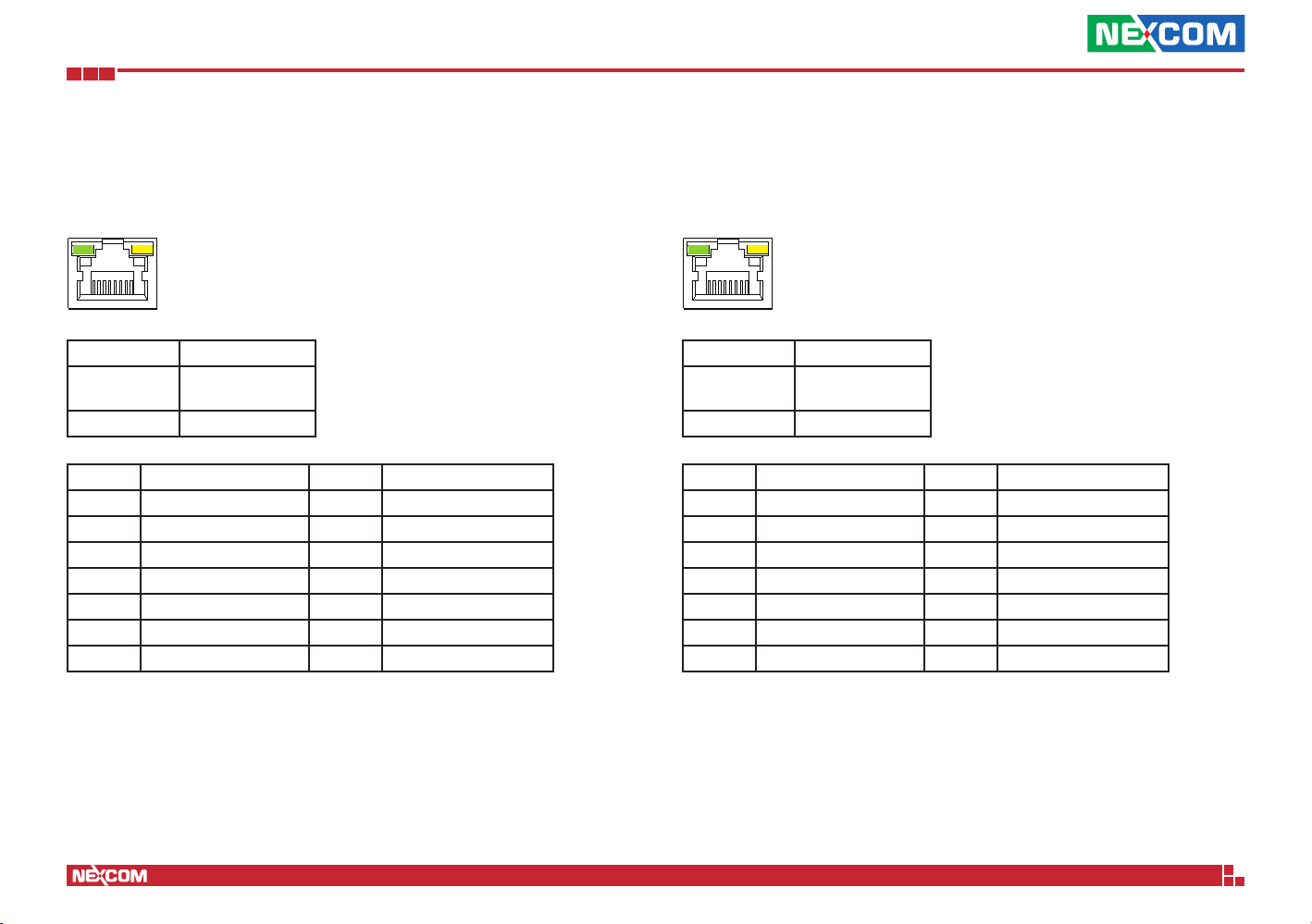

LAN1 Port ......................................................................................16

LAN2 Port ......................................................................................16

LAN3 Port ......................................................................................17

LAN4 Port ......................................................................................17

LAN5 Port ......................................................................................18

LAN6 Port ......................................................................................18

LAN7 Port ......................................................................................19

LAN8 Port ......................................................................................19

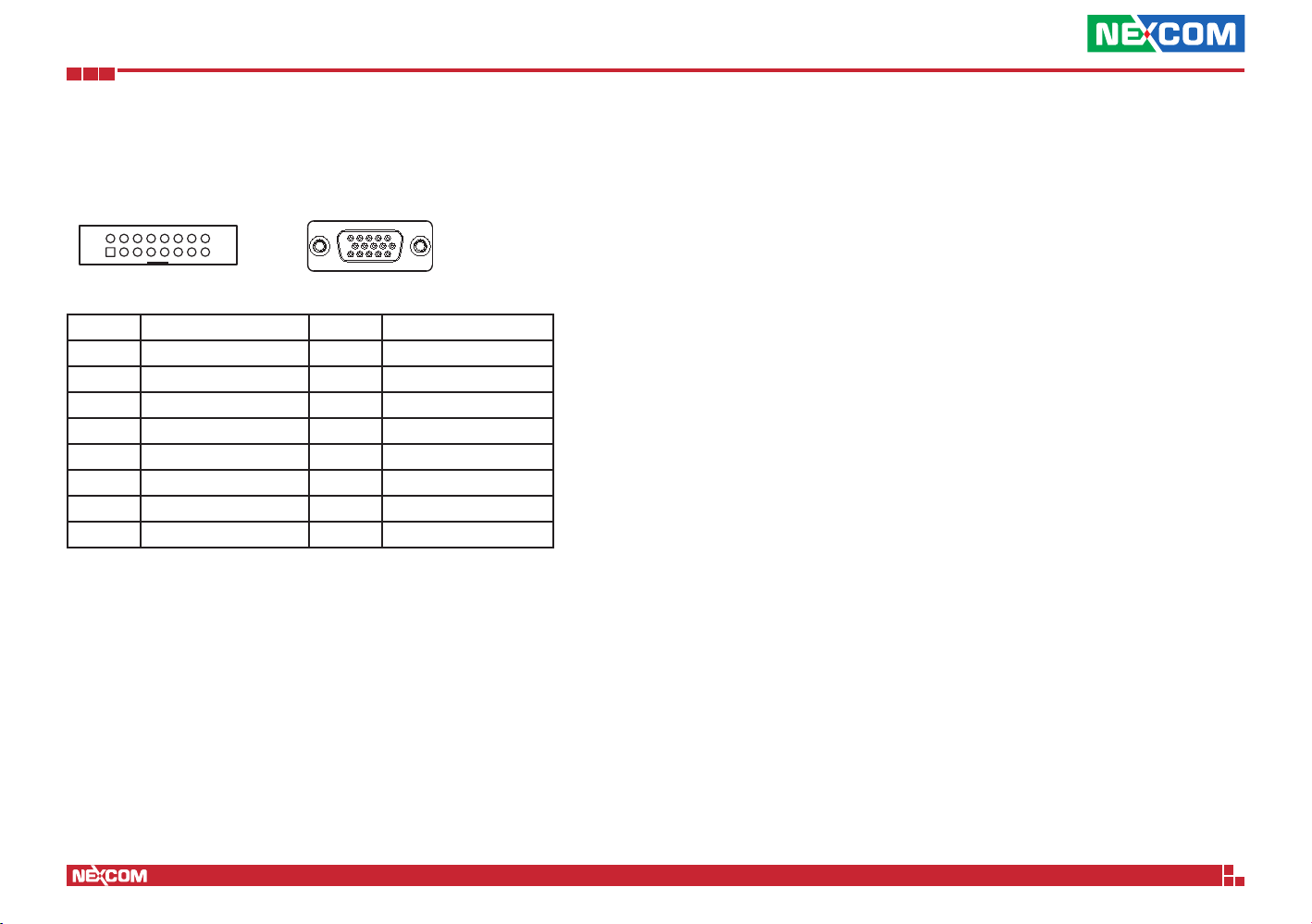

VGA Connector .............................................................................20

ii

NSA 5130 User Manual

Contents

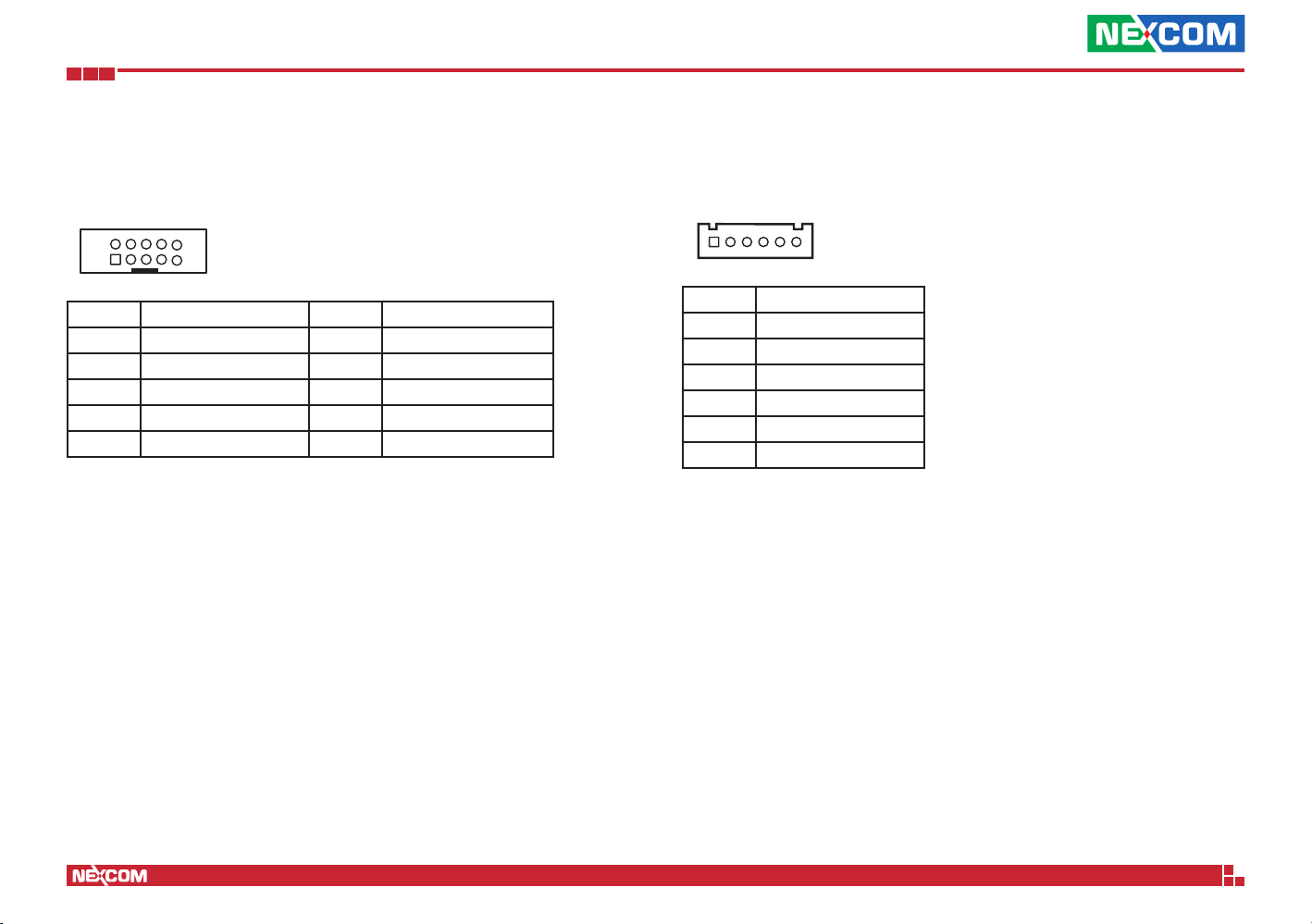

Internal Connectors .......................................................................... 21

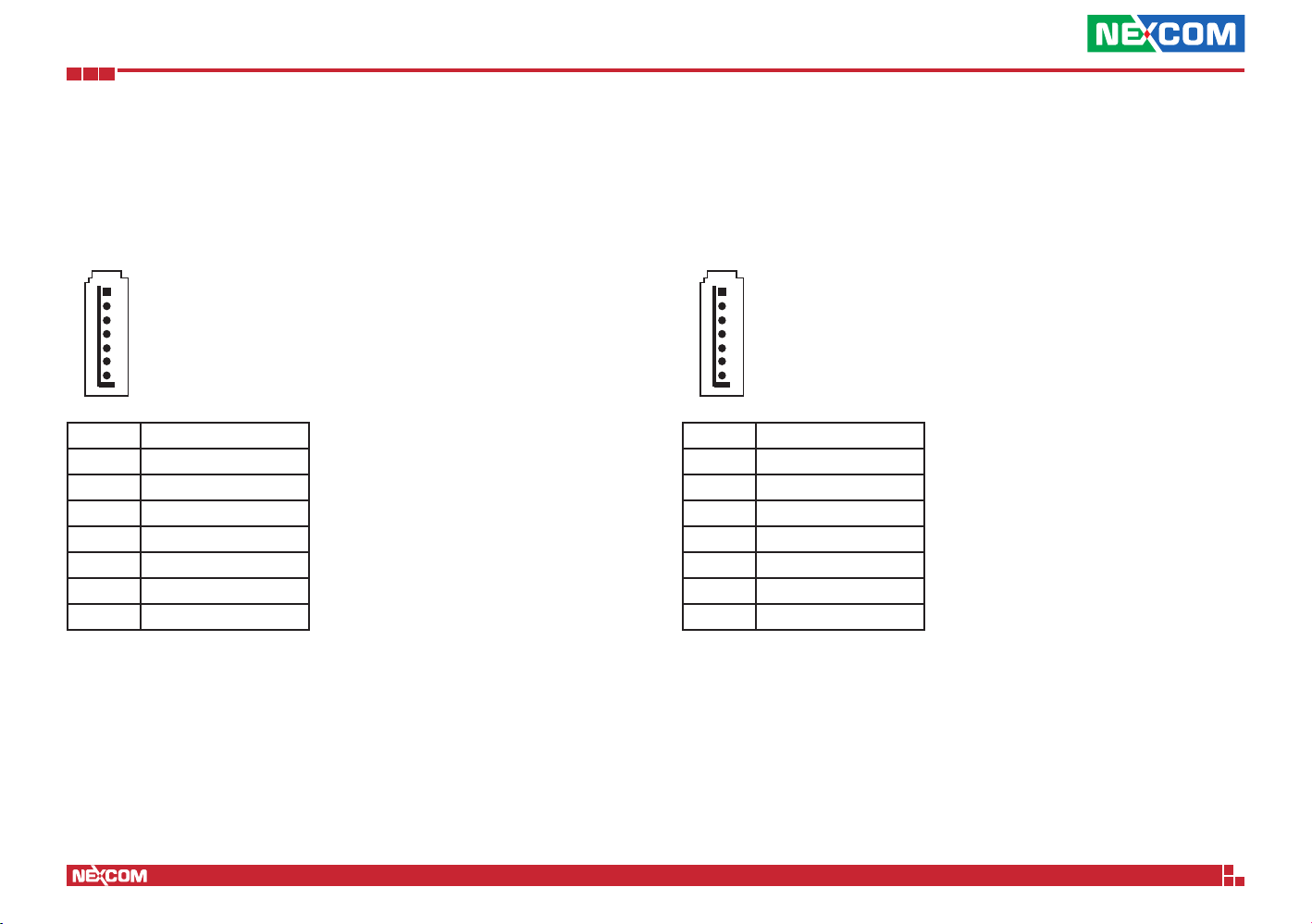

SATA2 Port .....................................................................................21

SATA3 Port .....................................................................................21

SATA4 Port .....................................................................................22

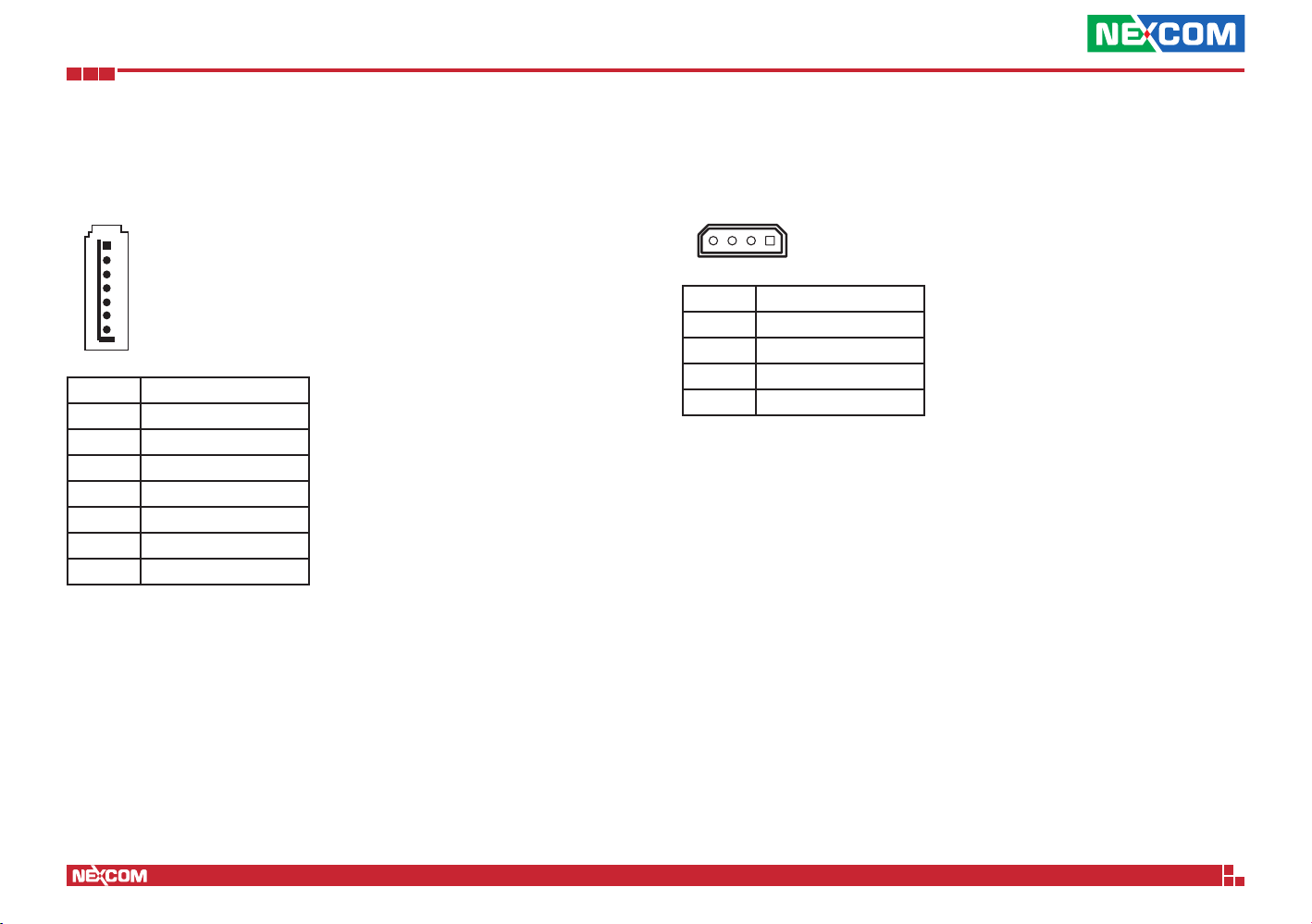

SATA Power Connector ..................................................................22

SATA DOM Power Connector .........................................................23

Digital I/O Connector (4 Input, 4 Output) .......................................23

COM2 Connector ..........................................................................24

USB Connector ..............................................................................24

Parallel Interface for LCM Module ..................................................25

LCM Keypad Connector ................................................................. 25

HW Reset Button ...........................................................................26

Power Button ................................................................................. 26

Power Connector ........................................................................... 27

GAL Programming Connector ........................................................27

System Fan (FAN1) .........................................................................28

System Fan (FAN2) .........................................................................28

CPU Fan Connector ........................................................................29

System Fan Connector ...................................................................29

PCIe Slot ........................................................................................30

PCIe Gold Finger (for LAN Module) ................................................. 32

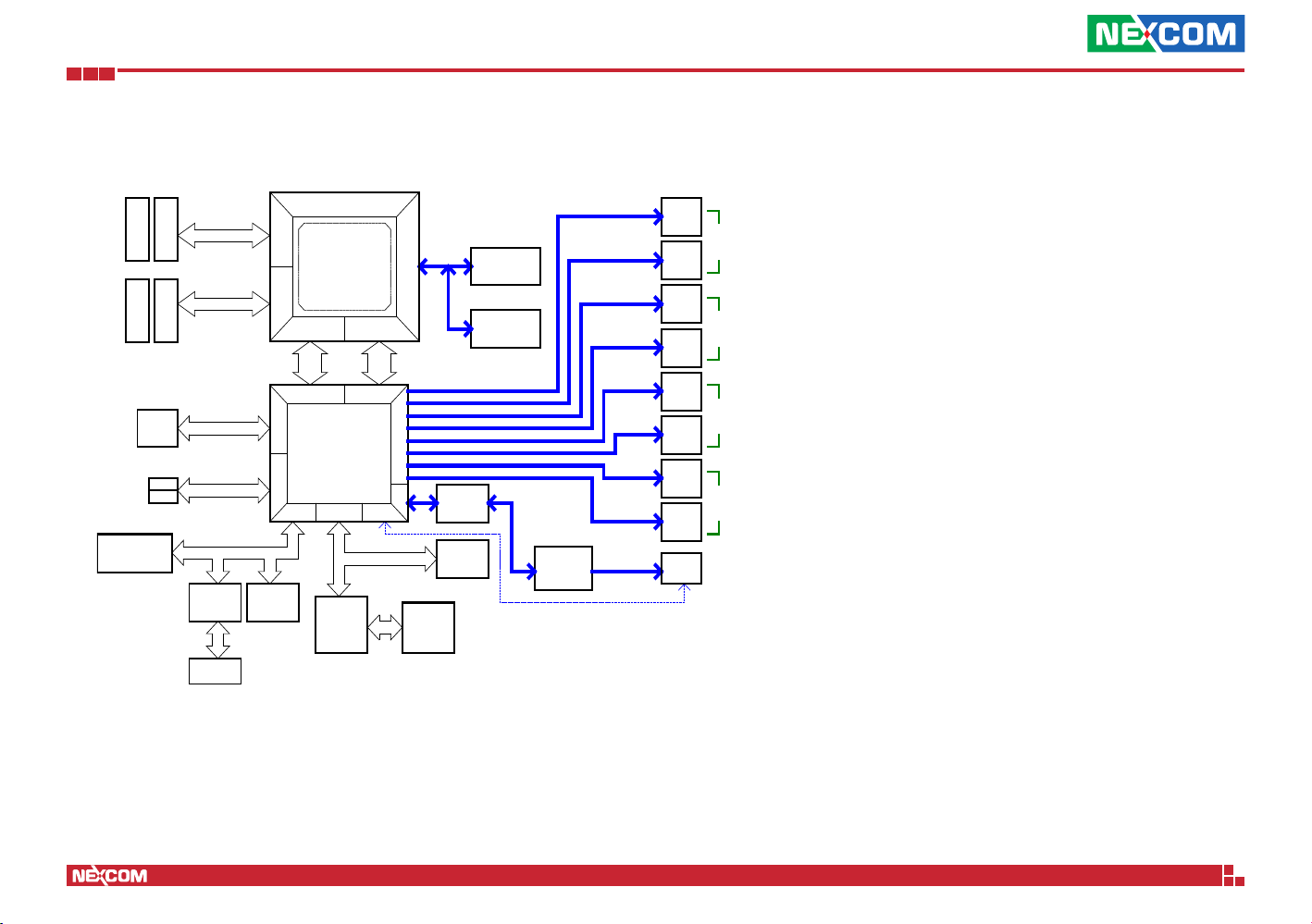

Block Diagram of the Main Board .........................................................34

Chapter 3: System Setup

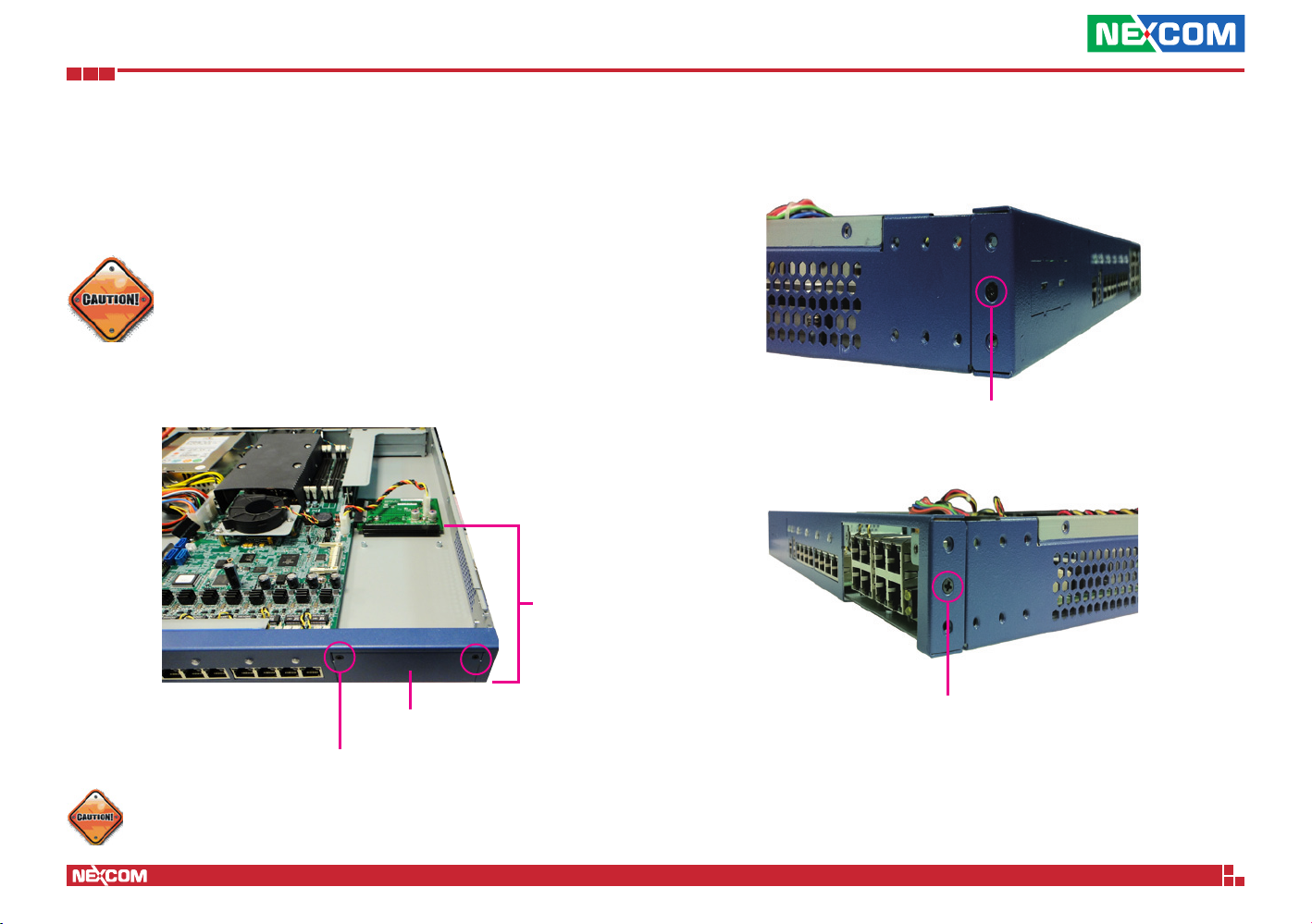

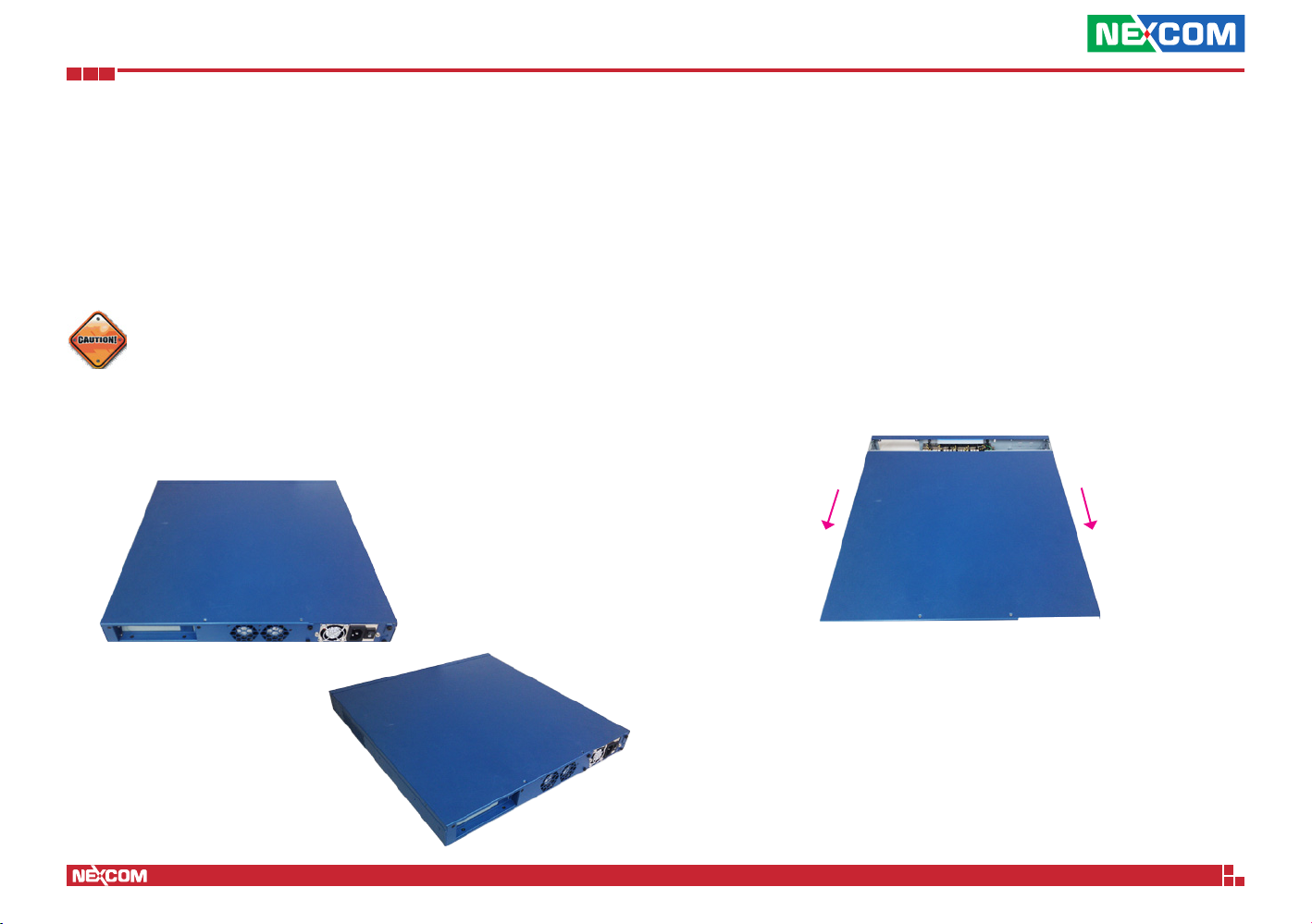

Removing the Chassis Cover ................................................................35

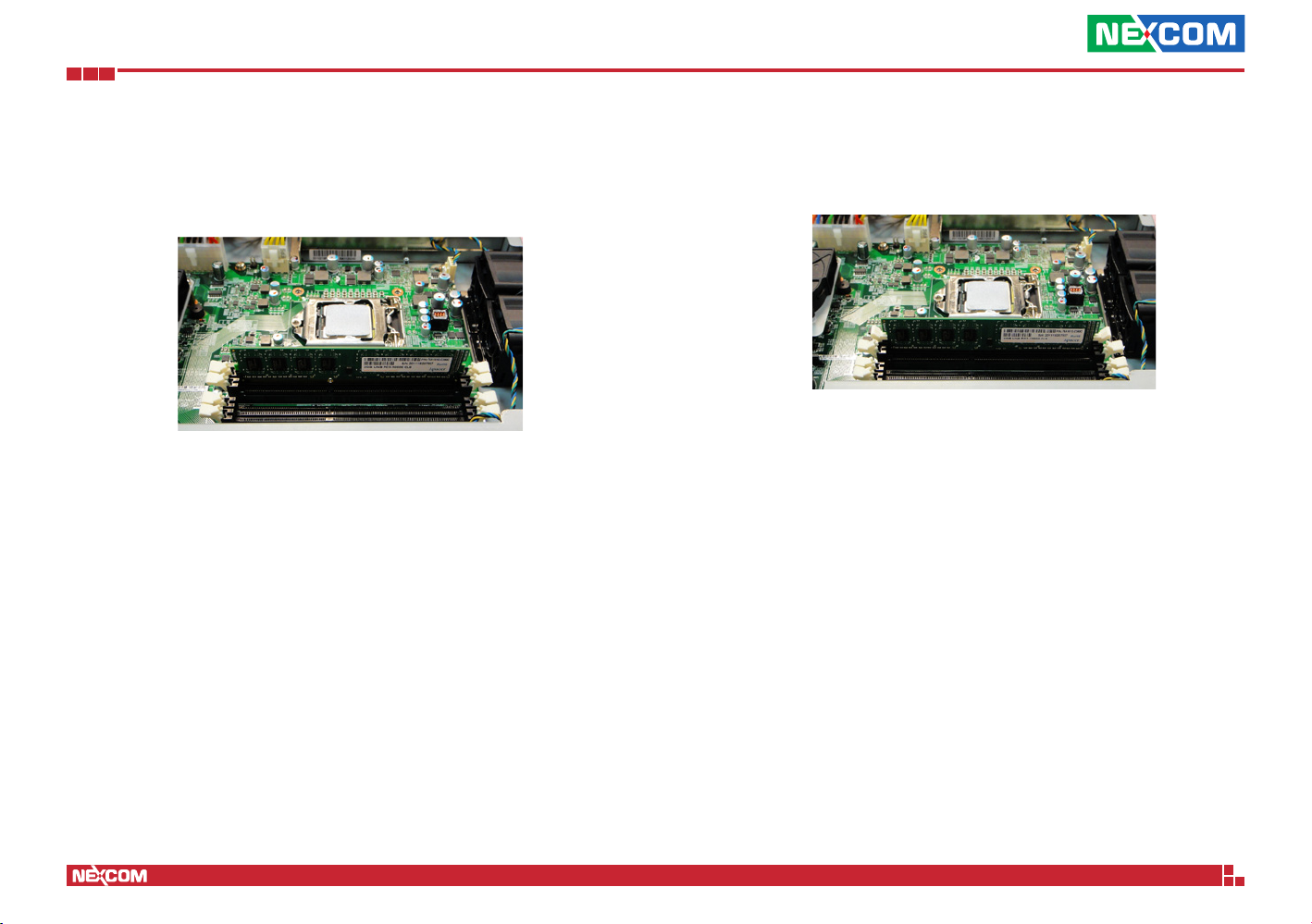

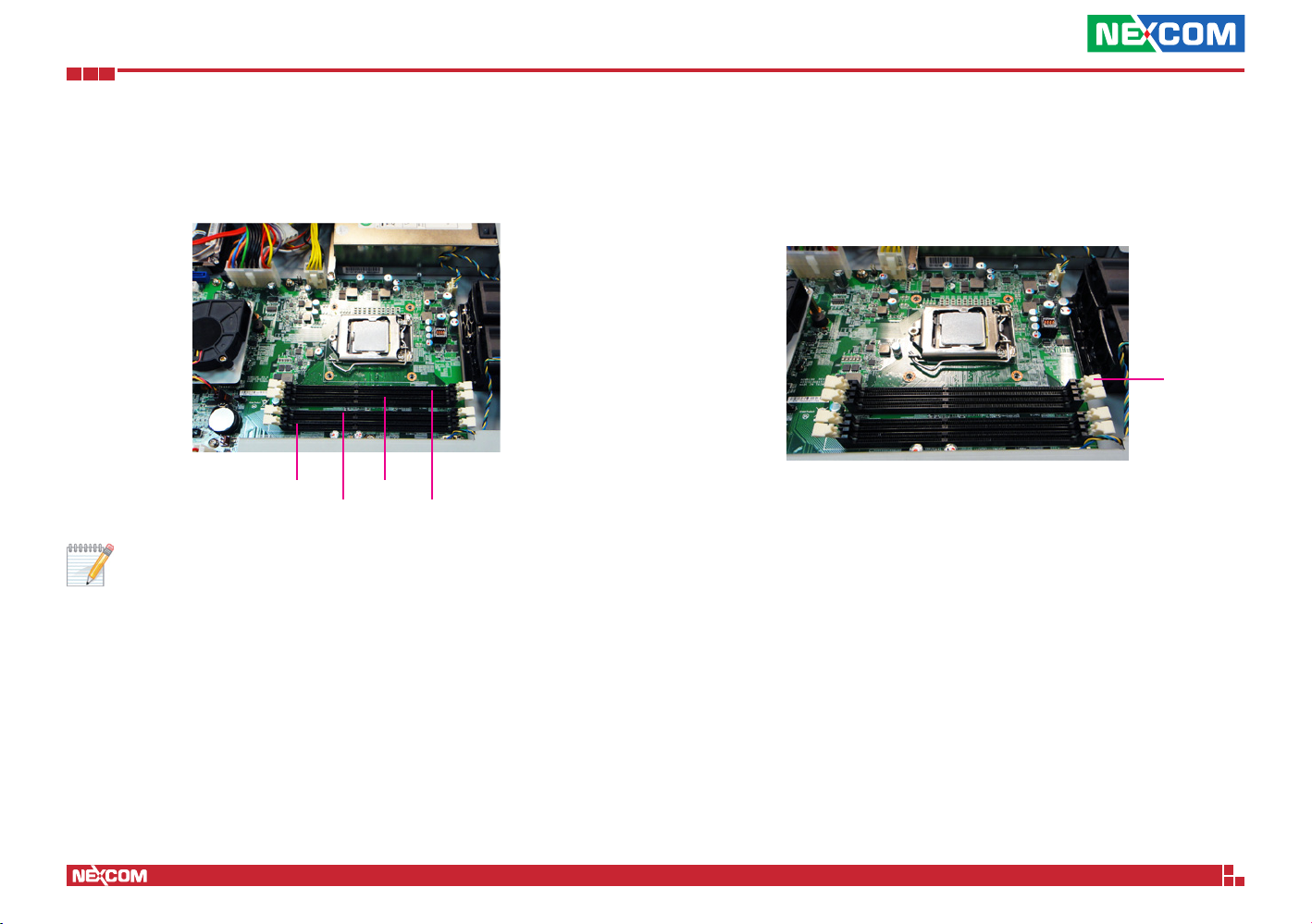

Installing a DIMM ..................................................................................36

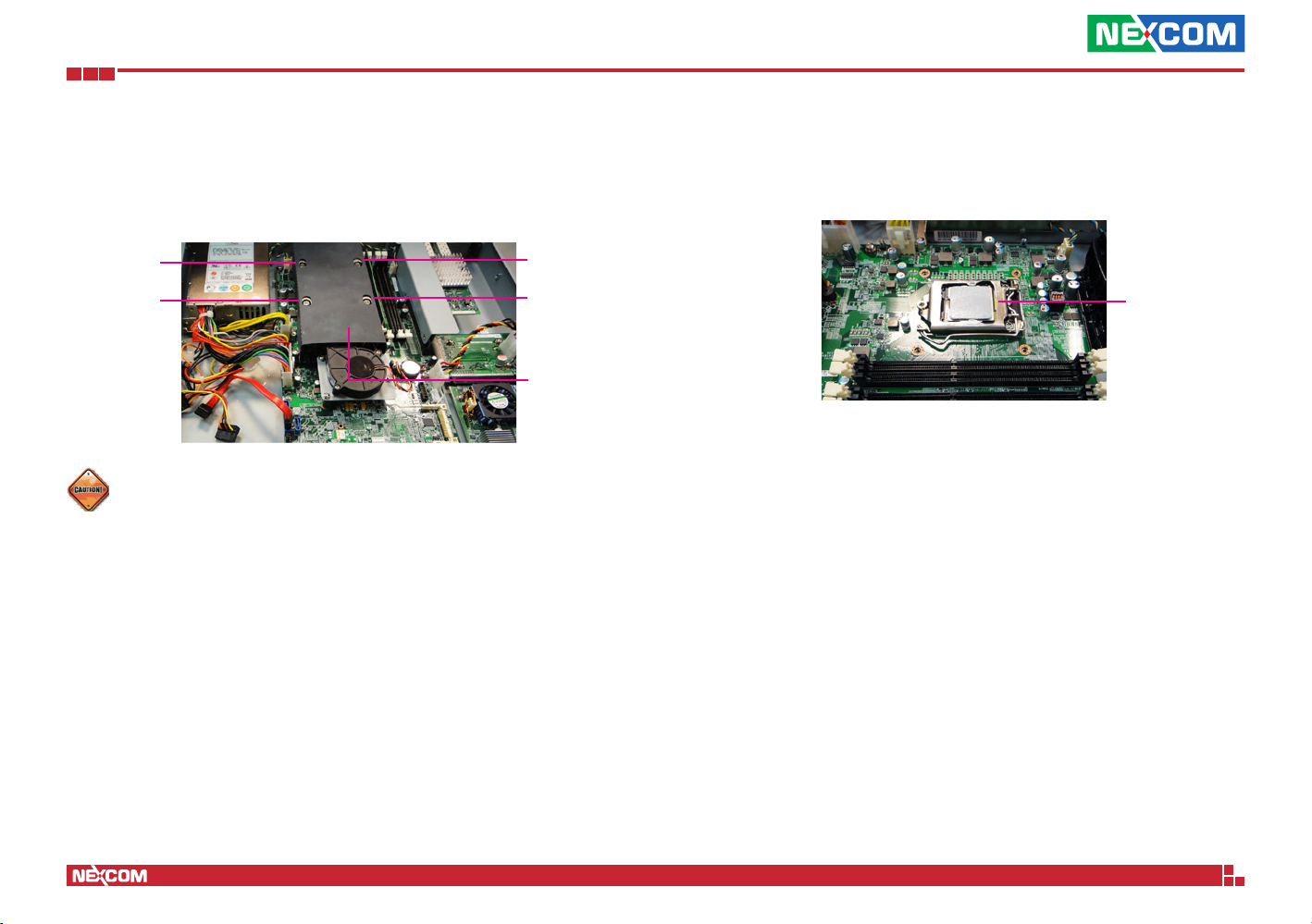

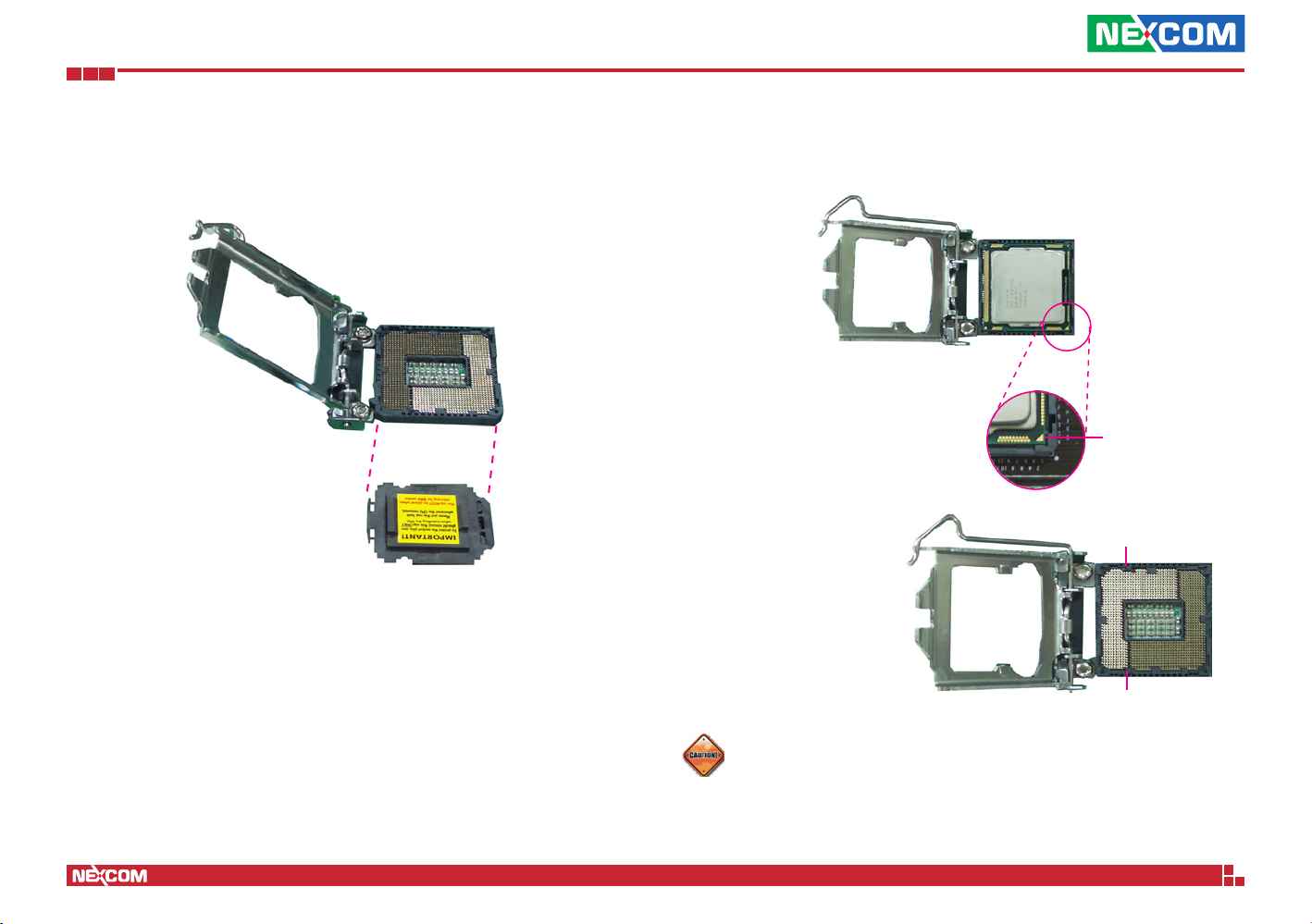

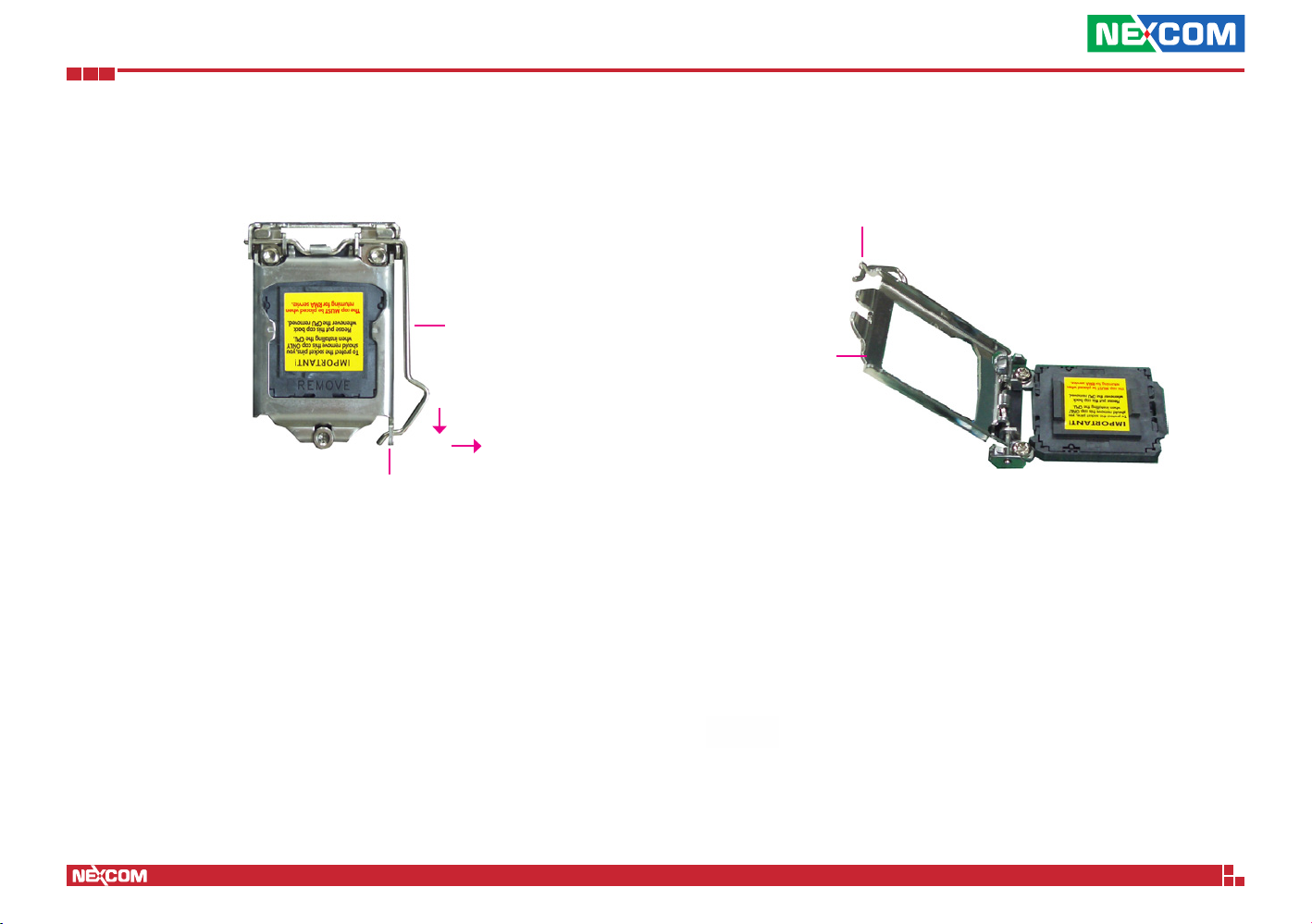

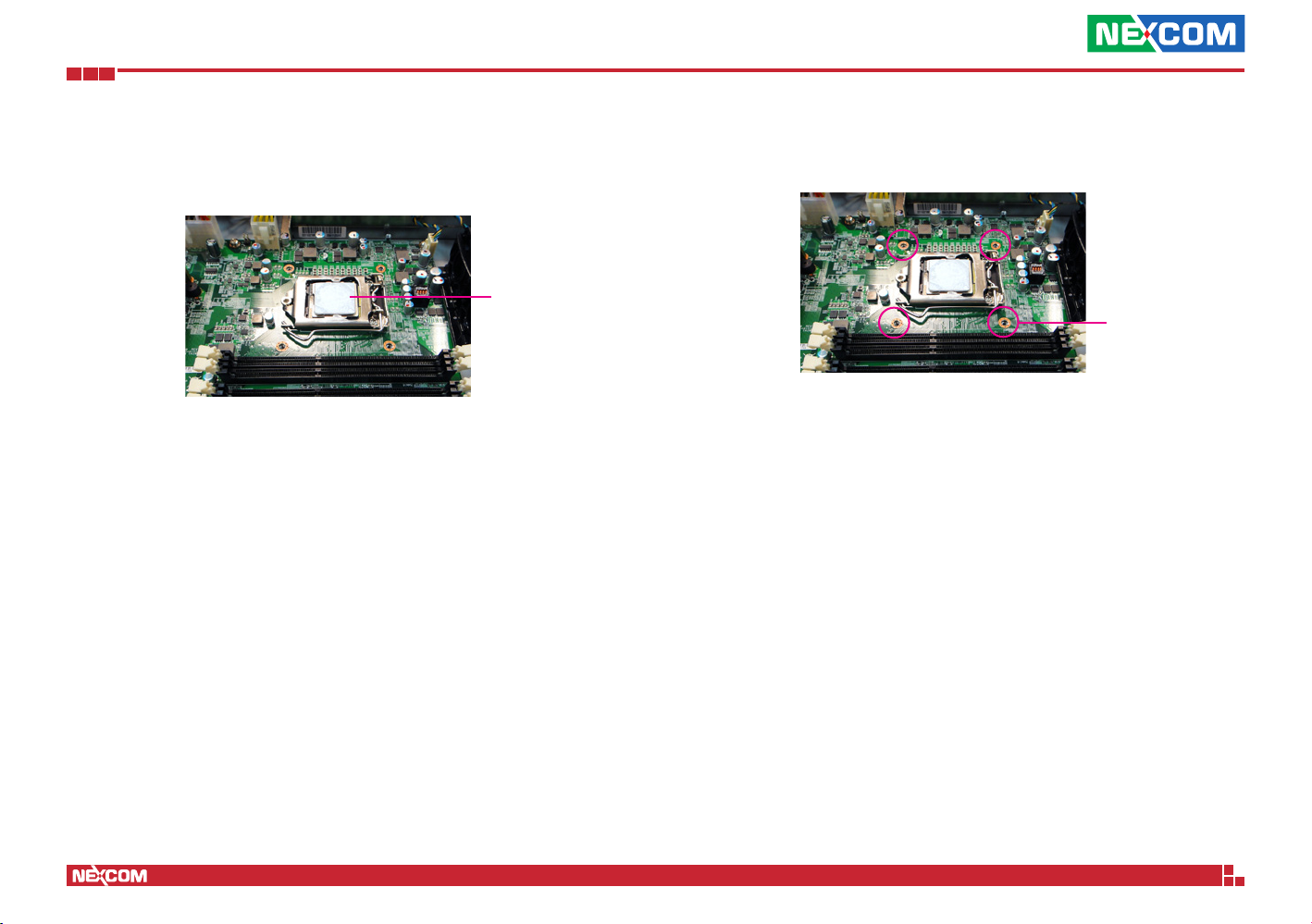

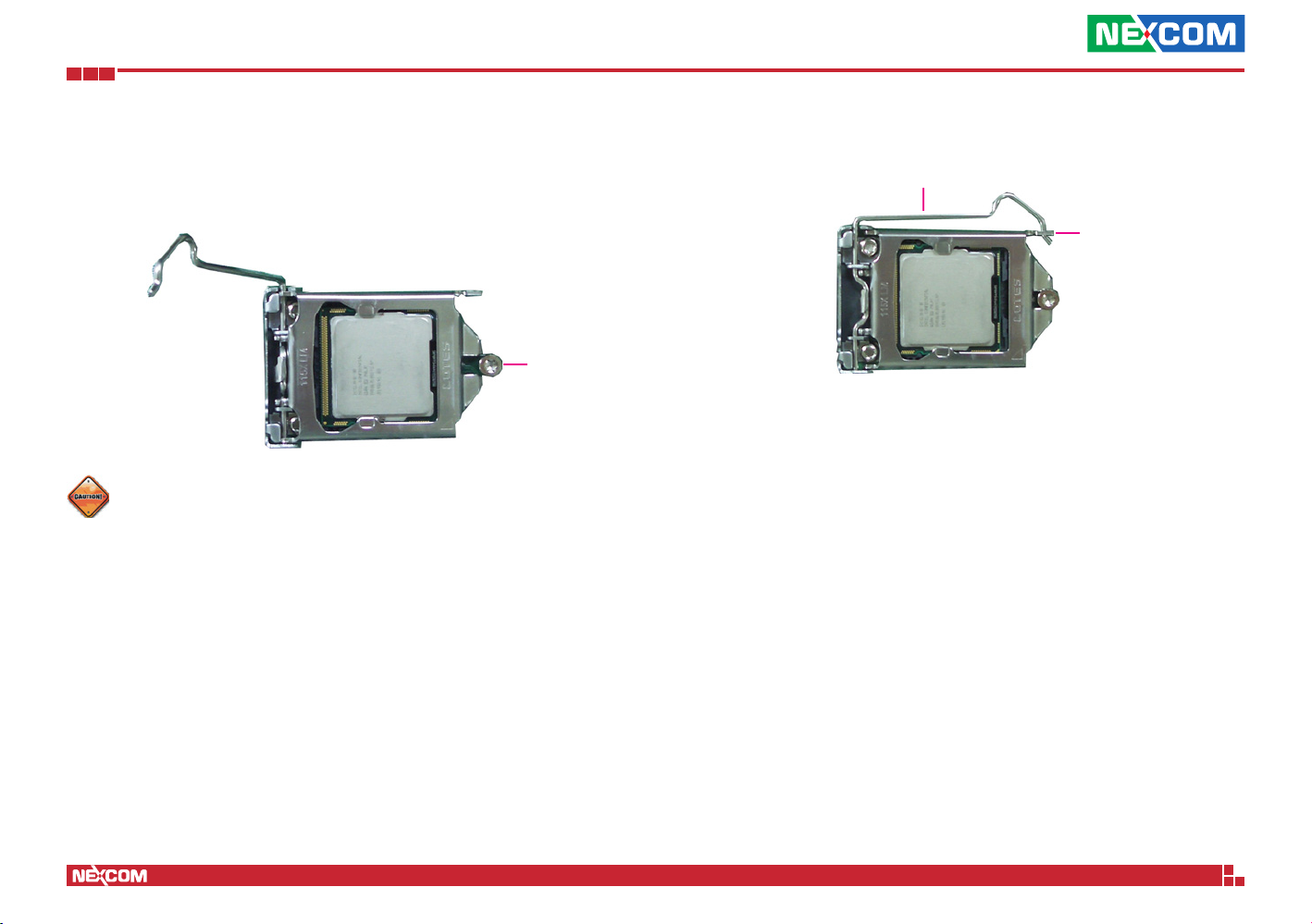

Installing the CPU .................................................................................38

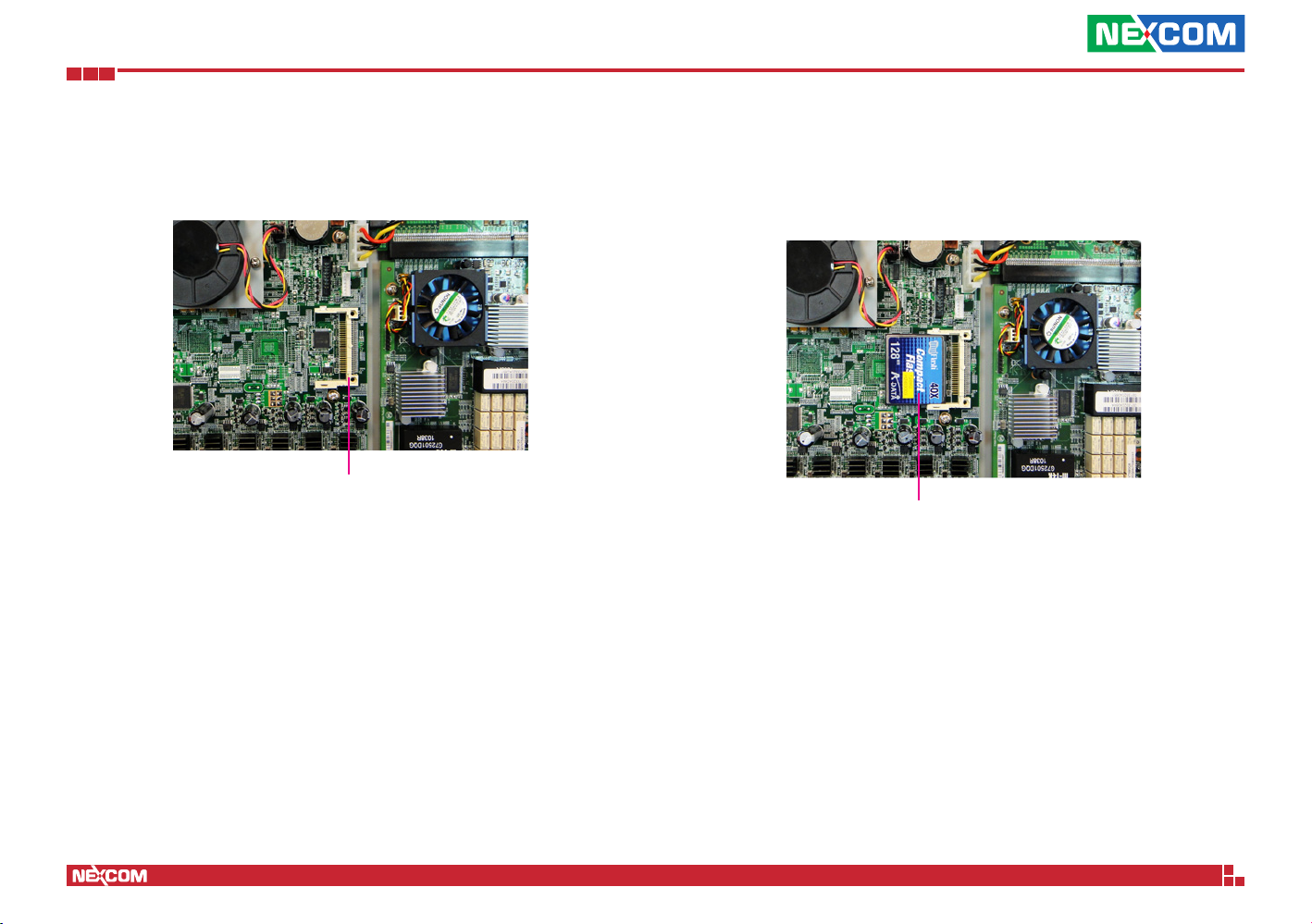

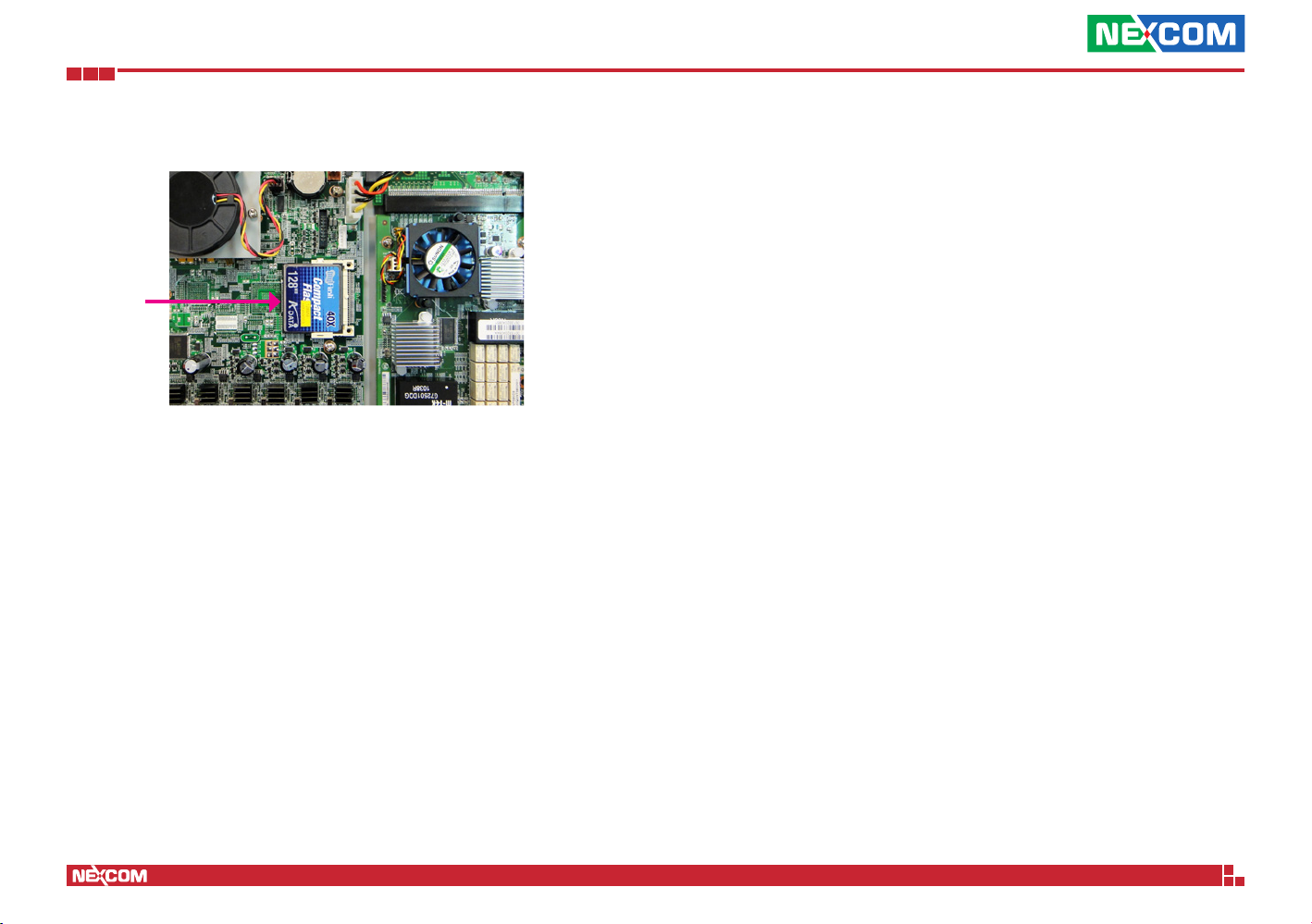

Installing a CompactFlash Card .............................................................44

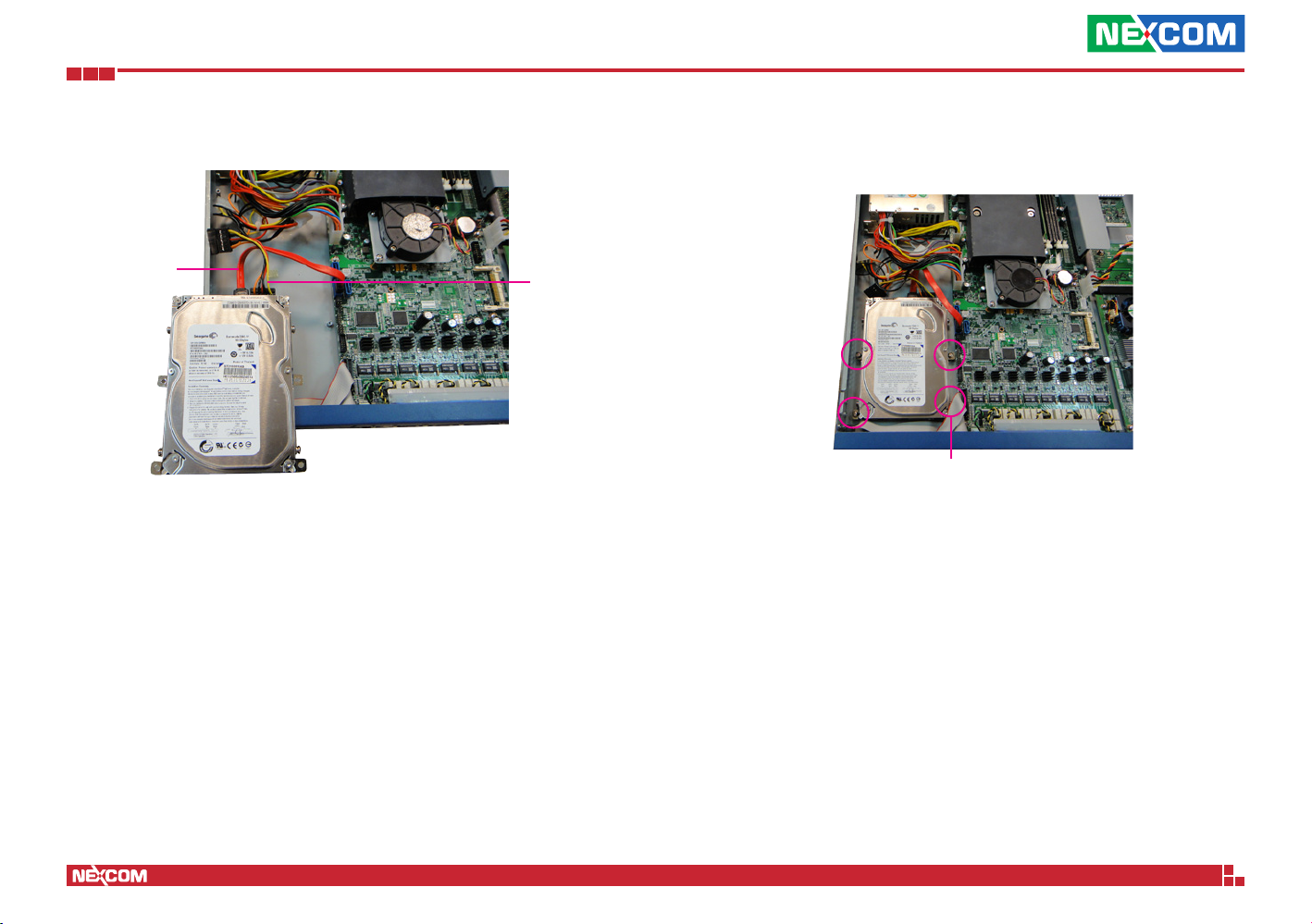

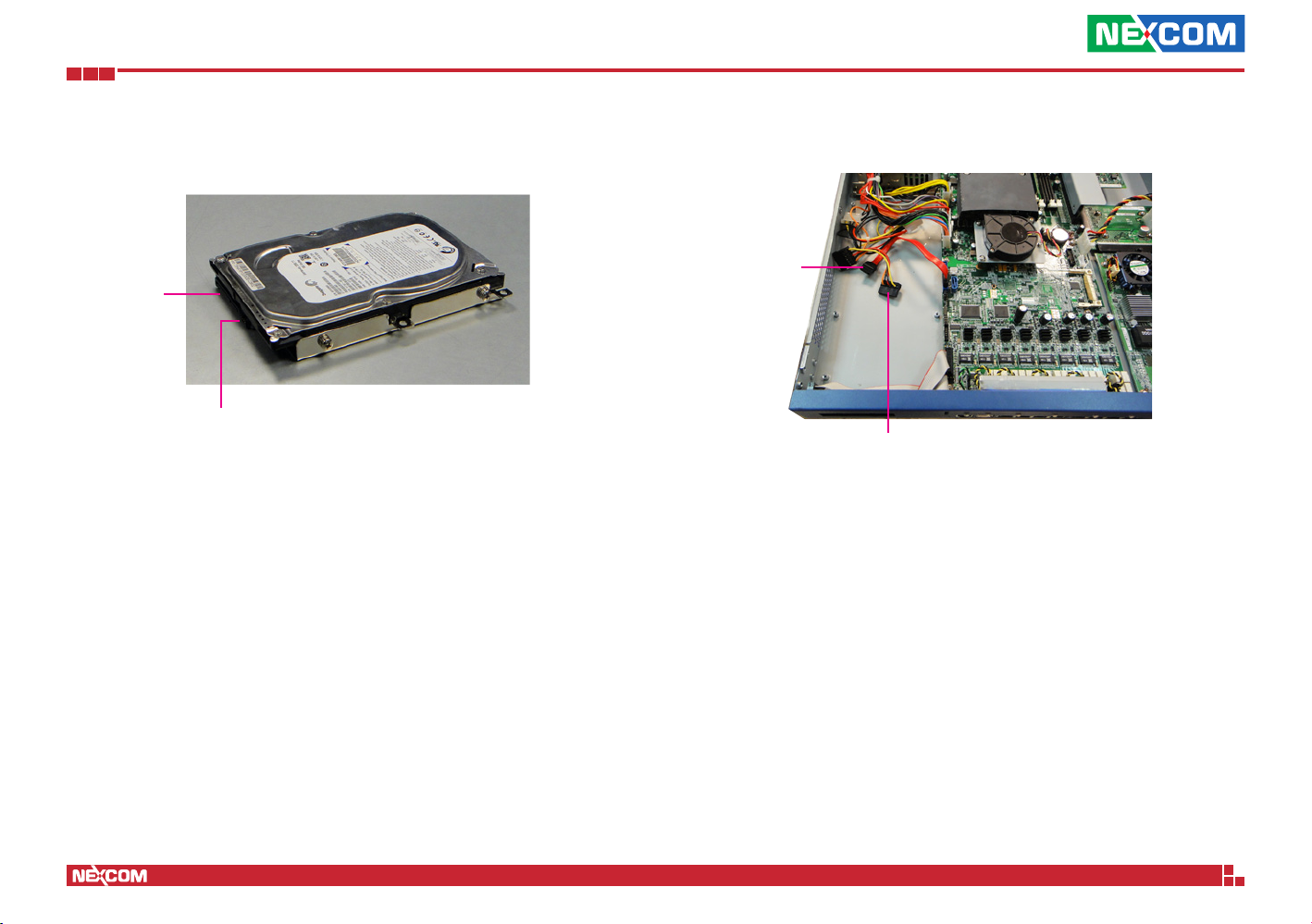

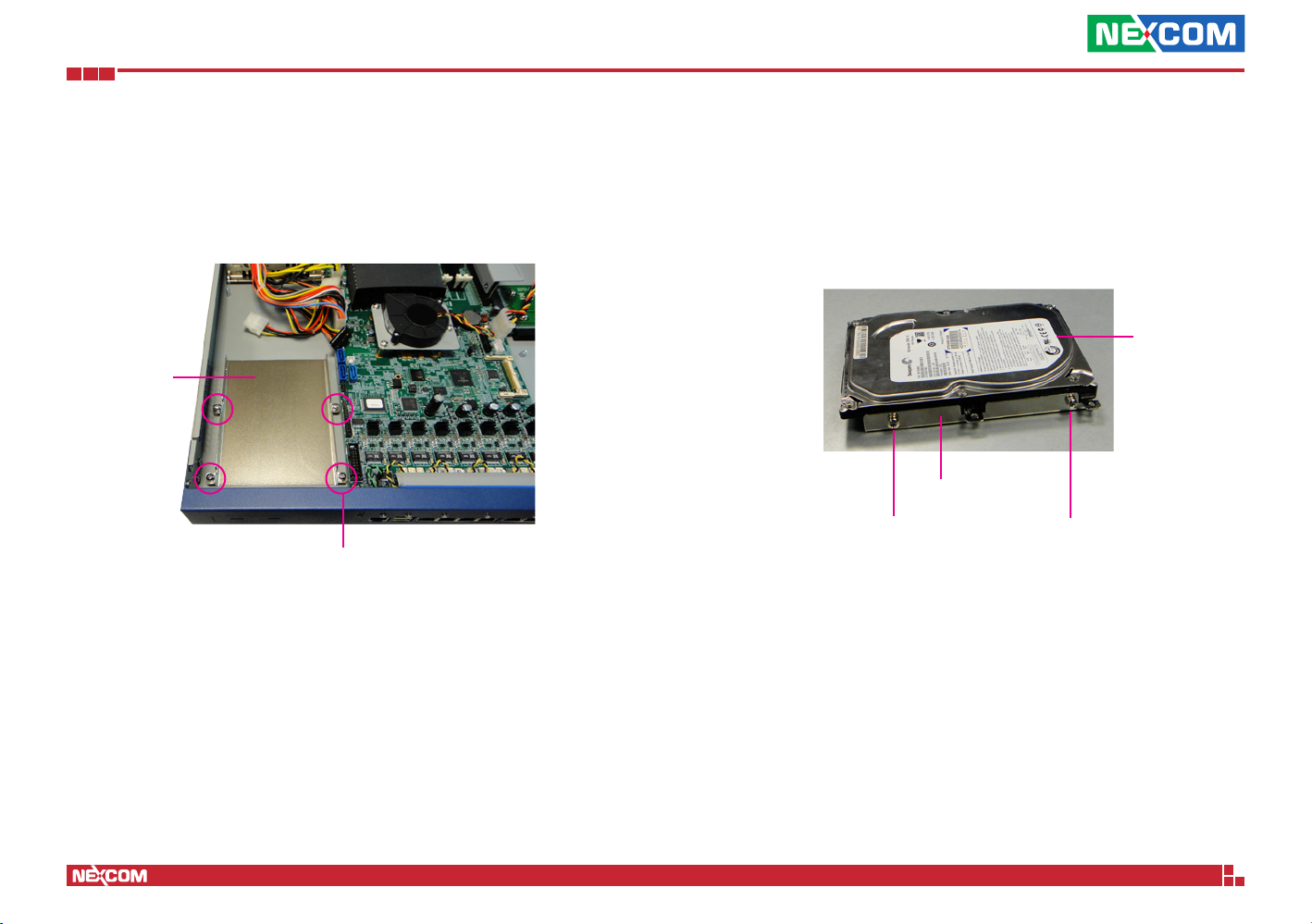

Installing a 3.5” SATA Hard Drive ..........................................................46

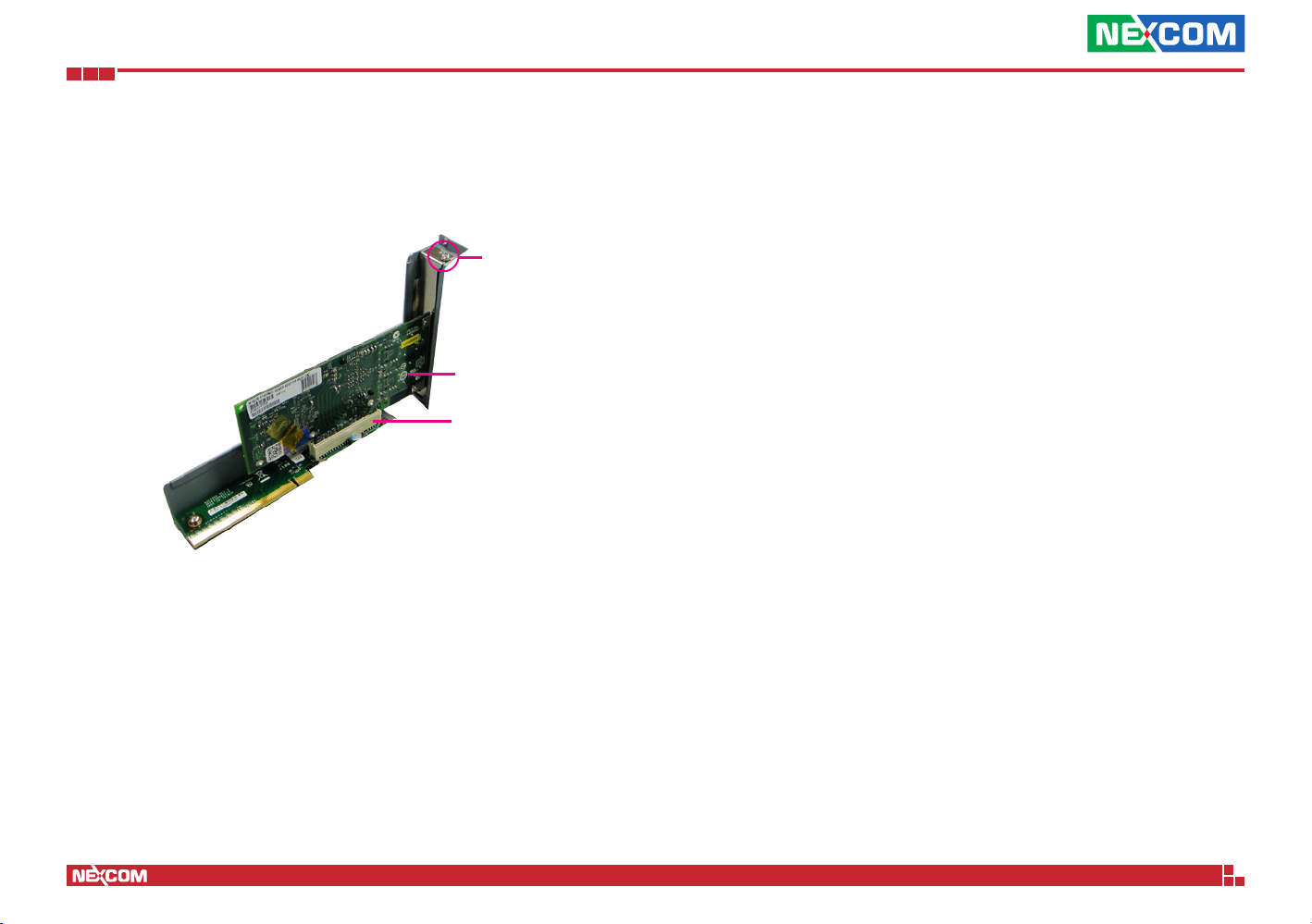

Installing a PCI Express x8 Card .............................................................49

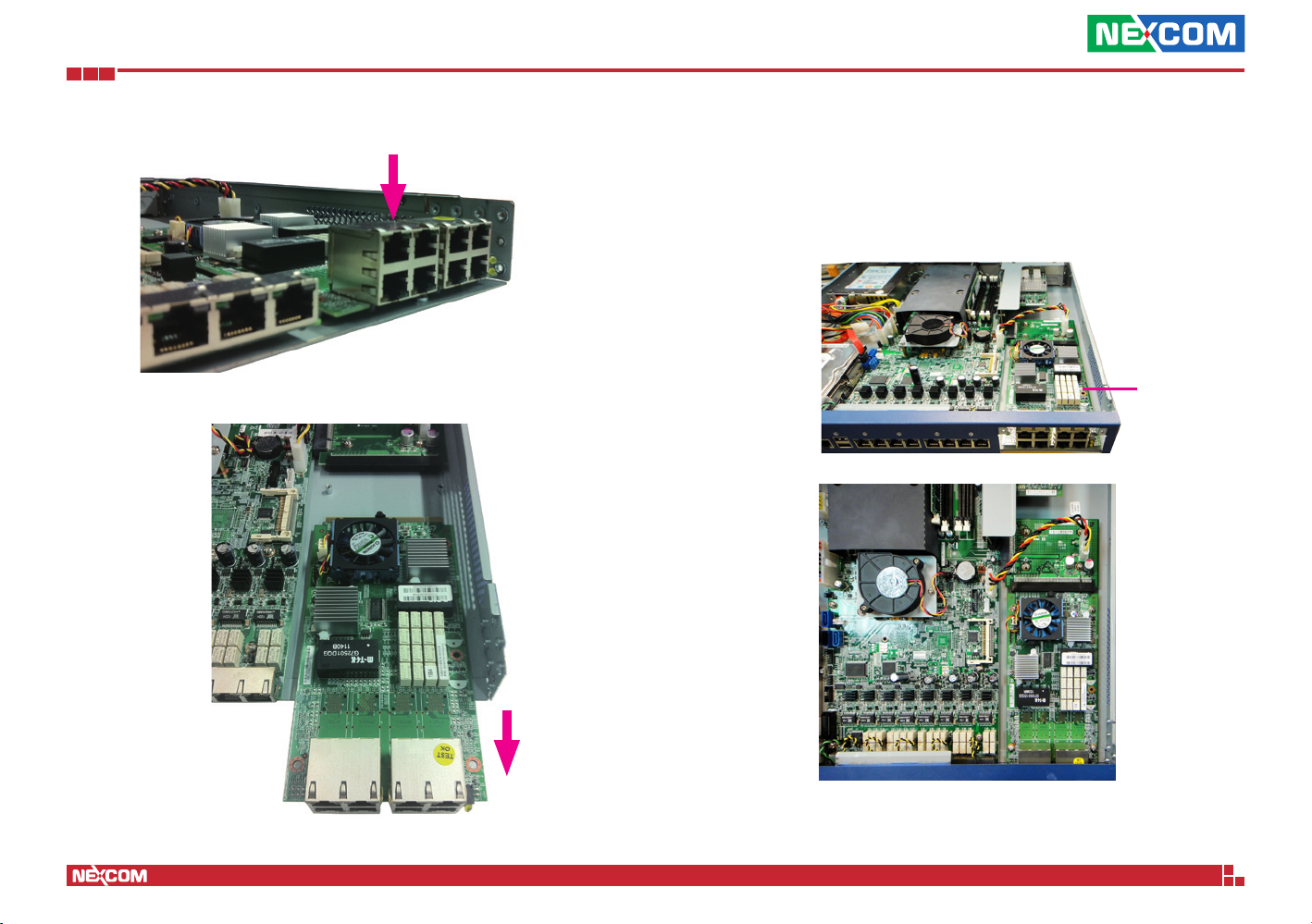

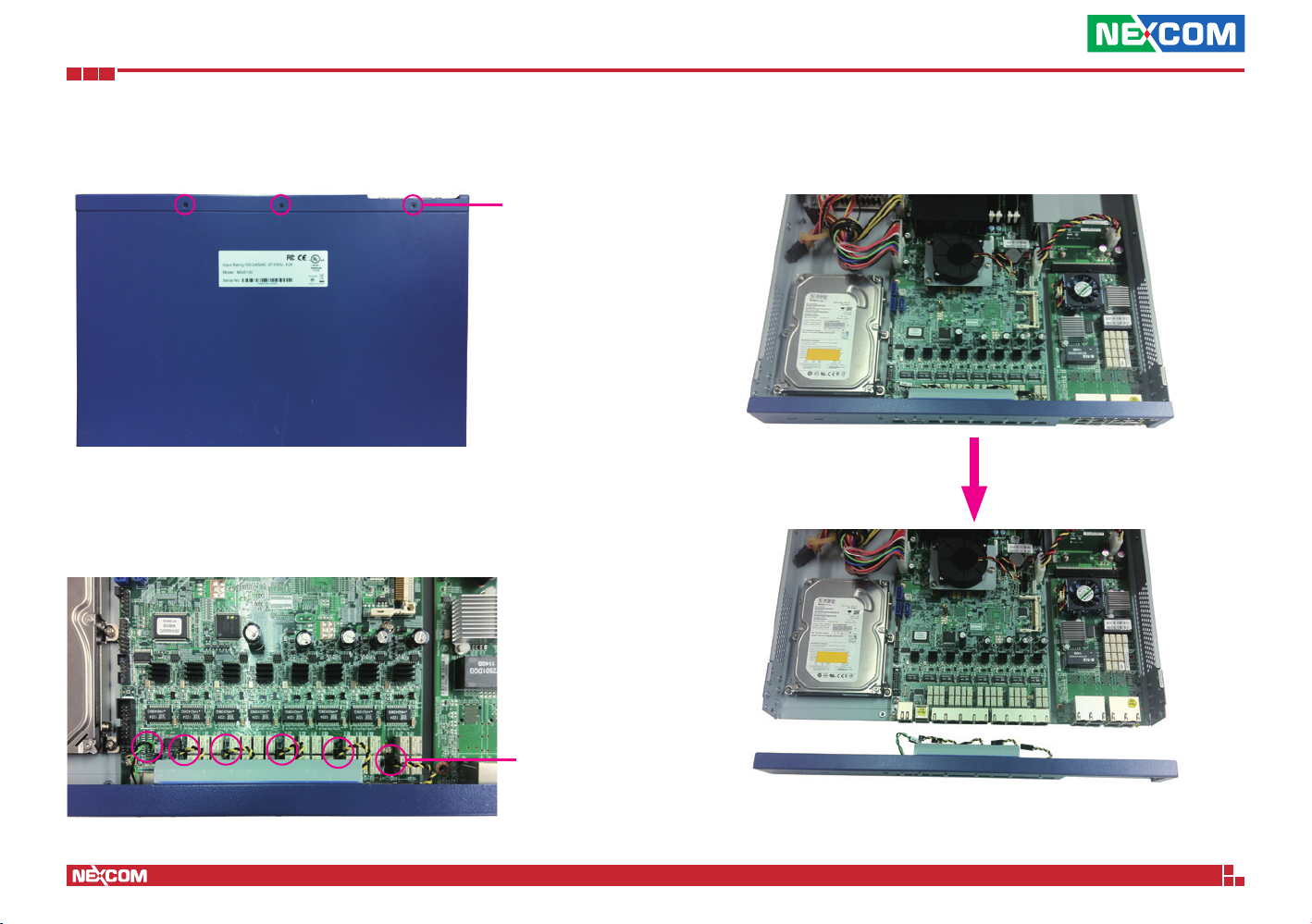

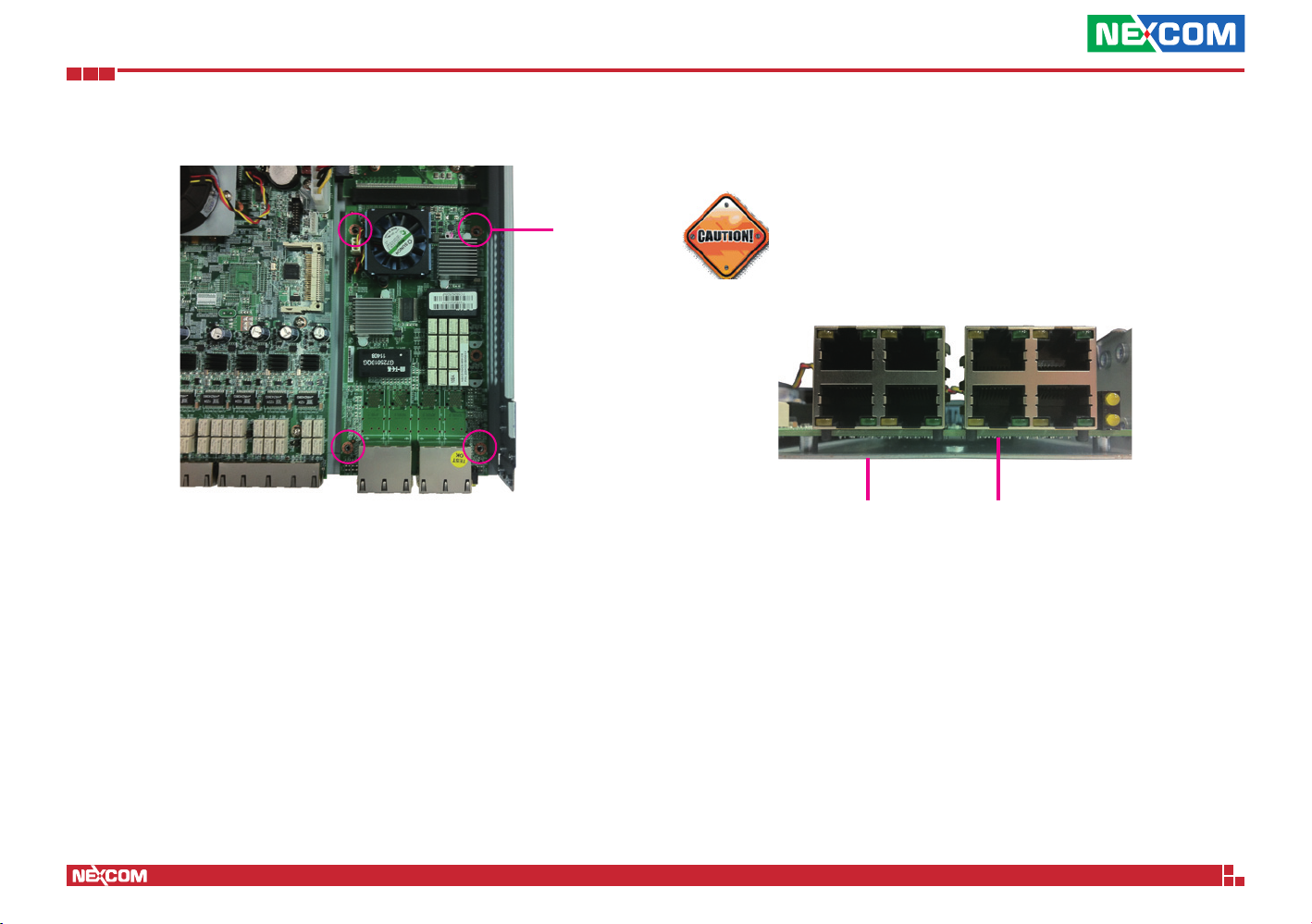

Replacing the LAN Module ....................................................................51

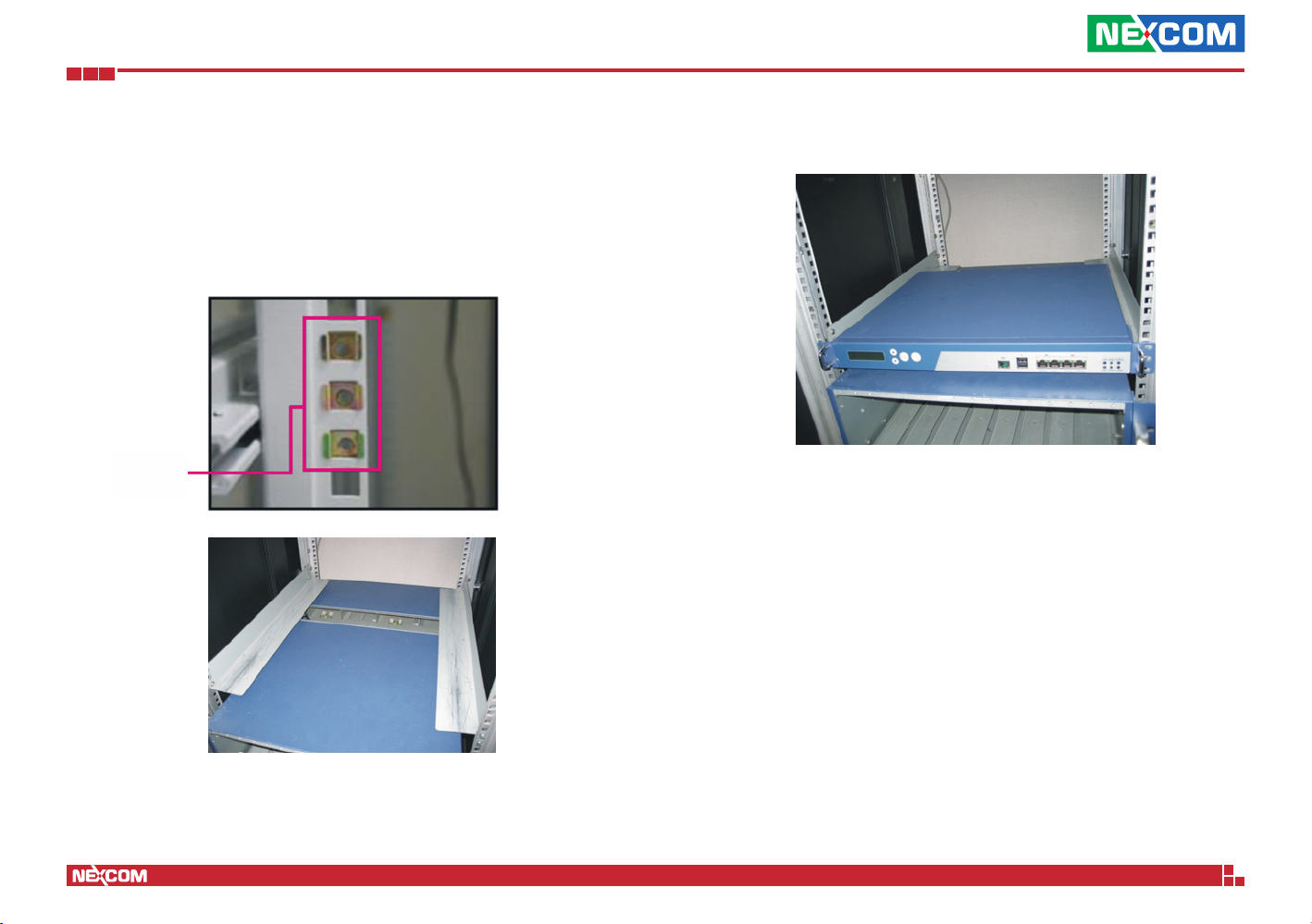

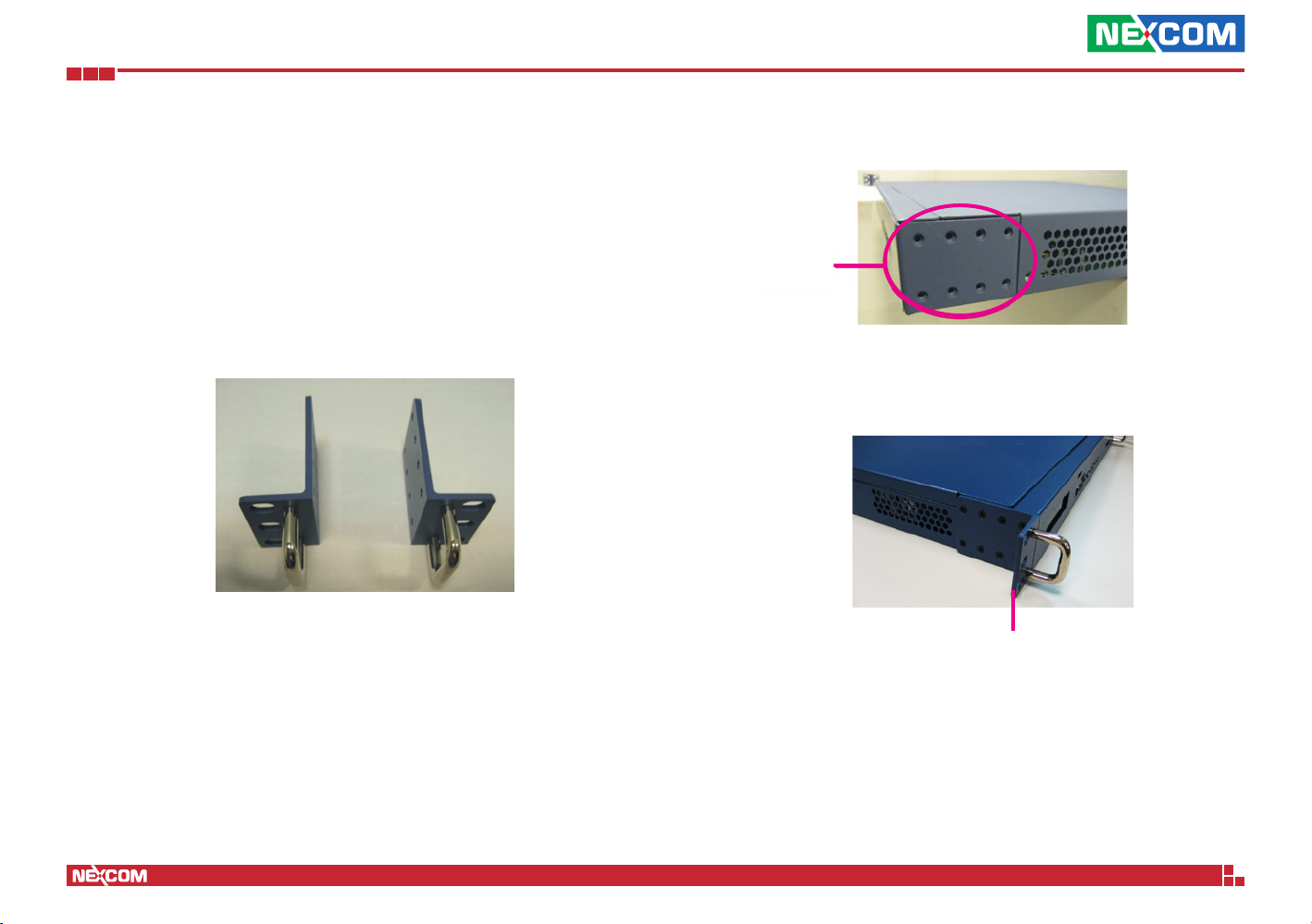

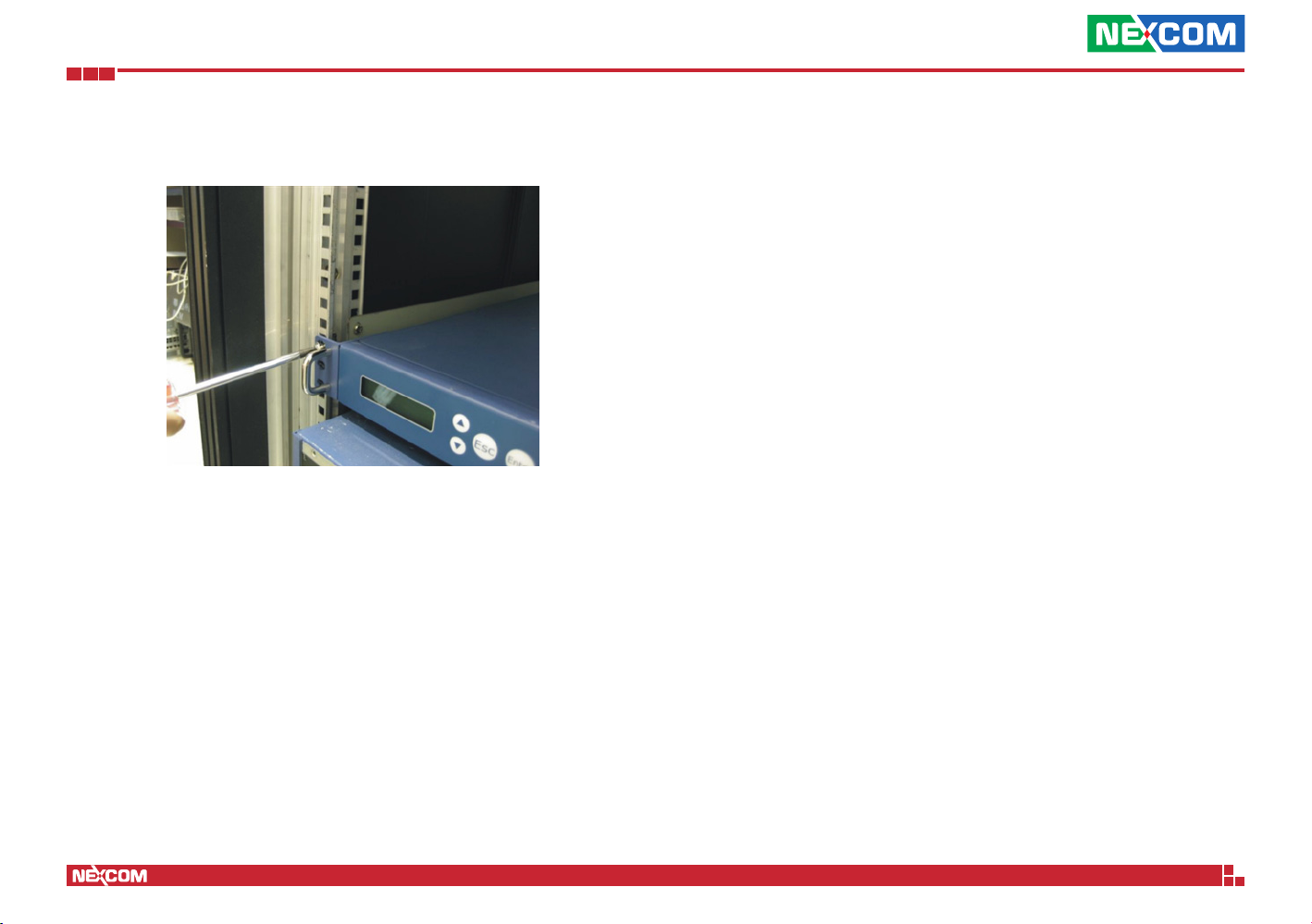

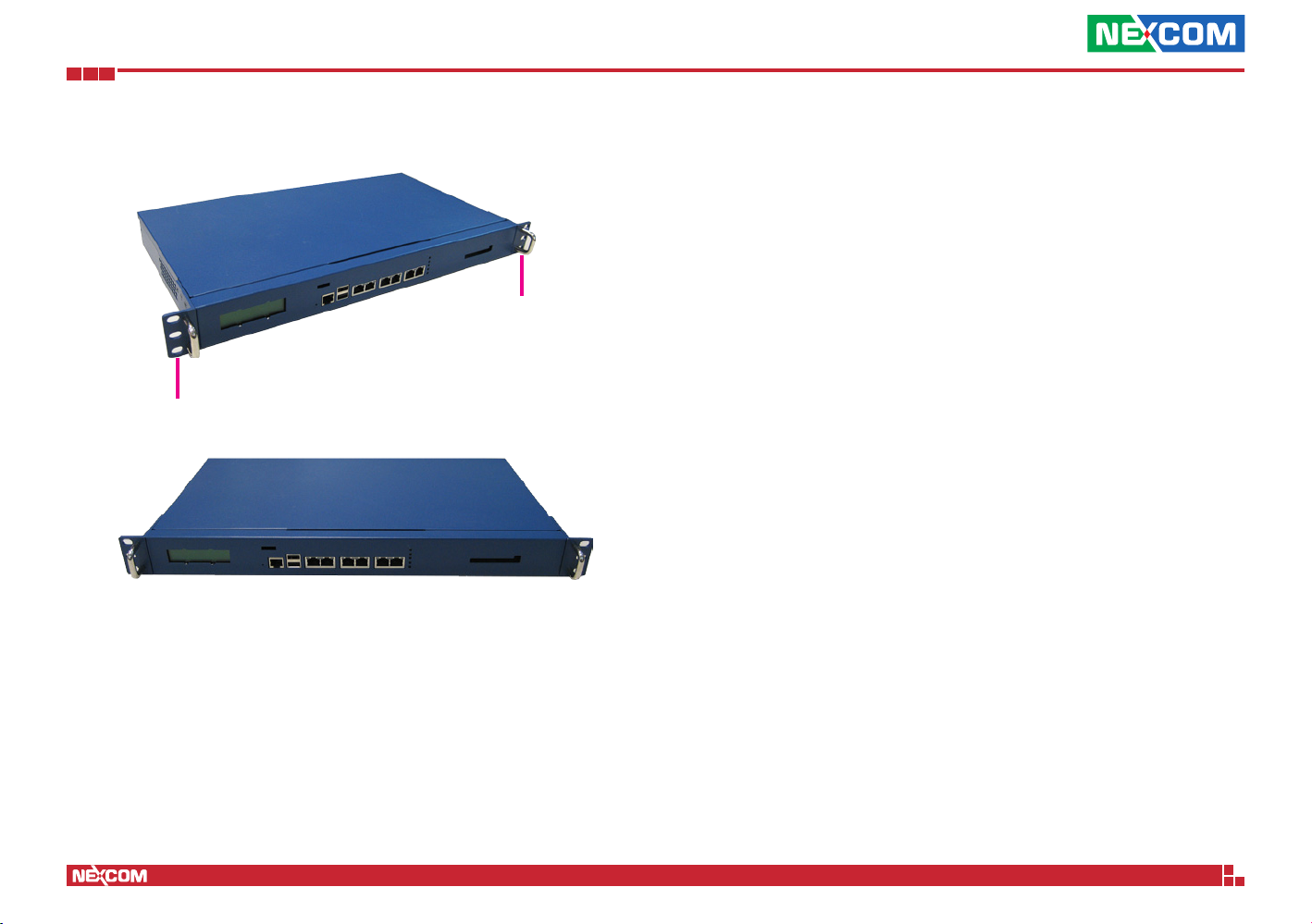

Rackmount Bracket Kit (optional) .......................................................... 55

Chapter 4: BIOS Setup

BIOS Setup Utility .................................................................................. 61

Main ..................................................................................................61

Advanced ........................................................................................... 62

Chipset ............................................................................................... 77

Boot ................................................................................................... 82

Security ..............................................................................................83

Save & Exit .........................................................................................84

Appendix A: Watchdog Timer

Watchdog Timer Setting .......................................................................85

CRFC6 (Default 0x00) ...........................................................................85

Appendix B: GPI/O Programming Guide

GPIO (J9) ...............................................................................................87

Appendix C: Bypass Specifications

Bypass Control Register Map .................................................................90

Bypass Control Register Bit Definitions ..................................................91

Appendix D: Power Consumption

Power Consumption .............................................................................93

iii

NSA 5130 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NSA 5130 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NSA 5130 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green products

and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NSA 5130 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

? Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

? Customers must collect all the information about the problems encoun-

tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

? Customers can send back the faulty products with or without acces-

sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

? Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

? Any products returned by NEXCOM to other locations besides the cus-

tomers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

? Component fee: NEXCOM will only charge for main components such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

? Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

? Replace with 3rd party products if needed.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

Board Level

? Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

? If RMA goods can not be repaired, NEXCOM will return it to the cus-

tomer without any charge.

vi

NSA 5130 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-

er. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

vii

NSA 5130 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40 equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before connect-

ing the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

o

C storage temperature as this may damage the

12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged.

b. Liquid has penetrated into the equipment.

c. The equipment has been exposed to moisture.

d. The equipment does not work well, or you cannot get it to work

according to the user’s manual.

e. The equipment has been dropped and damaged.

f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

viii

NSA 5130 User Manual

Preface

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:

– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

ix

NSA 5130 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan Central Taiwan Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

x

NSA 5130 User Manual

Preface

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/ 1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Europe

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

xi

NSA 5130 User Manual

Preface

Package Contents

Before continuing, verify that the NSA 5130 package that you received is complete. Your package should have all the items listed in the following table.

Item P/N Name Description Qty

1 19S00513000X0 NSA5130 ASSY 1

2 5044440031X00 RUBBER FOOT KANG YANG:RF20-5-4P 19.8x18x5.0mm 4

3 6012200052X00 PE ZIPPER BAG #8 170x240mm,W/China RoHS SYMBOL 1

4 6012200053X00 PE ZIPPER BAG #3 100x70mm,W/China RoHS SYMBOL 1

5 6023309081X00 CABLE EDI:232091081804-RS COM PORT. DB9 FEMALE TO RJ45 8P8C L:1800mm 1

6 6029900037X00 DOW CORNING 340 Silcone Heat Sink Compound (3g) 1

7 50311F0102X00 (H)ROUND HEAD SCREW LONG FEI:P6#32Tx 1/4/SW7*0.8 W/SPRING+FLAT WASHER P6#32Tx 1/4/SW7x0.8 NI 4

8 5043330272X00 TP10 CF BRACKET CHYUAN-JYH:L10Z361 46.4x49.2x8.8mm 301 STAINLESS STELL T:0.5mm 1

9 60233ATA12X00 SATA CABLE FOR NISE 1000 BEST:109-0707-150R 26AWG L:150mm 1

10 60177A0232X00 (N)NSA5130 QUICK REFERENCE GUIDE VER:A KRAMER 1

11 602DCD0355X00 (N)NSA5130 CD DRIVER VER:1.0 JCL 1

12 6014401238X00 NSA5130 W/O LCM MEMBRANE VER:A GREATWOOD 42x427.8x0.582mm 1

xii

NSA 5130 User Manual

Preface

Ordering Information

The following provides ordering information for NSA 5130.

• Barebone

NSA 5130 (P/N: 10S00513000X0)

- Supports Intel

slots, 8 PCIe GbE LAN ports, CompactFlash socket, USB ports, VGA port, 1 PCIe x8 expansion slot, w/o LCM

• Options

NSK5380-C8 10SK0538000X0 INTEL® NH82580EB PCIe x8 8 Copper Dual Latch/2 None All Slot

NSK5380-F8 10SK0538001X0 INTEL® NH82580EB PCIe x8 8 SFP None None All Slot

NSK5380-C4F4 10SK0538002X0 INTEL® NH82580EB PCIe x8 4 Copper / 4 SFP Dual Latch/2 None All Slot

NSK5380-F4 10SK0538003X0 INTEL® NH82580EB PCIe x8 4 SFP None None All Slot

NSK5399-F2 10SK0539900X0 INTEL® L82599ES PCIe x8 2 SFP None None All Slot

®

2nd generation Core™ processors, 4 DDR3 memory

P/N Controller Interface Type Ports Bypass/Segment Expansion Slot Location Slot

xiii

NSA 5130 User Manual

Chapter 1: Product Introduction

Overview

Front

Rear

Key Features

• 1U Rackmount Network Platform

®

• Intel

• 4x DDR3 1066/1333 Memory, up to 16GB

2nd Generation Core™ Processors

• 8+8 x GbE LAN Ports

• 1x internal 3.5” HDD Bay / 2x 2.5” HDD Bay (optional)

• 1x PCIe x8 expansion

1

NSA 5130 User Manual

Chapter 1: Product Introduction

Hardware Specifications

NSA 5130 System

Physical Characteristics

• Form Factor

- 19” 1U

• Construction

- SECC steel plate, 1.0 mm thick

• Color

- Nexcom 295U

• Dimensions (W x D x H)

- 430 mm x 450 mm x 44 mm

• Mounting

- Mounting ear

• System chassis

- NSC5130

System Cooling

• Cooling Method

- Removable system fan at the rear of the chassis

• Cooler Type

- Four system fans with controllable fan speed

• Ventilation

- Suction from the side and discharged to the back

Main Board

• NSB 5130

®

• Intel

• 4 x 240-pin DDR3 1066/1333MHz DIMM sockets, up to 16GB ECC/

• Intel

2nd generation Core™ processors, Max 95watt

®

C206

non-ECC SDRAM

®

82583V LAN chip, LAN Bypass: 4 pairs, 10/100/1000 link speed

I/O Interface - Front

• Console port

- 1 RJ45 type

• USB port

- 2 USB ports

• LAN port

- 8 RJ45 copper LAN ports

• Keypad (optional)

- LCM keypad

• LCD

- 2x16 characters LCD module, PIO interface (optional)

• Button

- 1 GPIO software button

• LAN module bay (optional)

- 1 LAN module bay

• LEDs

- Power Status/HDD Status/LAN Status/Bypass Status LED

I/O Interface - Rear

• 1 VGA port (optional)

• 2 USB 2.0 ports (optional)

• 1 expansion slot

Storage

• 1 onboard CompactFlash socket

• 1 internal 3.5” HDD bay or 2 2.5” HDD bay

• 1 SATA DOM device space

Expansion

• 1 x PCIe x8 slot

2

NSA 5130 User Manual

Chapter 1: Product Introduction

Standard Power Supply

• Power type

- Standard 200W ATX power supply

• Input voltage

- AC 100V - 240V

• Output voltage

- DC +5V, -5V, +12V, -12V, +3.3V, +5VSB

• Maximum output power

- Up to 250W for Standard ATX

- Up to 400watt for Redundant Power

Environment

• Operating temperature

o

- 0

C ~ 40oC

• Storage temperature

o

- -20

C ~ 75oC

• Relative humidity

- 10%~90% non-condensing

Vibration

• Sine wave vibration test (non-operating)

- Frequency: 5 - 500 Hz

- Acceleration: 2g

• Random vibration test (operating)

- Frequency: 5 - 500 Hz

- Acceleration: 0.3g

• Random vibration test (packing)

- Frequency: 1 - 200 Hz

- Acceleration: 1.15g

Shock

• Non-OP shock

• RoHS

Acoustic Noise

• ISO 11201:1995(E)/ISO 7779:1999/ Amd.1:2003(E)

Dimensions

• Chassis Dimensions: 426mm x 450mm x 44mm

• Carton Dimensions: 560mm x 620mm x 190mm

Weight

• Without Packing: 8Kg

• With Packing: 12Kg

Certification

• CE

• FCC Class A

• UL

ESD

• 2/4KV contact discharge

• 2/4/8KV air discharge

• Criteria B

Safety

• UL

• LVD

3

NSA 5130 User Manual

Chapter 1: Product Introduction

Main Board (NSB 5130)

Processor

• CPU

- Intel

Chipset

• Intel

Memory

• Technology

- DDR3 1066/1333MHz ECC and Non-ECC memory

• Sockets

- Four 240-pin DDR3 DIMM sockets

• Capacity

- 16GB maximum memory

Network

• Onboard LAN controller

- Intel 82583V x8 (connected from Intel 3450 PCIe bus)

• Link speed

- 10/100/1000

• Bypass

- 4 pairs (dual latch bypass, Active Bypass status report)

• Media type

- Copper

• PXE boot

- ETH1 (the left side of LAN)

• LAN module (optional)

- One PCIe x8 connected to CPU PCIe bus

- Supports Nexcom NSK53xx series modules

®

2nd generation Core™ processors, Max 95watt

®

C206

Storage

• SATA

- Two SATA connectors with power connector for one 3.5” HDD (default) or two 2.5” HDD (optional)

• SATA DOM

- One SATA DOM connector with power connector (JST 2-pin)

• CompactFlash

- JMicron JMD330 SATA to IDE bridge

- One CompactFlash socket

Status Indicator

• Power LED

- Green: Lights green when the system is On.

• HDD LED

- Yellow: Lights yellow when the HDD is active.

• GPIO LED

- Yellow

• Bypass LED

- Yellow

RTC

• Controller

- Built-in controller

• Backup battery

- Lithium ion battery

4

NSA 5130 User Manual

Chapter 1: Product Introduction

System Management

• Watchdog

- Watchdog timeout is programmable by software from 1 second/min. to 256 sec. (from Winbond W83627 Super I/O)

• System Monitor

- Monitors voltages (system temperature sensor, monitors system voltage, monitors battery voltage, monitors fan speed of system and module) (W83792 monitor chip)

- Fan speed controller: 2 fan connectors with fan speed control function

I/O Port

• Internal I/O

- Serial ports: two reserved 2x5 2.0mm box headers (COM1 and COM2)

- USB ports: one 1x6 2.0mm JST connector

- SATA ports: three SATA ports

- PS/2 keyboard/mouse: one 2x4 2.54mm pin header

- GPIO: one 2x2 2.0mm pin header

• Rear I/O

- 1x PCIe x16 slot for a x8 slot on the riser card

- 1x VGA port

- 2x USB ports

• Front I/O

- 2x USB ports

- 1x RJ45 type console port

- 8x RJ45 copper LAN ports

- Power status / HDD status / LAN status / Bypass status LED

- 1x GPIO software button

- 1x LAN module bay (optional)

Expansion

• PCI Express

- One PCIe x8 slot on the riser card

Power

• Connector type

- ATX power connector

• Power mode

- AT mode (default), ATX mode Use the jumper to change the setting. The BIOS can auto detect the

power mode status.

BIOS

• Flash ROM

- 64MB (SPI)

• Type

- AMI BIOS

5

NSA 5130 User Manual

Chapter 1: Product Introduction

Software

• Standard OS

- Windows 2003, Linux Kernel 2.6 (Fedora Core, SUSE)

• Drivers

- VGA, LAN, WDT, GPIO, Hardware Monitor, Bypass

• Sample code

- LCM sample string display, LCM testing program, GPIO, WTD, Bypass, Hardware Monitor

Environment

• Operating Temperature

o

- 0

C - 40oC

• Storage Temperature

o

- -20

C - 75oC

• Relative Humidity

- 10%-90% non-condensing

• EMI/EMC

- CE/FCC Class A

• ESD

- 2/4KV contact discharge, 2/4/8KV air discharge, Criteria B

6

NSA 5130 User Manual

Chapter 1: Product Introduction

Getting to Know NSA 5130

Front Panel

LAN/Bypass Status LEDs

HDD LED

Power LED

Bit2 Bit3 Bit4 Bit5

F3/F7 address

GPIO software

button

RJ45 type console LAN port

Copper LAN ports

USB ports

Power LED

Indicates the power status of the system.

HDD LED

Indicates the status of the hard drive.

LAN/Bypass Status LEDs

Indicates the status of the LAN/Bypass (F3/F7 bit2 to bit5).

USB Ports

Used to connect USB 2.0/1.1 devices.

Console LAN Port

Used to connect RJ45 type Console port.

GPIO Software Button

This is a GPIO software button.

Copper LAN Ports

Used to connect LAN network devices.

7

NSA 5130 User Manual

Chapter 1: Product Introduction

Rear Panel

Expansion slot

Power On/Off Switch

Press to power-on or power-off the system.

Expansion Slot

Used to install a PCI Express x8 card.

Power switch

8

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for NSA 5130.

Before You Begin

• Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the connections. It is recom-

mended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that the power

is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-

tronic components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet whenever you are

working inside the case.

• If possible, wear a grounded wrist strap when you are working inside

the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not touch the com-

ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging that they

shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

9

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

10

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

NSB 5130

The figure on the right is the NSB 5130 main board which is the main board used in the NSA 5130 system. It shows the locations of the jumpers and connectors.

LAN1

CN1

SW1

JP1

CN2

JP2

J9

J8

CN3

J7

J6

J2

J10

JP3

J11

J12

J13

J14

JP4

CN6

J18

JP6

CN7

FAN4

J3

CON1

J4

J5

CON2

J1

CN4

VJP1

J16

CN5

PCH C206

FAN1

J17

11

JP5

FAN2

DIMM1

DIMM2

DIMM3

DIMM4

GFM1

PCIE1

CPU

FAN3

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

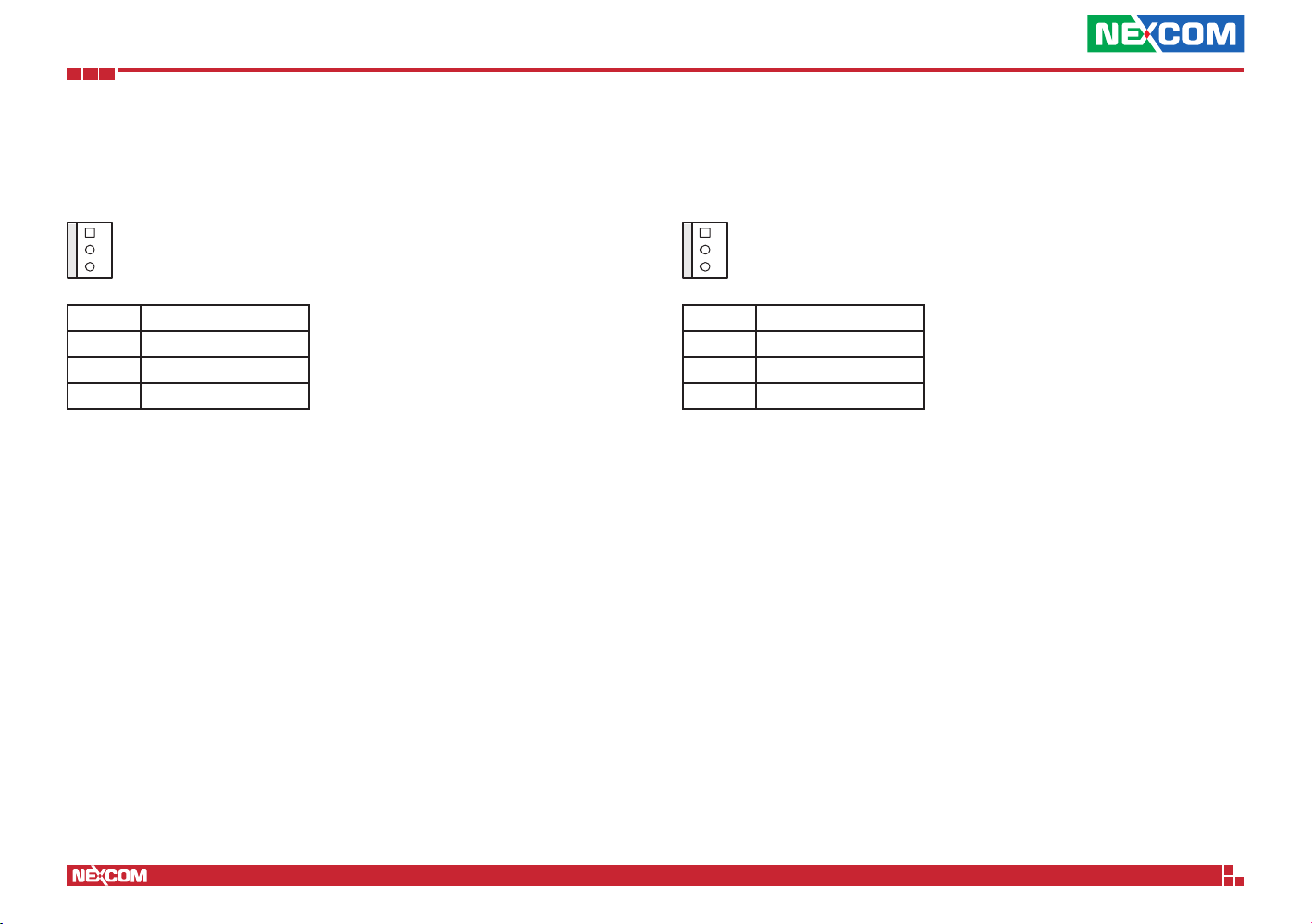

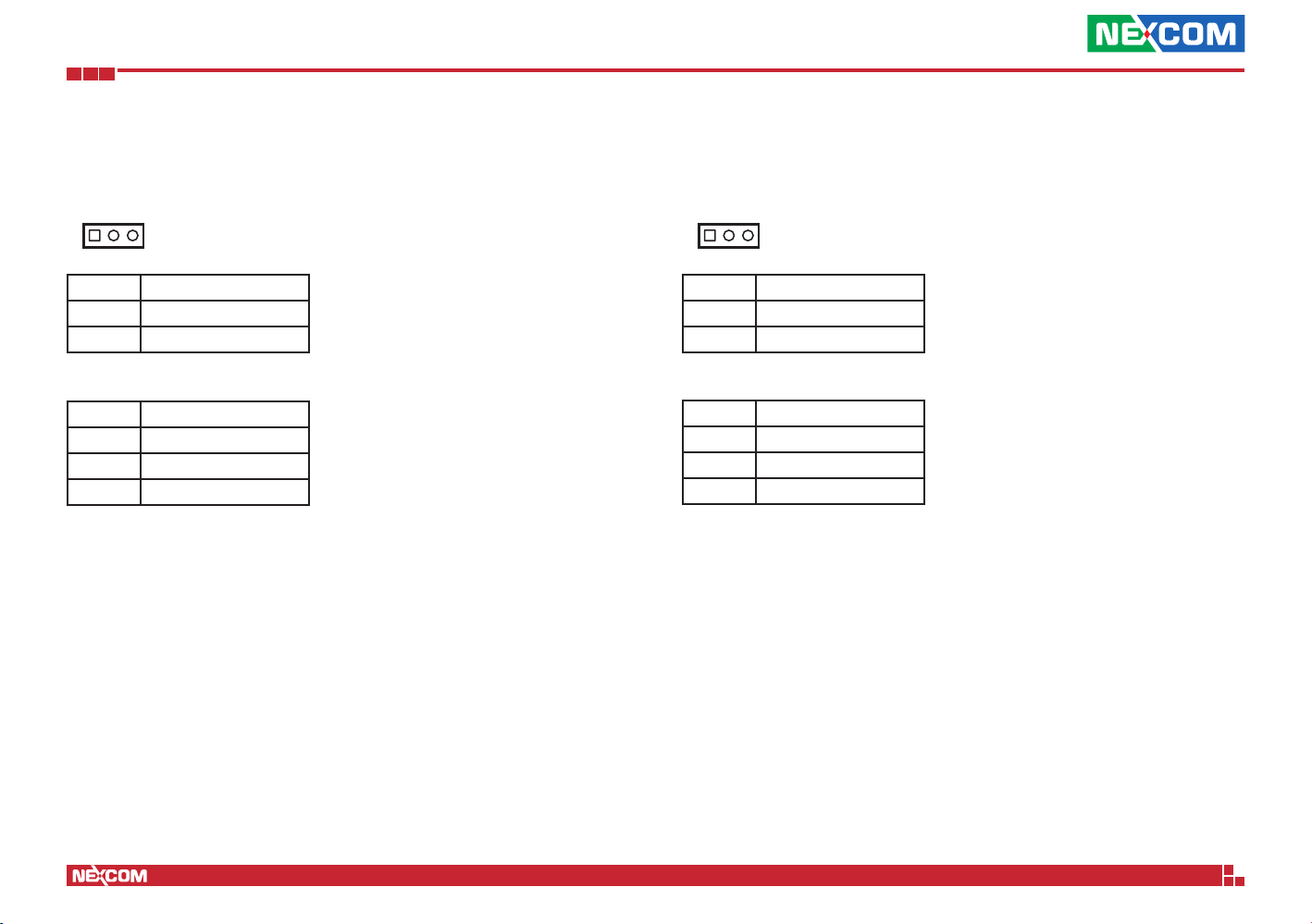

Jumpers

CMOS Clear

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP5

1

Pin Settings

1-2 On Normal

2-3 On CMOS Clear

1-2 On: default

Pin Definition

3

1 NC

2 ICH_RTCRST_N

3 Battery GND

ME Force Update

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP3

1

Pin Settings

1-2 On Normal

2-3 On ME Force Update

1-2 On: default

Pin Definition

3

1 NC

2 GPIO24

3 GND

12

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

Console Type Select

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP1

1

Pin Settings

1-2 On RTS to CTS

2-3 On Normal

1-2 On: default

Pin Definition

3

1 SP_RTS1_R

2 SP_CTS1_R

3 SP_CTS1_CON

Power Type Select

Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP4

1

Pin Definition

1-2 On ATX

2-3 On AT

2-3 On: default

Pin Definition

3

1 3VSB

2 AT_ATX_SELECT

3 GND

13

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interface

Status Indicators

Connector location: LED9

PWR

HDD

GPIO (F6 bit0)

GPIO (F6 bit1)

Status LED Color

PWR Green

HDD Yellow

F6 0 Yellow

F6 1 Yellow

USB Ports

Connector type: Dual USB port Connector location: CN1

Pin Definition Pin Definition

1 VCC 5 VCC

2 USB0- 6 USB1-

3 USB0+ 7 USB1+

4 GND 8 GND

14

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

RJ45 Type Console LAN Port (RS232)

Connector type: RJ45 port Connector location: LAN1

Pin Definition Pin Definition

1 SP_RTS1_R 2 SP_DTR1_R

3 SP_TXD1_R 4 GND

5 SP_DCD1_R 6 SP_RXD1_R

7 SP_DSR1_R 8 SP_CTS1_CON

Software Push Button

Connector type: 2-pin jack Connector location: SW1

Pin Definition

1 GND

2 RW_SW_RST

15

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

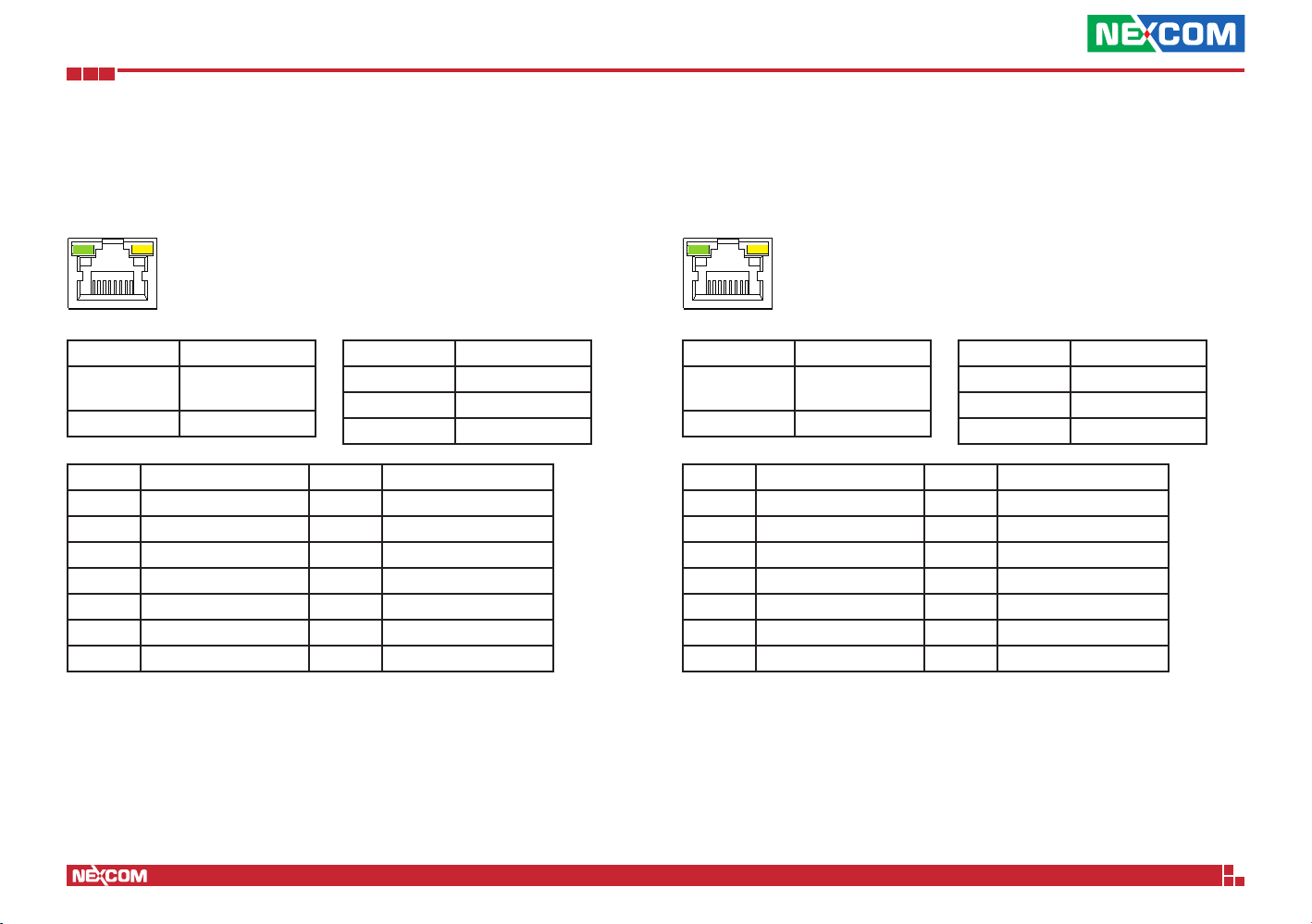

LAN1 Port

Connector type: RJ45 port with LEDs Connector location: CON1A

Act

Link

Act Status

Green Blinking

Off No Acitivity

Pin Definition Pin Definition

A1 LAN1_TXP0_CON A2 LAN1_TXN0_CON

A3 LAN1_TXP1_CON A4 LAN1_TXP2_CON

A5 LAN1_TXN2_CON A6 LAN1_TXN1_CON

A7 LAN1_TXP3_CON A8 LAN1_TXN3_CON

A9 LAN1_LED_LINK100# A10 LAN1_LED_LINK1G#

A11 LAN1_LED_ACT# A12 LAN1_ACTPW

MH1 GND_IO

Data Activity

Link Status

Green 1GB

Yellow 100MB

Off 10MB

LAN2 Port

Connector type: RJ45 port with LEDs Connector location: CON1B

Act

Link

Act Status

Green Blinking

Off No Acitivity

Pin Definition Pin Definition

A1 LAN2_TXP0_CON A2 LAN2_TXN0_CON

A3 LAN2_TXP1_CON A4 LAN2_TXP2_CON

A5 LAN2_TXN2_CON A6 LAN2_TXN1_CON

A7 LAN2_TXP3_CON A8 LAN2_TXN3_CON

A9 LAN2_LED_LINK100# A10 LAN2_LED_LINK1G#

A11 LAN2_LED_ACT# A12 LAN2_ACTPW

MH1 GND_IO

Data Activity

Link Status

Green 1GB

Yellow 100MB

Off 10MB

16

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

LAN3 Port

Connector type: RJ45 port with LEDs Connector location: CON1C

Act

Link

Act Status

Green Blinking

Off No Acitivity

Pin Definition Pin Definition

A1 LAN3_TXP0_CON A2 LAN3_TXN0_CON

A3 LAN3_TXP1_CON A4 LAN3_TXP2_CON

A5 LAN3_TXN2_CON A6 LAN3_TXN1_CON

A7 LAN3_TXP3_CON A8 LAN3_TXN3_CON

A9 LAN3_LED_LINK100# A10 LAN3_LED_LINK1G#

A11 LAN3_LED_ACT# A12 LAN3_ACTPW

MH1 GND_IO

Data Activity

Link Status

Green 1GB

Yellow 100MB

Off 10MB

LAN4 Port

Connector type: RJ45 port with LEDs Connector location: CON1D

Act

Link

Act Status

Green Blinking

Off No Acitivity

Pin Definition Pin Definition

A1 LAN4_TXP0_CON A2 LAN4_TXN0_CON

A3 LAN4_TXP1_CON A4 LAN4_TXP2_CON

A5 LAN4_TXN2_CON A6 LAN4_TXN1_CON

A7 LAN4_TXP3_CON A8 LAN4_TXN3_CON

A9 LAN4_LED_LINK100# A10 LAN4_LED_LINK1G#

A11 LAN4_LED_ACT# A12 LAN4_ACTPW

MH1 GND_IO

Data Activity

Link Status

Green 1GB

Yellow 100MB

Off 10MB

17

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

LAN5 Port

Connector type: RJ45 port with LEDs Connector location: CON2A

Act

Link

Act Status

Green Blinking

Off No Acitivity

Pin Definition Pin Definition

A1 LAN5_TXP0_CON A2 LAN5_TXN0_CON

A3 LAN5_TXP1_CON A4 LAN5_TXP2_CON

A5 LAN5_TXN2_CON A6 LAN5_TXN1_CON

A7 LAN5_TXP3_CON A8 LAN5_TXN3_CON

A9 LAN5_LED_LINK100# A10 LAN5_LED_LINK1G#

A11 LAN5_LED_ACT# A12 LAN5_ACTPW

MH1 GND_IO

Data Activity

Link Status

Green 1GB

Yellow 100MB

Off 10MB

LAN6 Port

Connector type: RJ45 port with LEDs Connector location: CON2B

Act

Link

Act Status

Green Blinking

Off No Acitivity

Pin Definition Pin Definition

A1 LAN6_TXP0_CON A2 LAN6_TXN0_CON

A3 LAN6_TXP1_CON A4 LAN6_TXP2_CON

A5 LAN6_TXN2_CON A6 LAN6_TXN1_CON

A7 LAN6_TXP3_CON A8 LAN6_TXN3_CON

A9 LAN6_LED_LINK100# A10 LAN6_LED_LINK1G#

A11 LAN6_LED_ACT# A12 LAN6_ACTPW

MH1 GND_IO

Data Activity

Link Status

Green 1GB

Yellow 100MB

Off 10MB

18

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

LAN7 Port

Connector type: RJ45 port with LEDs Connector location: CON2C

Act

Link

Act Status

Green Blinking

Off No Acitivity

Pin Definition Pin Definition

A1 LAN7_TXP0_CON A2 LAN7_TXN0_CON

A3 LAN7_TXP1_CON A4 LAN7_TXP2_CON

A5 LAN7_TXN2_CON A6 LAN7_TXN1_CON

A7 LAN7_TXP3_CON A8 LAN7_TXN3_CON

A9 LAN7_LED_LINK100# A10 LAN7_LED_LINK1G#

A11 LAN7_LED_ACT# A12 LAN1_ACTPW

MH1 GND_IO

Data Activity

LAN8 Port

Connector type: RJ45 port with LEDs Connector location: CON2D

Act

Link

Act Status

Green Blinking

Off No Acitivity

Pin Definition Pin Definition

A1 LAN8_TXP0_CON A2 LAN8_TXN0_CON

A3 LAN8_TXP1_CON A4 LAN8_TXP2_CON

A5 LAN8_TXN2_CON A6 LAN8_TXN1_CON

A7 LAN8_TXP3_CON A8 LAN8_TXN3_CON

A9 LAN8_LED_LINK100# A10 LAN8_LED_LINK1G#

A11 LAN8_LED_ACT# A12 LAN8_ACTPW

MH1 GND_IO

Data Activity

19

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

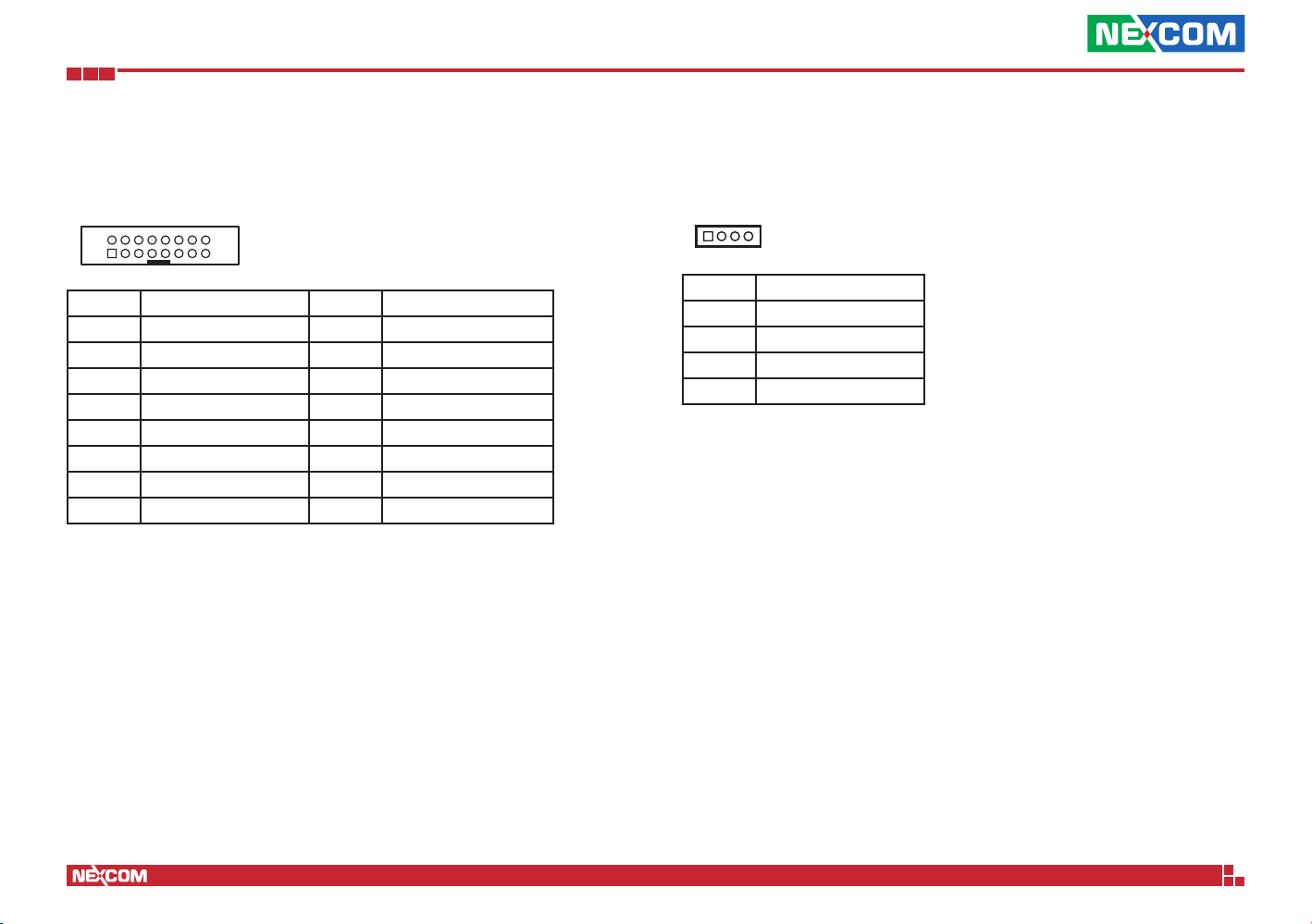

VGA Connector

Connector type: 2x8 16-pin box header, 2.0 mm pitch Connector location: CN5

15

2

1

Pin Definition Pin Definition

1 VGA_R_CON 9 VGA_VCC

2 VGA_G_CON 10 GND

3 VGA_B_CON 11 NC

4 NC 12 VGA_I2CDAT_CON

5 GND 13 VGA_HSYNC_CON

6 GND 14 VGA_VSYNC_CON

7 GND 15 VGA_I2CCLK_CON

8 GND 16 NC

16 15

1115

20

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

SATA2 Port

Connector type: Standard Serial ATAII, 1.27mm Connector location: J12

1

7

Pin Definition

1 GND

2 SATA_TX2P

3 SATA_TX2N

4 GND

5 SATA_RX2N

6 SATA_RX2P

7 GND

SATA3 Port

Connector type: Standard Serial ATAII, 1.27mm Connector location: J11

1

7

Pin Definition

1 GND

2 SATA_TX1P

3 SATA_TX1N

4 GND

5 SATA_RX1N

6 SATA_RX1P

7 GND

21

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

SATA4 Port

Connector type: Standard Serial ATAII, 1.27mm Connector location: J14

1

7

Pin Definition

1 GND

2 SATA_TX0P

3 SATA_TX0N

4 GND

5 SATA_RX0N

6 SATA_RX0P

7 GND

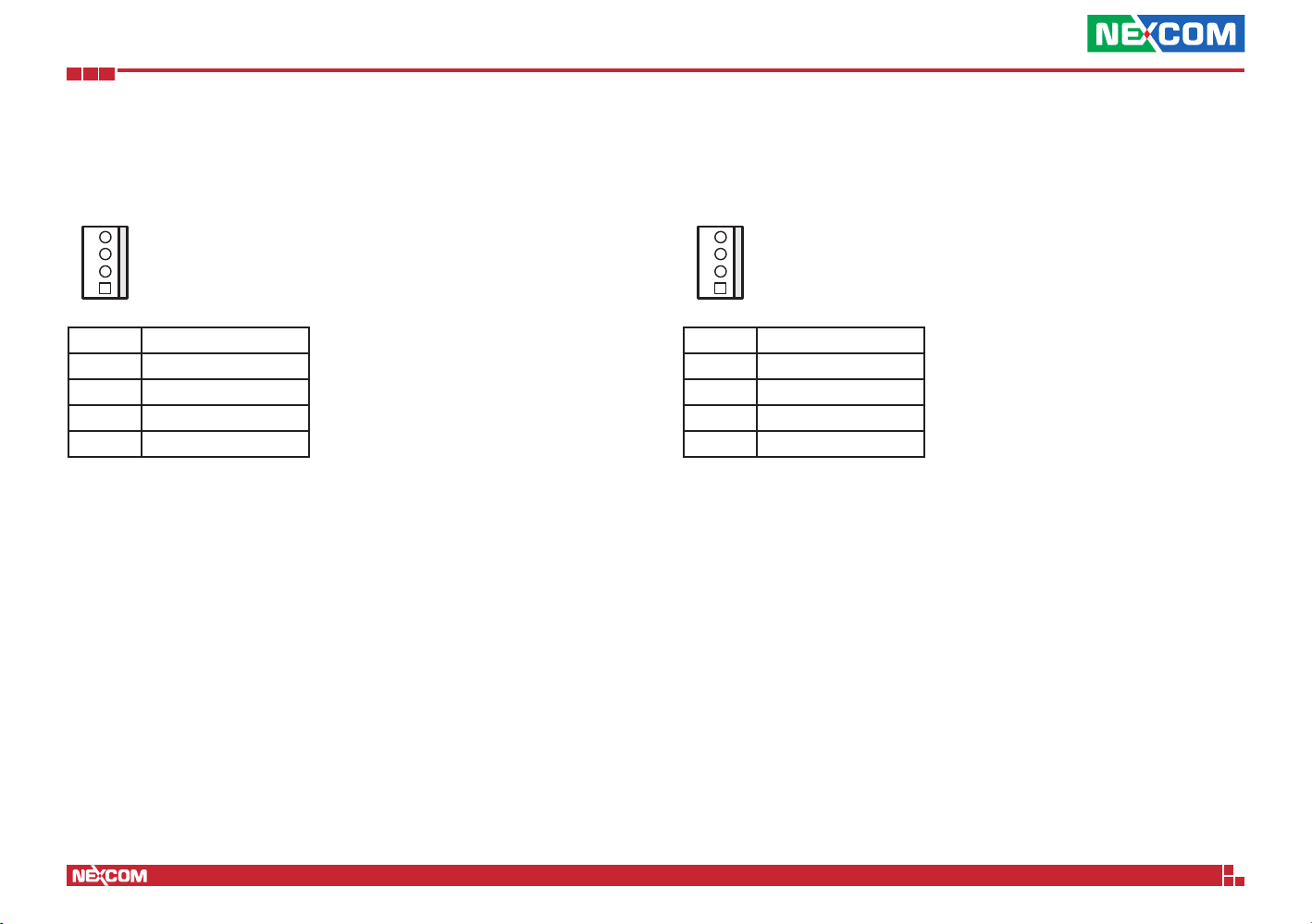

SATA Power Connector

Connector type: 1x4 4-pin header Connector location: J17

4

Pin Definition

1 VCC12

2 GND

3 GND

4 VCC5

1

22

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

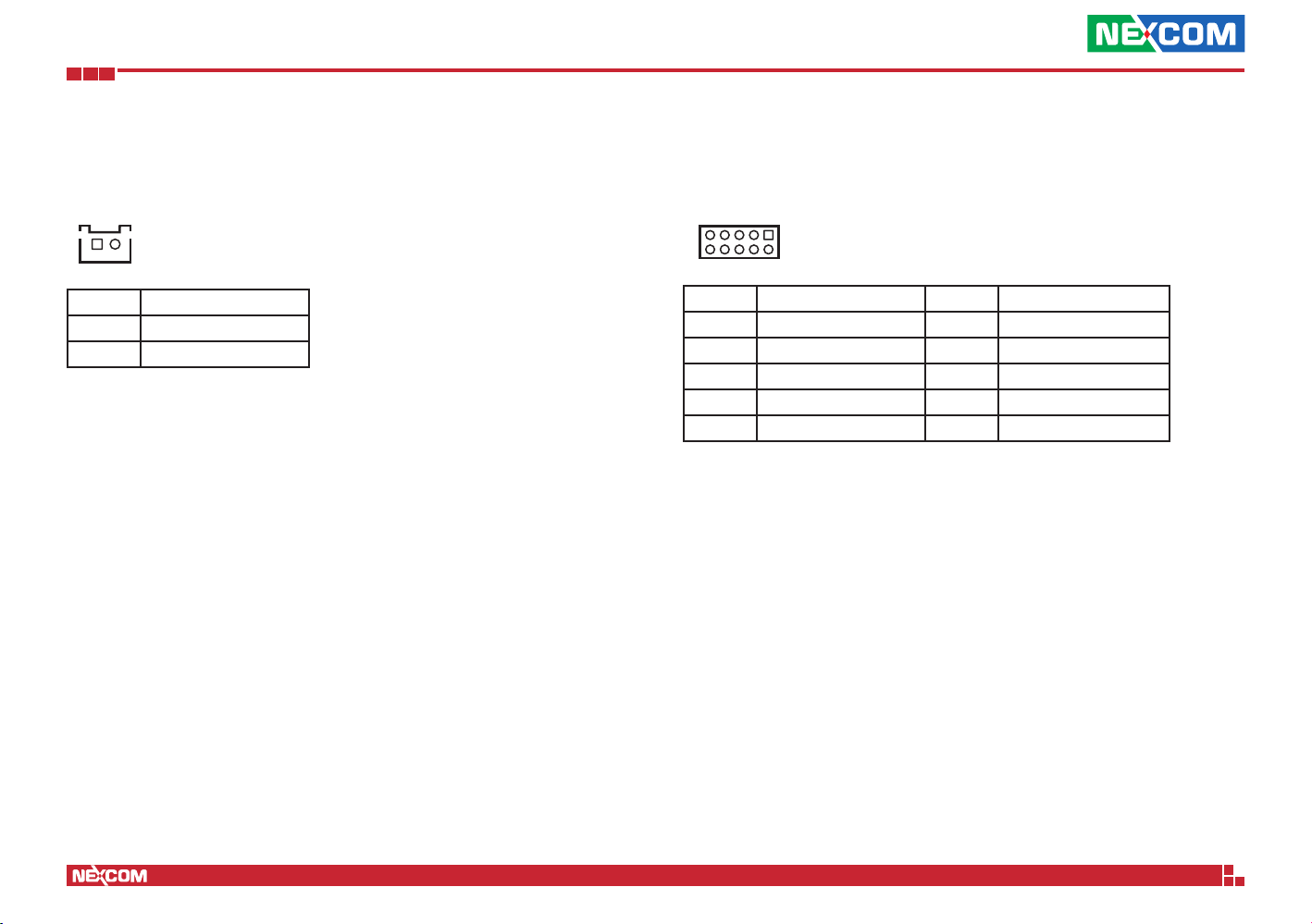

SATA DOM Power Connector

Connector type: 1x2 2-pin boxed header, 2.5 mm JST Connector location: J13

1 2

Pin Definition

1 VCC5

2 GND

Digital I/O Connector (4 Input, 4 Output)

Connector type: 2x5 10-pin header, 2.0 mm Connector location: J9

9

10

Pin Definition Pin Definition

1 VCC5 2 GND

3 SIO_GP32 4 SIO_GP06

5 SIO_GP03 6 SIO_GP07

7 SIO_GP04 8 SIO_GP76

9 SIO_GP05 10 SIO_GP77

1

2

23

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

COM2 Connector

Connector type: 2x5 10-pin boxed header, 2.0 mm Connector location: CN3

2 1

Pin Definition Pin Definition

1 SP_DCD2 2 SP_RXD2

3 SP_TXD2 4 SP_DTR2

5 COM2_GND 6 SP_DSR2

7 SP_RTS2 8 SP_CTS2

9 SP_RI2 10 COM2_GND

10

9

USB Connector

Connector type: 1x6 6-pin, 2.0 mm JST Connector location: J16

1

Pin Definition

1 VCC

2 USB2-

3 USB2+

4 USB3-

5 USB3+

6 GND

6

24

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

Parallel Interface for LCM Module

Connector type: 2x8 16-pin boxed header, 2.54 mm pitch Connector location: CN2

2 1

Pin Definition Pin Definition

1 P5V 2 GND

3 LPT_SLIN#R 4 LPT_RES

5 LPT_AFD#R 6 LPT_INIT#R

7 LPT_PDR1 8 LPT_PDR0

9 LPT_PDR3 10 LPT_PDR2

11 LPT_PDR5 12 LPT_PDR4

13 LPT_PDR7 14 LPT_PDR6

15 LPT_PW 16 VCC5

16 15

LCM Keypad Connector

Connector type: 1x4 4-pin header, 2.54 mm Connector location: JP2

1 4

Pin Definition

1 KEY_PIN1

2 KEY_PIN2

3 KEY_PIN3

4 KEY_PIN4

25

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

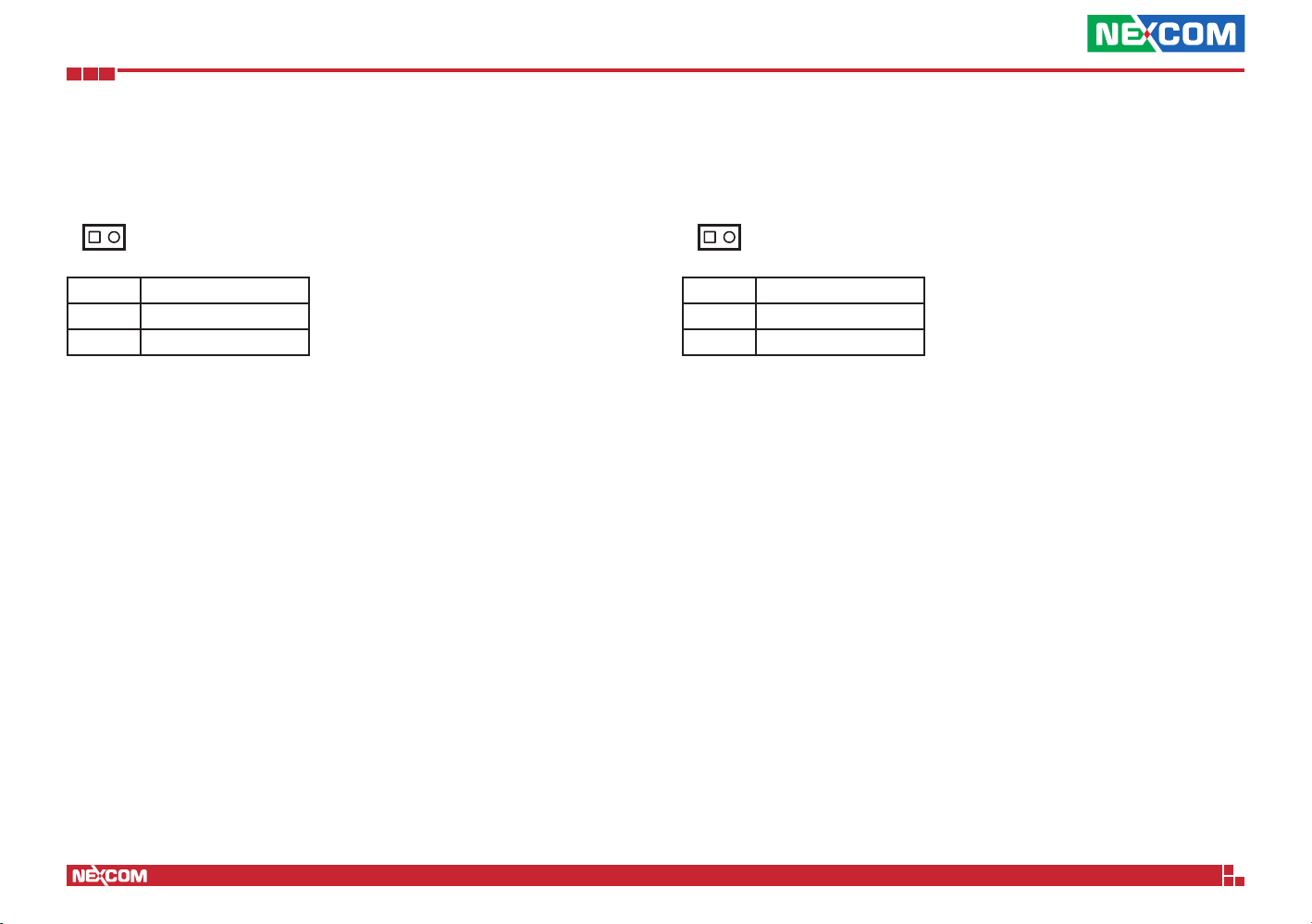

HW Reset Button

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: JP6

1

2

Pin Definition

1 PCH_SYS_RESET_N_R

2 GND

Power Button

Connector type: 1x2 2-pin header, 2.54 mm pitch Connector location: J18

1

2

Pin Definition

1 GND

2 PCH_PWRBTN_N

26

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

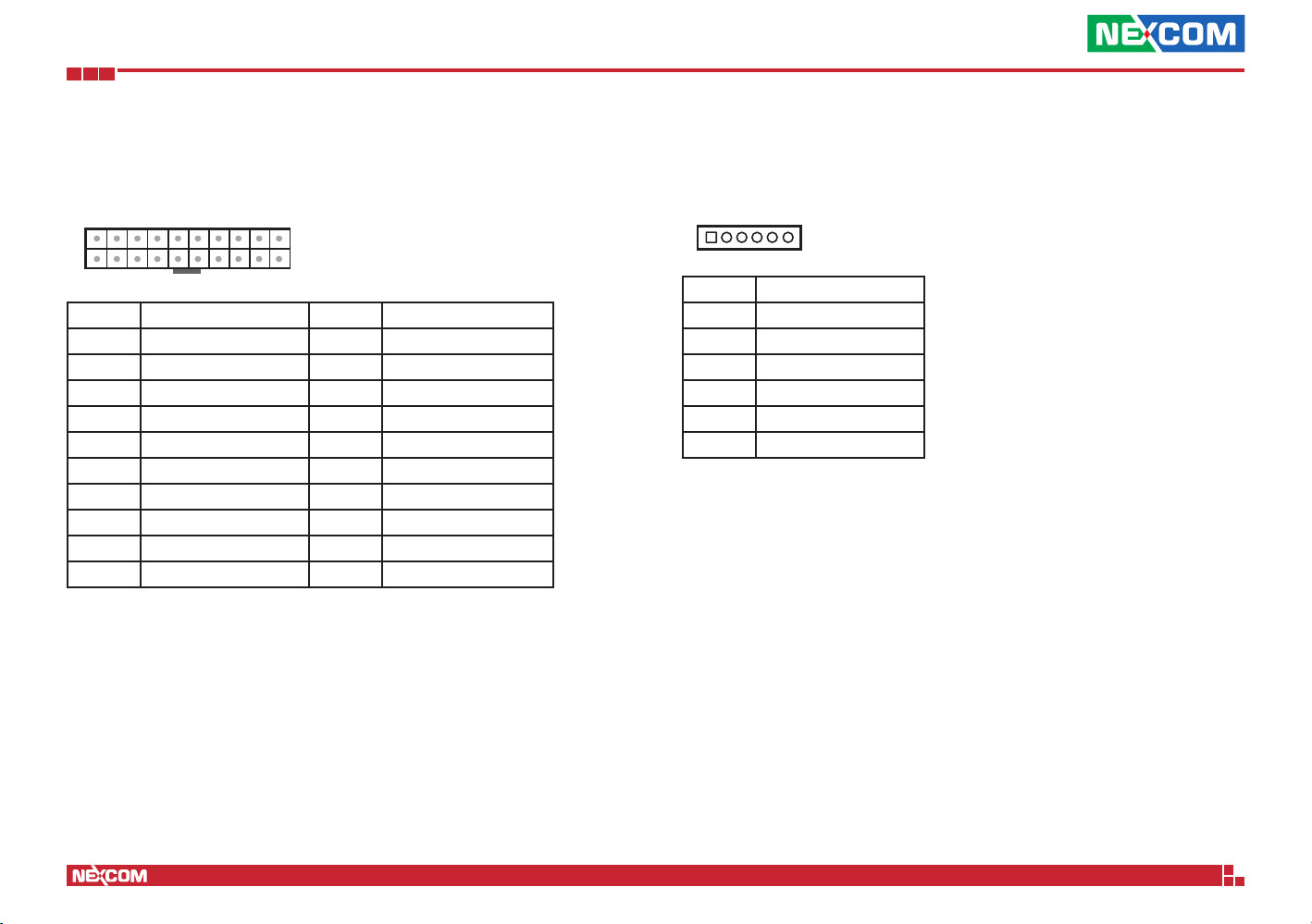

Power Connector

Connector type: 2x10 20-pin header Connector location: CN6

1

11

Pin Definition Pin Definition

1 VCC3_3 2 VCC3_3

3 GND 4 VCC5

5 GND 6 VCC5

7 GND 8 ATXPWROK

9 5VSB 10 VCC12

11 VCC3_3 12 NC

13 GND 14 SIO_PSON_N

15 GND 16 GND

17 GND 18 NC

19 VCC5 20 VCC5

10 20

GAL Programming Connector

Connector type: 1x6 6-pin header, 2.54 mm Connector location: J10

1

Pin Definition

1 3VSB

2 GND

3 GAL_TCK

4 GAL_TDO

5 GAL_TDI

6 GAL_TMS

6

27

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

System Fan

Connector type: 1x3 3-pin Wafer, 2.54 mm pitch Connector location: FAN1

1

3

Pin Definition

1 GND

2 VCC12

3 FAN2

System Fan

Connector type: 1x3 3-pin Wafer, 2.54 mm pitch Connector location: FAN2

1

3

Pin Definition

1 GND

2 VCC12

3 FAN3

28

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

CPU Fan Connector

Connector type: 1x4 4-pin Wafer, 2.54 mm pitch Connector location: FAN3

4

1

Pin Definition

1 GND

2 VCC12

3 CPU_FAN

4 CPU_FANPWM

System Fan Connector

Connector type: 1x4 4-pin Wafer, 2.54 mm pitch Connector location: FAN4

4

1

Pin Definition

1 GND

2 VCC12

3 FAN1

4 AUX_FANPWM

29

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

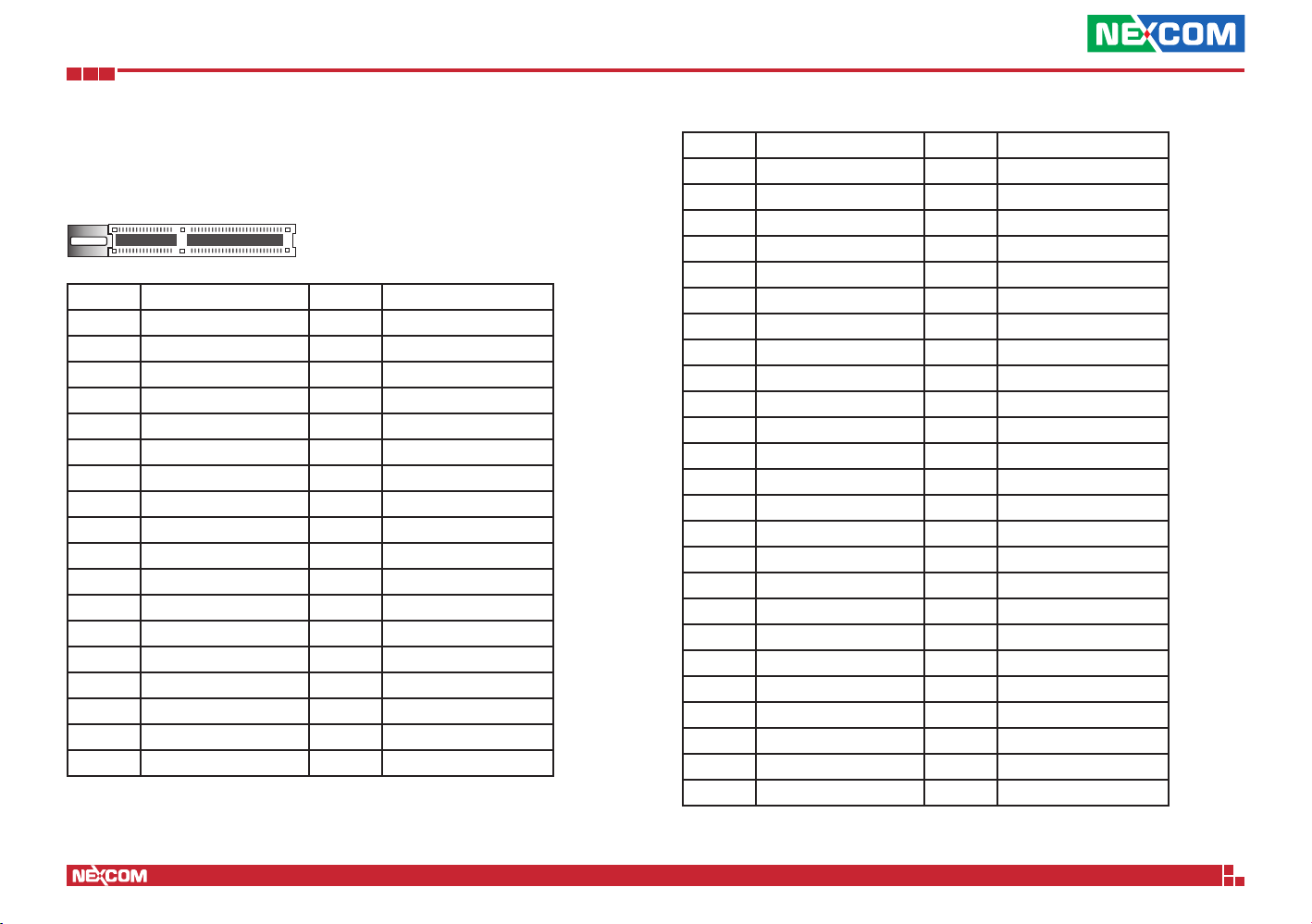

PCIe Slot

Connector type: 2x82-pin PCIe x8 slot Connector location: PCIE1

Pin Definition Pin Definition

A1 PCIE16_PRSNT1 B1 VCC12

A2 VCC12 B2 VCC12

A3 VCC12 B3 VCC12

A4 GND B4 GND

A5 VCC3_3 B5 PCIE16_SMC

A6 VCC3_3 B6 PCIE16_SMD

A7 VCC3_3 B7 GND

A8 VCC3_3 B8 VCC3_3

A9 VCC3_3 B9 VCC12

A10 VCC3_3 B10 3VSB

A11 PLT_RST_BUF3_N B11 PCIE_WAKE_L

A12 GND B12 VCC12

A13 PCIE_X16_CLK_1P B13 GND

A14 PCIE_X16_CLK_1N B14 PEG_SLOT_TX15P

A15 GND B15 PEG_SLOT_TX15N

A16 PEG_SLOT_RX15P B16 GND

A17 PEG_SLOT_RX15N B17 PCIE16_PRSNT2_1

A18 GND B18 GND

Pin Definition Pin Definition

A19 VCC12 B19 PEG_SLOT_TX14P

A20 GND B20 PEG_SLOT_TX14N

A21 PEG_SLOT_RX14P B21 GND

A22 PEG_SLOT_RX14N B22 GND

A23 GND B23 PEG_SLOT_TX13P

A24 GND B24 PEG_SLOT_TX13N

A25 PEG_SLOT_RX13P B25 GND

A26 PEG_SLOT_RX13N B26 GND

A27 GND B27 PEG_SLOT_TX12P

A28 GND B28 PEG_SLOT_TX12N

A29 PEG_SLOT_RX12P B29 GND

A30 PEG_SLOT_RX12N B30 VCC12

A31 GND B31 PCIE16_PRSNT2_2

A32 VCC12 B32 GND

A33 VCC12 B33 PEG_SLOT_TX11P

A34 GND B34 PEG_SLOT_TX11N

A35 PEG_SLOT_RX11P B35 GND

A36 PEG_SLOT_RX11N B36 GND

A37 GND B37 PEG_SLOT_TX10P

A38 GND B38 PEG_SLOT_TX10N

A39 PEG_SLOT_RX10P B39 GND

A40 PEG_SLOT_RX10N B40 GND

A41 GND B41 PEG_SLOT_TX9P

A42 GND B42 PEG_SLOT_TX9N

A43 PEG_SLOT_RX9P B43 GND

30

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

A44 PEG_SLOT_RX9N B44 GND

A45 GND B45 PEG_SLOT_TX8P

A46 GND B46 PEG_SLOT_TX8N

A47 PEG_SLOT_RX8P B47 GND

A48 PEG_SLOT_RX8N B48 PCIE16_PRSNT2_3

A49 GND B49 GND

A50 B50 PEG_SLOT_TX7P

A51 GND B51 PEG_SLOT_TX7N

A52 PEG_SLOT_RX7P B52 GND

A53 PEG_SLOT_RX7N B53 GND

A54 GND B54 PEG_SLOT_TX6P

A55 GND B55 PEG_SLOT_TX6N

A56 PEG_SLOT_RX6P B56 GND

A57 PEG_SLOT_RX6N B57 GND

A58 GND B58 PEG_SLOT_TX5P

A59 GND B59 PEG_SLOT_TX5N

A60 PEG_SLOT_RX5P B60 GND

A61 PEG_SLOT_RX5N B61 GND

A62 GND B62 PEG_SLOT_TX4P

A63 GND B63 PEG_SLOT_TX4N

A64 PEG_SLOT_RX4P B64 GND

A65 PEG_SLOT_RX4N B65 GND

A66 GND B66 PEG_SLOT_TX3P

A67 GND B67 PEG_SLOT_TX3N

A68 PEG_SLOT_RX3P B68 GND

Pin Definition Pin Definition

A69 PEG_SLOT_RX3N B69 GND

A70 GND B70 PEG_SLOT_TX2P

A71 GND B71 PEG_SLOT_TX2N

A72 PEG_SLOT_RX2P B72 GND

A73 PEG_SLOT_RX2N B73 GND

A74 GND B74 PEG_SLOT_TX1P

A75 GND B75 PEG_SLOT_TX1N

A76 PEG_SLOT_RX1P B76 GND

A77 PEG_SLOT_RX1N B77 GND

A78 GND B78 PEG_SLOT_TX0P

A79 GND B79 PEG_SLOT_TX0N

A80 PEG_SLOT_RX0P B80 GND

A81 PEG_SLOT_RX0N B81 PCIE_X16_CLK_2P

A82 GND B82 PCIE_X16_CLK_2N

31

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

PCIe Gold Finger (for LAN Module)

Connector type: 2x49-pin Connector location: GFM1

Pin Definition Pin Definition

A1 PLT_RST_BUF3_N B1 PCIE3_SEL1

A2 LPC_AD0 B2 PCIE3_SEL2

A3 LPC_AD1 B3 PCIE3_SEL3

A4 LPC_AD2 B4 VCC3_3

A5 LPC_AD3 B5 SMB_CLK_MAIN

A6 LPC_FRAME_N B6 SMB_DATA_MAIN

A7 VCC3_3 B7 VCC3_3

A8 PLT_RST_BUF3_N B8 VCC3_3

A9 VCC3_3 B9 GF_SUSCLK

A10 VCC3_3 B10 VCC3_3

A11 PCH_PWROK B11 SMB_ALERT_N

A12 SYS_FAN B12 USB_OC2_N

A13 VCC3_3 B13 WAKE_N

A14 VCC3_3 B14 3VSB

A15 PCIE_X8_GF_CLK_P B15 3VSB

A16 PCIE_X8_GF_CLK_N B16 3VSB

A17 VCC3_3 B17 USB_4P

A18 CLK_GF_33M B18 USB_4N

A19 VCC3_3 B19 VCC3_3

A20 AUX_TEMP B20 VCC3_3

Pin Definition Pin Definition

A21 CPU- B21 VCC3_3

A22 ATX_PWROK4 B22 ATX_PWROK5

A23 ATX_PWROK4 B23 ATX_PWROK5

A24 GND B24 GND

A25 PCIEX8_TX0P B25 PCIEX8_RX0P

A26 PCIEX8_TX0N B26 PCIEX8_RX0N

A27 GND B27 GND

A28 PCIEX8_TX1P B28 PCIEX8_RX1P

A29 PCIEX8_TX1N B29 PCIEX8_RX1N

A30 GND B30 GND

A31 PCIEX8_TX2P B31 PCIEX8_RX2P

A32 PCIEX8_TX2N B32 PCIEX8_RX2N

A33 GND B33 GND

A34 PCIEX8_TX3P B34 PCIEX8_RX3P

A35 PCIEX8_TX3N B35 PCIEX8_RX3N

A36 GND B36 GND

A37 PCIEX8_TX4P B37 PCIEX8_RX4P

A38 PCIEX8_TX4N B38 PCIEX8_RX4N

A39 GND B39 GND

A40 PCIEX8_TX5P B40 PCIEX8_RX5P

A41 PCIEX8_TX5N B41 PCIEX8_RX5N

A42 GND B42 GND

A43 PCIEX8_TX6P B43 PCIEX8_RX6P

32

NSA 5130 User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

A44 PCIEX8_TX6N B44 PCIEX8_RX6N

A45 GND B45 GND

A46 PCIEX8_TX7P B46 PCIEX8_RX7P

A47 PCIEX8_TX7N B47 PCIEX8_RX7N

A48 GND B48 GND

A49 GND B49 GND

33

NSA 5130 User Manual

PCI -E x16

P64

PCI -E x16 Connector

PCI -E x8 Golden Finger

P65

PCI -E x8

P28

SATA DOM

PCI to PCI-E PEX8112

P55

PCI

P56 ~ P61

VGA Chi p Z11

6Gb/s

SATA III connector Po rts x 2

VGA

BYPASSBYPASSBYPASS

GPIO

DMI FDI

CF car d

P63

PCI-E

P45

CRT

P31

P63

P39

PCI-E(Gen2) x16

PCI -E x1

LAN 7 82583

P45

P51

PCI -E x1

P49

LAN 8 82583

LAN 6 82583

PCI -E x1

P37

PCI -E x1 L AN 5

82583

P43

DDR3 Chan nel B

Display

USB 2.0

FDI

PCI-E x 8

LGA1155 Processor Sandy Bridge E3-1275 E3-1225 i3-2120

SATA

5GB/s

PCI

LPC

P16

DDR3 Chan nel A

DMI

DDR3 Ch B

DMI

DDR3 Ch A

CPLD LC4256V

SPI

Internal Conn.

P23 P24

COM 2 portsSUPER I/ O

NCT6776F

INTEL PCH C206

PS/ 2 KB/MS

USB 2.0

Front Panel

SATA

P28

DDR3 1066 / 1333 MHz

LPC Bus

P10

2 / 3

0 / 1

BIOS

P28

P14 ~ P22

P5 ~ P9

Block Diagram

P26

P33

DIMM 0 DI MM 0

DIMM 1DIMM 1

P12

P11

P13

LAN 3 82583

LAN2 82583

LAN 1 82583

PCI -E x1

PCI -E x1 L AN 4

82583

PCI -E x1

SATA to I DE JMD330

BYPASS

SPI

FDI

2.7 GT/s

Chapter 2: Jumpers and Connectors

Block Diagram of the Main Board

34

NSA 5130 User Manual

Chapter 3: System Setup

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.

1. The 6 screws around the cover are used to secure the cover to the

chassis. Remove these screws and put them in a safe place for later use.

2. Slide the cover backward and then remove it from the chassis.

35

NSA 5130 User Manual

Chapter 3: System Setup

Installing a DIMM

1. The 4 DDR3 sockets are divided into 2 channels.

DIMM4

DIMM3

DIMM2

DIMM1

• DIMM 1 and DIMM 2 = Channel B DIMM 3 and DIMM 4 = Channel A

• Always populate DIMM1 first. The system will not boot when the first module is installed in DIMM2, DIMM3 or DIMM4.

• When installing 2 modules for single channel configuration, populate DIMM1 and DIMM2 first.

• When installing 2 modules for dual channel configuration, populate DIMM1 and DIMM3 first.

2. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.

Ejector tab

36

NSA 5130 User Manual

Chapter 3: System Setup

3. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

4. Seat the module vertically, pressing it down firmly until it is completely seated in the socket. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

37

NSA 5130 User Manual

Chapter 3: System Setup

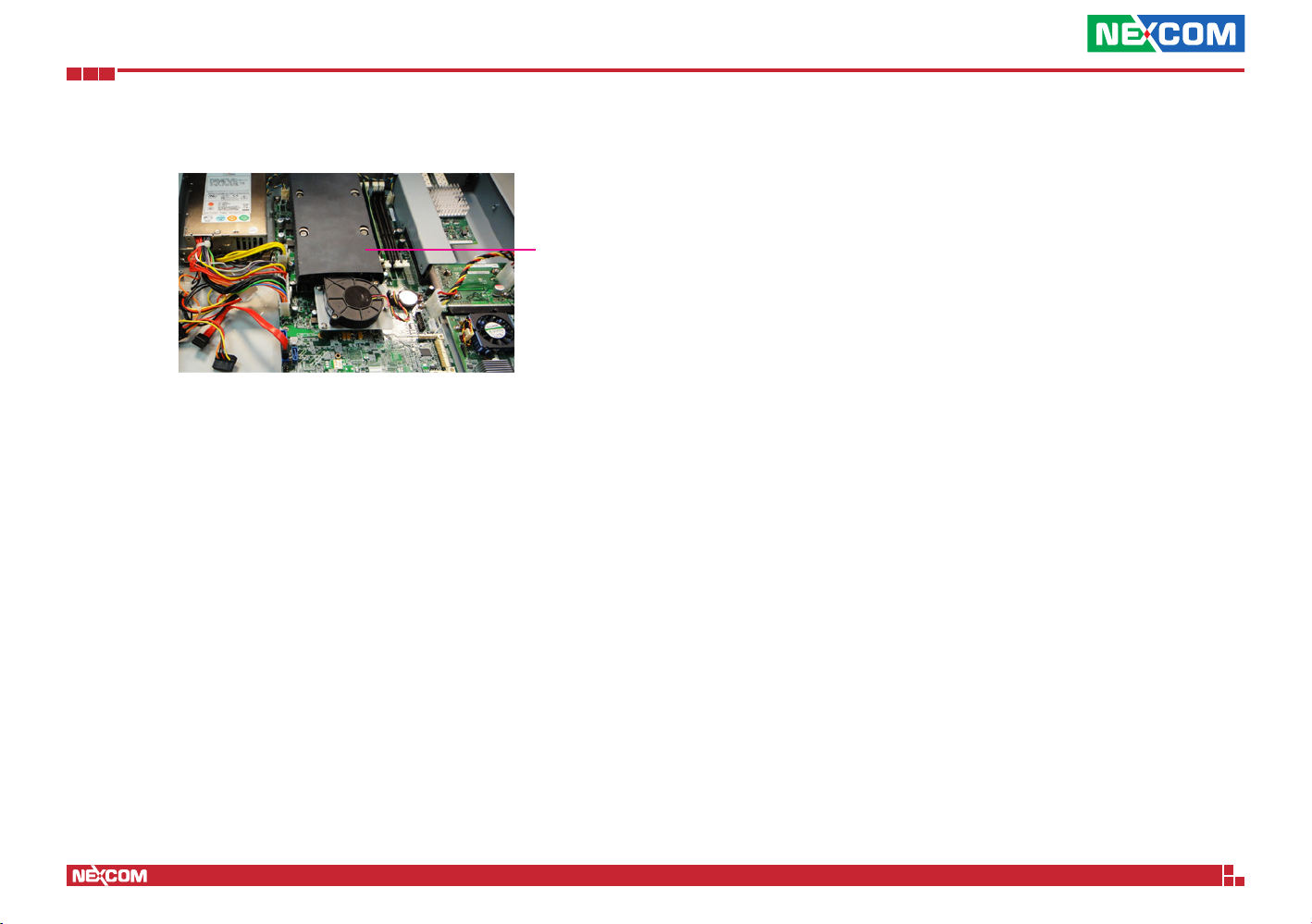

Installing the CPU

1. If the system came with the heat sink already installed, loosen the mounting screws that secure the heat sink to the board.

Mounting

screw

Mounting

screw

Mounting screw

Heat sink

• Before you proceed, make sure (1) the CPU socket comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent.

• Make sure all power cables are unplugged before you install the CPU.

• The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.

2. Remove the heat sink to access the CPU socket.

CPU socket

38

NSA 5130 User Manual

Chapter 3: System Setup

3. Unlock the socket by pushing the load lever down (1), moving it sideways (2) until it is released from the retention tab; then lift the load lever up.

Load lever

1

2

Retention tab

4. Lifting the load lever will at the same time lift the load plate.

Lift the load lever up to the angle shown on the photo.

Load lever

Load plate

39

NSA 5130 User Manual

Chapter 3: System Setup

5. Remove the protective cap from the CPU socket. The cap is used to protect the CPU socket against dust and harmful particles. Remove the protective cap only when you are about to install the CPU.

Protective cap

6. Insert the CPU into the socket. The gold triangular mark on the CPU must align with the corner of the CPU socket shown on the photo.

Gold triangular mark

Alignment key

The CPU’s notch will at

the same time fit into the socket’s alignment key.

40

Alignment key

• Handle the CPU by its edges and avoid touching the pins.

• The CPU will fit in only one orientation and can easily be in-

serted without exerting any force.

NSA 5130 User Manual

Chapter 3: System Setup

7. Close the load plate and then push the load lever down.

While closing the load plate, make sure the front edge of the load

plate slides under the retention knob.

Retention knob

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

8. Hook the load lever under the retention tab.

Load lever

Retention tab

41

NSA 5130 User Manual

Chapter 3: System Setup

9. Apply thermal compound on top of the CPU. Do not spread the compound all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.

Thermal compound on the CPU

10. Align the mounting screws of the heat sink with the mounting holes on the board.

Mounting hole

42

NSA 5130 User Manual

Chapter 3: System Setup

11. Tighten the screws to secure the heat sink in place.

Heat sink

43

NSA 5130 User Manual

Chapter 3: System Setup

Installing a CompactFlash Card

1. Locate for the CompactFlash socket on the board.

CompactFlash socket

2. With the CompactFlash card’s label facing up, position the card to the

socket.

CompactFlash card

44

NSA 5130 User Manual

Chapter 3: System Setup

3. Insert the card until it is completely seated in the socket.

45

NSA 5130 User Manual

Chapter 3: System Setup

Installing a 3.5” SATA Hard Drive

1. Remove the mounting screws that secure the drive bay to the chassis. Remove the drive bay. The drive bay is used to hold a 3.5” SATA hard drive.

Drive bay

Mounting screw

2. Place the SATA hard drive onto the drive bay. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay. Use the provided mounting screws to secure the SATA drive in place.

SATA drive

Drive bay

Mounting screw

46

NSA 5130 User Manual

Chapter 3: System Setup

3. Locate for the SATA connector and the SATA power connector on the SATA drive.

SATA power

connector

SATA connector

4. Locate for the SATA cable and the SATA power cable.

SATA data

cable

SATA power cable

47

NSA 5130 User Manual

Chapter 3: System Setup

5. Connect the SATA power cable and SATA data cable to the SATA drive. 6. Place the drive into the chassis and then use the provided mounting

screws to secure the drive bay in place.

SATA data

cable

SATA power cable

Mounting screw

48

NSA 5130 User Manual

Chapter 3: System Setup

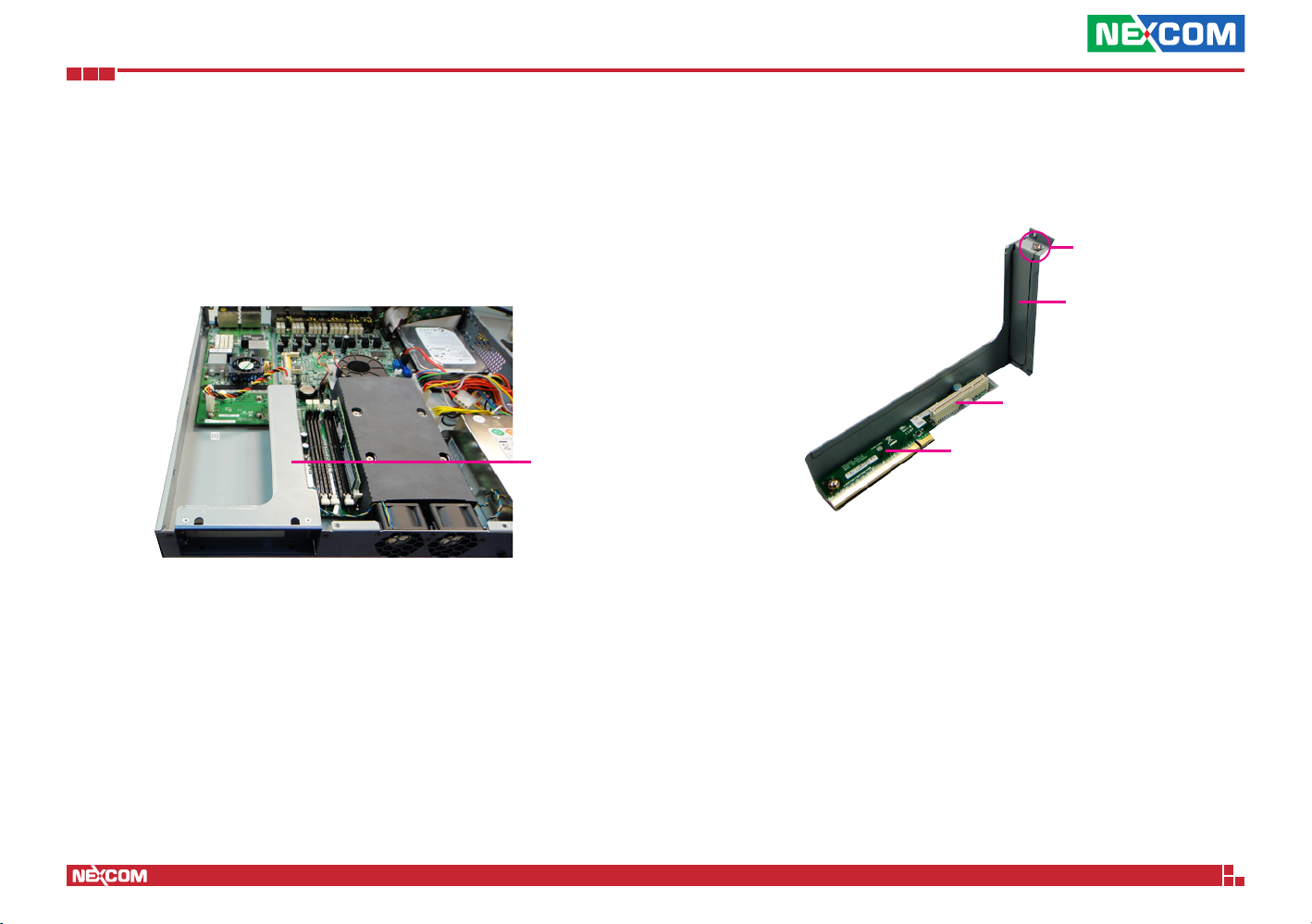

Installing a PCI Express x8 Card

1. By default, the system comes equipped with a PCI Express x8 slot. The slot is on a riser card that is attached on an L-shaped bracket.

Remove the mounting screws that secure the L-shaped bracket to the

chassis and then remove the bracket.

L-shaped bracket

2. Remove the slot cover’s mounting screw.

Mounting screw

Slot cover

PCI Express x8 slot

Riser card

49

NSA 5130 User Manual

Chapter 3: System Setup

3. Align the PCI Express card with the PCI Express x8 slot and then push it down firmly until it is completely seated in the slot.

Secure the card with the mounting screw you removed in step 2.

Mounting screw

PCI Express card

PCI Express x8 slot

50

NSA 5130 User Manual

Chapter 3: System Setup

Replacing the LAN Module

The system is equipped with 1 LAN module bay. To remove and replace the LAN module, please follow the instructions below.

Please correctly follow the below instructions and noted items to avoid making unnecessary damages. Make sure the power supply is switched off and disconnected from the power sources before replacing or adding LAN modules to prevent electric shock or system damage.

1. Remove the mounting screws on the cover plate of the LAN module.

LAN module bay

2. On each side of the chassis, remove the mounting screws securing the front panel.

Mounting screw

Cover plate

Mounting screw

Only plug approved mini-GBIC module into the slot.

51

Mounting screw

NSA 5130 User Manual

Chapter 3: System Setup

3. Turn to the bottom of the chassis and lay it against a stable surface. Remove the mounting screws on the bottom of the front panel.

Mounting screw

4. Once all the mounting screws are removed, lay the chassis back down and unplug all the LED connectors behind the front panel.

5. Grab both ends of the front panel, and gently pull it outwards from the chassis.

LED connector

52

NSA 5130 User Manual

Chapter 3: System Setup

6. Remove the mounting screws on the LAN module. 7. Grab onto the shielded modular PCB jack, and gently pull the LAN module outwards.

Mounting screw

The components on the bottom of the LAN module is mounted very close to the base plate of the chassis, you may damage the components if excessive force is used. When removing, please handle the LAN module carefully by pulling it gently.

Base plate Components on bottom

53

NSA 5130 User Manual

Chapter 3: System Setup

Grab here

8. Once the module is removed, insert the new LAN module into the tray making sure the connector side of the module is at the rear side of the tray. Tighten screws in the mounting holes to secure the new module, then replace the front panel and replug the LED connectors, and replace the cover plate and the chassis cover to finish.

LAN module

Pull gently

54

Top view

NSA 5130 User Manual

Chapter 3: System Setup

Rackmount Bracket Kit (optional)

The rackmount bracket kit provides a convenient and economical way of installing the server into a rack cabinet.

Attaching the Long Rack Ears

The long rack ears are used to support the server in a rack cabinet.

1. The rackmount bracket kit comes with a pair of long rack ears and 16 screws.

2. There are 8 mounting holes on each side of the front panel.

Mounting

holes

3. Align the mounting holes on the rack ear with the mounting holes on the front panel. Give special attention to the orientation of the rack ear. Secure the rack ear with mounting screws.

Rack ear

55

NSA 5130 User Manual

Chapter 3: System Setup

4. Repeat step 3 to secure the other rack ear.

Rack ear

56

NSA 5130 User Manual

Chapter 3: System Setup

Installing the Server into a Rack Cabinet 3. Slide the server into the rack cabinet.

1. Select a one unit space (1U) in the rack cabinet where you intend to install the server.

2. On one side of the rack, attach 3 nuts each at the front and back. Repeat this to the other side of the rack.

Nuts

57

NSA 5130 User Manual

Chapter 3: System Setup

4. Use the provided mounting screws to secure the server in the rack cabinet.

58

NSA 5130 User Manual

Chapter 4: BIOS Setup

This chapter describes how to use the BIOS setup program for the NSA

5130. The BIOS screens provided in this chapter are for reference only and

may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are

prompted to make changes to the Setup program

▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts ▪ When making changes to the Power Management configuration ▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

59

NSA 5130 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of

beeps will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:

Legends

Key Function

Right and Left arrows Moves the highlight left or right to select a

menu.

Up and Down arrows Moves the highlight up or down between sub-

menus or fields.

<Esc> Exits to the BIOS Setup Utility.

+ (plus key) Scrolls forward through the values or options of

the highlighted field.

- (minus key) Scrolls backward through the values or options of the highlighted field.

Tab Selects a field.

<F1> Displays General Help.

<F4> Saves and exits the Setup program.

<Enter> Press <Enter> to enter the highlighted sub-

menu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

60

NSA 5130 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Main

Advanced Boot Security

BIOS Information

BIOS Vendor Core Version Compliancy Project Version Build Date and Time

Memory Information

Total Memory

System Language

System Date System Time

Access Level

BIOS SETUP UTILITY

Chipset Event Logs

American Megatrends

4.6.4.0 UEFI 2.0 G513- 0.09 x64 07/01/2011 10:29:10

2048 MB (DDR3 1333)

[English]

[Wed 07/06/2011] [14:06:01]

Administrator

Save & Exit

Choose the system default language

← →: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Memory Information

Displays the detected system memory information.

System Language

Selects the system’s language.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

BIOS Information

Displays the detected BIOS information.

61

NSA 5130 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Main

Legacy OpROM Support

Launch PXE OpROM

Launch Storage OpROM

LAN EEPROM Write Protect

u

PCI Subsystem Settings

u

ACPI Settings

u

WHEA Conguration

u

CPU Conguration

u

Network Conguration

u

SATA Conguration

u

Thermal Conguration

u

Acoustic Management Conguration

u

Intel TXT(LT) Conguration

u

Intel IGD SWSCI OpRegion

u

USB Conguration

u

Super IO Conguration

u

H/W Monitor

u

AMT Conguration

u

Serial Port Console Redirection

BIOS SETUP UTILITY

ChipsetAdvanced

[Disabled]

[Enabled]

Save & ExitBoot Security Event Logs

Enable or Disable Boot Option for Legacy Network Devices.

← →: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Launch PXE OpROM

Enables or disables the boot option for legacy network devices.

Launch Storage OpROM

Enables or disables the boot option for legacy mass storage devices with option ROM.

LAN EEPROM Write Protect

Enables or disables the LAN write protect function.

62

NSA 5130 User Manual

Chapter 4: BIOS Setup

PCI Subsystem Settings

This section is used to configure the PCI.

Advanced

PCI Bus Driver Version

PCI ROM Priority

PCI Common Settings

PCI Latency Timer VGA Palette Snoop PERR# Generation SERR# Generation

PCI Express Device Settings

Relaxed Ordering Extended Tag No Snoop Maximum Read Request

PCI Express Link Settings

ASPM Support

WARNING: Enabling ASPM may cause some

Extended Synch

PCI-E devices to fail

BIOS SETUP UTILITY

V 2.03.00

[EFI Compatible ROM]

[32 PCI Bus Clocks] [Disabled] [Disabled] [Disabled]

[Disabled] [Disabled] [Enabled] [Auto]

[Disabled]

In case of multiple Option ROMs (Legacy and EFI

Compatible), species

what PCI Option ROM to launch.

← →: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

PCI ROM Priority

In case multiple option ROMs (Legacy and EFI Compatible) exist, select the PCI option ROM to launch.

PCI Latency Timer

This feature is used to select the length of time each PCI device will control the bus before another takes over. The larger the value, the longer the PCI device can retain control of the bus. Since each access to the bus comes with an initial delay before any transaction can be made, low values for the PCI Latency Timer will reduce the effectiveness of the PCI bandwidth while higher values will improve it.

VGA Palette Snoop

Enables or disables the VGA palette registers snooping.

PERR# Generation

Enables or disables the PCI device to generate PERR#.

SERR# Generation

Enables or disables the PCI device to generate SERR#.

Relaxed Ordering

Enables or disables the PCI Express device relaxed ordering.

Extended Tag

When this function is enabled, it allows a device to use 8-bit tag field as a request.

No Snoop

Enables or disables the PCI device’s no snoop option.

Maximum Read Request

Selects the maximum read request size of the PCI Express devices.

ASPM Support

Selects the ASPM level. Force L0 Forces all links to L0 state. Auto The BIOS automatically select an ASPM level. Disable Disables ASPM.

Extended Synch

When this function is enabled, it allows generation of extended synchronization patterns.

63

NSA 5130 User Manual

Chapter 4: BIOS Setup

ACPI Settings

This section is used to configure the ACPI.

Advanced

ACPI Settings

Enable ACPI Auto Conguration

Enable Hibernation ACPI Sleep State Lock Legacy Resources

BIOS SETUP UTILITY

[Disabled]

[Enabled] [S3 (Suspend to RAM)] [Disabled]

Enables or Disables BIOS

ACPI Auto Conguration.

← →: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Enable ACPI Auto Configuration

Enables or disables the ACPI auto configuration.

Enable Hibernation

When this function is enabled, the system will enter the hibernate mode (OS/S4 sleep state). This function is not applicable to some OS.

Lock Legacy Resources

Enables or disables the lock of legacy resources.

ACPI Sleep State

Selects the highest ACPI sleep state the system will enter when the Suspend button is pressed.

S1(POS) Enables the Power On Suspend function. S3(STR) Enables the Suspend to RAM function.

64

NSA 5130 User Manual

Chapter 4: BIOS Setup

WHEA Configuration

This section is used to configure the WHEA.

Advanced

WHEA Support

BIOS SETUP UTILITY

[Enabled]

Enables or Disables Windows Hardware Error Architecture.

← →: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

WHEA Support

Enables or disables the Windows hardware error architecture.

65

NSA 5130 User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to configure the CPU. It will also display detected CPU information.

Advanced

CPU Conguration

u

Socket 0 CPU Information

CPU Speed 3100 MHz 64-bit Supported

Active Processor Cores [All] Limit CPUID Maximum [Disabled] Execute Disable Bit [Enabled] Hardware Prefetcher [Enabled] Adjacent Cache Line Prefetch [Enabled] Intel Virtualization Technology [Disabled] Power Technology [Disabled] Local x2APIC [Disabled]

Factory Long Duration Power Limit 95 Watts

Long Duration Power Limit 0

Factory Long Duration Maintained 1000 ms

Long Duration Maintained 0

Recommended Short Duration Power 1.25 * Long Duration

Short Duration Power Limit 0

BIOS SETUP UTILITY

Socket specic CPU

information

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Active Processor Core

This field is used to enter the number of cores to enable in each processor package.

Limit CPUID Maximum

The CPUID instruction of some newer CPUs will return a value greater than

3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or lesser than 3.

Execute Disable Bit

When this field is set to Disabled, it will force the XD feature flag to always return to 0.

Hardware Prefetcher

Turns on or off the mid level cache (L2) streamer prefetcher.

Adjacent Cache Line Prefetch

Turns on or off prefetching of adjacent cache lines.

Intel Virtualization Technology

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Power Technology

Enables or disables the power management features.

Local x2APIC

Enables or disables Local x2APIC.

Long Duration Power Limit

Selects the long duration power limit in Watts.

Long Duration Maintained

Selects the time when the long duration power is maintained.

Short Duration Power Limit

Selects the short duration power limit in Watts.

66

NSA 5130 User Manual

Chapter 4: BIOS Setup

Network Configuration

This section is used to configure the LAN module.

Advanced

Network Conguration

Bypass Mode After Power On

Bypass Mode After Power Off

[All Disabled]

Switch All Bypass mode to Enable/Disable after Power on

→ ←: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Bypass Mode After Power On

Enables or disables the LAN module bypass mode after the system powers on.

Bypass Mode After Power Off

Enables or disables the LAN module bypass mode after the system powers off.

67

NSA 5130 User Manual

Chapter 4: BIOS Setup

SATA Configuration

This section is used to configure SATA.

Advanced

u

SATA Conguration

SATA Mode

Serial-ATA Controller 0 Serial-ATA Controller 1

SATA Port0

SATA Port1

SATA Port2

SATA Port3

SATA Port4

SATA Port5

[IDE Mode]

[Compatible] [Enhanced]

Not Preesent

ST3160813AS

Not Preesent

(1) IDE Mode (2) AHCI Mode (3) RAID Mode

→ ←: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

u

SATA Mode

IDE This option configures the Serial ATA drives in IDE mode. RAID This option enables the RAID function for Serial ATA drives. AHCI This option configures the Serial ATA drives in AHCI mode.

Serial-ATA Controller 0 / Serial-ATA Controller 1

Configures the Serial ATA controller to Compatible or Enhanced mode.

68

NSA 5130 User Manual

Chapter 4: BIOS Setup

Thermal Configuration

This section is used to configure the intelligent power sharing function.

Advanced

Thermal Conguration

ME SMBus Thermal Reporting

Thermal Data Reporting SMBus Buffer Length Thermal Reporting EC PEC

PCH Temp Read

Selects Slots with TS on DIMM

Thermal Sensor on DIMM0 Thermal Sensor on DIMM1 Thermal Sensor on DIMM2 Thermal Sensor on DIMM3

Alert Enable Lock PCH Alert DIMM Alert

BIOS SETUP UTILITY

[Enabled]

[Enabled] [20] [Disabled]

[Enabled]

[Disabled] [Disabled] [Disabled] [Disabled]

[Disabled] [Disabled] [Disabled]

Enabled/Disabled ME SMBus Thermal Reporting

Conguration.

→ ←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

ME SMBus Thermal Reporting

Enables or disables the ME SMBus thermal reporting configuration.

Thermal Data Reporting

Enables or disables the thermal data reporting.

SMBus Buffer Length

Selects the length of SMBus block read message for EC.

PCH Temp Read

Enables or disables the PCH temperature read.

Thermal Sensor on DIMM0 to Thermal Sensor on DIMM3

Enables or disables the thermal sensor.

Alert Enable Lock

Locks all alert enable settings.

PCH Alert

Enables or disables the PCH alert.

DIMM Alert

Enables or disables the DIMM alert.

Thermal Reporting EC PEC

Enables or disables the Packet Error Checking (PEC) for SMBus block read.

69

NSA 5130 User Manual

Chapter 4: BIOS Setup

Acoustic Management Configuration

This section is used to configure the intelligent power sharing function.

Advanced

Acoustic Management Conguration

Automatic Acoustic Management

SATA Port 1 ST3160813AS Acoustic Mode

BIOS SETUP UTILITY

[Disabled]

[Not Available]

Option to Enable or Disable Automatic Acoustic Management

→ ←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Automatic Acoustic Management

Enables or disables the automatic acoustic management.

Acoustic Mode

Configures the acoustic mode.

Intel TXT(LT) Configuration

This section is used to configure the Intel TXT(LT).

Advanced

Intel Trusted Execution Technology Conguration

Intel TXT support only can be enabled/disabled if SMX is enabled. VT and VT-d support must also be enabled prior to TXT.

Secure Mode Extensions (SMX)

Intel TXT(LT) Support

[Enabled]

[Disabled]

Secure Mode Extensions (SMX)

Enables or disables Secure Mode Extensions.

Intel TXT(LT) Support

Enables or disables Intel TXT(LT).

→ ←: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

70

NSA 5130 User Manual

Chapter 4: BIOS Setup

Intel IGD SWSCI OpRegion

This section is used to configure the Intel graphics display.

Advanced

Intel IGD SWSCI OpRegion Conguration

DVMT Mode Select

DVMT/FIXED Memory IGD - Boot Type LCD Panel Type Panel Scaling Backlight Control Support BIA Control Spread Spectrum Clock TV Standard

BIOS SETUP UTILITY

[DVMT Mode]

[256MB] [VBIOS Default] [1600x1200 LVDS] [Auto] [Both BLC & BIA] [VBIOS Default] [Disabled] [VBIOS Default]

Select DVMT Mode used by Internal Graphics Device

→ ←: Select Screen ↑↓: Select Item

Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

DVMT Mode Select

Selects the DVMT mode used by the internal graphics device.

DVMT/FIXED Memory

Selects the DVMT/FIXED mode memory size used by the internal graphics device.

Panel Scaling

Selects the LCD panel scaling used by the internal graphics device.

Backlight Control Support

The options are Both “BLC & BIA Disabled” and “BLC Enabled”.

BIA Control

The options are VBIOS Default, Disabled and Level 1 to Level 5.

Spread Spectrum Clock

Enables or diasbles the spread spectrum clock.

TV Standard

Selects the TV standard connected to the system.

IGD - Boot Type

Selects the video device that will be activated during POST. This will not affect any external graphics that may be present.

LCD Panel Type

Selects the LCD panel used by the internal graphics device.

71

NSA 5130 User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure USB devices.

Advanced

USB Conguration

USB Devices:

1 Drive, 1 Keyboard, 2 Hubs

Legacy USB Support [Enabled]

EHCI Hand-Off [Disabled] Port 60/64 Emulation [Enabled]

USB Hardware Delays and Time-outs

USB Transfer Time-out [20 sec] Device Reset Time-out [20 sec] Device Power-Up Delay [Auto]

Mass Storage Devices

USBPEN SAC7001-P0909 0.00 [Auto]

BIOS SETUP UTILITY

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. Disable option will keep USB devices available only for EFI applications.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Legacy USB Support

Due to the limited space of the BIOS ROM, the support for legacy USB keyboard (in DOS mode) is by default set to Disabled. With more BIOS ROM space available, it will be able to support more advanced features as well as provide compatibility to a wide variety of peripheral devices. If a PS/2 keyboard is not available and you need to use a USB keyboard to install Windows (installation is performed in DOS mode) or run any program under DOS, set this field to Enabled.

Port 60/64 Emulation

Enables the I/O port 60h/64h emulation. This should be enabled for complete USB keyboard legacy support for non-USB OSes.

USB Transfer Time-out

Selects the time-out value for Control, Bulk, and Interrupt transfers.

Device Reset Time-out

Selects the time-out value of the USB mass storage device’s start unit command.

Device Power-Up Delay

Selects the maximum time the device will take before it properly reports itself to the Host Controller.

USBPEN SAC7001-P0909 0.00

Selects the mass storage device emulation type.

EHCI Hand-Off

Enable this field when using operating systems without the EHCI hand-off support.

72

NSA 5130 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Advanced

Super IO Conguration

Super IO Chip NCT6776F

u

Serial Port 0 Conguration

u

Serial Port 1 Conguration

u

Parallel Port Conguration

BIOS SETUP UTILITY

Set Parameters of Serial Port 0 (COMA)

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Serial Port 0 Configuration and Serial Port 1 Configuration

Advanced

Serial Port 0 Conguration

Serial Port [Enabled] Device Settings IO=3F8h; IRQ=4

Change Settings [Auto] Device Mode [Standard Serial Port]

BIOS SETUP UTILITY

Enable or disable Serial Port (COM)

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Serial Port

Enables or disables the serial port.

Change Settings

Selects the optimal setting for the Super IO device.

Device Mode

Selects the serial port mode.

73

NSA 5130 User Manual

Chapter 4: BIOS Setup

Parallel Port Configuration

Advanced

Parallel Port Conguration

Parallel Port [Enabled] Device Settings IO=378h; IRQ=5

Change Settings [Auto] Device Mode [STD Printer Mode]

BIOS SETUP UTILITY

Parallel Port

Enables or disables the parallel port.

Change Settings

Selects the optimal setting for the Super IO device.

Device Mode

Selects the parallel port mode.

Enable or disable Parallel Port (LPT/ LPTE)

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

H/W Monitor

This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.

Advanced

PC Health Status

CPU Temperature : 32 C FAN1 Speed : 5947 RPM FAN2 Speed : N/A FAN3 Speed : 9000 RPM FAN4 Speed : 9507 RPM FAN5 Speed : 10800 RPM VCORE : +1.152 V VIN0 : +1.504 V VIN1 : +1.104 V VIN2 : +5.120 V VIN3 : +12.000 V AVCC : +3.296 V 3VCC : +3.296 V VSB3 : +3.344 V VBAT : +3.296 V

BIOS SETUP UTILITY

Options

Disabled Enabled

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

CPU Temperature

Detects and displays the current temperature of the CPU.

Fan1 Speed to FAN5 Speed

Detects and displays the current fan speed in RPM (Revolutions Per Minute).

VCORE to VBAT

Detects and displays the output voltages.

74

NSA 5130 User Manual

Chapter 4: BIOS Setup

AMT Configuration

Advanced

AMT [Enabled]

Uncongure AMT/ME [Disabled]

Watchdog Timer [Disabled]

OS Watchdog Timer 0

BIOS Watchdog Timer 0

BIOS SETUP UTILITY

AMT Help

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

AMT

Enables or disables the AMT function.

Unconfigure AMT/ME

Used to unconfigure AMT/ME even without a password.

Watchdog Timer

Serial Port Console Redirection

Advanced

COM0

Console Redirection [Disabled]

u

Console Redirection Settings

COM1

Console Redirection [Disabled]

u

Console Redirection Settings

COM4 (PCI Dev0, Func0) (Disabled) Console Redirection Port Is Disabled

Serial Port for Out-of-Band Management/ Windows Emergency Management Services (EMS)

Console Redirection [Disabled]

u

Console Redirection Settings

BIOS SETUP UTILITY

Console Redirection

Enables or disables the Console Redirection.

Console Redirection Enable or Disable

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Enables or disables the Watchdog Timer function.

OS Watchdog Timer and BIOS Watchdog Timer

Configures the OS Watchdog Timer and the BIOS Watchdog Timer.

75

NSA 5130 User Manual

Chapter 4: BIOS Setup

Console Redirection Settings

Specifies how the host computer and the remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings.

Advanced

COM 0

 Console Redirection Settings

Terminal Type Bits Per Second

Data Bits Parity Stop Bits Flow Control Recorder Mode Resolution 100x31 Legacy OS Redirection

[ANSI]

[115200] [8] [None] [1] [None] [Disabled] [Disabled] [80x24]

Emulation: ANSI: Extended ASCII char set. VT100: ASCII char set. VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or more bytes.

→ ←: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Terminal Type

ANSI Extended ASCII character set. VT100 ASCII character set. VT100+ Extends VT100 to support color, function keys, etc. VT-UTF8 Uses UTF8 encoding to map Unicode characters onto 1 or more

bytes.

Bits Per Second

Selects the serial port transmission speed. The speed must match the other side. Long or noisy lines may require a lower speed.

Data Bits

The options are 7 and 8.

Parity

A parity bit can be sent with the data bits to detect some transmission erros.

Even Parity bit is 0 if the number of 1’s in the data bits is even. Odd Parity bit is 0 if number of 1’s in the data bits is odd.

Stop Bits

Stop bits indicate the end of a serial data packet. (A start bit indicates the beginning). The standard setting is 1 stop bit. Communication with slow devices may require more than 1 stop bit.

Flow Control

Flow control can prevent data loss from buffer overflow. When sending data and the receiving buffers are full, a “stop” signal can be sent to stop the data flow.

Recorder Mode

When this field is enabled, only text will be sent. This is to capture the terminal data.

Resolution 100x31

Enables or disables extended terminal resolution.

Legacy OS Redirection

Selects the number of rows and columns that support redirection.

76

NSA 5130 User Manual

Chapter 4: BIOS Setup

Chipset

This section is used to configure the system based on the specific features of the chipset.

Setting incorrect field values may cause the system to malfunction.

Main

u

North Bridge

u

South Bridge

u

ME Subsystem

u

Chipset Reference Board

BIOS SETUP UTILITY

ChipsetAdvanced

Save & ExitBoot Security Event Logs

North Bridge Parameters

← →: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

North Bridge

BIOS SETUP UTILITY

Chipset

Memory Information

Total Memory 2048 MB (DDR3 1333)

Memory Slot0 2048 MB (DDR3 1333) Memory Slot1 0 MB (DDR3 1333) Memory Slot2 0 MB (DDR3 1333) Memory Slot3 0 MB (DDR3 1333)

Low MMIO Align [1024M]

DMI Gen2 [Enabled]

VT-d [Disabled]

Initiate Graphic Adapter [PEG/IGD] IGD Memory [64M] Render Standby [Enabled] IGD Multi-Monitor [Disabled]

PCI Express Port [Auto] PEG Force Gen1 [Disabled] Detect Non-Compliance Device [Disabled]

MRC Message Print [Disabled]

Low MMIO Align

Selects the Low MMIO Resources.

DMI Gen2

Enables or disables the DMI Gen2.

Low MMIO Resources align at 54MB/1024MB

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

VT-d

Enables or disables the VT-d.

77

NSA 5130 User Manual

Chapter 4: BIOS Setup

Initiate Graphic Adapter

Selects the graphics controller to use as the primary boot device.

IGD Memory

Selects the IGD shared memory size.

Render Standby

Enables or disables the Render Standby of the internal graphics device.

IGD Multi-Monitor

Enables or disables the IGD Multi-Monitor of the internal graphics device.

PCI Express Port

Enables or disables the PCI Express port.

PEG Force Gen1

Enables or disables the PCI Express port Force Gen1.

Detect Non-Compliance Device

Enables or disables the detection of non-compliance devices.

MRC Message Print

Enables or disables the print memory initialize message.

South Bridge

BIOS SETUP UTILITY

Chipset

SB Chipset Conguration

SMBus Controller [Enabled] GbE Controller [Enabled]

Wake On LAN from S5 [Enabled]

Power Supply Type [ATX] Restore AC Power Loss [Power On] SLP_S4 Asstion Stretch Enable [Enabled] SLP_S4 Assertion Width [4-5 Seconds] Deep Sx [Disabled]

High Precision Event Timer Conguration High Precision Timer [Enabled]

u

PCI Express Ports Conguration

u

USB Conguration

SMBus Controller

Enables or disables the SMBus controller.

GbE Controller

Enables or disables the GbE controller.

Wake On LAN from S5

Enabled/Disabled SMBus Controller.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

Enables or disables the GbE control PME in S5.

78

NSA 5130 User Manual

Chapter 4: BIOS Setup

Power Supply Type

Selects the power supply type.

Restore AC Power Loss

Selects the state to return to when power resumes after a power failure (G3 state).

SLP_S4 Assertion Stretch Enable

Enables or disables the SLP_S4# assertion stretch.

SLP_S4 Assertion Width

Selects the minimum assertion width of the SLP_S4# signal.

Deep Sx

Enables or disables Deep Sx.

High Precision Timer

Enables or disables the high precision event timer.

PCI Express Ports Configuration

BIOS SETUP UTILITY

Chipset

PCI Express Ports Conguration

PCI Express Port 1 [Auto] PCI Express Port 2 [Auto]

PCI Express Port 3 [Auto]

PCI Express Port 4 [Auto]

PCI Express Port 5 [Auto] PCI ExpressPort 6 [Auto]

PCI Express Port 7 [Auto]

PCI Express Port 8 [Auto]

PCIe Sub Decode [Disabled]

PCI Express Port 1 to PCI Express Port 8

Enables or disables the PCI Express port.

PCIe Sub Decode

Enables or disables the PCIe sub decode port.

Enabled/Disabled the PCI Express Ports in the Chipset.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

79

NSA 5130 User Manual

Chapter 4: BIOS Setup

USB Configuration

BIOS SETUP UTILITY

Chipset

USB Conguration

All USB Devices [Enabled]

EHCI Controller 1 [Enabled]

EHCI Controller 2 [Enabled]

USB Port 0 [Enabled] USB Port 1 [Enabled] USB Port 2 [Enabled] USB Port 3 [Enabled] USB Port 4 [Enabled] USB Port 5 [Enabled] USB Port 6 [Enabled] USB Port 7 [Enabled] USB Port 8 [Enabled] USB Port 9 [Enabled] USB Port 10 [Enabled] USB Port 11 [Enabled] USB Port 12 [Enabled] USB Port 13 [Enabled]

All USB Devices

Enables or disables USB devices.

EHCI Controller 1 and EHCI Controller 2

Enables or disables the the USB 2.0 (EHCI) support.

Enabled/Disabled All USB Devices

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

ME Subsystem

BIOS SETUP UTILITY

Chipset

Intel ME Subsystem Conguration

ME Version 7.1.10.1065

ME Subsystem [Enabled] ME Temporary Disable [Disabled] End of Post Message [Enabled]

Execute MEBx [Enabled] MEBx Mode [Normal]

u

Integrated Clock Chip Conguration

ME Subsystem

Enables or disables the ME subsystem.

ME Temporary Disable

Enables or disables the ME temporary disable.

ME Subsystem

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

End of Post Message

Enables or disables the end of post message.

80

NSA 5130 User Manual

Chapter 4: BIOS Setup

Execute MEBx

Enables or disables execute MEBx.

MEBx Mode

Selects the MEBx mode.

Integrated Clock Chip Configuration

BIOS SETUP UTILITY

Chipset

Integrated Clock Chip Conguration

IOC Overclocking Lib Version 7.0.1.51

Number of ICC Proles N/A Current ICC Prole Index N/A

ICC Enable [Disabled]

Integrated Clock Chip Enabled/Disabled.

← → Select Screen ↑↓ Select Item

+- Change Option F1 General Help F10 Save and Exit ESC Exit

ICC Enable

Enables or disables the integrated clock chip.

81

NSA 5130 User Manual

Chapter 4: BIOS Setup

Boot

Main

Boot Conguration

Setup Prompt Timeout

Bootup NumLock State

Quiet Boot

CSM16 Module Version

Gate A20 Active Option ROM Messages Interrupt 19 Capture

Boot Option Priorities

Boot Option #1 Boot Option #2

Hard Drive BBS Priorities

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Bootup NumLock State

Chipset Boot

1

[On]

[Disabled]

07.64

[Upon Request] [Force BIOS] [Disabled]

SATA: ST3160813AS UEFI: USB Hard

Save & ExitAdvanced Security

Selects the keyboard NumLock state

→ ←: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Quiet Boot

Enables or disables Quiet Boot.

Gate A20 Active

Upon Request GA20 can be disabled using BIOS services. Always Does not allow disabling GA20. This option is useful when any

RT code is executed above 1MB.

Option ROM Messages

Configures the ROM messages.

Interrupt 19 Capture

When enabled, it allows the optional ROM to trap interrupt 19.

Boot Option #1 and Boot Option #2

Selects the system boot order.

Hard Drive BBS Priorities

Selects the order of the legacy devices in this group.

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

82

NSA 5130 User Manual

Chapter 4: BIOS Setup

Security

Main

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User will have Administrator rights.

Administrator Password

User Password

Chipset Security

Administrator Password

Sets the administrator password.

User Password

Sets the user password.

Save & ExitAdvanced Boot

Set Setup Administrator Password

→ ←: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

83

NSA 5130 User Manual

Chapter 4: BIOS Setup

Save & Exit

Main

Save Changes and Exit

Discard Changes and Exit Save Changes and Reset Discard Changes and Reset

Save Options

Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

Launch EFI Shell from File System Device

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F10> to save and exit Setup.

Advanced Boot Security

Chipset Save & Exit

Exit system setup after saving the changes.

→ ←: Select Screen ↑↓: Select Item

Enter: Select +-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Discard Changes

To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

84

NSA 5130 User Manual

Appendix A: Watchdog Timer

Watchdog Timer Setting

NSA 5130 features a watchdog timer that resets the CPU or generates an interrupt if the processor stops operating for any reason. This feature ensures system reliability in industrial standalone or unmanned environments.

Set pin 89 as a WDTO output. Write ‘0’ to CR2B[4].

1. Select timer type (Sec/Min). LD8 CRF5[3] (0: sec, 1: min)

2. Clear timeout status. Write ‘0’ to LD8 CRF7[4].

3. Set the timeout value. Meanwhile the timer will start to count down.

4. Write a value to LD8 CRF6. When a timeout occurs, pin 89 will become active (high level).

5. CRF6 must be 0x0. Write another 0x00 to CRF6 (timeout disable) even though it is already 0x00. Clear the timeout status. Write ‘0’ to LD8 CRF7[4]. pin 89 will fall at the same time.

CRFC6 (Default 0x00)

Watchdog Timer Time-out Value

Writing a non-zero value to this register causes the counter to load the value to Watchdog Counter and start counting down. If Bit 7 and Bit 6 are set, any Mouse Interrupt or Keyboard Interrupt event will also cause the reload of previously-loaded non-zero value to Watchdog Counter and start counting down. Reading this register returns current value in Watchdog Counter.

Dog Timer Time-out Value

BIT Definition

7-0 0x00 time-out disabled

0x01 time-out occurs after 1sec./min. 0x02 time-out occurs after 2 sec./min. 0x03 time-out occurs after 3 sec./min. 0xFF time-out occurs after 255 sec./min.

85

NSA 5130 User Manual

Appendix A: Watchdog Timer

Watch Dog Sample Code

;######################################################### ;ENTER THE SIO CONFIGURATION MODE ;######################################################### MOV DX, 2EH MOV AL, 87H OUT DX, AL OUT DX, AL

MOV AL, 07H ;POINT TO LOGICAL DEVICE NUMBER REG OUT DX, AL INC DX MOV AL, 08H OUT DX, AL

;######################################################### ;SET UNITS ;######################################################### MOV DX, 2EH MOV AL, 0F5H OUT DX, AL INC DX IN AL, DX AND AL, NOT 8 ;SECEND MODE. OUT DX, AL

MOV AL, 0F6H OUT DX, AL MOV AL, NUMBER OF TIME OUT VALUE IN SECENDS (0-255) INC DX OUT DX, AL

;######################################################### ;EXIT THE SIO CONFIGURATION MODE ;#########################################################

MOV DX, 2EH MOV AL, 0AAH OUT DX, AL

;######################################################### ;SET TIME OUT VALUE ;######################################################### MOV DX, 2EH

86

NSA 5130 User Manual

Appendix B: GPI/O Programming Guide

This appendix provides definitions for the four GPI/O pins on NSA 5130. GPI/O (General Purpose Input/Output) pins are provided for custom system design. The pin programmed as input mode (GPI) or output mode (GPO) depends on the configuration.

GPIO (J9)

Pin 3 Pin 5 Pin 7 Pin 9 Pin 4 Pin 6 Pin 8 Pin 10

GPIN10 GPIN11 GPIN12 GPIN13 GPOUT14 GPOUT15 GPOUT16 GPOUT17

87

NSA 5130 User Manual
