NEXCOM NSA 3150 User Manual

NEXCOM International Co., Ltd.

Network and Communication Solutions

Network Security Appliance NSA 3150

User Manual

NEXCOM International Co., Ltd.

Published September 2014

www.nexcom.com

Content

Contents

Preface

Copyright ............................................................................................. iv

Disclaimer .............................................................................................. iv

Acknowledgements ............................................................................... iv

Regulatory Compliance Statements ........................................................ iv

Declaration of Conformity ...................................................................... iv

RoHS Compliance ................................................................................... v

Warranty and RMA ................................................................................ vi

Safety Information ................................................................................viii

Installation Recommendations ...............................................................viii

Safety Precautions .................................................................................. ix

Technical Support and Assistance ............................................................ x

Conventions Used in this Manual ............................................................ x

Global Service Contact Information ........................................................ xi

Package Contents ................................................................................. xiii

Ordering Information ............................................................................xiv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

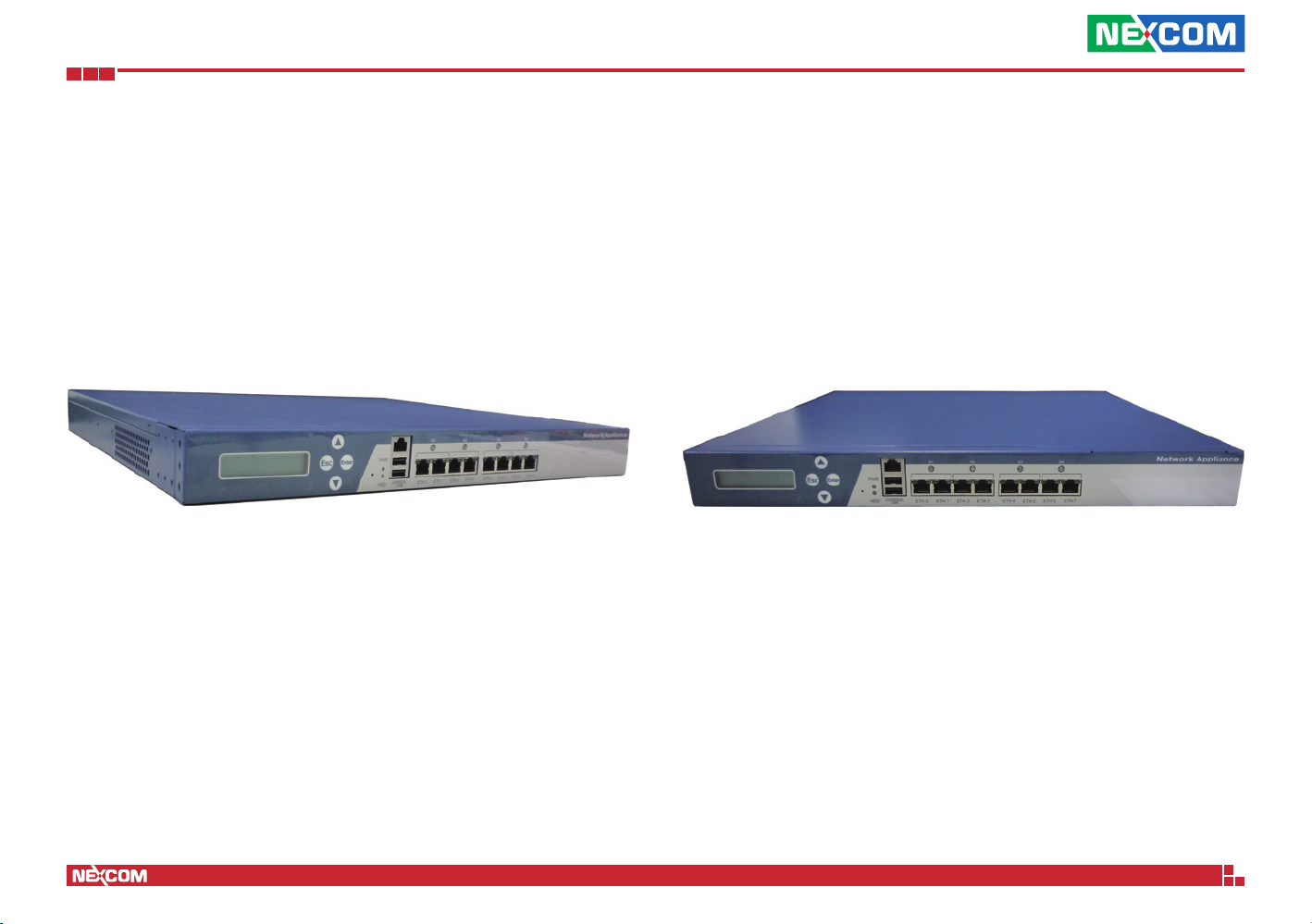

Knowing Your NSA 3150 ........................................................................ 3

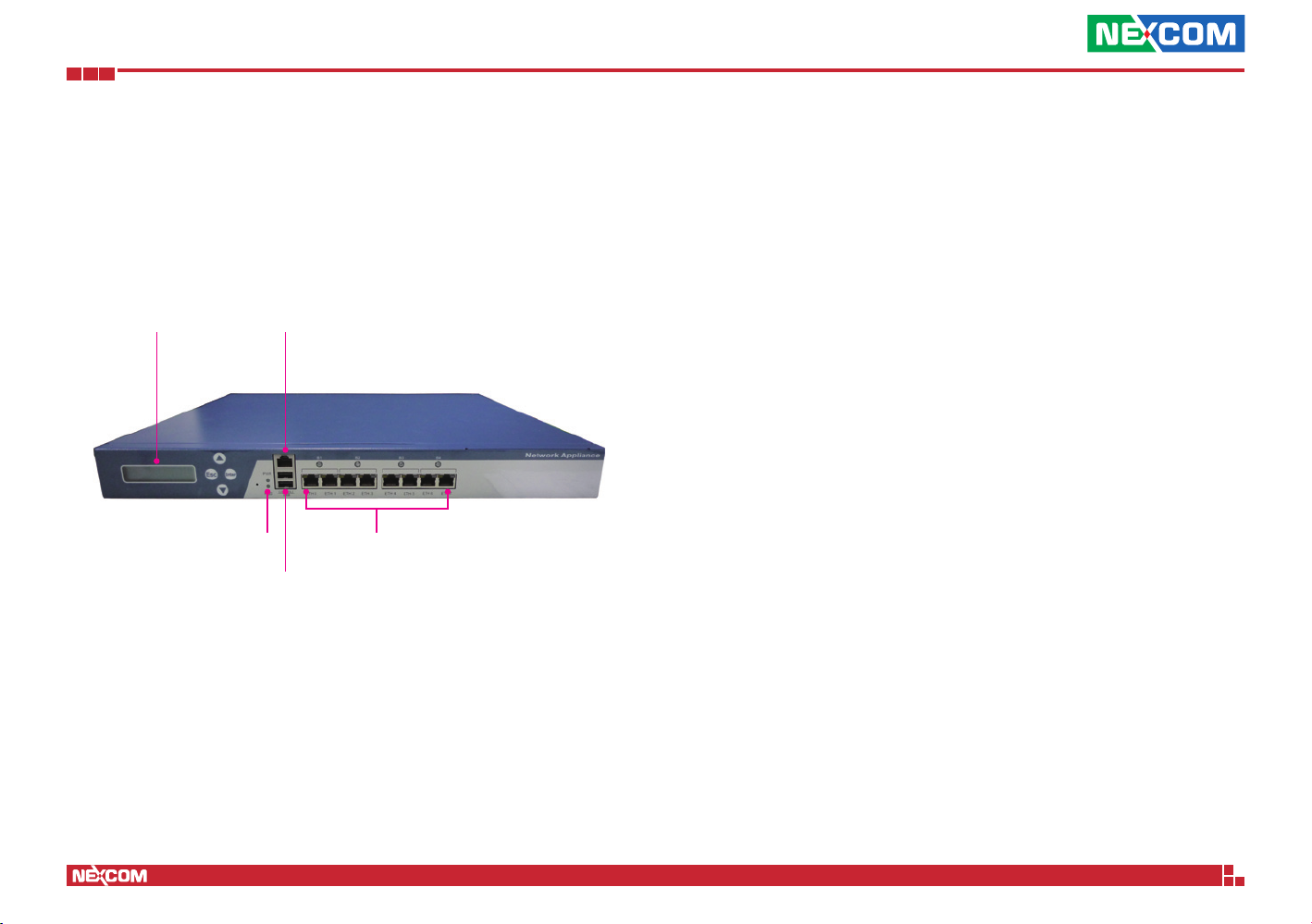

Front Panel ..........................................................................................3

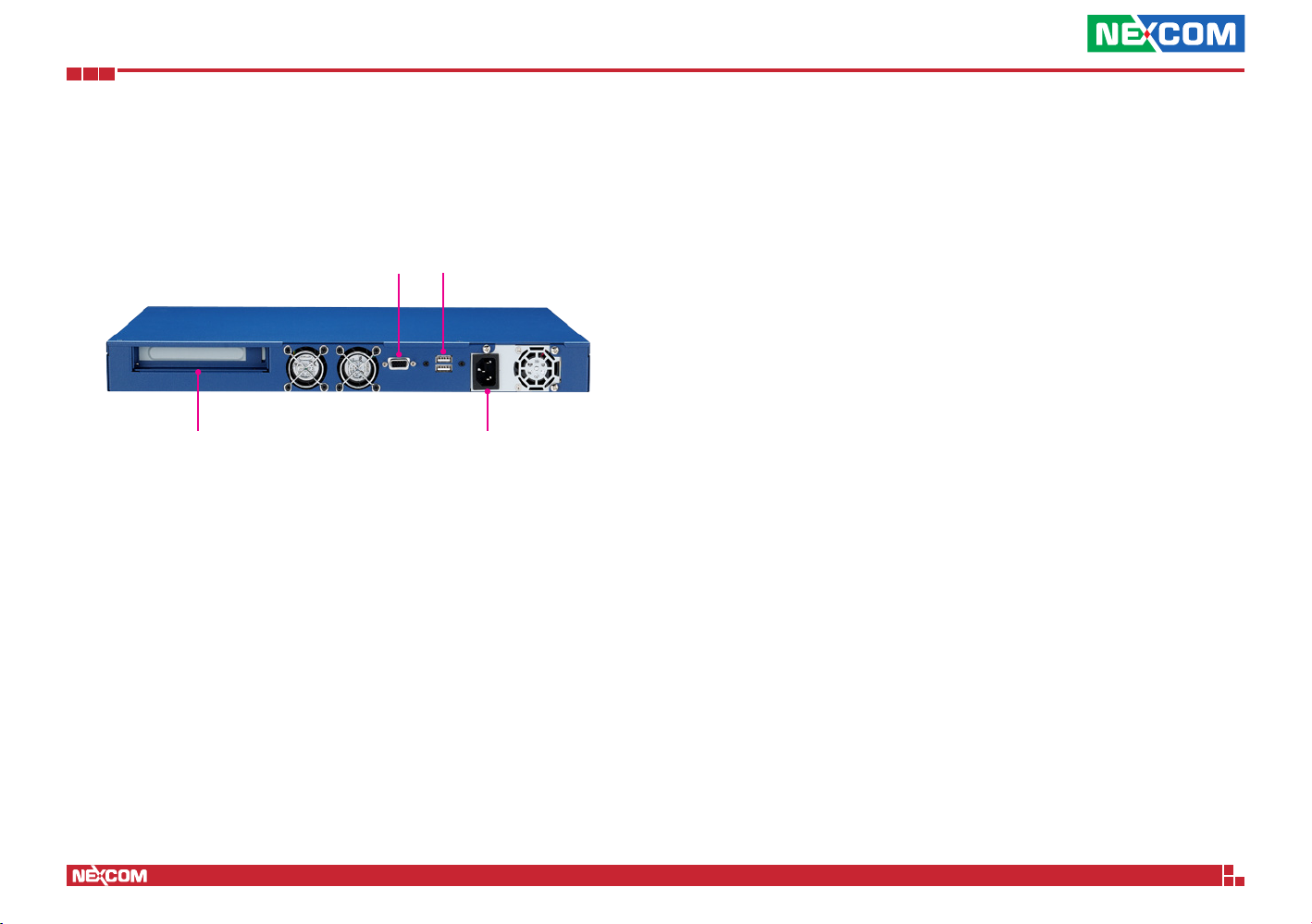

Rear Panel ...........................................................................................4

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................5

Precautions ............................................................................................5

Jumper Settings ......................................................................................6

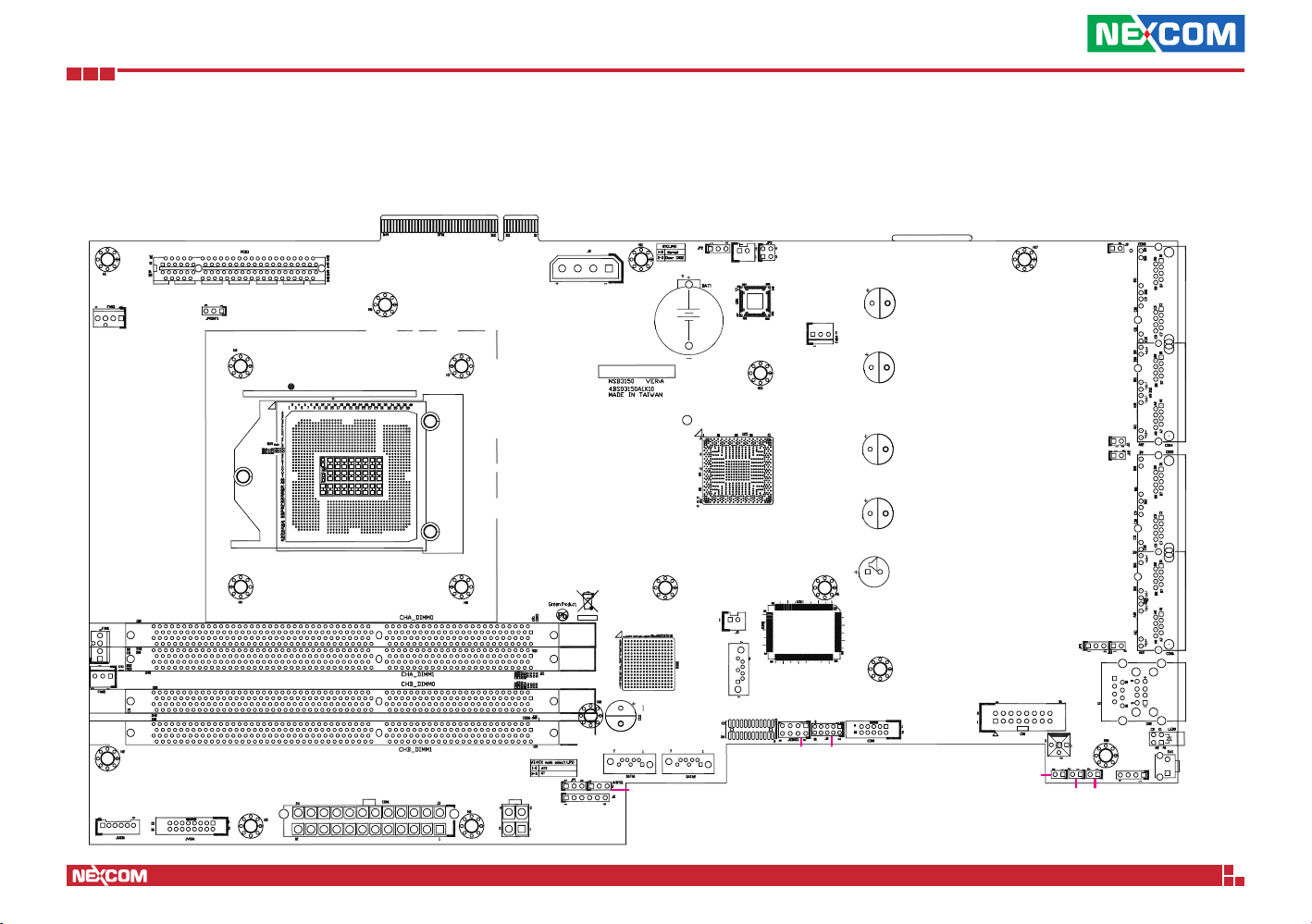

Locations of the Jumpers and Connectors ............................................... 7

Jumpers .................................................................................................. 8

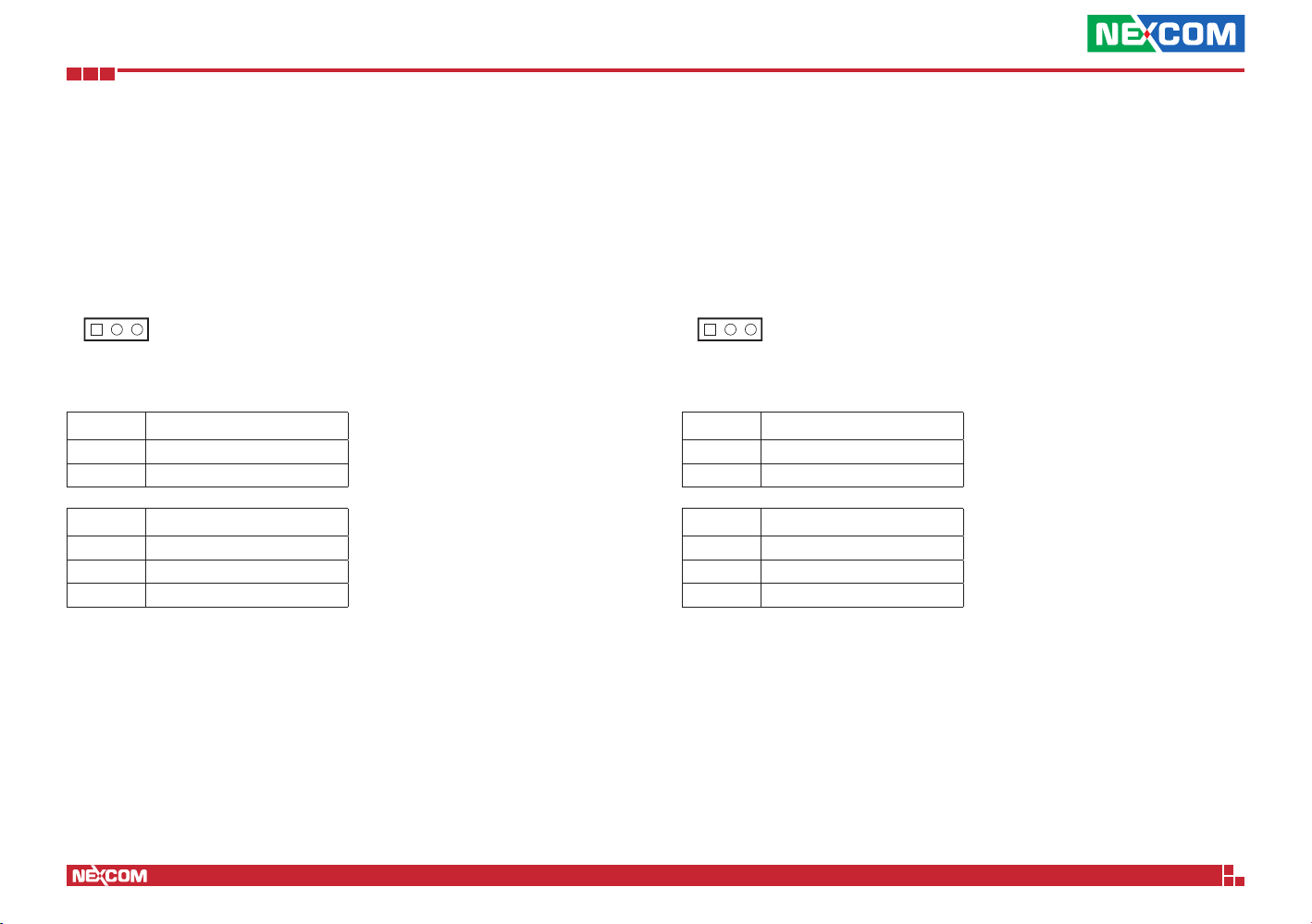

RTC Clear ............................................................................................ 8

ATX/AT Select ......................................................................................8

Console Pin Header .............................................................................9

Connector Pin Definitions .....................................................................10

External I/O Interfaces ........................................................................ 10

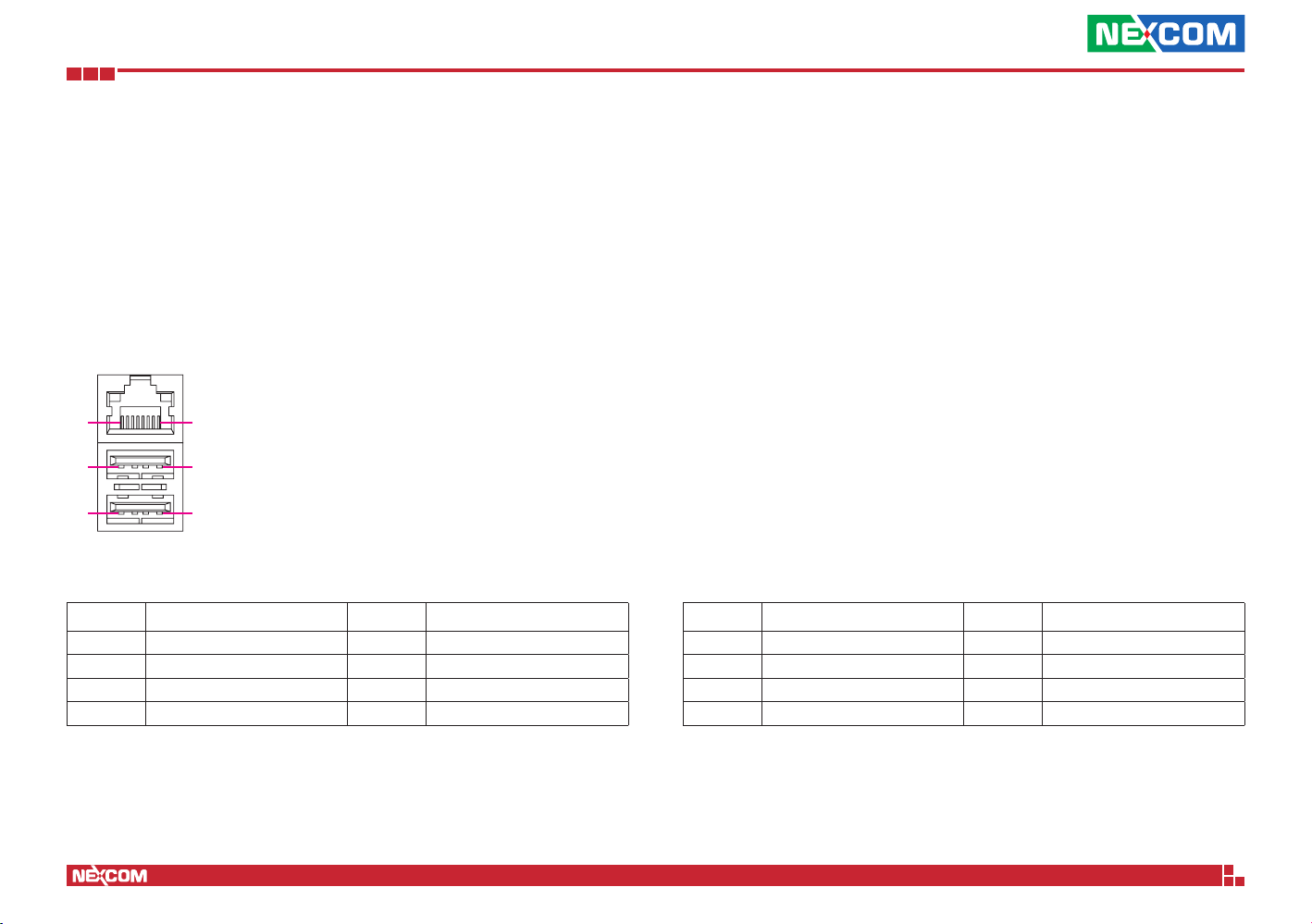

RS232 Console Port and Dual USB 2.0 Ports ................................... 10

LAN Ports ....................................................................................... 11

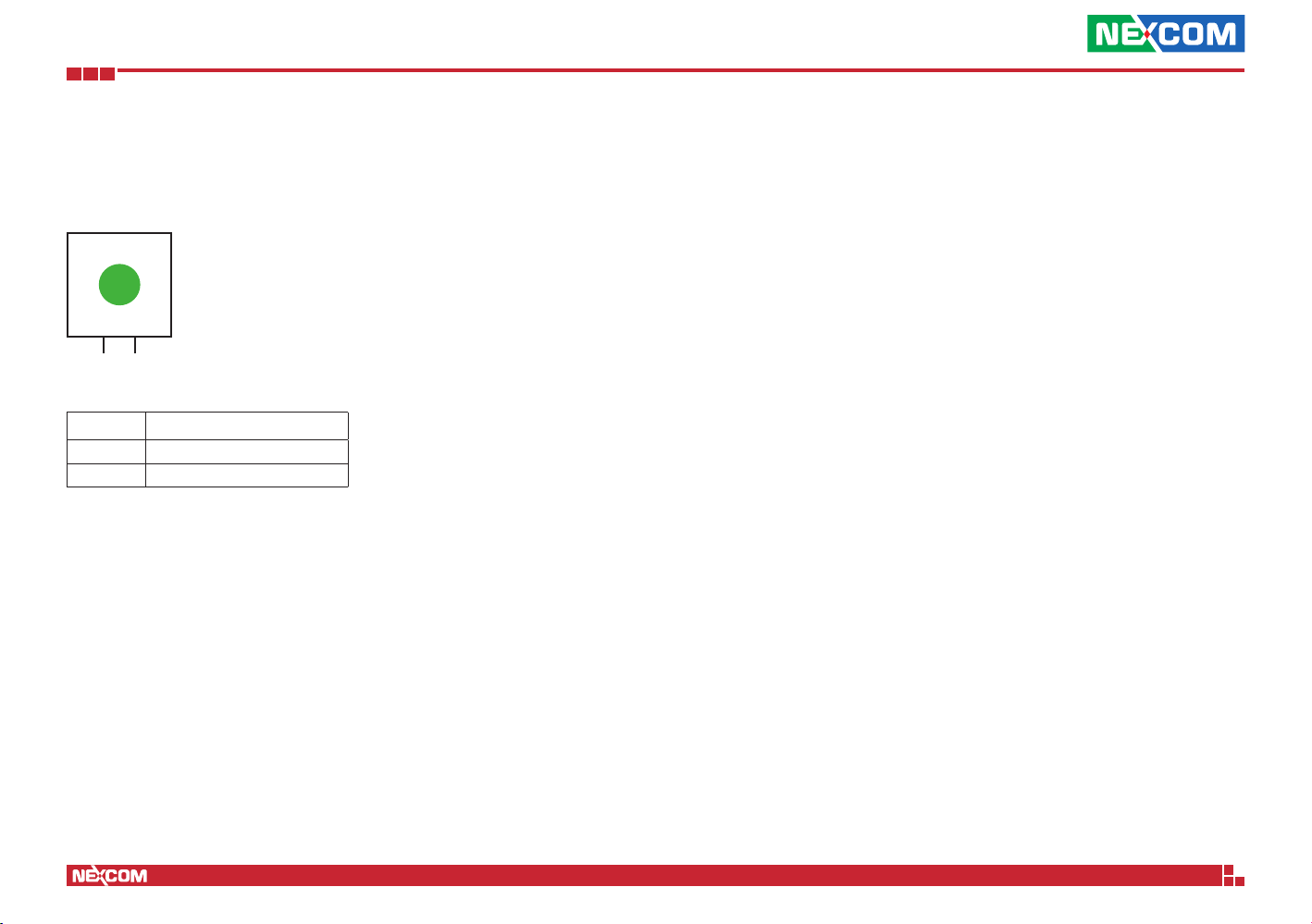

Reset Button ..................................................................................13

Connector Pin Definitions .....................................................................14

Internal Connectors ........................................................................... 14

Digital IO (4 Input/4 Output) ...........................................................14

COM 2 Box Header Connector ....................................................... 14

USB2 JST Header Connector ...........................................................15

HW Reset Pin Header .....................................................................15

Power Button Pin Header ...............................................................16

Bypass LED Pin Header ...................................................................16

GAL Programming Connector ........................................................17

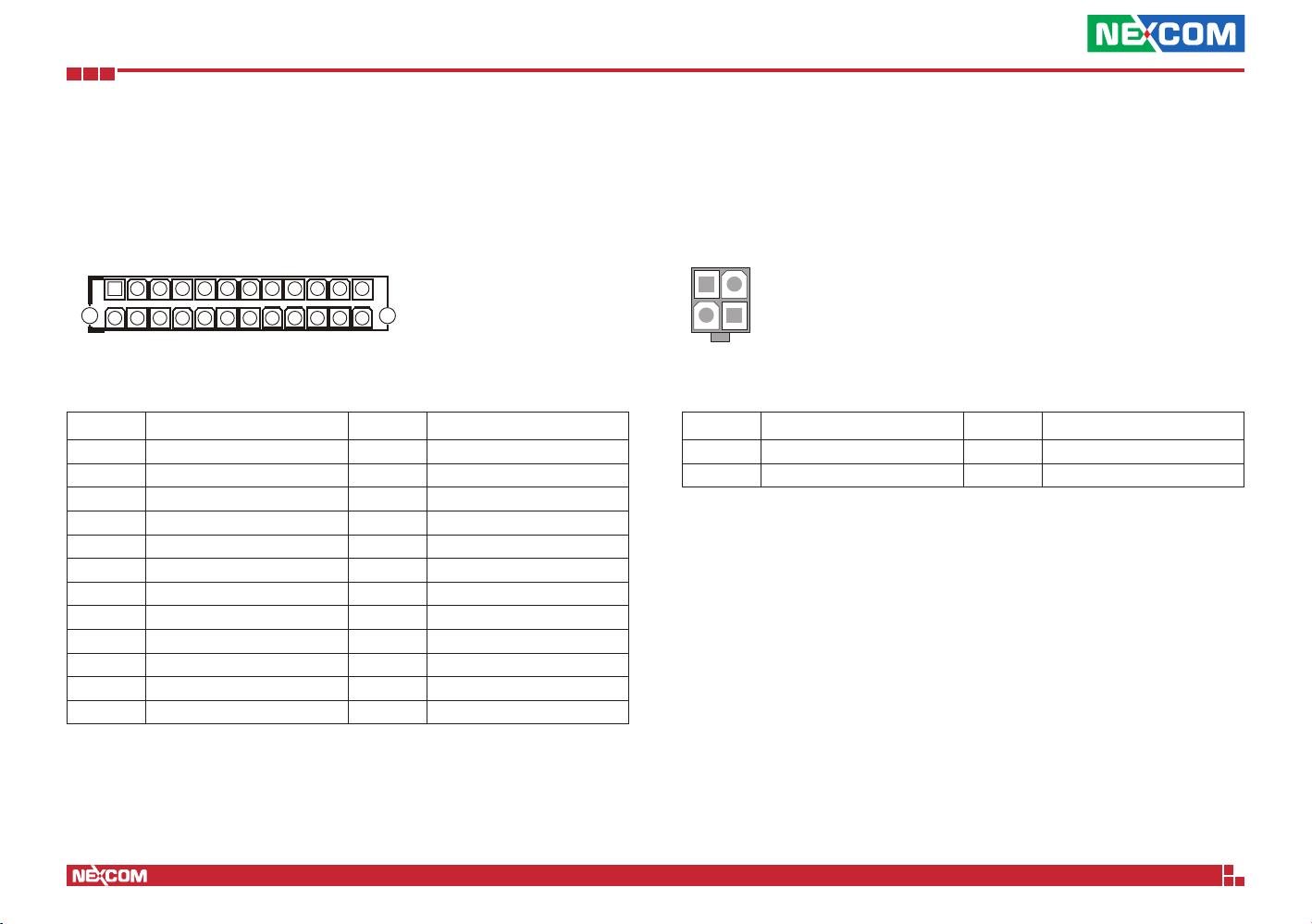

Power Connector ........................................................................... 17

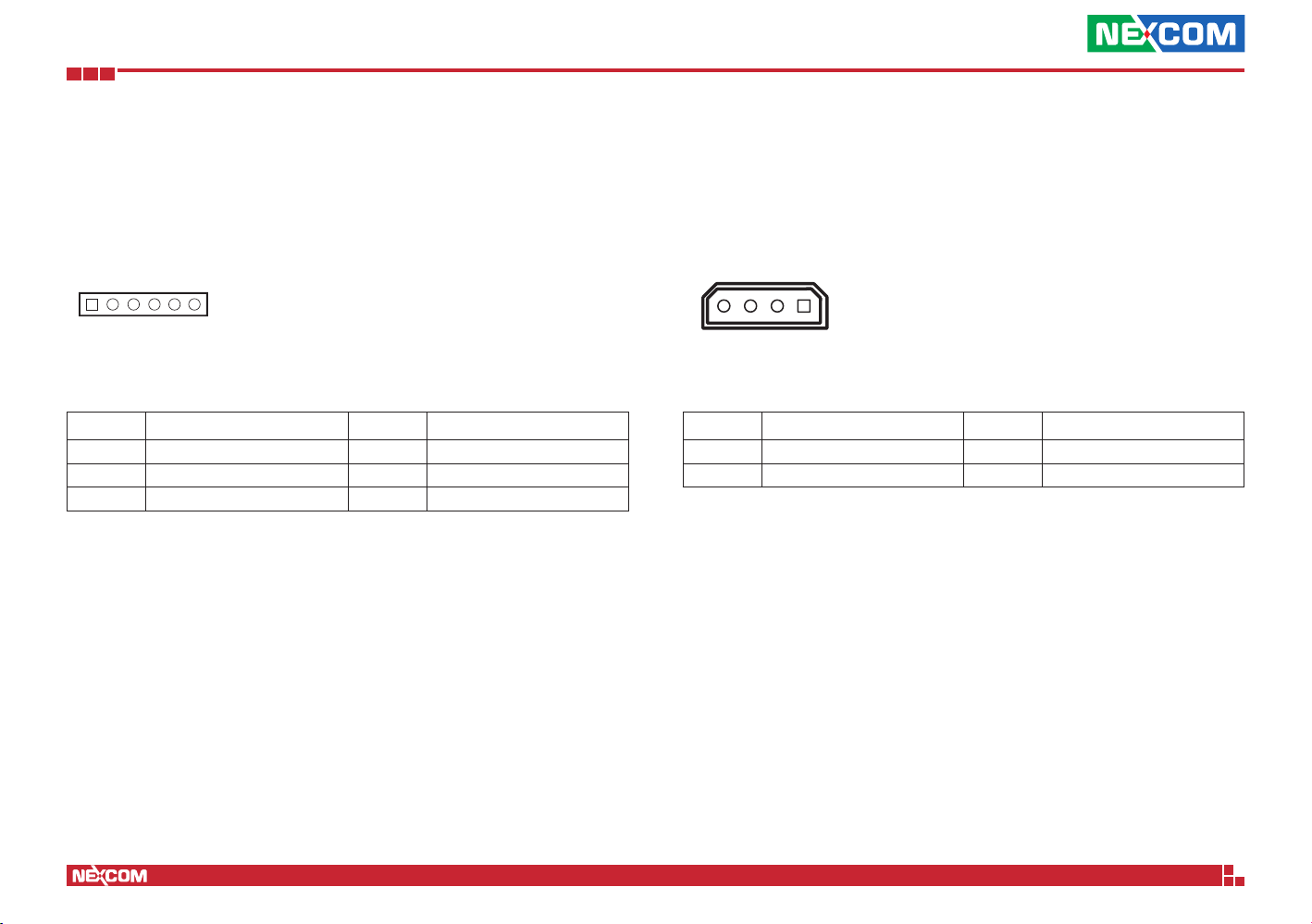

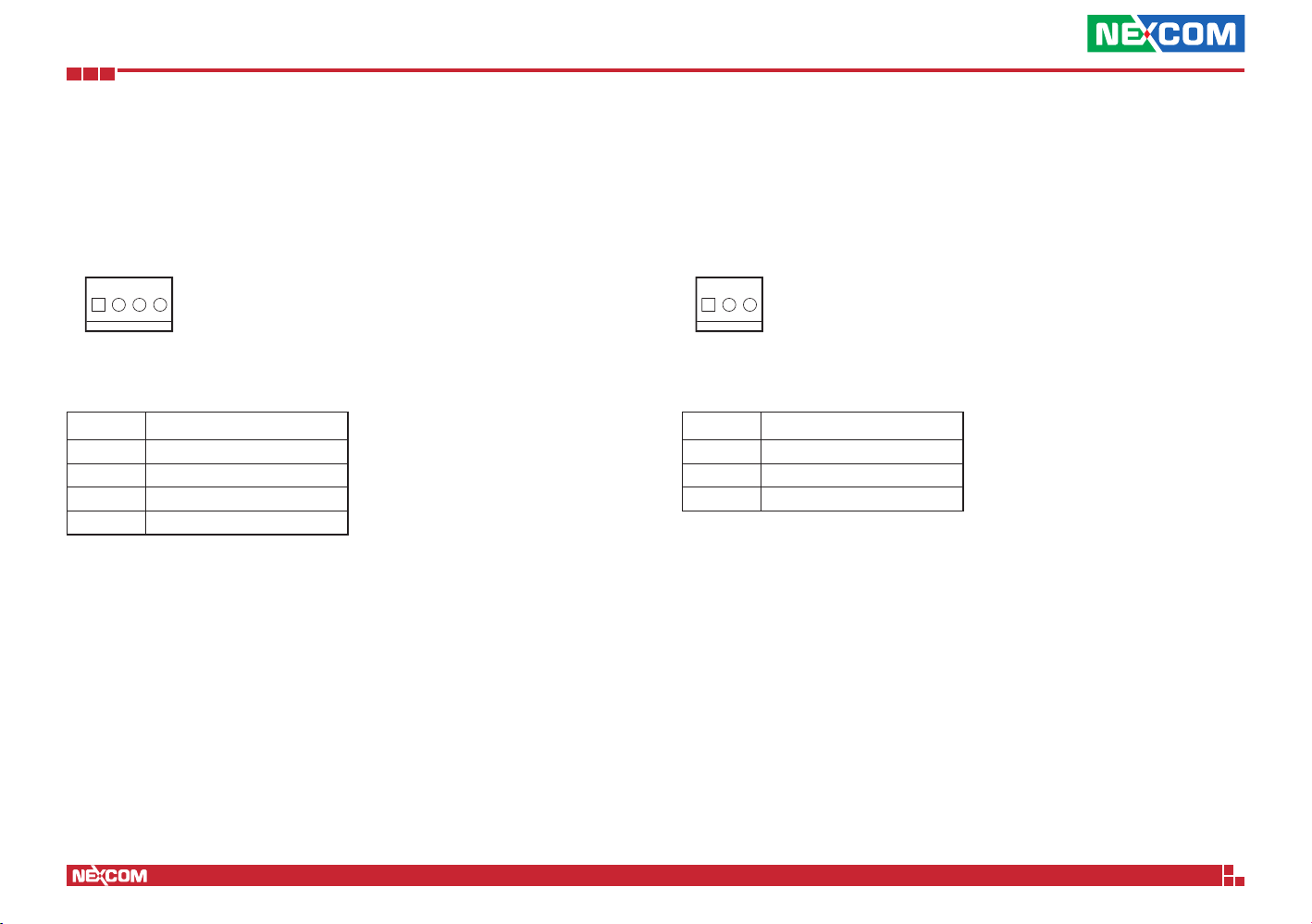

System Fan Connectors (4-Pin) .......................................................18

System Fan Connectors (3-Pin) .......................................................18

ii

NSA 3150 User Manual

Content

SATA Connectors ...........................................................................19

SATA DOM Power Port ...................................................................19

Keyboard/Mouse Connector ...........................................................20

VGA Connector .............................................................................20

Parallel Interface for LCM Module ..................................................21

Keypad Pin Header ......................................................................... 21

Power Connector ........................................................................... 22

PCIe x8 Slot ....................................................................................23

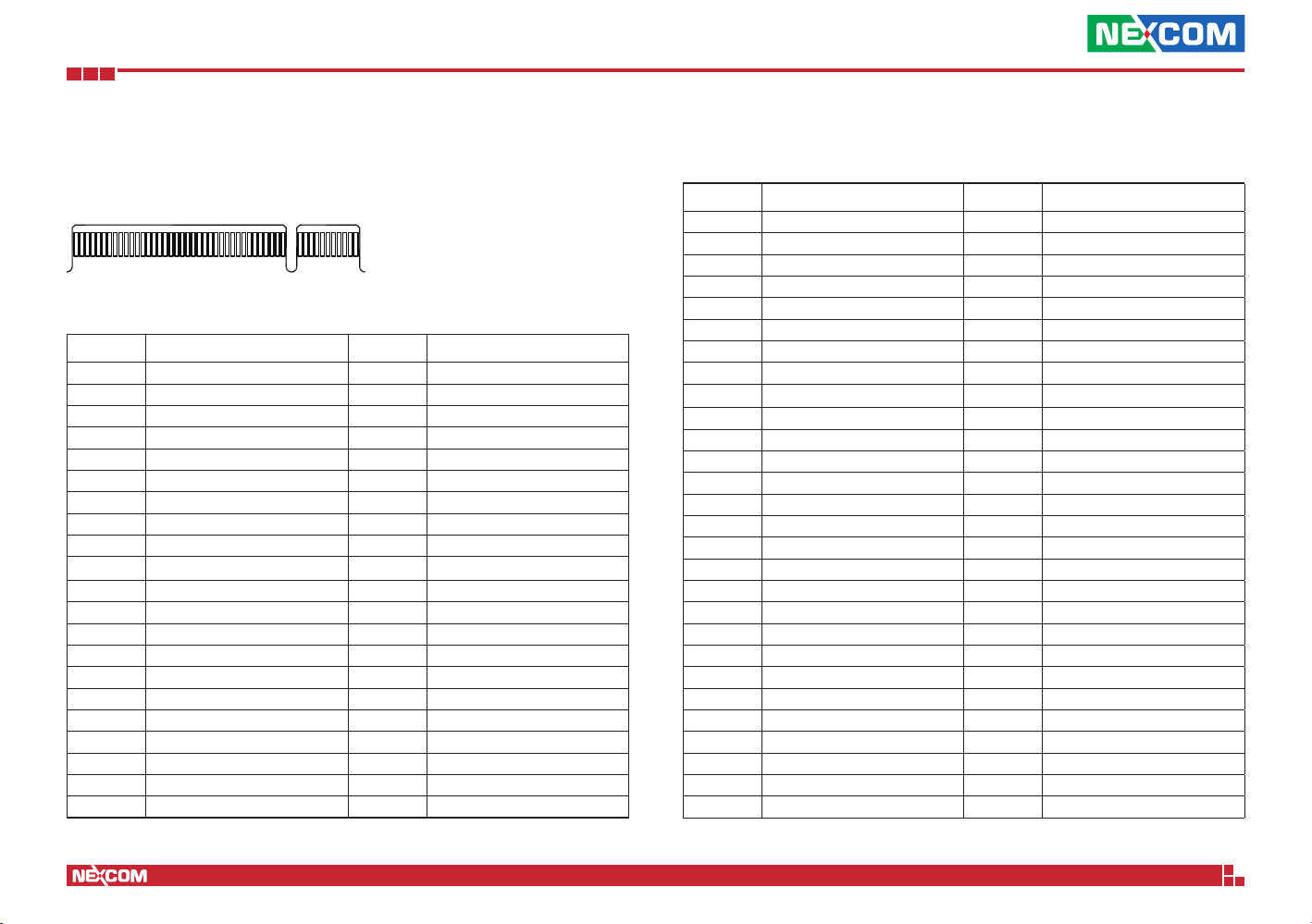

PCIe Golden Finger (For LAN Module) ............................................24

Chapter 3: System Setup

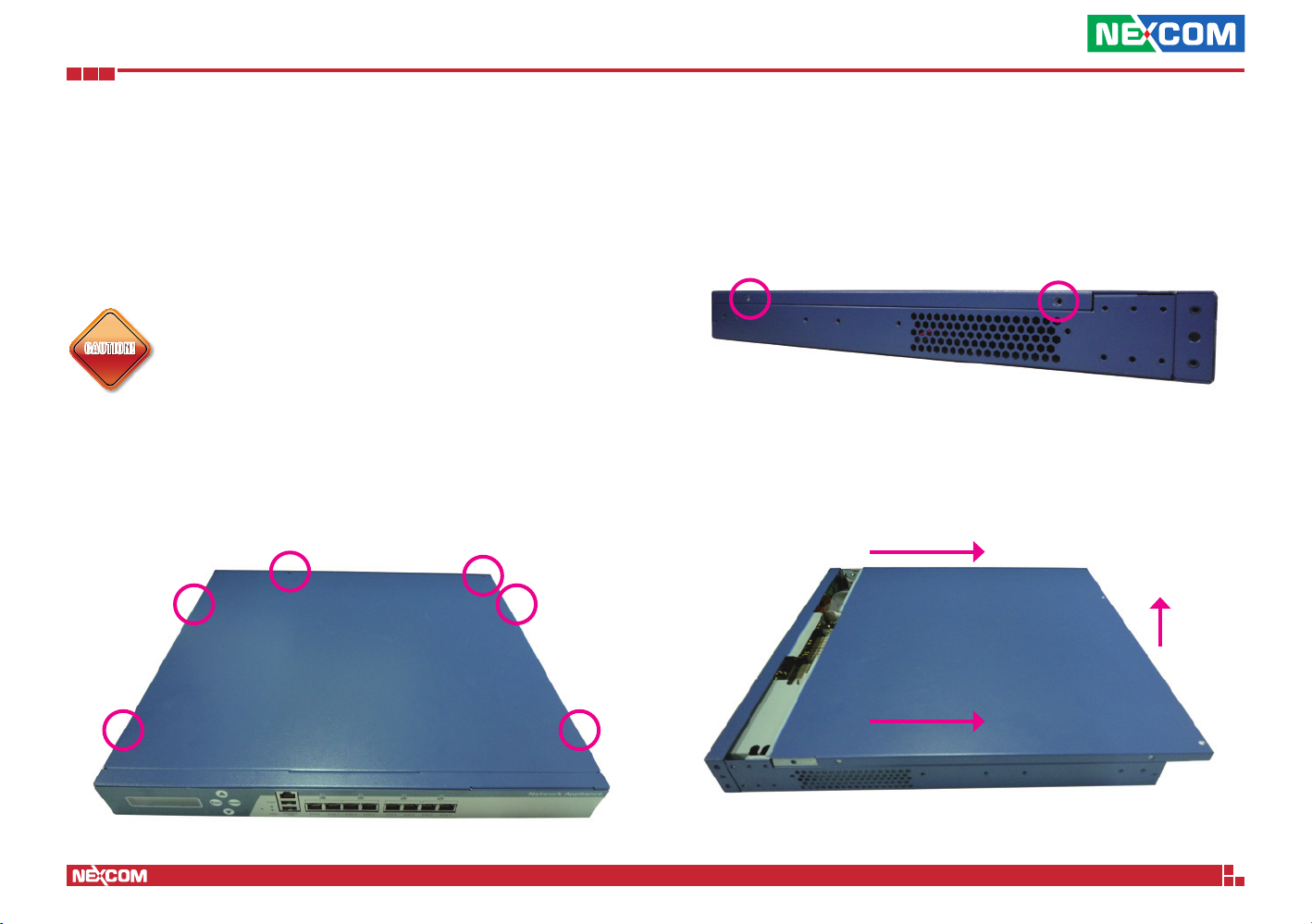

Removing the Chassis Cover .................................................................25

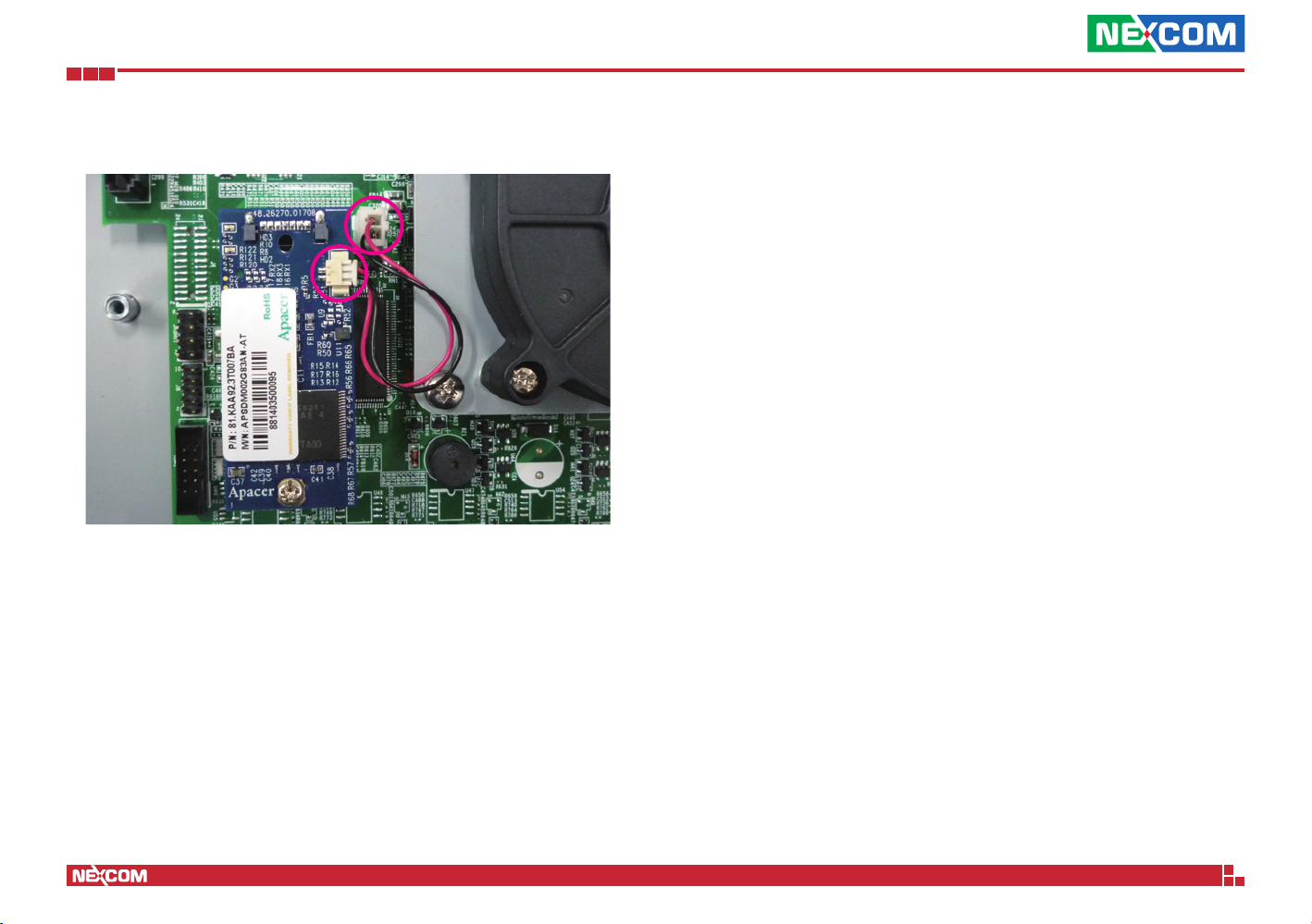

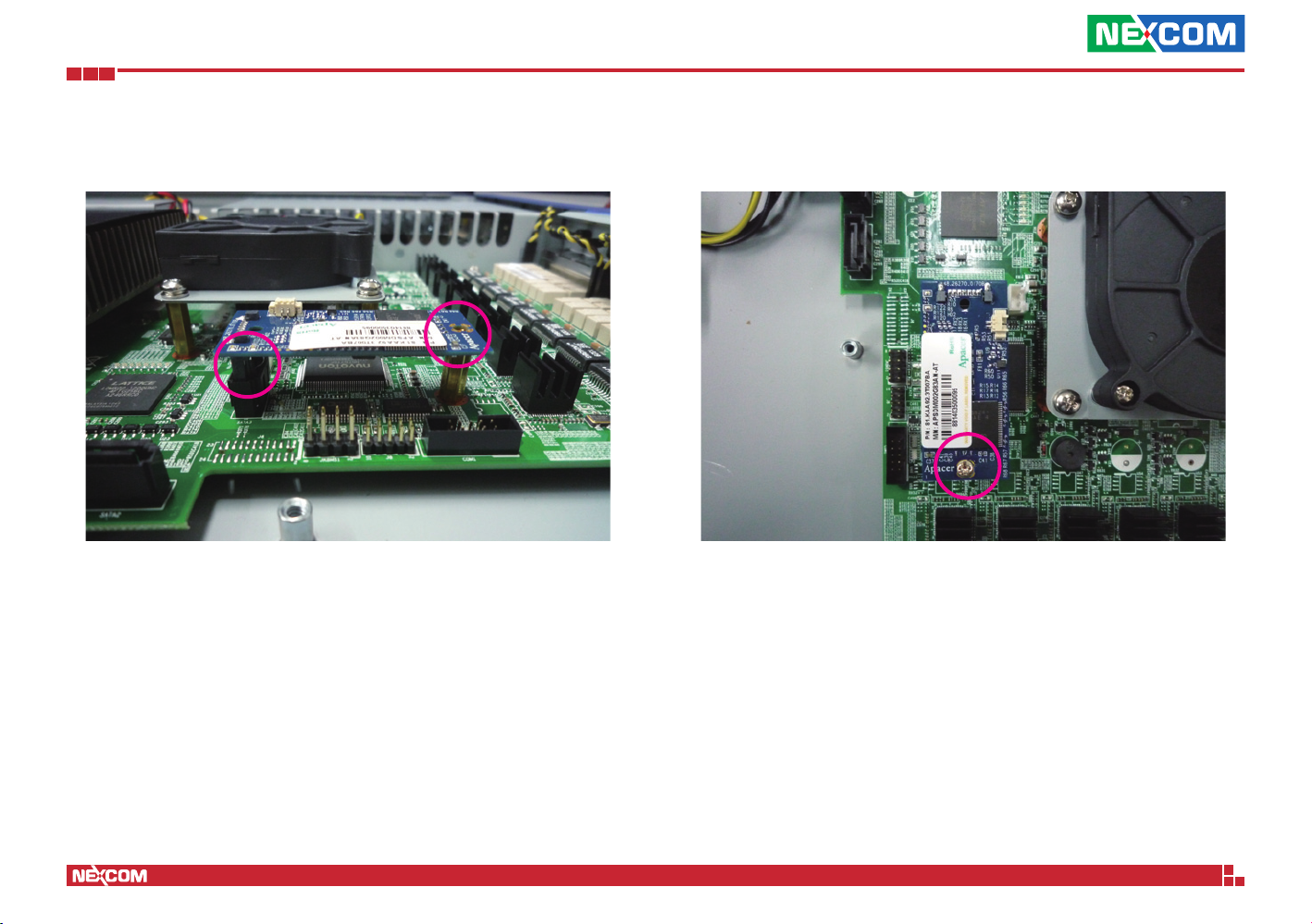

Installing a SATA DOM ..........................................................................26

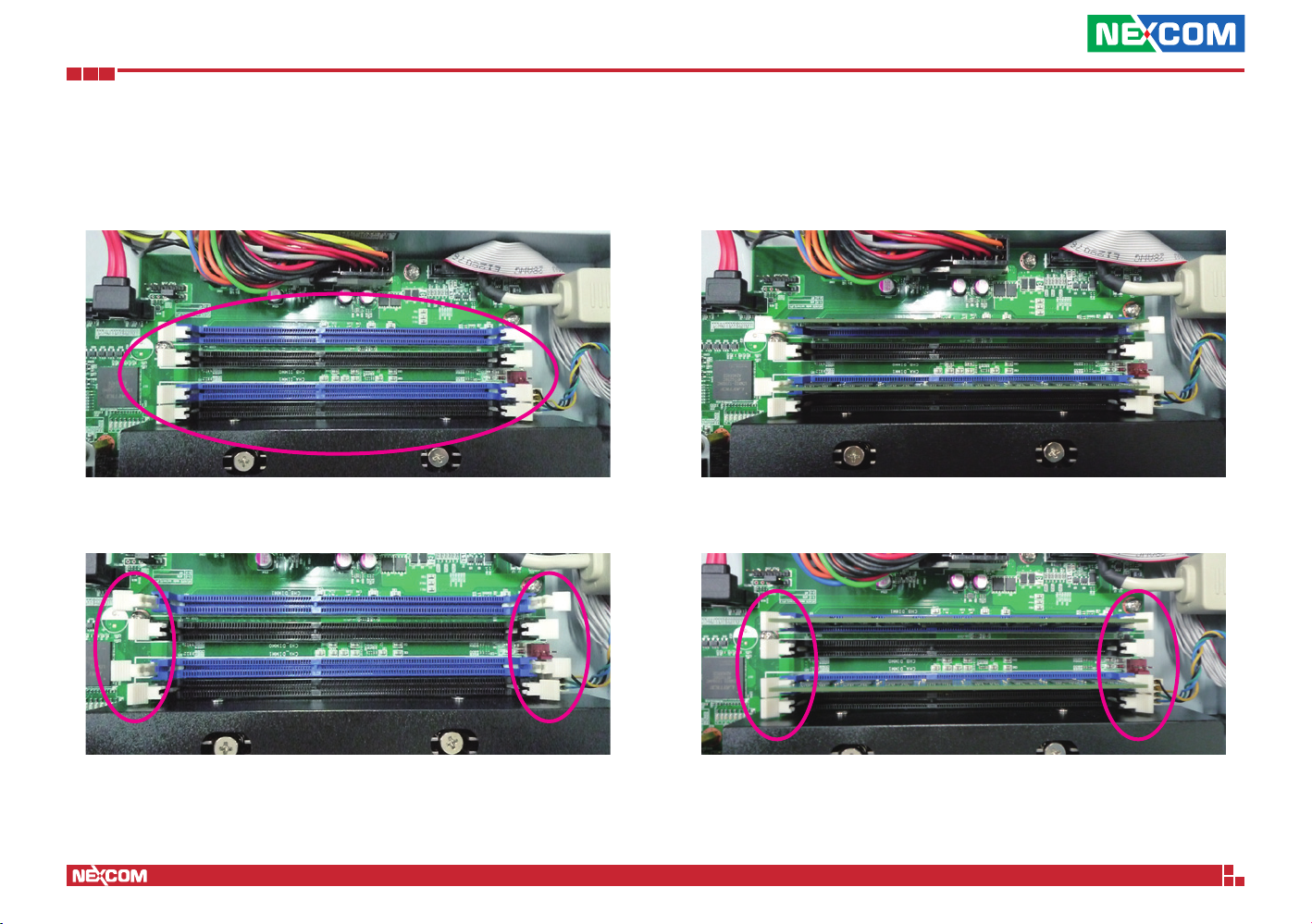

Installing DIMM Memory Modules ........................................................29

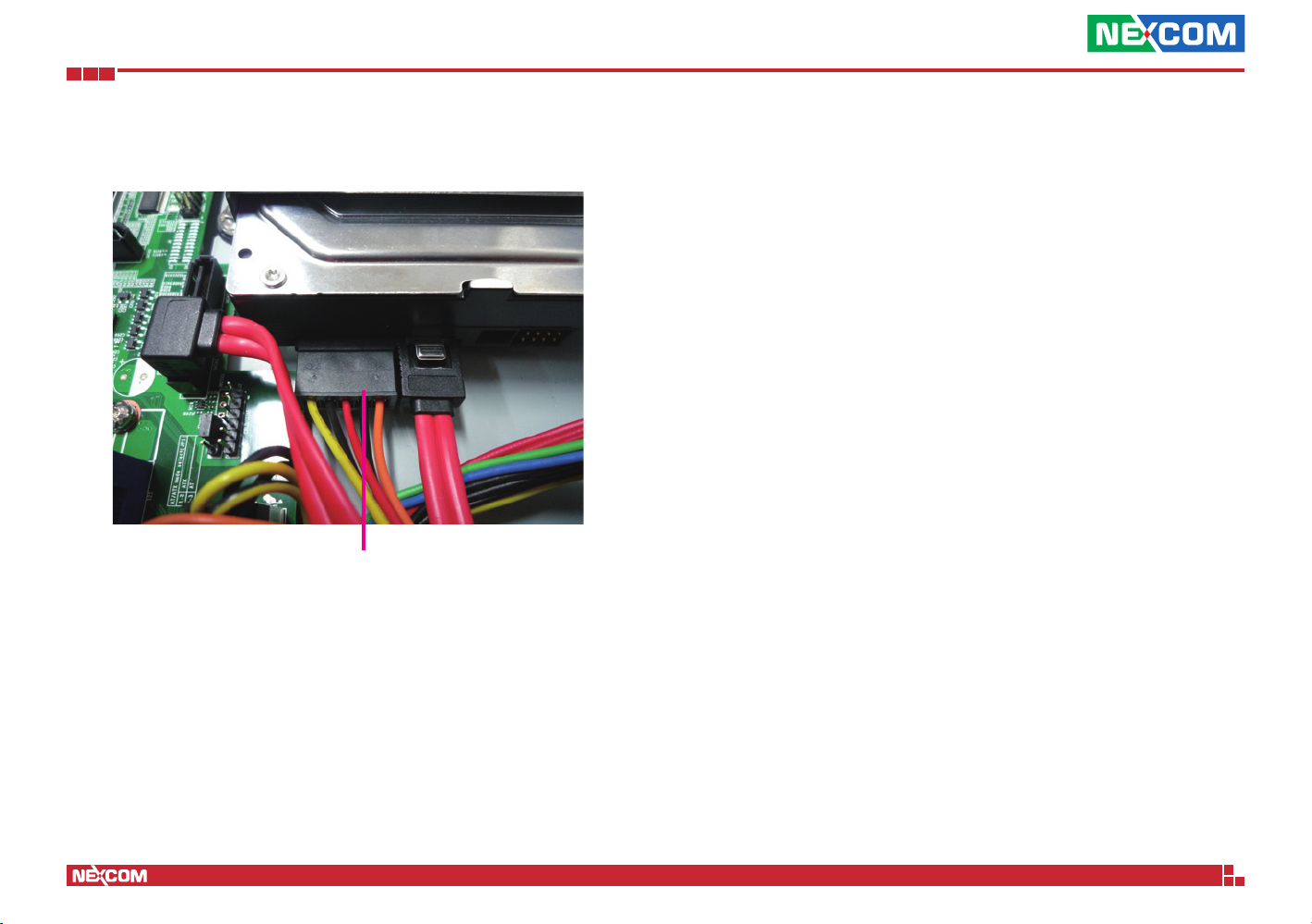

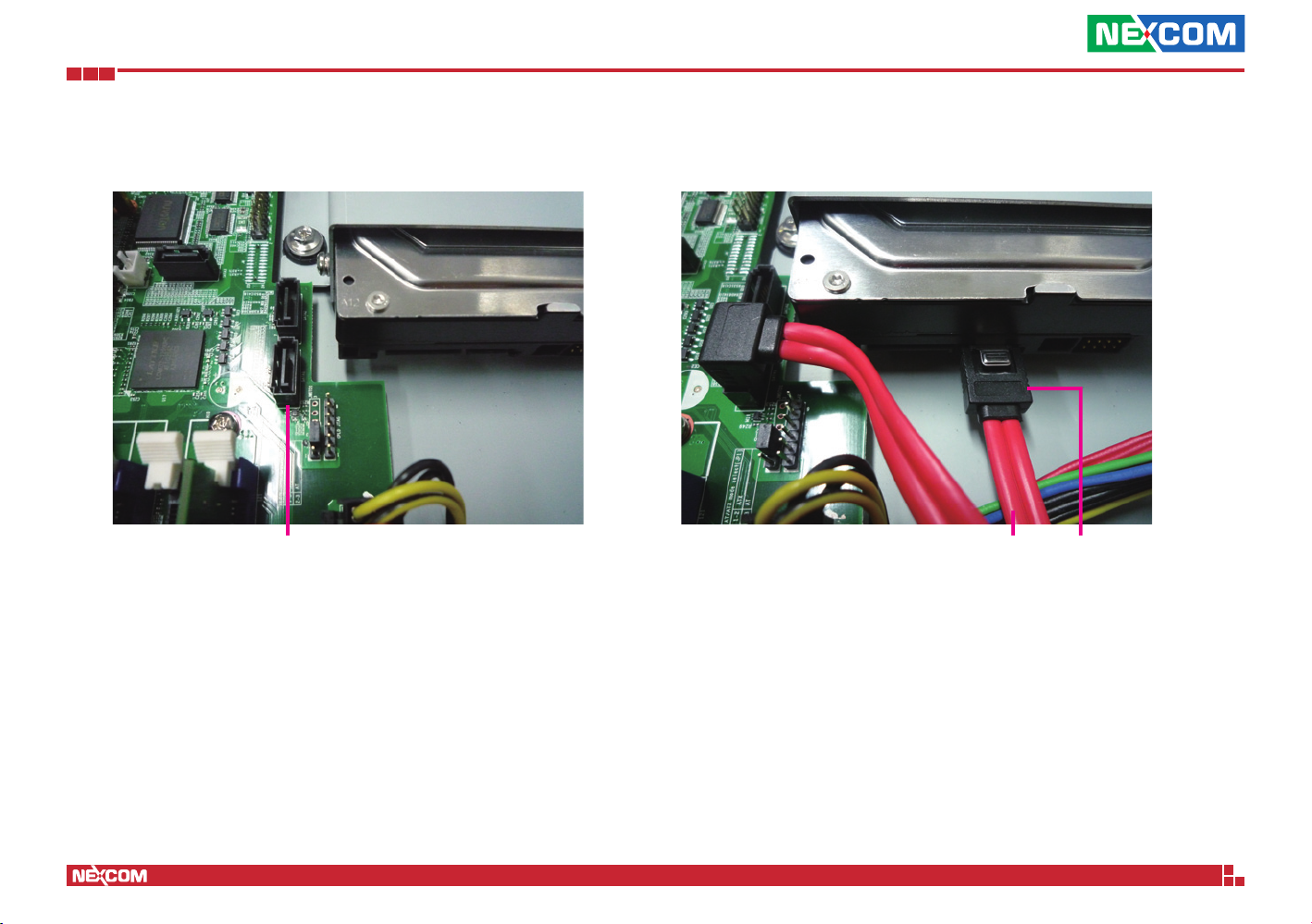

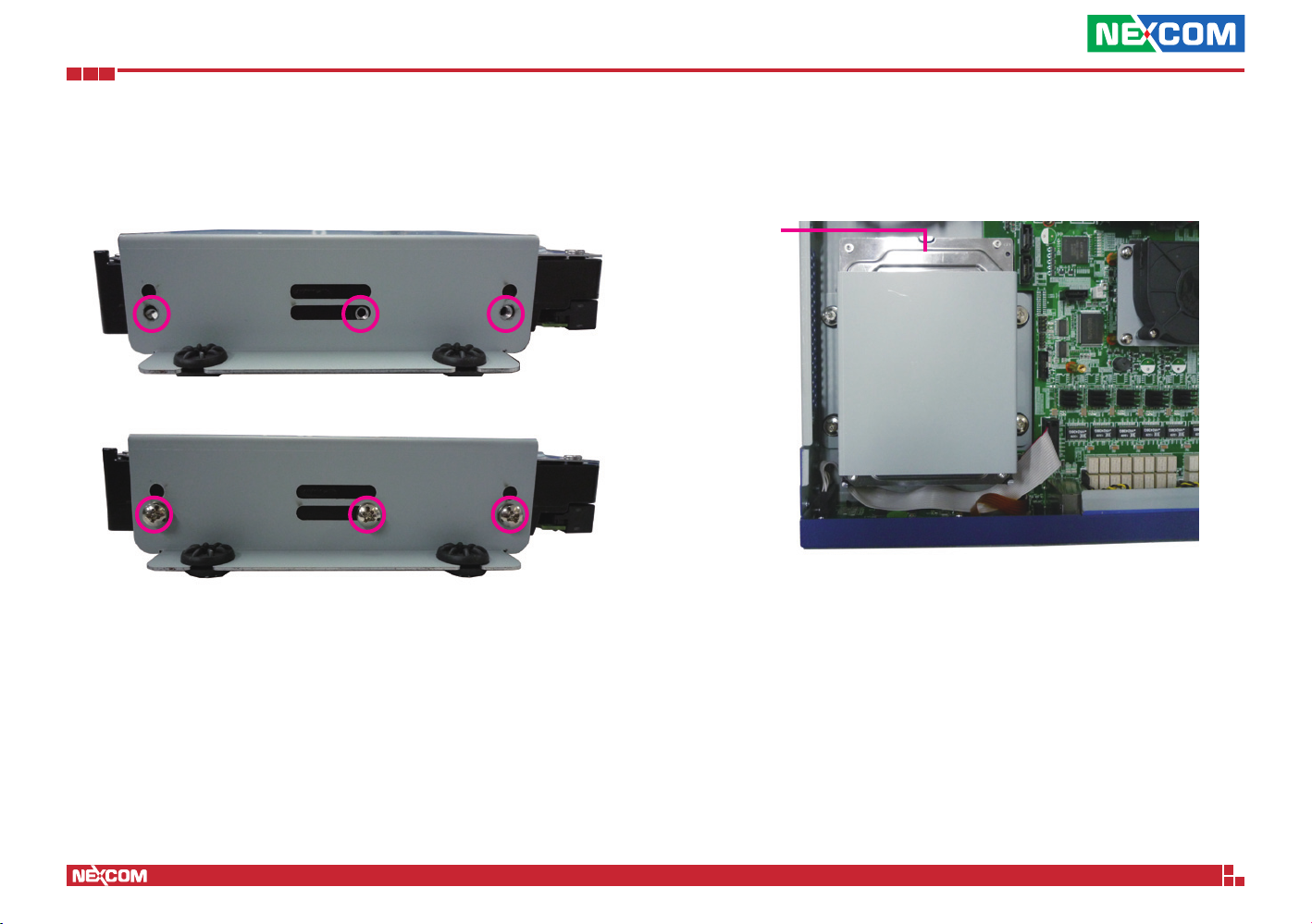

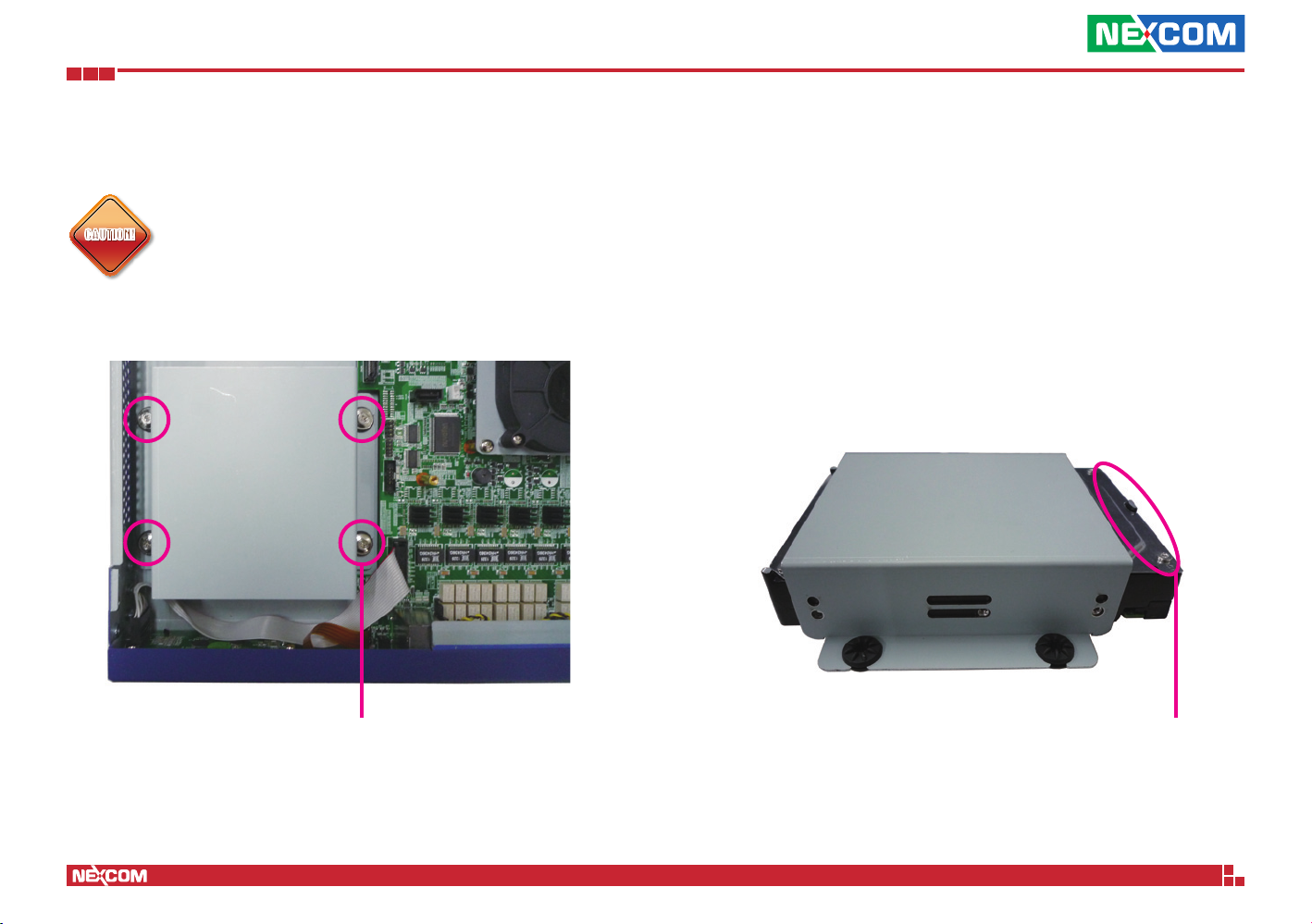

Installing a 3.5” SATA Hard Drive ..........................................................30

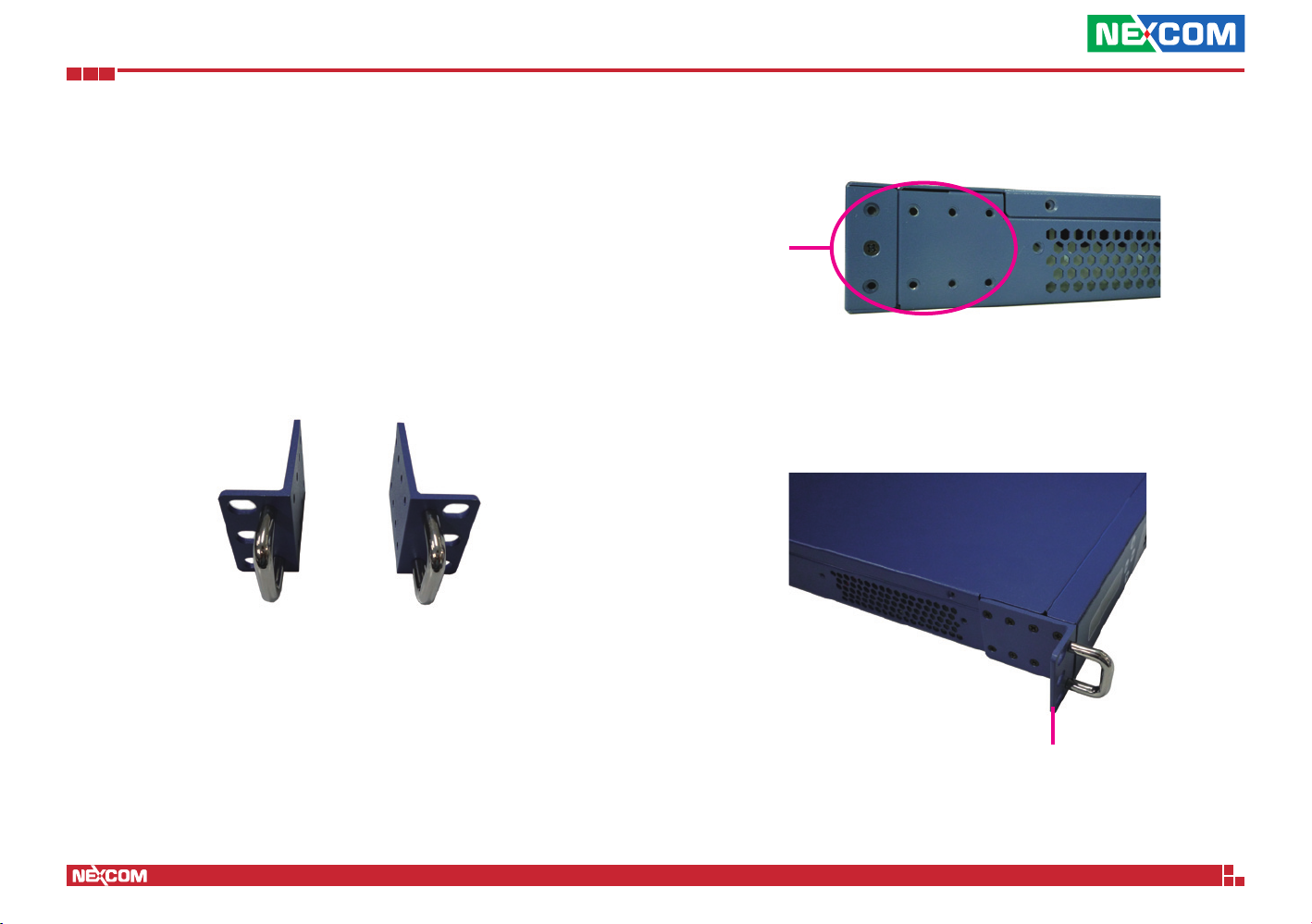

Rackmount Bracket Kit (Optional) .........................................................34

Notes on Rackmount Rails .....................................................................35

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 36

When to Configure the BIOS .................................................................36

Default Configuration ........................................................................... 37

Entering Setup ...................................................................................... 37

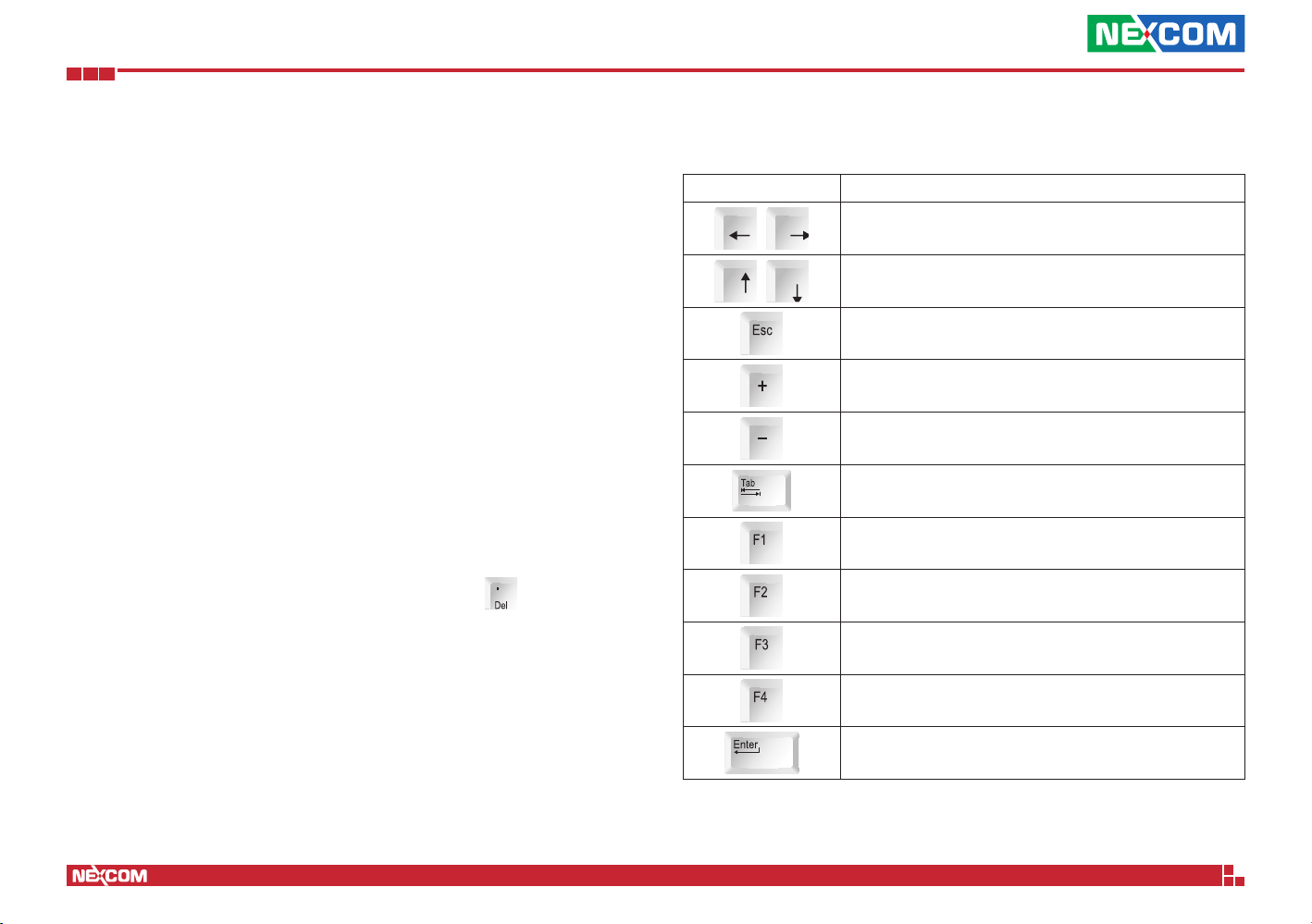

Legends ................................................................................................ 37

BIOS Setup Utility .................................................................................. 39

Main .................................................................................................39

Advanced ......................................................................................... 40

Chipset ..............................................................................................50

Boot .................................................................................................. 52

Security .............................................................................................53

Save & Exit ........................................................................................53

Appendix A: Bypass Register

Register Map ........................................................................................55

Register Bit Definitions .......................................................................... 56

iii

NSA 3150 User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NSA 3150 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

iv

NSA 3150 User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <

0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

v

NSA 3150 User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vi

NSA 3150 User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

vii

NSA 3150 User Manual

Preface

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

viii

NSA 3150 User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

ix

NSA 3150 User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

x

NSA 3150 User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan NEXCOM Intelligent Systems

Taipei Office

13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: sales@nexcom.com.tw

www.nexcom.com.tw

NEXCOM Intelligent Systems Taichung Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China

NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

xi

NSA 3150 User Manual

Preface

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Europe

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

xii

NSA 3150 User Manual

Preface

Package Contents

Before continuing, verify that the NSA 3150 package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 19S00315000X0 NSA3150 ASSY 1 2 50311F0102X00 (H)Round Head Screw Long FEI:P6#32Tx 1/4/SW7*0.8 W/Spring+Flat Washer P6#32Tx 1/4/SW7x0.8 NI 4 3 5044440031X00 Rubber Foot Kang Yang:RF20-5-4P 19.8x18x5.0mm 4 4 5060900301X00 NSA 5130 Ear Sets VER:A CHYUAN-JYH 79.5x43.5x26mm AL PANTONE 295U 1 5 5041110028X00 AL-Handle For UTM625 VER:A TENG-JYE 105x64x10.5mm Color:Sophos White 1 6 6012200052X00 PE Zipper Bag #8 170x240mm,W/China RoHS Symbol 1 7 6012200053X00 PE Zipper Bag #3 100x70mm,W/China RoHS Symbol 1 8 6023309081X00 Cable EDI:232091081804-RS COM Port. DB9 Female To RJ45 8P8C L:1800mm 1

9 6029900037X00 Dow Corning 340 Silcone Heat Sink Compound(3g) 1 10 60233AT133X00 SATA Cable ST:MD-6102042 SATA 7P 180D(Lock) TO 7P 90D(Lock) L=135mm 1 11 6014401871X00 NSA 3150 Membrane W/O LCM & Module VER:A GREATWOOD 42x427.8x1mm 1 12 602DCD0776X00 (N)NSA 3150 CD Driver VER:A JCL 1 13 50311F0100X00 (H)Round Head Screw W/Spring+Flat Washer Long FEI:P3x6L P3x6 iso/SW6x0.5 NI 1

xiii

NSA 3150 User Manual

Preface

Ordering Information

The following below provides ordering information for NSA 3150.

Barebone NSA 3150 (P/N: 10S00315000X0)

Support 4th generation Intel® Core™ processors, 2 DDR3 memory slots, 8PCIe GbE LAN ports, USB ports, VGA port, w/o LCM

xiv

NSA 3150 User Manual

Chapter 1: Product Introduction

Overview

Key Features

▪ 1U rackmount network platform

®

▪ 4th generation Intel

▪ Support two DDR3 1333/1600 memory, up to 32GB

Core™ processors

▪ Support one PCIe x8 expansion

▪ Internal one 3.5” HDD bay/two 2.5” HDD bay (Optional)

1

NSA 3150 User Manual

Chapter 1: Product Introduction

Hardware Specifications

Main Board

▪ NSB 3150 ▪ Support 4th generation Intel

®

▪ Intel

H81

®

Core™ processors

Main Memory

▪ 2x 240-pin DDR3 1333/1600MHz DIMM sockets, up to 16GB non-ECC

SDRAM

LAN Features

▪ LAN chip: Intel® I211 ▪ Support 10/100/1000 link speed ▪ LAN bypass: 4 pairs

Expansion

▪ 1x PCIe x8 slot (optional) ▪ 1x LAN module

I/O Interface

▪ Power status/HDD status/LAN status/Bypass status LEDs ▪ 2x USB 2.0 ports ▪ 1x RJ45 type console port ▪ 8x copper LAN ports ▪ 1x LAN module

I/O Interface-Rear

▪ 1x expansion slot (optional) ▪ 2x USB 2.0 ports ▪ 1x VGA port

Devices

▪ 1x internal 3.5” HDD bay/ 2x 2.5” HDD bay (optional) ▪ 1x SATA-DOM device space

Power Input

▪ 250W ATX power supply

Chassis Dimensions

▪ Chassis dimension: 430mm x 450mm x 44mm ▪ Carton dimension: TBD

Weight

▪ Without packing: 8Kg ▪ With packing: 12Kg

Certifications

▪ CE approval ▪ FCC Class A ▪ UL

2

NSA 3150 User Manual

Chapter 1: Product Introduction

Knowing Your NSA 3150

Front Panel

LCD

Power/HDD LEDs Copper LAN ports

RJ45 type

console port

USB ports

LCD

2x16 characters LCD module, PIO interface.

Power LED

Indicates the power status of the system.

HDD LED

Indicates the status of the hard drive.

RJ45 Type Console Port

Used to connect RJ45 type console port.

USB Ports

Used to connect USB 2.0/1.1 devices.

Copper LAN Ports

Used to connect LAN network devices.

3

NSA 3150 User Manual

Chapter 1: Product Introduction

Rear Panel

(optional)

VGA

AC Power SocketExpansion slot

USB Ports

Expansion Slot

Used to install a PCI Express x8 card.

VGA

Used to connect an analog VGA monitor.

USB Ports

Used to connect USB 2.0/1.1 devices.

AC Power Socket

Plug an AC power cord here before turning on the system.

4

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the NSA 3150 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

5

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

6

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors

The figure below shows the location of the jumpers and connectors.

FAN1

JUSB1

FAN3

FAN2

JVGA1

PCIE1

JPRSNT1

CON1

GFM1

CON2

JP1

J3

SATA 1SATA2

J2

JWDTO1

JP2

JINTRUDER

J5

SATA 3

J6

JKBMS1

JP3

FAN4

J9

CON3

J11 J12

CON5

JP5

J10

JRST1

CN2

JP4

JP6

LED9

SW1

COM1

CN1

J8

JPWRBTN1

7

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

Jumpers

RTC Clear

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP2

1 3 1 3

Pin Function

1-2 Normal 2-3 Clear CMOS

Pin Definition

1 VCCRTC 2 RTC_RST# 3 GND

ATX/AT Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP1

Pin Function

1-2 ATX Mode 2-3 AT Mode

Pin Definition

1 NC 2 AT_ATX_SELECT 3 GND

8

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

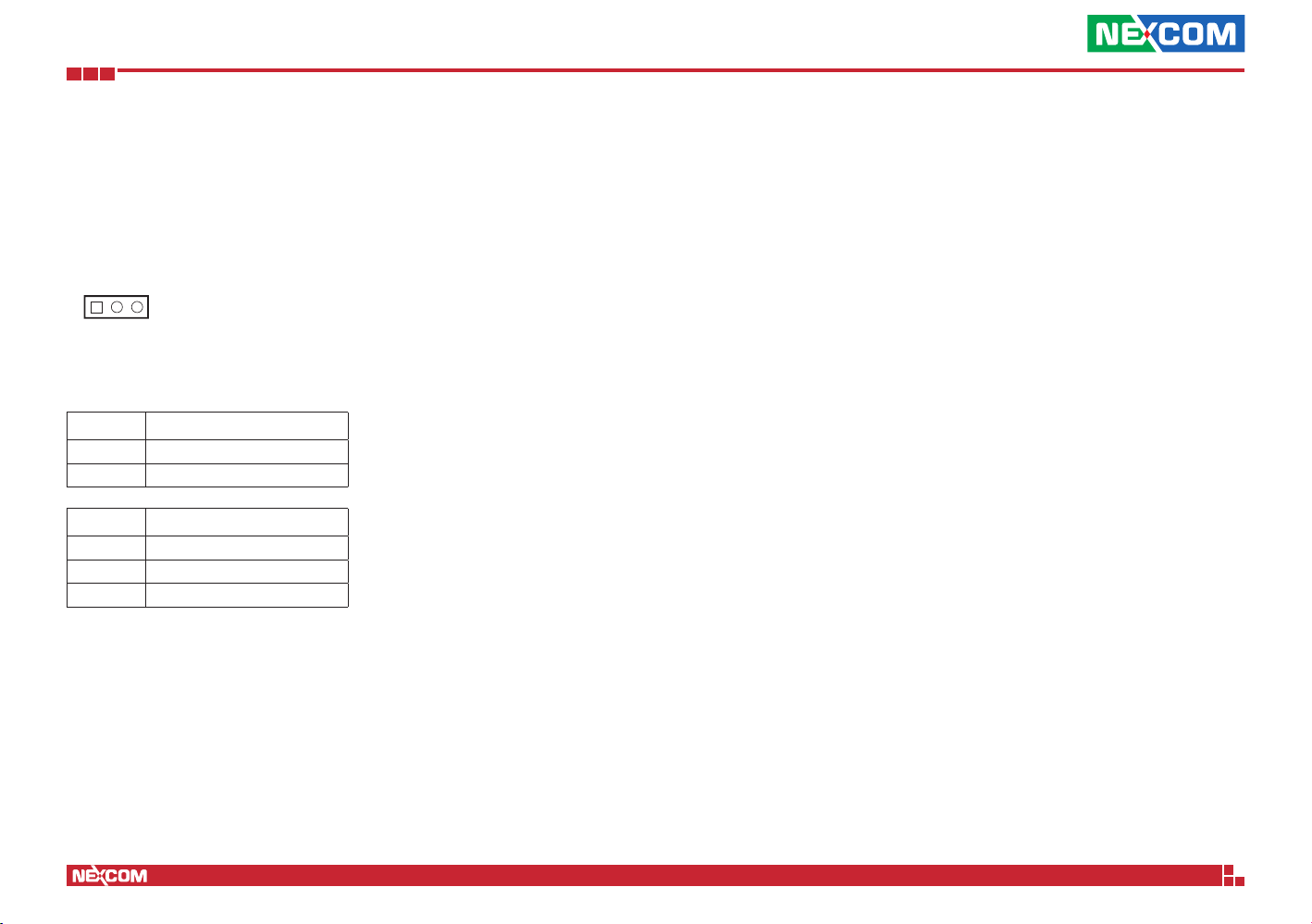

Console Pin Header

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP5

1 3

Pin Function

1-2 RTS to CTS 2-3 Normal

Pin Description

1 SP_RTS1_R 2 SP_CTS1_R 3 SP_CTS1_CON

9

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces

RS232 Console Port and Dual USB 2.0 Ports

Connector type: RJ45 port with LEDs Dual USB 2.0 ports, Type A Connector location: CN2

16

5

1

9

8

4

LAN USB

Pin Definition Pin Definition

9 SP_RTS1_R 10 SP_DTR1_R 11 SP_TXD1_R 12 GND 13 SP_DCD1_R 14 SP_RXD1_R 15 SP_DSR1_R 16 SP_CTS1_CON

10

Pin Definition Pin Definition

1 5VDUAL 5 5VDUAL 2 USB2- 6 USB33 USB2+ 7 USB3+ 4 GND 8 GND

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

ACT LINK

LAN Ports

Connector type: RJ45 with LEDs Connector location: CON5 and CON3

Act Status

Flashing Yellow Data activity

Off No activity

Link Status

18

CON5 CON5

Pin Definition Pin Definition

A1 LAN1_TXP0_CON A2 LAN1_TXN0_CON A3 LAN1_TXP1_CON A4 LAN1_TXP2_CON A5 LAN1_TXN2_CON A6 LAN1_TXN1_CON A7 LAN1_TXP3_CON A8 LAN1_TXN3_CON A9 LAN1_LED_LINK1G# A10 LAN1_LED_LINK100#

A11 LAN1_LED_ACT# A12 LAN1_ACTPW

B1 LAN2_TXP0_CON B2 LAN2_TXN0_CON B3 LAN2_TXP1_CON B4 LAN2_TXP2_CON B5 LAN2_TXN2_CON B6 LAN2_TXN1_CON B7 LAN2_TXP3_CON B8 LAN2_TXN3_CON B9 LAN2_LED_LINK1G# B10 LAN2_LED_LINK100#

B11 LAN2_LED_ACT# B12 LAN2_ACTPW

Steady Green 1G network link

Steady Yellow 100Mbps network link

Off No link

Pin Definition Pin Definition

C1 LAN3_TXP0_CON C2 LAN3_TXN0_CON C3 LAN3_TXP1_CON C4 LAN3_TXP2_CON C5 LAN3_TXN2_CON C6 LAN3_TXN1_CON C7 LAN3_TXP3_CON C8 LAN3_TXN3_CON C9 LAN3_LED_LINK1G# C10 LAN3_LED_LINK100#

C11 LAN3_LED_ACT# C12 LAN3_ACTPW

D1 LAN4_TXP0_CON D2 LAN4_TXN0_CON D3 LAN4_TXP1_CON D4 LAN4_TXP2_CON D5 LAN4_TXN2_CON D6 LAN4_TXN1_CON D7 LAN4_TXP3_CON D8 LAN4_TXN3_CON D9 LAN4_LED_LINK1G# D10 LAN4_LED_LINK100#

D11 LAN4_LED_ACT# D12 LAN4_ACTPW

11

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

CON3 CON3

Pin Definition Pin Definition

A1 LAN5_TXP0_CON A2 LAN5_TXN0_CON A3 LAN5_TXP1_CON A4 LAN5_TXP2_CON A5 LAN5_TXN2_CON A6 LAN5_TXN1_CON A7 LAN5_TXP3_CON A8 LAN5_TXN3_CON A9 LAN5_LED_LINK1G# A10 LAN5_LED_LINK100#

A11 LAN5_LED_ACT# A12 LAN5_ACTPW

B1 LAN6_TXP0_CON B2 LAN6_TXN0_CON B3 LAN6_TXP1_CON B4 LAN6_TXP2_CON B5 LAN6_TXN2_CON B6 LAN6_TXN1_CON B7 LAN6_TXP3_CON B8 LAN6_TXN3_CON B9 LAN6_LED_LINK1G# B10 LAN6_LED_LINK100#

B11 LAN6_LED_ACT# B12 LAN6_ACTPW

Pin Definition Pin Definition

C1 LAN7_TXP0_CON C2 LAN7_TXN0_CON C3 LAN7_TXP1_CON C4 LAN7_TXP2_CON C5 LAN7_TXN2_CON C6 LAN7_TXN1_CON C7 LAN7_TXP3_CON C8 LAN7_TXN3_CON C9 LAN7_LED_LINK1G# C10 LAN7_LED_LINK100#

C11 LAN7_LED_ACT# C12 LAN7_ACTPW

D1 LAN8_TXP0_CON D2 LAN8_TXN0_CON D3 LAN8_TXP1_CON D4 LAN8_TXP2_CON D5 LAN8_TXN2_CON D6 LAN8_TXN1_CON D7 LAN8_TXP3_CON D8 LAN8_TXN3_CON D9 LAN8_LED_LINK1G# D10 LAN8_LED_LINK100#

D11 LAN8_LED_ACT# D12 LAN8_ACTPW

12

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

Reset Button

Connector location: SW1

1 2

Pin Definition

1 GND

2 SW_BTN_IN

13

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

19

21

Connector Pin Definitions

Internal Connectors

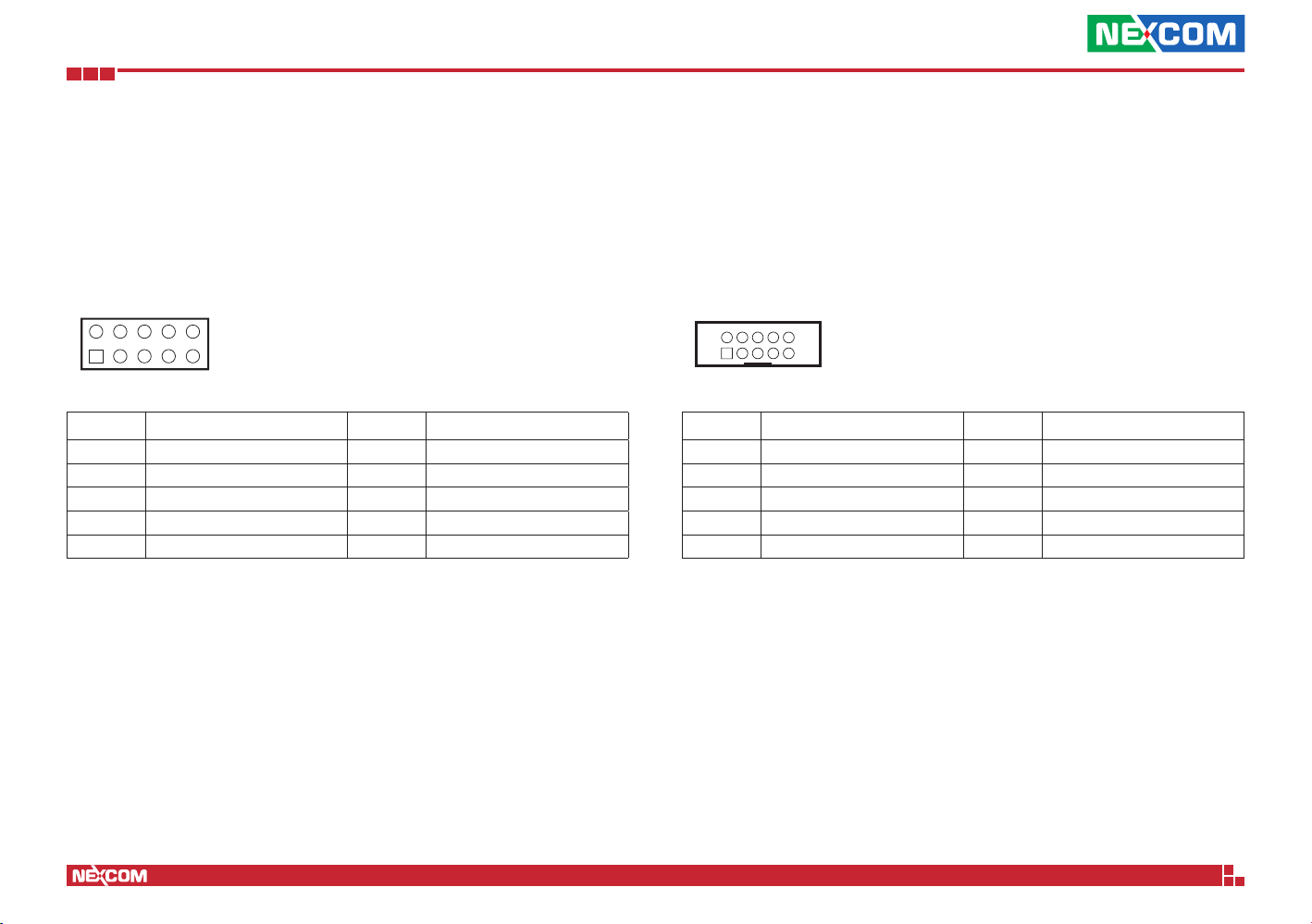

Digital IO (4 Input/4 Output)

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: J8

0

Pin Definition Pin Definition

1 VCC5 2 GND

3 SIO_GP32 4 SIO_GP06

5 SIO_GP03 6 SIO_GP07

7 SIO_GP04 8 SIO_GP76

9 SIO_GP05 10 SIO_GP77

COM 2 Box Header Connector

Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: COM1

2 1

Pin Definition Pin Definition

1 SP_DCD2 2 SP_RXD2 3 SP_TXD2 4 SP_DTR2 5 GND 6 SP_DSR2 7 SP_RTS2 8 SP_CTS2 9 SP_RI2 10 GND

10

9

14

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

USB2 JST Header Connector

Connector type: 1x6 6-pin header, 2.0mm pitch Connector location: JUSB1

16

Pin Definition Pin Definition

1 5VDUAL 2 USB0-

3 USB0+ 4 USB1-

5 USB1+ 6 GND

HW Reset Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JRST1

12

Pin Definition

1 PCH_SYS_RESET_N_R 2 GND

15

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

Power Button Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: JPWRBTN1

12 12

Pin Definition

1 GND

2 FP_PWRBTN_N

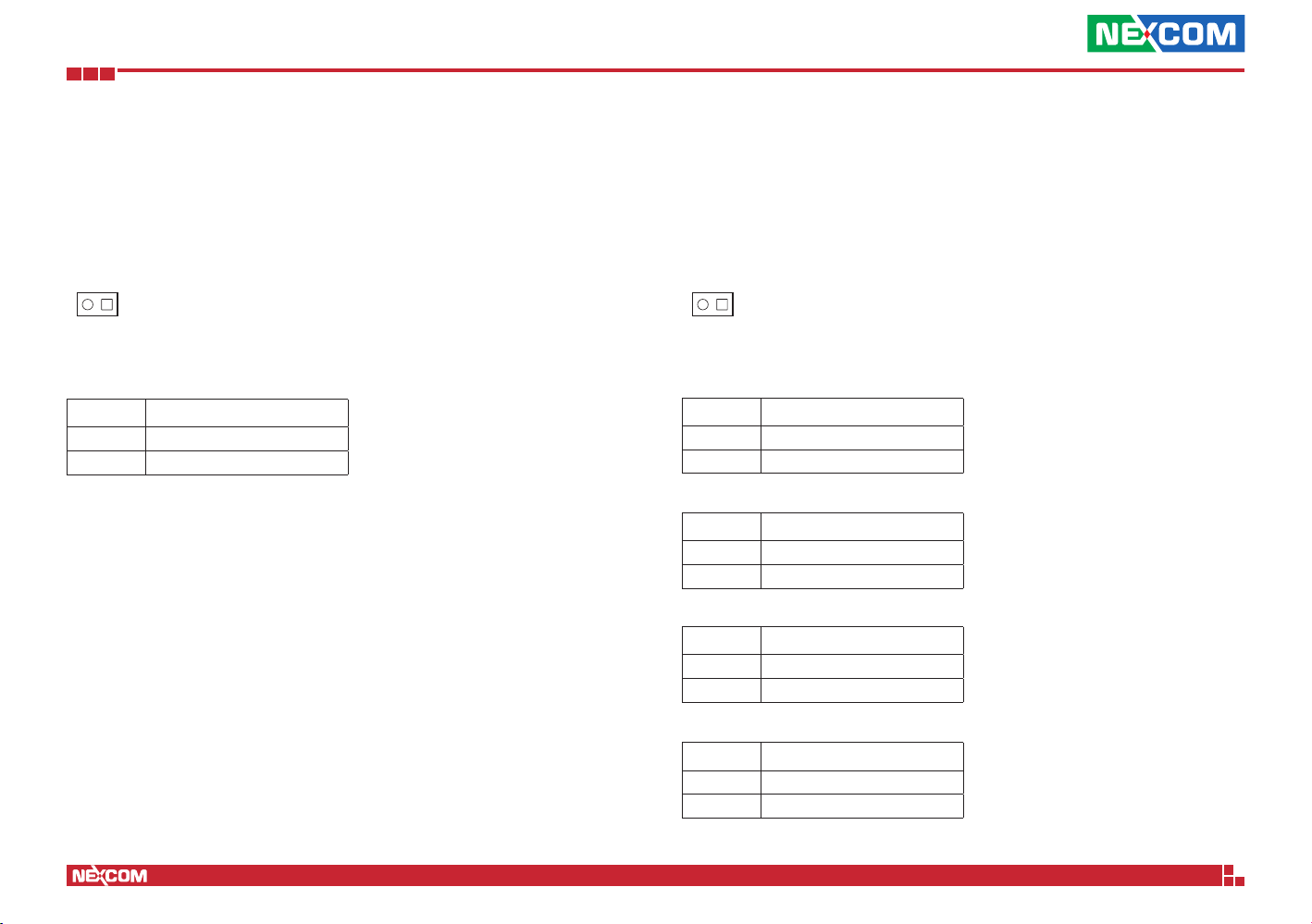

Bypass LED Pin Header

Connector type: 1x2 2-pin header, 2.54mm pitch Connector location: J9, J10, J11 and J12

J9

Pin Definition

1 VCC3 2 BYPASS_LED_S4

J11

Pin Definition

1 VCC3 2 BYPASS_LED_S3

J12

Pin Definition

1 VCC3 2 BYPASS_LED_S2

16

J12

Pin Definition

1 VCC3 2 BYPASS_LED_S1

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

16

GAL Programming Connector

Connector type: 1x6 6-pin header, 2.54mm pitch Connector location: J2

Pin Definition Pin Definition

1 3VSB 2 GND

3 GAL_TCK 4 GAL_TDO

5 GAL_TDI 6 GAL_TMS

Power Connector

Connector type: 1x4 4-pin header, 5.08mm pitch Connector location: J3

14

Pin Definition Pin Definition

1 VCC12 2 GND 3 GND 4 VCC5

17

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

13

System Fan Connectors (4-Pin)

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: FAN1 and FAN3

1 4

Pin Definition

1 GND

2 VCC12

3 Sense

4 FANPWM

System Fan Connectors (3-Pin)

Connector type: 1x3 3-pin Wafer, 2.54mm pitch Connector location: FAN2 and FAN4

Pin Definition

1 GND 2 VCC12 3 Sense

18

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

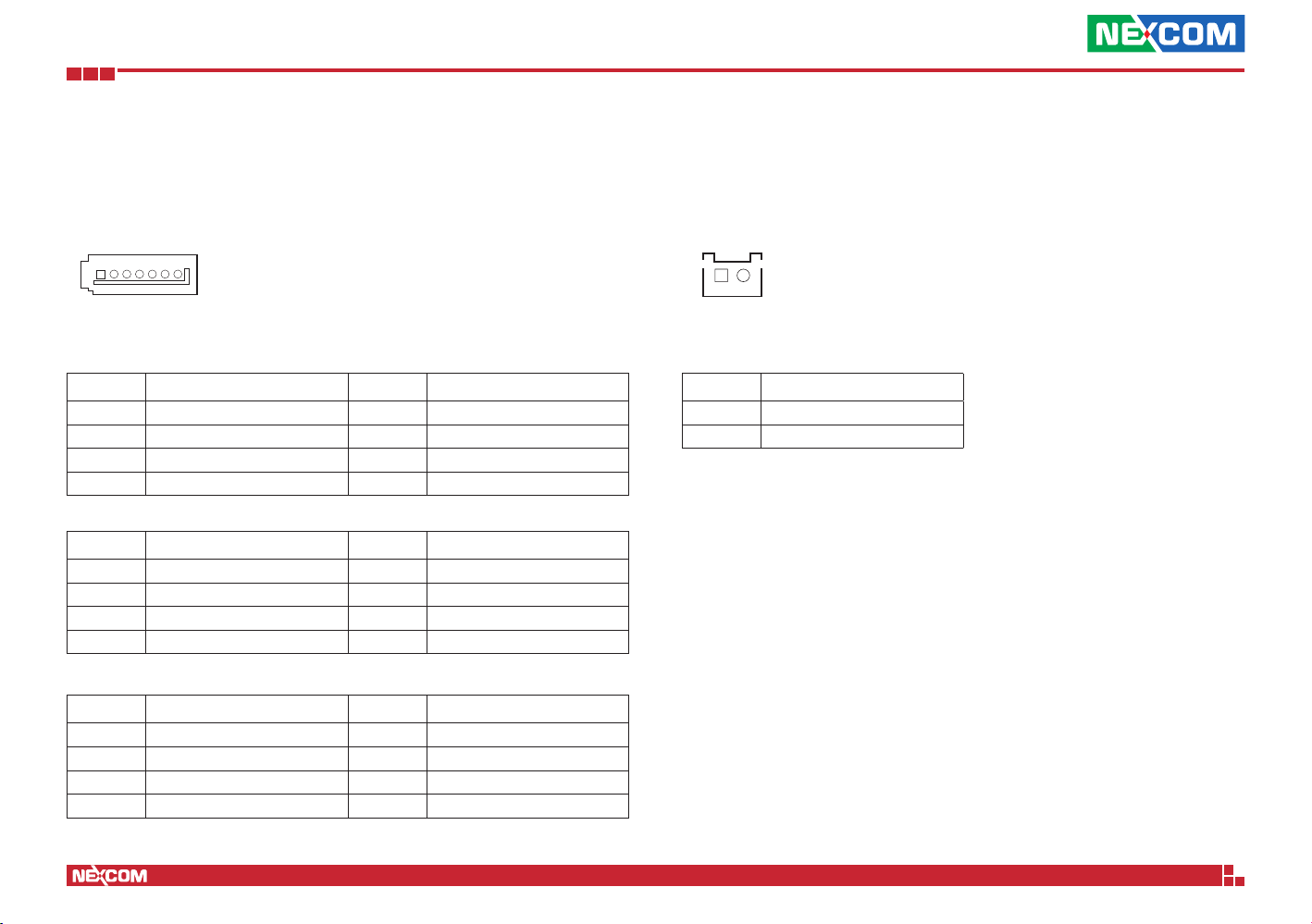

SATA Connectors

Connector type: Standard Serial ATA, 1.27mm pitch Connector location: SATA1, SATA2 and SATA3

1 7

SATA1

Pin Definition Pin Definition

1 GND 2 SATA_TX2P

3 SATA_TX2N 4 GND

5 SATA_RX2N 6 SATA_RX2P

7 GND

SATA2

Pin Definition Pin Definition

1 GND 2 SATA_TX0P

3 SATA_TX0N 4 GND

5 SATA_RX0N 6 SATA_RX0P

7 GND

SATA DOM Power Port

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J5

1

Pin Definition

2

1 VCC5 2 GND

SATA3

Pin Definition Pin Definition

1 GND 2 SATA_TX1P

3 SATA_TX1N 4 GND

5 SATA_RX1N 6 SATA_RX1P

7 GND

19

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

17

28

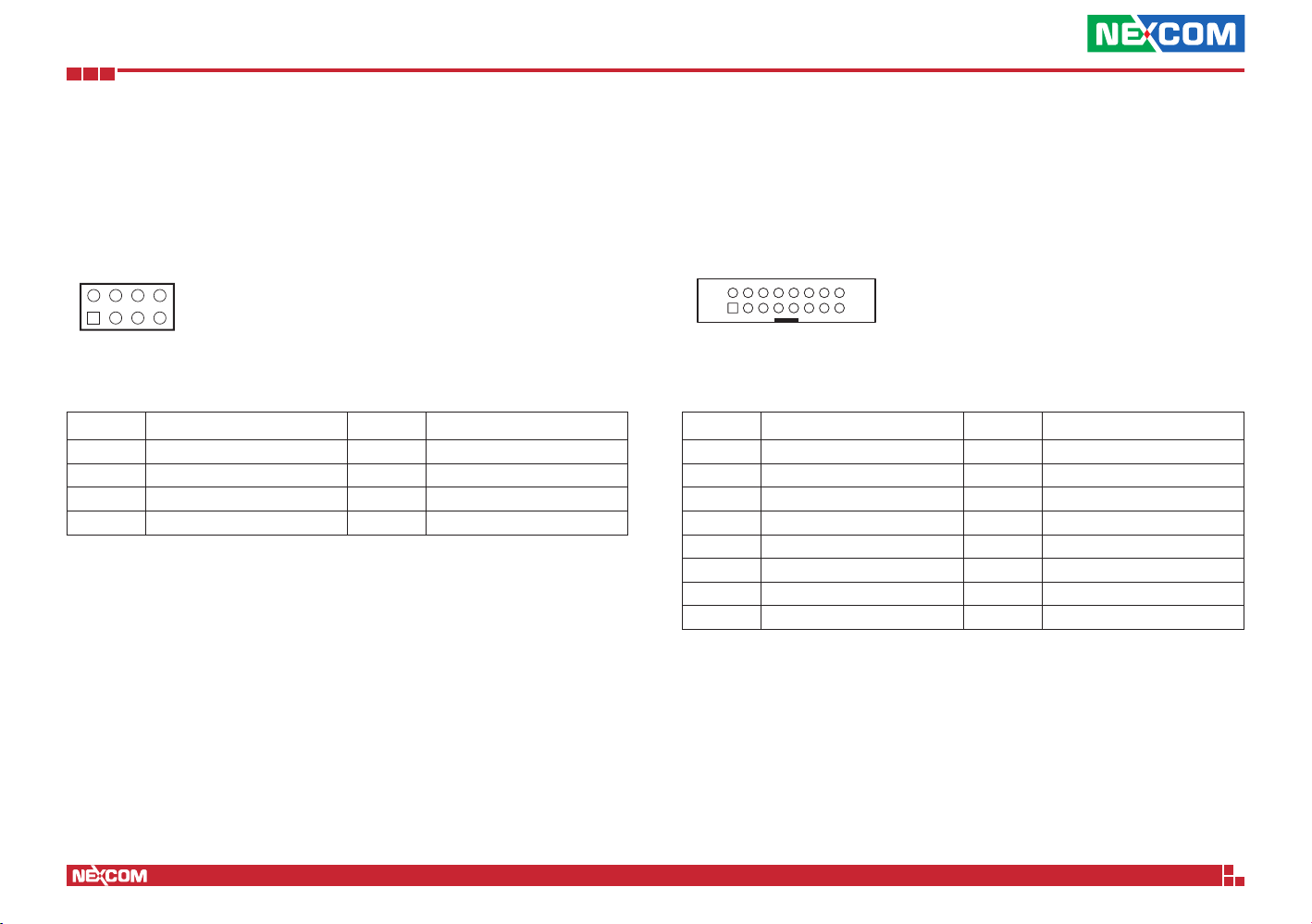

Keyboard/Mouse Connector

Connector type: 2x4 8-pin header, 2.54mm pitch Connector location: JKBMS1

Pin Definition Pin Definition

1 VCC5 2 VCC5

3 KDAT 4 MDAT

5 KCLK 6 MCLK

7 GND 8 GND

VGA Connector

Connector type: 2x8 16-pin header, 2.0mm pitch Connector location: JVGA1

2 1

Pin Definition Pin Definition

1 RED_VGA 2 GREEN_VGA 3 BLUE_VGA 4 NC 5 GND 6 GND 7 GND 8 GND

9 VGA_+5V 10 GND 11 NC 12 DDC_DATA_VGA 13 HSYNC_VGA 14 VSYNC_VGA 15 DDC_CLK_VGA 16 NC

16 15

20

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

14

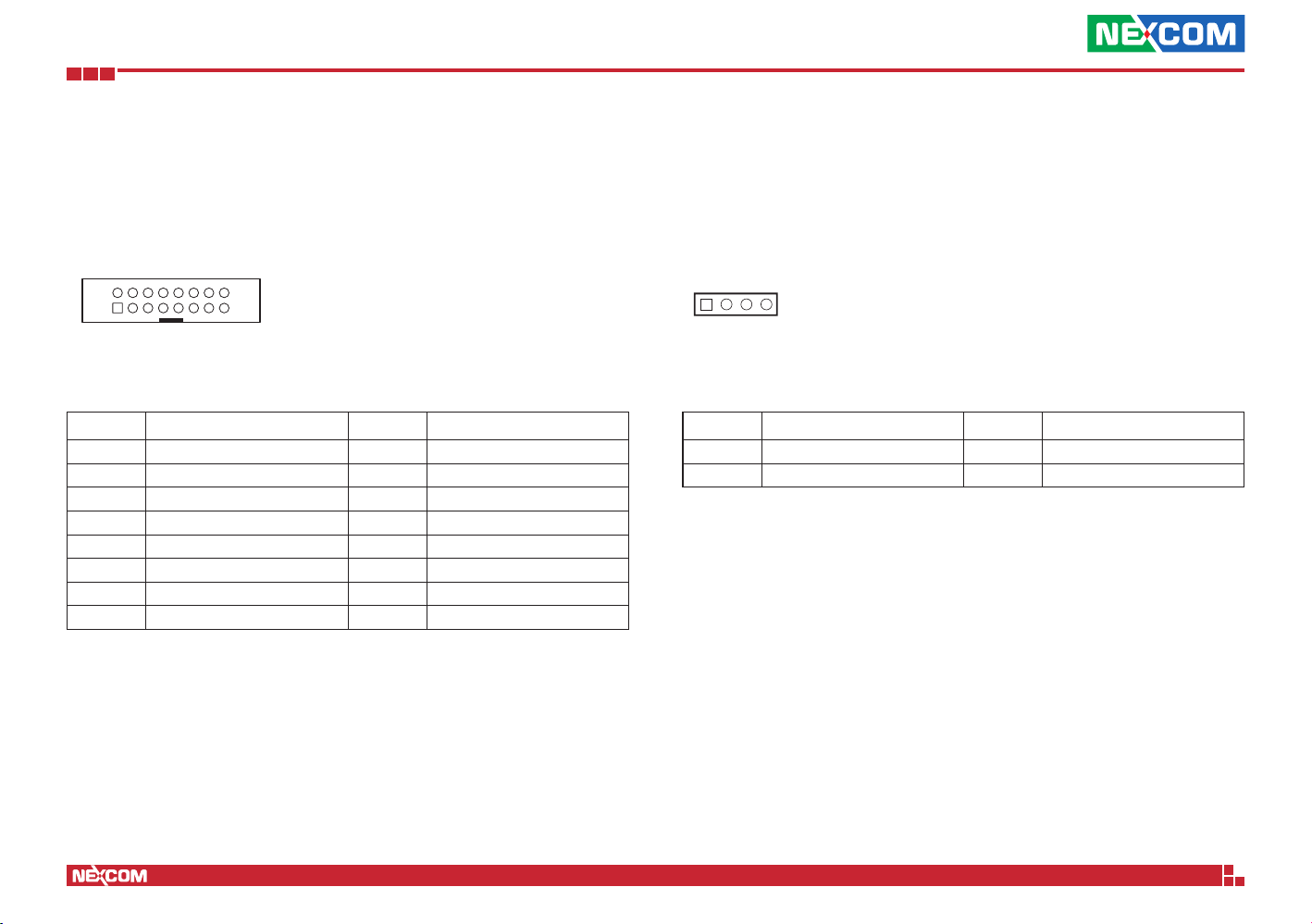

Parallel Interface for LCM Module

Connector type: 2x8 16-pin header, 2.54mm pitch Connector location: CN1

2 1

Pin Definition Pin Definition

1 VCC5 2 GND 3 LPT_SLIN#R 4 LPT_RES 5 LPT_AFD#R 6 LPT_INIT#R 7 LPT_PDR1 8 LPT_PDR0

9 LPT_PDR3 10 LPT_PDR2 11 LPT_PDR5 12 LPT_PDR4 13 LPT_PDR7 14 LPT_PDR6 15 LPT_PW 16 VCC5

16 15

Keypad Pin Header

Connector type: 1x4 4-pin header, 2.54mm pitch Connector location: JP6

Pin Definition Pin Definition

1 KEY_PIN1 2 KEY_PIN2 3 KEY_PIN3 4 KEY_PIN4

21

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

11

12

34

Power Connector

Connector type: 2x12 24-pin header, 2.54mm pitch Connector location: CON1

2

13 24

Pin Definition Pin Definition

1 VCC3 2 VCC3

3 GND 4 VCC5

5 GND 6 VCC5

7 GND 8 ATXPWROK

9 5VSB 10 VCC12 11 VCC12 12 VCC3 13 VCC3 14 NVCC12 15 GND 16 SIO_PSON_N 17 GND 18 GND 19 GND 20 GND 21 VCC5 22 VCC5 23 VCC5 24 GND

Power Connector

Connector type: 2x2 4-pin header, 3.5mm pitch Connector location: CON2

Pin Definition Pin Definition

1 GND 2 GND 3 VCC12_CPU 4 VCC12_CPU

22

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

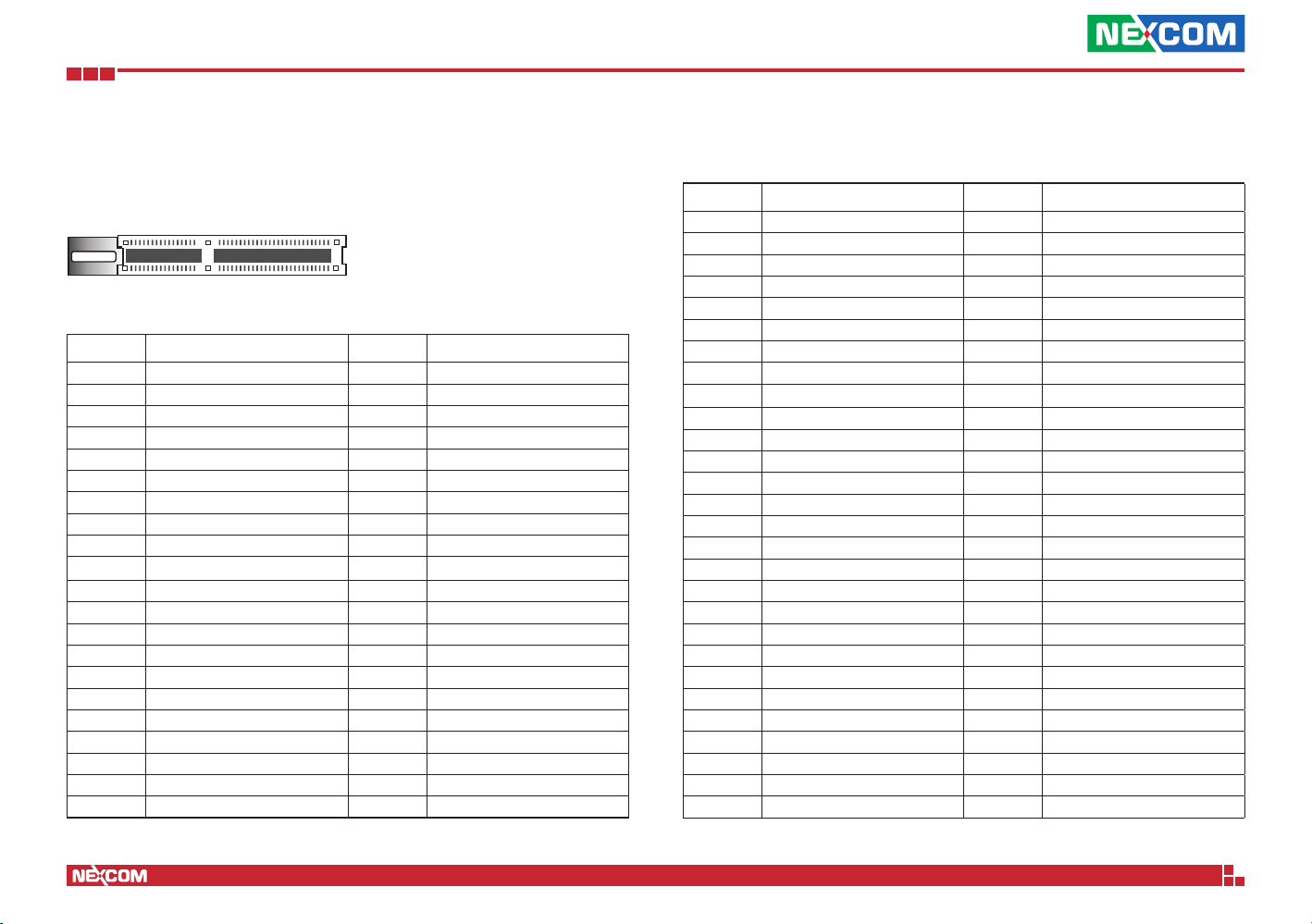

PCIe x8 Slot

Connector type: PCIe x8 Slot Connector location: PCIE1

A1

B1

Pin Definition Pin Definition

A1 PRSNT1 B1 VCC12 A2 VCC12 B2 VCC12 A3 VCC12 B3 VCC12 A4 GND B4 GND A5 NC B5 SLOT_SMC A6 NC B6 SLOT_SMD A7 NC B7 GND A8 NC B8 VCC3 A9 VCC3 B9 NC

A10 VCC3 B10 3VSB

A11 RST_X8_SLOT_N B11 PCIE_WAKE_L A12 GND B12 NC A13 CK_SLOT2_DP B13 GND A14 CK_SLOT2_DN B14 PEG_STXP0 A15 GND B15 PEG_STXN0 A16 PEG_SRXP0 B16 GND A17 PEG_SRXN0 B17 PCIe_PRSNT A18 GND B18 GND A19 NC B19 PEG_STXP1 A20 GND B20 PEG_STXN1 A21 PEG_SRXP1 B21 GND

A11

B11

A12

B12

A49

B49

Pin Definition Pin Definition

A22 PEG_SRXN1 B22 GND A23 GND B23 PEG_STXP2 A24 GND B24 PEG_STXN2 A25 PEG_SRXP2 B25 GND A26 PEG_SRXN2 B26 GND A27 GND B27 PEG_STXP3 A28 GND B28 PEG_STXN3 A29 PEG_SRXP3 B29 GND

A30 PEG_SRXN3 B30 NC

A31 GND B31 PCIe_PRSNT A32 NC B32 GND A33 NC B33 PEG_STXP4 A34 GND B34 PEG_STXN4 A35 PEG_SRXP4 B35 GND A36 PEG_SRXN4 B36 GND A37 GND B37 PEG_STXP5 A38 GND B38 PEG_STXN5 A39 PEG_SRXP5 B39 GND A40 PEG_SRXN5 B40 GND A41 GND B41 PEG_STXP6 A42 GND B42 PEG_STXN6 A43 PEG_SRXP6 B43 GND A44 PEG_SRXN6 B44 GND A45 GND B45 PEG_STXP7 A46 GND B46 PEG_STXN7 A47 PEG_SRXP7 B47 GND A48 PEG_SRXN7 B48 PCIe_PRSNT A49 GND B49 GND

23

NSA 3150 User Manual

Chapter 2: Jumpers and Connectors

PCIe Golden Finger (For LAN Module)

Connector location: GFM1

B1B11B12B49

Pin Definition Pin Definition

A1 RST_X8_GF_N B1 PCIE3_SEL1 A2 LPC_AD0 B2 PCIE3_SEL2 A3 LPC_AD1 B3 PCIE3_SEL3 A4 LPC_AD2 B4 VCC3_3 A5 LPC_AD3 B5 SMB_CLK_MAIN A6 LPC_FRAME_N B6 SMB_DATA_MAIN A7 VCC3_3 B7 VCC3_3 A8 RST_X8_GF_N B8 VCC3_3 A9 VCC3_3 B9 GF_SUSCLK

A10 VCC3_3 B10 VCC3_3

A11 ALL_PWRGD B11 SMB_ALERT_N A12 SYS_FAN B12 USB_OC45# A13 VCC3_3 B13 WAKE_N A14 VCC3_3 B14 3VSB A15 CK_SLOT1_DP B15 3VSB A16 CK_SLOT1_DN B16 3VSB A17 VCC3_3 B17 USB_4P A18 CLK_GF_33M B18 USB_4N A19 VCC3_3 B19 VCC3_3 A20 AUX_TEMP B20 VCC3_3 A21 CPU- B21 VCC3_3

Pin Definition Pin Definition

A22 ATX_PWROK_A1 B22 ATX_PWROK_A1 A23 ATX_PWROK_A1 B23 ATX_PWROK_A1 A24 GND B24 GND A25 PEG_TXP0 B25 PEG_RXP0 A26 PEG_TXN0 B26 PEG_RXN0 A27 GND B27 GND A28 PEG_TXP1 B28 PEG_RXP1 A29 PEG_TXN1 B29 PEG_RXN1

A30 GND B30 GND

A31 PEG_TXP2 B31 PEG_RXP2 A32 PEG_TXN2 B32 PEG_RXN2 A33 GND B33 GND A34 PEG_TXP3 B34 PEG_RXP3 A35 PEG_TXN3 B35 PEG_RXN3 A36 GND B36 GND A37 PEG_TXP4 B37 PEG_RXP4 A38 PEG_TXN4 B38 PEG_RXN4 A39 GND B39 GND A40 PEG_TXP5 B40 PEG_RXP5 A41 PEG_TXN5 B41 PEG_RXN5 A42 GND B42 GND A43 PEG_TXP6 B43 PEG_RXP6 A44 PEG_TXN6 B44 PEG_RXN6 A45 GND B45 GND A46 PEG_TXP7 B46 PEG_RXP7 A47 PEG_TXN7 B47 PEG_RXN7 A48 GND B48 GND A49 GND B49 GND

24

NSA 3150 User Manual

Chapter 3: System Setup

CAUTION!

Chapter 3: System Setup

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

is off and disconnected from the power sources to prevent electric shock or system damage.

Screws on the side

1. Remove the screws on the chassis cover then put them in a safe place for later use.

2. Gently slide the cover outwards, then lift up the cover to remove it.

25

Lift here

NSA 3150 User Manual

Chapter 3: System Setup

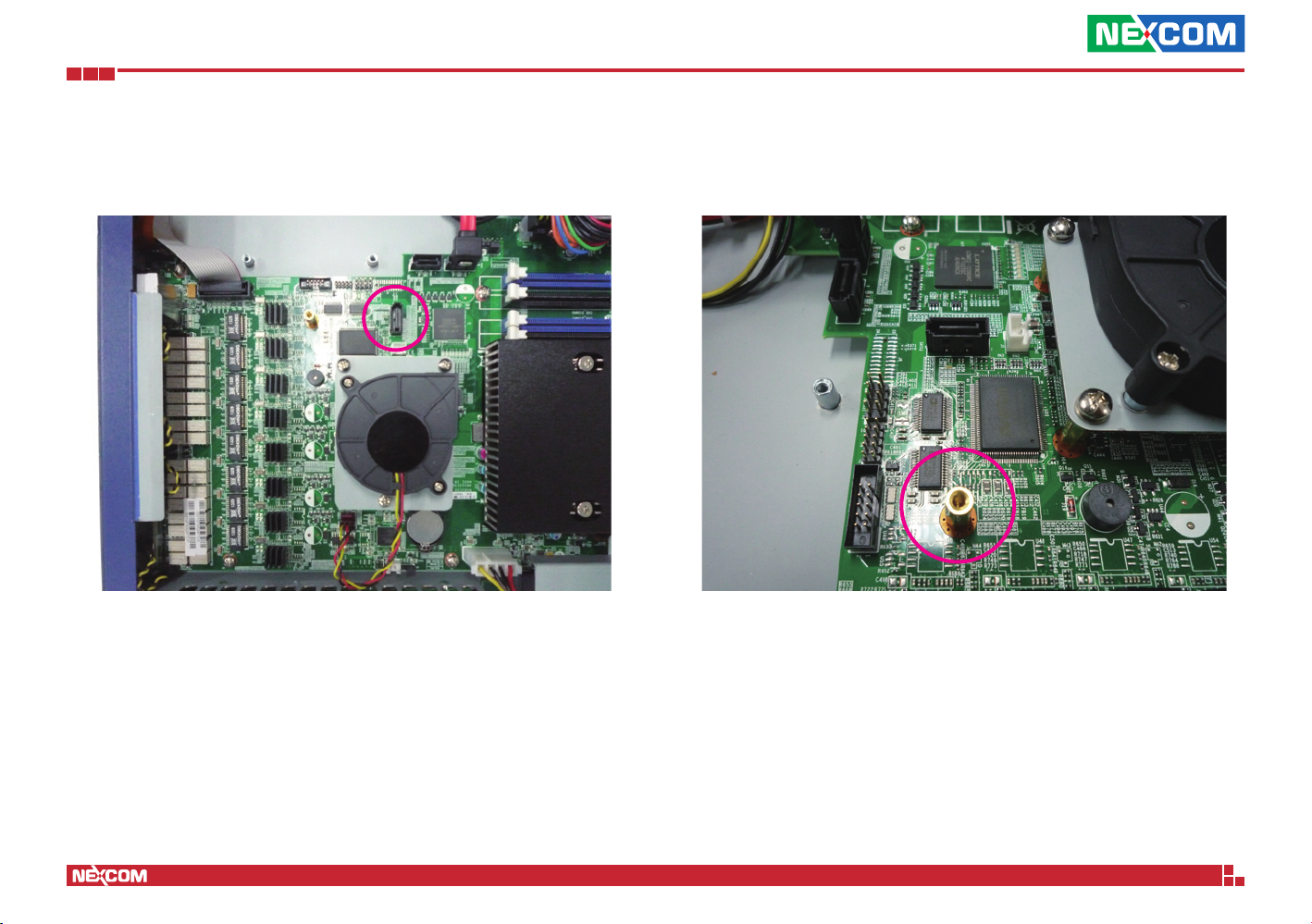

Installing a SATA DOM

1. Locate the SATA DOM connector on the board.

2. Fasten a copper post on the mounting hole.

26

NSA 3150 User Manual

Chapter 3: System Setup

3. Install the SATA DOM to the connector with the mounting hole aligned to the copper post.

4. Fasten a screw on top of the copper post.

27

NSA 3150 User Manual

Chapter 3: System Setup

5. Connect the power cable to the power connector on the board.

28

NSA 3150 User Manual

Chapter 3: System Setup

Installing DIMM Memory Modules

1. Locate the DIMM sockets on the board.

2. Release the locks on the DIMM sockets.

3. Insert the module into the socket at an 90 degree angle. Apply firm even pressure to each end of the module until it slips into the socket.

4. While pushing the DIMM into the position, the lock will close automatically.

29

NSA 3150 User Manual

Chapter 3: System Setup

CAUTION!

Installing a 3.5” SATA Hard Drive

CAUTION!CAUTION!

Please correctly follow the below instructions and noted items to avoid making unnecessary damages.

1. Remove the mounting screws that secure the drive bay to the chassis.

Mounting screw

2. Place the SATA hard drive into the drive bay with the SATA connector facing outwards.

SATA data and power connector

30

NSA 3150 User Manual

Chapter 3: System Setup

3. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay. Use the provided mounting screws to secure the SATA drive in place.

4. Repeat step 3 for securing the screws on the other side of the HDD tray.

5. Place the drive into the chassis with the connector side facing the board, and then use the provided mounting screws to secure the drive bay in place.

Connector

side

31

NSA 3150 User Manual

Chapter 3: System Setup

6. Locate the SATA data connector on the board. 7. Plug the SATA data cable onto the connector, then plug the other end to the SATA data connector on the hard drive.

SATA data connector SATA data cable SATA data connector

32

NSA 3150 User Manual

Chapter 3: System Setup

8. Plug the SATA power cable to the SATA power connector on the hard

drive.

SATA power cable

33

NSA 3150 User Manual

Chapter 3: System Setup

Rackmount Bracket Kit (Optional)

The rackmount bracket kit provides a convenient and economical way of installing the server into a rack cabinet.

Attaching the Long Rack Ears

The long rack ears are used to support the server in a rack cabinet.

1. The rackmount bracket kit comes with a pair of long rack ears and 16

screws.

2. There are 8 mounting holes on each side of the front panel.

Mounting

holes

3. Align the mounting holes on the rack ear with the mounting holes on the front panel. Give special attention to the orientation of the rack ear. Secure the rack ear with mounting screws.

4. Repeat step 3 to secure the other rack ear.

34

Rack ear

NSA 3150 User Manual

Chapter 3: System Setup

Notes on Rackmount Rails

When installing the rackmount kit (optional), please pay attention to the following:

1. Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature (Tma) specified by the manufacturer.

2. Reduced Air Flow - Installation of the equipment in a rack should be such that the amount of air flow required for safe operation of the equipment is not compromised.

3. Mechanical Loading - Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due to uneven mechanical loading.

4. Circuit Overloading - Consideration should be given to the connection of the equipment to the supply circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

5. Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).”

35

NSA 3150 User Manual

Chapter 4: BIOS Setup

This chapter describes how to use the BIOS setup program for the NSA 3150. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.

To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.

These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.

With easy-to-use pull down menus, you can configure such items as:

▪ Hard drives, diskette drives, and peripherals

▪ Video display type and display options

▪ Password protection from unauthorized use

▪ Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:

▪ When changing the system configuration

▪ When a configuration error is detected by the system and you are

prompted to make changes to the setup program

▪ When resetting the system clock

▪ When redefining the communication ports to prevent any conflicts

▪ When making changes to the Power Management configuration

▪ When changing the password or making other changes to the security

setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

36

NSA 3150 User Manual

Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

▪ If the error occurs before the display device is initialized, a series of beeps

will be transmitted.

▪ If the error occurs after the display device is initialized, the screen will

display the error message.

Powering on the computer and immediately pressing allows you to enter Setup.

Legends

Key Function

Moves the highlight left or right to select a menu.

Moves the highlight up or down between sub-menu or fields.

Exits the BIOS Setup Utility.

Scrolls forward through the values or options of the highlighted field.

Scrolls backward through the values or options of the highlighted field.

Selects a field.

Displays General Help.

Load previous values.

Load optimized default values.

37

Saves and exits the Setup program.

Press <Enter> to enter the highlighted sub-menu

NSA 3150 User Manual

Chapter 4: BIOS Setup

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .

38

NSA 3150 User Manual

Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

Advanced Chipset Boot SecurityMain

BIOS Information

BIOS Vendor Core Version Compliancy Project Version Build Date and Time

Total Memory Memory Frequency

System Language

System Date

System Time

Access Level

American Megatrends

4.6.5.4 UEFI 2.3.1; PI 1.2 G653- 0.10 x64 03/19/2014 13:49:56

8192 MB (DDR3) 1600 Mhz

[English]

[Wed 05/20/2009] [05:29:25]

Administrator

Save & Exit

Choose the system default language

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

Access Level

Displays the access level of the current user in the BIOS.

39

NSA 3150 User Manual

Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

Advanced Chipset Boot SecurityMain



PCI Subsystem Settings



ACPI Settings



CPU Conguration



Network Conguration



SATA Conguration



USB Conguration



Super IO Conguration



H/W Monitor



Serial Port Console Redirection



Network Stack

Save & Exit

PCI, PCI-X and PCI Express Settings.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

40

NSA 3150 User Manual

Chapter 4: BIOS Setup

PCI Subsystem Settings

This section is used to configure the PCI.

Advanced

PCI Bus Driver Versio

PCI Common Settings

PCI Latency Timer

VGA Palette Snoop PERR# Generation SERR# Generation

PCI Express Settings

►

V 2.05.02

[32 PCI Bus Clocks]

[Disabled] [Disabled] [Disabled]

Value to be programmed into PCI Latency Timer Register.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCI Latency Timer

This feature is used to select the length of time each PCI device will control the bus before another takes over. The larger the value, the longer the PCI device can retain control of the bus. Since each access to the bus comes with an initial delay before any transaction can be made, low values for the PCI Latency Timer will reduce the effectiveness of the PCI bandwidth while higher values will improve it.

PERR# Generation

Enables or disables the PCI device to generate PERR#.

SERR# Generation

Enables or disables the PCI device to generate SERR#.

VGA Palette Snoop

Enables or disables the VGA palette registers snooping.

41

NSA 3150 User Manual

Chapter 4: BIOS Setup

ACPI Settings

This section is used to configure ACPI settings.

Advanced

ACPI Settings

Enable ACPI Auto Conf

Lock Legacy Resources

[Disabled]

Enables or Disables BIOS ACPI

Auto Conguration.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Enable ACPI Auto Conf

Enables or disables BIOS ACPI auto configuration.

Lock Legacy Resources

Enables or disables lock of legacy resources

42

NSA 3150 User Manual

Chapter 4: BIOS Setup

CPU Configuration

This section is used to configure the CPU.

Advanced

▲

CPU Conguration

Intel(R) Xeon(R) CPU E3-1268L v3 @ 2.30GHz

CPU Signature Processor Family Microcode Patch FSB Speed Max CPU Speed Min CPU Speed CPU Speed Processor Cores Intel HT Technology Intel VT-x Technology Intel SMX Technology 64-bit EIST Technology CPU C3 state CPU C6 state CPU C7 state

306c3 6 12 100 MHz 2300 MHz 800 MHz 2700 MHz 4 Supported Supported Supported Supported Supported Supported Supported Supported

Enabled for Windows XP and Linux (OS optimized for HyperThreading Technology) and disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

Hyper-Threading

Enable this field for Windows XP and Linux which are optimized for HyperThreading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.

Advanced

Intel VT-x Technology Intel SMX Technology 64-bit EIST Technology CPU C3 state CPU C6 state CPU C7 state

L1 Data Cache L1 Code Cache L2 Cache L3 Cache

Hyper-threading Overclocking lock Intel Virtualization Hardware Prefetcher EIST

Intel TXT(LT) Support

Supported Supported Supported Supported Supported Supported Supported

32 kB x 4 32 kB x 4 256 kB x 4 8192 kB

[Enabled] [Disabled] [Enabled] [Disabled] [Disabled]

[Disabled]

Hardware Prefetcher

Turns on or off the MLC streamer prefetcher

EIST

Enables or disables Intel® SpeedStep.

▲

Enables or Disables Intel(R) TXT(LT) support.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

Overclocking Lock

Enables or disables overclocking lock.

Intel® Virtualization

When this field is set to Enabled, the VMM can utilize the additional hardware capabilities provided by Vanderpool Technology.

Intel TXT(LT) Support

Enables or disables Intel TXT(LT).

43

NSA 3150 User Manual

Chapter 4: BIOS Setup

Network Configuration

This section is used to configure the network settings.

Advanced

Switch all ByPass Mode to

Network Conguration

Power_ON ByPass Mode

Power_OFF ByPass Mode

[ALL Disabled]

Enable/Disable after power on.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Power_ON ByPass Mode

Enables or disables the LAN module bypass mode after the system powers on.

Power_OFF ByPass Mode

Enables or disables the LAN module bypass mode after the system powers off.

SATA Configuration

This section is used to configure the SATA drives.

Advanced

▲

SATA Controller(s)

SATA Mode Selection SATA Test Mode Aggressive LPM Suppor SATA Controller Speed

Serial ATA Port 0 Software Preserve

Port 0 Hot Plug External SATA SATA Device Type Spin Up Device

Serial ATA Port 1 Software Preserve

Port 1 Hot Plug External SATA SATA Device Type Spin Up Device

[Enabled]

[AHCI] [Disabled] [Enabled] [Default]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Drive] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Drive] [Disabled]

Enable or Disable SATA Port

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

SATA Controller(s)

Enables or disables the SATA controller.

SATA Mode Selection

Configures the SATA as IDE, AHCI or RAID mode.

IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.

44

NSA 3150 User Manual

Chapter 4: BIOS Setup

Advanced

Port 0 Hot Plug External SATA SATA Device Type Spin Up Device

Serial ATA Port 1 Software Preserve

Port 1 Hot Plug External SATA SATA Device Type Spin Up Device

Serial ATA Port 4 Software Preserve

Port 4 Hot Plug External SATA SATA Device Type

Spin Up Device

[Enabled] [Disabled] [Disabled] [Hard Disk Drive] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Drive] [Disabled]

Empty Unknown

[Enabled] [Disabled] [Disabled] [Hard Disk Drive]

[Disabled]

SATA Test Mode

Enables or disables SATA test mode.

Aggressive LPM Support

Enables or disables agressive LPM support.

▲

On an edge detect from 0 to 1, the PCH starts a COMRESET initialization sequence to the device.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

▼

External SATA

Enables or disables the external SATA option on SATA port 0 to port 4.

SATA Device Type

The options are Hard Disk Drive and Solid State Drive.

Spin Up Device

Enables or disables staggered spin up on devices connected to SATA port 0 to port 4.

SATA Controller Speed

Configures the SATA controller as Gen1, Gen2 or Gen3.

Port 0 to Port 4

Enables or disables SATA port 0 to port 4.

Hot Plug

Enables or disables hot plugging feature on SATA port 0 to port 4.

45

NSA 3150 User Manual

Chapter 4: BIOS Setup

USB Configuration

This section is used to configure the USB.

Advanced

USB Conguration

USB Module Version

USB Devices:

1 Keyboard, 2 Hubs

Legacy USB Support

EHCI Hand-off USB Mass Storage Driver

USB hardware delays a

USB transfer time-out Device reset time-out Device power-up delay

8.10.27

[Enabled]

[Disabled] [Enabled]

[20 sec] [20 sec] [Auto]

Enables Legacy USB support. AUTO option disables legacy Support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Legacy USB Support

Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

USB Transfer Time-out

The time-out value for control, bulk, and Interrupt transfers.

Device Reset Time-out

Selects the USB mass storage device’s start unit command timeout.

Device Power-up Delay

Maximum time the value will take before it properly reports it self to the Host Controller. “Auto” uses default value: for a Root port it is 100 ms, for a Hub port the delay is taken from Hub descriptor.

EHCI Hand-Off

This is a workaround for OSs that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.

USB Mass Storage Driver

Enables or disables USB mass storage device driver support.

46

NSA 3150 User Manual

Chapter 4: BIOS Setup

Super IO Configuration

This section is used to configure the serial ports.

Advanced

Super IO Conguration

Super IO Chip



Serial Port 0 Conguration



Serial Port 1 Conguration



Parallel Port Conguration

NCT6776F

Set Parameters of Serial Port O (COMA)

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Super IO Chip

Displays the Super I/O chip used on the board.

Serial Port 0 Configuration

Configuration settings for serial port 0.

Serial Port 1 Configuration

Configuration settings for serial port 1.

Parallel Port Configuration

Configuration settings for parallel port.

47

NSA 3150 User Manual

Chapter 4: BIOS Setup

H/W Monitor

This section is used to monitor hardware status such as temperature, fan speed and voltages.

Advanced

PC Health Status

System Temperature LAN Module Temperature CPU Temperature LAN Module Fan Speed Smart FAN1 Speed Smart FAN2 Speed PCH Fan Speed Fan1 Speed VCORE DRAM Voltage VCC5 VCC12 VCC3

: +32 C : N/A : +31 C : N/A : N/A : 2824 RPM : N/A : N/A : +1.768 V : +1.520 V : +5.080 V : +12.288 V : +3.216 V

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

System Temperature

Detects and displays the current system temperature.

Smart Fan1 Speed and Smart Fan2 Speed

Detects and displays the fan speed of smart fan1 and smart fan2.

PCH Fan Speed

Detects and displays the PCH fan speed.

Fan1 Speed

Detects and displays the Fan1 speed.

VCORE

Detects and displays the VCore voltage.

DRAM Voltage

Detects and displays the DRAM voltage.

VCC5

Detects and displays 5V voltage.

VCC12

Detects and displays 12V voltage.

VCC3

Detects and displays 3.3V voltage.

CPU Temperature

Detects and displays the current CPU temperature.

LAN Module Fan Speed

Detects and displays the fan speed of the LAN module.

48

NSA 3150 User Manual

Chapter 4: BIOS Setup

Serial Port Console Redirection

This section is used to configure the serial port that will be used for console redirection.

Advanced

Console Redirection Enable

COM0

Console Redirection

Console Redirection Settings

►

Serial Port for Out-of-Band Management / Windows Emergency Management Services (EMS)

Console Redirection

Console Redirection Settings

►

[Enabled]

or Disable

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Console Redirection

Enables or disables the console redirection.

Network Stack

This section is used to configure the network stack.

Advanced

Network stack

[Disabled]

Network Stack

Enables or disables UEFI network stack.

Enable/Disable UEFI network stack

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

49

NSA 3150 User Manual

Chapter 4: BIOS Setup

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.

Advanced Chipset Boot SecurityMain

PCH-IO Conguration

►

System Agent (SA) Conguration

►

Save & Exit

PCH Parameters

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

PCH-IO Configuration

This section is used to configure PCH-IO settings.

Chipset

Intel PCH RC Version Intel PCH SKU Name Intel PCH Rev ID

PCI Express Conguration

►

USB Conguration

Power Supply Type

SLP_S4 Assertion Width

1.6.0.0 H81 05/C2

[AT]

[4-5 Seconds]

PCI Express Conguration

settings

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

SLP_S4 Assertion Width

Select a minimum assertion width of the SLP_S4# signal.

PCH-IO Configuration

This field is used to configure PCH parameters.

System Agent (SA) Configuration

This field is used to configure System Agent (SA) parameters.

50

NSA 3150 User Manual

Chapter 4: BIOS Setup

System Agent (SA) Configuration

This section is used to configure System Agent (SA) settings.

Advanced Chipset Boot SecurityMain

System Agent Bridge N System Agent RC Version VT-d Capability

VT-d

Enable NB CRID BDAT ACPI Table Support

Graphics Conguration

►

Memory Conguration

►

GT - Power Management Control

►

Haswell

1.6.0.0 Supported

[Enabled]

[Disabled] [Disabled]

VT-d

Enables or disables the VT-d.

Enable NB CRID

Enables or disables NB CRID workaround.

Save & Exit

Check to enable VT-d function on MCH.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

BDAT ACPI Table Support

Enables or disables BDAT ACPI Table support.

51

NSA 3150 User Manual

Chapter 4: BIOS Setup

Boot

This section is used to configure the boot features.

Advanced

Boot Conguration

Setup Prompt Timeout

Bootup NumLock State

Quiet Boot Fast Boot

Boot Option Priorities

CSM16 Parameters

►

CSM parameters

Setup Prompt Timeout

Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.

Chipset

Boot

1

[On]

[Disabled] [Disabled]

SecurityMain

Save & Exit

Number of seconds to wait for setup activation key. 65535

(0xFFFF) means indenite

waiting.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Quiet Boot

Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

Fast Boot

When enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.

Boot Option Priorities

Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.

Bootup NumLock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

52

NSA 3150 User Manual

Chapter 4: BIOS Setup

Security

Advanced Chipset Boot SecurityMain

Password Description

If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. The password length must be in the following range:

Minimum length 3 Maximum length 20

Administrator Password

User Password

Administrator Password

Select this to reconfigure the administrator’s password.

User Password

Select this to reconfigure the user's password.

Save & Exit

Set Administrator Password

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

Save & Exit

Advanced Chipset Boot SecurityMain

Save Changes and Exit

Discard Changes and Exit Save Changes and Reset Discard Changes and Reset

Save Options

Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override

Launch EFI Shell from lesystem device

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F4> to save and exit Setup.

Discard Changes and Exit

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.

Save & Exit

Exit system setup after saving the changes.

→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit

53

NSA 3150 User Manual

Chapter 4: BIOS Setup

Save Changes and Reset

To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes and Reset

To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.

Save Changes

To save changes and continue configuring the BIOS, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Discard Changes

To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.

Restore Defaults

To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Save as User Defaults

To use the current configurations as user default settings for the BIOS, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.

Boot Override

To bypass the boot sequence from the Boot Option List and boot from a particular device, select the desired device and press <Enter>.

Launch EFI Shell From Filesystem Device

Launches the EFI shell.

Restore User Defaults

To restore the BIOS to user default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecing Yes.

54

NSA 3150 User Manual

Appendix A: Bypass Register

Register Map

The following tables are the Register Map for NSA 3150.

PCB and CPLD Release Version Register (LSB)

Offset 0xF1

7 6 5 4 3 2 1 0

R R

PCB version (LSB) CPLD release version (LSB)

Bypass Timer Configuration Register

Offset 0xF2

7 6 5 4 3 2 1 0

R X X X X R/W

Segment

Timer

Expired

Unused Unused Unused Unused Global Timeout Value

Power ON State Bypass Control Status Register

Offset 0xF3

7 6 5 4 3 2 1 0

R/W R/W R/W R/W R/W R/W R/W

Bypass Mode Segment6 Segment5 Segment4 Segment3 Segment2 Segment1

Power OFF State Bypass Control Status Register

Offset 0xF7

7 6 5 4 3 2 1 0

R/W R/W R/W R/W R/W R/W R/W R/W

Unused Unused Segment6 Segment5 Segment4 Segment3 Segment2 Segment1

55

NSA 3150 User Manual

Appendix A: Bypass Register

Slot Select Register

Offset 0xF9

7 6 5 4 3 2 1 0

R/W R/W R/W R/W R/W R/W R/W R/W

Slot ID 7 Slot ID 6 Slot ID 5 Slot ID 4 Slot ID 3 Slot ID 2 Slot ID 1 Slot ID 0

PCB and CPLD Release Version Register (MSB)

Offset 0xFD

7 6 5 4 3 2 1 0

R R

PCB version (MSB) / CPLD dot version CPLD release version (MSB)

Bypass Time/Force Mode Control Register

Offset 0xFE

7 6 5 4 3 2 1 0

R R/W R/W R/W R/W

Timer/

CPLD identify bit Unused Unused Unused

force mode

independent

Register Bit Definitions

PCB and CPLD Release Version Register (LSB): F1

Bit Field Name Value

3:0

7:4

Bit Field Name Value

2:0

6:3 Unused Unused

CPLD

version LSB

PCB

version LSB

Timer

Value

Segment

7

Timer

Expired

CPLD version LSB, for CPLD release version control, the MSB info at

address ‘FD’, Read only

PCB version LSB, the MSB info at address ‘FD’, Read only

Bypass Timer Configuration Register: F2

000 = 0 second, timer immediately expired

001 = 1 second

010 = 2 second

011 = 4 second

100 = 8 second

101 = 16 second

110 = 32 second

111 = 64 second

This register is available in Timer Enable mode. Timer value of 1 to 7 is required to be written before expiration of the hardware timer. When the timer expires, both segment relays which have been enabled will close. Note: The timer will recount while read/write F2 register.

Read only bit:

0 = Timer has not expired 1 = Timer has expired, de-assert while leave Timer mode

56

NSA 3150 User Manual

Appendix A: Bypass Register

Power ON State Bypass Control Status Register: F3

Bit Field Name Value

Segment bypass function control on Power ON state.

5:0 Segment 6 to 1

Bit[x] corresponds to segment[x+1], ex: Bit0 control to segment1, … Bit5 control to segment6 0 = Segment[x] disable 1 = Segment[x] enable

These two bits defined the bypass in timer mode or force mode. Note: The timer will recount while read/write F3 register Limitation: Changing F3 segment bit during timer counting, the timing mode segment will controlled by last change value.

Bypass Mode Table:

Bit 7 Bit 6 Action

0 0

7:6 Bypass Mode

0 1

1 0

1 1

Timer Disable: Disable Timer mode function.

Force Enable: Engage bypass relays on segments enable in segment mask.

Force Disable: Disable bypass relays immediately on segments enabled in mask.

Timer Enable: Segments enabled in mask are under Timer control.

Power OFF State Bypass Control Status Register: F7

Bit Field Name Value

Segment bypass function control on Power OFF state.

5:0

Segment 6

to 1

Bit[x] corresponds to segment[x+1], ex: Bit0 control to segment1, … Bit5 control to segment6 0 = Segment[x] disable 1 = Segment[x] enable

7:6 Unused Unused.

Slot Select Register: F9

Bit Field Name Value

Main board: The bypass function workable while Slot ID set to 0x00h Lan module: The bypass function workable while Slot ID value meet H/W setting, The value do not set to 0x00h Note: If all of boards not fill slot id value on platform, read all

7:0

Slot ID bit 7

to 0

registers will return 0xFF

PCB and CPLD Release Version Register (MSB): FD

Bit Field Name Value

3:0

CPLD version

MSB

CPLD version MSB, for CPLD release version control, the LSB info at address ‘F1’, Read only

CPLD dot /

7:4

PCB

version MSB

The value >= “A” is CPLD dot version information. The value < “A” indicate PCB version MSB, Read only

Bypass Timer/Force Mode Control Register: FE

Bit Field Name Value

0

Timer/force

mode

independent

0 = Timer/force mode dependent, the timer will stop in force mode condition. 1 = Timer/force mode Independent, the timer will stop in timer disable condition.

3:1 Unused Unused

7:4 New CPLD Always read “0xa”, Read only

57

NSA 3150 User Manual

NEXCOM NSA 3150 User Manual
