NEXCOM NSA 3130 User Manual

NEXCOM International Co., Ltd.

Network and Communication Solutions

Network Security Appliance NSA 3130

User Manual

NEXCOM International Co., Ltd.

Published April 2014 www.nexcom.com

Contents

PREFACE ............................................................................................... IV

C

OPYRIGHT ................................................................................................ IV

D

ISCLAIMER ............................................................................................... IV

A

CKNOWLEDGEMENTS .................................................................................. IV

R

EGULATORY COMPLIANCE STATE ME NT S ........................................................... IV

D

ECLARATION OF CONFORMITY ....................................................................... IV

R

OHS COMPLIANCE ..................................................................................... V

W

ARRANTY AND RMA ................................................................................. VI

W

ARNINGS ............................................................................................... VII

C

AUTIONS ................................................................................................. VII

S

AFETY INFORMATION ................................................................................. VII

I

NSTALLATION RECOMMENDATIONS ................................................................ VII

S

AFETY PRECAUTIONS ................................................................................. VIII

T

ECHNICAL SUPPORT AND ASSISTANCE ............................................................. IX

C

ONVENTIONS USED IN THIS MANUAL .............................................................. IX

G

LOBAL SERVICE CONTACT INFORMATION .......................................................... X

P

ACKAGE CONTENTS .................................................................................... XII

O

RDERING INFORMATION ............................................................................ XIII

CHAPTER 1: PRODUCT INTRODUCTION ................................................... 1

NSA

3130 ................................................................................................ 1

Overview ........................................................................................... 1

H

ARDWARE SPECIFICATIONS ........................................................................... 2

G

ETTING TO KNOW THE NSA 3130 ................................................................ 4

F

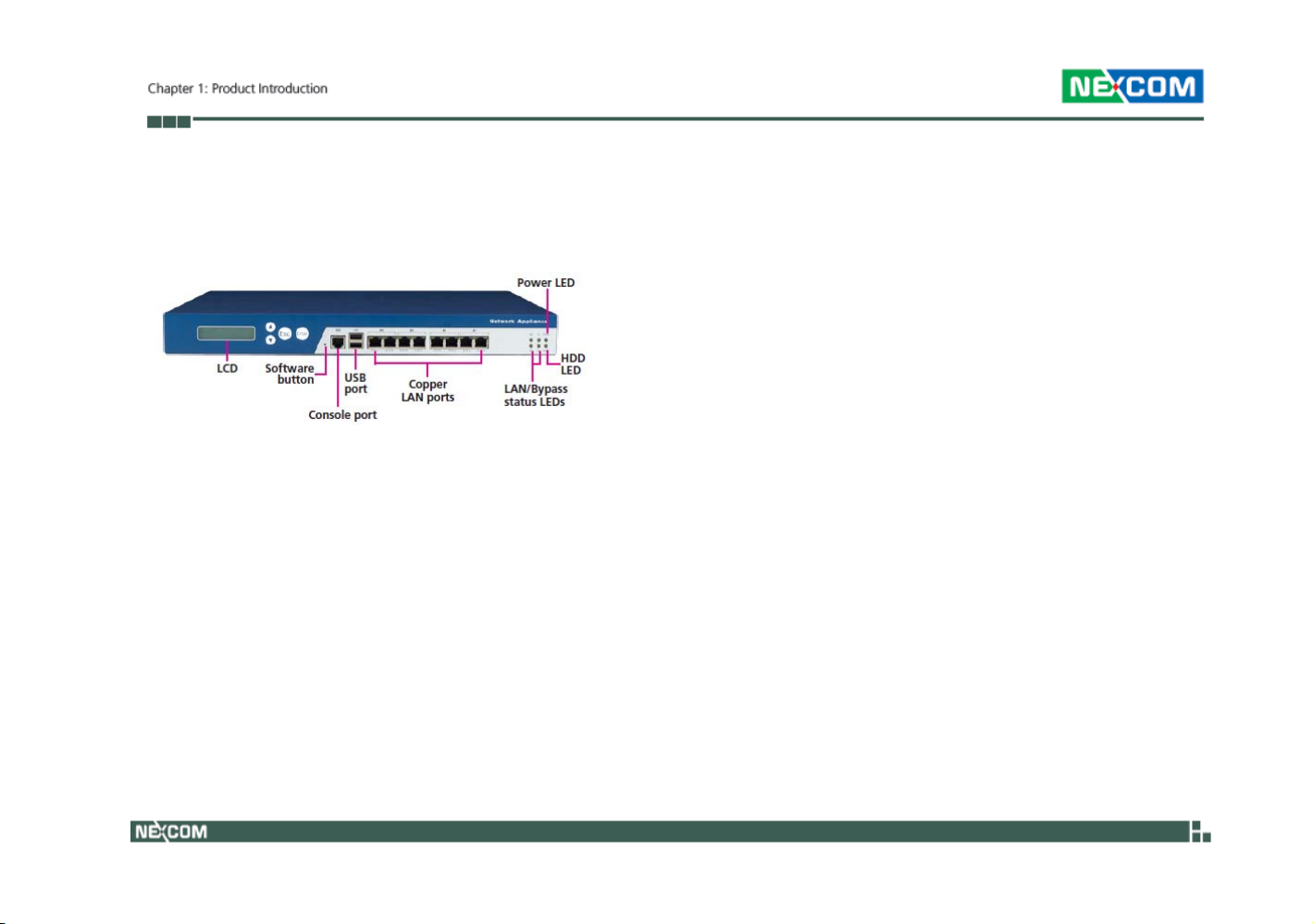

RONT PANEL ............................................................................................. 4

R

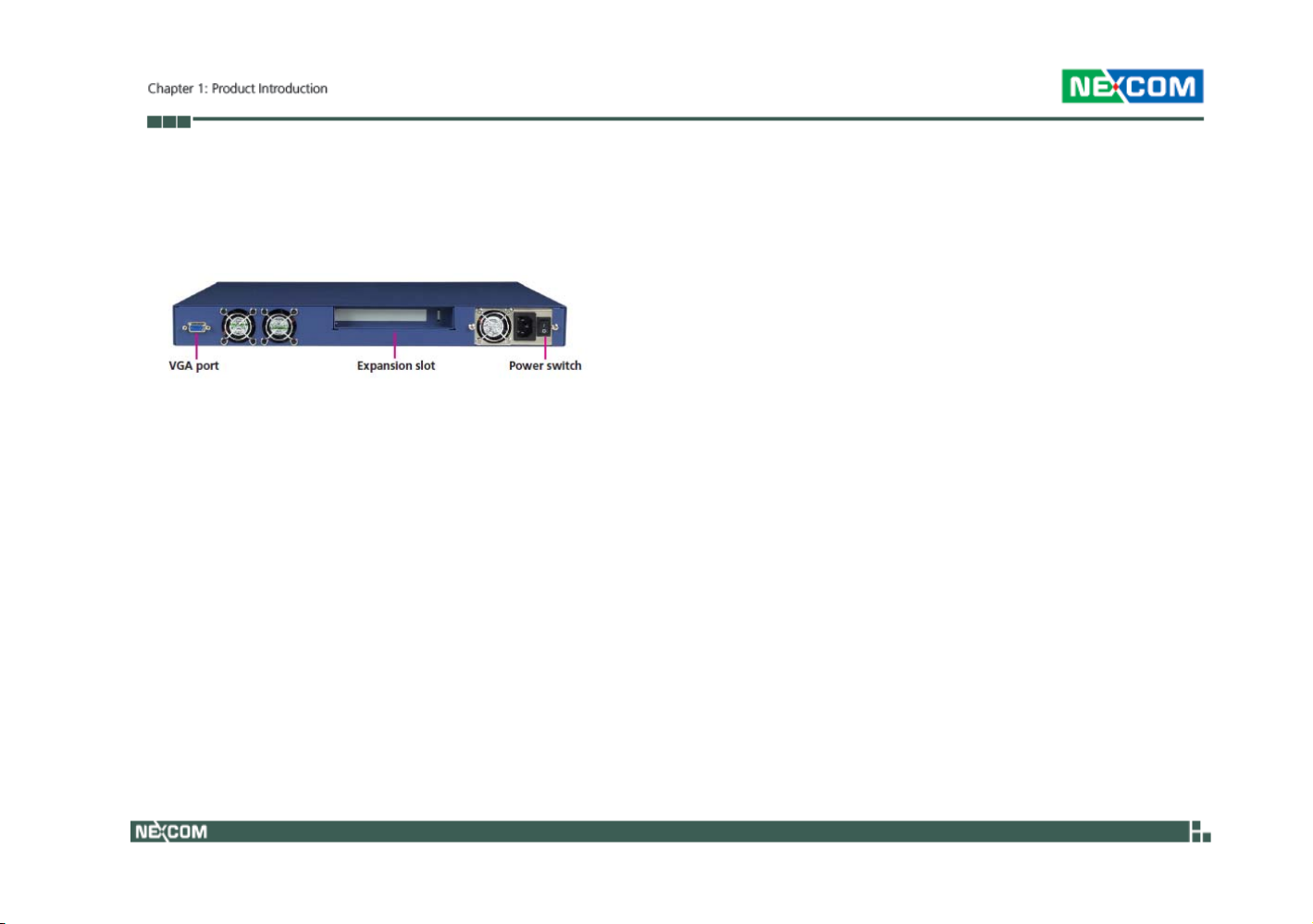

EAR PANEL ............................................................................................... 5

CHAPTER 2: JUMPERS AND CONNECTORS ............................................... 6

B

EFORE YOU BEGIN ..................................................................................... 6

P

RECAUTIONS ............................................................................................. 6

J

UMPER SETTINGS ....................................................................................... 7

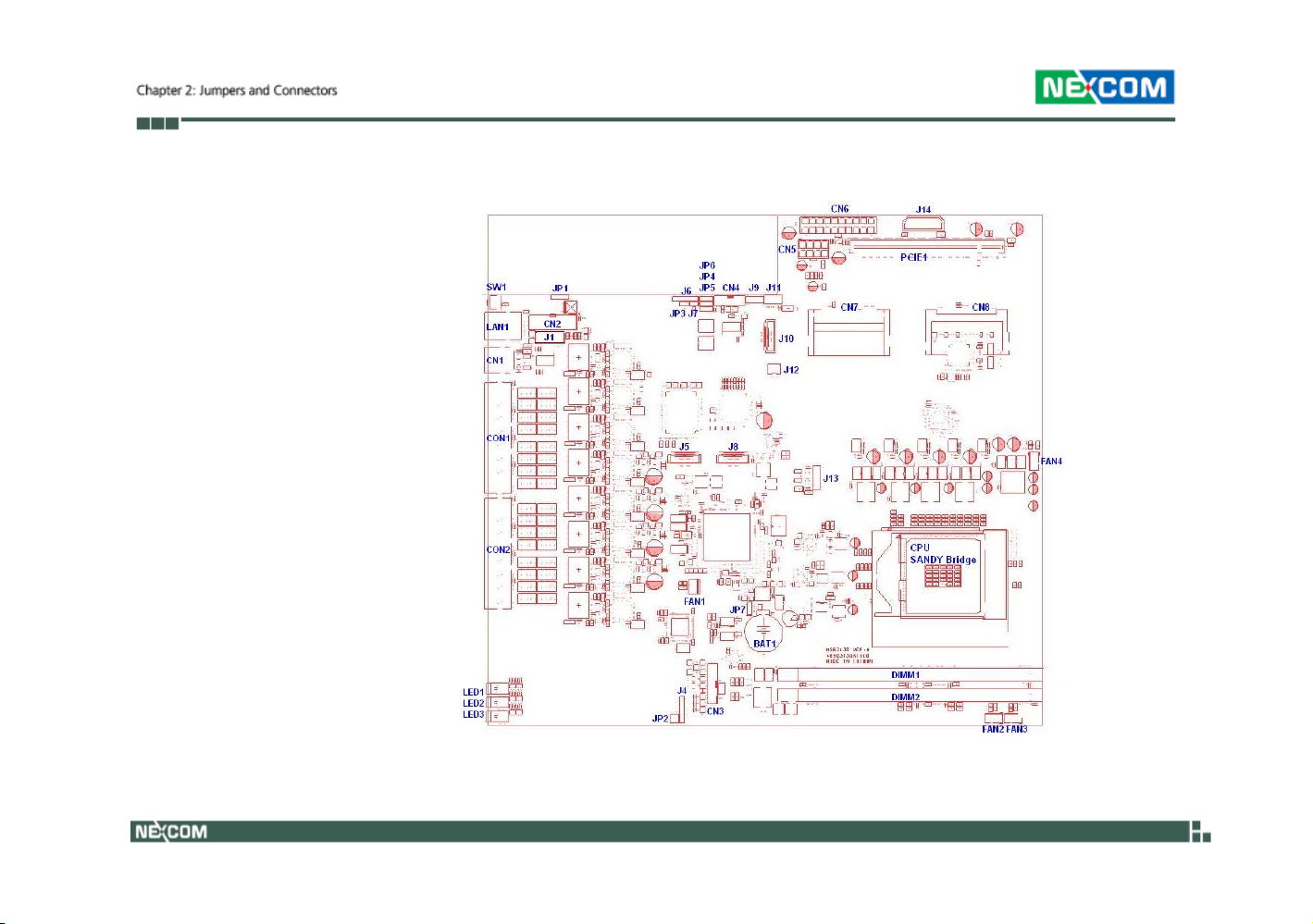

L

OCATIONS OF THE JUMPERS AND .................................................................... 8

C

ONNECTORS ............................................................................................. 8

J

UMPERS ................................................................................................... 9

RTC Clear (JP7) .................................................................................. 9

AT/ATX Mode Selector (JP4) .............................................................. 9

Console Type Selector (JP6) ............................................................... 9

ME Force Update Pin Header (JP5) ................................................... 9

C

ONNECTOR PIN DEFINITIONS ...................................................................... 10

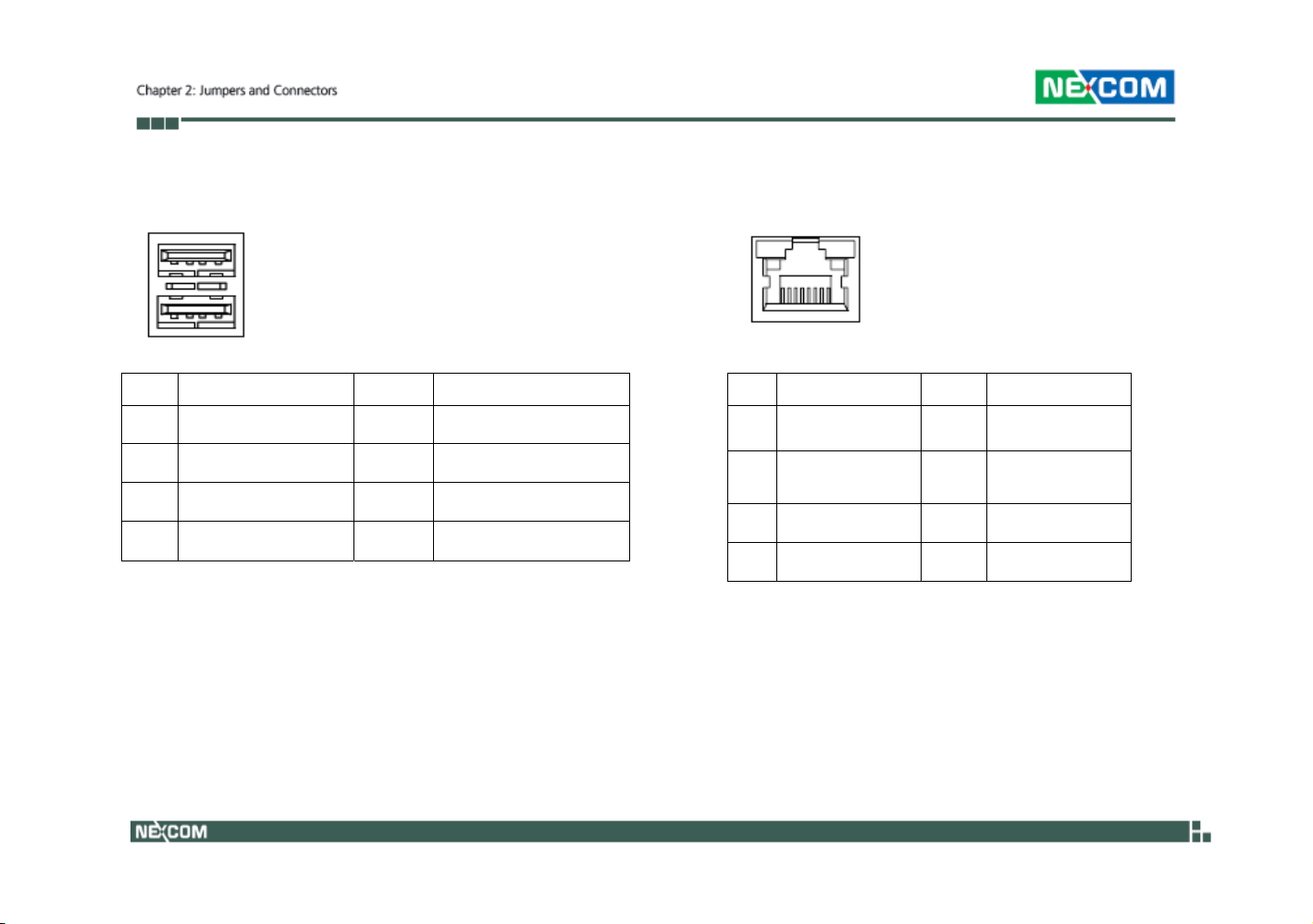

External I/O Interface ...................................................................... 10

RJ45 Type Console Port (LAN1) (RS232 Only) .................................. 11

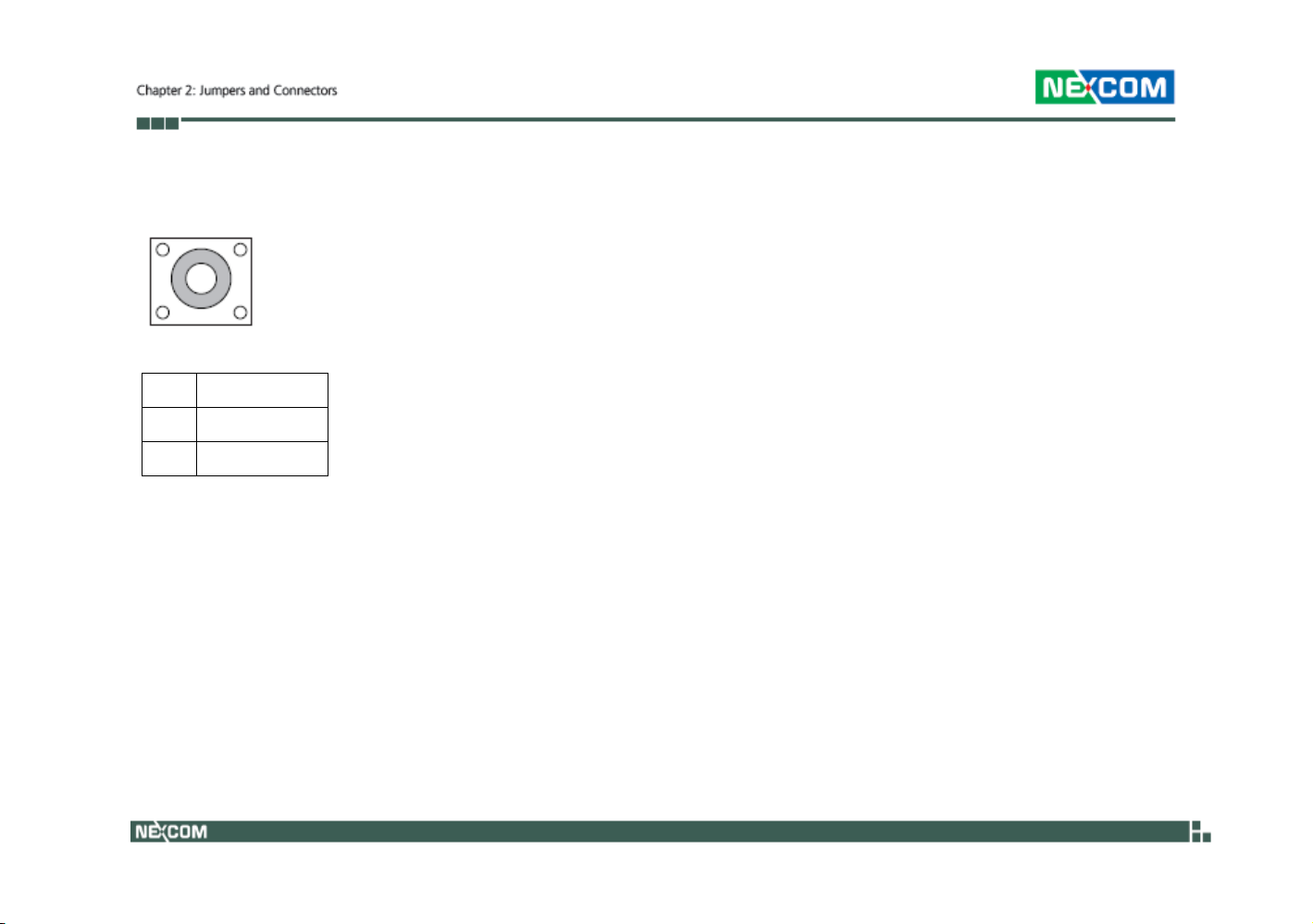

GPI12 Software Button (SW1) ......................................................... 12

Internal Connector .......................................................................... 13

B

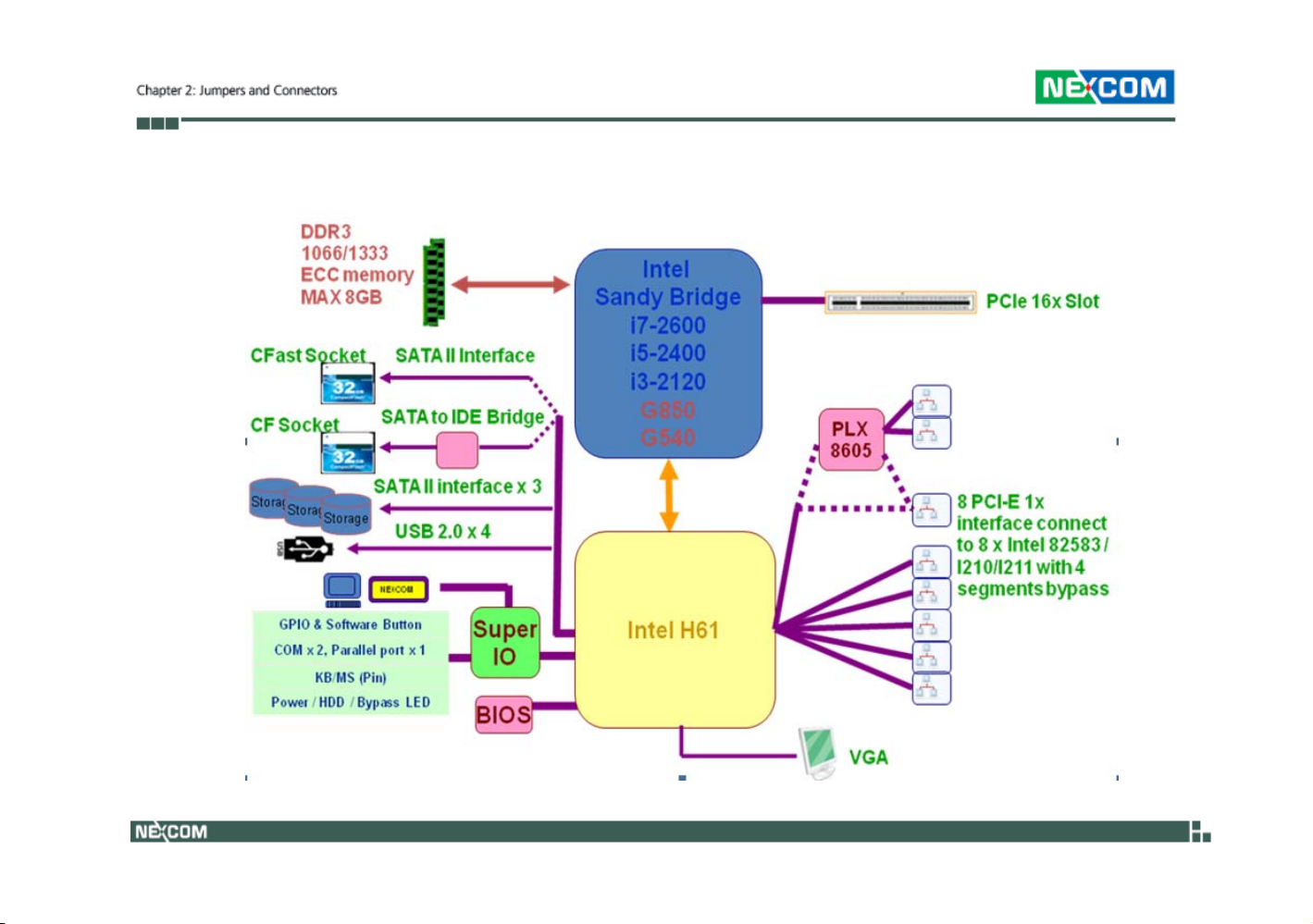

LOCK DIAGRAM ....................................................................................... 20

CHAPTER 3: SYSTEM SETUP .................................................................. 21

R

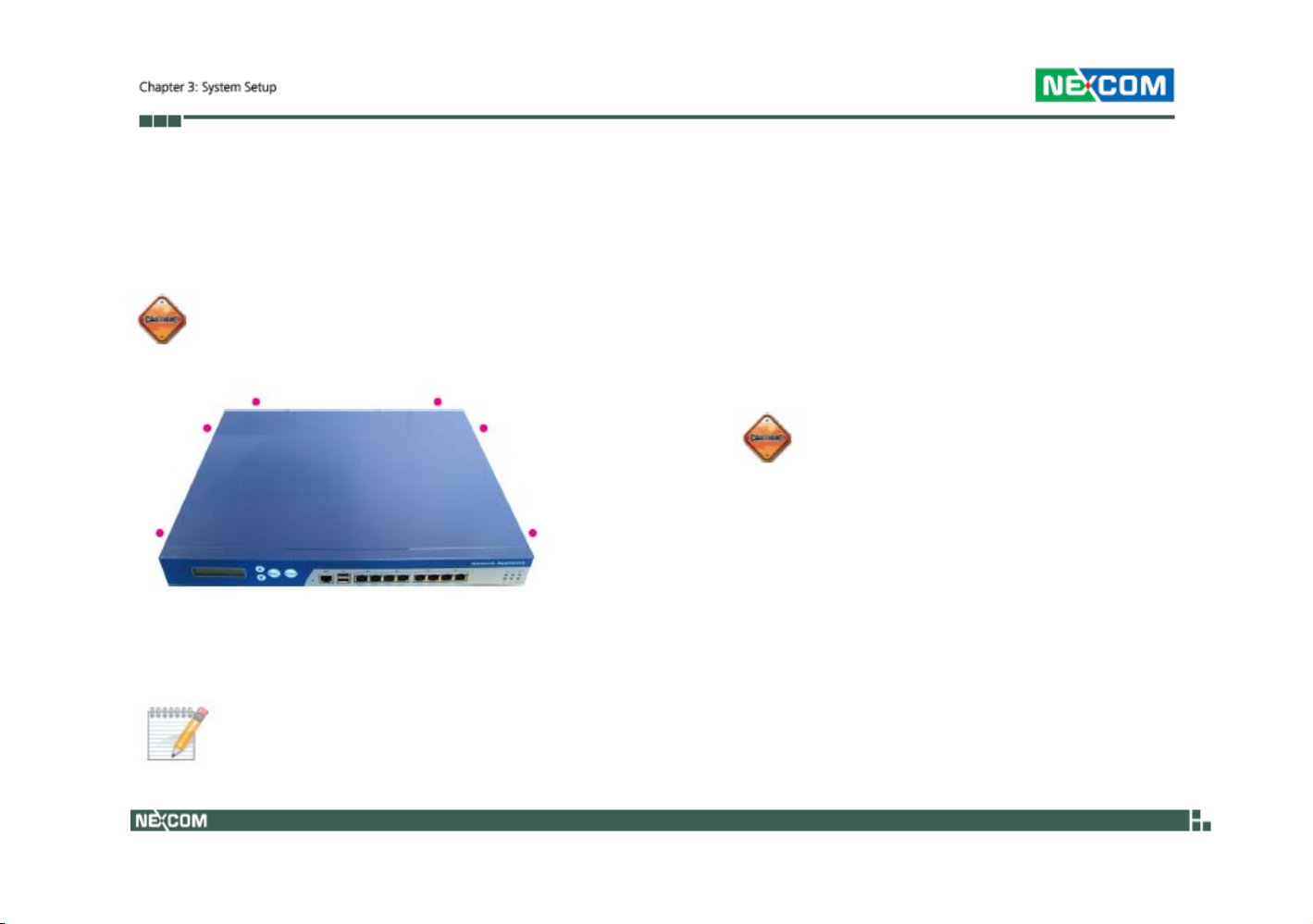

EMOVING THE CHASSIS COVER .................................................................... 21

I

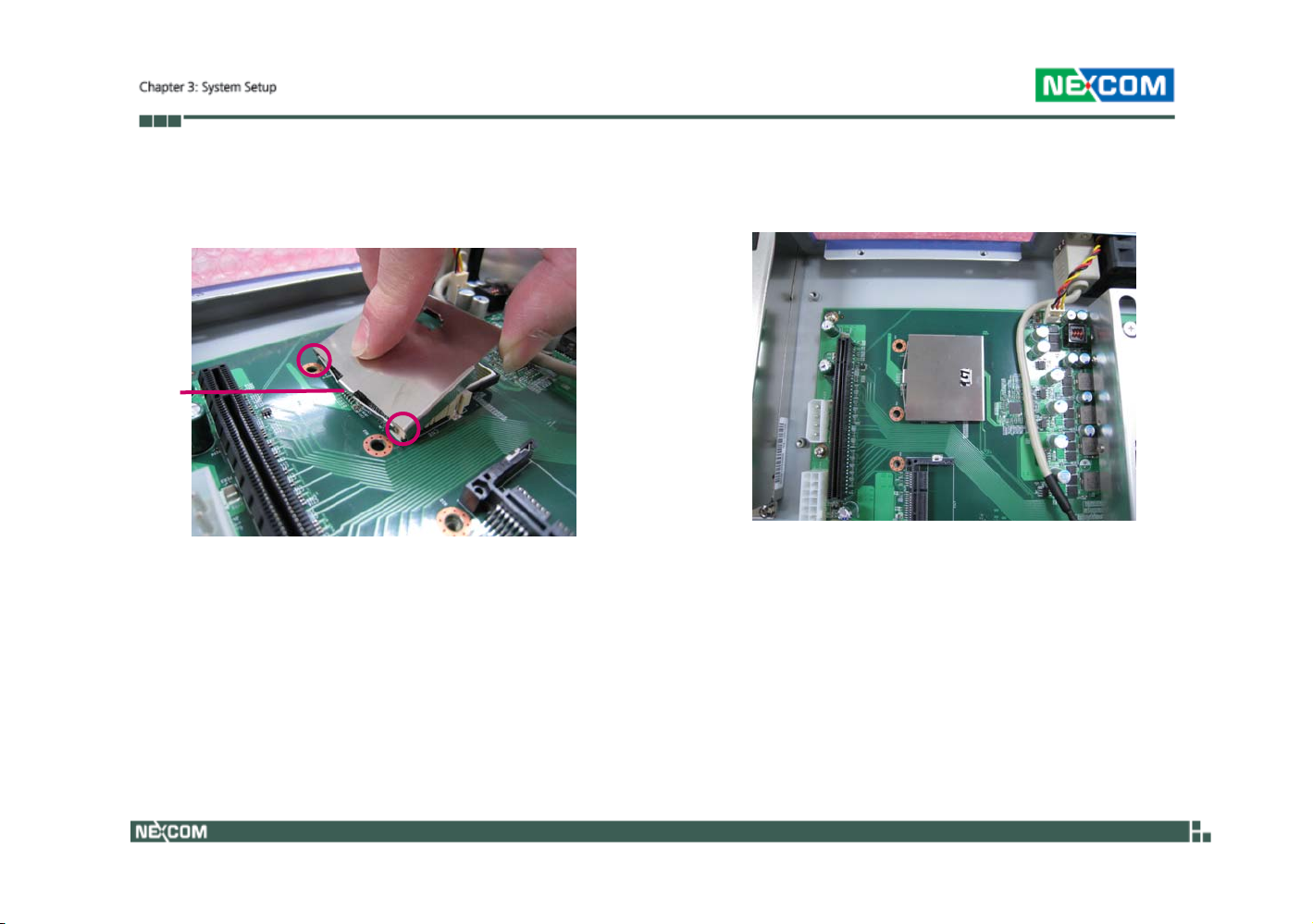

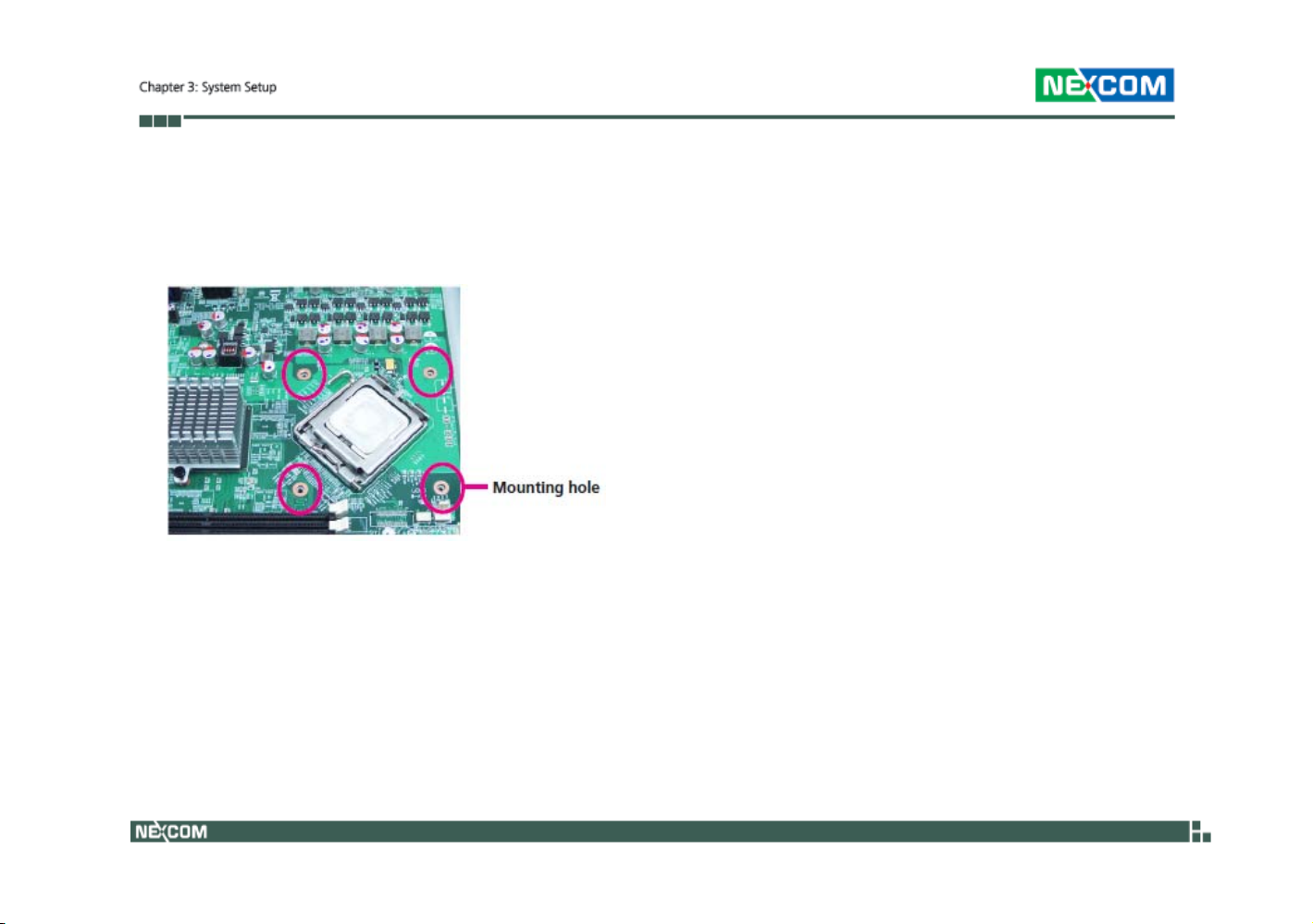

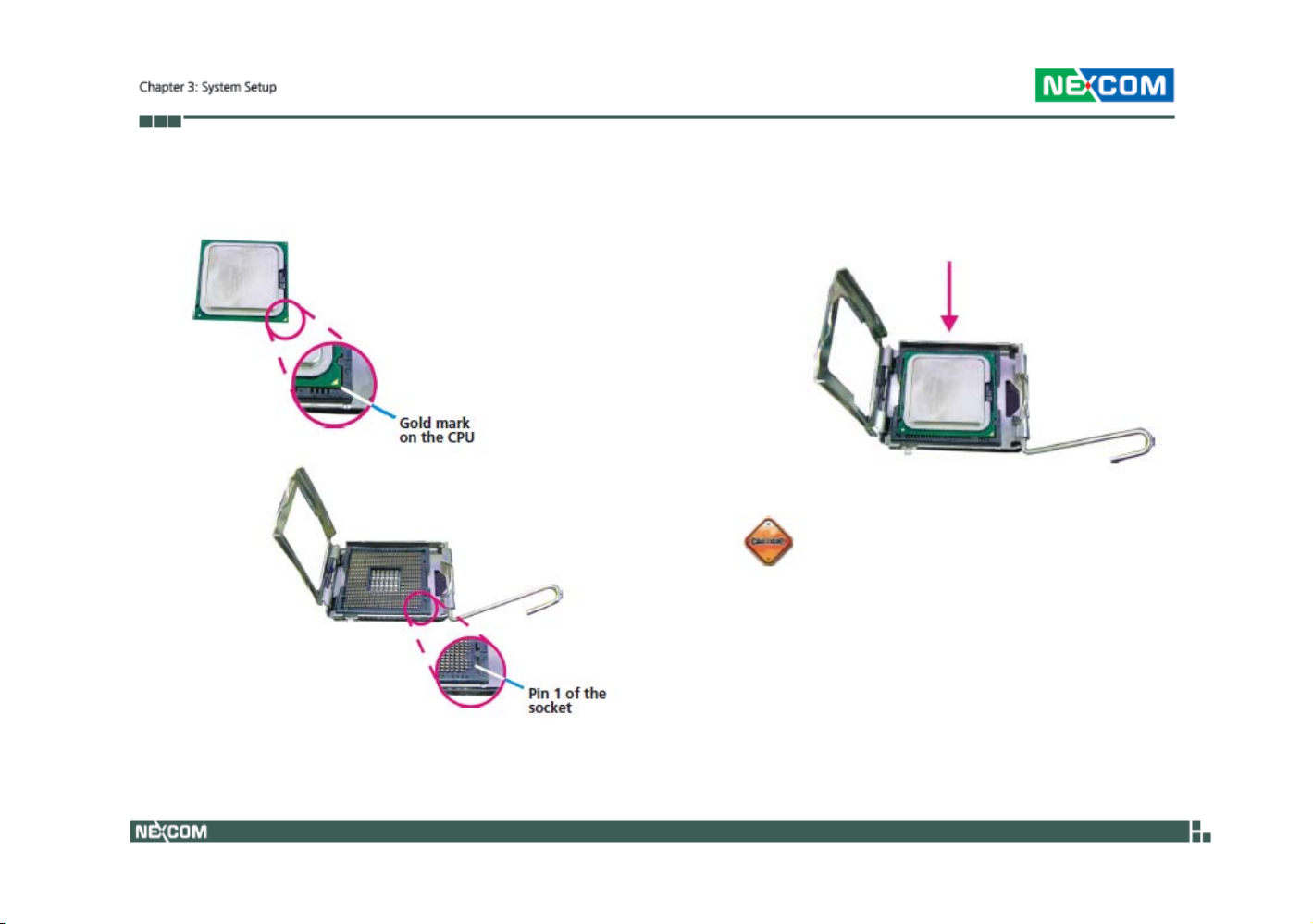

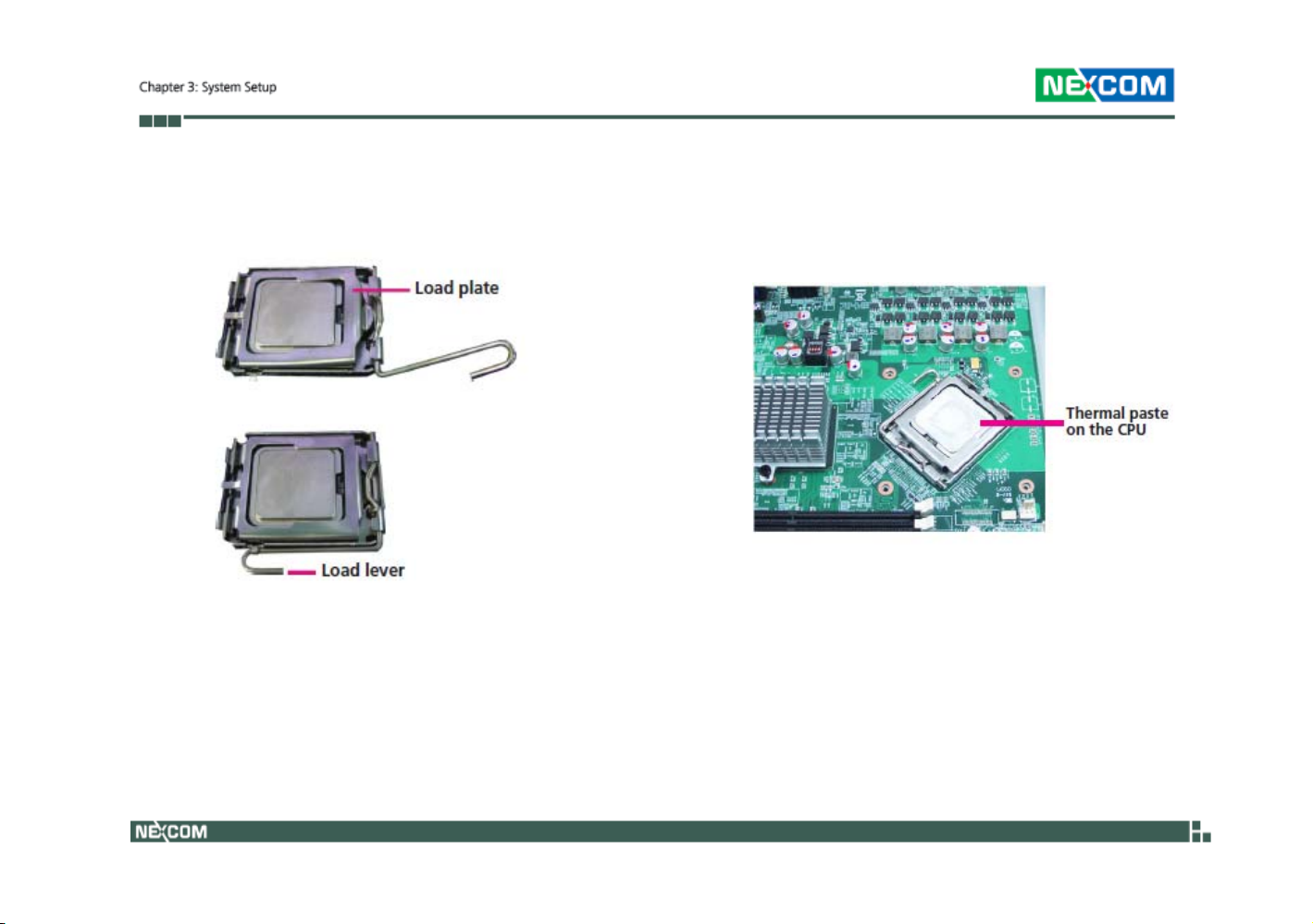

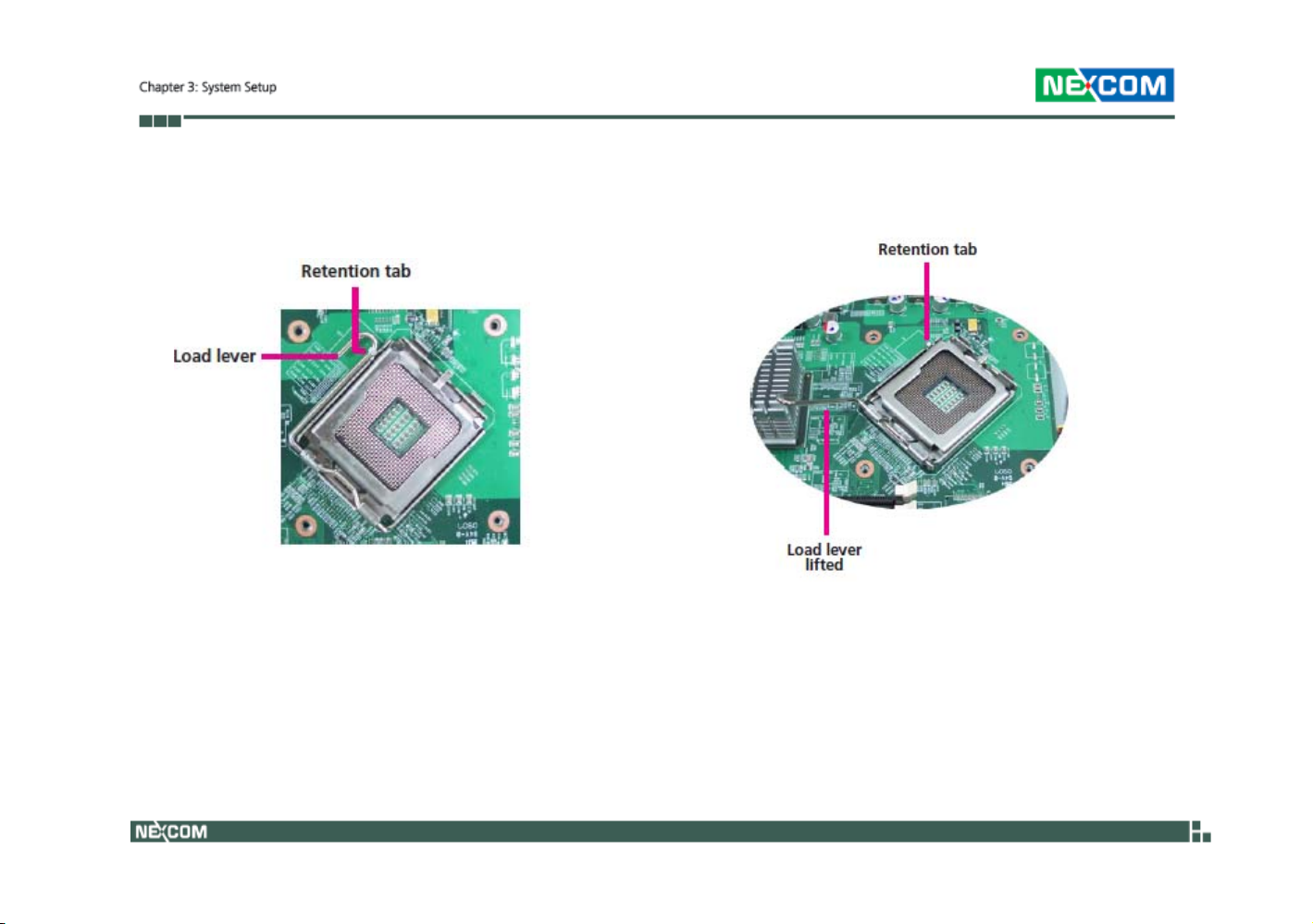

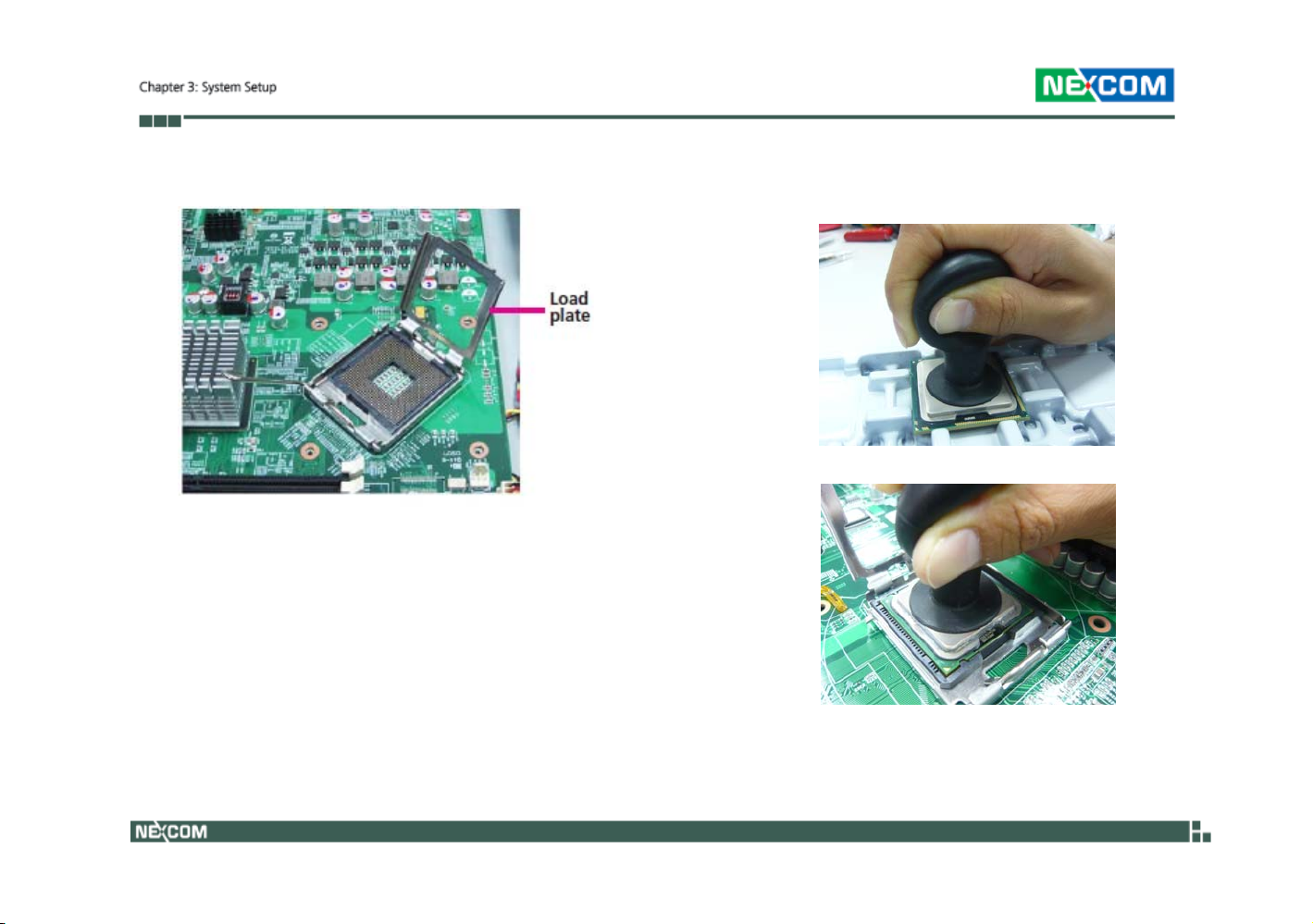

NSTALLING THE CPU ................................................................................. 21

I

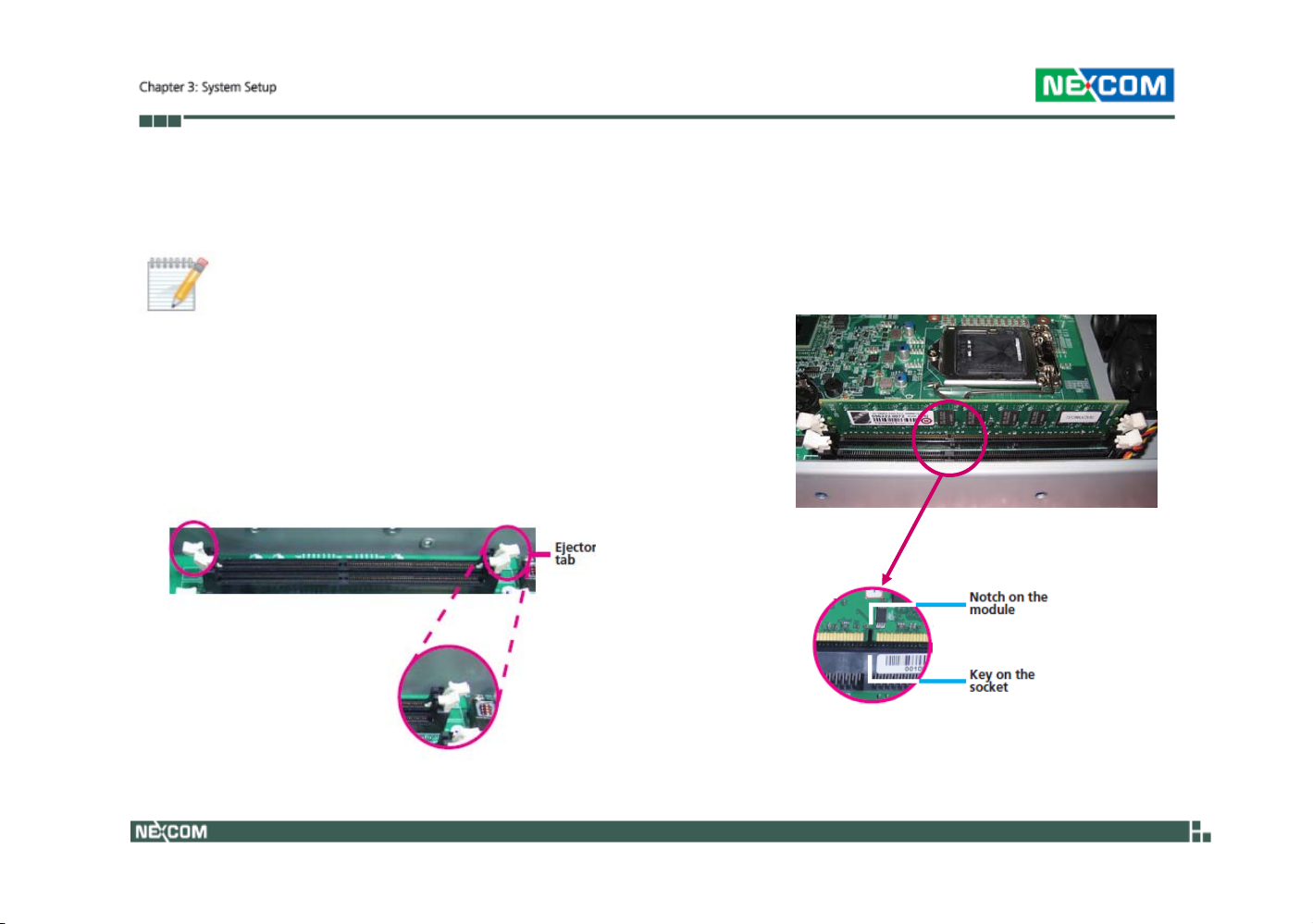

NSTALLING A DIMM ................................................................................. 27

I

NSTALLING A SATA HARD DRIVE .................................................................. 29

I

NSTALLING A SATA DOM .......................................................................... 33

I

NSTALLING A COMPACTFLASH CARD .............................................................. 35

I

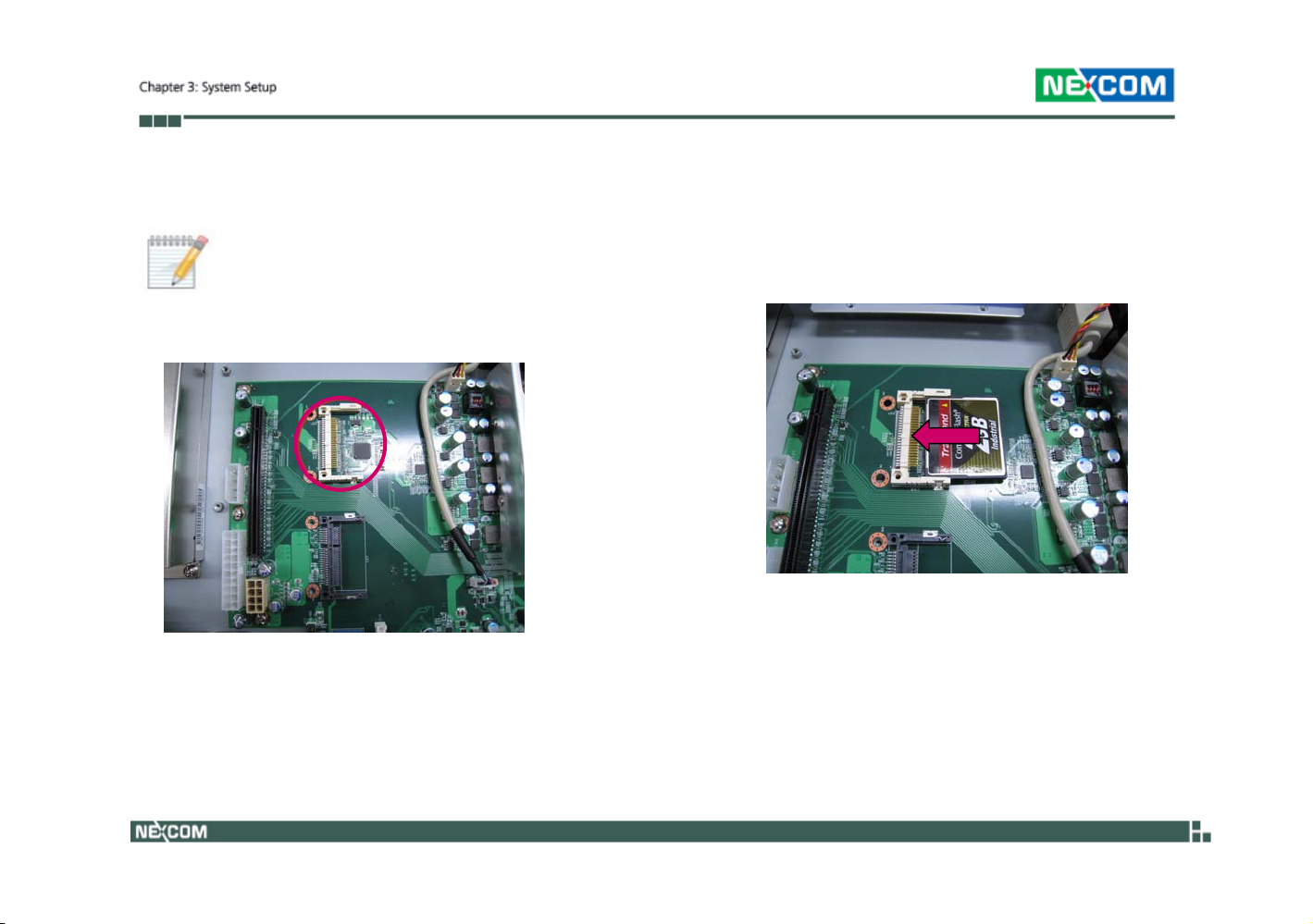

NSTALLING A CFAST CARD ........................................................................... 37

I

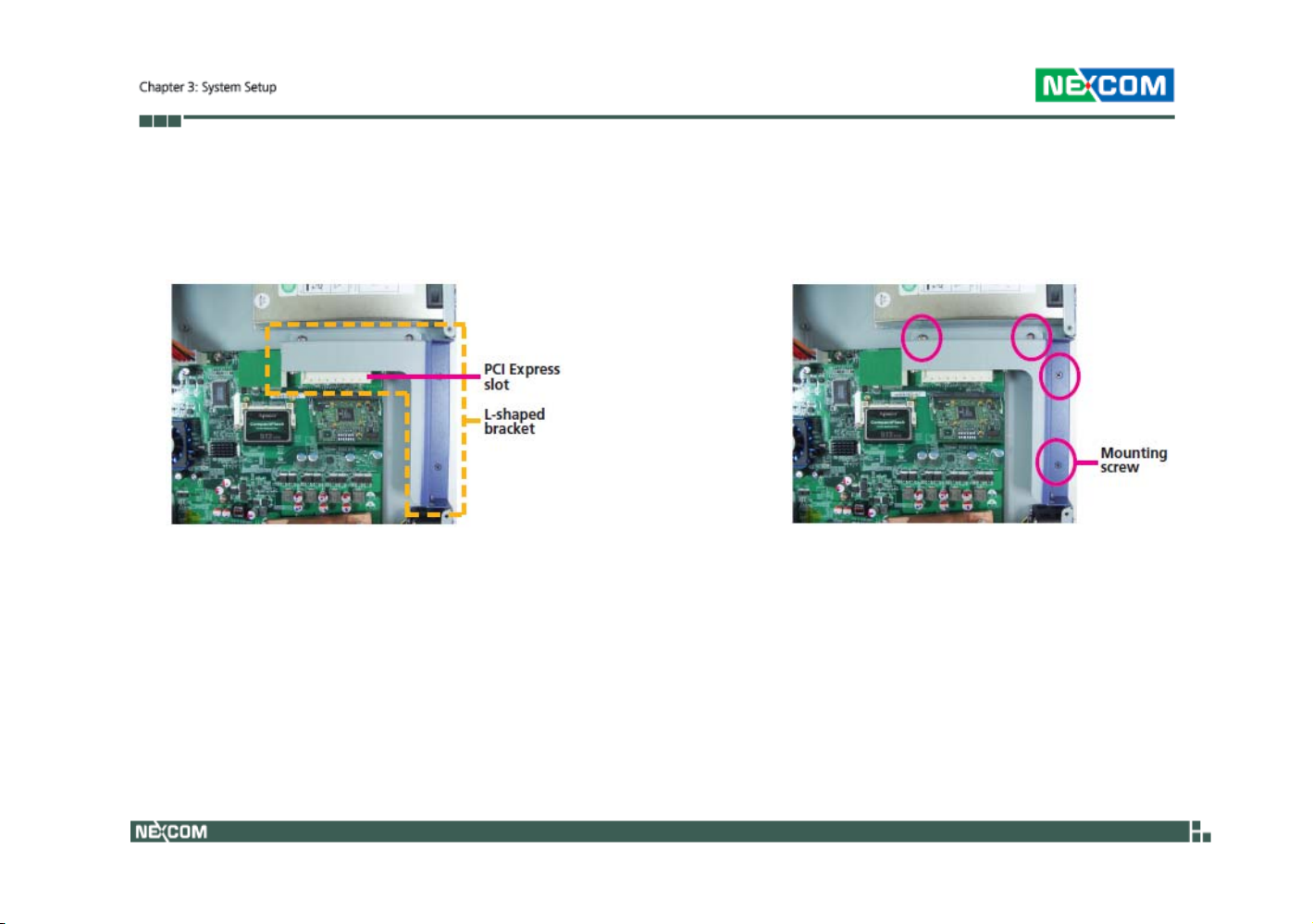

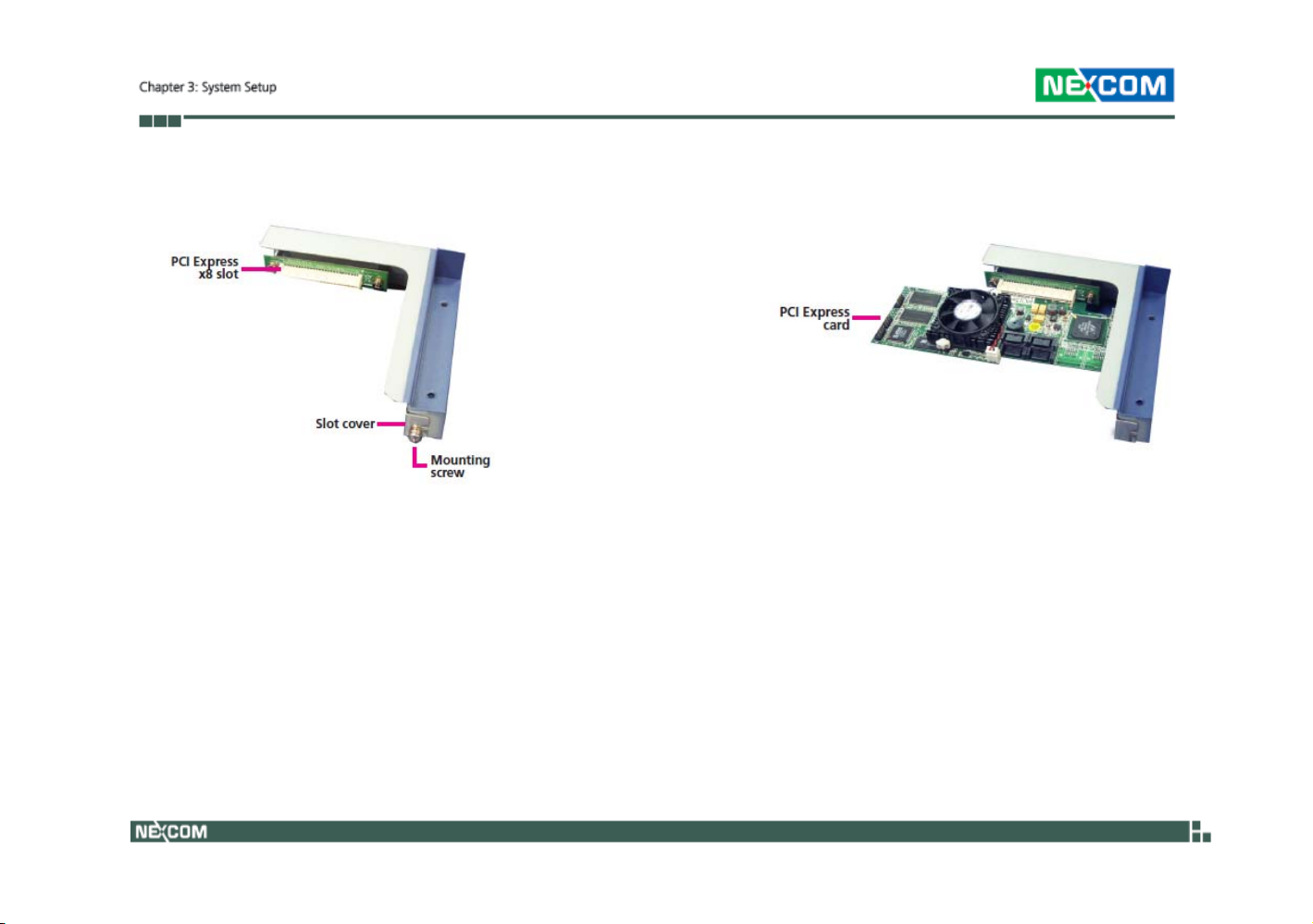

NSTALLING A PCI EXPRESS CARD .................................................................. 38

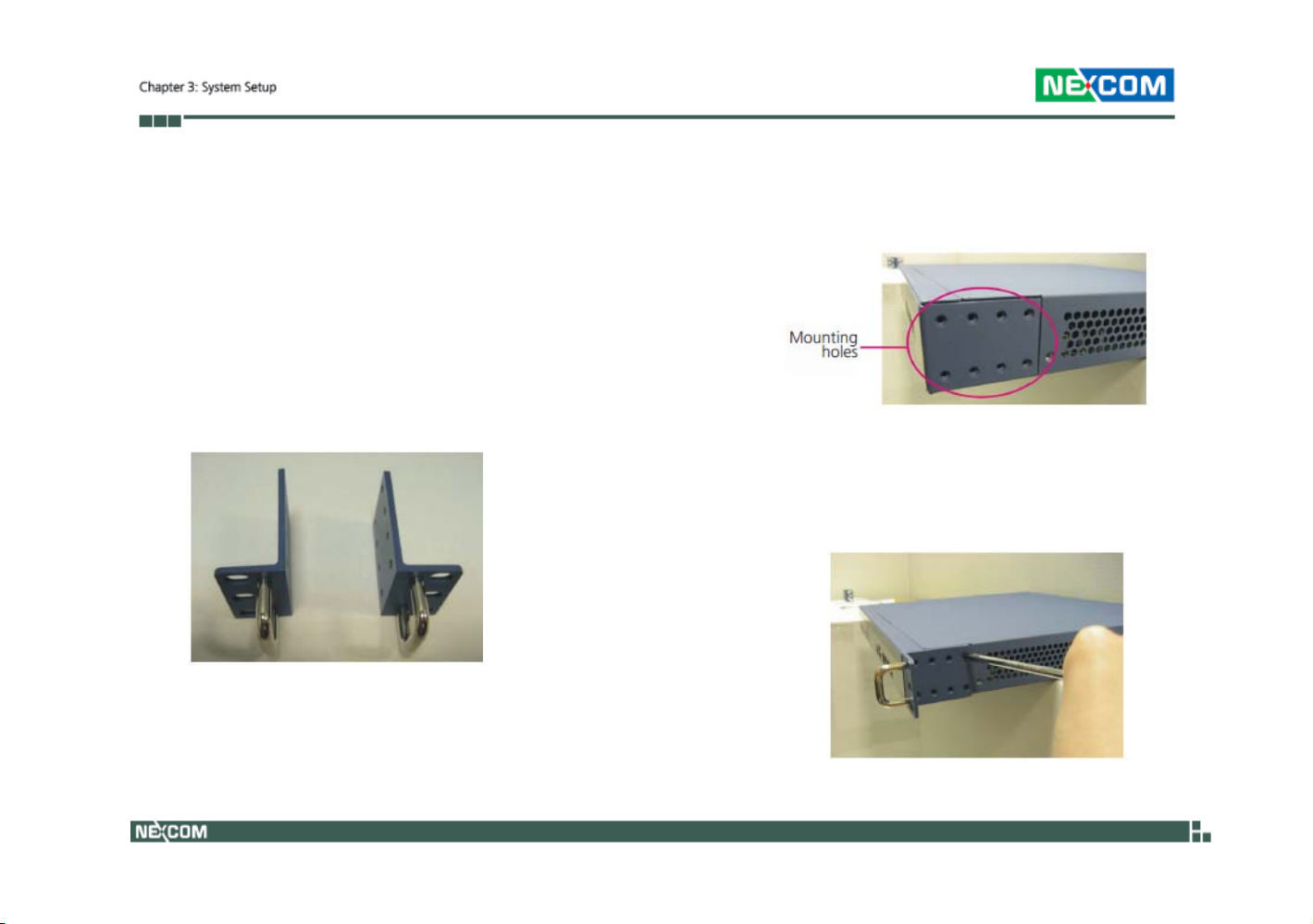

R

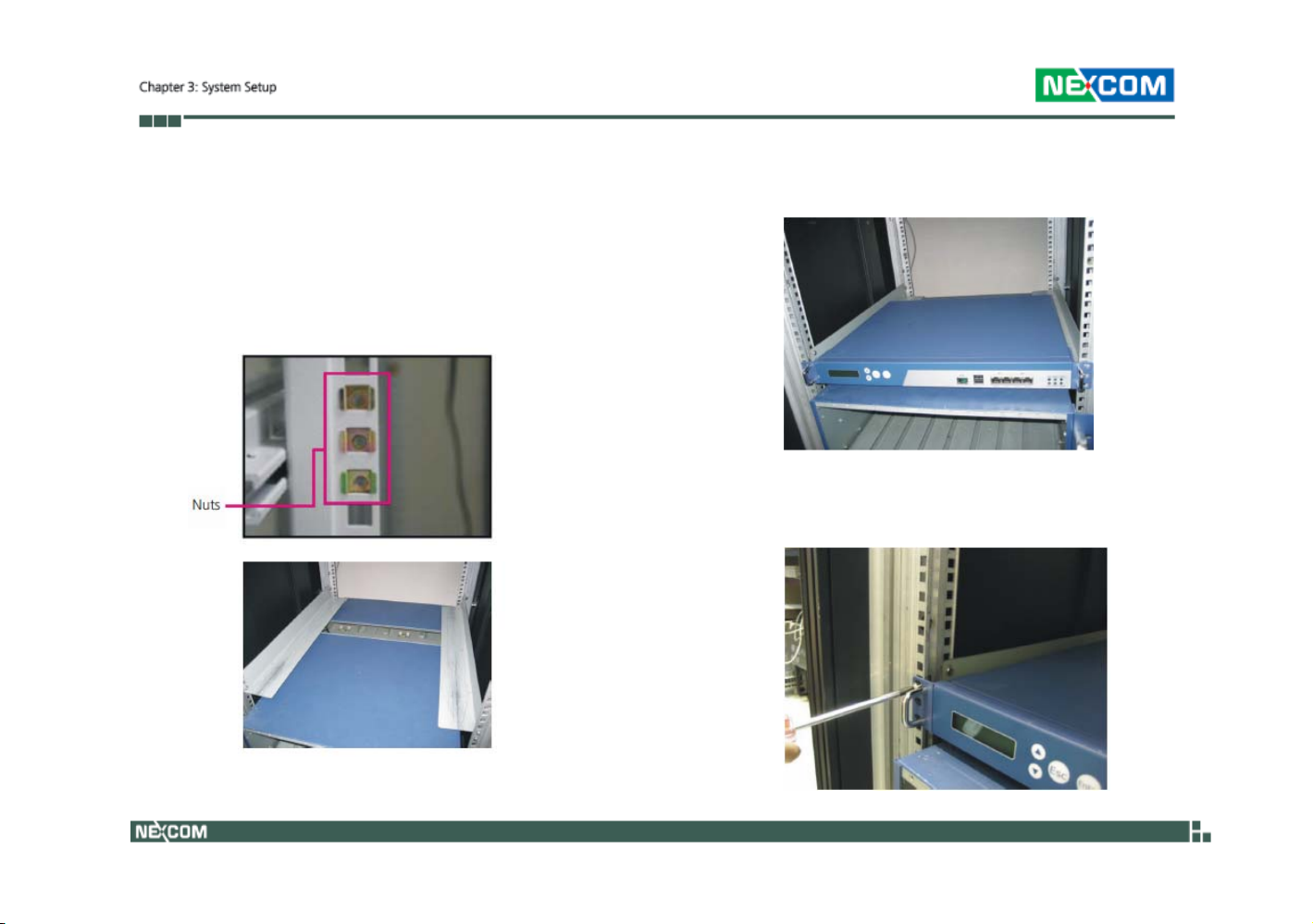

ACKMOUNT BRACKET KIT (OPTIONAL) .......................................................... 41

CHAPTER 4: BIOS SETUP ........................................................................ 43

A

BOUT BIOS SETUP .................................................................................. 43

W

HEN TO CONFIGURE THE BIOS .................................................................. 43

D

EFAULT CONFIGURATION ........................................................................... 44

E

NTERING SETUP ....................................................................................... 44

L

EGENDS ................................................................................................. 44

BIOS

SETUP UTILITY .................................................................................. 46

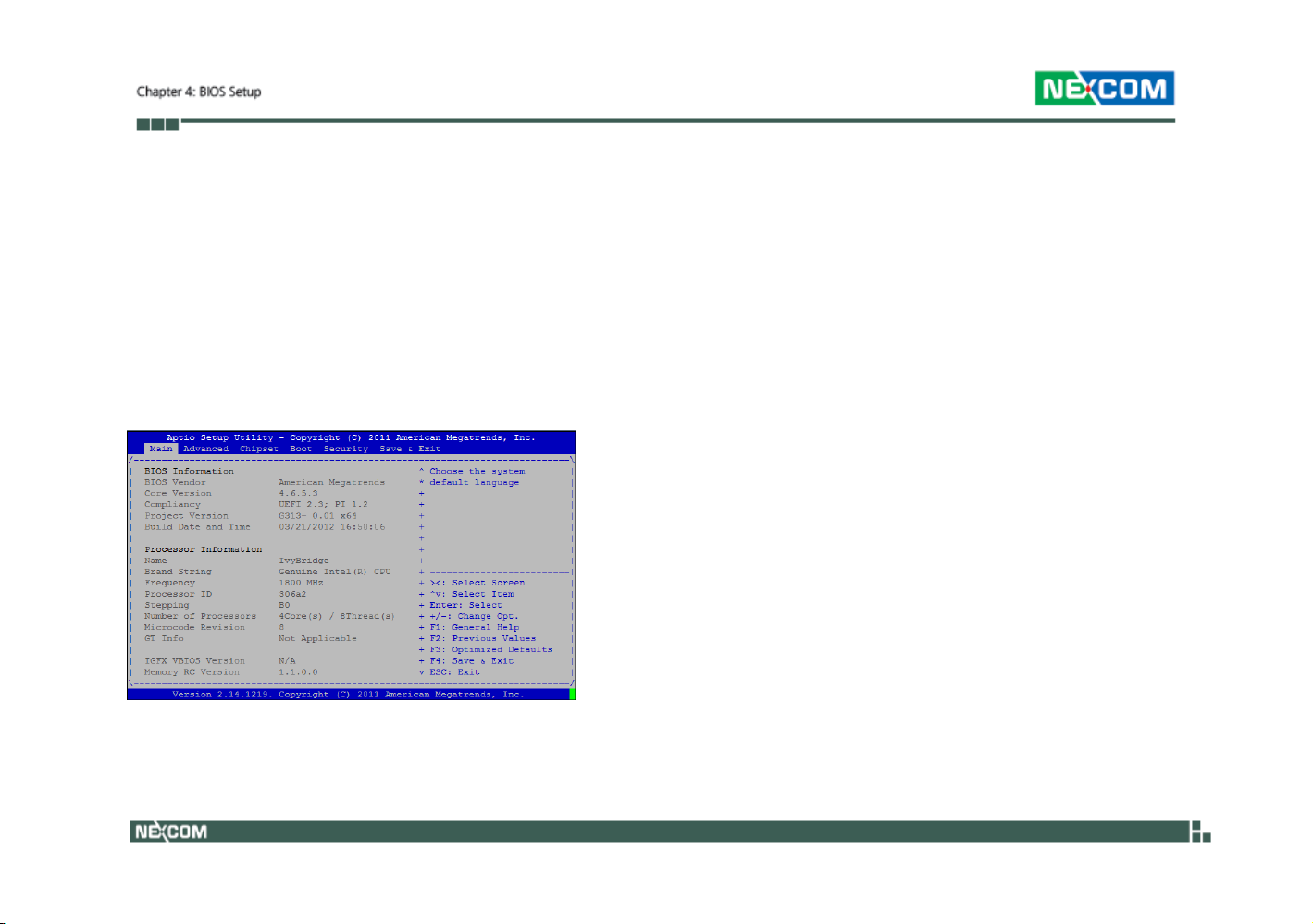

Main ................................................................................................ 46

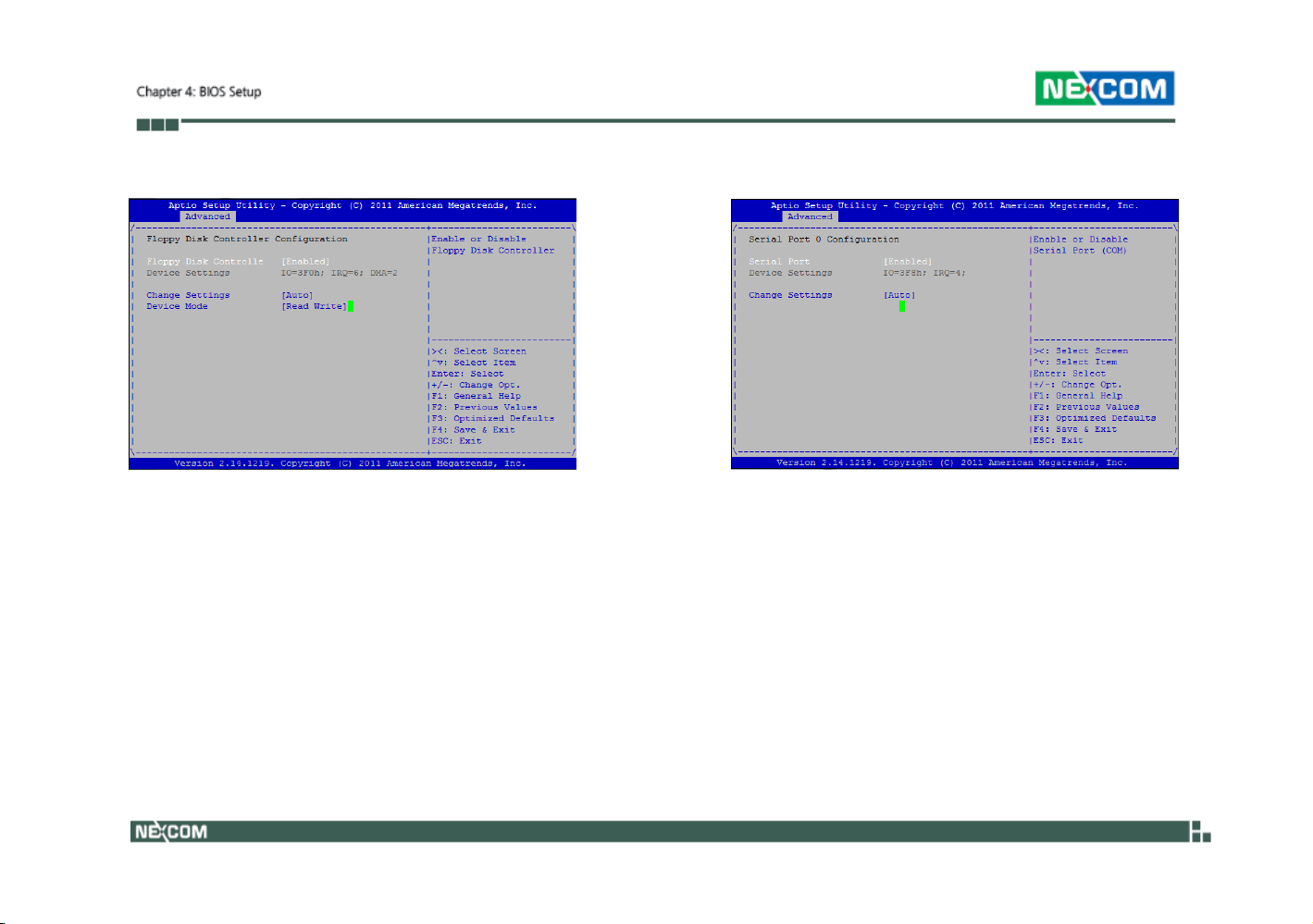

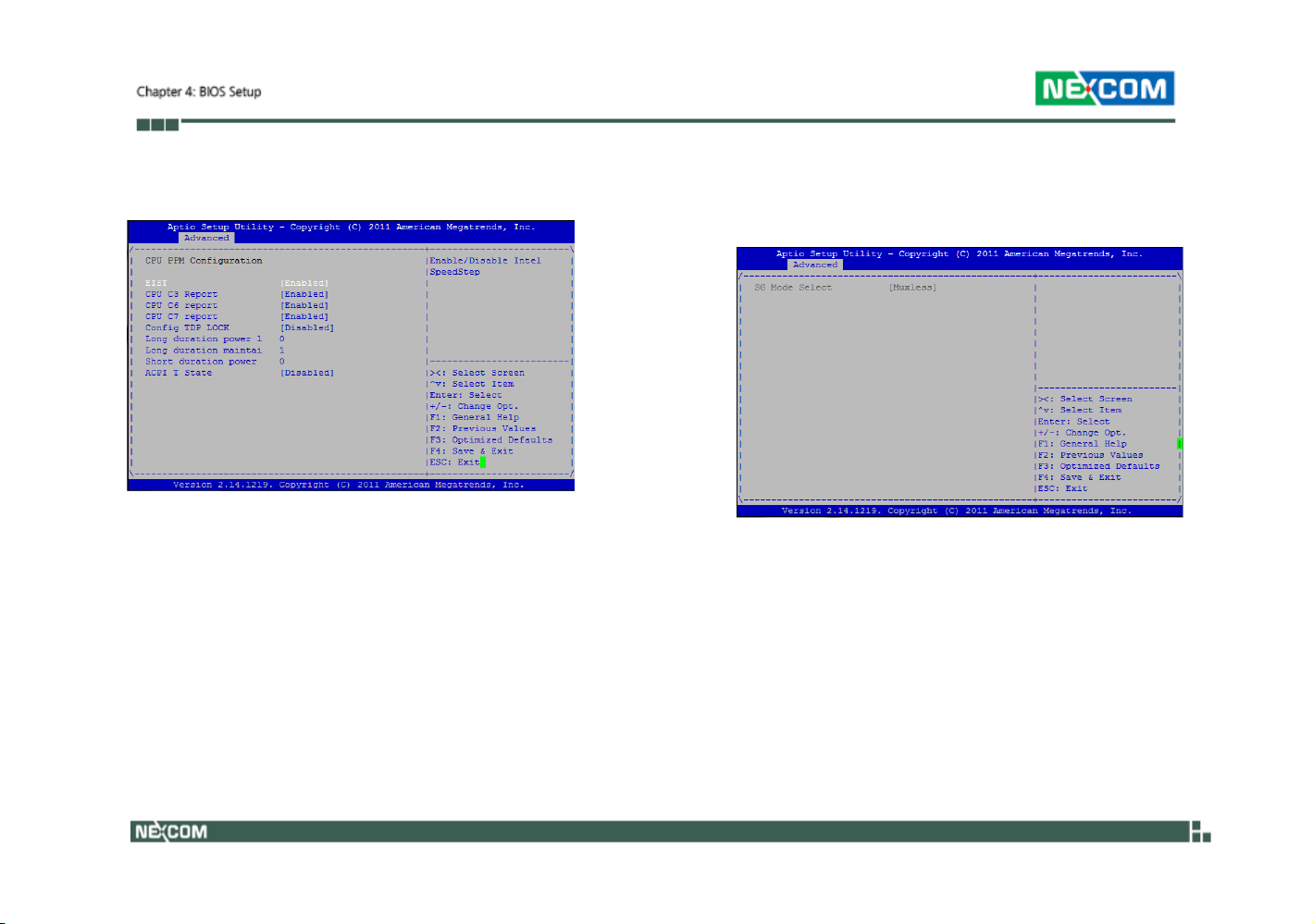

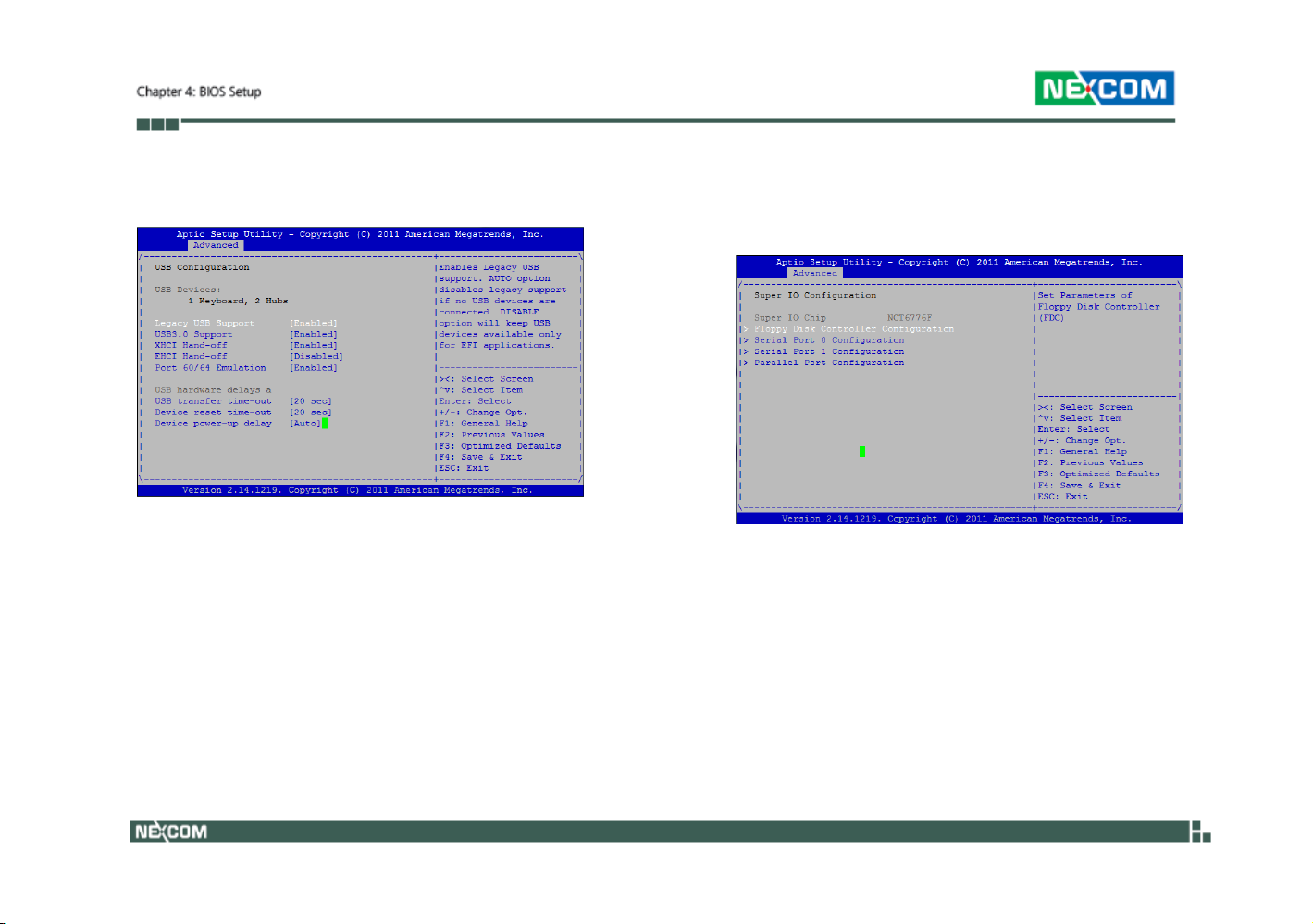

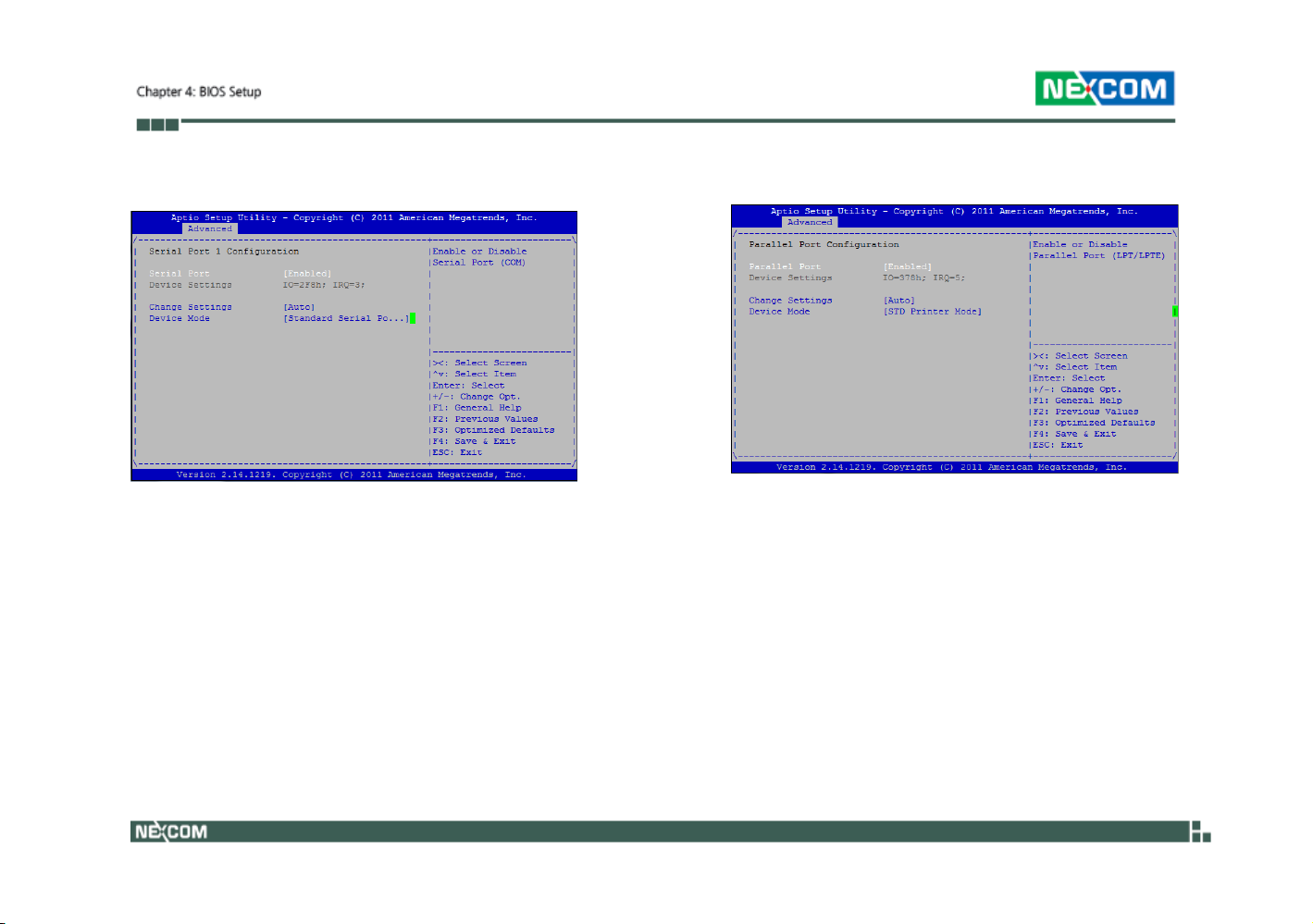

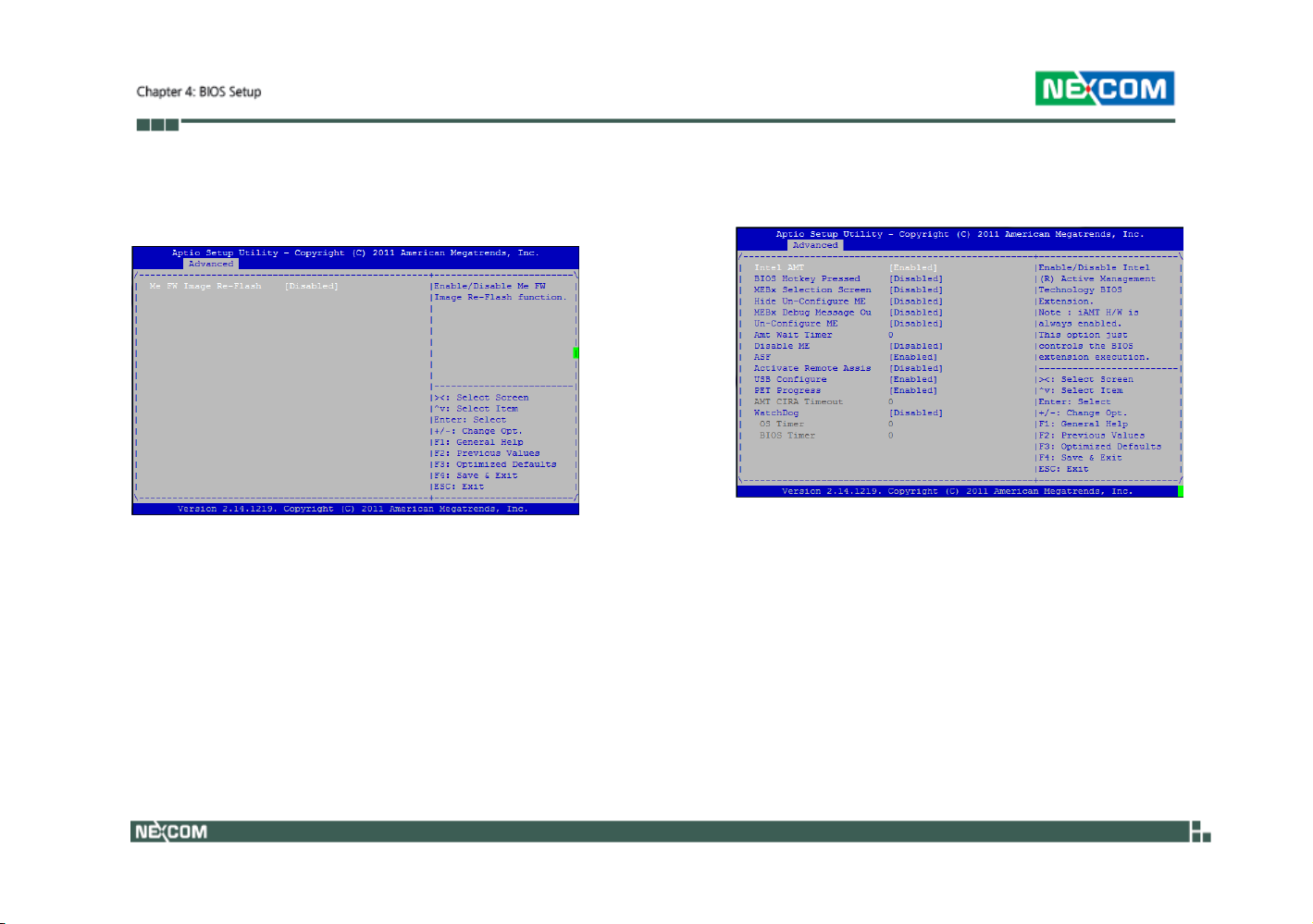

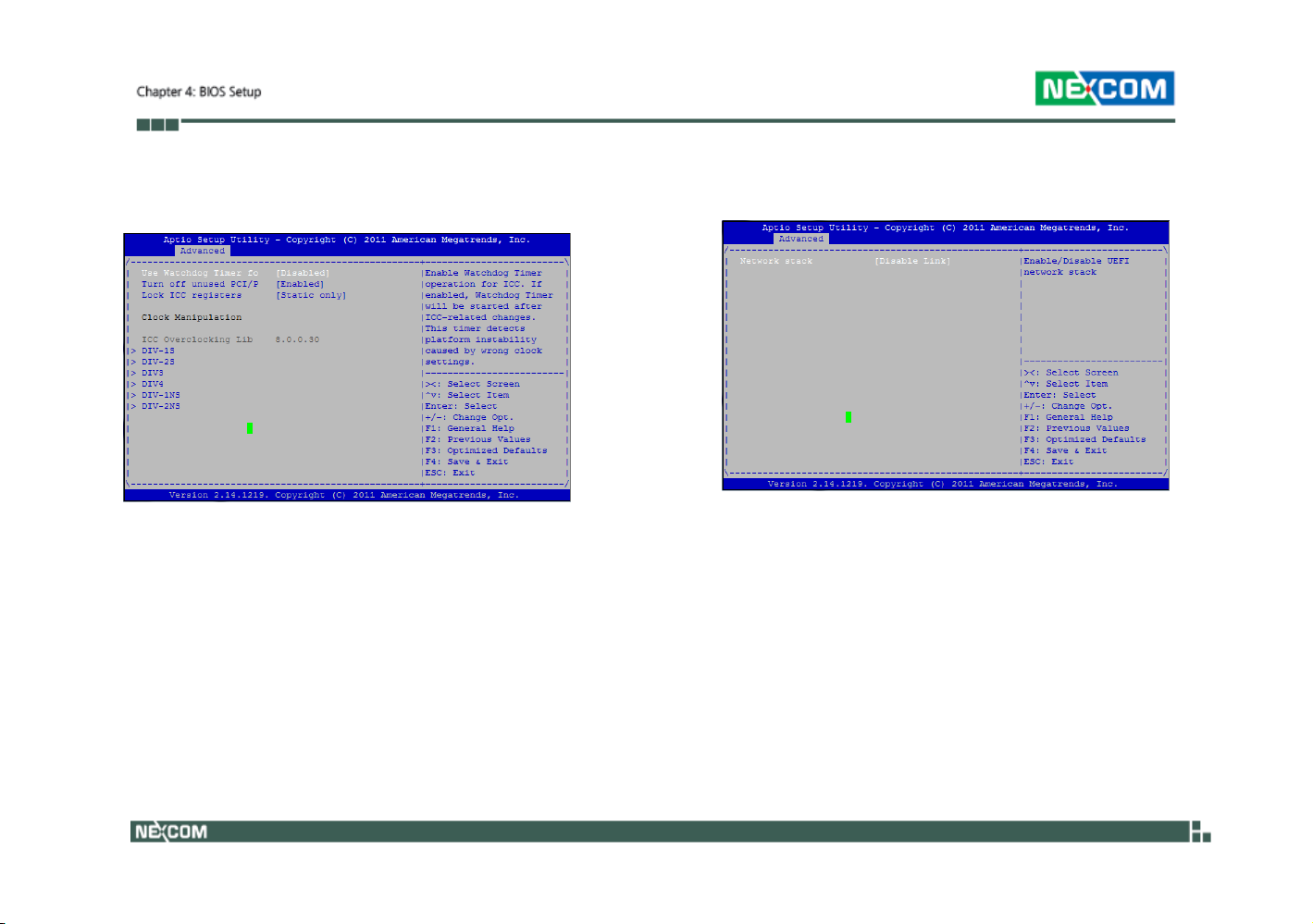

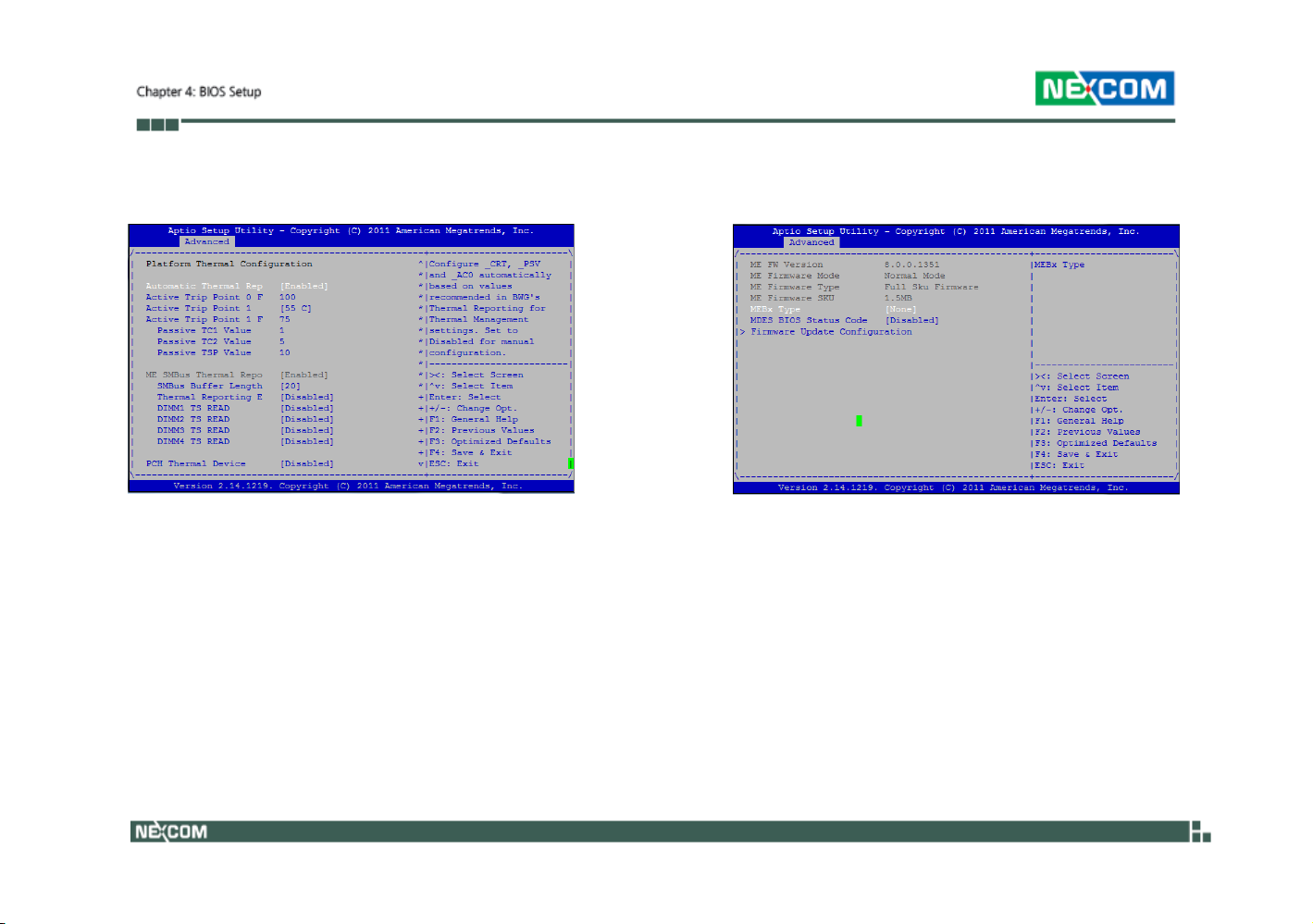

Advanced ........................................................................................ 47

Boot ............................................................................................... 61

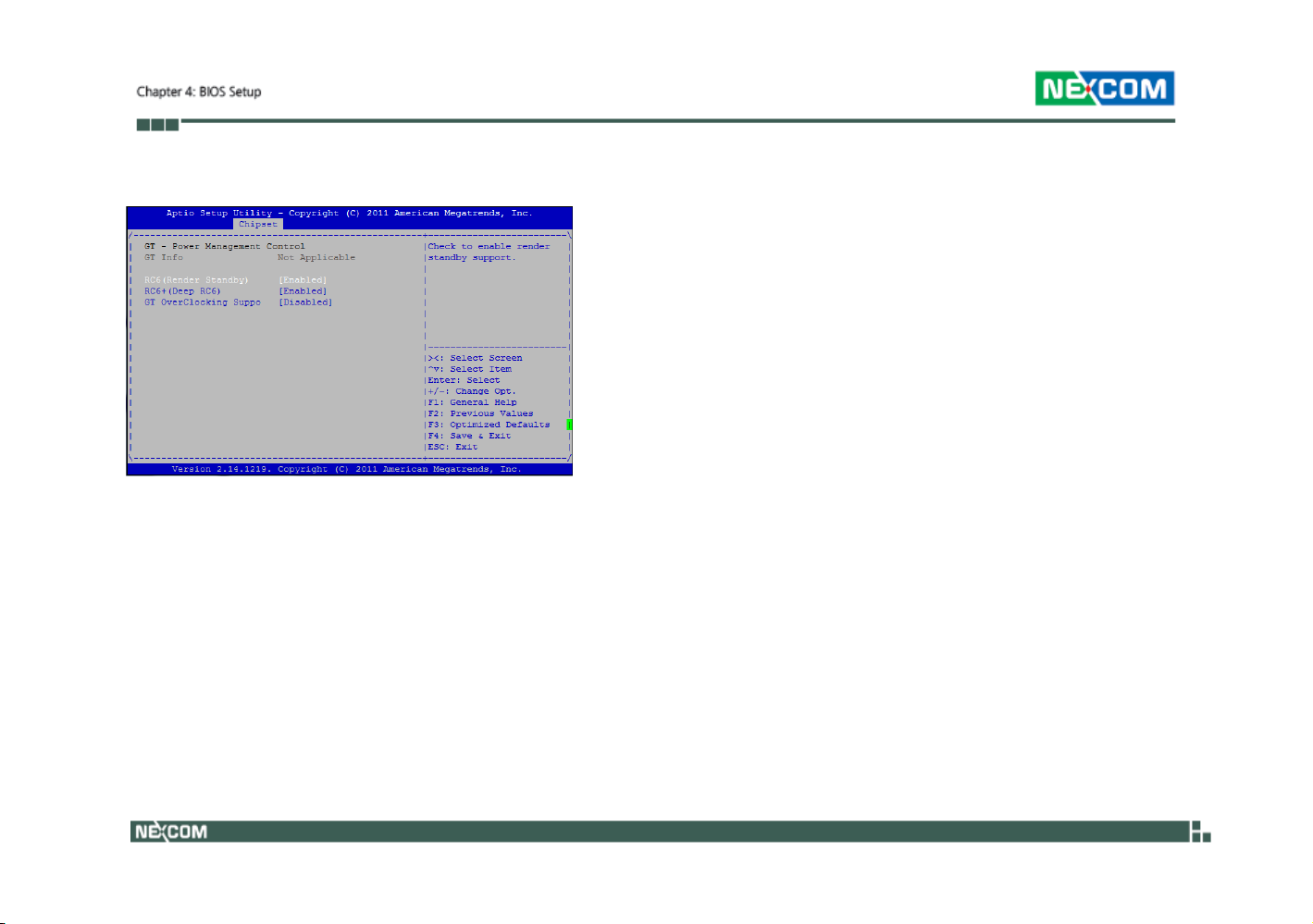

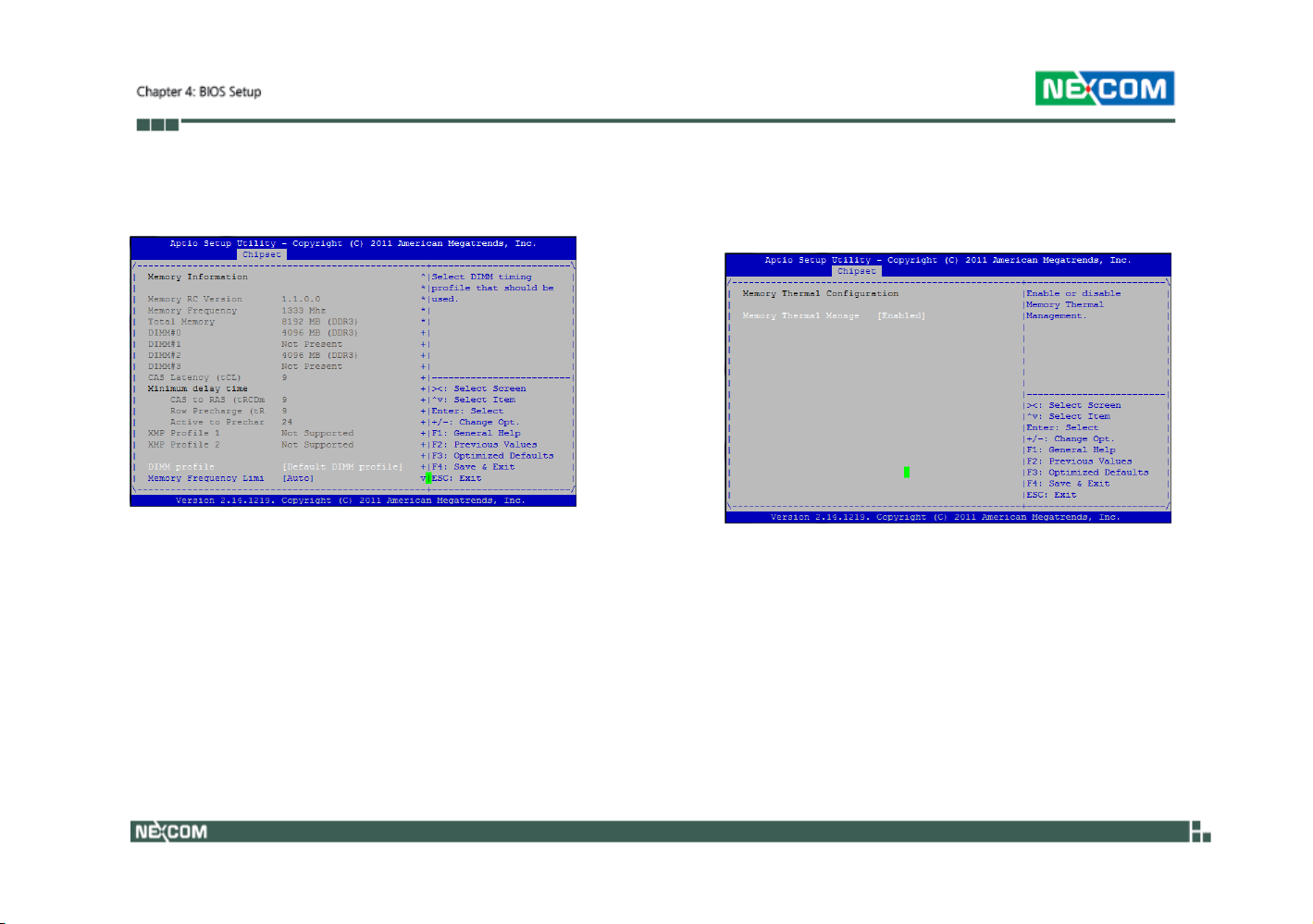

Chipset ............................................................................................ 63

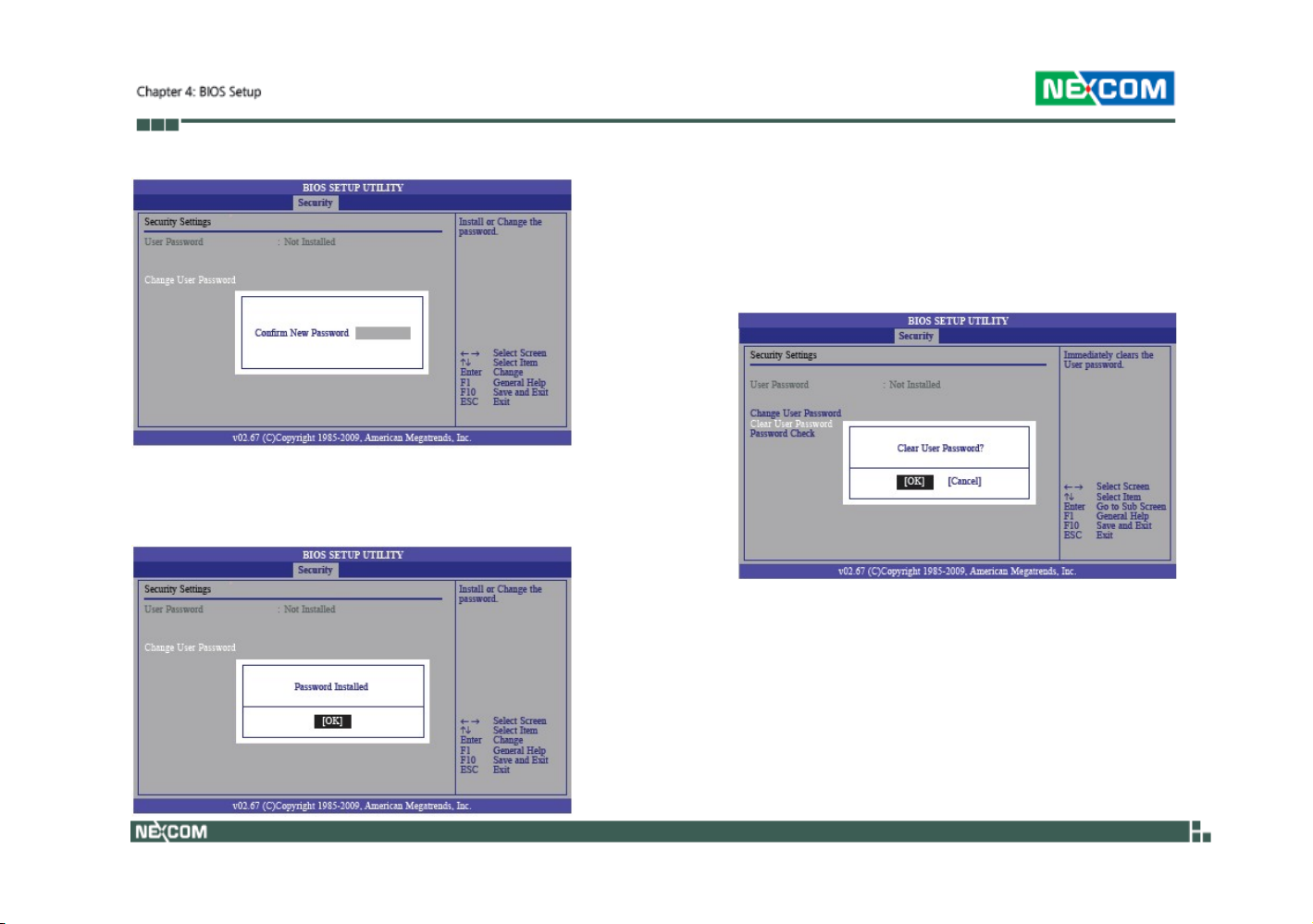

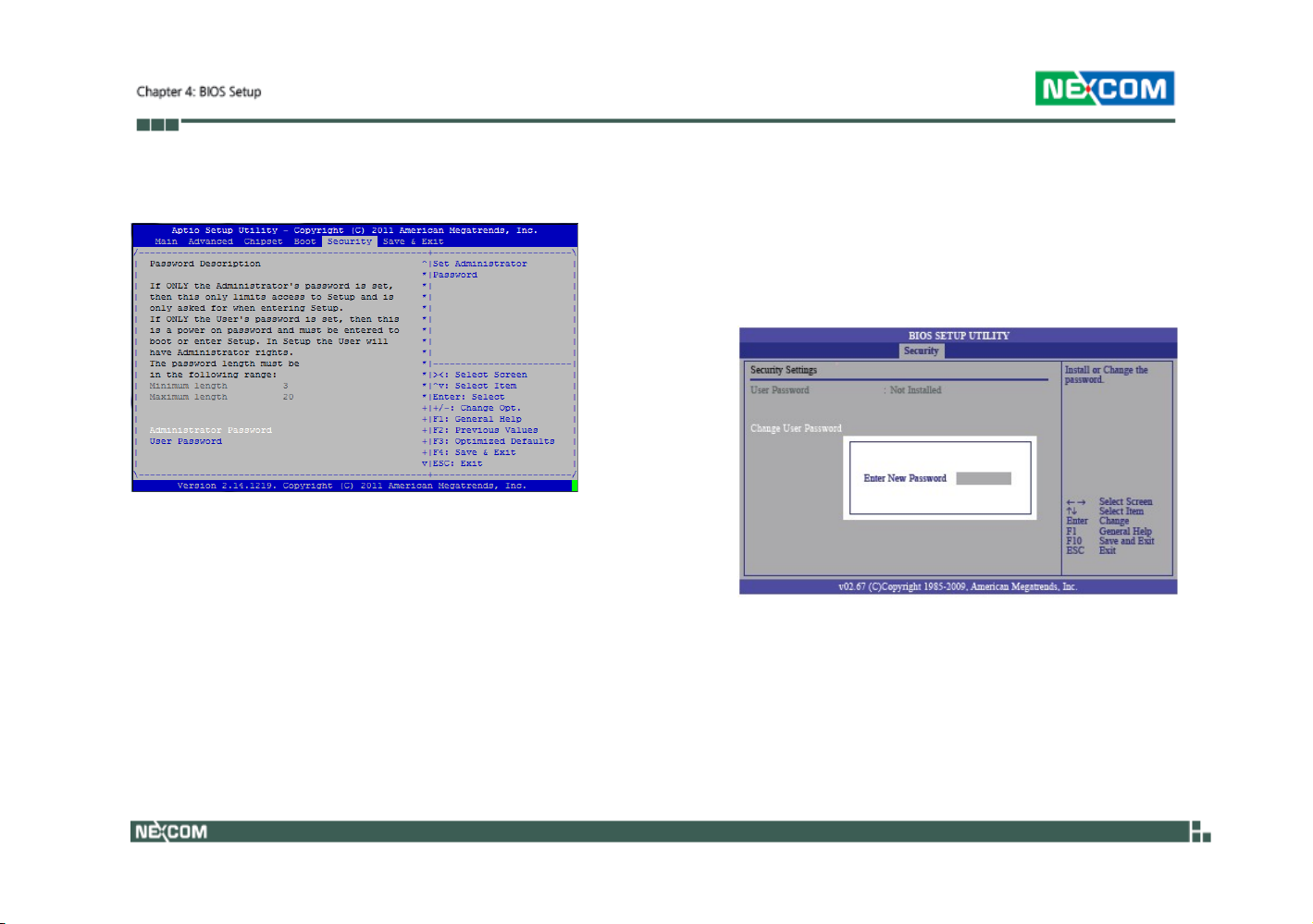

Security ........................................................................................... 70

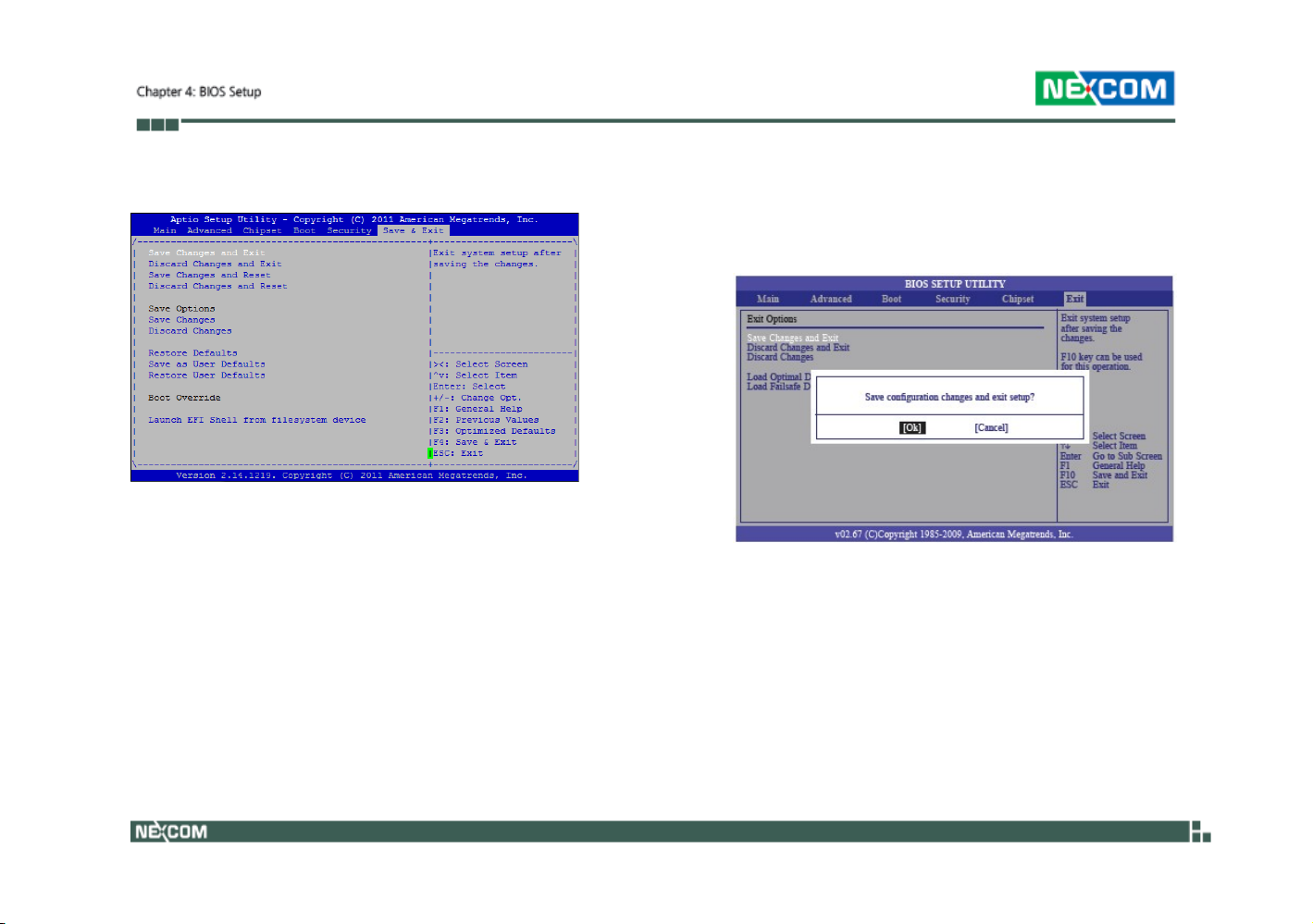

Save & Exit ...................................................................................... 72

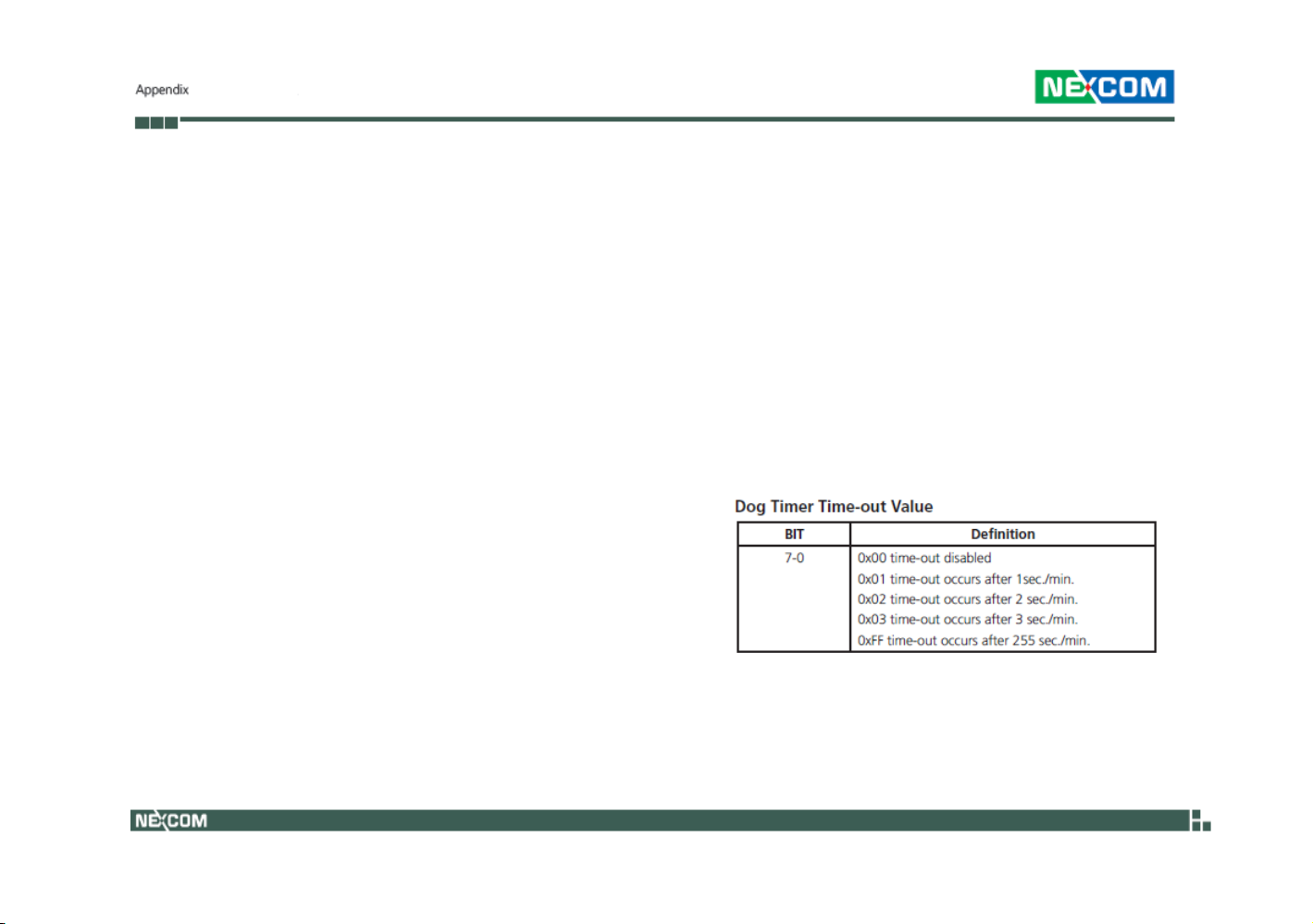

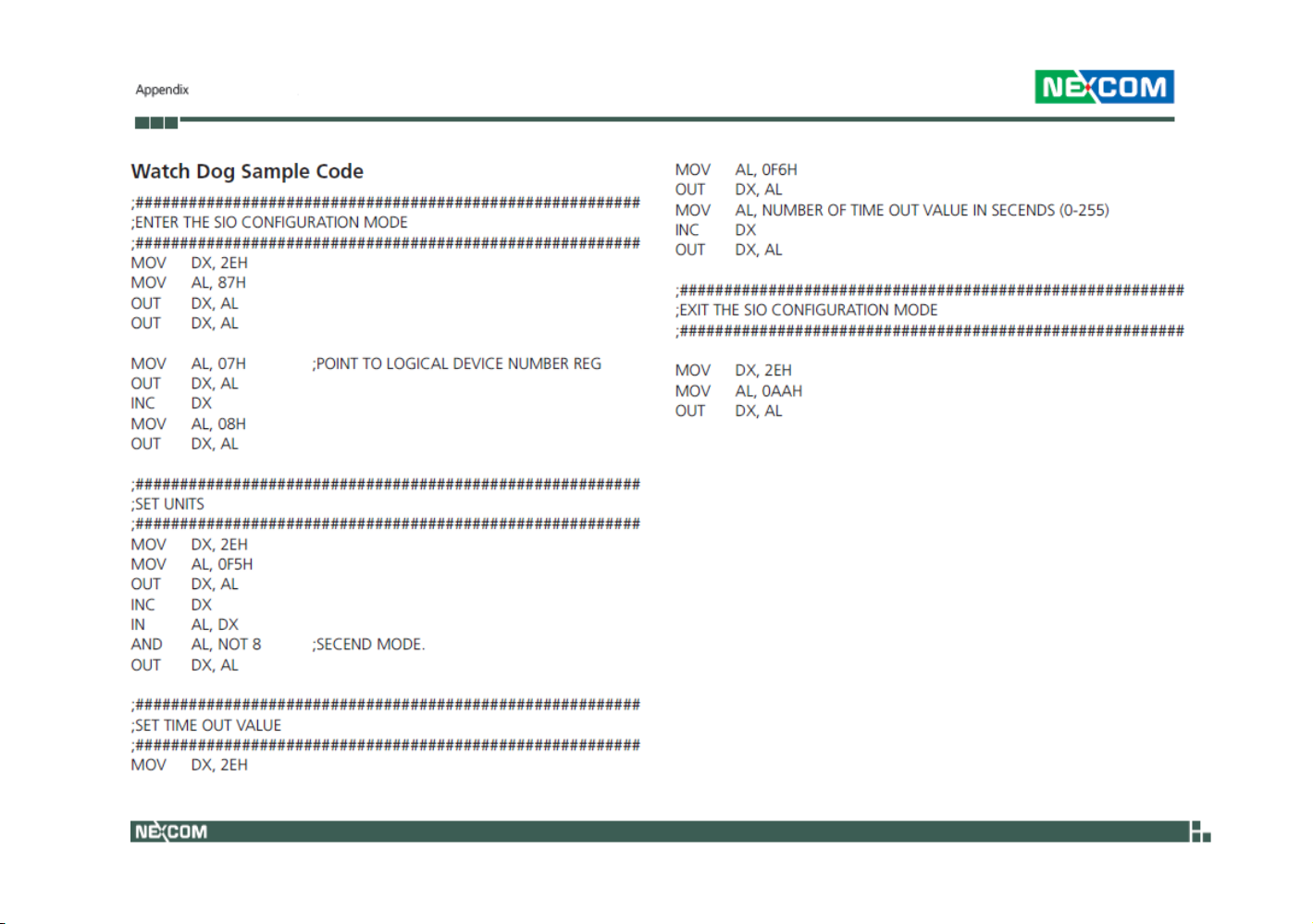

APPENDIX A: WATCHDOG TIMER .......................................................... 75

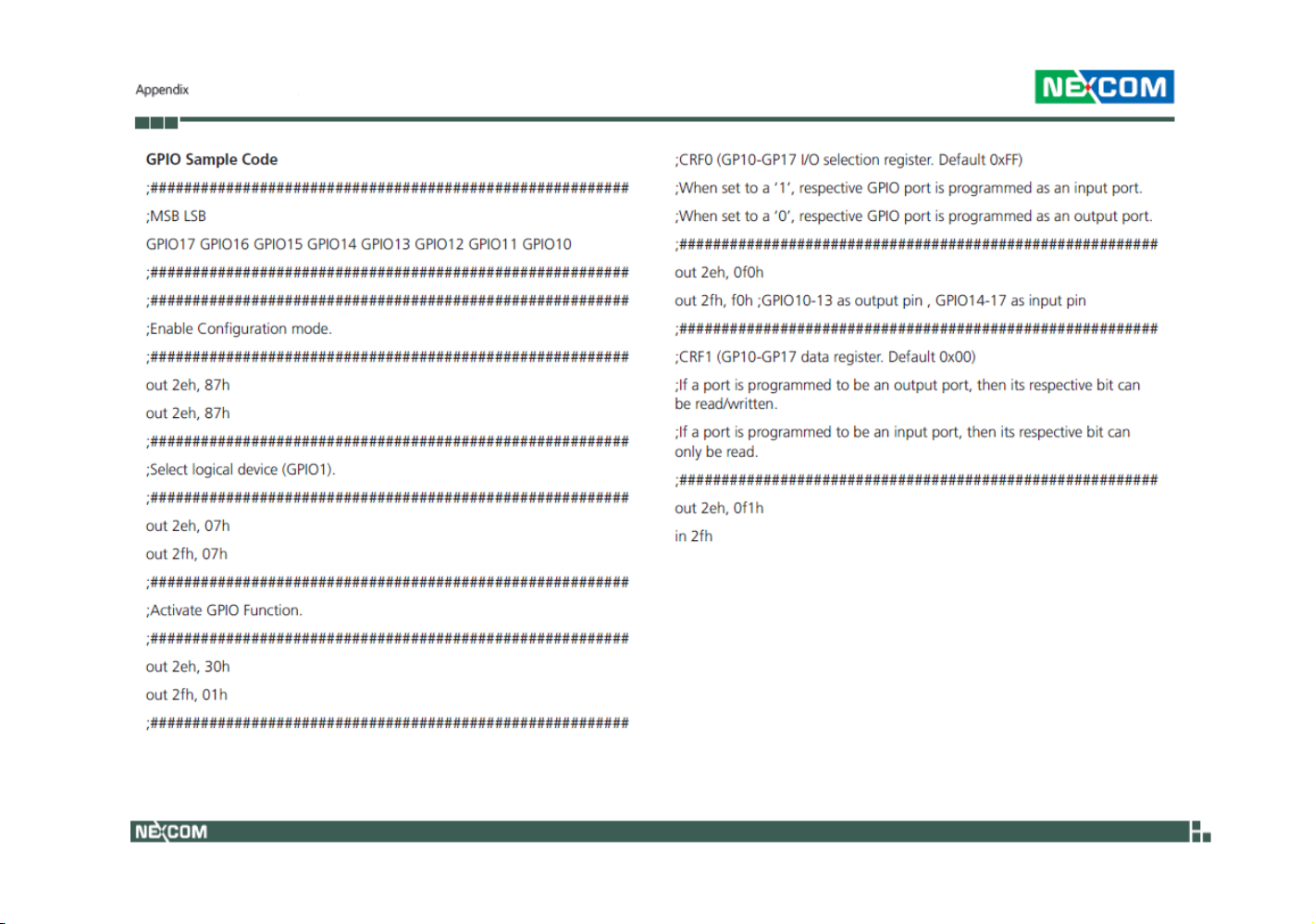

APPENDIX B: GPI/O PROGRAMMING GUIDE ......................................... 77

APPENDIX C: BYPASS SPECIFICATIONS ................................................... 80

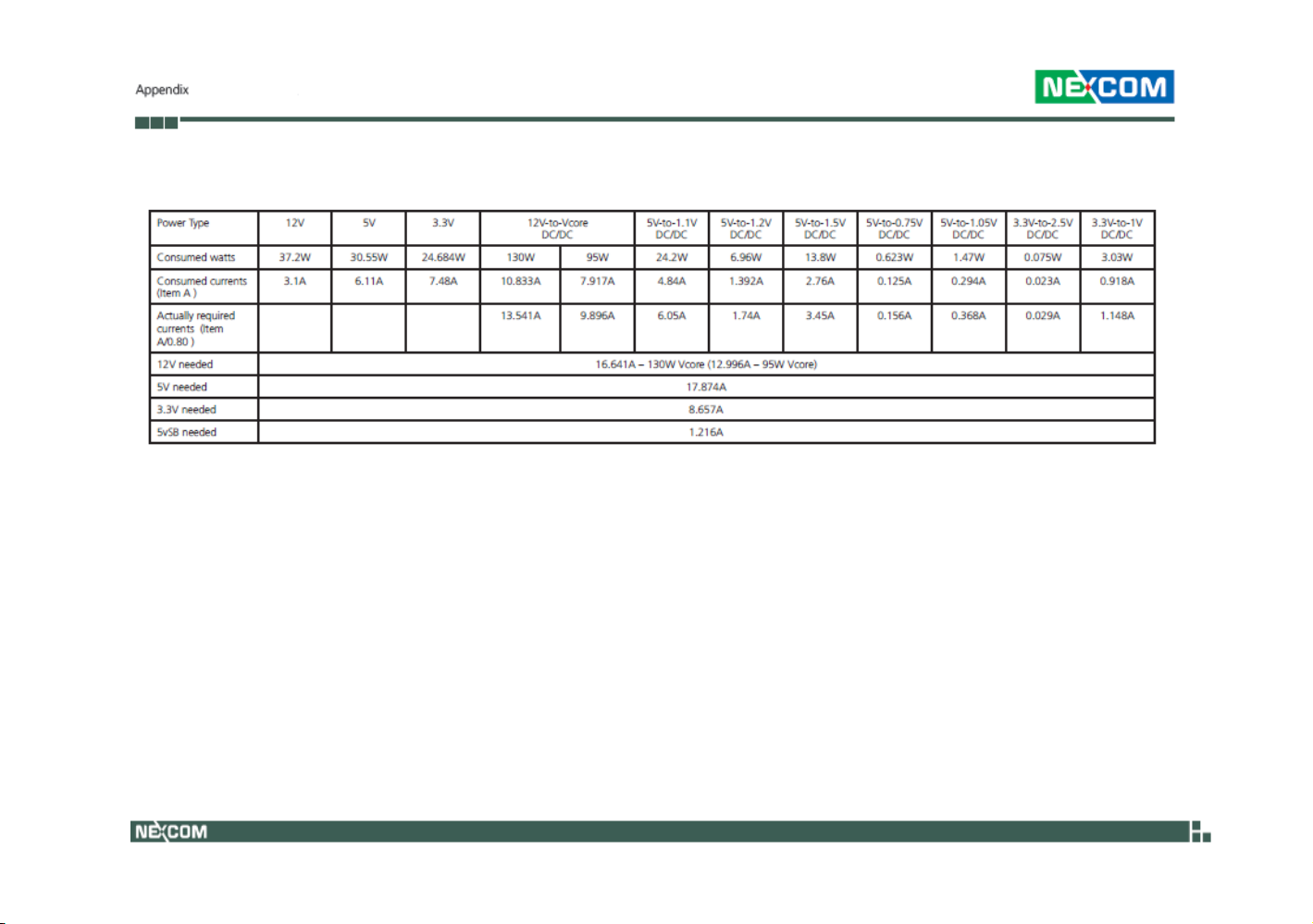

APPENDIX D: POWER CONSUMPTION ................................................... 82

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NSA 3130 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class A devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class A digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense. CE The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) <

0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) <

0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products? For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name. All new product models launched after January 2006 will be RoHS compliant. They will use the usual NEXCOM naming convention.

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

 Customers shall enclose the “NEXCOM RMA Service

Form” with the returned packages.

 Customers must collect all the information about the

problems encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

 Customers can send back the faulty products with or

without accessories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

 Customers are responsible for the safe packaging of

defective products, making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

 Any products returned by NEXCOM to other locations

besides the customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

 Component fee: NEXCOM will only charge for main

components such as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

 Items will be replaced with NEXCOM products if the

original one can not be repaired. Ex: motherboard, power supply, etc.

 Replace with 3rd party products if needed.  If RMA goods cannot be repaired, NEXCOM will return

it to the customer without any charge.

Board Level

 Component fee: NEXCOM will only charge for main

components, such as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

 If RMA goods can not be repaired, NEXCOM will return it

to the customer without any charge.

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

Safety Information

Before installing and using the device, note the following precautions:

 Read all instructions carefully.  Do not place the unit on an unstable surface, cart, or stand.  Follow all warnings and cautions in this manual.  When replacing parts, ensure that your service technician uses

parts specified by the manufacturer.

 Avoid using the system near water, in direct sunlight, or near a

heating device.

 The load of the system unit does not solely rely for support from

the rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

 The computer is provided with a battery-powered real-time clock

circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A grounding strap

• An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near

the equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping

it or letting it fall may cause damage.

7. Do not leave this equipment in either an unconditioned environment

or in a above 40 equipment.

8. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

9. Make sure the voltage of the power source is correct before

connecting the equipment to the power outlet.

10. Place the power cord in a way so that people will not step on it. Do

not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

11. All cautions and warnings on the equipment should be noted.

12. If the equipment is not used for a long time, disconnect it

from the power source to avoid damage by transient overvoltage.

oC storage temperature as this may damage the

13. Never pour any liquid into an opening. This may cause fire or electrical shock.

14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

15. If one of the following situations arises, get the equipment checked by service personnel: a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to

work according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

16. Do not place heavy objects on the equipment.

17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

19. The computer is provided with CD drives that comply with the appropriate safety standards including IEC 60825.

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

Global Service Contact Information

Headquarters NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia Taiwan Central Taiwan Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Europe Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

Wuhan Office

1-C1804/ 1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Package Contents

Before continuing, verify the package that you received is complete. Your package should have all the items listed in the table.

Item P/N Name Description Qty

1 19S00313000X1 NSA 3130 ASSY 1

2 50311F0100X00 (H)Round head screw w/spring+flat washer long FEI:P3x6L P3x6 iso/SW6x0.5 NI 1

3 50311F0102X00 (H)Round head screw long FEI:P6#32Tx 1/4/SW7*0.8 w/spring+flat washer P6#32Tx 1/4/SW7x0.8 NI 6

4 5043330480X00 HPAR1 CFast card bracket VER:A CHYUAN-JYH 54.6x48x6mm SPCC T=1.0mm NI 1

5 5044440031X00 Rubber foot kang YANG:RF20-5-4P 19.8x18x5.0mm 4

6 5060900075X00 NSA1086N7 ear sets CHYUAN-JYH:L102007-3 79.5x43.5x28mm AL PANTONE 295U 1

7 6012200052X00 PE zipper bag #8 170x240mm,W/China RoHS SYMBOL 1

8 6012200053X00 PE zipper bag #3 100x70mm,W/China RoHS SYMBOL 1

9 6014401067X00 (H)NSA 3110-C8-RL membrane VER:A FERLO 424x42x0.582mm 1

10 60177A0280X00 (N)NSA 3130 Quick Reference Guide VER:1.0 KRAMER 1

11 6023309081X00 Cable EDI:232091081804-RS COM port. DB9 female to RJ45 8P8CL:1800mm 1

12 60233ATA86X00 SATA cable CP:NEX-111223-03B SATA 7P 90D TO 180D L=130mm 1

13 6029900037X00 DOW corning 340 Silicone Heat Sink Compound(3g) 1

14 602DCD0529X00 NSA 3130 CD DRIVER VER:1.0 JCL 1

Ordering Information

The following provides ordering information for the Panel PC series.

• Barebone

NSA 3130 (P/N: TBD)

- Support 2nd generation Intel 2 DDR3 memory slots, 8 PCIe GbE LAN ports, CompactFlask socket, CFast socket, USB ports, VGA port, one PCIe x8 expansion slot, w/o LCM

• Option

NSA 3130 LCM & MEMBRANE (P/N: TBD)

® Core™ processor family,

Chapter 1: Product Introduction

NSA 3130

Overview

Key Features

• 1U Rackmount Network Platform

• 2nd Generation Intel® Core™ Processor Family

• Support DDR3 1066/1333 Memory, up to 8GB

• 8 xGbE LAN Ports

• Support One PCIe x8 Expansion

• Internal One 3.5” HDD Bay/ Two 2.5” HDD Bay

(Optional)

Hardware Specifications

Main Board

• NSB 3130

• Support 2nd generation Intel

Supported CPUs:

- Intel®

- Intel® Xeon® CPU (E3-1275V2)

- Core™ i7-3770 CPU

- Core™ i5-3550S CPU

- Intel® Xeon® CPU (E3-1225)

- Intel® Xeon® CPU (E3-1275)

- Pentium® Dual Core (G850)

- Core™ i3-2120 CPU

• Intel® H61

Main Memory

• 2x 240-pin DDR3 1066/1333MHz DIMM sockets, up to

8GB ECC/ non-ECC SDRAM

LAN Features

• LAN Chip: Intel

• Support 10/100/1000 link speed

• LAN Bypass: 4 pairs

Expansion

• 1x PCIe x 8 Slot

Xeon® CPU (E3-1225V2)

® 82583V

® Core™ processor family

I/O Interface-Front

• Power status/ HDD status/ LAN status/ bypass status

LED

• 2x USB 2.0 ports

• 1x RJ45 type console port

• 8x copper LAN ports

I/O Interface-Rear

• 1x expansion slot

• 2x USB 2.0 ports

• 1x VGA port

Devices

• 1x internal 3.5” HDD bay/ Two 2.5” HDD Bay (Optional)

• 1x SATA-DOM device space

• 1x CFast socket/ 1x CompactFlash Socket

Power Input

• 200W ATX power supply

Dimensions

• Chassis Dimension: 426mm x 365mm x 44mm

• Carton Dimension: 560mm x 570mm x 190mm

Certifications

• CE approval

• FCC Class A

• UL

Status Indicators

• Power LED

- Lights green when the system’s power is on

• HDD LED

- Lights yellow when the HDD is being accessed

• Bypass LED

- Lights yellow

Standard Power Supply

• Power type

- Standard ATX power supply

• Input voltage

- AC 100V - 240V

• Output voltage

- DC +5V, -5V, +12V, -12V, +3.3V, +5VSB

• Maximum output power

- Up to 200W

Environment

• Operating temperature

- 0oC ~ 40oC

• Storage temperature

- -20oC ~ 75oC

• Relative humidity

- 10%~90% non-condensing

Vibration

• Sine wave vibration test (non-operating)

- Frequency: 5 - 500 Hz

- Acceleration: 2g

• Random vibration test (operating)

- Frequency: 5 - 500 Hz

- Acceleration: 0.3g

• Random vibration test (packing)

- Frequency: 1 - 200 Hz

- Acceleration: 1.15g

Shock

• Non-OP shock

Acoustic Noise

• ISO 11201:1995(E)/ISO 7779:1999/ Amd.1:2003(E)

Certificate

• CE

• FCC Class A

ESD

• 2/4KV contact discharge

• 2/4/8KV air discharge

• Criteria B

Safety

• UL

• LV D

Getting to Know the NSA 3130

Front Panel

Power LED

It indicates the power status of the system.

HDD LED

It indicates the status of the hard drive.

LAN/Bypass Status LEDs

They indicate the status of the LAN/Bypass.

Copper LAN Ports

They are used to connect LAN network devices.

USB Port

It is used to connect USB 2.0/1.1 devices.

Console Port

It is used to connect RJ45 type Console device.

Software Button

This is a GPIO software button.

LCD

2x16 characters LCD module, PIO interface.

Rear Panel

Power On/Off Switch

Press the switch to power on or power off the system.

Expansion Slot

It is used to install a PCI Express x8 slot.

VGA Port

It is used to connect an analog VGA monitor.

Chapter 2: Jumpers and Connectors

This chapter describes the jumpers and connectors on the motherboard. Note that information in this chapter applies to NSA 3130.

Before You Begin

• Ensure you have a stable, clean working environment.

Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

• Adequate lighting and proper tools can prevent you from

accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

• A Philips screwdriver

• A flat-tipped screwdriver

• A set of jewelers Screwdrivers

• A grounding strap

• An anti-static pad

• Using your fingers can disconnect most of the

connections. It is recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

• Before working on internal components, make sure that

the power is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic

components. Humid environment tend to have less static electricity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still connected to a power supply can be extremely dangerous. Follow the guidelines below to avoid damage to your computer or yourself:

• Always disconnect the unit from the power outlet

whenever you are working inside the case.

• If possible, wear a grounded wrist strap when you are

working inside the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

• Hold electronic circuit boards by the edges only. Do not

touch the components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

• Leave all components inside the static-proof packaging

that they shipped with until they are ready for installation.

• Use correct screws and do not over tighten screws.

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open. Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

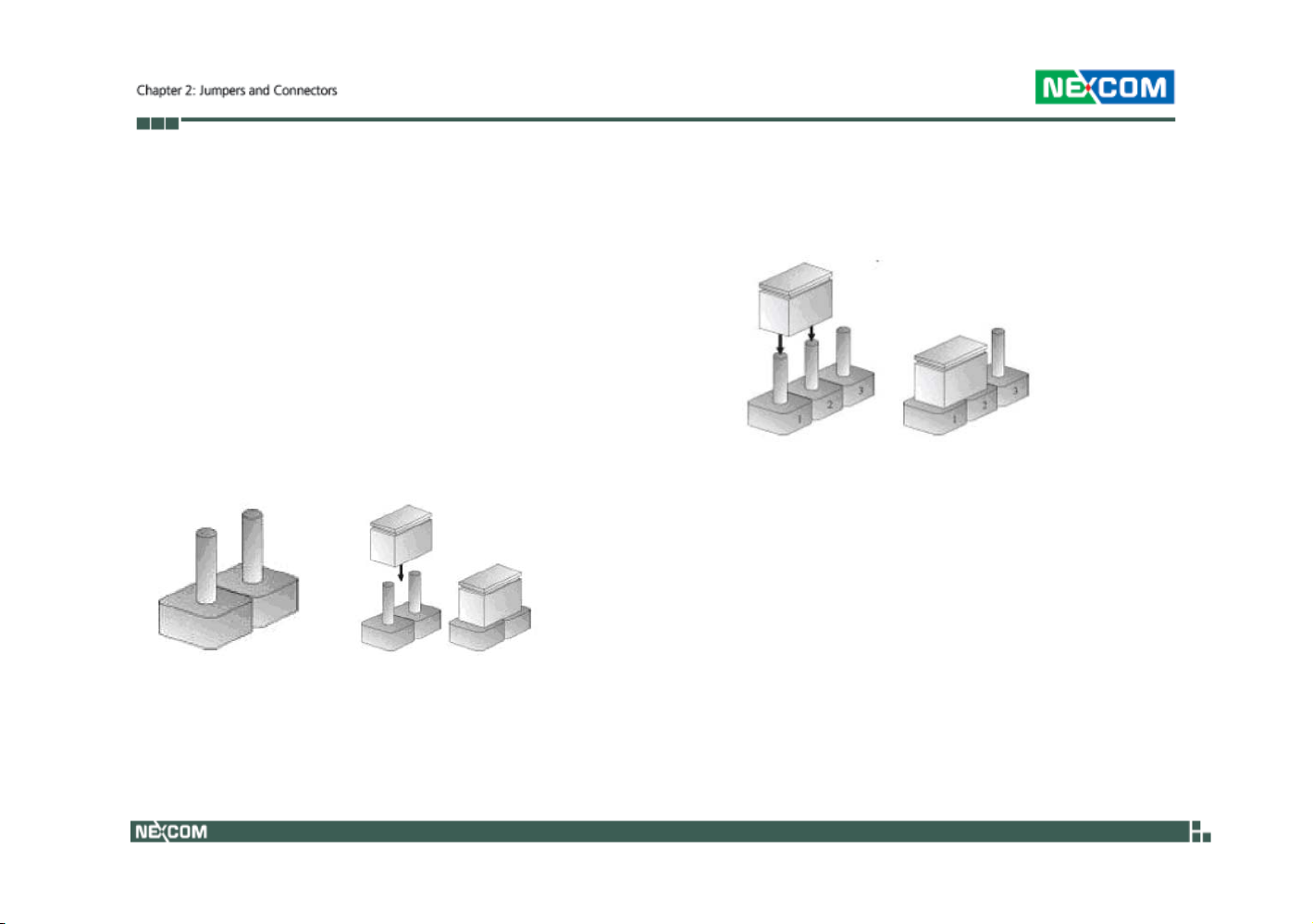

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 Are Short

Locations of the Jumpers and Connectors

NSB 3130

The figure on the right is the NSB 3130 main board which is the main board used in the NSA 3130 system. It shows the locations of the jumpers and connectors.

Jumpers

RTC Clear (JP7)

Connector type: 1x3 3-pin header, 2.54 mm pitch

1

JP7

2 3

Pin Setting

1-2 On Normal 2-3 On CMOS Clear

1-2 ON Default

AT/ATX Mode Selector (JP4)

Connector type: 1x3 3-pin header, 2.54 mm pitch

Pin Setting

2-3 ON Default

1

3

2

JP4

1-2 On ATX Mode 2-3 On AT Mode

Pin Definition

1 NC 2 ICH_RTCRST_N 3 Battery GND

Pin Definition

1 3VSB 2 AT_ATX_Select 3 GND

Console Type Selector (JP6)

Connector type: 1x3 3-pin header, 2.54 mm pitch

1

3

2

JP6

Pin Setting

1-2 On RTS to CTS 2-3 On Normal

2-3 ON Default

Pin Definition

1SP_RTS1_R 2SP_CTS1_R 3 SP_CTS1_CON

ME Force Update Pin Header (JP5)

Connector type: 1x3 3-pin header, 2.54 mm pitch

1

3

2

JP5

Pin Setting

1-2 On 2-3 On

2-3 ON Default

Pin Definition

1NC 2GPIO24 3GND

Connector Pin Definitions

External I/O Interface

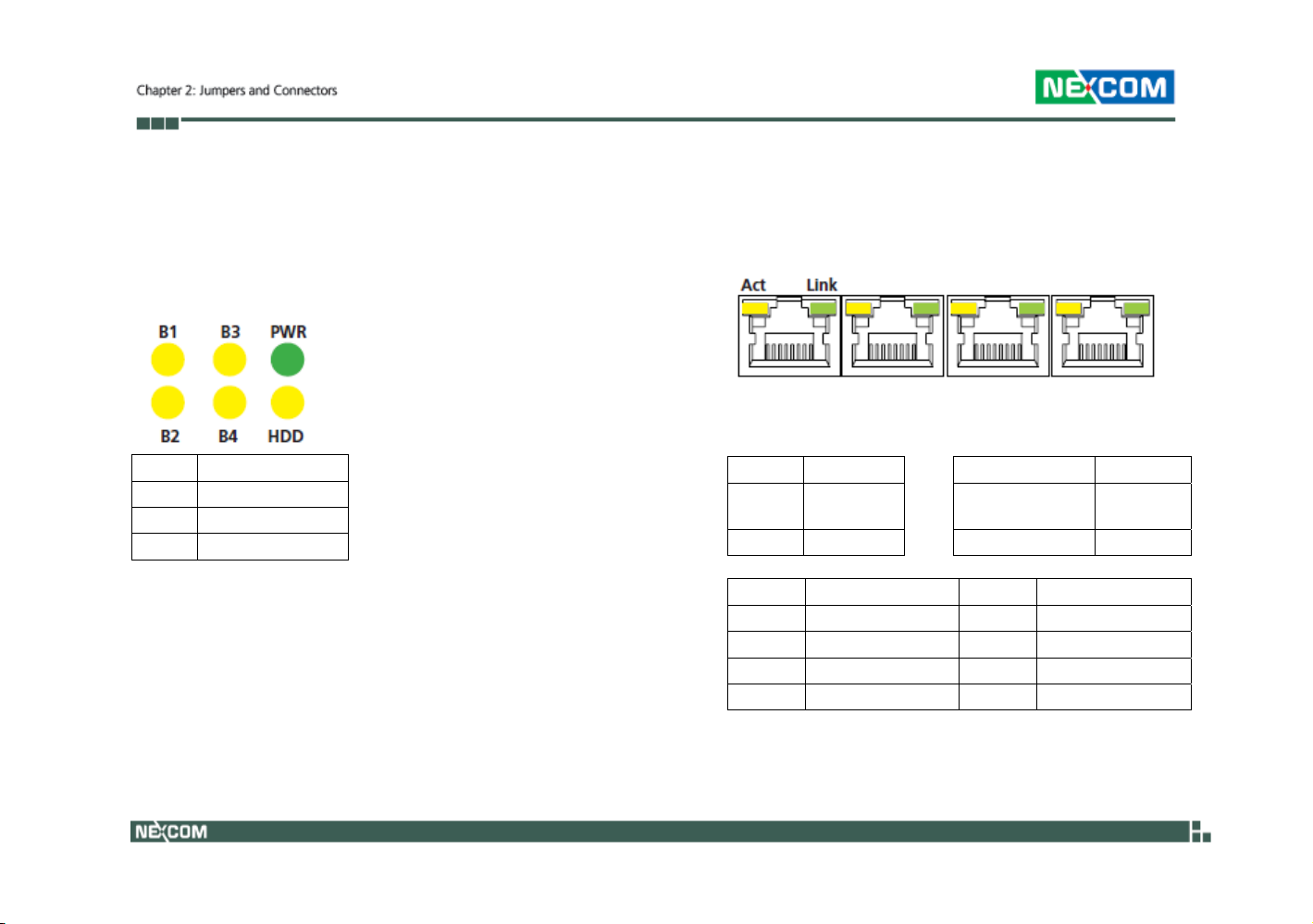

Status Indicators

Connector location: LED14, LED15 and LED16

Status LED Color

PWR Green

HDD Yellow

B1-B4 Yellow

Copper LAN Ports

Connector size: RJ45 port with LEDs Connector location:

CON1, CON2

Act Status Link Status

Yellow Blinking

Off No Activity Off No link

Pin Definition Pin Definition

Data Activity

1 TX+0 5 TX-2

2 TX-0 6 TX-1

3 TX+1 7 TX+3

4 TX+2 8 TX-3

Green

Always Lighted

1G and 10/100MB

USB Ports (CN1)

Connector Size: Dual USB port

Pin Definition Pin Definition

1

2

3

4

VCC

USB0-

USB0+

GND

5

6

7

8

VCC

USB1-

USB1+

GND

RJ45 Type Console Port (LAN1) (RS232 Only)

Connector Size: RJ45 port

Pin Definition Pin Definition

1

3

5

7

SP_RTS1_R

SP_TXD1_R

SP_DCD1_R

SP_DSR1_R

2

4

6

8

SP_DTR1_R

GND

SP_RXD1_R

SP_CTS1_CON

GPI12 Software Button (SW1)

Connector Size: 2-pin jack

Pin Definition

1 GND

2 RW_SW_RST

Internal Connector

Reset Button (JP3)

Connector size: 1x2 2-pin header, 2.54 mm pitch

1

2

JP3

Pin Signal

1 PCH_SYS_ RESET_N_R 2 GND

Power Button (J7)

Connector Size: 1X2 2-pin header, 2.54mm pitch

1

2

JP7

Pin Signal

1 GND 2 PCH_PWRBTN_N

VGA Connector (CN3)

Connector Size: 2x8 16-pin box header, 2.0 mm pitch

Pin Definition Pin Definition

1 RED 2 GREEN

3 BLUE 4 NC

5 GND 6 GND

7 GND 8 GND

9 VCC5 10 GND

11 NC 12 VGADATA

13 HSYNC 14 VSYNC

15 VGACLK 16 NC

PS/2 Keyboard/Mouse Connector

Connector Size: 2x4 8-pin header, 2.54 mm pitch

COM2 Connector (CN4) (RS232)

Connector Size: 2x5 10-pin box header, 2.0 mm pitch

Pin Definition Pin Definition

1 VCC5 2 VCC5

3 KB_DATA 4 LM_DATA

5 KB_CLK 6 LM_CLK

7 GND 8 GND

Pin Definition Pin Definition

1 SP_DCD2 2 SP_RXD2

3 SP_TXD2 4 SP_DTR2

5 COM2_GND 6 SP_DSR2

7 SP_RTS2 8 SP_CTS2

9 SP_RI2 10 COM2_GND

SATA Connector (J10/J8/J5)

Connector Size: Standard Serial ATAII, 1.27mm

Pin Definition

1 GND

2 TXP0

3 TXN0

4 GND

5 RXN0

6 RXP0

7 GND

LCM Module Connector (CN2)

Connector Size: 2X13 26-pin boxed header, 2.0mm pitch

Pin Description Pin Description

1 LPT_STB#R 2 LPT_AFD#R

3 LPT_PDR0 4 LPT_ERR#R

5 LPT_PDR1 6 LPT_INIT#R

7 LPT_PDR2 8 LPT_SLIN#R

9 LPT_PDR3 10 GND

11 LPT_PDR4 12 GND

13 LPT_PDR5 14 GND

15 LPT_PDR6 16 GND

17 LPT_PDR7 18 GND

19 LPT_ACK#R 20 GND

21 LPT_BUSY 22 GND

23 LPT_PE 24 GND

25 LPT_SLCT 26 NC

LCM Key Pad Connector (JP1) Connector Size: 1x4 4-pin header, 2.54 mm

1

3

4

2

JP1

Pin Definition

1 KEY_PIN1 2 KEY_PIN2 3 KEY_PIN3 4 KEY_PIN4

GPIO Connector

Connector Size: 2x5 10-pin box header, 2.0 mm pitch

Pin Definition Pin Definition

1 VCC5 2 GND

3 SIO_GPIO10 4 SIO_GPIO14

5 SIO_GPIO11 6 SIO_GPIO15

7 SIO_GPIO12 8 SIO_GPIO16

9 SIO_GPIO13 10 SIO_GPIO17

CPU Fan

Connector Size: 4-pin Wafer, 2.54 mm pitch

Pin Definition

1GND 2 +12V 3FAN_TAC 4PWM

System Fan

Connector Size: 3-pin Wafer, 2.54 mm pitch

Pin Definition

1GND 2 +12V 3SENSE

SATA DOM PWR (J12)

Connector Size: 1X2 = 2-Pin , 2.0mm ,180°, JST

21

J12

Pin Definition

1 VCC5 2 GND

Power Connector (J14)

Connector Size: 1X4 = 4-pin

Pin Definition

1 VCC12 2 GND 3 GND 4 VCC5

GAL Programming Connector (J6)

Connector Size: 1X6 = 6-Pin

5

6

1

4

3

2

J6

Pin Definition Pin Definition

1

3

5

3VSB GAL_TCK GAL_TD1

2

4

6

USB JST 2.00mm (J13)

Connector Size: 1X6 = 6-Pin

5

6

1

3

4

2

J13

Pin Definition Pin Definition

1

P5V_USB_P23

3

5

USB2+ USB3+

2

4

6

GND

GAL_TDO

GAL_TMS

USB2USB3-

USB23GND

Digital IO 4 Input/4 Output Connector (J9)

Connector Size: 2 X 5 = 10-Pin

J9

1 2 3 4 5

6

7

8

9 10

Pin Definition Pin Definition

1

3

5

7

9

VCC5 SIO_GP32 SIO_GP03 SIO_GP04 SIO_GP05

2

4

6

8

10

GND SIO_GP06 SIO_GP07 SIO_GP76 SIO_GP77

PCIe Slot (PCIE1)

Connector Size: PCIe x 8

DIMM Socket (DIMM1, DIMM2)

Connector Size: 240-pin DDR3

• DIMM 2 = Channel B

DIMM 1 = Channel A

• Always populate DIMM1 first. The system will not

boot when the first module is installed in DIMM2.

Q

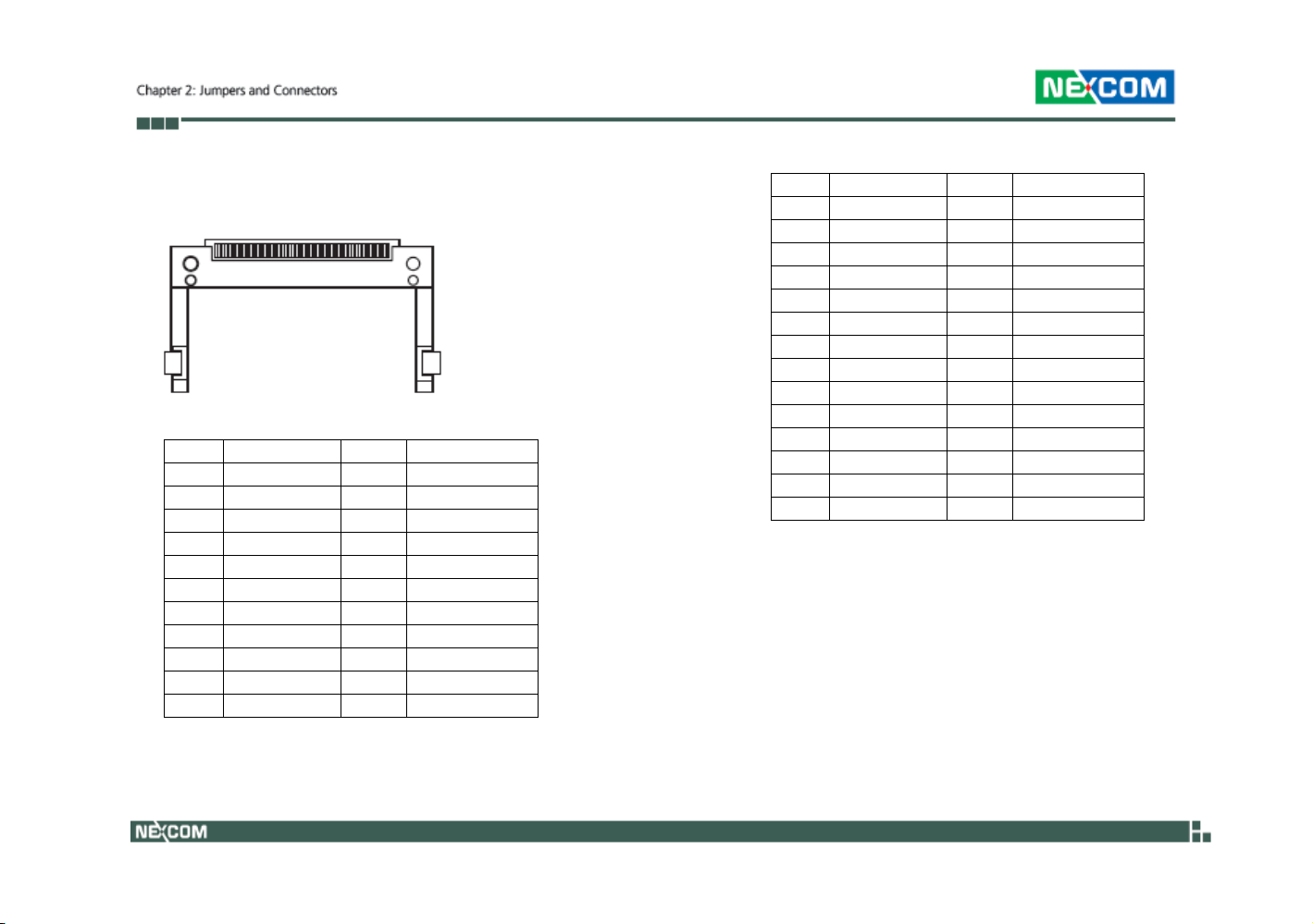

CompactFlash (CN8)

Connector Type: CompactFlash Type 2

Pin Definition Pin Definition

1 GND 2 SDD3A 3 SDD4A 4 SDD5A 5 SDD6A 6 SDD7A 7 SDCS#1 8 GND

9 GND 10 GND 11 GND 12 GND 13 VCC 14 GND 15 GND 16 GND 17 GND 18 SDA2A 19 SDA1A 20 SDA0A 21 SDD0A 22 SDD1A

Pin Definition Pin Definition

23 SDD2A 24 NC 25 CF_CD2# 26 CF_CD1# 27 SDD11A 28 SDD12A 29 SDD13A 30 SDD14A 31 SDD15A 32 SDCS#3 33 NC 34 SDIOR# 35 SDIOW# 36 VCC 37 HDIRQ14 38 VCC 39 CF_SEL# 40 NC 41 IDERST# 42 SIORDY 43 SDRE

44 SDDACK# 45 IDEACTP# 46 DIAG# 47 SDD8A 48 SDD9A 49 SDD10A 50 GND

Block Diagram

NSA 3130

Chapter 3: System Setup

Removing the Chassis Cover

Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or

1. The screws around the cover are used to secure the

2. Lift up the cover then remove it from the chassis.

system damage.

cover to the chassis. Remove these screws and put them in a safe place for later use.

The dots denote the locations of the screws.

Installing the CPU

1. If the system came with the heat sink already installed,

loosen the mounting screws that secure the heat sink to the board.

• Before you proceed, make sure

(1) the CPU socket comes with a protective cap, (2) the cap is not damaged and (3) the socket’s contact pins are not bent.

• Make sure all power cables are

unplugged before you install the CPU.

• The CPU socket must not come in

contact with anything other than the CPU. Avoid unnecessary exposure. Remove the protective cap only when you are about to install the CPU.

2. Remove the heat sink to access the CPU socket.

3. Unlock the socket by pushing the load lever down,

moving it sideways until it is released from the retention tab.

4. Lift the load lever.

5. Lift the load plate.

6. Position the CPU above the socket by using a suction

tube.

7. The gold mark on the CPU must align with pin 1 of the

CPU socket.

8. Insert the CPU into the socket until it is seated in place.

The CPU will fit in only one orientation and can easily be inserted without exerting any force.

Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.

9. Once the CPU is in place, close the load plate then push

the lever down until it snaps into the retention tab.

10. Apply thermal paste on top of the CPU. Do not spread

the paste all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.

11. The mounting holes around the CPU socket are used to

mount the heat sink. Align the mounting screws of the heat sink with the mounting holes on the board. Tighten the screws to secure the heat sink in place.

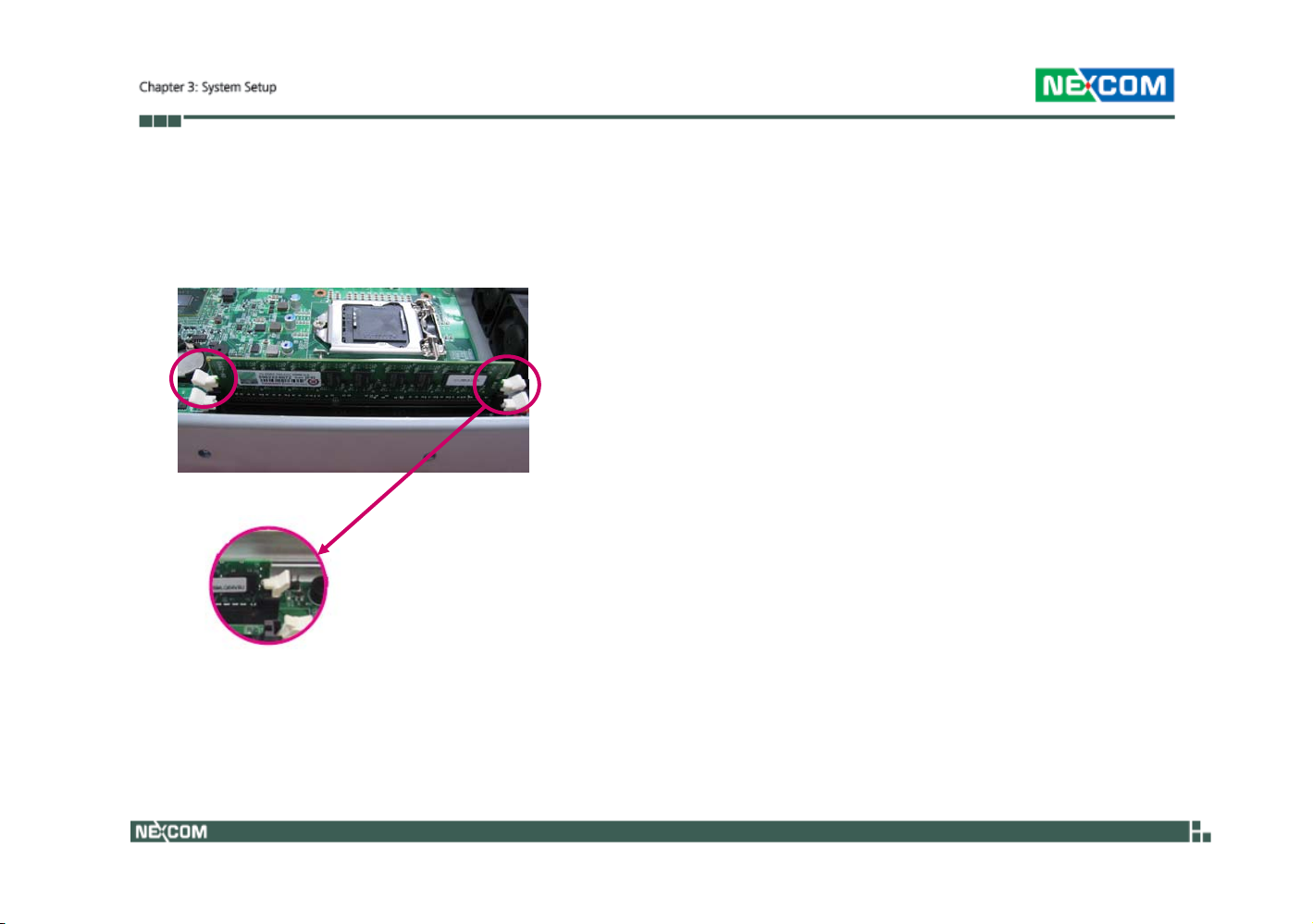

Installing a DIMM

1. The 2 DDR3 sockets are divided into 2 channels.

• DIMM1 = Channel A

DIMM2 = Channel B

• Always populate DIMM1 first. The

Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.

system will not boot when the first module is installed in DIMM2.

2. Note how the module is keyed to the socket. Grasping

the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.

3. Seat the module vertically, pressing it down firmly until it

is completely seated in the socket. The ejector tabs at the ends of the socket will automatically snap into the locked position to hold the module in place.

Installing a SATA Hard Drive

Before installing a SATA Hard Drive, please assemble the SATA with a HDD Bay.

1. Secure the SATA to a HDD Bay by fixing the mounting

screws around the HDD Bracket.

2. If in any case the drive bay came with the accessory

package, you must first insert the dampers on the sides of the drive bay prior to proceeding to the next step.

3. Place the SATA hard drive onto the drive bay. Align the

mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay. Use the provided mounting screws to secure the SATA drive in place.

Now, please install the SATA Hard Drive step by step:

1. Align the mounting holes of the drive bay with the

mounting studs on the chassis. Use the provided mounting screws to secure the drive bay in place.

Mounting Screw

2. Locate the SATA data connector on the SATA drive, and

connect one end of the SATA data cable to the SATA drive and the other end to the board.

SATA Data Cable

3. Locate the SATA power connector on the SATA drive, and

connect the SATA power cable from the power supply to the SATA drive.

SATA Power Cable

Installing a SATA DOM

1. Locate for the SATA connector on the board.

SATA Connector

2. Install the provided mounting stud as shown in the

illustration below.

SATA

Connector

Mounting Stud

3. Insert the connector located on the solder side of the

SATA DOM to the SATA connector that is on the board. Secure the SATA DOM with the provided mounting screw then connect the power cable to the power connector on the board.

Power

Cable

Power

Cable

SATA

DOM

SATA DOM

(Solder Side)

Installing a CompactFlash Card

1. Locate the CompactFlash socket on the board.

Note: You can’t use the CompactFlash and CFast cards at the same time.

2. With the CompactFlash card’s label facing up, position

the card to the socket. Insert the card until it is completely seated in the socket.

3. Place a protective cover on the inserted CompactFlash

card, lightly pulling the elastic side to fit two holes on the socket.

Elastic

Side

4. Close the protective cover completely.

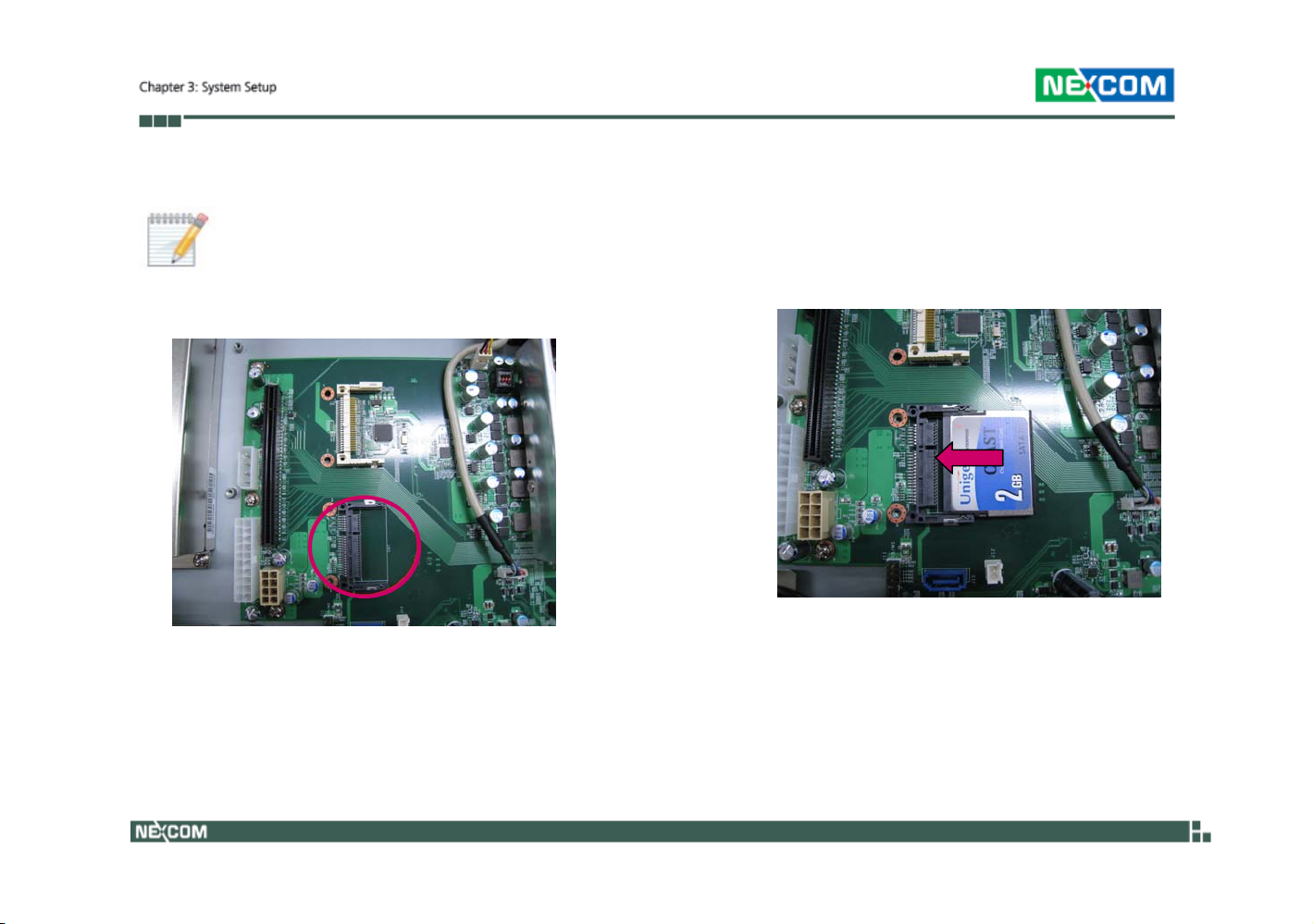

Installing a CFast Card

1. Locate the CFast socket on the board.

Note: You can’t use the CompactFlash and CFast cards at the same time.

2. W ith the CFast card’s label facing up, position the card to

the socket. Insert the card until it is completely seated in the socket.

Installing a PCI Express Card

1. The PCI Express x8 slot is attached on an L-shaped

bracket.

2. Remove the mounting screws that secure the L-shaped

bracket to the chassis.

3. Remove the slot cover’s mounting screw.

4. Align the PCI Express card with the PCI Express slot then

push it firmly until it is completely seated in the slot.

5. Secure the card with the screw you removed in step 3.

6. Install the bracket back into the chassis then secure the

bracket with the mounting screws you removed in step 2.

Rackmount Bracket Kit (Optional)

The rackmount bracket kit provides a convenient and economical way of installing the server into a rack cabinet.

Attaching the Long Rack Ears

The long rack ears are used to support the server in a rack cabinet.

1. The rackmount bracket kit comes with a pair of long

rack ears and 16 screws.

2. There are 8 mounting holes on each side of the front

panel.

3. Align the mounting holes on the rack ear with the

mounting holes on the front panel. Give special attention to the orientation of the rack ear. Secure the rack ear with mounting screws.

4. Repeat step 3 to secure the other rack ear.

Attaching the Server into a Rack Cabinet

1. Select a one unit space (1U) in the rack cabinet where

you intend to install the server.

2. On one side of the rack, attach 3 nuts each at the front

and back. Repeat this to the other side of the rack.

3. Slide the server into the rack cabinet.

4. Use the provided mounting screws to secure the server

in the rack cabinet.

Chapter 4: BIOS Setup

This chapter describes how to use the BIOS setup program for NSA3130. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future. To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters. These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS. With easy-to-use pull down menus, you can configure such items as:

• Hard drives, diskette drives, and peripherals

• Video display type and display options

.

• Password protection from unauthorized use

• Power management features

The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

This program should be executed under the following conditions:

• When changing the system configuration

• When a configuration error is detected by the

system and you are prompted to make changes to the Setup program

• When resetting the system clock

• When redefining the communication ports to

prevent any conflicts

• When making changes to the Power Management

configuration

• When changing the password or making other

changes to the security setup

Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:

• If the error occurs before the display device is

initialized, a series of beeps will be transmitted.

• If the error occurs after the display device is

initialized, the screen will display the error message. Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:

TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:

Legends

Key Function

Right and Left arrows Moves the highlight left or

right to select a menu.

Up and Down arrows Moves the highlight up or

down between submenus or fields.

<Esc> Exits to the BIOS Setup

Utility.

+ (plus key) Scrolls forward through the

values or options of the highlighted field.

-(minus key) Scrolls backward through the values or options of the highlighted field.

Tab Select a field. <F1> Displays General Help. <F10> Saves and exits the Setup

program.

<Enter> Press <Enter> to enter the

highlighted submenu.

Scroll Bar

When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.

Submenu

When ““ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.

BIOS Information

Displays the detected BIOS information.

Processor Information

Displays the detected processor information.

System Memory

Displays the detected system memory information.

System Time

The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.

System Date

The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1980 to 2099.

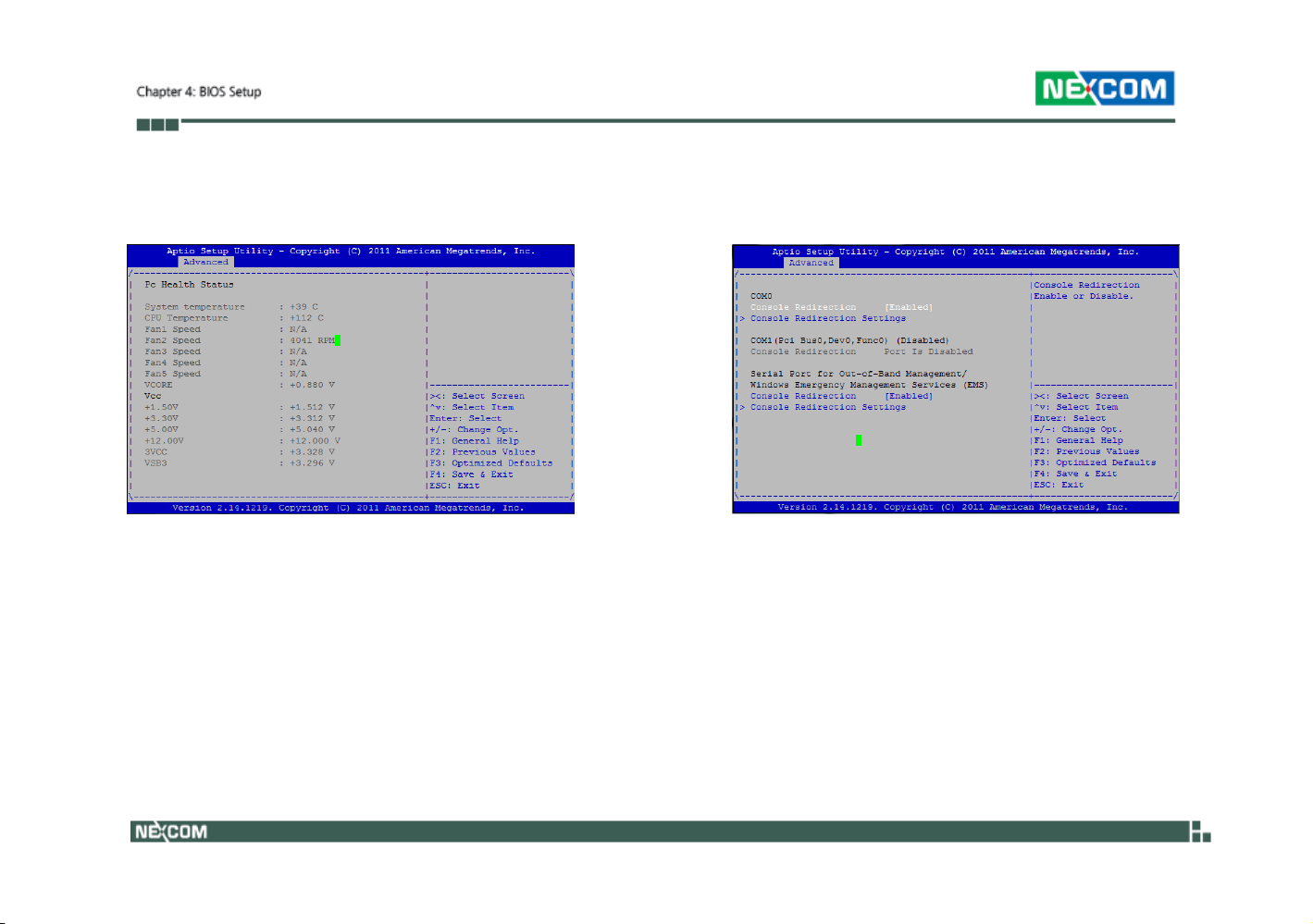

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.

Setting incorrect field values may cause the system to malfunction.

PCI Subsystem Settings

This section is used to configure PCI, PCI-X and PCI Express Settings.

Above 4G Decoding

This item is used to enable or disable 64bit capable Devices to be Decoded in Above 4G Address Space (only if System Supports 64bit PCI Decoding).

PCI Latency Timer This item controls how long each PCI device can hold the system bus before another PCI device takes over. By setting a higher value, each PCI device is given more time to proccess transactions and as a result will have improved PCI bandwidth. The higher this value is set, the better the PCI performance will be.

VGA Palette Snoop This item determines if your graphics card should allow VGA palette snooping by a fixed function display card. It is only useful if you use a fixed-function display card that requires a VGA-compatible graphics card to be present.

PERR# Generation

Enables or Disables PCI Device to Generate PERR#.

SERR# Generation

Enables or Disables PCI Device to Generate SERR#.

PCI Express Settings

This section is used to configure PCI Express Settings.

Relaxed Ordering

This item enables or disables PCI Express Device Relaxed Ordering.

Extended Tag

If ENABLED allows Device to use 8-bit Tag field as a requester.

No Snoop

Enables or Disables PCI Express Device No Snoop option.

Maximum Payload

Set Maximum Payload of PCI Express Device or allow System BIOS to select the value.

Maximum Read Request

Launches (Enabled/Disabled) the boot option for legacy network devices.

PCI Express Link Settings

Set Maximum Read Request Size of PCI Express Device or allow System BIOS to select the value.

ASPM Support

Set the ASPM Level: Force L0 – Force all links to L0 State AUTO – BIOS auto configure DISABLE – Disables ASPM

Extended Synch

If ENABLED allows generation of Extended Synchronization patterns.

ACPI Settings

This section is used to configure PCI Express Settings.

Enable ACPI Auto Conf

This item enables or disables BIOS ACPI Auto Configuration.

Enable Hibernation

Enables or Disables System ability to Hibernate (OS/S4 Sleep State). This option may be not effective with some OS.

ACPI Sleep State

Select the highest ACPI sleep state the system will enter, when the SUSPEND button is pressed.

CPU Configuration

This section displays the CPU configuration parameters.

Intel HT Technology

It is enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled, only one thread per enabled core is enabled.

SATA Configuration

This section is used to configure SATA Device.

SATA Controller(s) This section is used to enable or disable SATA controller.

SATA Mode Selection

There are several options for your selection: (1) IDE Mode, (2) AHCI Mode and (3) RAID Mode.

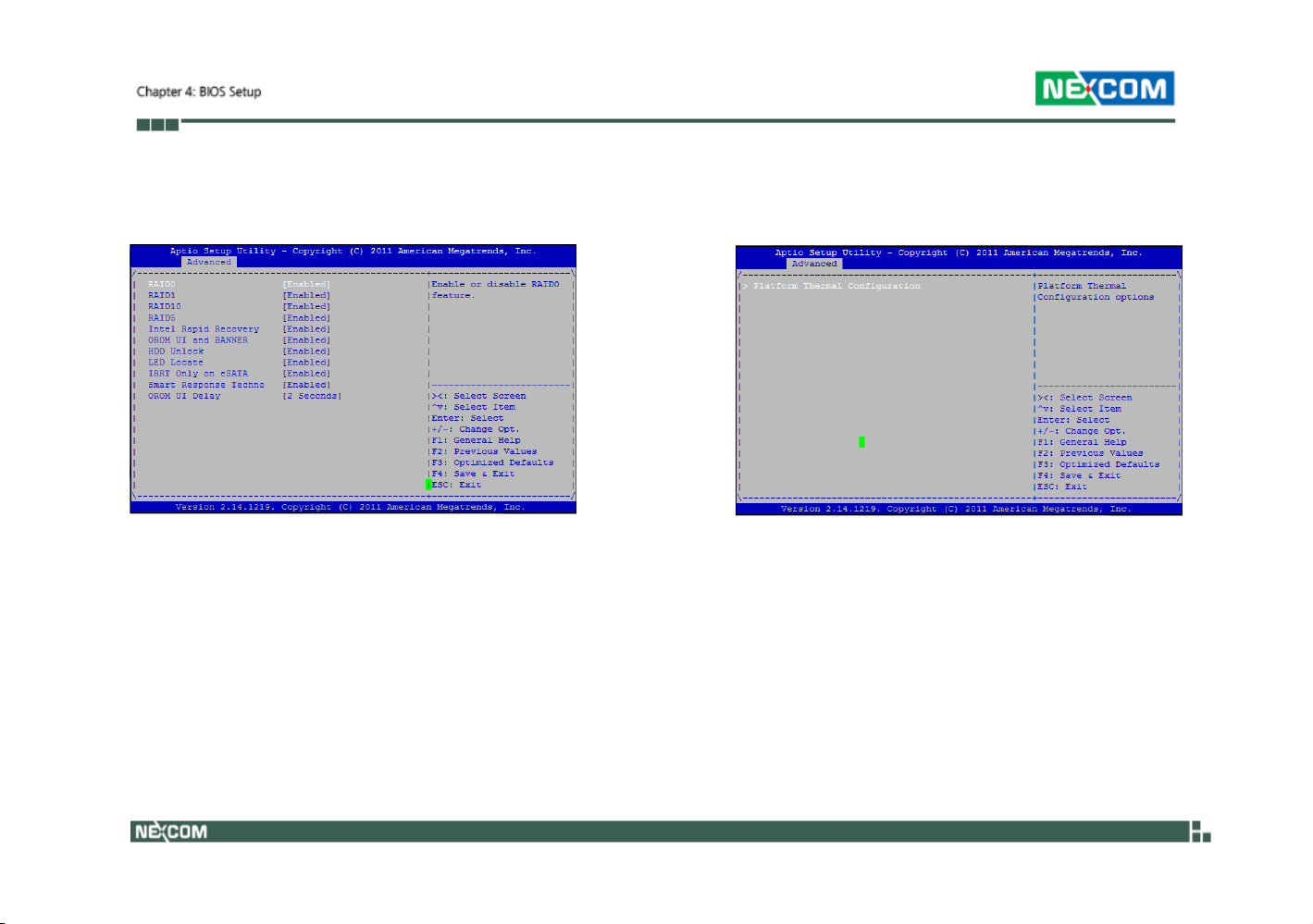

Software Feature Mask Configuration This section is used to configure the Software Feature Mask settings.

RAIDO This section is used to enable or disable RAIDO feature.

Thermal Configuration

This section provides Platform Thermal Configuration options.

Platform Thermal Configuration This section is used to configure the Thermal settings.

Automatic Thermal Rep This item is used to configure _CRT, _PSV and _AC0 automatically based on values recommended in BWG’s Thermal Reporting for Thermal Management settings. Set to Disabled for manual configuration.

ME SMBus Thermal Reporting Enable/Disable ME SMBus Thermal Reporting Configuration.

PCH-FW Configuration

This section is used to configure the PCH-FW settings.

Firmware Update Configuration This section is used to configure the Firmware Update settings.

Firmware Update Configuration This section is used to enable or disable Me FW Image Re-Flash function.

AMT Configuration

This section is used to configure the AMT settings.

Intel AMT

This item enables/disables Intel ® Active Management Technology BIOS Extension. (Note: iAMT H/W is always enabled. This option just controls the BIOS extension execution.)

USB Configuration

This section is used to configure USB devices.

Legacy USB Support

Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.

EHCI Hand-off

Enabled/Disabled. This is a workaround for Oses without EHCI hand-off support. The EHCI ownership change should be claimed by EHCI driver.

Device Reset Timeout

USB mass storage device Start Unit command timeout. Options are: 10 sec / 20 sec / 30 sec / 40 sec.

Super IO Configuration

This section is used to configure the I/O functions supported by the onboard Super I/O chip.

Floppy Disk Controller Configuration

Floppy Disk Controller

This item enables or disables the Floppy Disk Controller.

Serial Port0 Configuration

Serial Port

This item section is used to enable or disable Serial Port (COM).

Serial Port1 Configuration

Serial Port

This item section is used to enable or disable Serial Port (COM).

Parallel Port Configuration

Parallel Port

This item is used to enable or disable Parallel Port (LPT/LPTE).

H/W Monitor

This section is used to configure the hardware monitoring events such as the temperature, fan speed and voltages.

Serial Port Console Redirection

This section is used to configure the Serial Port Console Redirection settings.

Console Redirection This item is used to enable or disable Console Redirection.

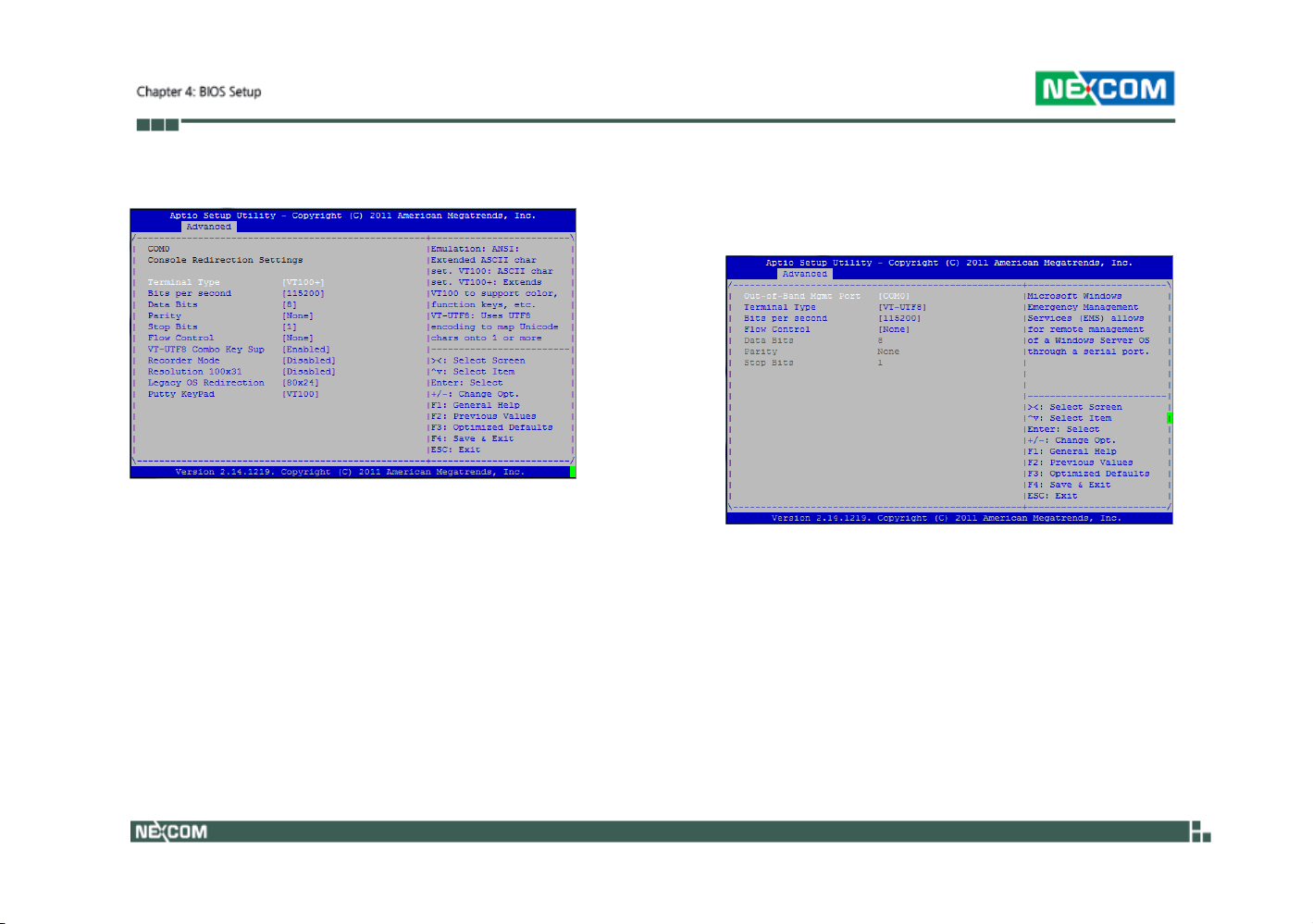

Console Redirection Settings

Terminal Type

VT-UTF8 is the preferred terminal type for out-of-band management. The next best choice is VT100+ and then VT100.

Out-of-Band Mgmt Port

Microsoft Windows Emergency Management Services (EMS) allows for remote management of a Windows Server OS through a serial port.

Intel ICC

This section is used to configure Intel ICC settings.

Use Watchdog Timer fo

This section enables Watchdog Timer operation for ICC. If enabled, Watchdog Timer will be started after ICC-related changes. This timer detects platform instability caused by wrong clock settings.

Network Stack

This item enables or disables UEFI network stack.

CPU PPM Configuration

This section is used to configure the CPU PPM settings.

EIST

This item enables or disables Intel SpeedStep.

Switchable Graphics

This section is used to configure the Switchable Graphics settings.

Boot

Boot Settings Configuration This section is used to configure settings during system boot.

Setup Prompt Timeout It is the Number of seconds to wait for setup activation key. .

Bootup Num-Lock State

This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.

Quiet Boot Enabled Displays OEM logo instead of the POST messages. Disabled Displays normal POST messages.

CSM Parameters

Launch CSM

The option controls of CSM will be launched.

Chipset

This section is used to configure the system based on the specific features of the chipset.

Setting incorrect field values may cause the system to malfunction.

PCH-IO Configuration System Agent (SA) Configuration

PCH-IO Configuration

This section is to set up PCH Parameters.

PCI Express Configuration This item is used to configure the PCI Express Configuration settings.

PCI Express Clock Gat This item enables or disables PCI Express Clock Gating for each root port.

PCI Express Root Port1

PCI Express Root Port

This item controls the PCI Express Root Port.

USB Configuration

This section is used to configure the USB devices.

EHCI

This item controls the USB EHCI (USB 2.0) functions. One EHCI controller must always be enabled.

System Agent (SA) Configuration

This section is used to configure the System Agent (SA) settings.

VT-d

Use this to check if VT-d function is enabled on MCH.

Graphics Configuration This section is used to configure the graphics settings.

LCD Control

Graphics Turbo IMON C

This item is Graphics turbo IMON current values supported (14-31).

Primary IGFX Boot Dis

This item selects the Video Device which will be activated during POST. This has no effect if external graphics present. Secondary boot display selection will appear based on your selection.

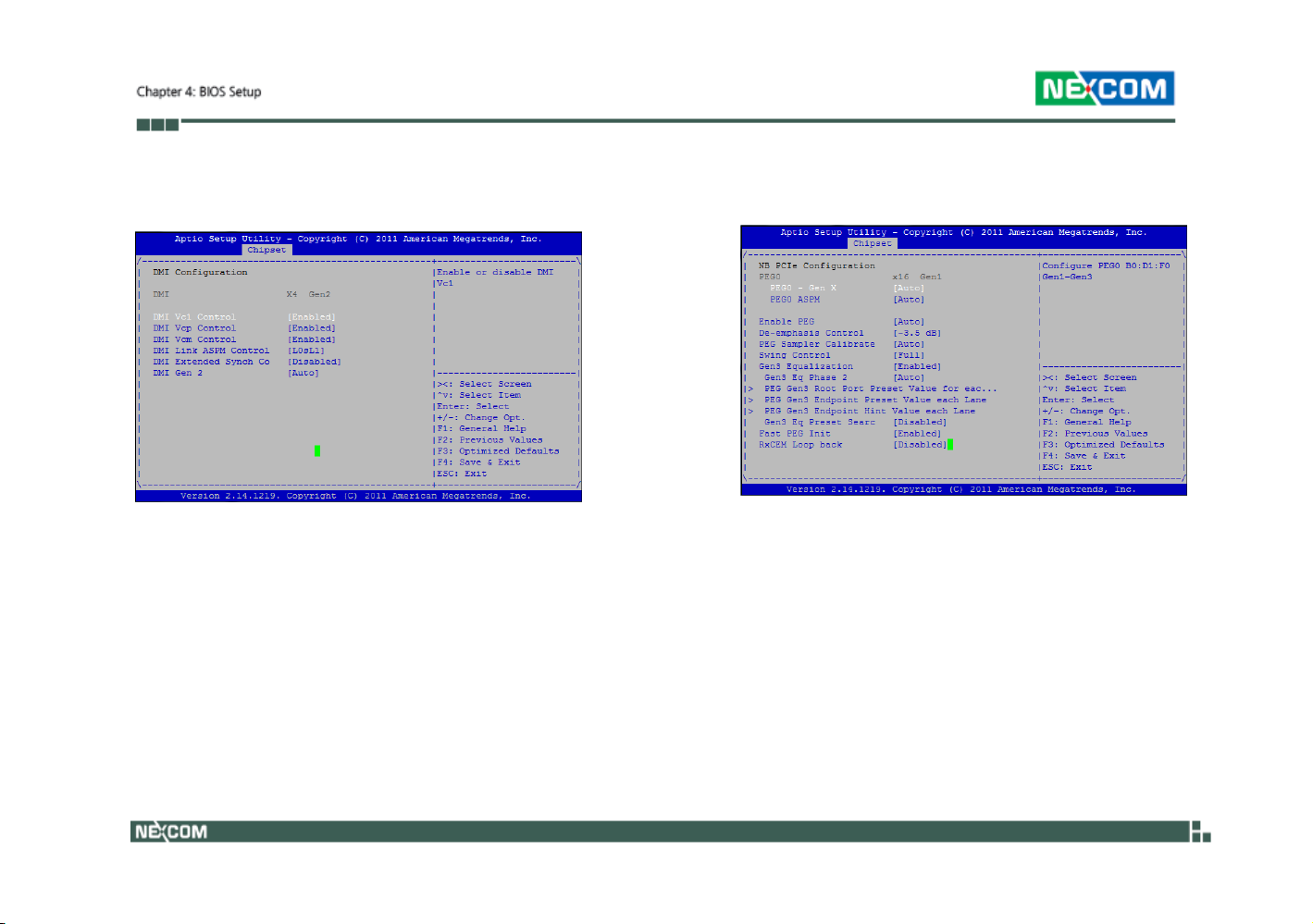

DMI Configuration

This section is used to configure the DMI settings.

NB PCIe Configuration

This section is used to configure the NB PCIe settings.

DMI Vc1 Control

This item enables or disables DMI Vc1.

PlEG0 – Gen X This item configures PEG0 B0:D1:f0 Gen1-Gen3.

Memory Configuration

This section is used to configure the Memory settings.

DIMM Profile

This item selects DIMM timing profile that should be used.

Memory Thermal Configuration

This section is used to configure the Memory Thermal settings.

Memory Thermal Manage

This item enables or disables the Memory Thermal Management.

GT-Power Management Control

RC6 (Render Standby)

Use this to check if render standby support is enabled.

Security

Change User Password

This field is used to set or change the user password. To set a new password:

1. Select the Change User Password field then press <Enter>.

2. Type your password in the dialog box then press

<Enter>. You are limited to eight letters/numbers.

3. Press <Enter> to confirm the new password.

4. When the Password Installed dialog box appears, select OK.

To change the password, repeat the same steps above. After you have set the user password, the Clear User Password and Password Check fields will appear.

Clear User Password

To clear the password, select Clear User Password then press <Enter>. Click OK.

Password Check Setup The BIOS checks for the user password whenever accessing the Setup utility. Always The BIOS checks for the user password when accessing the Setup utility and booting the system.

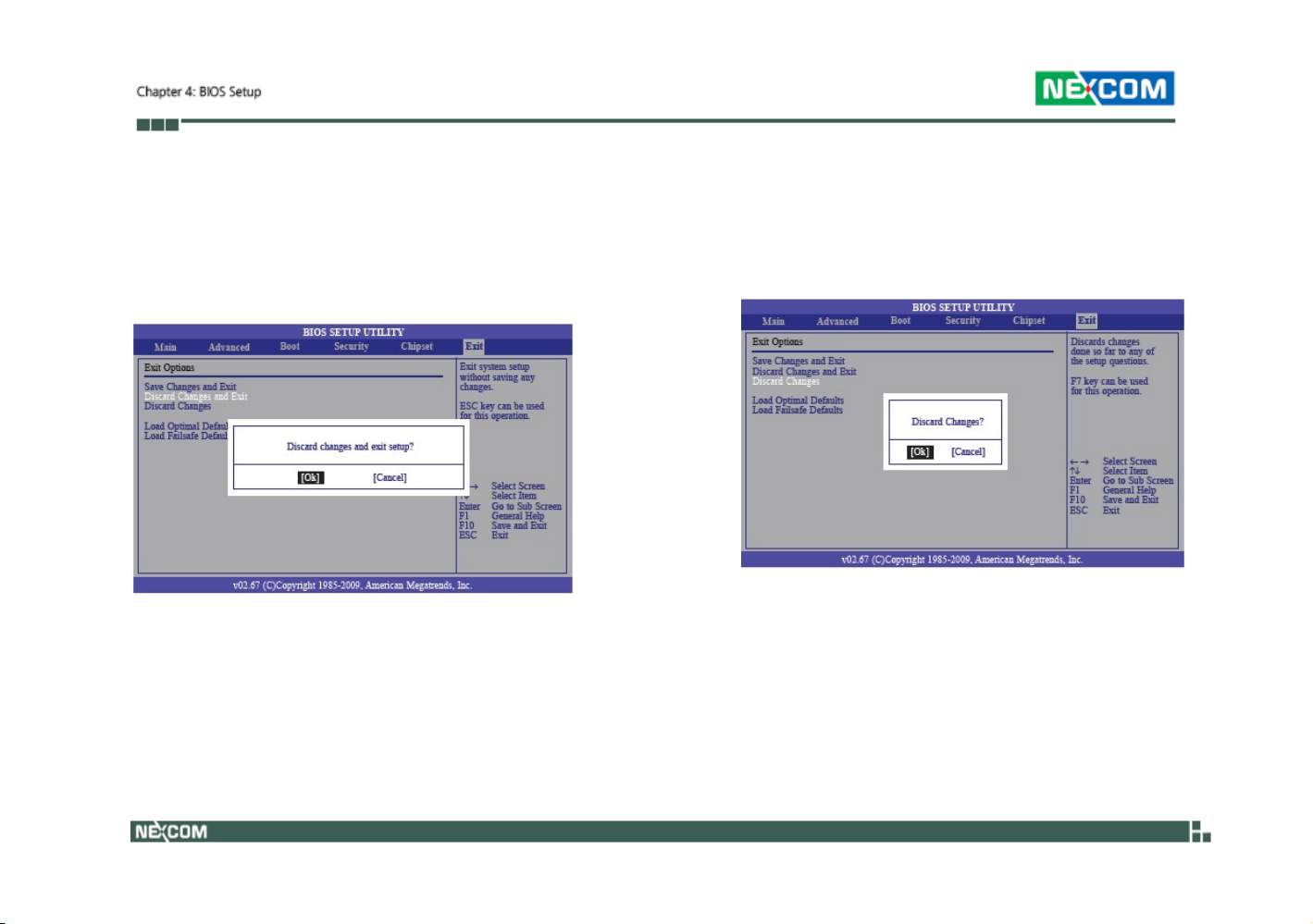

Save & Exit

Save Changes and Exit

To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting OK. You can also press <F10> to save and exit Setup.

Discard Changes and Exit To exit the Setup utility without saving the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting OK. You can also press <ESC> to exit without saving the changes.

Discard Changes To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting OK to discard all changes made and restore the previously saved settings. You can also press <F7> to discard the changes.

Load Optimal Defaults To load optimal default values from the BIOS ROM, select this field then press <Enter>. A dialog box will appear. Confirm by selecting OK. You can also press <F9> to load optimal default values.

Load Failsafe Defaults To load failsafe default values from the BIOS ROM, select this field then press <Enter>. A dialog box will appear. Confirm by selecting OK. You can also press <F9> to load failsafe default values.

Appendix A: Watchdog Timer

Watchdog Timer Setting

NSA 3130 features a watchdog timer that resets the CPU or generates an interrupt if the processor stops operating for any reason. This feature ensures system reliability in industrial standalone or unmanned environments. Set pin 89 as a WDTO output. Write ‘0’ to CR2B[4].

1. Select timer type (Sec/Min). LD8 CRF5[3] (0: sec, 1:

min)

2. Clear timeout status. Write ‘0’ to LD8 CRF7[4].

3. Set the timeout value. Meanwhile the timer will start to

count down.

4. Write a value to LD8 CRF6. When a timeout occurs, pin

89 will become active (high level).

5. CRF6 must be 0x0. Write another 0x00 to CRF6

(timeout disable) even though it is already 0x00. Clear the timeout status. Write ‘0’ to LD8 CRF7[4]. pin 89 will fall at the same time.

CRFC6 (Default 0x00) Watchdog Timer Time-out Value

Writing a non-zero value to this register causes the counter to load the value to Watchdog Counter and start counting down. If Bit 7 and Bit 6 are set, any Mouse Interrupt or Keyboard Interrupt event will also cause the reload of previously-loaded non-zero value to Watchdog Counter and start counting down. Reading this register returns current value in Watchdog Counter.

Appendix B: GPI/O Programming Guide

This appendix provides definitions for the four GPI/O pins on NSA 3130. GPI/O (General Purpose Input/Output) pins are provided for custom system design. The pin programmed as input mode (GPI) or output mode (GPO) depends on the configuration.

SW1

Read GPI12 Sample Code mov dx,48Dh in al,dx and al,10h ;now al (bit4) is GPIO12 value.

Appendix C: Bypass Specifications

NSA 3130 provides LAN bypass functionality to ensure that data can still pass through the device, even when it is powered off. This feature helps ensure the continuous flow of data through the device in the event of a hardware failure. For network security appliances deployed at the gateway, for example, it is crucial that they provide LAN bypass functionality to ensure that hardware failure on these appliances will not bring down the entire network.

Bit 7: Timer Expired 0 - Timer has not expired 1 - Timer has expired Bit [2:0]: Timer Value 000 - 0 second 001 - 1 second 010 - 2 second 011 - 4 second 100 - 8 second 101 - 16 second 110 - 32 second 111 - 64 second

Bypass Control Function

BCSR - Bypass Control Status Register = 0XF3

Bit [7:6]: Bypass Mode 00 - Ignore, no action taken 01 - Force enable 10 - Force disable 11 - Timer enable Bit [5:0]: Segment Control Bit Bit 0: Segment 1 (facing the front panel, the rightmost is the 1st Bypass) Bit 1: Segment 2 (facing the front panel, the second from the right is the 2nd Bypass) Bit 2: Segment 3 (facing the front panel, the third from the right is the 3rd Bypass) Bit 3: Segment 4 (facing the front panel, the fourth from the right is the 4th Bypass)

Power OFF state Bypass Control Function Power Off state Bypass Configuration Register = 0XF7

Bit 0: Segment 1 (facing the front panel, the rightmost is the 1st Bypass) Bit 1: Segment 2 (facing the front panel, the second from the right is the 2nd Bypass) Bit 2: Segment 3 (facing the front panel, the third from the right is the 3rd Bypass) Bit 3: Segment 4 (facing the front panel, the fourth from the right is the 4th Bypass) 0 - Set segment bypass Disable when power off 1 - Set segment bypass Enable when power off

Appendix D: Power Consumption

Power Consumption

Power Supply Must Consumed Watts and Currents

NEXCOM NSA 3130 User Manual
