NPT-5851
User Manual
Version V1.0 AUG 2012
Copyright 2012
All Rights Reserved
Manual Version 1.0
Model Number: NPT-5851
The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not limited
to, the implied warranties of merchantability and fitness for a particular purpose. We
shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be photocopied, reproduced or translated
to another language without the prior written consent of the manufacturer.
TRADEMARK
2nd generation Intel® Core™ brand are registered trademarks of
Intel® Corporation.
Microsoft® and Windows® are registered trademarks of Microsoft
Corporation.
Other names and brands may be claimed as the property of others.
1
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. To disconnect the machine from the electrical power supply, turn off the power
switch and remove the power cord plug from the wall socket.
2. The wall socket must be easily accessible and in close proximity to the machine.
3. Read these instructions carefully. Save these instructions for future reference.
4. Follow all warnings and instructions marked on the product.
5. Do not use this product near water.
6. Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
7. Slots and openings in the cabinet and the back or bottom are provided for ventilation
to ensure reliable operation of the product and to protect it from overheating. These
openings must not be blocked or covered.
The openings should never be blocked by placing the product on a bed, sofa, rug, or
other similar surface. This product should never be placed near or over a radiator or
heat register or in a built-in installation unless proper ventilation is provided.
8. This product should be operated from the type of power indicated on the marking
label. If you are not sure of the type of power available, consult your dealer or local
power company.
9. Do not allow anything to rest on the power cord. Do not locate this product where
persons will walk on the cord.
10. Never push objects of any kind into this product through cabinet slots as they may
touch dangerous voltage points or short out parts that could result in a fire or electric
shock.
11. Never spill liquid of any kind on the product.
2
CE MARK .
This device complies with the requirements of the EEC directive
2004/108/EC with regard to “Electromagnetic compatibility” and
2006/95/EC “Low Voltage Directive”
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly.
Replace only with the same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
LEGISLATION AND WEEE SYMBOL
2002/96/EC Waste Electrical and Electronic Equipment Directive on the treatment,
collection, recycling and disposal of electric and electronic devices and their
components.
The crossed dustbin symbol on the device means that it should not be disposed of
with other household wastes at the end of its working life. Instead, the device should
be taken to the waste collection centers for activation of the treatment, collection,
recycling and disposal procedure.
To prevent possible harm to the environment or human health from
uncontrolled waste disposal, please separate this from other types
of wastes and recycle it responsibly to promote the sustainable
reuse of material resources.
Household users should contact either the retailer where they
purchased this product, or their local government office, for details
of where and how they can take this item for environmentally safe
recycling.
Business users should contact their supplier and check the terms
and conditions of the purchase contract.
This product should not be mixed with other commercial wastes for disposal.
3
Revision History
Changes to the original user manual are listed below:
Version Date Description
1.0 AUG. 2012 Initial release
4
Table of Contents
1. Package Checklist……………................................................................. 1
1-1 Standard items…………………………………………………………………….. 1
1-2 Optional items……………………………………………………………………... 1
2. System View………………………………………………………………...... 2
3. System Assembly & Disassembly………………………………………… 4
3-1 Replace the HDD…………………………………………………………………..... 4
3-2 Replace the Motherboard………………………………………………………….. 5
3-3 Replace the Inverter Board & Touch Board…………………………………..... 6
3-4 Install & Uninstall the Filter…………………………………............................... 7
3-5 Install VFD & MSR (Optional)…………………………………............................ 8
4. Specification………………………………………………………………….. 9
5. Jumper Settings……………………………………………………………… 11

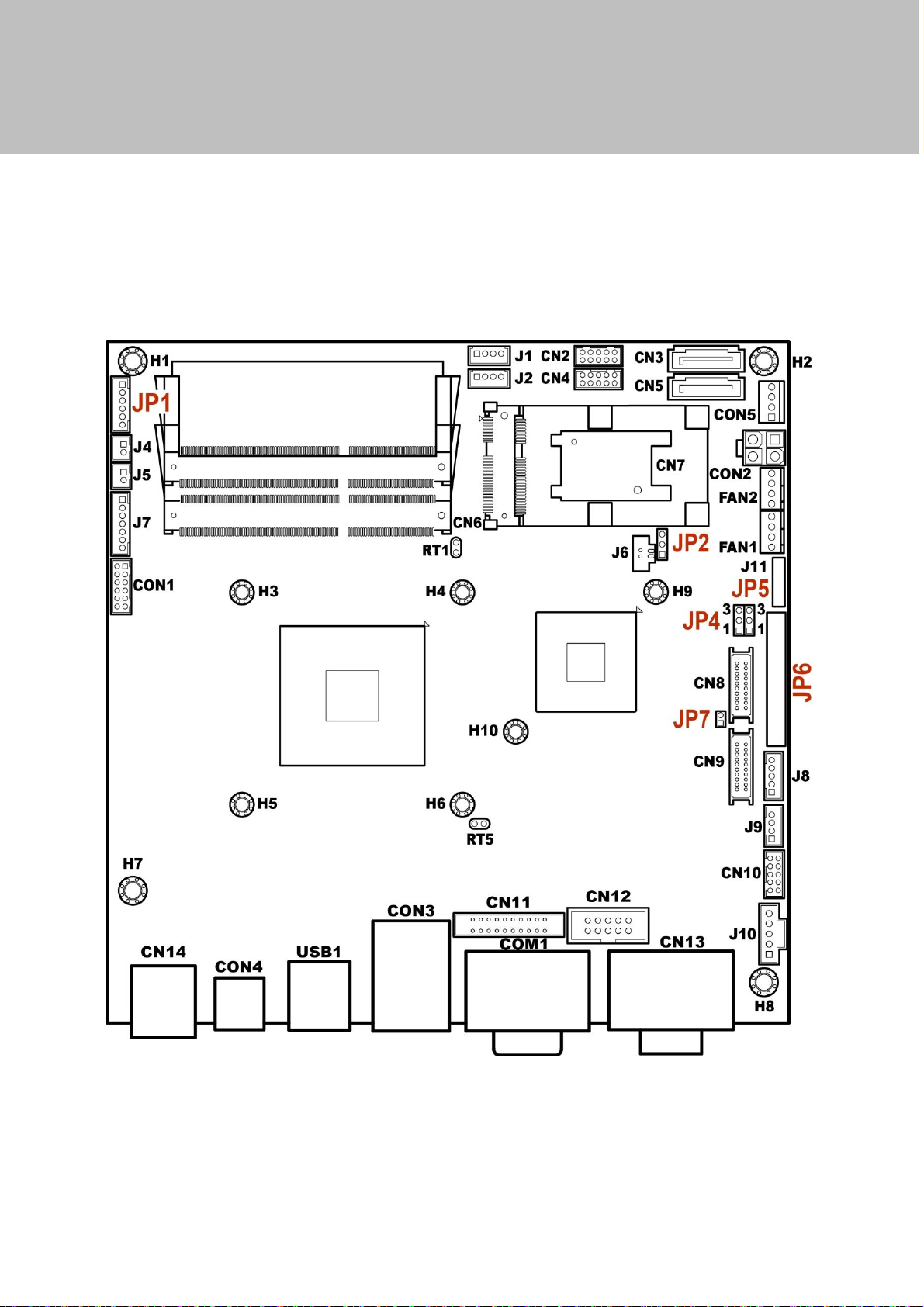

5-1 HM-651 Motherboard Layout……………………………………………………… 11
5-2 Connectors Description……………………………………………………………. 12

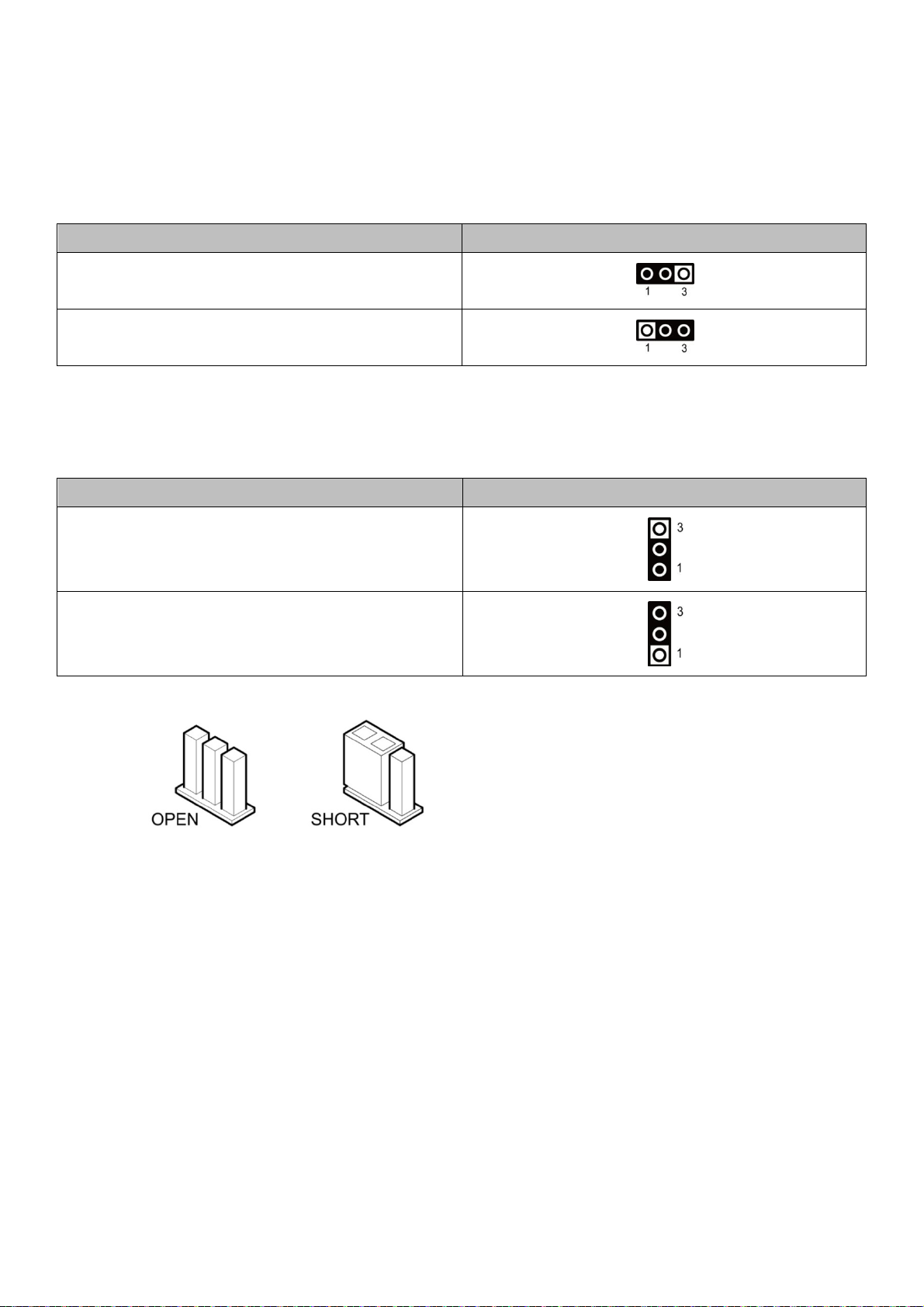

5-3 Jumper Settings…………………………………………………………………….. 13

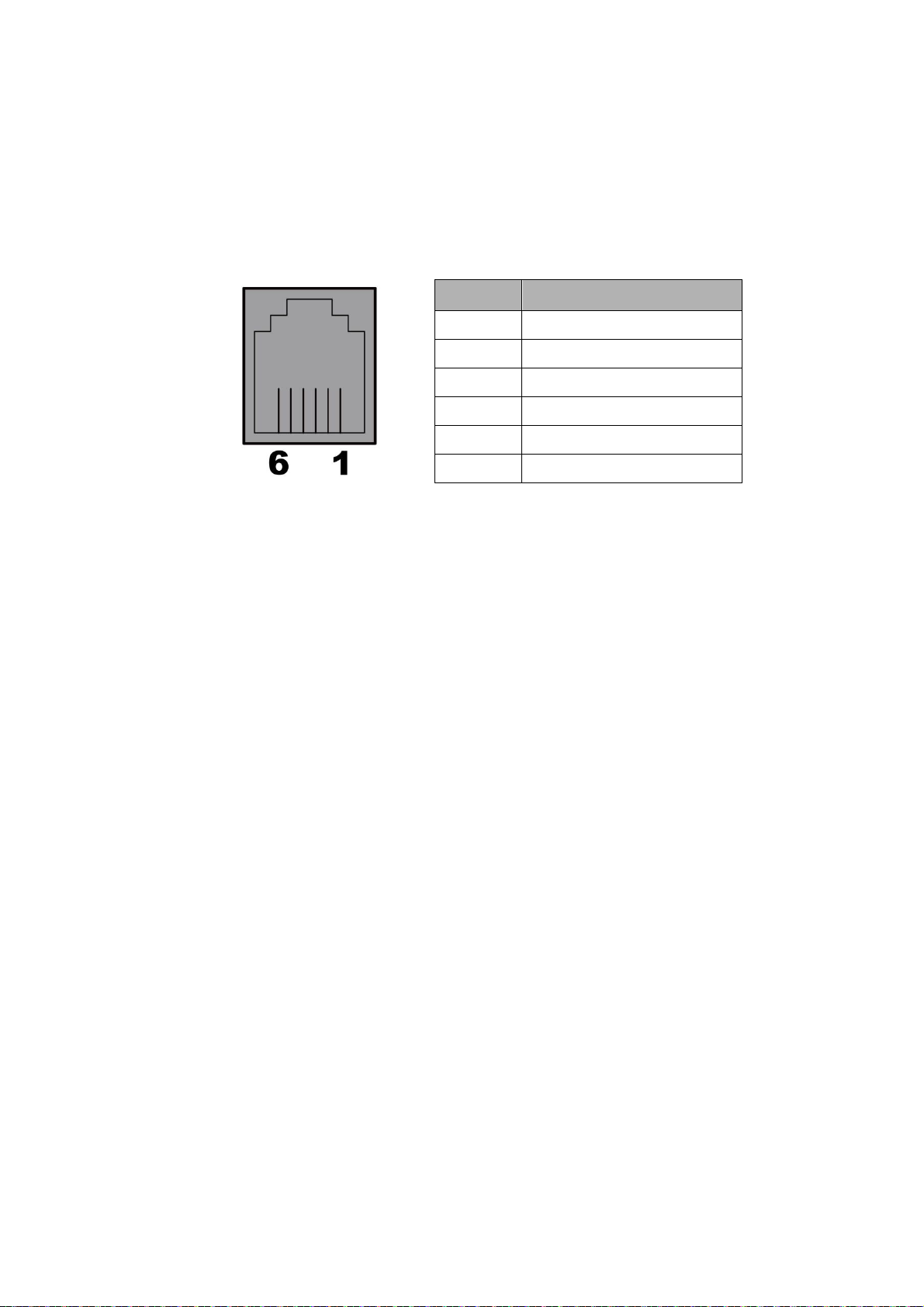

5-4 Install a Cash Drawer……………………………………………………………….. 14
6. BIOS Settings…………………………………………………………………. 15
6-1 About BIOS Setup………………………………………………………………….. 15

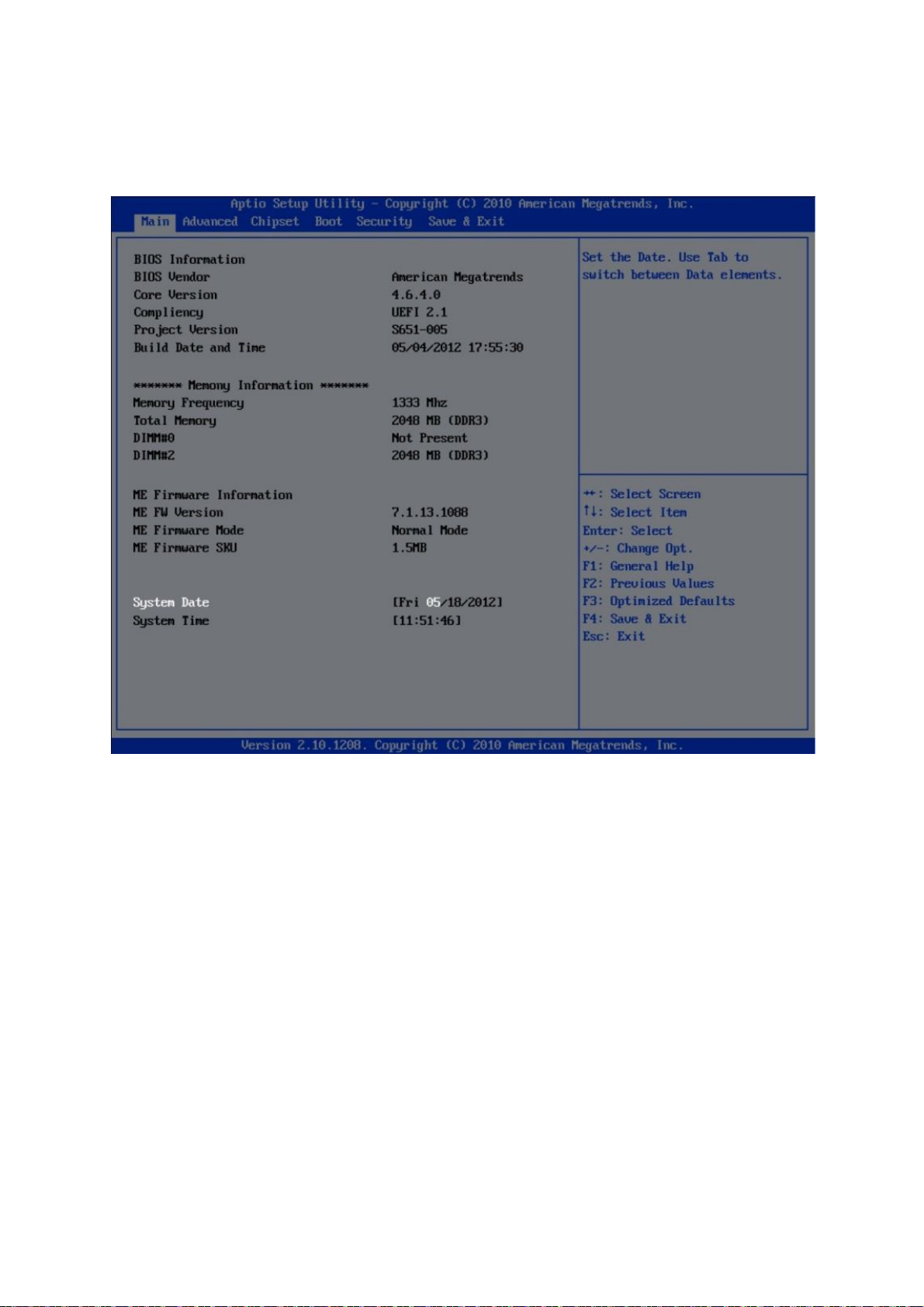

6-2 Main….………………………………………………………………………………… 17

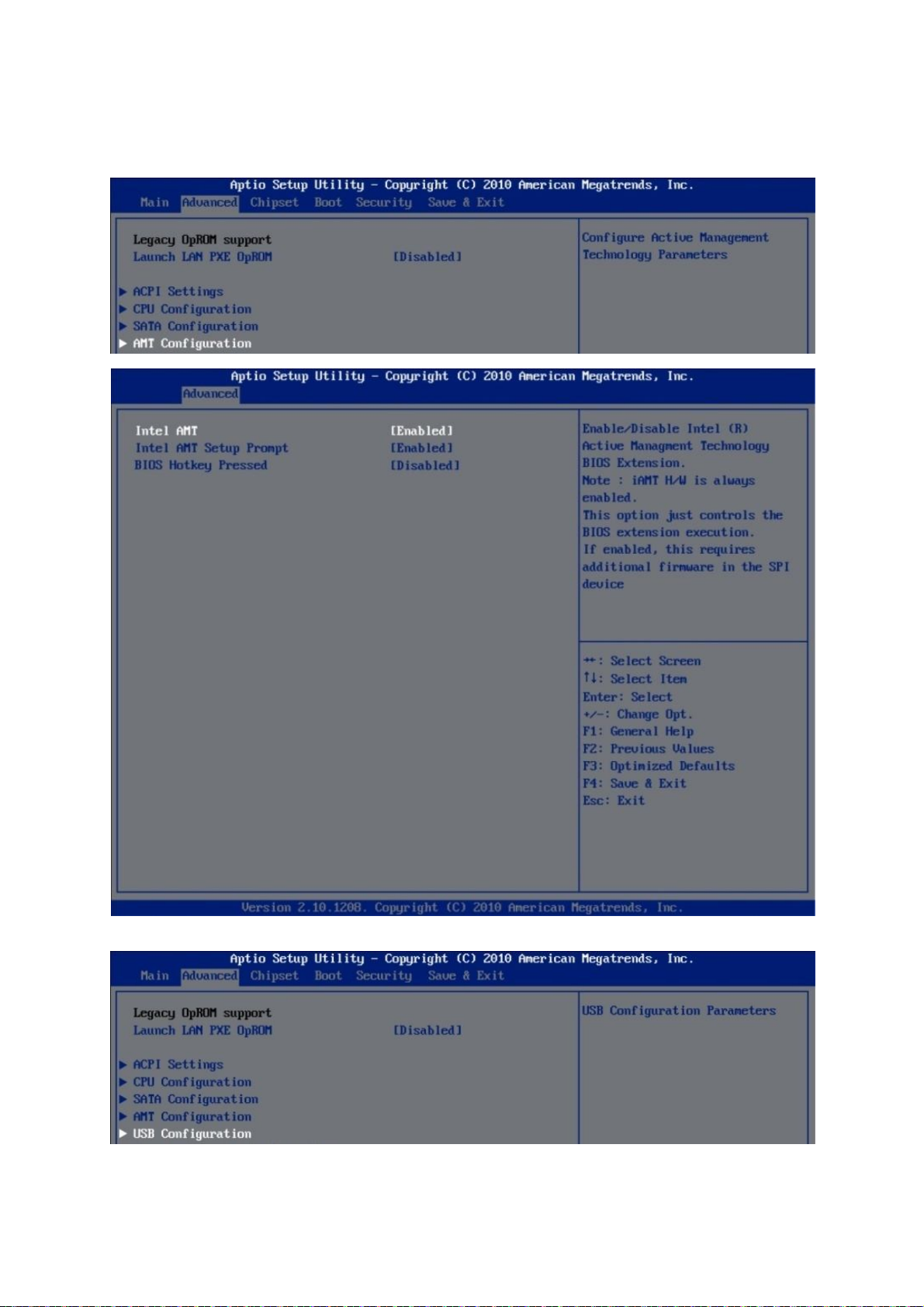

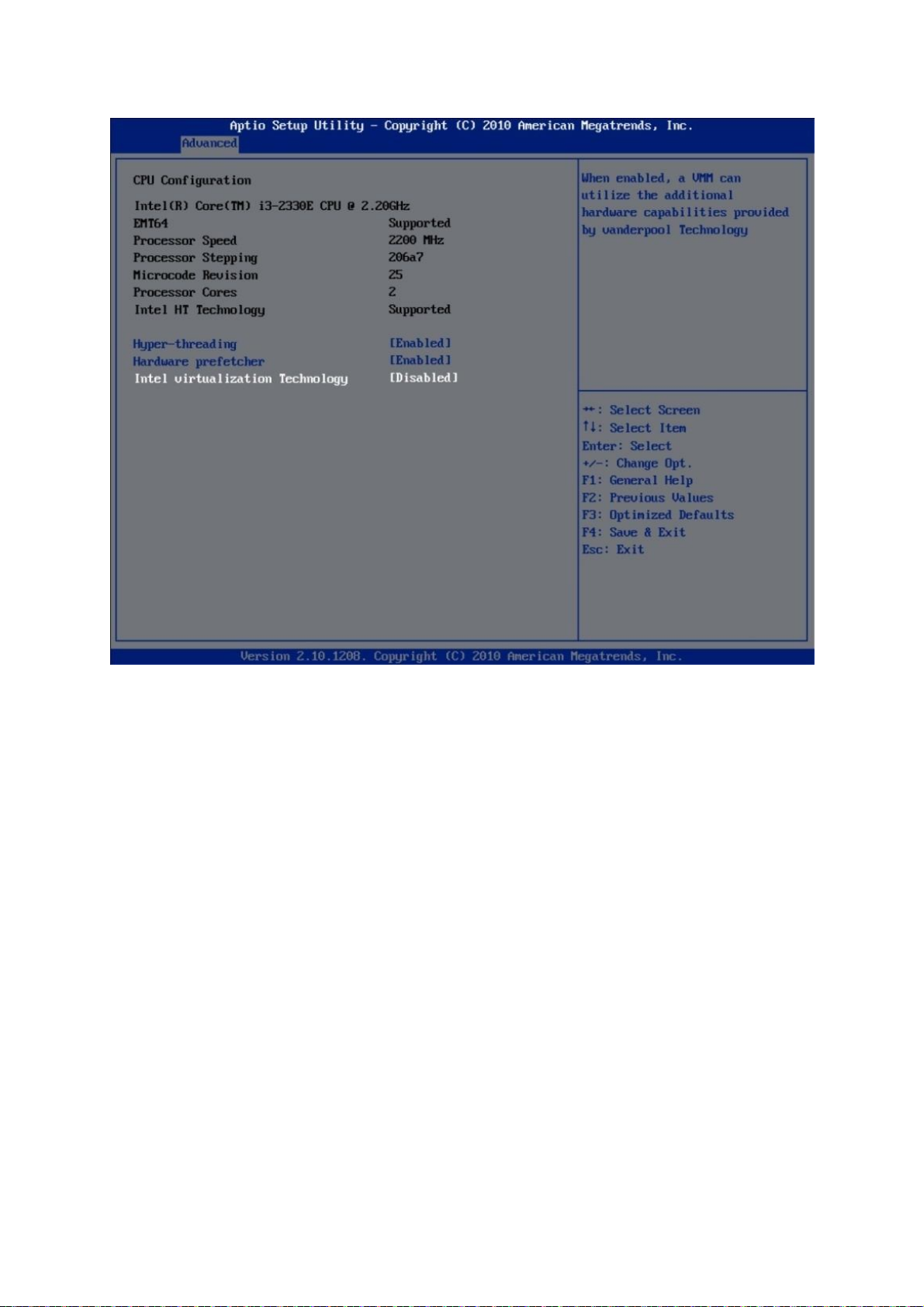

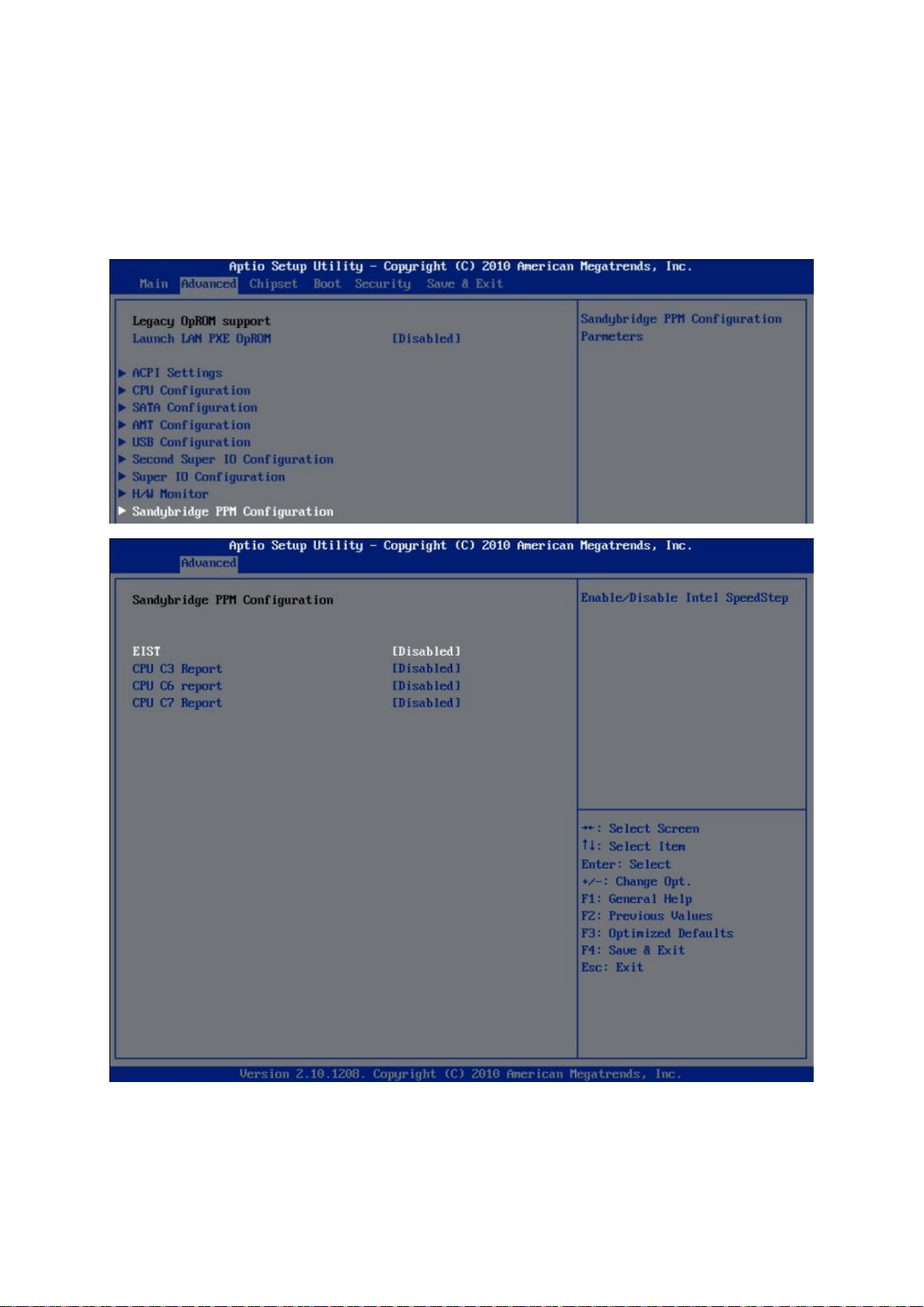

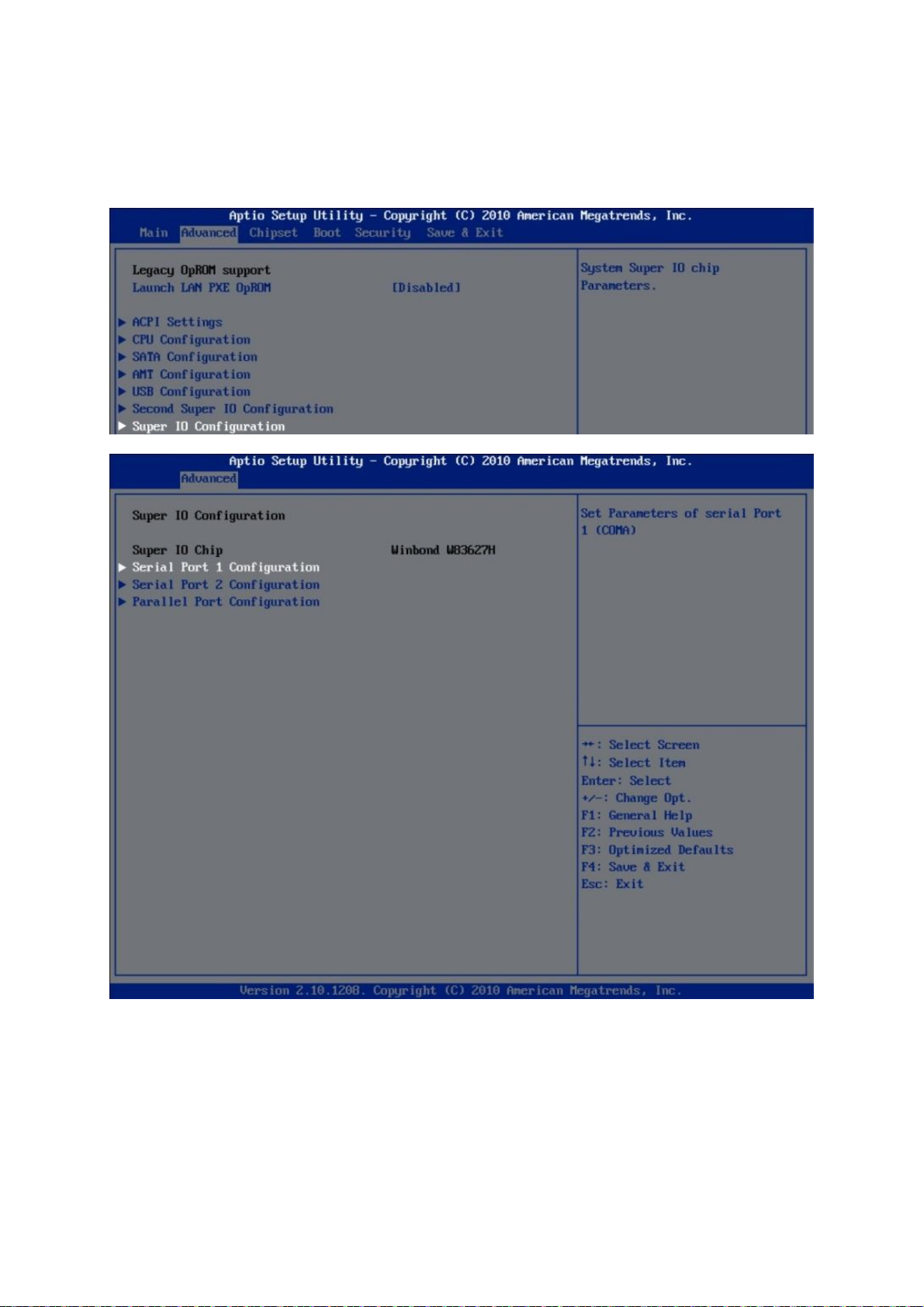

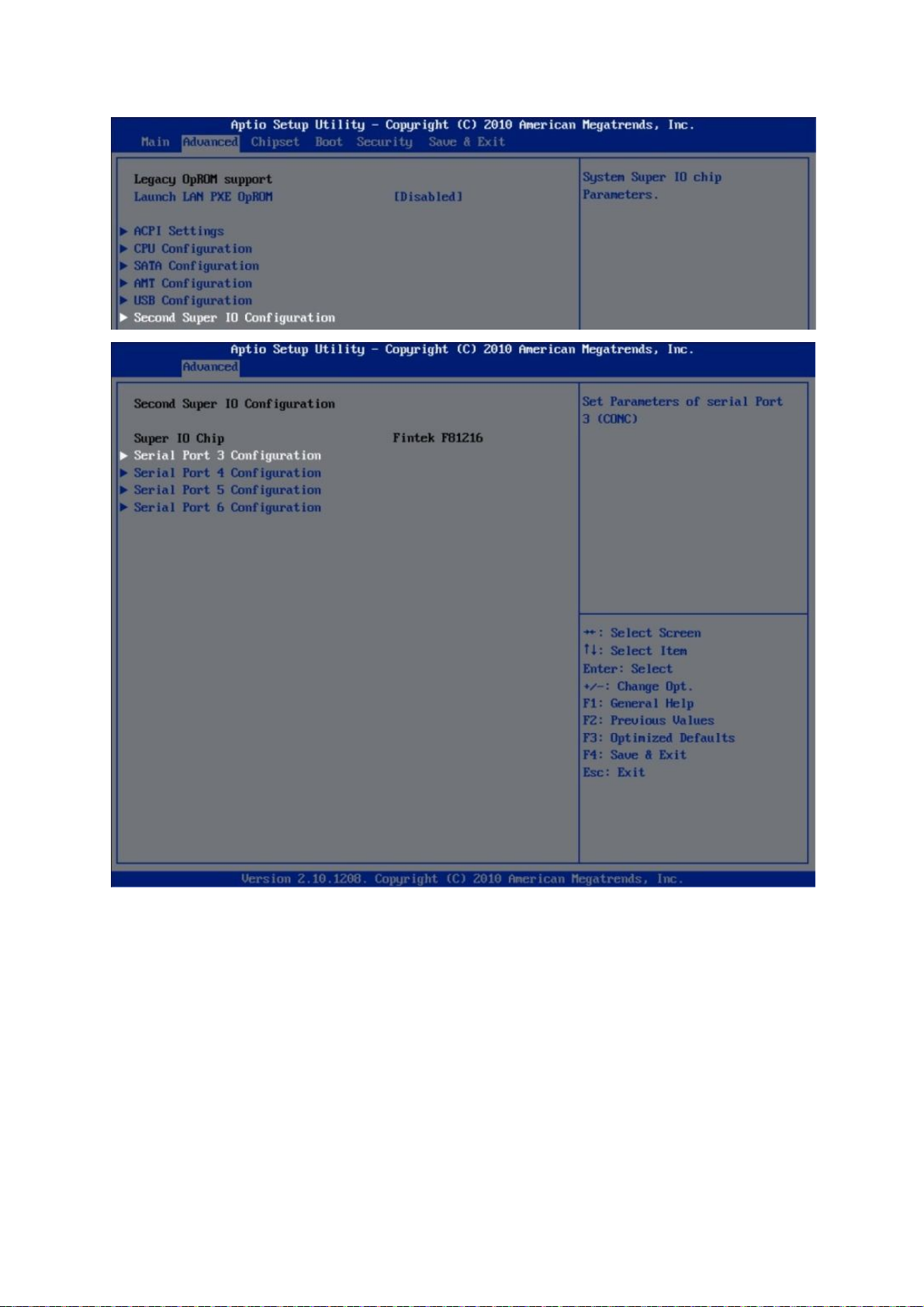

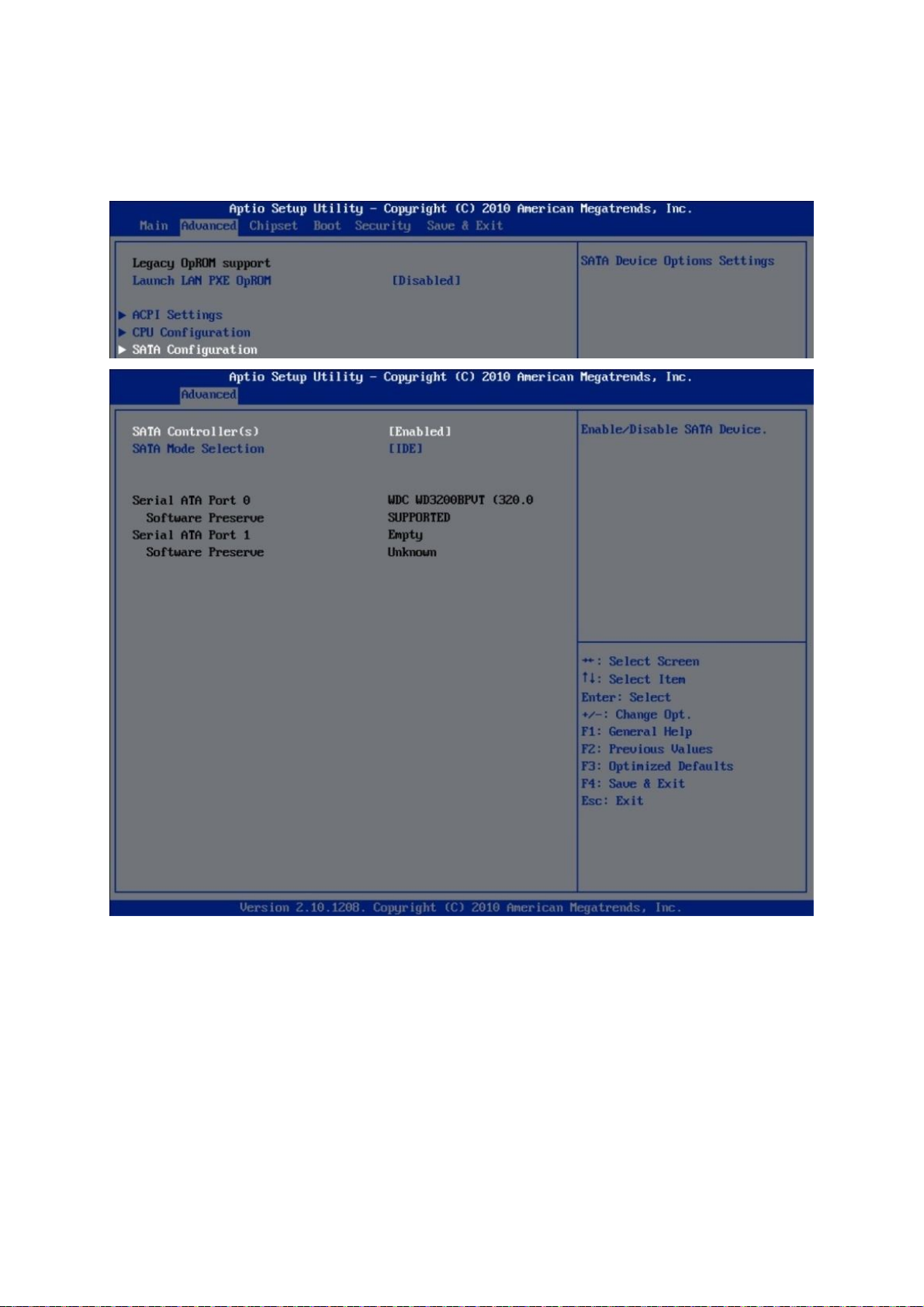

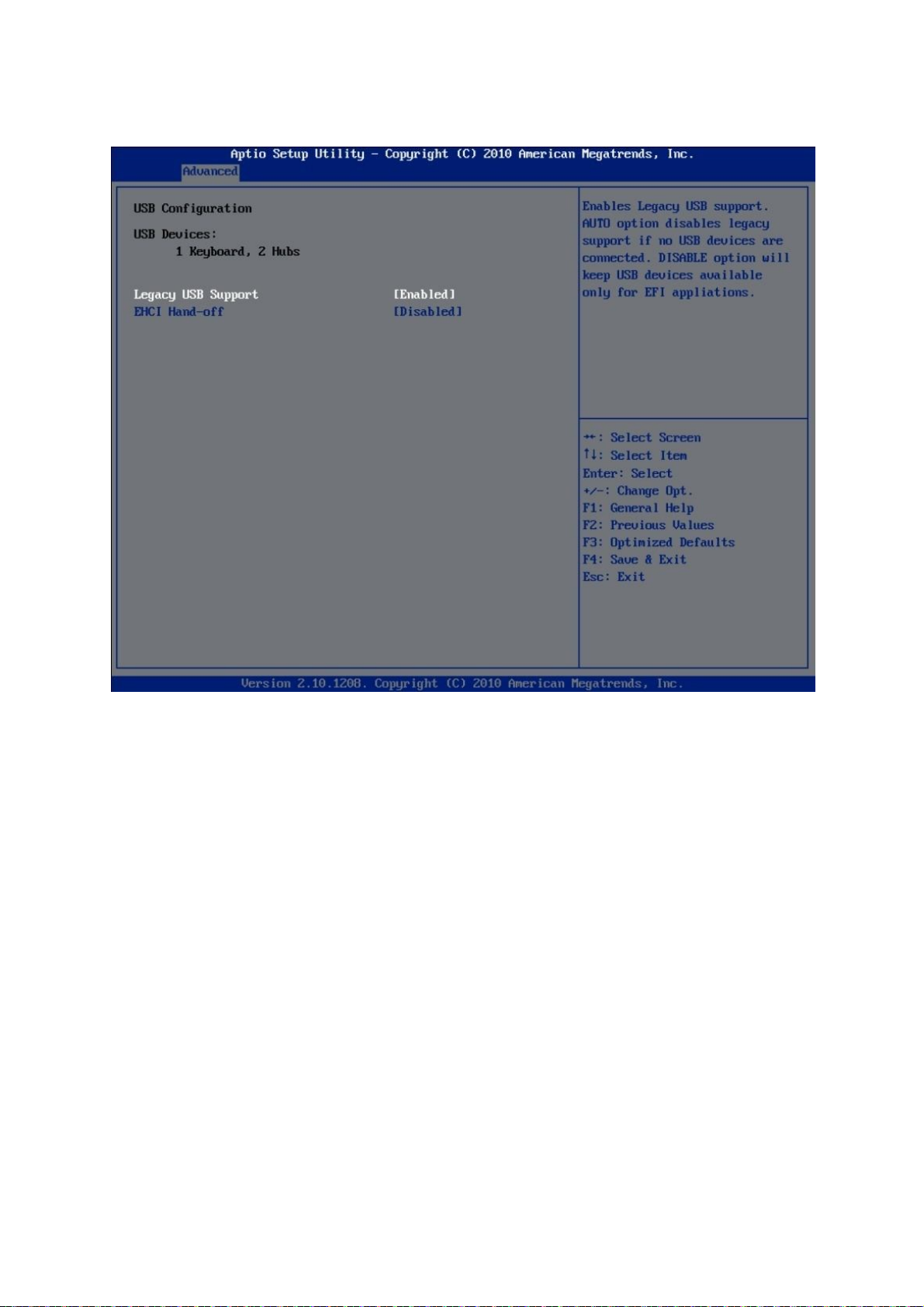

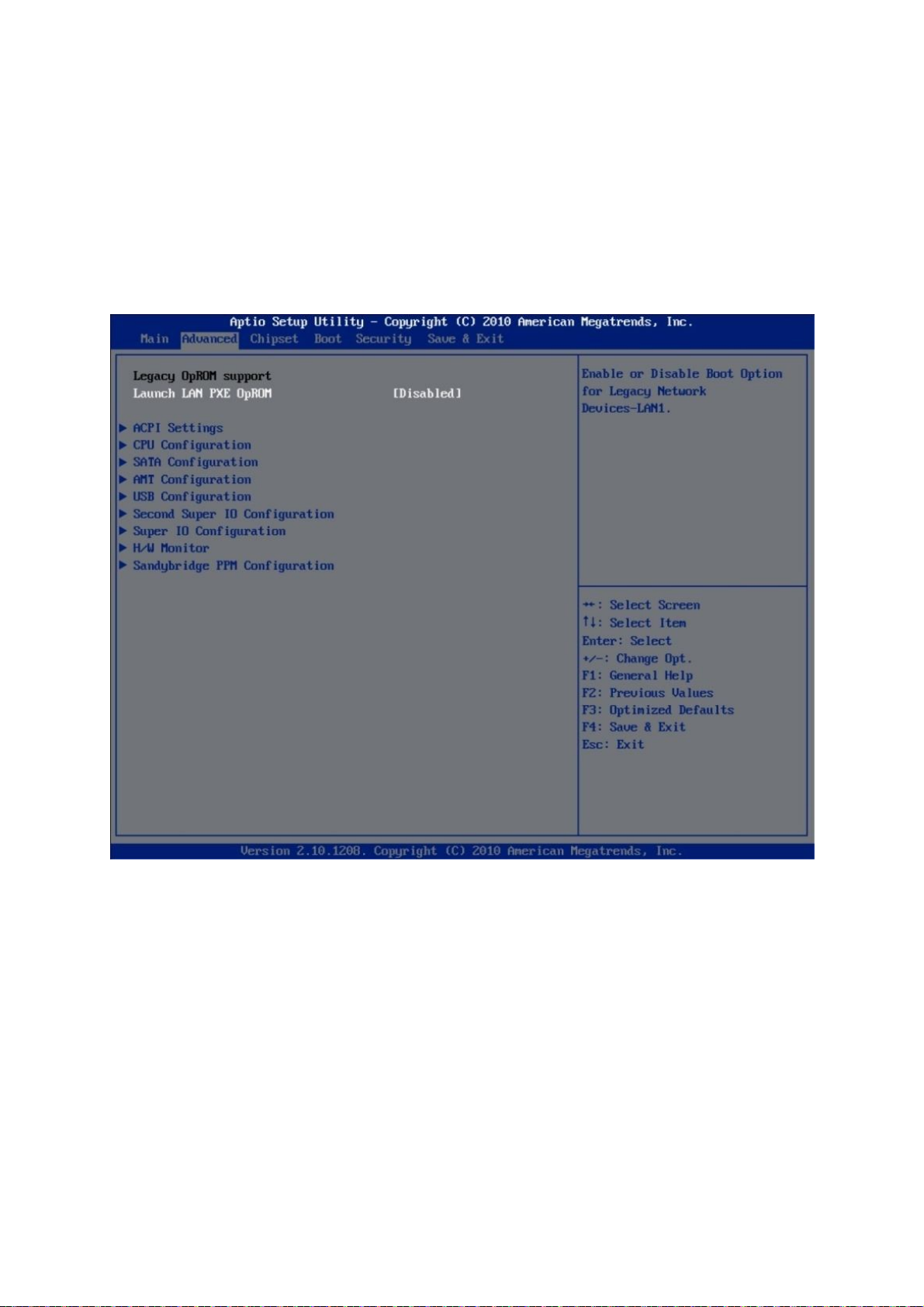

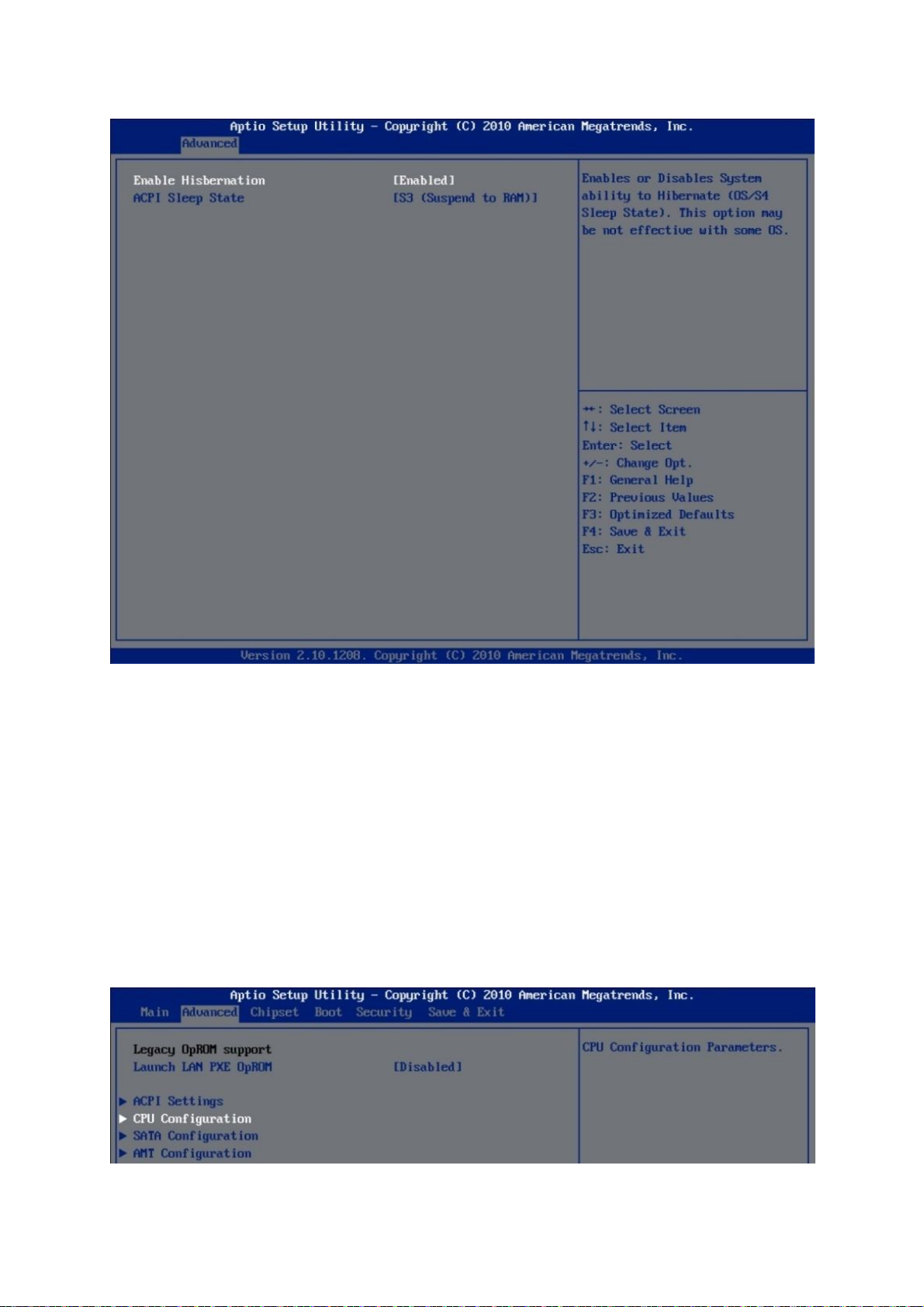

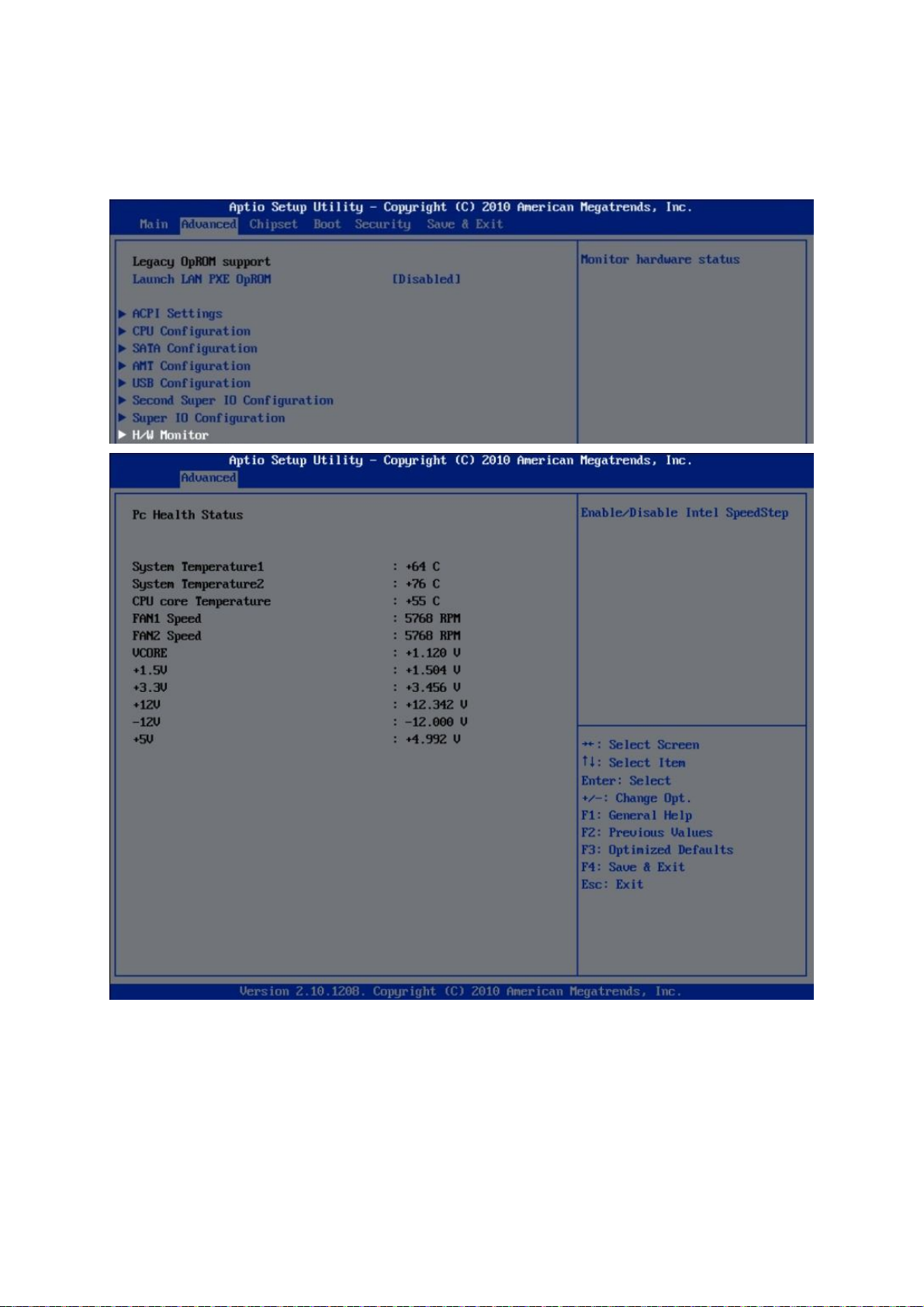

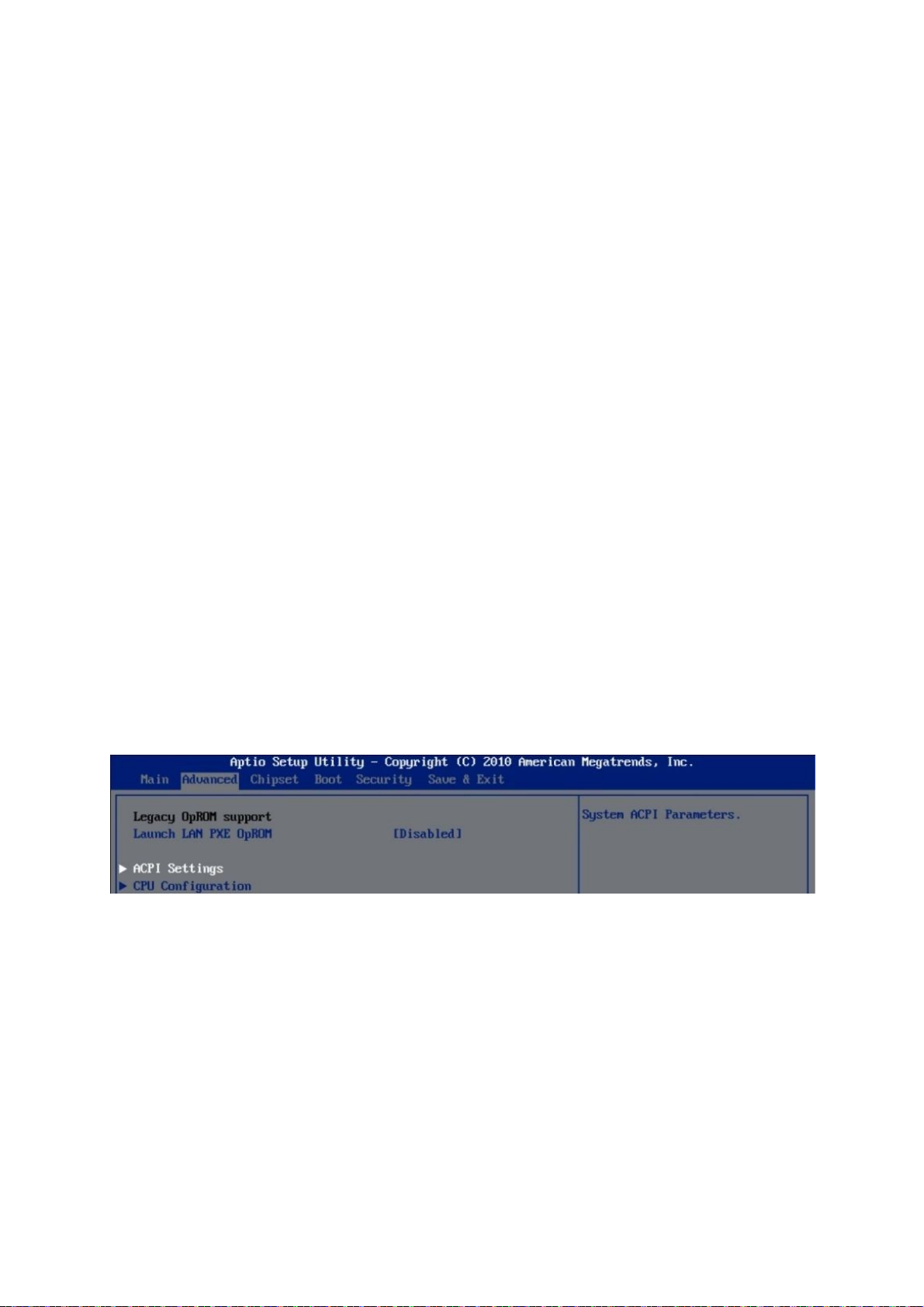

6-3 Advanced…………………………………………………………………………….. 19

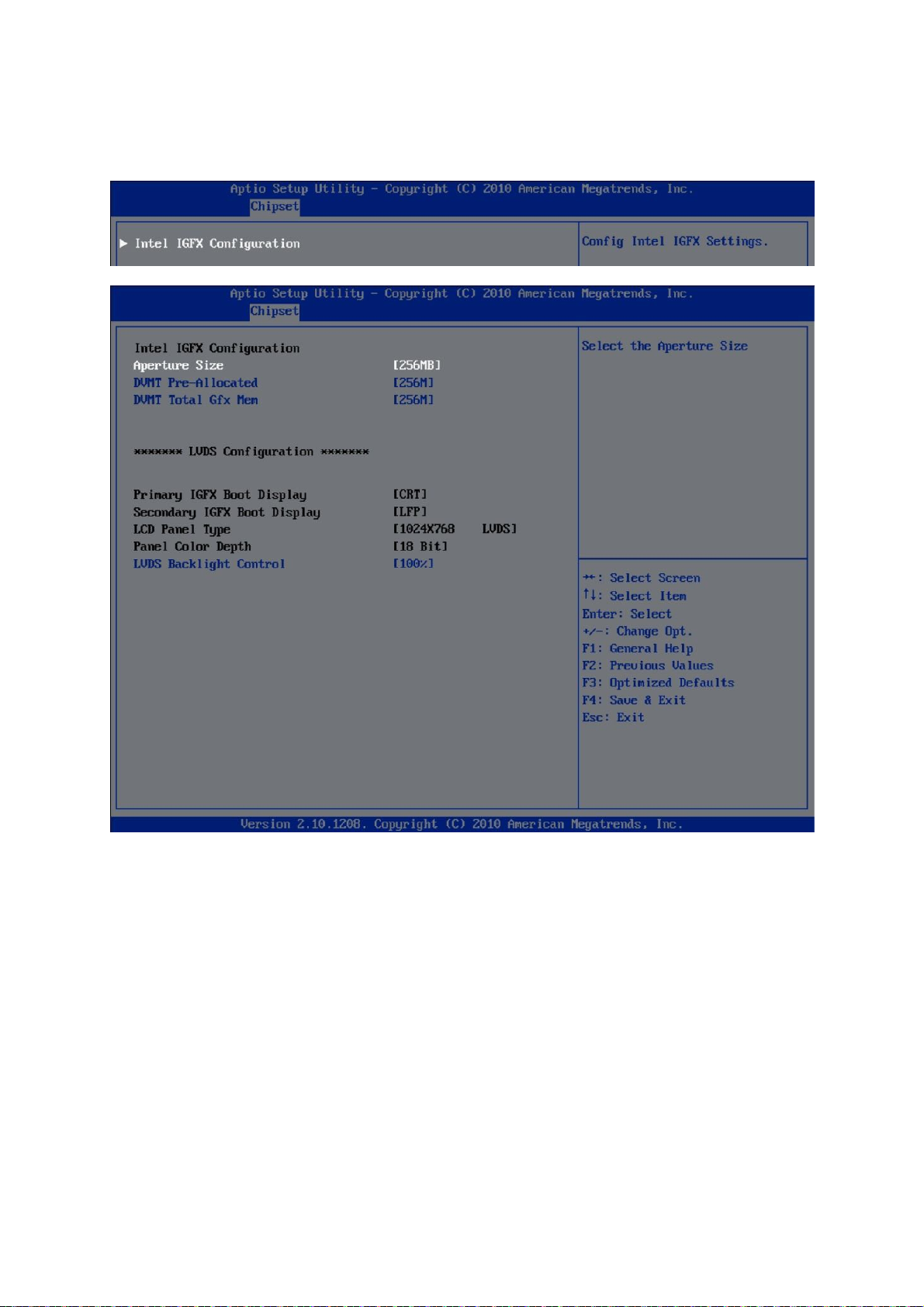

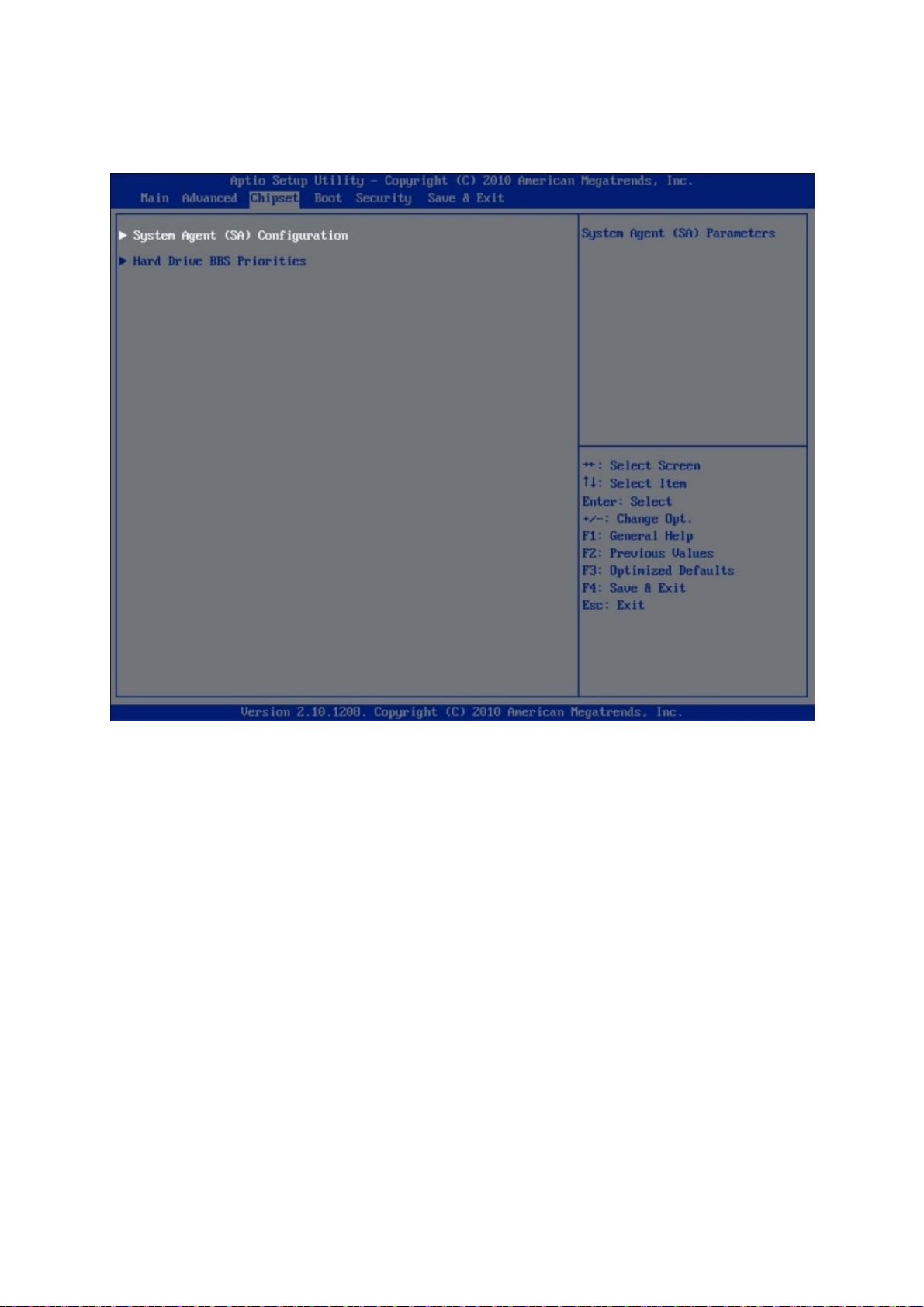

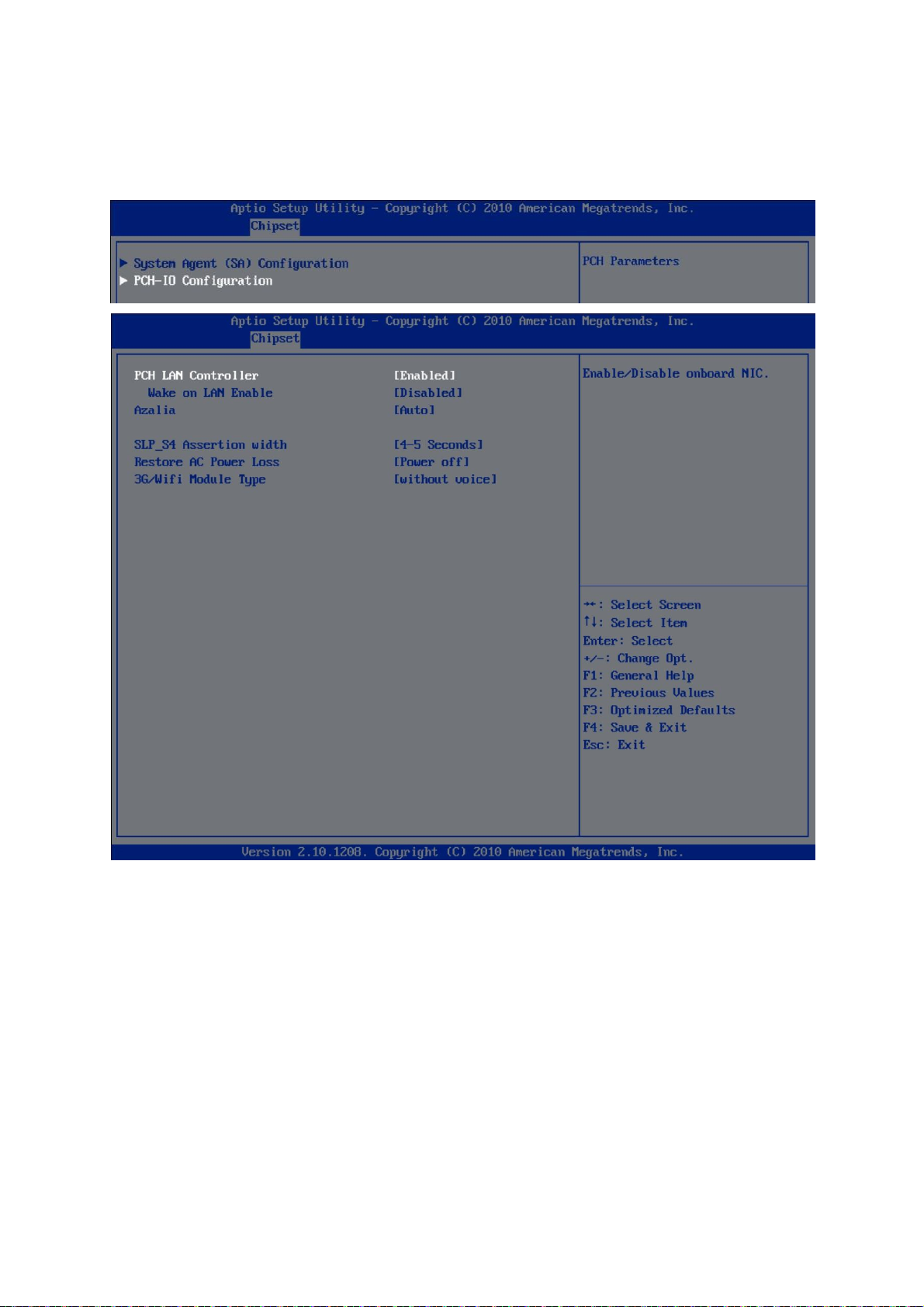

6-4 Chipset………………………………………………………………........................ 31

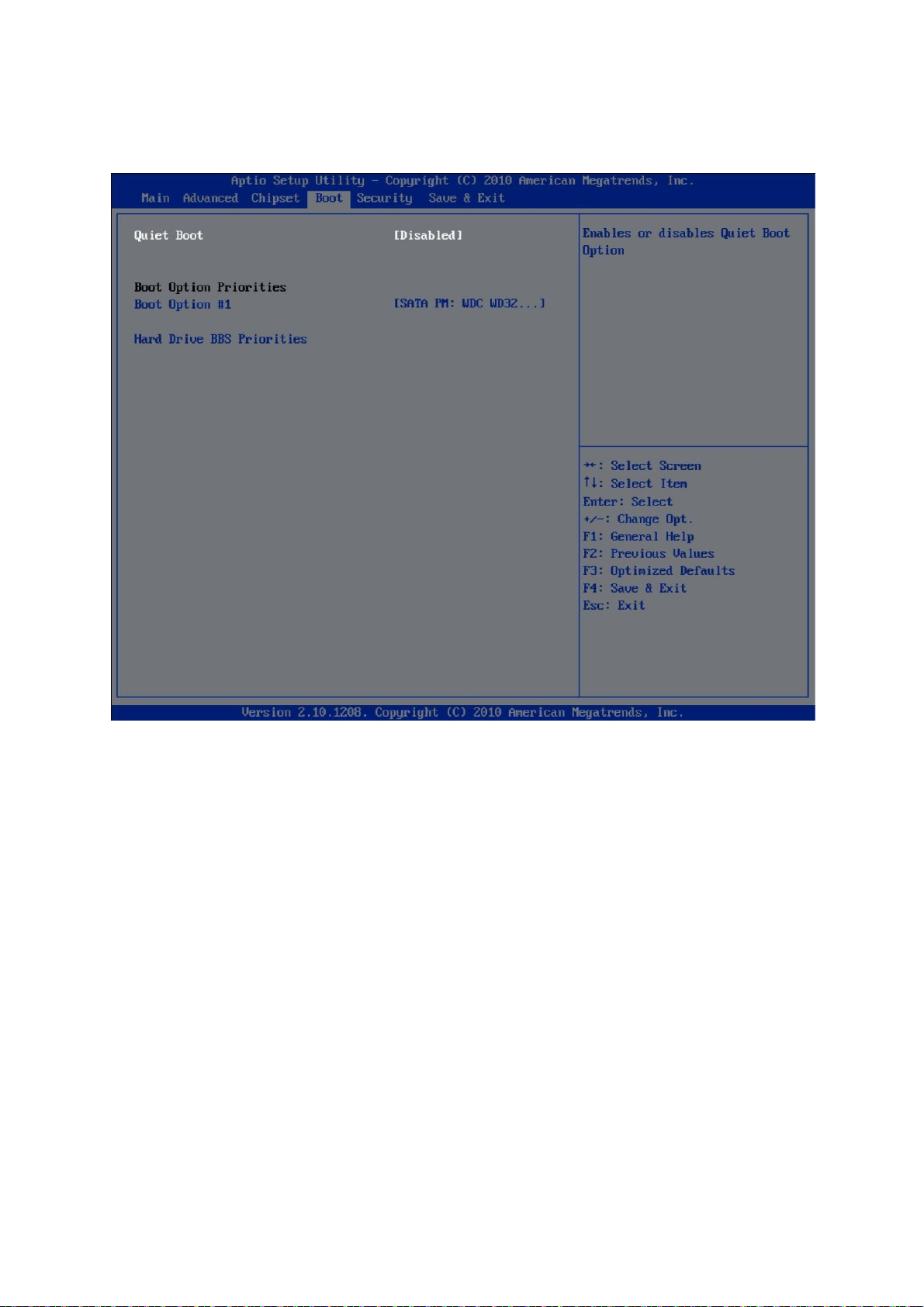

6-5 Boot……………………………………………………………………………………. 36

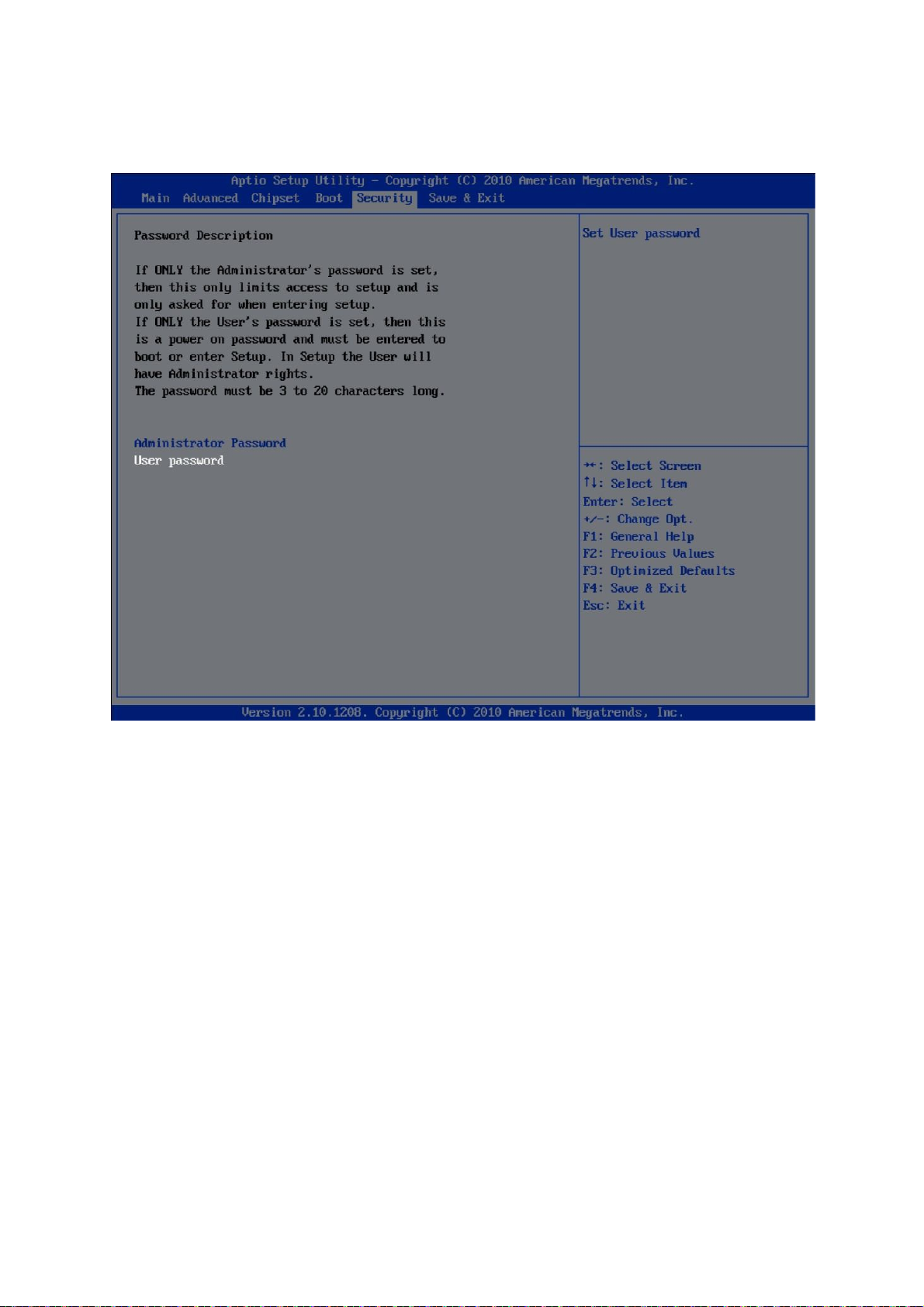

6-6 Security……………………………………………………………………………….. 37

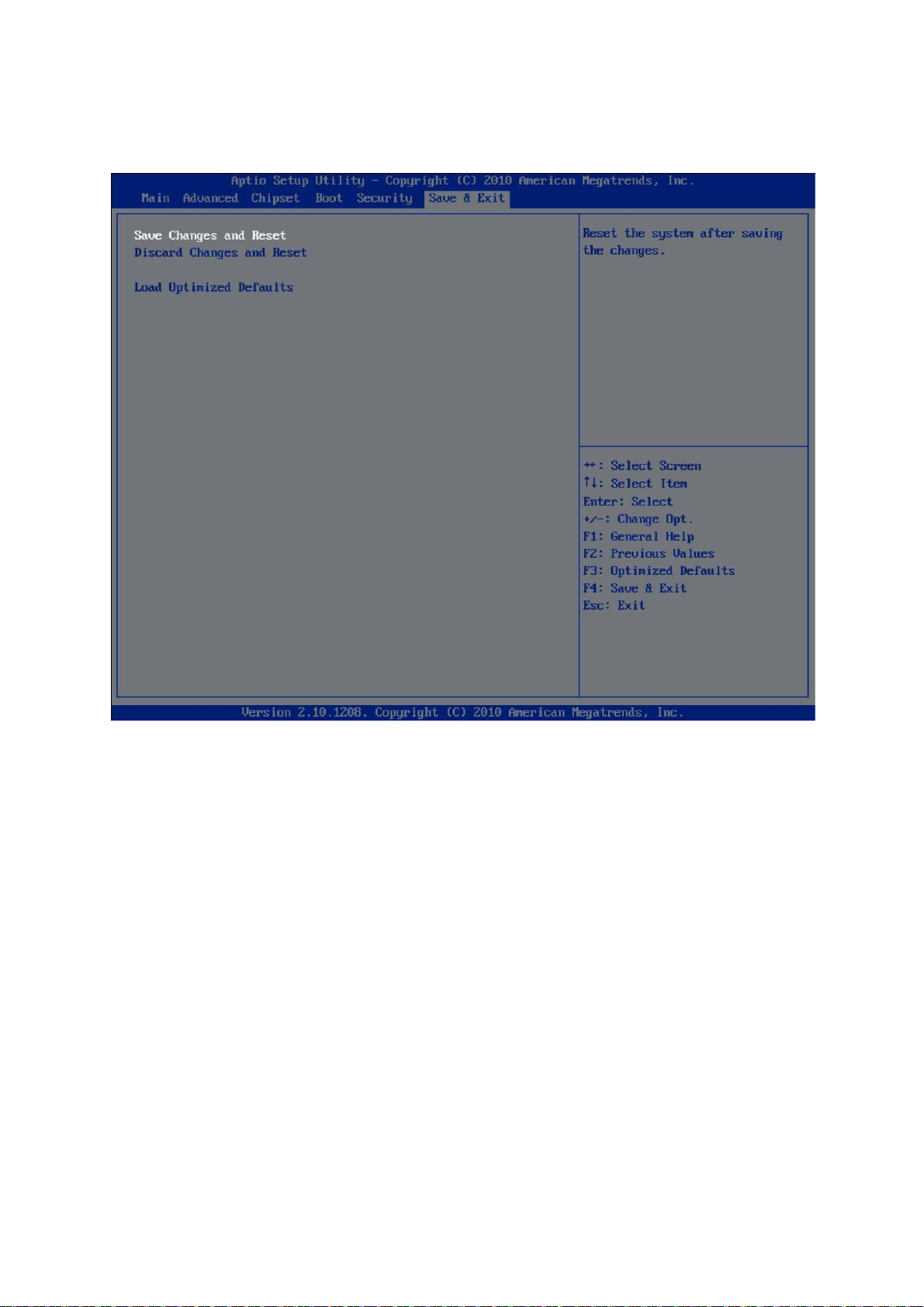

6-7 Save & Exit…………………………………………………………………………… 38
Appendix…………………………………………………………………………. 39
5
1. Package Checklist
1-1
a. System b. power adapter
1-2
Standard items
Optional items
b. Second Display (Pole Type) a. Second Display
c. MSR
d. VFD
e. driver bank/e-User Manual f. power cord
1
2. System View
Front View
No. Description
1
2
3
4
5
6
7
Touch Screen
MSR/2-in-1 MSR (Option)
Power Button & Power LED
Model No. Label & OS License Label
Stand
Cables outlet
Heat sink
Rear View
Side View
Top View
No. Description
8
9
10
11
VFD (OPTION)
System Box (Inside with Motherboard)
Vesa Cover
Cables outlet
2
Rear I/O View
No. Description
1
2
3
4
5
6
7
8
9
10
DC 19V IN
Cash Drawer Port
USB (x4)
LAN (10/100/1000)
COM(x4)
2nd VGA
DC 12V OUT
2.5 HDD
Parallel port
Line OUT
3
3. System Assembly & Disassembly
3-1 Replace the HDD
a. b.
a. Unfasten the screws (x2) to remove the HDD cover.
b. Disconnect the HDD Cable and take out the HDD with HDD metal handle.
c. d.
c. Unfasten the screws (x4) at both sides of HDD metal bracket.
d. Slide out the HDD from the HDD metal bracket and replace the HDD.
4
3-2 Replace the Motherboard
To replace the motherboard, please follow the below steps:
(1) Disconnect the HDD cable from the motherboard (Chapter 3-1, step a,b)
(2) Open the system box to access the motherboard (See below)
a. Unfasten the screws(x11) on the back of system box.
b. Press the Front bezel then separate top and bottom chassis(L1、L2).
c. Remove the LCD rear cover.
d. Unfasten the screw(x8) fixing
e. Unfasten the screw(x4) fixing the motherboard.
f. cable unplug out the motherboard with metal I/O bracket.
the motherboard and heatsink.
5
3-3 Replace the Inverter Board & Touch Board
3-3-1 Replace the Inverter Board
a. The location of Inverter board on the LCD sheet metal bracket.
b. Unfasten the screws (x2).
c. Disconnect the cables (x3).
3-3-2 Replace the Touch Board
a. The location of touch board on the LCD sheet metal bracket.
b. Unfasten the screws (x2).
c. Disconnect the cables (x2).
6
3-4 Install & Uninstall the Filter
The device uses a filter that is washable and reusable. Insert the filter inside the pocket in the
rear cover bracket, the handle backward the device and secure the filter with socket hole.
Draw out the filter from the pocket in the rear cover bracket (Tip: get the snap out of the socket
hole first)
7
3-5 Install VFD & MSR (Optional)
3-5-1
3-5-2
VFD install
a. Unfasten the screws.
b. Install VFD Module on the rear cover.
c. Tighten the screws.
MSR install
a. Unfasten the screws. b. Pull the MSR cover from rear cover.
c. Install the MSR Module
on the rear cover.
d. Tighten the screws.
8
