NEXCOM NISE 4000P4E User Manual

NEXCOM International Co., Ltd.

Industrial Computing Solutions

Fan-less Computer NISE 4000P4E

User Manual

NEXCOM International Co., Ltd.

Published April 2014

www.nexcom.com

Content

Contents

Preface

Copyright .............................................................................................. v

Disclaimer ............................................................................................... v

Acknowledgements ................................................................................ v

Regulatory Compliance Statements ......................................................... v

Declaration of Conformity ....................................................................... v

RoHS Compliance .................................................................................. vi

Warranty and RMA ................................................................................vii

Safety Information ................................................................................. ix

Installation Recommendations ................................................................ ix

Safety Precautions ................................................................................... x

Technical Support and Assistance ........................................................... xi

Conventions Used in this Manual ........................................................... xi

Global Service Contact Information ........................................................xii

Package Contents ................................................................................. xiv

Ordering Information .............................................................................xv

Chapter 1: Product Introduction

Overview ................................................................................................1

Key Features ...........................................................................................1

Hardware Specifications ..........................................................................2

Knowing Your NISE 4000P4E ..................................................................4

Mechanical Dimensions ...........................................................................6

Chapter 2: Jumpers and Connectors

Before You Begin ....................................................................................7

Precautions ............................................................................................7

Jumper Settings ......................................................................................8

NISE 4000P4E System Components ......................................................... 9

Locations of the Jumpers and Connectors for NISB 4000 .....................9

Jumpers ................................................................................................ 11

RTC Clear .......................................................................................... 11

ME Clear ...........................................................................................11

COM4 RS232 RI# Pin Power Select ....................................................12

Panel CCFL Power .............................................................................12

Connector Pin Definitions .....................................................................13

External I/O Interfaces - Front Panel ...................................................13

LAN3 and LAN4 Ports .....................................................................13

LAN1 and LAN2 Ports .....................................................................14

DVI-I and VGA Connectors ............................................................. 15

CFast .............................................................................................16

USB 3.0 ..........................................................................................16

USB 2.0 ..........................................................................................17

LED Indicators ................................................................................17

Internal Connectors ........................................................................... 18

SMBus ...........................................................................................18

3.5G Line-out Pin Header ............................................................... 18

3.5G Mic Pin Header ...................................................................... 19

LVDS Channel A Connector ............................................................ 19

ii

NISE 4000P4E User Manual

Content

LVDS Channel B Connector ............................................................ 20

LVDS Backlight Connector .............................................................. 20

SATA1 Power Connector ................................................................21

SATA2 Power Connector ................................................................21

SATA1 Connector ...........................................................................22

SATA2 Connector ...........................................................................22

HDD Power Connector .................................................................. 23

Power Button Connector ................................................................23

Reset Button Connector ................................................................. 24

USB Internal Connector .................................................................. 24

COM3 Box Header ......................................................................... 25

COM4 Box Header ......................................................................... 25

COM1 TX Setting ........................................................................... 26

COM1 RX Setting ...........................................................................26

COM2 TX Setting ........................................................................... 27

COM2 RX Setting ...........................................................................27

Fan Connector ...............................................................................28

PoE Connector ............................................................................... 28

Mini-PCIe Connector 1 ................................................................... 29

Mini-PCIe Connector 2 ................................................................... 30

SIM Card Socket ............................................................................31

Board to Board Connector (Riser Card) ...........................................32

Board to Board Connector (I/O Daughterboard) ..............................34

Locations of the Jumpers and Connectors for NISKIO3

(I/O Daughterboard) ..........................................................................36

Connector Pin Definitions .....................................................................37

External I/O Interfaces - Front Panel ...................................................37

COM1 and COM2 Ports ................................................................. 37

Digital Input and Output Connector ............................................... 38

Battery Holder ................................................................................ 39

Reset Button ..................................................................................39

PS/2 Mouse and Keyboard Connector ............................................40

Line-out .........................................................................................40

Mic-in ............................................................................................41

Internal Connectors ........................................................................... 42

Board to Board Connector (I/O Daughterboard) ..............................42

Locations of the Jumpers and Connectors for MACK01

(Power Riser Card) .............................................................................44

Internal Connectors ........................................................................... 45

Power Button Connector ................................................................45

USB0 Connector ............................................................................45

USB1 Connector ............................................................................46

Power Connector ........................................................................... 46

PoE Connector ............................................................................... 47

Fan Connector ...............................................................................47

LAN Connector ..............................................................................48

PCI Slot 1 ....................................................................................... 49

PCI Slot 2 ....................................................................................... 51

PCI Slot 3 ....................................................................................... 53

PCIe x4 ..........................................................................................55

Board to Board Connector (Riser Card) ...........................................56

Chapter 3: System Setup

Installing a CPU .....................................................................................58

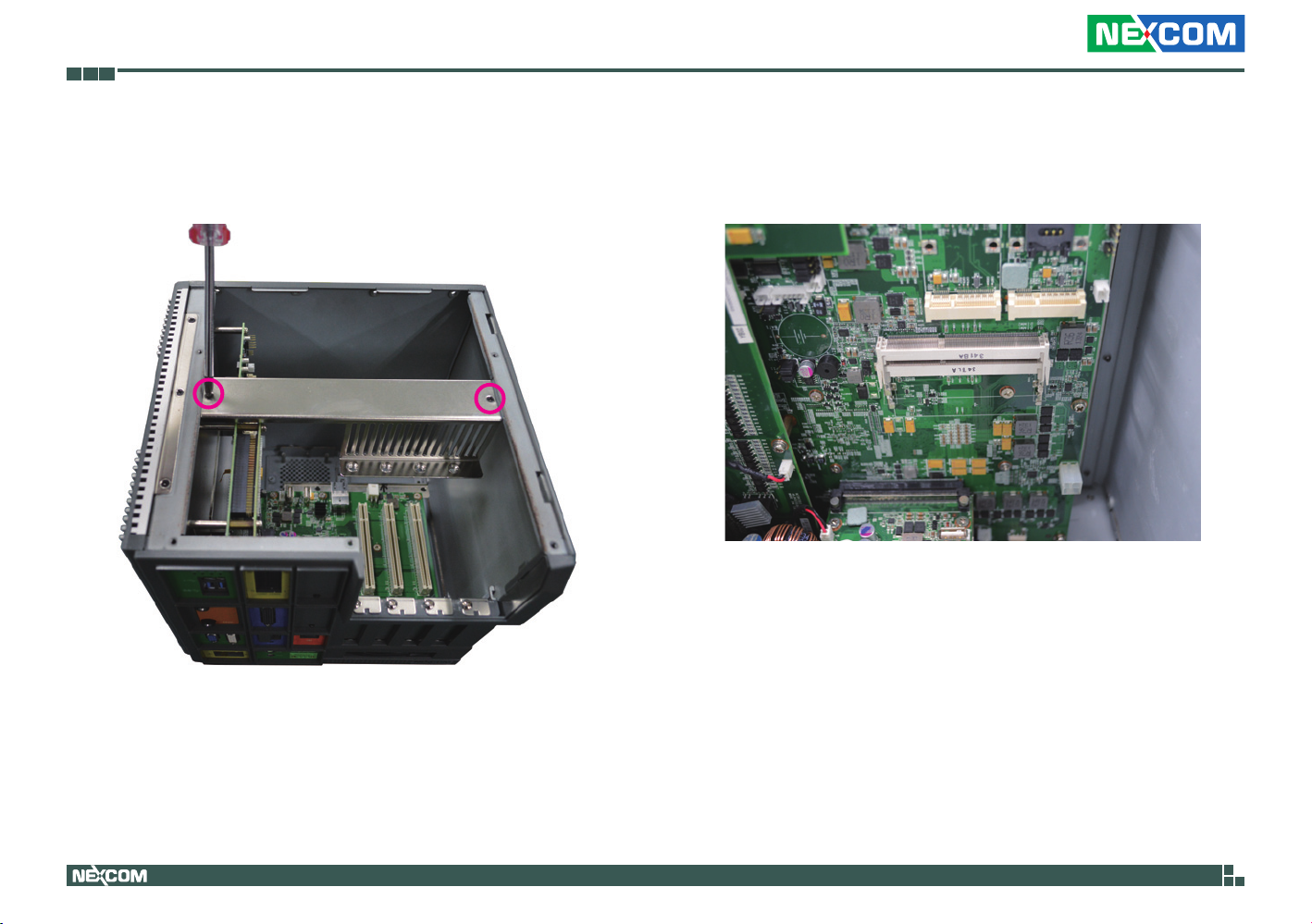

Removing the Chassis Top Cover ........................................................... 60

Removing the Chassis Cover .................................................................61

Installing a SO-DIMM ............................................................................ 64

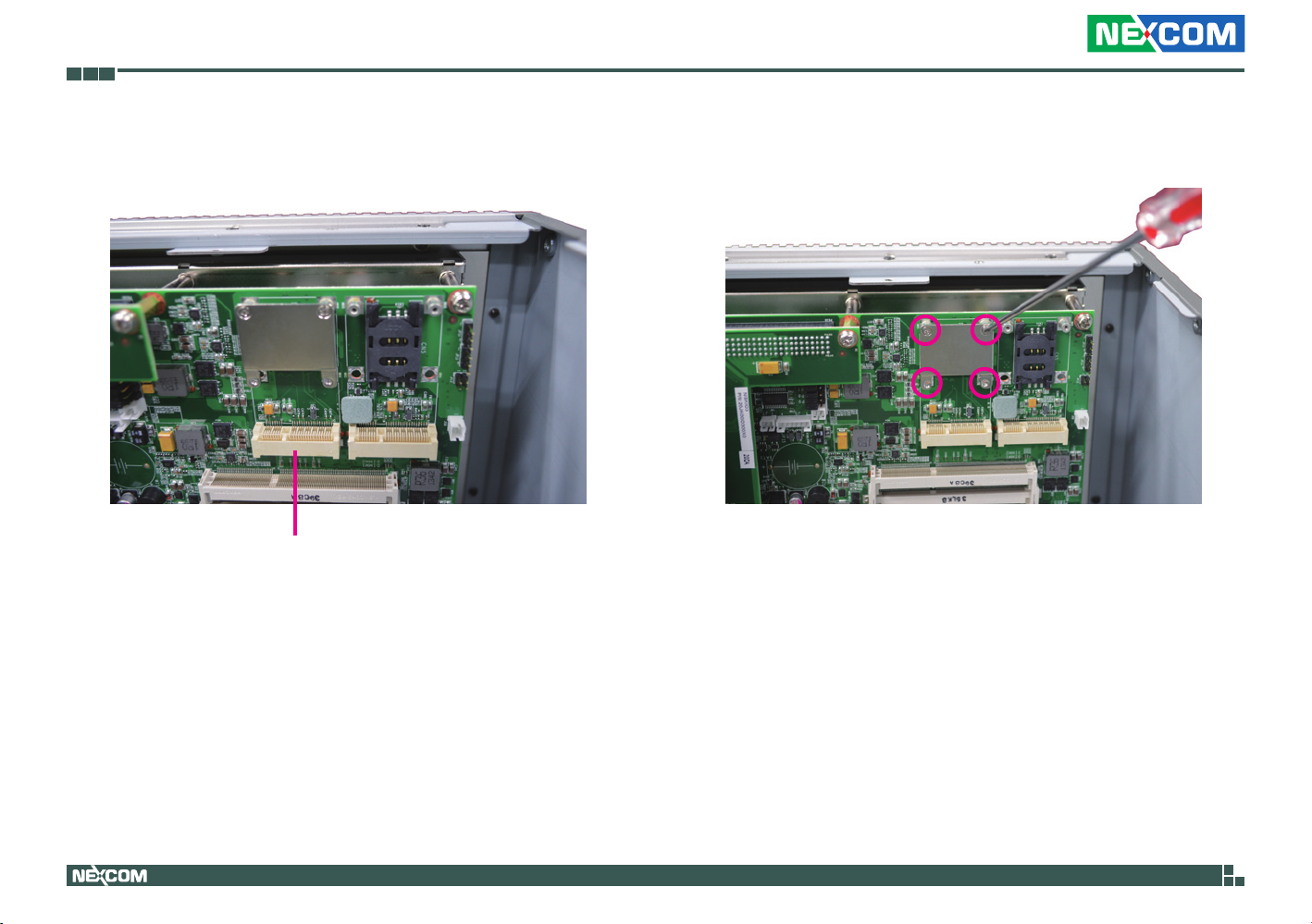

Installing a Mini-PCIe Module (Half-Size) ...............................................66

Installing a Mini-PCIe Module (Full-Size) ................................................69

Installing a SIM Card .............................................................................71

Installing a SATA Hard Drive (External) ...................................................73

Installing a SATA Hard Drive (Internal) ...................................................76

Installing a Regular PCIe or PCI Expansion Card .....................................79

Installing a Short PCIe or PCI Expansion Card ........................................84

iii

NISE 4000P4E User Manual

Content

Installing a CFast Card ..........................................................................88

Installing the Wall Mount Bracket..........................................................90

Packing ................................................................................................. 92

Chapter 4: BIOS Setup

About BIOS Setup ................................................................................. 94

When to Configure the BIOS .................................................................94

Default Configuration ........................................................................... 95

Entering Setup ...................................................................................... 95

Legends ................................................................................................ 95

BIOS Setup Utility .................................................................................. 97

Main .................................................................................................97

Advanced ......................................................................................... 98

Chipset ............................................................................................106

Boot ................................................................................................ 108

Security ...........................................................................................109

Save & Exit ......................................................................................109

Appendix A: Power Consumption........................110

Appendix B: Watchdog Timer Setting..................111

Appendix C: GPI/O Programming Guide..............112

iv

NISE 4000P4E User Manual

Preface

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NISE 4000P4E is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC

This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.

CE

The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.

v

NISE 4000P4E User Manual

Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update

NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green

products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.

RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.

In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.

The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.

How to recognize NEXCOM RoHS Products?

For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.

All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.

vi

NISE 4000P4E User Manual

Preface

Warranty and RMA

NEXCOM Warranty Period

NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.

NEXCOM Return Merchandise Authorization (RMA)

▪ Customers shall enclose the “NEXCOM RMA Service Form” with the

returned packages.

▪ Customers must collect all the information about the problems

encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.

▪ Customers can send back the faulty products with or without accessories

(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.

▪ Customers are responsible for the safe packaging of defective products,

making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”

▪ Any products returned by NEXCOM to other locations besides the

customers’ site will bear an extra charge and will be billed to the customer.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

Repair Service Charges for Out-of-Warranty Products

NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.

System Level

▪ Component fee: NEXCOM will only charge for main components such as

SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.

▪ Items will be replaced with NEXCOM products if the original one cannot

be repaired. Ex: motherboard, power supply, etc.

▪ Replace with 3rd party products if needed.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

Board Level

▪ Component fee: NEXCOM will only charge for main components, such

as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.

▪ If RMA goods can not be repaired, NEXCOM will return it to the customer

without any charge.

vii

NISE 4000P4E User Manual

Preface

Warnings

Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.

Cautions

Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.

viii

NISE 4000P4E User Manual

Preface

CAUTION!

Safety Information

Before installing and using the device, note the following precautions:

▪ Read all instructions carefully.

▪ Do not place the unit on an unstable surface, cart, or stand.

▪ Follow all warnings and cautions in this manual.

▪ When replacing parts, ensure that your service technician uses parts

specified by the manufacturer.

▪ Avoid using the system near water, in direct sunlight, or near a heating

device.

▪ The load of the system unit does not solely rely for support from the

rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.

▪ The computer is provided with a battery-powered real-time clock circuit.

There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Danger of explosion if battery is incorrectly replaced.

CAUTION!CAUTION!

Replace with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.

Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:

▪ A Philips screwdriver

▪ A flat-tipped screwdriver

▪ A grounding strap

▪ An anti-static pad

Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

ix

NISE 4000P4E User Manual

Preface

Safety Precautions

1. Read these safety instructions carefully.

2. Keep this User Manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Use a

damp cloth. Do not use liquid or spray detergents for cleaning.

4. For plug-in equipment, the power outlet socket must be located near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a stable surface during installation. Dropping it or

letting it fall may cause damage.

7. The openings on the enclosure are for air convection to protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before connecting

the equipment to the power outlet.

9. Place the power cord in a way so that people will not step on it. Do not

place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.

12. Never pour any liquid into an opening. This may cause fire or electrical shock.

13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.

14. If one of the following situations arises, get the equipment checked by service personnel:

a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work

according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.

15. Do not place heavy objects on the equipment.

16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.

17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.

x

NISE 4000P4E User Manual

Preface

CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.

2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,

version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages

Warning!

1. Handling the unit: carry the unit with both hands and handle it with care.

2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.

3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.

CAUTION!CAUTION!

Caution: Information to avoid damaging components or losing data.

Note: Provides additional information to complete a task easily.

Safety Warning: This equipment is intended for installation in a Restricted Access Location only.

xi

NISE 4000P4E User Manual

Preface

Global Service Contact Information

Headquarters

NEXCOM International Co., Ltd.

15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com

America

USA NEXCOM USA

2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com

Asia

Taiwan Central Taiwan Office

16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw

Japan NEXCOM Japan

9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com

China NEXCOM China

1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: sales@nexcom.cn www.nexcom.cn

Shanghai Office

Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200062, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn

xii

NISE 4000P4E User Manual

Preface

Shenzhen Office

Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn

Wuhan Office

1-C1804/ 1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn

Chengdu Office

9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn

Europe

Italy NEXCOM ITALIA S.r.l

Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it

United Kingdom NEXCOM EUROPE

10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu

xiii

NISE 4000P4E User Manual

Preface

Package Contents

Before continuing, verify that the NISE 4000P4E package that you received is complete. Your package should have all the items listed in the following table.

Item Part Number Name Description Qty

1 4NCPF00212X00 Terminal Blocks 2P Phoenix Contact:1827703 3.81mm Female DIP Green 1 2 4NCPF00309X00 Terminal Blocks 3P Phoenix Contact:1827716 3.81mm FEMALE DIP GREEN 1 3 4NCPF01004X00 Terminal Blocks 10P Phoenix Contact:1952348 3.5mm FEMALE DIP GREEN 2 4 50311F0185X00 (H)Round Head Screw w/Spring+Flat Washer LONG FEI 6#32X8L_W/SPRING+FLAT 4 5 50311F0202X00 Round Head Screw LONG FEI P4x6mm ISO/SW8x0.8 NIGP 8 6 50311F0326X00 Flat Head Screw LONG FEI:F3x5 NYLOK NI+Heat Treatment F3x5 NYLOK NI+Heat Treatment 8 7 50311F0330X00 Round Head Screw LONG FEI:P2x3 ISO+NYLON P2x3 NI NYLOK 4 8 50311P0001X00 Price For Plastic Screw HS6-75P 75mm 4

9 50322P0002X00 Plastic Nut Gin Lian:M6HW 10mmx6mm 4 10 5040420004X00 NISE 4000P4E Low Profile PCI Holder VER:A CHYUAN-JYH 52x27x16mm SPCC t=1.0mm NI 4 11 5044440090X00 (H)Thermal Pad APUS:3A2015001001500 15x10x1.5mm XR-PE 1 12 5060300016X00 MYLAR For 2.5" HDD Tray E-LIN 100x70x0.05mm MYLAR 0.05+Local gum. 2 13 5060900470X00 Wall Mount Bracket For NISE 4000P4E VER:A CHYUAN-JYH 50x238x6mm SPCC t=1.2mm NI 2 14 60177A0324X00 (E)NISE 4000 Quick Reference Guide VER:A SIZE:A4 KRAMER 1 15 60177A0325X00 (E)NISE 4000 Series Quick Note VER:A SIZE:A4 KRAMER 1 16 6019900027X00 Name Tag For NISE 4000P4E VER:A FU-DIN 52.5x43.5mm,300p COLOR:K80 2 17 602DCD0710X00 (E)NISE 4000 DVD Driver VER:1.0 JCL 1

xiv

NISE 4000P4E User Manual

Preface

Ordering Information

The following information below provides ordering information for NISE 4000P4E.

• Barebone

NISE 4000P4E (P/N: 10J00400002X0)

®

- 3rd Generation Intel

Core™ i3/i5 rPGA Fanless System with 3x PCI and one PCIe x4 expansions

• 24V, 120W AC/DC power adapter w/o power cord (P/N: 7400120012X00)

xv

NISE 4000P4E User Manual

Chapter 1: Product Introduction

Overview

Key Features

▪ Support 3rd generation Intel® Core™ i3/i5 rPGA socket type processor

®

QM77 PCH

▪ Intel

▪ 2x USB 3.0 & 2x USB 2.0

®

▪ 4x Intel

▪ 1x DVI-I & 1x VGA

▪ 2x 2.5KV isolated RS232/422/485

▪ 1x CFast socket

▪ Four PCI/PCIe expansion slots

▪ Two Mini-PCIe sockets

▪ Support +24VDC power input

▪ Support ATX power mode, WoL and PXE function

GbE LAN ports

1

NISE 4000P4E User Manual

Chapter 1: Product Introduction

Hardware Specifications

CPU Support

▪ Support 3rd generation Intel® Core™ i5/i3 rPGA socket type processor

- Core™ i5-3610ME, Dual Core, 2.7GHz, 3M Cache

- Core™ i3-3120ME, Dual Core, 2.4GHz, 3M Cache

- Support three independent displays with above processors

®

▪ Intel

QM77 PCH chipset

Main Memory

▪ 2x DDR3/DDR3L SO-DIMM sockets, support dual channel up to 8 GB,

DDR3 1333 SDRAM, un-buffered and non-ECC

Display Option

▪ Dual independent displays

- VGA

- DVI-D

▪ Three independent displays

- VGA

- VGA (output via optional Y-cable)

- DVI-D (output via optional Y-cable)

I/O Interface

▪ ATX power on/off switch ▪ Power status LED ▪ HDD/ CFast access LEDs ▪ RF access LED ▪ COM ports access LEDs ▪ 2x USB 2.0 ports & 2x USB 3.0 ports ▪ 2x 2.5KV isolated RS232/422/485 terminal connector

▪ 1x DB44 for 16CH isolated DI and 16CH isolated DO ▪ 1x VGA output & 1x DVI-I output ▪ 4x Intel

(with Intel

®

GbE LAN ports

®

WG82574L & WG82579LM LAN chip) ▪ 1x PS/2 connector for keyboard and mouse ▪ 1x Mic-in and 1x Line-out ▪ 2-pin remote power on/off switch ▪ 2x Optional I/O knockout for additional functions

Isolated Digital Input

▪ 16CH 2.5KV optical isolated Digital Input ▪ Digital logic levels

- 0-24V, non-polarity type

- Input low voltage (L): 0 ~ 1.5V

- Input high voltage (H): 5 ~ 24V

- Input resistance: 1.2kΩ @ 0.5W

- Max. response frequency: 10KHz @ 50% duty

Isolated Digital Output

▪ 16CH 2.5KV optical isolated Digital Output ▪ Output type: Open-collector NPN Darlington transistor ▪ Supply voltage: 5-35V ▪ Sink current: 200mA max. for all channel @ 100% duty

Storage Device

▪ 1x External 2.5” HDD bay, cold swappable ▪ 1x Internal 2.5” HDD bay ▪ 1x External CFast socket

2

NISE 4000P4E User Manual

Chapter 1: Product Introduction

Expansion Slot

▪ 2x Mini-PCIe socket for optional Wi-Fi / GSM / Automation modules ▪ 3x PCI expansions (6W max. per slot) ▪ 1x PCIe x4 expansion (6W max. per slot) ▪ Add-on card length: 220mm max. ▪ Add-on card Height: 106mm max.

Power Requirements

▪ DC input: +24V input +/- 10%

Dimensions

▪ 258mm (W) x 250mm (D) x 255mm (H) without wall mount bracket

Environment

▪ Operating temperature: Ambient with air flow: 0°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)

▪ Storage temperature: -20°C to 80°C

▪ Relative humidity: 10% to 93% (non-condensing)

▪ Shock protection: 20G, half sine, 11ms, IEC60068-2-27 with HDD

▪ Vibration protection Random: 0.5Grms @ 5~500 Hz according to IEC68-2-64 Sinusoidal: 0.5 Grms @ 5~500 Hz according to IEC68-2-6

Certifications

▪ CE/FCC Class A

OS Support List

▪ Windows XP 32-bit and 64-bit

▪ Windows 7 32-bit and 64-bit

▪ Windows 8.1 32-bit and 64-bit

3

NISE 4000P4E User Manual

Chapter 1: Product Introduction

Knowing Your NISE 4000P4E

2x USB 3.0 2x USB 2.0

LED Indicators

1x CFast

VGA/ DVI-I

1x Ext. Batt

Holder

2x Isolated COM RS232/422/485

2x Mini-PCIe Socket for 3G and Fieldbus Modules

16CH DI/DO

Power Switch

Reset Switch

LED Indicators

Indicates the power status, hard drive and LAN activity of the system.

USB 3.0/2.0 Ports

Two USB 3.0 and two USB 2.0 ports to connect the system with USB 3.0/2.0 devices.

Isolated COM (RS232/422/485)

Two isolated COM ports to connect RS232/422/485 compatible devices.

Mini-PCIe Socket

Two Mini-PCIe sockets to connect 3G and fieldbus modules.

16CH Digital Input and Output

16 channels of digital input and output used to connect to switches, detectors, lights or alarm triggers.

CFast

Used to install a CFast card.

VGA

Used to connect an analog VGA monitor.

Remote

4x Intel® GbE LAN

PS/2 & Audio Connectors

On/Off Switch

9-36V DC Input

1x External 2.5” HDD Tray 1x Internal 2.5” HDD Tray

DVI-I

Used to connect a digital LCD panel.

External Battery Holder

Used to hold an external battery.

4

NISE 4000P4E User Manual

Chapter 1: Product Introduction

Power Switch

Press to power-on or power-off the system.

Reset Switch

Press to restart the system.

Intel GbE LAN Ports

4 Intel GbE LAN to connect the system to a local area network.

PS/2 Connector

PS/2 connector for mouse and keyboard.

Audio Connectors

A line-out and mic-in port to connect speakers or microphones.

Remote On/Off

Used to connect a remote to power on/off the system.

9-36V DC Input

Used to plug a DC power cord.

External 2.5” HDD Tray

Used to install a 2.5” HDD.

5

NISE 4000P4E User Manual

Chapter 1: Product Introduction

Mechanical Dimensions

4.50

Ø4.50

Ø8.00

257.50

238.00

218.00

109.00109.00

291.30

277.30

254.50

242.50

256.00

6.00

4.50

6

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

This chapter describes how to set the jumpers and connectors on the NISE 4000P4E motherboard and add-on boards.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can

get into components and cause a malfunction. Use containers to keep small components separated.

▪ Adequate lighting and proper tools can prevent you from accidentally

damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad

▪ Using your fingers can disconnect most of the connections. It is

recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.

▪ Before working on internal components, make sure that the power is off.

Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than

dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.

Follow the guidelines below to avoid damage to your computer or yourself:

▪ Always disconnect the unit from the power outlet whenever you are

working inside the case.

▪ If possible, wear a grounded wrist strap when you are working inside the

computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.

▪ Hold electronic circuit boards by the edges only. Do not touch the

components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.

▪ Leave all components inside the static-proof packaging that they shipped

with until they are ready for installation.

▪ Use correct screws and do not over tighten screws.

7

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.

Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).

Two-Pin Jumpers: Open (Left) and Short (Right)

Three-Pin Jumpers: Pins 1 and 2 are Short

3

2

1

3

2

8

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

NISE 4000P4E System Components

The NISE 4000P4E system is made up of a NISB 4000 motherboard, an I/O daughterboard and a power riser card. This chapter lists the location and pinout assignment of the jumpers and connectors on each component.

Locations of the Jumpers and Connectors for NISB 4000

Top View

FAN1

COP1

COP2

CN11

CN1

USB1

USB2

9

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

JP12 JP13 JP14

Bottom View

CN3

CN12

CN2

J3

JP4

CN9

J10

CON1

J2

J1

CN7

CN8

JP11 JP10

CN4 CN5

CN6

JP9

JP8

JP7

JP6

JP15

J4

J5

J7

J9

JP5

J6

J8

CN10

10

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Jumpers

RTC Clear

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP10

1 3

Pin Function

1-2 Normal 2-3 Clear CMOS

1-2 On: default

ME Clear

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP11

1 3

Pin Function

1-2 Normal 2-3 Clear ME

1-2 On: default

11

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

15

COM4 RS232 RI# Pin Power Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP5

Pin Function

1-2 +5V 2-3 +12V 4-5 RING

4-5 On: default

Pin Definition

1 VCC5 2 SP4_RI_T 3 +12V 4 SP4_RI_T 5 SP4_RI

Panel CCFL Power

Connector type: 1x3 3-pin header, 2.54mm Connector location: JP4

1 3

Pin Definition

1 VCC3(3.3V) 2 PANEL1_VDD 3 VCC5(+5V)

1-2 On: default

12

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

ACT LINK

Connector Pin Definitions

External I/O Interfaces - Front Panel

LAN3 and LAN4 Ports

Connector type: Dual RJ45 port with LEDs Connector location: COP1B (LAN3) and COP1A (LAN4)

B8

A1

LAN3

B1

A8

LAN4

Pin Definition Pin Definition

B1 LAN3_MDI0P B2 LAN3_MDI0N B3 LAN3_MDI1P B4 LAN3_MDI1N B5 LAN3_MDI2P B6 LAN3_MDI2N B7 LAN3_MDI3P B8 LAN3_MDI3N

B9 LAN3_V1_9 B10 GND B11 LAN3_LED1P B12 LAN3_LED_ACT# B13 LAN3_LED2P B14 LAN3_LED3P

MH4 GND MH5 GND MH6 GND

Act Status

Flashing Yellow Data activity

Off No activity

Link Status

Steady Green 1G network link

Steady Orange 100Mbps network link

Off No link

LAN4

Pin Definition Pin Definition

A1 LAN2_MDI0P A2 LAN2_MDI0N A3 LAN2_MDI1P A4 LAN2_MDI1N A5 LAN2_MDI2P A6 LAN2_MDI2N A7 LAN2_MDI3P A8 LAN2_MDI3N

A9 LAN2_V1_9 A10 GND A11 LAN2_LED1P A12 LAN2_LED_ACT# A13 LAN2_LED2P A14 LAN2_LED3P

MH1 GND MH2 GND MH3 GND

13

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

LAN1 and LAN2 Ports

Connector type: Dual RJ45 port with LEDs Connector location: COP2B (LAN1) and COP2A (LAN2)

LAN1

ACT LINK

Act Status

Flashing Yellow Data activity

Off No activity

B8

A1

B1

A8

Link Status

Steady Green 1G network link

Steady Orange 100Mbps network link

LAN2

Off No link

LAN1

Pin Definition Pin Definition

B1 LAN4_MDI0P B2 LAN4_MDI0N B3 LAN4_MDI1P B4 LAN4_MDI1N B5 LAN4_MDI2P B6 LAN4_MDI2N B7 LAN4_MDI3P B8 LAN4_MDI3N

B9 VCT_LAN B10 GND B11 LAN4_LED1P B12 LAN4_LED_ACT# B13 LAN4_LED2P B14 LAN4_LED3P

MH4 GND MH5 GND MH6 GND

LAN2

Pin Definition Pin Definition

A1 LAN1_MDI0P A2 LAN1_MDI0N A3 LAN1_MDI1P A4 LAN1_MDI1N A5 LAN1_MDI2P A6 LAN1_MDI2N A7 LAN1_MDI3P A8 LAN1_MDI3N

A9 LAN1_V1_9 A10 GND A11 LAN1_LED1P A12 LAN1_LED_ACT# A13 LAN1_LED2P A14 LAN1_LED3P

MH1 GND MH2 GND MH3 GND

14

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

DVI-I and VGA Connectors

Connector type: DB-15 port, 15-pin D-Sub (VGA) 24-pin D-Sub, 2.0mm-M-180 (DVI) Connector location: CN11B (VGA) and CN11A (DVI-I)

1 8

17 24

2529

3539

DVI-I

Pin Definition Pin Definition

1 DVI_DATA0_N 2 DVI_DATA0_P 3 GND 4 NA 5 NA 6 DVI_I_DDC_C 7 DVI_I_DDC_D 8 VSYNC_VGA

9 DVI_DATA1_N 10 DVI_DATA1_P 11 GND 12 NA 13 NA 14 DVI_VCC(+5V) 15 GND 16 DVI HotPlugDet 17 DVI_DATA2_N 18 DVI_DATA2_P 19 GND 20 DDCCLK_VGA 21 DDCDATA_VGA 22 GND 23 DVI_CLK_P 24 DVI_CLK_N C1 RED C2 GREEN C3 BLUE C4 HSYNC_VGA

C5A VGADET C5B GND

MH1 CHASSIS_GND MH2 CHASSIS_GND

VGA

Pin Definition Pin Definition

25 D_RED_VGA 26 D_GREEN_VGA 27 D_BLUE_VGA 28 IT6512_ISPSDA 29 GND 30 D_VGADET 31 GND 32 GND 33 D_VGA_5V 34 GND 35 IT6512_ISPSCL 36 D_DDCDATA_VGA 37 D_HSYNC_VGA 38 D_VSYNC_VGA 39 D_DDCCLK_VGA MH3 CHASSIS_GND

MH4 CHASSIS_GND

15

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

CFast

Connector type: CFast Socket Connector location: CN1

S1 S7 PC1 PC17

Pin Definition Pin Definition

S1 GND PC6 NA S2 SATA_TXP3 PC7 GND S3 SATA_TXN3 PC8 NA S4 GND PC9 CFAST_ACCESS LED S5 SATA_RXN3 PC10 NA S6 SATA_RXP3 PC11 NA S7 GND PC12 NA

PC1 CDI PC13 +3.3V PC2 GND PC14 +3.3V PC3 NA PC15 GND PC4 NA PC16 GND PC5 NA PC17 NA

USB 3.0

Connector type: Dual USB 3.0 ports Connector location: USB1

9

1

10 13

Pin Definition Pin Definition

1 5VSB 2 USB_0N 3 USB_0P 4 GND 5 USB3_RX0_N 6 USB3_RX0_P 7 GND 8 USB3_TX0_N

9 USB3_TX0_P 10 5VSB 11 USB_1N 12 USB_1P 13 GND 14 USB3_RX1_N 15 USB3_RX1_P 16 GND 17 USB3_TX1_N 18 USB3_TX1_P

MH1 CH_GND MH2 CH_GND MH3 CH_GND MH4 CH_GND

5

4

1418

16

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

USB 2.0

Connector type: Dual USB 2.0 ports Connector location: USB2

1

5

Pin Definition Pin Definition

1 5VSB 2 USB_2N 3 USB_2P 4 GND 5 5VSB 6 USB_3N 7 USB_3P 8 GND

4

8

LED Indicators

COM1_TX PW

COM1_RX

COM2_TX

COM2_RX

LED Status

COM1_TX

COM1_RX

COM2_TX

COM2_RX

PW

CFast/HDD Blinking: Active

Watch Dog

RF

CFast/HDD

Watch Dog

RF

Blinking: Active Light off: No activity Blinking: Active Light off: No activity Blinking: Active Light off: No activity Blinking: Active Light off: No activity Light On: Power On Light Off: Power Off

Light On: Initialized Blinking: Counting Light Off: Closed Blinking: Active Light off: No activity

17

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

34

12

Internal Connectors

SMBus

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP12

Pin Definition

1 GND 2 VCC3 3 SMB_DATA 4 SMB_CLK

3.5G Line-out Pin Header

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP13

1 3

Pin Definition

1 LOUT_RL

2 LOUT_RR

3 ANGND

18

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

11 22

3.5G Mic Pin Header

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP14

1 3

Pin Definition

1 MIC_RL 2 MIC_RR 3 ANGND

LVDS Channel A Connector

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN9

9 0

Pin Definition Pin Definition

1 LVDS_DDC_CLK 2 LVDS_DDC_DATA

3 PANEL1_VDD(5V or 3.3V) 4 LVDSA_DATA0

5 LVDSA_DATA3 6 LVDSA_DATA#0

7 LVDSA_DATA#3 8 PANEL1_VDD(5V or 3.3V)

9 GND 10 LVDSA_DATA1 11 LVDSA_CLK 12 LVDSA_DATA#1 13 LVDSA_CLK# 14 GND 15 GND 16 V_INV (12V) 17 LVDSA_DATA2 18 V_INV (12V) 19 LVDSA_DATA#2 20 GND

19

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

11 22

71

LVDS Channel B Connector

Connector type: 2x10 20-pin header, 1.25mm pitch Connector location: CN8

9 0

Pin Definition Pin Definition

1 LVDS_DDC_CLK 2 LVDS_DDC_DATA 3 PANEL1_VDD(5V or 3.3V) 4 LVDSB_DATA0 5 LVDSB_DATA3 6 LVDSB_DATA#0 7 LVDSB_DATA#3 8 PANEL1_VDD(5V or 3.3V)

9 GND 10 LVDSB_DATA1 11 LVDSB_CLK 12 LVDSB_DATA#1 13 LVDSB_CLK# 14 GND 15 GND 16 V_INV (12V) 17 LVDSB_DATA2 18 V_INV (12V) 19 LVDSB_DATA#2 20 GND

LVDS Backlight Connector

Connector type: 1x7 JST, 7-pin header, 2.5mm pitch Connector location: J3

Pin Definition Pin Definition

1 VCC5 2 V_INV (12V) 3 V_INV (12V) 4 BKLTCTRL 5 GND 6 GND 7 BKLTEN

20

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

SATA1 Power Connector

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J1

1 12 2

Pin Definition

1 VCC5

2 GND

SATA2 Power Connector

Connector type: 1x2 2-pin header, 2.5mm pitch Connector location: J2

Pin Definition

1 VCC5 2 GND

21

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

SATA1 Connector

Connector type: 1x7 7-pin header, 1.27mm pitch Connector location: CN2

71 71

Pin Definition Pin Definition

1 GND 2 SATA_TXP0

3 SATA_TXN0 4 GND

5 SATA_RXN0 6 SATA_RXP0

7 GND

SATA2 Connector

Connector type: 1x7 7-pin header, 1.27mm pitch Connector location: CN3

Pin Definition Pin Definition

1 GND 2 SATA_TXP1 3 SATA_TXN1 4 GND 5 SATA_RXN1 6 SATA_RXP1 7 GND

22

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

14

HDD Power Connector

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: CN12

Pin Definition

1 +12V

2 GND

3 GND

4 VCC5

Power Button Connector

Connector type: 1x2 2-pin header, 2.0mm pitch Connector location: J4

12

Pin Definition

1 PWRON 2 GND

23

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

16

Reset Button Connector

Connector type: 1x2 2-pin header, 2.0mm pitch Connector location: J7

12

Pin Definition

1 PM_SYSRST#

2 GND

USB Internal Connector

Connector type: 1x6 JST, 6-pin header, 2.00mm pitch Connector location: J5

Pin Definition Pin Definition

1 5VSB 2 USB_6N 3 USB_6P 4 USB_7N 5 USB_7P 6 GND

24

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

110

COM3 Box Header

Connector type: 1x10 10-pin header, 1.0mm pitch Connector location: J6

Pin Definition Pin Definition

1 SP3_DCD 2 SP3_RXD

3 SP3_TXD 4 SP3_DTR

5 GND 6 SP3_DSR

7 SP3_RTS 8 SP3_CTS

9 SP3_RI 10 GND

COM4 Box Header

Connector type: 1x10 10-pin header, 1.0mm pitch Connector location: J8

Pin Definition Pin Definition

1 SP4_DCD 2 SP4_RXD 3 SP4_TXD 4 SP4_DTR 5 GND 6 SP4_DSR 7 SP4_RTS 8 SP4_CTS 9 SP4_RI 10 GND

25

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

COM1 TX Setting

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP6

1 3 1 3

Pin Definition

1 COM1_TXLED (GPIO)

2 COM1_TX_LED

3 COM1_TXD (SIO)

COM1 RX Setting

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP7

Pin Definition

1 COM1_RXLED (GPIO) 2 COM1_RX_LED 3 COM1_RXD (SIO)

26

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

COM2 TX Setting

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP8

1 3 1 3

Pin Definition

1 COM2_TXLED (GPIO)

2 COM2_TX_LED

3 COM2_TXD (SIO)

COM2 RX Setting

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP9

Pin Definition

1 COM2_RXLED (GPIO) 2 COM2_RX_LED 3 COM2_RXD (SIO)

27

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

12

34

14

Fan Connector

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: FAN1

Pin Definition

1 GND

2 VCC12_S

3 FAN_TAC1 (CPU_FAN_SPEED)

4 FAN_CTL1 (CPU_FAN_PWM)

PoE Connector

Connector type: 2x2 4-pin header Connector location: CON1

Pin Definition

1 GND 2 GND 3 VIN 4 VIN

28

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe Connector 1

Connector location: CN4

12

51 52

Pin Definition Pin Definition

1 MINI_MIC_R / PCIEWAKE# 2 +3VSB

3 MINI_MIC_L / N/A 4 GND

5 MINI_LOUT_R / N/A 6 +1.5V

7 MINI_LOUT_L / CLKREQ# 8 UIM_PWR

9 GND 10 UIM_DATA 11 CLK_MINI1_N 12 UIM_CLK 13 CLK_MINI1_P 14 UIM_RESET 15 GND 16 UIM_VPP 17 N/A 18 GND 19 N/A 20 MINICARD1DIS# 21 GND 22 BUF_PLT_RST# 23 PCIE_RXN1_MINI_PCIE 24 +3VSB 25 PCIE_RXP1_MINI_PCIE 26 GND

29

Pin Definition Pin Definition

27 GND 28 +1.5V 29 GND 30 PCH_SMB_CLK 31 PCIE_TXN1_MINI_PCIE 32 PCH_SMB_DATA 33 PCIE_TXP1_MINI_PCIE 34 GND 35 GND 36 USB_8N 37 GND 38 USB_8P 39 +3VSB 40 GND 41 +3VSB 42 RF_LED 43 GND 44 N/A 45 PCIE_TXN1_1_MINI_PCIE 46 N/A 47 PCIE_TXP1_1_MINI_PCIE 48 +1.5V 49 PCIE_RXN1_1_MINI_PCIE 50 GND 51 PCIE_RXP1_1_MINI_PCIE 52 +3VSB

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Mini-PCIe Connector 2

Connector location: CN6

12

51 52

Pin Definition Pin Definition

1 PCIEWAKE# 2 +3VSB

3 N/A 4 GND

5 N/A 6 +1.5V

7 CLKREQ# 8 N/A

9 GND 10 N/A 11 CLK_MINI2_N 12 N/A 13 CLK_MINI2_P 14 N/A 15 GND 16 N/A 17 N/A 18 GND 19 N/A 20 MINICARD2DIS# 21 GND 22 BUF_PLT_RST# 23 PCIE_RXN2_MINI_PCIE 24 +3VSB 25 PCIE_RXP2_MINI_PCIE 26 GND

30

Pin Definition Pin Definition

27 GND 28 +1.5V 29 GND 30 PCH_SMB_CLK 31 PCIE_TXN2_MINI_PCIE 32 PCH_SMB_DATA 33 PCIE_TXP2_MINI_PCIE 34 GND 35 GND 36 USB_9N 37 GND 38 USB_9P 39 +3VSB 40 GND 41 +3VSB 42 N/A 43 GND 44 N/A 45 PCIE_TXN2_1_MINI_PCIE 46 N/A 47 PCIE_TXP2_1_MINI_PCIE 48 +1.5V 49 PCIE_RXN2_1_MINI_PCIE 50 GND 51 PCIE_RXP2_1_MINI_PCIE 52 +3VSB

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

SIM Card Socket

Connector location: CN5

C5 C6 C7

C1 C2 C3

Pin Definition Pin Definition

C1 UIM_PWR C2 UIM_RESET C3 UIM_CLK C5 GND C6 UIM_VPP C7 UIM_DATA

31

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

1149

2150

Board to Board Connector (Riser Card)

Connector type: 2x75 150-pin header, 0.8mm pitch Connector location: CN7

Pin Definition Pin Definition

1 PCIE_RXP1 2 PCIE_TXP1

3 PCIE_RXN1 4 PCIE_TXN1

5 GND 6 GND

7 GND 8 GND

9 PCIE_RXP2 10 PCIE_TXP2 11 PCIE_RXN2 12 PCIE_TXN2 13 GND 14 GND 15 GND 16 GND 17 PCIE_RXP3 18 PCIE_TXP3 19 PCIE_RXN3 20 PCIE_TXN3 21 GND 22 GND 23 GND 24 GND 25 PCIE_RXP4 26 PCIE_TXP4 27 PCIE_RXN4 28 PCIE_TXN4 29 GND 30 GND 31 GND 32 GND 33 CLK_PEG2_P 34 CLK_PEG3_P 35 CLK_PEG2_N 36 CLK_PEG3_N 37 GND 38 GND

32

Pin Definition Pin Definition

39 PCH_SMB_CLK 40 BUF_PLT_RST# 41 PCH_SMB_DATA 42 PCIE_WAKE# 43 PWRON# 44 PCI_PME# 45 GND 46 SLP_S3# 47 GND 48 GND 49 PEG_RXP0 50 PEG_TXP0 51 PEG_RXN0 52 PEG_TXN0 53 GND 54 GND 55 GND 56 GND 57 PEG_RXP1 58 PEG_TXP1 59 PEG_RXN1 60 PEG_TXN1 61 GND 62 GND 63 GND 64 GND 65 PEG_RXP2 66 PEG_TXP2 67 PEG_RXN2 68 PEG_TXN2 69 GND 70 GND 71 GND 72 GND 73 PEG_RXP3 74 PEG_TXP3 75 PEG_RXN3 76 PEG_TXN3

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

77 GND 78 GND 79 GND 80 GND 81 PEG_RXP8 82 PEG_TXP8 83 PEG_RXN8 84 PEG_TXN8 85 GND 86 GND 87 GND 88 GND 89 PEG_RXP9 90 PEG_TXP9 91 PEG_RXN9 92 PEG_TXN9 93 GND 94 GND 95 GND 96 GND 97 PEG_RXP10 98 PEG_TXP10 99 PEG_RXN10 100 PEG_TXN10

101 GND 102 GND 103 GND 104 GND 105 PEG_RXP11 106 PEG_TXP11 107 PEG_RXN11 108 PEG_TXN11 109 GND 110 GND

111 GND 112 GND 113 CLK_PEG1_P 114 CLK_PCIE_2001_P

Pin Definition Pin Definition

115 CLK_PEG1_N 116 CLK_PCIE_2001_N 117 GND 118 GND 119 GND 120 GND 121 PCIE_RXP_2001 122 PCIE_TXP_2001 123 PCIE_RXN_2001 124 PCIE_TXN_2001 125 GND 126 GND 127 GND 128 GND 129 USB_4P 130 USB_5P 131 USB_4N 132 USB_5N 133 12VSB_POK 134 HW_AGND 135 FAN_CTL3 136 EXT_TIN 137 FAN_TAC3 138 12VSB 139 12VSB 140 12VSB 141 12VSB 142 12VSB 143 12VSB 144 12VSB 145 12VSB 146 12VSB 147 12VSB 148 12VSB 149 12VSB 150 12VSB

33

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

PA1

PA30

Board to Board Connector (I/O Daughterboard)

Connector type: 4x30 120-pin header, 2.00mm pitch Connector location: CN10

PB1 PC1 PD1

PB30 PC30 PD30

Pin Definition Pin Definition

1(PA1) HDA_BIT_CLK 16(PA16) GPO5 2(PA2) HDA_SPKR 17(PA17) GPO1 3(PA3) HDA_SDOUT 18(PA18) GPO0 4(PA4) HDA_SDIN0 19(PA19) GPI0 5(PA5) HDA_SYNC 20(PA20) GPO7 6(PA6) HDA_RST# 21(PA21) COM2_DCD# 7(PA7) GND 22(PA22) COM2_RI# 8(PA8) GND 23(PA23) COM2_CTS#

9(PA9) GND 24(PA24) COM2_DTR# 10(PA10) GPI2 25(PA25) COM2_RTS# 11(PA11) GPI1 26(PA26) COM2_DSR# 12(PA12) GPO6 27(PA27) COM2_TXD 13(PA13) GPO2 28(PA28) COM2_RXD 14(PA14) GPO3 29(PA29) GND 15(PA15) GPO4 30(PA30) GND

Pin Definition Pin Definition

31(PB1) RESET_BOTTOM 46(PB16) GPO12 32(PB2) COM2_422_EN# 47(PB17) GPO13 33(PB3) COM2_485_EN# 48(PB18) GPO14 34(PB4) COM2_232_EN# 49(PB19) GPO15 35(PB5) COM1_422_EN# 50(PB20) GND 36(PB6) COM1_485_EN# 51(PB21) COM1_DCD# 37(PB7) COM1_232_EN# 52(PB22) COM1_RI# 38(PB8) PM_RI# 53(PB23) COM1_CTS#

39(PB9) GND 54(PB24) COM1_DTR# 40(PB10) GND 55(PB25) COM1_RTS# 41(PB11) GPI3 56(PB26) COM1_DSR# 42(PB12) GPO8 57(PB27) COM1_TXD 43(PB13) GPO9 58(PB28) COM1_RXD 44(PB14) GPO10 59(PB29) GND 45(PB15) GPO11 60(PB30) GND

34

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

61(PC1) GND 76(PC16) KDAT 62(PC2) GND 77(PC17) KCLK 63(PC3) GND 78(PC18) MDAT 64(PC4) GND 79(PC19) MCLK 65(PC5) GND 80(PC20) GND 66(PC6) GND 81(PC21) GPI15 67(PC7) GND 82(PC22) GPI14 68(PC8) GND 83(PC23) GPI13

69(PC9) GPI4 84(PC24) GPI12 70(PC10) GPI5 85(PC25) GPI11 71(PC11) GPI6 86(PC26) GPI10 72(PC12) GPI7 87(PC27) GPI9 73(PC13) GND 88(PC28) GPI8 74(PC14) GND 89(PC29) GND 75(PC15) GND 90(PC30) GND

Pin Definition Pin Definition

91(PD1) 3VSB 106(PD16) VCC5 92(PD2) 3VSB 107(PD17) VCC5 93(PD3) VCC3 108(PD18) VCC5 94(PD4) VCC3 109(PD19) VCC5 95(PD5) VCC3 110(PD20) VCC5 96(PD6) VCC3 111(PD21) 5VSB 97(PD7) VCC3 112(PD22) 5VSB 98(PD8) VCC5 113(PD23) BAT

99(PD9) VCC5 114(PD24) BAT 100(PD10) VCC5 115(PD25) BAT 101(PD11) VCC5 116(PD26) GND 102(PD12) VCC5 117(PD27) GND 103(PD13) VCC5 118(PD28) GND 104(PD14) VCC5 119(PD29) GND 105(PD15) VCC5 120(PD30) GND

35

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors for NISKIO3 (I/O Daughterboard)

Top View

J1

Bottom View

CN2

CN1

36

BAT1

SW1

KM1

SPK1 MIC1

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces - Front Panel

COM1 and COM2 Ports

Connector type: 2x10 20-pin terminal block Connector location: J1

110

1120

COM1 Connector Pin Definition COM2 Connector Pin Definition

RS232 RS422 RS485

Pin Definition Pin Definition Pin Definition

11 SP2_DCD 1 SP2_DATA- 1 SP2_TX12 SP2_RXD 2 SP2_DATA+ 2 SP2_TX+ 13 SP2_TXD 3 NA 3 SP2_RX+ 14 SP2_DTR 4 NA 4 SP2_RX15 GND 5 GND 5 GND 16 SP2_DSR 6 NA 6 NA 17 SP2_RTS 7 NA 7 NA 18 SP2_CTS 8 NA 8 NA 19 SP2_RI 9 NA 9 NA

20 GND

RS232 RS422 RS485

Pin Definition Pin Definition Pin Definition

1 SP1_DCD 1 SP1_DATA- 1 SP1_TX2 SP1_RXD 2 SP1_DATA+ 2 SP1_TX+ 3 SP1_TXD 3 NA 3 SP1_RX+ 4 SP1_DTR 4 NA 4 SP1_RX5 GND 5 GND 5 GND 6 SP1_DSR 6 NA 6 NA 7 SP1_RTS 7 NA 7 NA 8 SP1_CTS 8 NA 8 NA 9 SP1_RI 9 NA 9 NA

10 GND

37

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Digital Input and Output Connector

Connector type: DB-44 port, 44-pin D-Sub Connector location: CN1

31

1

16

30

15

44

Pin Definition Pin Definition

1 DO1 17 DO2 2 DO3 18 DI0 3 DO4 19 DI2 4 DO5 20 DI4 5 DO6 21 DI6 6 DO7 22 DI7 7 DOCOM1 23 DOCOM1 8 DO8 24 DI8

9 DO9 25 DI9 10 DO10 26 DI11 11 DO11 27 DI13 12 DO12 28 DI15 13 DO13 29 DOCOM2 14 DO14 30 DOCOM2 15 DO15 31 DICOM1 16 DO0 32 DICOM1

Pin Definition Pin Definition

33 DI1 39 ISO_COM2GND 34 DI3 40 DI10 35 DI5 41 DI12 36 ISO_COM1GND 42 DI14 37 ISO_COM1GND 43 DICOM2 38 ISO_COM2GND 44 DICOM2

MH1 N/A MH2 N/A

38

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Battery Holder

Connector location: BAT1

Pin Definition

1 BAT

2 GND

Reset Button

Connector location: SW1

1 2

Pin Definition

1 Reset Button 2 GND 3 GND 4 GND

39

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

PS/2 Mouse and Keyboard Connector

Connector type: PS/2, Mini-DIN-6 Connector location: KM1

68 35

12

Pin Definition Pin Definition

1 KDAT 2 MDAT

3 GND 5 5VSB

6 KCLK 8 MCLK

Line-out

Connector type: 3.5mm Jack Connector location: SPK1

Pin Definition Pin Definition

1 GND 2 OUT_L 3 EXLINEOUT_JD 4 NA 5 OUT_R

40

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Mic-in

Connector type: 3.5mm Jack Connector location: MIC1

Pin Definition Pin Definition

1 GND 2 MIC1_L

3 MIC_JD 4 NA

5 MIC1_R

41

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

PA1

PA30

Internal Connectors

Board to Board Connector (I/O Daughterboard)

Connector type: 4x30 120-pin header, 2.00mm pitch Connector location: CN2

PB1 PC1 PD1

PB30 PC30 PD30

Pin Definition Pin Definition

1(PA1) 3VSB 16(PA16) VCC5 2(PA2) 3VSB 17(PA17) VCC5 3(PA3) VCC3 18(PA18) VCC5 4(PA4) VCC3 19(PA19) VCC5 5(PA5) VCC3 20(PA20) VCC5 6(PA6) VCC3 21(PA21) 5VSB 7(PA7) VCC3 22(PA22) 5VSB 8(PA8) VCC5 23(PA23) BAT

9(PA9) VCC5 24(PA24) BAT 10(PA10) VCC5 25(PA25) BAT 11(PA11) VCC5 26(PA26) GND 12(PA12) VCC5 27(PA27) GND 13(PA13) VCC5 28(PA28) GND 14(PA14) VCC5 29(PA29) GND 15(PA15) VCC5 30(PA30) GND

Pin Definition Pin Definition

31(PB1) GND 46(PB16) KDAT 32(PB2) PWRON# 47(PB17) KCLK 33(PB3) GND 48(PB18) MDAT 34(PB4) GND 49(PB19) MCLK 35(PB5) GND 50(PB20) GND 36(PB6) GND 51(PB21) GPI15 37(PB7) GND 52(PB22) GPI14 38(PB8) GND 53(PB23) GPI13

39(PB9) GPI4 54(PB24) GPI12 40(PB10) GPI5 55(PB25) GPI11 41(PB11) GPI6 56(PB26) GPI10 42(PB12) GPI7 57(PB27) GPI9 43(PB13) GND 58(PB28) GPI8 44(PB14) GND 59(PB29) GND 45(PB15) GND 60(PB30) GND

42

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

61(PC1) RESET_BOTTOM 76(PC16) GPO12 62(PC2) SP338E2_MODE2 77(PC17) GPO13 63(PC3) SP338E2_MODE1 78(PC18) GPO14 64(PC4) SP338E2_MODE0 79(PC19) GPO15 65(PC5) SP338E1_MODE2 80(PC20) GND 66(PC6) SP338E1_MODE1 81(PC21) SA_COM1DCD# 67(PC7) SP338E1_MODE0 82(PC22) SA_COM1RI# 68(PC8) PM_PCH_RI# 83(PC23) SA_COM1CTS#

69(PC9) GND 84(PC24) SA_COM1DTR# 70(PC10) GND 85(PC25) SA_COM1RTS# 71(PC11) GPI3 86(PC26) SA_COM1DSR# 72(PC12) GPO8 87(PC27) SA_COM1TXD 73(PC13) GPO9 88(PC28) SA_COM1RXD 74(PC14) GPO10 89(PC29) GND 75(PC15) GPO11 90(PC30) GND

Pin Definition Pin Definition

91(PD1) CODEC_HDABCLK 106(PD16) GPO5 92(PD2) I_SPKR 107(PD17) GPO1 93(PD3) CODEC_HDASDO 108(PD18) GPO0 94(PD4) I_HDASDI0 109(PD19) GPI0 95(PD5) CODEC_HDASYNC 110(PD20) GPO7 96(PD6) CODEC_HDARST# 111(PD21) SA_COM2DCD# 97(PD7) GND 112(PD22) SA_COM2RI# 98(PD8) GND 113(PD23) SA_COM2CTS#

99(PD9) GND 114(PD24) SA_COM2DTR# 100(PD10) GPI2 115(PD25) SA_COM2RTS# 101(PD11) GPI1 116(PD26) SA_COM2DSR# 102(PD12) GPO6 117(PD27) SA_COM2TXD 103(PD13) GPO2 118(PD28) SA_COM2RXD 104(PD14) GPO3 119(PD29) GND 105(PD15) GPO4 120(PD30) GND

43

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors for MACK01 (Power Riser Card)

Top View

JP2

FAN1

J2

CN2

CN1

CON1

LAN2

J3

U13

CON3

U14 U15

44

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Internal Connectors

Power Button Connector

Connector type: 1x2 2-pin header, 2.00mm pitch Connector location: J2

12

Pin Definition

1 PWRON# 2 GND

USB0 Connector

Connector type: USB 2.0 port Connector location: CN1

1 4

Pin Definition Pin Definition

1 VCC5 2 USB_0N 3 USB_0P 4 GND

45

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

12

34

USB1 Connector

Connector type: USB 2.0 port Connector location: CN2

1 4

Pin Definition Pin Definition

1 VCC5 2 USB_1N 3 USB_1P 4 GND

Power Connector

Connector type: 2x2 4-pin header Connector location: CON1

Pin Definition Pin Definition

1 GND 2 GND 3 VIN (9-36V) 4 VIN (9-36V)

46

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

12

34

14

PoE Connector

Connector type: 2x2 4-pin header Connector location: CON3

Pin Definition Pin Definition

1 GND 2 GND 3 12VSB 4 12VSB

Fan Connector

Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: FAN1

Pin Definition Pin Definition

1 GND 2 +12V

3

FAN_TAC3

(RISER_FAN_SPEED)

4

FAN_CTL3

(RISER_FAN_PWM)

47

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

ACT LINK

LAN Connector

Connector type: RJ45 port with LEDs Connector location: LAN2

Act Status

Flashing Yellow Data activity

Off No activity

8 1

Link Status

Steady Green 1G network link

Steady Orange 100Mbps network link

Off No link

Pin Definition Pin Definition

1 MDI0P_LAN1 2 MDI0N_LAN1 3 MDI1P_LAN1 4 MDI1N_LAN1 5 VCC_LAN1 6 GND 7 MDI2P_LAN1 8 MDI2N_LAN1

9 MDI3P_LAN1 10 MDI3N_LAN1 11 LINK1G#_LAN1 12 LINK100#_LAN1 13 ACT#_LAN1 14 ACT_CON_LAN1

MH1 GND MH2 GND

48

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

PCI Slot 1

Connector location: U13

A1 A62

B62B1

Pin Definition Pin Definition

A1 TRST# B1 -12V A2 +12V B2 TCK A3 TMS B3 GND A4 TDI B4 TDO A5 VCC5 B5 VCC5 A6 INTA# B6 VCC5 A7 INTC# B7 INTB# A8 VCC5 B8 INTD# A9 RSV1 B9 PRSNT1#

A10 VCC5 B10 RSV5 A11 RSV2 B11 PRSNT2# A12 GND B12 GND A13 GND B13 GND A14 3VSB B14 RSV6 A15 RST# B15 GRPIMD A16 VCC5 B16 CLK A17 GNT0# B17 GND

49

Pin Definition Pin Definition

A18 GND B18 REQ0# A19 PME# B19 VCC5 A20 AD30 B20 AD31 A21 VCC3 B21 AD29 A22 AD28 B22 GND A23 AD26 B23 AD27 A24 GND B24 AD25 A25 AD24 B25 VCC3 A26 IDSEL(AD16) B26 C/BE3# A27 VCC3 B27 AD23 A28 AD22 B28 GND A29 AD20 B29 AD21 A30 GND B30 AD19 A31 AD18 B31 VCC3 A32 AD16 B32 AD17 A33 VCC3 B33 C/BE2# A34 FRAME# B34 GND

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

A35 GND B35 IRDY# A36 TRDY# B36 VCC3 A37 GND B37 DEVSEL# A38 STOP# B38 GND A39 VCC3 B39 LOCK# A40 SMBCLK B40 PERR# A41 SMBDAT B41 VCC3 A42 GND B42 SERR# A43 PAR B43 VCC3 A44 AD15 B44 C/BE1# A45 VCC3 B45 AD14 A46 AD13 B46 GND A47 AD11 B47 AD12 A48 GND B48 AD10 A49 AD9 B49 GND

Connector Key A52 C/BE0# B52 AD8 A53 VCC5 B53 AD7 A54 AD6 B54 VCC3 A55 AD4 B55 AD5 A56 GND B56 AD3 A57 AD2 B57 GND A58 AD0 B58 AD1 A59 VCC5 B59 VCC5 A60 REQ64# B60 ACK64# A61 VCC5 B61 VCC5 A62 VCC5 B62 VCC5

50

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

PCI Slot 2

Connector location: U14

A1 A62

B62B1

Pin Definition Pin Definition

A1 TRST# B1 -12V A2 +12V B2 TCK A3 TMS B3 GND A4 TDI B4 TDO A5 VCC5 B5 VCC5 A6 INTB# B6 VCC5 A7 INTD# B7 INTC# A8 VCC5 B8 INTA#

A9 RSV1 B9 PRSNT1# A10 VCC5 B10 RSV5 A11 RSV2 B11 PRSNT2# A12 GND B12 GND A13 GND B13 GND A14 3VSB B14 RSV6 A15 RST# B15 GRPIMD A16 VCC5 B16 CLK A17 GNT1# B17 GND

51

Pin Definition Pin Definition

A18 GND B18 REQ1# A19 PME# B19 VCC5 A20 AD30 B20 AD31 A21 VCC3 B21 AD29 A22 AD28 B22 GND A23 AD26 B23 AD27 A24 GND B24 AD25 A25 AD24 B25 VCC3 A26 IDSEL(AD17) B26 C/BE3# A27 VCC3 B27 AD23 A28 AD22 B28 GND A29 AD20 B29 AD21 A30 GND B30 AD19 A31 AD18 B31 VCC3 A32 AD16 B32 AD17 A33 VCC3 B33 C/BE2# A34 FRAME# B34 GND

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

A35 GND B35 IRDY# A36 TRDY# B36 VCC3 A37 GND B37 DEVSEL# A38 STOP# B38 GND A39 VCC3 B39 LOCK# A40 SMBCLK B40 PERR# A41 SMBDAT B41 VCC3 A42 GND B42 SERR# A43 PAR B43 VCC3 A44 AD15 B44 C/BE1# A45 VCC3 B45 AD14 A46 AD13 B46 GND A47 AD11 B47 AD12 A48 GND B48 AD10 A49 AD9 B49 GND

Connector Key A52 C/BE0# B52 AD8 A53 VCC5 B53 AD7 A54 AD6 B54 VCC3 A55 AD4 B55 AD5 A56 GND B56 AD3 A57 AD2 B57 GND A58 AD0 B58 AD1 A59 VCC5 B59 VCC5 A60 REQ64# B60 ACK64# A61 VCC5 B61 VCC5 A62 VCC5 B62 VCC5

52

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

PCI Slot 3

Connector location: U15

A1 A62

B62B1

Pin Definition Pin Definition

A1 TRST# B1 -12V A2 +12V B2 TCK A3 TMS B3 GND A4 TDI B4 TDO A5 VCC5 B5 VCC5 A6 INTC# B6 VCC5 A7 INTA# B7 INTD# A8 VCC5 B8 INTB#

A9 RSV1 B9 PRSNT1# A10 VCC5 B10 RSV5 A11 RSV2 B11 PRSNT2# A12 GND B12 GND A13 GND B13 GND A14 3VSB B14 RSV6 A15 RST# B15 GRPIMD A16 VCC5 B16 CLK A17 GNT2# B17 GND

53

Pin Definition Pin Definition

A18 GND B18 REQ2# A19 PME# B19 VCC5 A20 AD30 B20 AD31 A21 VCC3 B21 AD29 A22 AD28 B22 GND A23 AD26 B23 AD27 A24 GND B24 AD25 A25 AD24 B25 VCC3 A26 IDSEL(AD18) B26 C/BE3# A27 VCC3 B27 AD23 A28 AD22 B28 GND A29 AD20 B29 AD21 A30 GND B30 AD19 A31 AD18 B31 VCC3 A32 AD16 B32 AD17 A33 VCC3 B33 C/BE2# A34 FRAME# B34 GND

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

A35 GND B35 IRDY# A36 TRDY# B36 VCC3 A37 GND B37 DEVSEL# A38 STOP# B38 GND A39 VCC3 B39 LOCK# A40 SMBCLK B40 PERR# A41 SMBDAT B41 VCC3 A42 GND B42 SERR# A43 PAR B43 VCC3 A44 AD15 B44 C/BE1# A45 VCC3 B45 AD14 A46 AD13 B46 GND A47 AD11 B47 AD12 A48 GND B48 AD10 A49 AD9 B49 GND

Connector Key A52 C/BE0# B52 AD8 A53 VCC5 B53 AD7 A54 AD6 B54 VCC3 A55 AD4 B55 AD5 A56 GND B56 AD3 A57 AD2 B57 GND A58 AD0 B58 AD1 A59 VCC5 B59 VCC5 A60 REQ64# B60 ACK64# A61 VCC5 B61 VCC5 A62 VCC5 B62 VCC5

54

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

PCIe x4

Connector location: J3

A1 A32

B32B1

Pin Definition Pin Definition

A1 PRSNT1 B1 +12V A2 +12V B2 +12V A3 +12V B3 +12V A4 GND B4 GND A5 NA B5 SMB_CLK A6 NA B6 SMB_DATA A7 NA B7 GND A8 NA B8 VCC3

A9 VCC3 B9 NA A10 VCC3 B10 3VSB A11 PLT_RST_PCIE# B11 PCIE_WAKE# A12 GND B12 NA A13 CLK_PEG2_P_C B13 GND A14 CLK_PEG2_N_C B14 PCIE_TXP1_C A15 GND B15 PCIE_TXN1_C A16 PCIE_RXP1_C B16 GND

55

Pin Definition Pin Definition

A17 PCIE_RXN1_C B17 NA A18 GND B18 GND A19 RSVD3 B19 PCIE_TXP2 A20 GND B20 PCIE_TXN2 A21 PCIE_RXP2 B21 GND A22 PCIE_RXN2 B22 GND A23 GND B23 PCIE_TXP3 A24 GND B24 PCIE_TXN3 A25 PCIE_RXP3 B25 GND A26 PCIE_RXN3 B26 GND A27 GND B27 PCIE_TXP4 A28 GND B28 PCIE_TXN4 A29 PCIE_RXP4 B29 GND A30 PCIE_RXN4 B30 RSVD2 A31 GND B31 PRSNT2 A32 RSVD4 B32 GND

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

1149

2150

Board to Board Connector (Riser Card)

Connector type: 2x75 150-pin header, 0.8mm pitch Connector location: JP2

Pin Definition Pin Definition

1 PCIE_RXP1 2 PCIE_TXP1 3 PCIE_RXN1 4 PCIE_TXN1 5 GND 6 GND 7 GND 8 GND

9 PCIE_RXP2 10 PCIE_TXP2 11 PCIE_RXN2 12 PCIE_TXN2 13 GND 14 GND 15 GND 16 GND 17 PCIE_RXP3 18 PCIE_TXP3 19 PCIE_RXN3 20 PCIE_TXN3 21 GND 22 GND 23 GND 24 GND 25 PCIE_RXP4 26 PCIE_TXP4 27 PCIE_RXN4 28 PCIE_TXN4 29 GND 30 GND 31 GND 32 GND 33 CLK_PEG2_P 34 NA 35 CLK_PEG2_N 36 NA 37 GND 38 GND

56

Pin Definition Pin Definition

39 SMB_CLK 40 PLT_RST_PCIE# 41 SMB_DATA 42 PCIE_WAKE# 43 PWRON# 44 PCI_PME# 45 GND 46 SLP_S3# 47 GND 48 GND 49 NA 50 NA 51 NA 52 NA 53 GND 54 GND 55 GND 56 GND 57 NA 58 NA 59 NA 60 NA 61 GND 62 GND 63 GND 64 GND 65 NA 66 NA 67 NA 68 NA 69 GND 70 GND 71 GND 72 GND 73 NA 74 NA 75 NA 76 NA

NISE 4000P4E User Manual

Chapter 2: Jumpers and Connectors

Pin Definition Pin Definition

77 GND 78 GND 79 GND 80 GND 81 NA 82 NA 83 NA 84 NA 85 GND 86 GND 87 GND 88 GND 89 NA 90 NA 91 NA 92 NA 93 GND 94 GND 95 GND 96 GND 97 NA 98 NA 99 NA 100 NA

101 GND 102 GND 103 GND 104 GND 105 NA 106 NA 107 NA 108 NA 109 GND 110 GND 111 GND 112 GND 113 NA 114 CLK_PCIE_2001_P

Pin Definition Pin Definition

115 NA 116 CLK_PCIE_2001_N 117 GND 118 GND 119 GND 120 GND 121 PCIE_RXP_2001 122 PCIE_TXP_2001

123 PCIE_RXN_2001 124 PCIE_TXN_2001

125 GND 126 GND

127 GND 128 GND 129 USB_0P 130 USB_1P 131 USB_0N 132 USB_1N 133 12VSB_POK 134 HW_AGND 135 FAN_CTL3 136 EXT_TIN 137 FAN_TAC3 138 12VSB 139 12VSB 140 12VSB 141 12VSB 142 12VSB

143 12VSB 144 12VSB 145 12VSB 146 12VSB 147 12VSB 148 12VSB 149 12VSB 150 12VSB

57

NISE 4000P4E User Manual

Chapter 3: System Setup

Installing a CPU

1. Remove the chassis cover by following the instructions in “Removing the Chassis Cover” on page 61 of the user manual.

2. Remove the CPU heatsink on the board, and locate the CPU socket.

3. Install the CPU and lock it.

58

NISE 4000P4E User Manual

Chapter 3: System Setup

4. Take out the two small thermal pads from the accessory bag and remove the release paper on both sides of the thermal pad.

Thermal pad & release paper

5. Fix each thermal pad in the center of the CPU and PCH.

6. Screw in the CPU heatsink carefully into its original position.

59

NISE 4000P4E User Manual

Chapter 3: System Setup

CAUTION!

Removing the Chassis Top Cover

Prior to removing the chassis cover, make sure the unit’s power

CAUTION!CAUTION!

1. Remove the 5 flat screws on the top cover. 2. Lift up the cover and remove it from the chassis.

is off and disconnected from the power sources to prevent electric shock or system damage.

60

NISE 4000P4E User Manual

Chapter 3: System Setup

Removing the Chassis Cover

Remove the top cover and PCI/PCIe bracket first.

1. Locate the 3 screws on the top side of the chassis cover. 2. Locate the 3 screws on the bottom side of the chassis cover.

61

NISE 4000P4E User Manual

Chapter 3: System Setup

3. Remove all 3 screws on the top side of the chassis cover. 4. Remove all 3 screws on the bottom side of chassis cover.

62

NISE 4000P4E User Manual

Chapter 3: System Setup

5. Remove the chassis cover.

63

NISE 4000P4E User Manual

Chapter 3: System Setup

Installing a SO-DIMM

1. Remove the top cover and PCI/PCIe bracket before installing a SO-DIMM. 2. Locate the SO-DIMM socket.

64

NISE 4000P4E User Manual

Chapter 3: System Setup

3. Insert the SO-DIMM module into the socket. 4. Push the module until a clicking sound is heard.

65

NISE 4000P4E User Manual

Chapter 3: System Setup

Installing a Mini-PCIe Module (Half-Size)

1. Locate the Mini-PCIe slot on the board. 2. Remove the Mini-PCIe bracket from the board.

Mini PCI Express slot

66

NISE 4000P4E User Manual

Chapter 3: System Setup

3. Install the Mini-PCIe bracket to the Mini-PCIe module. 4. Insert the Mini-PCIe module into the Mini-PCIe slot at 45 degree angle

until the gold-plated connector on the edge of the module completely disappears into the slot.

Mini PCI Express bracketMini PCI Express module

67

NISE 4000P4E User Manual

Chapter 3: System Setup

5. Push the module down and secure it with screws.

68

NISE 4000P4E User Manual

Chapter 3: System Setup

Installing a Mini-PCIe Module (Full-Size)

1. Locate the Mini-PCIe slot on the board and remove the Mini-PCIe bracket. 2. Insert the Mini-PCIe module into the Mini-PCIe slot at 45 degree angle

until the gold-plated connector on the edge of the module completely disappears into the slot.

Mini PCI Express slot Mini PCI Express bracket

69

NISE 4000P4E User Manual

Chapter 3: System Setup

3. Push the module down and secure it with screws.

70

NISE 4000P4E User Manual

Chapter 3: System Setup

Installing a SIM Card

1. Locate the SIM card holder and release the cover. 2. Place the SIM card onto the holder.

SIM card cover SIM card

71

NISE 4000P4E User Manual

Chapter 3: System Setup

3. Close the cover and secure it to the original position.

72

NISE 4000P4E User Manual

Chapter 3: System Setup

Installing a SATA Hard Drive (External)

1. Locate the external HDD drive bay and retrieve it by pressing the button on the right side.

Release button

2. Place the 2.5” HDD into the external HDD drive bay.

2.5” HDD

HDD drive bay

73

NISE 4000P4E User Manual

Chapter 3: System Setup

3. Use the screws to secure the 2.5” HDD drive in place. 4. Place the external HDD drive bay into its original position.

74

NISE 4000P4E User Manual

Chapter 3: System Setup

5. Lock the external HDD drive bay by screwing the button in a clockwise direction.

75

NISE 4000P4E User Manual

Chapter 3: System Setup

Installing a SATA Hard Drive (Internal)

1. With the bottom side of the chassis facing up, unscrew the internal HDD cover.

2. Locate the internal HDD drive bay.

HDD drive bay

76

NISE 4000P4E User Manual

Chapter 3: System Setup

3. Place the 2.5” HDD into the internal HDD drive bay. 4. Fix the 2.5” HDD into position.

HDD drive bay 2.5” HDD

77

NISE 4000P4E User Manual

Chapter 3: System Setup

5. Use the provided screws to secure the 2.5” HDD in place, and screw the internal HDD drive bay to its original place.

78

NISE 4000P4E User Manual

Chapter 3: System Setup

Installing a Regular PCIe or PCI Expansion Card

NISE4000P4E is equipped with one PCIe x4 expansion slot and three PCI expansion slot. NISE4000P2E is equipped with one PCIe x4 expansion slot and one PCI expansion slot.

1. Locate the expansion cover. 2. Remove the screw on the expansion cover.

Expansion cover

79

NISE 4000P4E User Manual

Chapter 3: System Setup

3. Insert the PCI/PCIe card into the expansion slot. 4. Ensure the PCI/PCIe card is inserted properly into the fixed hole.

PCI/PCIe card

80

NISE 4000P4E User Manual

Chapter 3: System Setup

5. Fasten the screw to fix the PCI/PCIe card. 6. Fasten the plastic screw into the PCI/PCIe holder.

Plastic screw

81

NISE 4000P4E User Manual

Chapter 3: System Setup

7. Secure the PCI/PCIe holder with screws. 8. Fasten the plastic screw until the PCI/PCIe card is fixed into position.

Plastic screw

82

NISE 4000P4E User Manual

Chapter 3: System Setup

9. Screw down the plastic nut to prevent the plastic screw from loosening.

Plastic nut

83

NISE 4000P4E User Manual

Chapter 3: System Setup

Installing a Short PCIe or PCI Expansion Card

NISE4000P4E is equipped with one PCIe x4 expansion slot and three PCI expansion slot. NISE4000P2E is equipped with one PCIe x4 expansion slot and one PCI expansion slot.

1. Locate the expansion cover. 2. Remove the screw on the expansion cover.

Expansion cover

84

NISE 4000P4E User Manual

Chapter 3: System Setup

3. Insert the PCI/PCIe card into the expansion slot. 4. Screw the extended bracket onto the PCI/PCIe holder.

Extended bracket

PCI/PCIe card

85

NISE 4000P4E User Manual
