NEXCOM International Co., Ltd.
Industrial Computing Solutions
Fan-less Computer
NISE 3640M Series
User Manual
NEXCOM International Co., Ltd.
Published August 2014
www.nexcom.com
Content
Contents
Preface
Copyright ............................................................................................. iv
Disclaimer .............................................................................................. iv
Acknowledgements ............................................................................... iv
Regulatory Compliance Statements ........................................................ iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................viii
Installation Recommendations ...............................................................viii
Safety Precautions .................................................................................. ix
Medical Equipment Precautions .............................................................. x
Technical Support and Assistance ............................................................ x
Conventions Used in this Manual ........................................................... xi
Conventions Used in this Manual Cont. .................................................xii
MC Potential Equalization Connector .....................................................xii
Guidance and Manufacturer’s Declaration – Electromagnetic Immunity .xiii
Global Service Contact Information ....................................................... xiv
Package Contents ................................................................................. xvi
Ordering Information ........................................................................... xvii
Chapter 1: Product Introduction
Overview ................................................................................................1
Key Features ...........................................................................................1
Hardware Specifications ..........................................................................2
Knowing Your NISE 3640M ..................................................................... 4
Front Panel ..........................................................................................4
Rear Panel ...........................................................................................5
Mechanical Dimensions ...........................................................................6
Chapter 2: Jumpers and Connectors
Before You Begin ....................................................................................7
Precautions ............................................................................................7
Jumper Settings ......................................................................................8
Locations of the Jumpers and Connectors for NISB 3640 ......................... 9
NISB 3640 ...........................................................................................9
Jumpers ................................................................................................ 10
ME Pin Header ...................................................................................10
COM4 RS232 RI# Pin Power Select ....................................................10
LVDS Power Pin Header .....................................................................11
Connector Pin Definitions .....................................................................12
External I/O Interfaces - Front Panel ...................................................12
USB 3.0 ..........................................................................................12
USB 2.0 ..........................................................................................12
DisplayPort A .................................................................................13
DisplayPort B .................................................................................. 13
CFast .............................................................................................14
SIM Card Connector ......................................................................14
Power Switch ................................................................................. 15
External I/O Interfaces - Rear Panel.....................................................16
Remote Power on/off Switch ..........................................................16
DC-in Power Jack ........................................................................... 16
COM 1 and COM 2 Ports ............................................................... 17
COM3 to COM6 ............................................................................18

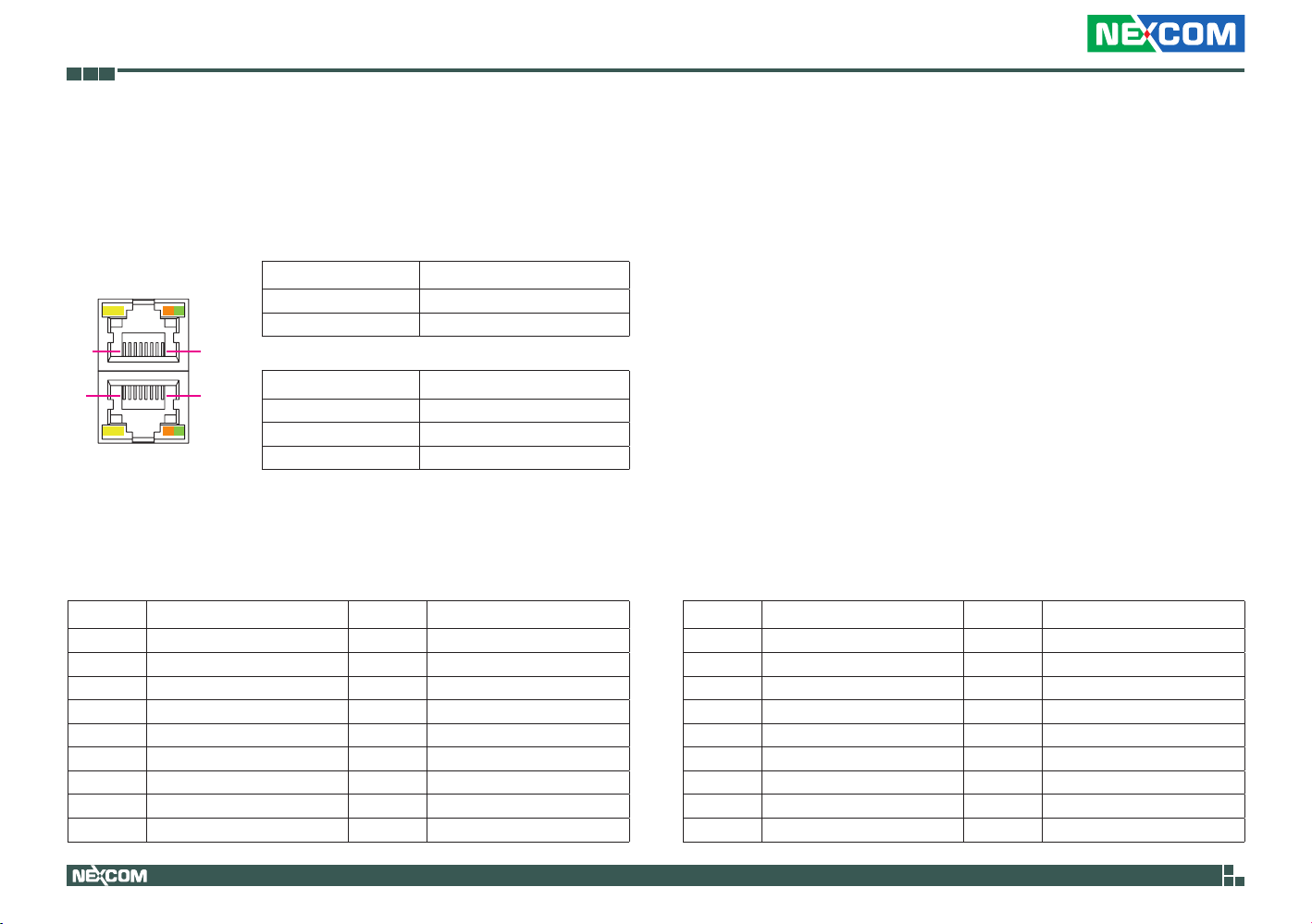

LAN1 and LAN2 Ports .....................................................................19
LAN3 and LAN4 Ports .....................................................................20
VGA and DVI-D Connectors ...........................................................21
Audio Connectors .......................................................................... 22
Internal Connectors ........................................................................... 23
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
ii
NISE 3640M Series User Manual
Content
SIM Card Line-out Pin Header ........................................................23
SIM Card Mic-in Pin Header ...........................................................23
DC-in Power Connector .................................................................24
CMOS Pin Header ..........................................................................24
Reset JST Connector .......................................................................25
LVDS Channel A Connector ............................................................ 25
LVDS Channel B Connector ............................................................ 26
LVDS Backlight Connector .............................................................. 26
Line-in 1 Pin Header ....................................................................... 27
Line-in 2 Pin Header ....................................................................... 27
SATA3 Connector 1 ........................................................................28
SATA3 Connector 2 ........................................................................28
SATA3 Power Connector 1 .............................................................29
SATA3 Power Connector 2 .............................................................29
GPS JST Connector .........................................................................30
USB 2.0 JST Connector ...................................................................30
PCIe x8 Slot ....................................................................................31
Mini-PCIe Connector ...................................................................... 32
GPIO Pin Header ............................................................................33
GPIO LED Pin Header ......................................................................33
Smart Fan1 Connector ...................................................................34
Smart Fan2 Connector ...................................................................34
External LED Pin Header ................................................................. 35
Power/PSON Header .......................................................................35
80 Port ...........................................................................................36
External SMbus .............................................................................. 36
Flash BIOS CON ..............................................................................37
Mini-PCIe Slot ................................................................................38
Chapter 3: System Setup
Mount the System to the Wall ..............................................................39
Removing the Chassis Bottom Cover .................................................... 40
Installing a SATA Hard Drive ..................................................................41
Installing a SATA DOM ..........................................................................44
Installing a PCIe/PCI Expansion Card ......................................................46
Removing the Chassis Top Cover ........................................................... 48
Installing a SO DIMM ............................................................................49
Installing a Wireless LAN Module (half-size) ........................................... 50
Installing a Wireless LAN Module (full-size) ............................................ 51
Installing a GPS Module ........................................................................52
Installing Antennas ...............................................................................54
Installing a SIM Card .............................................................................55
Installing a CompactFlash Card .............................................................56
Power ON Sequence on NISE 3640M ....................................................56
Power OFF Sequence on NISE 3640M ...................................................56
Chapter 4: BIOS Setup
About BIOS Setup ................................................................................. 57
When to Configure the BIOS .................................................................57
Default Configuration ........................................................................... 58
Entering Setup ...................................................................................... 58
Legends ................................................................................................ 58
BIOS Setup Utility .................................................................................. 60
Main .................................................................................................60
Advanced ......................................................................................... 61
Chipset ..............................................................................................72
Boot .................................................................................................. 84
Security .............................................................................................86
Save & Exit ........................................................................................86
Appendix A: Power Consumption.........................87
Appendix B: GPI/O Programming Guide...............89
Appendix C: Watchdog Timer Setting...................91
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
iii
NISE 3640M Series User Manual
Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is
protected under international copyright laws, with all rights reserved. No
part of this manual may be reproduced, copied, translated or transmitted in
any form or by any means without the prior written consent from NEXCOM
International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and
does not represent commitment from NEXCOM International Co., Ltd. However,
users may update their knowledge of any product in use by constantly checking
its manual posted on our website: http://www.nexcom.com. NEXCOM shall
not be liable for direct, indirect, special, incidental, or consequential damages
arising out of the use of any product, nor for any infringements upon the rights
of third parties, which may result from such use. Any implied warranties of
merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
NISE 3640M is a trademark of NEXCOM International Co., Ltd. All other
product names mentioned herein are registered trademarks of their
respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices and
describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for
a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference
to radio communications. Operation of this equipment in a residential area
(domestic environment) is likely to cause harmful interference, in which
case the user will be required to correct the interference (take adequate
measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable
European Union (CE) directives if it has a CE marking. For computer systems
to remain CE compliant, only CE-compliant parts may be used. Maintaining
CE compliance also requires proper cable and cabling techniques.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
iv
NISE 3640M Series User Manual
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status
Update
This publication, including all photographs, illustrations
and software, is protected under international copyright
laws, with all rights reserved. No part of this manual
may be reproduced, copied, translated or transmitted in any form or by any
means without the prior written consent from NEXCOM International Co.,
Ltd.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1%
or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium
(Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or
1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established
an engineering and manufacturing task force to implement the introduction
of green products. The task force will ensure that we follow the standard
NEXCOM development procedure and that all the new RoHS components
and new manufacturing processes maintain the highest industry quality
levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and
suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the
suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compliant.
They will use the usual NEXCOM naming convention.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
v
NISE 3640M Series User Manual
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in
accordance with industry standard. NEXCOM warrants that products will
be free from defect in material and workmanship for 2 years, beginning on
the date of invoice by NEXCOM. HCP series products (Blade Server) which
are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
▪ Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
▪ Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen
messages, and describe the problems on the “NEXCOM RMA Service
Form” for the RMA number apply process.
▪ Customers can send back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the card, such as CPU
and RAM. If the components were suspected as part of the problems,
please note clearly which components are included. Otherwise, NEXCOM
is not responsible for the devices/parts.
▪ Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage
and deterioration during transportation. In case of damages occurred
during transportation, the repair is treated as “Out of Warranty.”
▪ Any products returned by NEXCOM to other locations besides the
customers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is
basic diagnostic fee and another is component (product) fee.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is
basic diagnostic fee and another is component (product) fee.
System Level
▪ Component fee: NEXCOM will only charge for main components such as
SMD chip, BGA chip, etc. Passive components will be repaired for free,
ex: resistor, capacitor.
▪ Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
▪ Replace with 3rd party products if needed.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Board Level
▪ Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free,
ex: resistors, capacitors.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
vi
NISE 3640M Series User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and
the documentation supplied with the chassis, power supply, and accessory
modules. If the instructions for the chassis and power supply are inconsistent
with these instructions or the instructions for accessory modules, contact
the supplier to find out how you can ensure that your computer meets
safety and regulatory requirements.
Failure to complete all earth ground connection can cause EMI/EMC problem
and could create shock hazard in the event of wiring insulation damage.
To avoid risk of electric shock, this equipment must only be connected to a
supply mains with protective earth.
Do not modify this equipment without authorization of the manufacturer.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the
described procedures only at an ESD workstation. If no such station is
available, you can provide some ESD protection by wearing an antistatic
wrist strap and attaching it to a metal part of the computer chassis.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
vii
NISE 3640M Series User Manual
Preface
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully.
▪ Do not place the unit on an unstable surface, cart, or stand.
▪ Follow all warnings and cautions in this manual.
▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly
necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the manufacturer.
Discard used batteries according to the manufacturer’s instructions.
▪ Never open the equipment. For safety reasons, only qualified service
personnel should open the equipment.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get
into components and cause a malfunction. Use containers to keep small
components separated.
Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow
require only a few simple tools, including the following:
▪ A Philips screwdriver
▪ A flat-tipped screwdriver
▪ A grounding strap
▪ An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended
that you do not use needle-nose pliers to disconnect connections as these
can damage the soft metal or plastic parts of the connectors.
Danger of explosion if battery is incorrectly replaced.
Replace with the same or equivalent type recommended by
the manufacturer. Discard used batteries according to the
manufacturer’s instructions.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
viii
NISE 3640M Series User Manual
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping it or
letting it fall may cause damage.
7. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting
the equipment to the power outlet.
9. Place the power cord in a way so that people will not step on it. Do not
place anything on top of the power cord. Use a power cord that has been
approved for use with the product and that it matches the voltage and
current marked on the product’s electrical range label. The voltage and
current rating of the cord must be greater than the voltage and current
rating marked on the product.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical
shock.
13. Never open the equipment. For safety reasons, the equipment should be
opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by
service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. Do not place heavy objects on the equipment.
16. The unit uses a three-wire ground cable which is equipped with a third
pin to ground the unit and prevent electric shock. Do not defeat the
purpose of this pin. If your outlet does not support this kind of plug,
contact your electrician to replace your obsolete outlet.
17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE
RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES
ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
ix
NISE 3640M Series User Manual
Preface
Medical Equipment Precautions
Intend Use Information
The product covered is an accessory intended for use with Medical
Equipment to process data.
Disconnect Device Information
To fully disengage the power to the unit, please disconnect the power cord
from the AC inlet.
Cleaning Information
Cleaning (Gently wipe it with a piece of soft dry cloth).
Dispose Information
Follow the national requirement to dispose unit.
Type of Protection Against Electric Shock
Class I equipment.
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEXCOM’s
website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or
sales representative, please have the following information ready before
calling:
– Product name and serial number
– Detailed information of the peripheral devices
– Detailed information of the installed software (operating system,
version, application software, etc.)
– A complete description of the problem
– The exact wordings of the error messages
Warning!
1. Handling the unit: Carry the unit with both hands and handle it with care.
2. Maintenance: To keep the unit clean, use only approved cleaning products
or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a
CompactFlash storage card.
4. Replacement: If the components of the NISE 3640XXXXXXX fail they must
be replaced. Please contact the system reseller or vendor to purchase the
replacement parts.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
x
NISE 3640M Series User Manual
Preface
Conventions Used in this Manual
Warning:
Information about certain situations, which if not observed,
can cause personal injury. This will prevent injury to yourself
when performing a task.
Caution:
Information to avoid damaging components or losing data.
Note:
Provides additional information to complete a task easily.
Safety Warning: This equipment is intended for installation
in a Restricted Access Location only.
Information:
Represents detailed information that can be found in the
user manual.
Hot Surface:
Do not touch.
Power On
RJ45 Ethernet Port
VGA Monitor
Audio Mic-in
USB 2.0
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Audio Line-out
xi
NISE 3640M Series User Manual
Preface
Conventions Used in this Manual Cont. MC Potential Equalization Connector
Dispose of in accordance with your country’s requirement.
The purpose of additional potential equalization is to equalize potentials
Power Adapter AC Input
AC
Power Adapter DC Input
DC
between different metal parts that can be touched simultaneously, or to
reduce differences of potential which can occur during operation between
the bodies of medical electrical devices and conductive parts of other objects.
The MC connector is specially shaped so as to prevent chance disconnection
when used as intended, while allowing the lead to be removed without the
need for tools.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
xii
NISE 3640M Series User Manual
Preface
Guidance and Manufacturer’s Declaration
– Electromagnetic Immunity
The models in NISE 3640M series are intended for use in the electromagnetic
environment specified below. The customer or the user of the models
in NISE 3640M series should assure that it is used in such an environment.
Immunity Test IEC 60601 Test Level Compliance Level
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
Electrostatic discharge (ESD)
IEC 61000-4-2
Electrical fast
transient/burst
IEC 61000-4-4
Surge
IEC 61000-4-5
3 Vrms
150 kHz to 80 MHz
3 V/m
80 MHz to 2,5 GHz
±6 kV contact
±8 kV air
±2 kV for power
supply lines
±1 kV for input/output
lines
±1 kV line(s) to line(s)
±2 kV line(s) to earth
±2 kV ±4 kV ±6 kV contact
±2 kV ±4 kV ±8 kV kV air
±2 kV for power
supply lines
±1 kV for input/output
lines
±1 kV line(s) to line(s)
±2 kV line(s) to earth
3 Vrms
3 V/m
Immunity Test IEC 60601 Test Level Compliance Level
interruptions and voltage
variations on power supply
input lines
IEC 61000-4-11
Power frequency
(50/60 Hz) magnetic field
NOTE: UT is the a.c. mains voltage prior to application of the test level.
0 % UT (>95 % dip in UT)
for 0,5 cycle
40 % UT (60 % dip in UT)
for 5 cycles
70 % UT (30 % dip in UT)
for 25 cycles
0 % UT (>95 % dip in UT)
for 5 sec
3 A/m 3 A/m
0 % UT (>95 % dip in UT)
for 0,5 cycle
40 % UT (60 % dip in UT)
for 5 cycles
70 % UT (30 % dip in UT)
for 25 cycles
0 % UT (>95 % dip in UT)
for 5 sec
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
xiii
NISE 3640M Series User Manual
Preface
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd.,
ZhongHe District, New Taipei City, 23586,
Taiwan, R.O.C.
Tel: +886-2-8226-7786
Fax: +886-2-8226-7782
www.nexcom.com
America
USA
NEXCOM USA
2883 Bayview Drive,
Fremont CA 94538, USA
Tel: +1-510-656-2248
Fax: +1-510-656-2158
Email: sales@nexcom.com
www.nexcom.com
Asia
Taiwan
NEXCOM Intelligent Systems
Taipei Office
13F, No.920, Chung-Cheng Rd.,
ZhongHe District,
New Taipei City, 23586, Taiwan, R.O.C.
Tel: +886-2-8226-7796
Fax: +886-2-8226-7792
Email: sales@nexcom.com.tw
www.nexcom.com.tw
NEXCOM Intelligent Systems
Taichung Office
16F, No.250, Sec. 2, Chongde Rd.,
Beitun Dist.,
Taichung City 406, R.O.C.
Tel: +886-4-2249-1179
Fax: +886-4-2249-1172
Email: sales@nexcom.com.tw
www.nexcom.com.tw
Japan
NEXCOM Japan
9F, Tamachi Hara Bldg.,
4-11-5, Shiba Minato-ku,
Tokyo, 108-0014, Japan
Tel: +81-3-5419-7830
Fax: +81-3-5419-7832
Email: sales@nexcom-jp.com
www.nexcom-jp.com
China
NEXCOM China
1F & 2F, Block A, No. 16 Yonyou Software Park,
No. 68 Beiqing Road, Haidian District,
Beijing, 100094, China
Tel: +86-010-5704-2680
Fax: +86-010-5704-2681
Email: sales@nexcom.cn
www.nexcom.cn
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
xiv
NISE 3640M Series User Manual
Preface
Chengdu Office
9F, Shuxiangxie, Xuefu Garden,
No.12 Section 1, South Yihuan Rd.,
Chengdu, 610061, China
Tel: +86-28-8523-0186
Fax: +86-28-8523-0186
Email: sales@nexcom.cn
www.nexcom.cn
Shanghai Office
Room 603/604, Huiyinmingzun Plaza Bldg., 1,
No.609, Yunlin East Rd.,
Shanghai, 200333, China
Tel: +86-21-5278-5868
Fax: +86-21-3251-6358
Email: sales@nexcom.cn
www.nexcom.cn
Shenzhen Office
Room1707, North Block, Pines Bldg.,
No.7 Tairan Rd., Futian Area,
Shenzhen, 518040, China
Tel: +86-755-8332-7203
Fax: +86-755-8332-7213
Email: sales@nexcom.cn
www.nexcom.cn
Wuhan Office
1-C1804/1805, Mingze Liwan, No. 519
South Luoshi Rd., Hongshan District,
Wuhan, 430070, China
Tel: +86-27-8722-7400
Fax: +86-27-8722-7400
Email: sales@nexcom.cn
www.nexcom.cn
Europe
United Kingdom
NEXCOM EUROPE
10 Vincent Avenue,
Crownhill Business Centre,
Milton Keynes, Buckinghamshire
MK8 0AB, United Kingdom
Tel: +44-1908-267121
Fax: +44-1908-262042
Email: sales.uk@nexcom.eu
www.nexcom.eu
Italy
NEXCOM ITALIA S.r.l
Via Gaudenzio Ferrari 29,
21047 Saronno (VA), Italia
Tel: +39 02 9628 0333
Fax: +39 02 9625570
Email: nexcomitalia@nexcom.eu
www.nexcomitalia.it
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
xv
NISE 3640M Series User Manual
Preface
Package Contents
Before continuing, verify that the NISE 3640M package that you received is complete. Your package should have all the items listed in the following table.
Item Part Number Description Qty
1 4NCPM00203X00 Terminal Blocks 2P Phoenix Contact:1803578 2
2 50311P0001X00 Price For Plastic Screw 1
3 50322P0002X00 Plastic Nut GIN LIAN:M6HW 1
4 60177A0311X00 NISB3640 Quick Reference Guide VER:A 1
5 6023344361X00 Cable EDI:231441090251-RS 1
6 60233POW33X00 DC Cord EDI:281040051051-RS 1
7 50311F0294X00 I Head Screw Long FEI:I2x4 NYLOK NIGP 4
8 50311F0326X00 Flat Head Screw Long FEI:F3x5 NYLOK NI+HEAT TREATMENT 4
9 50311F0143X00 Flat Head Screw Long FEI:F#6-32x8 1
10 50311F0100X00 Round Head Screw w/Spring+Flat Washer Long FEI:P3x6L 2
11 50311F0315X00 Round Head Screw Long FEI:P6#32T T10 NYLOK 1
12 602DCD0654X00 NISE3640E CD Driver VER:1.0 1
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
xvi
NISE 3640M Series User Manual
Preface
Ordering Information
The following information below provides ordering information for NISE 3640M series.
• Barebone
NISE 3640M (P/N: 10J00364006X0)
®
- 3rd Generation Intel
Core™ i7 Fanless System with one PCIe x4 Expansion
NISE 3640M2 (P/N: 10J00364008X0)
®
- 3rd Generation Intel
Core™ i7 Fanless System with two PCI Expansion
NISE 3640M2E (P/N: 10J00364009X0)
- 3rd Generation Intel
®
Core™ i7 Fanless System with one PCIe x4 Expansion and one PCI Expansion
NISE 3640ME2 (P/N: 10J00364007X0)
- 3rd Generation Intel
®
Core™ i7 Fanless System with two PCIe x4 Expansion
Power Supply SINPRO HPU101-108 24V/4.16A w/EN60601-1 (P/N: 7400100006X00)
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
xvii
NISE 3640M Series User Manual
Chapter 1: Product Introduction
Chapter 1: Product Introduction
Overview
Key Features
▪ Onboard 3rd generation Intel® Core™ i7 BGA processor
®
▪ Mobile Intel
▪ Support 1x 2.5” SATA HDD or 2x SATA DOM
▪ 2x Display Port; 1x VGA; 1x DVI-D; 2x USB3.0; 2x USB2.0
▪ 4x Intel
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
QM77 PCH
®
82574IT GbE LAN ports; support WoL, teaming and PXE
▪ 2x DB9 for RS232/422/485; 1x DB44 Serial Port for 4x RS232
▪ 1x Internal Mini-PCIe socket supports optional Wi-Fi or 3.5G module
▪ 1x CFast socket; 1xSIM card socket;
▪ Support +24VDC input; support ATX Power mode
▪ TUV/RH Certificate: EN60601-1:2006
1
NISE 3640M Series User Manual
Chapter 1: Product Introduction
Hardware Specifications
CPU Support
▪ Onboard 3rd generation Intel® Core™ i7 BGA processor
Core™ i7-3517UE, Dual Core, 1.7GHz, 6M Cache
▪ Mobile Intel
Main Memory
▪ On-board 2x DDR3/DDR3L SO-DIMM, supports up to 8GB DDR3/DDR3L
1333/1600 SDRAM, with un-buffered and non-ECC
▪ Pre-install 4G Industrial Grade Memory as the manufacture configuration
for shipment
Display Option
▪ Three Independent Display (only support on 3rd Generation Processor)
- Two Display Port and 1x VGA
- Two Display Port and 1x DVI-D
▪ Dual Independent Display
- VGA and DVI-D
- Display Port and VGA
I/O Interface-Front
▪ ATX power on/off switch
▪ HDD access/ Power status/ LAN status LEDs
▪ 2x USB3.0 (Blue color)
▪ 2x USB2.0
▪ 2x DisplayPort (Can be converted to DVI-D or HDMI via active cables)
▪ 1x CFast socket
▪ 1x SIM card socket
▪ 2x Antenna holes
®
QM77 PCH
I/O Interface-Rear
▪ 2x DB9 for RS232/422/485
▪ 1x DB44 for 4x RS232
▪ 4x Intel
®
82574IT GbE LAN ports; support WoL, teaming and PXE
▪ 1x DB15 VGA port
▪ 1x DVI-D
▪ 1x Line-out and 1x Mic-in
▪ 2-pin Remote Power on/off switch
▪ +24VDC Input
▪ 1x Potential Equalization Connector (M6 Type)
Storage Device
▪ 1x 2.5” SATA HDD or 2x SATA DOM
(support 90°C horizontal type only)
▪ 1x CFast socket
Expansion Slot
▪ NISE 3640E: One PCIe x4 Expansion Slot
– Add-on card length: 169mm max.
– Power consumption: 10W/slot max.
▪ NISE 3640ME2: Two PCIe x4 expansion
– Add-on card length: One 169mm max. and One 240mm max.
– Power consumption: 10W/slot max.
▪ NISE 3640M2: Two PCI expansion
– Add-on card length: One 169mm max. and One 240mm max.
– Power consumption: 10W/slot max.
▪ NISE 3640M2E: One PCI expansion and One PCIe x4 expansion
– Add-on card length: 169mm max. for PCIe x4 and 240mm max. for
PCI expansion
– Power consumption: 10W/slot max.
▪ 2x Mini-PCIe sockets (Top side Mini-PCIe Socket support optional Wi-Fi
or 3.5G module)
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
2
NISE 3640M Series User Manual
Chapter 1: Product Introduction
Power Requirements
▪ Support +24VDC Input
Dimensions
▪ 215mm (W) x 272mm (D) x 93mm (H) without wall mount bracket
(8.5” x 10.7” x 3.7”)
Construction
▪ Aluminum Chassis with fanless design
Environment
▪ Normal Operating Temperature:
- Operating Temperature: -20°C to 45°C, ambient with air flow
(According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
- Relative Humidity: 10% ~ 90%, non-condensing
Limits to be at 90% RH at max 40°C
- Atmosphere Pressure: 700-1060hPa
▪ Transport and Storage Temperature:
- Operating Temperature: -30°C to 85°C, ambient with air flow
- Relative Humidity: 10% ~ 90%, non-condensing
- Atmosphere Pressure: 500-1060hPa
▪ Shock protection:
- HDD: 20G, half sine, 11ms, IEC60068-2-27
- CFast: 50G, half sine, 11ms, IEC60068-2-27
▪ Vibration protection w/ HDD Condition
- Random: 0.5Grms @ 5~500 Hz according to IEC60068-2-64
- Sinusoidal: 0.5Grms @ 5~500 Hz according to IEC60068-2-6
Certifications
▪ CE/FCC Class B
▪ TUV/RH Certificate: EN60601-1:2006
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
3
NISE 3640M Series User Manual
Chapter 1: Product Introduction
Knowing Your NISE 3640M
Front Panel
Antenna hole Antenna hole
USB 3.0
DisplayPort
USB 2.0
SIM Card Power button
CFast
Power/HDD/LAN LEDs
USB 3.0
Dual USB 3.0 ports to connect the system with USB 3.0/2.0 devices.
USB 2.0
Dual USB 2.0 ports to connect the system with USB 2.0 devices.
Antenna Hole
Used to install external antennas.
DisplayPort
Dual DisplayPort to connect the system with display devices.
SIM
Used to insert a SIM card.
CFast Socket
Used to insert a CompactFlash card.
Power/LAN LED
Indicates the power status and LAN activity of the system.
- The Power LED Color: Green
- The LAN LED Color: Green/Amber
HDD/CFast/RF LEDS
Indicates the HDD/CFast/RF activity of the system.
- The HDD/CFast/RF LED Color: Amber
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Power Switch
Press to power-on or power-off the system.
- Power off/Standby LED Status Color: Reddish Orange
- Power on LED Status Color: Blue
4
NISE 3640M Series User Manual
Chapter 1: Product Introduction
Rear Panel
Digital Output
24V DC Input
Remote power on/off
COM1-COM2: RS232/422/485
LAN
COM3-COM6: RS232
VGA
DVI-D
Line-out
Mic-in
Remote Power On/Off
Used to connect a remote to power on/off the system.
Digital Output
Support S3 Wake on LAN.
24V DC Input
Used to plug a DC power cord.
COM1 and COM2
Two DB9 ports used to connect RS232/422/485 compatible devices.
COM3 to COM6
The DB44 port supports RS232 compatible serial devices.
LAN
Used to connect the system to a local area network.
VGA
Used to connect an analog VGA monitor.
DVI-D
Used to connect a digital LCD panel.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Line-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
5
NISE 3640M Series User Manual
Chapter 1: Product Introduction
Mechanical Dimensions
NISE 3600M
272.0000
264.0000
234.0000
204.0000
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
68.0000
214.6613
224.68
236.68
92.7305
100.7305
6
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
Chapter 2: Jumpers and Connectors
This chapter describes how to set the jumpers and connectors on the
NISE 3640M motherboard.
Before You Begin
▪ Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep
small components separated.
▪ Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow
require only a few simple tools, including the following:
– A Philips screwdriver
– A flat-tipped screwdriver
– A set of jewelers screwdrivers
– A grounding strap
– An anti-static pad
▪ Using your fingers can disconnect most of the connections. It is
recommended that you do not use needle-nosed pliers to disconnect
connections as these can damage the soft metal or plastic parts of the
connectors.
▪ Before working on internal components, make sure that the power is off.
Ground yourself before touching any internal components, by touching
a metal object. Static electricity can damage many of the electronic
components. Humid environments tend to have less static electricity than
dry environments. A grounding strap is warranted whenever danger of
static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by
discharges of static electricity. Working on computers that are still connected
to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or yourself:
▪ Always disconnect the unit from the power outlet whenever you are
working inside the case.
▪ If possible, wear a grounded wrist strap when you are working inside the
computer case. Alternatively, discharge any static electricity by touching
the bare metal chassis of the unit case, or the bare metal body of any
other grounded appliance.
▪ Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Don’t flex or
stress the circuit board.
▪ Leave all components inside the static-proof packaging that they shipped
with until they are ready for installation.
▪ Use correct screws and do not over tighten screws.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
7
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal
pins and a cap. When setting the jumpers, ensure that the jumper caps are
placed on the correct pins. When the jumper cap is placed on both pins, the
jumper is short. If you remove the jumper cap, or place the jumper cap on
just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin
jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 are Short
3
2
1
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
1
3
2
8
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors for NISB 3640
NISB 3640
The figures below are the top and bottom views of the NISB 3640 main board which is the main board used in the NISE 3640M. It shows the locations of the
jumpers and connectors.
Top View Bottom View
3
4
3
CN2
10
9
2
1
JP3
231
29
25
CN9
4
CON1
5
1
A10
COP1
B10 A10
COP2
B10
CN6
JP12
1
2
ABVADAFAHAKAMAPATAYAVBBBD
Y
BHFDK
MPT
61
59
57
55
1
H5
J4
119
2
JP11
4
10
CN4
JP10
1
4
20
J5
6
1
BAT1
3
1
JP4
H7
3
1
JP5
JP6
JP7
1
3
3
1
20
19
20
19 1
7
1
J7
53
51
49
47
45
43
41
39
37
35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1
AA
ACAEAGAJALANARAUAWBABGBEBC
W
U
ACGELJR
N
4248464438364028323034222426141620
18812
494345
47
413937353331292523212719171513
10
11
97531
BH
BF
BD
BB
AY
AV
AT
AP
AM
AK
AH
AF
AD
AB
Y
V
T
2
P
M
K
H
F
CN7
D
B
1
2
CN8
1
4
1
FAN1
BF
60
58
56
54
52
50
48
46
44
42
40
38
U16
36
34
32
30
28
26
24
22
20
18
16
14
12
10
8
6
4
2
1
15
17
426
BJ
BG
BE
BC
BA
AW
AU
AR
AN
AL
AJ
AG
AE
AC
AA
W
U
R
N
L
J
G
E
C
A
CN5
U31
51
CN5
JP8
JP9
3
3
1
204
74
72
DIMM2
2
2
16
18
52
JP13
3
1
204
203
73 71
7274
2
1
1
JP1
DIMM1
FAN2
4
1
J1
25
24
6
1
J3
203
S1
73 71
PC1S7 P17
1
2
C4 C3
LED1
A4 A3
C4 C3
LED2
A4
C4
LED3
A4
Power Switch
SW1
C1
C2
A2
A1
C1
C2
A3
A2
A1
C1
C2
C3
A1
A2
A3
CN12
CN13
CN15
1
7
CN11
1
7
1
4
1
4
CFAST
1
CN3
22
21
2
1
201939
4
8
5
1
5
4
9
1
DisplayPort
40
USB2.0
USB3.0
1
USB1
USB2
J6
14
18
24V Input
COM1~COM6
LAN1/LAN2
LAN3/LAN4
VGA/DVI-D
MIC-In/
Line-Out
1
J2
2
1
3
5
CN1
4
2
30
15
44
JP2
4
16311
A11
B11
A1
Y
GO
B1
B14
A14
B11
A11
A1
YGO
B14
A14
B1
17
9
1
39
34
24
16
8
35
30
5
25
22
2
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
9
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
15
Jumpers
ME Pin Header
Connector type: 1x3 3-pin header, 2.54mm pitch
Connector location: JP5
1 3
Pin Definition
1 SRTC_RST#_PU
2 SRTC_RST#
3 CLR_ME
COM4 RS232 RI# Pin Power Select
Connector type: 1x3 3-pin header, 2.0mm pitch
Connector location: JP12
Pin Definition
1 VCC5_RI#
2 SP4_RI_T
3 +12V_RI#
4 SP4_RI_T
5 SP4_RI
6 NA
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
10
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
LVDS Power Pin Header
Connector type: 1x3 3-pin header, 2.54mm
Connector location: JP6
1 3
Pin Definition
1 VCC3
2 VCCLCDIN
3 VCC5
1-2 On: default
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
11
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External I/O Interfaces - Front Panel
USB 3.0
Connector type: Dual USB 3.0 ports
Connector location: USB2
9
1
10 13
Pin Definition Pin Definition
1 5VSB 2 USB_2N
3 USB_2P 4 GND
5 USB3_RX2_N 6 USB3_RX2_P
7 GND 8 USB3_TX2_N
9 USB3_TX2_P 10 5VSB
11 USB_3N 12 USB_3P
13 GND 14 USB3_RX3_N
15 USB3_RX3_P 16 GND
17 USB3_TX3_N 18 USB3_TX3_P
MH1 F_GND MH2 F_GND
MH3 F_GND MH4 F_GND
5
4
1418
USB 2.0
Connector type: Dual USB 2.0 ports
Connector location: USB1
1
5
Pin Definition Pin Definition
1 5VSB 2 USB2_8N
3 USB2_8P 4 GND
5 5VSB 6 USB2_9N
7 USB2_9P 8 GND
MH1 F_GND MH2 F_GND
MH3 F_GND MH4 F_GND
4
8
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
12
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
DisplayPort A
Connector type: DisplayPort
Connector location: J6A
19
20
Pin Definition Pin Definition
1 DPC_LANE0_P 2 GND_DP
3 DPC_LANE0_N 4 DPC_LANE1_P
5 GND_DP 6 DPC_LANE1_N
7 DPC_LANE2_P 8 GND_DP
9 DPC_LANE2_N 10 DPC_LANE3_P
11 GND_DP 12 DPC_LANE3_N
13 DPC_CONFIG1 14 DPC_CONFIG2
15 DPC_AUX_P 16 GND_DP
17 DPC_AUX_N 18 DPC_HPD
19 GND_DP 20 VCC3
MH1 F_GND MH2 F_GND
MH3 F_GND MH4 F_GND
1
2
DisplayPort B
Connector type: DisplayPort
Connector location: J6A
19
20
Pin Definition Pin Definition
1 DPD_LANE0_P 2 GND_DP
3 DPD_LANE0_N 4 DPD_LANE1_P
5 GND_DP 6 DPD_LANE1_N
7 DPD_LANE2_P 8 GND_DP
9 DPD_LANE2_N 10 DPD_LANE3_P
11 GND_DP 12 DPD_LANE3_N
13 DPD_CONFIG1 14 DPD_CONFIG2
15 DPD_AUX_P 16 GND_DP
17 DPD_AUX_N 18 DPD_HPD
19 GND_DP 20 VCC3
MH1 F_GND MH2 F_GND
MH3 F_GND MH4 F_GND
1
2
While using DisplayPort to HDMI cable or DisplayPort to DVI
cable, the cable must be active type.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
13
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
CFast
Connector type: Standard CFast connector
Connector location: CN3
S1 S7 PC1 PC17
Pin Definition Pin Definition
S1 GND PC6 NC
S2 SATA_TXP3 PC7 GND
S3 SATA_TXN3 PC8 CFAST_LED1_C
S4 GND PC9 CFAST_LED2_C
S5 SATA_RXN3 PC10 NC
S6 SATA_RXP3 PC11 NC
S7 GND PC12 NC
PC1 CFAST_CDI PC13 VCC3
PC2 GND PC14 VCC3
PC3 NC PC15 GND
PC4 NC PC16 GND
PC5 NC PC17 CFAST_CDO
SIM Card Connector
Connector location: IDE1
C3
C2
C1
Pin Definition Pin Definition
C1 UIM_PWR C2 UIM_RESET
C3 UIM_CLK C5 GND
C6 UIM_VPP C7 UIM_DATA
SW1 NC SW2 NC
C7
C6
C5
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
14
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
Power Switch
Connector location: SW1
Pin Definition Pin Definition
1 GND 2 PBT_PU
3 PBT_PU 4 GND
A1 PWR_SW_N C1 PWR_SW_P
MH1 GND MH2 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
15
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
12
34
External I/O Interfaces - Rear Panel
Remote Power on/off Switch
Connector type: 4-pin switch
Connector location: J2
34
21
Pin Definition Pin Definition
1 GND 2 PBT_PU
3 SLP_S3# 4 GND
DC-in Power Jack
Connector type: CompactFlash Type 2
Connector location: CN1
Pin Definition Pin Definition
1 VIN 2 VIN
3 GND 4 GND
5 GND MH1 R_GND
MH2 R_GND MH3 R_GND
MH4 R_GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
16
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
19
20
COM 1 and COM 2 Ports
Connector type: DB-9 port, 9-pin D-Sub
2x10 20-pin header, 1.25mm pitch
Connector location: CN4
COM 1
1
6
COM 2
1
6
Pin Definition Pin Definition
1 SP1_DCD 2 SP2_DCD
3 SP1_TXD 4 SP2_TXD
5 SP1_RTS 6 SP2_RTS
7 SP1_RI 8 SP2_RI
9 COM56_GND 10 COM56_GND
11 SP1_RXD 12 SP2_RXD
13 SP1_DTR 14 SP2_DTR
15 SP1_DSR 16 SP2_DSR
17 SP1_CTS 18 SP2_CTS
19 COM56_GND 20 COM56_GND
MH1 COM56_GND MH2 COM56_GND
5
9
2
1
5
9
20
19
COM1 Connector Pin Definition
RS232 RS422 RS485
Pin Definition Pin Definition Pin Definition
1 SP1_DCD 1 SP1_TX- 1 SP1_DATA2 SP1_RXD 2 SP1_TX+ 2 SP1_DATA+
3 SP1_TXD 3 SP1_RX+ 3 NC
4 SP1_DTR 4 SP1_RX- 4 NC
5 GND 5 GND 5 GND
6 SP1_DSR 6 SP1_RTS- 6 NC
7 SP1_RTS 7 SP1_RTS+ 7 NC
8 SP1_CTS 8 SP1_CTS+ 8 NC
9 SP3_RI 9 SP1_CTS- 9 NC
COM2 Connector Pin Definition
RS232 RS422 RS485
Pin Definition Pin Definition Pin Definition
1 SP2_DCD 1 SP2_TX- 1 SP2_DATA2 SP2_RXD 2 SP2_TX+ 2 SP2_DATA+
3 SP2_TXD 3 SP2_RX+ 3 NC
4 SP2_DTR 4 SP2_RX- 4 NC
5 GND 5 GND 5 GND
6 SP2_DSR 6 SP2_RTS- 6 NC
7 SP2_RTS 7 SP2_RTS+ 7 NC
8 SP2_CTS 8 SP2_CTS+ 8 NC
9 SP3_RI 9 SP2_CTS- 9 NC
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
17
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
COM3 to COM6
Connector type: DB-44 port, 44-pin D-Sub
Connector location: CN2
31
1
16
30
15
44
Pin Definition Pin Definition
1 COM3_DCD 2 COM3_RXD
3 COM3_TXD 4 COM3_DTR
5 GND 6 COM3_DSR
7 COM3_RTS 8 COM3_CTS
9 COM3_RI 10 GND
11 COM4_DCD 12 COM4_RXD
13 COM4_TXD 14 COM4_DTR
15 GND 16 COM4_DSR
17 COM4_RTS 18 COM4_CTS
19 COM4_RI 20 GND
21 COM5_DCD 22 COM5_RXD
23 COM5_TXD 24 COM5_DTR
25 GND 26 COM5_DSR
27 COM5_RTS 28 COM5_CTS
29 COM5_RI 30 GND
31 COM6_DCD 32 COM6_RXD
Pin Definition Pin Definition
33 COM6_TXD 34 COM6_DTR
35 GND 36 COM6_DSR
37 COM6_RTS 38 COM6_CTS
39 COM6_RI 40 GND
41 NC 42 NC
43 NC 44 NC
MH1 R_GND MH2 R_GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
18
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
LAN1 and LAN2 Ports
Connector type: Dual RJ45 port with LEDs
Connector location: COP1B (LAN1) and COP1A (LAN2)
LAN1
ACT LINK
Act Status
Flashing Yellow Data activity
Off No activity
B8
A1
B1
A8
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
LAN2
Off No link
LAN1
Pin Definition Pin Definition
B1 MDI0P_LAN1 B2 MDI0N_LAN1
B3 MDI1P_LAN1 B4 MDI1N_LAN1
B5 MDI2P_LAN1 B6 MDI2N_LAN1
B7 MDI3P_LAN1 B8 MDI3N_LAN1
B9 VCC_LAN1 B10 GND
B11 3VSB B12 LED_ACT#_LAN1
B13 LINK100#_LAN1 B14 LINK1G#_LAN1
MH4 R_GND MH5 R_GND
MH6 R_GND
LAN2
Pin Definition Pin Definition
A1 MDI0P_LAN2 A2 MDI0N_LAN2
A3 MDI1P_LAN2 A4 MDI1N_LAN2
A5 MDI2P_LAN2 A6 MDI2N_LAN2
A7 MDI3P_LAN2 A8 MDI3N_LAN2
A9 VCC_LAN2 A10 GND
A11 3VSA A12 LED_ACT#_LAN2
A13 LINK100#_LAN2 A14 LINK1G#_LAN2
MH4 R_GND MH5 R_GND
MH6 R_GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
19
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
LAN3 and LAN4 Ports
Connector type: Dual RJ45 port with LEDs
Connector location: COP2B (LAN3) and COP2A (LAN4)
LAN3
ACT LINK
Act Status
Flashing Yellow Data activity
Off No activity
B8
A1
B1
A8
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
LAN4
Off No link
LAN3
Pin Definition Pin Definition
B1 MDI0P_LAN3 B2 MDI0N_LAN3
B3 MDI1P_LAN3 B4 MDI1N_LAN3
B5 MDI2P_LAN3 B6 MDI2N_LAN3
B7 MDI3P_LAN3 B8 MDI3N_LAN3
B9 VCC_LAN3 B10 GND
B11 3VSB B12 LED_ACT#_LAN3
B13 LINK100#_LAN3 B14 LINK1G#_LAN3
MH4 R_GND MH5 R_GND
MH6 R_GND
LAN4
Pin Definition Pin Definition
A1 MDI0P_LAN4 A2 MDI0N_LAN4
A3 MDI1P_LAN4 A4 MDI1N_LAN4
A5 MDI2P_LAN4 A6 MDI2N_LAN4
A7 MDI3P_LAN4 A8 MDI3N_LAN4
A9 VCC_LAN4 A10 GND
A11 3VSA A12 LED_ACT#_LAN4
A13 LINK100#_LAN4 A14 LINK1G#_LAN4
MH4 R_GND MH5 R_GND
MH6 R_GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
20
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
VGA and DVI-D Connectors
Connector type: DB-15 port, 15-pin D-Sub (VGA)
24-pin D-Sub, 2.0mm-M-180 (DVI)
Connector location: CN6B (VGA) and CN6A (DVI-D)
2529
3539
1 8
17 24
DVI-D
Pin Definition Pin Definition
1 DVI_TDC2N 2 DVI_TDC2P
3 GND_DVI 4 NC
5 NC 6 DVI_DDC_CLK
7 DVI_DDC_DATA 8 NC
9 DVI_TDC1N 10 DVI_TDC1P
11 GND_DVI 12 NC
13 NC 14 VCC5
15 GND_DVI 16 DVI_HPD
17 DVI_TDC0N 18 DVI_TDC0P
19 GND_DVI 20 NC
21 NC 22 NC
23 DVI_CLK_P 24 DVI_CLK_N
MH1 R_GND MH2 R_GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
21
VGA
Pin Definition Pin Definition
25 VGA_RED 26 VGA_GREEN
27 VGA_BLUE 28 GND_DVI
29 GND_DVI 30 VGA_DET
31 GND_DVI 32 GND_DVI
33 VCC5 34 GND_DVI
35 GND_DVI 36 DDC_DATA
37 VGA_HSYNC 38 VGA_VSYNC
39 DDC_CLK MH3 R_GND
MH4 R_GND
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
Audio Connectors
Connector type: 2x 3.5mm TRS
Connector location: CN9A (Mic-in) and CN9B (Line-out)
Line-out
Mic-in
Pin Definition Pin Definition
1 GND_AUD 2 MIC_L
3 GND_AUD 4 MIC-JD1
5 MIC_R MH1 R_GND
MH2 R_GND MH3 R_GND
MH4 R_GND 22 LOUT_LBR
23 GND_AUD 24 FRONT-JD
25 LOUT_RBR MH1 NC
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
22
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
Internal Connectors
SIM Card Line-out Pin Header
Connector type: 1x3 3-pin header, 2.0mm
Connector location: JP8
1 3
Pin Definition
1 LOUT_RL
2 LOUT_RR
3 ANGND
SIM Card Mic-in Pin Header
Connector type: 1x3 3-pin header, 2.0mm
Connector location: JP9
1 3
Pin Definition
1 MIC_RL
2 MIC_RR
3 ANGND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
23
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
12
34
DC-in Power Connector
Connector type: 2x2 4-pin header
Connector location: CON1
Pin Definition
1 GND
2 GND
3 VIN
4 VIN
CMOS Pin Header
Connector type: 1x3 3-pin header, 2.54mm
Connector location: JP4
1 3
Pin Definition
1 RTC_RST#_PU
2 RTC_RST#
3 CLR_CMOS
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
24
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
11
22
Reset JST Connector
Connector type: 1x2 2-pin header, 2.5mm pitch
Connector location: J1
12
Pin Definition
1 PM_RESET#_J
2 GND
LVDS Channel A Connector
Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: CN7
9
0
Pin Definition Pin Definition
1 LVDS_DDC_CLK 2 LVDS_DDC_DATA
3 PANEL1_VDD 4 LVDSA_DATA0
5 LVDSA_DATA3 6 LVDSA_DATA#0
7 LVDSA_DATA#3 8 PANEL1_VDD
9 GND 10 LVDSA_DATA1
11 LVDSA_CLK 12 LVDSA_DATA#1
13 LVDSA_CLK# 14 GND
15 GND 16 PANEL1_BACKLIGHT
17 LVDSA_DATA2 18 PANEL1_BACKLIGHT
19 LVDSA_DATA#2 20 GND
MH1 GND MH2 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
25
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
11
22
71
LVDS Channel B Connector
Connector type: 2x10 20-pin header, 1.25mm pitch
Connector location: CN8
9
0
Pin Definition Pin Definition
1 DDC_CLK 2 DDC_DATA
3 VDD 4 LVDSB_DATAP0
5 LVDSB_DATAP3 6 LVDSB_DATAN0
7 LVDSB_DATAN3 8 VDD
9 GND 10 LVDSB_DATAP1
11 LVDSB_CLKP 12 LVDSB_DATAN1
13 LVDSB_CLKN 14 GND
15 GND 16 PANEL1_BACKLIGHT
17 LVDSB_DATAP2 18 LVDSB_BACKLIGHT
19 LVDSB_DATAN2 20 GND
MH1 GND MH2 GND
LVDS Backlight Connector
Connector type: 1x7 JST, 7-pin header, 2.5mm pitch
Connector location: J7
Pin Definition Pin Definition
1 VCC5 2 PANEL1_BACKLIGHT
3 PANEL1_BACKLIGHT 4 L_BKLTCTL
5 GND 6 GND
7 LVDS_BKLT_EN
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
26
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
14
14
Line-in 1 Pin Header
Connector type: 1x4 4-pin header, 2.5mm pitch
Connector location: JP10
Pin Definition
1 LINE1-L
2 R_GND
3 LINE1-JD
4 LINE1-R
Line-in 2 Pin Header
Connector type: 1x4 4-pin header, 2.5mm pitch
Connector location: JP11
Pin Definition
1 LINE2-L
2 R_GND
3 LINE2-JD
4 LINE2-R
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
27
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
SATA3 Connector 1
Connector type: Standard Serial ATAIII 7P (1.27mm, SATA-M-180)
Connector location: CN13
1 7
Pin Definition Pin Definition
1 GND 2 SATA_TXP1
3 SATA_TXN1 4 GND
5 SATA_RXN1 6 SATA_RXP1
7 GND
SATA3 Connector 2
Connector type: Standard Serial ATAIII 7P (1.27mm, SATA-M-180)
Connector location: CN12
1 7
Pin Definition Pin Definition
1 GND 2 SATA_TXP0
3 SATA_TXN0 4 GND
5 SATA_RXN0 6 SATA_RXP0
7 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
28
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
14
14
SATA3 Power Connector 1
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: CN11
Pin Definition
1 +12V
2 GND
3 GND
4 VCC5
SATA3 Power Connector 2
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: CN15
Pin Definition
1 +12V
2 GND
3 GND
4 VCC5
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
29
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
16
16
GPS JST Connector
Connector type: 1x6 JST, 6-pin header, 1.00mm pitch
Connector location: J5
Pin Definition Pin Definition
1 3VSB 2 GPS_LED
3 COM6_TXD 4 COM6_RXD
5 GND 6 VCC3
MH1 GND MH2 GND
USB 2.0 JST Connector
Connector type: 1x6 JST, 6-pin header, 2.00mm pitch
Connector location: J3
Pin Definition Pin Definition
1 5VSB 2 USB2_10N
3 USB2_10P 4 USB2_11N
5 USB2_11P 6 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
30
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
PCIe x8 Slot
Connector type: PCIe x8 Slot
Connector location: SLOT1
A1
B1
Pin Definition Pin Definition
A1 PCIE_PRSNT1 B1 +12V
A2 +12V B2 +12V
A3 +12V B3 +12V
A4 GND B4 GND
A5 NC B5 SMB_CLK
A6 NC B6 SMB_DATA
A7 NC B7 GND
A8 NC B8 VCC3
A9 VCC3 B9 NC
A10 VCC3 B10 3VSB
A11 PLT_RST_CPU_PCIE# B11 PCIE_WAKE#
A12 GND B12 NC
A13 CLK_PEG_P B13 GND
A14 CLK_PEG_N B14 PEG_TXP0
A15 GND B15 PEG_TXN0
A16 PEG_RXP0 B16 GND
A17 PEG_RXN0 B17 PRSNT2_1
A18 GND B18 GND
A19 NC B19 PEG_TXP0
A20 GND B20 PEG_TXN0
A21 PEG_RXP1 B21 GND
A11
B11
A12
B12
A49
B49
Pin Definition Pin Definition
A22 PEG_RXN1 B22 GND
A23 GND B23 PEG_TXP0
A24 GND B24 PEG_TXN0
A25 PEG_RXP2 B25 GND
A26 PEG_RXN2 B26 GND
A27 GND B27 PEG_TXP0
A28 GND B28 PEG_TXN0
A29 PEG_RXP3 B29 GND
A30 PEG_RXN3 B30 NC
A31 GND B31 PRSNT2_2
A32 NC B32 GND
A33 NC B33 PEG_TXP0
A34 GND B34 PEG_TXN0
A35 PEG_RXP4 B35 GND
A36 PEG_RXN4 B36 GND
A37 GND B37 PEG_TXP0
A38 GND B38 PEG_TXN0
A39 PEG_RXP5 B39 GND
A40 PEG_RXN5 B40 GND
A41 GND B41 PEG_TXP0
A42 GND B42 PEG_TXN0
A43 PEG_RXP6 B43 GND
A44 PEG_RXN6 B44 GND
A45 GND B45 PEG_TXP0
A46 GND B46 PEG_TXN0
A47 PEG_RXP7 B47 GND
A48 PEG_RXN7 B48 PRSNT2_3
A49 GND B49 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
31
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
Mini-PCIe Connector
Connector location: CN5
12
51 52
Pin Definition Pin Definition
1 MIC_R 2 3VSB
3 MIC_L 4 GND
5 LOUT_R 6 V1_5
7 LOUT_L 8 3VSB
9 GND 10 UIM_DATA
11 PCIE_MINI_CLK_N 12 UIM_CLK
13 PCIE_MINI_CLK_P 14 UIM_RESET
15 GND 16 UIM_VCCP
17 GND 18 GND
19 GND 20 3VSB
21 GND 22 PLT_RST
23 PCIE_MINI_RXN 24 3VSB
25 PCIE_MINI_RXP 26 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
32
Pin Definition Pin Definition
27 GND 28 V1_5
29 GND 30 SMB_CLK
31 PCIE_MINI_TXN 32 SMB_DATA
33 PCIE_MINI_TXP 34 GND
35 GND 36 USB_N
37 GND 38 USB_P
39 3VSB 40 GND
41 3VSB 42 WLAN_ACT
43 GND 44 WLAN_ACT
45 NA 46 WLAN_ACT
47 NA 48 V1_5
49 NA 50 GND
51 NA 52 3VSB
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
19
21
GPIO Pin Header
Connector type: 2x5 10-pin header, 2.00mm pitch
Connector location: JP2
0
Pin Definition Pin Definition
1 VCC5 2 GND
3 GPO24 4 GPI20
5 GPO25 6 GPI21
7 GPO26 8 GPI22
9 GPO27 10 GPI23
GPIO LED Pin Header
Connector type: 2x2 4-pin header, 2.00mm pitch
Connector location: JP3
34
12
Pin Definition
1 GPO24
2 GND
3 GPO25
4 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
33
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
14
14
Smart Fan1 Connector
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: FAN1
Pin Definition
1 GND
2 +12V
3 FAN_TAC1
4 FAN_CTL1
Smart Fan2 Connector
Connector type: 1x4 4-pin Wafer, 2.54mm pitch
Connector location: FAN2
Pin Definition
1 GND
2 +12V
3 FAN_TAC2
4 FAN_CTL2
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
34
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
14
External LED Pin Header
Connector type: 2x13 26-pin, 2.00mm pitch
Connector location: JP1
2
1
Pin Definition Pin Definition
1 PWR_LED_N 2 PWR_LED_P
3 PCH_SATA_LED# 4 LED_HDDP
5 CFAST_ACCESS 6 CFAST_LED_P
7 RF_LED_N 8 RF_LED_P
9 LAN1_LINK# 10 LAN1_LINKP
11 LED_ACT#_LAN1 12 LAN1_ACTP
13 LAN2_LINK# 14 LAN2_LINKP
15 LED_ACT#_LAN2 16 LAN2_ACTP
17 LAN3_LINK# 18 LAN3_LINKP
19 LED_ACT#_LAN3 20 LAN3_ACTP
21 LAN4_LINK# 22 LAN4_LINKP
23 LED_ACT#_LAN4 24 LAN4_ACTP
25 NC 26 NC
26
25
Power/PSON Header
Connector type: 1x4 4-pin header, 3.81mm pitch
Connector location: J2
Pin Definition Pin Definition
1 GND 2 PBT_PU
3 SLP_S3# 4 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
35
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
110
80 Port
Connector type: 1x10 10-pin header, 1.00mm pitch
Connector location: J4
Pin Definition Pin Definition
1 GND 2 PLT_RST_SIO#
3 CLK_PCI_P80 4 LPC_FRAME#
5 LPC_AD3 6 LPC_AD2
7 LPC_AD1 8 LPC_AD0
9 3VSB 10 3VSB
MH1 GND MH2 GND
External SMbus
Connector type: 1x3 3-pin header, 2.00mm pitch
Connector location: JP7
1 3
Pin Definition
1 SMB_CLK
2 SMB_DATA
3 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
36
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
15
26
Flash BIOS CON
Connector type: 2x3 6-pin, 2.00mm pitch
Connector location: JFW1
Pin Definition Pin Definition
1 VSPI 2 GND
3 BIOS_SPI_CS#0 4 BIOS_SPI_CLK
5 BIOS_SPI_SO 6 BIOS_SPI_SI
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
37
NISE 3640M Series User Manual
Chapter 2: Jumpers and Connectors
Mini-PCIe Slot
Connector location: CN14
12
51 52
Pin Definition Pin Definition
1 PCIE_WAKE# 2 3VSB
3 NC 4 GND
5 NC 6 V1_5
7 PCIE_MINI2_CLKREQ#A 8 NC
9 GND 10 NC
11 CLK_PCIE_MINI2_N 12 NC
13 CLK_PCIE_MINI2_P 14 NC
15 GND 16 NC
17 NC 18 GND
19 NC 20 3VSB_MINI1
21 GND 22 PLT_RST_SP338#
23 PCIE_RXN2_MINI_PCIE 24 3VSB
25 PCIE_RXP2_MINI_PCIE 26 GND
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
38
Pin Definition Pin Definition
27 GND 28 V1_5
29 GND 30 SMB_CLK
31 PCIE_TXN2_MINI_PCIE 32 SMB_DATA
33 PCIE_TXP2_MINI_PCIE 34 GND
35 GND 36 USB_1N
37 GND 38 USB_1P
39 3VSB_MINI1 40 GND
41 3VSB_MINI1 42 NA
43 GND 44 NA
45 NA 46 NA
47 NA 48 V1_5
49 NA 50 GND
51 NA 52 3VSB_MINI1
NISE 3640M Series User Manual
Chapter 3: System Setup
Chapter 3: System Setup
Mount the System to the Wall
The wallmount brackets provides a convenient and economical way of
mounting the system on the wall.
Wall Mount Bracket
Secure the bracket
to the system
1. The mounting holes are located at the bottom of the system. Secure the
brackets on each side of the system using the provided mounting screws.
2. Now mount the system on the wall by fastening screws through the
bracket’s mounting holes.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
39
NISE 3640M Series User Manual
Chapter 3: System Setup
Removing the Chassis Bottom Cover
Note: Installation for SATA Hard Drive and SATA DOM only
Prior to removing the chassis cover, make sure the unit’s power
is off and disconnected from the power sources to prevent
electric shock or system damage.
1. With the bottom side of the chassis facing up, remove the mounting
screw of the bottom cover and then put them in a safe place for later use.
2. Lift up the cover and remove it from the chassis.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
40
NISE 3640M Series User Manual
Chapter 3: System Setup
Installing a SATA Hard Drive
1. Remove 4 screws around the empty HDD bracket.
2. Use the provided screws to secure the drive in place.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
41
NISE 3640M Series User Manual
Chapter 3: System Setup
3. Connect the SATA data/power cable and fasten the cable to HDD bracket
by provided screw.
SATA drive/bracket
SATA data/power cable
4. Insert the HDD bracket onto the panel at a 45 degree angle, and gently
slide the HDD bracket in place.
Panel
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
42
NISE 3640M Series User Manual
Chapter 3: System Setup
5. Connect the SATA data/power cable to the connector on the SATA drive
then secure the HDD bracket to its original place.
SATA drive/bracket
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Screws
43
NISE 3640M Series User Manual
Chapter 3: System Setup

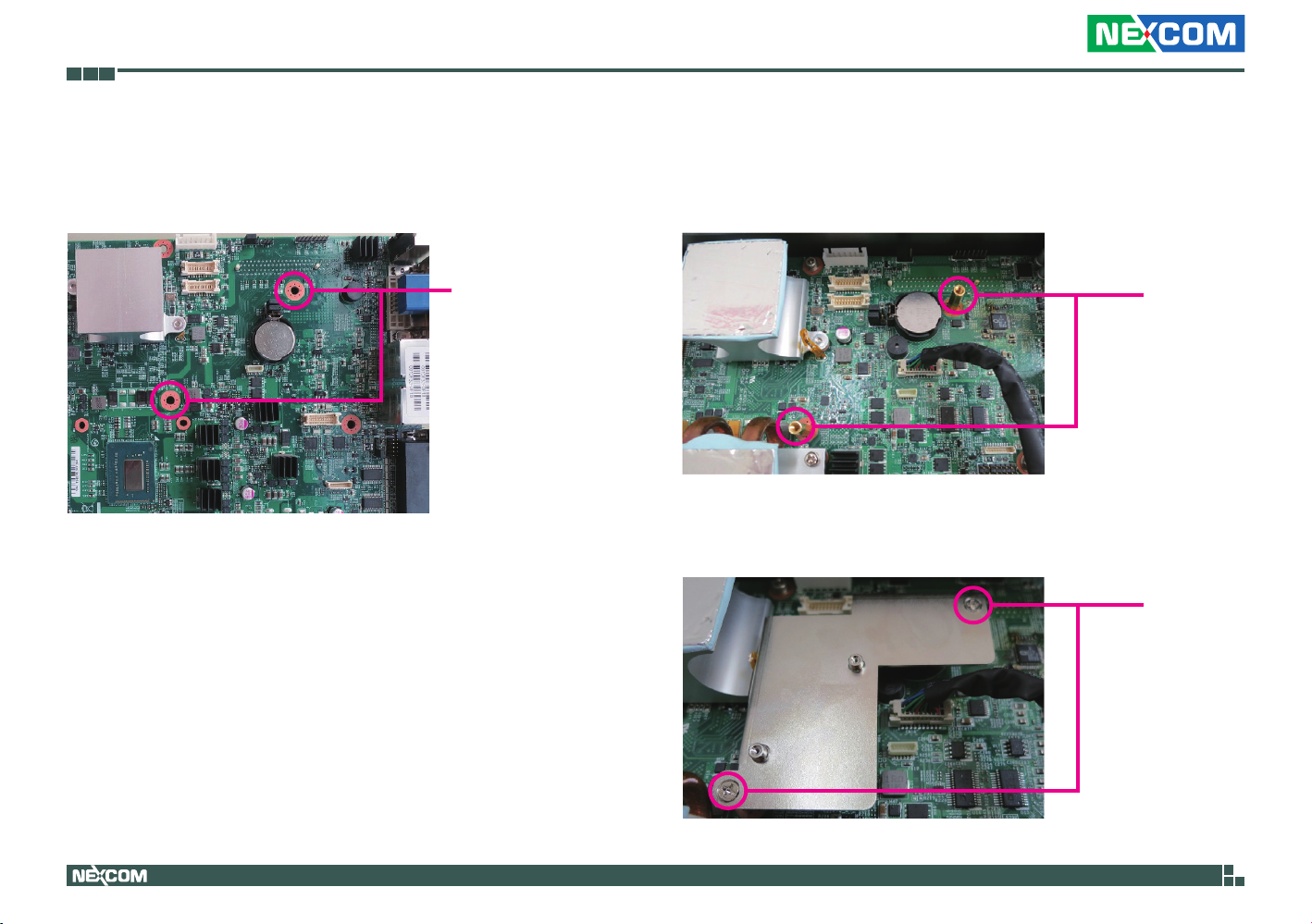

Installing a SATA DOM
1. Remove the HDD bracket before installing a SATA DOM.
2. Locate the SATA connector on the board and fasten with the copper post
included in the accessory package.
SATA Connector/
SATA Power Connector
Copper Post
3. Connect one side of power cable to the SATA DOM.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
44
NISE 3640M Series User Manual
Chapter 3: System Setup
4. Install the SATA DOMM and connect the other side of SATA power cable
to the SATA power connector.
The SATA DOMM is locked after installation. Be sure to push
the lock when releasing.
Power Connector
5. Fasten the screw on the top of copper post.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
ScrewSATA Connector
45
NISE 3640M Series User Manual
Chapter 3: System Setup
Installing a PCIe/PCI Expansion Card
Note:
NISE 3640E is equipped with one PCIe x4 expansion slot.
NISE 3640E2 is equipped with two PCIe x4 expansion slot.
NISE 3640P2 is equipped with two PCI expansion slot.
NISE 3640P2E is equipped with one PCIe x4 expansion slot and one PCI
expansion slot.
1. Remove the chassis bottom cover.
2. Remove screws of the riser bracket.
Riser
bracket
Note: Example shown is NISE 3640P2E
3. Remove screws on the expansion cover.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
46
Screw
NISE 3640M Series User Manual
Chapter 3: System Setup
Note: Example shown is NISE 3640P2E
4. Insert PCIe/PCI expansion card and fasten the screw.
5. Secure the riser bracket to its original position.
Screw
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
47
NISE 3640M Series User Manual
Chapter 3: System Setup
Removing the Chassis Top Cover
1. Remove the mounting screw on the top cover and then put them in a
safe place for later use.
2. Lift up the cover and remove it from the chassis.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
48
NISE 3640M Series User Manual
Chapter 3: System Setup
Installing a SO DIMM
1. Locate the SO DIMM socket.
2. Release the lock on the SO DIMM socket.
3. Insert the module into the socket at an 90 degree angle. Apply firm even
pressure to each end of the module until it slips into the socket.
SO DIMM
Socket
SO DIMM
4. While pushing the SO DIMM into the position, the lock will close
automatically.
Lock
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
49
NISE 3640M Series User Manual
Chapter 3: System Setup
Installing a Wireless LAN Module
(half-size)
1. Locate the Mini PCI Express slot on the board.
Mini PCI Express Slot
2. Fasten the Wireless LAN module with the mini PCI express bracket.
Screw
3. Insert the wireless LAN module into the Mini PCI Express slot at a 45
degree angle until the gold-plated connector on the edge of the module
completely disappears inside the slot.
4. Push the module down and then secure it with mounting screws.
Screw
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
50
NISE 3640M Series User Manual
Chapter 3: System Setup
Installing a Wireless LAN Module
(full-size)
1. Locate the Mini PCI Express slot on the board.
2. Insert the wireless LAN module into the Mini PCI Express slot at a 45
degree angle until the gold-plated connector on the edge of the module
completely disappears inside the slot.
Mini PCI Express Slot
3. Push the module down and then secure it with mounting screws.
Screw
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
51
NISE 3640M Series User Manual
Chapter 3: System Setup
Installing a GPS Module
1. Locate the GPS module install location and remove the two screws on
the board.
Screw
2. Fasten the copper post included in the accessory bag onto the screw
holes.
Copper Post
3. Secure the GPS bracket on the copper post.
Screws
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
52
NISE 3640M Series User Manual
Chapter 3: System Setup
4. Secure the GPS module to the bracket.
5. Connect the GPS cable
Screws
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
53
NISE 3640M Series User Manual
Chapter 3: System Setup
Installing Antennas
1. Remove the antenna hole covers located in the front panel.
Antenna hole coversAntenna hole covers
2. Insert the antenna jack through the antenna hole.
Antenna jack
3. Insert the 2 rings (ring 1 and ring2) onto the antenna jack.
4. Attach one end of the RF cable onto the module.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
54
RF Cable
NISE 3640M Series User Manual
Chapter 3: System Setup
Installing a SIM Card
1. Locate the SIM card on the front panel.
SIM Card
2. Push the yellow button to release the SIM card holder.
3. Place the SIM card to the SIM card holder and secure it to the original
position.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
55
NISE 3640M Series User Manual
Chapter 3: System Setup
Installing a CompactFlash Card
1. The CompactFlash socket is located at the front side of the chassis.
CompactFlash
2. Remove the mounting screws and cover of the CompactFlash socket.
Mounting screw
Power ON Sequence on NISE 3640M
1. Connect Power Supply SINPRO HPU101-108 24V into AC Power Source.
The AC Power Source needs to comply with following requirement:
▪ 100-240V~47-63Hz, 1.2-0.5A
2. Connect Power Supply SINPRO HPU101-108 24V into NISE 3640M DC IN
Mini-DIN Connector at rear panel.
3. Push the Power button on NISE 3640M.
Power OFF Sequence on NISE 3640M
1. Shut down the system by OS or by pushing the power button.
2. Disconnect the power cord from the AC inlet.
3. Insert the CFast
4. Fasten the cover after installation.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
56
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Chapter 4: BIOS Setup
This chapter describes how to use the BIOS setup program for the NISE 3640M.
The BIOS screens provided in this chapter are for reference only and may change
if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at
www.nexcom.com.tw.
About BIOS Setup
The BIOS (Basic Input and Output System) Setup program is a menu driven
utility that enables you to make changes to the system configuration and
tailor your system to suit your individual work needs. It is a ROM-based
configuration utility that displays the system’s configuration status and
provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that
saves this information even when the power is turned off. When the system is
turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
▪ Hard drives, diskette drives, and peripherals
▪ Video display type and display options
▪ Password protection from unauthorized use
▪ Power management features
The settings made in the setup program affect how the computer performs.
It is important, therefore, first to try to understand all the setup options, and
second, to make settings appropriate for the way you use the computer.
When to Configure the BIOS
▪ This program should be executed under the following conditions:
▪ When changing the system configuration
▪ When a configuration error is detected by the system and you are
prompted to make changes to the setup program
▪ When resetting the system clock
▪ When redefining the communication ports to prevent any conflicts
▪ When making changes to the Power Management configuration
▪ When changing the password or making other changes to the security
setup
Normally, CMOS setup is needed when the system hardware is not consistent
with the information contained in the CMOS RAM, whenever the CMOS
RAM has lost power, or the system features need to be changed.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
57
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Default Configuration
Most of the configuration settings are either predefined according to
the Load Optimal Defaults settings which are stored in the BIOS or are
automatically detected and configured without requiring any actions. There
are a few settings that you may need to change depending on your system
configuration.
Entering Setup
When the system is powered on, the BIOS will enter the Power-On Self
Test (POST) routines. These routines perform various diagnostic checks; if an
error is encountered, the error will be reported in one of two different ways:
▪ If the error occurs before the display device is initialized, a series of beeps
will be transmitted.
▪ If the error occurs after the display device is initialized, the screen will
display the error message.
Powering on the computer and immediately pressing <Del> allows you to
enter Setup. Another way to enter Setup is to power on the computer and
wait for the following message during the POST:
Legends
Key Function
Moves the highlight left or right to select a menu.
Moves the highlight up or down between
sub¬menus or fields.
Exits the BIOS Setup Utility.
Scrolls forward through the values or options of the
highlighted field.
Scrolls backward through the values or options of
the highlighted field.
Selects a field.
Displays General Help.
Load previous values.
Load optimized default values.
TO ENTER SETUP BEFORE BOOT PRESS
Press the
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
key to enter Setup:
Ctrl
+
Alt
+
58
Saves and exits the Setup program.
Press <Enter> to enter the highlighted sub¬menu
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that
there are more available fields not shown on the screen. Use the up and
down arrow keys to scroll through all the available fields.
Submenu
When “” appears on the left of a particular field, it indicates that a
submenu which contains additional options are available for that field. To
display the submenu, move the highlight to that field and press .
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
59
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
BIOS Setup Utility
Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on
the screen. The main menu allows you to select from several setup functions
and one exit. Use arrow keys to select among the items and press to
accept or enter the submenu.
Main
The Main menu is the first screen that you will see when you enter the BIOS
Setup Utility.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
BIOS Information
BIOS Vendor
Core Version
Compliancy
Project Version
Build Date and Time
Memory Information
Memory Frequency
Total Memory
DIMM#0
DIMM#2
ME Firmware Information
ME FW Version
ME Firmware Mode
ME Firmware SKU
System Date
System Time
American Megatrends
4.6.5.3
UEFI 2.3; PI 1.2
N364-004
03/05/2013 15:27:37
1600 Mhz
8192 MB (DDR3)
4096 MB (DDR3)
4096 MB (DDR3)
8.0.3.1427
Normal Mode
1.5MB
[Mon 03/25/2013]
[13:27:32]
Save & Exit
Set the Date. Use Tab to switch
between Date elements.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day,
from Monday to Sunday. Month displays the month, from January to
December. Date displays the date, from 1 to 31. Year displays the year, from
1999 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the
24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays
hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays
seconds from 00 to 59.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
60
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Advanced
The Advanced menu allows you to configure your system for basic operation.
Some entries are defaults required by the system board, while others, if
enabled, will improve the performance of your system or let you set some
features according to your preference.
Setting incorrect field values may cause the system to
malfunction.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Main
► ACPI Settings
► RTC Wake Settings
► CPU Conguration
► SATA Conguration
► USB Conguration
► Super IO Conguration
► Smart Fan Function
► H/W Monitor
► CPU PPM Conguration
Advanced Chipset Boot Security
Save & Exit
System ACPI Parameters.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
ACPI Settings
This section is used to configure ACPI Settings.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Main
ACPI Settings
Enable Hibernation
ACPI Sleep State
Advanced Chipset PCIPnP Security
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
[S3 only(Suspend to. . .]
Enable Hibernation
Disabled
Enabled
Exit
Enables or Disables System
ability to Hibernate (OS/S4 Sleep
State). This option may be not
effective with some OS.
← Select Screen
↑↓ Select Item
+/- Change Field
Tab Select Field
F1 General Help
F10 Save & Exit
ESC Exit
Enable Hibernation
Enables or disables system ability to hibernate (OS/S4 Sleep State). This
option may not be effective with some OS.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
61
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
ACPI Sleep State
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Main
Advanced Chipset PCIPnP Security
ACPI Settings
Enable Hibernation
ACPI Sleep State
[Enabled]
[S3 only(Suspend to...]
ACPI Sleep State
Suspend Disabled
S1 only (CPU Stop Clock)
S3 only (Suspend to RAM)
Exit
Select the ACPI sleep state the
system will enter when the SUSPEND button is pressed.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Select the highest ACPI sleep state the system will enter when the suspend
button is pressed. The options are Suspend Disabled, S1 (CPU Stop Clock)
and S3 (Suspend to RAM).
Wake System with Fixed Time
This section is used to configure the wake up function.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Main
Advanced Chipset PCIPnP Security
Wake system with Fixed Time
[Disabled]
Wake system with Fixed Time
Disabled
Enabled
Exit
Enable or disable System
wake on alarm event. When
enabled, System will wake on the
hr::min::sec specied
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Enables or disables the system’s wake on alarm event. When enabled, the
system will wake up on the specified time.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
62
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
CPU Configuration
This section is used to configure the CPU.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU Conguration
Intel(R) Core(TM) CPU i5-3610ME CPU @ 2.70GHz
CPU Signature
Microcode Patch
CPU Speed
Processor Cores
Intel HT Technology
Intel VT-x Technology
Intel SMX Technology
64-bit
Hyper-threading
Limit CPUID Maximum
Intel Virtualization Technology
306a9
10
1600 MHz
2
Supported
Supported
Supported
Supported
[Enabled]
[Disabled]
[Disabled]
Enabled for Windows XP and
Linux (OS optimized for
Hyper-Threading Technology)
and Disabled for other OS (OS
not optimized for
Hyper-Threading Technology).
When Disabled only one thread
per enabled core is enabled.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Hyper Threading
Enables or disables hyper-threading technology.
Limit CPUID Maximum
The CPUID instruction of some newer CPUs will return a value greater
than 3. The default is Disabled because this problem does not exist in the
Windows series operating systems. If you are using an operating system
other than Windows, this problem may occur. To avoid this problem, enable
this field to limit the return value to 3 or lesser than 3.
Intel® Virtualization Technology
Enables or disables Intel® Virtualization technology.
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
63
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
SATA Configuration
This section is used to configure the SATA drives.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
SATA Controller(s)
SATA Mode Selection
Serial ATA Port 0
Software Preserve
Serial ATA Port 1
Software Preserve
Serial ATA Port 2
Software Preserve
Serial ATA Port 3
Software Preserve
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
[IDE]
ST9160314AS (160.0
SUPPORTED
Empty
Unknown
Empty
Unknown
32GB SATA Flas (32.0G
SUPPORTED
Enable or disable SATA Device.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
SATA Controller(s)
Enables or disables SATA device.
SATA Mode Selection
Configures the SATA as IDE, AHCI or RAID mode.
IDE This option configures the Serial ATA drives as Parallel ATA
physical storage device.
RAID This option allows you to create RAID or Intel Matrix Storage
configuration on Serial ATA devices.
AHCI This option configures the Serial ATA drives to use AHCI
(Advanced Host Controller Interface). AHCI allows the storage
driver to enable the advanced Serial ATA features which will
increase storage performance.
Serial ATA Port 0 to Serial ATA Port 3
Displays information on the SATA devices detected.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
64
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
USB Configuration
This section is used to configure the USB.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
USB Conguration
USB Devices:
1 Keyboard, 2 Hubs
Legacy USB Support
USB3.0 Support
[Enabled]
[Enabled]
Enables Legacy USB support.
AUTO option disables legacy
support if no USB devices are
connected. DISABLE option will
keep USB devices available
only for EFI applications.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Legacy USB Support
Enable Enables Legacy USB.
Auto Disables support for Legacy when no USB devices are connected.
Disable Keeps USB devices available only for EFI applications.
Super IO Configuration
This section is used to configure the serial ports.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Super IO Conguration
Super IO Chip
Serial Port 0 Conguration
Serial Port 1 Conguration
Serial Port 2 Conguration
Serial Port 3 Conguration
Serial Port 4 Conguration
Serial Port 5 Conguration
IT8783F
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Super IO Chip
Displays the Super I/O chip used on the board.
Set Parameters of Serial Port
O (COMA)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
USB3.0 Support
Enables or disables USB 3.0 controller support.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
65
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Serial Port 0 Configuration
This section is used to configure serial port 0.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 0 Conguration
Serial Port
Device Settings
Change Settings
Onboard Serial Port 1 Mode
Onboard Serial Port Max Baud Rate
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=3F8h; IRQ=4;
[IO=3F8h; IRQ=4;]
[RS232]
[115200 bps]
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port 1 Configuration
This section is used to configure serial port 1.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 1 Conguration
Serial Port
Device Settings
Change Settings
Onboard Serial Port 1 Mode
Onboard Serial Port Max Baud Rate
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2F8h; IRQ=3;
[IO=2F8h; IRQ=3;]
[RS232]
[115200 bps]
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Onboard Serial Port 1 Mode
Select this to change the serial port mode to RS232, RS422, RS485 or RS485
Auto.
Onboard Serial Port Max Baud Rate
Select this to change the max baud rate of the serial port.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Onboard Serial Port 1 Mode
Select this to change the serial port mode to RS232, RS422, RS485 or RS485
Auto.
Onboard Serial Port Max Baud Rate
Select this to change the max baud rate of the serial port.
66
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Serial Port 2 Configuration
This section is used to configure serial port 2.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 2 Conguration
Serial Port
Device Settings
Change Settings
Onboard Serial Port Max Baud Rate
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=3E8h; IRQ=10;
[IO=3E8h; IRQ=10;]
[115200 bps]
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port 3 Configuration
This section is used to configure serial port 3.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 3 Conguration
Serial Port
Device Settings
Change Settings
Onboard Serial Port Max Baud Rate
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2E8h; IRQ=11;
[IO=2E8h; IRQ=11;]
[115200 bps]
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Onboard Serial Port Max Baud Rate
Select this to change the max baud rate of the serial port.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Onboard Serial Port Max Baud Rate
Select this to change the max baud rate of the serial port.
67
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Serial Port 4 Configuration
This section is used to configure serial port 4.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 4 Conguration
Serial Port
Device Settings
Change Settings
Onboard Serial Port Max Baud Rate
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2F0h; IRQ=6;
[IO=2F0h; IRQ=6;]
[115200 bps]
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Serial Port 5 Configuration
This section is used to configure serial port 5.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 5 Conguration
Serial Port
Device Settings
Change Settings
Onboard Serial Port Max Baud Rate
Onboard Serial Port 6 Mode
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2E0h; IRQ=7;
[IO=2E0h; IRQ=7;]
[115200 bps]
[RS232]
Serial Port
Enables or disables the serial port.
Change Settings
Selects an optimal setting for the Super IO device.
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Onboard Serial Port Max Baud Rate
Select this to change the max baud rate of the serial port.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
Onboard Serial Port Max Baud Rate
Select this to change the max baud rate of the serial port.
Onboard Serial Port 6 Mode
Select this to change the serial port mode to RS232, RS422, RS485 or RS485
Auto.
68
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Onboard Serial Port 6 Mode
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Serial Port 5 Conguration
Serial Port
Device Settings
Change Settings
Onboard Serial Port Max Baud Rate
Onboard Serial Port 6 Mode
Onboard Serial Port 6 Mode
RS232
GPS
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
IO=2E0h; IRQ=7;
[IO=2E0h; IRQ=7;]
[115200 bps]
[RS232]
Enable or Disable Serial Port
(COM)
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Onboard Serial Port 6 Mode
Select this to change the serial port mode to RS232 or GPS.
Smart Fan Function
This section is used to configure the fan’s function.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
PC Health Status
Smart Fan Mode
[Full on Mode]
Smart Fan Mode
Full on Mode
Automatic Mode
Disable Mode
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Smart Fan Mode Select
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Smart Fan Mode
Selects the mode of the fan, the options are Full on Mode, Automatic Mode
and Disable Mode.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
69
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
H/W Monitor
This section is used to monitor hardware status such as temperature, fan
speed and voltages.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
Pc Health Status
CPU temperature
System temperature
Fan1 Speed
Fan2 Speed
VCORE
+3.3V
+5V
+12V
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
: +32C
: +32C
: N/A
: N/A
: +0.848 V
: +3.328 V
: +5.017 V
: +11.932 V
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
CPU Temperature
Detects and displays the current CPU temperature.
Fan2 Speed
Detects and displays Fan2 speed.
VCORE
Detects and displays the Vcore CPU voltage.
3.3V
Detects and displays 3.3V voltage.
5V
Detects and displays 5V voltage.
12V
Detects and displays 12V voltage.
System Temperature
Detects and displays the current system temperature.
Fan1 Speed
Detects and displays Fan1 speed.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
70
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
CPU PPM Configuration
This section is used to configure the Processor Power Management (PPM)
configuration.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced
CPU PPM Conguration
EIST
CPU C3 Report
CPU C6 report
CPU C7 report
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Disabled]
[Disabled]
[Disabled]
[Disabled]
Enable/Disable Intel SpeedStep
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
EIST
Enables or disables Intel® SpeedStep.
CPU C3 Report
Enables or disables C3 report to the operating system.
CPU C6 Report
Enables or disables C6 report to the operating system.
CPU C7 Report
Enables or disables C7 report to the operating system.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
71
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Chipset
This section gives you functions to configure the system based on the
specific features of the chipset. The chipset manages bus speeds and access
to system memory resources.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
►PCH-IO Conguration
►System Agent (SA) Conguration
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Save & Exit
PCH Parameters
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
PCH-IO Configuration
This section is used to configure PCH-IO configuration.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
► USB Conguration
► PCH Azalia Conguration
► BIOS Security Conguration
LAN1 Controller
LAN2 Controller
LAN3 Controller
LAN4 Controller
Restore AC Power Loss
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Power On]
USB Conguration settings
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
LAN1 to LAN4 Controller
Enables or disables the onboard controllers for LAN1 to LAN4.
PCH-IO Configuration
PCH-IO parameters.
System Agent (SA) Configuration
System Agent (SA) parameters.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
72
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
USB Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
USB Conguration
EHCI1
EHCI2
[Enabled]
[Enabled]
Control the USB EHCI (USB 2.0)
functions.
One EHCI controller must always
be enabled.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
EHCI1 and EHCI2
Enables or disables the Enhanced Host Controller Interface (USB 2.0), one
EHCI controller must always be enabled.
PCH Azalia Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
PCH Azalia Conguration
Azalia
[Enabled]
Control Detection of the Azalia
device.
Disabled = Azalia will be
unconditionally disabled
Enabled = Azalia will be
unconditionally Enabled
Auto = Azalia will be enabled if
present, disabled otherwise.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Azalia
Control Detection of the Azalia device.
Disabled Azalia will be unconditionally disabled.
Enabled Azalia will be unconditionally Enabled.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
73
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
BIOS Security Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
BIOS Security Conguration
RTC RAM Lcok
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
Enable or disable bytes 38h-3Fh
in the upper and lower 128-byte
bank of RTC RAM lockdown.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
RTC RAM Lock
Enables or disables bytes 38h-3Fh in the upper and lower 128-byte bank of
RTC RAM lockdown.
Restore AC Power Loss
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
► USB Conguration
► PCH Azalia Conguration
LAN2 Controller
PCH LAN Controller
Wake on LAN
Restore AC Power Loss
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
[Enabled]
[Enabled]
[Power On]
Restore AC Power Loss
Power Off
Power On
Select AC power state when
power is re-applied after a power
failure.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Restore AC Power Loss
Off When power returns after an AC power failure, the system’s
power is off. You must press the Power button to power-on the
system.
On When power returns after an AC power failure, the system will
automatically power-on.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
74
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
System Agent (SA) Configuration
This section is used to configure the System Agent (SA) configuration.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
VT-d
► Graphics Conguration
► NB PCIe Conguration
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[Enabled]
Check to enable VT-d function
on MCH.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
VT-d
Enables or disables VT-d function on MCH.
Graphics Configuration
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Graphics Configuration
Primary Display
Internal Graphics
DVMT Total Gfx Mem
► LCD Control
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
[IGFX]
[Auto]
[256M]
Select which of IGFX/PEG/
PCI Graphics device should be
Primary Display Or select SG for
Switchable Gfx.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Graphics Configuration
Configures the graphic chip settings.
NB PCIe Configuration
Configures the NB PCI Express settings.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
75
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Primary Display
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Graphics Configuration
Primary Display
Internal Graphics
DVMT Total Gfx Mem
► LCD Control
Primary Display
IGFX
PEG
[IGFX]
[Auto]
[256M]
Select which of IGFX/PEG/
PCI Graphics device should be
Primary Display Or select SG for
Switchable Gfx.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Select which of IGFX/PEG/PCI graphics device should be primary display or
select SG for switchable GFx.
Internal Graphics
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
Graphics Configuration
Primary Display
Internal Graphics
DVMT Total Gfx Mem
► LCD Control
[Enabled]
[Auto]
[256M]
Internal Graphics
Auto
Disabled
Enabled
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Keep IGD enabled based on the setup options.
Keep IGD enabled based on the
setup options.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
76
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Internal Graphics
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Graphics Configuration
Primary Display
Internal Graphics
DVMT Total Gfx Mem
► LCD Control
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset
DVMT Total Gfx Mem
128M
256M
MAX
[Enabled]
[Auto]
[256M]
Select DVMT5.0 Total Graphic
Memory size used by the Internal
Graphics Device.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Selects DVMT5.0 Total Graphic Memory size used by the Internal Graphics
Device.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
77
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
LCD Control
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
LCD Control
Primary IGFX Boot Display
Secondary IGFX Boot Display
LCD Panel Type
Active LFP
Panel Color Depth
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset
[CRT]
[Disabled]
[1024x768 LVDS]
[No LVDS]
[18 Bit]
Select the Video Device which
will be activated during POST.
This has no effect if external
graphics present. Secondary boot
display selection will appear
based on your selection.
VGA modes will be supported
only on primary display
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
DP DP Other ports DP DP Other ports
Mode Extended Clone
3-display DP
1920 x 1080DP1920 x 1080
3-display DP
1920 x 1080DP1920 x 1080
3-display DP
1920 x 1080DP1920 x 1080
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
VGA
1920 x 1080DP1920 x 1080DP1920 x 1080
DVI
1920 x 1080DP1920 x 1080DP1920 x 1080
LVDS
1280 x 1024DP1920 x 1080DP1920 x 1080
78
VGA
1920 x 1080
DVI
1920 x 1080
LVDS
1280 x 1024
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Primary IGFX Boot Display
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
LCD Control
Primary IGFX Boot Display
Secondary IGFX Boot Display
LCD Panel Type
Active LFP
Panel Color Depth
[CRT]
[Disabled]
[1024x768 LVDS]
[No LVDS]
[18 Bit]
Primary IGFX Boot Display
CRT
DVI
LFP
DP2
DP1
Select the Video Device which
will be activated during POST.
This has no effect if external
graphics present. Secondary boot
display selection will appear
based on your selection.
VGA modes will be supported
only on primary display
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Select the video device which will be activated during POST. Has no effect
if external graphics is present. Secondary boot display selection will appear
based on your selection. VGA modes will be supported only on primary
display.
Secondary IGFX Boot Display
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
LCD Control
Primary IGFX Boot Display
Secondary IGFX Boot Display
LCD Panel Type
Active LFP
Panel Color Depth
[CRT]
[Disabled]
[1024x768 LVDS]
[No LVDS]
[18 Bit]
Secondary IGFX Boot Display
Disabled
LFP
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Select the secondary display device.
Select Secondary Display Device
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
79
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
LCD Panel Type
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
LCD Control
Primary IGFX Boot Display
Secondary IGFX Boot Display
LCD Panel Type
Active LFP
Panel Color Depth
[CRT]
[Disabled]
[1024x768 LVDS]
Primary IGFX Boot Display
[No LVDS]
640x480 LVDS
[18 Bit]
800x600 LVDS
1024x768 LVDS
1280x1024 LVDS
1600x1200 LVDS
1366x768 LVDS
1680x1050 LVDS
1920x1200 LVDS
1600x900 LVDS
1280x800 LVDS
1920x1080 LVDS
Select LCD panel used by
Internal Graphics Device by
selecting the appropriate setup
item.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Select the LCD panel used by the internal graphics device by selecting the
appropriate setup item.
Active LFP
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
LCD Control
Primary IGFX Boot Display
Secondary IGFX Boot Display
LCD Panel Type
Active LFP
Panel Color Depth
[CRT]
[Disabled]
[1024x768 LVDS]
[No LVDS]
[18 Bit]
Active LFP
No LVDS
Int-LVDS
Select the Active LFP
Conguration.
No LVDS: VBIOS does not
enable LVDS.
Int-LVDS: VBIOS enables LVDS
driver by Integrated encoder.
SDVO LVDS: VBIOS enables
LVDS driver by SDVO encoder.
eDP Port-A: LFP Driven by
Int-DisplayPort encoder from
Port-A.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Select the Active LFP configuration.
No LVDS VBIOS does not enable LVDS.
Int-LVDS VBIOS enables LVDS driver by Integrated encoder.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
80
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Panel Color Depth
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
LCD Control
Primary IGFX Boot Display
Secondary IGFX Boot Display
LCD Panel Type
Active LFP
Panel Color Depth
[CRT]
[Disabled]
[1024x768 LVDS]
[No LVDS]
[18 Bit]
Panel Color Depth
18 Bit
24 Bit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Select the LFP Panel Color Depth.
Select the LFP Panel Color Depth
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
NB PCIe Configuration
This section is used to configure Northbridge PCI Express settings.
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
NB PCIe Configuration
PEG0
PEGO - Gen X
PEG1
PEG1 - Gen X
Enable PEG
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Not Present
[Auto]
Not Present
[Auto]
[Enabled]
Congure PEG0 B0:D1:F0
Gen1-Gen3. IVB maximum Gen3,
SNB maximum Gen2.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
81
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
PEG0 - Gen X
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
NB PCIe Configuration
PEG0
PEGO - Gen X
PEG1
PEG1 - Gen X
Enable PEG
Auto
Gen1
Gen2
Gen3
Not Present
[Auto]
Not Present
[Auto]
[Enabled]
PEG0 - Gen X
Congure PEG0 B0:D1:F0
Gen1-Gen3. IVB maximum Gen3,
SNB maximum Gen2.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Configure PEG0 B0:D1:F0 Gen1-Gen3, IVB maximum Gen3, SNB maximum
Gen2.
PEG1 - Gen X
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
Chipset
NB PCIe Configuration
PEG0
PEGO - Gen X
PEG1
PEG1 - Gen X
Enable PEG
Auto
Gen1
Gen2
Gen3
Not Present
[Auto]
Not Present
[Auto]
[Enabled]
PEG1 - Gen X
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Configure PEG1 B0:D1:F1 Gen1-Gen3.
Congure PEG1 B0:D1:F1
Gen1-Gen3.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
82
NISE 3640M Series User Manual
Chapter 4: BIOS Setup
Enable PEG
Aptio Setup Utility - Copyright (C) 2011 American Megatrends, Inc.
NB PCIe Configuration
PEG0
PEGO - Gen X
PEG1
PEG1 - Gen X
Enable PEG
Version 2.14.1219. Copyright (C) 2011 American Megatrends, Inc.
Chipset
Not Present
[Auto]
Not Present
[Auto]
[Enabled]
To enable or disable the PEG.
→←: Select Screen
↑↓: Select Item
Enter: Select
+/-: Change Opt.
F1: General Help
F2: Previous Values
F3: Optimized Defaults
F4: Save & Exit
ESC: Exit
Enables or disables the PEG slot.
Copyright © 2013 NEXCOM International Co., Ltd. All Rights Reserved.
83
