NISE 3520
User Manual
125 pgs4.73 Mb0

NEXCOM NISE 3520 User Manual

Download
NEXCOM International Co., Ltd.
Industrial Computing Solutions
Fan-less Computer NISE 3520 Series
User Manual
NEXCOM International Co., Ltd.
Published January 2013
www.nexcom.com
Contents
Contents
Preface
Copyright ............................................................................................. iv
Disclaimer ............................................................................................. iv
Acknowledgements .............................................................................. iv
Regulatory Compliance Statements ....................................................... iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................vii
Installation Recommendations ................................................................vii
Safety Precautions .................................................................................viii
Technical Support and Assistance ........................................................... ix
Conventions Used in this Manual ........................................................... ix
Global Service Contact Information ......................................................... x
Package Contents ..................................................................................xii
Ordering Information ............................................................................xiii
Chapter 1: Product Introduction
Overview ................................................................................................1
Key Features .......................................................................................1
Hardware Specifications ..........................................................................2
Getting to Know NISE 3520 Series ..........................................................4
Front Panel .........................................................................................4
Rear Panel .......................................................................................... 5
Mechanical Dimensions ...........................................................................6
Chapter 2: Jumpers And Connectors
Before You Begin ....................................................................................8
Precautions .............................................................................................8
Jumper Settings ......................................................................................9

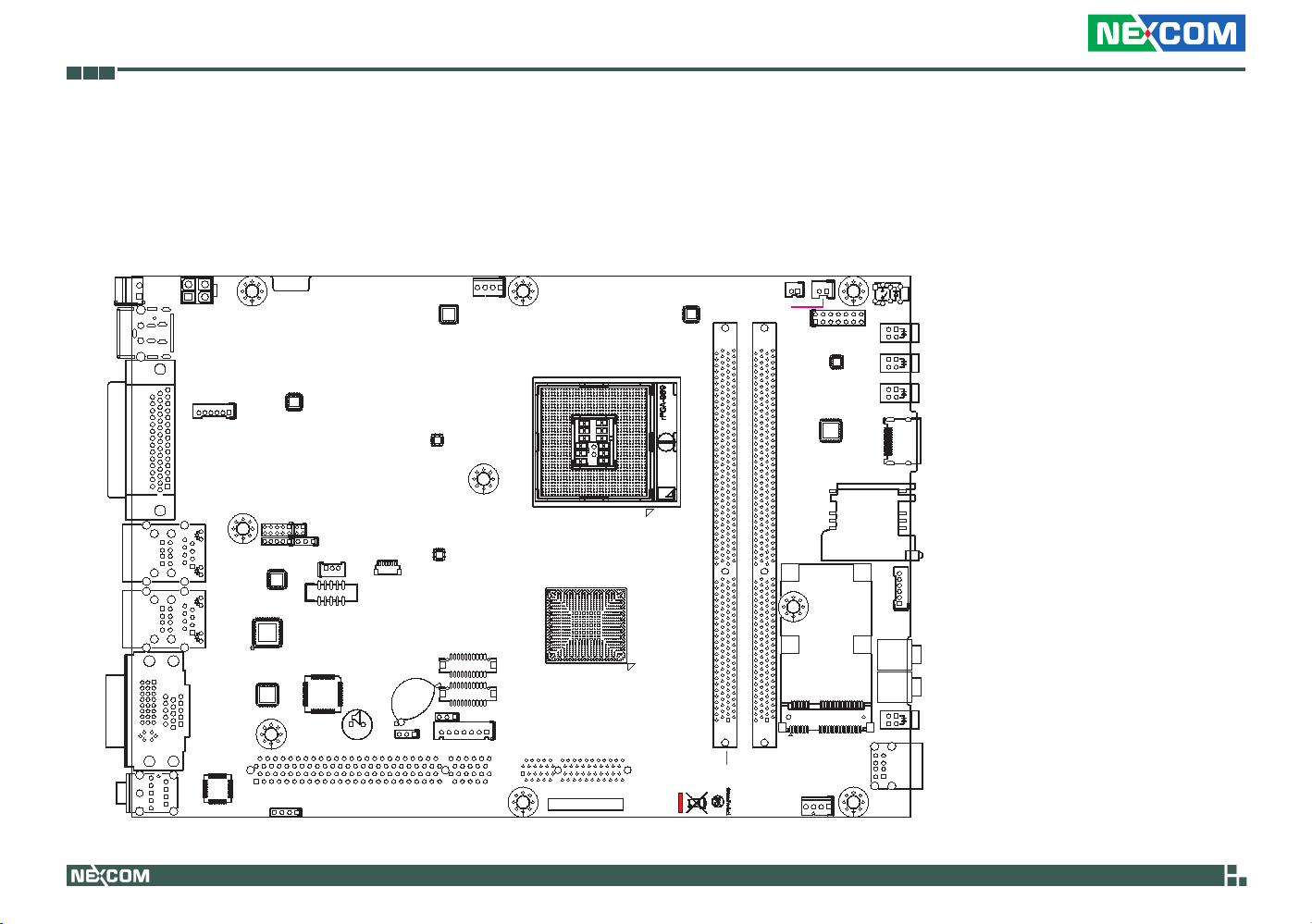

Locations of the Jumpers and Connectors ............................................. 10
NISB 3520 ........................................................................................ 10
Jumpers ................................................................................................ 12
Clear CMOS ..................................................................................... 12
Connectors Pin Definitions .................................................................... 13
External I/O Interface - Front Panel .................................................... 13

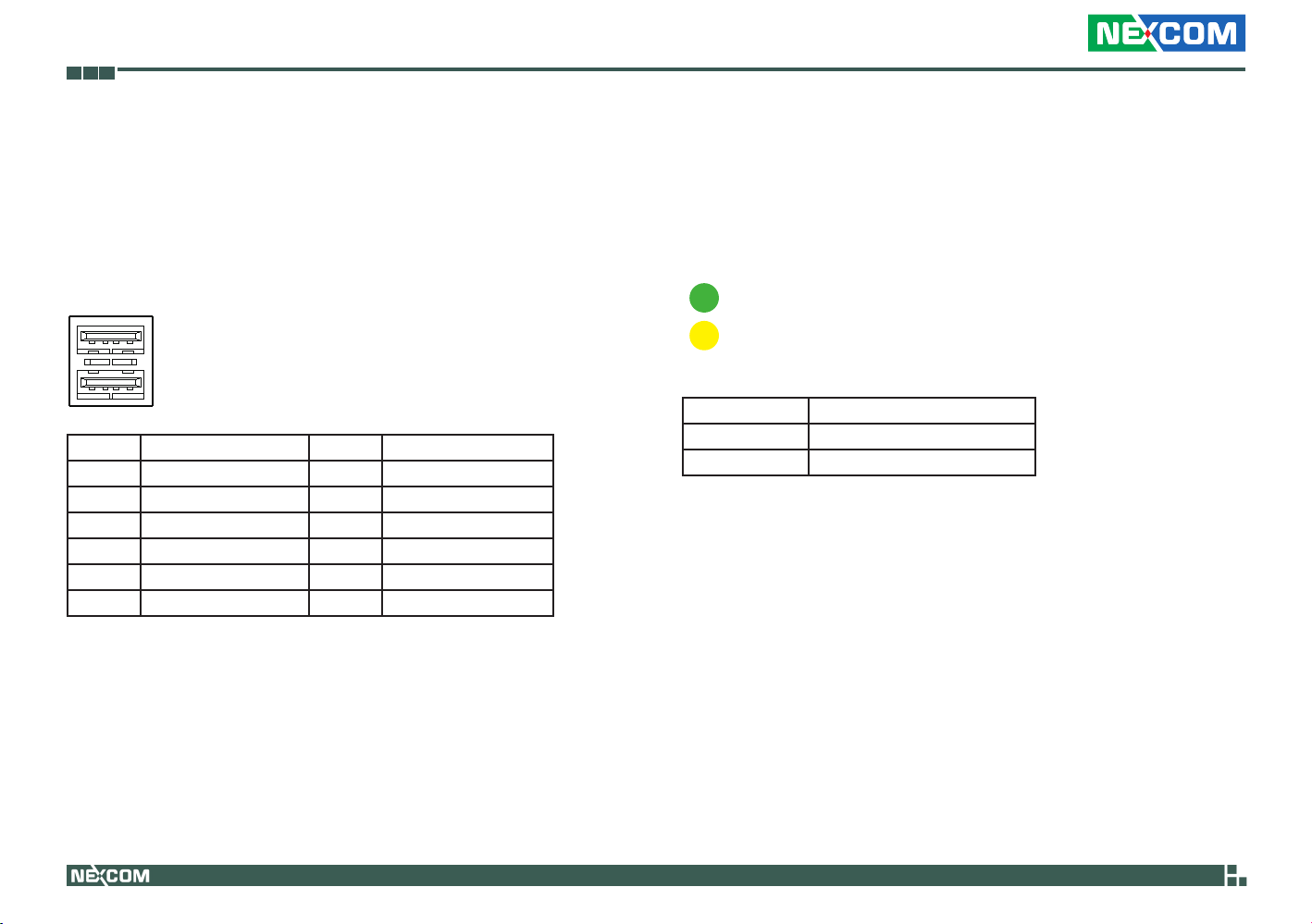

USB3 Ports ................................................................................... 13
GSM LEDs .................................................................................... 13
Mic-in Jack ..................................................................................14
Line-out Jack ...............................................................................14
SIM Card Connector ....................................................................15
HDMI Connector .........................................................................15
Status Indicators ..........................................................................16
LAN1/LAN2 Link/Active LEDs ........................................................ 16

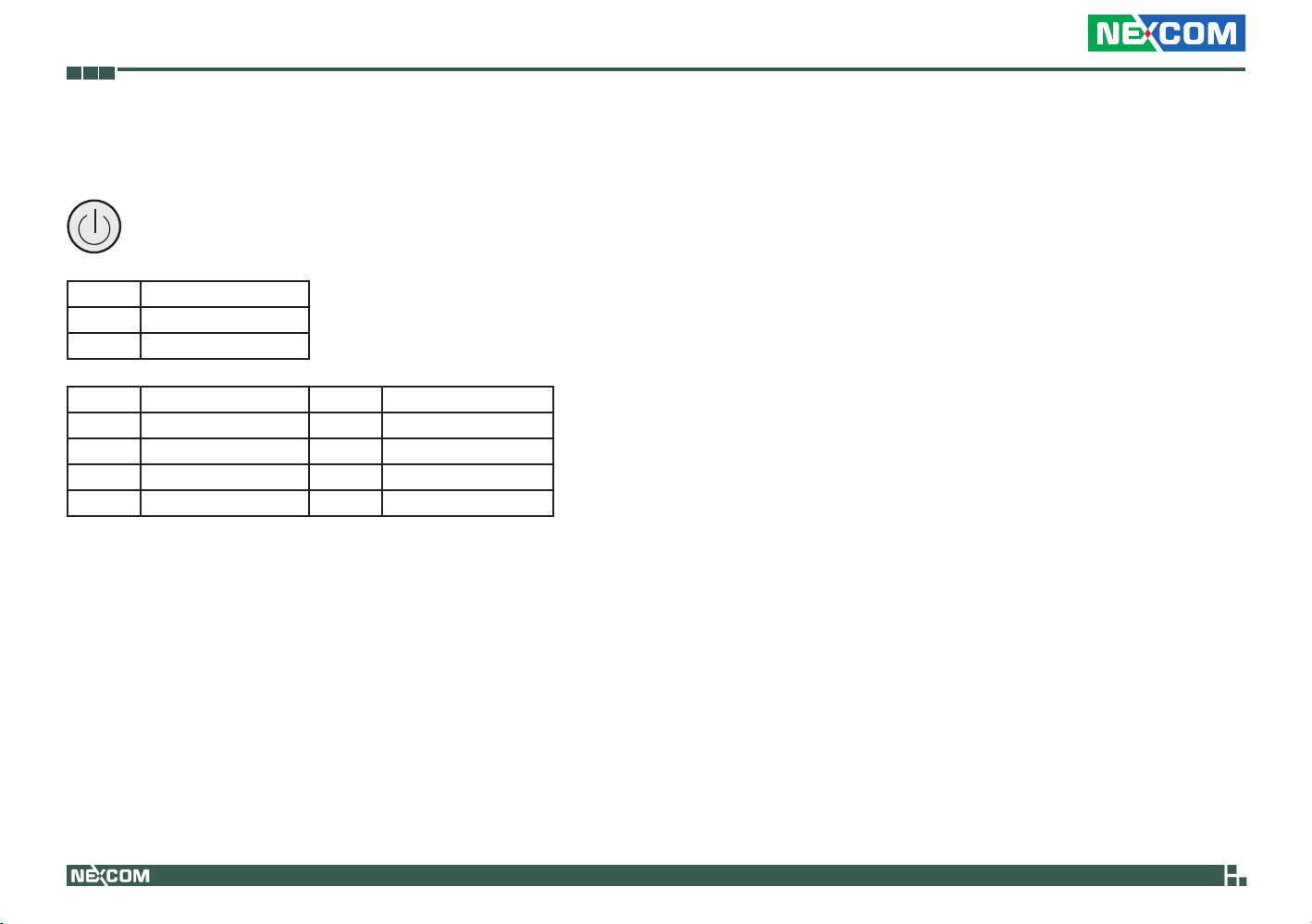

ATX Power On/Off Switch ............................................................ 17
External I/O Interface - Rear Panel ..................................................... 18
Remote Power On/Off Switch ......................................................18
PS/2 Keyboard/Mouse Port ...........................................................18
9V-30V DC Input .........................................................................19
GPIO Connector ..........................................................................19
Serial Interface (COM 1 - COM 4) ................................................20
LAN1 Port .................................................................................... 22
ii
NISE 3520 Series User Manual
Contents
LAN2 Port .................................................................................... 23
USB1 Ports ................................................................................... 23
USB2 Ports ................................................................................... 24
VGA Port ..................................................................................... 24
DVI-I Port ..................................................................................... 25
Speaker-out Jack ..........................................................................25
Mic-in Jack ..................................................................................26
Internal Connectors .......................................................................... 27
DC Power Output Connector ....................................................... 27
Reset Connector .......................................................................... 27
SMBus DATA/CLK Connector .......................................................28
LVDS Backlight Power Select ........................................................28
LVDS Connectors .........................................................................29
LVDS Backlight Connector ............................................................29
Line-in Connector ........................................................................ 30
SATA1 Port ..................................................................................30
SATA2 Port ..................................................................................31
SATA1 Power Connector ..............................................................31
SATA2 Power Connector ..............................................................32
SATA DOM Power Connectors .....................................................32
GPS Connector ............................................................................ 33
Power-on LED Connector .............................................................33
USB4 Connector .......................................................................... 34
COM4 RI# Connector ..................................................................34
COM5 Connector ........................................................................ 35
GPIO LED Connector .................................................................... 35
PCI Slot ........................................................................................ 36
PCIe x4 Slot .................................................................................38
Mini-PCIe Slot .............................................................................. 39
Smart Fan1 Connector ................................................................. 40
Smart Fan2 Connector ................................................................. 40
External LED Connector ...............................................................41
Chapter 3: System Setup
Removing the Chassis Cover ................................................................42
Installing a DIMM ..................................................................................43
Installing the CPU .................................................................................45
Installing a SATA Hard Drive ..................................................................48
Installing a Half Length SATA DOM with SATA HD .................................51
Installing a Full Length SATA DOM ........................................................53
Installing a Wireless LAN Module ..........................................................55
Inserting the SIM Card ..........................................................................58
Chapter 4: BIOS Setup
About BIOS Setup ................................................................................. 59
BIOS Setup Utility .................................................................................. 61
Chapter 5: AMT Settings
Enable Intel® AMT in the AMI BIOS .......................................................74
Configure the Intel
Unconfigure AMT/ME ...........................................................................93
®
ME Setup ..............................................................75
Appendix A: Power Consumption......................... 95
Appendix B: GPI/O Programming Guide...............
97
Appendix C: Watchdog Timer Setting................... 98
Appendix D: Intel Embedded AMT Management
Express KVM...................................... 100
Appendix E: Intel Manageability Command Tool -
KVM.................................................... 107
iii
NISE 3520 Series User Manual
Preface
Preface
Copyright
This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.
Disclaimer
The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by con­stantly checking its manual posted on our website: http://www.nexcom. com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.
Acknowledgements
NISE 3520 Series is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.
Declaration of Conformity
FCC
This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equip­ment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interfer­ence, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable Euro­pean Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
iv
NISE 3520 Series User Manual
Preface
RoHS Compliance
NEXCOM RoHS Environmental Policy and Status Update
NEXCOM is a global citizen for building the digital infra­structure. We are committed to providing green products
and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2002/95/EU, to be your trusted green partner and to protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) <
0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force in to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suf­fix “(LF)” will be added to the compliant product name.
All new product models launched after January 2006 will be RoHS compli­ant. They will use the usual NEXCOM naming convention.
v
NISE 3520 Series User Manual
Preface
Warranty and RMA
NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
? Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
? Customers must collect all the information about the problems encoun-
tered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
? Customers can send back the faulty products with or without acces-
sories (manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the prob­lems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
? Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
? Any products returned by NEXCOM to other locations besides the cus-
tomers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
? Component fee: NEXCOM will only charge for main components such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
? Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
? Replace with 3rd party products if needed.
? If RMA goods can not be repaired, NEXCOM will return it to the cus-
tomer without any charge.
Board Level
? Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
? If RMA goods can not be repaired, NEXCOM will return it to the cus-
tomer without any charge.
vi
NISE 3520 Series User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are incon­sistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the de­scribed procedures only at an ESD workstation. If no such station is avail­able, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the device, note the following precautions:
▪ Read all instructions carefully. ▪ Do not place the unit on an unstable surface, cart, or stand. ▪ Follow all warnings and cautions in this manual. ▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufactur-
er. Discard used batteries according to the manufacturer’s instructions.
Installation Recommendations
Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A grounding strap
• An anti-static pad
Using your fingers can disconnect most of the connections. It is recom­mended that you do not use needlenose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
vii
NISE 3520 Series User Manual
Preface
Safety Precautions
1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping
it or letting it fall may cause damage.
7. Do not leave this equipment in either an unconditioned environment
or in a above 40 equipment.
8. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
9. Make sure the voltage of the power source is correct before connect-
ing the equipment to the power outlet.
10. Place the power cord in a way so that people will not step on it. Do
not place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
11. All cautions and warnings on the equipment should be noted.
o
C storage temperature as this may damage the
12. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
13. Never pour any liquid into an opening. This may cause fire or electri­cal shock.
14. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
15. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to work
according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
16. Do not place heavy objects on the equipment.
17. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
18. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTER­IES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
19. The computer is provided with CD drives that comply with the ap­propriate safety standards including IEC 60825.
viii
NISE 3520 Series User Manual
Preface
Technical Support and Assistance
1. For the most updated information of NEXCOM products, visit NEX­COM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling:
– Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning prod­ucts or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.
Conventions Used in this Manual
Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
ix
NISE 3520 Series User Manual
Preface
Global Service Contact Information
Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com.tw
America
USA NEXCOM USA
2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com
Asia
Taiwan Taichung Office
16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 www.nexcom.com.tw
NEXCOM Japan
9F, Tamachi Hara Bldg.,4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com
China NEXCOM China
2F, Block 4, Venus Plaza, Building 21, ZhongGuanCun Software Park, No.8, Dongbeiwang West Road, Haidian District, Beijing, 100193, China Tel: +86-10-8282-5880 Fax: +86-10-8282-5955 Email: sales@nexcom.cn www.nexcom.cn
Shanghai Office
Room 1505, Greenland He Chuang Bldg., No. 450 Caoyang Rd., Shanghai, 200062, China Tel: +86-21-6150-8008 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn
Nanjing Office
Hall C, Block 17, Tian Xing Cui Lang Bldg., No. 49 Yunnan North Rd., Nanjing, 210018, China Tel: +86-25-8315-3486 Fax: +86-25-8315-3489 Email: sales@nexcom.cn www.nexcom.cn
Shenzhen Office
Western Room 708, Block 210, Tairan Industry & Trading Place, Futian Area, Shenzhen, 518040, China Tel: +86-755-833 7203 Fax: +86-755-833 7213 Email: sales@nexcom.cn www.nexcom.cn
Wuhan Office
1-C1804/1805,Mingze Liwan, No.519 South Luoshi Rd,Hongshan District, Wuhan,430070,China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn
x
NISE 3520 Series User Manual
Preface
Chengdu Office
9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn
Europe
France NEXCOM France
La Grande Arche-Paroi Nord 92044 Paris La Défense France Tel: +33 (0) 1 40 90 33 35 Fax: +33 (0) 1 40 90 31 01 Email: sales.fr@nexcom.eu www.nexcom.eu
Germany
NEXCOM GmbH Leopoldstraße Business Centre, Leopoldstraße 244, 80807 Munich, Germany Tel: +49-89-208039-278 Fax: +49-89-208039-279 Email: sales.de@nexcom.eu www.nexcom.eu
Italy
NEXCOM ITALIA S.r.l Via Gaudenzio Ferrari 29, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9286 9215 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it
United Kingdom NEXCOM EUROPE
10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu
xi
NISE 3520 Series User Manual
Preface
Package Contents
Before continuing, verify that the NISE 3520 Series package that you received is complete. Your package should have all the items listed in the following table.
Item P/N Name Qty
1 60233POW33X00 DC Power Cord 1
2 6012200053X00 PE ZIPPER BAG #3, 100x70mm 1
3 6012200052X00 PE ZIPPER BAG #8, 170x240mm 1
4 6023344361X00 CABLE, COM PORT HDB 44PIN TO D-SUB 9PIN MALEx4 L=250mm BLACK 1
5 6029900037X00 DOW CORNING 340 Silcone Heat Sink Compound(3g) 1
6 4NCPM00203X00 TERMINAL BLOCKS 2P PHOENIX CONTACT, 3.81mm 1
7 50311F0110X00 FLAT HEAD SCREW, F3x5 4
8 602DCD0269X00 NISB3500 CD DRIVER 1
9 7800000014X00 DVI-I TO VGA ADAPTER 1
10 5060600087X00 MYLAR for PCI Bracket Use 1
11 50311P0001X00 PRICE FOR PLASTIC SCREW 1
12 60233MK202X00 CABLE, Y PS/2 1 TO 2 KEYBOARD/MOUSE L:150mm 1
13 50322P0001X00 PLASTIC NUT, 11mmx6mm 1
14 50311C0006X00 HEAD SCREW 2
15 60177B0065X00 NISE3500 QUICK REFERENCE GUIDE 1
xii
NISE 3520 Series User Manual
Preface
Ordering Information
The following provides ordering information for NISE 3520 Series.
• Barebone
NISE 3520 (P/N: 10J00352000X0) RoHS Compliant
- Intel
- 1 x PCI expansion slot
NISE 3520P2 (P/N: 10J00352002X0) RoHS Compliant
- Intel
- 2 x PCI expansion slots
NISE 3520P2E (P/N: 10J00352003X0) RoHS Compliant
- Intel
- 1 PCI, 1 PCIe x1 expansion slot
19V, 120W AC/DC Power Adapter w/o power cord
(P/N: 7410120002X00)
®
Core™ i7/i5 fanless system
®
Core™ i7/i5 fanless system
®
Core™ i7/i5 fanless system
xiii
NISE 3520 Series User Manual
Chapter 1: Product Introduction
Chapter 1: Product Introduction
Overview
Front
Rear
Key Features
®
• Intel
• Mobile Intel
• Dual Intel
Core™ i7/i5 socket processor
®
QM57 PCH
®
Gigabit Ethernet ports
• Dual VGA or VGA/DVI or DVI/HDMI Independent Display
• 3x RS232 and 1x RS232/422/485 with Auto Flow Control
• 1x PCI (NISE 3520)
2x PCI (NISE 3520P2) 1x PCI, 1x PCIe x1 (NISE 3520P2E)
• 1x Mini PCIe socket with mobile interface
• 1x external SIM card holder
• Onboard DC to DC power design to support 9V to 30V
DC power input
• Supports ATX power mode and PXE/WOL
1
NISE 3520 Series User Manual
Chapter 1: Product Introduction
Hardware Specifications
Main Board
• NISB 3520
• Onboard Mobile Intel
• Supports Intel
• Supports Intel
• Supports Intel
®
®
®
Main Memory
• 2x 240-pin memory DIMM, up to 4GB DDR3 800/1066MHz SDRAM,
unbuffered and non-ECC
Note: The actual memory size is dynamic. It is based on the OS I/O re-
source allocation.
I/O Interface - Front
• ATX power on/off switch
• GSM: RF on / RF Active LEDs
• HDD Access / Power status LEDs
• 2x antenna holes
• 2x USB 2.0 ports
• 1x Line-out and 1x Mic-in
• 1x HDMI
• 1x external SIM card holder
®
QM57 Platform Controller Hub Core™ i7-620M PGA Processor (2.66GHz, 4M Cache) Core™ i5-520M PGA Processor (2.4GHz, 3M Cache) P4500 PGA Processor (1.86GHz, 2M Cache)
I/O Interface - Rear
• 2-pin Remote Power on/off switch
• 9 ~ 30V DC input
• 1x PS/2 for Keyboard/Mouse
• 1x DB15 male connector for GPIO (4x input and 4x output)
• 1x DB44 Serial Port for 4x RS232
(COM2: RS232/422/485 with auto flow control)
• 2x Gbe LAN ports
• 4x USB 2.0 ports
• 1x DB15 VGA port
• 1x DVI-I Port
• 1x Speaker-out
• 1x Mic-in
Device
• 1x 2.5” HDD drive bay
Expansion
• NISE 3520
- 1x PCI expansion: Add-on card length: 169mm max
- 1x Mini PCIe socket with mobile interface
• NISE 3520P2
- 2x PCI expansion: Add-on card length: 169mm max
- 1x Mini PCIe socket with GSM Audio
• NISE 3520P2E
- 1x PCI expansion: Add-on card length: 169mm max
- 1 PCIe x1 expansion: Add-on card length: 169mm max
- 1x Mini PCIe socket with GSM Audio
2
NISE 3520 Series User Manual
Chapter 1: Product Introduction
Power Requirements
• ATX power mode
• Onboard DC to DC power support from 9V to 30V DC
• Optional power adapter
Dimensions
• NISE 3520
- 195mm (W) x 268mm (D) x 80mm (H) (7.7” x 10.5” x 3.1”)
• NISE 3520P2
- 195mm (W) x 268mm (D) x 101mm (H) (7.7” x 10.5” x 3.98”)
• NISE 3520P2E
- 195mm (W) x 268mm (D) x 101mm (H) (7.7” x 10.5” x 3.98”)
Construction
• Aluminum chassis with fanless design
Environment
• Operating temperature: Ambient with airflow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
• Storage temperature: -20°C to 80°C
• Relative humidity: 10% to 93% (Non-Condensing)
Certifications
• CE approval
• FCC Class A
3
NISE 3520 Series User Manual
Chapter 1: Product Introduction
Getting to Know NISE 3520 Series
Front Panel
USB
ACT
Antenna
Line-out
Mic-in
Power LED
SIM
GSM
USB
Used to connect USB 2.0/1.1 devices.
GSM
Indicates the GSM’s RF On status.
ACT
Indicates the GSM’s RF Active status.
GSM Mic-in
Used to connect an external microphone.
LAN LEDs
HDMI
HDD LED
Power on/off switch
GSM Line-out
Used to connect a headphone or a speaker.
Antenna Holes for Optional WiFi
Used to connect an optional Mini PCIe WiFi module.
SIM
Used to insert a SIM card.
HDMI
Used to connect devices that support HDMI.
Power LED
Indicates the power status of the system.
HDD LED
Indicates the status of the hard drive.
Wireless Active LEDs
Indicate the status of the LAN ports.
Power On/Off Switch
Press to power-on or power-off the system.
4
NISE 3520 Series User Manual
Chapter 1: Product Introduction
Rear Panel
GPIO
PS/2 KB/Mouse
Output for
remote power
on/off swtich
COM1-COM4
9V-30V DC Input
LAN
USB
Output for Remote Power On/Off Switch
Used to connect a remote to power on/off the system.
PS/2 Keyboard/Mouse
Used to connect a PS/2 keyboard and PS/2 mouse via a cable.
9V-30V DC Input
Used to plug a DC power cord.
VGA
DVI
Speaker-out Mic-in Expansion
slot
LAN
Used to connect the system to a local area network.
USB
Used to connect USB 2.0/1.1 devices.
VGA
Used to connect an analog VGA monitor.
DVI
Used to connect a digital LCD panel.
Expansion Slot
1 expansion slot (NISE 3520) or 2 expansion slots (NISE 3520P2/P2E).
Speaker-out
Used to connect a headphone or a speaker.
Mic-in
Used to connect an external microphone.
GPIO
The GPIO connector supports 4 digital input and 4 digital output.
COM1 to COM4
The DB44 port supports 3 RS232 and 1 RS232/422/485 compatible serial devices.
5
NISE 3520 Series User Manual
Chapter 1: Product Introduction
Mechanical Dimensions
NISE 3520
195.00
207.00
219.00
80.00
184.00
86.00
224.00
264.00
268.00
6
NISE 3520 Series User Manual
Chapter 1: Product Introduction
NISE 3520P2/3520P2E
184.00
224.00
264.00
268.00
195.00
207.00
219.00
101.00
107.00
7
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Chapter 2: Jumpers and Connectors
This chapter describes how to set the jumpers on the motherboard. Note that the following procedures are generic for all NISE 3520 series.
Before You Begin
• Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep small components separated.
• Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
• A Philips screwdriver
• A flat-tipped screwdriver
• A set of jewelers Screwdrivers
• A grounding strap
• An anti-static pad
• Using your fingers can disconnect most of the connections. It is recom-
mended that you do not use needle-nosed pliers to disconnect connec­tions as these can damage the soft metal or plastic parts of the connec­tors.
• Before working on internal components, make sure that the power
is off. Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the elec-
tronic components. Humid environment tend to have less static electric­ity than dry environments. A grounding strap is warranted whenever danger of static electricity exists.
Precautions
Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on the computers that are still con­nected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or your­self:
• Always disconnect the unit from the power outlet whenever you are
working inside the case.
• If possible, wear a grounded wrist strap when you are working inside
the computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
• Hold electronic circuit boards by the edges only. Do not touch the com-
ponents on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
• Leave all components inside the static-proof packaging that they
shipped with until they are ready for installation.
• Use correct screws and do not over tighten screws.
8
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Jumper Settings
A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 Are Short
9
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Locations of the Jumpers and Connectors
NISB 3520
The figure below is the top view of the NISB 3520 main board which is the main board used in the NISE 3520 Series system. It shows the locations of the jumpers and connectors.
J3
CON1 CN1
J5
CN2
JP1
JP2
J9
J8
CN3
CN6
CN9
CN11
J20
J19
CN5
BAT1
BZ1
JP4
J15
J1
CN7
CN8
JP3
J13
DIMM2
J18
DIMM1
J2
J4
CN18
J14
SW1
LED1
LED2
LED3
HDMI
J6
IDE1
J12
CN19
CN20
LED4
CN10
10
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
The figure below is the bottom view of the NISB 3520 main board.
CN16
J16
CN14
1
D64
CN12
NISE 3520 Series User Manual
1
J17
B62
CN17
1
9
CN15
CN13
11
Chapter 2: Jumpers and Connectors
Jumpers
Clear CMOS
Connector type: 1x3 3-pin header, 2.54 mm pitch Connector location: JP4
1
Pin Settings
1-2 On *Normal
2-3 On CMOS Clear
1-2 On: default
Pin Definition
3
1 RTCRST#_PU
2 RTCRST#
3 CLR_CMOS
12
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Connector Pin Definitions
External I/O Interface - Front Panel
USB3 Ports
Connector type: Dual USB port Connector location: CN10
Pin Definition Pin Definition
1 P5V_USB_P89 7 USB9+
2 USB8- 8 USB1_GND
3 USB8+ 22 USB1_GND
4 USB1_GND 23 USB1_GND
5 P5V_USB_P89 26 USB1_GND
6 USB9- 27 USB1_GND
GSM LEDs
GSM
ACT
Status LED Color
GSM Green
ACT Yellow
13
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Mic-in Jack
Connector type: 5-pin jack, 25.9x12.6x17.0mm Connector location: CN20
Pin Definition
1 MIC_L
2 NA
3 NA
4 MIC_R
5 GND
6 GND
Line-out Jack
Connector type: 5-pin jack, 25.9x12.6x17.0mm Connector location: CN19
Pin Definition
1 LOUT_R
2 NA
3 NA
4 LOUT_L
5 GND
6 GND
14
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
SIM Card Connector
Connector location: IDE1
Pin Definition Pin Definition
C1 3VSB C2 RESET
C3 CLK C5 GND
C6 VCCP C7 DATA
SW GND
HDMI Connector
Connector type: HDMI Connector location: J6
19
18
Pin Definition Pin Definition
1 HDMID_D2P 2 HDMID_GND
3 HDMID_D2N 4 HDMID_D1P
5 HDMID_GND 6 HDMID_D1N
7 HDMID_D0P 8 HDMID_GND
9 HDMID_D0N 10 HDMID_LKP
11 HDMID_GND 12 HDMID_LKN
13 NC 14 NC
15 HDMID_CTL_CLK 16 HDMID_CTL_SDA
17 HDMID_GND 18 VCC5
19 HPD MH1 HDMID_GND
MH2 HDMID_GND
1
2
15
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Status Indicators
Connector location: LED3
PWR
HDD
Status LED Color
PWR Green
HDD Yellow
LAN1/LAN2 Link/Active LEDs
Connector location: LED1 and LED2
LINK1
LINK2
ACT1
ACT2
Pin Definition
C1 LAN2_LINK_N
C2 LAN2_ACT_N
A1 LAN2_LINK_P
A2 LAN2_ACT_P
16
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
ATX Power On/Off Switch
Connector location: SW1
Pin Definition
On Blue light
Off Red light
Pin Definition Pin Definition
1 GND 2 PBT_PU
3 PBT_PU 4 GND
A1 PWRLED_N C1 PWRLED_P
MH1 NC MH2 NC
17
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
External I/O Interface - Rear Panel
Remote Power On/Off Switch
Connector type: 2-pin switch Connector location: J3
1 2
Pin Definition
1 GND
2 PBT_PU
PS/2 Keyboard/Mouse Port
Connector type: PS/2, Mini-DIN-6; JST-2.0mm-M-180 Connector location: J5
6 4
Pin Definition Pin Definition
5 3
2
1
1 5VSB_KB 2 KDAT
3 KCLK 4 MDAT
5 MCLK 6 KBMS_GND
16
18
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
9V-30V DC Input
Connector type: POWER-F-90 Connector location: CN1
1
3
Pin Definition Pin Definition
1 VIN 2 VIN
3 GND 4 GND
5 GND MH1 GND
MH2 GND MH3 GND
MH4 GND
2 4
GPIO Connector
(4 digital input and 4 digital output)
Connector type: DB-15 port; 2x5 10-pin header, 2.0 mm-M-180 Connector location: JP2
15
1115
Pin Definition Pin Definition
1 VCC5 2 GND
3 SIO_GPO24 4 SIO_GPI20
5 SIO_GPO25 6 SIO_GPI21
7 SIO_GPO26 8 SIO_GPI22
9 SIO_GPO27 10 SIO_GPI23
2
1
10
9
19
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Serial Interface (COM 1 - COM 4)
Connector type: 44-pin D-Sub, 2x22 (12.55mm x 53.04mm) Connector location: CN2
30
15
44
44-pin D-Sub
1
31
16
The 44-pin D-Sub connector is used to connect 4 external serial devices. Use the COM ports on the provided “DB44 to 4x DB9 COM port cable” (included in the package) to connect the devices.
1 5
6
COM port
9
Pin Definition Pin Definition
1 CN10_1 2 CN10_2
3 CN10_3 4 CN10_4
5 GND_COM 6 CN10_6
7 CN10_7 8 CN10_8
9 CN10_9 10 GND
11 CN10_11 12 CN10_12
13 CN10_13 14 CN10_14
15 GND_COM 16 CN10_16
17 CN10_17 18 CN10_18
19 CN10_19 20 GND_COM
21 CN10_21 22 CN10_22
23 CN10_23 24 CN10_24
25 GND_COM 26 CN10_26
27 CN10_27 28 CN10_28
29 CN10_29 30 GND_COM
31 CN10_31 32 CN10_32
33 CN10_33 34 CN10_34
35 GND_COM 36 CN10_36
37 CN10_37 38 CN10_38
39 SP4_RI_TI 40 GND_COM
41 NC 42 NC
43 NC 44 NC
MH1 GND_COM MH2 GND_COM
20
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
COM1 (RS232) labelled “A“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
1 1 DCD1 2 2 RXD1
3 3 TXD1 4 4 DTR1
5 5 GND 6 6 DSR1
7 7 RTS1 8 8 CTS1
9 9 RI1 10 GND
COM2 (RS232) labelled “B“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
11 1 DCD2 12 2 RXD2
13 3 TXD2 14 4 DTR2
15 5 GND 16 6 DSR2
17 7 RTS2 18 8 CTS2
19 9 RI2 20 GND
COM3 (RS232) labelled “C“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
21 1 DCD3 22 2 RXD3
23 3 TXD3 24 4 DTR3
25 5 GND 26 6 DSR3
27 7 RTS3 28 8 CTS3
29 9 RI3 30 GND
COM4 (RS232) labelled “D“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
31 1 DCD4 32 2 RXD4
33 3 TXD4 34 4 DTR4
35 5 GND 36 6 DSR4
37 7 RTS4 38 8 CTS4
39 9 RI4 40 GND
Note: Pin 39 is defined as an external power source, which can be selected for 5V or 12V using J9.
COM2 (RS422) labelled “B“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
11 1 TXD- 12 2 TXD+
13 3 RXD+ 14 4 RXD-
15 5 GND 16 6 RTS-
17 7 RTS# 18 8 CTS+
19 9 CTS- 20 GND
21
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
COM2 (RS485) labelled “B“ on DB9 Cable Connector
DB44 Pin # DB9 Pin # Def. DB44 Pin # DB9 Pin # Def.
11 1 TXD- 12 2 TXD+
RXD- RXD+
13 3 Reserved 14 4 Reserved
15 5 Reserved 16 6 Reserved
17 7 Reserved 18 8 Reserved
19 9 Reserved 20 Reserved
LAN1 Port
Connector type: RJ45 port with LEDs Connector location: CN3B
Act Link
Act Status
Orange Blinking
Off No Acitivity
Pin Definition Pin Definition
09 LAN1_M0P 10 LAN1_M0N
11 LAN1_M1P 12 LAN1_M2P
13 LAN1_M2N 14 LAN1_M1N
15 LAN1_M3P 16 LAN1_M3N
17 LAN1_LED1P 18 LAN1_LED_ACT#
19 LAN1_LED2P 20 LAN1_LINK#
21 UL_GND 24 UL_GND
25 UL_GND 28 UL_GND
Data Activity
Link Status
Green Always Lighted
Off No Link
Linked
22
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
LAN2 Port
Connector type: RJ45 port with LEDs Connector location: CN6B
Act Link
Act Status
Orange Blinking
Off No Acitivity
Pin Definition Pin Definition
09 LAN2_M0P 10 LAN2_M0N
11 LAN2_M1P 12 LAN2_M2P
13 LAN2_M2N 14 LAN2_M1N
15 LAN2_M3P 16 LAN2_M3N
17 LAN2_LED1P 18 LAN2_LED_ACT#
19 LAN2_LED2P 20 LAN2_LINK#
21 UL_GND 24 UL_GND
25 UL_GND 28 UL_GND
Data Activity
Link Status
Green Always Lighted
Off No Link
Linked
USB1 Ports
Connector type: Dual USB port Connector location: CN3A
Pin Definition Pin Definition
1 P5V_USB_P01 7 USB1+
2 USB0- 8 UL_GND
3 USB0+ 22 UL_GND
4 UL_GND 23 UL_GND
5 P5V_USB_P01 26 UL_GND
6 USB1- 27 UL_GND
23
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
USB2 Ports
Connector type: Dual USB port Connector location: CN6A
Pin Definition Pin Definition
1 P5V_USB_P23 7 USB3+
2 USB2- 8 UL_GND
3 USB2+ 22 UL_GND
4 UL_GND 23 UL_GND
5 P5V_USB_P23 26 UL_GND
6 USB3- 27 UL_GND
VGA Port
Connector type: DB-15 port, 15-pin D-Sub Connector location: CN9B
15
1115
Pin Definition Pin Definition
1 RED_VGA 10 DVI_GND
2 GREEN_VGA 11 DVI_GND
3 BLUE_VGA 12 DATA_V
4 DVI_GND 13 HS_VGA
5 DVI_GND 14 VS_VGA
6 DVI_GND 15 CLK_V
7 DVI_GND MH3 DVI_GND
8 DVI_GND MH4 DVI_GND
9 VGA_+5V
24
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
DVI-I Port
o
Connector type: 29-pin D-Sub, Female 90 Connector location: CN9A
81
2417
Pin Function Pin Function
01 HDMI_DATA2_N 2 HDMI_DATA2_P
03 DVI_GND 4 NC
05 NC 6 HDMI_CTL_CLK
07 HDMI_CTL_SDA 8 DC_VSYNC_VGA
09 HDMI_DATA1_N 10 HDMI_DATA1_P
11 DVI_GND 12 NC
13 NC 14 HDMIC_PWR_S
15 DVI_GND 16 HDMIC_HPDET
17 HDMI_DATA0_N 18 HDMI_DATA0_P
19 DVI_GND 20 DC_DATA_VGA
21 DC_CLK_VGA 22 NC
23 HDMI_LKP 24 HDMI_LKN
C1 DC_RED_VGA C2 DC_GREEN_VGA
C3 DC_BLUE_VGA C4 DC_HSYNC_VGA
C5A DVI_GND C5B DVI_GND
Speaker-out Jack
Connector type: 5-pin jack, 25.9x12.6x17.0mm Connector location: CN11B
Pin Definition
22 FRONT_LCI
23 AU_GND
24 FRONT-JD
25 FRONT_RCI
NH1 NC
25
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Mic-in Jack
Connector type: 5-pin jack, 25.9x12.6x17.0mm Connector location: CN11A
Pin Definition
1 AU_GND
2 MIC_OUT-L
3 AU_GND
4 MIC_JD1
5 MIC_OUT-R
MH1 AU_GND
MH2 AU_GND
MH3 AU_GND
MH4 AU_GND
26
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Internal Connectors
DC Power Output Connector
Connector type: 2x2 AUX Power Connector location: CON1
123
4
Pin Definition
1 GND
2 GND
3 VIN
4 VIN
Reset Connector
Connector type: 1x2 2-pin header, JST 2.5mm-M-90 Connector location: J2
1 2
Pin Definition
1 PM_RESET#_JP
2 GND
27
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
SMBus DATA/CLK Connector
Connector type: 1x3 3-pin header 2.54mm-M-180 Connector location: J8
1
3
Pin Definition
1 SMB_CLK
2 SMB_DATA
3 GND
LVDS Backlight Power Select
Connector type: 1x3 3-pin header 2.54mm-M-180 Connector location: JP3
1
3
Pin Definition
1 VCC5
2 PANEL1_VDD
3 VCC3
2-3 On: default
28
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
LVDS Connectors
Connector type: LCD-1.25mm-M-180 Connector location: CN7, CN8
MH1
1
2
Pin Definition Pin Definition
1 L_DDC_CLK 2 L_DDC_DATA
3 VDD 4 LA_DATAP0
5 LA_DATAP3 6 LA_DATAN0
7 LA_DATAN3 8 VDD
9 GND_LVDS 10 LA_DATAP1
11 LA_CLKP 12 LA_DATAN1
13 LA_CLKN 14 GND_LVDS
15 GND_LVDS 16 PANEL1_BACKLIGHT
17 LA_DATAP2 18 PANEL1_BACKLIGHT
19 LA_DATAN2 20 GND_LVDS
MH1 GND MH2 GND
19
20
MH2
LVDS Backlight Connector
Connector type: 1x7 7-pin header JST-2.5mm-M-180 Connector location: J13
7
1
Pin Definition
1 VCC5
2 PANEL1_BACKLIGHT
3 PANEL1_BACKLIGHT
4 L_BKLTCTL_R
5 GND
6 GND
7 L_BKLTEN
29
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Line-in Connector
Connector type: 1x4 4-pin header 2.5mm-M-180 Connector location: J15
1
Pin Definition
1 LINE1-LP
2 GND
3 LINE1-JD
4 LINE1-RP
4
SATA1 Port
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN12
1
Pin Definition
1 GND
2 SATA_TXP0
3 SATA_TXN0
4 GND
5 SATA_RXN0
6 SATA_RXP0
7 GND
7
30
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
SATA2 Port
Connector type: Standard Serial ATAII 7P (1.27mm, SATA-M-180) Connector location: CN13
1
Pin Definition
1 GND
2 SATA_TXP1
3 SATA_TXN1
4 GND
5 SATA_RXN1
6 SATA_RXP1
7 GND
7
SATA1 Power Connector
Connector type: 1x4 4-pin Wafer, 2.54mm-M-180 Connector location: CN15
1
4
Pin Definition
1 +12V
2 GND
3 GND
4 VCC5
31
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
SATA2 Power Connector
Connector type: 1x4 4-pin Wafer, 2.54mm-M-180 Connector location: CN14
1
4
Pin Definition
1 +12V
2 GND
3 GND
4 VCC5
SATA DOM Power Connectors
Connector type: 1x2 2-pin JST wafer, 2.54mm pitch Connector location: J16, J17
1 2
Pin Definition
1 +12V
2 GND
32
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
GPS Connector
Connector type: 1x6 6-pin JST, 2.54 mm pitch Connector location: J19
16
Pin Definition
1 3VSB
2 NA
3 COM6_TXD
4 COM6_RXD
5 GND
6 VCC3
MH1 GND
MH2 GND
Power-on LED Connector
Connector type: 1x3 3-pin JST wafer, 2.54mm pitch Connector location: J20
3
Pin Definition
1
1 V_IN
2 LED_PWRN
3 GND
33
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
USB4 Connector
Connector type: 1x6 6-pin JST, JST-2.0mm-M-180 Connector location: J12
1
6
Pin Definition
1 P5V_USB_P1011
2 USB10-
3 USB10+
4 NA
5 NA
6 USB2_GND
COM4 RI# Connector
Connector type: 1x5 5-pin header 2.0mm -M-180 Connector location: J9
1
5
Pin Definition
1 VCC5
2 SP4_RI_T
3 +12V
4 SP4_RI_T
5 SP4_RI
4-5 On: default
34
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
COM5 Connector
Connector type: 2x5 10-pin boxed header, 2.0mm-M-180 Connector location: CN5
2 1
Pin Definition Pin Definition
1 SP5_DCD 2 SP5_RXD
3 SP5_TXD 4 SP5_DTR
5 GND_COM5 6 SP5_DSR
7 SP5_RTS 8 SP5_CTS
9 SP5_RI 10 GND_COM5
10
9
GPIO LED Connector
Connector type: 2x2 4-pin 2.0mm -M-180 Connector location: JP1
1 2 3 4
Pin Definition
1 GPO_LED0
2 GND
3 GPO_LED1
4 GND
35
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
PCI Slot
Connector type: 2x62 3.3V slot Connector location: CN16
Pin Definition Pin Definition
A1 PCI_SLOT_TRST# B1 -12V
A2 +12V B2 PCI_SLOT_TCK
A3 PCI_SLOT_TMS B3 GND
A4 PCI_SLOT_TDI B4 NC
A5 VCC5 B5 VCC5
A6 PCI_SLOT_IRQ#0 B6 VCC5
A7 PCI_SLOT_IRQ#2 B7 PCI_SLOT_IRQ#1
A8 VCC5 B8 PCI_SLOT_IRQ#3
A9 PCI_SLOT_RSV1 B9 PCI_SLOT_PRSNT1#
A10 VCC5 B10 PCI_SLOT_RSV5
A11 PCI_SLOT_RSV2 B11 PCI_SLOT_PRSNT2#
A12 GND B12 GND
A13 GND B13 GND
A14 3VSB B14 PCI_CLK1
A15 PCI_SLOT_RST# B15 GND
A16 VCC5 B16 PCI_CLK0
A17 PCI_GNT#0 B17 GND
A18 GND B18 PCI_SLOT_REQ#0
A19 PCI_SLOT_PME# B19 VCC5
Pin Definition Pin Definition
A20 PCI_AD30 B20 PCI_AD31
A21 VCC3 B21 PCI_AD29
A22 PCI_AD28 B22 GND
A23 PCI_AD26 B23 PCI_AD27
A24 GND B24 PCI_AD25
A25 PCI_AD24 B25 VCC3
A26 PCI_SLOT_IDSEL B26 PCI_CBE#3
A27 VCC3 B27 PCI_AD23
A28 PCI_AD22 B28 GND
A29 PCI_AD20 B29 PCI_AD21
A30 GND B30 PCI_AD19
A31 PCI_AD18 B31 VCC3
A32 PCI_AD16 B32 PCI_AD17
A33 VCC3 B33 PCI_CBE#2
A34 PCI_FRAME# B34 GND
A35 GND B35 PCI_IRDY#
A36 PCI_TRDY# B36 VCC3
A37 GND B37 PCI_DEVSEL#
A38 PCI_STOP# B38 GND
A39 VCC3 B39 PCI_LOCK#
A40 SMBCLK_PCI B40 PCI_PERR#
A41 SMBDATA_PCI B41 VCC3
A42 GND B42 PCI_SERR#
A43 PCI_PAR B43 VCC3
A44 PCI_AD15 B44 PCI_CBE#1
36
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Pin Definition Pin Definition
A45 VCC3 B45 PCI_AD14
A46 PCI_AD13 B46 GND
A47 PCI_AD11 B47 PCI_AD12
A48 GND B48 PCI_AD10
A49 PCI_AD9 B49 GND
A52 PCI_CBE#0 B52 PCI_AD8
A53 VCC3 B53 PCI_AD7
A54 PCI_AD6 B54 VCC3
A55 PCI_AD4 B55 PCI_AD5
A56 GND B56 PCI_AD3
A57 PCI_AD2 B57 GND
A58 PCI_AD0 B58 PCI_AD1
A59 VCC5 B59 VCC5
A60 PU1_REQ64# B60 PU1_ACK64#
A61 VCC5 B61 VCC5
A62 VCC5 B62 VCC5
37
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
PCIe x4 Slot
Connector type: PCIe x4 Connector location: CN17
Pin Definition Pin Definition
A1 PCIE_PRSNT1 B1 +12V
A2 +12V B2 +12V
A3 +12V B3 +12V
A4 GND B4 GND
A5 CL_CLK B5 SMB_CLK
A6 CL_RST# B6 SMB_DATA
A7 USB5+ B7 GND
A8 CL_DATA B8 VCC3
A9 VCC3 B9 USB5-
A10 VCC3 B10 3VSB
A11 PLT_RST_DVO_PCIE# B11 PCIE_WAKE#
A12 GND B12 NC
A13 CLK_PCIE_PCIE4_P B13 GND
A14 CLK_PCIE_PCIE4_N B14 PCIE_TXP5_PCIE4
A15 GND B15 PCIE_TXN5_PCIE4
A16 PCIE_RXP5_PCIE4 B16 GND
A17 PCIE_RXN5_PCIE4 B17 CLK_REQ#PCIE4
A18 GND B18 GND
A19 NC B19 PCIE_TXP6_PCIE4
Pin Definition Pin Definition
A20 GND B20 PCIE_TXN6_PCIE4
A21 PCIE_RXP6_PCIE4 B21 GND
A22 PCIE_RXN6_PCIE4 B22 GND
A23 GND B23 PCIE_TXP7_PCIE4
A24 GND B24 PCIE_TXN7_PCIE4
A25 PCIE_RXP7_PCIE4 B25 GND
A26 PCIE_RXN7_PCIE4 B26 GND
A27 GND B27 PCIE_TXP8_PCIE4
A28 GND B28 PCIE_TXN8_PCIE4
A29 PCIE_RXP8_PCIE4 B29 GND
A30 PCIE_RXN8_PCIE4 B30 NC
A31 GND B31 PCIE_PRSNT2
A32 NC B32 GND
38
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Mini-PCIe Slot
Connector location: CN18
2
51152
Pin Definition Pin Definition
1 MIC_R 2 3VSB
3 MIC_L 4 GND
5 LOUT_R 6 V1_5
7 LOUT_L 8 3VSB
9 GND 10 UIM_DATA
11 PCIE_MINI_CLK_N 12 UIM_CLK
13 PCIE_MINI_CLK_P 14 UIM_RESET
15 GND 16 UIM_VCCP
17 GND 18 GND
19 GND 20 3VSB
21 GND 22 PLT_RST
23 PCIE_MINI_RXN 24 3VSB
25 PCIE_MINI_RXP 26 GND
27 GND 28 V1_5
29 GND 30 SMB_CLK
Pin Definition Pin Definition
31 PCIE_MINI_TXN 32 SMB_DAT
33 PCIE_MINI_TXP 34 GND
35 GND 36 USB_N
37 GND 38 USB_P
39 3VSB 40 GND
41 3VSB 42 WLAN_ACT
43 GND 44 WLAN_ACT
45 NA 46 WLAN_ACT
47 NA 48 V1_5
49 NA 50 GND
51 NA 52 3VSB
39
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
Smart Fan1 Connector
Connector type: 1x4 4-pin Wafer, 2.54mm-M-180 Connector location: J1
4
1
Pin Definition
1 GND
2 +12V
3 CPUFANIN_P
4 CPUFANOUT_R
Smart Fan2 Connector
Connector type: 1x4 4-pin Wafer, 2.54mm-M-180 Connector location: J14
4
1
Pin Definition
1 GND
2 +12V
3 SYSFANIN_P
4 SYSFANOUT_R
40
NISE 3520 Series User Manual
Chapter 2: Jumpers and Connectors
External LED Connector
Connector type: 2x7 14-pin header 2.54mm-M-180 Connector location: J4
2
1
Pin Description Pin Description
14
13
1 LED_PWRN 2 LED_PWRP
3 HD_LEDN 4 LED_HDDP
5 LAN1_LINK# 6 LAN1_LINKP
7 LAN1_LED_ACT# 8 LAN1_ACTP
9 LAN2_LINK# 10 LAN2_LINKP
11 LAN2_LED_ACT# 12 LAN2_ACTP
13 NC 14 NC
41
NISE 3520 Series User Manual
Chapter 3: System Setup
Chapter 3: System Setup
Removing the Chassis Cover
Prior to removing the chassis cover, make sure the unit’s power is off and disconnected from the power sources to prevent electric shock or system damage.
1. The screws on the cover are used to secure the cover to the chassis.
2. Remove these screws and then put them in a safe place for later use.
The dots denote the locations of the screws.
3. Lift up the cover and then remove it from the chassis.
42
NISE 3520 Series User Manual
Chapter 3: System Setup
Installing a DIMM
1. Push the ejector tabs which are at the ends of the socket outward. This indicates that the socket is unlocked.
Ejector
tab
DIMM sockets
2. Note how the module is keyed to the socket. Grasping the module by its edges, align the module with the socket so that the “notch” on the module is aligned with the “key” on the socket. The key ensures the module can be plugged into the socket in only one direction.
Notch on the module
Key on the socket
43
NISE 3520 Series User Manual
Chapter 3: System Setup
3. Seat the module vertically, pressing it down firmly until it is completely seated in the socket. The ejector tabs at the ends of the socket will au­tomatically snap into the locked position to hold the module in place.
44
NISE 3520 Series User Manual
Chapter 3: System Setup
Installing the CPU
1. The CPU socket is readily accessible after you have removed the chassis cover.
CPU socket
• Make sure all power cables are unplugged before you install the CPU.
• The CPU socket must not come in contact with anything other than the CPU. Avoid unnecessary exposure.
2. Make sure the screw is in its unlock position. If it’s not, use a screw­driver to turn the screw to its unlock position.
Screw in unlocked position
45
NISE 3520 Series User Manual
Chapter 3: System Setup
3. Position the CPU above the socket. The gold triangular mark on the CPU must align with pin 1 of the CPU socket.
Pin 1
Gold triangular mark
Handle the CPU by its edges and avoid touching the pins.
4. Insert the CPU into the socket until it is seated in place. The CPU will fit in only one orientation and can easily be inserted without exerting any force. Use a screwdriver to turn the screw to its lock position.
Screw in locked position
Do not force the CPU into the socket. Forcing the CPU into the socket may bend the pins and damage the CPU.
46
NISE 3520 Series User Manual
Chapter 3: System Setup
5. Before you install the heat sink, apply thermal paste onto the top of the CPU. Do not spread the paste all over the surface. When you later place the heat sink on top of the CPU, the compound will disperse evenly.
6. Align the mounting holes of the heat sink with the mounting studs on the board and then secure the heat sink with the provided screws.
Mounting stud
47
NISE 3520 Series User Manual
Chapter 3: System Setup
Installing a SATA Hard Drive
1. With the bottom side of the chassis facing up, remove the screws of the bottom cover.
2. Remove the 4 mounting screws that secure the drive bay to the chassis.
If you are installing one SATA drive only, the system will allow you to install an optional CompactFlash card, a half length SATA DOM or a full length SATA DOM.
3. Remove the drive bay. The drive bay is used to hold a SATA hard drive.
48
NISE 3520 Series User Manual
Chapter 3: System Setup
4. Place the SATA hard drive on the drive bay. Make sure the connector side of the SATA drive is facing the opening of the drive bay.
5. Align the mounting holes that are on the sides of the SATA drive with the mounting holes on the drive bay then use the provided mounting screws to secure the drive in place.
Connector side of the SATA drive
6. Connect the SATA data cable and SATA power cable to the connectors on the SATA drive.
SATA power cable
SATA data cable
49
NISE 3520 Series User Manual
Chapter 3: System Setup
7. Use the provided mounting screws to secure the drive bay to the chas­sis.
50
NISE 3520 Series User Manual
Chapter 3: System Setup
Installing a Half Length SATA DOM with SATA HD (NISE 3520P2/3520P2E)
If you intend to install a half length SATA DOM, you may install one SATA hard drive only.
1. Prior to installing the SATA DOM, you must first place the drive bay shown below into the chassis.
2. Locate for the SATA connector on the board.
SATA connector
Drive bay
51
NISE 3520 Series User Manual
Chapter 3: System Setup
3. Align the SATA connector located on the solder side of the SATA DOM to the SATA connector that is on the board and then press it down firmly. Secure the SATA DOM with the provided mounting screw.
SATA DOM
Mounting screw
Solder side of
SATA DOM
SATA connector
52
NISE 3520 Series User Manual
Chapter 3: System Setup
Installing a Full Length SATA DOM
If you intend to install a full length SATA DOM, you may install one SATA hard drive only.
1. Prior to installing the full length SATA DOM, remove any drive bay that may have been previously installed.
2. Locate for the SATA connector on the board.
3. Align the SATA connector located on the solder side of the SATA DOM to the SATA connector that is on the board and then press it down firmly. Secure the SATA DOM with the provided mounting screw.
SATA DOM
Mounting screw
4. Before installing the single drive bay back, you must first replace the 4 mounting studs.
Now place the single drive bay by aligning the mounting holes of the
drive bay with the mounting studs.
Mounting hole
Solder side of
SATA DOM
SATA connector
53
NISE 3520 Series User Manual
Chapter 3: System Setup
5. Secure the drive bay with the provided mounting screws.
Mounting screw
54
NISE 3520 Series User Manual
Chapter 3: System Setup
Installing a Wireless LAN Module
1. Locate for the Mini PCI Express slot on the board.
Mini PCI
Express slot
2. Insert the wireless LAN module into the Mini PCI Express slot at a 45 degrees angle until the gold-plated connector on the edge of the mod­ule completely disappears inside the slot.
Wireless LAN module
Mini PCI Express slot
Wireless LAN
module
55
NISE 3520 Series User Manual
Chapter 3: System Setup
3. Push the module down and then secure it with mounting screws.
Attach one end of the RF cable onto the module.
RF cable
Mounting screw
4. Remove the antenna hole covers that is located at the front panel of the chassis.
Antenna hole covers
56
NISE 3520 Series User Manual
Chapter 3: System Setup
5. Insert the antenna jack end of the cable through the antenna hole. Insert the 2 rings (ring 1 and then ring 2) onto the antenna jack end of the cable.
Antenna jack
Jack end of the cable
6. Connect an external antenna to the antenna jack.
Antenna
57
NISE 3520 Series User Manual
Chapter 3: System Setup
Inserting the SIM Card
1. Insert the SIM card into the SIM card slot.
SIM Card
2. To take out the SIM card, push the yellow button using a pointed ob­ject.
Yellow button
58
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
Chapter 4: BIOS Setup
This chapter describes how to use the BIOS setup program for the NISE 3520 series. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.
About BIOS Setup
The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
▪ Hard drives, diskette drives, and peripherals ▪ Video display type and display options ▪ Password protection from unauthorized use ▪ Power management features
The settings made in the setup program affect how the computer per­forms. It is important, therefore, first to try to understand all the Setup options, and second, to make settings appropriate for the way you use the computer.
When to Configure the BIOS
This program should be executed under the following conditions:
▪ When changing the system configuration ▪ When a configuration error is detected by the system and you are
prompted to make changes to the Setup program
▪ When resetting the system clock ▪ When redefining the communication ports to prevent any conflicts ▪ When making changes to the Power Management configuration ▪ When changing the password or making other changes to the security
setup
Normally, CMOS setup is needed when the system hardware is not con­sistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.
59
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
Default Configuration
Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.
Entering Setup
When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:
▪ If the error occurs before the display device is initialized, a series of
beeps will be transmitted.
▪ If the error occurs after the display device is initialized, the screen will
display the error message.
Powering on the computer and immediately pressing <Del> allows you to enter Setup. Another way to enter Setup is to power on the computer and wait for the following message during the POST:
TO ENTER SETUP BEFORE BOOT PRESS <CTRL-ALT-ESC> Press the <Del> key to enter Setup:
Legends
Key Function
Right and Left arrows Moves the highlight left or right to select a
menu.
Up and Down arrows Moves the highlight up or down between sub-
menus or fields.
<Esc> Exits to the BIOS Setup Utility.
+ (plus key) Scrolls forward through the values or options of
the highlighted field.
- (minus key) Scrolls backward through the values or options of the highlighted field.
Tab Selects a field.
<F1> Displays General Help.
<F10> Saves and exits the Setup program.
<Enter> Press <Enter> to enter the highlighted sub-
menu.
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When “u“ appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press <Enter>.
60
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
BIOS Setup Utility
Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from six setup functions and one exit choices. Use arrow keys to select among the items and press <Enter> to accept or enter the submenu.
Main
The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Main
BIOS Information BIOS Vendor Core Version Project Version Build Date
Memory Information Total Memory
System Date System Time
Access Level
Advanced PCIPnP Boot Security
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
American Megatrends
4.6.3.7 N350-010 x64 07/28/2010 16:52:57
1024 MB (DDR3 1066)
[Wed 08/11/2010] [16:51:35]
Administrator
ExitChipset
Use [ENTER], [TAB] or [SHIFT-TAB] to
select a eld.
Use [+] or [-] to
congure system Time.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Memory Information
Displays the detected system memory information.
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Sunday to Saturday. Month displays the month, from January to De­cember. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second dis­plays seconds from 00 to 59.
BIOS Information
Displays the detected BIOS information.
61
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
Advanced
The Advanced menu allows you to configure your system for basic opera­tion. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Setting incorrect field values may cause the system to malfunc­tion.
Legacy OpROM Support
Launch PXE OpROM
u
S5 RTC Wake Settings
u
CPU Conguration
u
SATA Conguration
u
Intel IGD SWSCI OpRegion
u
Intel TXT(LT) Conguration
u
USB Conguration
u
Super IO Conguration
u
H/W Monitor
u
Thermal Conguration
u
AMT Conguration
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
PCIPnP Boot SecurityMain Advanced
[Disabled]
Enable or Disable Boot Option for Legacy Network Devices.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
ExitChipset
CPU Configuration
This section is used to configure the CPU. It will also display detected CPU information.
SATA Configuration
This section is used to configure the SATA drives.
Intel IGD SWSCI OpRegion
Configures the Intel graphics display.
Intel TXT(LT) Configuration
Configures the Intel Trusted Execution technology.
USB Configuration
Configures the USB devices.
Super IO Configuration
This section is used to configure the I/O functions supported by the on­board Super I/O chip.
H/W Monitor
This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.
Thermal Configuration
Configures the intelligent power sharing function.
AMT Configuration
Configures the AMT function.
Launch PXE OpROM
Enables or disables the boot option for legacy network devices.
S5 RTC Wake Settings
Configures the S5 RTC wake up setting.
62
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
S5 RTC Wake Settings
This section is used to configure the wake up function.
Advanced
Wake System with Fixed Time
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Disabled] Enable or Disable
system wake on alarm event. When enabled, system will wake on the hr::min::sec specied.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Wake System with Fixed Time
Enables or disables the system’s wake on alarm event. When enabled, the system will wake up on the specified time.
CPU Configuration
This section is used to configure the CPU. It will also display detected CPU information.
Advanced
CPU Conguration
Intel(R) Core(TM) i5 CPU M 540 @ 2.53GHz EMT64 Processor Speed Processor Stepping Microcode Revision Processor Cores Intel HT Technology
Hyper-Threading
Active Processor Cores Limit CPUID Maximum Hardware Prefetcher Adjacent Cache Line Prefetch Intel Virtualization Technology Power Technology TDC Limit TDP Limit
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
Supported 2527 MHz 20652 9 2 Supported
[Enabled]
[A11] [Disabled] [Enabled] [Enabled] [Disabled] [Energy Efcient] 0 0
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Hyper-Threading
Enable this field for Windows XP and Linux which are optimized for Hyper­Threading technology. Select disabled for other OSes not optimized for Hyper-Threading technology. When disabled, only one thread per enabled core is enabled.
Active Processor Cores
Used to enter the number of cores to enable in each processor package.
63
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
Limit CPUID Maximum
The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, en­able this field to limit the return value to 3 or lesser than 3.
Hardware Prefetcher
Turns on or off the MLC streamer prefetcher.
Adjacent Cache Line Prefetch
Enables or disables the adjacent cache line prefetch.
Intel Virtualization Technology
When this field is set to Enabled, the VMM can utilize the additional hard­ware capabilities provided by Vanderpool Technology.
Power Technology
Configures the power management features.
TDC Limit
Used to select the TDC limit.
TDP Limit
Used to select the TDP limit.
SATA Configuration
This section is used to configure the SATA drives.
Advanced
SATA Conguration
SATA Port 1 SATA Port 2 SATA Port 3 SATA Port 4
SATA Mode
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
Not Present Not Present Not Present Not Present
[IDE Mode]
(1) IDE Mode. (2) AHCI Mode. (3) RAID Mode.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
SATA Mode
IDE Mode This option configures the Serial ATA drives as Parallel ATA
storage devices.
AHCI Mode This option allows the Serial ATA devices to use AHCI (Ad-
vanced Host Controller Interface).
RAID Mode This option allows you to create RAID or Intel Matrix Stor-
age configuration on Serial ATA devices.
64
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
Intel IGD SWSCI OpRegion
This section is used to configure the Intel graphics display.
Advanced
Intel IGD SWSCI OpRegion Conguration
DVMT/FIXED Memory
IGD - Boot Type LCD Panel Type
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[256MB]
[CRT + DVI] [VBIOS Default]
Select DVMT/FIXED Mode Memory size used by Internal Graphics Device
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
DVMT/FIXED Memory
Selects the DVMT/FIXED mode memory size used by the internal graphics device.
IGD - Boot Type
Selects the video device that will be activated during POST. This will not affect any external graphics that may be present.
LCD Panel Type
Selects the LCD panel used by the internal graphics device.
Intel TXT(LT) Configuration
This section is used to configure the Intel Trusted Execution technology.
Advanced
Intel Trusted Execution Technology Conguration
Intel TXT(LT) Support
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Disabled]
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Intel TXT(LT) Support
The options are Enabled and Disabled.
65
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
USB Configuration
This section is used to configure USB devices.
Advanced
USB Conguration
USB Devices: 1 Mouse, 1 Hub
Legacy USB Support
EHCI Hand-off Device Reset Timeout
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Enabled]
[Enabled [20 Sec]
Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Legacy USB Support
Enabled Enables legacy USB. Auto Disables support for legacy when no USB devices are connect-
ed.
Disabled Keeps USB devices available only for EFI applications.
EHCI Hand-off
This is a workaround for OSes that does not support EHCI hand-off. The EHCI ownership change should be claimed by the EHCI driver.
Device Reset Timeout
Selects the USB mass storage device start unit command timeout.
Super IO Configuration
This section is used to configure the I/O functions supported by the on­board Super I/O chip.
Advanced
Super IO Conguration
Super IO Chip
u
Serial Port 0 Conguration
u
Serial Port 1 Conguration
u
Serial Port 2 Conguration
u
Serial Port 3 Conguration
u
Serial Port 4 Conguration
u
Serial Port 5 Conguration
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
ITE IT8783F
Set Parameters of Serial Port 1 (COMA)
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Serial Port 0 Configuration to Serial Port 5 Configuration
Selects the IO/IRQ setting of the I/O devices.
66
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
H/W Monitor
This section is used to configure the hardware monitoring events such as temperature, fan speed and voltages.
Advanced
PC Health Status
Fan Setting
System Temperature CPU Temperature System FAN Speed CPU FAN Speed CPU:Vcore +3.3V
+5V
+12V
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Always Full Speed]
: +30 C : +28 C
: N/A : N/A
: +1.056V : +3.296 V : +4.915V : +11.932 V
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Fan Setting
Selects the speed of the fan.
System Temperature and CPU Temperature
Detects and displays the internal temperature of the system and the cur­rent temperature of the CPU.
System Fan Speed to CPU Fan Speed
Detects and displays the current system fan and CPU fan speed in RPM (Revolutions Per Minute).
CPU:Vcore to +12V
Detects and displays the output voltages.
Thermal Configuration
This section is used to configure the intelligent power sharing function.
Advanced
Intelligent Power Sharing
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Disabled]
Intelligent power sharing conguration menu. Note: DTS must be enabled for Power Sharing to function.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Intelligent Power Sharing
Enables or disables the power sharing function.
67
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
AMT Configuration
This section is used to configure the AMT function.
Advanced
AMT
Uncongure AMT/ME Watchdog Timer
OS Watchdog Timer
BIOS Watchdog Timer
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Enabled]
[Disabled] [Disabled]
0 0
AMT Help
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
AMT
Enables or disables the AMT function.
Unconfigure AMT/ME
Select Enabled to unconfigure the AMT/ME function without the need for a password.
Watchdog Timer
Enables or disables the Watchdog Timer function.
OS Watchdog Timer
Selects the time interval of the OS Watchdog Timer.
BIOS Watchdog Timer
Selects the time interval of the BIOS Watchdog Timer.
68
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
Chipset
This section is used to configure the system based on the specific features of the chipset.
Setting incorrect field values may cause the system to malfunc­tion.
North Bridge
Chipset
CPU Type
Total Memory
Memory Slot 0 Memory Slot 1
CAS# Latency (tCL) RAS# Active Time (tRAS) Row Precharge Time (tRP) RAS# to CAS# Delay (tRCD) Write Recovery Time (tWR) Row Refresh Cycle Time (tRFC) Write to Read Delay (tWTR) Active to Active Delay (tRRD) Read CAS# Precharge (tRTP)
Initiate Graphic Adapter
VT-d
IGD Memory
BIOS SETUP UTILITY
Arrandale
1024 MB (DDR3 1066)
1024 MB (DDR3 1066) 0 MB (DDR3 1066)
7 20 7 7 8 60
4 4 5
[PEG/IGD]
[Disabled]
[32M]
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Initiate Graphic Adapter
Selects the graphics controller to use as the primary boot device.
VT-d
The options are Enabled and Disabled.
IGD Memory
Selects the internal graphics device’s shared memory size.
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
69
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
South Bridge
Chipset
SB Chipset Conguration
SMBus Controller
GbE Controller Wake On Lan From S5
Restore AC Power Loss
Audio Conguration
Azalia HD Audio
Azalia Internal HDMI Codec
High Precision Event Timer Conguration
High Precision Timer
u
USB Conguration
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Enable] [Enable] [Enable]
[Power On]
[Enabled] [Enabled]
[Enabled]
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
SMBus Controller
Enables or disables the SMBus controller.
GbE Controller
Enables or disables the Gigabit LAN controller.
Wake On Lan From S5
When enabled, it allows the system to wake up from S5 via the network LAN.
Restore AC Power Loss
Off When power returns after an AC power failure, the system’s power is
off. You must press the Power button to power-on the system.
On When power returns after an AC power failure, the system will auto-
matically power-on.
Azalia HD Audio
Enables or disables the Azalia HD audio.
Azalia Internal HDMI Codec
Enables or disables the Azalia internal HDMI codec.
High Precision Timer
Enables or disables the high precision event timer.
70
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
USB Configuration
BIOS SETUP UTILITY
[Enabled]
[Enabled] [Enabled]
Enable/Disable All USB Devices
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
USB Conguration
All USB Devices
EHCI Controller 1 EHCI Controller 2
Advanced
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
All USB Devices
Enables or disables all USB devices.
EHCI Controller 1 and EHCI Controller 2
Enables or disables the Enhanced Host Controller Interface (USB 2.0).
Intel ME Configuration
Chipset
Intel ME Subsystem Conguration
ME Version
ME Subsystem
End of Post Message Execute MEBx
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
6.0.3.1195
[Enabled]
[Enabled] [Enabled]
ME Subsystem
The options are Enabled and Disabled.
End of the POST Message
The options are Enabled and Disabled.
Execute MEBx
The options are Enabled and Disabled.
ME Subsystem Help
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
71
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
Boot
Main
Advanced
Boot Conguration
Quiet Boot
Fast Boot
Setup Prompt Timeout
Bootup NumLock State
CSM16 Module Version
GateA20 Active Option ROM Messages Interrupt 19 Capture
Boot Option Priorities
Boot Option #1 Boot Option #2
Hard Drive BBS Priorities
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
Quiet Boot
Enables or disables the quiet boot function.
Fast Boot
Enables or disables boot with initialization of a minimal set of devices required to launch active boot option. This doesn’t affect the BBS boot options.
Setup Prompt Timeout
Selects the number of seconds to wait for the setup activation key. 65535(0xFFFF) denotes indefinite waiting.
BIOS SETUP UTILITY
Boot
Security
[Disabled]
[Disabled] 1
[On]
07.60
[Upon Request] [Force BIOS] [Disabled]
[SATA: FUJITSU MH...] [Built-in EFI Shell]
Save & ExitChipset
Enables/Disables Quiet Boot option
← →: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Bootup NumLock State
This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.
Gate A20 Active
Configures the Gate A20 function.
Option ROM Messages
Configures the ROM messages.
Interrupt 19 Capture
When enabled, it allows the optional ROM to trap interrupt 19.
Boot Option #1 and Boot Option #2
Selects the boot sequence of the hard drives.
Hard Drive BBS Priorities
Sets the order of the legacy devices in this group.
72
NISE 3520 Series User Manual
Chapter 4: BIOS Setup
Security
Main
Advanced
Password Description
If only the Administrator ’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If only the User’s password is set, then this is a power on password and must be entered to boot or enter setup. In Setup the User will have Administrator rights.
Administrator Password
User Password
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
Administrator Password
Sets the administrator password.
User Password
Sets the user password.
BIOS SETUP UTILITY
Boot Security
Save & Exit
Main
Save & ExitChipset
Set Setup Administrator Password.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
Save Changes and Exit
Discard Changes and Exit Save Changes and Reset Discard Changes and Reset
Save Options
Save Changes Discard Changes
Restore Defaults Save as User Defaults Restore User Defaults
Boot Override
SATA: FUJITSU MHZ2080BH G2 Built-in EFI Shell
u
Advanced
Reset System with ME Disable Mode
Chipset
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
Save Changes and Exit
To save the changes and exit the Setup utility, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes. You can also press <F10> to save and exit Setup.
Discard Changes and Exit
To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting. You can also press <ESC> to exit without saving the changes.
Discard Changes
To discard the changes, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes to discard all changes made and restore the previously saved settings.
BIOS SETUP UTILITY
Boot Security Save & Exit
Reset the system after saving the changes.
← →: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt.
F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
73
NISE 3520 Series User Manual
Chapter 5: AMT Settings
Chapter 5: AMT Settings
Enable Intel® AMT in the AMI BIOS
1. In the Advanced menu, select AMT Configuration.
BIOS SETUP UTILITY
PCIPnP Boot SecurityMain Advanced
Legacy OpROM Support
Launch PXE OpROM
S5 RTC Wake Settings
CPU Conguration
SATA Conguration
Intel IGD SWSCI OpRegion
Intel TXT(LT) Conguration
USB Conguration
Super IO Conguration
H/W Monitor
Thermal Conguration
AMT Conguration
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
[Disabled]
ExitChipset
Enable or Disable Boot Option for Legacy Network Devices.
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
2. In the AMT field, select Enabled.
Advanced
AMT
Uncongure AMT/ME
Watchdog Timer OS Watchdog Timer
BIOS Watchdog Timer
Version 2.00.1201. Copyright (C) 2009 American Megatrends, Inc.
BIOS SETUP UTILITY
[Enabled]
[Disabled] [Disabled]
0 0
AMT Help
→ ←: Select Screen ↑↓: Select Item
Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save ESC: Exit
74
NISE 3520 Series User Manual
Chapter 5: AMT Settings
Configure the Intel® ME Setup
1. When the system reboots, the following message will be displayed. Press <Ctrl-P> as soon as the message is displayed; as this message will be dis­played for only a few seconds.
Intel(R) Management Engine BIOS Extension v6.0.3.0019 Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
Intel(R) ME Firmware version 6.0.3.1195 Press <CTRL-ALT F1> to enter Remote Assistance Press <CTRL-P> to enter Intel(R) ME Setup
2. You will be prompted for a password. The default password is “admin”. Enter the default password in the space provided under Intel(R) ME Pass­word and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ MAIN MENU ]
Intel(R) ME General Settings
Intel(R) AMT Conguration
Exit
Intel(R) ME Password
*****
[ESC] : Exit
[ENTER] : Submit
75
NISE 3520 Series User Manual
Chapter 5: AMT Settings
3. Enter a new password in the space provided under Intel(R) ME New Password and then press Enter. The new password must be based on the following rules to create a strong password security.
• Passwordlength-atleast8charactersandnotlongerthan32.  • Passwordcomplexity-thepasswordmustincludethefollowing.
- At least one digit character (0, 1, ...9)
- At least one 7-bit ASCII non alpha-numeric character (e.g. !, $, ;) but
excluding:,and”characters
- At least one lowercase letter (‘a’, ‘b’...’z’) and at least one uppercase
letter (‘A’, ‘B’...’Z’)
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ MAIN MENU ]
Intel(R) ME General Settings
Intel(R) AMT Conguration
Exit
Intel(R) ME New Password
4. You will be asked to verify the password. Enter the same new password in the space provided under Verify Password and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ MAIN MENU ]
Intel(R) ME General Settings
Intel(R) AMT Conguration
Exit
Verify Password
[ESC] : Exit
[ENTER] : Submit
[ESC] : Exit
[ENTER] : Submit
76
NISE 3520 Series User Manual
Chapter 5: AMT Settings
5. Select Intel(R) ME General Settings and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ MAIN MENU ]
Intel(R) ME General Settings
Intel(R) AMT Conguration
Exit
↑↓] : Select
[ESC] : Exit
[
[ENTER] : Access
6. Select Intel(R) ME State Control and then press Enter.
Select Enabled and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) ME PLATFORM CONFIGURATION ]
Intel(R) ME State Control
Change ME Password Password Policy Network Setup Activate Network Access
Uncongure Network Access Remote Setup and Conguration
FW Update Settings
[ESC] : Exit
[↑↓] : Select
[*] DISABLED
[*] ENABLED
[ENTER] : Access
77
NISE 3520 Series User Manual
Chapter 5: AMT Settings
7. Select Network Setup and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) ME PLATFORM CONFIGURATION ]
Intel(R) ME State Control Change ME Password Password Policy
Network Setup
Activate Network Access
Uncongure Network Access Remote Setup and Conguration
FW Update Settings
[ESC] : Exit
[↑↓] : Select
[ENTER] : Access
8. IntheIntel(R)NetworkSetupmenu,selectIntel(R) ME Network Name Settings then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) NETWORK SETUP ]
Intel(R) ME Network Name Settings
TCP/IP Settings Previous Menu
[ESC] : Exit
[↑↓] : Select
[ENTER] : Access
78
NISE 3520 Series User Manual
Chapter 5: AMT Settings
9. In the Intel(R) ME Network Name Settings menu, select Host Name and then press Enter.
Enterthecomputer’shostname(forexample:QM57)andthenpressEnter.
Select Previous Menu and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.9.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) ME NETWORK NAME SETTINGS ]
Host Name
Domain Name Shared/Dedicated FQDN Dynamic DNS Update Previous Menu
[ESC] : Exit
[↑↓] : Select
Computer host name
QM57
[ENTER] : Access
10. In the Network Setup menu, select TCP/IP Settings and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) NETWORK SETUP ]
Intel(R) ME Network Name Settings
TCP/IP Settings
Previous Menu
[ESC] : Exit
[↑↓] : Select
[ENTER] : Access
79
NISE 3520 Series User Manual
Chapter 5: AMT Settings
11. In the TCP/IP Settings menu, select Wired LAN IPV4 Configuration and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ TCP/IP SETTINGS ]
Wired LAN IPV4 Conguration
Wired LAN IPV6 Conguration
Previous Menu
[ESC] : Exit
[↑↓] : Select
[ENTER] : Access
12. Select DHCP Mode and then press Enter.
Select Enabled or Disabled and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ WIRED LAN IPV4 CONFIGURATION ]
DHCP Mode
Previous Menu
[ESC] : Exit
[↑↓] : Select
[*] DISABLED
[*] ENABLED
[ENTER] : Access
80
NISE 3520 Series User Manual
Chapter 5: AMT Settings
13. A list of options in the Wired LAN IPV4 Configuration menu will appear.
Select IPV4 Address and then press Enter. Enter an IP Address then
press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.9.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ WIRED LAN IPV4 CONFIGURATION ]
DHCP Mode
IPV4 Address
Subnet Mask Address Default Gateway Address Preferred DNS Address Alternate DNS Address Previous Menu
IP address (e.g. 123.123.123.100)
14. Select Subnet Mask Address and then press Enter.
Enter the subnet mask address and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ WIRED LAN IPV4 CONFIGURATION ]
DHCP Mode IPV4 Address
Subnet Mask Address
Default Gateway Address Preferred DNS Address Alternate DNS Address Previous Menu
[ESC] : Exit
[↑↓] : Select
Subnet mask (e.g. 255.255.255.0)
[ENTER] : Access
81
NISE 3520 Series User Manual
Chapter 5: AMT Settings
15. Select Default Gateway Address and then press Enter.
Enter the default gateway address and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ WIRED LAN IPV4 CONFIGURATION ]
DHCP Mode IPV4 Address Subnet Mask Address
Default Gateway Address
Preferred DNS Address Alternate DNS Address Previous Menu
[ESC] : Exit
[↑↓] : Select
Default Gateway Address
[ENTER] : Access
16. Select Previous Menu and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) NETWORK SETUP ]
Intel(R) ME Network Name Settings TCP/IP Settings
Previous Menu
[ESC] : Exit
[↑↓] : Select
[ENTER] : Access
82
NISE 3520 Series User Manual
Chapter 5: AMT Settings
17. Select Previous Menu until you return to the Intel(R) ME Platform Con- figuration menu.
Select Activate Network Access and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) ME PLATFORM CONFIGURATION ]
Intel(R) ME State Control Change ME Password Password Policy Network Setup
Activate Network Access
Uncongure Network Access Remote Setup and Conguration
FW Update Settings
[ESC] : Exit
[↑↓] : Select
[ENTER] : Access
18. TypeY and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) ME PLATFORM CONFIGURATION ]
Intel(R) ME State Control Change ME Password Password Policy Network Setup Activate Network Access
Uncongure Network Access Remote Setup and Conguration
FW Update Settings
[ESC] : Exit
Activates the current network settings and opens the ME network interface Continue: (Y/N)
[↑↓] : Select
[Caution]
[ENTER] : Access
83
NISE 3520 Series User Manual
Chapter 5: AMT Settings
19. In the Intel(R) ME Platform Configuration menu, select Unconfigure Network Access and then press Enter. Clear all network settings.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) ME PLATFORM CONFIGURATION ]
Intel(R) ME State Control Change ME Password Password Policy Network Setup
Uncongure Network Access
Remote Setup and Conguration
FW Update Settings Set PRTC
[ESC] : Exit
[↑↓] : Select
[ENTER] : Access
20. In the Intel(R) ME Platform Configuration menu, select Power Control and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) ME PLATFORM CONFIGURATION ]
Change ME Password Password Policy Network Setup
Uncongure Network Access Remote Setup and Conguration
FW Update Settings Set PRTC
Power Control
[ESC] : Exit
[↑↓] : Select
[ENTER] : Access
84
NISE 3520 Series User Manual
Chapter 5: AMT Settings
21. In the Intel(R) ME Power Control menu, select Intel(R) ME ON in Host Sleep States and then press Enter.
Select Mobile: ON in S0 and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) ME POWER CONTROL ]
Intel(R) ME ON in Host Sleep States
Idle Timeout Previous Menu
[ESC]=Exit
[*] Mobile: ON in S0
[*] Mobile: ON in S0, ME Wake in S3, S4-5 (AC only)
[↑↓]=Select
[ENTER]=Access
22. Select Previous Menu and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) ME PLATFORM CONFIGURATION ]
Password Policy Network Setup
Uncongure Network Access Remote Setup and Conguration
FW Update Settings Set PRTC Power Control
Previous Menu
[ESC] : Exit
[↑↓] : Select
[ENTER] : Access
85
NISE 3520 Series User Manual
Chapter 5: AMT Settings
23. Select Previous Menu until you return to the Main Menu. Select Intel(R) AMT Configuration.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ MAIN MENU ]
Intel(R) ME General Settings
Intel(R) AMT Conguration
Exit
↑↓]=Select
[ESC]=Exit
[
[ENTER]=Access
24. The message below will appear.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ MAIN MENU ]
Intel(R) ME General Settings
Intel(R) AMT Conguration
Exit
↑↓]=Select
[ESC]=Exit
Update network settings in the General Settings menu
[
[ENTER]=Access
86
NISE 3520 Series User Manual
Chapter 5: AMT Settings
25. In the Intel(R) AMT Configuration menu, select SOL/IDER and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ INTEL(R) AMT CONFIGURATION ]
Manageability Feature Selection
SOL/IDER
KVM Conguration
Previous Menu
[ESC]=Exit
[↑↓]=Select
[ENTER]=Access
26. In the SOL/IDER menu, select Username & Password and then press Enter.
Select Enabled and then press Enter.
Intel(R) Management Engine BIOS Extension v6.0.3.0019/Intel(R) ME v6.0.3.1195
Copyright(C) 2003-09 Intel Corporation. All Rights Reserved.
[ SOL/IDER ]
Username & Password
SOL IDER Legacy Redirection Mode Previous Menu
[ESC]=Exit
[↑↓]=Select
[*] DISABLED
[*] ENABLED
[ENTER]=Access
87
NISE 3520 Series User Manual
