NEXCOM NISE 301 User Manual

Download
NEXCOM International Co., Ltd.
IoT Automation Solutions
Fan-less Computer NISE 301
User Manual
NEXCOM International Co., Ltd.
Published April 2015
www.nexcom.com
Content
Contents
Preface
Copyright ............................................................................................. iv
Disclaimer .............................................................................................. iv
Acknowledgements ............................................................................... iv
Regulatory Compliance Statements ........................................................ iv
Declaration of Conformity ...................................................................... iv
RoHS Compliance ................................................................................... v
Warranty and RMA ................................................................................ vi
Safety Information ................................................................................viii
Installation Recommendations ...............................................................viii
Safety Precautions .................................................................................. ix
Technical Support and Assistance ............................................................ x
Conventions Used in this Manual ............................................................ x
Global Service Contact Information ........................................................ xi
Package Contents ................................................................................. xiii
Ordering Information ............................................................................xiv
Chapter 1: Product Introduction
Overview ................................................................................................1
Key Features ...........................................................................................1
Hardware Specifications ..........................................................................2
Knowing Your NISE 301 .......................................................................... 4

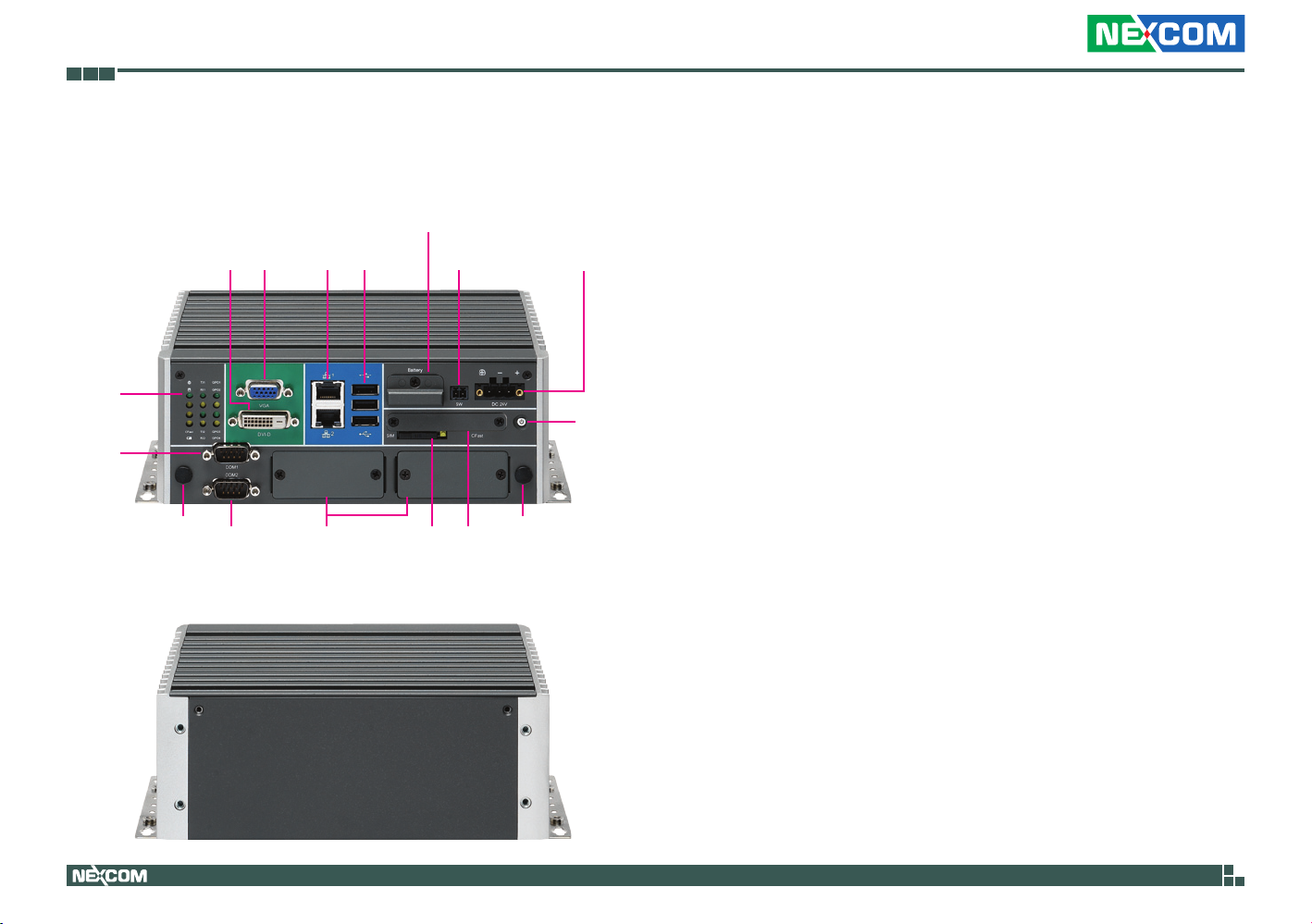

Front View ...........................................................................................4
Rear View ............................................................................................ 4

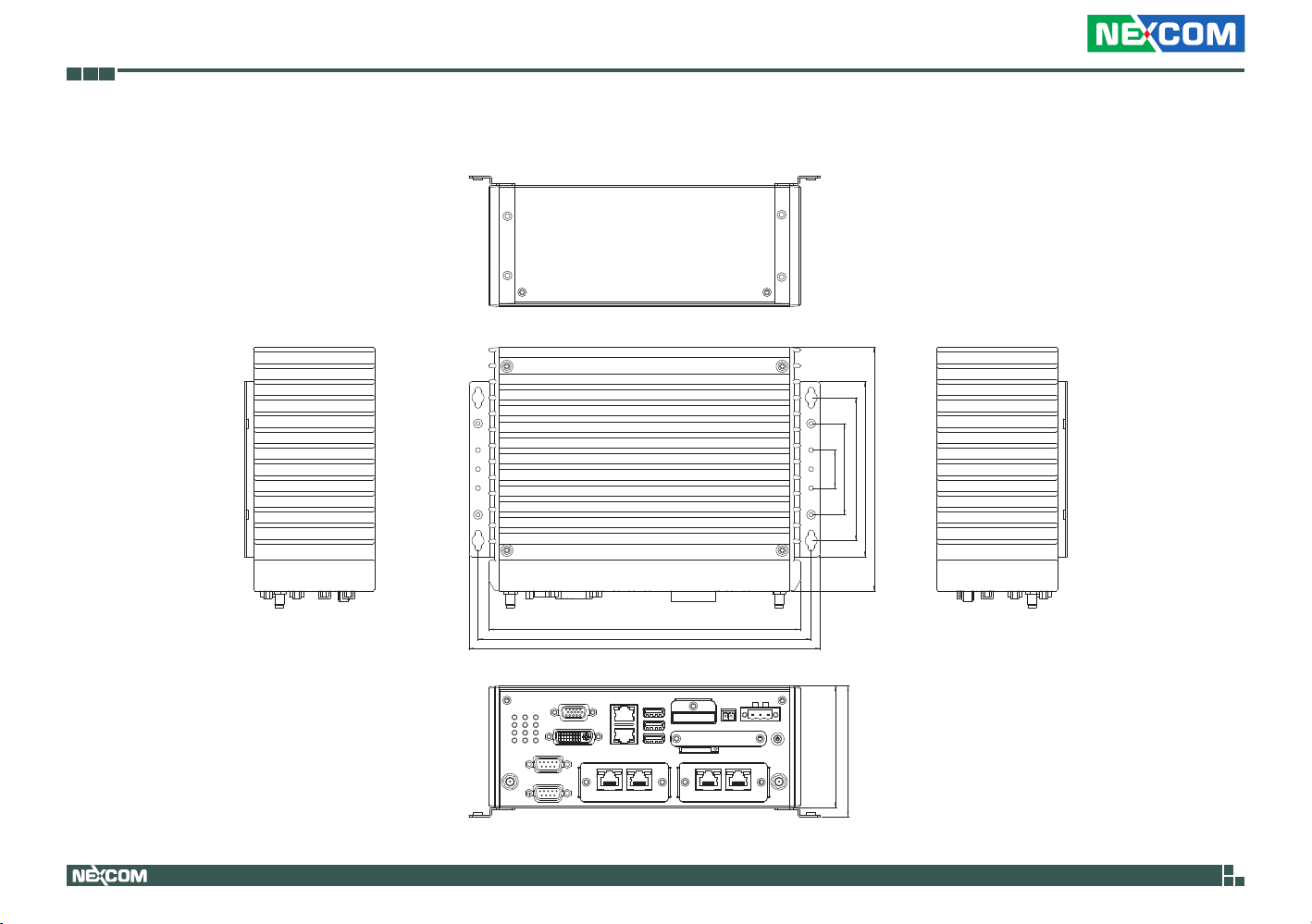

Mechanical Dimensions ...........................................................................5
Chapter 2: Jumpers and Connectors
Before You Begin ....................................................................................6
Precautions ............................................................................................6
Jumper Settings ......................................................................................7

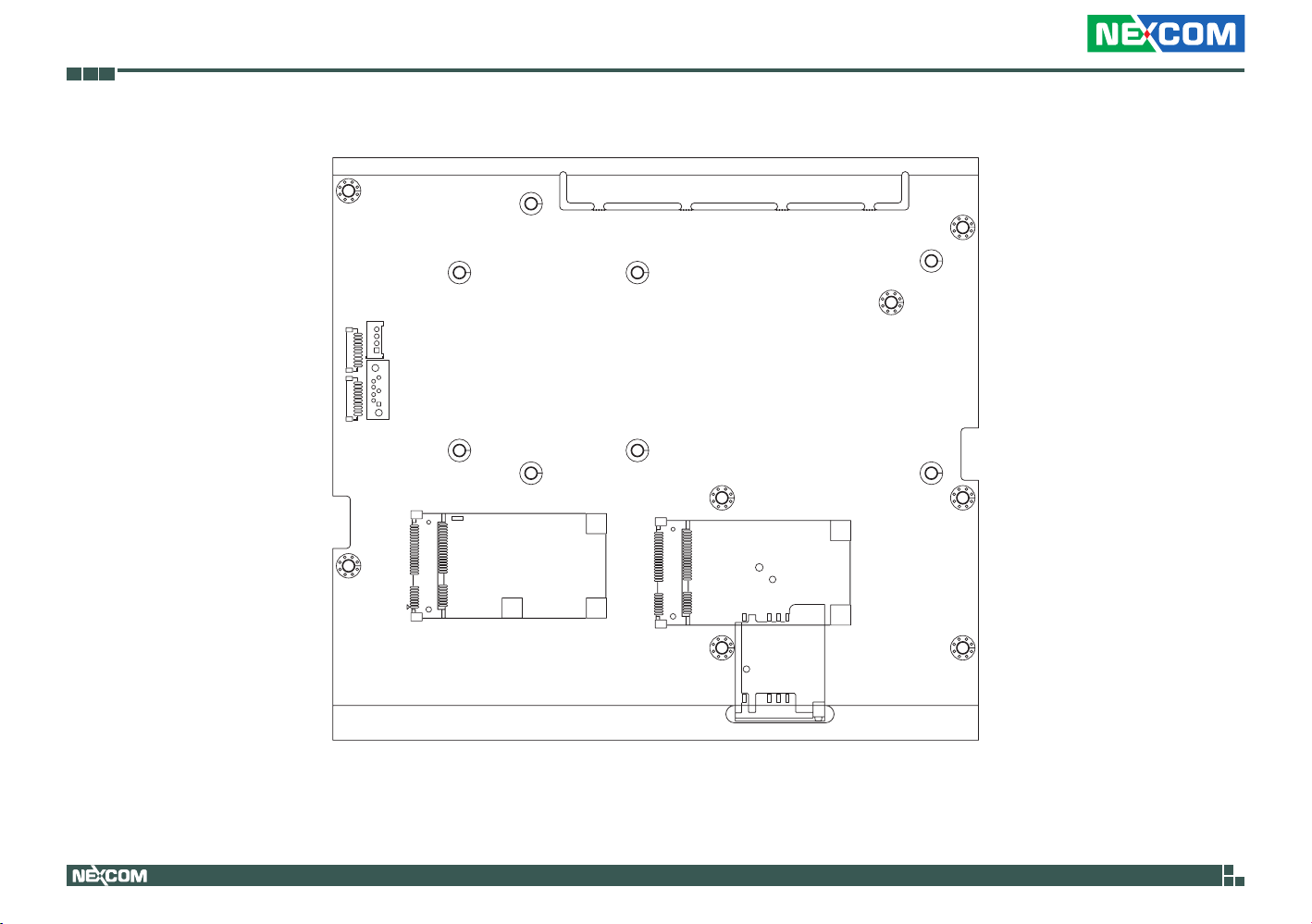

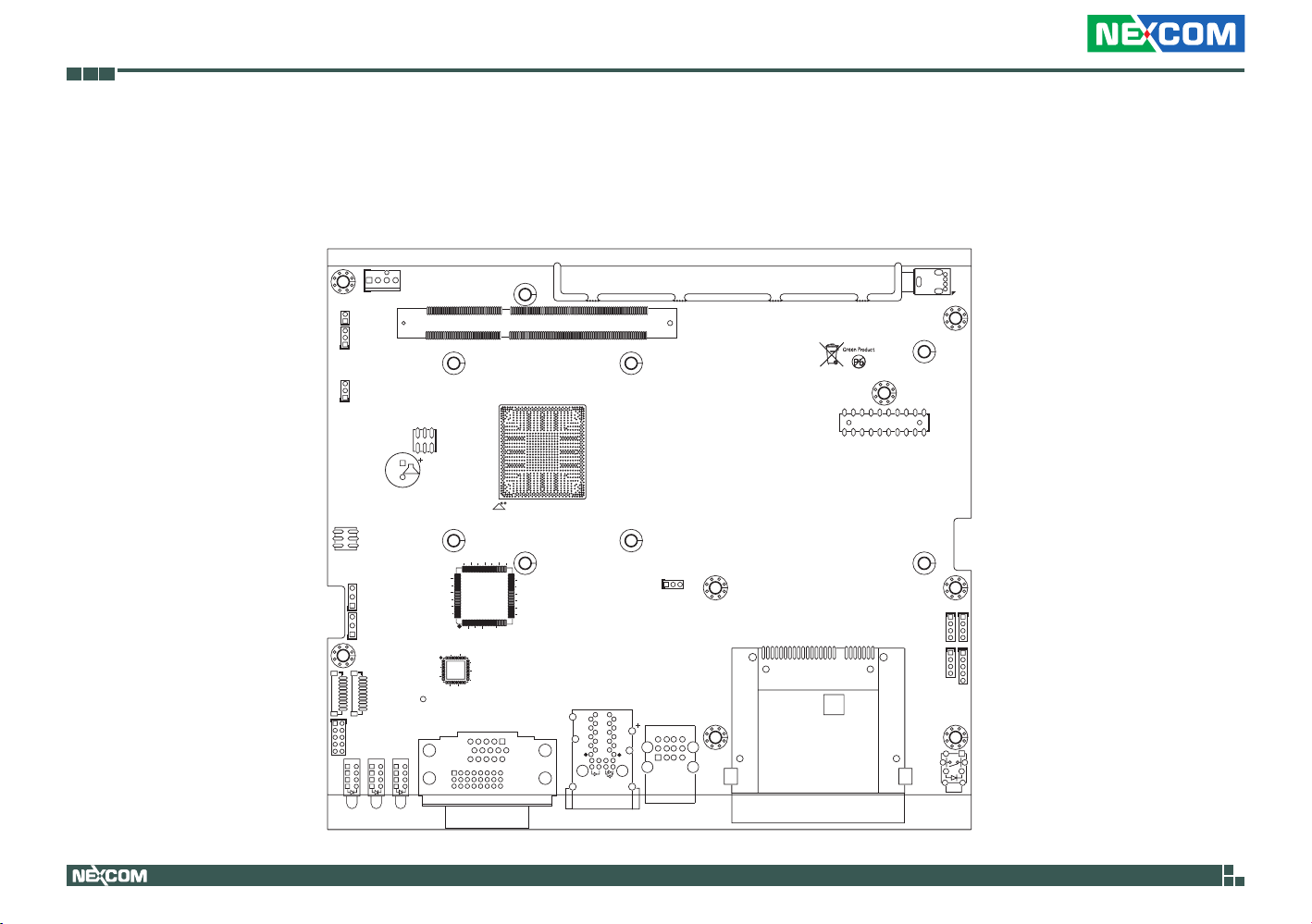

Locations of the Jumpers and Connectors for NISB 301 ........................... 8
Jumpers ................................................................................................ 10
AT/ATX Power Type Select ..................................................................10
RTC Clear Select ................................................................................ 10
RTC Clear Select ................................................................................ 11
COM1 RI# Pin Power Select ............................................................... 11
GSM/Dongle Switch Select ................................................................12
Connector Pin Definitions .....................................................................13
External I/O Interfaces - Front Panel ...................................................13

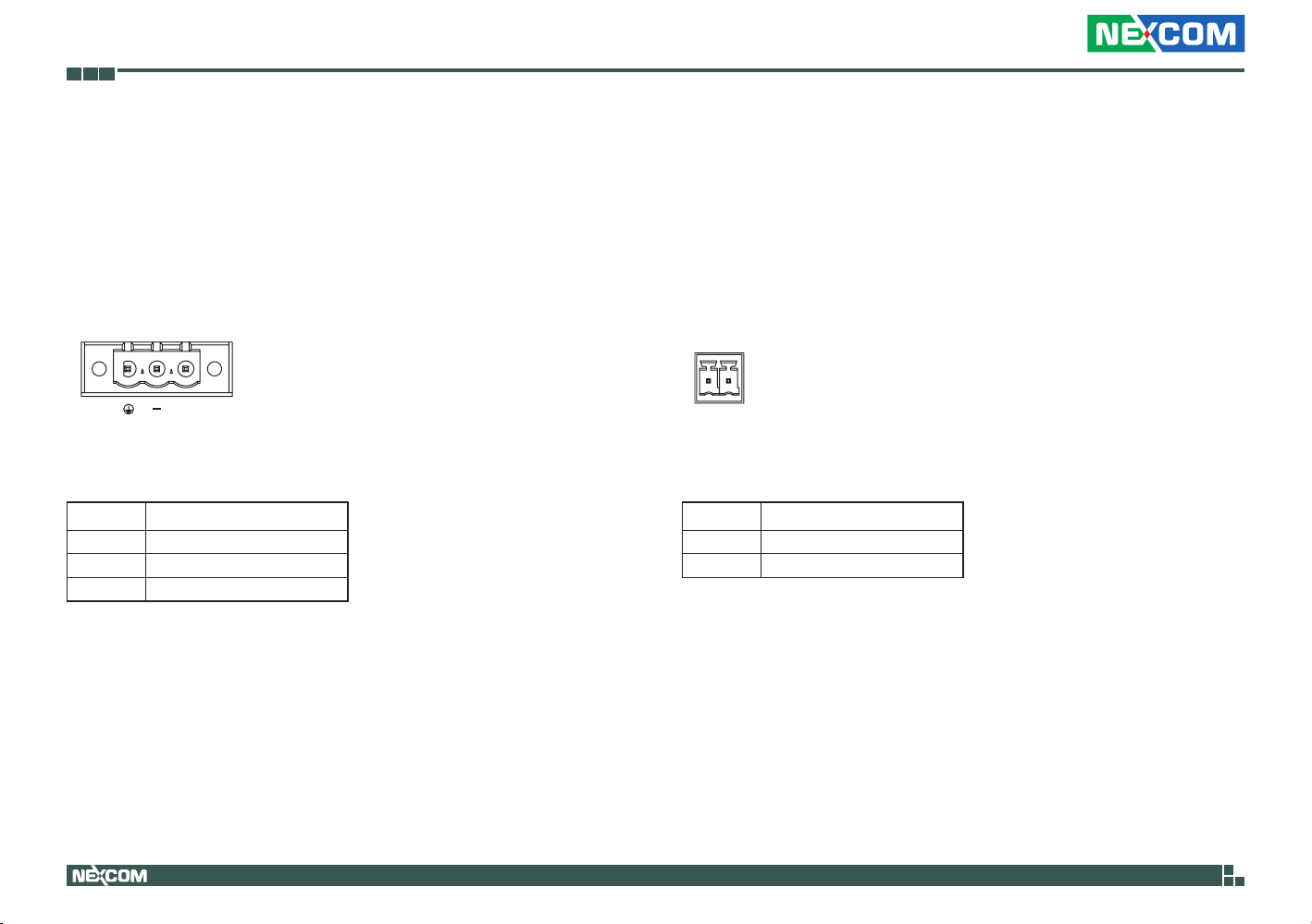

24V DC Power Input ......................................................................13
Remote Power On/Off Switch .........................................................13

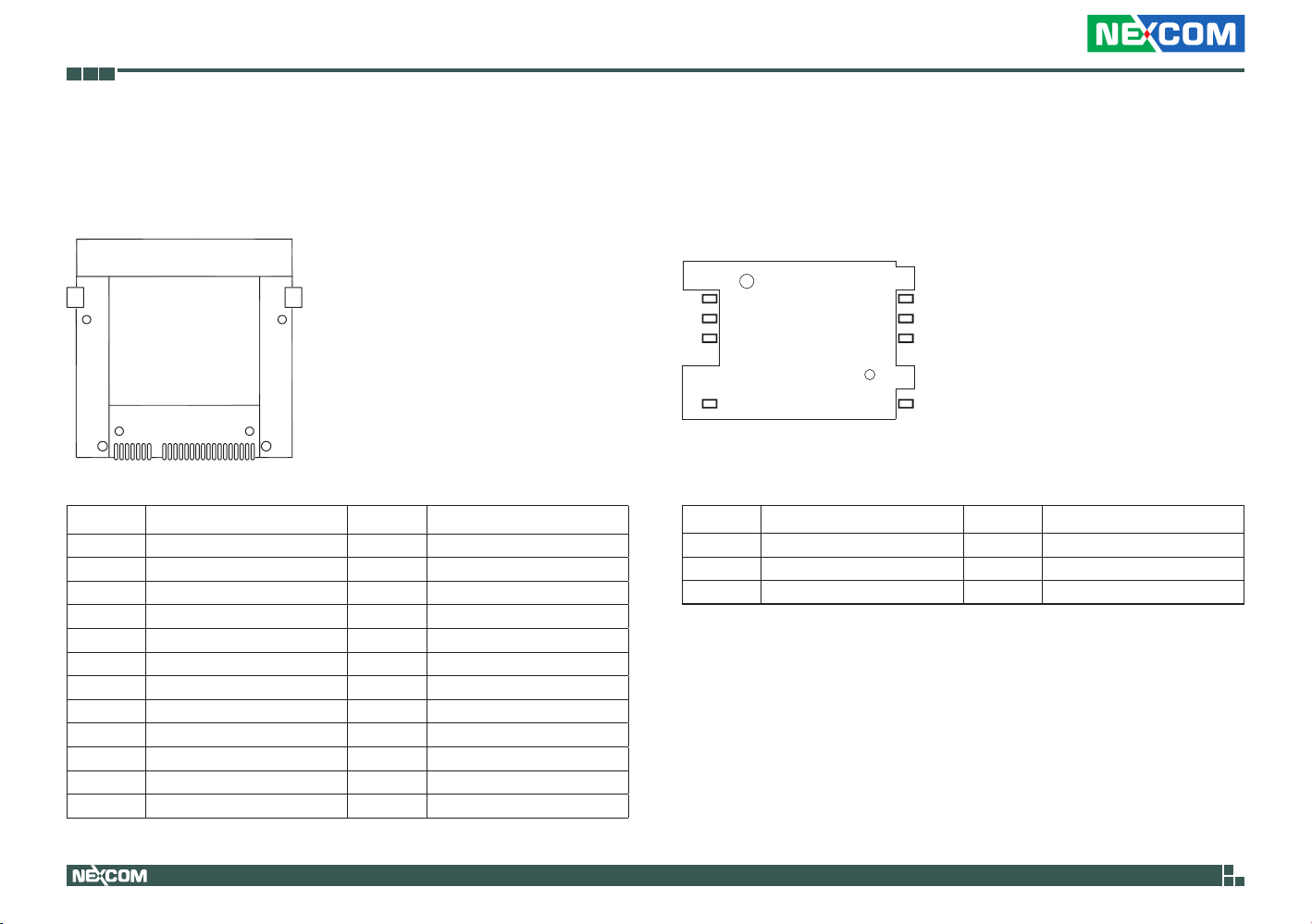

CFast .............................................................................................14
SIM Card Socket ............................................................................14

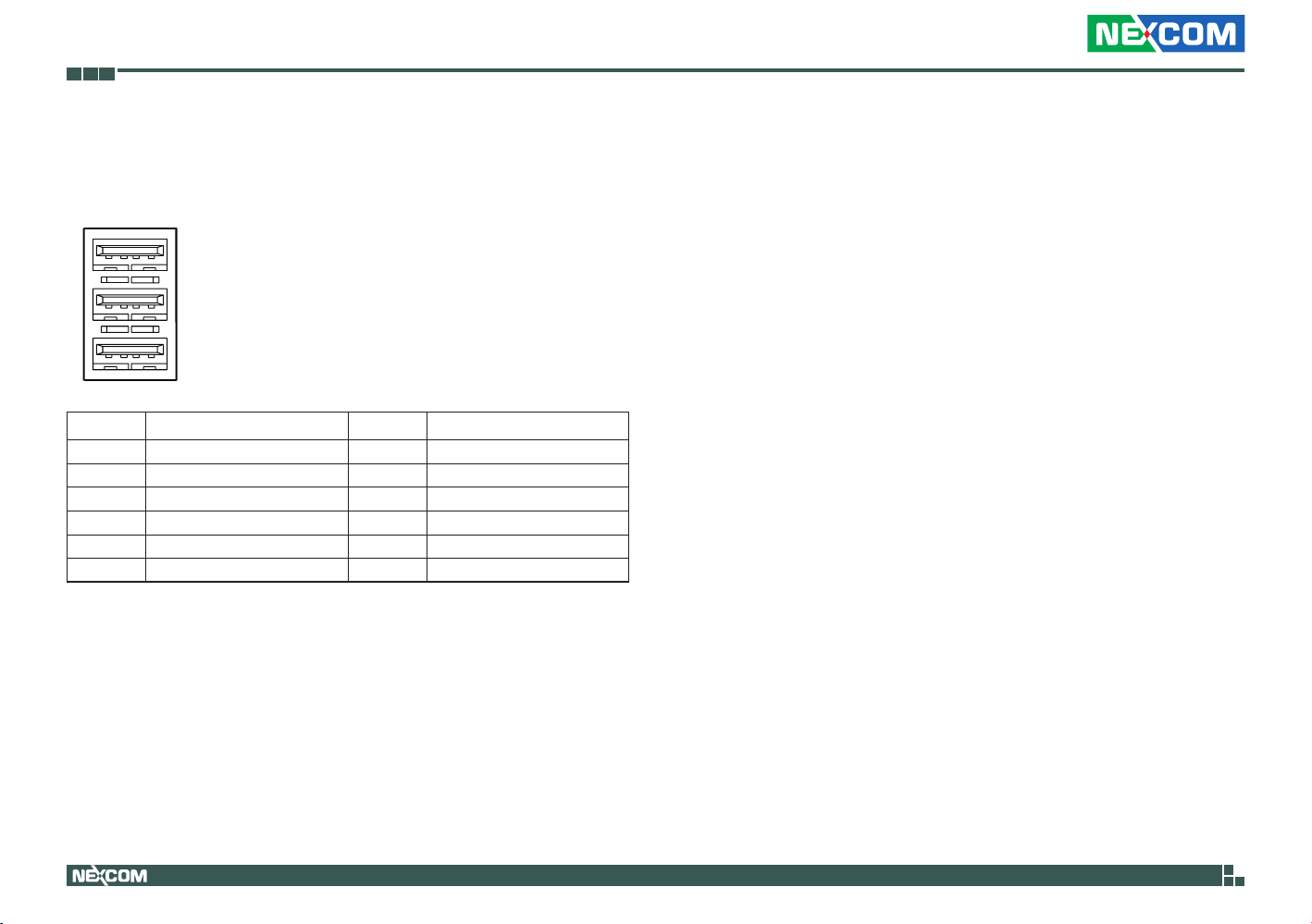

USB 2.0 Ports ................................................................................. 15
LAN1 and LAN2 Ports .....................................................................16

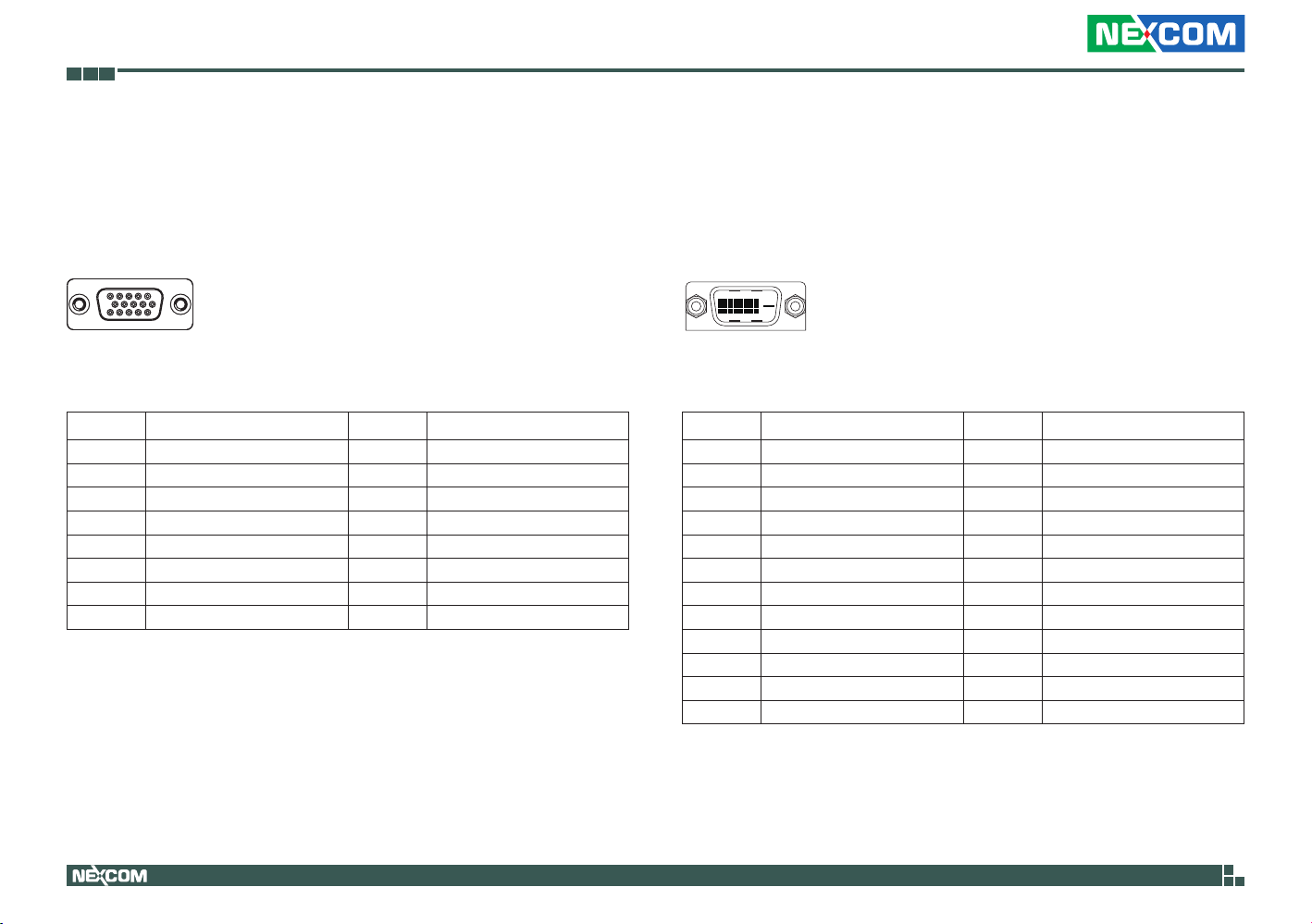

VGA ...............................................................................................17
DVI-D Connector ............................................................................17
COM 1 ..........................................................................................18
COM 2 ...........................................................................................18
Internal Connectors ........................................................................... 19
ATX Power Connector ....................................................................19
ii
NISE 301 User Manual
Content
System Reset .................................................................................. 19
SMBus ...........................................................................................20
System Fan Connector ..................................................................20
GPIO .............................................................................................. 21
COM Port 3 (RS232) .......................................................................21
COM Port 4 (RS232) .......................................................................22
Mic-in ............................................................................................22
Line-out .........................................................................................23
Line-in ............................................................................................23
Speaker-out ...................................................................................24
SATA Connector .............................................................................24
SATA Power Connector ..................................................................25
USB Connector (Dongle) ................................................................25

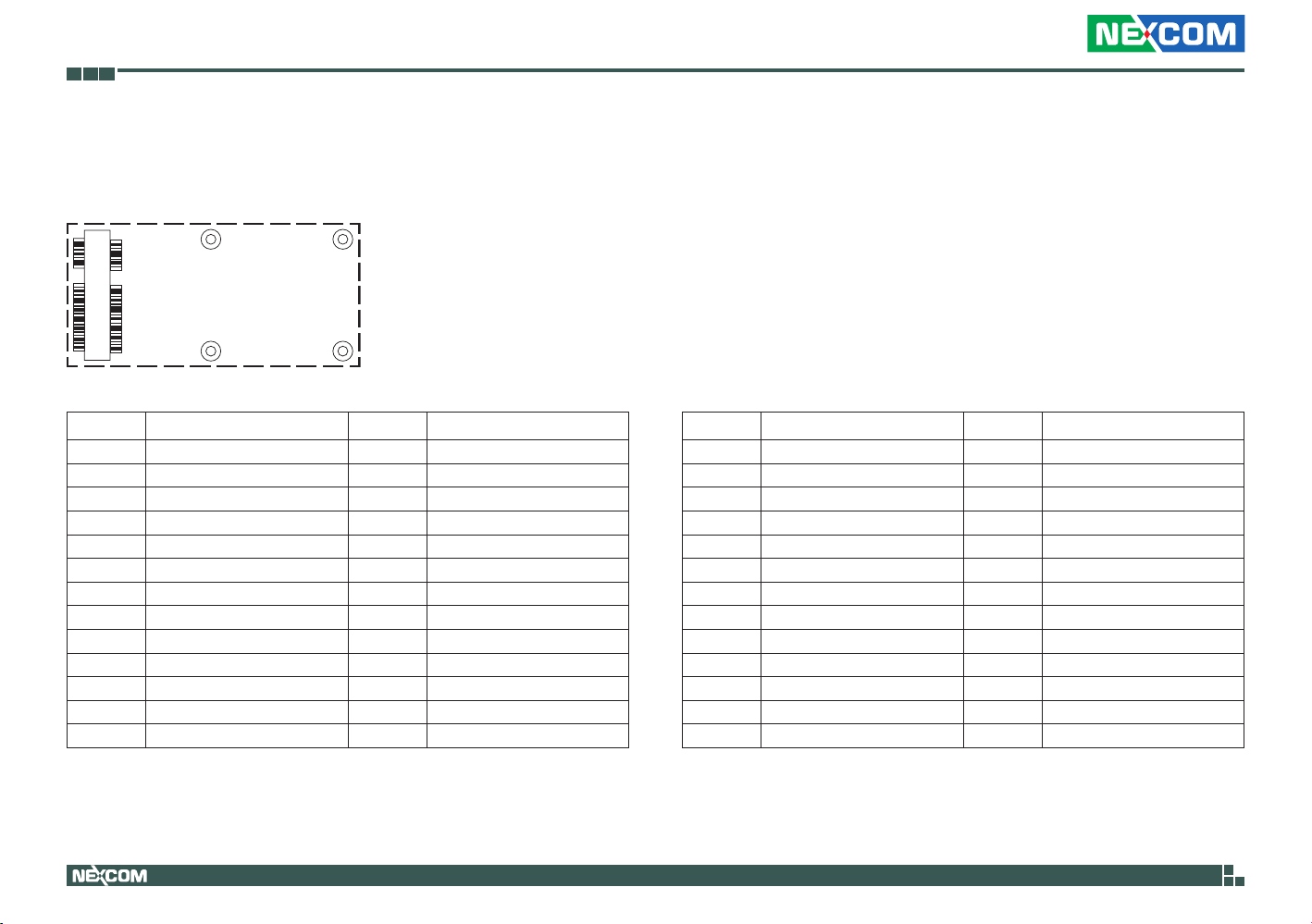

Mini-PCIe Connector (Wi-Fi) ........................................................... 26
Mini-PCIe Connector (3.5G/LTE) .....................................................27
Chapter 3: System Setup
Removing the Top Cover ...................................................................... 28
Removing the Bottom Cover ................................................................. 29

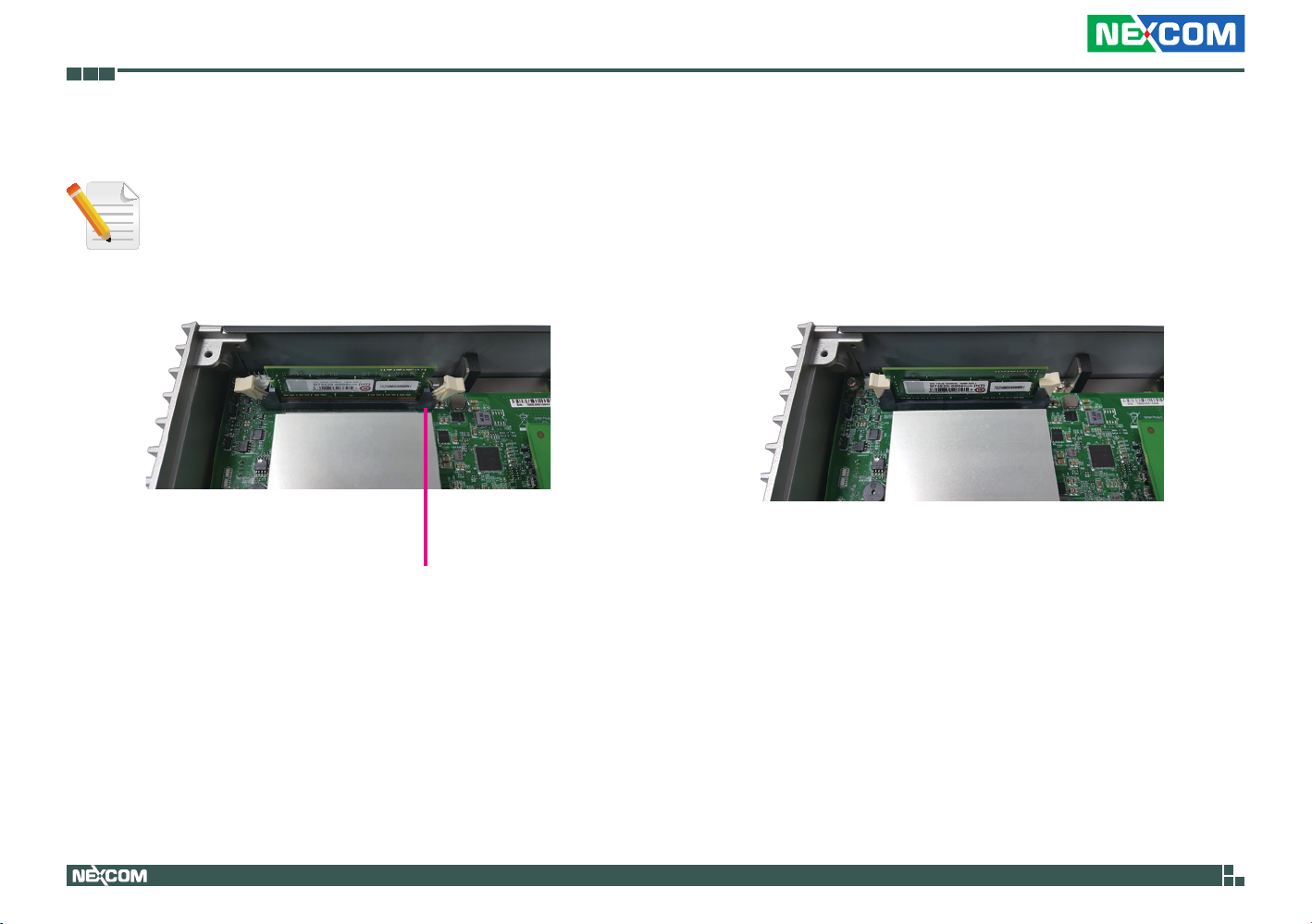

Installing a SO-DIMM Memory Module .................................................30

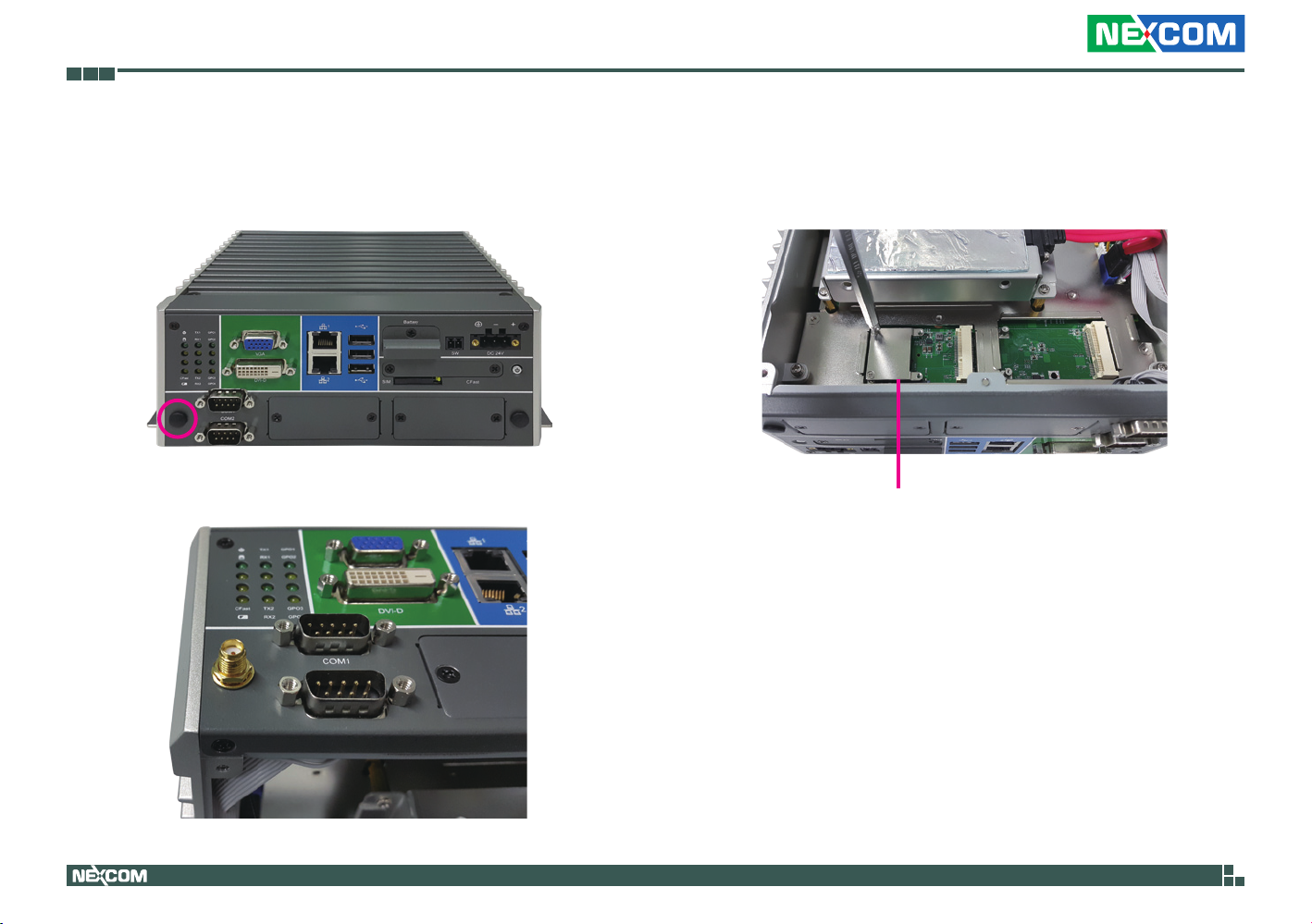

Installing a 3G/GSM Module .................................................................31

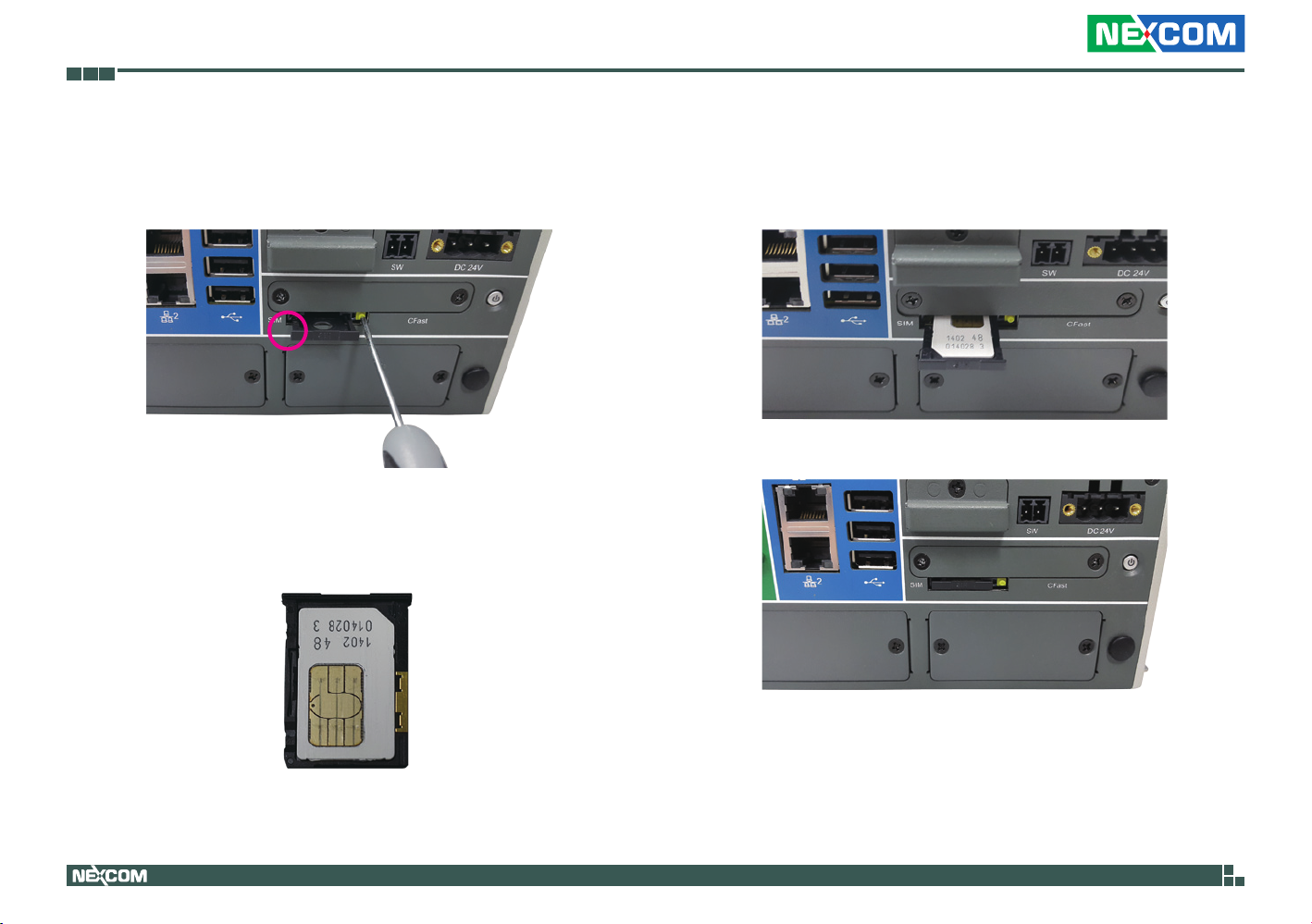

Installing a SIM Card .............................................................................33

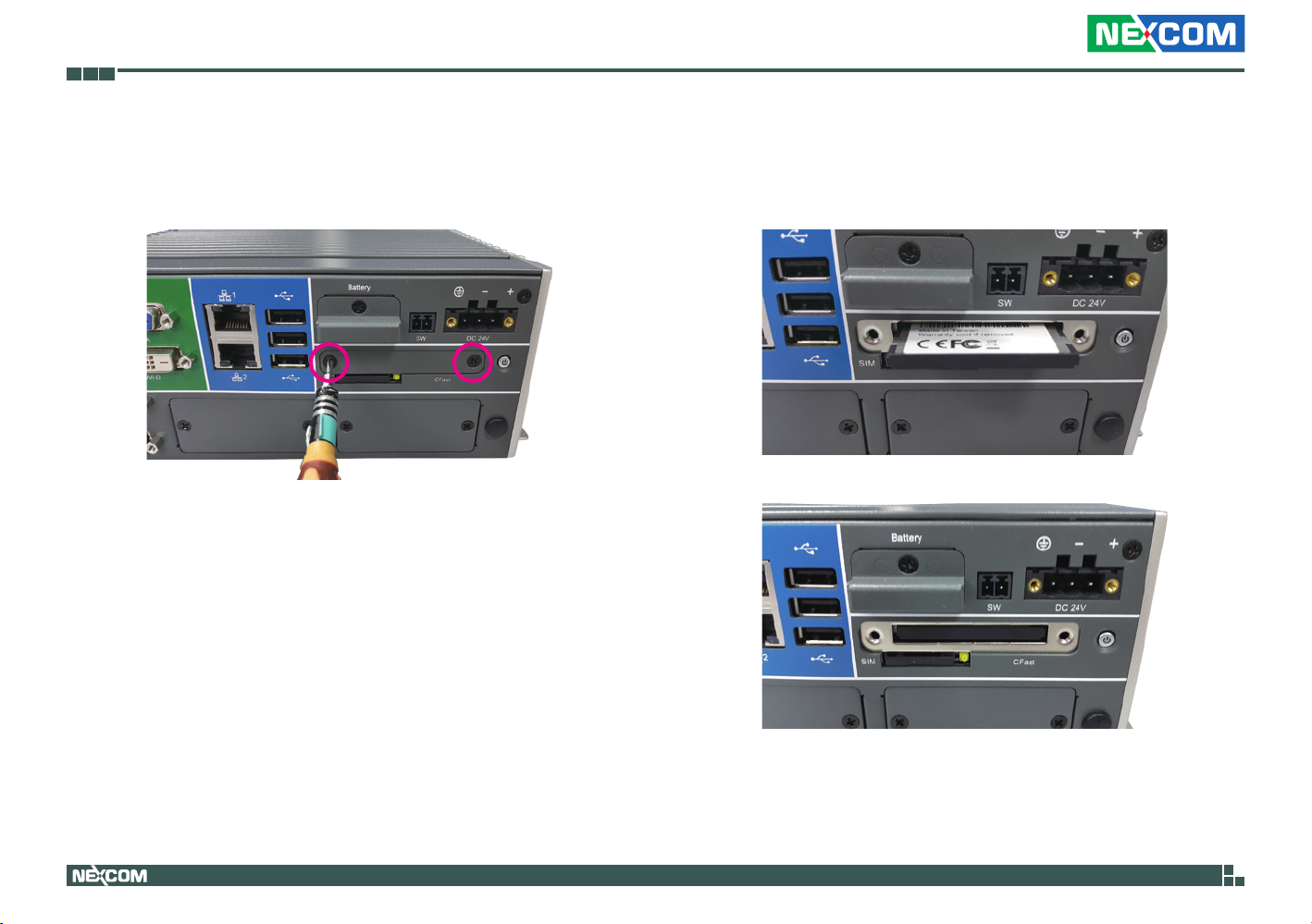

Installing a CFast Card ..........................................................................34

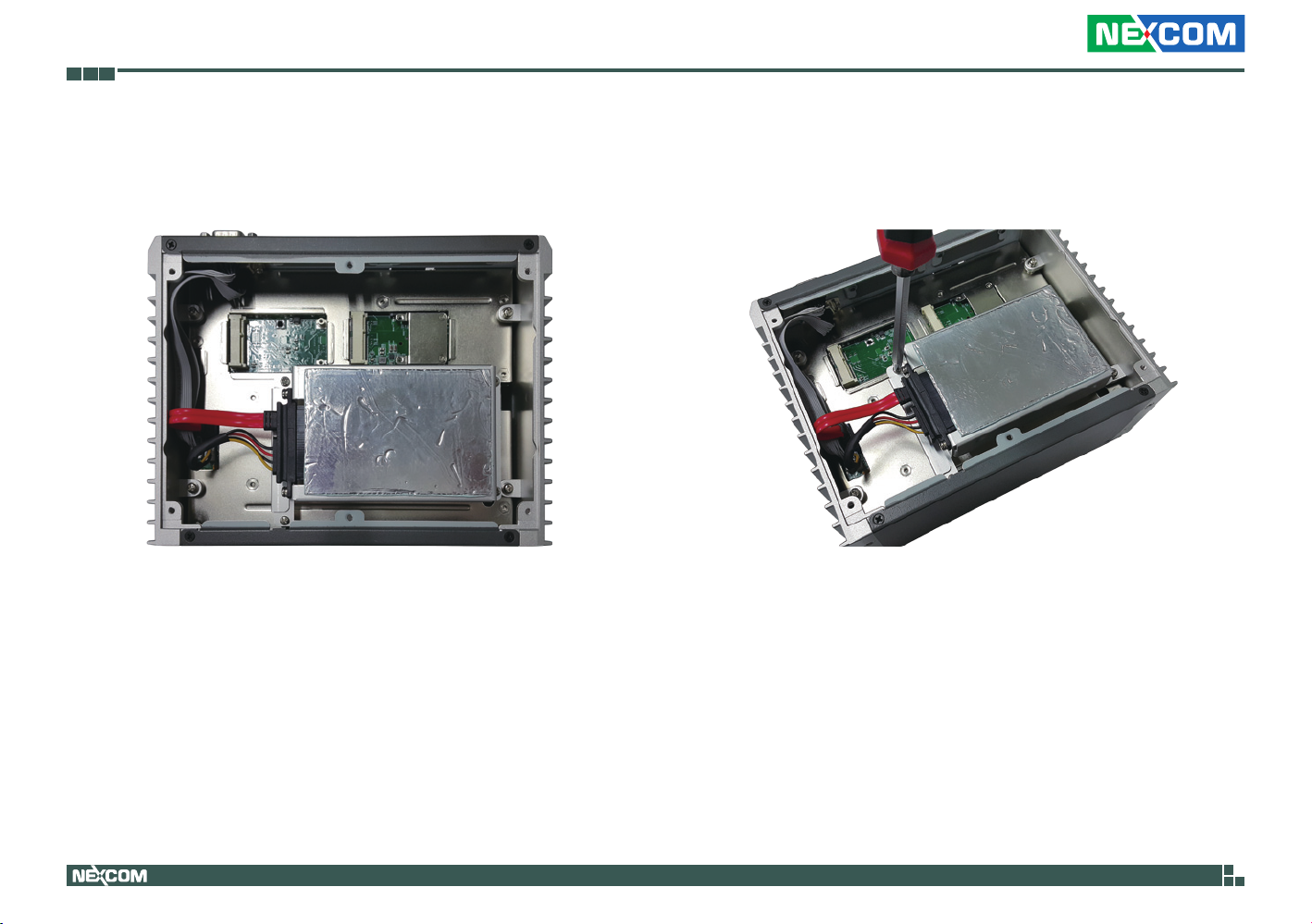

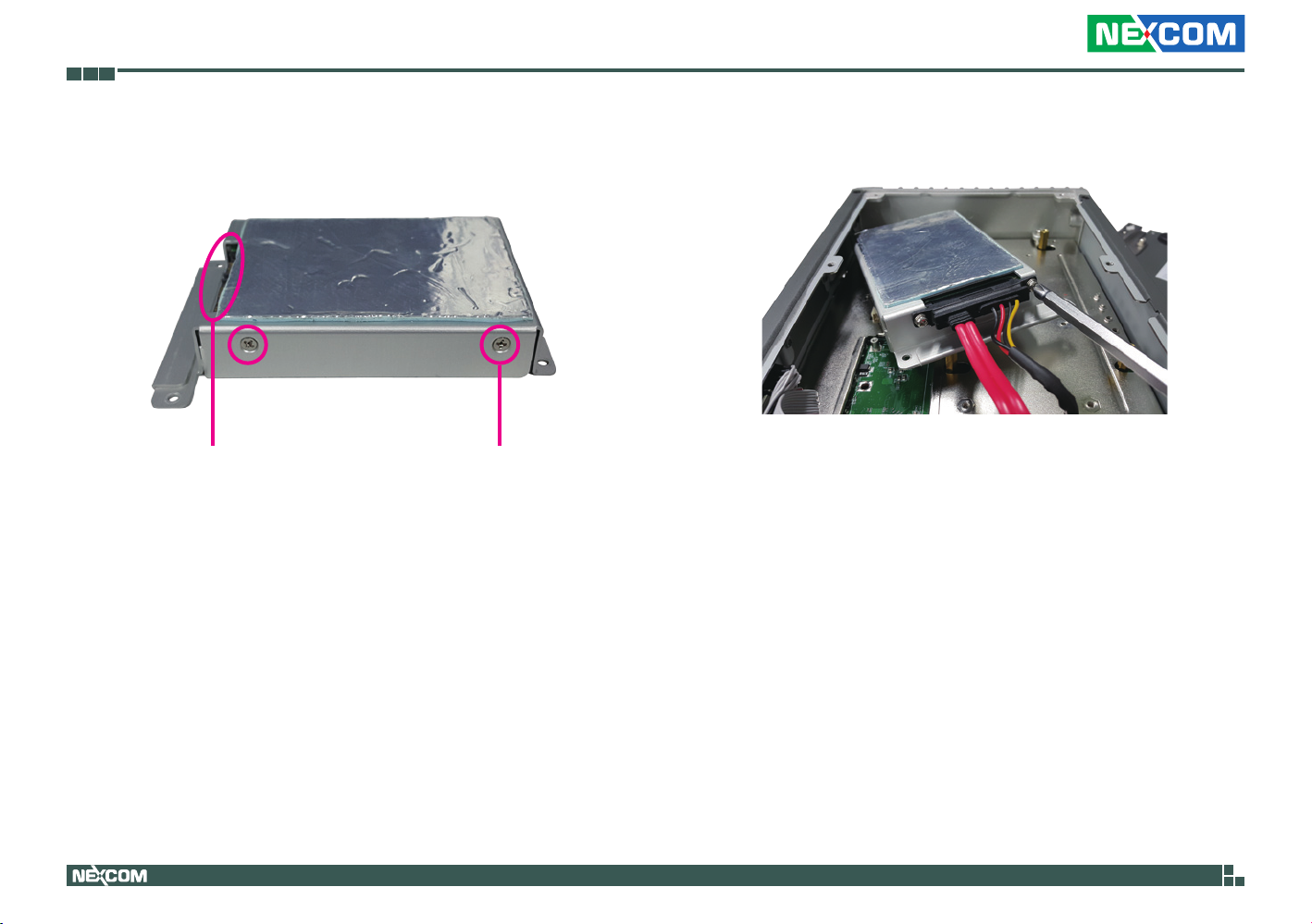

Installing a SATA Hard Drive ..................................................................35
BIOS Setup Utility .................................................................................. 40
Main .................................................................................................40
Advanced ......................................................................................... 41
Chipset ..............................................................................................49
Security .............................................................................................52
Boot .................................................................................................. 53
Save & Exit ........................................................................................54
Appendix A: Power Consumption.........................55
Appendix B: GPI/O Programming Guide...............57
Appendix C: Watchdog Timer Setting...................59
Appendix D: LED Programming Guide...................60
Chapter 4: BIOS Setup
About BIOS Setup ................................................................................. 37
When to Configure the BIOS .................................................................37
Default Configuration ........................................................................... 38
Entering Setup ...................................................................................... 38
Legends ................................................................................................ 38
iii
NISE 301 User Manual

Preface

PrefaCe

Copyright

This publication, including all photographs, illustrations and software, is protected under international copyright laws, with all rights reserved. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written consent from NEXCOM International Co., Ltd.

Disclaimer

The information in this document is subject to change without prior notice and does not represent commitment from NEXCOM International Co., Ltd. However, users may update their knowledge of any product in use by constantly checking its manual posted on our website: http://www.nexcom.com. NEXCOM shall not be liable for direct, indirect, special, incidental, or consequential damages arising out of the use of any product, nor for any infringements upon the rights of third parties, which may result from such use. Any implied warranties of merchantability or fitness for any particular purpose is also disclaimed.

Acknowledgements

NISE 301 is a trademark of NEXCOM International Co., Ltd. All other product names mentioned herein are registered trademarks of their respective owners.

Regulatory Compliance Statements

This section provides the FCC compliance statement for Class B devices and describes how to keep the system CE compliant.

Declaration of Conformity

FCC
This equipment has been tested and verified to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area (domestic environment) is likely to cause harmful interference, in which case the user will be required to correct the interference (take adequate measures) at their own expense.
CE
The product(s) described in this manual complies with all applicable European Union (CE) directives if it has a CE marking. For computer systems to remain CE compliant, only CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and cabling techniques.
iv
NISE 301 User Manual
Preface

RoHS Compliance

NEXCOM RoHS Environmental Policy and Status Update
NEXCOM is a global citizen for building the digital infrastructure. We are committed to providing green
products and services, which are compliant with European Union RoHS (Restriction on Use of Hazardous Substance in Electronic Equipment) directive 2011/65/EU, to be your trusted green partner and to protect our environment.
RoHS restricts the use of Lead (Pb) < 0.1% or 1,000ppm, Mercury (Hg) < 0.1% or 1,000ppm, Cadmium (Cd) < 0.01% or 100ppm, Hexavalent Chromium (Cr6+) < 0.1% or 1,000ppm, Polybrominated biphenyls (PBB) < 0.1% or 1,000ppm, and Polybrominated diphenyl Ethers (PBDE) < 0.1% or 1,000ppm.
In order to meet the RoHS compliant directives, NEXCOM has established an engineering and manufacturing task force to implement the introduction of green products. The task force will ensure that we follow the standard NEXCOM development procedure and that all the new RoHS components and new manufacturing processes maintain the highest industry quality levels for which NEXCOM are renowned.
The model selection criteria will be based on market demand. Vendors and suppliers will ensure that all designed components will be RoHS compliant.
How to recognize NEXCOM RoHS Products?
For existing products where there are non-RoHS and RoHS versions, the suffix “(LF)” will be added to the compliant product name.
All new product models launched after January 2013 will be RoHS compliant. They will use the usual NEXCOM naming convention.
v
NISE 301 User Manual
Preface

Warranty and RMA

NEXCOM Warranty Period
NEXCOM manufactures products that are new or equivalent to new in accordance with industry standard. NEXCOM warrants that products will be free from defect in material and workmanship for 2 years, beginning on the date of invoice by NEXCOM. HCP series products (Blade Server) which are manufactured by NEXCOM are covered by a three year warranty period.
NEXCOM Return Merchandise Authorization (RMA)
▪ Customers shall enclose the “NEXCOM RMA Service Form” with the
returned packages.
▪ Customers must collect all the information about the problems
encountered and note anything abnormal or, print out any on-screen messages, and describe the problems on the “NEXCOM RMA Service Form” for the RMA number apply process.
▪ Customers can send back the faulty products with or without accessories
(manuals, cable, etc.) and any components from the card, such as CPU and RAM. If the components were suspected as part of the problems, please note clearly which components are included. Otherwise, NEXCOM is not responsible for the devices/parts.
▪ Customers are responsible for the safe packaging of defective products,
making sure it is durable enough to be resistant against further damage and deterioration during transportation. In case of damages occurred during transportation, the repair is treated as “Out of Warranty.”
▪ Any products returned by NEXCOM to other locations besides the
customers’ site will bear an extra charge and will be billed to the customer.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
Repair Service Charges for Out-of-Warranty Products
NEXCOM will charge for out-of-warranty products in two categories, one is basic diagnostic fee and another is component (product) fee.
System Level
▪ Component fee: NEXCOM will only charge for main components such as
SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistor, capacitor.
▪ Items will be replaced with NEXCOM products if the original one cannot
be repaired. Ex: motherboard, power supply, etc.
▪ Replace with 3rd party products if needed.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
Board Level
▪ Component fee: NEXCOM will only charge for main components, such
as SMD chip, BGA chip, etc. Passive components will be repaired for free, ex: resistors, capacitors.
▪ If RMA goods can not be repaired, NEXCOM will return it to the customer
without any charge.
vi
NISE 301 User Manual
Preface
Warnings
Read and adhere to all warnings, cautions, and notices in this guide and the documentation supplied with the chassis, power supply, and accessory modules. If the instructions for the chassis and power supply are inconsistent with these instructions or the instructions for accessory modules, contact the supplier to find out how you can ensure that your computer meets safety and regulatory requirements.
Cautions
Electrostatic discharge (ESD) can damage system components. Do the described procedures only at an ESD workstation. If no such station is available, you can provide some ESD protection by wearing an antistatic wrist strap and attaching it to a metal part of the computer chassis.
vii
NISE 301 User Manual
Preface
CAUTION!

Safety Information

Before installing and using the device, note the following precautions:
▪ Read all instructions carefully.
▪ Do not place the unit on an unstable surface, cart, or stand.
▪ Follow all warnings and cautions in this manual.
▪ When replacing parts, ensure that your service technician uses parts
specified by the manufacturer.
▪ Avoid using the system near water, in direct sunlight, or near a heating
device.
▪ The load of the system unit does not solely rely for support from the
rackmounts located on the sides. Firm support from the bottom is highly necessary in order to provide balance stability.
▪ The computer is provided with a battery-powered real-time clock circuit.
There is a danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
Danger of explosion if battery is incorrectly replaced.
CAUTION!CAUTION!
Replace with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.

Installation Recommendations

Ensure you have a stable, clean working environment. Dust and dirt can get into components and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following:
▪ A Philips screwdriver
▪ A flat-tipped screwdriver
▪ A grounding strap
▪ An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended that you do not use needle-nose pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
viii
NISE 301 User Manual
Preface

Safety Precautions

1. Read these safety instructions carefully.
2. Keep this User Manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Use a
damp cloth. Do not use liquid or spray detergents for cleaning.
4. For plug-in equipment, the power outlet socket must be located near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a stable surface during installation. Dropping it or
letting it fall may cause damage.
7. The openings on the enclosure are for air convection to protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before connecting
the equipment to the power outlet.
9. Place the power cord in a way so that people will not step on it. Do not
place anything on top of the power cord. Use a power cord that has been approved for use with the product and that it matches the voltage and current marked on the product’s electrical range label. The voltage and current rating of the cord must be greater than the voltage and current rating marked on the product.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage.
12. Never pour any liquid into an opening. This may cause fire or electrical shock.
13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel.
14. If one of the following situations arises, get the equipment checked by service personnel:
a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work
according to the user’s manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage.
15. Do not place heavy objects on the equipment.
16. The unit uses a three-wire ground cable which is equipped with a third pin to ground the unit and prevent electric shock. Do not defeat the purpose of this pin. If your outlet does not support this kind of plug, contact your electrician to replace your obsolete outlet.
17. CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. DISCARD USED BATTERIES ACCORDING TO THE MANUFACTURER’S INSTRUCTIONS.
ix
NISE 301 User Manual
Preface
CAUTION!

Technical Support and Assistance

1. For the most updated information of NEXCOM products, visit NEXCOM’s website at www.nexcom.com.
2. For technical issues that require contacting our technical support team or sales representative, please have the following information ready before calling: – Product name and serial number – Detailed information of the peripheral devices – Detailed information of the installed software (operating system,
version, application software, etc.) – A complete description of the problem – The exact wordings of the error messages
Warning!
1. Handling the unit: carry the unit with both hands and handle it with care.
2. Maintenance: to keep the unit clean, use only approved cleaning products or clean with a dry cloth.
3. CompactFlash: Turn off the unit’s power before inserting or removing a CompactFlash storage card.

Conventions Used in this Manual

Warning: Information about certain situations, which if not observed, can cause personal injury. This will prevent injury to yourself when performing a task.
CAUTION!CAUTION!
Caution: Information to avoid damaging components or losing data.
Note: Provides additional information to complete a task easily.
Safety Warning: This equipment is intended for installation in a Restricted Access Location only.
x
NISE 301 User Manual
Preface

Global Service Contact Information

Headquarters
NEXCOM International Co., Ltd.
15F, No. 920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7786 Fax: +886-2-8226-7782 www.nexcom.com
America
USA NEXCOM USA
2883 Bayview Drive, Fremont CA 94538, USA Tel: +1-510-656-2248 Fax: +1-510-656-2158 Email: sales@nexcom.com www.nexcom.com
Asia
Taiwan NEXCOM Intelligent Systems
Taipei Office
13F, No.920, Chung-Cheng Rd., ZhongHe District, New Taipei City, 23586, Taiwan, R.O.C. Tel: +886-2-8226-7796 Fax: +886-2-8226-7792 Email: sales@nexcom.com.tw
www.nexcom.com.tw
NEXCOM Intelligent Systems Taichung Office
16F, No.250, Sec. 2, Chongde Rd., Beitun Dist., Taichung City 406, R.O.C. Tel: +886-4-2249-1179 Fax: +886-4-2249-1172 Email: sales@nexcom.com.tw www.nexcom.com.tw
Japan NEXCOM Japan
9F, Tamachi Hara Bldg., 4-11-5, Shiba Minato-ku, Tokyo, 108-0014, Japan Tel: +81-3-5419-7830 Fax: +81-3-5419-7832 Email: sales@nexcom-jp.com www.nexcom-jp.com
China
NEXCOM China
1F & 2F, Block A, No. 16 Yonyou Software Park, No. 68 Beiqing Road, Haidian District, Beijing, 100094, China Tel: +86-010-5704-2680 Fax: +86-010-5704-2681 Email: sales@nexcom.cn www.nexcom.cn
xi
NISE 301 User Manual
Preface
Chengdu Office
9F, Shuxiangxie, Xuefu Garden, No.12 Section 1, South Yihuan Rd., Chengdu, 610061, China Tel: +86-28-8523-0186 Fax: +86-28-8523-0186 Email: sales@nexcom.cn www.nexcom.cn
Shanghai Office
Room 603/604, Huiyinmingzun Plaza Bldg., 1, No.609, Yunlin East Rd., Shanghai, 200333, China Tel: +86-21-5278-5868 Fax: +86-21-3251-6358 Email: sales@nexcom.cn www.nexcom.cn
Shenzhen Office
Room1707, North Block, Pines Bldg., No.7 Tairan Rd., Futian Area, Shenzhen, 518040, China Tel: +86-755-8332-7203 Fax: +86-755-8332-7213 Email: sales@nexcom.cn www.nexcom.cn
Wuhan Office
1-C1804/1805, Mingze Liwan, No. 519 South Luoshi Rd., Hongshan District, Wuhan, 430070, China Tel: +86-27-8722-7400 Fax: +86-27-8722-7400 Email: sales@nexcom.cn www.nexcom.cn
Europe
United Kingdom NEXCOM EUROPE
10 Vincent Avenue, Crownhill Business Centre, Milton Keynes, Buckinghamshire MK8 0AB, United Kingdom Tel: +44-1908-267121 Fax: +44-1908-262042 Email: sales.uk@nexcom.eu www.nexcom.eu
Italy NEXCOM ITALIA S.r.l
Via Lanino 42, 21047 Saronno (VA), Italia Tel: +39 02 9628 0333 Fax: +39 02 9625570 Email: nexcomitalia@nexcom.eu www.nexcomitalia.it
xii
NISE 301 User Manual
Preface

Package Contents

Before continuing, verify that the NISE 301 package that you received is complete. Your package should have all the items listed in the following table.
Item Name Description Qty
1 NISE 301 ASSY 1 2 Terminal Blocks 2P Phoenix Contact:1803578 3.81mm Male DIP Green 1 3 (T)Terminal Blocks 3P Phoenix Contact:1777992 5.08mm Male DIP Green 1 4 Round Head Screw LONG FEI P4x6mm ISO/SW8x0.8 NIGP 4 5 Flat Head Screw LONG FEI:F3x5 Nylok NI+Heat Treatment F3x5 Nylok NI+Heat Treatment 4 6 Round Head Screw LONG FEI:P2x3 ISO+Nylon P2x3 NI Nylok 4 7 Rear Wall Mount Bracket for NISE 301 VER:A CHYUAN-JYH 75.5x32.2x6mm SPCC t=1.2mm NI 2 8 PE Zipper Bag #8 170x240mm, w/China RoHS Symbol 1
9 PE Zipper Bag #3 100x70mm, w/China RoHS Symbol 1 10 (N)NISE 301 Quick Reference Guide VER:A SIZE:A4 KRAMER 1 11 (N)NISE 301 DVD Driver VER:1.0 JCL 1
xiii
NISE 301 User Manual
Preface

Ordering Information

The following information below provides ordering information for NISE 301.
• Barebone
NISE 301 System (P/N: 10J00030100X0)
• 24V, 60W AC to DC power adapter w/o power core (P/N: TBD)
Optional Fieldbus Kit
88J50090E05X0
88J50090E06X0
88J50090E07X0
88J50090E08X0
88J50090E09X0
88J50090E14X0
88J50090E16X0
FBI 90E-DNM KIT
(w/15cm Cable)
FBI 90E-ECM KIT
(w/15cm Cable)
FBI 90E-EP KIT
(w/15cm Cable)
FBI 90E-PBM KIT
(w/15cm Cable)
FBI 90E-PNM KIT
(w/15cm Cable)
FBI 90E-S3M KIT
(w/15cm Cable)
FBI 90E-COM KIT
(w/15cm Cable)
DeviceNet Master Module Kit
EtherCAT Master Module Kit
EtherNet/IP Master Module Kit
PROFIBUS Master Module Kit
PROFINET Master Module Kit
SERCOSIII Master Module Kit
CANopen Master Module Kit
Optional Module Kit
88J00030110X0
88J00030100X0
88J00030101X0
88JK0ECOM02X0
88JK0ECOM03X0
88JK0ECOM06X0
xiv
NISE 301 3.5G Module Kit
TELIT: HE910-G
NISE 301 Wi-Fi Module Kit
Intel: 7260.HMWWB.R
NISE 301 Wi-Fi Module Kit
Intel: 7260.HMWBNWB.R
NISKECOM3 Universal
Kit (w/15cm DB26 cable)
NISKECOM3 Universal
Kit (w/25cm DB26 cable)
NISKECOM4 Universal
Kit (w/15cm DB26 cable)
5 Bands UMTS / HSPA w/ GPS
and voice data
Dual Band Wireless-AC 7260,
2x2 AC+BT,HMC
WLAN+Bluetooth Combo
Module
Mini-PCIe to 4xCOM Module
w/Isolation RS232/422/485
Auto Flow Control w/Universal
Bracket
Mini-PCIe to 4xCOM Module
w/Isolation RS232/422/485
Auto Flow Control w/Universal
Bracket
Mini-PCIe to 4 PORT RS232
Module w/Universal Bracket
NISE 301 User Manual

Chapter 1: Product Introduction

ChaPter 1: ProduCt IntroduCtIon

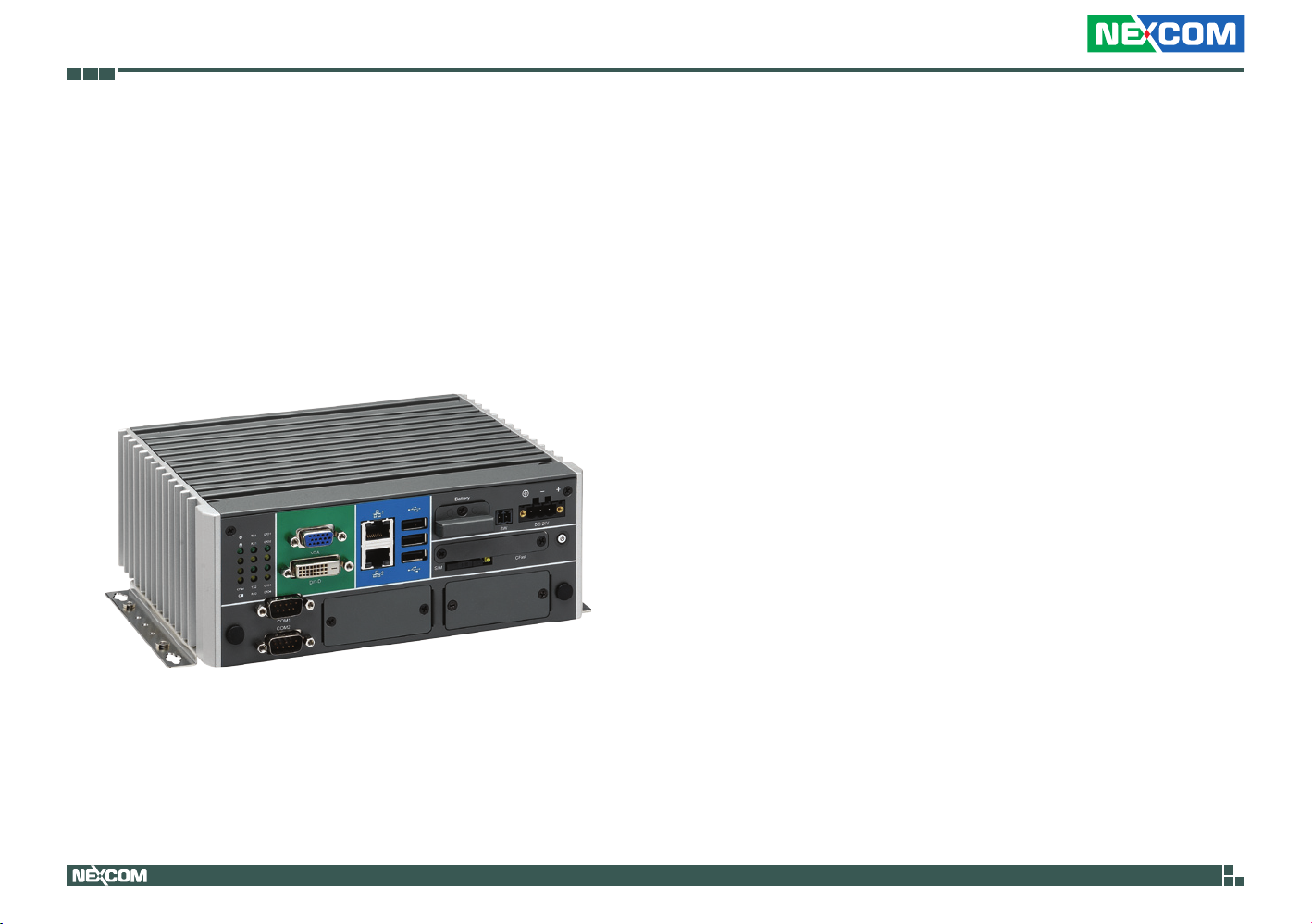

Overview

Key Features

▪ Onboard Intel® Atom™ processor E3845 quad core, 1.91GHz
▪ 2x Mini-PCIe sockets, 2x COM port expansions
▪ 3x USB 2.0, 1x CFast (SATA 2.0), 1x 2.5” HDD (SATA 2.0)
▪ Wi-Fi/GSM
▪ VGA/DVI-D
▪ External RTC Battery Holder
▪ DC Input 24V +/- 20%
1
NISE 301 User Manual
Chapter 1: Product Introduction

Hardware Specifications

CPU Support
▪ Onboard Intel® Atom™ processor E3845 quad core, 1.91GHz
Main Memory
▪ 1x DDR3L SO-DIMM socket, support up to 4GB with un-buffered and
non-ECC
Display Option
▪ Dual independent display
- DVI-D + VGA
Front I/O Status LEDs
▪ 1x Power Status/1x HDD Access LEDs ▪ 2x LAN Status/1x CFast LEDs ▪ 4x GPO Status/1x Battery Low LEDs
Front I/O Interface
▪ 1x ATX power on/off switch ▪ 1x VGA, 1x DVI-D ▪ 3x USB 2.0 ports (500mA per each) ▪ 2x Intel
®
GbE LAN ports (I210AT); support WoL, Teaming and PXE ▪ 2x Serial ports (2x RS232/422/485 with auto flow control) ▪ 2x Antenna holes for Wi-Fi/GSM ▪ 1x External CFast socket ▪ 1x SIM card holder ▪ 1x External RTC Li-ion battery holder
Front Expansion Slot
▪ 2x Mini-PCIe expansion slots
– Optional PROFIBUS, PROFINET, DeviceNet, EtherCAT, EtherNet/IP
master/slave module
– Optional GbE LAN, Wi-Fi, 3.5G module
– Optional RS232/422/485 module
Storage Device
▪ 1x CFast (SATA 2.0) ▪ 1x 2.5” HDD (SATA 2.0)
Power Requirement
▪ AT/ATX power mode (default with ATX power mode) ▪ Power input: Typical +24Vdc +/-20% ▪ Power adapter: Optional AC to DC power adapter (+24Vdc, 60W)
Dimensions
▪ 205mm (W) x 160mm (D) x 80mm (H) without wall-mount bracket
Construction
▪ Aluminum and metal chassis with fanless design
Environment
▪ Operating Temperature: Ambient with air flow: -5°C to 55°C (According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
2
NISE 301 User Manual
Chapter 1: Product Introduction
▪ Storage Temperature: -20°C to 85°C ▪ Relative Humidity: 10% to 93% (non-condensing)
▪ Shock Protection: HDD: 20G, half sine, 11ms, IEC60068-2-27 CFast: 50G, half sine, 11ms, IEC60068-2-27
▪ Vibration Protection w/ HDD Condition: Random: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-64 Sinusoidal: 0.5Grms @ 5 ~ 500Hz, IEC60068-2-6
Certifications
▪ CE Class A
▪ FCC Class A
▪ LVD
OS Support List
▪ Windows 7 32-bit and 64-bit
▪ Windows 8.1 32-bit and 64-bit
3
NISE 301 User Manual
Chapter 1: Product Introduction

Knowing Your NISE 301

Front View

Ext. Batt
DVI-D
LEDs
COM1
Antenna Hole Antenna Hole
COM2
LANVGA 24V DC Input
USB 2.0
Expansion Slots CFast

Rear View

Remote On/Off
SIM
Power Switch
LEDs
LEDs for the power, hard drive, CFast, battery, COM1/2 and GPO activity.
VGA and DVI-D Ports
Used to connect an analog VGA monitor and digital LCD panel.
LAN
2 Intel GbE LAN ports to connect the system to a local area network
USB 2.0
Three USB 2.0 ports to connect the system with USB 2.0 devices.
External Battery Holder
Used to hold an external battery.
Remote On/Off Switch
Used to connect a remote to power on/off the system.
24V DC Input
Used to plug a DC power cord.
Power Switch
Press to power-on or power-off the system.
COM1 and COM2
Two RS232/422/485 DB9 serial ports with auto flow control.
SIM and CFast Slots
Used to install a SIM card and CFast card.
Expansion Slots
Expansions for optional add-on fieldbus, GbE LAN, COM and Wi-Fi/3G modules.
Antenna Hole
Used to connect an external antenna for Wi-Fi module.
4
NISE 301 User Manual
Chapter 1: Product Introduction

Mechanical Dimensions

256094
115
160
205 219 231
80
86
5
NISE 301 User Manual

Chapter 2: Jumpers and Connectors

ChaPter 2: JumPers and ConneCtors
This chapter describes how to set the jumpers and connectors on the NISE 301 motherboard.

Before You Begin

▪ Ensure you have a stable, clean working environment. Dust and dirt can
get into components and cause a malfunction. Use containers to keep small components separated.
▪ Adequate lighting and proper tools can prevent you from accidentally
damaging the internal components. Most of the procedures that follow require only a few simple tools, including the following: – A Philips screwdriver – A flat-tipped screwdriver – A set of jewelers screwdrivers – A grounding strap – An anti-static pad
▪ Using your fingers can disconnect most of the connections. It is
recommended that you do not use needle-nosed pliers to disconnect connections as these can damage the soft metal or plastic parts of the connectors.
▪ Before working on internal components, make sure that the power is off.
Ground yourself before touching any internal components, by touching a metal object. Static electricity can damage many of the electronic components. Humid environments tend to have less static electricity than
dry environments. A grounding strap is warranted whenever danger of static electricity exists.

Precautions

Computer components and electronic circuit boards can be damaged by discharges of static electricity. Working on computers that are still connected to a power supply can be extremely dangerous.
Follow the guidelines below to avoid damage to your computer or yourself:
▪ Always disconnect the unit from the power outlet whenever you are
working inside the case.
▪ If possible, wear a grounded wrist strap when you are working inside the
computer case. Alternatively, discharge any static electricity by touching the bare metal chassis of the unit case, or the bare metal body of any other grounded appliance.
▪ Hold electronic circuit boards by the edges only. Do not touch the
components on the board unless it is necessary to do so. Don’t flex or stress the circuit board.
▪ Leave all components inside the static-proof packaging that they shipped
with until they are ready for installation.
▪ Use correct screws and do not over tighten screws.
6
NISE 301 User Manual
Chapter 2: Jumpers and Connectors

Jumper Settings

A jumper is the simplest kind of electric switch. It consists of two metal pins and a cap. When setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the jumper cap is placed on both pins, the jumper is short. If you remove the jumper cap, or place the jumper cap on just one pin, the jumper is open.
Refer to the illustrations below for examples of what the 2-pin and 3-pin jumpers look like when they are short (on) and open (off).
Two-Pin Jumpers: Open (Left) and Short (Right)
Three-Pin Jumpers: Pins 1 and 2 are Short
3
2
1
1
3
2
7
NISE 301 User Manual
Chapter 2: Jumpers and Connectors

Locations of the Jumpers and Connectors for NISB 301

The figures below are the top and bottom views of the NISB 301 main board used in NISE 301. It shows the locations of the jumpers and connectors.
Top View
1
2
JP3
1
3
JP4
1
3
JP6
1
2
1
JP7
6
5
3
JP1
1
3
JP2
1
J3
J4
1
1
J3J4
10
10
1
2
JP13
109
LED2
4
CN1
2
1
1
5
6
2
U19
U27
48
1
12
LED3
1
LED4
9
DIMM1
97
128
96
1
37
24
39
36
25
CN5
29
34
DVI-D
VGA
747372
71
U10
53
51 49
47 45 43 41 39 37 35 33 31 29 27 25 23 21 19 17 15 13 11
9 7
5 3 1
RUW
CEGJL
N
A
65
64
33
32
25
30
35
8
16
2417
AR
AA
AC
BJBHAUAWBGBABCBEAEAGAJALAN
COP1A (LAN1) COP2A (LAN2)
A10
LAN1 LAN2
204
203
19
20
CN9
1
3
JP8
CN3
B10
CN4
1249
1
O
Y
G
USB 2.0
CFAST
CN2
1
2
JP9
JP11
POWER
4
1
1
1
JP10
4
4
1
1
JP12
4
5
8
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
Bottom View
J6
J7
10
1
10
1
J8 CN6
4
1
7
1
CN7 CN8
PCIe
52
51
17 15
16
2
1
MH6
51
17 15
1
GSM/LTE
52
18
16
2
U48
9
NISE 301 User Manual
Chapter 2: Jumpers and Connectors

Jumpers

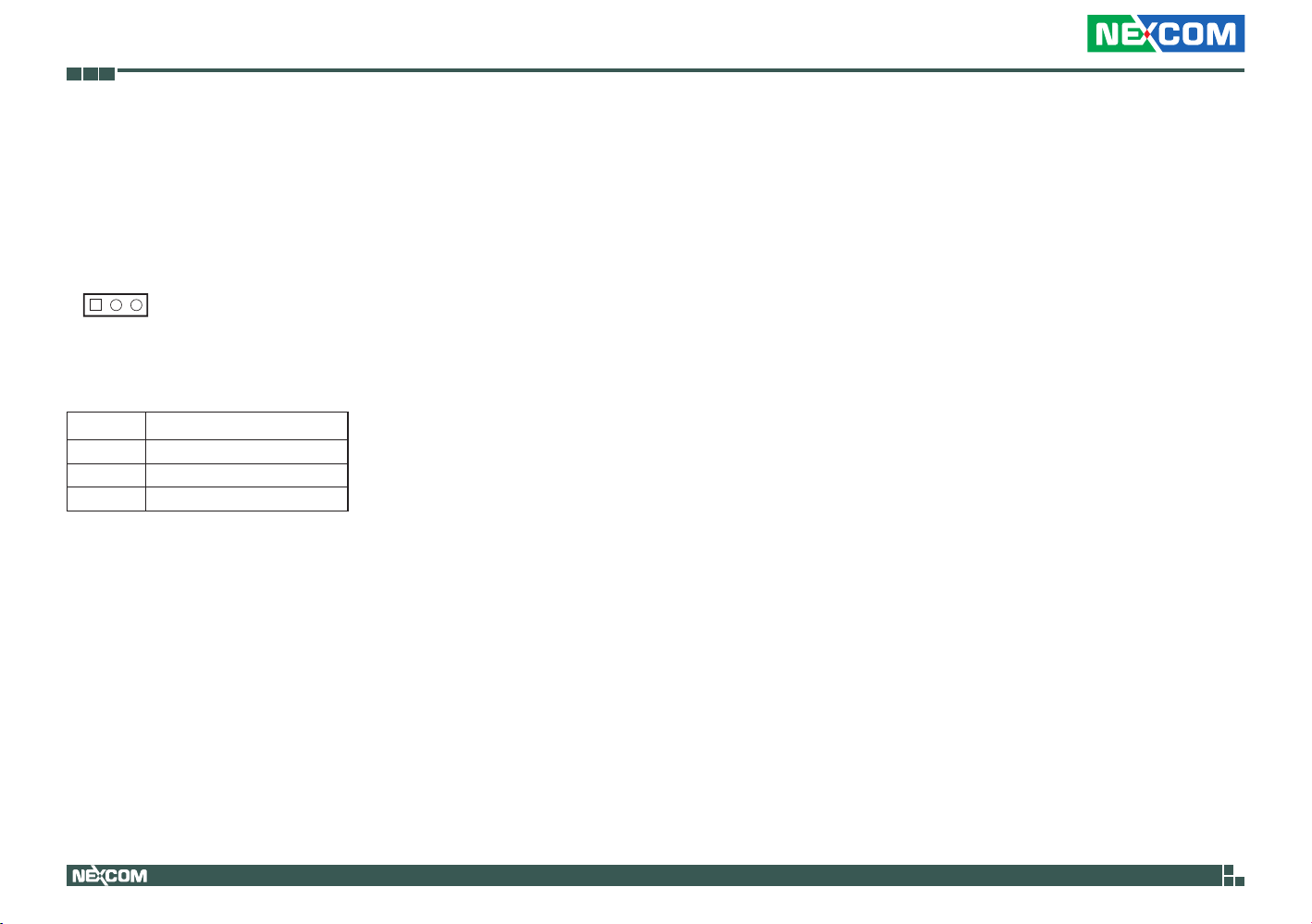

AT/ATX Power Type Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP4
1 3
Pin Function
1-2 AT Mode 2-3 ATX Mode

RTC Clear Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP1
1 3
Pin Function
1-2 Normal 2-3 RTC Clear
10
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
15
26

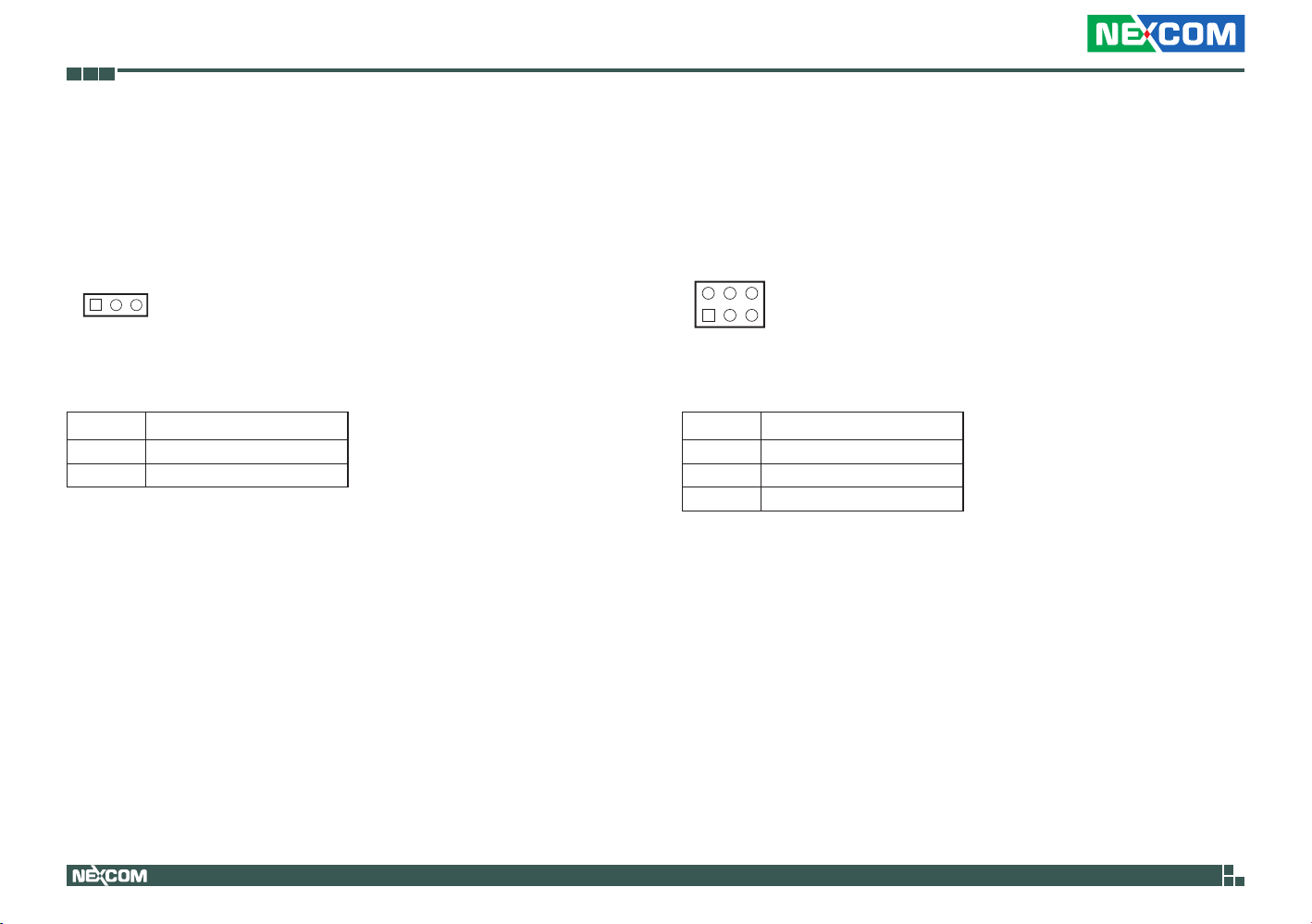

RTC Clear Select

Connector type: 1x3 3-pin header, 2.54mm pitch Connector location: JP2
1 3
Pin Function
1-2 Normal 2-3 RTC Clear
COM1 RI# Pin Power Select
Connector type: 2x3 6-pin header, 2.0mm pitch Connector location: JP7
Pin Definition
1-2 RI 3-4 5V 5-6 12V
11
NISE 301 User Manual
Chapter 2: Jumpers and Connectors

GSM/Dongle Switch Select

Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP8
1 3
Pin Function
1 3VSB_MINI2 2 USB_SEL 3 GND
12
NISE 301 User Manual
Chapter 2: Jumpers and Connectors

Connector Pin Definitions

External I/O Interfaces - Front Panel

24V DC Power Input
Connector type: Phoenix Contact 1x3 3-pin terminal block
13
+
Pin Definition
1 VIN_VCC 2 VIN_VSS 3 Chassis_GND
Remote Power On/Off Switch
Connector type: 1x2 2-pin terminal block
12
Pin Definition
1 PBT_PU 2 GND
13
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
CFast
Connector type: CFast Socket Connector location: CN3
S1 S7 PC1 PC17
Pin Definition Pin Definition
S1 GND PC6 NC S2 SATA_TXP2 PC7 GND S3 SATA_TXN2 PC8 TEST POINT S4 GND PC9 NC S5 SATA_RXN2 PC10 NC S6 SATA_RXP2 PC11 NC
S7 GND PC12 NC PC1 GND PC13 +3.3V PC2 GND PC14 +3.3V PC3 NC PC15 GND PC4 NC PC16 GND PC5 NC PC17 NC
SIM Card Socket
Connector location: U48
C5 C6 C7
SW2 SW1
Pin Definition Pin Definition
C1 UIM_PWR C2 UIM_RESET C3 UIM_CLK C5 GND C6 UIM_VPP C7 UIM_DATA
C1 C2 C3
14
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
USB 2.0 Ports
Connector type: Triple USB 2.0 ports, Type A Connector location: CN4
1
5
9
4
8
12
Pin Definition Pin Definition
1 +5V 2 Data 0­3 Data 0+ 4 GND 5 +5V 6 Data 1­7 Data 1+ 8 GND 9 +5V 10 Data 2-
11 Data 2+ 12 GND
15
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
ACT LINK

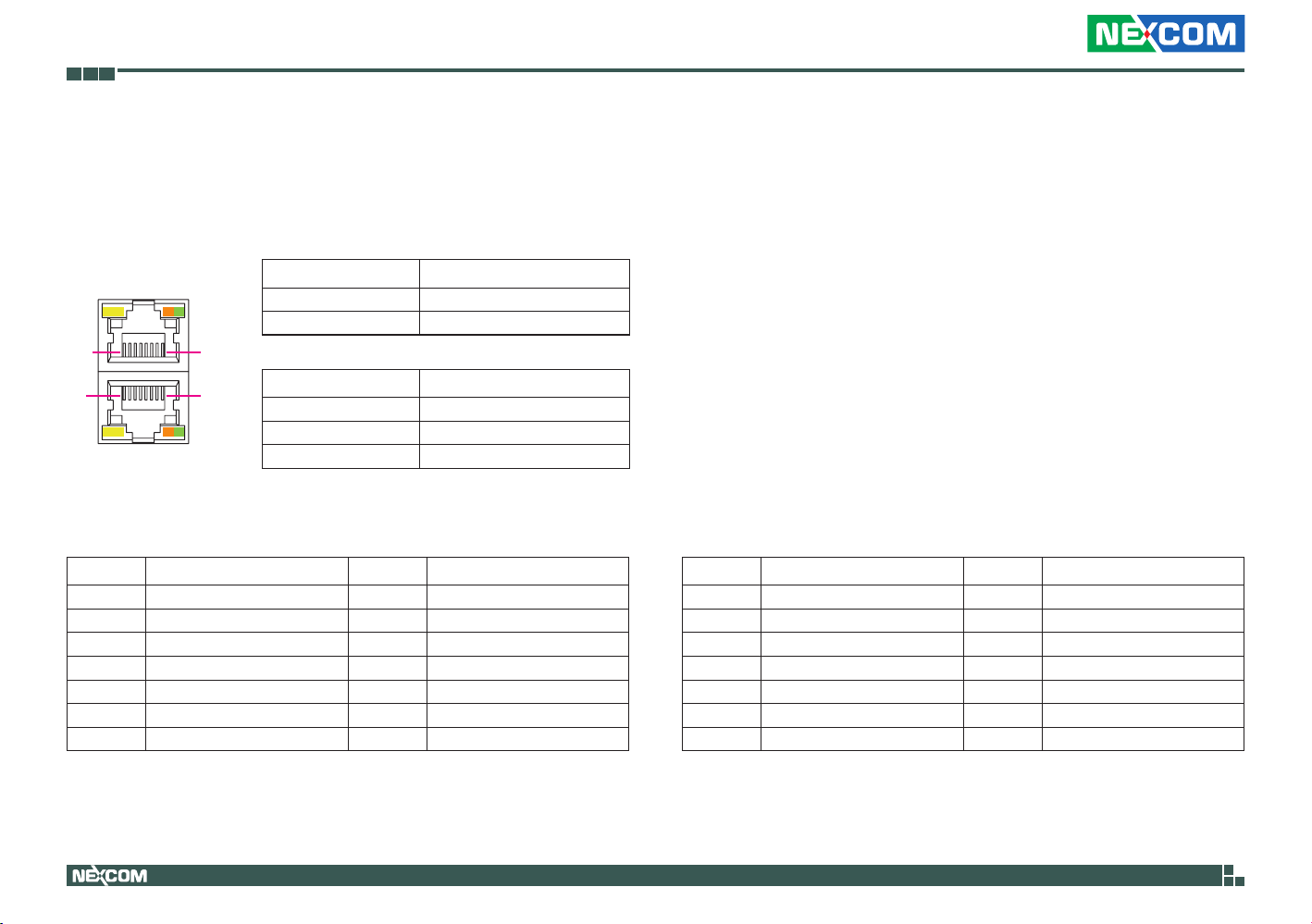

LAN1 and LAN2 Ports
Connector type: RJ45 port with LEDs Connector location: COP1A (LAN1) and COP1B (LAN2)
A8
B1
LAN1 LAN2
LAN1
Act Status
Flashing Yellow Data activity
Off No activity
A1
B8
Link Status
Steady Green 1G network link
Steady Orange 100Mbps network link
LAN2
Off 10Mbps or no link
Pin Definition Pin Definition
A1 LAN1_MDI0P A2 LAN1_MDI0N
A3 LAN1_MDI1P A4 LAN1_MDI1N
A5 LAN1_MDI2P A6 LAN1_MDI2N
A7 LAN1_MDI3P A8 LAN1_MDI3N
A9 V1P5_LAN A10 GND A11 V3P3_LAN A12 LAN_LED_ACT# A13 LAN_LED_LINK# A14 LAN_LED_LINK1G#
Pin Definition Pin Definition
B1 LAN2_MDI0P B2 LAN2_MDI0N B3 LAN2_MDI1P B4 LAN2_MDI1N B5 LAN2_MDI2P B6 LAN2_MDI2N B7 LAN2_MDI3P B8 LAN2_MDI3N
B9 V1P5_LAN2 B10 GND B11 V3P3_LAN2 B12 LAN2_LED_ACT# B13 LAN2_LED_LINK# B14 LAN2_LED_LINK1G#
16
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
VGA
Connector type: DB-15 port, 15-pin D-Sub Connector location: CN5B
29
25
39 35
Pin Definition Pin Definition
25 RED 26 GREEN 27 BLUE 28 NC 29 GND 30 VGADET 31 GND 32 GND 33 +5V 34 GND 35 NC 36 DDCDATA_VGA 37 HSYNC_VGA 38 VSYNC_VGA 39 DDCCLK_VGA
DVI-D Connector
Connector type: 24-pin D-Sub, 2.0mm-M-180 (DVI) Connector location: CN5A
1 8
17 24
Pin Definition Pin Definition
1 TX2- 2 TX2+ 3 GND 4 NC 5 NC 6 DDC_CLK 7 DDC_DATA 8 NC
9 TX1- 10 TX1+ 11 GND 12 NC 13 NC 14 DVI_VCC(+5V) 15 GND 16 HotPlugDet 17 TX0- 18 TX0+ 19 GND 20 NC 21 NC 22 NC 23 TXCLK+ 24 TXCLK-
17
NISE 301 User Manual
Chapter 2: Jumpers and Connectors

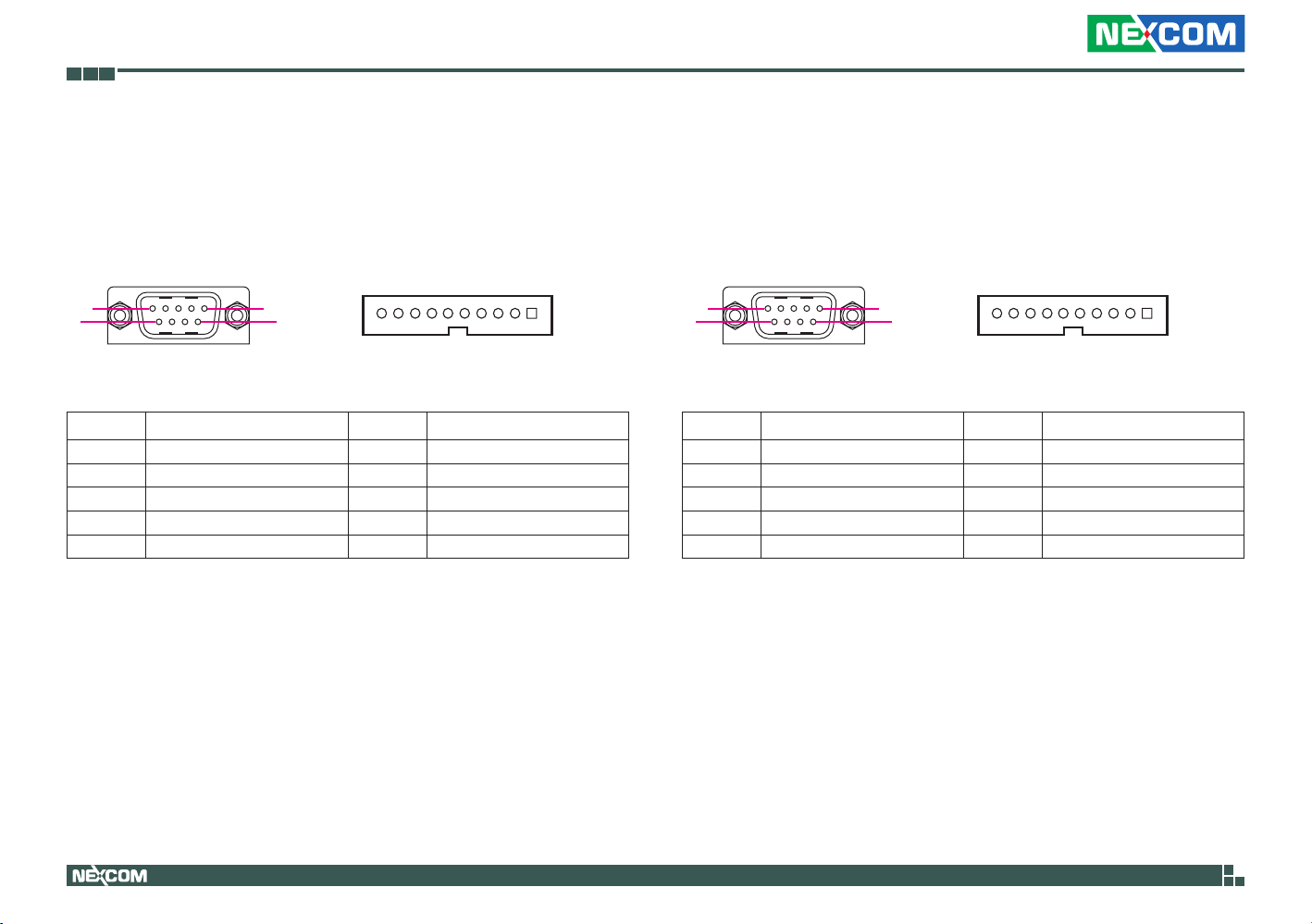

COM 1
Connector type: DB-9 port, 9-pin D-Sub 1x10 20-pin header, 1.0mm pitch Connector location: J7
1
6
Pin Definition Pin Definition
1 DCD1 2 RXD1 3 TXD1 4 DTR1 5 GND 6 DSR1 7 RTS1 8 CTS1 9 RI1 10 GND
5
9
COM 2
Connector type: DB-9 port, 9-pin D-Sub 1x10 20-pin header, 1.0mm pitch Connector location: J8
110
1
6
Pin Definition Pin Definition
1 DCD2 2 RXD2
3 TXD2 4 DTR2
5 GND 6 DSR2
7 RTS2 8 CTS2
9 RI2 10 GND
5
9
110
18
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
12

Internal Connectors

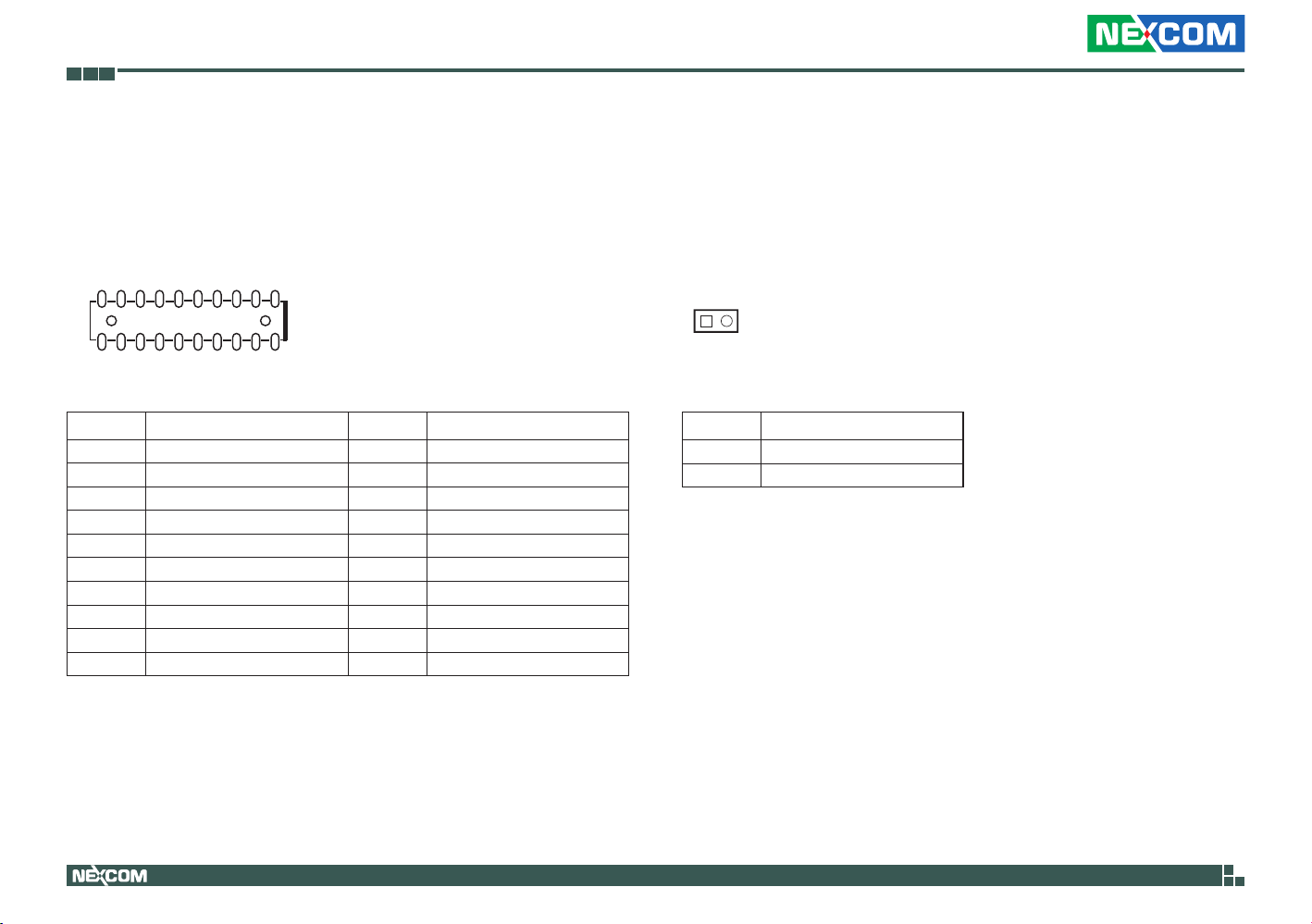

ATX Power Connector
Connector type: 2x10 20-pin header, 2.54mm pitch Connector location: CN9
119
20 2
Pin Definition Pin Definition
1 12VSB 2 12VSB 3 12VSB 4 12VSB 5 12VSB 6 12VSB 7 12VSB 8 12VSB
9 GND 10 GND 11 GND 12 GND 13 GND 14 GND 15 GND 16 GND 17 GND 18 5VSB 19 VBAT 20 PBT_PU_l
System Reset
Connector type: 1x2 2-pin header, 2.0mm pitch Connector location: JP3
Pin Definition
1 Reset 2 GND
19
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
14

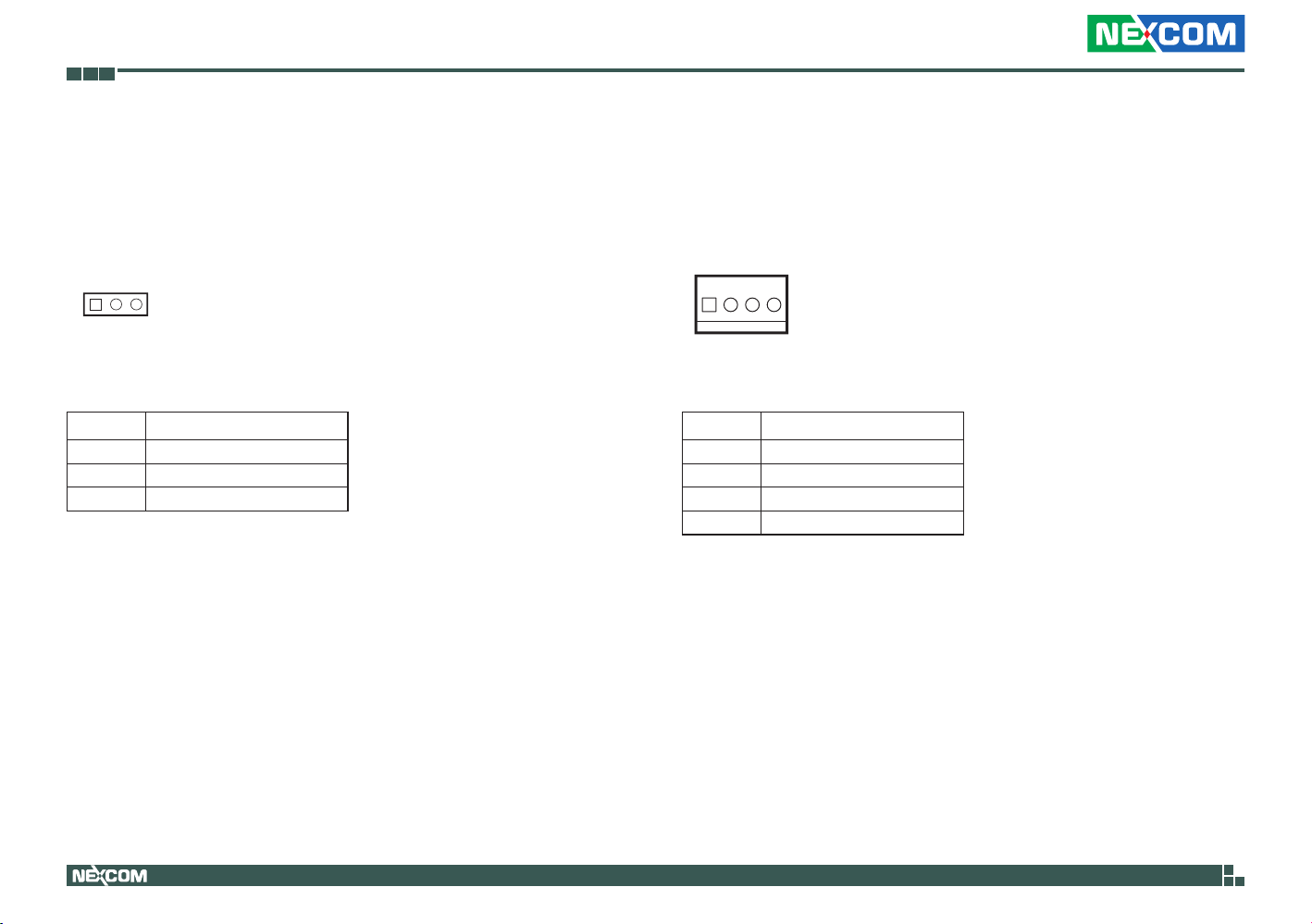

SMBus
Connector type: 1x3 3-pin header, 2.0mm pitch Connector location: JP6
1 3
Pin Definition
1 SMB_CLK
2 SMB_DATA
3 GND
System Fan Connector
Connector type: 1x4 4-pin Wafer, 2.54mm pitch Connector location: CN1
Pin Definition
1 GND 2 12V 3 FANIN 4 FANOUT
20
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
19
21
10 1
GPIO
Connector type: 2x5 10-pin header, 2.0mm pitch Connector location: JP13
0
Pin Definition Pin Definition
1 VCC5 2 GND
3 ICH_GPO0_OUT 4 ICH_GPI0_IN
5 ICH_GPO1_OUT 6 ICH_GPI1_IN
7 ICH_GPO2_OUT 8 ICH_GPI2_IN
9 ICH_GPO3_OUT 10 ICH_GPI3_IN

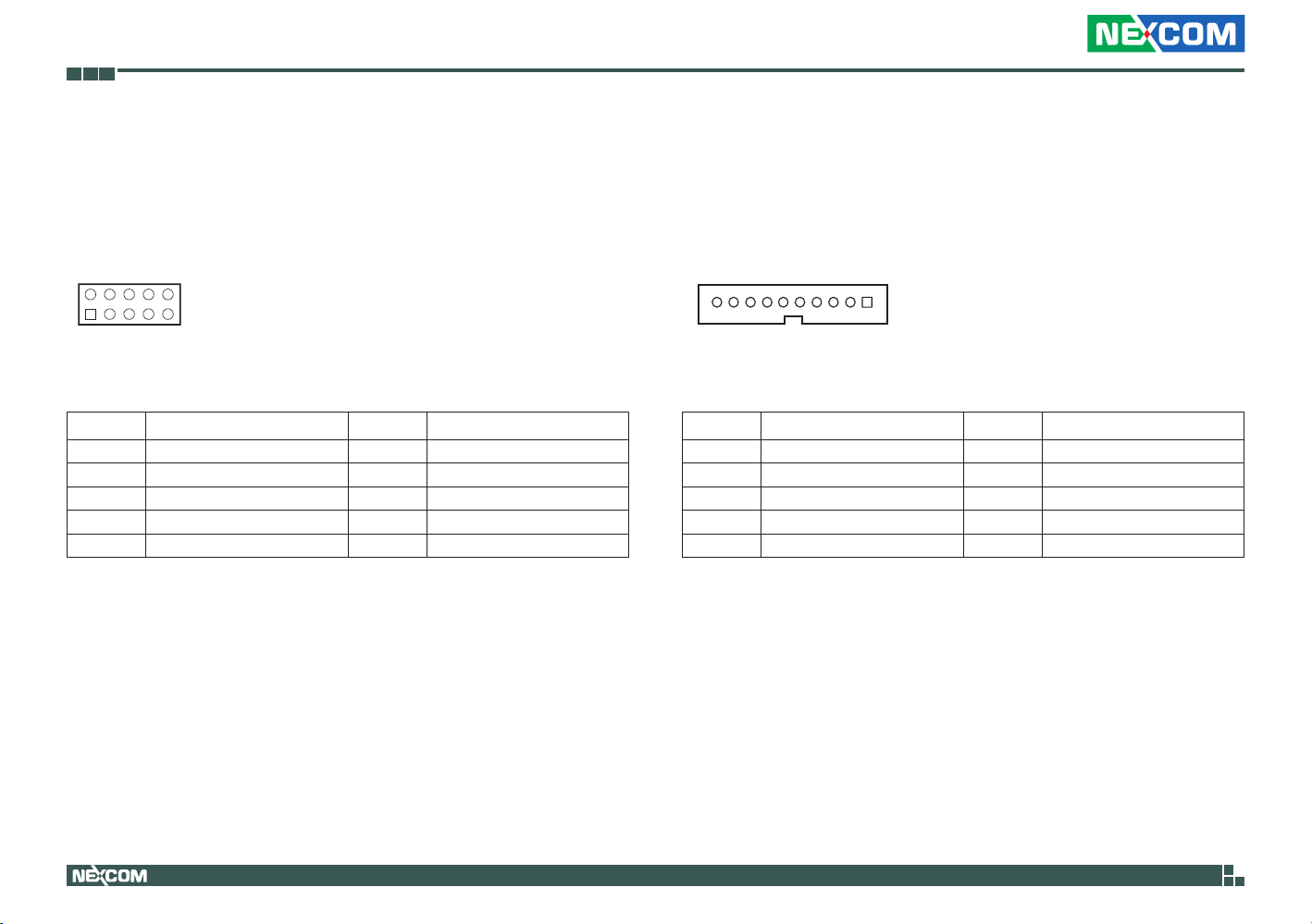

COM Port 3 (RS232)
Connector type: 1x10 10-pin header, 1.0mm pitch Connector location: J3
Pin Definition Pin Definition
1 DCD3 2 RXD3 3 TXD3 4 DTR3 5 GND 6 DSR3 7 RTS3 8 CTS3 9 RI3 10 GND
21
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
10 1
14

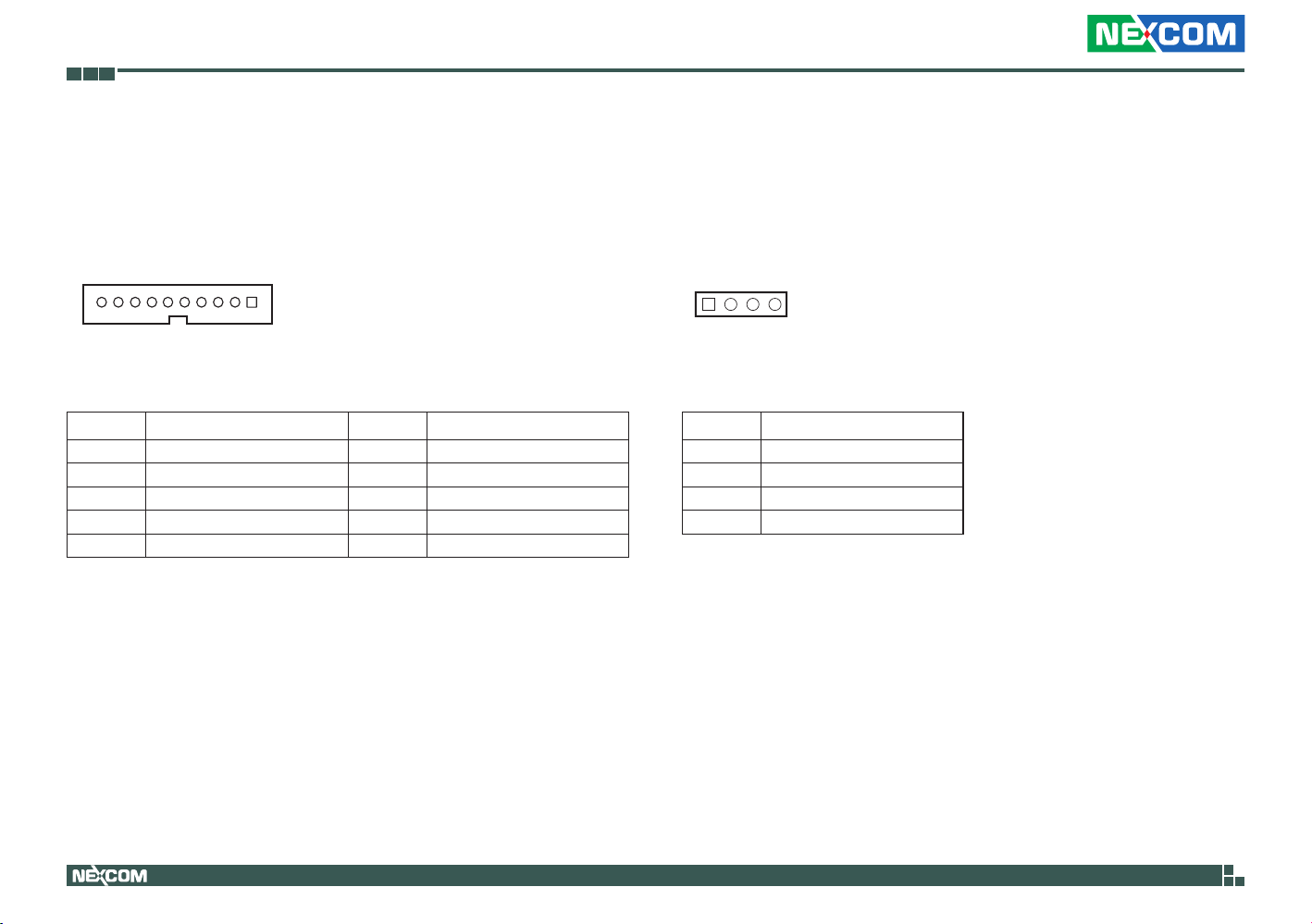

COM Port 4 (RS232)
Connector type: 1x10 10-pin header, 1.0mm pitch Connector location: J4
Pin Definition Pin Definition
1 DCD4 2 RXD4
3 TXD4 4 DTR4
5 GND 6 DSR4
7 RTS4 8 CTS4
9 RI4 10 GND
Mic-in
Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: JP10
Pin Definition
1 MIC1_L 2 GND 3 MIC_JD 4 MIC1_R
22
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
14
14

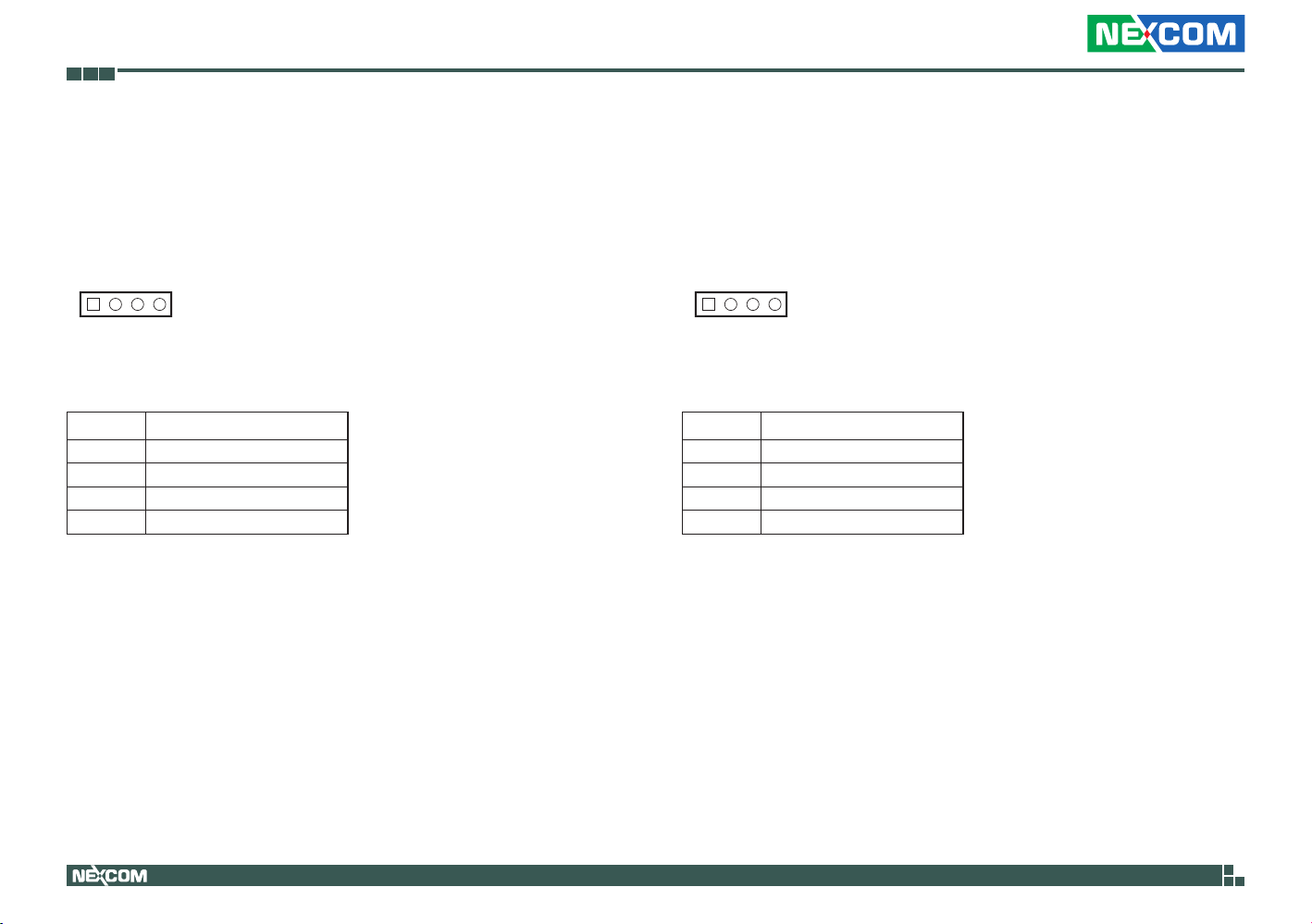

Line-out
Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: JP11
Pin Definition
1 LOUT_L
2 GND
3 LOUT_JD
4 LOUT_R
Line-in
Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: JP9
Pin Definition
1 LIN_L3 2 GND 3 LIN_JD 4 LIN_R3
23
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
15
Speaker-out
Connector type: 1x5 5-pin header, 2.0mm pitch Connector location: JP12
Pin Definition Pin Definition
1 FRONT_L+ 2 FRONT_L-
3 GND 4 FRONT_R+
5 FRONT_R-

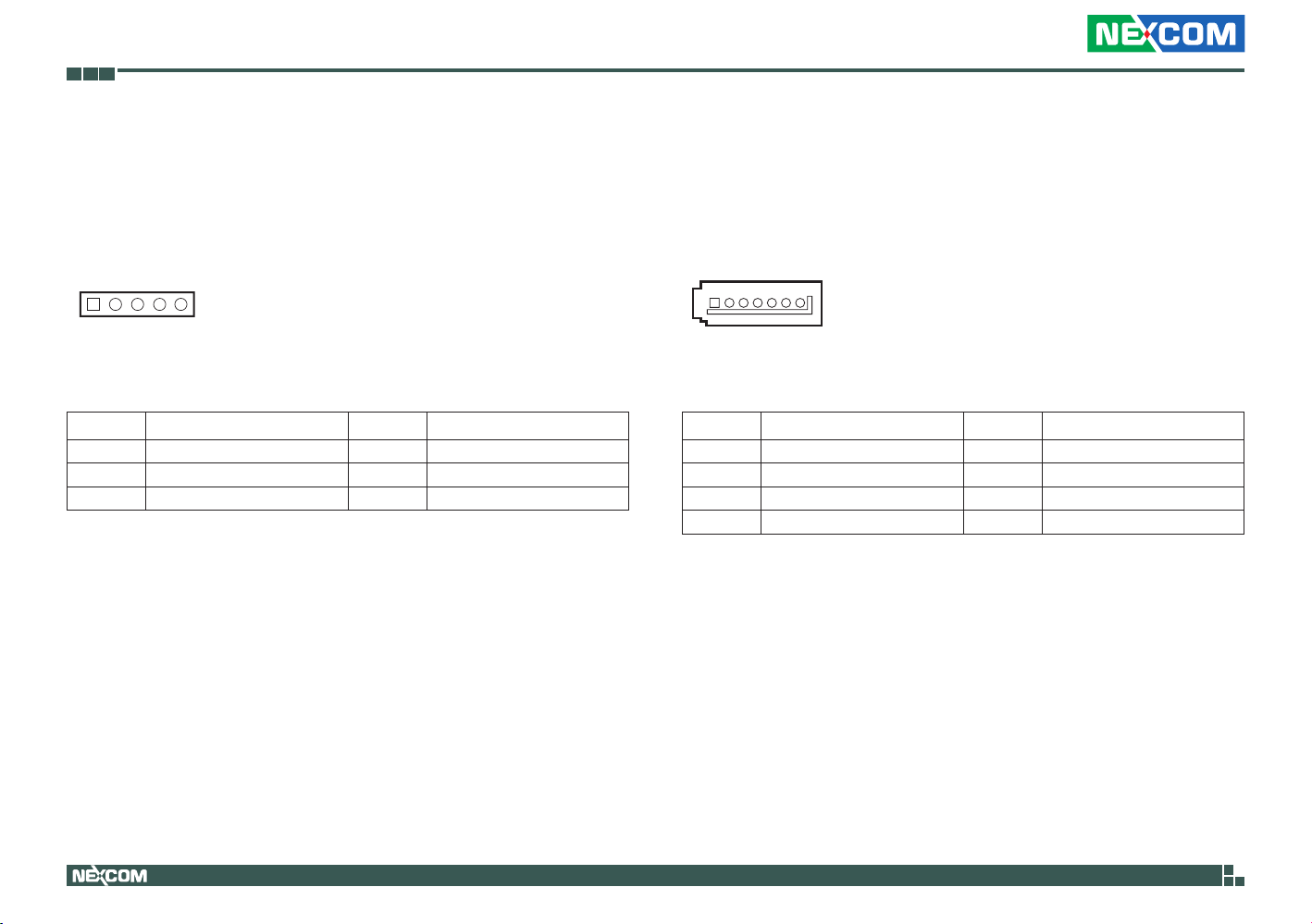

SATA Connector
Connector type: 1x7 7-pin header, 1.27mm pitch Connector location: CN6
71
Pin Definition Pin Definition
1 GND 2 SATA_TXP1 3 SATA_TXN1 4 GND 5 SATA_RXN1 6 SATA_RXP1 7 GND
24
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
14

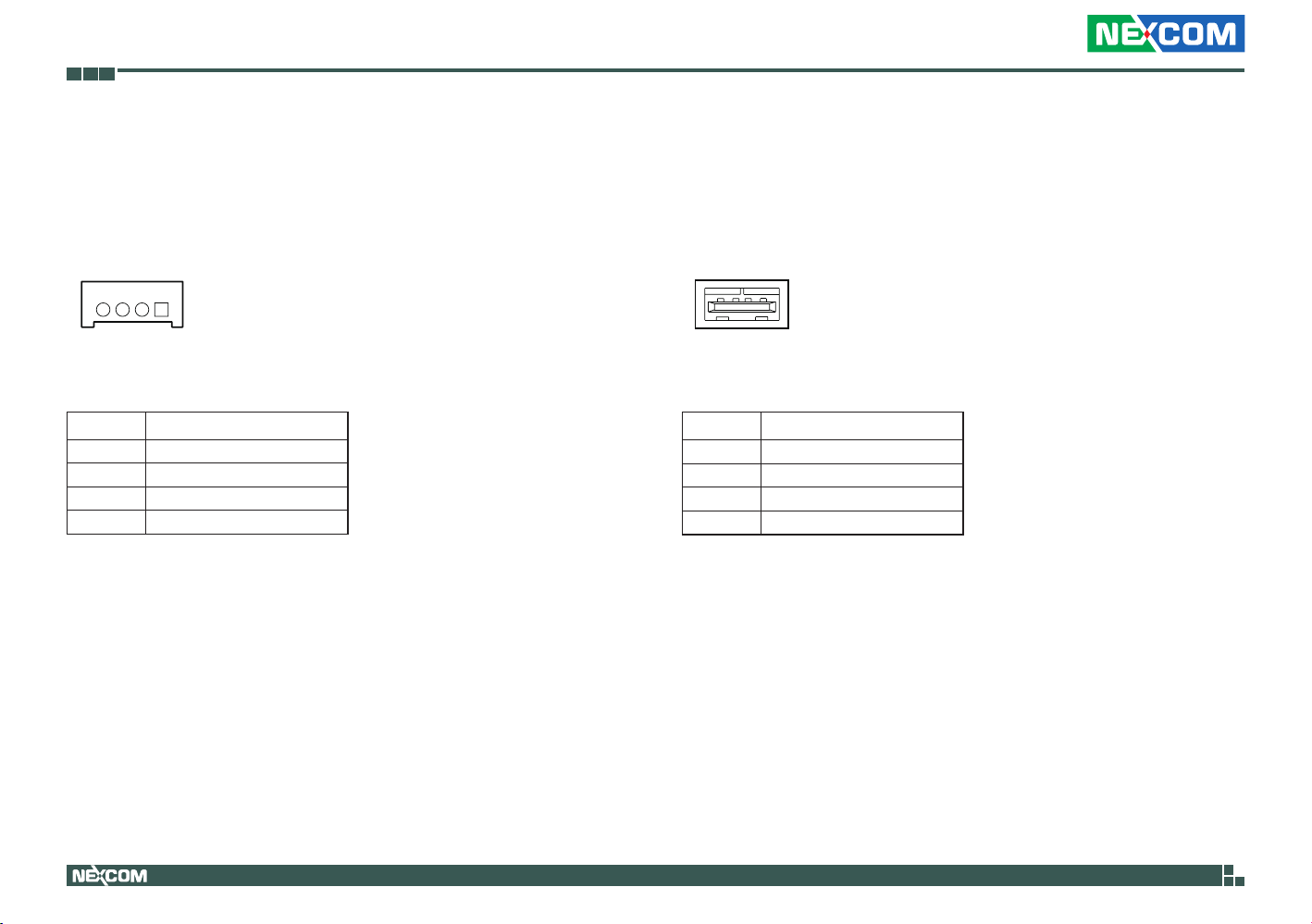

SATA Power Connector
Connector type: 1x4 4-pin header, 2.0mm pitch Connector location: J6
14
Pin Definition
1 12V
2 GND
3 GND
4 VCC5
USB Connector (Dongle)
Connector type: USB port Connector location: CN2
1 4
Pin Definition
1 +5V 2 Data 4­3 Data 4+ 4 GND
25
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
Mini-PCIe Connector (Wi-Fi)
Connector location: CN7
12
51 52
Pin Definition Pin Definition
1 WAKE# 2 +3VSB
3 NC 4 GND
5 NC 6 +1.5V
7 CLKREQ# 8 NC
9 GND 10 NC 11 REF CLK- 12 NC 13 REF CLK+ 14 NC 15 GND 16 NC 17 NC 18 GND 19 NC 20 Disable# 21 GND 22 PERST# 23 PCIERX1N 24 +3VSB 25 PCIERX1P 26 GND
26
Pin Definition Pin Definition
27 GND 28 +1.5V 29 GND 30 SMBCLK 31 PCIETX- 32 SMBDATA 33 PCIETX+ 34 GND 35 GND 36 USB_0N 37 GND 38 USB_0P 39 +3VSB 40 GND 41 +3VSB 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 +1.5V 49 NC 50 GND 51 NC 52 +3VSB
NISE 301 User Manual
Chapter 2: Jumpers and Connectors
Mini-PCIe Connector (3.5G/LTE)
Connector location: CN8
12
51 52
Pin Definition Pin Definition
1 WAKE# 2 +3VSB
3 NC 4 GND
5 NC 6 +1.5V
7 CLKREQ# 8 UIM_PWR
9 GND 10 UIM_DATA 11 REF CLK- 12 UIM_CLK 13 REF CLK+ 14 UIM_RESET 15 GND 16 UIM_VPP 17 NC 18 GND 19 NC 20 Disable# 21 GND 22 PERST# 23 PCIERX1N 24 +3VSB 25 PCIERX1P 26 GND
27
Pin Definition Pin Definition
27 GND 28 +1.5V 29 GND 30 SMBCLK 31 PCIETX- 32 SMBDATA 33 PCIETX+ 34 GND 35 GND 36 USB_1N 37 GND 38 USB_1P 39 +3VSB 40 GND 41 +3VSB 42 NC 43 GND 44 NC 45 NC 46 NC 47 NC 48 +1.5V 49 NC 50 GND 51 NC 52 +3VSB
NISE 301 User Manual

Chapter 3: System Setup

CAUTION!
ChaPter 3: system setuP

Removing the Top Cover

Prior to removing the chassis cover, make sure the unit’s power
CAUTION!CAUTION!
1. Locate the 4 screws on the top cover. 2. Remove the screws then lift up the cover and remove it from the chassis.
is off and disconnected from the power sources to prevent electric shock or system damage.
28
NISE 301 User Manual
Chapter 3: System Setup

Removing the Bottom Cover

1. Remove the 6 screws on the bottom cover.
2. Lift up the bottom cover and remove it from the chassis.
29
NISE 301 User Manual
Chapter 3: System Setup

Installing a SO-DIMM Memory Module

Remove the top cover before installing a SO-DIMM module.
1. Locate the SO-DIMM socket and release the locks.
SO-DIMM
socket
2. Insert the SO-DIMM module into the socket and apply even pressure to both ends of the module until it is locked.
30
NISE 301 User Manual
Chapter 3: System Setup

Installing a 3G/GSM Module

1. Locate the antenna hole cover on the front panel and remove it. 3. Locate the Wi-Fi/3G slot and remove the half-size mini-PCIe bracket.
2. Install the antenna jack through the hole, and fix the cable with rings.
Half-size
Mini-PCIe bracket
31
NISE 301 User Manual
Chapter 3: System Setup

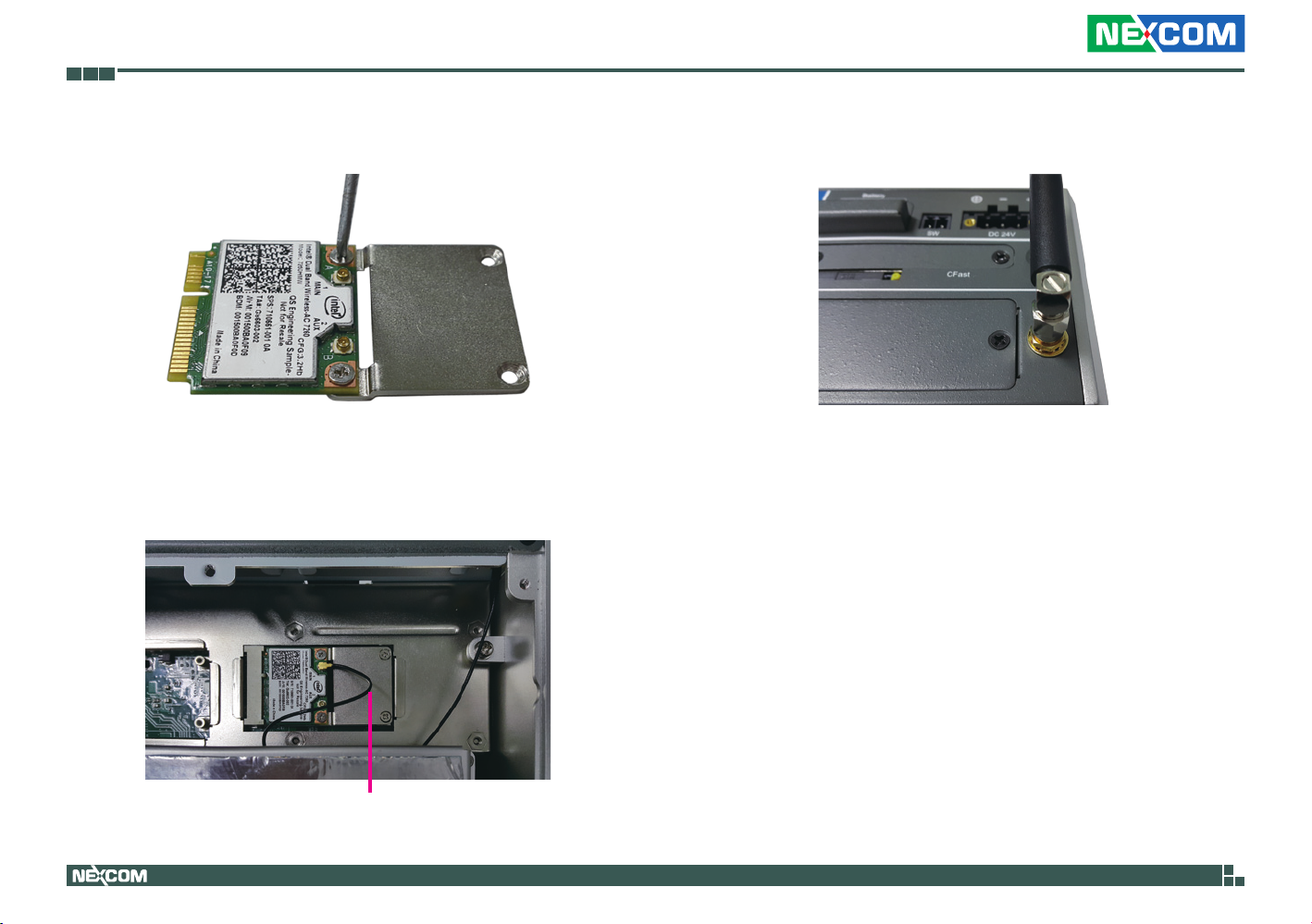

4. Secure the mini-PCIe bracket to the 3G/Wi-Fi module with screws. 6. Install the antenna. (3G/GSM antenna is shown as example below).
5. Insert the 3G/Wi-Fi module into the slot and secure it with screws, then attach the RF antenna cable onto the module.
RF antenna cable
32
NISE 301 User Manual
Chapter 3: System Setup

Installing a SIM Card

1. Locate the SIM card holder on the front panel and release it by pushing the yellow button.
2. Place the SIM card into the holder.
3. Insert the SIM card holder back to its original position.
33
NISE 301 User Manual
Chapter 3: System Setup

Installing a CFast Card

1. Locate the CFast socket at the front and remove its cover. 2. Insert the CFast card into the slot, then secure the cover back to its
original location.
34
NISE 301 User Manual
Chapter 3: System Setup

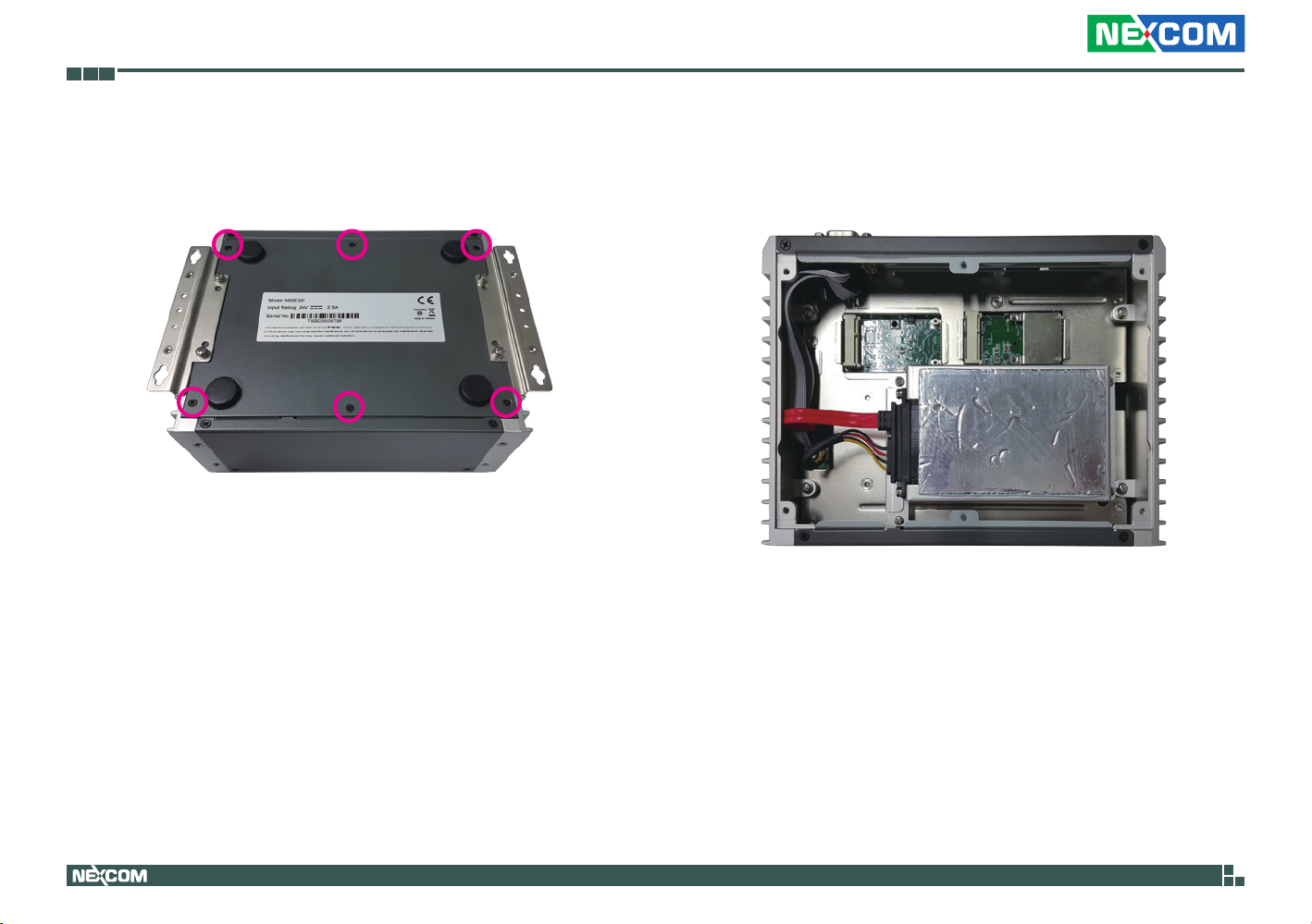

Installing a SATA Hard Drive

1. Remove the bottom cover of the chassis.
2. Unscrew the HDD bracket and lift it up.
35
NISE 301 User Manual
Chapter 3: System Setup
3. Unscrew the SATA connector and place the HDD into the bracket with the connector side facing towards the opening. Once in place, secure the HDD to the bracket with screws.
SATA Connector Screw
4. Fix the SATA connector to the HDD and secure the HDD bracket back to its original location.
36
NISE 301 User Manual

Chapter 4: BIOS Setup

ChaPter 4: BIos setuP
This chapter describes how to use the BIOS setup program for NISE 301. The BIOS screens provided in this chapter are for reference only and may change if the BIOS is updated in the future.
To check for the latest updates and revisions, visit the NEXCOM Web site at www.nexcom.com.tw.

About BIOS Setup

The BIOS (Basic Input and Output System) Setup program is a menu driven utility that enables you to make changes to the system configuration and tailor your system to suit your individual work needs. It is a ROM-based configuration utility that displays the system’s configuration status and provides you with a tool to set system parameters.
These parameters are stored in non-volatile battery-backed-up CMOS RAM that saves this information even when the power is turned off. When the system is turned back on, the system is configured with the values found in CMOS.
With easy-to-use pull down menus, you can configure such items as:
▪ Hard drives, diskette drives, and peripherals
▪ Video display type and display options
▪ Password protection from unauthorized use
▪ Power management features
The settings made in the setup program affect how the computer performs. It is important, therefore, first to try to understand all the setup options, and second, to make settings appropriate for the way you use the computer.

When to Configure the BIOS

▪ This program should be executed under the following conditions:
▪ When changing the system configuration
▪ When a configuration error is detected by the system and you are
prompted to make changes to the setup program
▪ When resetting the system clock
▪ When redefining the communication ports to prevent any conflicts
▪ When making changes to the Power Management configuration
▪ When changing the password or making other changes to the security
setup
Normally, CMOS setup is needed when the system hardware is not consistent with the information contained in the CMOS RAM, whenever the CMOS RAM has lost power, or the system features need to be changed.
37
NISE 301 User Manual
Chapter 4: BIOS Setup

Default Configuration

Most of the configuration settings are either predefined according to the Load Optimal Defaults settings which are stored in the BIOS or are automatically detected and configured without requiring any actions. There are a few settings that you may need to change depending on your system configuration.

Entering Setup

When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines. These routines perform various diagnostic checks; if an error is encountered, the error will be reported in one of two different ways:
▪ If the error occurs before the display device is initialized, a series of beeps
will be transmitted.
▪ If the error occurs after the display device is initialized, the screen will
display the error message.
Powering on the computer and immediately pressing <Del> allows you to enter Setup.

Legends

Key Function
Moves the highlight left or right to select a menu.
Moves the highlight up or down between sub¬menus or fields.
Exits the BIOS Setup Utility.
Scrolls forward through the values or options of the highlighted field.
Scrolls backward through the values or options of the highlighted field.
Selects a field.
Displays General Help.
Load previous values.
Load optimized default values.
Press the
key to enter Setup:
38
Saves and exits the Setup program.
Press <Enter> to enter the highlighted sub¬menu
NISE 301 User Manual
Chapter 4: BIOS Setup
Scroll Bar
When a scroll bar appears to the right of the setup screen, it indicates that there are more available fields not shown on the screen. Use the up and down arrow keys to scroll through all the available fields.
Submenu
When “” appears on the left of a particular field, it indicates that a submenu which contains additional options are available for that field. To display the submenu, move the highlight to that field and press .
39
NISE 301 User Manual
Chapter 4: BIOS Setup

BIOS Setup Utility

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. The main menu allows you to select from several setup functions and one exit. Use arrow keys to select among the items and press to accept or enter the submenu.

Main

The Main menu is the first screen that you will see when you enter the BIOS Setup Utility.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced Chipset Boot SecurityMain
BIOS Information BIOS Vendor Core Version Compliancy Project Version Build Date and Time
CPU Conguration
Microcode Patch
Memory Information Total Memory
GOP Information Intel(R) GOP Driver
System Date System Time
American Megatrends
5.009 UEFI 2.3; PI 1.2 N301-005 x64 07/07/2014 18:10:15
901
8192 MB
[N/A]
[Sat 03/28/2015] [16:37:59]
Save & Exit
Set the Date. Use Tab to switch between Date elements.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
System Date
The date format is <day>, <month>, <date>, <year>. Day displays a day, from Monday to Sunday. Month displays the month, from January to December. Date displays the date, from 1 to 31. Year displays the year, from 1999 to 2099.
System Time
The time format is <hour>, <minute>, <second>. The time is based on the 24-hour military-time clock. For example, 1 p.m. is 13:00:00. Hour displays hours from 00 to 23. Minute displays minutes from 00 to 59. Second displays seconds from 00 to 59.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
40
NISE 301 User Manual
Chapter 4: BIOS Setup

Advanced

The Advanced menu allows you to configure your system for basic operation. Some entries are defaults required by the system board, while others, if enabled, will improve the performance of your system or let you set some features according to your preference.
Setting incorrect field values may cause the system to malfunction.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Main
► ACPI Settings
► IT8786E Super IO Conguration ► Hardware Monitor ► CPU Conguration ► PPM Conguration ► IDE Conguration ► USB Conguration
Save & ExitAdvanced Chipset Boot Security
CPU Conguration Parameters
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
ACPI Settings
This section is used to configure ACPI Settings.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Main
ACPI Settings
Enable Hibernation
ACPI Sleep State
Advanced Chipset PCIPnP Security
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
[Enabled]
[S3 (Suspend to RAM)]
Exit
Enables or Disables System
ability to Hibernate (OS/S4 Sleep
State). This option may be not effective with some OS.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Enable Hibernation
Enables or disables system ability to hibernate (OS/S4 Sleep State). This option may not be effective with some OS.
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
ACPI Sleep State
Select the highest ACPI sleep state the system will enter when the suspend button is pressed. The options are Suspend Disabled and S3 (Suspend to RAM).
41
NISE 301 User Manual
Chapter 4: BIOS Setup
IT8786E Super IO Configuration
This section is used to configure the serial ports.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
IT8786E Super IO Conguration
Super IO Chip
Serial Port 1 Conguration
Serial Port 2 Conguration
Serial Port 3 Conguration
Serial Port 4 Conguration
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
IT8786E
Super IO Chip
Displays the Super I/O chip used on the board.
Set Parameters of Serial Port 1 (COMA)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port 1 Configuration
This section is used to configure serial port 1.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Serial Port 1 Conguration
Serial Port
Device Settings
Onboard Serial Port Mode Terminal resistor
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
[Enabled]
IO=248h; IRQ=5;
[RS232] [Enabled]
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port
Enables or disables the serial port.
Onboard Serial Port Mode
Select this to change the serial port mode to RS232, RS422 or RS485.
Terminal Resistor
Enables or disables the terminal resistor.
42
NISE 301 User Manual
Chapter 4: BIOS Setup
Serial Port 2 Configuration
This section is used to configure serial port 2.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Serial Port 2 Conguration
Serial Port
Device Settings
Onboard Serial Port Mode Terminal resistor
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
[Enabled]
IO=2F8h; IRQ=3;
[RS232] [Enabled]
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Serial Port
Enables or disables the serial port.
Onboard Serial Port Mode
Select this to change the serial port mode to RS232, RS422 or RS485.
Serial Port 3 Configuration
This section is used to configure serial port 3.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Serial Port 3 Conguration
Serial Port
Device Settings
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
[Enabled]
IO=3E8h; IRQ=11;
Serial Port
Enables or disables the serial port.
Terminal Resistor
Enables or disables the terminal resistor.
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Terminal Resistor
Enables or disables the terminal resistor.
43
NISE 301 User Manual
Chapter 4: BIOS Setup
Serial Port 4 Configuration
This section is used to configure serial port 4.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Serial Port 4 Conguration
Serial Port
Device Settings
[Enabled]
IO=2E8h; IRQ=10;
Enable or Disable Serial Port (COM)
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Serial Port
Enables or disables the serial port.
Terminal Resistor
Enables or disables the terminal resistor.
44
NISE 301 User Manual
Chapter 4: BIOS Setup
H/W Monitor
This section is used to monitor hardware status such as temperature, fan speed and voltages.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
Pc Health Status
CPU temperature(DTS) System temperature Fan Speed VCore VCC12 VCC5 VCC3
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
: +33 C : +24 C : N/A : +0.888 V : +12.096 V : +4.950 V : +3.663 V
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
CPU Temperature
Detects and displays the current CPU temperature.
VCore
Detects and displays the Vcore CPU voltage.
VCC12
Detects and displays 12V voltage.
VCC5
Detects and displays 5V voltage.
VCC3
Detects and displays 3.3V voltage.
System Temperature
Detects and displays the current system temperature.
Fan Speed
Detects and displays the fan speed.
45
NISE 301 User Manual
Chapter 4: BIOS Setup
CPU Configuration
This section is used to configure the CPU.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
CPU Conguration
Socket 0 CPU Information
CPU Speed 64-bit
Active Processor Cores Limit CPUID Maximum Execute Disable Bit Intel Virtualization Technology
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
1918 MHz
Supported
[All] [Disabled] [Enabled] [Enabled]
Socket specic CPU Information
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Active Processor Cores
Select the number of cores to enable in each processor package.
Execute Disable Bit
When this field is set to Disabled, it will force the XD feature flag to always return to 0. XD can prevent certain classes of malicious buffer overflow attacks when combined with a supporting OS (Windows Server 2003 SP1, Windows XP SP2, SuSE Linux 9.2, RedHat Enterprise 3 Update 3).
Intel® Virtualization Technology
Enables or disables Intel® Virtualization technology.
Limit CPUID Maximum
The CPUID instruction of some newer CPUs will return a value greater than 3. The default is Disabled because this problem does not exist in the Windows series operating systems. If you are using an operating system other than Windows, this problem may occur. To avoid this problem, enable this field to limit the return value to 3 or lesser than 3.
46
NISE 301 User Manual
Chapter 4: BIOS Setup
PPM Configuration
This section is used to configure the Processor Power Management (PPM) configuration.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
PPM Conguration
EIST
[Disabled]
Enable/Disable Intel SpeedStep
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
EIST
Enables or disables Intel® SpeedStep.
47
NISE 301 User Manual
Chapter 4: BIOS Setup
IDE Configuration
This section is used to configure the SATA drives.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
IDE Conguration
Serial-ATA (SATA)
SATA Mode
Serial-ATA Port 0
SATA Port0 HotPlug
Serial-ATA Port 1
SATA Port1 HotPlug
SATA Port0 Not Present
SATA Port1 Not Present
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
[Enabled]
[AHCI Mode]
[Enabled] [Disabled]
[Enabled] [Disabled]
Serial-ATA (SATA)
Enables or disables SATA device.
Enable / Disable Serial ATA.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
SATA Mode
Configures the SATA as IDE or AHCI mode.
IDE This option configures the Serial ATA drives as Parallel ATA physical storage device. AHCI This option configures the Serial ATA drives to use AHCI (Advanced Host Controller Interface). AHCI allows the storage driver to enable the advanced Serial ATA features which will increase storage performance.
Serial-ATA Port 0 and Serial-ATA Port 1
Enables or disables SATA port 0 and SATA port 1.
SATA Port1 Hotplug and SATA Port2 Hotplug
Enables or disables hotplug support on SATA port 1 and SATA port 2.
48
NISE 301 User Manual
Chapter 4: BIOS Setup
USB Configuration
This section is used to configure the USB.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced
USB Conguration
USB Module Version
USB Devices:
2 Keyboards, 1 Hub
Legacy USB Support
USB3.0 Support
XHCI Hand-off EHCI Hand-off
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
8.10.27
[Enabled]
[Enabled] [Enabled] [Enabled]
Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Legacy USB Support
Enable Enables Legacy USB. Auto Disables support for Legacy when no USB devices are connected. Disable Keeps USB devices available only for EFI applications.

Chipset

This section gives you functions to configure the system based on the specific features of the chipset. The chipset manages bus speeds and access to system memory resources.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Save & ExitAdvanced Chipset Security BootMain
► South Bridge
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
South Bridge Parameters
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
USB3.0 Support
Enables or disables USB 3.0 controller support.
XHCI Hand-off and EHCI Hand-off
This is a workaround for OSs that does not support XHCI hand-off and EHCI Hand-off. The XHCI and EHCI ownership change should be claimed by the XHCI and EHCI driver respectively.
49
NISE 301 User Manual
Chapter 4: BIOS Setup
South Bridge
This section is used to configure the south bridge features.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Chipset
Azalia HD Audio
►
►
USB Conguration
►
PCI Express Conguration
High Precision Timer
Restore AC Power Loss
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
[Enabled] [Power On]
Azalia HD Audio Options
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
High Precision Timer
Enables or disables the high precision event timer.
Restore AC Power Loss
Power Off When power returns after an AC power failure, the system’s
power is off. You must press the power button to power-on the system.
Power On When power returns after an AC power failure, the system
will automatically power-on.
Last State When power returns after an AC power failure, the system
will return to the state where you left off before power failure occurs. If the system’s power is off when AC power failure occurs, it will remain off when power returns. If the system’s power is on when AC power failure occurs, the system will power-on when power returns.
50
NISE 301 User Manual
Chapter 4: BIOS Setup
Azalia HD Audio
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Chipset
Audio Conguration
Audio Controller
Azalia HDMI Codec
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
[Enabled]
[Enabled]
Control Detection of the Azalia device. Disabled = Azalia will be unconditionally disabled Enabled = Azalia will be unconditionally Enabled Auto = Azalia will be enabled if present, disabled otherwise.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Azalia
Control detection of the Azalia device.
Disabled Azalia will be unconditionally disabled. Enabled Azalia will be unconditionally enabled.
Azalia HDMI Codec
Enables or disables internal HDMI codec for Azalia.
USB Configuration
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Chipset
USB Conguration XHCI Mode
USB 2.0(EHCI) Support
USB RMH Mode USB EHCI debug
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
[Disabled]
[Enabled]
[Enabled] [Disabled]
Control the USB EHCI (USB 2.0) functions. One EHCI
controller must always be enabled.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
USB 2.0(EHCI) Support
Enables or disables the Enhanced Host Controller Interface (USB 2.0), one EHCI controller must always be enabled.
USB RMH Mode
Enables or disables PCH USB rate matching hubs mode.
USB EHCI Debug
Enables or disables PCH EHCI debug capability.
51
NISE 301 User Manual
Chapter 4: BIOS Setup
PCI Express Configuration
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Chipset
PCI Express Conguration
PCI Express Port 0
PCI Express Port 1
PCI Express Port 2
PCI Express Port 3
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
[Enabled]
[Enabled]
[Enabled]
[Enabled]
Enable or Disable the PCI Express Port 0 in the Chipset.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
PCI Express Port 0 to PCI Express Port 3
Enables or disables the PCI Express ports 0 to 3 on the chipset.

Security

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Save & ExitAdvanced Chipset Security BootMain
Password Description
If ONLY the Administrator’s password is set, then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the User Will have Administrator rights. The password length must be in the following range: Minimum length 3 Maximum length 20
Administrator Password
User Password
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Administrator Password
Select this to reconfigure the administrator’s password.
User Password
Select this to reconfigure the user’s password.
Set Administrator Password
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
52
NISE 301 User Manual
Chapter 4: BIOS Setup

Boot

This section is used to configure the boot features.
Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced Chipset
Boot Conguration
Bootup NumLock State
Fast Boot
Network Onboard LAN PXE Video
Boot Option Priorities
Boot Option #1
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Security
[On]
[Disabled]
[Enabled] [Disabled] [Legacy only]
[UEFI: Built-in EFI . . .]
Bootup NumLock State
This allows you to determine the default state of the numeric keypad. By default, the system boots up with NumLock on wherein the function of the numeric keypad is the number keys. When set to Off, the function of the numeric keypad is the arrow keys.
BootMain
Save & Exit
Select the keyboard NumLock state
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Network
Controls the execution of UEFI and legacy PXE OpROM.
Onboard LAN PXE
Options to disable onboard LAN PXE ROM or enable it for LAN1 or LAN2 .
Video
Controls the execution of UEFI and legacy video OpROM.
Boot Option Priorities
Adjust the boot sequence of the system. Boot Option #1 is the first boot device that the system will boot from, next will be #2 and so forth.
Fast Boot
When enabled, the BIOS will shorten or skip some check items during POST. This will decrease the time needed to boot the system.
53
NISE 301 User Manual
Chapter 4: BIOS Setup

Save & Exit

Aptio Setup Utility - Copyright (C) 2013 American Megatrends, Inc.
Advanced Chipset Security BootMain
Save Changes and Reset
Discard Changes and Reset
Restore Defaults
Version 2.16.1242. Copyright (C) 2013 American Megatrends, Inc.
Save Changes and Reset
To save the changes and reset, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
Save & Exit
Reset the system after saving the changes.
→←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit ESC: Exit
Discard Changes and Reset
To exit the Setup utility without saving the changes, select this field then press <Enter>. You may be prompted to confirm again before exiting.
Restore Defaults
To restore the BIOS to default settings, select this field then press <Enter>. A dialog box will appear. Confirm by selecting Yes.
54
NISE 301 User Manual

Appendix A: Power Consumption

aPPendIx a: Power ConsumPtIon
Test Configuration
System Configuration Sys#1
Chassis Chassis NISE 301 VER:A
CPU Intel
Memory Transcend 8G DDR3 SO-DIMM (TS512MSK64W6H)
CPU board N/A
Mother board NISB301 REV:B
Power board NISKIO6 REV:B
HDD TS64GSSD630I 64GB MLC SSD
FDD N/A
CD-ROM N/A
CFast ADATA CFast 32GB (ISC3E-032GM)
Power Supply Laboratory DC Power Supply GWINSTEK GPC-60300
Add-on Card NISK300 LAN Kit
CPU Cooler NISE 301 CPU Heatsink SHYUNG SHUHN
System FAN N/A
Keyboard Microsoft Wired Keyboard 600
Mouse Microsoft Basic Optical Mouse
®
Atom™ processor E3845 quad core, 1.91GHz
55
NISE 301 User Manual
Appendix A: Power Consumption
Power Consumption Management
Purpose
The purpose of the power consumption test is to verify the power dissipation of system, and the loading of power supply.
Test Equipment
PROVA CM-07 AC/DC CLAMP METER
Device Under Test
DUT: sys#1/
Test Procedure
1. Power up the DUT, boot into Windows 8 x32 Pro.
2. Entering standby mode (HDD power down).
3. Measure the power consumption and record it.
4. Run Burn-in test program to apply 100% full loading.
5. Measure the power consumption and record it.
Test Data
Sys #1
+24V
Full-Loading Mode 1.12A
Total 26.88W
Standby S3 Mode 0.47A
Total 11.28W
56
NISE 301 User Manual

Appendix B: GPI/O Programming Guide

aPPendIx B: GPI/o ProGrammInG GuIde
GPI/O (General Purpose Input/Output) pins are provided for custom system design. This appendix provides definitions and its default setting for the ten GPI/O pins in the NISE 301 series. The pin definition is shown in the following table:
Pin GPI/O Mode
1 VCC - - 2 GND - -
3 GPO0 Low A07h (Bit4) 4 GPI0 High A07h (Bit0)
5 GPO1 Low A07h (Bit5) 6 GPI1 High A07h (Bit1)
7 GPO2 Low A07h (Bit6) 8 GPI2 High A07h (Bit2)
9 GPO3 Low A07h (Bit7) 10 GPI3 High A07h (Bit3)
Control the GPO 0/1/2/3 level from I/O port A07h bit 4/5/6/7. The bit is Set/Clear indicated output High/Low.
PowerOn
Default
Address Pin GPI/O Mode
PowerOn
Default
57
Address
NISE 301 User Manual
Appendix B: GPI/O Programming Guide
GPIO programming sample code
#define GPO0 (0x01 << 4) #define GPO1 (0x01 << 5) #define GPO2 (0x01 << 6) #define GPO3 (0x01 << 7)
#define GPO0_HI outportb(0xA07, GPO0) #define GPO0_LO outportb(0xA07, 0x00) #define GPO1_HI outportb(0xA07, GPO1) #define GPO1_LO outportb(0xA07, 0x00) #define GPO2_HI outportb(0xA07, GPO2) #define GPO2_LO outportb(0xA07, 0x00) #define GPO3_HI outportb(0xA07, GPO3) #define GPO3_LO outportb(0xA07, 0x00)
void main(void) { GPO0_HI; GPO1_LO; GPO2_HI; GPO3_LO; }
58
NISE 301 User Manual

Appendix C: Watchdog Timer Setting

aPPendIx C: watChdoG tImer settInG
ITE8786 WatchDog Programming Guide
#define SUPERIO_PORT 0x2E #define WDT_SET 0x72 #define WDT_VALUE 0x73
void main(void) { # Enter SuperIO Configuration outportb(SUPERIO_PORT, 0x87); outportb(SUPERIO_PORT, 0x01); outportb(SUPERIO_PORT, 0x55); outportb(SUPERIO_PORT, 0x55);
# Set LDN outportb(SUPERIO_PORT, 0x07); outportb(SUPERIO_PORT+1 ,0x07);
# Set WDT setting outportb(SUPERIO_PORT, WDT_SET); outportb(SUPERIO_PORT+1, 0x90); # Use the second # Use the minute, change value to 0x10
# Set WDT sec/min outportb(SUPERIO_PORT, WDT_VALUE); outportb(SUPERIO_PORT+1, 0x05); #Set 5 seconds }
59
NISE 301 User Manual

Appendix D: LED Programming Guide

aPPendIx d: Led ProGrammInG GuIde
LEDs are provided for custom system design. This appendix provides definitions and its default setting for the LEDs in the NISE 301 series. The LED definition is shown in the following table:
Pin
LED1 High A04h (Bit6)
LED2 High A04h (Bit7)
LED3 High A05h (Bit0)
LED4 High A05h (Bit1)
Control the LED (LED1/ LED2/ LED3/ LED4) level from I/O port A04h bit (6/7) and I/O port A05h bit (0/1). The bit is Set/Clear indicated output High/Low.
PowerOn
Default
Address
60
NISE 301 User Manual
