TLM 193

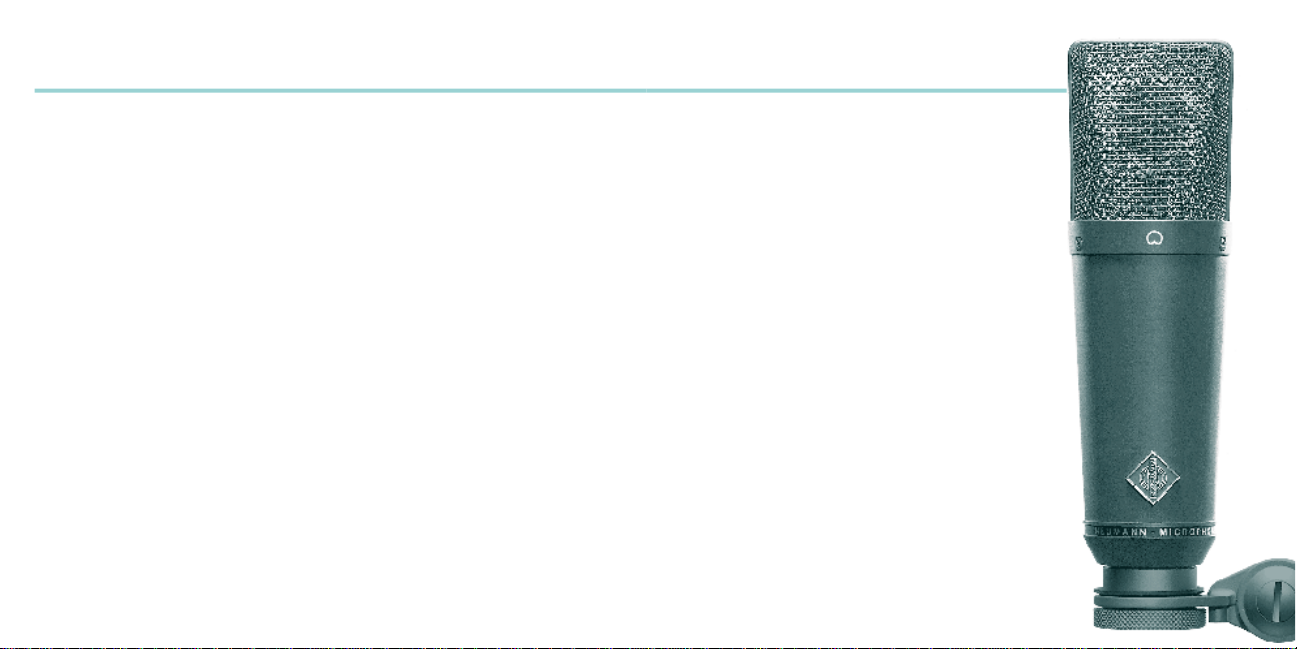

The TLM 193 is a large diaphragm, double membrane cardioid
condenser microphone designed for critical recording, broadcast
and live sound applications. The capsule of the TLM 193 is the
same legendary large diaphragm capsule used in the U 89i/
TLM 170 family. This unit is mated to the proven FET 100
PRESSURE GRADIENT MICROPHONE
circuitry of the KM 100 series.
The TLM 193 excels at many applications including
overhead and close-miking drums, capturing the nuances of
acoustic performances, and recording critical vocals in the
Neumann tradition.
The TLM 193 package includes the microphone,
swivel stand adapter and wooden jewelers case.
SPECIFICATIONS
TLM 193
Acoustical Operating Principal Pressure gradient transducer
Directional Pattern C a r d i o i d
Frequency Range H z 20 to 20,000
1 )
Sensitivity
Rated Impedance o h m s 50
Rated Load Impedance o h m s 1000
Equivalent Loudness Level Due To Inherent Noise
(CCIR 468-3 weighted) d B 2 1
(DIN/IEC 651dB-A) d B 1 0
S / NR a t i o
related to 1Pa at 1kHz, (CCIR 468-3 weighted) d B 7 3
A - w e i g h t e d d B 8 4
Max SPL for less than 0.5% THD
2 )
m V / P a 11 ± 1dB
d B 1 4 0
Max Output Voltage V 2 . 5 4
Phantom Powering V 48 ± 4
(P48, IEC 268-15)
Total dynamic range of the microphone amplifier
Current Consumption
3 )
3 )
d B 1 3 0
m A 2
W e i g h t g 490 (1.08lb)
Dimensions Length m m 1 7 5
1 )
2 )
3 )
Ø m m 4 9
1 Pa = 94 dB SPL, at 1kHz into 1 k ohm load impedance
THD of the microphone amplifier when an input level equivalent to the capsule output at the specified SPL is applied
AII microphones are 48 V +4 V phantom powered (P 48 according to DIN 45596/1EC 8 15)
dB
+10
0
-10
-20
20 50 100 200 500 1000 2000 5000 10,000 20,000 Hz
0°
0
315°
270°
225°
45°
5
10
15
20
90°
dB
180°
125 Hz
250 Hz
500 Hz
1 kHz
2 kHz
4 kHz
8 kHz
135°
16 kHz
