he KMS 104 and KMS 105 mic-

rophones have been developed to

permit optimal transmission of the

human voice, and are thus micropho-

nes of choice for demanding live ap-

plications. The KMS 105, which has

already been available on the mar-

ket for some time, has become an

internationally recognized standard

in the field of high-quality stage mi-

crophones.

Due to their low self-noise and
crosstalk behavior which is free of

coloration, both microphones are

ideal for use with in-ear monitoring

systems.

The KMS 104 has a microphone cap-

sule with a cardioid directional charac-

teristic which provides the best possib-

le suppression of sounds originating

from behind the microphone. In contrast,

with its supercardioid cha-

racteristic the KMS 105 is
particularly good at suppres­sing sounds originating from

the entire 180° hemisphere

behind the microphone. The
user can thus select the ver­sion that is optimally suited

to the specific application.

The high acoustic resolution

and smooth frequency re­sponse of the microphones
ensure that the musician has

optimal control of the stage
performance at all times.

Acoustic features

sure levels prevent the microphones from being overloa­ded even by strong plosive sounds.

In spite of excellent pop protection, sibilants and “S” sounds
are transmitted with their natural accentuation, as is pos­sible only with condenser microphones. Furthermore, the
above-mentioned acoustic filters are designed so that the
distinctive directional characteristics of the capsules are
preserved even in the bass range. The filters thus ensure a
very high level of feedback protection for the KMS 104 and
KMS 105 vocalist microphones when they are used with a
stage sound system.

Electrical features

Since vocalist microphones are typically addressed at clo­se range, for the bass frequency response of the micropho­nes, electronic compensation is used for the proximity ef­fect in the respective capsules.

In addition, each microphone has an invariable, built-in high­pass filter with a cutoff frequency of 120 Hz (–3 dB,

measured in a free sound field). The
dynamic range of the KMS 104/105 is
132 dB, and the maximum sound
pressure level is 150 dB.

The low self-noise level of only
18 dB-A permits both microphones to
be used at high gain levels without the
risk of additional noise. Even at large
distances, the microphones thus ope­rate with a high signal-to-noise ratio,
facilitating the freedom of movement
and creativity that are important to the
artist.

Due to the transformerless output cir­cuit, the microphone signals can be
transmitted even through long cables
without loss of sound.

The studio condenser capsules used in both

microphone versions provide the basis for
transmitting all the nuances of the human
voice. In comparison with other handheld mi-

crophones, which operate mostly with dyna-

mic capsules, the KMS series has a particular­ly high acoustic transparency, a wide frequen­cy range and a fine resolution of transients.

In both microphones, carefully adjusted acous­tic filters and transformerless impedance con-

verters that can handle very high sound pres-

Mechanical features

Microphones designed for use on stage require a particu­larly robust construction. The KMS 104 and KMS 105
therefore have thick-walled metal housings, which also pro­vide effective protection against handling noise.

The microphone headgrilles are made of hardened steel. If
required, they can easily be unscrewed to permit cleaning
of the interior acoustic filters.

KMS 104/105

Delivery Range

The KMS 104 and KMS 105 microphones, with a mat­ching stand clamp, are supplied in an attractive padded ny­lon bag that is sufficiently durable for touring.

Features

• Neumann sound on stage

• Excellent transparency for
vocals/speech

• Cardioid/Supercardioid polar
pattern with excellent
feedback rejection

• Without off-axis coloration

• Transformerless output

• Effective pop shielding
without any side effects

• Set includes stand clamp

Application Hints

• Vocals and speech on stage

• Announcer’s mic for broadcasting/dubbing

• Especially suited for in-ear-monitoring

• For feedback-prone environment

These are just some of the most common applications. We
recommend additional experimentation to gain maximum use
from this microphone.

Delivery Range

KMS 104/105 Microphone
SG 105 Stand clamp
Padded nylon bag

Catalog No.

KM S 1 04 ............................................................................. ni ................. 08548

KM S 10 4 bk ...................................................................... blk .............. 08549

KM S 1 05 ............................................................................. ni ................. 08454

KM S 10 5 bk ...................................................................... blk .............. 08455

Selection of Accessories

Battery supply, BS 48 i ............................................... blk .............. 06494

Battery supply, BS 48 i-2 ......................................... blk .............. 06496

Power supply, N 248 (Euro) .................................. blk .............. 08537

Power supply, N 248 (US) ...................................... blk .............. 08538

Power supply, N 248 (UK) ..................................... blk .............. 08539

Microphone cable, IC 3 mt ....................................... blk .............. 06543

Adapter cable, AC 25 .................................................. blk .............. 06600

Adapter cable, AC 27 .................................................. blk .............. 06602

Table stand, MF 3 .......................................................... blk .............. 07321

Windscreen, WSS 100 ............................................... blk .............. 07352

Stand clamp, SG 105 .................................................. blk .............. 08460

(included in the supply schedule)

A complete survey and detailed descriptions of all accessories
are contained in the accessories catalog.

Meaning of color codes: blk = black, ni = nickel

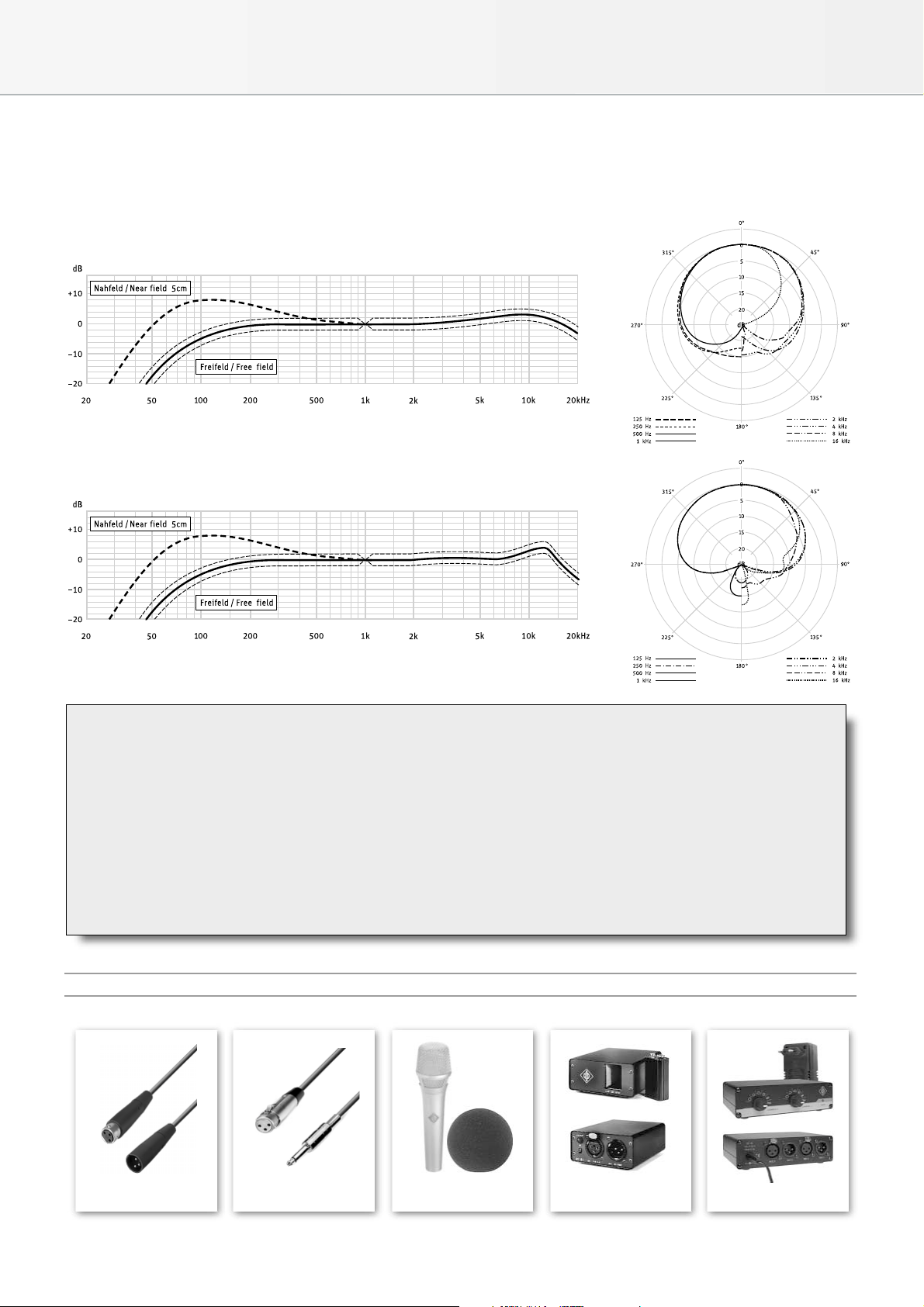

KMS 104

measured in free-field conditions (IEC 60268-4)

KMS 105

KMS 104/105

Technical Data

Acoustical operating principle .......................... Pressure gradient transducer

Directional pattern ................................................................... cardioid/supercardioid

Frequency range .................................................................................... 20 Hz...20 kHz

Sensitivity at 1 kHz into 1 kohm ............................................................ 4.5 mV/Pa

Rated impedance .................................................................................................. 50 ohms

Rated load impedance ................................................................................. 1000 ohms

Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) ............................................. 66 dB

Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) ............................... 76 dB

Equivalent noise level, CCIR1)................................................................................ 28 dB

Equivalent noise level, A-weighted1)............................................................ 18 dB-A

1)

according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS 2) measured as equivalent el. input signal

Maximum SPL for THD 0.5%2)....................................................................... 150 dB

Maximum output voltage ..................................................................................... 12 dBu

Dynamic range of the mic. amplifier (A-weighted) ............................. 132 dB

Supply voltage (P48, IEC 1938) ............................................................. 48 V ± 4 V

Current consumption (P48, IEC 1938) ....................................................... 3.5 mA

Matching connector ................................................................................................... XLR3F

Weight.............................................................................................................. approx. 300 g

Diameter .......................................................................................................................... 48 mm

Length ............................................................................................................................ 180 mm

Selection of Accessories

IC 3 mt, Microphone cable BS 48 i, Battery supply N 248, Power supply

AC 25, Adapter cable

WSS 100, Windscreen
