NETGEAR WNR2000v5 User Manual

N300 WiFi Router

Model WNR2000v5 User Manual

August 2014

202-11381-01

350 East Plumeria Drive

San Jose, CA 95134

USA

N300 WiFi Router

Support

Thank you for selecting NETGEAR products.

After installing your device, locate the serial number on the label of your product and use it to register your product at

https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR

recommends registering your product through the NETGEAR website. For product updates and web support, visit

http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR.

Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx.

Compliance

For regulatory compliance information, visit http://www.netgear.com/about/regulatory.

See the regulatory compliance document before connecting the power supply.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved.

Chapter 1 Hardware Setup

Chapter 2 Connect to the Network and Access the Router

Chapter 3 Specify Initial Settings

Unpack Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cable Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connect to the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Wired Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

WiFi Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Types of Logins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Log In to the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Use the Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Manually Set Up the Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Specify an Internet Connection Without a Login. . . . . . . . . . . . . . . . . . . . . . . 16

Specify an Internet Connection That Uses a Login . . . . . . . . . . . . . . . . . . . . . 17

Specify IPv6 Internet Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Requirements for Entering IPv6 Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Use Auto Detect for an IPv6 Internet Connection. . . . . . . . . . . . . . . . . . . . . . 20

Use Auto Config for an IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . 22

Set Up a 6to4 Tunnel IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . . 23

Set Up a Pass Through IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . 25

Set Up a Fixed IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Set Up a DHCP IPv6 Internet Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Set Up a PPPoE IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Change the MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Chapter 4 Optimize Performance

Prioritize Internet Traffic with Quality of Service . . . . . . . . . . . . . . . . . . . . . . . . 33

Optimize Internet Gaming with Upstream QoS . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Optimize Internet Streaming with QoS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Add QoS Rules by Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Add a QoS Rule by Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Edit a QoS Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Delete a QoS Rule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

N300 WiFi Router

Delete All QoS Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Wi-Fi Multimedia Quality of Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Improve Network Connections with Universal Plug and Play . . . . . . . . . . . . . . . 41

Chapter 5 Control Access to the Internet

Set Up Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Use Keywords to Block Internet Sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Block Services from the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Schedule When to Block Internet Sites and Services . . . . . . . . . . . . . . . . . . . . . . 51

Avoid Blocking on a Trusted Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Set Up Security Event Email Notifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Chapter 6 Specify Network Settings

View or Change the WAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Set Up a Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Change the Router’s Device Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Change the LAN TCP/IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Specify the IP Addresses That the Router Assigns. . . . . . . . . . . . . . . . . . . . . . . . 59

Reserve LAN IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Use the WPS Wizard for WiFi Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Specify Basic WiFi Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Change the WiFi Security Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Use the Router as a Wireless Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Set Up a WiFi Guest Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Control the Wireless Radio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Use the WiFi On/Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Enable or Disable the Wireless Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Set Up a WiFi Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Specify WPS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Chapter 7 Manage Your Network

View Router Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

View Internet Port Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Display Internet Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Check the Internet Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

View Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

View Guest Network Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Reboot the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

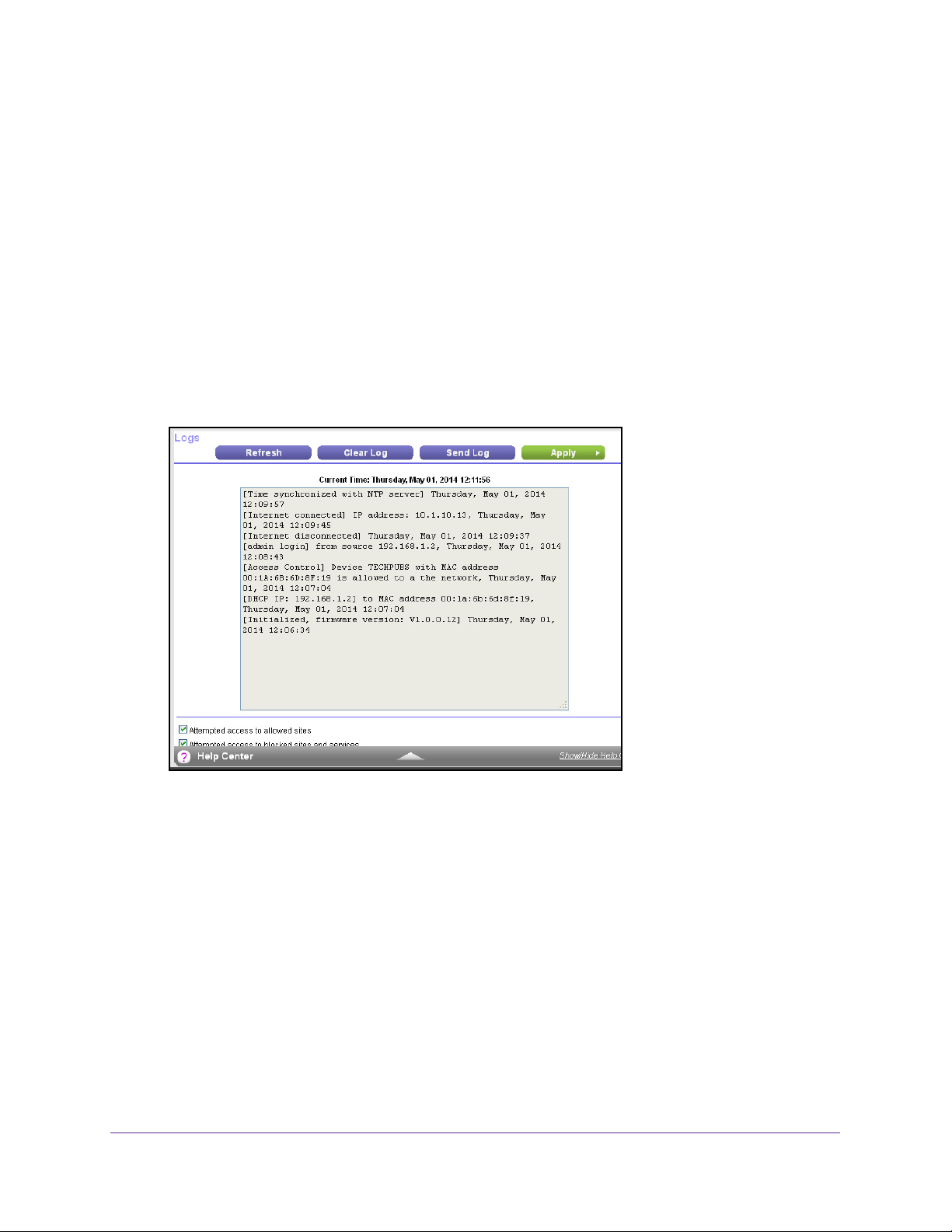

View Logs of Router Activity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Monitor Internet Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Manage the Router Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Back Up Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Erase the Current Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Change the admin Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

N300 WiFi Router

Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

Chapter 8 Specify Internet Port Settings

Set Up Port Forwarding to a Local Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Add a Custom Port Forwarding Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Edit a Port Forwarding Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Delete a Port Forwarding Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93

Application Example: Make a Local Web Server Public . . . . . . . . . . . . . . . . . . 94

How the Router Implements the Port Forwarding Rule . . . . . . . . . . . . . . . . . 94

Set Up Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Add a Port Triggering Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Application Example: Port Triggering for Internet Relay Chat . . . . . . . . . . . . 97

Chapter 9 Troubleshooting

Forgotten Passwords. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

admin Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

WiFi Passwords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100

WiFi Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

Changes Not Saved . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Troubleshoot with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Apply Power to the Router and Check the LEDs . . . . . . . . . . . . . . . . . . . . . . 102

All LEDs Remain Lit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Power LED Is Off or Blinking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Power LED Stays Amber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Internet LEDs Is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

WiFi LED Is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Cannot Log In to the Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

The Router Cannot Access the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Troubleshoot Internet Browsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .105

Troubleshoot a PPPoE Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Troubleshoot Your Network Using the Ping Utility . . . . . . . . . . . . . . . . . . . . . . .107

Test the LAN Path to Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Test the Path from Your Computer to a Remote Device . . . . . . . . . . . . . . . . 107

Troubleshoot IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Appendix A Supplemental Information

Factory Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

1. Hardware Setup

This chapter covers the following topics:

• Unpack Your Router

• Front Panel

• Rear Panel

• Position Your Router

• Cable Your Router

For more information about the topics covered in this manual, visit the support website at

http://support.netgear.com.

Unpack Your Router

Your package contains the following items.

Router

Ethernet cable Power adapter

N300 WiFi Router

Figure 1. Package contents

Front Panel

The router has status LEDs and buttons on the front.

Power LED

Internet LED

WiFi LED

WiFi On/Off button

WPS button / LED

Figure 2. Router front view

Hardware Setup

N300 WiFi Router

You can use the LEDs to verify status and connections. The following table lists and describes each LED and button on the front panel of the router.

Table 1. LED and button descriptions

LED Description

WiFi On/Off button with LED

WPS button with LED

Power

Internet

WiFi

Pressing this button for two seconds turns the WiFi radio in the router on and off. If this LED is lit, the WiFi radio is on. If this LED is off, the WiFi radio is turned off and you cannot use WiFi to connect to the router.

This button lets you use WPS to join the WiFi network without typing the WiFi password. The WPS LED blinks during this process and then lights solid.

• Solid green. The power is on, and the router is ready.

• Solid amber. When you apply power to the router

amber within a few seconds. This indicates that the self-test is running.

• Blinking green. A

• Off. Power is not supplied to the router.

• Solid green.

• Solid amber.

• Off.

• Solid green. The WiFi radio is operating.

• Off. The

wireless radio is off.

firmware update is in progress.

, the Power LED lights and turns

Hardware Setup

N300 WiFi Router

Rear Panel

The rear panel has the connections and button shown the following figure.

Ethernet LAN ports

Internet port

Power adapter input

Power On/Off button

Figure 3. Router rear panel

Position Your Router

The router lets you access your network anywhere within the operating range of your wireless network. However, the operating distance or range of your wireless connection can vary significantly depending on the physical placement of your router. For example, the thickness and number of walls the wireless signal passes through can limit the range.

Additionally, other wireless access points in and around your home might affect your router’s signal. Wireless access points are routers, repeaters, WiFi range extenders, and any other device that emits a wireless signal for network access.

Position your router according to the following guidelines:

• Place your router near the center of the area where your computers and other devices

operate and within line of sight to your wireless devices.

• Make sure that the router is within reach of an

for wired computers.

• Place the router in an elevated location, minimizing the number walls and ceilings

between the router and your other devices.

• Place the router away from electrical devices such as these:

- Ceiling fans

- Home security systems

AC power outlet and near Ethernet cables

Hardware Setup

N300 WiFi Router

- Microwaves

- Computers

- Base of a cordless phone

- 2.4 GHz cordless phone

• Place the router away from large metal surfaces, large glass surfaces, insulated walls,

and items such as these:

- Solid metal doors

- Aluminum studs

- Fish tanks

- Mirrors

- Brick

- Concrete

Cable Your Router

 To cable your router:

1. Connect the power adapter provided in the package to the router and plug the power

adapter in to an electrical outlet.

DSL or cable

Ethernet cable

Power adapter

Power On/Off button

2. Press the Power On/Off button on the rear panel of the router.

The Power LED lights green.

You can log in to the router t

o view or change its settings.

Hardware Setup

2. Connect to the Network and

Access the Router

This chapter contains the following sections:

• Connect to the Network

• Types of Logins

• Log In to the Router

N300 WiFi Router

Connect to the Network

You can connect to the router’s network through a wired or WiFi connection. If you set up your computer to use a static IP address, change the settings so that it uses Dynamic Host Configuration Protocol (DHCP).

Wired Connection

You can connect your computer to the router using an Ethernet cable and join the router’s local area network (LAN).

 To connect your computer to the router with an Ethernet cable:

1. Make sure that the router has power (its Power LED is lit).

2. Connect an Ethernet cable to an Ethernet port on your computer

3. Connect the other end of the Ethernet cable to one of the numbered Ethernet ports.

Your computer connects to the local area network (LAN). A message might display on your computer screen to notify you that an Ethernet cable is connected.

WiFi Connection

You can connect to the router’s WiFi network with Wi-Fi Protected Setup (WPS) or you can find and select the WiFi network.

 To use WPS to connect to the WiFi network:

1. Make sure that the router has power (its Power LED is lit).

2. Check the WPS instructions for your computer or wireless device.

3. Press the WPS button

4. Within two minutes, on your computer or WiFi device, press its WPS button or follow its

instructions for WPS connections.

Your computer or wireless device connects to the WiFi network.

 To find and select the WiFi network:

1. Make sure that the router has power (its Power LED is lit).

2. On your computer or wireless device, find and select the WiFi network.

on the router.

The WiFi network name is on a label on the bottom of the router.

3. Join the WiFi network and enter the WiFi password.

The password is on a label on the bottom of the router.

Your wireless device connects to the WiFi network.

Connect to the Network and Access the Router

N300 WiFi Router

Types of Logins

Separate types of logins have different purposes. It is important that you understand the difference so that you know which login to use when.

Several types of logins are associated with the router:

• Internet provider login. The login that your Internet provider gave you logs you in to

your Internet service. Your Internet provider gave you this login information in a letter or some other way. If you cannot find this login information, contact your Internet provider.

• WiFi network key or password. Your router is preset with a unique wireless network

name (SSID) and password for wireless access. This information is on a router label.

• Modem router login.This logs you in to the router interface from a web browser as

admin.

Log In to the Router

When you connect to the network (either with WiFi or with an Ethernet cable), you can use a web browser to access the router to view or change its settings. The first time you access the router, NETGEAR genie automatically checks to see if your router can connect to your Internet service.

 To log in to the router:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser, enter www.routerlogin.net or

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

Connect to the Network and Access the Router

3. Specify Initial Settings

This chapter contains the following sections:

• Use the Setup Wizard

• Manually Set Up the Internet Connection

• Specify IPv6 Internet Connections

• Change the MTU Size

N300 WiFi Router

Use the Setup Wizard

You can use the Setup Wizard to detect your Internet settings and automatically set up your router. The Setup Wizard is not the same as the genie screens that display the first time you connect to your router to set it up.

 To use the Setup Wizard:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

, enter www.routerlogin.net or

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

4. Select ADV

5. Select the Yes radio button.

If you select No, you are taken to the Internet Setup screen (see Manually Set Up the

Internet Connection on page 16).

6. Click the Next button.

The Setup Wizard searches your Internet connection for servers and protocols to determine your ISP configuration.

When you connect to the Internet, the Setup Wizard Congratulations screen displays.

ANCED > Setup Wizard.

The default password is password. The user name and

Specify Initial Settings

N300 WiFi Router

Manually Set Up the Internet Connection

You can view or change the router’s Internet connection settings.

Specify an Internet Connection Without a Login

 To specify the Internet connection settings:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

, enter www.routerlogin.net or

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

4. Select Internet.

The default password is password. The user name and

Scroll to view more settings

5. For the Does your Internet connection require a login setting, leave the No radio button

selected.

6. If your Internet connection requires an account name or host name, type it in the Account

Name (If Required) field.

Specify Initial Settings

N300 WiFi Router

7. If your Internet connection requires a domain name, type it in the Domain Name (If

Required) field.

For the other sections in this screen, the default settings usually work, but you can change them.

8. Select an Internet IP Address radio buttons

• Get Dynamically from ISP. Your ISP uses DHCP to assign your IP address. Your ISP

automatically assigns these addresses.

• Use Static IP Address. Enter the IP address, IP subnet mask, and gateway IP

address that your ISP assigned. The gateway is the ISP router to which your router connects.

9. Select a Domain Name Server (DNS) Address radio button:

• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your

ISP automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select

this option. Enter the IP address of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it also.

10. Select a Router MAC Address radio button:

• Use Default Address. Use the default MAC address.

• Use Computer MAC Address. The router captures and uses the MAC address of the

computer that you are now using. You must use the one computer that the ISP allows.

• Use This MAC Address. Enter the MAC address that you want to use.

11. Click the Apply button.

Your settings are saved.

12. Click the Test button to test your Internet connection.

If the NETGEAR website does not display within one minute, see Chapter 9,

Troubleshooting.

Specify an Internet Connection That Uses a Login

 To view or change the basic Internet setup:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser, enter www.routerlogin.net or

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

Specify Initial Settings

4. Select Internet.

N300 WiFi Router

Scroll to view more settings

5. In the Does your Internet connection require a login section of the screen, select the Yes

radio button.

The screen adjusts.

6. In the Internet Service Provider list, select the encapsulation method: PPPoE, PPPoA, or

L2TP.

7. In the Login field, enter the login name your Internet provider gave you.

This login name is often an email address.

8. In the Password field, type the password that you use to log in to your Internet service.

9. If your ISP requires a service name, type it in the Service Name (if Required) field.

10. In the Connection Mode list,

11. T

o change the number of minutes until the Internet login times, out, in the Idle Timeout (In

select Always On, Dial on Demand, or Manually Connect.

minutes) field, type the number of minutes.

This is how long the router keeps the Internet connection active when no one on the network is using the Internet connection.

A value of 0 (zero) means never log out.

12. Select an Internet IP Address radio button:

• Get Dynamically from ISP.

Your ISP uses DHCP to assign your IP address. Your ISP

automatically assigns these addresses.

• Use Static IP

Address. Enter the IP address, IP subnet mask, and gateway IP

address that your ISP assigned. The gateway is the ISP router to which your router connects.

13. Select a Domain Name Server (DNS) Address radio button:

Specify Initial Settings

N300 WiFi Router

• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your

ISP automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select

this option. Enter the IP address of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it also.

14. Select a Router MAC Address radio button:

• Use Default Address. Use the default MAC address.

• Use Computer MAC Address. The router captures and uses the MAC address of the

computer that you are now using. You must use the one computer that the ISP allows.

• Use This MAC Address. Enter the MAC address that you want to use.

15. Click the Apply button.

Your settings are saved.

16. Click the Test button to test your Internet connection.

If the NETGEAR website does not display within one minute, see Chapter 9,

Troubleshooting.

Specify IPv6 Internet Connections

You can set up an IPv6 Internet connection if genie does not detect it automatically.

 To set up an IPv6 Internet connection:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser, enter www.routerlogin.net or

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The Basic Settings screen displays.

5. In the Internet Connection Type list, select the IPv6 connection type:

• If your ISP did not provide details, select IPv6 Tunnel.

• If you are not sure, select Auto Detect so that the router detects the IPv6 type that is

in use.

• If your Internet connection does not use PPPoe or DHCP, or not fixed, but is IPv6,

select Auto Config.

Specify Initial Settings

N300 WiFi Router

Your Internet service provider (ISP) can provide this information. For more information about IPv6 Internet connection, see the following sections.

- Use Auto Detect for an IPv6 Internet Connection on page 20

- Use Auto Config for an IPv6 Internet Connection on page 22

- Set Up a 6to4 Tunnel IPv6 Internet Connection on page 23

- Set Up a Fixed IPv6 Internet Connection on page 25

- Set Up a DHCP IPv6 Internet Connection on page 27

- Set Up a PPPoE IPv6 Internet Connection on page 28

6. Click the Apply button.

Your changes are saved.

Requirements for Entering IPv6 Addresses

IPv6 addresses are denoted by eight groups of hexadecimal quartets that are separated by colons. You can reduce any four-digit group of zeros within an IPv6 address to a single zero or omit it. The following errors invalidate an IPv6 address:

• More than eight groups of hexadecimal quartets

• More than four hexadecimal characters in a quartet

• More than two colons in a row

Use Auto Detect for an IPv6 Internet Connection

 To set up an IPv6 Internet connection through auto detection:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser, enter www.routerlogin.net or

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection Type list, select Auto Detect.

Specify Initial Settings

N300 WiFi Router

The screen adjusts:

The router automatically detects the information in the following fields:

• Connection T

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

ype. This field indicates the connection type that is detected.

for the router’s WAN (or Internet) interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available.

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

for the router’s LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available.

6. Select

• Use DHCP Server.

an IP Address Assignment radio button:

This method passes more information to LAN devices, but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config.

This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network (the LAN).

7. (Optional) Select the Use This Interface ID check box and specify the interface ID to be

used for the IPv6 address of the router’

s LAN interface.

If you do not specify an ID here, the router generates one automatically from its MAC address.

8. Click the Apply button.

Your settings are saved.

Specify Initial Settings

N300 WiFi Router

Use Auto Config for an IPv6 Internet Connection

 To set up an IPv6 Internet connection through auto configuration:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

, enter www.routerlogin.net or

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection T

The screen adjusts:

ype list, select Auto Config.

The router automatically detects the information in the following fields:

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

6. (Optional) In the DHCP User Class (If Required) field, enter a host name.

Specify Initial Settings

N300 WiFi Router

Most people can leave this field blank, but if your ISP gave you a specific host name, enter it here.

7. (Optional) In the DHCP Domain Name (If Required) field, enter a domain name.

You can type the domain name of your IPv6 ISP. Do not enter the domain name for the IPv4 ISP here. For example, if your ISP’s mail server is mail.xxx.yyy.zzz, type xxx.yyy.zzz as the domain name. If your ISP provided a domain name, type it in this field. For example, Earthlink Cable might require a host name of home, and Comcast sometimes supplies a domain name.

8. Select an IP Address Assignment radio button:

• Use DHCP Server. This method passes more information to LAN devices, but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config. This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network (the LAN).

9. (Optional) Select the Use This Interface ID check box and specify the interface ID that you

want to be used for the IPv6 address of the router’s LAN interface.

If you do not specify an ID here, the router generates one automatically from its MAC address.

10. Click the Apply button.

Your settings are saved.

Set Up a 6to4 Tunnel IPv6 Internet Connection

The remote relay router is the router to which your router creates a 6to4 tunnel. Make sure that the IPv4 Internet connection is working before you apply the 6to4 tunnel settings for the IPv6 connection.

 To set up an IPv6 Internet connection by using a 6to4 tunnel:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser, enter www.routerlogin.net or

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

Specify Initial Settings

N300 WiFi Router

5. In the Internet Connection Type list, select 6to4 Tunnel.

The screen adjusts:

The router automatically detects the information in the Router’s IPv6 Address on LAN field. This field shows the IPv6 address that is acquired for the router’s LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available.

6. Select a Remote 6to4 to Relay Router radio button:

• Auto.

Your router uses any remote relay router that is available on the Internet. This is

the default setting.

• Static IP

Address. Enter the static IPv4 address of the remote relay router. Your IPv6

ISP usually provides this address.

7. Select an IP

• Use DHCP Server.

Address Assignment radio button:

This method passes more information to LAN devices, but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config.

This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network (the LAN).

8. (Optional) Select the Use This Interface ID check box and specify the interface ID that you

want to be used for the IPv6 address of the router’

s LAN interface.

If you do not specify an ID here, the router generates one automatically from its MAC address.

9. Click the Apply button.

Your settings are saved.

Specify Initial Settings

N300 WiFi Router

Set Up a Pass Through IPv6 Internet Connection

In pass-through mode, the router works as a Layer 2 Ethernet switch with two ports (LAN and WAN Ethernet ports) for IPv6 packets. The router does not process any IPv6 header packets.

 To set up a pass-through IPv6 Internet connection:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser, enter www.routerlogin.net or

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection Type list, select Pass Through.

The screen adjusts, but no additional fields display.

6. Click the Apply button.

Your settings are saved.

Set Up a Fixed IPv6 Internet Connection

 To set up a fixed IPv6 Internet connection:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser, enter www.routerlogin.net or

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection Type list, select Fixed.

Specify Initial Settings

The screen adjusts:

N300 WiFi Router

6. Configure the fixed IPv6 addresses for the WAN connection:

• IPv6 Address/Prefix

Length. The IPv6 address and prefix length of the router WAN

interface.

• Default IPv6 Gateway.

The IPv6 address of the default IPv6 gateway for the router’s

WAN interface.

• Primary DNS Server.

The primary DNS server that resolves IPv6 domain name

records for the router.

• Secondary DNS Server.

The secondary DNS server that resolves IPv6 domain

name records for the router.

Note: If you do not specify the DNS servers, the router uses the DNS servers

that are configured for the IPv4 Internet connection on the Internet Setup screen. (See Manually Set Up the Internet Connection on page 16.)

7. Select an IP

• Use DHCP Server.

Address Assignment radio button:

This method passes more information to LAN devices, but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config.

This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network (the LAN).

8. In the IPv6 Address/Prefix

Length fields, specify the static IPv6 address and prefix length

of the router’s LAN interface.

If you do not specify an ID here, the router generates one automatically from its MAC address.

9. Click the Apply button.

Specify Initial Settings

N300 WiFi Router

Your settings are saved.

Set Up a DHCP IPv6 Internet Connection

 To set up an IPv6 Internet connection with a DHCP server:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

, enter www.routerlogin.net or

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection T

The screen adjusts:

ype list, select DHCP.

The router automatically detects the information in the following fields:

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

Specify Initial Settings

N300 WiFi Router

6. (Optional) In the User Class (If Required) field, enter a host name.

Most people can leave this field blank, but if your ISP gave you a specific host name, enter it here.

7. (Optional) In the Domain Name (If Required) field, enter a domain name.

8. Select an IP Address Assignment radio button:

• Use DHCP Server. This method passes more information to LAN devices, but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config. This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network (the LAN).

9. (Optional) Select the Use This Interface ID check box and specify the interface ID that you

want to be used for the IPv6 address of the router’s LAN interface.

If you do not specify an ID here, the router generates one automatically from its MAC address.

10. Click the Apply button.

Your settings are saved.

Set Up a PPPoE IPv6 Internet Connection

 To set up a PPPoE IPv6 Internet connection:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. In the address field of the web browser, enter www.routerlogin.net or

www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection Type list, select PPPoE.

Specify Initial Settings

N300 WiFi Router

The screen adjusts:

The router automatically detects the information in the following fields:

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

6. In the Login field, enter the login information for the ISP connection.

This is usually the name that you use in your email address. For example, if your main mail account is JerAB@ISP

.com, you would type JerAB in this field. Some ISPs (like Mindspring, Earthlink, and T-DSL) require that you use your full email address when you log in. If your ISP requires your full email address, type it in this field.

7. In the Password field, enter the password for the ISP connection.

8. In the Service Name field, enter a service name.

If your ISP did not provide a service name, leave this field blank.

Note: The default setting of the Connection Mode list is Always On to

provide a steady IPv6 connection. The router never terminates the connection. If the connection is terminated, for example, when the modem is turned off, the router attempts to reestablish the connection immediately after the PPPoE connection becomes available again.

9. Select

an IP Address Assignment radio button:

• Use DHCP Server.

IPv6 systems might not support the DHCv6 client function.

This method passes more information to LAN devices, but some

Specify Initial Settings

N300 WiFi Router

• Auto Config. This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network (the LAN).

10. (Optional) Select the Use This Interface ID check box and specify the interface ID that you

want to be used for the IPv6 address of the router’s LAN interface.

If you do not specify an ID here, the router generates one automatically from its MAC address.

11. Click the Apply button.

Your settings are saved.

Change the MTU Size

The maximum transmission unit (MTU) is the largest data packet a network device transmits. When one network device communicates across the Internet with another, the data packets travel through many devices along the way. If a device in the data path has a lower MTU setting than the other devices, the data packets must be split or “fragmented” to accommodate the device with the smallest MTU.

The best MTU setting for NETGEAR equipment is often the default value. In some situations, changing the value fixes one problem but causes another. Leave the MTU unchanged unless one of these situations occurs:

• You experience problems connecting to your ISP or other Internet service, and the

technical support of either the ISP or NETGEAR recommends changing the MTU setting. These web-based applications might require an MTU change:

- A secure website that does not open, or displays only part of a web page

- Yahoo email

- MSN portal

- America Online’s DSL service

• You use VPN and have severe performance problems.

• You used a program to optimize MTU for performance reasons and now you have

connectivity or performance problems.

Note: An incorrect MTU setting can cause Internet communication

problems. For example, you might not be able to access certain websites, frames within websites, secure login pages, or FTP or POP servers.

 To change the MTU size:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

Specify Initial Settings

+ 83 hidden pages

NETGEAR WNR2000v5 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

N300 WiFi Router

Contents

1. Hardware Setup

Front Panel

Rear Panel

Position Your Router

Cable Your Router

Wired Connection

WiFi Connection

Types of Logins

Log In to the Router

3. Specify Initial Settings

Specify an Internet Connection Without a Login

Specify an Internet Connection That Uses a Login

Specify IPv6 Internet Connections

Requirements for Entering IPv6 Addresses

Use Auto Detect for an IPv6 Internet Connection

Use Auto Config for an IPv6 Internet Connection

Set Up a 6to4 Tunnel IPv6 Internet Connection

Set Up a Fixed IPv6 Internet Connection

Set Up a DHCP IPv6 Internet Connection

Set Up a PPPoE IPv6 Internet Connection

Change the MTU Size
