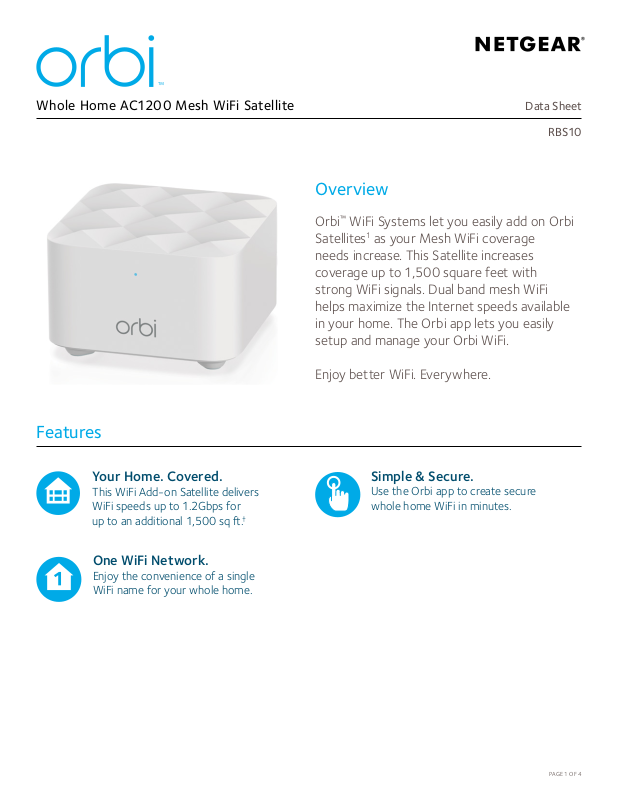

Page 1
Whole Home AC1200 Mesh WiFi Satellite
Data Sheet
RBS10
Overview
Orbi™ WiFi Systems let you easily add on Orbi
Satellites1 as your Mesh WiFi coverage
needs increase. This Satellite increases
coverage up to 1,500 square feet with
strong WiFi signals. Dual band mesh WiFi
helps maximize the Internet speeds available
in your home. The Orbi app lets you easily
setup and manage your Orbi WiFi.
Enjoy better WiFi. Everywhere.
Features
Your Home. Covered.
This WiFi Add-on Satellite delivers
WiFi speeds up to 1.2Gbps for
up to an additional 1,500 sq .
One WiFi Network.
Enjoy the convenience of a single
WiFi name for your whole home.
Simple & Secure.
Use the Orbi app to create secure
whole home WiFi in minutes.
†
PAGE 1 OF 4
Page 2
Whole Home AC1200 Mesh WiFi Satellite
House Diagram
Add 1,500 Square Feet of Orbi WiFi Coverage
Data Sheet
RBS10
INTERNET
1
Orbi Router RBR10 required
(sold separately)
(Sold Separately)
Orbi Router
Orbi Router
(sold separately)
1
Orbi Satellite
>50Mbps Internet speed
over 1,500sqft range
Orbi Satellite
(Included)
2
Simple setup from your
smartphone or tablet.
Use the Orbi app to set up and manage
your Orbi WiFi. To find the app, search for
NETGEAR Orbi in the Apple App Store
or Google Play Store.
PAGE 2 OF 4
Page 3
Whole Home AC1200 Mesh WiFi Satellite
Orbi Satellite (RBS10)
Data Sheet
RBS10
Satellite
Sync
PAGE 3 OF 4
Page 4
Whole Home AC1200 Mesh WiFi Satellite
Data Sheet
RBS10
What’s In the Box?
• One (1) Orbi Satellite (RBS10)
• One (1) 12V/1A power adapter
• Quick start guide
What Do I Need for Orbi to Work?
• Existing Orbi Router (RBR10)1
• High-speed Internet connection
Physical Specifications
• Dimensions: 4.1 x 4.1 x 2.7 in
• Weight: 0.54lb
Technical Specifications
• Orbi AC1200 Satellite (866 + 400Mbps)
• Simultaneous dual-band WiFi
®
- Radio 1: IEEE
802.11b/g/n 2.4GHz–
256-QAM support
®
- Radio 2: IEEE
802.11a/n/ac 5GHz–
256-QAM support
• Tx/Rx: 2x2 (2.4GHz) + 2x2 (5GHz)
®
• IEEE
802.11a/b/g/n/ac
• MU-MIMO capable for simultaneous data streaming
• Implicit & Explicit Beamforming for 2.4GHz &
5GHz bands
• Powerful quad-core 710MHz processor
• Two (2) high-performance internal antennas
• Push Button WPS and SYNC support
†
This product comes with a limited warranty that is valid only if purchased from a NETGEAR authorized reseller. www.netgear.com/warranty
* 90-day complimentary technical support following purchase from a NETGEAR authorized reseller.
†
Maximum wireless signal range derived from IEEE standard 802.11 specifications. Actual data throughput and data over distance will vary. Network conditions and
environmental factors, including volume of network traffic, building material and construction, and network overhead, result in lower actual data throughput rate and
wireless coverage.
1
Orbi Router RBR10 required (sold separately).
2
Internet plan and devices that support these speeds are required.
For indoor use only.
For regulatory compliance information, visit http://www.NETGEAR.com/about/regulatory
NETGEAR, the NETGEAR Logo and Orbi are trademarks of NETGEAR, Inc. App Store is a service mark of Apple Inc., registered in the U.S. and other countries. Google Play and the
Google Play logo are trademarks of Google LLC. Any other trademarks mentioned herein are for reference purposes only. ©2019 NETGEAR, Inc.
NETGEAR, Inc. 350 E. Plumeria Drive, San Jose, CA 95134-1911 USA , www.NETGEAR.com/support D-RBS10-0
PAGE 4 OF 4
