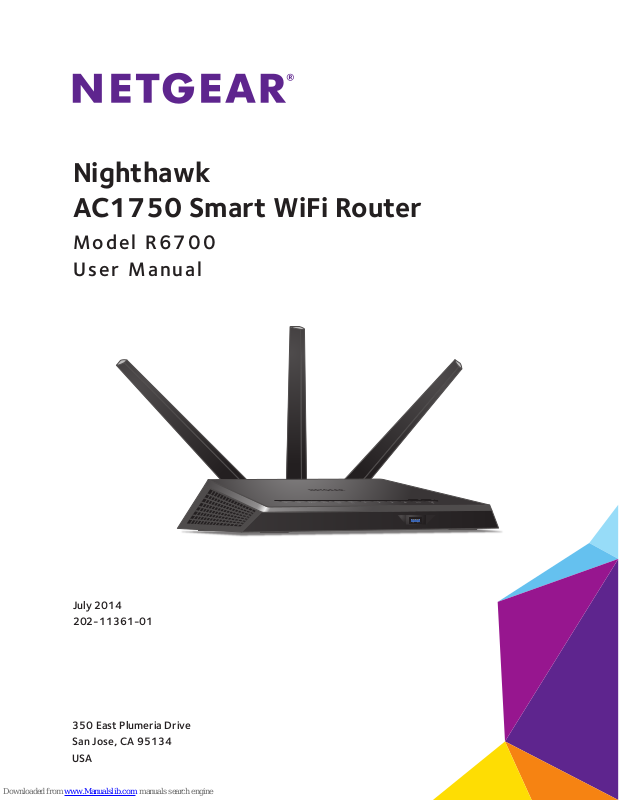

NETGEAR Nighthawk R6700 User Manual

Nighthawk AC1750

Smart WiFi Router

Model R6700 User Manual

July 2014

202-11361-01

350 East Plumeria Drive

San Jose, CA 95134

USA

Nighthawk AC1750 Smart WiFi Router

Support

Thank you for selecting NETGEAR products.

After installing your device, locate the serial number on the label of your product and use it to register your product at

https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR

recommends registering your product through the NETGEAR website. For product updates and web support, visit

http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR.

Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx.

Compliance

For regulatory compliance information, visit http://www.netgear.com/about/regulatory.

See the regulatory compliance document before connecting the power supply.

Trademarks

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to change without notice. © NETGEAR, Inc. All rights reserved.

Contents

Chapter 1 Hardware Setup

Chapter 2 Connect to the Network and Access the Router

Unpack Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Attach the Antennas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Top and Front Panels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Position Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Cable Your Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connect to the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Wired Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

WiFi Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Types of Logins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Use an Internet Browser to Access the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

NETGEAR genie Automatic Internet Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Change the Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Access the Router with NETGEAR genie App . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Chapter 3 Specify Your Internet Settings

Use the Internet Setup Wizard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Manually Set Up the Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Specify an Internet Connection Without a Login. . . . . . . . . . . . . . . . . . . . . . . 23

Specify an Internet Connection That Uses a Login . . . . . . . . . . . . . . . . . . . . . 25

Specify IPv6 Internet Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Requirements for Entering IPv6 Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Use Auto Detect for an IPv6 Internet Connection. . . . . . . . . . . . . . . . . . . . . . 28

Use Auto Config for an IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . 29

Set Up an IPv6 6to4 Tunnel Internet Connection . . . . . . . . . . . . . . . . . . . . . . 31

Set Up an IPv6 Pass Through Internet Connection . . . . . . . . . . . . . . . . . . . . . 32

Set Up an IPv6 Fixed Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Set Up an IPv6 DHCP Internet Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Set Up an IPv6 PPPoE Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Maximum Transmission Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Change the MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Common MTU Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Nighthawk AC1750 Smart WiFi Router

Chapter 4 Optimize Performance

Prioritize Internet Traffic with Quality of Service . . . . . . . . . . . . . . . . . . . . . . . . 42

Optimize Internet Gaming with Upstream QoS . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Add Upstream QoS Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Set Up QoS for Applications and Online Gaming . . . . . . . . . . . . . . . . . . . . . . . 44

Set Up QoS for a Router LAN Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Set Up QoS for a MAC Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Edit an Upstream QoS Policy. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Delete an Upstream QoS Policy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Optimize Video Streaming with Downstream QoS . . . . . . . . . . . . . . . . . . . . . . . 50

Add Downstream QoS Rules by Keyword . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Add a Downstream QoS Rule by Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Improve Network Connections with Universal Plug and Play. . . . . . . . . . . . . . . 53

Wi-Fi Multimedia Quality of Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Chapter 5 Control Access to the Internet

Set Up Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Control Access to Your Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Use Keywords to Block Internet Sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Delete Keywords from the List to Be Blocked . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Block Services from the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Schedule When to Block Internet Sites and Services. . . . . . . . . . . . . . . . . . . . . . 64

Avoid Blocking on a Trusted Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Set Up Security Event Email Notifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Chapter 6 Share USB Drives Attached to the Router

USB Drive Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Access a USB Device on the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Back Up Windows Computers with ReadySHARE Vault. . . . . . . . . . . . . . . . . . . . 70

Back Up Mac Computers with Time Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Set Up a USB Hard Drive on a Mac. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Prepare to Back Up a Large Amount of Data . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Use Time Machine to Back Up onto a USB Hard Drive . . . . . . . . . . . . . . . . . . 72

Control Access to the USB Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Use FTP Within the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

View Network Folders on a USB Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Add a Network Folder on a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Edit a Network Folder on a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

Approve USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

Safely Remove a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

Chapter 7 Access the Router’s USB Drive Through the Internet

Access the USB Drive Through the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Set Up FTP Access Through the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Access the USB Drive Through the Internet with FTP. . . . . . . . . . . . . . . . . . . 83

Nighthawk AC1750 Smart WiFi Router

Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Your Personal FTP Server. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Set Up a New Dynamic DNS Account. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Specify a DNS Account That You Already Use . . . . . . . . . . . . . . . . . . . . . . . . . 86

Change the Dynamic DNS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Set Up Your Personal FTP Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Chapter 8 Use the Router as a Media Server

Specify ReadyDLNA Media Server Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Play Music from a USB Drive with iTunes Server . . . . . . . . . . . . . . . . . . . . . . . . . 90

Play Media from a USB Drive on TiVo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

Chapter 9 Share a USB Printer

Install the Printer Driver and Cable the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Download the ReadySHARE Printer Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Install the ReadySHARE Printer Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Use the Shared Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

View or Change the Status of a Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Use the Scan Feature of a Multifunction USB Printer . . . . . . . . . . . . . . . . . . . . 100

Change NETGEAR USB Control Center Settings . . . . . . . . . . . . . . . . . . . . . . . . .101

Chapter 10 Specify Network Settings

Disable LED Blinking or Turn Off LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

View WAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Set Up a Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Change the Router’s Device Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Change the LAN TCP/IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Specify the IP Addresses That the Router Assigns. . . . . . . . . . . . . . . . . . . . . . . 109

Disable the DHCP Server Feature in the Router . . . . . . . . . . . . . . . . . . . . . . . . .110

Reserve LAN IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Edit a Reserved LAN IP Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

Delete a Reserved LAN IP Address. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Use the WPS Wizard for WiFi Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113

Specify Basic WiFi Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Change the WiFi Security Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 116

Set Up a Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 117

How the Router Manages Wireless Clients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Airtime Fairness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

Implicit Beamforming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Control the Wireless Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Use the WiFi On/Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Enable or Disable the Wireless Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Set Up a Wireless Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Specify WPS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Use the Router as a Wireless Access Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Set Up the Router in Bridge Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Nighthawk AC1750 Smart WiFi Router

Set Up a Wireless Distribution System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126

Set Up the Base Station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Set Up a Repeater. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Chapter 11 Manage Your Network

Update the Router Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Change the admin Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Set Up Password Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Recover the admin Password. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

View Router Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Display Internet Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Check the Internet Connection Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

View Logs of Router Activity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Monitor Internet Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Create Custom Static Routes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Edit a Static Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Delete a Static Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

View Devices Currently on the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Manage the Router Configuration File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Back Up Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Erase the Current Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146

Chapter 12 Use VPN to Access Your Network

Set Up a VPN Connection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149

Specify VPN Service in the Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Install OpenVPN Software on Your Computer . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Use a VPN Tunnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Use VPN to Access the Router’s USB Drive and Media . . . . . . . . . . . . . . . . . . . 154

Use VPN to Access Your Internet Service at Home . . . . . . . . . . . . . . . . . . . . . . 155

Set Up VPN Client Internet Access in the Router . . . . . . . . . . . . . . . . . . . . . . 155

Block VPN Client Internet Access in the Router . . . . . . . . . . . . . . . . . . . . . . . 156

Use a VPN Tunnel to Access Your Internet Service at Home . . . . . . . . . . . . 156

Chapter 13 Specify Internet Port Settings

Set Up Port Forwarding to a Local Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159

Add a Custom Port Forwarding Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160

Edit a Port Forwarding Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Delete a Port Forwarding Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Application Example: Make a Local Web Server Public. . . . . . . . . . . . . . . . . 162

How the Router Implements the Port Forwarding Rule . . . . . . . . . . . . . . . . 162

Set Up Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Add a Port Triggering Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Enable Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

Application Example: Port Triggering for Internet Relay Chat . . . . . . . . . . . 165

Nighthawk AC1750 Smart WiFi Router

Chapter 14 Troubleshooting

Quick Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .168

Sequence to Restart Your Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Check Ethernet Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Wireless Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Troubleshoot with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Standard LED Behavior When the Router Is Powered On . . . . . . . . . . . . . . . 169

Power LED Is Off or Blinking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Power LED Stays Amber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169

LEDs Never Turn Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Internet or Ethernet Port LEDs Are Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

WiFi LED Is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Cannot Log In to the Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Cannot Access the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171

Troubleshoot PPPoE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172

Troubleshoot Internet Browsing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .173

Changes Not Saved . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174

Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Troubleshoot Your Network Using the Ping Utility . . . . . . . . . . . . . . . . . . . . . . .174

Test the LAN Path to Your Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

Test the Path from Your Computer to a Remote Device . . . . . . . . . . . . . . . . 175

Appendix A Supplemental Information

Factory Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 178

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

1. Hardware Setup

The Nighthawk AC1750 Smart WiFi Router delivers combined WiFi connection speeds up to AC1750 (450 Mbps

ideal for bandwidth-hungry activities such as online gaming and video streaming, powered by a dual-core 1 GHz processor. High-powered amplifiers with antennas provide WiFi coverage anywhere around your home, inside or out.

For gamers, Nighthawk supports upstream Quality of Service (QoS) optimized for online game play with game consoles like Xbox. For uninterrupted HD streaming media, Nighthawk features downstream QoS to identify and prioritize streaming traffic from websites like Netflix, YouTube, and Hulu Plus.

Nighthawk provides fast central storage, backup, and streaming to every device in your home with the USB 3.0 port (10 times faster than USB 2.0). Sharing content across your network is easy, whether you’re accessing stored photos and music or printing wirelessly. Stream your stored media files anywhere on the network to DLNA screens. Share your music to

AirPlay-compatible devices from the USB hard drive connected to the router. Use the free

NETGEAR ReadySHARE Vault app to back up your Windows computers to a USB hard drive connected to Nighthawk.

This chapter contains the following sections:

• Unpack Your Router

• Attach the Antennas

• Top and Front Panels

• Rear Panel

• Position Your Router

• Cable Your Router

at 2.4 GHz 802.11n and 1300 Mbps2 at 5 GHz 802.11ac). Nighthawk is

For more information about the topics covered in this manual, visit the support website at

http://support.netgear.com.

1. Maximum wireless signal rate derived from IEEE standard 802.11 specifications. Actual data throughput and wireless coverage will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate and wireless coverage. NETGEAR makes no express or implied representations or warranties about this product’s compatibility with any future standards. 802.11ac 1300 Mbps is approximately 3x faster than 802.11n 450 Mbps.

2. Up to 1300 Mbps wireless speeds achieved when you are connecting to other 802.11ac 1300 Mbps devices.

Nighthawk AC1750 Smart WiFi Router

Unpack Your Router

Your package contains the following items.

Nighthawk AC1750 Smart WiFi Router

Ethernet cable

Antennas (3)

Figure 1. Package contents

Attach the Antennas

The router comes with three antennas.

 To attach the antennas:

1. Align the antennas with the antenna posts on the router.

Power adapter

2. Attach the antennas on the threaded antenna posts.

3. Position the antennas for the best WiFi performance.

NETGEAR recommends that the center antenna be vertical and that you aim the others outward at 45-degree angles, as shown.

Hardware Setup

Nighthawk AC1750 Smart WiFi Router

Top and Front Panels

Status LEDs are located on top and a USB 3.0 port is located on the front.

USB 3.0 port

Figure 2. Router top and front view

Table 1. LED and button descriptions

LED Description

Power

Internet

2.4 GHz Wireless

5 GHz Wireless

Guest WiFi

• Solid amber. The router is starting.

• Blinking amber. The

• Solid white. The

• Blinking white. The

• Off. Power is not supplied to the router.

• Solid white. The Internet connection is ready.

• Solid amber.

• Off. No Ethernet cable is connected between the router and the modem.

• Solid white. The 2.4 GHz WiFi radio is operating.

• Blinking. The

• Off.

• Solid white. The 5 GHz WiFi radio is operating.

• Blinking. The

• Off. The

• Solid white. The guest WiFi is operating.

• Off. The

The 2.4 GHz WiFi radio is off.

The router detects an Ethernet cable connection to the modem.

router is sending or receiving WiFi traffic.

5 GHz WiFi radio is off.

guest WiFi is off.

firmware is upgrading or the Reset button was pressed.

router is ready.

firmware is corrupted.

Hardware Setup

Nighthawk AC1750 Smart WiFi Router

Table 1. LED and button descriptions (continued)

LED Description

USB 3.0 • Solid white. A USB device is connected and is ready.

• Blinking.

• Off. No USB device is connected or someone clicked the Reset button, and it is now safe

to remove the attached USB device.

A USB device is plugged in and is trying to connect.

Ethernet ports 1–4

WiFi On/Off button with LED

WPS button with LED

The LED color indicates the speed: white for Gigabit Ethernet connections and amber for 100 Mbps or 10 Mbps Ethernet connections.

• Solid white.

• Blinking white.

• Off. No device is connected to this Ethernet port.

Pressing this button for two seconds turns the 2.4 GHz and 5 GHz WiFi radios on and off. If this LED lights solid white, the WiFi radios are on. If this LED is off, the WiFi radios are

turned of

This button lets you use WPS to join the WiFi network without typing the WiFi password. The WPS LED blinks white during this process and then lights solid white.

f and you cannot use WiFi to connect to the router.

A powered-on device is connected to the Ethernet port.

The port is sending or receiving traffic.

You can disable LED blinking or turn off all LEDs except the Power LED. For information about how to do this, see Disable LED Blinking or Turn Off LEDs on page 104.

Hardware Setup

Nighthawk AC1750 Smart WiFi Router

Rear Panel

The connections and buttons shown in the following figure are located on the rear panel.

Reset button

Figure 3. Router rear panel

Ethernet Internet

LAN ports 1–4

port

Power Power

connectorOn/Off

Pressing the Reset button restores the factory settings. See Factory Settings on page 178.

Position Your Router

The router lets you access your network anywhere within the operating range of your wireless network. However, the operating distance or range of your wireless connection can vary significantly depending on the physical placement of your router. For example, the thickness and number of walls the wireless signal passes through can limit the range.

Additionally, other wireless access points in and around your home might affect your router’s signal. Wireless access points are routers, repeaters, WiFi range extenders, and any other device that emits a wireless signal for network access.

Position your router according to the following guidelines:

• Place your router near the center of the area where your computers and other devices

operate and within line of sight to your wireless devices.

• Make sure that the router is within reach of an

for wired computers.

• Place the router in an elevated location, minimizing the number walls and ceilings

between the router and your other devices.

AC power outlet and near Ethernet cables

Hardware Setup

Nighthawk AC1750 Smart WiFi Router

• Place the router away from electrical devices such as these:

- Ceiling fans

- Home security systems

- Microwaves

- Computers

- Base of a cordless phone

- 2.4 GHz cordless phone

• Place the router away from large metal surfaces, large glass surfaces, insulated walls,

and items such as these:

- Solid metal doors

- Aluminum studs

- Fish tanks

- Mirrors

- Brick

- Concrete

Cable Your Router

The following image shows how to cable your router:

DSL or cable

Router

Ethernet cable

Modem

Figure 4. Router cabling

Ethernet cable

Power adapter

Hardware Setup

Nighthawk AC1750 Smart WiFi Router

 To cable your router:

1. Unplug your modem’s power, leaving the modem connected to the wall jack for your

Internet service.

If your modem uses a battery, remove the battery.

2. Plug in and turn on your modem.

If your modem uses a battery, put the battery back in.

3. Connect your modem to the Internet port of your router with the yellow Ethernet cable that

came with your router.

4. Connect the power adapter to your router and plug the power adapter into an outlet.

5. Press the Power On/Off button on the rear panel of the router.

Hardware Setup

2. Connect to the Network and

Access the Router

You can connect to the router’s WiFi network or use a wired Ethernet connection. This chapter

explains the ways you can connect and how to access the router and log in.

This chapter contains the following sections:

• Connect to the Network

• Types of Logins

• Use an Internet Browser to Access the Router

• Change the Language

• Access the Router with NETGEAR genie App

Nighthawk AC1750 Smart WiFi Router

Connect to the Network

You can connect to the router’s network through a wired or WiFi connection. If you set up your computer to use a static IP address, change the settings so that it uses Dynamic Host Configuration Protocol (DHCP).

Wired Connection

You can connect your computer to the router using an Ethernet cable and join the router’s local area network (LAN).

 To connect your computer to the router with an Ethernet cable:

1. Make sure power is supplied the router (its Power LED is lit).

2. Connect an Ethernet cable to an Ethernet port on your computer.

3. Connect the other end of the Ethernet cable to one of the numbered Ethernet ports.

Your computer connects to the local area network (LAN). A message might display on your computer screen to notify you that an Ethernet cable is connected.

WiFi Connection

You can connect to the router’s WiFi network with Wi-Fi Protected Setup (WPS) or you can find and select the WiFi network.

 To use WPS to connect to the WiFi network:

1. Make sure power is supplied the router (its Power LED is lit).

2. Check the WPS instructions for your computer or wireless device.

3. Press the WPS button on the router.

4. Within two minutes, on your computer or WiFi device, press its WPS button or follow its

instructions for WPS connections.

Your computer or wireless device connects to the WiFi network.

 To find and select the WiFi network:

1. Make sure that the router has power (its Power LED is lit).

2. On your computer or wireless device, find and select the WiFi network.

The WiFi network name is on the router’s label.

3. Join the WiFi network and enter the WiFi password.

The password is on the router’s label.

Your wireless device connects to the WiFi network.

Connect to the Network and Access the Router

Nighthawk AC1750 Smart WiFi Router

Label

The label on the router shows the login information, MAC address, and serial number.

Figure 5. Product label

Types of Logins

Separate types of logins serve different purposes. It is important that you understand the difference so that you know which login to use when.

Types of logins:

• ISP login.

service provider gave you this login information in a letter or some other way. If you cannot find this login information, contact your service provider.

• W

iFi network key or password. Your router is preset with a unique wireless network

name (SSID) and password for wireless access. This information is on the product label.

• Router login.This logs you in to the router interface from an Internet browser as admin.

The login that your ISP gave you logs you in to your Internet service. Your

Use an Internet Browser to Access the Router

When you connect to the network (either with WiFi or with an Ethernet cable), you can use an Internet browser to access the router to view or change its settings. The first time you access the router, NETGEAR genie automatically checks to see if your router can connect to your Internet service.

NETGEAR genie Automatic Internet Setup

You can set up your router with the NETGEAR genie automatically, or you can use the genie menus and screens to set up your router manually. Before you start the setup process, get your ISP information and make sure that the computers and devices in the network use the settings described here.

Connect to the Network and Access the Router

Nighthawk AC1750 Smart WiFi Router

When your Internet service starts, your Internet service provider (ISP) typically gives you all the information needed to connect to the Internet. For DSL service, you might need the following information to set up your router:

• The ISP configuration information for your DSL account

• ISP login name and password

• Fixed or static IP address setting (special deployment by ISP; this setting is rare)

If you cannot locate this information, ask your ISP to provide it. When your Internet connection is working, you no longer need to launch the ISP login program on your computer to access the Internet. When you start an Internet application, your router automatically logs you in.

NETGEAR genie runs on any device with a web browser. Installation and basic setup takes about 15 minutes to complete.

 To use NETGEAR genie to set up your router:

1. T

urn the router on by pressing the On/Off button.

2. Make sure that your computer or wireless device is connected to the router with an Ethernet

cable (wired) or wirelessly with the preset security settings listed on the label.

Note: If you want to change the router’s WiFi setting, use a wired connection

to avoid being disconnected when the new WiFi settings take effect.

3. Launch an Internet browser

The screen that displays depends on whether you accessed the router before:

• The first time you set up the Internet connection for your router, the browser goes to

http://www

.routerlogin.net, and the NETGEAR genie screen displays.

• If you already used the NETGEAR genie, type http://www.routerlogin.net in the

address field for your browser to display. The NETGEAR genie screen displays.

4. Follow the onscreen instructions.

NETGEAR genie guides you through connecting the router to the Internet.

5. If the browser cannot display the web page, do the following:

Connect to the Network and Access the Router

Nighthawk AC1750 Smart WiFi Router

• Make sure that the computer is connected to one of the four LAN Ethernet ports or

wirelessly to the router.

• Make sure that the Power LED is lights solid white.

• Close and reopen the browser or clear the browser cache.

• Browse to http://www.routerlogin.net.

• If the computer is set to a static or fixed IP address (this setting is uncommon),

change it to obtain an IP address automatically from the router.

6. If the router does not connect to the Internet, do the following:

a. Review your settings. Make sure that you selected the correct options and typed

everything correctly.

b. Contact your ISP to verify that you specified the correct configuration information.

c. Read Chapter 14, Troubleshooting.

If problems persist, register your NETGEAR product and contact NETGEAR technical support.

When you first set up your router, NETGEAR genie automatically starts when you launch an Internet browser on a computer that is connected to the router. If you want to view or change settings for the router, you can use genie again.

 To log in to the router:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

Change the Language

By default, the language is set to Auto.

 To change the language:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

Connect to the Network and Access the Router

Nighthawk AC1750 Smart WiFi Router

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. In the upper right corner, select a language from the menu.

5. When prompted, click the OK button to confirm this change.

The screen refreshes with the language that you selected.

Access the Router with NETGEAR genie App

The genie app is the easy dashboard for managing, monitoring, and repairing your home network. The genie app can help you with the following:

• Automatically repair common wireless network problems.

• Easily manage router features like Live Parental Controls, guest access, Internet traffic

meter, speed test, and more.

 To use the genie app to access the router:

1. Visit the NETGEAR genie web page at www.NETGEAR.com/genie.

2. Follow the onscreen instructions to install the app on your smartphone, tablet, or computer.

3. Launch the genie app.

The genie app dashboard screen displays.

Connect to the Network and Access the Router

3. Specify Your Internet Settings

Usually, the quickest way to set up the router to use your Internet connection is to allow the genie to detect the Internet connection when you first access the router with an Internet browser. You can also customize or specify your Internet settings.

This chapter contains the following sections:

• Use the Internet Setup Wizard

• Manually Set Up the Internet Connection

• Specify IPv6 Internet Connections

• Maximum Transmission Unit

Nighthawk AC1750 Smart WiFi Router

Use the Internet Setup Wizard

You can use the Setup Wizard to detect your Internet settings and automatically set up your router. The Setup Wizard is not the same as the genie screens that display the first time you connect to your router to set it up.

 To use the Setup Wizard:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

The BASIC Home screen displays.

4. Select ADV

ANCED > Setup Wizard.

5. Select the Yes radio button.

If you select the No radio button, you are taken to the Internet Setup screen (see

Manually Set Up the Internet Connection on page 23).

6. Click the Next button.

Specify Your Internet Settings

Nighthawk AC1750 Smart WiFi Router

The Setup Wizard searches your Internet connection for servers and protocols to determine your ISP configuration.

Manually Set Up the Internet Connection

You can view or change the router’s Internet connection settings.

Specify an Internet Connection Without a Login

 To specify the Internet connection settings:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

The default password is password. The user name and

Specify Your Internet Settings

4. Select Internet.

Nighthawk AC1750 Smart WiFi Router

5. In the Does your Internet connection require a login section, leave the No radio button

selected.

6. If your Internet connection requires an account name or host name, type it in the Account

Name (If Required) field.

7. If your Internet connection requires a domain name, type it in the Domain Name (If

Required) field.

For the other sections in this screen, the default settings usually work, but you can change them.

8. Select an Internet IP

• Get Dynamically from ISP.

Address radio button:

Your ISP uses DHCP to assign your IP address. Your ISP

automatically assigns these addresses.

• Use Static IP

Address. Enter the IP address, IP subnet mask, and gateway IP

address that your ISP assigned. The gateway is the ISP router to which your router connects.

9. Select a Domain Name Server (DNS) Address radio button:

• Get

Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your

ISP automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select

this option. Enter the IP address of your ISP’

s primary DNS server. If a secondary

DNS server address is available, enter it also.

10. Select a Router MAC Address radio button:

• Use Default

Address. Use the default MAC address.

Specify Your Internet Settings

Nighthawk AC1750 Smart WiFi Router

• Use Computer MAC Address. The router captures and uses the MAC address of the

computer that you are now using. You must use the one computer that the ISP allows.

• Use This MAC Address. Enter the MAC address that you want to use.

11. Click the Apply button.

Your settings are saved.

12. Click the Test button to test your Internet connection.

If the NETGEAR website does not display within one minute, see Chapter 14,

Troubleshooting.

Specify an Internet Connection That Uses a Login

 To view or change the basic Internet setup:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

Specify Your Internet Settings

4. Select Internet.

Nighthawk AC1750 Smart WiFi Router

5. In the Does your Internet connection require a login section, select the Yes radio button.

The screen adjusts.

6. In the Internet Service Provider list, select the encapsulation method: PPPoE, PPPoA, or

L2TP.

7. In the Login field, enter the login name your ISP gave you.

This login name is often an email address.

8. In the Password field, type the password that you use to log in to your Internet service.

9. If your ISP requires a service name, type it in the Service Name (if Required) field.

10. In the Connection Mode list, select Always

11. T

o change the number of minutes until the Internet login times out, in the Idle Timeout (In

On, Dial on Demand, or Manually Connect.

minutes) field, type the number of minutes.

This is how long the router keeps the Internet connection active when no one on the network is using the Internet connection.

A value of 0 (zero) means never log out.

12. Select an Internet IP Address radio button:

• Get Dynamically from ISP.

Your ISP uses DHCP to assign your IP address. Your ISP

automatically assigns these addresses.

• Use Static IP

Address. Enter the IP address, IP subnet mask, and gateway IP

address that your ISP assigned. The gateway is the ISP router to which your router connects.

13. Select a Domain Name Server (DNS) Address radio button:

Specify Your Internet Settings

Nighthawk AC1750 Smart WiFi Router

• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your

ISP automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select

this option. Enter the IP address of your ISP’s primary DNS server. If a secondary DNS server address is available, enter it also.

14. Select a Router MAC Address radio button:

• Use Default Address. Use the default MAC address.

• Use Computer MAC Address. The router captures and uses the MAC address of the

computer that you are now using. You must use the one computer that the ISP allows.

• Use This MAC Address. Enter the MAC address that you want to use.

15. Click the Apply button.

Your settings are saved.

16. Click the Test button to test your Internet connection.

If the NETGEAR website does not display within one minute, see Chapter 14,

Troubleshooting.

Specify IPv6 Internet Connections

You can set up an IPv6 Internet connection if genie does not detect it automatically.

 To set up an IPv6 Internet connection:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com..

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The Basic Settings screen displays.

5. In the Internet Connection Type list, select the IPv6 connection type:

• If your ISP did not provide details, select IPv6 Tunnel.

• If you are not sure, select Auto Detect so that the router detects the IPv6 type that is

in use.

• If your Internet connection does not use PPPoE, DHCP, or fixed, but is IPv6, select

Auto Config.

Specify Your Internet Settings

Nighthawk AC1750 Smart WiFi Router

Your Internet service provider (ISP) can provide this information. For more information about IPv6 Internet connection, see the following sections.

- Use Auto Detect for an IPv6 Internet Connection on page 28

- Use Auto Config for an IPv6 Internet Connection on page 29

- Set Up an IPv6 6to4 Tunnel Internet Connection on page 31

- Set Up an IPv6 Pass Through Internet Connection on page 32

- Set Up an IPv6 Fixed Internet Connection on page 33

- Set Up an IPv6 DHCP Internet Connection on page 35

- Set Up an IPv6 PPPoE Internet Connection on page 36

6. Click the Apply button.

Your changes take effect.

Requirements for Entering IPv6 Addresses

IPv6 addresses are denoted by eight groups of hexadecimal quartets that are separated by colons. You can reduce any four-digit group of zeros within an IPv6 address to a single zero or omit it. The following errors invalidate an IPv6 address:

• More than eight groups of hexadecimal quartets

• More than four hexadecimal characters in a quartet

• More than two colons in a row

Use Auto Detect for an IPv6 Internet Connection

 To set up an IPv6 Internet connection through auto detection:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

3. Enter the router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection Type list, select Auto Detect.

Specify Your Internet Settings

Nighthawk AC1750 Smart WiFi Router

The screen adjusts:

The router automatically detects the information in the following fields:

• Connection T

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

ype. This field indicates the connection type that is detected.

for the router’s WAN (or Internet) interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available.

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

for the router’s LAN interface. The number after the slash (/) is the length of the prefix, which is also indicated by the underline (_) under the IPv6 address. If no address is acquired, the field displays Not Available.

6. Select

• Use DHCP Server.

an IP Address Assignment radio button:

This method passes more information to LAN devices, but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config.

This is the default setting.

This setting specifies how the router assigns IPv6 addresses to the devices on your home network (the LAN).

7. (Optional) Select the Use This Interface ID check box and specify the interface ID to be

used for the IPv6 address of the router’

s LAN interface.

If you do not specify an ID here, the router generates one automatically from its MAC address.

8. Click the Apply button.

Your settings are saved.

Use Auto Config for an IPv6 Internet Connection

 To set up an IPv6 Internet connection through auto configuration:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

Specify Your Internet Settings

Nighthawk AC1750 Smart WiFi Router

A login screen displays.

3. Enter the router user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive.

The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > IPv6.

The IPv6 screen displays.

5. In the Internet Connection T

The screen adjusts:

ype list, select Auto Config.

The router automatically detects the information in the following fields:

• Router

’s IPv6 Address on WAN. This field shows the IPv6 address that is acquired

• Router

’s IPv6 Address on LAN. This field shows the IPv6 address that is acquired

6. (Optional) In the DHCP User Class (If Required) field, enter a host name.

Most people can leave this field blank, but if your ISP gave you a specific host name, enter it here.

7. (Optional) In the DHCP Domain Name (If Required) field, enter a domain name.

You can type the domain name of your IPv6 ISP. Do not enter the domain name for the IPv4 ISP here. For example, if your ISP’

s mail server is mail.xxx.yyy.zzz, type xxx.yyy.zzz as the domain name. If your ISP provided a domain name, type it in this field. For example, Earthlink Cable might require a host name of home, and Comcast sometimes supplies a domain name.

Specify Your Internet Settings
