NETGEAR Nighthawk C7000, C6900 User Manual

Nighthawk AC1900

WiFi Cable Modem Router

Model C7000 User Manual

April 2015

202-11499-01

350 East Plumeria Drive

San Jose, CA 95134

USA

Nighthawk AC1900 WiFi Cable Modem Router

Support

Thank you for selecting NETGEAR products.

After installing your device, locate the serial number on the label of your product and use it to register your product at

https://my.netgear.com. You must register your product before you can use NETGEAR telephone support. NETGEAR

recommends registering your product through the NETGEAR website.

For product updates and web support, visit http://support.netgear.com.

Phone (US & Canada only): 1-888-NETGEAR.

Phone (Other Countries): Check the list of phone numbers at http://support.netgear.com/general/contact/default.aspx.

Trademarks

Compliance

For regulatory compliance information, visit http://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power supply.

Contents

Chapter 1 Hardware Setup

Chapter 2 Connect to the Network and Access the Modem Router

Unpack Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Rear Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Position Your Modem Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Cable Your Modem Router. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Cable the Modem Router in a Simple Network . . . . . . . . . . . . . . . . . . . . . . . . 10

Cable Your Modem Router to a Router and Use Bridge Mode. . . . . . . . . . . . 11

Set Up Your Internet Service with Comcast Xfinity . . . . . . . . . . . . . . . . . . . . . . . 12

Use Self-Activation to Set Up Your Internet Connection . . . . . . . . . . . . . . . . 12

Call Comcast Xfinity to Set Up Your Internet Connection . . . . . . . . . . . . . . . 13

Connect to the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Wired Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

WiFi Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Label . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Types of Logins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Access the Modem Router with NETGEAR genie App . . . . . . . . . . . . . . . . . . . . . 17

Chapter 3 Specify Your Internet Settings

Notify Your Internet Provider . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Specify the Cable Connection Starting Frequency . . . . . . . . . . . . . . . . . . . . . . . 19

View Modem Router Initialization. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Manually Set Up the Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Specify an IPv6 Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Change the MTU Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Chapter 4 Control Access to the Internet

Set Up Parental Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Block Access to Your Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Use Keywords to Block Internet Sites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Block Services from the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Schedule When to Block Internet Sites and Services. . . . . . . . . . . . . . . . . . . . . . 33

Avoid Blocking on a Trusted Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

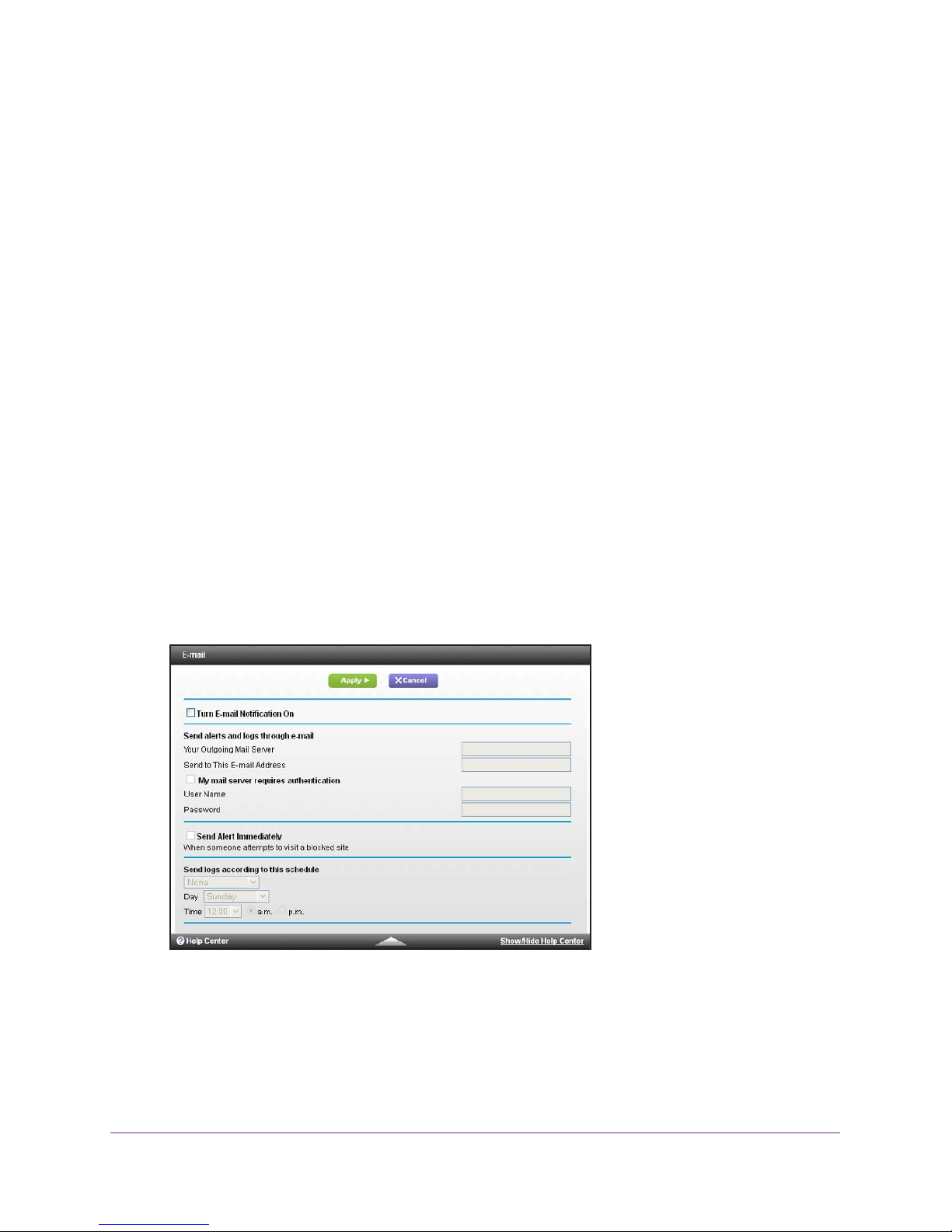

Set Up Security Event Email Notifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Nighthawk AC1900 WiFi Cable Modem Router

Chapter 5 Share USB Devices Attached to the Modem Router

USB Drive Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

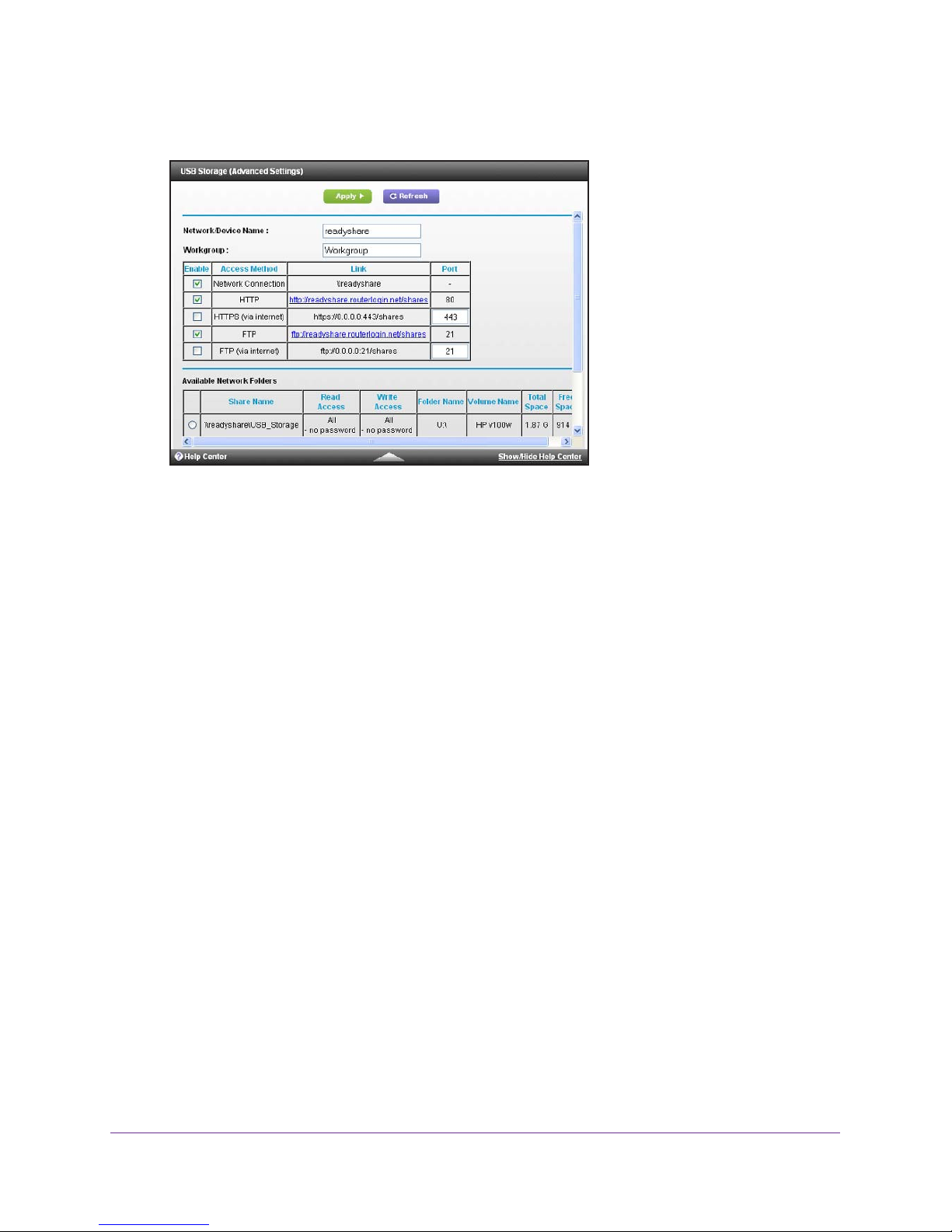

Access a USB Drive on the Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Control Access to the USB Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

Use FTP Within the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

View Network Folders on a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Add a Network Folder on a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

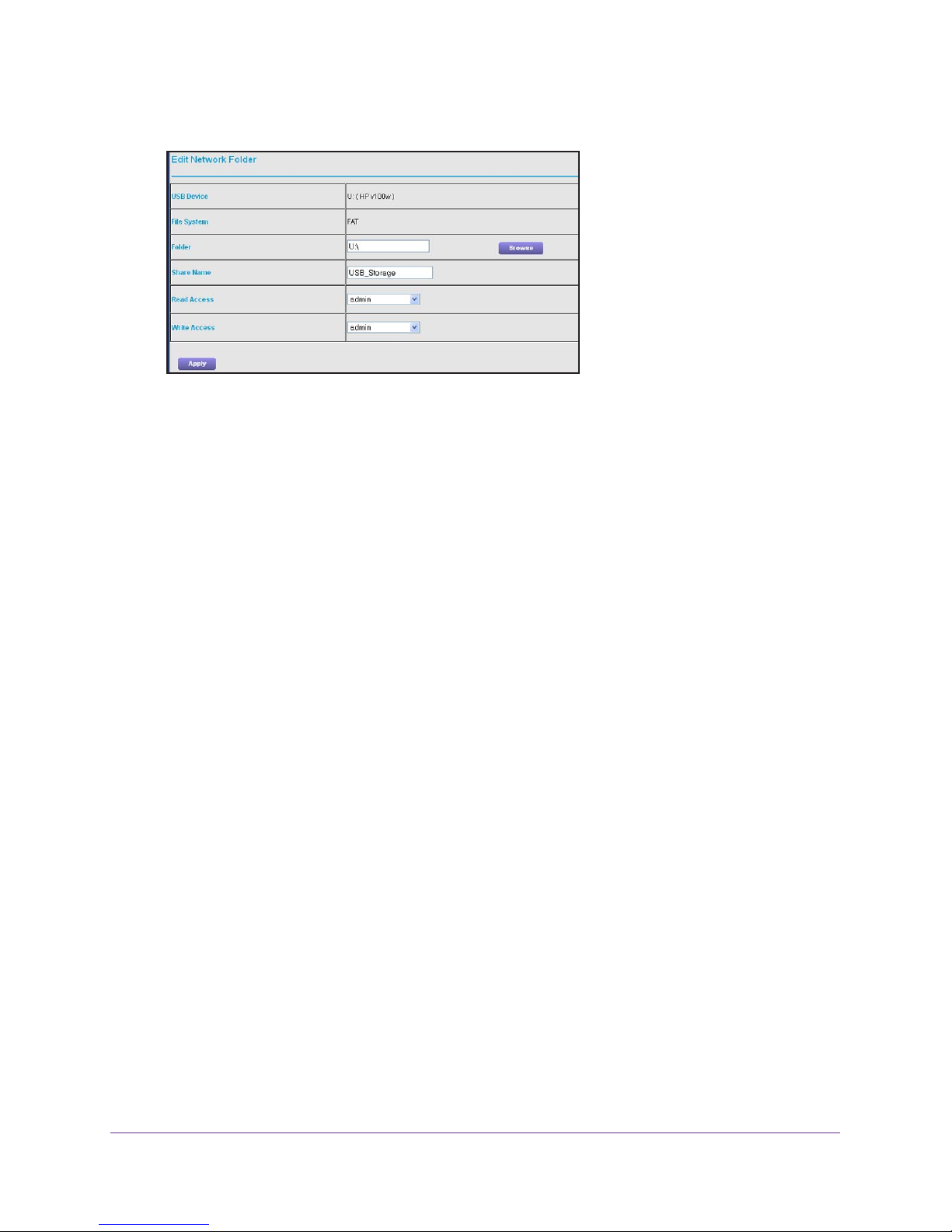

Edit a Network Folder on a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

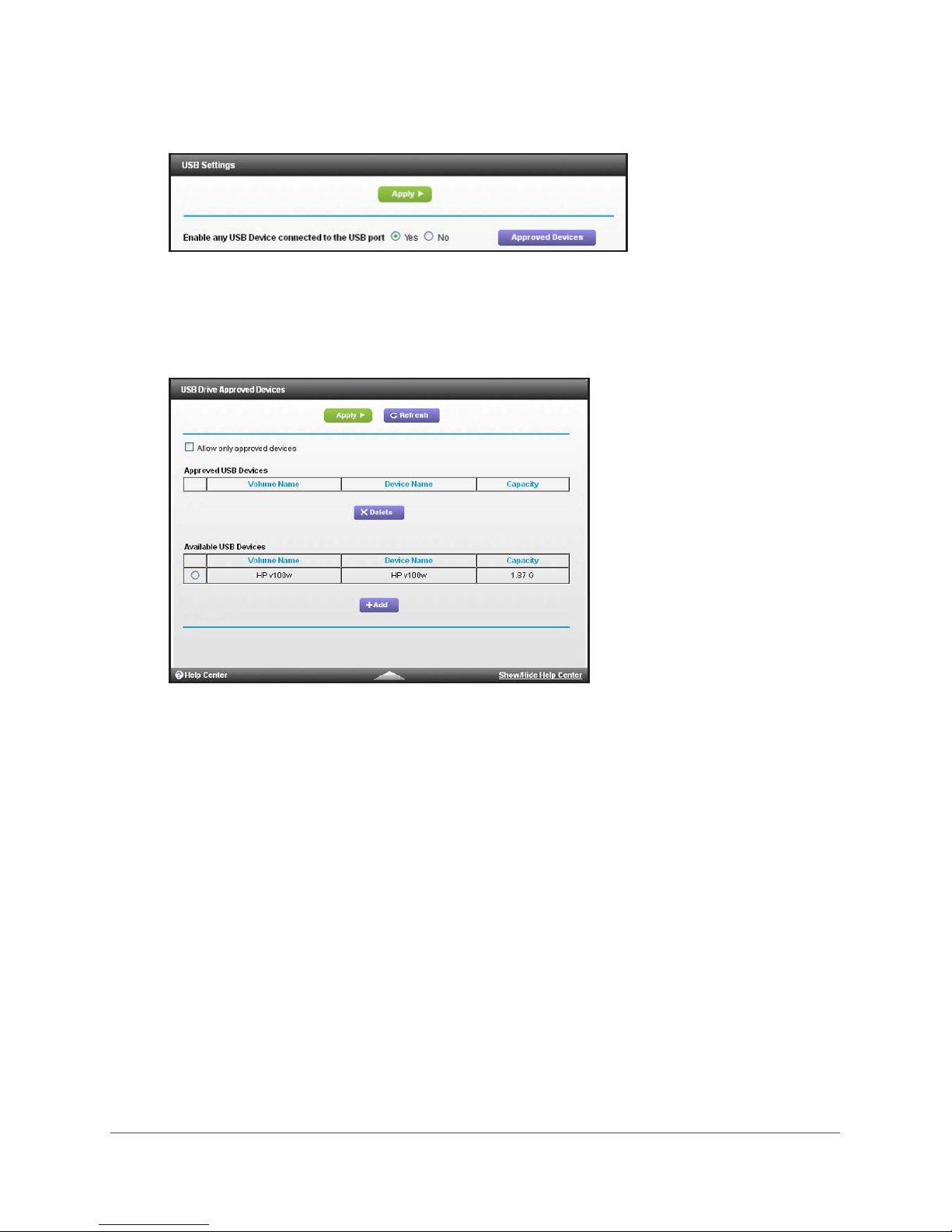

Approve USB Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

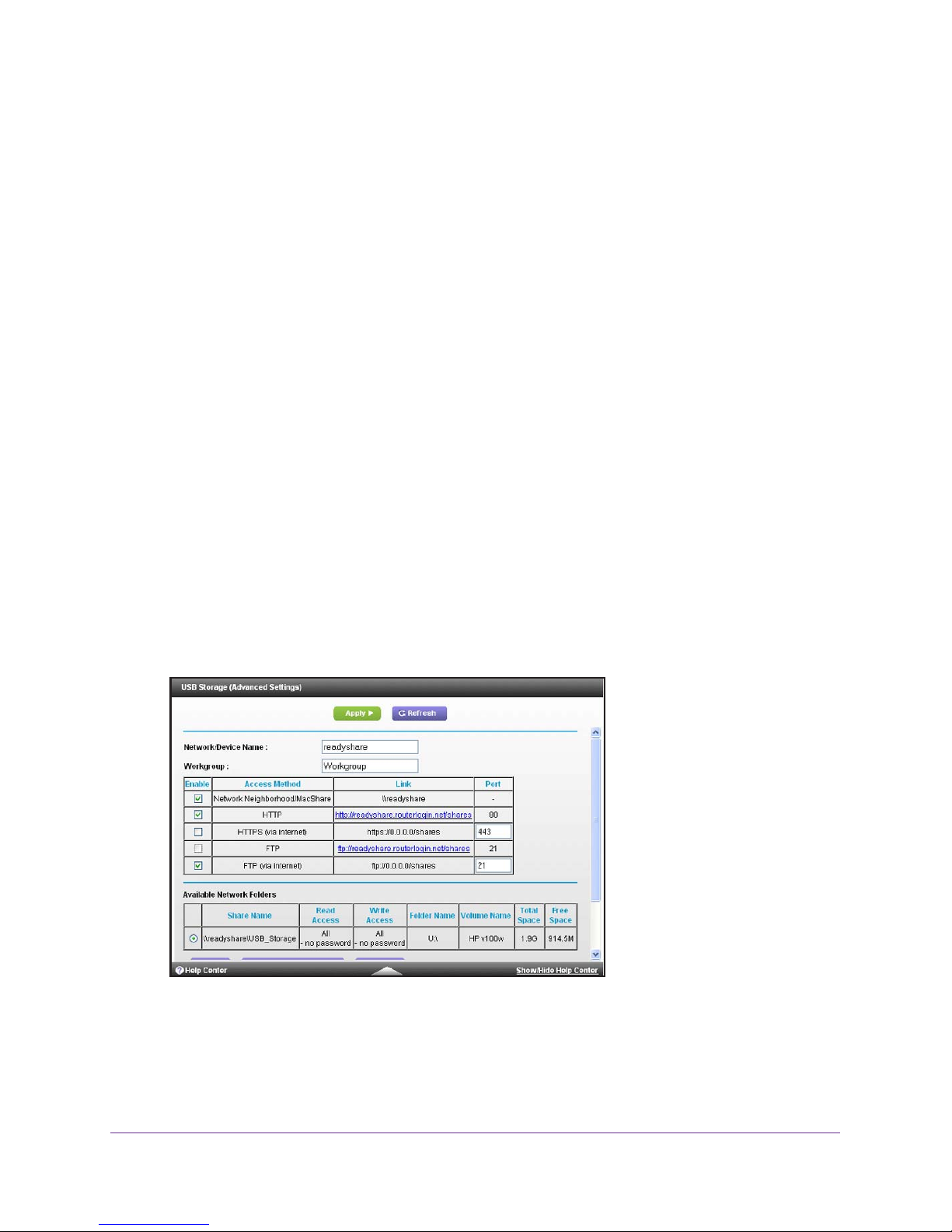

Access the USB Drive Through the Internet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Set Up FTP Access Through the Internet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Access the USB Drive Through the Internet with FTP. . . . . . . . . . . . . . . . . . . 47

Safely Remove a USB Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Chapter 6 Share a USB Printer

Install the Printer Driver and Cable the Printer. . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Download the ReadySHARE Printer Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Install the ReadySHARE Printer Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Use the Shared Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

View or Change the Status of a Printer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Use the Scan Feature of a Multifunction USB Printer . . . . . . . . . . . . . . . . . . . . . 54

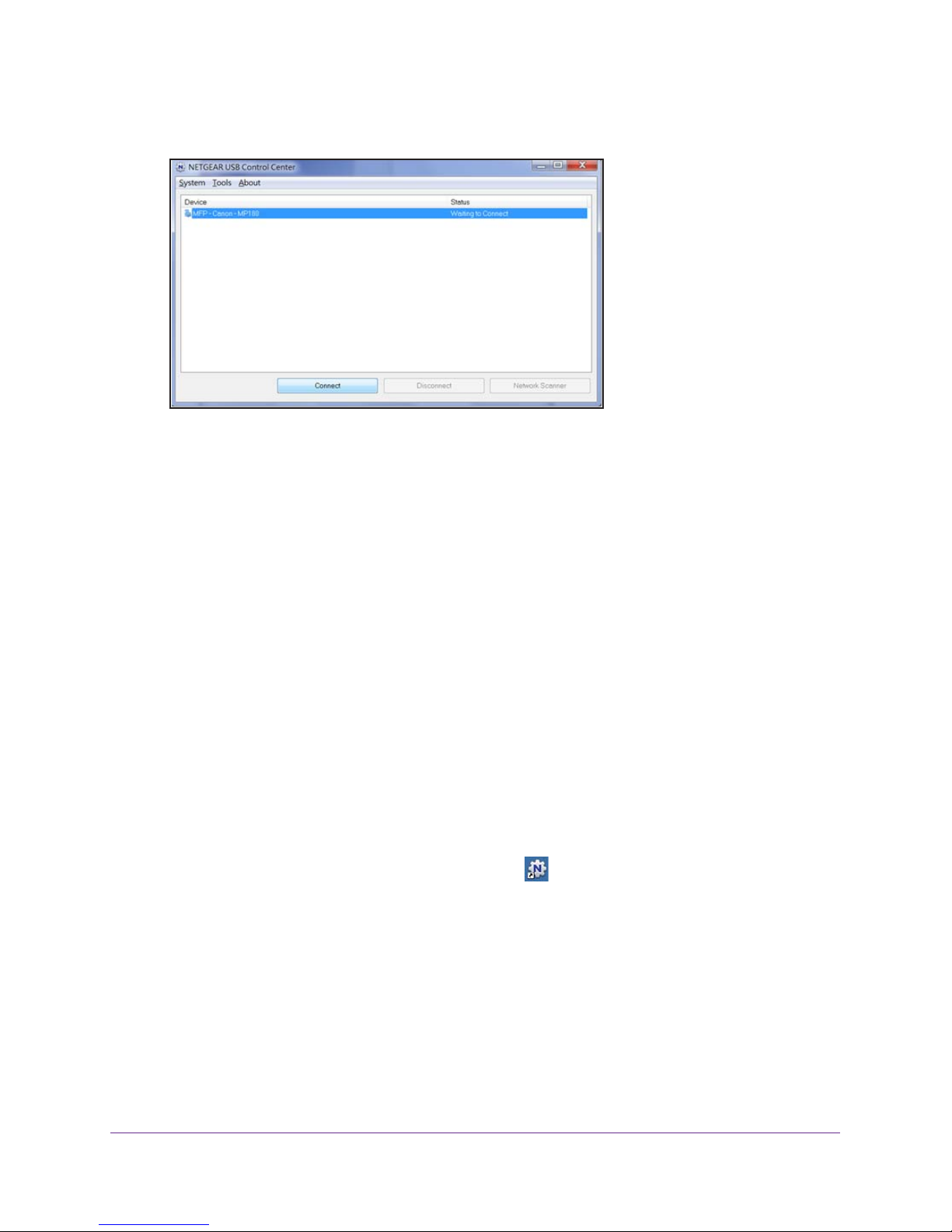

Change NETGEAR USB Control Center Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Chapter 7 Specify Network Settings

View WAN Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Set Up a Default DMZ Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Change the Modem Router’s Device Name. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

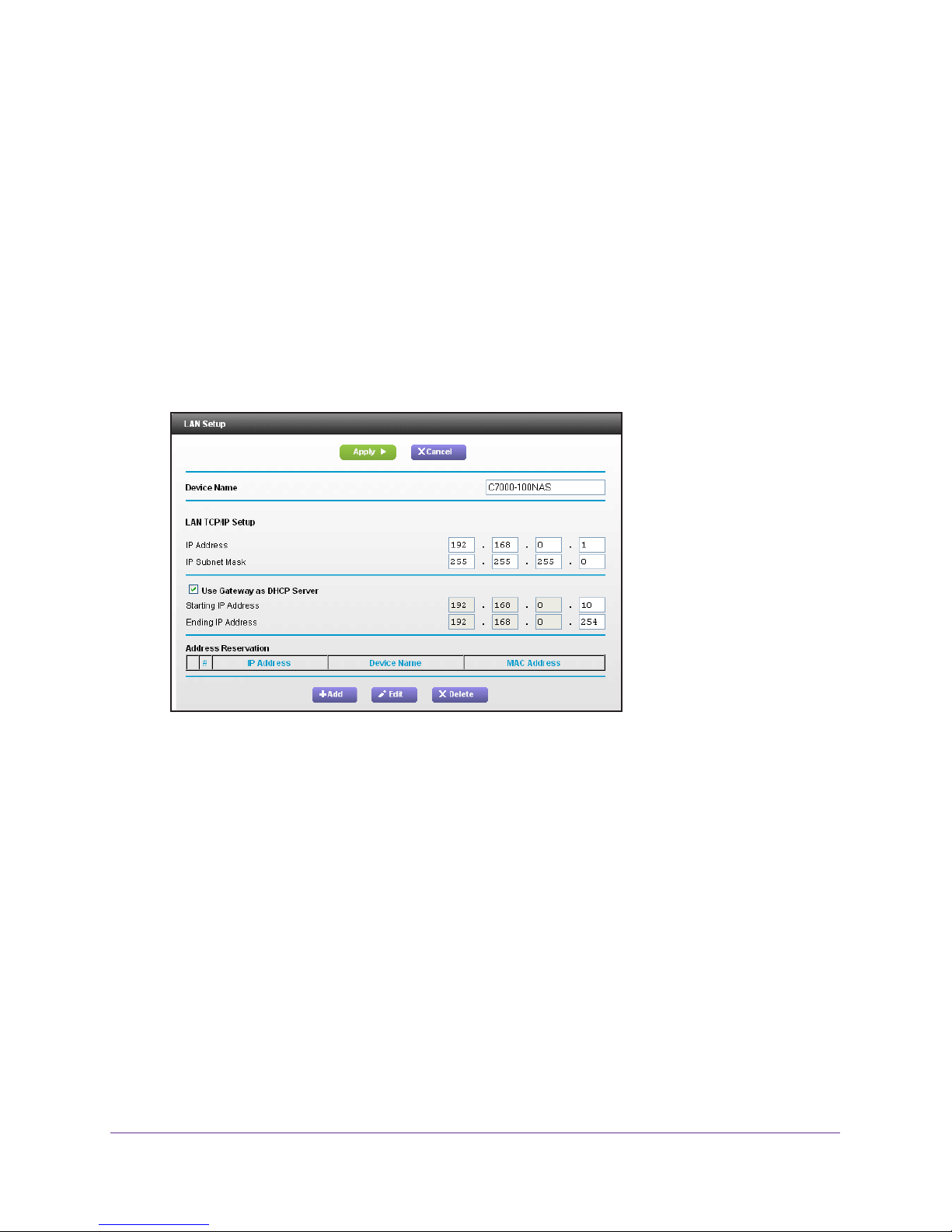

Change the LAN TCP/IP Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Specify the IP Addresses that the Modem Router Assigns. . . . . . . . . . . . . . . . . 61

Disable the DHCP Server Feature in the Modem Router. . . . . . . . . . . . . . . . . . . 62

Reserve LAN IP Addresses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Improve Network Connections with Universal Plug and Play. . . . . . . . . . . . . . . 64

Use the WPS Wizard for WiFi Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

Specify Basic WiFi Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Change the WiFi Security Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

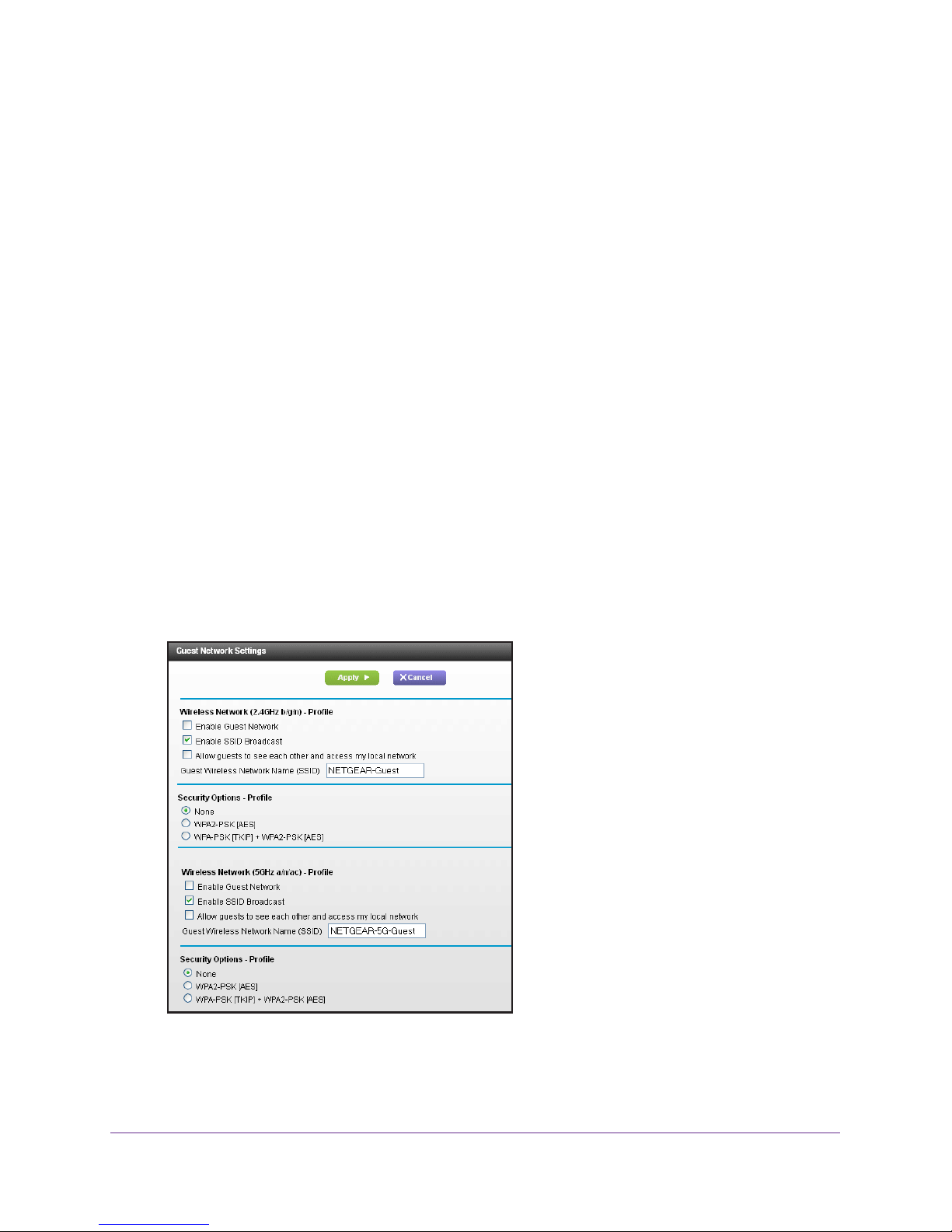

Set Up a Guest Network. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Control the Wireless Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Use the WiFi On/Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

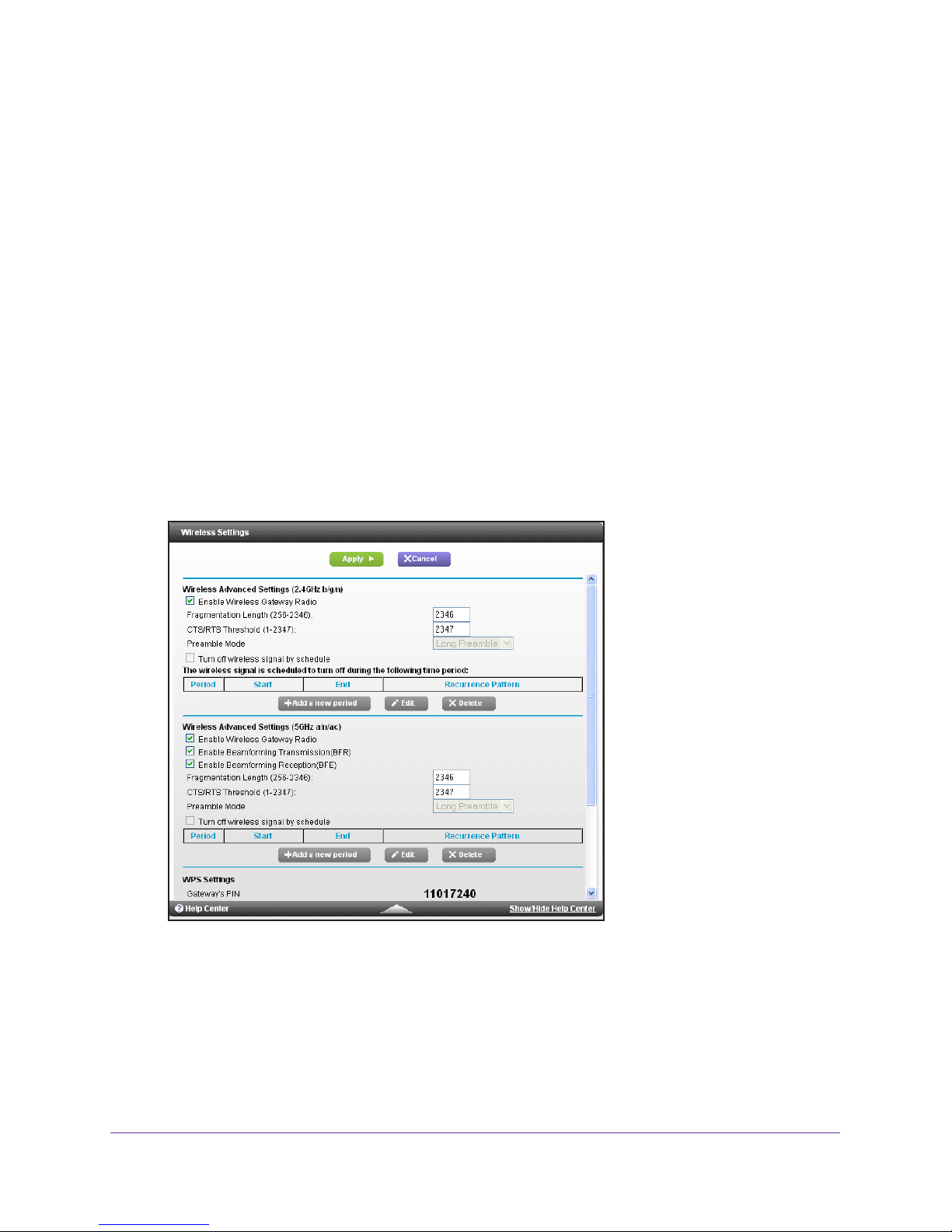

Enable or Disable the Wireless Radios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

Set Up a Wireless Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Specify WPS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Chapter 8 Manage Your Network

Change the admin Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

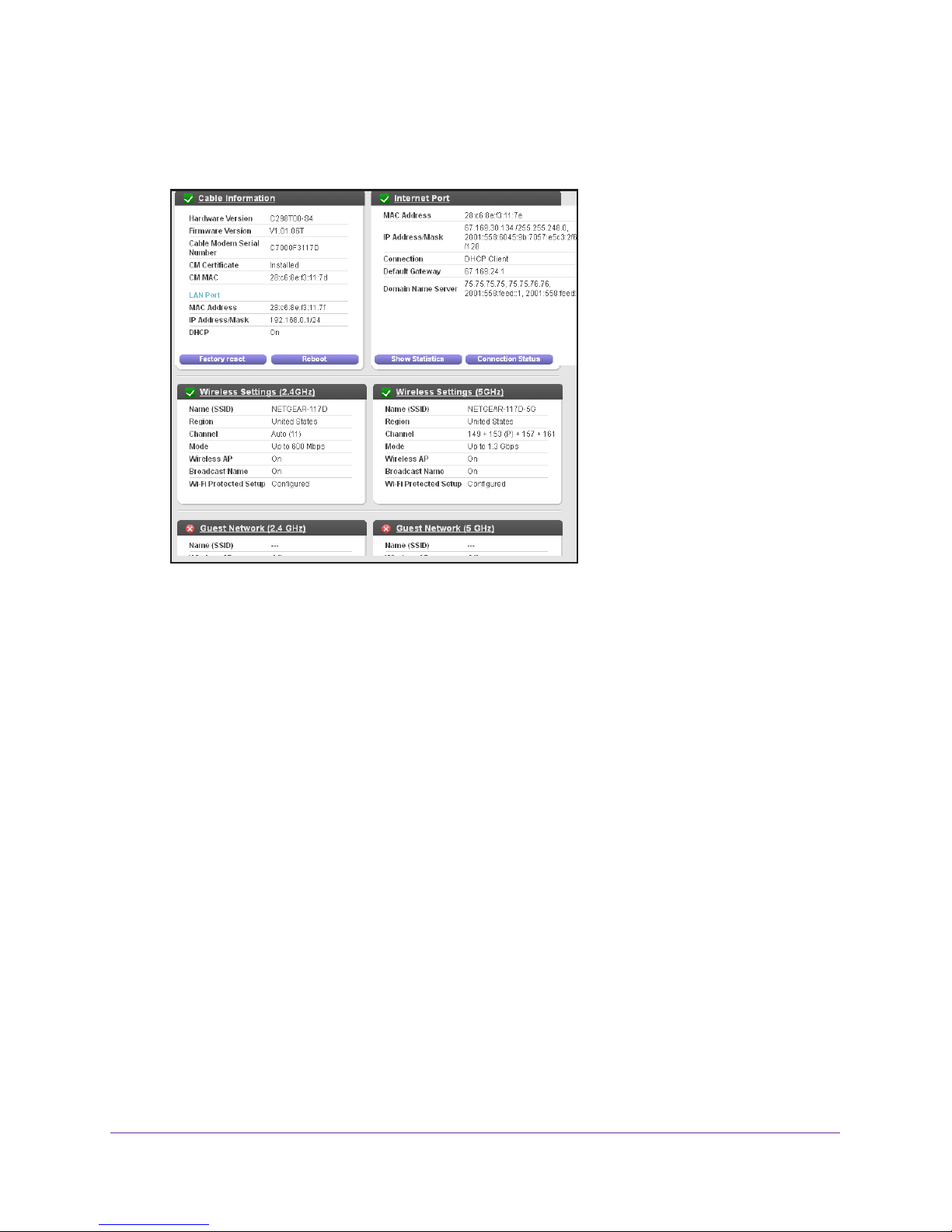

View Modem Router Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Nighthawk AC1900 WiFi Cable Modem Router

Display Internet Port Statistics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

Check the Internet Connection Status. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

View Logs of Modem Router Activity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

View Event Logs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Run the Ping Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

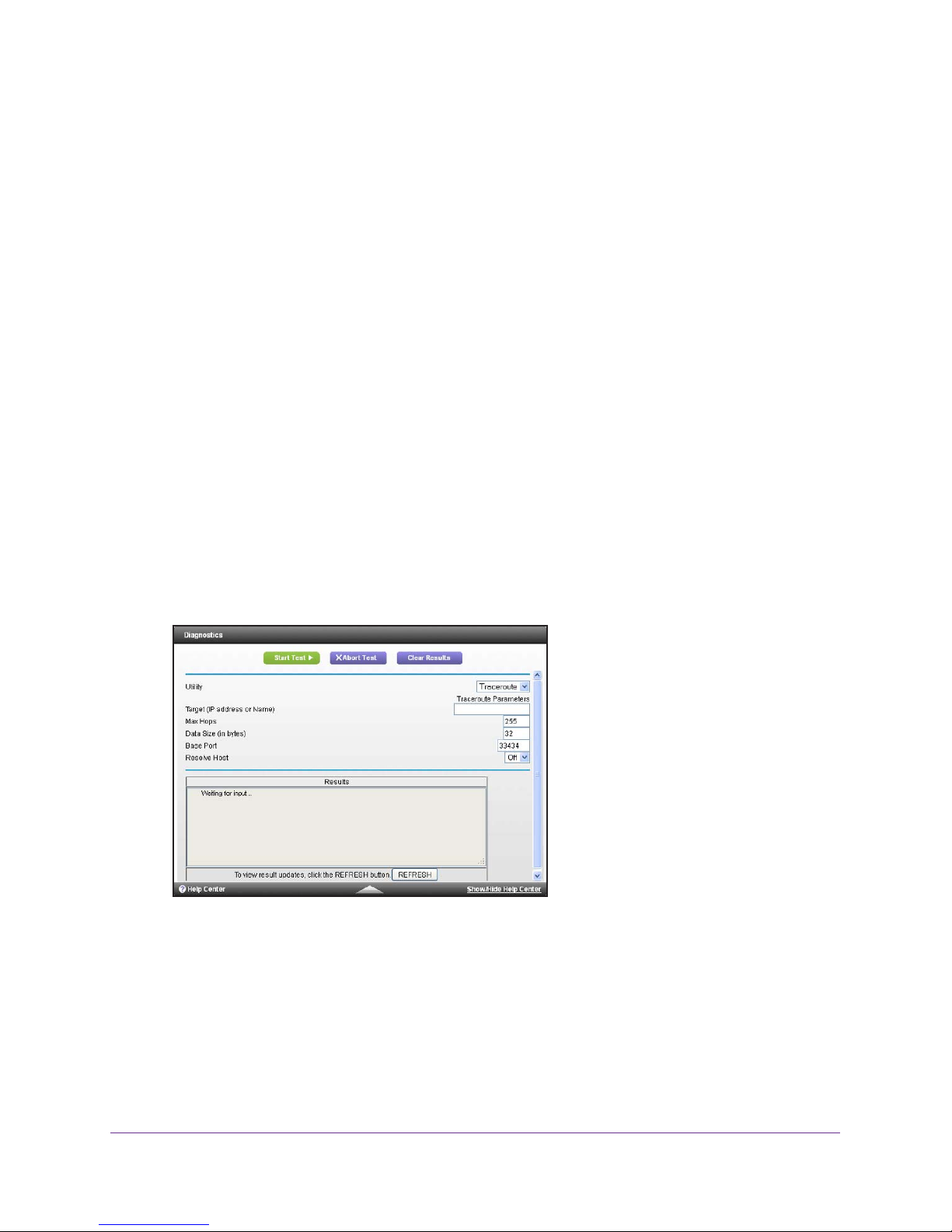

Run the Traceroute Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

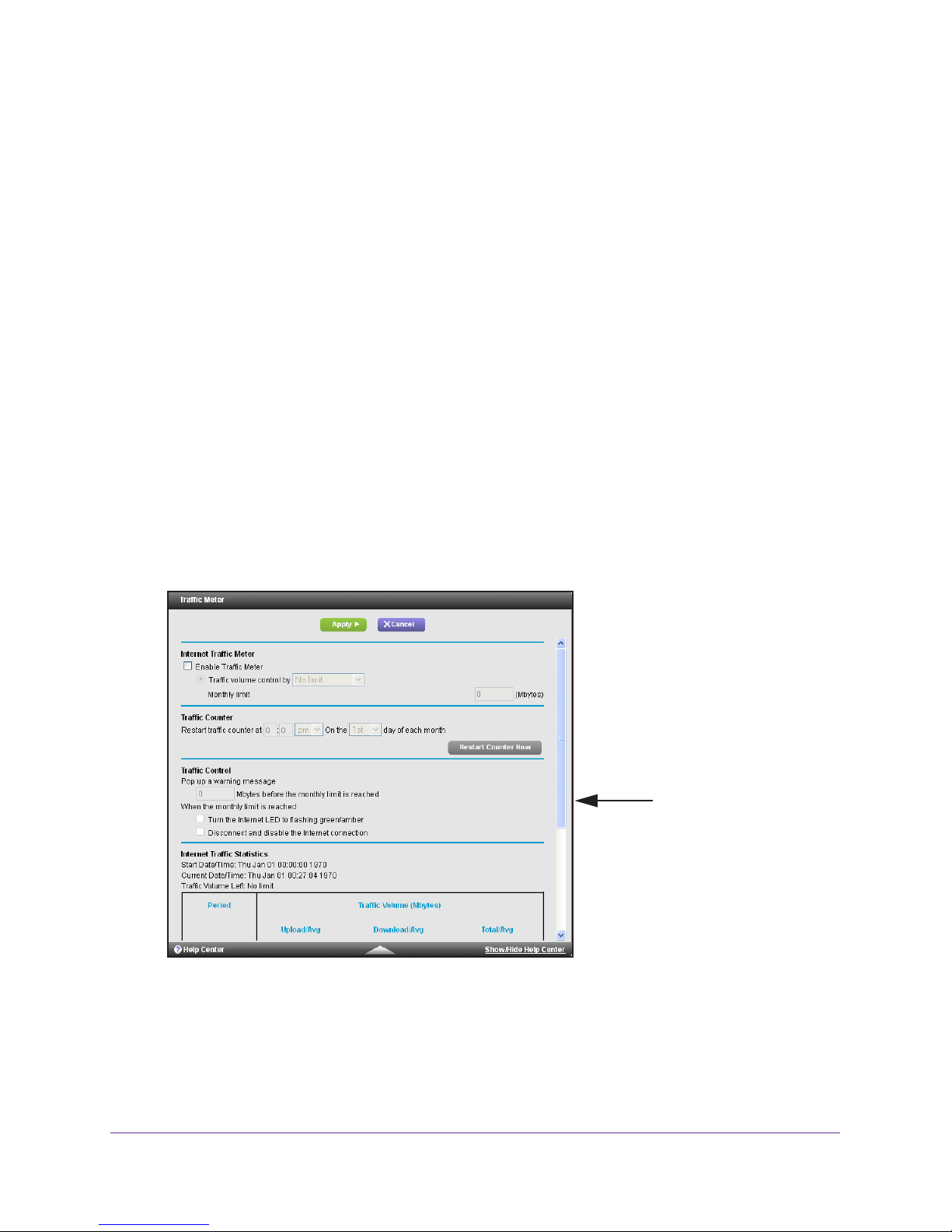

Monitor Internet Traffic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

View Devices Currently on the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84

Manage the Modem Router Configuration File. . . . . . . . . . . . . . . . . . . . . . . . . . . 85

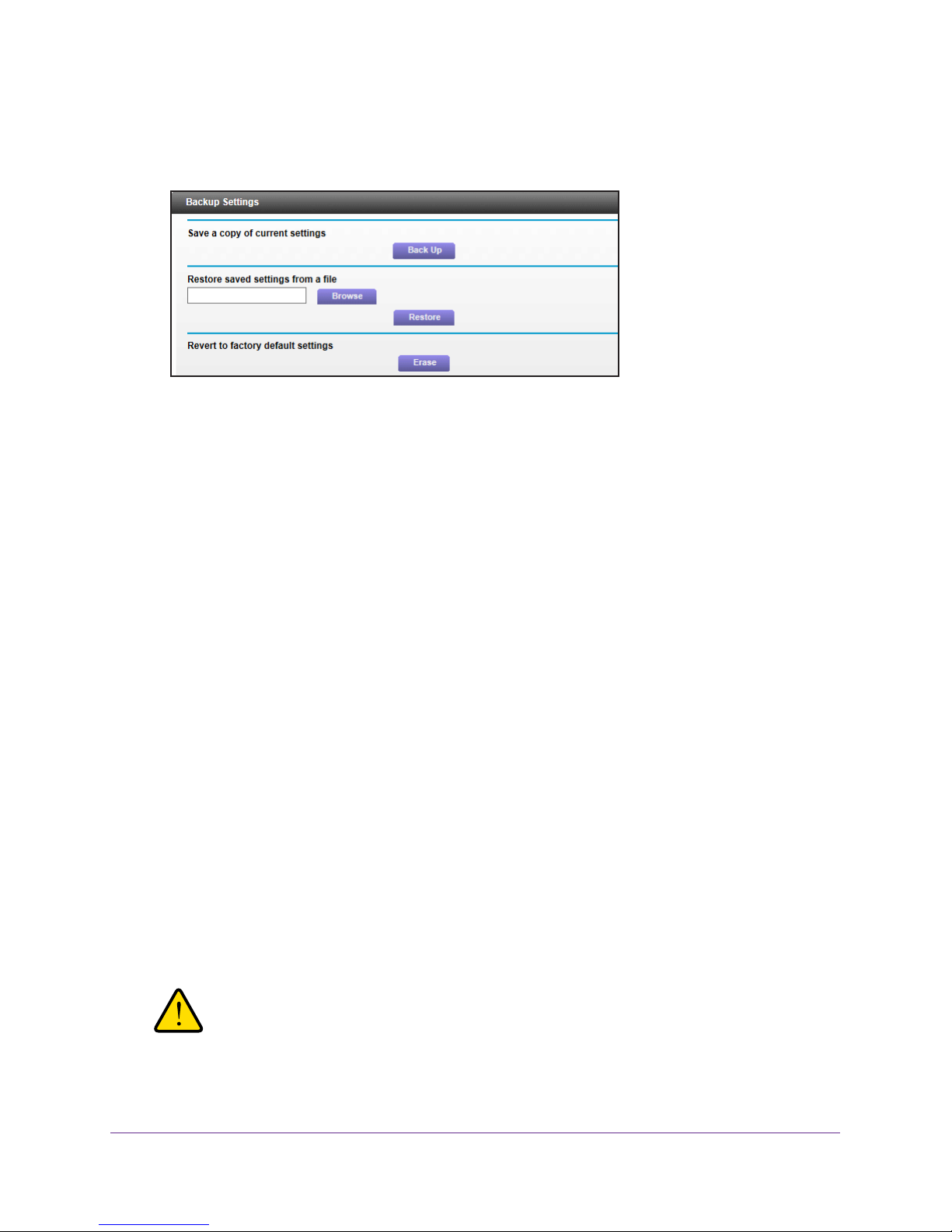

Back Up Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85

Restore Configuration Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Erase the Current Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

View Wireless Access Points in Your Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87

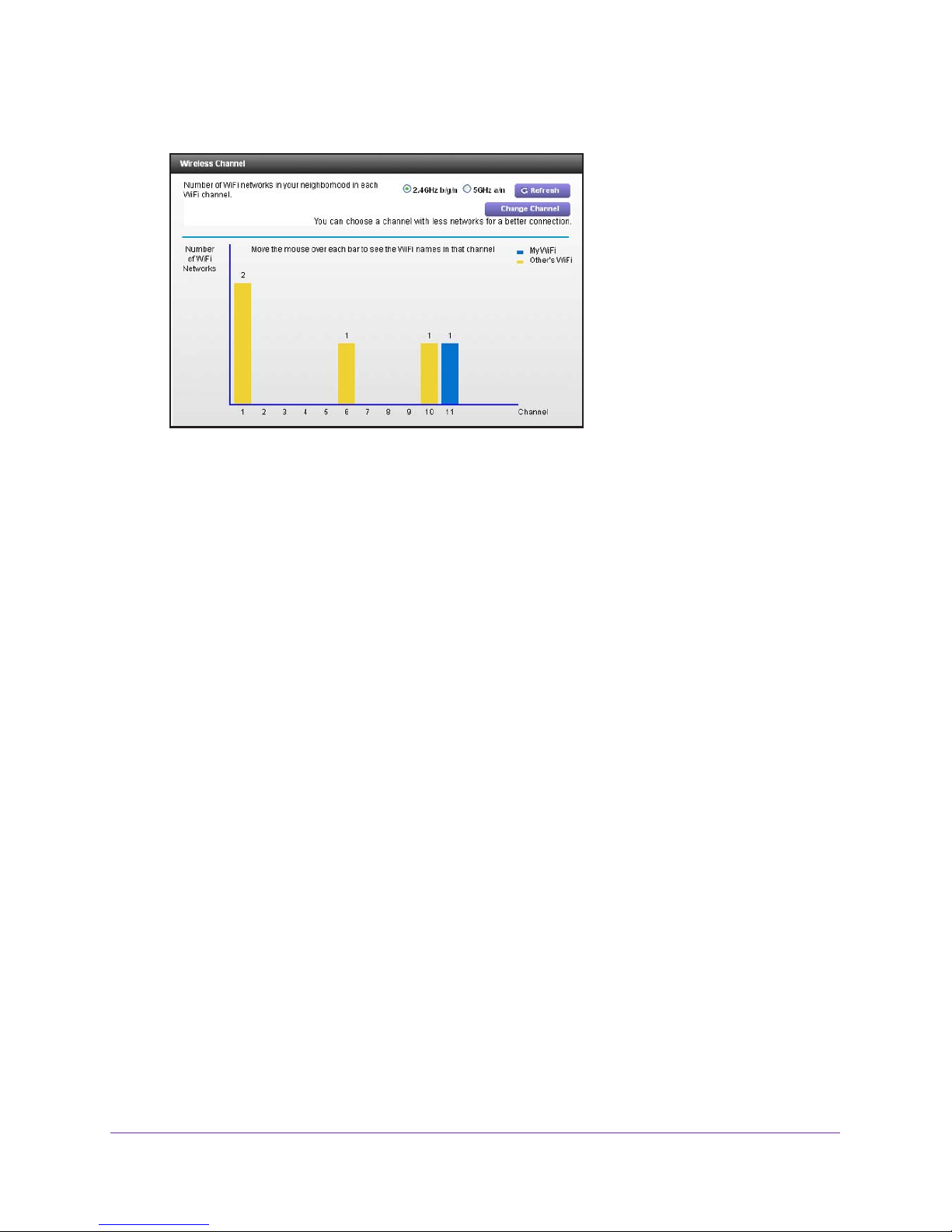

View or Change the Modem Router Wireless Channel . . . . . . . . . . . . . . . . . . . . 88

Dynamic DNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Specify a DNS Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Change the Dynamic DNS Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

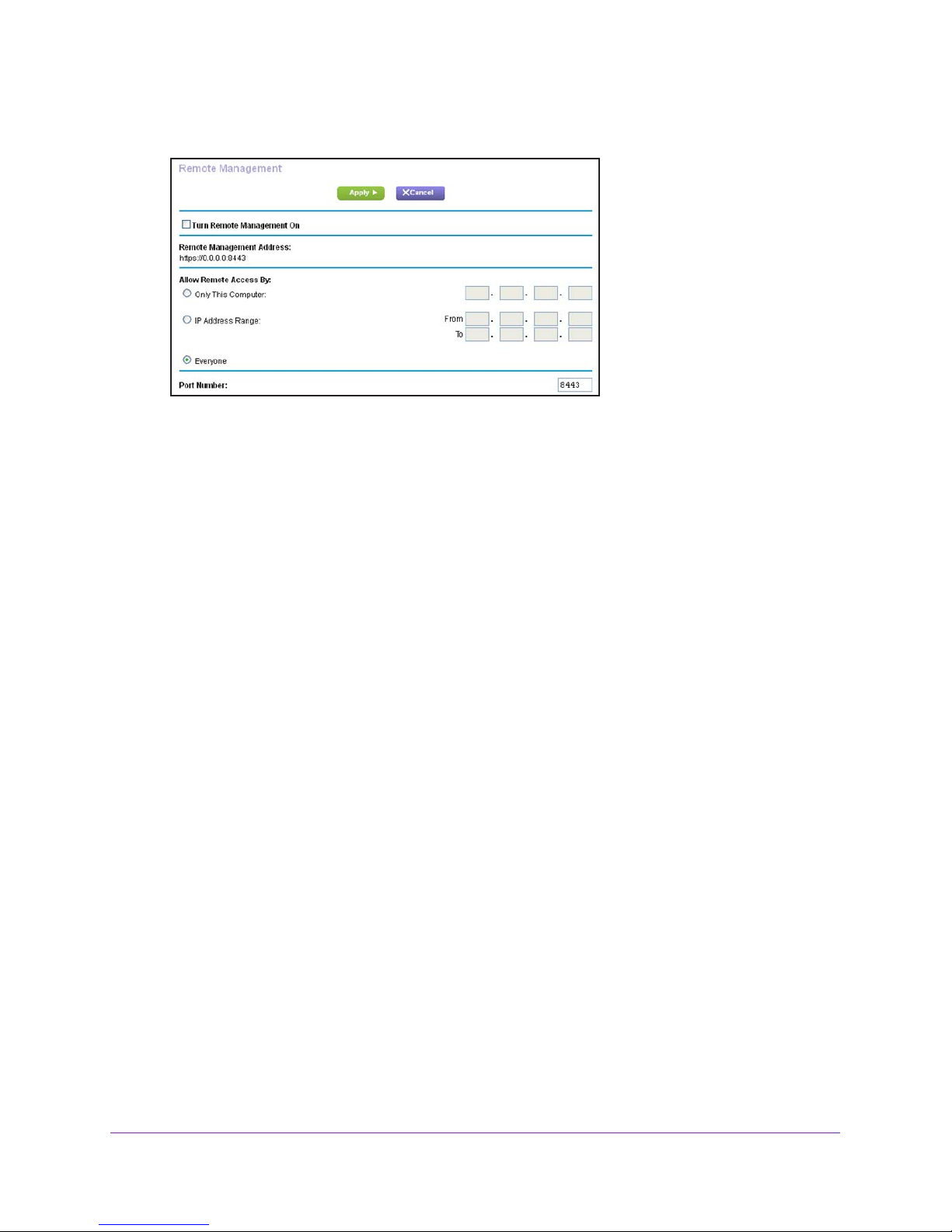

Remote Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Chapter 9 Specify Internet Port Settings

Set Up Port Forwarding to a Local Server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Add a Custom Port Forwarding Service. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Edit a Port Forwarding Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Delete a Port Forwarding Entry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

Application Example: Make a Local Web Server Public . . . . . . . . . . . . . . . . . . 97

How the Modem Router Implements the Port Forwarding Rule . . . . . . . . . . 98

Set Up Port Triggering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

Add a Port Triggering Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

Application Example: Port Triggering for Internet Relay Chat . . . . . . . . . . . 100

Chapter 10 Troubleshooting

Troubleshoot with the LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Power LED Is Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

LEDs Never Turn Off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Internet LED Is Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

Troubleshoot the Cable Internet Connection . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Cannot Log In to the Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103

Changes Not Saved . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Wireless Connectivity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Troubleshoot Your Network Using the Ping Utility . . . . . . . . . . . . . . . . . . . . . . . 105

Test the LAN Path to Your Modem Router . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Test the Path from Your Computer to a Remote Device . . . . . . . . . . . . . . . . 106

Appendix A Supplemental Information

Factory Settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

1. Hardware Setup

This chapter covers the following topics:

• Unpack Your Modem Router

• Front Panel

• Rear Panel

• Position Your Modem Router

• Cable Your Modem Router

• Set Up Your Internet Service with Comcast Xfinity

For more information about the topics covered in this manual, visit the support website at

http://support.netgear.com.

Nighthawk AC1900 WiFi Cable Modem Router

Unpack Your Modem Router

Your package contains the following items.

Ethernet cable

Power adapter

Modem router

Figure 1. Package contents

Front Panel

The modem router has status LEDs and buttons on the front.

Power LED Downstream LED

Upstream LED Internet LED

2.4 GHz LED

5 GHz LED Ethernet LED

WiFi On/Off button

WPS button / LED

Figure 2. Modem router front view

Hardware Setup

Nighthawk AC1900 WiFi Cable Modem Router

You can use the LEDs to verify status and connections. The following table lists and describes each LED and button on the front panel of the modem router.

LED Description

Power

Downstream

Upstream

Internet

2.4 GHz radio

• Green. Power is supplied to the modem router.

• Off. No power is supplied to the modem router.

• Solid red.

heat sources (such as a TV, DVD player, or speakers) and keep it vertical in open air.

• Solid amber. One downstream channel is locked.

• Solid green. T

• Blinking green.

• Off. No downstream channel is locked.

• Solid amber. One upstream channel is locked.

• Solid green. T

• Blinking green.

• Off. No upstream channel is locked.

• Solid green. The modem router is online.

• Blinking green.

modem termination system (CMTS).

• Slow blinking amber and green.

(For information about the traffic meter, see Monitor Internet Traffic on page 83.)

• Off.

• Green. The 2.4 GHz radio is on.

• Off. The

Thermal cutoff mode. Power off the unit, let it cool, and move it away from

wo or more downstream channels are locked.

The modem router is scanning for a downstream channel.

wo or more upstream channels are locked.

The modem router is scanning for an upstream channel.

The modem router is synchronizing with the cable provider’s cable

The modem router reached the traffic meter limit.

The modem router is offline.

2.4 GHz radio is off.

5 GHz radio

Ethernet

WiFi On/Off button with LED

WPS button with LED

• Green. The 5 GHz radio is on.

• Off. The

• Green. A device is connected to an Ethernet port and powered on. Each Ethernet port

has LEDs on the rear panel.

• Off. No device is connected to an Ethernet port.

Pressing this button for two seconds turns the WiFi radios in the modem router on and off. If this LED is lit, the WiFi radios are on. If this LED is off, the WiFi radios are turned off and you cannot use WiFi to connect to the modem router.

This button lets you use WPS to join the WiFi network without typing the WiFi password. The WPS LED blinks during this process and then lights solid.

5 GHz radio is off.

Hardware Setup

Nighthawk AC1900 WiFi Cable Modem Router

Rear Panel

The rear panel has the connections and button shown the following figure.

USB port

Ethernet LAN ports

Coaxial cable connector Reset button

Power adapter input

Figure 3. Modem router rear panel

Position Your Modem Router

The modem router lets you access your network anywhere within the operating range of your wireless network. However, the operating distance or range of your wireless connection can vary significantly depending on the physical placement of your modem router. For example, the thickness and number of walls the wireless signal passes through can limit the range.

Additionally, other wireless access points in and around your home might affect your modem router’ or any other device that emits a wireless signal for network access.

Position your modem router according to the following guidelines:

• Place your modem router near the center of the area where your computers and other

• Make sure that the modem router is within reach of an

• Place the modem router in an elevated location, minimizing the number walls and ceilings

s signal. Wireless access points are modem routers, repeaters, WiFi range extenders,

devices operate, and within line of sight to your wireless devices.

AC power outlet and near Ethernet

cables for wired computers.

between the modem router and your other devices.

Hardware Setup

Nighthawk AC1900 WiFi Cable Modem Router

• Place the modem router away from electrical devices such as these:

- Ceiling fans

- Home security systems

- Microwaves

- Computers

- Base of a cordless phone

- 2.4 GHz cordless phone

• Place the modem router away from large metal surfaces, large glass surfaces, and

insulated walls such as these:

- Solid metal doors

- Aluminum studs

- Fish tanks

- Mirrors

- Brick

- Concrete

Cable Your Modem Router

The most common way to cable your modem router is the simplest, without any other routers or gateways on the same network. You can also cable the modem router to another router or gateway and log in to the modem router to specify this setting.

Cable the Modem Router in a Simple Network

The modem router comes configured to work as both a modem and a router. You can share your Internet connection without connecting the modem router to a router or gateway.

Internet

Ethernet cable

Figure 4. Modem router in a simple network

Power adapter

Hardware Setup

Nighthawk AC1900 WiFi Cable Modem Router

 To cable your modem router:

1. Connect a coaxial cable.

Use the coaxial cable that your cable company provides to connect the cable port on the modem router to a cable wall outlet or a line splitter.

Note: For Xfinity cable Internet service, Comcast Xfinity recommends

connecting your modem router to a cable wall outlet.

2. Connect the power adapter provided in the package to the modem router and plug the

power adapter in to an electrical outlet.

3. Press the Power On/Off button on the rear panel of the modem router.

The Power LED lights green.

You can log in to the modem router to view or change its settings.

Cable Your Modem Router to a Router and Use Bridge Mode

If you want to cable the modem router to a router, then you must log in to the modem router and change its Router Mode setting. Changing this setting prevents certain network conflicts that can occur when two devices on the same network perform routing functions such as network address translation (NAT) and DHCP (assigning IP addresses to devices on the network). This turns the modem router into a bridged modem

 To cable your modem router to a gateway or router:

1. Connect a coaxial cable.

Use the coaxial cable that your cable company provides to connect the cable port on the modem router to a cable wall outlet or a line splitter.

2. Connect the power adapter to the modem router and plug the power adapter into an

electrical outlet. The Power LED lights green.

3. On your computer or wireless device, find and select the WiFi network.

The WiFi network name is on the product label.

4. Join the WiFi network and enter the WiFi password.

The password is on the product label. Your wireless device connects to the WiFi network.

5. Launch a web browser.

6. Type http://routerlogin.net or http://192.168.0.1.

A login screen displays.

Hardware Setup

Nighthawk AC1900 WiFi Cable Modem Router

7. Enter the modem router user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

8. Select ADV

9. Select the No radio button.

With this setting, the modem router works as a bridge and obtains IP addresses from the cable Internet provider.

10. Click the Apply button.

Your change is saved.

11. Follow the instructions that came with your router or gateway to connect it to the modem

router.

ANCED > Administration > Router Mode.

The default password is password. The user name and

CAUTION:

Once the modem router is in bridge mode, you must connect only one device (your router) to a modem router LAN port. In most cases, Internet service providers provide only one public IP address and connecting multiple devices will cause conflicts and will cause your devices to stop working.

Set Up Your Internet Service with Comcast Xfinity

Set up Internet service by using Comcast Xfinity’s self-activation process. If you are unable to self-activate your modem router, call Comcast Xfinity customer service. After you complete the setup, perform a speed test.

Use Self-Activation to Set Up Your Internet Connection

Before you start the self-activation process, make sure that your account number, account phone number, and login information (your email address or user name and password) are nearby.

 To set up your Internet connection with Comcast Xfinity’s self-activation process:

1. Close all web browsers.

Hardware Setup

Nighthawk AC1900 WiFi Cable Modem Router

2. Launch a web browser.

You are redirected to the Xfinity self-activation page. If you are not redirected to the Xfinity self-activation page, visit www.comcast.com/activate.

3. Provide your Xfinity credentials and complete the selfactivation process.

This process might take up to 15 minutes, during which the modem router reboots a couple times.

Call Comcast Xfinity to Set Up Your Internet Connection

If you are unable to self-activate your modem router, call Comcast Xfinity customer service. Before you call Comcast Xfinity, make sure that your account number, account phone

number C7000. The serial number and MAC address are on the product label.

MAC address

, email address, and password are nearby. The modem router’s model number is

Serial number

Figure 5. Find the serial number and the MAC address on the product label

 To set up your Internet connection by calling Comcast Xfinity:

1. Call Comcast Xfinity customer service at 1-800-XFINITY (1-800-934-6489).

2. When asked, provide your account information and provide the modem router

number and MAC address.

3. W

ait for the Comcast Xfinity representative to confirm that your modem router is active.

4. If you do not get an Internet connection with the modem router

, ask the Comcast Xfinity representative to look for your modem router online, and do one of the following depending on what the representative tells you about your modem router:

• If the modem router is not visible, the Comcast Xfinity representative can give you

instructions to verify why the modem router does not connect with your high-speed Internet service.

• If the modem router is visible to the Comcast Xfinity representative, reboot the

modem router

. Check your online status again.

’s model

Hardware Setup

2. Connect to the Network and

Access the Modem Router

This chapter contains the following sections:

• Connect to the Network

• Types of Logins

• Log In to the Modem Router

• Access the Modem Router with NETGEAR genie App

Nighthawk AC1900 WiFi Cable Modem Router

Connect to the Network

You can connect to the modem router’s network through a wired or WiFi connection. If you set up your computer to use a static IP address, change the settings so that it uses Dynamic Host Configuration Protocol (DHCP).

Wired Connection

You can connect your computer to the modem router using an Ethernet cable and join the modem router’s local area network (LAN).

 To connect your computer to the modem router with an Ethernet cable:

1. Make sure that the modem router has power (its Power LED is lit).

2. Connect an Ethernet cable to an Ethernet port on your computer.

3. Connect the other end of the Ethernet cable to one of the numbered Ethernet ports.

Your computer connects to the local area network (LAN). A message might display on your computer screen to notify you that an Ethernet cable is connected.

WiFi Connection

You can connect to the modem router’s WiFi network with Wi-Fi Protected Setup (WPS) or you can find and select the WiFi network.

 To use WPS to connect to the WiFi network:

1. Make sure that the modem router has power (its Power LED is lit).

2. Check the WPS instructions for your computer or wireless device.

3. Press the WPS button on the modem router.

4. Within two minutes, on your computer or WiFi device, press its WPS button or follow its

instructions for WPS connections. Your computer or wireless device connects to the WiFi network.

 To find and select the WiFi network:

1. Make sure that the modem router has power (its Power LED is lit).

2. On your computer or wireless device, find and select the WiFi network.

The WiFi network name is on the modem router’s label.

3. Join the WiFi network and enter the WiFi password.

The password is on the modem router’s label. Your wireless device connects to the WiFi network.

Connect to the Network and Access the Modem Router

Nighthawk AC1900 WiFi Cable Modem Router

Label

The label on the modem router shows the login information, MAC address, and serial number.

Figure 6. Modem router label

MAC Serial WiFi network name

SSID) and password

Types of Logins

Separate types of logins have different purposes. It is important that you understand the difference so that you know which login to use when.

Types of logins:

• W

iFi network key or password. Your modem router is preset with a unique wireless

network name (SSID) and password for wireless access. This information is on the modem router label.

Note: Your modem router broadcasts dual-band 2.4 GHz and 5 GHz WiFi

signals. The label shows the SSID for the 2.4 GHz signal. For information about 5 GHz WiFi settings, see Specify Basic WiFi Settings on page 66.

• Modem Router login.This logs you in to the modem router interface as admin from an

Internet browser

When you first set up your modem router, NETGEAR genie automatically starts when you launch an Internet browser on a computer that is connected to the modem router. If you want to view or change settings for the modem router, you can use genie again.

 To log in to the modem router:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

Connect to the Network and Access the Modem Router

Nighthawk AC1900 WiFi Cable Modem Router

A login screen displays.

3. Enter the modem router user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

Access the Modem Router with NETGEAR genie App

The genie app is the easy dashboard for managing, monitoring, and repairing your home network. The genie app can help you with the following:

• Automatically repair common wireless network problems.

• Easily manage modem router features like Live Parental Controls, guest access, Internet

traffic meter, speed test, and more.

 To use the genie app to access the modem router:

1. Visit the NETGEAR genie web page at www.NETGEAR.com/genie.

2. Follow the onscreen instructions to install the app on your smartphone, tablet, or computer.

3. Launch the genie app.

The genie app dashboard screen displays:

Connect to the Network and Access the Modem Router

3. Specify Your Internet Settings

Usually, the quickest way to set up the modem router to use your Internet connection is to allow the genie to detect the Internet connection when you first access the modem router with an Internet browser. You can also customize or specify your Internet settings.

This chapter contains the following sections:

• Notify Your Internet Provider

• View Modem Router Initialization

• Manually Set Up the Internet Connection

• Specify an IPv6 Internet Connection

• Change the MTU Size

Nighthawk AC1900 WiFi Cable Modem Router

Notify Your Internet Provider

You must contact your Internet provider and tell them that you are using the modem router. For Comcast Xfinity self-activation, see

Connection on page 12

 To set up your Internet connection:

1. Contact your cable Internet provider and inform them that you are installing a new

modem router that you bought from a retail store. Provide your cable Internet provider with the modem router’s model number, which is

C7000. You can also visit your cable Internet provider’s website and follow the onscreen

instructions to set up your Internet service. The contact information listed might change. You can also find the contact number in your

monthly Internet service billing statement.

Use Self-Activation to Set Up Your Internet

2. When asked, provide the modem router’s serial number and MAC address, which are on the

product label. (See

3. Wait for your cable Internet provider to confirm that your modem router is active.

4. If you the modem router does not connect to the Internet, ask your cable Internet provider to

look for your modem router online, and do one of the following depending on what your cable Internet provider tells you about your modem router:

• If the modem router is not visible, your cable Internet provider can give you

instructions to verify why the modem router does not connect with your high-speed Internet service.

• If the modem router is visible to your cable Internet provider, reboot the computer,

laptop, or home gateway that is connected to the modem router. Try checking your online status again.

Retrieve and Display the Product Label on page 10.)

Specify the Cable Connection Starting Frequency

The starting frequency is automatically generated. For most Internet connections, you do not need to specify this information. If you need to enter a starting frequency, contact your Internet provider.

 To change the starting frequency:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. Type http://routerlogin.net or http://192.168.0.1.

A login screen displays.

3. Enter the modem router user name and password.

Specify Your Internet Settings

Nighthawk AC1900 WiFi Cable Modem Router

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select Cable Connection.

The screen displays the status of all downstream and upstream channels.

5. In the Starting Frequency field, type a number

6. Click the Apply button.

Your settings are saved.

View Modem Router Initialization

You can track the initialization procedure of the modem router, and get details about the downstream and upstream cable channel. The time is displayed after the modem router is initialized.

The modem router automatically goes through the following steps in the provisioning process:

1. Scans and locks the downstream frequency and then ranges the upstream channels.

2. Obtains a W

3. Connects to the Internet.

AN address for the modem router.

Specify Your Internet Settings

Nighthawk AC1900 WiFi Cable Modem Router

 To view the status of the modem router initialization:

1. Launch a web browser from a computer or wireless device that is connected to the

network.

2. T

ype http://routerlogin.net or http://192.168.0.1.

A login screen displays.

3. Enter the modem router user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

4. Select Cable Connection.

The default password is password. The user name and

The Startup Procedure section displays the initialization progress. The screen also displays the status of all downstream and upstream channels.(You must scroll down to view all the channels.) The number of downstream and upstream channels that are locked depends on the number of channels that your Internet provider uses.

Manually Set Up the Internet Connection

In most situations, you do not need to change these settings. NETGEAR recommends that you use the default settings for DHCP because most cable Internet services provide the IP address through DHCP.

Specify Your Internet Settings

Nighthawk AC1900 WiFi Cable Modem Router

 To specify the Internet connection settings:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

3. Enter the modem router user name and password.

The user name is admin. password are case-sensitive.

The BASIC Home screen displays.

4. Select ADV

ANCED > Setup > Internet.

The default password is password. The user name and

Scroll to view more settings

5. If your Internet connection requires an account name or host name, type it in the Account

Name (If Required) field.

6. If your Internet connection requires a domain name, type it in the Domain Name (If

Required) field.

For the other sections in this screen, the default settings usually work, but you can change them.

7. For the Internet IP

Address setting, select one of the following radio buttons:

• Get Dynamically from ISP.

automatically assigns these addresses.

• Use Static IP

Address. Enter the IP address, IP subnet mask, and the gateway IP

address that your ISP assigned. The gateway is the ISP modem router to which your modem router connects.

8. For the Domain Name Server (DNS) Address setting, select one of the following radio

buttons:

Your ISP uses DHCP to assign your IP address. Your ISP

Specify Your Internet Settings

Nighthawk AC1900 WiFi Cable Modem Router

• Get Automatically from ISP. Your ISP uses DHCP to assign your DNS servers. Your

ISP automatically assigns this address.

• Use These DNS Servers. If you know that your ISP requires specific servers, select

this option. Enter the IP address of your ISP’

s primary DNS server. If a secondary

DNS server address is available, enter it also.

9. Click the Apply button.

Your settings are saved. If the NETGEAR website does not display within one minute, see Chapter 10,

T roubleshooting.

Specify an IPv6 Internet Connection

 To specify an IPv6 Internet connection:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. T

ype http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

3. Enter the modem router user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Advanced Setup > IPv6.

If your Internet provider supports IIPV6, the System Delegated Prefix field displays IPv6 information.

5. Specify how the modem router assigns IPv6 addresses to the devices on your home

network (the LAN) by selecting one of the following radio buttons:

Specify Your Internet Settings

Nighthawk AC1900 WiFi Cable Modem Router

• Use DHCP Server. This method passes more information to LAN devices, but some

IPv6 systems might not support the DHCv6 client function.

• Auto Config. This is the default setting.

6. Complete the fields in the Server Settings section.

7. Click the Apply button.

Your settings are saved.

Change the MTU Size

The maximum transmission unit (MTU) is the largest data packet a network device transmits. When one network device communicates across the Internet with another, the data packets travel through many devices along the way. If a device in the data path has a lower MTU setting than the other devices, the data packets must be split or “fragmented” to accommodate the device with the smallest MTU.

The best MTU setting for NETGEAR equipment is often the default value. In some situations, changing the value fixes one problem but causes another. Leave the MTU unchanged unless one of these situations occurs:

• You experience problems connecting to your ISP or other Internet service, and the

technical support of either the ISP or NETGEAR recommends changing the MTU setting. These web-based applications might require an MTU change:

- A secure website that does not open, or displays only part of a web page

- Yahoo email

- MSN portal

- America Online’s DSL service

• You use VPN and have severe performance problems.

• You used a program to optimize MTU for performance reasons, and now you have

connectivity or performance problems.

Note: An incorrect MTU setting can cause Internet communication

problems. For example, you might not be able to access certain websites, frames within websites, secure login pages, or FTP or POP servers.

 To change the MTU size:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

Specify Your Internet Settings

Nighthawk AC1900 WiFi Cable Modem Router

3. Enter the modem router user name and password.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select ADV

ANCED > Setup > WAN Setup.

5. In the MTU Size field, enter a value from 64 to 1500.

6. Click the Apply button.

Your change is saved.

If you suspect an MTU problem, a common solution is to change the MTU to 1400. If you are willing to experiment, you can gradually reduce the MTU from the maximum value of 1500 until the problem goes away applications.

. The following table describes common MTU sizes and

Table 1. Common MTU sizes

MTU Application

1500 The largest Ethernet packet size. This setting is typical for connections that do not use

PPPoE or VPN, and is the default value for NETGEAR modem routers, adapters, and

switches. 1492 Used in PPPoE environments. 1472 Maximum size to use for pinging. (Larger packets are fragmented.) 1468 Used in some DHCP environments. 1460 Usable by AOL if you do not have large email attachments, for example.

Specify Your Internet Settings

4. Control Access to the Internet

The modem router comes with a built-in firewall that helps protect your home network from

unwanted intrusions from the Internet.

This chapter includes the following sections:

• Set Up Parental Controls

• Block Access to Your Network

• Use Keywords to Block Internet Sites

• Block Services from the Internet

• Schedule When to Block Internet Sites and Services

• Avoid Blocking on a Trusted Computer

• Set Up Security Event Email Notifications

Nighthawk AC1900 WiFi Cable Modem Router

Set Up Parental Controls

The first time that you select Parental Controls from the BASIC Home screen, your browser goes to the Parental Controls website, where you can learn more about Parental Controls. To set up Parental Controls, you must download the genie app.

Figure 7. Parental Controls website

 To set up Parental Controls:

1. Launch an Internet browser from a computer or WiFi device that is connected to the

network.

2. T

ype http://www.routerlogin.net.

A login screen displays.

3. Enter the user name and password for the modem router.

The user name is admin.

The default password is password. The user name and

password are case-sensitive. The BASIC Home screen displays.

4. Select Parental Controls.

The Parental Controls website opens.

5. Click the button for the genie app or version that you want to download and use.

6. Follow the onscreen instructions to download and install the genie app.

7. Open the genie app and select Parental Controls.

Control Access to the Internet

Nighthawk AC1900 WiFi Cable Modem Router

Live Parental Controls automatically starts.

8. Click the Next button, read the note, and click the Next button again.

Because Live Parental Controls uses free OpenDNS accounts, you are prompted to log in or create a free account.

9. Select a radio button as follows:

• If you already own an OpenDNS account, leave the Ye

s radio button selected.

• If you did not yet create an OpenDNS account, select the No radio button.

If you are creating an account, the following screen displays.

Control Access to the Internet

Nighthawk AC1900 WiFi Cable Modem Router

a. Complete the fields. b. Click the Next button.

After you log on or create your account, the filtering level screen displays.

10. Select a radio button for a filtering level and click the Next button.

The Setup is complete screen displays.

11. Click the T

ake me to the status screen button.

Parental Controls are now set up for the modem router.

12. T

o enable Parental Controls, click the Enable Live Parental Controls button.

Control Access to the Internet

Nighthawk AC1900 WiFi Cable Modem Router

Block Access to Your Network

You can use access control to block access to your network.

 To set up access control:

1. Launch an Internet browser from a computer or wireless device that is connected to the

network.

2. Type http://www.routerlogin.net or http://www.routerlogin.com.

A login screen displays.

3. Enter the user name and password.

The user name is admin. The default password is password. The user name and password are case-sensitive.

The BASIC Home screen displays.

4. Select ADVANCED > Security > Access Control.

5. Select the Turn on Access Control check box.

You must select this check box before you can specify an access rule and use the Allow and Block buttons. When this check box is cleared, all devices are allowed to connect, even if the device is in the blocked list.

6. To specify the access rule, select one of the following radio buttons:

• Allow all new devices to connect. With this setting, if you buy a new device, it can

access your network. You don’t need to enter its MAC address in this screen. NETGEAR recommends that you leave this radio button selected.

• Block all new devices from connecting. With this setting, if you buy a new device,

before it can access your network, you must enter its MAC address for an Ethernet connection and its MAC address for a WiFi connection in the allowed list.

The access rule does not affect previously blocked or allowed devices. It applies only to devices joining your network in the future after you apply these settings.

7. To allow the computer or device you’re currently using to continue to access the network,

select the check box next to your computer or device, and click the Allow button.

8. To change an existing list, select the check box for the list and click the Edit button.

9. Click the Apply button.

Your changes take effect.

Use Keywords to Block Internet Sites

Y ou can use keywords to block certain Internet sites from your network. You can use blocking all the time or based on a schedule.

Control Access to the Internet

+ 80 hidden pages

NETGEAR Nighthawk C7000, C6900 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
