Netgear LBK1220 User Manual
User Manual
Orbi 4GX Router
Model LBR1020
NETGEAR, Inc.
350 E. Plumeria DriveSeptember 2020
San Jose, CA 95134, USA202-12170-01
Orbi 4GX Router Model LBR1020
Support and Community
Visit netgear.com/support to get your questions answered and access the latest
downloads.
You can also check out our NETGEAR Community for helpful advice at
community.netgear.com.
Regulatory and Legal
Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français
canadien à https://www.netgear.com/support/download/.
(If this product is sold in Canada, you can access this document in Canadian French at
https://www.netgear.com/support/download/.)
For regulatory compliance information including the EU Declaration of Conformity, visit
https://www.netgear.com/about/regulatory/.
See the regulatory compliance document before connecting the power supply.
For NETGEAR’s Privacy Policy, visit https://www.netgear.com/about/privacy-policy.
By using this device, you are agreeing to NETGEAR’s Terms and Conditions at
https://www.netgear.com/about/terms-and-conditions. If you do not agree, return the
device to your place of purchase within your return period.
Trademarks
© NETGEAR, Inc., NETGEAR, and the NETGEAR Logo are trademarks of NETGEAR, Inc.
Any non-NETGEAR trademarks are used for reference purposes only.
2
Contents
Chapter 1 Overview
Orbi router LED behavior..................................................................10
Connect your router to a mobile broadband network..................11
Download the NETGEAR Orbi app..................................................12
Optional: Connect your router to a wired modem........................12
Chapter 2 Connect to Your Network and Access the Router
Connect to the Orbi network............................................................15
WiFi network...................................................................................15
Wired connection..........................................................................15
WiFi connection using WPS..........................................................16
Router label.........................................................................................16
Types of logins....................................................................................16
Use a web browser to access the router..........................................17
Use the automatic Internet setup option....................................17
Log in to the Orbi router web interface......................................18
Change the language........................................................................19
Chapter 3 Manage the Mobile Broadband Connection
Internet connection over mobile broadband.................................21
Orbi features that do not apply to a mobile broadband
connection...........................................................................................21
Use the Setup Wizard to detect the mobile broadband Internet
connection...........................................................................................22
Set up automatic failover...................................................................22
Change the Internet connection mode to wired Internet only or
mobile broadband only.....................................................................23
Change the LTE provider’s access point name..............................24
Change the mobile broadband network mode.............................25
Configure the mobile broadband PDP, authentication method, and
credentials...........................................................................................26
Enter the PIN or PUK..........................................................................27
Change the roaming setting.............................................................28
Chapter 4 Specify the Wired Internet Settings
Use the Setup Wizard.........................................................................31
3
Orbi 4GX Router Model LBR1020
Manually set up the Internet connection.........................................31
Specify an Internet connection without a login..........................31
Specify an Internet connection that uses a login.......................33
Manage an IPv6 Internet connection...............................................35
Requirements for entering IPv6 addresses.................................35
Specify IPv6 Internet connections................................................35
Use auto detection for an IPv6 Internet connection..................36
Use auto configuration for an IPv6 Internet connection...........37
Set up an IPv6 6to4 tunnel Internet connection.........................39
Set up an IPv6 6rd tunnel Internet connection...........................40
Set up an IPv6 pass-through Internet connection......................42
Set up an IPv6 fixed Internet connection....................................43
Set up an IPv6 DHCP Internet connection..................................44
Set up an IPv6 PPPoE Internet connection..................................46
Change the MTU size.........................................................................48
Chapter 5 Optimize Performance
Check your Internet bandwidth........................................................51
Enable or disable WiFi Multimedia Quality of Service...................51
Improve network connections with Universal Plug and Play........52
Enable or disable implicit beamforming.........................................53
Enable or disable MU-MIMO............................................................54
Enable or disable fast roaming.........................................................55
Chapter 6 Secure Your Network
Change the Modem Password.........................................................57
Manage Port Forwarding for Incoming Traffic................................57
Enable Port Forwarding and Add a Service or Application.....58
Remove a Service or Application for Port Forwarding..............59
Disable Port Forwarding...............................................................60
Manage Port Filtering for Outgoing Traffic.....................................61
Block Specific Services and Applications From Accessing the
Internet and Allow All Other Services and Applications...........62
Allow Specific Services and Applications to Access the Internet
and Block All Other Services and Applications..........................63
View Services and Applications on the Blacklist and Remove a
Service or Application From the List...........................................65
View Services and Applications on the Whitelist and Remove a
Service or Application From the List...........................................66
Disable Port Filtering.....................................................................67

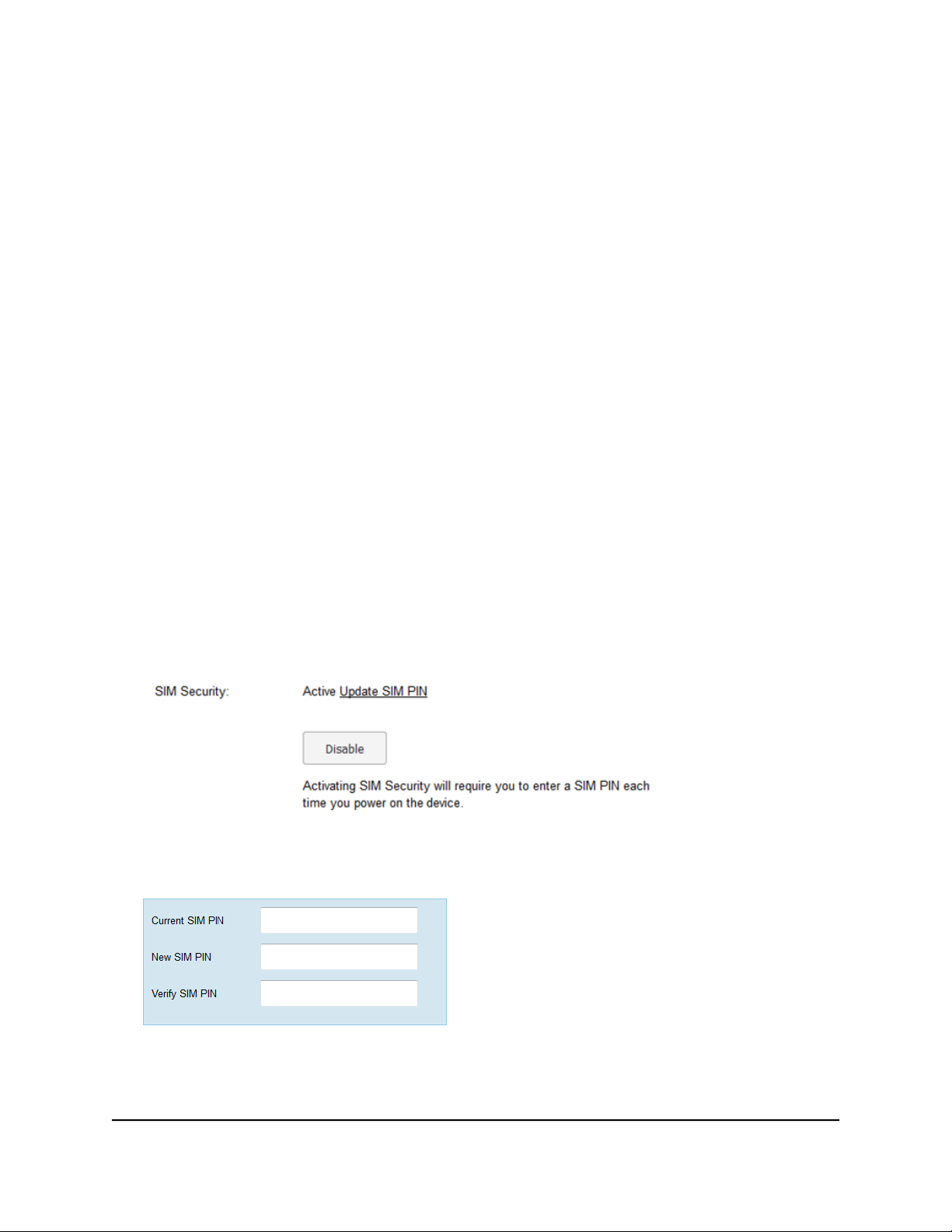

Manage SIM Card Security................................................................68
Enable SIM Card Security..............................................................68
Enter the SIM PIN to Enable the Modem to Connect to the
Internet............................................................................................70
4
Orbi 4GX Router Model LBR1020
Disable SIM Card Security............................................................71
Personalize the SIM PIN.................................................................73
Unblock the SIM Card With a PUK...............................................74
Chapter 7 Specify Network Settings
Change the function of the WAN/LAN1 port..................................77
View or change WAN settings..........................................................77
Change the LAN TCP/IP settings......................................................79
Manage Dynamic DNS.......................................................................80
Set up a new Dynamic DNS account...........................................81
Specify a DNS account that you already created.......................82
Change the Dynamic DNS settings.............................................83
Set up a default DMZ server..............................................................83
Change the router’s device name....................................................84
Use the router as a DHCP server......................................................85
Disable the DHCP server feature in the router...............................86
Manage reserved LAN IP addresses................................................87
Reserve an IP address....................................................................87
Edit a reserved IP address............................................................88
Delete a reserved IP address entry..............................................88
Manage custom static routes............................................................89
Set up a static route.......................................................................89
Edit a static route...........................................................................90
Delete a static route.......................................................................91
Specify basic WiFi settings................................................................92
Change the WiFi password or security level...................................93
Set up a guest WiFi network.............................................................94
View or change advanced WiFi settings..........................................95
Use the router as a WiFi access point only......................................96
Set up router mode............................................................................97
Set up a bridge for a port group or VLAN tag group....................98
Set up a bridge for a port group..................................................98
Set up a bridge for a VLAN tag group........................................99
Chapter 8 Manage Your Network
Update the firmware on the router................................................102
Check for firmware updates.......................................................102
Manually update the router firmware........................................103
Check for LTE module firmware updates.................................104
Manually update the router LTE module firmware..................105
Change the admin password..........................................................105
Enable admin password reset........................................................106
Reset the admin password..............................................................107
View router status and usage information....................................108
5
Orbi 4GX Router Model LBR1020
Check the mobile broadband Internet connection status..........108
Check the wired Internet connection status.................................110
Display Internet port statistics.........................................................111
View and manage logs of router activity.......................................112
View devices connected to the network.......................................113
Edit device information on the Attached Devices page..............114
Monitor Internet traffic.....................................................................115
Set your time zone, adjust for daylight saving time, or change the
NTP server.........................................................................................116
Manage the router configuration file.............................................117
Back up settings...........................................................................117
Restore configuration settings...................................................118
Erase the current configuration settings...................................118
Manage remote access....................................................................119
Set up remote management......................................................119
Use remote access.......................................................................120
Chapter 9 Use VPN to Access Your Network
Set up a VPN connection.................................................................122
Specify VPN service in the router...................................................122
Install OpenVPN software...............................................................123
Install OpenVPN software on your Windows-based computer.123
Install OpenVPN software on your Mac computer..................126
Install OpenVPN software on an iOS device............................127
Install OpenVPN software on an Android device....................127
Use a VPN tunnel on your Windows-based computer................128
Use VPN to access your Internet service at home........................130
Set up VPN client Internet access in the router........................130
Block VPN client Internet access in the router.........................131
Use a VPN tunnel to access your Internet service at home....131
Chapter 10 Customize Internet Traffic Rules for Ports
Manage port forwarding to a local server.....................................133
Set up port forwarding to a local server...................................133
Add a custom port forwarding service.....................................134
Edit a port forwarding service....................................................135
Delete a port forwarding entry..................................................136
Application example: Make a local web server public...........136
How the router implements the port forwarding rule.............137
Manage port triggering...................................................................137
Add a port triggering service.....................................................138
Disable port triggering or change the time-out period.........139
Application example: Port triggering for Internet Relay Chat.140
6
Orbi 4GX Router Model LBR1020
Chapter 11 Set Up and Manage an Optional Orbi Satellite
Orbi AC satellite LED behavior.......................................................142
Place your satellite............................................................................142
Sync an add-on satellite...................................................................142
Log in to your router and add a satellite to your network...........143
Manually update satellite firmware................................................144
Generate a new backhaul password..............................................145
View satellite status..........................................................................146
View satellites connected to the network or edit satellite
information........................................................................................146
View satellites connected to the network.................................146
Edit satellite information that displays on the Attached Devices
page..............................................................................................147
Enable or disable daisy-chain topology........................................148
Manage the Orbi Outdoor Satellite LED lighting........................149
Enable the Sync button...............................................................149
Turn the satellite LED lighting on or off....................................150
Set LED lighting brightness........................................................151
Schedule when to turn on LED lighting....................................151
Chapter 12 Troubleshooting
Quick tips...........................................................................................154
Quick tips for mobile broadband troubleshooting.................154
Check the signal strength of the mobile broadband
connection....................................................................................154
Sequence to restart your wired network..................................155
WiFi settings.................................................................................155
Network settings..........................................................................155
Troubleshoot the mobile broadband Internet connection.........155
The router and satellite do not sync..............................................156
You cannot access the Internet.......................................................158
You cannot log in to the router.......................................................159
Troubleshoot Internet browsing.....................................................159
Troubleshoot PPPoE........................................................................160
Troubleshoot WiFi connectivity......................................................161
Troubleshoot your network using the ping utility........................161
Test the LAN path to your router...............................................161
Test the path from your computer to a remote device...........162
Chapter 13 Supplemental Information
Factory settings for Orbi router model LBR1020.........................165
Factory Settings for Orbi Satellite Model RBS10..........................166
Technical specifications for Orbi router model LBR1020...........168
7
Orbi 4GX Router Model LBR1020
Technical Specifications for Orbi Satellite Model RBS10............170
8
1
Overview
The Orbi™ 4GX Router creates dedicated high-speed WiFi connections to your Internet
service. The Orbi router integrates a cellular modem that can connect to the LTE mobile
broadband network of your LTE provider. The Orbi router can also connect to the
Internet through your wired modem or gateway, with automatic failover support from
a wired Internet connection to a mobile broadband connection.
The Orbi 4GX Router is compatible with select Orbi AC Satellites to create a mesh WiFi
system, supporting seamless 4K streaming and gaming everywhere in your home. The
Orbi 4GX Router product box includes an Orbi Satellite (RBS10) device that extends
the WiFi signal throughout your home.
This manual describes how to manage your Orbi 4GX Router from the Orbi router web
interface. If you install an optional satellite, you can manage your Orbi satellite from the
Orbi router web interface.
Note: For more information on the Orbi satellite (RBS10), see the RBS10 support page
at netgear.com/support/product/RBS10#docs.
This chapter contains the following sections:
• Orbi router LED behavior
• Connect your router to a mobile broadband network
• Download the NETGEAR Orbi app
• Optional: Connect your router to a wired modem
For more information about the topics covered in this manual, visit the support website
at netgear.com/support/.
Note: The router requires a nano SIM card to connect to mobile broadband. Get a
nano SIM card from your LTE provider.
Note: This manual might refer to the Orbi router as the router.
9
Orbi 4GX Router Model LBR1020
Orbi router LED behavior
The Orbi router has a Power LED on the back and aRing LED on the top. For information
about the precise locations of the LEDs, see the installation guide, which you can
download by visiting netgear.com/support/download.
The following table describes the LED behavior.
Table 1. Power LED behavior for Orbi router
DescriptionLED color
Router is booting or Sync (WPS) button has been pushed.Pulsing white
Internet connection is established.Solid blue
Unable to connect to internet.Solid amber
pulse
The router’s firmware is corrupted.Pulsing red
85% to 99% of data used.White and orange
100%+ of data used.White red pulse
Power is not suppliedOff
User Manual10Overview
Orbi 4GX Router Model LBR1020
Connect your router to a mobile broadband network
You can use the mobile broadband connection as either:
Your only Internet connection.
•
Your backup Internet connection if your primary Internet connection is offline. This
•
requires a wired modem such as a DSL, cable, or fiber-optic modem to provide your
primary Internet connection.
Note: The router requires a nano SIM card to connect to mobile broadband. Get a
nano SIM card from your LTE provider.
To connect your router to your LTE provider’s mobile broadband network:
1.
Make sure that the router is powered off before inserting the nano SIM card.
2.
Insert the nano SIM card into the nano SIM slot on the back of the router.
Note: The router does not support SIM hot-swapping. If you want to change the
nano SIM card, power off the router before changing the nano SIM card.
3. Connect the power adapter to your router and plug the power adapter into an outlet.
The Power LED lights.
4.
Wait for the router’s ring LED to light white.
Your router tries to connect to the mobile broadband network automatically. This
process might take up to 10 minutes.
If the router cannot connect, you might need to enter your SIM card’s Personal
Identification Number (PIN), manually set your LTE provider’s Access Point Name
(APN), or do both.
5.
If the router cannot connect to the mobile broadband network, access the router
web interface (see Connect to Your Network and Access the Router on page ?)
and do one or both of the following:
Enter your SIM card’s PIN in the Orbi router web interface (see Enter the PIN or
•
PUK on page ?). If you do not know the PIN, contact your LTE provider.
Ask your LTE provider for the required APN, and enter the APN in the Orbi router
•
web interface (see Change the LTE provider’s access point name on page ?).
User Manual11Overview
Orbi 4GX Router Model LBR1020
Download the NETGEAR Orbi app
You can use the NETGEAR Orbi app to set up and access your Orbi network.
To find the app, scan a QR code or search for NETGEAR Orbi in the Apple App Store
or Google Play Store. Launch the NETGEAR Orbi app on your mobile device and follow
the prompts.
For more information about the Orbi app, visit
netgear.com/home/apps-services/orbi-app.
Optional: Connect your router to a wired modem
You can connect your router to a DSL, cable, or fiber-optic modem so that the router
uses your wired modem’s Internet connection. If the wired modem’s Internet connection
goes down, the router can use the mobile broadband Internet connection through the
nano SIM card that you installed. If you configure automatic failover (see Set up automatic
failover on page ?), the router automatically starts using the mobile broadband Internet
connection if the wired modem’s Internet connection goes down.
IMPORTANT: After you connect your router to a wired modem, access the router web
interface and configure the router’s WAN/LAN1 port to function as a WAN port. For
more information, see Change the function of the WAN/LAN1 port on page ?.
To connect your router to a wired modem:
1.
Unplug your modem’s power, leaving the modem connected to the wall jack for
your Internet service.
If your modem uses a battery backup, remove the battery.
2. Plug in and turn on your modem.
User Manual12Overview
Orbi 4GX Router Model LBR1020
If your modem uses a battery backup, put the battery back in.
3.
Connect your modem to the WAN/LAN1 port of your router with the Ethernet cable
that came with your router.
4. Connect the power adapter to your router and plug the power adapter into an outlet.
The Power LED lights.
You can now access the router web interface (see Connect to Your Network and Access
the Router on page ?) and configure the router’s WAN/LAN1 port to function as a
WAN port (see Change the function of the WAN/LAN1 port on page ?).
User Manual13Overview
2
Connect to Your Network and Access the Router
This chapter contains the following sections:
• Connect to the Orbi network
• Router label
• Types of logins
• Use a web browser to access the router
• Change the language
14
Orbi 4GX Router Model LBR1020
Connect to the Orbi network
You can connect to the Orbi network through a WiFi or wired connection.
In the unlikely situation that you set up your computer to use a static IP address, change
the settings so that it uses Dynamic Host Configuration Protocol (DHCP).
WiFi network
If you’re installing your Orbi router for the first time, you can connect to the router’s WiFi
network by scanning the QR code on your router with the camera app on your mobile
device. To scan the QR code with your camera app, your mobile device must have iOS
version 11 or later or Android version 10 or later.
You can also manually find and select the Orbi router’s WiFi network from your
WiFi-enabled computer or mobile device.
To find, select, and join the WiFi Orbi WiFi network:
1. Make sure that the router is receiving power (its Power LED is lit).
2.
On your WiFi-enabled computer or mobile device, find and select the WiFi network.
The WiFi network name is on the router label.
Note: If you bought a satellite, the default WiFi network name for the satellite is
different from the default WiFi network name for the router.
3. Join the WiFi network and enter the WiFi password.
The password is on the router label.
Your WiFi-enabled computer or mobile device connects to the WiFi network.
Wired connection
You can connect your computer to the router using an Ethernet cable and join the
router’s local area network (LAN). The computer must have an Ethernet port.
To connect your computer to the router with an Ethernet cable:
1. Make sure that the router is receiving power (its Power LED is lit).
2. Connect an Ethernet cable to an Ethernet port on your computer.
3.
Connect the other end of the Ethernet cable to one of the router’s Ethernet ports.
Your computer connects to the local area network (LAN). A message might display
on your computer screen to notify you that an Ethernet cable is connected.
User Manual15Connect to Your Network and
Access the Router
Orbi 4GX Router Model LBR1020
WiFi connection using WPS
You can connect to the router’s WiFi network with Wi-Fi Protected Setup (WPS) or you
can find and select the WiFi network.
To use WPS to connect to the WiFi network:
1. Make sure that the router is receiving power (its Power LED is lit).
2.
Check the WPS instructions for your computer or WiFi device.
3. Press the Sync button on the router.
4. Within two minutes, on your WiFi-enabled computer or mobile device, press its WPS
button or follow its instructions for WPS connections.
Your computer or mobile device connects to the WiFi network.
Router label
The router label shows the login information, the WiFi network name and password,
the router’s MAC address, and the router’s serial number.
Types of logins
Separate types of logins serve different purposes. It is important that you understand
the differences so that you know which login to use when.
Types of logins:
Mobile broadband service login. The login information that your LTE provider
•
gave you logs you in to your mobile broadband network Internet service. Your LTE
provider gave you this login information in an email, a letter, or in some other way.
If you cannot find this login information, contact your LTE provider.
Wired Internet service login. The login that your Internet service provider (ISP)
•
gave you logs you in to your wired Internet service. Your service provider gave you
this login information in an email, a letter, or in some other way. If you cannot find
this login information, contact your service provider.
WiFi network key or password. Your router is preset with a WiFi network name
•
(SSID) and password for WiFi client access. This information is on the router label.
Orbi app login. Your NETGEAR account credentials that log you in to the Orbi app.
•
Router login. The password that logs you in to the router web interface from a web
•
browser as admin.
User Manual16Connect to Your Network and
Access the Router
Orbi 4GX Router Model LBR1020
Use a web browser to access the router
When you connect to the network (either with WiFi or with an Ethernet cable), you can
use a web browser to access the router to view or change its settings. The first time you
access the router, the NETGEAR installation assistant automatically checks to see if your
router can connect to your Internet service.
Use the automatic Internet setup option
Whether you use a mobile broadband connection or a wired Internet connection, you
can set up your router automatically. You can also use a web browser to access the
router and set up your router manually.
Before you start the setup process, get your LTE provider information, or if you use a
wired Internet connection, your ISP information. Make sure that the computers and
devices in the network use the settings described here.
When your Internet service starts, your LTE provider or wired Internet service provider
(ISP) typically gives you all the information needed to connect to the Internet. For wired
DSL service, you might need the following information to set up your router:
The ISP configuration information for your DSL account
•
ISP login name and password
•
Fixed or static IP address settings (special deployment by ISP; this setting is rare)
•
If you cannot locate this information, ask your DSL provider for the information. When
your Internet connection is working, you no longer need to launch an ISP login program
on your computer to access the Internet. When you start an Internet application, your
router automatically logs you in.
Installation and basic setup takes about 15 minutes to complete.
To automatically set up your router:
1. Power on your router.
2. Make sure that your WiFi-enabled computer or mobile device is connected to the
router over WiFi with the preset security settings listed on the label or with an Ethernet
cable.
3. Launch a web browser.
Access the Router
User Manual17Connect to Your Network and
Orbi 4GX Router Model LBR1020
The page that displays depends on whether you accessed the router web interface
before:
The first time that you set up the Internet connection for your router, the browser
•
goes to orbilogin.com, and the Orbi login page displays.
If you already set up the Internet connection, enter orbilogin.com in the address
•
field for your browser to start the installation process.
4. Follow the onscreen instructions.
The router connects to the Internet.
5.
If the browser does not display the web page, do the following:
Make sure that the computer or mobile device is connected to the router, either
•
over WiFi or to one of the LAN Ethernet ports.
Make sure that the router is receiving power, and that its Power LED is lit.
•
Close and reopen the browser or clear the browser cache.
•
Browse to orbilogin.com.
•
If the computer is set to a static or fixed IP address (this setting is uncommon),
•
change it to obtain an IP address automatically from the router.
6.
If the router does not connect to the Internet, do the following:
a. Review your settings.
b. Make sure that you selected the correct options and typed everything correctly.
c. Make sure that the nano SIM card is installed correctly.
d.
Contact your LTE provider or wired Internet provider to verify that your account
is active and that you are using the correct configuration information.
e. Read Troubleshoot the mobile broadband Internet connection on page 155 or
You cannot access the Internet on page 158.
If problems persist, register your NETGEAR product and contact NETGEAR
technical support.
Log in to the Orbi router web interface
When you log in to the Orbi, the browser displays the router web interface. You can
use the router web interface to change the router or satellite settings.
User Manual18Connect to Your Network and
Access the Router
Orbi 4GX Router Model LBR1020
To log in to your Orbi:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the router admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
Change the language
By default, the language is set as Auto.
To change the language:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the router admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
4.
In the upper right corner, select a language from the menu.
5.
When prompted, click the OK button to confirm this change.
The page refreshes with the language that you selected.
Access the Router
User Manual19Connect to Your Network and
3
Manage the Mobile Broadband Connection
Usually, the quickest way to set up the router to use your mobile broadband Internet
connection is to allow Orbi to detect the mobile broadband Internet connection when
you first access the router with a web browser. You can also customize or manually
specify your mobile broadband Internet connection settings.
This chapter contains the following sections:
• Internet connection over mobile broadband
• Orbi features that do not apply to a mobile broadband connection
• Use the Setup Wizard to detect the mobile broadband Internet connection
• Set up automatic failover
• Change the Internet connection mode to wired Internet only or mobile broadband
only
• Change the LTE provider’s access point name
• Change the mobile broadband network mode
• Configure the mobile broadband PDP, authentication method, and credentials
• Enter the PIN or PUK
• Change the roaming setting
20
Orbi 4GX Router Model LBR1020
Internet connection over mobile broadband
By default, when the router powers up with a nano SIM card installed, and if you did not
configure mobile broadband as a backup connection only, the router automatically
searches for and connects to your LTE provider’s mobile broadband network. This
process might take several minutes. For more information, see Connect your router to
a mobile broadband network on page ?. The nano SIM card that is installed determines
the mobile broadband network to which the router connects.
Note: Even though the router might connect to the mobile broadband network of the
same LTE provider each time that you start the router, the type of mobile broadband
service (LTE, 4G, or 3G) to which the router connects might differ.
If the router does not automatically connect to the mobile broadband network, the Ring
LED lights solid magenta, and you might need to contact your LTE provider to get the
Access Point Name (APN) to which the router must connect (see Change the LTE
provider’s access point name on page 24).
If you do not want the router to connect automatically to the mobile broadband network,
change the default autoconnect option (see Change the Internet connection mode to
wired Internet only or mobile broadband only on page 23).
Orbi features that do not apply to a mobile broadband connection
When the router Is using a wired Internet connection, all Orbi features work. Because
of mobile broadband limitations, when the router is using a mobile broadband Internet
connection, the following Orbi features do not work:
Dynamic DNS
•
Port forwarding
•
VLAN bridge
•
AP mode (that is, the router functions an access point only with its default router
•
mode disabled)
The first three features on the list work only if the router’s IP address is a public IP address.
However, with a mobile broadband connection, your LTE provider assigns the router a
private IP address. The AP mode feature does not work with a mobile broadband
connection because the router cannot receive an IP address if its router features are
disabled.
User Manual21Manage the Mobile Broadband
Connection
Orbi 4GX Router Model LBR1020
Use the Setup Wizard to detect the mobile broadband Internet connection
You can use the Setup Wizard to detect your mobile broadband Internet connection
settings and automatically set up your router.
To use the Setup Wizard to detect the mobile broadband Internet connection:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Setup Wizard.
The Setup Wizard page displays.
5. Select the Yes radio button.
6. Click the Next button.
The Setup Wizard searches your mobile broadband Internet connection to determine
your LTE provider configuration and checks your operation mode.
Set up automatic failover
The router can use a wired Internet connection with automatic failover support so that
you can connect the router to an existing DSL, cable, or fiber-optic modem (see Optional:
Connect your router to a wired modem on page ?). If the wired Internet connection
goes down, the router can automatically and seamlessly switch over to the backup
Internet connection over the mobile broadband network for continuous connectivity.
If you change the Internet connection mode to either wired Internet connection only or
mobile broadband only (see Change the Internet connection mode to wired Internet
only or mobile broadband only on page 23), the router does not provide failover.
Connection
User Manual22Manage the Mobile Broadband
Orbi 4GX Router Model LBR1020
To set up automatic failover:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Setup > Internet Setup > Mobile Broadband Settings.
The Mobile Broadband Settings page displays.
By default, the Internet connection mode is to always use a mobile broadband
Internet connection. That is, the selection from the Internet Connection Mode menu
is Always use 3G/4G mobile connection.
5. From the Internet Connection Mode menu, select Use WAN Ethernet with mobile
as back up in case of failure.
The router uses a wired Internet connection by default and fails over to mobile
broadband only if the wired Internet connection is down.
6. Click the Apply button.
Your settings are saved.
Change the Internet connection mode to wired Internet only or mobile broadband only
By default, the Internet connection mode is to always use a mobile broadband Internet
connection.
If you set up a wired Internet connection (see Optional: Connect your router to a wired
modem on page ?), you can change the Internet connection mode to a wired Internet
connection only. After you do so, you can also change it back to a mobile broadband
connection only. The router can also support a wired Internet connection with automatic
failover to a mobile broadband network (see Set up automatic failover on page 22).
Connection
User Manual23Manage the Mobile Broadband
Orbi 4GX Router Model LBR1020
To change the Internet connection mode to wired Internet only or mobile
broadband only:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Setup > Internet Setup > Mobile Broadband Settings.
The Mobile Broadband Settings page displays.
5.
From the Internet Connection Mode menu, select one of the following:
Always use 3G/4G mobile connection. The router uses the mobile broadband
•
connection only. Even if you connect the router to a wired modem, the router
does not use the wired Internet connection. This is the default selection.
Disable 3G/4G connection. The router does not use the mobile broadband
•
connection. If you connect the router to a wired modem, the router uses the wired
Internet connection only.
6. Click the Apply button.
Your settings are saved.
Change the LTE provider’s access point name
By default, the router detects the LTE provider’s access point name (APN) when it
connects to the mobile broadband network. You only need to change your LTE provider’s
APN if the router cannot connect to your provider’s mobile broadband. After you contact
your provider, enter the APN that your provider gives you.
To change the provider’s APN:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
User Manual24Manage the Mobile Broadband
Connection
Orbi 4GX Router Model LBR1020
A login window opens.
3. Enter the admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Setup > Internet Setup > Mobile Broadband Settings.
The Mobile Broadband Settings page displays.
5.
In the APN field, enter the APN that your provider gave you.
6. Click the Apply button.
Your settings are saved.
Your router tries to connect to the mobile broadband network using the new APN.
This process might take up to 10 minutes.
Change the mobile broadband network mode
By default, the mobile broadband network mode is automatic, which lets the router
connect to either the LTE provider’s 4G or 3G network band. In some situations, you
might want to set the network mode to either the 4G or 3G band.
To change the mobile broadband network mode:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Setup > Internet Setup > Mobile Broadband Settings.
The Mobile Broadband Settings page displays.
5.
From the Network mode menu, select one of the following:
4G. The router uses the 4G band only and does not connect to the 3G band.
•
User Manual25Manage the Mobile Broadband
Connection
Orbi 4GX Router Model LBR1020
3G. The router uses the 3G band only and does not connect to the 4G band.
•
By default, the selection from the menu is Automatic (4G or 3G).
6. Click the Apply button.
Your settings are saved.
Configure the mobile broadband PDP, authentication method, and credentials
Whether you need to configure the mobile broadband packet data protocol (PDP),
authentication method, and credentials depends on the mobile broadband network
requirements of your LTE provider.
IMPORTANT: For these settings, follow the directions of your LTE provider.
To configure the mobile broadband PDP, authentication method, and credentials:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Setup > Internet Setup > Mobile Broadband Settings.
The Mobile Broadband Settings page displays.
5.
If the LTE provider requires credentials for the router to connect to the mobile
broadband network, enter the user name and password:
User Name. The user name that your LTE provider gave you.
•
Password. The password that your LTE provider gave you.
•
If you do not know the user name and password for the mobile broadband
connection, contact your LTE provider.
Connection
User Manual26Manage the Mobile Broadband
Orbi 4GX Router Model LBR1020
Note: The user name and password for the mobile broadband connection are not
the same as the user name and password to log in to your router.
6.
If the LTE provider requires a specific PDP for the router to connect to the mobile
broadband network, select the PDP from the PDP Type menu:
PDP-IP(IPv4). The mobile broadband network uses IPv4 only.
•
PDP-IPv6. The mobile broadband network uses IPv6 only.
•
PDP-IPv4v6. The mobile broadband network uses either IPv4 or IPv6.
•
7.
If the LTE provider requires a specific authentication method for the router to connect
to the mobile broadband network, select the authentication method from the
Authentication Type menu:
Pap. The mobile broadband network uses Password Authentication Protocol
•
(PAP).
Chap. The mobile broadband network uses Challenge Handshake Authentication
•
Protocol (CHAP).
MsChapV2. The mobile broadband network uses Microsoft CHAP version 2
•
(MS-CHAP v2).
By default, the selection from the menu is None.
8. Click the Apply button.
Your settings are saved.
Enter the PIN or PUK
Many SIM cards require a Personal Identification Number (PIN). Without the PIN, your
router might not be able to connect to the mobile broadband network. If you do not
know your PIN, contact your LTE provider.
Note: Be careful entering the SIM PIN multiple times because you can enter only a
limited number of incorrect PINs before the SIM card is blocked. The number of allowed
attempts depends on the SIM card. If the SIM card is blocked, you must enter the PIN
unlock key (PUK). If you do not know your PUK, contact your LTE provider.
To enter the PIN or PUK:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
User Manual27Manage the Mobile Broadband
Connection
Orbi 4GX Router Model LBR1020
A login window opens.
3. Enter the admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Setup > Internet Setup > Mobile Broadband Settings.
The Mobile Broadband Settings page displays.
5.
Do one or both of the following:
PIN. In the PIN Code field, enter the PIN that you received from your LTE provider.
•
PUK. In the UK Code field, enter the PUK that you received from your LTE
•
provider.
6. Click the Apply button.
Your settings are saved.
Change the roaming setting
For most situations, the roaming setting does not need to be changed. The default
setting is to allow the router to roam. However, if you use the router at different locations,
or you use different SIM cards, you might want to change the roaming setting.
To change the roaming setting:
1.
Launch a web browser from a computer or mobile device that is connected to your
Orbi network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the admin user name and password.
The user name is admin. The password is the one that you specified the first time
that you logged in. The user name and password are case-sensitive.
The BASIC Home page displays.
4. Select ADVANCED > Setup > Internet Setup > Mobile Broadband Settings.
The Mobile Broadband Settings page displays.
5. Clear or select the Roaming automatically check box.
User Manual28Manage the Mobile Broadband
Connection
Orbi 4GX Router Model LBR1020
By default, the check box is selected and the router can roam. If you clear the check
box, the router cannot roam.
6. Click the Apply button.
Your settings are saved.
Connection
User Manual29Manage the Mobile Broadband
4
Specify the Wired Internet Settings
If you connected your router to a wired modem, you must specify the Internet settings.
Usually, the quickest way to set up the router to use your wired Internet connection is
to allow Orbi to detect the wired Internet connection when you first access the router
with a web browser. You can also customize or manually specify your wired Internet
settings.
This chapter contains the following sections:
• Use the Setup Wizard
• Manually set up the Internet connection
• Manage an IPv6 Internet connection
• Change the MTU size
30
