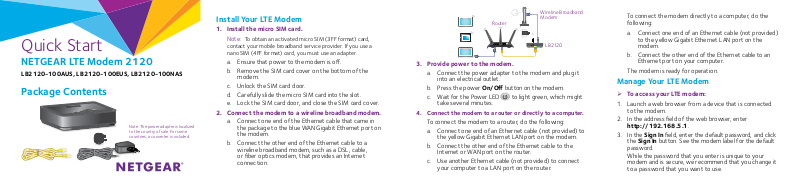

Quick Start

NETGEAR LTE Modem 2120

LB2120-100AUS, LB2120-100EUS, LB2120-100NAS

Package Contents

Note: The power adapter is localized to the country of sale. For some countries, a converter is included.

Install Your LTE Modem

1. Install the micro SIM card.

Note:

contact your mobile broadband service provider. If you use a nano SIM (4FF format) card, you must use an adapter.

a. Ensure that power to the modem is o. b. Remove the SIM card cover on the bottom of the

c. Unlock the SIM card door. d. Carefully slide the micro SIM card into the slot. e. Lock the SIM card door, and close the SIM card cover.

2. Connect the modem to a wireline broadband modem.

a. Connect one end of the Ethernet cable that came in

b. Connect the other end of the Ethernet cable to a

To obtain an activated micro SIM (3FF format) card,

modem.

the package to the blue WAN Gigabit Ethernet port on the modem.

wireline broadband modem, such as a DSL, cable, or ﬁber optics modem, that provides an Internet connection.

Wireline Broadband Modem

Router

LB212 0

3. Provide power to the modem.

a. Connect the power adapter to the modem and plug it

into an electrical outlet.

b. Press the power On/O button on the modem. c. Wait for the Power LED to light green, which might

take several minutes.

4. Connect the modem to a router or directly to a computer.

To connect the modem to a router, do the following: a. Connect one end of an Ethernet cable (not provided) to

the yellow Gigabit Ethernet LAN port on the modem.

b. Connect the other end of the Ethernet cable to the

Internet or WAN port on the router.

c. Use another Ethernet cable (not provided) to connect

your computer to a LAN port on the router.

To connect the modem directly to a computer, do the following:

a. Connect one end of an Ethernet cable (not provided)

to the yellow Gigabit Ethernet LAN port on the modem.

b. Connect the other end of the Ethernet cable to an

Ethernet port on your computer.

The modem is ready for operation.

Manage Your LTE Modem

¾ To access your LTE modem:

1. Launch a web browser from a device that is connected to the modem.

2. In the address ﬁeld of the web browser, enter http://192.168.5.1.

3. In the Sign In ﬁeld, enter the default password, and click the Sign In button. See the modem label for the default password.

While the password that you enter is unique to your modem and is secure, we recommend that you change it to a password that you want to use.

Mobile Broadband Internet Connection Add and Activate a Custom APN Proﬁle Support

By default, when the modem powers up with a SIM card installed, it automatically searches for and connects to your mobile service provider’s mobile broadband network. This process might take several minutes. The SIM card that is installed determines the mobile broadband network to which the modem connects.

However, if the modem does not automatically connect to the mobile broadband network, the Power LED remains solid amber, and you must contact your mobile service provider to get the access point name (APN) proﬁle information and add and activate a custom APN proﬁle in the modem (see Add and Activate a Custom APN Proﬁle).

Status LEDs

For more information about the LEDs, see the user manual.

LAN LED

Power LED

Signal Strength LEDs (mobile broadband)

NETGEAR, Inc.

350 East Plumeria Drive San Jose, CA 95134, USA

If the modem does not recognize the settings of the installed SIM, contact your mobile service provider to get information about the APN proﬁle that you must use. Use the information that your mobile service provider gives you to conﬁgure a custom APN proﬁle.

¾ To add and activate a custom APN proﬁle for a mobile

service provider’s mobile broadband network:

1. Launch a web browser from a device that is connected to the modem.

2. In the address ﬁeld of the web browser, enter http://192.168.5.1.

The limited Dashboard page displays.

3. To access the full Dashboard page and other pages, in the Sign In ﬁeld, enter the default password, and click the Sign In button.

See the modem label for the default password.

4. Select Settings > Network > APN.

The APN page displays.

December 2016

5. Click the Add button.

The New APN pop-up window opens.

6. Enter the settings for the new APN proﬁle.

Use the information that your mobile service provider gave you. If your mobile service provider did not specify some settings, leave the default settings.

7. Click the Save button.

The new APN proﬁle displays on the page but is not yet the active proﬁle.

8. Select the radio button next to the APN proﬁle that you just added.

The modem now uses the selected APN proﬁle to establish a connection with the mobile broadband network of the mobile service provider.

If you still cannot get an Internet connection, contact your mobile service provider to verify the information for the APN proﬁle.

Thank you for purchasing this NETGEAR product. You can visit

www.netgear.com/support to register your product, get help, access

the latest downloads and user manuals, and join our community. We recommend that you use only ocial NETGEAR support resources.

For the current EU Declaration of Conformity, visit

http://support.netgear.com/app/answers/detail/a_id/11621/.

For regulatory compliance information, visit

http://www.netgear.com/about/regulatory/.

See the regulatory compliance document before connecting the power supply.

You can get the user manual online at http://downloadcenter.netgear.com or through a link in the modem’s web pages.
