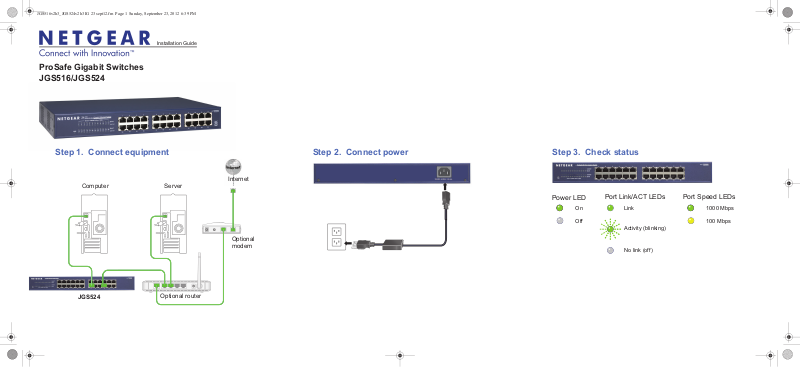

Installation Guide

ProSafe Gigabit Switches
JGS516/JGS524

Step 1. Connect equipment

Computer Server

JGS524

Optional router

Internet

Optional
modem

Step 2. Connect power Step 3. Check status

Power LED

On

Off

Port Link/ACT LEDs

Link

Activity (blinking)

No link (off)

Port Speed LEDs

1000 Mbps

100 Mbps

September 2012

This symbol appears in accordance with the European Union Directive 2002/96 on the Waste
Electrical and Electronic Equipment (the WEEE directive). If you dispose of this product in the
European Union, treat and recycle it in accordance with your jurisdiction’s laws that implement the
WEEE directive.

NETGEAR, the NETGEAR logo, and Connect with Innovation are trademarks and/or registered trademarks of
NETGEAR, Inc. and/or its subsidiaries in the United States and/or other countries. Information is subject to
change without notice. Other brand and product names are registered trademarks or trademarks of their
respective holders. © NETGEAR, Inc. All rights reserved.

For indoor use only in all EU countries and Switzerland.

For the complete EU Declaration of Conformity, visit

http://support.netgear.com/app/answers/detail/a_id/11621/.

Statement of Conditions: In the interest of improving internal design, operational function, and/or reliability,
NETGEAR reserves the right to make changes to the products described in this document without notice.
NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.

Specifications

Specification Description

Network interface RJ-45 connector for 10BASE-T, 100BASE-TX, or 1000BASE-T

Network cable Category 5e (Cat 5e) or better Ethernet cable

Ports JGS516: 16

JGS524: 24

Power 100-240V 1.0A AC, 50/60 Hz internal universal power supply

Power consumption JGS516: 12W (cable length > 10 M)

JGS524: 18W (cable length > 10 M)

Weight JGS516: 1.47 Kg (3.24 lbs)

JGS524: 1.65 Kg (3.64 lbs)

Dimensions
(W x D x H)

328 mm x 169 mm x 43 mm

12.91 in. x 6.65 in. x 1.7 in.

Operating
temperature

0–50° C (32–122° F)

Operating humidity 10%–90% relative humidity, noncondensing

Electromagnetic
compliance

CE Class A, FCC Class A, VCCI Class A,
C-Tick Class A, KC, CCC

Safety agency
approvals

CE, Commercial UL listed (UL 60950-1), CB, KC, CCC

Technical Support

After installing your device, locate the serial number on the label of your product and
use it to register your product at https://my.netgear.com.

You must register your product before you can use NETGEAR telephone support.
NETGEAR recommends registering your product through the NETGEAR web site.
For product updates and web support, visit http://support.netgear.com.
