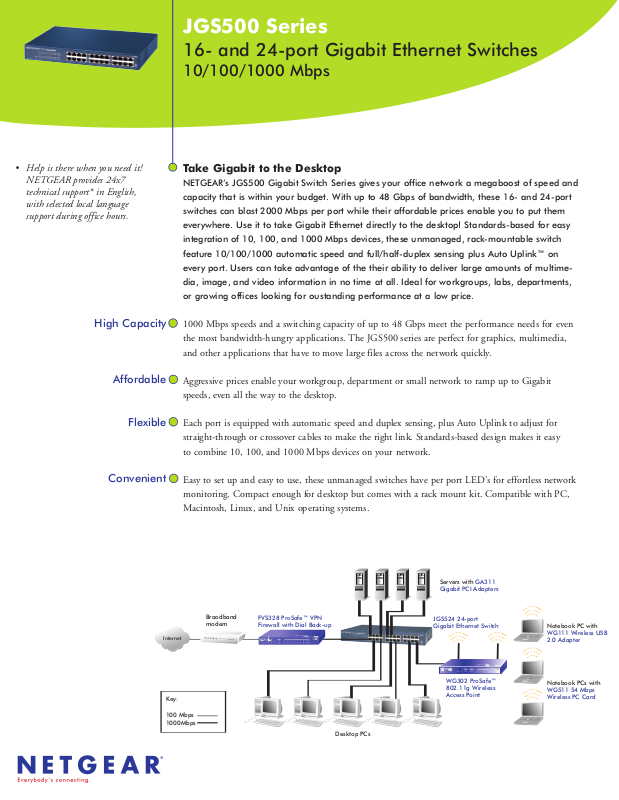

JGS500 Series
FVS328 ProSafe™ VPN
Firewall with Dial Back-up
JGS524 24-port
Gigabit Ethernet Switch
WG302 ProSafe™
802.11g Wireless
Access Point
Servers with GA311
Gigabit PCI Adapters
Internet
Braodband
modem
POWER
CABLE
STATUS
ETHERNET
USB
Broadband Cable Modem
Key:
100 Mbps
1000Mbps
Power
100 Mbps
FR318
Desktop PCs
Notebook PCs with
WG511 54 Mbps
Wireless PC Card
Notebook PC with
WG111 Wireless USB
2.0 Adapter
16- and 24-port Gigabit Ethernet Switches
10/100/1000 Mbps
• Help is there when you need it!
NETGEAR provides 24x7
technical support* in English,
with selected local language
support during office hours.
High Capacity
Affordable
Flexible
Take Gigabit to the Desktop
NETGEAR’s JGS500 Gigabit Switch Series gives your office network a megaboost of speed and
capacity that is within your budget. With up to 48 Gbps of bandwidth, these 16- and 24-port
switches can blast 2000 Mbps per port while their affordable prices enable you to put them
everywhere. Use it to take Gigabit Ethernet directly to the desktop! Standards-based for easy
integration of 10, 100, and 1000 Mbps devices, these unmanaged, rack-mountable switch
feature 10/100/1000 automatic speed and full/half-duplex sensing plus Auto Uplink™ on
every port. Users can take advantage of the their ability to deliver large amounts of multimedia, image, and video information in no time at all. Ideal for workgroups, labs, departments,
or growing offices looking for oustanding performance at a low price.
1000 Mbps speeds and a switching capacity of up to 48 Gbps meet the performance needs for even
the most bandwidth-hungry applications. The JGS500 series are perfect for graphics, multimedia,
and other applications that have to move large files across the network quickly.
Aggressive prices enable your workgroup, department or small network to ramp up to Gigabit
speeds, even all the way to the desktop.
Each port is equipped with automatic speed and duplex sensing, plus Auto Uplink to adjust for
straight-through or crossover cables to make the right link. Standards-based design makes it easy
to combine 10, 100, and 1000 Mbps devices on your network.
Convenient
Easy to set up and easy to use, these unmanaged switches have per port LED's for effortless network
monitoring. Compact enough for desktop but comes with a rack mount kit. Compatible with PC,
Macintosh, Linux, and Unix operating systems.
JGS500 Series 16- and 24-port Gigabit Ethernet Switches
!
!
U
L
®
Physical Specifications
• Network Ports
JGS516: 16 10/100/1000 Mbps twisted-pair
-
RJ-45 por
- JGS524: 24 10/100/1000 Mbps twisted-pair
RJ-45 ports
erformance
• P
Switching bandwidth: 48 gigabit per sec
-
- Forward rate (1000 Mbps port): 1,480,000
packest per sec
- Forward rate (100 Mbps port): 148,000
packets per sec
- Forward rate (10 Mbps port): 14,800 packets
per sec
- Latency (1000 to 1000 Mbps): 20 µs max
- Packet Buffer Memory: 2 Mb
- MAC address database: 8,000
- Mean Time Between Failure (MTBF): 87,600 hours
• Power Consumption
100~240V; 50-60Hz; plug is localized to country
-
of sale
- JGS524: 40W max
- JGS516: 25W max
• Standards Compliance
-
IEEE 802.3i 10BASE-T Ethernet
- IEEE 802.3u 100BASE-TX Fast Ethernet
- IEEE 802.3ab 1000BASE-T Gigabit Ethernet
- IEEE 802.3x Flow Control
ts
• Electromagnetic Compliance
-
CE mark, commercial
- FCC Part 15 Class A
- VCCI Class A
- EN 55022 (CISPR 22), Class A, EN 50082-1,
- EN 55024
- C-Tick
• Safety Agency Approvals
UL listed (UL 1950)/cUL
-
- IEC950/EN60950
• Warranty
NETGEAR 2-year warranty
System Requirements
- UTP Category 5 cables or better
etwork card for each PC or server
- N
(e.g. NETGEAR GA3
Package Contents
- 16- or 24-port Gigabit Ethernet Switch JGS516
or JGS524
- Power adapter
- Installation guide
- Rack-mount kit
- Warranty/Support information card
4500 Great America Parkway
Santa Clara, CA 95054 USA
Phone: 1-888-NETGEAR (638-4327)
E-mail: info@NETGEAR.com
www.NETGEAR.com
©2004 NETGEAR, Inc. NETGEAR
Netgear Logo, Auto Uplink, ProSafe, and
Everybody’s connecting are trademarks or
registered trademarks of Netgear, Inc. in
the United States and/or other countries.
Microsoft and Windows are trademarks,
or registered trademarks of Microsoft
Corporation in the United States and/or
other countries. Other brand and product
names are trademarks or registered
trademarks of their respective holders.
Information is subject to change without
notice. All rights reserved.
* Free basic installation support
provided for 90 days from date of
purchase. Advanced product features
and configurations are not included in
free basic installation support; optional
premium support available.
D-JGS500-0504
®
, the
• Status LEDs
-
Unit: power
- Per network port: Link, Activity, Speed
• Physical Specifications
-
Dimensions (h x w x d): 43 x 330x 207 mm
(1.7 x 13 x 8.2")
- Weight: 2.4 kg (5.3 lbs)
• Environmental Specifications
-
Operating temperature: 0 to 40° C
(32 to 104° F)
- Operating humidity: 90% maximum relative
humidity
, noncondensing
- Storage temperature: -20 to 70° C (-4 to 158º F)
- Storage humidity: 10 to 95% Relative Humidity
