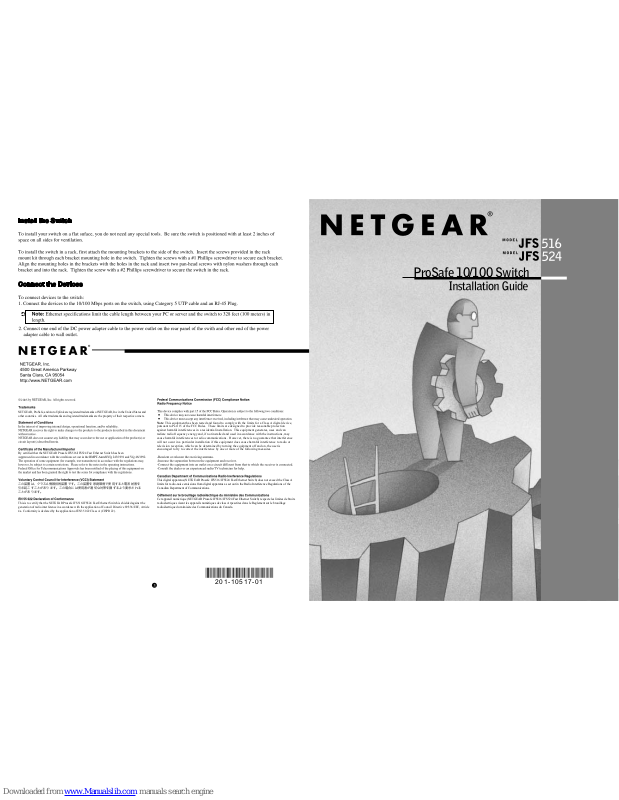

NETGEAR JFS516, JFS526 Installation Manual

この装置は、クラスA情報技術装置です。この装置を家庭環境で使用すると電波妨害を
引き起こすことがあります。この場合には使用者が適切な対策を講ずるよう要求される
ことがあります。

201-10517-01

ProSafe 10/100 Switch

NETGEAR, ProSafe, and Auto Uplink are registered trademarks of NETGEAR, Inc in the United States and
other countries. All other trademarks and registered trademarks are the property of their respective owners.

2005

By certified that the NETGEAR Prosafe JFS516/JFS524 Fast Ethernet Switch has been

This is to certify that the NETGEAR Prosafe JFS516/JFS524 Fast Ethernet Switch is shielded against the
generation of radio interference in accordance with the application of Council Directive 89/336/EEC, Article
4a. Conformity is declared by the application of EN35 022 Class A (CISPR 22).

Note: This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interferences in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interferences to radio communications. However, there is no guarantee that interference
will not occur in a particular installation if this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures.

This digital apparatus (NETGEAR Prosafe JFS516/JFS524 Fast Ethernet Switch) does not exceed the Class A
limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations o f the
Canadian Department of Communications.

Cet appareil numérique (NETGEAR Prosafe JFS516/JFS524 Fast Ethernet Switch) respecte les limites de bruits
radioélectriques visant les appareils numériques de class A rpescrites dans le Reglement sur le brouillage
radioélectrique du mimisére des Communications du Canada.

Packet transmission or receiving on the port.

Valid Link on the port.

Blinking

Solid

6.9W

1.4kg/3.1 lbs

328x43.2x169mm

328x43.2x169mm

1.6kg/3.5 lbs

VCCI Class A/ FCC Class A/ CE/ C-tick/ MIC VCCI Class A/ FCC Class A/ CE/ C-tick/ MIC

256KB
120,337 hrsMTBF 110,011 hrs

256KB

IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3x Flow Control
Compatible with major network software, including Windows, NetWare, and Linux

CUL

Description

The NETGEAR® ProSafe JFS516 16-Port Fast Ethernet Switch and ProSafe JFS524-Port Fast Ethernet Switch provides you with
a low-cost, high-performance network solution and are designed to support power workgroups operating at either 10 megabits per
second (Mbps) or 100 Mbps.

With both the ProSafe JFS516 switch and the ProSafe JFS524 switch, improvement is accomplished very easily, with no change to
the desktop (the network interface cards or software and the network wiring). As a result, the performance upgrade and the
applications it enables are obtained very quickly and at a low cost.

ProSafe ProSafe

ProSafe ProSafe

ProSafe JFS516/JFS524 switch is used as a desktop switch to build a small network that enables users to have 100 Mbps access to a
file server. If a full-duplex adapter card is installed in the server or PC, a 200Mbps connection is possible on the port where the
server or PC is completed.

5W

4000

CUL
