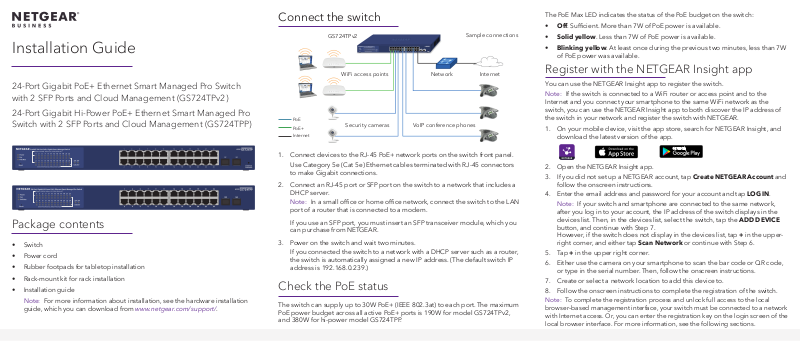

Installation Guide
Connect the switch
GS724TPv2
Sample connections
The PoE Max LED indicates the status of the PoE budget on the switch:
• Off. Sufcient. More than 7W of PoE power is available.
• Solid yellow. Less than 7W of PoE power is available.
• Blinking yellow. At least once during the previous two minutes, less than 7W
of PoE power was available.
24-Port Gigabit PoE+ Ethernet Smart Managed Pro Switch
with 2 SFP Ports and Cloud Management (GS724TPv2)
24-Port Gigabit Hi-Power PoE+ Ethernet Smart Managed Pro
Switch with 2 SFP Ports and Cloud Management (GS724TPP)
Package contents
• Switch
• Power cord
• Rubber footpads for tabletop installation
• Rack-mount kit for rack installation
• Installation guide
Note: For more information about installation, see the hardware installation
guide, which you can download from www.netgear.com/support/.
WiFi access points
PoE
PoE+
Internet
1. Connect devices to the RJ-45 PoE+ network ports on the switch front panel.
Use Category 5e (Cat 5e) Ethernet cables terminated with RJ-45 connectors
to make Gigabit connections.
2. Connect an RJ-45 port or SFP port on the switch to a network that includes a
DHCP server.
Note: In a small ofce or home ofce network, connect the switch to the LAN
port of a router that is connected to a modem.
If you use an SFP port, you must insert an SFP transceiver module, which you
can purchase from NETGEAR.
3. Power on the switch and wait two minutes.
If you connected the switch to a network with a DHCP server such as a router,
the switch is automatically assigned a new IP address. (The default switch IP
address is 192.168.0.239.)
Network Internet
VoIP conference phonesSecurity cameras
Check the PoE status
The switch can supply up to 30W PoE+ (IEEE 802.3at) to each port. The maximum
PoE power budget across all active PoE+ ports is 190W for model GS724TPv2,
and 380W for hi-power model GS724TPP.
Register with the NETGEAR Insight app
You can use the NETGEAR Insight app to register the switch.
Note: If the switch is connected to a WiFi router or access point and to the
Internet and you connect your smartphone to the same WiFi network as the
switch, you can use the NETGEAR Insight app to both discover the IP address of
the switch in your network and register the switch with NETGEAR.
1. On your mobile device, visit the app store, search for NETGEAR Insight, and
download the latest version of the app.
2. Open the NETGEAR Insight app.
3. If you did not set up a NETGEAR account, tap Create NETGEAR Account and
follow the onscreen instructions.
4. Enter the email address and password for your account and tap LOG IN.
Note: If your switch and smartphone are connected to the same network,
after you log in to your account, the IP address of the switch displays in the
devices list. Then, in the devices list, select the switch, tap the ADD DEVICE
button, and continue with Step 7.
However, if the switch does not display in the devices list, tap + in the upperright corner, and either tap Scan Network or continue with Step 6.
5. Tap + in the upper right corner.
6. Either use the camera on your smartphone to scan the bar code or QR code,
or type in the serial number. Then, follow the onscreen instructions.
7. Create or select a network location to add this device to.
8. Follow the onscreen instructions to complete the registration of the switch.
Note: To complete the registration process and unlock full access to the local
browser–based management interface, your switch must be connected to a network
with Internet access. Or, you can enter the registration key on the login screen of the
local browser interface. For more information, see the following sections.
Get an optional registration key
The registration key is an option to receive full access to the local browser
interface after you register the switch. With this option, the switch does not need
to be connected to the Internet. Visit www.mynetgear.com from a mobile device
or computer, use the NETGEAR Insight app, or, if you are an InsightPremium or
Pro subscriber, use the Insight Cloud Portal to log in to your NETGEAR account,
register the switch using its serial number, and receive a registration key to unlock
full access to the local browser interface.
Log in to congure the switch
3. Click the Log in with NETGEAR account button, and follow the directions
onscreen to register the switch with your NETGEAR email address and
password. If you obtained a registration key, you can enter it instead.
Note: If you did not yet create a NETGEAR account, click the Create account
link, follow the directions onscreen to create an account, and register the
switch with your NETGEAR email address and password.
4. Click the Login button.
The System Information page displays. You can now congure the switch.
For more information about how to congure the switch, see the user manual,
which you can download from www.netgear.com/support/.
PoE considerations
The PoE and PoE+ power supplied by the switch is prioritized in ascending port
order (from port 1 to port 24), with a total power budget of 190W for model
GS724TPv2, and 380W for model GS724TPP. The following table shows the
standard power ranges, calculated with the maximum cable length of 328 feet
(100 meters). If a device receives insufcient PoE power from the switch, consider
using a shorter cable.
Device
Class
Standard Class Description Power Reserved by
the Device
Power Delivered
to the Device
You can use the switch as a plug-and-play device or you can change the settings
by logging in to the local browser interface.
If you did not get a registration key (see Get an optional registration key), make
sure that the switch is connected to the Internet. During the initial login, the switch
must access a NETGEAR server before you can log in to your NETGEAR account
and congure the switch.
Note: Before the initial login, if the switch is not connected to the Internet and
you did not get a registration key, you can log in with the local device password
(by default, password), but only a limited menu is available. After you log in once
with your NETGEAR account, with the switch still in its default management mode
(Directly Connect to Web Browser Interface), you can log in with the local device
password and the full menu is available, even if the switch is not connected to the
Internet.
1. Open a web browser from a computer or tablet connected to the same
network as your switch.
You can use a wired or WiFi connection.
2. Enter the IP address of the switch.
To discover the IP address of the switch, use the NETGEAR Insight app or
another discovery method (see Other discovery and conguration methods).
Your browser might display a security message. Ignore it or add an exception.
The Register to unlock all features page displays. You can now register the
switch.
© NETGEAR, Inc., NETGEAR and the NETGEAR Logo
November 2019
are trademarks of NETGEAR, Inc. Any non‑NETGEAR
trademarks are used for reference purposes only.
Change the management mode to Insight
By default, the management mode is set to Directly Connect to Web Browser
Interface, which lets you congure the switch from the local browser interface.
You can change the management mode so that you can manage the switch
remotely from the cloud with the NETGEAR Insight app or Insight Cloud Portal.
1. While you are logged in to the local browser interface, in the Management
Mode section on the System Information page, select the NETGEAR Insight
Mobile App and Insight Cloud Portal radio button.
2. In the pop-up window that opens, click the OK button.
3. Click the Apply button.
4. In another pop-up window that opens, click the OK button.
Your settings are saved.
The rst time that you change the management mode to Insight, the switch is
reset to its factory default settings, and you must congure the switch using
the NETGEAR Insight app or Insight Cloud Portal.
Other discovery and conguration methods
The NETGEAR Switch Discovery Tool and the Smart Control Center Utility let you
discover the IP address and congure the switch.
• NETGEAR Switch Discovery Tool. You can use a Mac or a 64-bit Windows-
based computer on the same network as the switch. To download this tool,
visit www.netgear.com/support/product/netgear-switch-discovery-tool.aspx.
• Smart Control Center Utility. You can use a Windows-based computer on
the same network as the switch. To download this utility, visit
www.netgear.com/support/product/SCC.
0 PoE and PoE+ Default power (full) 15.4W 0.44W–12.95W
1 PoE and PoE+ Very low power 4.0W 0.44W–3.84W
2 PoE and PoE+ Low power 7.0W 3.84W–6.49W
3 PoE and PoE+ Mid power 15.4W 6.49W–12.95W
4 PoE+ only High power 30.0W 12.95W–25.5W
Support
Thank you for purchasing this NETGEAR product. You can visit
https://www.netgear.com/support/ to register your product, get help, access the latest
downloads and user manuals, and join our community. We recommend that you use only
ofcial NETGEAR support resources.
Si ce produit est vendu au Canada, vous pouvez accéder à ce document en français
canadien à https://www.netgear.com/support/download/.
(If this product is sold in Canada, you can access this document in Canadian French at
https://www.netgear.com/support/download/.)
For regulatory compliance information including the EU Declaration of Conformity, visit
https://www.netgear.com/about/regulatory/.
See the regulatory compliance document before connecting the power supply.
Do not use this device outdoors. If you connect cables or devices that are outdoors to this
device, see https://kb.netgear.com/000057103 for safety and warranty information.
