NETGEAR FVS338NA Reference Manual

FVS338 ProSafe VPN
Firewall 50 Reference
Manual

NETGEAR, Inc.
4500 Great America Parkway
Santa Clara, CA 95054 USA

September 2006
202-10046-03
v1.0

© 2006 by NETGEAR, Inc. All rights reserved.

Trademarks

NETGEAR, the NETGEAR logo and ProSafe are trademarks and/or registered trademarks of Netgear, Inc.
Microsoft, Windows, and Windows NT are registered trademarks of Microsoft Corporation.
Other brand and product names are registered trademarks or trademarks of their respective holders.

Statement of Conditions

In the interest of improving internal design, operational function, and/or reliability, NETGEAR reserves the right to
make changes to the products described in this document without notice.

NETGEAR does not assume any liability that may occur due to the use or application of the product(s) or circuit
layout(s) described herein.

Federal Communications Commission (FCC) Compliance Notice: Radio Frequency
Notice

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the inst ructi ons, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this e quipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

EU Regulatory Compliance Statement

ProSafe VPN Firewall 50 is compliant with the following EU Council Directives: 89/336/EEC and LVD 73/23/EEC.
Compliance is verified by testing to the following standards: EN55022 Class B, EN55024 and EN60950-1.

Bestätigung des Herstellers/Importeurs

Es wird hiermit bestätigt, daß das ProSafe VPN Firewall 50 gemäß der im BMPT- AmtsblVfg 243/1991 und Vfg 46/1992
aufgeführten Bestimmungen entstört ist. Das vorschriftsmäßige Betreiben einiger Geräte (z.B. Testsender) kann jedoch
gewissen Beschränkungen unterliegen. Lesen Sie dazu bitte die Anmerkungen in der Betriebsanleitung.

Das Bundesamt für Zulassungen in der Telekommunikation wurde davon unterrichtet, daß dieses Gerät auf den Markt
gebracht wurde und es ist berechtigt, die Serie auf die Erfüllung der Vorschriften hin zu überprüfen.

Certificate of the Manufacturer/Importer

It is hereby certified that the ProSafe VPN Firewall 50 has been suppressed in accordance with the conditions set out in
the BMPT-AmtsblVfg 243/1991 and Vfg 46/1992. The operation of some equipment (for example, test transmitters) in
accordance with the regulations may , however, be subject to certain restrictions. Please refer to the notes in the operating
instructions.

ii

v1.0, September 2006

Federal Office for Telecommunications Approvals has been notified of the placing of this equipment on the market
and has been granted the right to test the series for compliance with the regulations.

Voluntary Control Council for Interference (VCCI) Statement

This equipment is in the second category (information equipment to be used in a residential area or an adjacent area
thereto) and conforms to the standards set by the Voluntary Control Council for Interference by Data Processing
Equipment and Electronic Office Machines aimed at preventing radio interference in such residential areas.

When used near a radio or TV receiver, it may become the cause of radio interference.
Read instructions for correct handling.

Additional Copyrights

AES Copyright (c) 2001, Dr Brian Gladman <[e-mail]>, Worcester, UK.

All rights reserved.
TERMS
Redistribution and use in source and binary forms, with or without modification, are permitted

subject to the following conditions:

1. Redistributions of source code must retain the above copyright notice, this list of
conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.

3. The copyright holder's name must not be used to endorse or promote any products
derived from this software without his specific prior written permission.

This software is provided 'as is' with no express or implied warranties of correctness or fitness
for purpose.

iii

v1.0, September 2006

Open SSL Copyright (c) 1998-2000 The OpenSSL Project. All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted
provided that the following conditions * are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions
and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of
conditions and the following disclaimer in the documentation and/or other materials
provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the
following acknowledgment: “This product includes software developed by the OpenSSL
Project for use in the OpenSSL Toolkit. (http://www.openssl.org/)”

4. The names "OpenSSL Toolkit" and "OpenSSL Project" must not be used to endorse or
promote products derived from this software without prior written permission. For written
permission, please contact [e-mail].

5. Products derived from this software may not be called "OpenSSL" nor may "OpenSSL"
appear in their names without prior written permission of the OpenSSL Project.

6. Redistributions of any form whatsoever must retain the following acknowledgment: "This
product includes software developed by the OpenSSL Project for use in the OpenSSL
Toolkit (http://www.openssl.org/)"

THIS SOFTWARE IS PROVIDED BY THE OpenSSL PROJECT ``AS IS'' AND ANY
EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE OpenSSL PROJECT OR ITS
CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR
PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY
OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS
SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

This product includes cryptographic software written by Eric Young ([e-mail]). This
product includes software written by Tim Hudson ([e-mail]).

iv

v1.0, September 2006

MD5 Copyright (C) 1990, RSA Data Security, Inc. All rights reserved.

License to copy and use this software is granted provided that it is identified as the "RSA Data
Security, Inc. MD5 Message-Digest Algorithm" in all material mentioning or referencing this
software or this function. License is also granted to make and use derivative works provided
that such works are identified as "derived from the RSA Data Security, Inc. MD5
Message-Digest Algorithm" in all material mentioning or referencing the derived work.

RSA Data Security, Inc. makes no representations concerning either the merchantability of
this software or the suitability of this software for any particular purpose. It is provided "as is"
without express or implied warranty of any kind.

These notices must be retained in any copies of any part of this documentation and/or
software.

PPP Copyright (c) 1989 Carnegie Mellon University. All rights reserved.

Redistribution and use in source and binary forms are permitted provided that the above
copyright notice and this paragraph are duplicated in all such forms and that any
documentation, advertising materials, and other materials related to such distribution and use
acknowledge that the software was developed by Carnegie Mellon University. The name of
the University may not be used to end orse or promote product s de ri ve d from th i s software
without specific prior written permission.

THIS SOFTWARE IS PROVIDED ``AS IS'' AND WITHOUT ANY EXPRESS OR IMPLIED
WARRANTIES, INCLUDING, WITHOUT LIMITATION, THE IMPLIED WARRANTIES OF
MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE.

Zlib zlib.h -- interface of the 'zlib' general purpose compression library version 1.1.4, March 11th,

2002. Copyright (C) 1995-2002 Jean-loup Gailly and Mark Adler.

This software is provided 'as-is', without any express or implied warranty. In no event will the
authors be held liable for any damages arising from the use of this software. Permission is
granted to anyone to use this software for any purpose, including commercial applications,
and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote
the original software. If you use this software in a product, an acknowledgment in the
product documentation would be appreciated but is not required.

2. Altered source versions must be plainly marked as such, and must not be misrepresented
as being the original software.

3. This notice may not be removed or altered from any source distribution.

Jean-loup Gailly: [e-mail]; Mark Adler: [e-mail]
The data format used by the zlib library is described by RFCs (Request for Comments) 1950

to 1952 in the files ftp://ds.internic.net/rfc/rfc1950.txt

(zlib format), rfc1951.txt (deflate format)

and rfc1952.txt (gzip format)

v

v1.0, September 2006

Product and Publication Details

Model Number: FVS338
Publication Date: September 2006
Product Family: VPN firewall
Product Name: ProSafe VPN Firewall 50
Home or Business Product: Business
Language: English
Publication Part Number: 202-10046-03
Publication Version Number 1.0

vi

v1.0, September 2006

Contents

About This Manual

Conventions, Formats and Scope ...................................................................................xiii

How to Use This Manual ..................................................................................................xiv

How to Print this Manual ..................................................................................................xiv

Revision History ........... ... .................................... ... ... .... ................................... ... .... ... ......xv

Chapter 1
Introduction

Key Features ..................................................................................................................1-1

Full Routing on Both the Broadband and Serial WAN Ports ....................................1-2

A Powerful, True Firewall with Content Filtering ......................................................1-2

Security ....................................................................................................................1-2

Autosensing Ethernet Connections with Auto Uplink ...............................................1-3

Extensive Protocol Support ......................................................................................1-3

Trend Micro Integration ............................................................................................1-4

Easy Installation and Management ..........................................................................1-4

Maintenance and Support ..... .... ... ... ... .... ... ... ... ... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ..1-5

Package Contents ..........................................................................................................1-5

Router Hardware Components .............................. ....................................................... ..1-5

Router Front Panel ...................................................................................................1-6

Router Rear Panel ...................................................................................................1-7

Rack Mounting Hardware .........................................................................................1-8

Factory Default Login .....................................................................................................1-8

Chapter 2
Connecting the FVS338 to the Internet

Connecting the VPN Firewall to Your Network ............. ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ..2-1

Logging in to the VPN Firewall ................................................................................2-1

Configuring your Internet Connection ......................................................................2-2

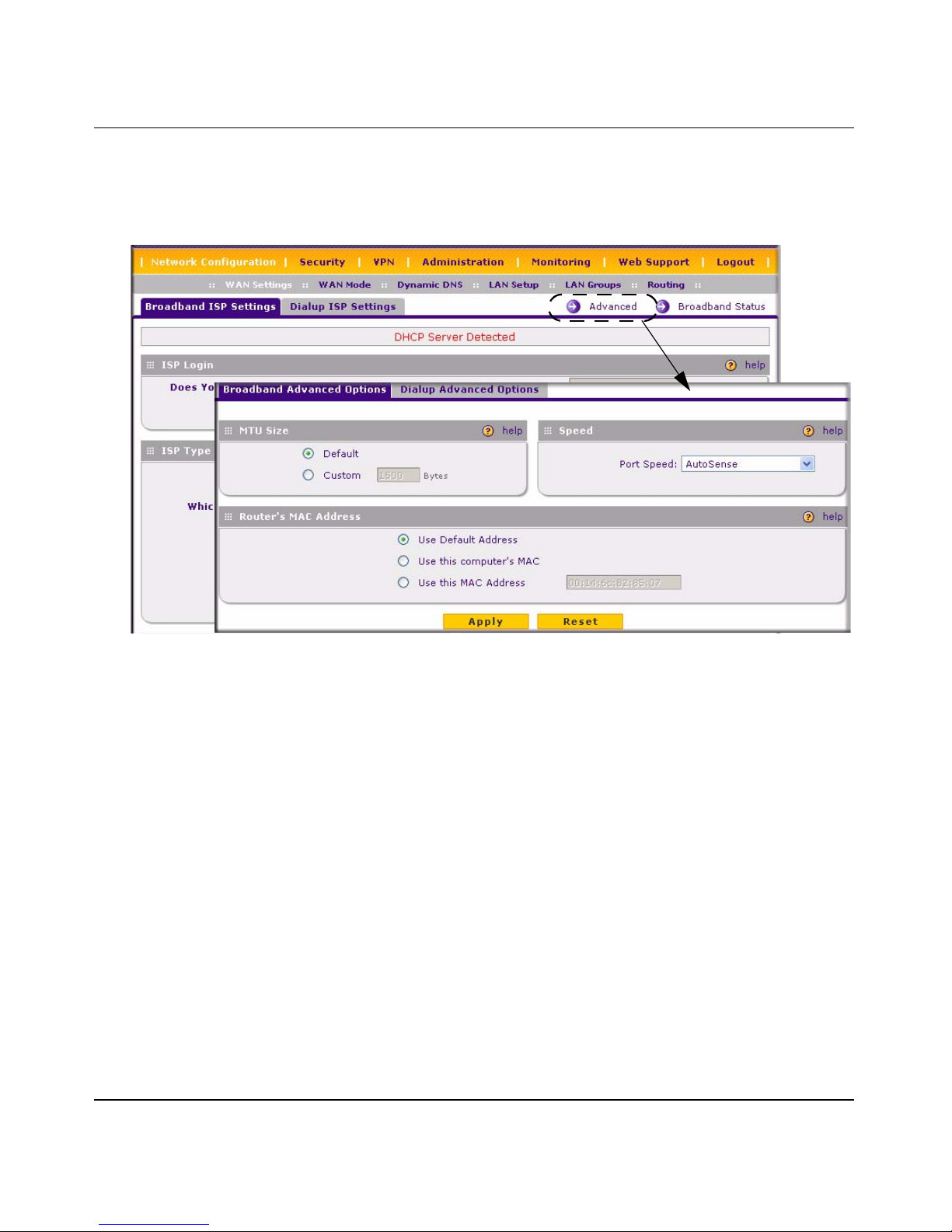

Setting the Router’s MAC Address (Advanced Options) ................................. ... ... ..2-7

vii

v1.0, September 2006

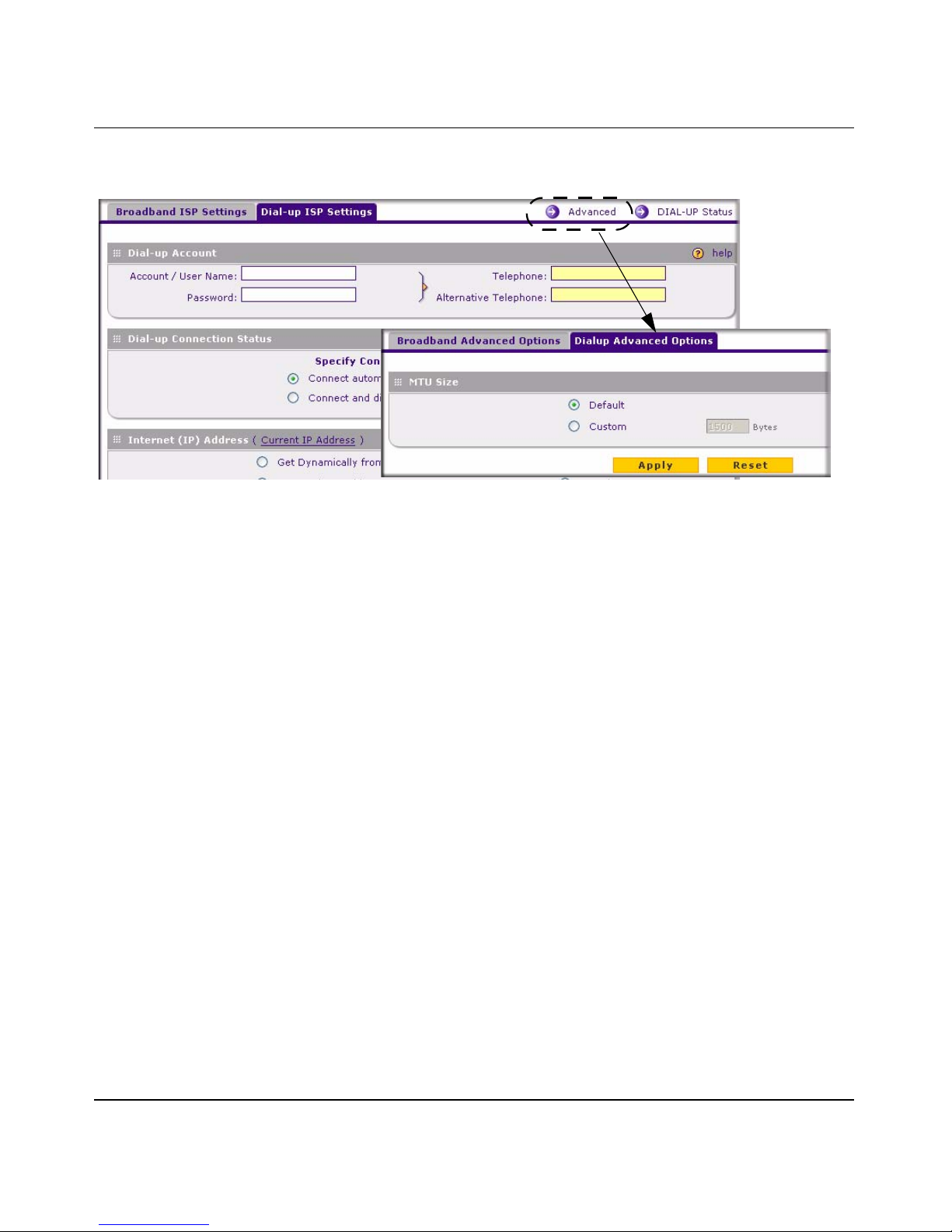

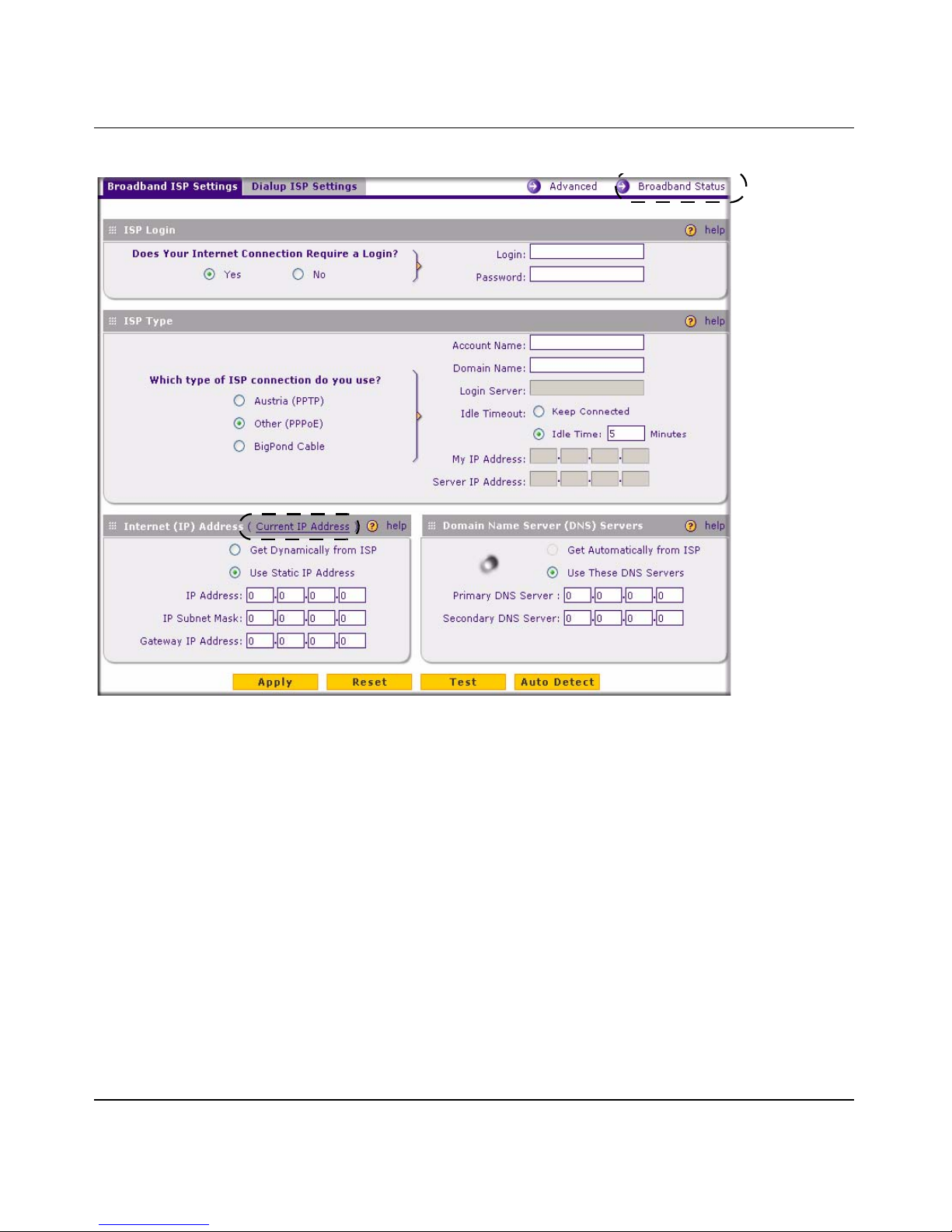

Manually Configuring Your Internet Connection . .......................... .......................... .. 2-9

Programming the Traffic Meter (if Desired) ............................................................2-12

Configuring the WAN Mode ..........................................................................................2-15

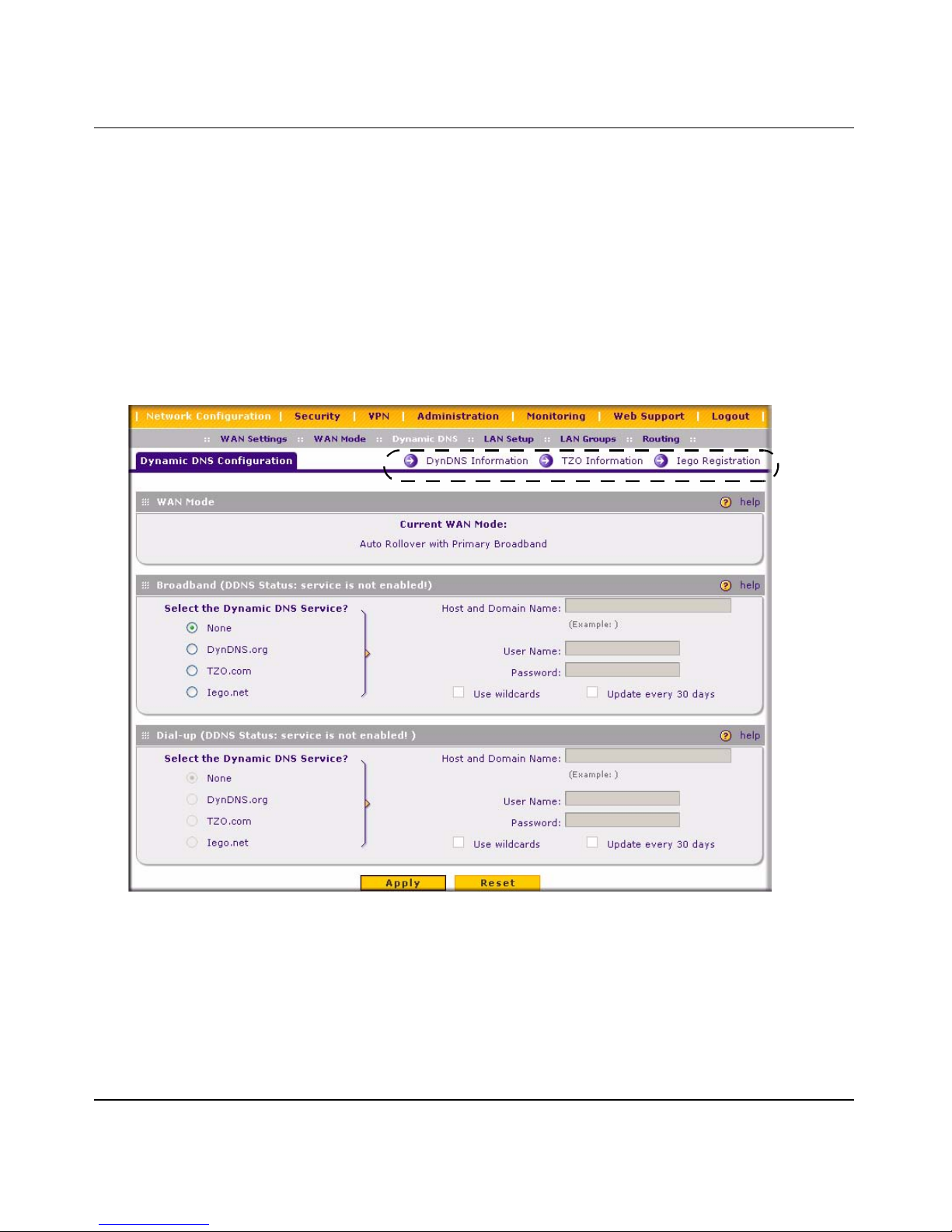

Configuring Dynamic DNS (If Needed) .........................................................................2-16

Chapter 3
LAN Configuration

Configuring Your LAN (Local Area Network) ..................................................................3-1

Using the VPN Firewall as a DHCP Server ............................... ... .... ... ... ... ... .... ... ... ..3-1

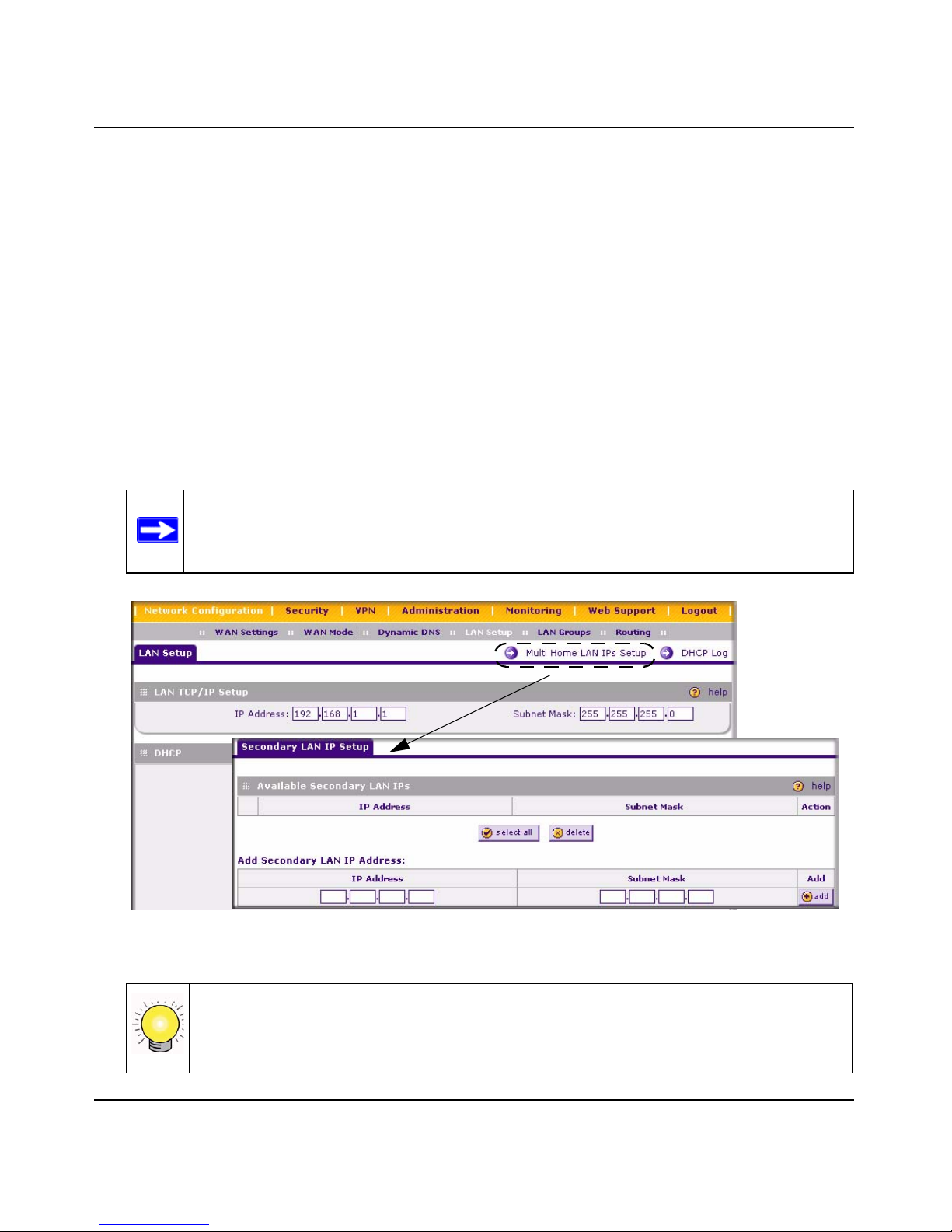

Configuring Multi-Home LAN IPs .............................................................................3-4

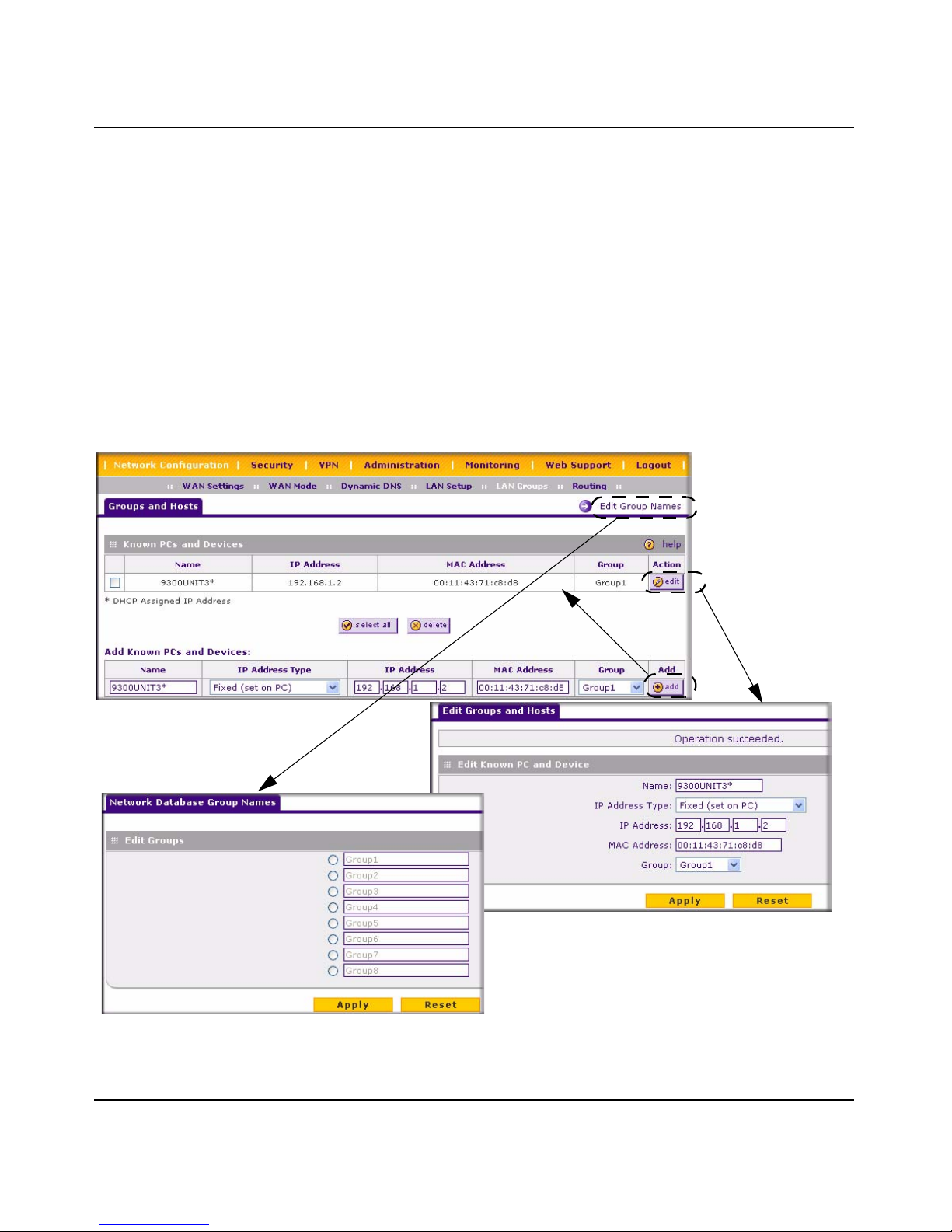

Managing Groups and Hosts ........................ ... ... ... ... .... ... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ..3-5

Creating the Network Database ................................................................ ... .... ... ... ..3-5

Setting Up Address Reservation ............... ............................................................... 3-8

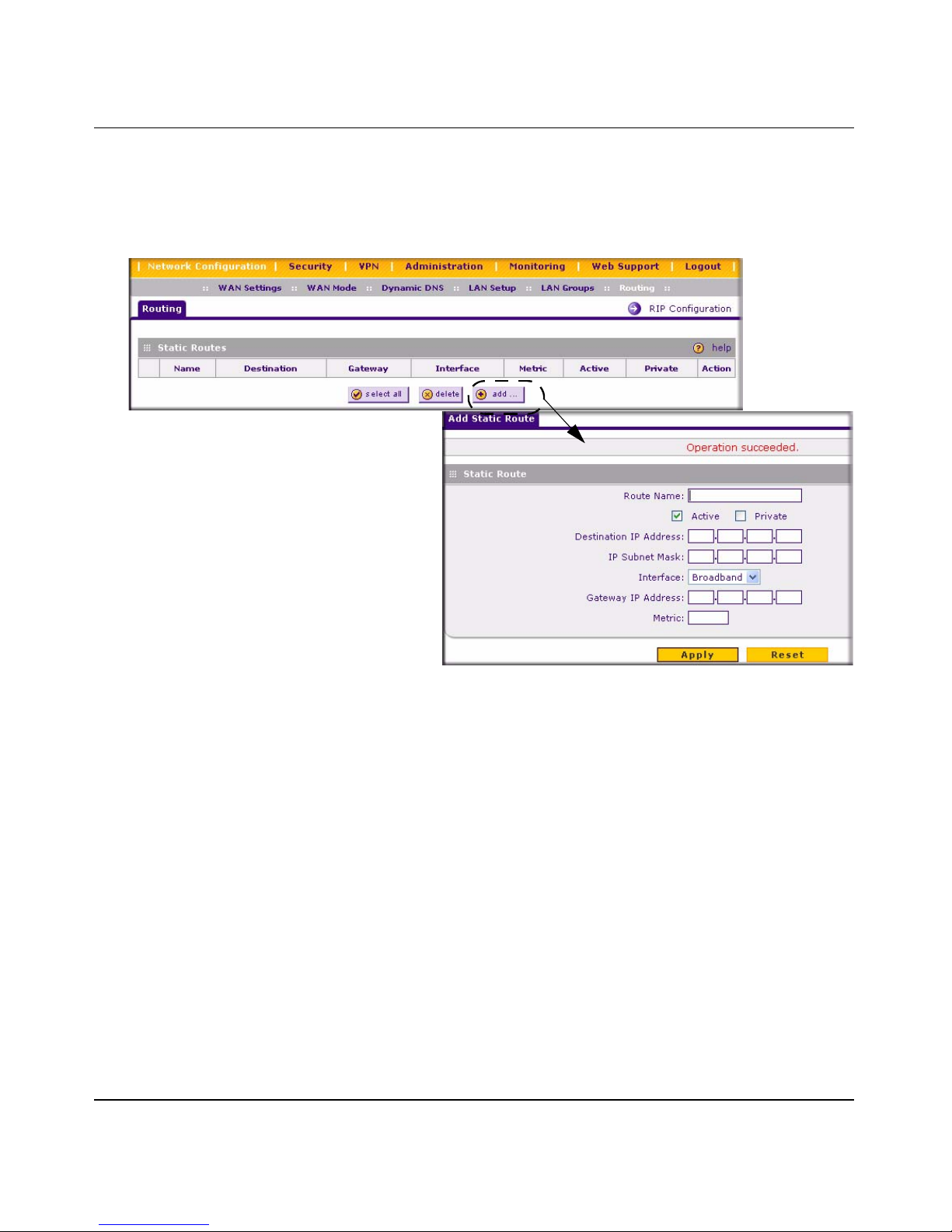

Configuring Static Routes ...............................................................................................3-8

Static Route Example ...............................................................................................3-9

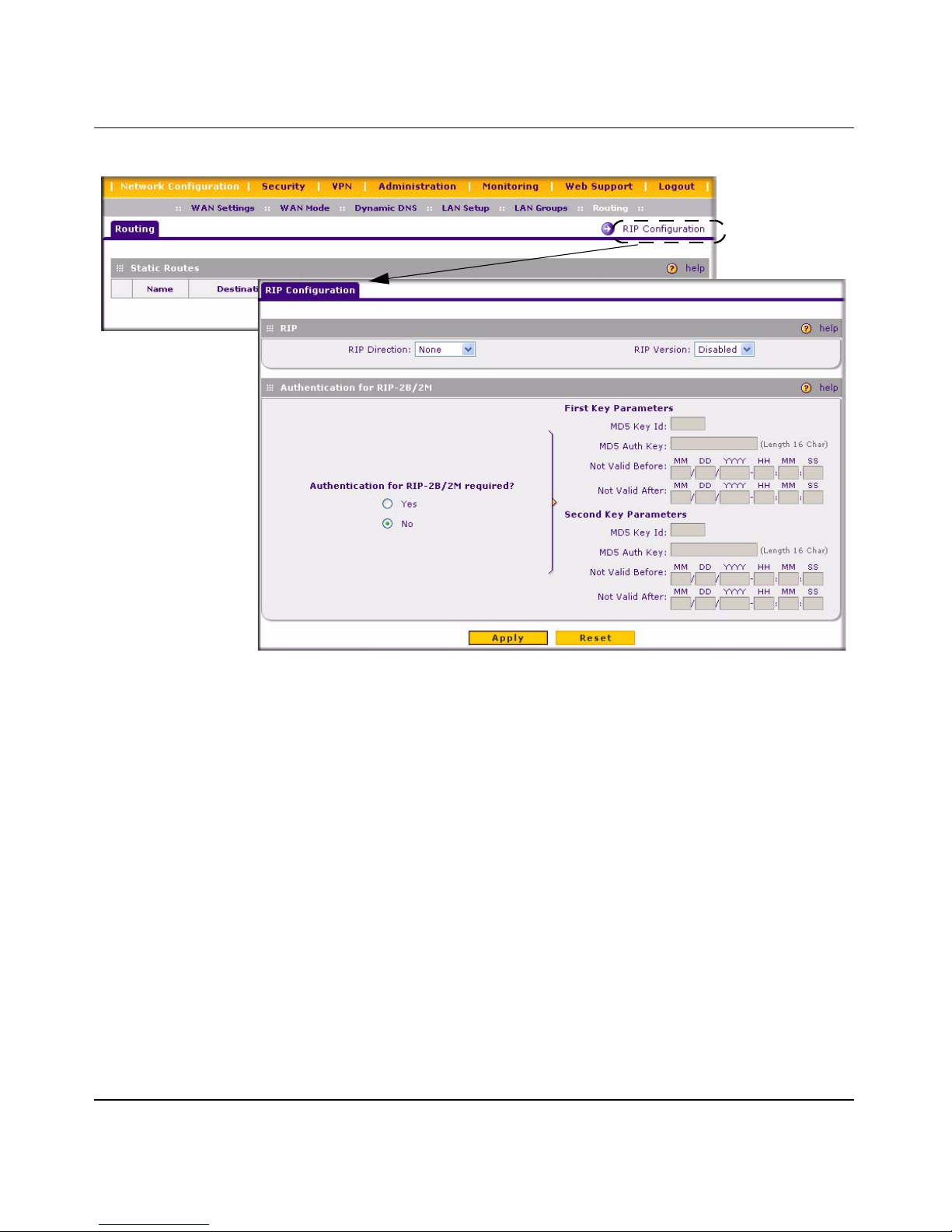

RIP Configuration ...................................................................................................3-10

Enabling Trend Micro Antivirus Enforcement ...............................................................3-12

Chapter 4
Firewall Protection and Content Filtering

About Firewall Security ...................................................................................................4-1

Using Rules to Block or Allow Specific Kinds of Traffic ..................................................4-1

Services-Based Rules ............................... ... ... .................................... ... ... ... .... ... ... ..4-2

Outbound Rules (Service Blocking) ...................................................................4-2

Inbound Rules (Port Forwarding) ......................................................................4-4

Order of Precedence for Firewall Rules ...................................................................4-6

Setting LAN WAN Rules .............. .... ... ... ... .... ... ... ... ... .................................... ... ... .... ........4-7

LAN WAN Outbound Services Rules .......................................................................4-8

LAN WAN Inbound Services Rules ..........................................................................4-9

Attack Checks .............................. ... ... .... ... ... ... .................................... ... ................4-10

Inbound Rules Examples .......................................................................................4-12

Hosting A Local Public Web Server .................................................................4-12

Allowing Videoconference from Restricted Addresses ....................................4-13

Setting Up One-to-One NAT Mapping ................................................... .... ... ...4-13

Specifying an Exposed Host ..... ... .... ... .............................................................4-15

Outbound Rules Example – Blocking Instant Messenger ......................................4-16

Adding Customized Services ........................ ................................................................4-17

viii

v1.0, September 2006

Specifying Quality of Service (QoS) Priorities ................. ... ... .... ... ... ... ..........................4-19

Setting a Schedule to Block or Allow Traffic ................. ................................... ... .... ... ...4-20

Setting Block Sites (Content Filtering) ............. ................................................ ............. 4-21

Enabling Source MAC Filtering ....................................................................................4-23

Setting Up Port Triggering ............................................................................................4-24

E-Mail Notifications of Event Logs and Alerts ..................................... ..........................4-27

Administrator Information .............................................................................................4-31

Chapter 5
Virtual Private Networking

Dual WAN Port Systems .................................................................................................5-1

Setting up a VPN Connection using the VPN Wizard .....................................................5-2

Creating a VPN Tunnel to a Gateway ......................................................................5-2

Creating a VPN Tunnel Connection to a VPN Client ... ... .................................... ... ..5-3

IKE Policies .................................................. ... ... ... ... .... ... ... ... .................................... .....5-4

IKE Policy Operation .... ................................... ... .... ... ... ... .... ... ... ... .... ... ... ..................5-4

IKE Policy Table .................... .................................... ... ... .... ................................... ..5-5

VPN Policies ................ ... .... ... ... ... .... ................................... ... .................................... ... ..5-5

VPN Policy Operation ..... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ... .................................... ... ..5-6

VPN Policy Table ................ ... .................................... ... ... .... ................................... ..5-6

VPN Tunnel Connection Status ................................................................................5-7

Creating a VPN Gateway Connection: Between FVS338 and FVX538 .........................5-8

Configuring the FVS338 ...........................................................................................5-8

Configuring the FVX538 .........................................................................................5-11

Testing the Connection ...........................................................................................5-12

Creating a VPN Client Connection: VPN Client to FVS338 ................ .... ... ... ... ... .... ... ...5-12

Configuring the FVS338 .........................................................................................5-13

Configuring the VPN Client ....................................... ... ... .... ...................................5-14

Testing the Connection ...........................................................................................5-19

Extended Authentication (XAUTH) Configuration ......................... ................... .............5-20

Configuring XAUTH for VPN Clients ......................................................................5-21

User Database Configuration ............................. .... ... ... ... .... ... ... .............................5-22

RADIUS Client Configuration .................................................................................5-23

Manually Assigning IP Addresses to Remote Users (ModeConfig) .............................5-25

ModeConfig Operation ...........................................................................................5-26

Setting Up ModeConfig ......... .... ... ... ... .... ... ... ..........................................................5-26

ix

v1.0, September 2006

Configuring the ProSafe VPN Client for ModeConfig ....................................... ......5-30

Certificates ................................ ................ ................ ................. ................ ................ ...5-33

Trusted Certificates (CA Certificates) .....................................................................5-33

Self Certificates ......................................................................................................5-34

Managing your Certificate Revocation List (CRL) ..................................................5-37

Chapter 6
Router and Network Management

Performance Management ................................................. ... .... ................................... ..6-1

VPN Firewall Features That Reduce Traffic .............................................................6-1

Service Blocking .......................................... .... ... ... ... .... ... ... ...............................6-2

Block Sites .........................................................................................................6-3

Source MAC Filtering ........................................................................................6-4

VPN Firewall Features That Increase Traffic ...........................................................6-4

Port Forwarding ..................................................... ... .... ... ..................................6-4

Port Triggering ............. ... .... ... ................................... .... ... ..................................6-6

VPN Tunnels .......................................... ... ... .... ... ... ... .... ................................... ..6-6

Using QoS to Shift the Traffic Mix ............................................................................6-7

Tools for Traffic Management .... ... ... ... .... ... ... ... ... .... ................................... ... .... ... .....6-7

Administration .................................. ............................................. ..................................6-7

Changing Passwords and Settings ..........................................................................6-7

Enabling Remote Management Access ...................................................................6-9

Using a SNMP Manager ........................................................................................6-11

Settings Backup and Firmware Upgrade ...............................................................6-12

Backup and Restore Settings ..........................................................................6-13

Router Upgrade ...............................................................................................6-14

Setting the Time Zone ..................................... ... .... ... ... ... .... ... ................................6-15

Monitoring the Router ......................................................... ... .... ... ... .............................6-16

Enabling the Traffic Meter ......................................................................................6-16

Setting Login Failures and Attacks Notification ............................ .......................... 6-18

Monitoring Attached Devices .... ... ... ... .... ................................................................6-20

Viewing Port Triggering Status ...............................................................................6-21

Viewing Router Configuration and System Status .................................................6-22

Monitoring WAN Ports Status ................. ... ... .................................... ... ... ... ... .... ... ...6-23

Monitoring VPN Tunnel Connection Status ...................................................... ... ...6-24

VPN Logs . .... ... ... ... ... .... ................................... .................................... ... ................6-25

x

v1.0, September 2006

DHCP Log ..............................................................................................................6-25

Performing Diagnostics ..........................................................................................6-26

Chapter 7
Troubleshooting

Basic Functions ..............................................................................................................7-1

Power LED Not On ...................................................................................................7-1

LEDs Never Turn Off ................................................................................................7-2

LAN or Internet Port LEDs Not On ................................................................... ... ... ..7-2

Troubleshooting the Web Configuration Interface ..........................................................7-2

Troubleshooting the ISP Connection ..............................................................................7-4

Troubleshooting a TCP/IP Network Using a Ping Utility .................................................7-5

Testing the LAN Path to Your Firewall ......................................................................7-5

Testing the Path from Your PC to a Remote Device ................................................7-6

Restoring the Default Configuration and Password ......... ... ... .... ... ... ... .... ... ... ... ... .... ... ... ..7-7

Problems with Date and Time .........................................................................................7-7

Appendix A
Default Settings and Technical Specifications

Appendix B
Related Documents

Index

xi

v1.0, September 2006

xii

v1.0, September 2006

About This Manual

The NETGEAR® Pr oSafe™ VPN Fir ewall 50 FVS338 Reference Manual describes how to install,
configure and troubleshoot the ProSafe VPN Firewall 50. The information in this manual is
intended for readers with intermediate computer and Internet skills.

Conventions, Formats and Scope

The conventions, formats, and scope of this manual are described in the following paragraphs.

• Typographical Conventions. This manual uses the following typographical conventions:

Italics Emphasis, books, CDs, URL names

Bold User input

Fixed Screen text, file and server names, extensions, commands, IP addresses

• Formats. This manual uses the following formats to highlight special messages:

Note: This format is used to highlight information of importance or special interest.

Tip: This format is used to highlight a procedure that will save time or resources.

Warning: Ignoring this type of note may result in a malfunction or damage to the

equipment.

Danger: This is a safety warning. Failure to take heed of this notice may result in

personal injury or death.

xiii

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

• Scope. This manual is written for the VPN firewall according to these specifications:

Product Version ProSafe VPN Firewall 50
Manual Publication Date September 2006

For more information about network, Internet, firewall, and VPN technologies, see the links to the
NETGEAR website in Appendix B, “Related Documents”.

Note: Updates to this product are available on the NETGEAR, Inc. website at

http://kbserver.netgear.com/products/FVS338.asp.

How to Use This Manual

The HTML version of this manual includes the following:

• Buttons, and , for browsing forwards or backwards through the manual one page
at a time

• A button that displays the table of contents and an button. Double-click on a
link in the table of contents or index to navigate directly to where the topic is described in the
manual.

• A button to access the full NETGEAR, Inc. online knowledge base for the product
model.

• Links to PDF versions of the full manual and individual chapters.

How to Print this Manual

To print this manual you can choose one of the following options, according to your needs.

• Printing a Page from HTML. Each page in the HTML version of the manual is dedicated to
a major topic. Select File > Print from the browser menu to print the page contents.

• Printing from PDF. Your computer must have the free Adobe Acrobat reader installed in
order to view and print PDF files. The Acrobat reader is available on the Adobe Web site at

http://www.adobe.com.

– Printing a PDF Chapter. Use the PDF of This Chapter link at the top left of any page.

xiv

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

• Click the PDF of This Chapter link at the top left of any page in the chapter you want
to print. The PDF version of the chapter you were viewing opens in a browser
window.

• Click the print icon in the upper left of your browser window.

– Printing a PDF version of the Complete Manual. Use the Complete PDF Manual link

at the top left of any page.

• Click the Complete PDF Manual link at the top left of any page in the manual. The
PDF version of the complete manual opens in a browser window.

• Click the print icon in the upper left of your browser window.

Tip: If your printer supports printing two pages on a single sheet of paper, you can

save paper and printer ink by selecting this feature.

Revision History

Part Number

202-10046-02 1.0 Product update: New firmware and new user Interface

Version
Number

Description

xv

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

xvi

v1.0, September 2006

Chapter 1

Introduction

The ProSafe VPN Firewall 50 with 8 port switch connects your local area network (LAN) to the
Internet through an external access device such as a cable modem or DSL modem.

The FVS338 is a complete security solution that protects your network from attacks and
intrusions. For example, the FVX538 provides support for Stateful Packet Inspection, Denial of
Service (DoS) attack protection and multi-NAT support.The VPN firewall supports multiple Web
content filtering options, plus browsing activity reporting and instant alerts—both, via e-mail.
Network administrators can establish restricted access policies based on time-of-day, Website
addresses and address keywords, and share high-speed cable/DSL Internet access for a local
network.

The FVS338 is a plug-and-play device that can be installed and configured within minutes.

Key Features

The VPN firewall provides the following features:

• One 10/100 Mbps port for an Ethernet connection to a broadband W AN device, such as a cable
modem or DSL modem, and one serial port for a dial-up modem connection to the Internet
through the public switched telephone network (PSTN).

• Dual WAN ports (one broadband and one serial) provide for increased system reliability.

• Support for up to 50 VPN tunnels.

• Easy, web-based setup for installation and management.

• URL keyword Content Filtering and Site Blocking Security.

• Quality of Service (QoS) support for traffic prioritization.

• Built in 8-port 10/100 Mbps switch.

• Extensive Protocol Support.

• Login capability.

• SNMP for manageability.

• Front panel LEDs for easy monitoring of status and activity.

• Flash memory for firmware upgrade.

Introduction 1-1

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

Full Routing on Both the Broadband and Serial WAN Ports

You can install, configure, and operate the FVS338 to take full advantage of a variety of routing
options on both the serial and broadband WAN ports, including:

• Internet access via either the serial or broadband port.

• Auto rollover connectivity (fail-over) through an analog modem connected to the serial port
If the broadband Internet connection fails, after waiting for an pre-specified amount of time
the FVS338 can automatically establish a backup dial-up Internet connection via the serial
port on the firewall.

A Powerful, Tr ue Firewall with Content Filtering

Unlike simple Internet sharing NAT routers, the FVS338 is a true firewall, using stateful packet
inspection to defend against hacker attacks. Its firewall features include:

• DoS protection. Automatically detects and thwarts DoS attacks such as Ping of Death, SYN
Flood, LAND Attack, and IP Spoofing.

• Blocks unwanted traffic from the Internet to your LAN.

• Blocks access from your LAN to Internet locations or services that you specify as off-limits.

• Logs security incidents. The FVS338 will log security events such as blocked incoming traffic,
port scans, attacks, and administrator logins. You can configure the firewall to email the log to
you at specified intervals. You can also configure the firewall to send immediate alert
messages to your email address or email pager whenever a significant event occurs.

• With its URL keyword filtering feature, the FVS338 prevents objectionable content from
reaching your PCs. The firewall allows you to control access to Internet content by screening
for keywords within Web addresses. You can configure the firewall to log and report attempts
to access objectionable Internet sites.

Security

The VPN firewall is equipped with several features designed to maintain security, as described in
this section.

• PCs Hidden by NAT. NAT opens a temporary path to the Internet for requests originating
from the local network. Requests originating from outside the LAN are discarded, preventing
users outside the LAN from finding and directly accessing the PCs on the LAN.

1-2 Introduction

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

• Port Forwarding with NAT. Although NAT prevents Internet locations from directly
accessing the PCs on the LAN, the firewall allows you to direct incoming traffic to specific
PCs based on the service port number of the incoming request. You can specify forwarding of
single ports or ranges of ports.

• Exposed Host (Software DMZ). Incoming traffic from the Internet is normally discarded by
the firewall unless the traffic is a response to one of your local computers or a service for
which you have configured an inbound rule. Instead of discard i ng this traffic, you can have it
forwarded to one computer on your network.

Autosensing Ethernet Connections with Auto Uplink

With its internal 8-port 10/100 switch, the FVS338 can connect to either a 10 Mbps standard
Ethernet network or a 100 Mbps Fast Ethernet network. Both the LAN and WAN interfaces are
autosensing and capable of full-duplex or half-duplex operation.

The firewall incorporates Auto Uplink

TM

technology. Each Ethernet port will automatically sense
whether the Ethernet cable plugged into the port should have a ‘normal’ connection such as to a
PC or an ‘uplink’ connection such as to a switch or hub. That port will then configure itself to the
correct configuration. This feature also eliminates the need to worry about crossover cables, as
Auto Uplink will accommodate either type of cable to make the right connection.

Extensive Protocol Support

The VPN firewall supports the Transmission Control Protocol/Internet Protocol (TCP/IP) and
Routing Information Protocol

• IP Address Sharing by NAT. The VPN firewall allows several networked PCs to share an

Internet account using only a single IP address, which may be statically or dynamically
assigned by your Internet service provider (ISP). This technique, known as NAT, allows the
use of an inexpensive single-user ISP account.

• Automatic Configuration of Attached PCs by DHCP. The VPN firewall dynamically

assigns network configuration information, including IP, gateway, and domain name server
(DNS) addresses, to attached PCs on the LAN using the Dynamic Host Configuration Protocol
(DHCP). This feature greatly simplifies configuration of PCs on your local network.

• DNS Proxy. When DHCP is enabled and no DNS addresses are specified, the firewall

provides its own address as a DNS server to the attached PCs. The firewall obtains actual DNS
addresses from the ISP during connection setup and forwards DNS requests from the LAN.

(RIP).

• PPP over Ethernet (PPPoE). PPPoE is a protocol for connecting remote hosts to the Internet

over a DSL connection by simulating a dial-up connection. This feature eliminates the need to
run a login program such as EnterNet or WinPOET on your PC.

Introduction 1-3

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

Trend Micro Integration

If you have installed the Trend Micro Client/Server/Messaging Suite for SMB on your local
network, you can have the firewall enforce its use. When Antivirus Enforcement is selected, local
PCs will not be allowed Web access unless they have the Trend Micro OfficeScan client installed
and updated with the latest virus definitions.

• The Client/Server/Messaging Suite for Small and Medium Business protects file servers, mail

servers, and PCs on your network - and includes antispam capability. The Client/Server Suite
for Small and Medium Business protects files servers and PCs.

– Both products deliver a layered defense against viruses an d oth er malicious code.
– Unlike competing antivirus products, both products work your NETGEAR VPN Firewall

to enforce antivirus policies - end users cannot access the Internet unless they have
antivirus protection with current pattern files installed.

– Both products are specifically built to meet the needs of growing businesses and feature

easy installation, automatic transparent updates, and damage cleanup capability.

Activate either product for a free trial.

Easy Installation and Management

You can install, configure, and operate the ProSafe VPN Firewall 50 within minutes after
connecting it to the network. The following features simplify installation and management tasks:

• Browser-based management. Browser-based configuration allows you to easily configure

your firewall from almost any type of personal computer, such as Windows, Macintosh, or
Linux. A user-friendly Setup Wizard is provided and online help documentation is built into
the browser-based Web Management Interface.

• Smart Wizard. The VPN firewall automatically senses the type of Internet connection, asking

you only for the information required for your type of ISP account.

• VPN Wizard. The VPN firewall includes the NETGEAR VPN Wizard to easily configure

VPN tunnels according to the recommendations of the Virtual Private Network Consortium
(VPNC) to ensure the VPN tunnels are interoperable with other VPNC-compliant VPN routers
and clients.

• SNMP. The VPN firewall supports the Simple Network Management Protocol (SNMP) to let

you monitor and manage log resources from an SNMP-compliant system manager. The SNMP
system configuration lets you change the system variables for MIB2.

• Diagnostic functions. The firewall incorporates built-in diagnostic functions such as Ping,

Trace Route, DNS lookup, and remote reboot.

1-4 Introduction

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

• Remote management. The firewall allows you to securely login to the Web Management

Interface from a remote location on the Internet. For additional security, you can limit remote
management access to a specified remote IP address or range of addresses, and you can choose
a nonstandard port number.

• Visual monitoring. The VPN firewall’s front panel LEDs provide an easy way to monitor its

status and activity.

Maintenance and Support

NETGEAR offers the following features to help you maximize your use of the VPN firewall:

• Flash memory for firmware upgrade

• Free technical support seven days a week, twenty-four hours a day

Package Contents

The product package should contain the following items:

• ProSafe VPN Firewall 50.

•AC power adapter.

• Category 5 Ethernet cable.

• Resource CD, including:

– Application Notes and other helpful information.
– ProSafe VPN Client Software – one user license.
– Trend Micro software evaluation.

• Warranty and Support Information Card.
If any of the parts are incorrect, missing, or damaged, contact your NETGEAR dealer. Keep the

carton, including the original packing materials, in case you need to return the firewall for repair.

Router Hardware Components

Following is a description of the front and rear panels of the FVS338, including instructions for
installing the FVS338 using the rack mounting hardware.

Introduction 1-5

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

Router Front Panel

The ProSafe VPN Firewall 50 front panel shown below contains the port connectio ns, status
LEDs, and the factory defaults reset button.

Power

LED

Test
LED

Modem

LED

Internet

LEDs

Local
LEDs

Figure 1-1

The table below describes each item on the front panel and its operation.

Table 1-1. Object Descriptions

Object Activity Description

Power LED On (Green)

Off

Test LED On (Amber)

Blinking (Amber)
Off

MDM LED On (Green)

Blinking (Green)
Off

Internet
LEDs

Link/Act LED

On (Green)
Blinking (Green)
Off

Power is supplied to the router.
Power is not supplied to the router.

Test mode: The system is initializing or the initialization has failed.
Writing to Flash memory (during upgrading or resetting to defaults).
The system has booted successfully.

The serial port has successfully connected to an ISP and received an
IP Address.
Server data is being transmitted or received by the serial port.
The serial port has no link.

The WAN port has detected a link with a connected Ethernet device.
Data is being transmitted or received by the WAN port.
The WAN port has no link.

100 LED

On (Green)
Off

1-6 Introduction

The WAN port is operating at 100 Mbps.
The WAN port is operating at 10 Mbps.

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

Table 1-1. Object Descriptions (continued)

Object Activity Description

Local LEDs Link/Act LED

On (Green)
Blinking (Green)
Off

The LAN port has detected a link with a connected Ethernet device.
Data is being transmitted or received by the LAN port.
The LAN port has no link.

100 LED

On (Green)
Off

The LAN port is operating at 100 Mbps.
The LAN port is operating at 10 Mbps.

Router Rear Panel

The rear panel of the ProSafe VPN Firewall 50 (Figure 1-2) contains the On/Off switch and AC
power connection.

LOCAL

FACTORY

DEFAULTS

5

678MODEM

INTERNET

1234

12VDC 1.2A

Figure 1-2

Viewed from left to right, the rear panel contains the following elements:

• Modem port – serves as the WAN2 Internet port through the public switched telephone

network (PSTN).

• Factory Defaults reset button.

• Local ports – 8-port RJ-45 10/100 Mbps Fast Ethernet Switch, N-way automatic speed

negotiation, auto MDI/MDIX.

• Internet port – serves as the WAN1 Internet port. One RJ-45 WAN port, N-way automatic

speed negotiation, Auto MDI/MDIX.

•On/Off switch

• DC power in (12 VDC, 1.2A)

Introduction 1-7

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

Rack Mounting Hardware

The FVS338 can be mounted either on a desktop (using included rubber feet) or in a 19-inch rack
(using the included rack mounting hardware illustrated in Figure 1-3).

Figure 1-3

Factory Default Login

Check the label on the bottom of the FVS338’s enclosure if you forget the following factory
default information:

• IP Address: http://192.168.1.1 to reach the Web-based GUI from the LAN

•User name: admin

• Password: password

LAN IP Address
User Name
Password

Figure 1-4

1-8 Introduction

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

To log in to the FVS338 once it is connected:

1. Open a Web browser.

2. Enter http://192.168.1.1 as the URL.

Figure 1-5

3. Once the login screen displays (Figure 1-5), enter the following:

• admin for User Name

• password for Password

Introduction 1-9

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

1-10 Introduction

v1.0, September 2006

Chapter 2

Connecting the FVS338 to the Internet

This section provides instructions for connecting the VPN firewall. Setting up VPN tunnels are
covered in Chapter 5, “Virtual Private Networking”:

1. Connect the firewall physically to your network. Connect the cables, turn on your router

and wait for the Test LED to go out. Make sure your Ethernet and LAN LEDs are lit. (See the
FVS338 ProSafe VPN Firewall 50 Installation Guide on your Resource CD.)

2. Log in to the firewall. After logging in, you are ready to set up and configure your firewall.

You can also change your password and enable remote management at this time.

3. Configure the Internet connections to your ISPs. During this phase, you will connect to

your ISPs. You can also program the WAN traffic meters at this time if desired.

4. Configure the WAN mode. Select either Primary Broadband with Dialup as backup or

Use only single WAN port—and select the WAN port from the pull-down menu—either
Broadband or Dial-up.

5. Configure dynamic DNS on the WAN ports (if needed). Configure your fully qualified

domain names during this phase (if required).

6. Configure the WAN options (if needed). Optionally, you can enable each WAN port to

respond to a ping. You can also change the factory default MTU size, port speed, and uplink
bandwidth. However, these are advanced features and changing them is not usually required.

Connecting the VPN Firewall to Your Network

To physically connect your VPN firewall, refer to the IFVS338 ProSafe VPN Firewall 50
Installation Guide (a copy is also available on your Resource CD).

Logging in to the VPN Firewall

Note: To connect to the firewall, your computer needs to be configured to obtain an IP

address automatically via DHCP.

2-1

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

To log in to the VPN firewall:

1. Open a Internet Explorer, Netscape® Navigator, or Firefox browser. In the browser window,

enter http://192.168.1.1 in the address field. The FVS338 login screen will display.

Figure 2-1

2. Enter admin for the User Name and password for the Password, both in lower case

letters.The firewall user name and password are not the same as any user name or password
you may use to log in to your Internet connection.

3. Click Login. The Broadband ISP Settings screen will display.

Note: You might want to enable remote management at this time so that you can log

in remotely in the future to manage the firewall. See “Enabling Remote

Management Access” on page 6-9 for more information. Remote management

enable is cleared with a factory default reset. If you enable remote
management, you are strongly advised to change your password (see

“Changing Passwords and Settings” on page 6-7).

Configuring your Internet Connection

You can configure both Broadband ISP Settings and Dialup ISP Settings.from the WAN Settings
menu.

To configure your Broadband ISP Settings:

1. Select Network Configuration from the main menu and WAN Settings from the submenu.

The Broadband ISP Settings screen will display.

2-2 Connecting the FVS338 to the Internet

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

Figure 2-2

2. Click Auto Detect at the bottom of the screen to automatically detect the type of Internet

connection provided by your ISP. Auto Detect will probe for different connection methods and
suggest one that your ISP will most likely support.

When Auto Detect successfully detects an active Internet service, it reports which connection
type it discovered. The options are described in the following table.

Table 2-1. Internet connection methods

Connection Method Data Required

PPPoE Login (Username, Password).
PPTP Login (Username, Password), Local IP, and PPTP Server IP.
BigPond Cable Login Username, Password), Account Name, and Server IP.

Connecting the FVS338 to the Internet 2-3

v1.0, September 2006

FVS338 ProSafe VPN Firewall 50 Reference Manual

Table 2-1. Internet connection methods

Connection Method Data Required

DHCP (Dynamic IP) No data is required.
Fixed IP IP address and related data supplied by your ISP.

3. Click Connection Status at the top right of the screen to verify your Broadband connection

status. Click Connect if connection not already present.

Figure 2-3

If Auto Detect does not find a connection, you will be prompted to check the physical
connection between your firewall and the cable or DSL line or to check your Router’s MAC
address (see “Setting the Router’s MAC Address (Advanced Options)” on page 2-7).

4. Set up the traffic meter for ISP1 if desired. See “Programming the Traffic Meter (if Desired)”

on page 2-12.

Note: At this point in the configuration process, you are now connected to the Internet

through the broadband Ethernet WAN. Optionally, you can continue with the
configuration of the dialup ISP serial WAN interface.

The Dialup Settings screen will assist you in setting up the router to access the Internet connection
using a dialup modem. Since the Dialup ISP Settings must be configured manually, you will need
all of your ISP settings information before you begin.

To configure the Dialup ISP serial WAN port:

2-4 Connecting the FVS338 to the Internet

v1.0, September 2006
