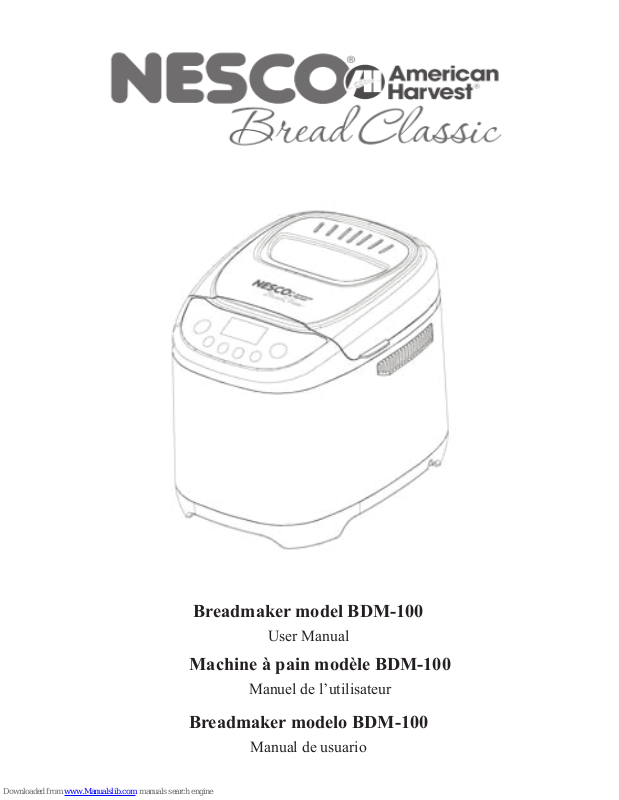

Nesco BDM-100 User Manual
Breadmaker model BDM-100
User Manual
Machine à pain modèle BDM-100
Manuel de l’utilisateur
Breadmaker modelo BDM-100
Manual de usuario
“NESCO®” is a registered trademark of
The Metal Ware Corporation
1700 Monroe St., P.O. Box 237
Two Rivers, WI 54241-0237
Phone: 1-(800) 288-4545
Table of Contents
Important Safeguards .....................................................................................1
Parts ...............................................................................................................2
Before rst time use .......................................................................................2
Operating Instructions ................................................................................ 2-6
Care and Cleaning ..........................................................................................6
Program chart .................................................................................................7
Recipes ..................................................................................................... 8-13
One Year Limited Warranty ..........................................................................14
Table des Matières
Mesures de précaution importantes .............................................................15
Pièces ...........................................................................................................16
Avant la première utilisation ........................................................................16
Mode d’emploi ....................................................................................... 16-20
Entretien et Nettoyage ............................................................................ 20-21
Garantie restreinte d’un an ...........................................................................22
Tabla de Contenidos
Salvaguardas importantes .............................................................................22
Piezas ............................................................................................................23
Antes del primer uso.....................................................................................23
Instrucciones de uso ............................................................................... 23-27
Cuidado y Limpiezaa....................................................................................27
Garantía limitada de un año..........................................................................28
For accessories and additional products, go to
www.nesco.com
Technical information: Model BDM-100
Electrical rating 120 Volts, 60 Hz., 580 Watts
1
English
IMPORTANT SAFEGUARDS
- This product is designed for household use only -
When using electrical appliances, basic safety precautions should always be
followed, including the following:
1. READ ALL INSTRUCTIONS.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against electrical shock and personal injury, do not immerse this
appliance, including cord and plug, in water or other liquid.
4. Close supervision is necessary when any appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to cool
completely before putting on or taking off parts, and before cleaning.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions or has been damaged in any manner. To avoid
hazards, return appliance to NESCO® Factory Service Department for
examination, repair or adjustment.
7. The use of accessory attachments not recommended by the manufacturer
may result in re, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot surfaces.
10. Do not place on or near a hot gas or electrical burner or in a heated oven.
11. Do not use appliance for other than its intended use, as described in this
manual.
12. Do not use metal scouring pads to clean the appliance.
13. This appliance is not intended for use by persons (including children) with
reduced physical sensory or mental capabilities, unless they have been
given supervision or instruction concerning use of the appliance by a person
responsible for their safety.
14. Make certain that the ventilation slits of the appliance are not covered.
SAVE THESE INSTRUCTIONS
Polarized Plug: This appliance has a polarized plug (one blade is wider than
the other). To reduce risk of electric shock, plug is intended to t into polarized
outlet only one way. If the plug does not t fully into the outlet, reverse the
plug. If it still does not t, contact a qualied electrician. Do not try to modify
the plug in any way.
Short Cord Instructions: A short power supply cord is provided to reduce
the risk resulting from becoming entangled in or tripping over a longer cord.
Extension cords may be used if care is exercised in their use. If an extension
cord is used, the marked electrical rating of the cord should be at least as great
as the electrical rating of the appliance. The longer cord should be arranged so
that it will not drape over the tabletop where it can be pulled on by children or
tripped over unintentionally.
2
English
Parts
LCD
Display
Kneading
Paddle
Control
Panel
Housing
Measure
Cup and
Spoon
Appliance Lid
Bread Pan
Before rst time use
• Unpack your appliance and dispose of the packaging material in accordance with
prevailing regulations.
• With a clean damp cloth wipe the bread pan, kneading paddle and outer surface of the
bread baking machine before putting into operation. Do not use abrasive cleaners or pads.
• Remove the protective lm on the control panel.
Operating Instructions
You can use the automatic bread maker to bake according to your taste. Choose from 12
baking programs to make jam, cake or to knead noodle dough.
LCD INFORMATION DISPLAY
The LCD display will show you the following information:
- The program number that you have selected.
- The loaf size selected.
- The crust color setting.
- The time remaining in the baking cycle once the start button has been pressed. Note that
the display will read 0:00 once baking cycle is complete.
3
English
COLOR BUTTON
Press the COLOR button to select your crust color, the LCD display will show your
selection. This option is not available for programs Jam, Pasta, and Dessert.
LOAF BUTTON
You can choose between a small 1 pound loaf or a large 1.5 pound loaf. Press the LOAF
button to select desired size. The LCD display will indicate the setting you have selected.
Note: The default setting of the appliance is Large (1.5 lb) and Loaf size option is
disabled for programs #7-12.
START/STOP BUTTON
Press to start your program. Note, do not press the START/STOP button once your
program has started, by pressing and holding down this button for two seconds the
appliance will stop and the program you selected will reset.
MENU SELECT BUTTON
Press this button to select the kind of bread program you want. Each time you push the
button you will hear an audible beep and a number will show up just above the time
setting on the LCD display, this number will indicate which program you have selected.
Below is a list of programs and descriptions that are available. Breadmaking time
depends on the selected program combinations. When pressing buttons an audible signal
will be heard, unless the appliance is in operation.
“For programs 1 thru 6 there is an option available that alerts you when the optimal
time is to add nuts or fruit to the recipe if desired. A series of 10 audible beeps will
occur, at this time you can add your additional ingredients, this will not disrupt the
bread making process. Listed below, in the program description, are the times that the
bread maker will notify you of this option.”
Program #1: Basic
For white and mixed breads mainly consisting of wheat our or rye our, has a compact
consistency. When display reads “2:10” the bread maker will alert you to add extra ingredients
.
Program #2: French
For light breads made from ne our. Normally the bread is uffy and has a crispy crust.
This is not suitable for baking recipes requiring butter, margarine or milk.
When display
reads “2:34” the bread maker will alert you to add extra ingredients
.
Program #3: Whole Wheat
For breads with heavy varieties of our that require a longer phase of kneading and rising
(for example, whole wheat our and rye our). The bread will be more compact and heavy.
When display reads “2:44” the bread maker will alert you to add extra ingredients
.
Program #4: Quick
Kneading, rise and baking, but rise with soda or baking powder.
When display reads
“1:35” the bread maker will alert you to add extra ingredients
.
Program #5: Sweet
For breads with additives such as fruit juices, grated coconut, raisins, dry fruits, chocolate
or added sugar. Due to a longer phase of rising the bread will be light and airy.
When
display reads “2:11” the bread maker will alert you to add extra ingredients
.
Program #6: Ultra-fast
Kneading, rise and baking is done in least time. The bread is the most course among
all bread menus.
When display reads “1:10” the bread maker will alert you to add extra
ingredients
.
Program #7: Dessert
For baking dessert.
Continued on next page
4
English
Program #8: Pasta
For preparing noodle dough. In this program no baking is done.
Program #9: Dough
For preparing dough. In this program no baking is done.
Program #10: Jam
For making jam.
Program #11: Cake
Kneading, rise and bakes for cake.
Program #12: Bake
For additional baking of breads that are too light or not baked through. In this program
there is no kneading or resting. The bread will be kept warm for nearly an hour after the
end of the baking operation. This prevents the bread from becoming too moist. To turn off
the warming function press the“ Start/Stop” button for 2 seconds, until one long audible
signal is heard. To switch off the appliance, disconnect the appliance from the power
supply.
MEMORY FUNCTION
If you have a power outage or disruption while using your appliance, the LCD display
will turn blank and the appliance will stop working. If power is resumed within 10
minutes of the outage, the appliance will start up and complete the program. If the outage
is longer than 10 minutes it will be necessary to unplug the unit, clean the contents of the
bread pan and start from the beginning. This does not apply, however, when you cancel or
stop the baking process by pressing the “Start/Stop” button for 2 seconds.
DELAYED TIME SETTING
The timer function enables delayed baking. If you want the appliance to not start working
immediately you can use this button to set the delay time. You must decide how long it
will be before your bread is ready by pressing the “Time ▲”. Please note the delay time
should include the baking time of program. That is, at the completion of delay time, there
is hot bread that can be served. At rst the program and degree of browning must be
selected, then pressing “Time ▲” to increase the delay time at increments of 10 minutes.
Maximum delay is 13 hours.
Example: Now it is 8:30 p.m., if you would like your bread to be ready in the next
morning at 7 o’clock, i.e. in 10 hours and 30 minutes. Select your menu, color, loaf size
then press the “Time ▲” to add the time until 10:30 appears on the LCD. Then press
the “Start/Stop” button to activate this delay program. You can see the dot ashed and
LCD will count down to show the remaining time. You will get fresh bread at 7:00 in the
morning, If you don’t want to take out the bread immediately, the keep warm time of 1
hour starts.
Note: Do not use the delayed time setting when working with perishable ingredients
such as eggs, milk, cream or cheese.
BEFORE BAKING BREAD
• Remove bread pan from appliance, before putting in the ingredients. If ingredients reach
the baking area, a re hazard may be caused by ingredients heating up on the heater
.
• Always put the ingredients in the stated order into the bread pan.
• All ingredients should be room temperature to maintain an optimal rising of the yeast.
• Measure the ingredients precisely. Even negligible deviations from the quantities
specied in the recipe may affect the baking results.
Note: Never use larger quantities than those specied. Too much dough can rise out
of the bread pan and drop onto the hot heating elements, causing a re hazard.
Continued on next page
5
English
BAKING BREAD
Read all safety instructions. Place the bread machine on an even and rm surface.
Note: The maximum quantities of our and yeast is 680g (1.5 lb.) recipes.
(1) Remove bread pan from appliance by turning to the left and lift.
(2) Push the kneading paddles onto the drive shafts in the bread pan. Make sure they are
rmly in place.
(5) Put the ingredients for your recipe in the stated order into the bread pan. First add the
liquids, sugar and salt, then the our, adding the yeast as the last ingredient. (Make
sure that yeast does not come into contact with salt or liquid for best results).
(6) Place the bread pan back into the appliance and twist right to lock.
(7) Close the appliance lid.
(8) Plug the power plug into the electrical outlet rated 120V. An audible signal sounds and
the display indicates the program number and the duration of the normal program.
(9) Program your settings or select a pre-program with the “MENU” button. Each input is
conrmed by an audible signal and shown on the LCD.
(10) Select the color of your bread. The marking on the display shows whether you have
chosen light, medium or dark.
(11) You now have the possibility of setting the nish time of your program via the
delay timer function. You can enter a maximum delay of up to 13 hours.
Starting a Program
After selecting desired program using MENU button, start the program using the “Start/
Stop” button. The program will automatically run various operations. Occasionally, condensation may occur during baking in the window. The appliance lid can be opened during kneading but DO NOT open the lid during baking, which can cause bread to collapse.
Ending a program
When the baking process has been completed, an audible signal is heard and the display
indicates 0:00. At the end of the program the appliance automatically changes to a warming mode for up to 1 hour. In this mode, warm air circulates inside the appliance. You can
turn off the warming function by keeping the “Start/Stop” button pressed until audible
signal is heard. Warning! Before opening the appliance lid, pull the power plug out of
the electrical outlet.
(11) Taking out the bread, always use pot holders or oven gloves. Hold the bread pan
tilted over a cooling rack and shake lightly until the bread slides out of the bread pan.
Do not use any metal objects that may lead to scratches on the non-stick coating. After
removing the bread, immediately rinse the bread pan with warm water. This prevents the
kneading paddles from sticking to the drive shaft.
Tip: Remove the kneading paddles after the last kneading of the dough and the bread will
remain whole when removed from bread pan. To do this, briey press the Start/Stop button, to interrupt the baking process or pull the power plug out of the wall socket. Open the
appliance lid and take out the bread pan. You can take the dough out with oured hands
and remove the kneading paddles.
Replace the dough and close the lid. Push the plug back
into the wall socket and press the “Start/Stop” button. The baking program is resumed.
Let the bread cool for 15-30 minutes before eating. Before cutting bread, make sure that
kneading paddle is not in the loaf.
Continued on next page
6
English
Warning! Do not attempt to start operating the bread maker, before it has either cooled
down or warmed up. If the display shows “H:HH” after the program has been started, it
means that the temperature inside of bread pan is too high. You should stop the program
and unplug the power plug immediately. Then open the lid and let the machine cool down
completely before using again. If the display shows “L:LL” after the program has been
started, it means that the temperature inside of bread pan is too low. You should place the
bread maker in a warmer environment.
Care and Cleaning Instructions
Care and Cleaning
Pull the power plug out of the wall socket each time and allow the appliance to cool
down. Protect the appliance against splashing water and moisture, as these could lead to
an electrical shock hazard. Please also observe all safety instructions.
Important: The parts and accessories of the appliance should not be washed in a
dishwasher.
Housing, Lid, and Baking area: Remove all particles left behind inside the baking area
using a wet cloth or a slightly wet sponge. Wipe the casing and the lid with a wet cloth
or sponge. Make sure that the inside area is fully dry. For easy cleaning, the appliance lid
can be removed from the housing:
• Open the lid part way to align right post on lid with slot on housing extensions and lift
by tilting to the right and up to remove.
• To attach the lid, insert the left hinge extension rst, then align right post with slot on
housing extension and push to insert.
Bread pan and kneading paddle: The surfaces of the bread pan and kneading paddle
have a non-stick coating. While cleaning, do not use any abrasive detergents, cleaning
powders or objects that may cause scratches on the surface. Due to moisture and vapor
the surface of various parts may undergo changes in their appearance over a period of
time. This does not affect the quality or functional performance of the appliance. Before
cleaning, take the bread pans and kneading paddles out of the baking area. Wipe the
outside of the bread pans with a damp cloth.
Never immerse the bread pan in water or other liquids. Clean the interior of the bread
pan with warm, soapy water. If the kneading paddle is incrusted and hard to release, ll
the bread pan with hot water for approx. 30 minutes. If the hole in the kneading paddle
is clogged, you can clean it carefully with a wooden skewer. Do not use any chemical or
abrasive cleaners to clean the appliance.
7
English
How to Convert a Bread Recipe to a Bread Machine Instructions
1. Know the capacity of your bread machine: 1 lb., 1.5 lb. or 2 lb. ll the bread pan
with water in one cup increments, keeping count of the number of cups the pan
holds. Assume a one-pound machine holds two to three cups, a one-and-a-half pound
machine holds three to four cups and a two pound machine holds four or more cups.
2. Reduce the amount of total our in your recipe to t into your bread machine. Look
at the amount of all the our used in the recipe, even if the recipe uses multiple grains
such as rye our, wheat our and rice our. Use no more than two cups of our in a
one pound machine, three cups of our in a one-and-a-half pound bread maker and
four cups of our in a two-pound machine.
3. Decrease the amounts of all other ingredients by the same proportion as you did the
our. For example, an original recipe requiring 6 cups of our converted to a onepound bread machine would reduce the our by 2/3. Decrease all other ingredients by
2/3, so 1 tbsp. (3 tsp.) of yeast would become 1 tsp. of yeast; 2/3 cup (about 12 tbsp.)
of warm liquid would become about 1/4 cup (about 4 tbsp.) of water and 3 tbsp. Sugar
would become 1 tbsp. of sugar.
4. Bring all the ingredients to room temperature, unless your recipe species otherwise.
5. Put the ingredients into the bread machine in the correct order: liquids, fats (butter or
oils), liquid milk, salt, sugar or sweetener, dried spices or seasonings, whole wheat
our, all other ours and yeast.
6. Replace all of the white our in the recipe with bread our or add one tbsp. of vital wheat
gluten to the recipe with the ours when putting the ingredients into the bread machine.
7. Plug in the machine and set it for a normal loaf.
8. Wait for your bread machine to do the work and listen for the timer to go off.
9. Let the bread cool for 10 minutes in the bread pan before turning the loaf onto a cooling rack
to cool completely before slicing. Enjoy a homemade loaf of warm bread.
Recipes
Wonderful White Bread (1.5 pound loaf)
Basic Bread is primarily used for white and mixed breads mainly consisting of wheat
our or rye our. The bread has a compact consistency.
Ingredients
* 1 1/4 cup water
* 2 tbsp butter or margarine
* 1 tsp salt
* 2 tbsp sugar
* 3 1/3 cup white bread our
* 2 tbsp powdered milk
* 2 tsp active dry or 1 1/2 tsp rapid rise yeast
Remove pan and insert mixing paddle.
Measure ingredients and place in pan in the order listed.
Press Menu button; Select Program #1
Press Crust Color button to the desired crust color.
Press the Start – Stop button or select the delayed start button.
8
English
Crusty French Bread (1.5 pound loaf)
Ingredients
* 2/3 cup water
* 2 tsp oil
* 2 tsp salt
* 1 1/2 tbsp sugar
* 3 1/4 cup white bread our
* 2 tbsp gluten our
* 2/3 cup water
* 3 1/2 tsp active dry or 3 tsp rapid rise yeast
Remove pan and insert mixing paddle.
Measure ingredients and place in pan in the order listed.
Press Menu button; Select Program #2
Press Crust Color button to the desired crust color.
Press the Start – Stop button or select the delayed start button.
Honey Whole Wheat Bread (1.5 pound loaf)
Ingredients
* 2/3 cup water
* 2 tbsp vegetable or canola oil
* 1/3 cup honey
* 1 1/2 tsp salt
* 3 1/4 cup + 3 tbsp whole wheat our
* 3 tbsp gluten our
* 2 tbsp powdered milk
* 2/3 cup water
* 3 tsp active dry or 2 tsp rapid rise yeast
Remove pan and insert mixing paddle.
Measure ingredients and place in pan in the order listed.
Press Menu button; Select Program #3
Press Crust Color button to the desired crust color.
Press the Start – Stop button or select the delayed start button.
Awesome Oat Bran Bread (1.5 pound loaf)
Ingredients
* 1/2 cup frozen apple concentrate, thawed
* 1 cup of water
* 1 1/2 tbsp butter or margarine
* 2 tbsp sugar
* 1 1/2 tsp salt
* 2 tbsp dry milk
* 3 cups white bread our
* 1/2 cup oat bran
* 3 tsp active dry or 2 1/2 tsp rapid rise yeast
Remove pan and insert mixing paddle.
Measure ingredients and place in pan in the order listed.
Press Menu button; Select Program #3
Press Crust Color button to the desired crust color.
Press the Start– Stop button or select the delayed start button.
9
English
Swiss cheese Bread (1.5 pound loaf)
Ingredients
* 1 1/4 cup water
* 1 tbsp butter or margarine
* 1 1/2 tbsp sugar
* 1 tsp salt
* 1 1/2 tsp hot mustard
* 1 1/2 tsp fennel seed
* 2 tbsp dry milk
* 3 cups white bread our
* 1/3 cup corn meal
* 1/2 cup grated Swiss cheese
* 2 tsp active dry or 1 1/2 tsp rapid rise
Remove pan and insert mixing paddle.
Measure ingredients and place in pan in the order listed.
Press Menu button; Select Program #4
Press Crust Color button to the desired crust color
Press the Start – Stop button or select the delayed start button
Perfect Pesto Bread (1.5 pound loaf)
Ingredients
* 1 cup water
* 1/3 cup pesto sauce
* 1 1/2 tbsp sugar
* 1 tsp salt
* 3 cups white bread our
* 1/3 cup wheat bran
* 2 tsp active dry or 1 1/2 tsp rapid rise
Remove pan and insert mixing paddle.
Measure ingredients and place in pan in the order listed.
Press Menu button; Select Program #4
Press Crust Color button to the desired crust color.
Press the Start – Stop button or select the delayed start button.
Loading...
