Manual
Nero Linux Express
Copyright and Trademark Information
Copyright and Trademark Information
This document, like the software described therein, is provided as a license and may only be used or reproduced in accordance with
the licensing agreement. The contents of this document, as well as the associated software, is subject to change without prior notice.
Nero AG rejects any responsibility for the correctness of the contents of this document and rejects any claims that transcend the
clauses of the guarantee agreement.
This document and all of its contents are protected by copyright and are the property of Nero AG. All rights reserved. In addition, this
document contains material that is protected by internationally valid copyright. This document may not be reproduced, transmitted, or
transcribed in whole or in part without the express written permission of Nero AG.
Please keep in mind that existing graphics, pictures, videos, music titles or other materials that you may wish to insert or transcribe
into projects may be protected by copyright. The unauthorized use of this type of material in your projects may violate the rights of
the owner of the copyright. Make sure that you obtain all necessary authorizations from the owner of the copyright.
Unless you own the copyright, have permission from the copyright owner or your actions fall under the "fair use" provisions of copyright law, you may be violating national or international copyright laws. The transcribing, duplication, modification or publication of
copyright-protected material may lead to claims for damages and the enforcement of other legal measures against you. If you are
unsure of your rights, you should contact your legal advisor.
Nero Linux Express requires technologies developed by third party manufacturers, some of which are contained in Nero Linux Express as demo versions. These applications can be activated online free of charge or by sending an activation fax to have unlimited
use of the version. Nero will only transmit the data necessary for activation of the technology licensed from third parties. For unlimited use of Nero Linux Express, it is therefore necessary to have an Internet connection or a fax machine.
Copyright © 2006 - 2009 Nero AG and its licensors. All rights reserved.
Nero, Nero Digital, Nero BackItUp, Nero Essentials, Nero Express, Nero ImageDrive, Nero LiquidTV, Nero MediaHome, Nero Recode, Nero RescueAgent, Nero ShowTime, Nero Simply Enjoy, Nero StartSmart, Nero Vision, InCD, Move it, PhotoSnap, the SecurDisc logo, Burn-At-Once, DNC Dynamic Noise Control, LayerMagic, Nero DMA Manager, SmartDetect, SmoothPlay, Superresolution, Nero Surround, Nero LiquidMedia, Nero MediaStreaming and UltraBuffer are trademarks or registered trademarks of Nero
AG.
Adobe, Acrobat, Acrobat Reader and Premiere are trademarks or registered trademarks of Adobe Systems, Incorporated. AMD Athlon, AMD Opteron, AMD Sempron, AMD Turion, ATI Catalyst and ATI Radeon are trademarks or registered trademarks of Advanced
Micro Devices, Inc. ATSC is a trademark of the Advanced Television Committee. ICQ is a registered trademark of AOL, LLC. Apple,
iPhoto, iPod, iTunes, iPhone, FireWire, and Mac are trademarks or registered trademarks of Apple, Inc. ARM is a registered trademark of ARM, Ltd. AudibleReady is a registered trademark of Audible, Inc. BenQ is a trademark of the BenQ Corporation. Blu-ray
Disc is a trademark of Blu-ray Disc Association. CyberLink is a registered trademark of CyberLink Corp. DLNA is a registered trademark of Digital Living Network Alliance. DivX and DivX Certified are registered trademarks of DivX, Inc. Dolby, Pro Logic and the
double-D symbol are trademarks or registered trademarks of Dolby Laboratories, Inc. DTS and DTS Digital Surround are registered
trademarks of DTS, Inc. DVB is a registered trademark of the DVB Project. Freescale is a trademark of Freescale Semiconductor,
Inc. Google and YouTube are trademarks of Google, Inc. WinTV is a registered trademark of Hauppauge Computer Works, Inc.
Intel, Intel XScale, Pentium and Core are trademarks or registered trademarks of Intel Corporation. Linux is a registered trademark
of Linus Torvalds. Memorex is a registered trademark of Memorex Products, Inc. ActiveX, ActiveSync, DirectX, DirectShow, Internet
Explorer, Microsoft, HDI, MSN, Outlook, Windows, Windows Mobile, Windows NT, Windows Server, Windows Vista, Windows Media, Xbox, Xbox 360, the Windows Vista start button and the Windows logo are trademarks or registered trademarks of Microsoft
Corporation. My Space is a trademark of MySpace, Inc. NVIDIA
of NVIDIA Corporation. Nokia is a registered trademark of Nokia Corporation. CompactFlash is a registered trademark of SanDisk
Corporation. Sony, Memory Stick, PlayStation, PLAYSTATION and PSP are trademarks or registered trademarks of Sony Corporation. HDV is a trademark of Sony Corporation and Victor Company of Japan, Limited (JVC). UPnP is a registered trademark of the
UPnP Implementers Corporation. Labelflash is a registered trademark of Yamaha Corporation.
The trademarks mentioned here are named for information purposes only. All trade names and trademarks are the property of their
respective owners.
Nero AG, Im Stoeckmaedle 13-15, D-76307 Karlsbad, Germany
, GeForce and ForceWare are trademarks or registered trademarks
Nero Linux Express
Table of Contents
1 Start Successfully 5
1.1 About Nero Linux Express 5
1.2 Enter Serial Number 5
1.3 About the Manual 5
1.4 Versions of Nero Linux Express 6
1.5 Working With the Application 6
2 Start Screen 8
2.1 Extended Area (Start Screen) 8
3 Compiling Data Disc 10
4 Music 11
4.1 Compiling Audio CDs 11
4.2 Copy Audio CDs to Hard Drive 12
4.3 Encoding Options 14
5 Compiling DVD-Videos 16
Table of Contents
6 Loading a Disc Image or Saved Project 18
7 Burn Compilation 19
7.1 Choice of Burner 19
7.2 Starting the Burn Process 19
7.3 Final Burn Settings Screen 20
7.3.1 Extended Area (Burn Settings) 21
7.4 Creating an Image File 22
8 Copying a Disc 24
8.1 Methods of Copying 24
8.1.1 On-the-fly Copying 24
8.1.2 Copy Over Image 24
8.2 Copying a Disc 25
8.3 Copy Settings 27
9 Erase Rewritable Disc Window 29
10 Final Screen 31
11 Configuration Options 32
11.1 Expert Features 33
12 Technical Information 34
12.1 System Requirements 34
12.2 Formats Supported 34
12.2.1 Disc Formats 34
12.2.2 Disc Types 34
12.2.3 Audio Formats and Codecs 34
Nero Linux Express III
Table of Contents
13 Glossary 35
14 Index 37
15 Contact 38
Nero Linux Express IV
1 Start Successfully
Nero Linux Express provides all the performance and efficiency of Nero Linux with a simplified user interface. Whether you are a beginner or an expert, Nero Linux Express guides you
quickly and easily through your desired burning tasks. The default settings are selected to
automatically produce the best possible results. Using the program is remarkably easy: simply select the project to be burned, add the files, and start burning.
Nero Linux Express is therefore the burning solution for the Linux community.
Installation
Nero Linux Express is installed together with Nero Linux. For more information
on how to install Nero Linux please refer to the documentation of Nero Linux
which can be downloaded free of charge from www.nero.com
1.2 Enter Serial Number
Start Successfully
ss 1.1 About Nero Linux Expre
.
By opening Nero Linux or Nero Linux Express for the first time, you have to enter your name
and serial number in order to activate the program. The activation will be valid for both applications.
However, you always have the option of entering a new serial number in the program afterwards.
1.3 About the Manu
This manual is intended for all users who want to learn how to use Nero Linux Express. It is
process-based and explains how to achieve a specific objective on a step-by-step basis.
To make best use of this documentation, please note the following conventions:
1. Start …
al
Indicates warnings, preconditions or instructions that have to be precisely followed.
Indicates additional information or advice.
The number at the beginning of a line indicates a prompt for action.
Carry out these actions in the order specified.
Indicates an intermediate result.
Indicates a result.
OK
Indicates text passages or buttons that appear in the program interface. They are shown in boldface.
Nero Linux Express 5
Start Successfully
(see…)
[…]
Indicates references to other chapters. They are executed as links
and are shown in red and underlined.
Indicates keyboard shortcuts for entering commands.
1.4 Versions of Nero Linux Express
Nero Linux Express is available in versions with different features. In addition to the full Nero
Linux Express version, there are other versions with restricted features.
Nero Linux Express Essentials does not offer the following features:
Blu-ray (not included in standard functionality)
Support of freedb (not included in standard functionality)
Encoding files (not included in standard functionality)
Ripping Audio CD (not included in standard functionality)
Playlist support (not included in standard functionality)
Burning an Audio CD (not included in standard functionality)
Burning a DVD-Video (not included in standard functionality)
Advanced options
Command line support
Creating a disc image (Nero Image Recorder)
Full ISO and UDF support
In addition, the encoding and decoding formats in Nero Linux Express Essentials are restricted.
1.5 Working With the Applicatio
Basically, the user interface of Nero Linux Express consists of the selection of a compilation
method in the start screen. You then complete the task by navigating through the different
steps where a separate window is displayed for each individual step. This generally requires
four steps:
Choose compilation type
Select what you would like to do by moving the cursor over the menu item and clicking one
of the tasks displayed. This manual contains a chapter for each task that describes all of the
steps required for its completion.
Completing a task
Depending on the task you will have to go through various steps until you reach the end.
Each individual step consists of a new screen.
Nero Linux Express 6
n
Start Successfully
Burning a compilation
Burning marks the end of the procedure. To burn, set the burn parameters and click the
Burn button. Depending on the type of the task you are working on and the recorder connected to the system, a number of different entries are available for selection.
Options after burning
After burning is complete, you can decide what to do next: select the option to continue
working with Nero Linux Express or exit the program.
Nero Linux Express 7
2 Start Screen
The main screen in Nero Linux Express is the starting point for all actions. Click here on the
relevant menu icons to go to the desired screen where you can compile and work on your
project.
Click the
tional options and features.
button in the left margin of the window to display an extended area with addi-
Start Screen
The following compilation methods are available:
Data
Music
Video/Pictures
Image, Project,
Copy
The actual entries that are available and the actual disc types (e.g. DVD) to
which can be written depend on the used recorder.
Allows you to compile and burn all types of files and folders.
Creates a standard Audio CD that will play on all CD players.
Creates a Video-DVD from video files.
Allows you to copy a source disc and to load an image file or a saved
project.
2.1 Extended Area (Start Screen)
You can access the additional options and features in the extended area of the start screen
by clicking the
all Nero Linux Express screens.
button in the left margin of the window. The extended area is available in
Nero Linux Express 8
The following menu icons are available:
s the Options window in which you can customize Nero Linux
Options
Open
Express to suit your requirements.
Start Screen
Copy Audio CD
Tracks
Erase Disc
Disc Info
Recorder
Some of the functions mentioned here are only available in the full version. You
can always upgrade your Essentials version at www.nero.com
version with all the functions.

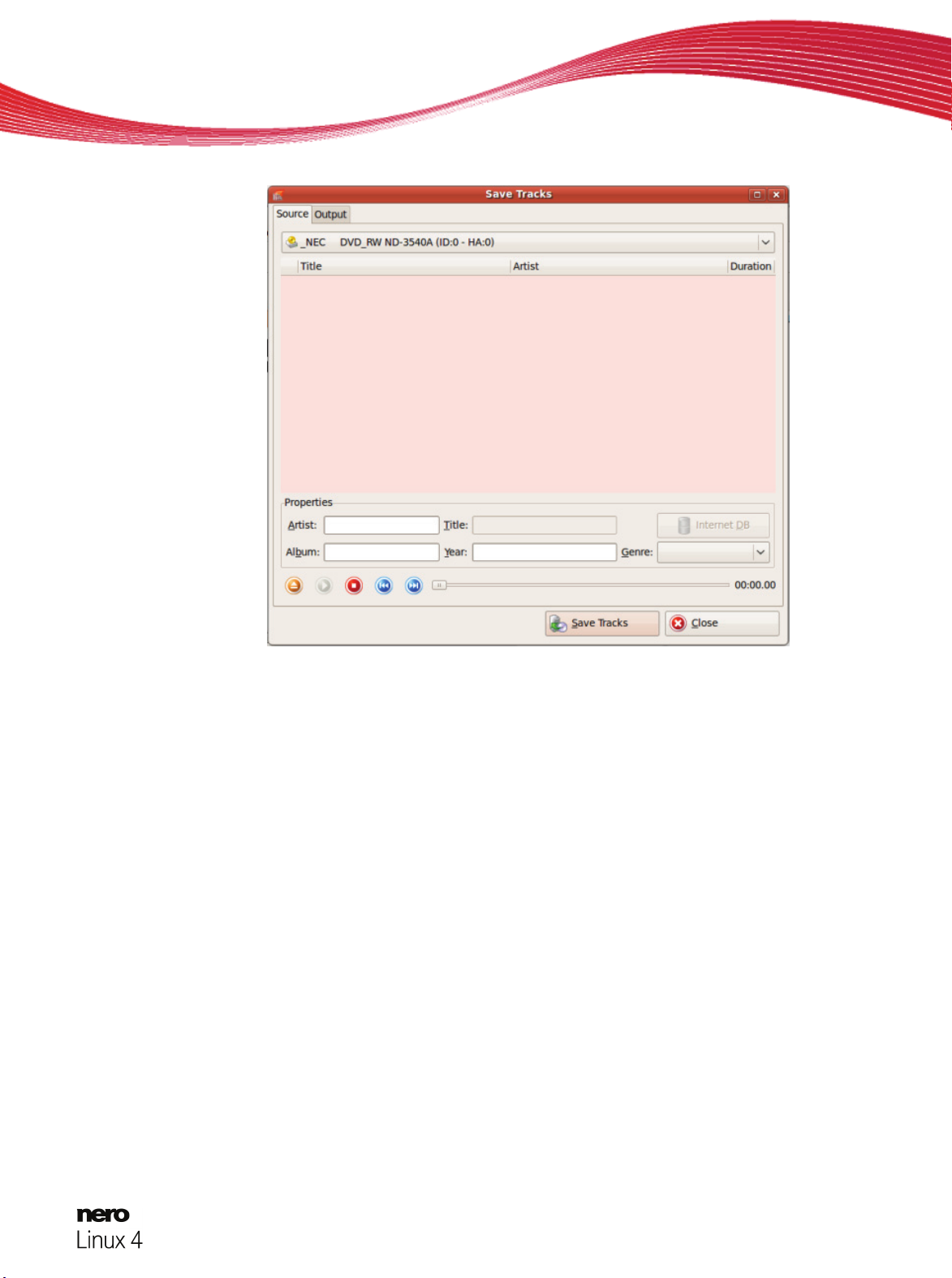

Opens the Save Track window in which you can copy audio files
from Audio CD to the hard drive.
Opens the Erase Rewritable Disc window in which you can erase
data from a rewritable CD/DVD.
Opens the Disc Info window in which you can display information
about the inserted CD/DVD. The total capacity and available capacity are displayed, in addition to the tracks and sessions.
Defines the recorder that you want to use for burning and/or the Nero Image Recorder.
to get the full
Nero Linux Express 9
Compiling Data Disc
c 3 Compiling Data Dis
With Nero Linux Express you can compile and burn all types of files and folders. If a DVD
recorder is installed on your computer, you can burn both data CDs and data DVDs. If you
have a CD recorder, you can only burn data CDs and the option for burning a DVD is already
grayed out in the start screen.
Creating and burning a Blu-ray Disc is only available in the full version. You can
always upgrade your Essentials version at www.nero.com
with all the functions.
To create a data disc, proceed as follows:
1. Click the Data menu icon in the Nero Linux Express start screen.
The data disc options are displayed.
2. Click the option you require: Data CD, Data DVD, or Data Blu-ray Disc.
The Disc Content compilation screen for data discs is displayed.
to get the full version
3. Click the Add button.
The Add files and folders window is opened.
4. Select the files that you want to add to the compilation and click the Add button.
5. Repeat the previous step for all files that you want to add.
6. Click the Close button.
The files are added to the compilation and displayed in the compilation screen.
7. Click the Next button.
You have successfully compiled a data disc and can now burn this compilation.
Nero Linux Express 10
4 Music
4.1 Compiling Audio CDs
Some of the functions mentioned here are restricted or not available in the Essentials version. You can always upgrade your Essentials version at
www.nero.com
With Nero Linux Express you can create an Audio CD that contains music files. It can be
played using all standard CD players. To compile an Audio CD, source files with different
audio formats are automatically converted into Audio CD format before being burned.
to get the full version with all the functions.
Music
Some CD players cannot play CD-RWs. Use CD-R
The encoding and decoding formats in the Essentials version are limited. You
can always upgrade your Essentials version at www.nero.com
version with all the functions.
To create an Audio CD, proceed as follows:
1. Click the Music menu icon in the Nero Express start screen.
The compilation methods for music are displayed.
2. Click the Audio CD button.
The My Audio CD compilation screen for Audio CDs is displayed.
discs to burn Audio CDs.
to get the full
My Audio CD compilation screen
Nero Linux Express 11
3. Click the Add button.
The Add files and folders window is opened.
4. Select the audio files that you want to add to the compilation and click the Add button.
5. Repeat the previous step for all audio files that you want to add.
6. Click the Close button.
The audio files are added to the compilation and displayed in the compilation screen.
7. Customize the properties of the audio files to suit your requirements.
8. Click the Next button.
You have successfully compiled an Audio CD and can now burn this compilation.
ve 4.2 Copy Audio CDs to Hard Dri
Some of the functions mentioned here are restricted or not available in the Essentials version. You can always upgrade your Essentials version at
www.nero.com
With Nero Linux you can save audio files from an Audio CD on the hard drive. In the process, the files are encoded, i.e. converted into a format that the computer can read. The audio
file is usually compressed.
The Audio CD can be automatically identified with freedb. That way you have audio files that
are accurately and fully named after the encoding process.
to get the full version with all the functions.
Music
Internet Database freedb.org
Nero AG is not responsible for the www.freedb.org website, but just provides an
interface to it.
Audio files from copy-protected Audio CDs cannot be saved.
The encoding and decoding formats in the Essentials version are limited. You
can always upgrade your Essentials version at www.nero.com
version with all the functions.
To save audio files, proceed as follows:
1. Click the Save Tracks button in the extended area of the screen.
The Save Tracks window is opened. The Audio CD content is displayed.
to get the full
Nero Linux Express 12
Music
Save tracks
2. If you want the metadata to be filled out automatically, click the Internet DB button.
The disc is analyzed and the required information is sent to freedb. If a matching entry is
found then that metadata will be used and displayed.
3. If necessary, edit the metadata (title, artist, album title, year, genre).
4. Click the Output tab.
The Output tab is opened.
5. Select the target file's audio format in the File Format drop-down menu
6. Select a method for creating the file name in the File name creation mode drop-down me-
nu.
7. Define other settings according to your preferences.
8. Click the Save Tracks button.
Conversion starts. A folder with the name of the album is created inside the desired fol-
der. The audio files are saved in this folder and named according to the method you
chose.
If you had chosen the file name creation mode Manuel, a window is opened for every
track in which you can enter the individual name.
The Progress window indicates the saving progress. When the save process is com-
plete, this window closes automatically.
Nero Linux Express 13
9. Click the Close button.
The Save Tracks window is closed. You have saved your audio files.
4.3 Encoding Options
Nero Linux Express can encode audio files in different formats.
This function is only available in the full version. You can always upgrade your
Essentials version at www.nero.com
Set options in the respective window that you can open via the Settings button. Settings are
available for the MP3, Nero Digital Audio, OGG Vorbis, and WAV output file format.
Music
to get the full version with all the functions.
The following setting options are available:
Drop-down menu
Sample Rate
Specifies the scan rate per second and thus determines the frequency of scanning. The higher the frequency, the more frequently
scanned.
Drop-down menu
Encoder quality
Specifies the encoder quality. Fast and Highest are available. These settings specify whether you place more value on fast encoding
(Fast) or more value on a superior psychoacoustic encoder model
for the very best results (Highest).
Only available for MP3.
Drop-down menu
Constant Bit Rate
Selects a constant bit rate, i.e. the data flow per unit of time and the
quality of the saved data are the same over the entire audio file. If
the bit rate is small, less data is transferred. The file is then small,
but quality is lower. If the bit rate is high, more data is transferred.
The file size is then large, but the quality is high.
Not available for WAV Encoder.
MP3 Configuration options
Nero Linux Express 14
Music
Drop-down menu
Variable Bit Rate
Drop-down menu
Bits
Option buttons
Stereo / Mono
Selects variable bit rate, i.e. the data flow per unit of time - and thus
the quantity of the saved data - adapts to the dynamics of the audio
file. The bit rate, for example, can be lowered at quieter points in the
track.
Select your desired quality level in the drop-down menu.
Not available for WAV Encoder.
Specifies the scan accuracy and thus determines the quality of the
individual scanner. The higher the bit sign, the more accurate.
Only available for WAV Encoder.
Specifies which channels are recorded.
Nero Linux Express 15
5 Compiling DVD-Videos
This function is only available in the full version. You can always upgrade your
Essentials version at www.nero.com
With Nero Linux Express you can burn DVDs made up of DVD-Video files from your hard
drive. You can show your burned DVDs on almost all DVD players. You can use Nero Linux
Express to burn a DVD if the DVD video title, i.e. a complete DVD folder structure, is already
available.
To compile a DVD-Video, proceed as follows:
1. Click the Videos/Pictures menu icon in the Nero Linux Express start screen.
The video options are displayed.
You can also create a miniDVD. The miniDVD is burned to CD. It uses the specification of a DVD and therefore has the same technical options and qualities
as a DVD. However, playback is not guaranteed on all standalone DVD players.
2. Click the DVD-Video Files option.
The DVD-Video files compilation screen is displayed.
Compiling DVD-Videos
to get the full version with all the functions.
DVD-Video files compilation screen
3. Click the Add button.
The Add files and folders window is opened.
4. Select the DVD-Video files that you would like to add to the compilation and click the Add
button.
Nero Linux Express 16
Compiling DVD-Videos
5. Repeat the two previous steps for all DVD-Video files that you want to add to the compila-
tion.
6. Click the Close button.
The DVD-Video files are added to the compilation and are displayed in the compilation
screen.
If the DVD-Video files selected are larger than 4483 MB and if a DVD recorder
which can burn DVDs with 2 layers (DVD DL) is installed, you can select the
DVD9 (8152MB) option in the drop-down menu.
7. Click the Next button.
You have successfully compiled a DVD-Video and can now burn this compilation.
Nero Linux Express 17
Loading a Disc Image or Saved Project
ct 6 Loading a Disc Image or Saved Proje
With Nero Linux Express you can burn a disc from a disc image or compilation that you have
previously saved on the hard drive.
To load an image file or a saved compilation for the burn process, proceed as follows:
1. Click the Image, Project, Copy menu icon in the Nero Linux Express start screen.
The copy and disc image options are displayed.
2. Click the Disc Image or Saved Project option.
The Open dialog window is opened.
3. Select the image file (*.nrg, e.g.) or saved compilation you want and click the Open button.
The selected file loads and the Final Burn Settings screen is displayed.
You have successfully loaded the image file or compilation and can now burn it.
Nero Linux Express 18
7 Burn Compilation
er 7.1 Choice of Burn
If multiple recorders are installed, you can select the recorder that you want to use for burning from the Recorder drop-down menu. Immediately before burning a project, you can
change the recorder you selected again in the Final Burn Settings window.
Creating and burning a Blu-ray Disc is only available in the full version. You can
always upgrade your Essentials version at www.nero.com
with all the functions.
In addition to the installed recorders, Nero Image Recorder is also available in Nero Linux
Express. Nero Image Recorder can be used to create and save an image file to burn later. In
order to use Nero Image Recorder, you can select the Use Nero Image Recorder check
box in the extended area of the start screen.
The Image Recorder is only available in the full version. You can always upgrade your Essentials version at www.nero.com
the functions.
Burn Compilation
to get the full version
to get the full version with all
Please note that Nero Image Recorder can only be activated in the extended
area of the start screen.
The Image Recorder is also suitable for creating an image of a disc type not
supported by the connected recorder. For example, you can therefore create a
DVD image without having installed a DVD recorder. You can then write the
image to a disc at any time.
7.2 Starting the Burn Process
To select one of the available recorders, to define the burn settings for your project according to your requirements, and to start the burn process, proceed as follows:
1. Compile a project of your choice.
The Final Burn Settings screen is displayed.
2. Insert a suitable blank disc in the selected drive.
3. Select the recorder you want from the Recorder drop-down menu.
4. Add to the desired values in the input fields as necessary and select the required check bo-
xes.
5. Add to the desired settings in the extended area.
Nero Linux Express 19
Burn Compilation
6. Click the Burn button.
The Burn Process screen is displayed and the burn process starts. You can follow the
process status in the status bar. As soon as the burn process has finished, a window is
opened and displays a message about the result of the burn process.
7. Click the OK button.
8. If you would like to save a log of the burn process, click the Save button.
9. Click the Next button.
You have successfully burned a project and can now continue by selecting another op-
tion from the final screen or by exiting Nero Linux Express.
n 7.3 Final Burn Settings Scree
In the Final Burn Settings screen you can define the burn settings to suit your requirements, use Nero Image Recorder to save a project to the hard drive as an image file, or start
the burn process.
Final Burn Settings screen
The following configuration options are available in the Final Burn Settings screen:
Button
Options
Opens the Recorder Information window. You will find additional
information here on the selected recorder and the media types that
can be burned with it. Additional options can be enabled/disabled.
In some recorders you can change the Book Type
Not available when saving with Nero Image Recorder.
Nero Linux Express 20
settings.
Burn Compilation
Input field
Defines the name of the disc.
Disc name
Input field
Defines the title of the Audio CD if CD Text is supported.
Title (CD TEXT)
Input field
Defines the artist on the Audio CD.
Artist (CD TEXT)
Input field
Number of copies
Check box
Verify data on disc
after burning
Defines the number of copies you require.
Not available when saving with Nero Image Recorder.
Compares the burned data to the original data. With compilations of
multisession
discs, only the data that was added during the last
burn process is compared.
Not available when saving with Nero Image Recorder.
Check box
Allow files to be
added later (multisession disc)
Enables the option to write additional files to the disc. The disc is
not finalized. Multisession discs do not have to be written in a single
burn process. You can burn projects repeatedly to a disc until it is
completely burned.
Only available for data discs.
7.3.1 Extended Area (Burn Settings)
You can access additional burn settings in the extended area of the Final Burn Settings
screen by clicking the
button in the left margin of the window.
An extended area with additional options and features is available in all Nero
Linux Express screens.
The following setting options are available:
Button
Saves the active project
Selection list
Writing speed
Opens the Save As dialog box.
You can save your compilation here.
Defines the speed at which the disc is burned. Only the burn
speeds that are supported by the selected recorder are displayed.
Not available when saving with Nero Image Recorder.
Selection list
Write method
Defines the Disc-at-once or Track-at-once write method.
Using the disc-at-once
without the write laser having to stop. With the track-at-once
method the laser turns off after each track.
Available for CD compilations only. By default DVDs are burned using the disc-at-once method.
method the entire disc can be burned
Nero Linux Express 21
Burn Compilation
Check box
Determine maximum
speed
Check box
Simulation
Check box
Write
7.4 Creating an Image File
This function is only available in the full version. You can always upgrade your
Essentials version at www.nero.com
Checks how fast the compiled data can be accessed and reduces the selected writing speed if necessary. This prevents
a buffer underrun
Recorders with a feature to prevent buffer underruns do not
require a speed test.
Not available when saving with Nero Image Recorder.
Performs all steps in the burn process without using the laser
beam. We recommend running a simulation if you are decompressing data before burning, e.g. when burning an
Audio CD
is successful, the burn process will also be successful.
Not available when saving with Nero Image Recorder.
Starts the actual physical burn process (e.g. after a simulation).
This box is checked by default.
from MP3 files. You can assume that if simulation
.
to get the full version with all the functions.
Nero Image Recorder must be activated before it appears in the drop-down
menu.
To set the burn settings according to your requirements and to save your project as an image file to the hard drive using the Image Recorder, proceed as follows:
1. Compile a project of your choice.
The Final Burn Settings screen is opened.
2. Select the Image Recorder option from the Current Recorder drop-down menu.
3. Add to the required values in the input fields.
4. Add to the required settings in the extended area as necessary.
5. Click the Burn button.
The Burning Process screen is displayed and the Save Image File dialog box is ope-
ned.
6. Enter a name for your image file in the File Name input field.
7. Select the desired storage location in the navigation tree and click the Save button.
The burn or save process starts. You can follow the process status in the status bar. As
soon as the burn or save process is finished, a window is opened and displays a message about the result of the burn process.
Nero Linux Express 22
Burn Compilation
Burn progress window
8. Click the OK button.
9. If you would like to save a log of the burn process, click the Save button.
10. Click the Next button.
You have successfully saved a project with Nero Image Recorder and can now continue
by selecting another option from the final screen or by exiting Nero Linux Express.
Nero Linux Express 23
c 8 Copying a Dis
8.1 Methods of Copying
Nero Linux Express can be used for copying discs. There are two methods for this:
On-the-fly
Copy Over Image
Each method has advantages and disadvantages which will depend on your requirements.
8.1.1 On-the-fly Copying
When using the on-the-fly method, insert the original disc into a drive and a recordable disc
into the drive. The original disc in the drive is copied immediately without any time delay to
the blank disc in the recorder. The on-the-fly method allows you to copy discs very quickly,
and does not require any additional space on the disc.
In order to be able to use the on-the-fly method, you will need at least two drives: one for
reading the disc and a disc burner for writing. The following requirements apply to the read
drive and disc burner:
Copying a Disc
The disc burner must feature buffer underrun protection, or the drive must be capable of
delivering the data sufficiently quickly. The read speed should be at least twice as fast as
the write speed.
The read drive must be capable of delivering information on the number and type of ses-
sions, otherwise Nero Linux Express may not be able to produce an exact copy.
If you want to copy Audio CDs, we recommend the copy image method because the quality
of the read audio files can suffer depending on the drive.
8.1.2 Copy Over Image
With the copy over image method, an image of the original disc is saved to a file first. The
image file is then burned to a blank disc. Copying using copy over image takes longer, but it
often produces better results.
You must have sufficient storage space to use the copy over image method.
The copy over image method is particularly suitable in the following situations:
Only one drive is available.
You would like to make several copies of the same disc.
You think it likely that read errors may have occurred on the source CD (for example be-
cause it is scratched).
You attach importance to the best possible reproduction (particularly in relation to index
positions and the quality of Audio CDs).
Nero Linux Express 24
8.2 Copying a Disc
The Image Recorder is only available in the full version. You can always upgrade your Essentials version at www.nero.com
the functions.
Creating and burning a Blu-ray Disc is only available in the full version. You can
always upgrade your Essentials version at www.nero.com
with all the functions.
If you are not in possession of the copyright for the relevant CD/DVD and do
not have authorization from the owner of the copyright, unauthorized copying of
CDs violates national and international legislation.
Some CDs/DVDs are copy-protected and cannot be copied. If you are not sure
whether your CD/DVD can be copied, activate simulation before commencing
the actual physical burn process.
To copy a disc, proceed as follows:
1. Click the Image, Project, Copy menu icon in the Nero Linux Express start screen.
The corresponding copy options are displayed.
Copying a Disc
to get the full version with all
to get the full version
2. Click the option you require, Copy Entire CD, Copy Entire DVD, or Copy Entire Blu-ray
Disc.
The Select source and destination screen is displayed.
Source and Destination
Nero Linux Express 25
Copying a Disc
3. Make the desired settings in this screen and, if required, in the extended area of the window.
4. If you want to copy discs using the Image Copy method:
1. Clear the Quick copy box.
2. Insert the disc that you want to copy into the recorder.
5. If you want to copy discs using the on-the-fly method:
1. Select the Quick copy check box.
2. Select the Source drive and the Destination drive.
3. Insert the disc that you want to copy into the selected drive.
4. Insert a blank disc into the target drive.
6. Click the Copy button.
If you are copying via the drive, the copy process starts. If you are using Nero Image Re-
corder, the Save Image File window is opened.
7. Enter a name for your image file in the File Name input field.
8. Select the relevant storage location in the Save to navigation tree and click the Save button.
The copy and/or save process starts. You can follow the process status in the status bar.
If you are using a single drive for copying, you will be prompted to remove the source
disc and to insert a suitable blank disc after the image file has been written. The burn
process then starts automatically.
9. Click the Next button.
You have successfully copied a disc and can now continue by selecting another option
from the final screen or by closing Nero Linux Express.
Nero Linux Express 26
8.3 Copy Settings
Copying a Disc
Source and Destination screen
The following configuration options are available in the Source and destination screen:
Selection list
Source drive
Selection list
Destination drive
Button
Options
Check box
Quick Copy
Selection list
Write speed
Input field
Number of copies
Defines the drive from which the source information is read.
Insert the CD or DVD that you want to copy into the drive.
Creates the destination drive.
Insert a blank disc into this drive.
Opens the Recorder Information window.
This contains information on the selected destination drive.
Enables direct copying from the source to the destination
drive. Data is not buffered on the hard drive during this process.
The option On-the-fly
drives connected (does not apply for Nero Image Recorder).
If this check box is not selected, an image file will be created
first, which is then burned.
Defines the speed at which the disc is burned. Only the burn
speeds that are supported by the selected recorder are displayed.
Not available for Nero Image Recorder.
Defines the number of copies you require.
is only available if there are at least two
Nero Linux Express 27
Copying a Disc
Check box
Verify data on disc after
burning
Button
Image file
The following configuration options are available in the extended area:
Check box
Read all subchannel
data
Check box
Determine maximum
speed
Check box
Simulation
Check box
Write
Verifies whether the burned data is identical to the original
data.
Not available for Nero Image Recorder.
Defines the folder where the image file is stored. You can
change the name of the image file and target folder.
Not available for Nero Image Recorder.
Reads all subchannel data during copying.
Subchannel data is used to save additional information, e.g.
CD Text.
Finds out the maximum burn speed.
Not available for Nero Image Recorder.
Performs all steps in the burn process without using the laser
beam. You can assume that if simulation is successful, the
burn process will also be successful.
Not available for Nero Image Recorder.
Starts the actual physical burn process (e.g. after a simulation).
This check box is selected by default.
Nero Linux Express 28
Erase Rewritable Disc Window
w 9 Erase Rewritable Disc Windo
Nero Linux Express can be used to erase rewritable discs, i.e. discs with the RW specification, as long as your recorder supports this feature. Two erase methods are available for this
purpose:
Quick erasing does not remove the data physically from the disc, but instead only makes it
inaccessible by erasing the references to existing content. The data can be restored!
Full erasing removes the data from the disc by overwriting it with zeroes. The contents cannot be restored with conventional methods. Repeated full erasing increases the probability
that third parties will not be able to reconstruct the contents.
Erase Rewritable Disc window
The following configuration options are available in the Erase Rewritable Disc window:
Selection list
Select recorder
Selection list
Select the erase method to be used
Defines the desired recorder.
Defines the erase method. Two options are available:
The Quick-erase rewritable disc method does not physically
erase all data from the disc, but only the references to the contents. The disc will appear to be empty even though the data is
still physically available. Erasing a disc using this method takes
between one and two minutes.
The Full-erase rewritable disc method physically erases all
data from the disc. The contents cannot be restored with conventional methods. Repeated full erasing increases the probability that third parties will not be able to reconstruct the contents. Erasing the disc using this method takes longer than the
other method, depending on the type of disc involved.
Nero Linux Express 29
Erase Rewritable Disc Window
Selection list
Erase speed
Button
Erase
Button
Cancel
Defines the erase speed.
Starts the erase process.
Cancels the action and closes the window.
Nero Linux Express 30
10 Final Screen
Once you have successfully concluded the burn or save process with Nero Linux Express,
the final screen is displayed with the options Burn same project again, New project, and
Save Project. You can select one of these options to continue working with Nero Linux Ex-
Final Screen
press or you can click the
The following setting options are available:
Entry
Burn the same
project again
Entry
New project
Entry
Save project
Returns to the Final Burn Settings screen.
You can burn the same project again with the same or different settings.
Opens the Nero Express start screen.
You can create a new project here.
Opens the Save As window.
You can save the current project if you want to access it again later.
button to exit the program.
Nero Linux Express 31
11 Configuration Options
You can define options for working with Nero Linux Express in the Options window.
Some of the functions mentioned here are only available in the full version. You
can always upgrade your Essentials version at www.nero.com
version with all the functions.
Configuration Options
to get the full
Options Window
The following tabs are available:
Compilation
Cache
Sounds
Audio
Expert Features
Contains options for the compilation and the selection screen.
Contains options for the cache.
Contains selection options for sounds in connection with burn tasks.
Displays the directory for the audio plug-ins.
Contains options for configuring overburning and burning.
We recommend that you retain the default settings.
Nero Linux Express 32
Configuration Options
Audio CD Database
Ultrabuffer
System Configuration
Misc.
11.1 Expert Features
The following configuration options are available on the Expert Settings tab:
Check box
Enable Disc-at-once CD overburning
Option button
Relative/Absolute maximum
overburning size
Check box
Enable DVD overburning
Provides the option to use the Internet database.
Defines the size of the RAM buffer.
Allows the system settings to be checked when the program is started.
Contains options for configuring compilations, burning, the database, the user interface, as well as advanced settings.
Enables additional options and defines settings for the
entire burn process.
Defines how much a disc can be overburned.
Enables the option that DVDs can be overburned.
Check box
Enable generation of short
lead-out
Check box
Do not eject disc after burning
Check box
Reload the disc after the burn
is complete
Check box
Allow to disable finalizing for
burning a disc image
Check box
Enable all supported recorder
formats for image recorder
Enables the option to write additional data to your CD.
This feature is only available if the Enable Disc-at-
once CD overburning option is enabled.
Enables the option that your disc remains in the recorder and is not ejected when the burn process is finished.
Enables the option that the disc is automatically reloaded after the burn process.
Disables finalizing when an image file is saved.
Enables the option that all supported recorder formats
for the Image Recorder are available.
It is now possible to create compilations that the installed recorder cannot burn. For instance, you can
create a Blu-ray compilation without a Blu-ray recorder
and create an image file with Nero Image Recorder.
Nero Linux Express 33
12 Technical Information
12.1 System Requirements
Nero Linux Express is installed together with Nero Linux. Its system requirements are the
same. You can find more detailed information on the system requirements in the Nero Linux
manual.
12.2 Formats Supported
12.2.1 Disc Formats
Audio CD
miniDVD
DVD-Video
Nero Image (NRG)
CUE-Image
ISO-Image
Technical Information
12.2.2 Disc Types
CD
DVD
Blu-ray - burning only
The actual entries that are available and the actual disc types (e.g. DVD) to
which can be written depend on the used recorder.
12.2.3 Audio Formats and Codecs
MP3 / mp3PRO
Moving Picture Experts Group-1 Audio Layer 3 (MP3)
OGG Vorbis (OGG, OGM)
Resource Interchange File Format WAVE (WAV, WAVE)
Free Lossless Audio Codec (FLAC)
Musepack (MPC) - only decoding
Nero Linux Express 34
13 Glossary
AIFF
The Audio Interchange File Format is an uncompressed audio file format from Apple® and
represents a sort of counterpart to the WAV format from Microsoft. Files are larger than
when using a compressed format, but the quality is higher. AIFF compressed is the compressed variation.
Audio CD
An Audio CD can contain up to 74 minutes of audio sequences and individual tracks in hi-fi
quality. The storage capacity is 747 MB at a sample depth of 16 bit and a scan rate of 44.1
kHz.
Block
A block refers to the smallest information unit on a CD-ROM or hard drive that is addressable in one access and that is indicated in bits or bytes. Several blocks are combined into a
sector.
Book Type
The book type defines the specification (e.g. DVD-, DVD+, DVD-ROM) of a DVD. In order to
ensure correct playback, the DVD specifications are defined in books so that all media can
be read correctly. The specifications are defined in the so-called Rainbow Books, which are
distinguished by means of their color (e.g. Yellow Book).
Glossary
Buffer Underrun
A buffer underrun is an interruption in the data flow in the internal memory (e.g. of the recorder). A buffer underrun results from an interruption in the data flow to the internal buffer.
The buffer continues to deliver data until it is finally empty. When recording, data is fed continuously to the recorder's buffer in order to keep a steady flow of data. If the steady flow of
data is interrupted, the media becomes unusable. Most modern recorders have a protective
mechanism against buffer underruns.
CD-R
Compact Disc-Recordable is a technology for write-once media. The Orange Book standard
defines the storage of audio data and other computer-readable data.
Disc-At-Once
Disc-At-Once refers to a method in which the laser in your recorder burns straight through in
one session without turning off and on between each track. This method is best when recording Audio CDs you would like to play in your home or car stereo.
An image refers to a single file on the hard drive that contains the image of a complete disc.
A disc image can be used to create exact copies on media at a later point in time if problems
occur during the write process or if no recorder is connected to your PC. The image requires
as much free space on the hard drive as the contents of the original disc take up.
Nero Linux Express 35
Glossary
MP3
The MPEG-1 Audio Layer 3 audio format is used to reduce the size of audio files to a fraction of their original size (factor 1:10) with little loss of quality. You can estimate about 1 MB
per minute as opposed to 10 MB for the original files. This value and the quality can vary depending on the complexity of the audio signal. The bit rate used can be used as a measure
of quality. The higher the bit rate, the better the quality, but also the more memory required.
Multisession
A multisession refers to completing a disc in multiple cycles. After a first session has been
written to the disc, information can then be added in another record because the disc has not
been finalized.
On-the-fly
On-the-fly refers to a method for copying to a disc. The data is transferred directly from the
original storage location to the disc to be burned. To do this, Nero uses a compilation, a
small file that simply refers to the transferred data.
Track-At-Once
Track-At-Once refers to a write method in which each track is written to the disc individually.
The writing process is interrupted briefly after each track, i.e. the laser starts again for each
track. With this write method, it is only possible to continue writing to a DVD sometimes and
at a later stage. There is a pause of at least 27ms between tracks, which can be disruptive
for Audio CDs.
WAV
The WAV audio format, also called WAVE or Waveform audio format, is an audio format
from Microsoft and uses no data compression. WAV is the counterpart to the AIF format from
Apple.
Nero Linux Express 36
14 Index
A
Audio CD
Copy tip ........................................................... 24
Creating ........................................................... 11
Identify with freedb .......................................... 12
Ripping ............................................................ 12
B
Burning
Burn settings.................................................... 20
Choose burner................................................. 19
Overburning..................................................... 33
Start the burn process .....................................19
Use Image Recorder ........................... 19, 20, 22
C
Compilation
Create Audio CD ............................................. 11
Create Data disc.............................................. 10
Create DVD Video ........................................... 16
Create miniDVD............................................... 16
Data ................................................................... 8
Image, Project, Copy ......................................... 8
Load disc image .............................................. 18
Load saved project ..........................................18
Music .................................................................8
Video/Pictures ................................................... 8
Configuration options ............................ 32
Conventions, manual .............................. 5
Copy
Copy a disc...................................................... 25
Copy over image ............................................. 24
On-the-fly......................................................... 24
Quick copy....................................................... 26
Select source and destination ......................... 27
E
Essentials................................................ 6
Exit the application................................ 31
F
First start ................................................. 5
Index
Load image file.................................................18
Image Recorder .................................... 19
Activate Image Recorder .................................19
Create image file........................................ 20, 22
Enable all supported formats ...........................33
M
Manual, conventions ............................... 5
Music
Compile Audio CD ...........................................11
Encoding options .............................................14
Rip Audio CD ...................................................12
Save audio files................................................12
N
Nero Linux Express
Use of the application ........................................5
Versions ............................................................. 6
R
Rewritable disc
Erase................................................................ 29
Erase method................................................... 29
S
Screen
Disc content .....................................................10
DVD-Video Files ..............................................16
Final Burn Settings...........................................20
Final screen .....................................................31
Main screen .......................................................8
My Audio CD.................................................... 11
Source and Destination..............................25, 27
Serial number.......................................... 5
System requirements ............................ 34
W
Window
Encoder Configuration .....................................14
Erase Rewritable Disc......................................29
Work overview......................................... 6
I
Create image file ............................................. 22
Nero Linux Express 37
15 Contact
Nero Linux Express is a Nero AG product.
Nero AG
Contact
Im Stoeckmaedle 13-15
76307 Karlsbad
Germany
Nero Inc.
330 N Brand Blvd Suite 800
Glendale, CA 91203-2335
USA
Nero KK
Rover Center-kita 8F-B, 1-2-2
Nakagawa-chuou Tsuzuki-ku
Yokohama, Kanagawa
Japan 224-0003
Copyright © 2009 Nero AG and its licensors. All rights reserved.
Internet:
Help:
Fax:
Internet:
Help:
Fax:
E-mail:
Internet:
Help:
www.nero.com
http://support.nero.com
+49 724 892 8499
www.nero.com
http://support.nero.com
(818) 956 7094
US-CustomerSupport@nero.com
www.nero.com
http://support.nero.com
Nero Linux Express 38
Loading...
