This sheet is only intended as quick start. See service manual for detailed instructions.

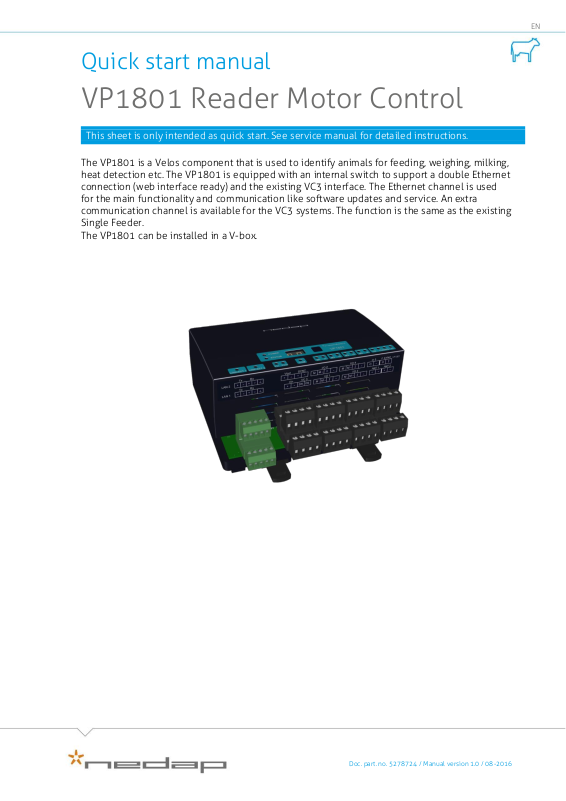

Quick start manual

VP1801 Reader Motor Control

The VP1801 is a Velos component that is used to identify animals for feeding, weighing, milking, heat detection etc. The VP1801 is equipped with an internal switch to support a double Ethernet connection (web interface ready) and the existing VC3 interface. The Ethernet channel is used for the main functionality and communication like software updates and service. An extra communication channel is available for the VC3 systems. The function is the same as the existing Single Feeder. The VP1801 can be installed in a V-box.

Doc. part. no. 5278724 / Manual version 1.0 / 08-2016

Page 2

Quick start manual | VP1801 Reader Motor Control

1. Shielded cable

2. Shielded cable, shield not connected to VP1801.

LAN next VP1801

Power supply VC3 next VP1801

+ - DR

VC3 interface bridge

Vin next VP1801

SYNC next VP1801

1. Shielded cable

2. Shielded cable, shield not connected to VP1801.

Switch VPU

F SYNC I next VP1801

O5 minus next VP1801

A VP1801 can be connected in different ways:

 To a shielded Ethernet cable and controlled by a switch or VPU:

When connecting the Ethernet cable, the VP1801 automatically detects TX/RX , plus and minus connections, and switches to the correct connection.

 To a shielded four wire cable and controlled by a VC3 host:



The SYNC connection is necessary for HDX ISO synchronization between other readers. For FDX a SYNC connection is possible, but not necessary if only one antenna is used. When two antennas are used the SYNC connection is always needed, even when FDX-only (no ISO) mode is enabled. The switching between the two antennas uses the ISO timing.

The F SYNC connection is necessary when the distance between two antennas is ≤ 3 m. Connect the F SYNC as shown in the picture below.

Page 3

Installation steps Ethernet

Step 1

Install the VP1801 in the V-box (or other box). See the manual of the relevant equipment (feeding station, separation unit etc.) where is indicated how to install the V-box.

Step 2

Connect all required wiring. See the manual of the relevant equipment and the manual of the required behaviour component.

Step 3

Power up and check the LED indicators, see also the overview on page 9.

Step 4

When the system is equipped with the auto-addressing function, the host computer requires the address. Select “Sp > y” in the display menu of the VP1801, see page 6. Go to Step 8.

Step 5

When auto-addressing is not available, set the required address manually via “Ad” in the display menu, see page 6.

Step 6

Check the ip settings via “IP” in the display menu, see page 6. Default DHCP is on. When DHCP must be switched off, set the required ip address settings via “IP” in the display menu. When DHCP is switched off, the default IP address is

192.168.1.100.

Step 7

Check the antenna tuning. Select “HF > H1 > tu” in the display menu to start and enable autotune, see page 7. If external manual adjustment is used (e.g. adjustable antenna-trafo), select “AA” in the display menu, see page 7.

Step 8

Test the functioning. See manual of the behaviour component. In case of malfunctioning the connected devices like sensors, motors, valves can be checked with options from menu option “It”, see page 7.

Installation steps VC3

Step 1

Install the VP1801 in the V-box (or other box). See the manual of the relevant equipment (feeder, separation unit etc.) where is indicated how to install the Vbox.

Step 2

Connect all required wiring. See the manual of the relevant VC3 application.

Step 3

Power up and check the LED indicators, see also overview on page 9.

Step 4

Set the required VC3 address via “CO > SA” in the display menu, see page 8.

Step 5

Select the VC3 application and other relevant VC3 settings via “CO > AP”, see page

Step 5

Step 6

Test the functioning. See the manual of the VC3 application. In case of malfunctioning of the connected devices like sensors, motors, valves execute a test with options from menu option “It”, see page 7.

Doc. part. no. 5278724 / Manual version 1.0 / 08-2016

Page 4

Quick start manual | VP1801 Reader Motor Control

Details VP1801 inputs and outputs

LAN

Tx +

Transmit (shielded CAT5E FTP (Foiled Twister Pair, also called S/UTP) stranded AWG26 or AWG24 (preferred)). Cable length max. 100 m.

Tx -

Transmit

Rx +

Receive

Rx -

Receive

 Ethernet shielding

Vin + Input voltage 25 VDC, +20% -20%

- Minus

Vout

Output (max 4A)

- Minus

VC3

VC3 data receive. Shielded cable, cable length max. 40 m.

VC3 data send

SYNC

Synchronisation for HDX or 2 installed antennas, AC (no plus or minus, cable must be shielded twisted pair). Max. 20 devices parallel, total cable length max. 300 m.

~ See above

I/O 1 .. 4

Motor output or normal output max 3.5A as total current for the 4 outputs. Cable length max. 3 m.

M-

Minus for motor output or normal output

I Input of motor or normal input

- Minus for motor input or normal input

O5 O Output max 400mA continue. Cable length max. 3 m.

- Minus for output (O) and minus input (I)

ANT 1

Antenna 1 (core of coax). Cable length max. 10 m.

- Minus for antenna 1 (shield of coax)

ANT 2

Antenna 2 (core of coax). Cable length max. 10 m.

- Minus for antenna 2 (shield of coax)

F SYNC

Output for FDX synchronization of the antenna signal phase (core of coax: shield connected with minus of O5). Cable length max. 3 m.

I Input for synchronization of antenna signal phase (core of coax: shield connected with minus of O5). Cable length max. 3 m.

Connections

See the manual of the concerning behaviour component for a detailed overview of the connections. O5 is default controlled by the identification process of the VP1801 itself, and can be overruled by the behaviour component. If the V-box has a signal light, connect it default to O5.

When connecting the Ethernet cable, the VP1801 automatically detects TX/RX , plus and minus connections, and switches to the correct connection.

Page 5

Important!

Autotune works with all Nedap antennas. In case external antenna adjustment is used (e.g. adjustable antenna-trafo), the autotune function must be switched off to achieve

the maximum reading distance. This can be done via “HF > HI > AA” in the menu

display of the VP1801, see page 6. Then the autotune function is disabled until it is started again with the display menu “HF > H1 > tu”.

Antennas

The VP1801 has two antenna connections and one internal reader. When two antennas are connected, the used application determines if the second antenna is used or not. In case the reader has to control both antennas, the reader switches fast between the two antennas in a smart way. That means the identification time is divided over the two antennas with a switching time that can vary between 24ms and 120ms in case both antennas have the same priority. Priority is controlled by Ethernet control like a behaviour component.

Autotune

The VP1801 is equipped with the autotune function. This means it can tune an antenna by itself due to an integrated internal tuning-circuit on board. Tuning can be started with the display menu “HF > H1 > tu”, remote from an external command over Ethernet or with the web-interface of the VP1801.

Doc. part. no. 5278724 / Manual version 1.0 / 08-2016

Page 6

Quick start manual | VP1801 Reader Motor Control

SERIAL NUMBER Shows last four digits of serial number

SYSTEM PING Send system ping

PROGRAM VERSION Shows program version

DISPLAY ADDRESS Shows the actual address

SET ADDRESS Change the address

DISPLAY SECTION Show section (Default 0, enter 0 to have access to IP address settings)

SET SECTION Change section

DISPLAY VPU UNIT ADDRESS Shows actual VPU unit address ( Default 0)

SET VPU UNIT ADDRESS Changes the actual unit VPU unit address

SETTINGS TO DEFAULT All address settings back to factory settings

DHCP IS ON Press long until blinking to turn on DHCP

DHCP IS OFF Press long until blinking to turn off DHCP

DISPLAY IP ADDRESS Shows actual IP address (one by one)

SET IP ADDRESS

DISPLAY NETWORK MASK (only shown in case of DHCP OFF) Shows network mask (8=255.0.0.0, 16=255.255.0.0, 24=255.255.255.0)

1. Display

2. Push button

Display menu

Page 7

AUTOTUNE MODE Starts antenna tuning

ADJUST ANTENNA Antenna tuning level will be shown (sets autotuning position off)

ANTENNA POWER Min/max 10 / 99. Normally set to 25 (=25% of maximum power).

ANTENNA SENSITIVITY SQUELCH FDX Set squelch level FDX

ANTENNA SENSITIVITY SQUELCH HDX Set squelch level HDX

SIGNAL LEVEL FDX Shows signal level measured by the FDX receiver

SIGNAL LEVEL HDX Shows signal level measured by the HDX receiver

TEST IDENTIFICATION Shows last 2 digits of a tag number

SEE H1 MENU

RESPONDER NUMBER FILTER ON Accepts only 999 or 984 country code responder numbers (Nedap)

RESPONDER NUMBER FILTER OFF Reads all responder numbers

SETTINGS TO DEFAULT All antenna settings to default

DISPLAY ERROR Safeguard error

DISPLAY ERROR Output error

SET NETWORK MASK (only shown in case of DHCP OFF) Changes network mask (8=255.0.0.0, 16=255.255.0.0, 24=255.255.255.0)

SETTINGS TO DEFAULT All address settings back to factory settings

Doc. part. no. 5278724 / Manual version 1.0 / 08-2016

Page 8

Quick start manual | VP1801 Reader Motor Control

DISPLAY ERROR Other system errors

TEST MOTOR 1-4 M1…M4

TEST OUTPUT 1-5 L1…L5

TEST INPUT 1-4 I1…I4

VC3 DISPLAY ADDRESS Shows the actual address

VC3 SET ADDRESS Change the address

NO VC3 APPLICATION Select no VC3 application

ETHERNET IDENTIFICATION

ILS PROGRAM Select Identification Lon Standard

WHS PROGRAM Select Walk through herringbone or side-by-side

FSS PROGRAM Select Feed Station

TAG READER SETTING FULL ISO Select Full ISO tag

TAG READER FDX ONLY Select FDX only no-ISOtag

2 HOURS DATA Do not send 2 hours data over VC3 channel

2 HOURS DATA Send 2 hours data over VC3 channel

VC3 COMMUNICATION SPEED 1200 BAUD Set communication speed to 1200 Baud

VC3 COMMUNICATION SPEED 2400 BAUD Set communication speed to 2400 Baud

Page 9

VC3 COMMUNICATION SPEED 4800 BAUD Set communication speed to 4800 Baud

DEFAULT Enter value 99 to return to factory defaults

Press button until blinking Press button short

To leave menu: press button until display is empty

How to use the display and push button

Activate the menu press short on the button, the display menu is shown Scroll down press short Select press until blinking Change and store select item to change, open item by pressing till blinking, change by

pressing short, store by pressing to blinking

Check a setting select the item to check, press until blinking, first value shown is actual

setting

Doc. part. no. 5278724 / Manual version 1.0 / 08-2016

Page 10

Quick start manual | VP1801 Reader Motor Control

POWER

Green on

Power on

off

No power

STATUS

Slow blinking Fast blinking Short blinking Long blinking

Operating ok Downloading or error during download Not connected to the host Connection established to the host

Display

Address indicated

No communication

off Communication status ok

LINK/ACT

Green on

Connection ok

Green blinking

Data transmit

V in Green on

Input power applied

Off

No power

Red

Error, plus and minus swapped

V out

Green on

Output power

off

No power

Orange blinking

Low power

Red blinking

Error, plus and minus swapped

COM

Green on

Connection VC3 channel

Green blinking

Data transmit VC3 channel

M1…M4

Green on

Output on

Off

Output off

Red blinking

Output error

I1….I4

Green on

Input contact closed

Off

Input contact open

O5 Green on

Output on

Off

Output off

Red blinking

Output error

Tuning/ID

Red blinking

Tuning

One antenna

Green on

Antenna tuning ok

Red on

Antenna not tuned

Red blinking

No antenna connected or low antenna signal

Off

Antenna off

Two antennas 

Green on

Antenna 1 tuning ok Green blinking

Antenna 1 tag identified

Red on

Antenna 1 not tuned

Red/green blinking

Antenna 1 tag identified + not tuned Off

Antenna 1 off

LED indicators

= OK = not OK



The described LED indicators apply to antenna 1 (left LED indicator). The same indicators are

used for antenna 2 (right LED indicator).

Page 11

Specifications VP 1801

Dimensions

143 x 120 x 68 mm LxWxH (excluding mounting rail) Weight: ± 430 gr

Power

Input voltage 25 VDC, +20% -20% Max current consumption without connected I/O = 300 mA Maximum (total) motor output current 3,5 A Protected against reverse connection power supply

Software

Check for available updates

Inputs I1 – I4

0V – 35V DC Suitable for NPN sensors

Outputs O1 – O4

In total max. 3.5 Amp continue, short-circuiting and overload protected

Max. 400mA continue, short-circuiting and overload protected

V out

Max. 4A continue, short-circuiting and overload protected

Synchronization

Synchronization according to ISO 11785

Environment

Temperature: Operating: -10 – 50 °C, Storage: -25 – 50 °C Relative humidity: 10 – 93% non condensing

Maximum noise level: 10 dBµA/m quasi peak, according CISPR 16-1-1 Conducted noise: according EN55022

IP class

IP 30. When installed in V-box IP 65 (cover and cables installed correctly !)

Always use a NEDAP power supply. The Nedap guarantee-regulations are only valid when is installed as indicated in this manual. Install data cables at a safe distance from (high) powered cables. For more detailed information contact your local Nedap supplier or check the internet site.

Declaration of Conformity

Doc. part. no. 5278724 / Manual version 1.0 / 08-2016

Page 12

Quick start manual | VP1801 Reader Motor Control

FCC ID : CGDVP1801 IC : 1444A-VP1801

FCC and IC Compliance statement This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L’opération est soumis aux deux conditions suivantes: (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil.

Les changements ou modifications n’ayant pas été expressément approuvés par la partie responsable de la conformité peuvent faire perdre à l’utilisateur l’autorisation de faire fonctionner le matériel.

FCC and ISED Radiation Exposure Statement This equipment complies with FCC and Canadian radiation exposure limits set forth in RSS-102 for a controlled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Cet équipement est conforme a RSS-102 limites énoncées pour un environne- ment non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

ISED EMC Declaration This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de Classe B est conforme à la norme Canadienne ICES-003.

FCC Information to the user Note: This equipment has been tested and found to comply with the limits for a class B digital devices, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequent energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does not cause harmful interference to radio or television reception, which can be determine by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver.  Any changes or modifications not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

 To ensure compliance with FCC regulations, use only the shielded interface cables provided with the product, or

additional specified components or accessories that can be used with the installation of the product.

This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no licence under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifications and availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in whole or in part, without the written consent of the publisher.
