Nedap N V SENSITSM Users Guide

Installation Guide
2013-10-09
This information is furnished for guidance, and with no guarantee as to its accuracy or completeness; its publication conveys no license under any patent or other right, nor does the publisher assume liability for any consequence of its use; specifica­tions and availability of goods mentioned in it are subject to change without notice; it is not to be reproduced in any way, in whole or in part, without the written consent of the publisher.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 1 of 23
SENSIT
CONTENTS
1 INTRODUCTION ................................................................................................................................................................ 3
1.1 SENSIT IR ................................................................................................................................................................. 3
1.2 SENSIT Flush Mount ............................................................................................................................................ 3
1.3 SENSIT Surface Mount ....................................................................................................................................... 3
2 SENSIT IR ............................................................................................................................................................................. 4
2.1 SAFETY PRECAUTIONS ....................................................................................................................................... 4
2.2 DETECTION ............................................................................................................................................................ 4
2.3 DIMENSIONS ......................................................................................................................................................... 4
2.4 INSTALLATION CONDITIONS ........................................................................................................................... 5
2.5 REQUIRED INSTALLATION MATERIALS ........................................................................................................ 5
2.6 INSTALLATION PROCEDURE ............................................................................................................................ 5
2.7 REPLACEMENT ...................................................................................................................................................... 6
3 SENSIT FLUSH MOUNT ................................................................................................................................................... 8
3.1 SAFETY PRECAUTIONS ....................................................................................................................................... 8
3.2 DETECTION ............................................................................................................................................................ 8
3.3 DIMENSIONS ......................................................................................................................................................... 8
3.4 INSTALLATION CONDITIONS ........................................................................................................................... 8
3.5 INSTALLATION MATERIAL ................................................................................................................................ 8
3.6 INSTALLATION PROCESS ................................................................................................................................... 9
3.7 REPLACEMENT ...................................................................................................................................................... 9
4 SENSIT SURFACE MOUNT ............................................................................................................................................ 10
4.1 SAFETY PRECAUTIONS ..................................................................................................................................... 10
4.2 DETECTION .......................................................................................................................................................... 10
4.3 DIMENSIONS ....................................................................................................................................................... 10
4.4 MODIFIED SILICON POLYMER ....................................................................................................................... 12
4.5 POLYURETHAAN (PUR) .................................................................................................................................... 12
4.6 INSTALLATION MATERIAL .............................................................................................................................. 12
4.7 INSTALLATION PROCESS ................................................................................................................................. 13
4.8 REPLACEMENT .................................................................................................................................................... 15
5 PROJECT SUPPORT ........................................................................................................................................................ 17
5.1 SITE SURVEY & INSTALLATION ADVICE ...................................................................................................... 17
5.2 ON-SITE CERTIFICATION .................................................................................................................................. 17
6 FCC AND IC DECLARATION ......................................................................................................................................... 18
6.1 Compliance statements (part15.19) ........................................................................................................... 18
6.2 Warning (part15.21) .......................................................................................................................................... 18
6.3 RF Exposure (OET Bulletin 65) ....................................................................................................................... 18
6.4
Information to the User (Part 15.106(b)) ................................................................................................... 18
7 TECHNICAL SPECIFICATIONS ..................................................................................................................................... 19
A PART NUMBERS .............................................................................................................................................................. 20
B RAPID MORTAR ............................................................................................................................................................... 21
C Modified Silicon Polymer ............................................................................................................................................ 22
D POLYURETHAN ................................................................................................................................................................ 23
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 2 of 23
SENSIT

1 INTRODUCTION

The SENSIT vehicle detection system facilitates accurate measurement on occupancy of individual parking spaces in car parks, and on-street parking spaces. This information can be used to guide traffic to free parking spaces but can also be used for on-street parking enforcement and overstay detection. For on-street enforcement the number of occupied parking spaces can be compared with the number of payments realized by the pay station. For overstay detection the system alerts instantly a parking officer to the presence of nearby overstaying vehicles. Based on this information you can exactly determine which space to enforce.
All the SENSIT vehicle detection sensors are featured with detection and communicate wireless, creating their own network. The SENSIT sensors do not require power wiring, in contrast to conventional systems that require wiring throughout the car park and mounting onto the ceiling.
Easy installation of the sensors is guaranteed. Once installed no maintenance is required for years. The actual status (occupancy) of the sensor is transmitted to the Relay Node, which is part of the wireless mesh network.
Different types o f ruggedl y designe d sensors are available to accommodate installation in indoor car parks, on­street spaces and road surfaces.

1.1 SENSIT IR

Vehicle detection sensor featured with dual detection technology (infrared and earthmagnetic field detection. The SENSIT unit suitable for on-street application.

1.2 SENSIT Flush Mount

IR is mo unted into the floor of each parking space allowing for vandal proof installation, making the
Vehicle detection sensor for flush mount installation with the road surface. The sensor is resistant to snow ploughs and offers vandal proof installation. The SENSIT Flush Mount is featured with earth magnetic field detection.

1.3 SENSIT Surface Mount

Vehicle detection sensor designed for car parks where drilling is not allowed or non pe rmanent mounting is required. The unit is suitable for indoor car parks and rooftop parkings. The sensor can easily be glued onto the surface. Replacement can be achieved by removing the sensor installed in the mounting ring. The SENSIT Flush Mount is featured with dual detection technology (infrared and earth magnetic field).
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 3 of 23
SENSIT

2 SENSIT IR

2.1 SAFETY PRECAUTIONS

The following safety precautions should be observed during normal use, service and repair.
• The SENSIT
To be sure of safety, do not modify or add anything to the SENSIT
indicated by NEDAP N.V.

2.2 DETECTION

The SENSIT IR is featured with earthmagnetic field and infrared detection.

2.3 DIMENSIONS

The SENSIT IR is designed for mounting into the floor of a parking space. See Figure 1 for the dimensions of the unit in mm. The top of the SENSIT
IR may only be installed and serviced by qualified service personnel.
IR other than mentioned in this manual or
IR is laser engraved with the node ID number, see Figure 2.
Figure 1: Dimensions SENSIT IR
Figure 2: Top laser engraved side of the SENSIT IR
The node ID is mentioned on the bottom of the housing under ID. There is also a 125kHz passive RFID label embedded into the SENSIT
IR. This can be used for verification of the SENSIT IR or to localize the SENSIT IR on th e
parking lot.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 4 of 23
STEP 1
SENSIT

2.4 INSTALLATION CONDITIONS

The installation recommendation is based on the following environmental conditions;
- Ambient temperature between 5 to 40 °C [41 to 104 °F]
- Dry weather conditions
- Surface based on concrete, asphalt or pavement

2.5 REQUIRED INSTALLAT ION MATERIALS

The following would be required for mounting of the SENSIT IR.
- Equipment: Automatic drill
- Drill size: Dimensions Ø 85 mm [3.35 in]
- Drill depth: 54 mm [2.13 in]
- Filler material: Liquid rapid mortar
- Required amount per sensor: Approx 100 ml
We have good results with the rapid mortar TM 5R. See appendix B for specifications. Ensure to follow the guidelines and instructions as outlined on the filler material.

2.6 INSTALLATION PROCEDURE

Below the mounting procedure for the SENSIT IR. Write the ID number of the installed SENSIT on the installation plan.
Close off the parking area
STEP2

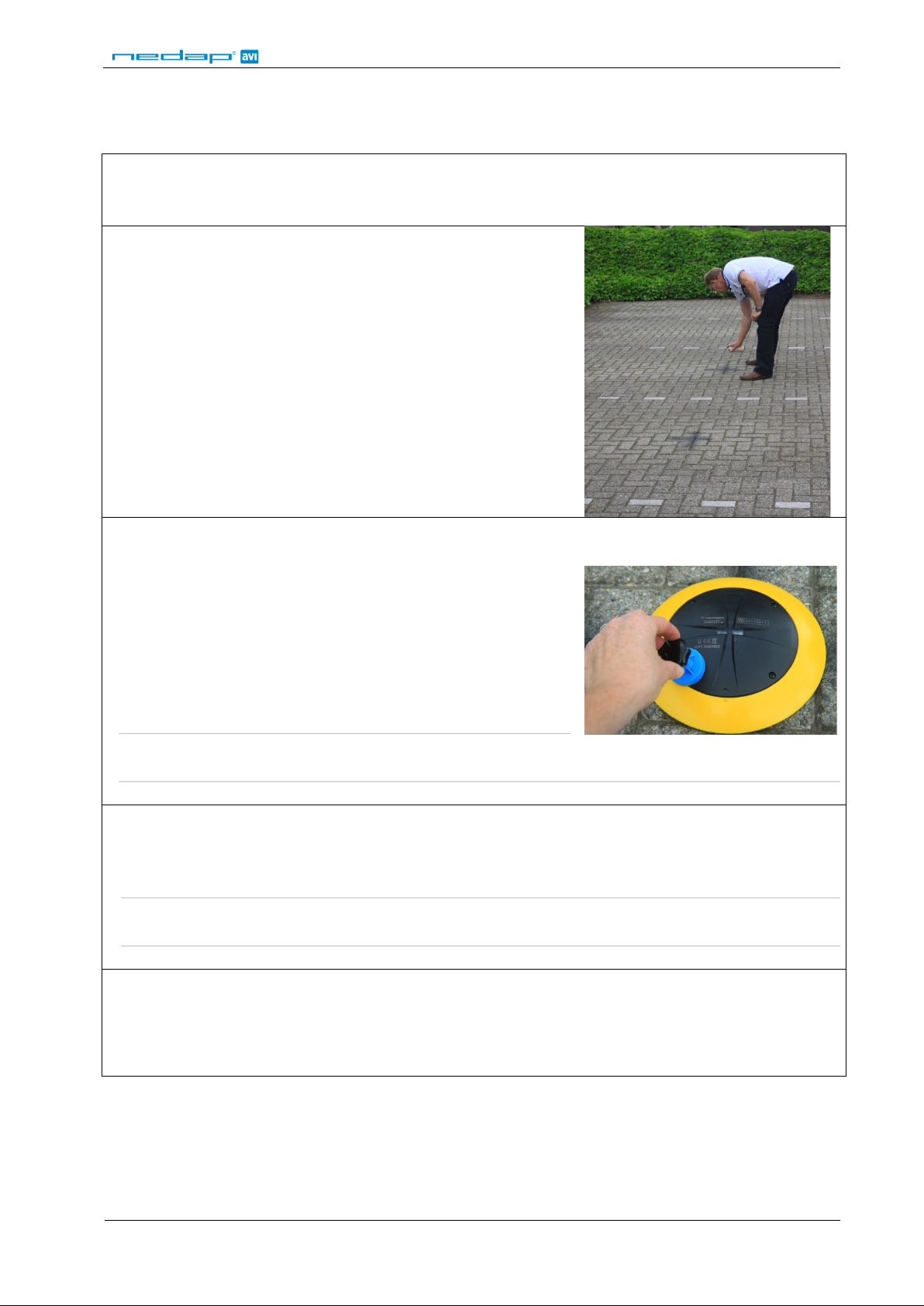

Indicate where the sensor should be positioned. Distribute the SENSIT IR over the
empty parking lot (without mounting them into the floor).
STEP 3
All SENSIT IR are set to transport/stock mode during shipment. Prior to installation all SENSIT IR must be swept with the reset magnet over the left bottom part of the sensor indicating th e ART: XXXXXX and C E marking as indicated in Figure 2. This will give the SENSIT IR a reset. Please ensure to use a strong magnet (Neodymium).
Note: Once out of the transport/stock mode the battery lifetime starts to count.
STEP 4
Write down the node ID number on your installation plan so you are sure which SENSIT IR is positioned in which parking bay.
STEP 5
Verify if all the SENSIT IR are online and if communication is received by the Data Collector after the magnet sweep. Do this prior to mounting the units into the ground.
Note: Only once all SENSIT IR are live and seen in the software they can be installed into the pavement.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 5 of 23
When the SENSIT IR are not calibrated they hardly send any messages. This is due to the fact that there
STEP 6
Drill a hole of 85 mm [
3.35 in] into the centre of the parking bay.
STEP 7
Apply the right amount of filler and pour into the hole.
STEP 8
Double-check the node ID number and the pa rking bay on the installation plan and place the SENSIT IR into the hole. Take attenti on that you fixate the SENSIT during the curing time otherwise the SENSIT will start to float.
SENSIT
STEP 9
After installation the SENSIT IR must be calibrated. Ensure that the parking space is empty and that there is no car parked on top of the sensor or on neighbouring parking bays. Also ensure not metal parts (such as tools) are positioned in th e surrounding of the sensors as this might affect calibration. See InstallGuide SIM Software for more information on calibration.
Note:
are no events generated because the magnetic tressholds are not crossed.
STEP 10
Leave the filler harden for 8 hours before vehicles are allowed in the parking space a gain.

2.7 REPLACEMENT

When the battery life of the SENSIT IR fails after specified life time, we advise to replace the unit completely. The SENSIT IR is fully sealed and for outdoor use therefore batteries cannot be replaced. Drill out the old SENSIT IR and complete the mounting procedure as describe in the previous paragraph.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 6 of 23
SENSIT
Ensure to note the node ID number of the SENSIT IR to the parkin g bay. Update th e parking bay co nfiguration list in the SIM software to ensure the new sensor is linked to the right parking bay.

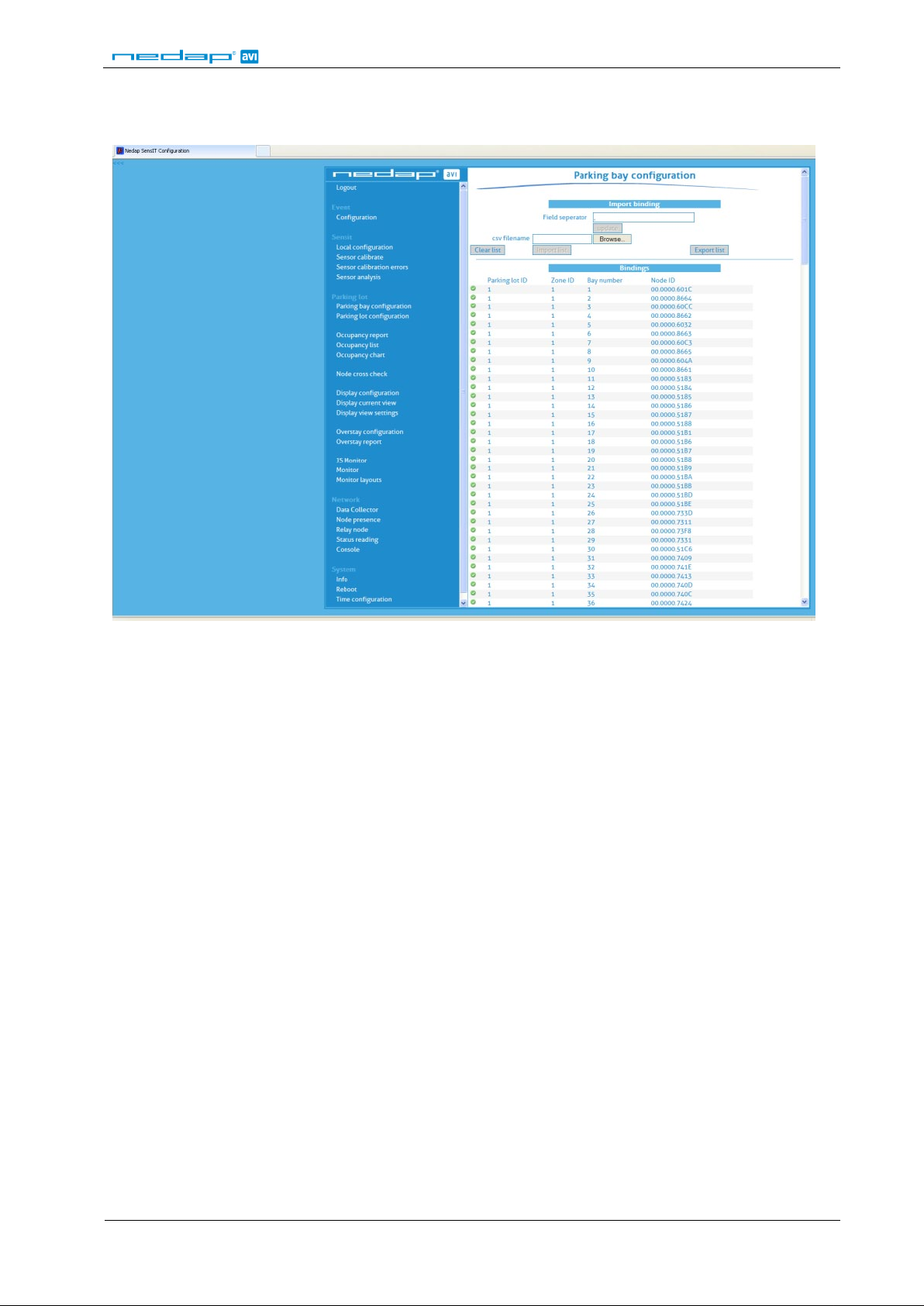

Figure 3: Screenshot parking bay configuration
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 7 of 23
SENSIT

3 SENSIT FLUSH MOUNT

3.1 SAFETY PRECAUTIONS

The following safety precautions should be observed during normal use, service and repair.
The SENSIT Surface Mount may only be installed and serviced by qualified service personnel.
To be sure of safety, do not modify or add anything to the SENSIT Surface Mount other than mentioned in
this manual or indicated by NEDAP N.V.

3.2 DETECTION

The SENSIT Flush mount is featured with earth magnetic field detection.

3.3 DIMENSIONS

The SENSIT Flush Mount is designed for full mounting into the floor of a parking space. As the unit is fully flush with the road surface the unit is snow plough res istant. The SENSIT Flus h Mount is only featured with magne tic detection. See Figure 1 for the dimensions of the unit in mm. The top of the SENSIT Flush Mount is laser engraved with the node ID number.

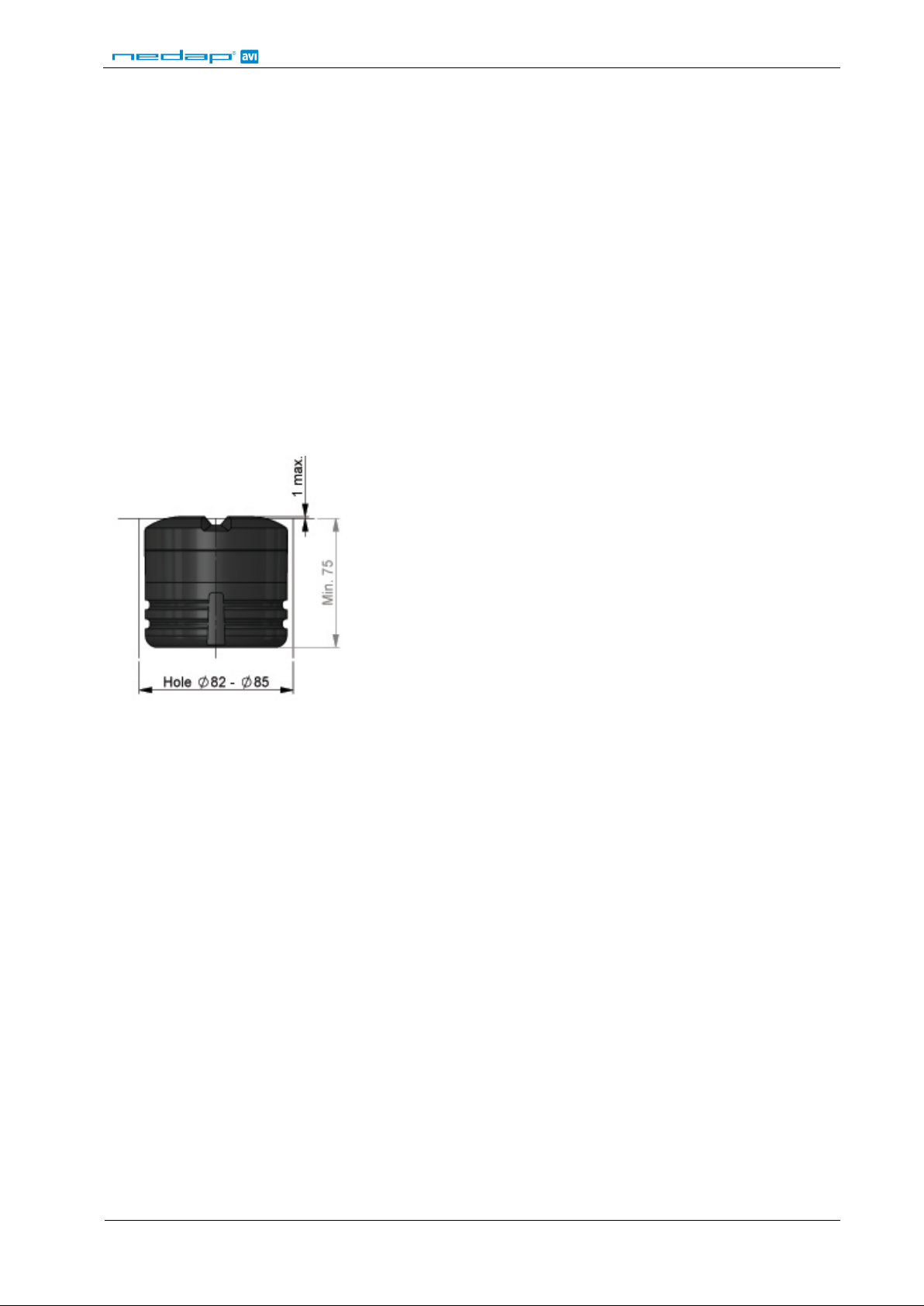

Figure 4: Dimensions SENSIT Flush mount
The node ID is mentioned on the top of the housing under ID. There is also a 125kHz passive RFID label embedded into the SENSIT Flush Mount. This can be used for verification of the SENSIT or to localize the SENSIT on the parking lot.

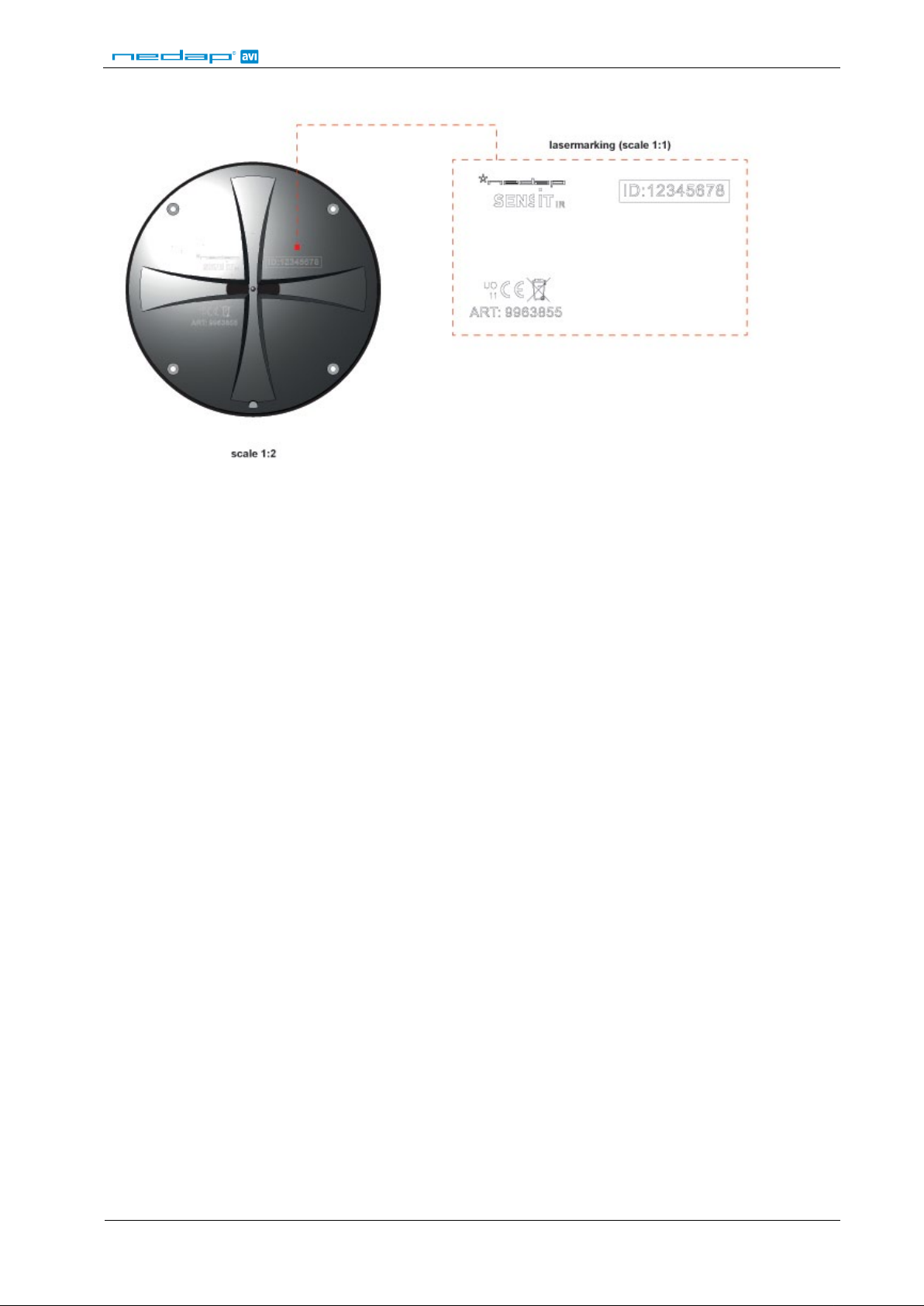

Figure 5: Lasermarking SENSIT Flush Mount

3.4 INSTALLATION CONDITIONS

The installation recommendation is based on the following environmental conditions;
- Ambient temperature 5 to 40 ° C [41…104 F]
- Dry weather conditions
- Surface based on concrete, asphalt or pavement
- Surface needs to be dry and clean (oil, grease and dust free). The surface can easily be cleaned using IPA (ISO Propanol Alcohol).

3.5 INSTALLATION MATERIAL

The following would be required for mounting of the SENSIT IR.
Equipment: Automatic drill
Drill size: Dimensions Ø 85 mm [3.35 in]
Drill depth: 73 mm [3.35 in]
Filler material: Liquid concrete mortar
Required amount per sensor: Approx 100 ml
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 8 of 23
SENSIT
We have good results with the rapid mortar TM 5R. See appendix B for specifications. Ensure to follow the guidelines and instructions as outlined on the filler material.

3.6 INSTALLATION PROCESS

Installation process as described in paragraph 2.6, however with above mentioned drilling depth.

3.7 REPLACEMENT

When the battery life of the SENSIT Flush Mount fails after specified life time, we advise to replace the unit completely. The SENSIT Flush Mount is fully sealed, therefore batteries cannot be replaced. Drill out the old SENSIT Flush Mount and complete the mounting procedure as described in paragraph 2.6.
Ensure to note the node ID number of the SENSIT IR to the parking bay. Update the parking bay configuration list in the SIM software to ensure the new sensor is linked to the right parking bay as describe d in paragraph 2.7.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 9 of 23
SENSIT

4 SENSIT SURFACE MOUNT

The SENSIT Surface Mount is designed for installations where the sensors cannot be drilled into the parking space (e.g. multi storey car parks and rooftop parkings) or existing car parks.

4.1 SAFETY PRECAUTIONS

The following safety precautions should be observed during normal use, service and repair.
The SENSIT Surface Mount may only be installed and serviced by qualified service personnel.
To be sure of safety, do not modify or add anything to the SENSIT Surface Mount other than mentioned in
this manual or indicated by NEDAP N.V.

4.2 DETECTION

The SENSIT Surface Mount is featured with earth magnetic field and infrared detection.

4.3 DIMENSIONS

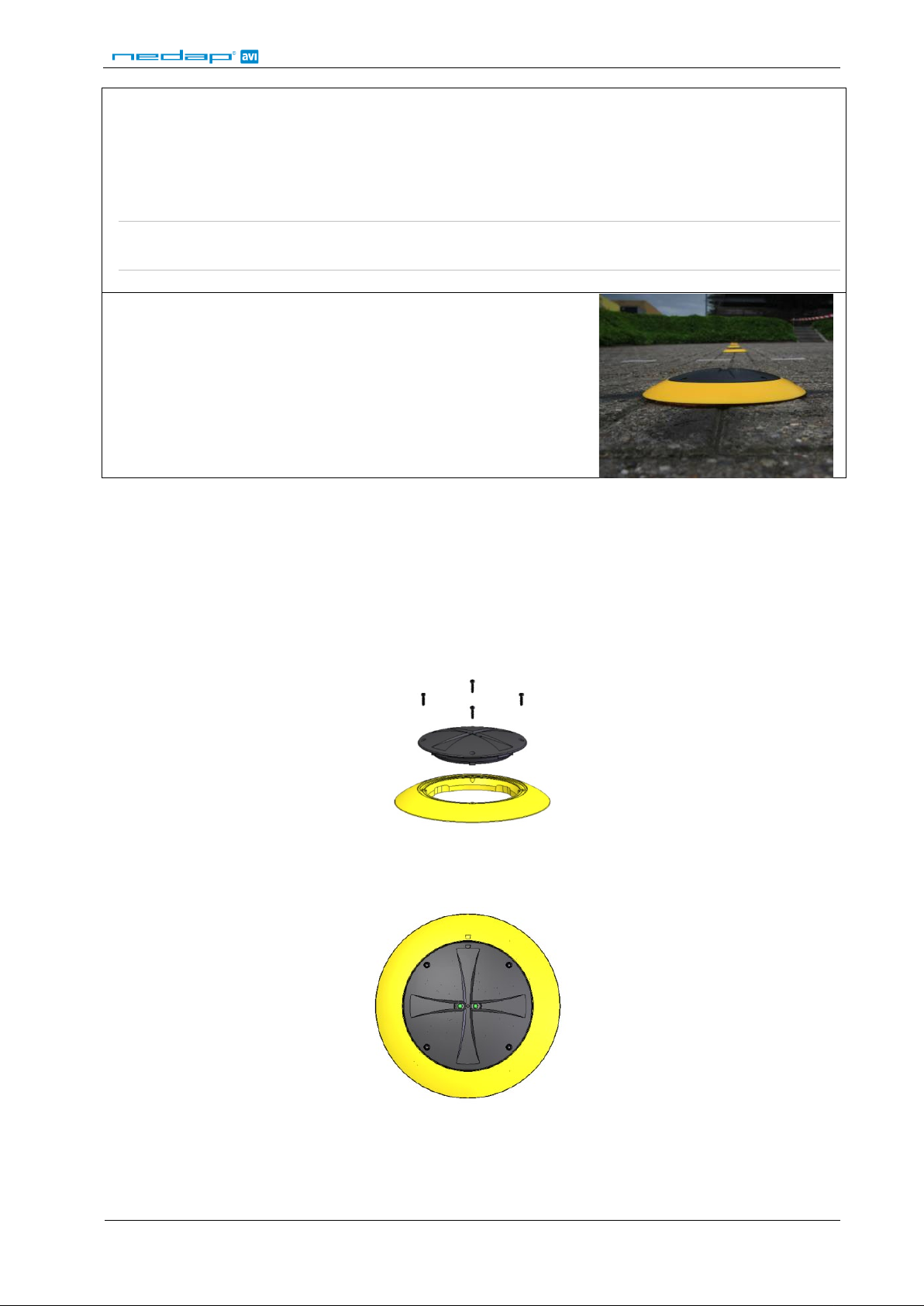

The SENSIT Surface Mount can easily be glued onto the surface of a parking space. The unit consists of two components;
Se n sor core; the black core is the vehicle detection sensor. This unit can be replaced after end of battery life.
Mounting ring; the mounting ring allows easy installation onto the surface of a parking space.
See Figure 6 for the dimensions of the unit. The top of the SENSIT Surface Mount is laser engraved with the node ID number, see Figure 7.
Figure 6: Dimensions SENSIT Surface Mount
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 10 of 23
SENSIT
Figure 7: Top laser engraved side of the SENSIT Surface Mount
The node ID is mentioned on the top of the housing under ID. There is also a 125kHz passive RFID label embedded into the SENSIT Surface Mount. This can be used for verification of the SENSIT or to localize the SENSIT on the parking lot.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 11 of 23
SENSIT

4.4 MODIFIED SILI CO N POLYMER

We recommend the use MSP as glue to mount the SENSIT onto the following parking surfaces Parking surfaces: Concrete, asphalt, PU, expoxy/coating
Glue material: MSP (Modified Silicon Polymer), see appendix C for more information Amount required per sensor: 150 ml Fixation time of the glue: typical 4 hours at 20°C
The installation recommendation is based on the following environmental conditions;
Ambient temper ature >5° C
• Dry weather conditions
Surface based on PU, Epoxy coating, concrete or asphalt
Surface needs to be dry and clean (oil, grease and dust free). The surface can easily be cleaned using IPA
(ISO Propanol Alcohol).
Always follow the guideline and instructions as outlined on the glue material.

4.5 POLYURETHAAN (PUR)

In case the SENSIT is mounted onto a coated car park floor also the following glue can be applied on absolutely dry surfaces.
Parking surfaces: PU, expoxy, coating Glue material: PUR (Polyurethaan), see appendix D for more information Amount required per sensor: 150 ml Fixation time of the glue: typical 4 hours at 20°C
This recommendation is based on the following environmental conditions;
Ambient temper ature >5° C
Absolutely dry weather conditions
Surface based on PU, Epoxy coating
Surface needs to be dry and clean (oil, grease and dust free). The surface can easily be cleaned using IPA
(ISO Propanol Alcohol).
Always follow the guideline and instructions as outlined on the glue material.

4.6 INSTALLATION MATERIAL

The following installation material is recommended for the mounting of the SENSIT Surface Mount onto the parking space.

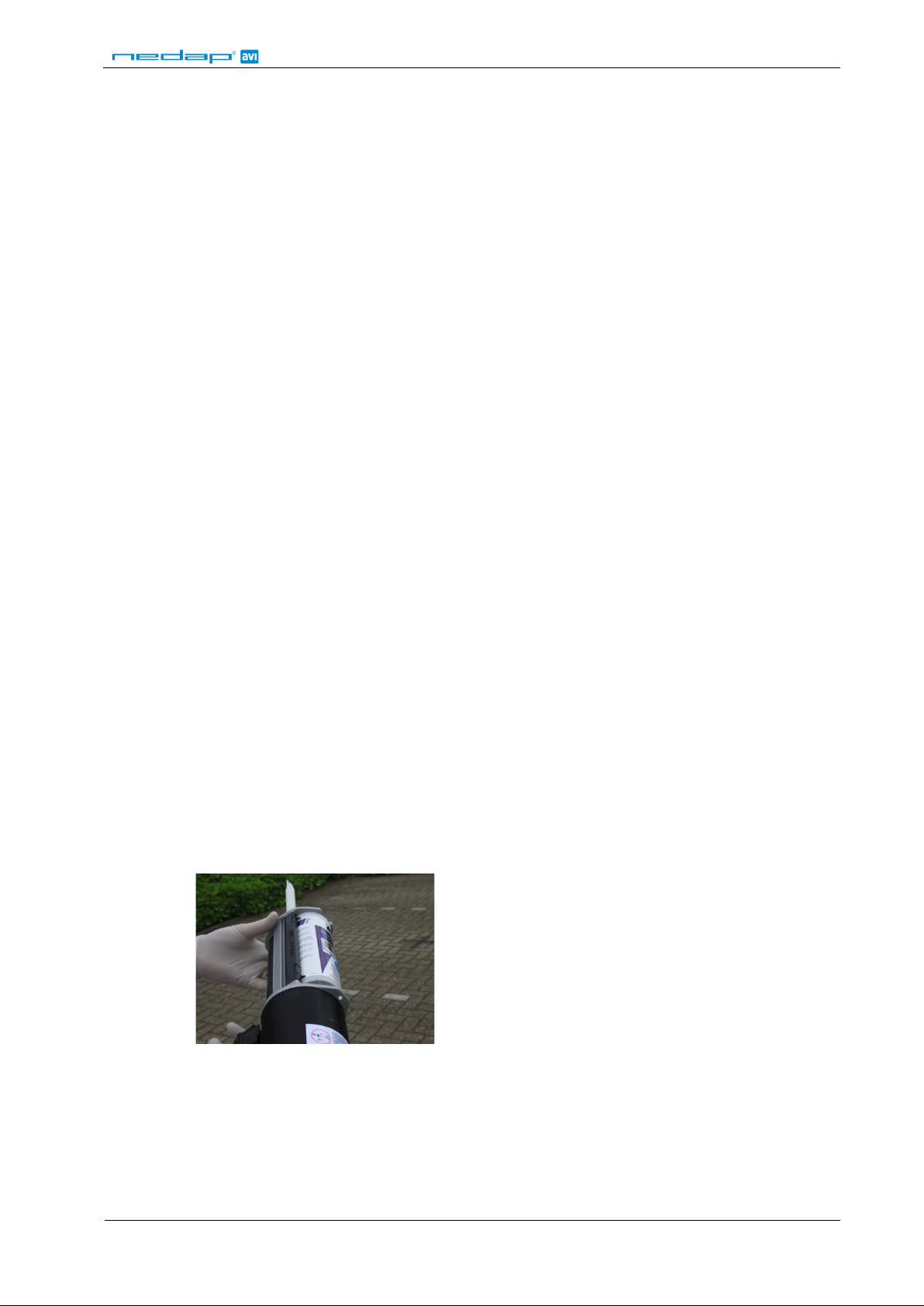

Pn eumatic kit dispenser, to easily apply the glue easily onto the mounting ring
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 12 of 23
Only once all SENSIT Surface Mounts are alive and seen in the software they can be installed onto the
Write down the node ID number on your installation plan so you know which SENSIT Surface Mount is

4.7 INSTALLATION PROCESS

Follow the recommended installation procedure for the SENSIT Surface Mount as described below.

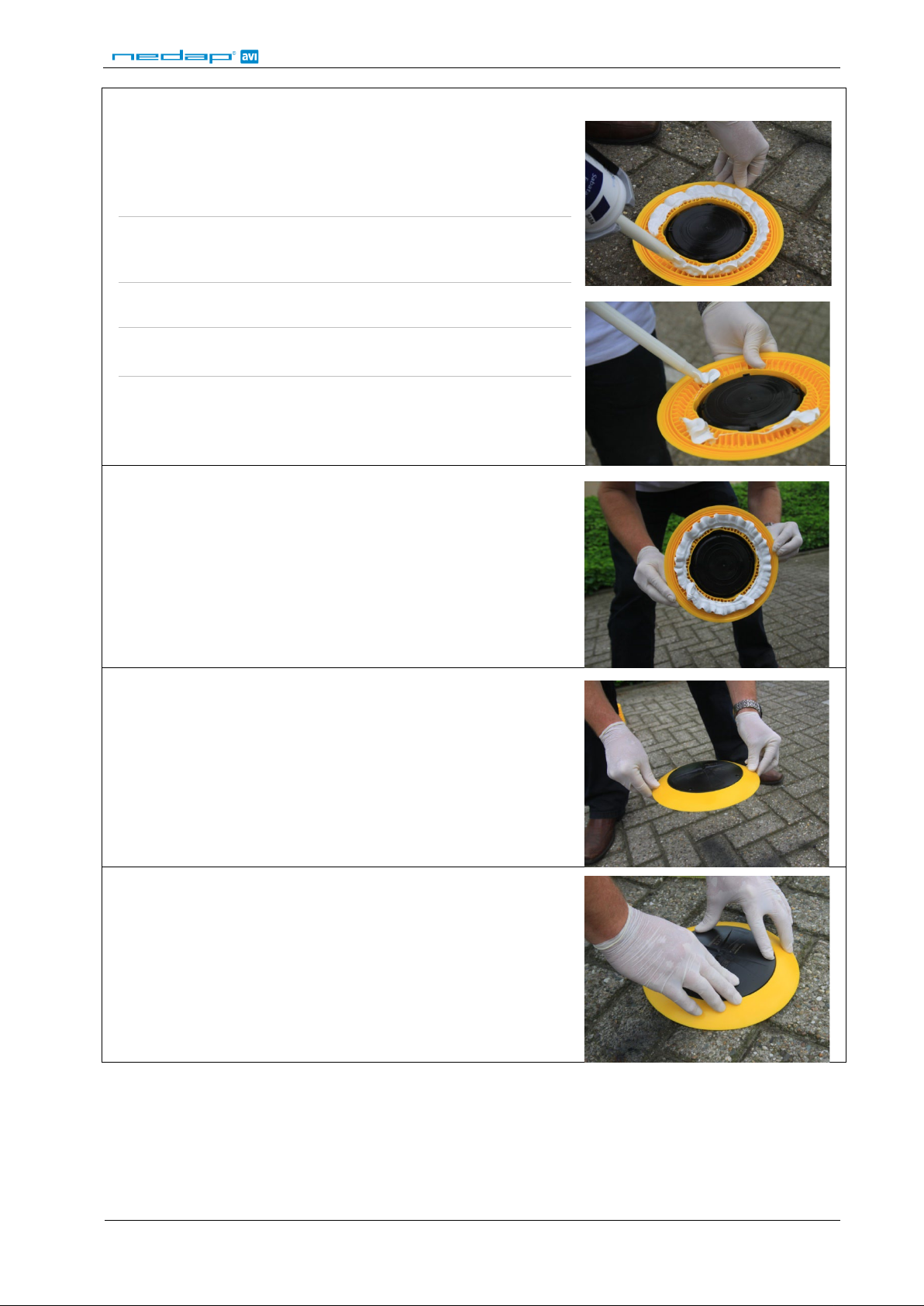

STEP 1
Clean the location where the sensor should be mounted
STEP2
Indicate where the sensor should be positioned. Distribute the
SENSIT Surface Mount over the empty parking lot (without mounting them into the floor).
SENSIT
STEP 3
All SENSIT Surface Mount are set to transport/stock mode during shipment. Prior to installation all SENSIT Surface Mount must be swept with th e reset magnet.
Swipe the reset magnet over the left bottom corner of the core part of the SENSIT Surface Mount i nd icating ART and CE marking.
This will give the SENSIT Surface Mount a reset. Please ensure to use a strong magne t (Neodymium).
Note: Once out of the transport/stock mode the battery lifetime
starts to co u n t.
STEP 4
Verify if all the SENSIT Surface Mount are online and if communication is received by the SENSIT Data Collector
after the magnet sweep. Do this prior to mounting the units into the ground.
Note:
parking space.
STEP 5
positioned in w hich parking bay.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 13 of 23
STEP 6
Pour the filler into the mounting ring of the SENSIT Surface Mount. A pneuma tic kit dispenser makes it easy to apply the glue into the mounting ring. For good fixture with the surface please fill the entire mounting rin g.
Note: Ensure excessive glue is removed from the bottom black core
part of the unit, as this will make it very difficult to replace the core part.
Note: For non permanent mounting only glue the ring with a few
dots of glue.
STEP 8
Flip the mounting ring with the SENSIT Surface Mount onto the parking space.
SENSIT
STEP 9
STEP 10
Press firmly.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 14 of 23
When the SENSIT Surface Mount are not calibrated they hardly send any messages. This is due to the fact
STEP 11
After installation the SENSIT IR must be calibrated. Ensure that the parking space is empty and that there is no car parked on top of the sensor or on neighbouring parking bays. Also ensure not metal parts (such as tools) are positioned in the surrounding of the sensors as this might affect calibration. See InstallGuide SIM Software for more information on calibration.
Note:
that there are no events generated because the magnetic tressholds are not crossed.
STEP 12
Leave the glue dry for 4 hours before vehicles are allowed in the parking space a gain.

4.8 REPLACEMENT

SENSIT
When the battery life of the SENSIT Surface Mount fails after specified life time, we advise to replace the core. The core part of the SENSIT Surface Mount is fully sealed and for outdoor use therefore batteries cannot be replaced.
STEP 1: The mounting ring can remain positioned in the parking space. The core can be unscrewed
using a torx. Unscrew the core by opening the 4 screws in the core part of the SENSIT Surface Mount using a T15 size bit screwdriver. Twist the core to lift up.
Figure 8: Removing core part of the SENSIT Flush Mount
STEP 2: Place a new core into the mounti ng r ing b y al ig nin g the marks on the core part with the marks
on mounting rin g a s indicated in f igure 9. Push down the core and secure with 4 screws.
Figure 9: Align markers indicated on the sensor and mounting ring
STEP 3: Strongly push the core into the mounting ring. Screw the 4 screws back into the mo u nt ing
ring.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 15 of 23
SENSIT
STEP 4: After installation the SENSIT Surface Mount must be calibrated. Ensure that the parking space is
empty and that there is no car parked on top of the sensor or on neighbouring parking bays.
STEP 5: Ensure to note the node ID number of the SENSIT Surface Mount to the parking bay and
update the parking bay configuration list in the SIM software, see paragraph 2.7.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 16 of 23
SENSIT

5 PROJECT SUPPORT

Based on our thorough project analysis including configuration and installation advice we can offer the customer the best AVI solution.

5.1 SITE SURVEY & INSTALLATION ADVICE

This will consist of an engineer visiting the site to visually inspect and analyze the location. We will then carry out calculations and provide you with detailed configuration and installation advice for the equipment for a specific project.

5.2 ON-SITE CERTIFICATION

An engineer will visit the site to inspect the installation of the equipment on reliable and accurate detection. Nedap engineers are not involved in installation (wiring) of any equipment. The installation must be completed before the engineer arrives on-site. We will ensure that the operation confirms our commissioning requirements, only on condition of prior given installation advice.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 17 of 23
SENSIT

6 FCC AND IC DECLARATION

6.1 Compliance statements (part15.19)

This device complies with part 15 of the FCC Rules and to RSS210 of Industry Canada. Operating is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Cet appareil se conforme aux normes RSS 210 exemptés de license du Industry Canada. L’opération est soumis aux deux conditions suivantes: (1) cet appareil ne doit causer aucune interférence, et (2) cet appareil doit accepter n’importe quelle interférence, y inclus interférence qui peut causer une opération non pas voulu de cet appareil

6.2 Warning (part15.21)

Changes or modifications not expressly approved by party responsible for compliance could void the user’s authority to operate the equipment.

6.3 RF Exposure (OET Bulletin 65)

To comply with FCC RF exposure requirements for mobile transmitting devices, this transmitter should only be used or installed at locations where there is at least 20cm separation distance between the antenna and all persons.

6.4 Information to the User (Part 15.106(b))

Note: This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequent energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equi pme nt does not cause harmful interference to radio or television reception, which can be determine by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate some node
- Consult the dealer or an experienced radio/TV technician for help.
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 18 of 23
Operating frequency
868 MHz (Europe)
868 MHz (Europe)
868 MHz (Europe)
Mounting
Into the floor
Glued onto the floor
Into the floor, flush with the surface
Load resistance
Heavy traffi c
Regular traffic
Heavy traffi c
Mounting dimensions
Ø 78 mm [3.07 in] and 53 mm [2.09
Ø 78 mm [3,07 in] and 72 mm [2.8 in]
ully flush with the road

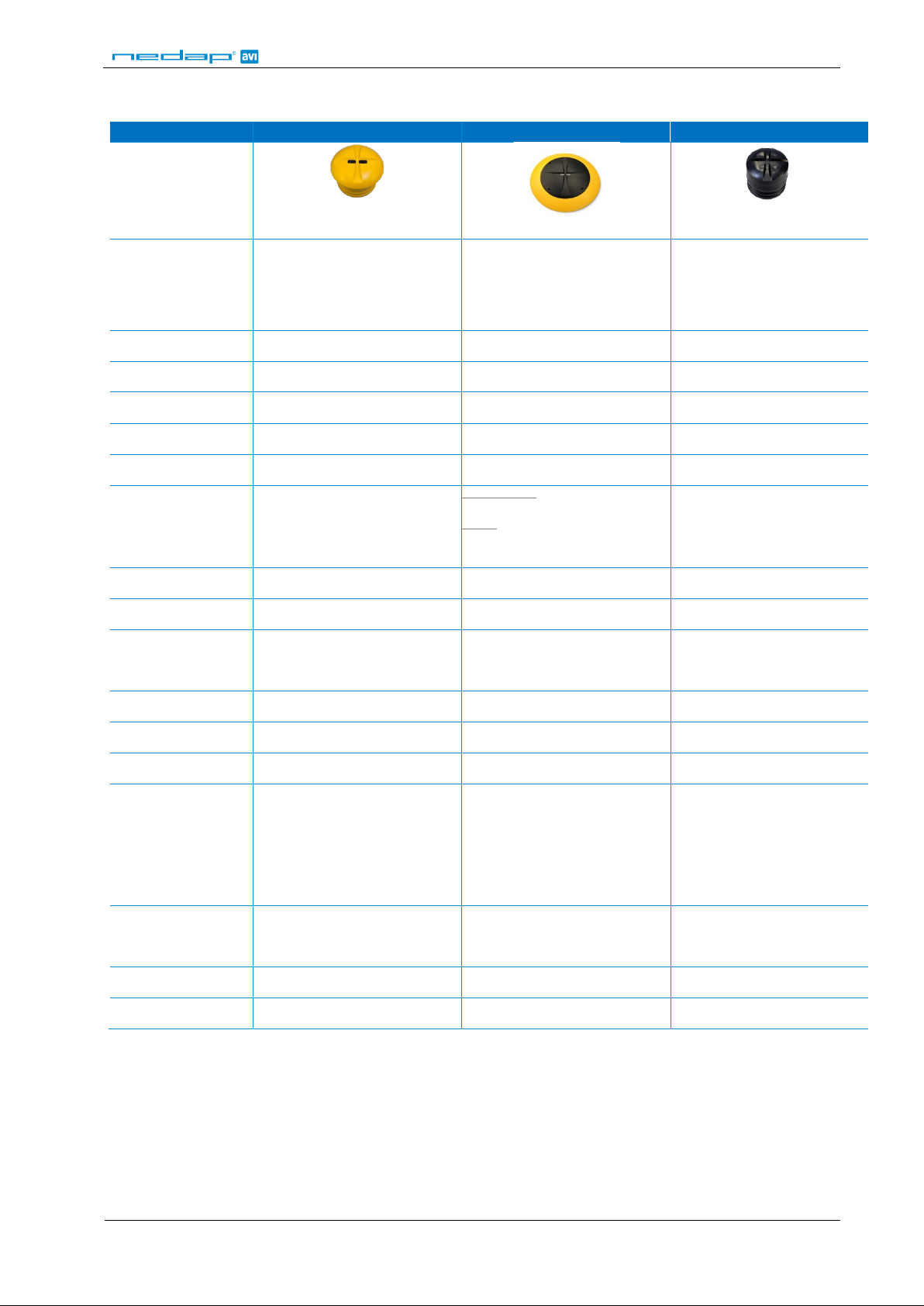

7 TECHNICAL SPECIFICATIONS

Technical info SENSIT IR SENSIT Surface Mount SENSIT Flush Mount
Product
SENSIT
Detection
Detection accuracy
Snowplough resistant
Weight
Protection
Colour
902 – 928 MHz (US) 915 – 928 MHz (AUS) Magnetic and IR Magnetic and IR Magnetic
98% 98% 95%
No No Yes
in] high in the floor
365 gram [12,87 oz] 455 gram [16.05 oz] 350 gram [12.35 oz]
IP67, completely sea led Housing PE IP67, completely sealed Housing PE IP67, completely sea led Housing PE
Default black (optiona l yellow) Sensor black
902 – 928 MHz (US) 915 – 928 MHz (AUS)
Mounting ring: Ø 240 mm [9.45 in] Sensor
: Ø 167 cm [6.57 in] and 35 mm
[1.38 in] high
902 – 928 MHz (US) 915 – 928 MHz (AUS)
into the floor f surface
Default black (optiona l yellow)
Operating temperature
Storage temperature
Detection height
Communication range
Sensor to Sensor Sensor to Relay Node Sensor to Data Collector
Required Relay Nodes
Power supply
Expected lifetime
-20 ... +85°C [-4…+185°F]
-20 ... +85°C [-4…+185°F]
0 … 90 cm [0 … 35.5 in] 0 … 90 cm [0 … 35.5 in]
x
max. 10 meters [33 ft] max. 25 meters [82 ft] max. 25 meters [82 ft]
Car parks: 1 per 50 sensors On-street parking: 1 per 25 se nsors Built in lithium battery Built in lithium battery
5-10 years* 5- 9 years* 5-10 years*
Mounting ring yellow
-20 ... +85°C [-4…+185°F] -20 ... +85°C [-4…+185°F]
-20 ... +85°C [-4…+185°F] -20 ... +85°C [-4…+185°F]
0 … 90 cm [0 … 35.5 in]
x
max. 10 meters [33 ft] max. 25 meters [82 ft] max. 25 meters [82 ft]
Car parks: 1 per 50 sensors On-street parking: 1 per 25 se nsors
x
max. 10 meters [33 ft] max. 25 meters [82 ft]
max. 25 meters [82 ft]
1 per 25 senso rs
Built in lithium battery
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 19 of 23

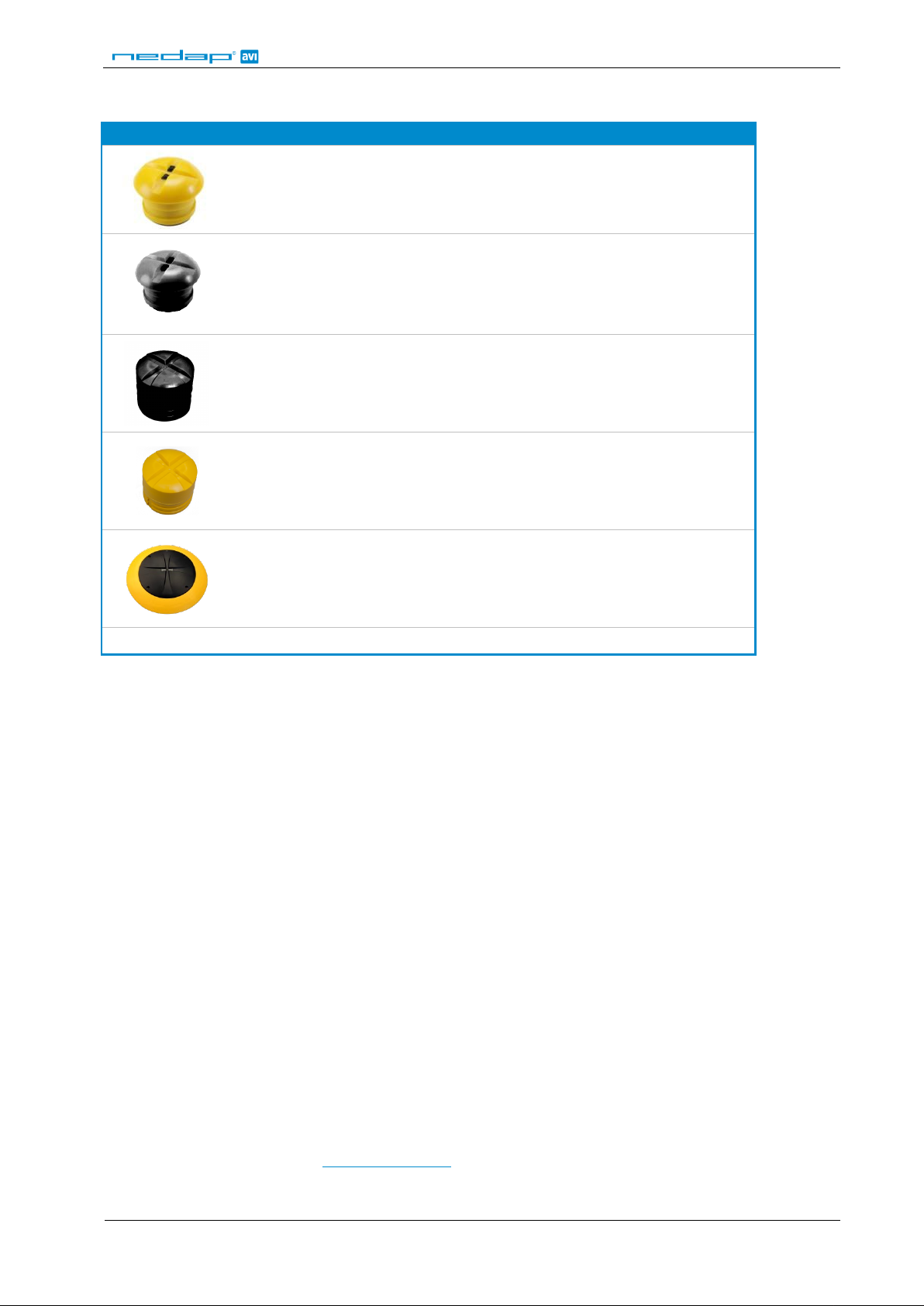

A PA RT NUMB ERS
SENSIT Vehicle Detection sensors
SENSIT IR EU yellow SENSIT IR US yellow SENSIT IR AU yellow
SENSIT IR EU black SENSIT IR US black SENSIT IR AU black
SENSIT Flush Mount EU black SENSIT Flush Mount US black SENSIT Flush Mount AU black
SENSIT Flush Mount EU yellow SENSIT Flush Mount US yellow SENSIT Flush Mount AU yellow
SENSIT Surface Mount EU SENSIT Surface Mount US SENSIT Surface Mount AU
SENSIT ACTIVATION MAGNET part number: 3062198
part number: 9898344 part number: 9955909 part number: 9965947
part number: 9943374 part number: 9898620 part number: 9965955
part number: 9966960 part number: 9966978 part number: 9966986
part number: 9966510 part number: 9966528 part number: 9966536
part number: 9958525 part number: 9958533 part number: 9963871
SENSIT
For full product information visit www.nedapavi.com
© Nedap AVI, P.O. Box 103, NL-7140 AC GROENLO Page 20 of 23
Loading...
