SENSIT SYSTEM
10-02-2017 | v1.6RC
SENSIT SYSTEM | MANUAL
2/106
Introduction
CONTENT
1 INTRODUCTION _______________________________________________________ 7
2 SENSIT SYSTEM________________________________________________________ 8
ARCHITECTURE _________________________________________________ 8 THE SENSIT SENSORS ____________________________________________ 9
2.2.1 SENSIT IR ________________________________________________ 9
2.2.2 SENSIT FLUSH MOUNT ____________________________________ 10
2.2.3 SENSIT SURFACE MOUNT __________________________________ 11
RELAY NODES _________________________________________________ 12
2.3.1 SENSIT RELAY NODE 2G ___________________________________ 12
SENSIT GATEWAY ______________________________________________ 13
2.4.1 THE GATEWAY ___________________________________________ 13
2.4.2 SENSIT BACKUP BATTERY __________________________________ 14
ADDITIONAL EQUIPMENT ________________________________________ 15
2.5.1 ELECTRONIC PARKING LICENSE ____________________________ 15
2.5.2 SENSIT DISPLAY __________________________________________ 16
2.5.3 SENSIT CONFIGURATION TOOL _____________________________ 17
SENSIT INTERFACE SOFTWARE ___________________________________ 18
3 INSTALLATION PROCEDURES ___________________________________________ 19
4-STEPS WITHOUT THE CONFIGURATION TOOL _____________________ 19
3.1.1 STEP 1 – PREPARATION ___________________________________ 19
3.1.2 STEP 2 – GATEWAY AND RELAY NODE INSTALLATION __________ 19
3.1.3 STEP 3 – SENSIT INSTALLATION _____________________________ 19
3.1.4 STEP 4 – SETTING UP THE SENSIT INTERFACE SOFTWARE _______ 19
4-STEPS WITH THE CONFIGURATION TOOL _________________________ 20
3.2.1 STEP 1 – PREPARATION ___________________________________ 20
3.2.2 STEP 2 – GATEWAYS AND RELAY NODE INSTALLATION _________ 20
3.2.3 STEP 3 – SENSIT INSTALLATION _____________________________ 20
3.2.4 STEP 4 – SETTING UP THE SENSIT INTERFACE SOFTWARE _______ 20
4 RELAYNODETOOL ____________________________________________________ 21
SCALED DRAWING ______________________________________________ 21 START A NEW PROJECT __________________________________________ 22 THE FIRST SEGMENT ____________________________________________ 22
4.3.1 IMPORT MAP ____________________________________________ 23
4.3.2 SET THE SCALE___________________________________________ 23
4.3.3 PLACE THE GATEWAY _____________________________________ 24
4.3.4 PLACE THE RELAY NODE __________________________________ 24
THE SECOND SEGMENT _________________________________________ 25
4.4.1 IMPORT MAP ____________________________________________ 25
4.4.2 SET THE SCALE___________________________________________ 26
4.4.3 PLACE THE GATEWAY _____________________________________ 26
4.4.4 PLACE THE RELAY NODE __________________________________ 27
SAVE THE PROJECT _____________________________________________ 28 EXPORT PROJECT FILES __________________________________________ 28
4.6.1 PROJECT FILE ____________________________________________ 28
4.6.2 SAVE AS IMAGE __________________________________________ 28
4.6.3 PRINT PROJECT __________________________________________ 28
REQUEST PROJECT REVIEW ______________________________________ 28
5 CONFIGURATION TOOL ________________________________________________ 29
DOWNLOADING THE APP ________________________________________ 29 STARTING THE CONFIGURATION TOOL AND INITIALIZE THE APP _______ 29 CONFIGURE THE GATEWAY ______________________________________ 30 CONFIGURE THE RELAY NODES ___________________________________ 30 CONFIGURE SENSIT _____________________________________________ 30 SIS SOFTWARE _________________________________________________ 30 REPLACING THE BATTERIES ______________________________________ 31
SENSIT SYSTEM | MANUAL
3/106
Introduction
6 INSTALLATION SENSIT GATEWAY ________________________________________ 32
SAFETY PRECAUTIONS __________________________________________ 32 IC AND FCC ID _________________________________________________ 32 GATEWAY INSTALLATION ________________________________________ 32
6.3.1 INSTALLATION CONDITIONS _______________________________ 32
6.3.2 REQUIRED INSTALLATION MATERIALS _______________________ 32
6.3.3 MOUNTING ______________________________________________ 33
6.3.4 AC POWER SUPPLY _______________________________________ 34
6.3.5 EXTERNAL SOLAR SET _____________________________________ 34
6.3.6 SIM CARD _______________________________________________ 35
6.3.7 ANTENNA _______________________________________________ 35
7 GATEWAY CONFIGURATION ____________________________________________ 36
TCP/IP CONFIGURATION _________________________________________ 36
7.1.1 GATEWAY TCP/IP SETTINGS ________________________________ 36
3G CONFIGURATION ____________________________________________ 38 SENSIT GATEWAY LED BEHAVIOR _________________________________ 39

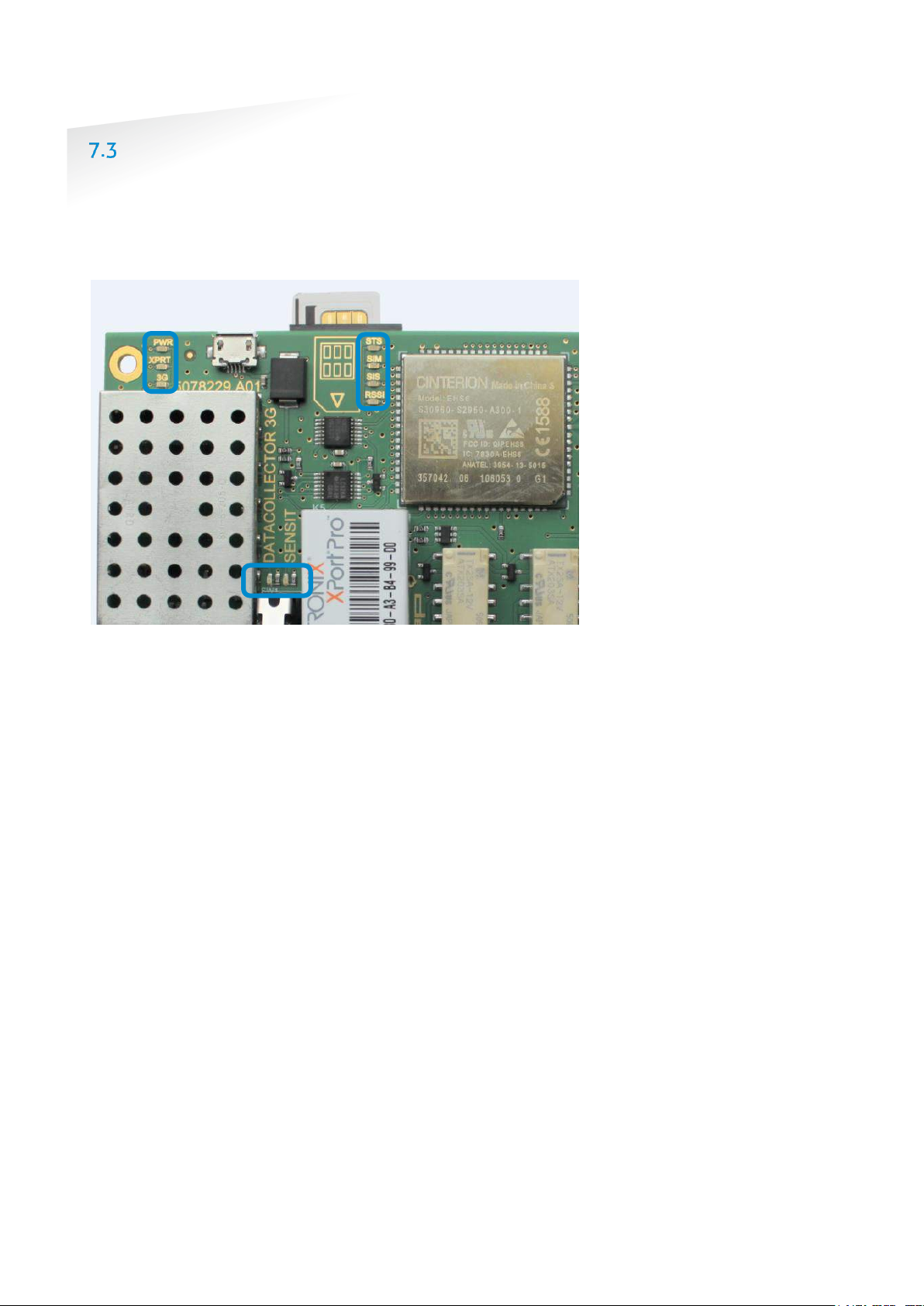

7.3.1 PWR (POWER) LED _______________________________________ 39
7.3.2 XPRT (XPORT) LED ________________________________________ 39
7.3.3 3G LED _________________________________________________ 39
7.3.4 STS (3G STATUS) LED _____________________________________ 40
7.3.5 SIM LED ________________________________________________ 40
7.3.6 SIS LED _________________________________________________ 40
7.3.7 RSSI LED ________________________________________________ 40
7.3.8 WSN LED INDICATIONS ___________________________________ 41
VERIFY COMMUNICATION _______________________________________ 41
8 MOUNTING THE SENSIT BACKUP BATTERY ________________________________ 42
SAFETY PRECAUTIONS __________________________________________ 42 INSTALLATION CONDITIONS _____________________________________ 42 REQUIRED INSTALLATION MATERIALS _____________________________ 42 MOUNTING ____________________________________________________ 42
8.4.1 DIMENSIONS ____________________________________________ 43
8.4.2 CONNECTION TO THE GATEWAY ____________________________ 44
9 POLE MOUNTING SET _________________________________________________ 45
REQUIRED INSTALLATION MATERIALS _____________________________ 45 MOUNTING ____________________________________________________ 45

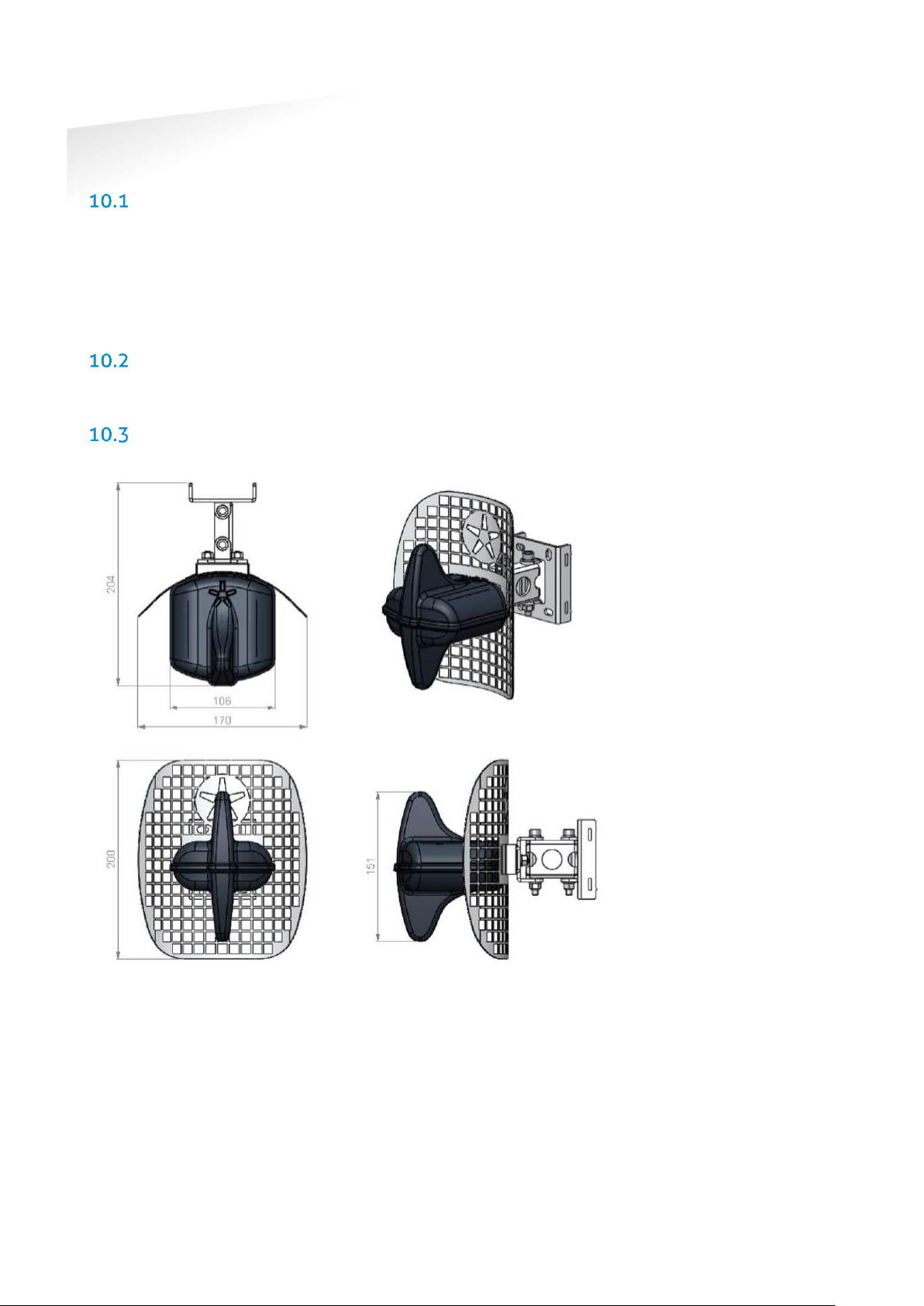

10 MOUNTING THE RELAY NODE 2G _______________________________________ 46
SAFETY PRECAUTIONS __________________________________________ 46 IC AND FCC ID _________________________________________________ 46 DIMENSIONS __________________________________________________ 46 INSTALLATION CONDITIONS _____________________________________ 47 REQUIRED INSTALLATION MATERIALS _____________________________ 47 INSTALLATION PROCEDURE ______________________________________ 47 BATTERY REPLACEMENT ________________________________________ 48
11 MOUNTING THE SENSIT IR _____________________________________________ 49
SAFETY PRECAUTIONS __________________________________________ 49 IC AND FCC ID _________________________________________________ 49 DIMENSIONS __________________________________________________ 49 INSTALLATION CONDITIONS _____________________________________ 49 REQUIRED INSTALLATION MATERIALS _____________________________ 49 INSTALLATION PROCEDURE ______________________________________ 50
11.6.1 WITHOUT THE CONFIGURATION TOOL _______________________ 50
11.6.2 WITH THE CONFIGURATION TOOL __________________________ 51
REPLACEMENT _________________________________________________ 51
12 MOUNTING THE SENSIT FLUSH MOUNT __________________________________ 52
SAFETY PRECAUTIONS __________________________________________ 52 IC AND FCC ID _________________________________________________ 52
SENSIT SYSTEM | MANUAL
4/106
Introduction
DIMENSIONS __________________________________________________ 52 INSTALLATION CONDITIONS _____________________________________ 52 INSTALLATION MATERIAL ________________________________________ 53 INSTALLATION PROCESS _________________________________________ 53 REPLACEMENT _________________________________________________ 53
13 MOUNTING THE SENSIT SURFACE MOUNT ________________________________ 54
SAFETY PRECAUTIONS __________________________________________ 54 IC AND FCC ID _________________________________________________ 54 DIMENSIONS __________________________________________________ 54 REQUIRED INSTALLATION MATERIALS _____________________________ 54 INSTALLATION PROCESS _________________________________________ 55
13.5.1 WITHOUT THE CONFIGURATION TOOL _______________________ 55
13.5.2 WITH THE CONFIGURATION TOOL __________________________ 56
REPLACEMENT _________________________________________________ 57
14 MOUNTING THE SENSIT EPL ____________________________________________ 58
SAFETY PRECAUTIONS __________________________________________ 58 IC AND FCC ID _________________________________________________ 58 DIMENSIONS __________________________________________________ 58 REQUIRED INSTALLATION MATERIALS _____________________________ 58 INSTALLATION PROCESS _________________________________________ 59 SYSTEM SETUP FOR EPL _________________________________________ 59
15 MOUNTING THE SENSIT DISPLAY ________________________________________ 60
SAFETY PRECAUTIONS __________________________________________ 60 DIMENSIONS __________________________________________________ 60
16 PROJECT SUPPORT ____________________________________________________ 61
SITE SURVEY & INSTALLATION ADVICE ____________________________ 61 ON-SITE CERTIFICATION _________________________________________ 61
17 SENSIT INTERFACE SOFTWARE __________________________________________ 62
INTRODUCTION ________________________________________________ 62 USERS ________________________________________________________ 62
17.2.1 LOGIN __________________________________________________ 62
17.2.2 DEFAULT LOGINS ________________________________________ 63
17.2.3 LOGOUT ________________________________________________ 63
SUPPORT WIDGET ______________________________________________ 64 DASHBOARD __________________________________________________ 65 PARKING ENFORCEMENT ________________________________________ 65
17.5.1 PERMIT ADMINISTRATION _________________________________ 66
17.5.2 PERMIT ZONE CONFIGURATION ____________________________ 67
DETECTION ____________________________________________________ 68
17.6.1 SENSIT GATEWAY ________________________________________ 68
17.6.2 NODE CROSS CHECK _____________________________________ 69
17.6.3 NODE PRESENCE _________________________________________ 69
DEFINITION ____________________________________________________ 70
17.7.1 RELAY NODE CONFIGURATION _____________________________ 70
17.7.2 PARKING BAY CONFIGURATION ____________________________ 70
17.7.3 PARKING LOT CONFIGURATION ____________________________ 72
17.7.4 MONITOR CONFIGURATION ________________________________ 72 Site Name _____________________________________________________ 72 Monitor Color Mapping _________________________________________ 72 Map List ______________________________________________________ 72
17.7.5 OVERSTAY CONFIGURATION _______________________________ 73
17.7.6 SENSOR CALIBRATION ____________________________________ 74

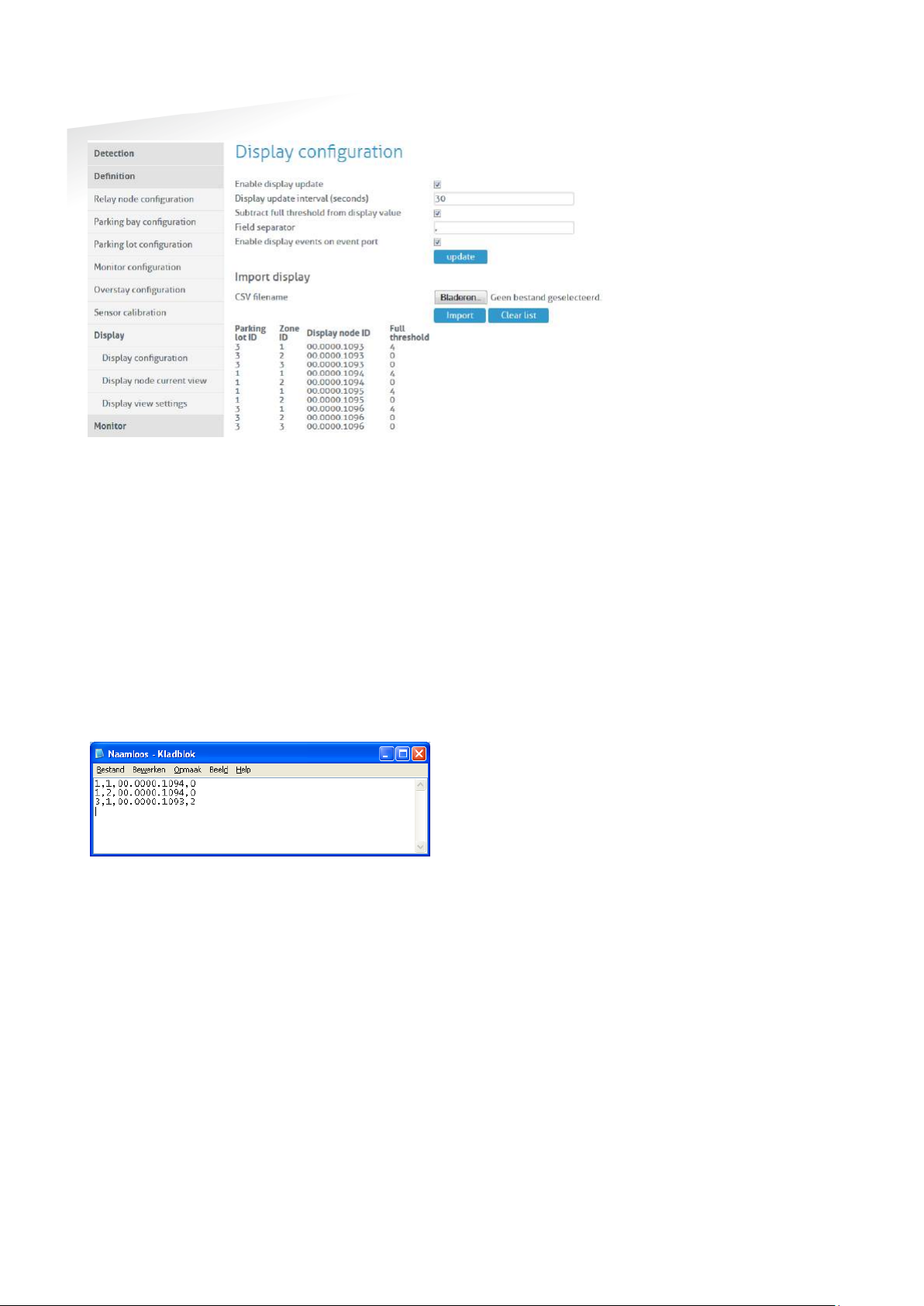

17.7.7 DISPLAY ________________________________________________ 74 Display Configuration ___________________________________________ 74 Display Current View ___________________________________________ 75 Display View Settings ___________________________________________ 75
MONITOR _____________________________________________________ 76
SENSIT SYSTEM | MANUAL
5/106
Introduction
OCCUPANCY REPORT ___________________________________________ 76
17.9.1 OCCUPANCY LIST ________________________________________ 76
17.9.2 OCCUPANCY CHART ______________________________________ 77
17.9.3 OVERSTAY REPORT _______________________________________ 77
17.9.4 PARKING VIOLATION PROBABILITY __________________________ 77
17.9.5 MAP MONITOR ___________________________________________ 78
DIAGNOSE ____________________________________________________ 78

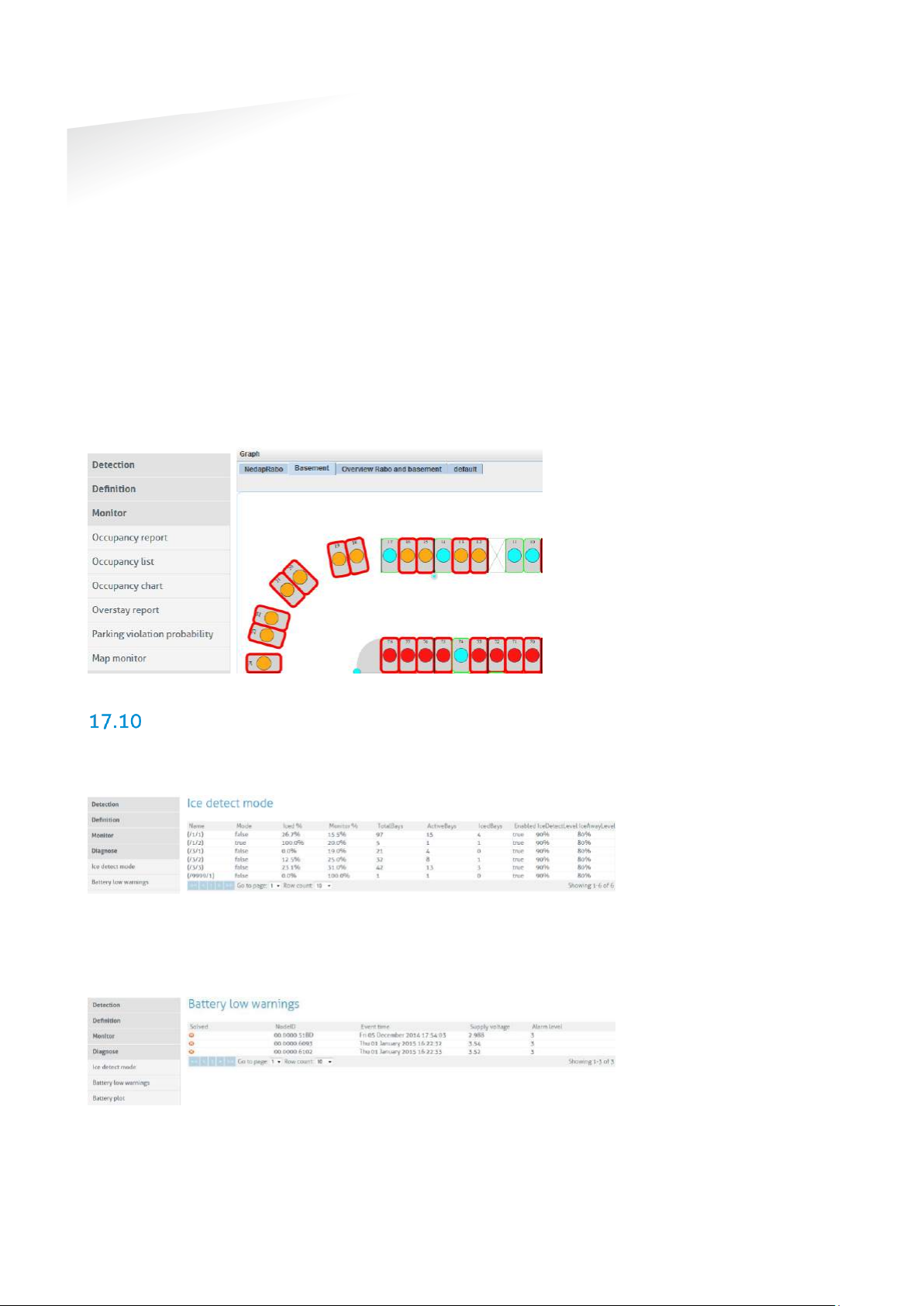

17.10.1 ICE DETECT MODE ____________________________________ 78
17.10.2 BATTERY LOW WARNINGS _____________________________ 78
17.10.3 BATTERY PLOT _______________________________________ 79
17.10.4 SENSOR ANALYSIS ____________________________________ 79
17.10.5 SENSOR CALIBRATION ERRORS _________________________ 79
17.10.6 GATEWAY CONNECTION LOG __________________________ 80
17.10.7 BAD NETWORK EVENTS _______________________________ 80
17.10.8 PENDING TX MESSAGES _______________________________ 80
17.10.9 PENDING RX MESSAGES _______________________________ 80
SETTINGS _____________________________________________________ 80
17.11.1 USER SETTINGS ______________________________________ 80 Change Password ______________________________________________ 80
17.11.2 SYSTEM SETTINGS ____________________________________ 81 System Information _____________________________________________ 81 System Reboot_________________________________________________ 81 Time Configuration _____________________________________________ 81 Node Gateway List _____________________________________________ 81 Local Configuration _____________________________________________ 82 Active Http Sessions ____________________________________________ 83 Status Reading Interval Settings __________________________________ 83
17.11.3 EXPERT SETTINGS ____________________________________ 83 Console _______________________________________________________ 83 EPL settings ___________________________________________________ 84 EPL old licenses (deprecated) ____________________________________ 84
18 ADVANCE CONFIGURATION ____________________________________________ 85
INKSCAPE _____________________________________________________ 85
19 FREQUENTLY ASKED QUESTIONS _______________________________________ 88
GENERAL ______________________________________________________ 88 MAGNETIC SENSOR _____________________________________________ 89
19.2.1 CALIBRATION ____________________________________________ 89
OPTICAL SENSOR _______________________________________________ 90
19.3.1 CALIBRATION ____________________________________________ 91
MORE INFORMATION SENSIT AND MOUNTING ______________________ 91 INSTALLATION _________________________________________________ 92 BATTERY LIFE __________________________________________________ 92 RELAY NODES _________________________________________________ 93 SENSIT GATEWAY ______________________________________________ 94 SENSIT INTERFACE SOFTWARE (SIS) _______________________________ 96
NETWORK & COMMUNICATION __________________________________ 98 TECHNICAL MATTERS ___________________________________________ 99
20 APPENDIX __________________________________________________________ 100

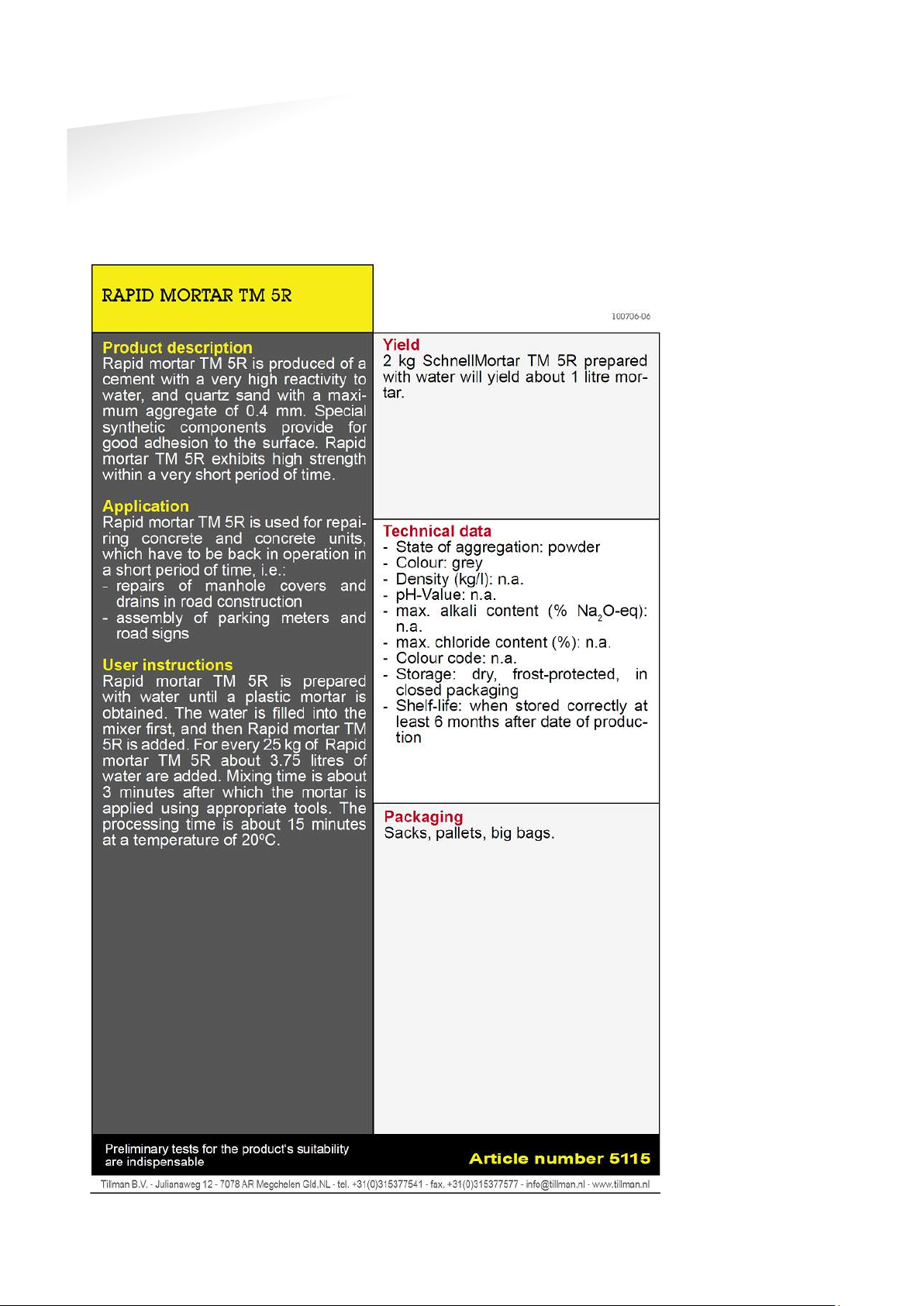

A RAPID MORTAR ______________________________________________________ 100
B MODIFIED SILICON POLYMER _________________________________________ 101
B.1 Description ___________________________________________________ 101 B.2 Field of application ____________________________________________ 101 B.3 Advantages___________________________________________________ 101 B.4 Method of use ________________________________________________ 101 B.5 TECHNICAL DATA ______________________________________________ 102
C POLYURETHAN ______________________________________________________ 103
SENSIT SYSTEM | MANUAL
6/106
Introduction
D FCC AND IC DECLARATIONS ___________________________________________ 104
Compliance statements (part15.19) ______________________________ 104
F DISCLAIMER ________________________________________________________ 105
G DOCUMENT REVISION ________________________________________________ 106
SENSIT SYSTEM | MANUAL
7/106
Introduction
1 INTRODUCTION
The SENSIT vehicle detection system facilitates accurate measurement on occupancy of individual parking spaces in car parks, and on-street parking spaces. This information can be used to guide traffic to free parking spaces but can also be used for on-street parking enforcement and overstay detection. For on-street enforcement the number of occupied parking spaces can be compared with the number of payments realized by the pay station. For overstay detection the system alerts instantly a parking officer to the presence of nearby overstaying vehicles. Based on this information you can exactly determine which space to enforce.
All the SENSIT vehicle detection sensors are featured with detection and communicate wireless, creating their own network. The SENSIT sensors do not require power wiring, in contrast to conventional systems that require wiring throughout the car park and mounting onto the ceiling.
Easy installation of the sensors is guaranteed. Once installed no maintenance is required for years. The actual status (occupancy) of the sensor is transmitted to the Relay Node, which is part of the wireless mesh network.
Different types of ruggedly designed sensors are available to accommodate installation in indoor car parks, on-street spaces and road surfaces.
SENSIT SYSTEM | MANUAL
8/106
SENSIT System
2 SENSIT SYSTEM
ARCHITECTURE
The actual status (occupancy) of the SENSIT sensors is finally collected by one or more SENSIT Gateway. The SENSIT sensors transmit their status via one or more Relay Nodes to the SENSIT Gateway. The SENSIT Gateway (formally known as Data Collector) is the interface between the wireless sensors network and the SENSIT Interface Software running on the server. The SENSIT Gateway transmits status information about the sensors to the server using TCP/IP via Ethernet or GPRS communication.
Figure 1: System Architecture
For a parking site you need at least one SENSIT Gateway, a Relay Node and a SENSIT per parking bay.
SENSIT SYSTEM | MANUAL
9/106
SENSIT IR
Operating frequency
SENSIT IR EU: 868.2 MHz SENSIT IR CN: 868.2 MHz SENSIT IR US: 902-928 MHz (FHSS) SENSIT IR AU: 915-928 MHz (FHSS) SENSIT IR NZ : 920-925MHz (FHSS) SENSIT IR SG : 920-925MHz (FHSS) SENSIT IR ID: 923-925MHz (FHSS) SENSIT IR MY : 919-923MHz (FHSS)
Detection
Magnetic and IR Accuracy: 98%
Load resistance
Heavy traffic
Mounting
Into the floor
Weight
365 gram (12.87 oz)
Dimensions
Ø 78 mm (3.07 inch) In the floor 55 mm (2.16 inch) Above the floor 20 mm (0.79 inch)
Color
Black or Yellow (optional)
Detection height
0…90 cm (0 … 35.5 inch)
Protection
IP67, completely sealed housing PE
Operating temperature
-40 ... +85°C (-40°F … +185°F)
Power supply
Built in Lithium batteries expected lifetime of 5-10 years *
Antenna
Included
SENSIT System
THE SENSIT SENSORS
Three types of ruggedly designed sensors are available to accommodate installation in indoor car parks, on-street spaces and road surfaces. The standard, most used, SENSIT Sensor is the SENSIT IR. For regions with lots of snow the SENSIT Flush Mount is designed to withstand frequent snow ploughing. The SENSIT Surface Mount is designed for indoor car parks or roof tops where drilling is not allowed.
2.2.1 SENSIT IR
Vehicle detection sensor featured with dual detection technology (infrared and earth-magnetic field detection. The SENSIT IR is mounted into the floor of each parking space allowing for vandal resistant installation, making the unit suitable for on-street application.
* Under normal circumstances and dependent on settings.
SENSIT SYSTEM | MANUAL
10/10
SENSIT Flush Mount
Operating frequency
SENSIT FLUSH MOUNT EU: 868.2 MHz SENSIT FLUSH MOUNT CN: 868.2 MHz SENSIT FLUSH MOUNT US: 902-928 MHz (FHSS) SENSIT FLUSH MOUNT AU: 915-928 MHz (FHSS) SENSIT FLUSH MOUNT NZ : 920-925MHz (FHSS) SENSIT FLUSH MOUNT SG : 920-925MHz (FHSS) SENSIT FLUSH MOUNT ID: 923-925MHz (FHSS) SENSIT FLUSH MOUNT MY : 919-923MHz (FHSS)
Detection
Magnetic Accuracy: 95%
Load resistance
Heavy traffic
Mounting
Into the floor
Weight
350 gram (12.35 oz)

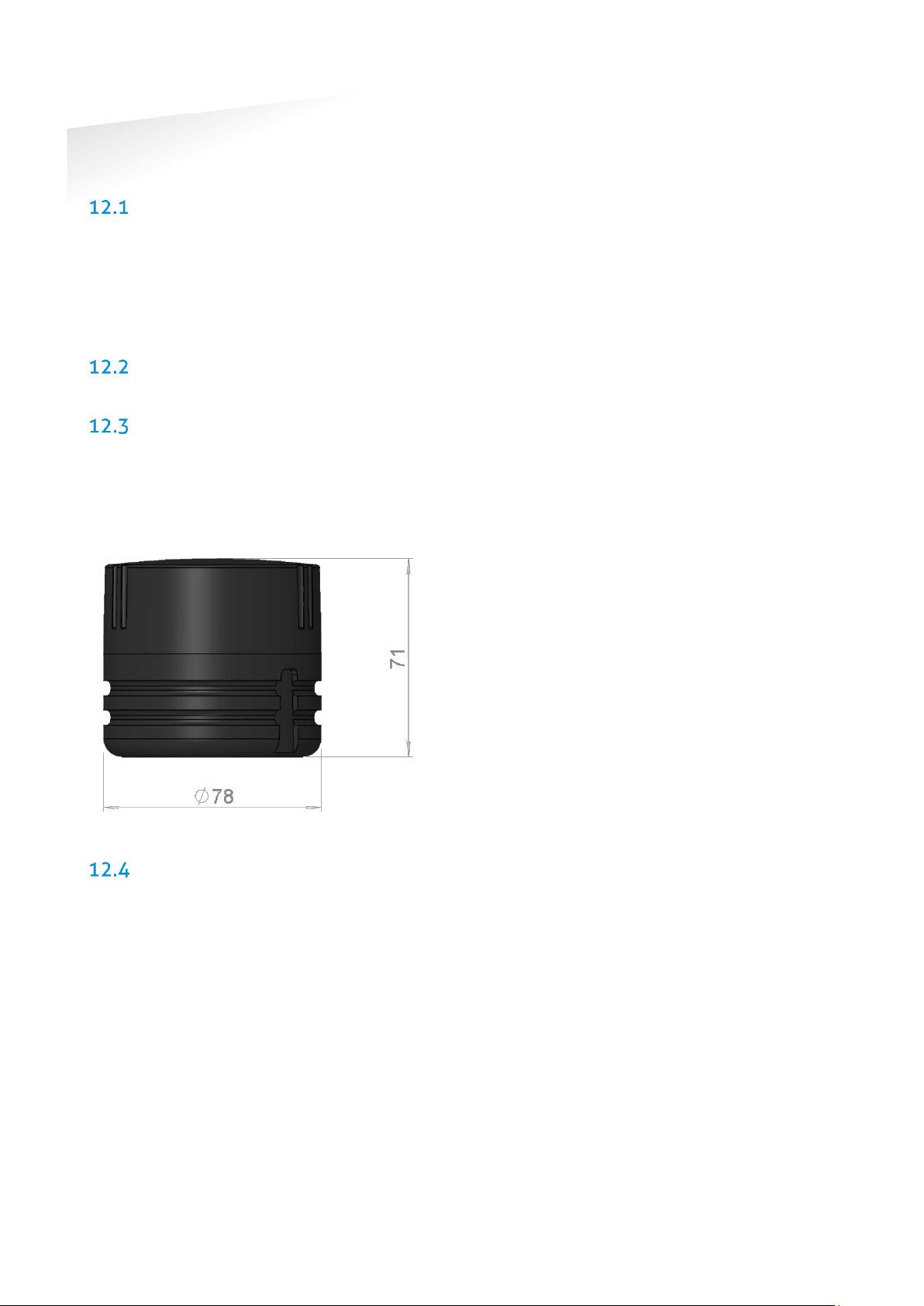

Dimensions
Ø 78 mm (3.07 inch) In the floor 72 mm (2.09 inch)
Color
Black
Detection height
0…90 cm (0 … 35.5 inch)
Protection
IP67, completely sealed housing PE
Operating temperature
-40 ... +85°C (-40°F … +185°F)
Power supply
Built in Lithium batteries expected lifetime of 5-10 years*
Antenna
Included
SENSIT System
2.2.2 SENSIT FLUSH MOUNT
Vehicle detection sensor for flush mount installation in the road surface. The sensor is resistant to snow ploughs and offers vandal resistant installation. The SENSIT Flush Mount is featured with earth-magnetic field detection.
* Under normal circumstances and dependent on settings.
SENSIT SYSTEM | MANUAL
11/10
SENSIT Surface Mount
Operating frequency
SENSIT SURFACE MOUNT EU: 868.2 MHz SENSIT SURFACE MOUNT CN: 868.2 MHz SENSIT SURFACE MOUNT US: 902-928 MHz (FHSS) SENSIT SURFACE MOUNT AU: 915-928 MHz (FHSS) SENSIT SURFACE MOUNT NZ : 920-925MHz (FHSS) SENSIT SURFACE MOUNT SG : 920-925MHz (FHSS) SENSIT SURFACE MOUNT ID : 923-925MHz (FHSS) SENSIT SURFACE MOUNT MY : 919-923MHz (FHSS)
Detection
Magnetic and IR Accuracy: 98%
Load resistance
Regular traffic
Mounting
On the floor surface
Weight
455 gram (16.05 oz)
Dimensions
Mounting ring: Ø 240 (9.45 inch) Sensor: Ø 167 cm (6.57 inch) Height: 35mm (1.38 inch)
Color
Sensor black and yellow (optional black) ring
Detection height
0…90 cm (0 … 35.5 inch)
Protection
IP67, completely sealed housing PE
Operating temperature
-40 ... +85°C (-40°F … +185°F)
Power supply
Built in Lithium batteries expected lifetime of 5-9 years *
Antenna
Included
SENSIT System
2.2.3 SENSIT SURFACE MOUNT
Vehicle detection sensor designed for car parks where drilling is not allowed or non-permanent mounting is required. The unit is suitable for
indoor car parks and rooftop parking’s. The sensor
can easily be glued onto the surface. Replacement can be achieved by removing the sensor installed in the mounting ring. The SENSIT Surface Mount is featured with dual detection technology (infrared and earth-magnetic field).
* Under normal circumstances and dependent on settings.
SENSIT SYSTEM | MANUAL
12/10
Relay Node 2G
Operating frequency
SENSIT RELAY NODE 2G EU: 868.2 MHz SENSIT RELAY NODE 2G CN: 868.2 MHz SENSIT RELAY NODE 2G US: 902-928 MHz (FHSS) SENSIT RELAY NODE 2G AU: 915-928 MHz (FHSS) SENSIT RELAY NODE 2G NZ : 920-925MHz (FHSS) SENSIT RELAY NODE 2G SG : 920-925MHz (FHSS) SENSIT RELAY NODE 2G ID : 923-925MHz (FHSS) SENSIT RELAY NODE 2G MY : 919-923MHz (FHSS)
Weight
540 gram (12.87 oz)
Dimensions
200 x 170 x 204 mm (7.87 x 6.69 x 8.03 inch)
Mounting
Onto a pole, lamppost or wall, mounting bracket included.
Mounting height
3 – 6 meters (10 – 20 ft.)
Pole dimensions
Min. Ø 40 mm (1.57 inch) Max. Ø 150 mm (6 inch)
Protection
IP65
Operating temperature
-40 ... +85°C (-40°F … +185°F)
Communication range *
DC – RN 2G omnidirectional 35 m (135 ft) DC – RN 2G directional max. 50 m (164 ft) DC GPRS – RN 2G max. 10 m (33 ft) RN 2G – RN 2G max. 100m (328 ft) SENSIT – RN 2G omnidirectional 35 m (135 ft) SENSIT – RN 2G directional 50 m (164 ft)
Power supply **
Replaceable Lithium batteries expected lifetime of 5 years
Antenna connection
Antenna included
SENSIT System
RELAY NODES
A Relay Node allows for communication increase and ensures a robust and reliable communication network. It ensures fast transmission of event messages from the vehicle detection sensors to the SENSIT Gateway.
2.3.1 SENSIT RELAY NODE 2G
The Relay Node 2G is has an improved communication range and a battery lifetime. It ensures a robust and reliable communication network. The Relay Node 2G ensures fast transmission of event messages from the SENSIT sensors to the SENSIT Gateway. Relay Node 2G should be mounted preferable at about 3 – 6 meters [10- 20 ft] from the floor (e.g. onto a lamppost) to allow for visible view of the sensors.
* Dependent on the environment. ** Under normal circumstances and dependent on settings.
SENSIT SYSTEM | MANUAL
13/10
SENSIT Gateway
Operating frequency
SENSIT GATEWAY EU: 868.2 MHz SENSIT GATEWAY CN: 868.2 MHz SENSIT GATEWAY US: 902-928 MHz (FHSS) SENSIT GATEWAY AU: 915-928 MHz (FHSS) SENSIT GATEWAY NZ : 920-925MHz (FHSS) SENSIT GATEWAY SG : 920-925MHz (FHSS) SENSIT GATEWAY ID : 923-925MHz (FHSS) SENSIT GATEWAY MY : 919-923MHz (FHSS)
Dimensions
252 x 251 x 89 mm (10 x 10 x 3.5 inch)
Weight
1850 gram (65 oz)
Protection
IP65
Color
Aluminum & dark blue side covers RAL5011
Operating temperature
-40°C … +65°C (-40°F … +149°F)
Communication range*
From SENSIT to Gateway in principle unendless as the nodes communicate to each other. It is recommended to locate the nearest Relay Node within 25 meters (82 ft) of the Gateway.
Communication
3G mobile or RJ45 TCP/IP
Power input
110-240 VAC 50/60Hz or 12VDC (solar panel set)
Antenna connection
Antenna included
SENSIT System
SENSIT GATEWAY
The actual status (occupancy) of the SENSIT sensors is collected by one or more Gateway. The Gateway is the interface between the wireless sensors network and the SENSIT Interface Software running at the server. The Gateway transmits status information about the sensors to the server using TCP/IP via Ethernet or 3G mobile communication.
For a parking site you need at least one Gateway, a Relay Node and a SENSIT per parking bay. One Gateway is required per 250 parking bays. All Gateway must be separated as far as possible from each other, preferably at the remote corners of the site.
2.4.1 THE GATEWAY
The Gateway can be installed virtually anywhere due to its IP65 weatherproof housing and embedded 3G wireless modem. The only requirements in case it is uses the mobile internet are; an AC mains power supply and that it should be installed within reach of the SENSIT wireless network.
* Dependent on the environment.
SENSIT SYSTEM | MANUAL
14/10
SENSIT Battery pack
Dimensions
252 x 251 x 89 mm (10 x 10 x 3.5 inch)
Weight
3800 gram (134 oz)
Protection
IP65
Color
Aluminum & dark blue side covers RAL5011
Operating temperature
-15°C … +50°C (5°F … +122°F) Internal battery
12VDC | 7Ah (lead-acid)
Lifetime*
>1000 discharge/charge cycles
Autonomous time**
Up to 35 hours
SENSIT System
2.4.2 SENSIT BACKUP BATTERY
The Gateway can be completed with a backup battery to make sure the Gateway stays alive when the mains power fails. This backup battery can also been used when the Gateway is powered by the public lighting pole. This cyclic use will have an influence on the lifetime of the internal lead-acid battery.
* Depends upon the average depth of discharge. ** Depends upon communication means 3G/Ethernet, temperature and battery age
SENSIT SYSTEM | MANUAL
15/10
Electronic Parking License
Operating frequency
SENSIT EPL EU: 868.2 MHz SENSIT EPL US: 902-928 MHz (FHSS) SENSIT EPL AU: 915-928 MHz (FHSS)
Mounting
Attaches with suction pads to the windscreen on the inside of the car
Weight
120 gram (4.2 oz)
Dimensions
116 x 72 x 27 mm (4.6 x 2.8 x 1.1 inch)
Color
Grey, RAL7016
Protection
IP32
Operating temperature
-40 ... +85°C (-40°F … +185°F) Power supply
User replaceable AAA 1.5V alkaline batteries
Antenna
Included
SENSIT System
ADDITIONAL EQUIPMENT
Additional equipment is available to expand the functionality of the SENSIT system.
2.5.1 ELECTRONIC PARKING LICENSE
The Electronic Parking License (EPL) physically is a device that is positioned inside the car. Whenever the car stops for a specific period of time it considers the car to be parked and it will look for a wireless SENSIT network. If a network is detected, it will make itself know to the network. Its unique EPL identifier is registered at the server with SENSIT Interface Software (SIS). The SIS is triggered when parking bays that require a license change status (become occupied or free). When such a parking bay is occupied the system will calculate the odds of the parking bay being occupied by an unauthorized vehicle.
SENSIT SYSTEM | MANUAL
16/10
SENSIT Display
Display
Graphical display for outdoor use, single sided
Dimensions
330 x 221 x 171 mm (13.0 x 8.7 x 6.7 inch)
Display dimensions
320 x 160 x 15 mm (12.6 x 6.3 x 0.6 inch) Weight
5900 gram (208 oz)
Protection
IP65, UV protected
Color
Stainless steel housing, Amber LEDs
Character height
160 x 100 mm [h x w] (6.3 x 3.9 in)
Number of digits
3
Readability
5.000 cd/m2, readable in full sunlight.
Luminance
Ambient light luminance regulation.
Viewing angle
70º/35º
Operating temperature
-20 ... +60°C (32°F … +122°F)
Power supply
110-230 VAC 50/60Hz or PoE+ (25W)
Relay outputs
3 Low voltage relays
SENSIT System
2.5.2 SENSIT DISPLAY
The SENSIT Display enables signage of available parking spaces for stand-alone parking guidance installations. The display is designed for outdoor use, indicating the number of available parking spaces per parking lot thus guiding motorists to the closest parking space.
Availability of parking spaces can be indicated per zone, for the specific zone the SENSIT Display is allocated to. Configuration of the display can be realized using the SENSIT Interface Software.
SENSIT SYSTEM | MANUAL
17/10
SENSIT Configuration Tool
Dimensions
200 x 115 x 93 mm (7.9 x 5.9 x 2.4 inch)
Weight
505 gram (17.8 oz)
Protection
IP44
Color
Yellow housing, black front
Communication
Bluetooth
Operating temperature
-10 ... +50°C (14°F … +122°F) Battery powered
2x 1.5V AA alkaline batteries
Lifetime
About 40 hours of continuous use on a set of AA alkaline batteries.
SENSIT System
2.5.3 SENSIT CONFIGURATION TOOL
The SENSIT Configuration Tool can be used during installation of the SENSIT system. This tool enables easy installation; segmentation, calibration and administration (CVS-file including GPS-coordinates) of the SENSIT equipment (SENSIT Gateways, Relay nodes and sensors). The SENSIT The Configuration Tool works with an App which must be installed on an Android
smartphone. This App, called ‘SENSIT Configurator’ is available in
the google play store. The communication between the App and Configuration Tool is over Bluetooth.
SENSIT SYSTEM | MANUAL
18/10
SENSIT System
SENSIT INTERFACE SOFTWARE
SENSIT Interface Software allowing easy system integration into enforcement, traffic guidance or parking guidance management application. The main features of the SENSIT Interface Software to help you and make easy system integration possible are:
Installation Configuration Basic administration Integration
The SENSIT Interface Software enables easy installation of the wireless sensor network. Once the network and sensors are installed, the sensors will automatically appear in the software. Configuration of sensors to specific parking bays, parking zone and parking lot can easily be realized.
Additionally the software configures and monitors communication of the SENSIT node network. It monitors the data transfer between the sensors and the SENSIT Gateways. Moreover it also analyzes communication reliability of the sensor network in a graphical map, automatically alerting areas for maintenance.
Easy integration can be done via to SOAP or REST interface.
SOAP or Simple Object Access Protocol, is a protocol specification for exchanging structured information. It relies on Extensible Mark-up Language (XML) for its message format.
The SOAP interface can query data from the SIS using the http(s) interface, the found data is returned in a XML description format.
Representational state transfer (REST) is a simple stateless architecture that generally runs over HTTP(S). REST involves reading a designated Web page that contains an XML file. The XML file describes and includes the desired content.
SENSIT SYSTEM | MANUAL
19/10
Note
There is also a planning- tool (RelayNodeTool) available to plan the Relay Node and Data Collector locations. See chapter below for an example.
Note
Ask your Nedap account manager for special installation tools to configure, calibrate and register the ID to bay bindings.
Note
Inkscape is an open-source drawing program to create the SVG (Scalable Vector Graphic) drawing.
Note
Relay Node Tool is a planning-tool, to design the Relay Node and Gateway locations. See chapter below for an example.
.
Note
Inkscape is an open-source drawing program to create the SVG (Scalable Vector Graphic) drawing.
Installation Procedures
3 INSTALLATION PROCEDURES
The installation of the SENSIT system is basically the same with or without a Configuration Tool and can be described in 4 major steps: The preparation, the installation of Gateways and Relay Nodes, the installation of SENSIT sensors and finally setting up the SENSIT Interface Software.
In the next 2 paragraphs both methods are describe; with- or without the Configuration Tool. The functionality and used of the Configuration tool is described in more detail in chapter 5.
4-STEPS WITHOUT THE CONFIGURATION TOOL
3.1.1 STEP 1 – PREPARATION
a. Arrange a scaled map of the site. b. Make a site inspection to gather information:
c. Make an installation plan:
3.1.2 STEP 2 – GATEWAY AND RELAY NODE INSTALLATION
a. Install and power-up the Gateway according the plan. b. Activate and install the Relay Nodes according the plan. c. Write the ID numbers of the Gateways and Relay Nodes at the right location
in the plan.
d. Verify at the server that all Gateways and Relay Nodes are online.
3.1.3 STEP 3 – SENSIT INSTALLATION
a. Free the bays and close off the parking area. b. Mark the right location at the road surface with a piece of chalk or paint. c. Distribute the SENSIT sensors at the, to be installed locations and activate
them with the magnet.
d. Make a list of the correct ID numbers and bay numbers. e. Verify at the server if all SENSIT sensors come online. f. Drill the holes and glue the SENSIT sensors. g. Calibrate the SENSIT sensors without cars or metal tools in the
neighborhood of the SENSIT’s.
3.1.4 STEP 4 – SETTING UP THE SENSIT INTERFACE SOFTWARE
a. Make a (simple) Inkscape drawing of the site based on the map and
gathered information during STEP 1 and STEP 2.
b. Upload the SVG-drawing to the server. c. Make a correct CSV-file and upload it to the server. d. Verify if all Gateways, Relay Nodes and SENSIT sensors show up correctly in
the system.
Draw on the map where the parking bays are located. Draw on the map where you can mount Relay Nodes Draw on the map the possible locations for the Gateway.
Number every parking bays with a unique number. Use the Relay Node Tool to plan the final Relay Node and Gateway
locations to form a covering network.
Draw the Relay Nodes and Gateways at the right locations Draw the bays at the right locations
SENSIT SYSTEM | MANUAL
20/10
Note
Relay Node Tool is a planning-tool, to design the Relay Node and Gateway locations. See chapter 4 for an example.
Note
In chapter 5 a more detailed description about the configuration tool and how it works can be found.
Note
Inkscape is an open-source drawing program to create the SVG (Scalable Vector Graphic) drawing.
Installation Procedures
4-STEPS WITH THE CONFIGURATION TOOL
As mentioned the installation of a SENSIT system with a Configuration tool is similar as the configuration without a tool and can also be described in 4-steps: The first and last step is exactly the same, the configuration of SENSIT Gateways, Relay Nodes and SENSIT sensors is automated with the Configuration Tool to prevent writing errors, automatic calibration and to make segmentation possible.
3.2.1 STEP 1 – PREPARATION
a. Arrange a scaled map of the site. b. Make a site inspection to gather information:
c. Make an installation plan:
3.2.2 STEP 2 – GATEWAYS AND RELAY NODE INSTALLATION
a. Install and power-up the Gateway according the plan. b. Use the Configuration Tool for activation, segmentation and registration of
the Gateway.
c. Install the Relay Nodes according the plan. d. Use the Configuration Tool for activation, segmentation and registration of
the Relay Nodes.
e. Verify at the server that all Gateways and Relay Nodes are online.
3.2.3 STEP 3 – SENSIT INSTALLATION
a. Free the bays and close off the parking area. b. Mark the right location at the road surface with a piece of chalk or paint. c. Drill the holes and glue the SENSIT sensors. d. Use the Configuration Tool for activation, segmentation, calibration and
registration of the SENSIT sensor. Make sure there are no cars or metal tools in the neighborhood of the SENSIT sensors.
3.2.4 STEP 4 – SETTING UP THE SENSIT INTERFACE SOFTWARE
a. Make a (simple) Inkscape drawing of the site based on the map and
gathered information during STEP 1 and STEP 2.
b. Upload the SVG-drawing to the server. c. Use the data received from the configuration tool app and make a correct
CSV-file after upload it to the server.
d. Verify if all Gateways, Relay Nodes and SENSIT sensors show up correctly in
the system.
Draw on the map where the parking bays are located. Draw on the map where you can mount Relay Nodes Draw on the map the possible locations for the Gateway.
Number every parking bays with a unique number. Use the Relay Node Tool to plan the final Relay Node and Gateway
locations to form a covering network.
Draw the Relay Nodes and Gateways at the right locations Draw the bays at the right locations
SENSIT SYSTEM | MANUAL
21/10
Note
Please keep in mind that with help of this RelayNodeTool you can determine the needed components, but it will always be an estimation.
RelayNodeTool
4 RELAYNODETOOL
The RelayNodeTool software is developed to get a good estimation of the needed system components; Gateways and Relay Nodes. The estimation of needed components is based on drawings of the site. In this way you are able to get a good idea of the needed components.
In this example we are going to design the SENSIT system for two segments; the parking basement and the outside parking terrain at the Nedap Headquarter office.
SCALED DRAWING
First get a drawing of the parking lot(s) and find out if it are open areas or closed (indoor) areas. Try to get information about mounting locations, like lampposts and poles for Relay Nodes and power and internet for the Gateway. Below you can find a map of the Nedap Headquarter office, with its parking areas.
Figure 2: Example drawing of parking lots.
The drawing of a segment can be copied out of the larger map e.g. via the standard Snipping Tool of Windows.
Figure 3: The Basement and the outside area.
SENSIT SYSTEM | MANUAL
22/10
Note
The Relay Node Tool will give you a warning if you have more than 500 bays in a segment. With more than 500 bays, segmentation is necessary. Please contact your Nedap account manager for more information.
RelayNodeTool
START A NEW PROJECT
Fill-in the project details; the project title, your name and you company name. Please also indicate the country and region where the project is situated.
Figure 4: RelayNodeTool: Project details
THE FIRST SEGMENT
Via the option Segment -> Add new segment, or click on the tab <new> you can add a segment to the design. Fill-in the segment properties; the segment name and the number of parking bays.
Figure 5: RelayNodeTool: Segment properties
SENSIT SYSTEM | MANUAL
23/10
RelayNodeTool
4.3.1 IMPORT MAP
First import the drawing via the Paste from clipboard option or open the map image file.
Figure 6: RelayNodeTool: Map import.
4.3.2 SET THE SCALE
Now set the scale, for an open area you set it at 25m if there isn’t a clear indication about the size you can use the width of 10 parking bays:
Figure 7: RelayNodeTool: Scaling of the map.
SENSIT SYSTEM | MANUAL
24/10
Note
The Relay Node Tool will give you a warning if you have more than 16 Relay Nodes in a segment. With more than 16 Relay Nodes, segmentation might be necessary. Please contact your Nedap account manager for more information.
RelayNodeTool
4.3.3 PLACE THE GATEWAY
Place at least one Gateway for every 250 bays. Use the information you already gathered or ask the client for the installation options for the Gateway(s). At least you need a power connection and an internet connection in case of Ethernet.
Figure 8: RelayNodeTool: SENSIT Gateway placement.
4.3.4 PLACE THE RELAY NODE
Place the Relay Nodes at locations were you can mount it e.g. at lampposts in a way that it covers all parking bays. With the tool you can choose between Relay Nodes 2G omni- or directional..
Figure 9: RelayNodeTool: RelayNode placement.
SENSIT SYSTEM | MANUAL
25/10
RelayNodeTool
THE SECOND SEGMENT
Via the option Segment -> Add new segment, or click on the tab <new> you can add a segment to the design. Fill-in the segment properties; the segment name and the number of parking bays.
Figure 10: RelayNodeTool: Segment properties
4.4.1 IMPORT MAP
Also import the drawing for the second segment via the Paste from clipboard option or open the map image file.
Figure 11: RelayNodeTool: Map import for the second segment.
SENSIT SYSTEM | MANUAL
26/10
RelayNodeTool
4.4.2 SET THE SCALE
Also Set the scale, this location is a parking basement with a roof, large concrete columns and walls. This will influence the range of the Relay Nodes and therefore we advise to reduce the range with about 20%, so set the range to about 20m e.g. the width of 8 parking bays.
Figure 12: RelayNodeTool: Scaling of the map.
4.4.3 PLACE THE GATEWAY
Because this basement parking area is half open we can use the Gateway of the open area, so we don’t need to add one for this segment.
SENSIT SYSTEM | MANUAL
27/10
RelayNodeTool
4.4.4 PLACE THE RELAY NODE
Place the Relay Nodes at locations were you can mount it e.g. at lampposts in a way that it covers all parking bays. With the tool you can choose between Relay Nodes 2G omni- or directional.
There are 2 large concrete walls and after every 3 parking bays there is large concrete pillar, all is indicated with red. This will influence the range and radiation pattern of the Relay Nodes.
Figure 13: Imported map with concrete wall and pillar indication.
Probably with only 3 Relay Nodes 2G it is possible to get coverage of all bays, but because of these large influencing concrete objects we used 2 Relay Nodes 2G extra to make sure all SENSIT sensors are sufficient reachable.
Figure 14: RelayNodeTool: RelayNode placement
SENSIT SYSTEM | MANUAL
28/10
RelayNodeTool
SAVE THE PROJECT
Now you can save the project file:
Figure 15: RelayNodeTool: Project save.
EXPORT PROJECT FILES
4.6.1 PROJECT FILE
You can send the project file (*.rnproj) to a colleague or Nedap so it can be reviewed.
4.6.2 SAVE AS IMAGE
You can save the segments you have designed to an image file, via the option File -> Save image (current segment and use it in your offer.
4.6.3 PRINT PROJECT
You can print the project file to a normal printer or to a PDF printer like the free PDF writer CutePDF (http://www.cutepdf.com/) and use this in your offer.
REQUEST PROJECT REVIEW
You can also request Nedap to review the project you have designed. Fill-in: your name, company, email address and phone number and write your comments on the design. With this information and the automatically added *.rnproj file Nedap can give you advise on the design.
Figure 16: RelayNodeTool: Project review request
SENSIT SYSTEM | MANUAL
29/10
ON/OFF
Read
Note
Make sure during the calibration process, no vehicles or metal parts are in the parking bay or in the adjacent parking bays. Keep the SENSIT Configuration Tool and any steel objects, like safety shoes, at least 2 meters away from the SENSIT sensor.
Note
At the portal an E-learning course about the Tools can be found, in here also the Configuration Tool is explained.
Configuration tooL
5 CONFIGURATION TOOL
The SENSIT Configuration Tool can be used during installation for the following functionalities: Creating a CSV file, Storing the GPS coordinates, starting or restarting the SENSIT Gateways, SENSIT sensors and Relay Nodes, Calibrating sensors and dividing larger parking areas into segments.
Please find below a figure of the Configuration Tool with a small description.
Figure 17: Configuration tool.
The Configuration Tool is equipped with two buttons and feedback LED’s. The Tool is powered with the black button, the green LED will light-up. The reader is started with the yellow button, the red LED will flash will the reader is active.
DOWNLOADING THE APP
The SENSIT Configuration Tool works with an Android app. This app,
called ‘SENSIT Configurator’ is available in the Google Play Store. The app
and SENSIT Configuration Tool use Bluetooth to communicate. Make sure Bluetooth is enabled on your smartphone.
STARTING THE CONFIGURATION TOOL AND
INITIALIZE THE APP
1) Start the Configurator app on the Android smartphone
2) Turn on the Configuration Tool by pressing the black ON/OFF button, the
green LED will light up.
3) Following steps are done on the app: Navigate to Options > Pair Device.
Scan for devices. Connect to the device with the Bluetooth name that can be found on the label of the SENSIT Configuration Tool.
4) Wait until the tool name appears on the display of the smartphone.
5) Make sure the memory in the app is cleared before making a start: navigate
to List Configured Nodes > Clear.
6) Check the segment setting, before configuring the first node. Navigate to
Settings > General Settings > Set Segment ID > Select Segment ID. Segment 0 is the default value.
7) The tool is now ready for use. It is important to use the following
commissioning sequence: first configure the SENSIT Gateways, second the Relay Nodes and finally the SENSIT sensors.
SENSIT SYSTEM | MANUAL
30/10
Configuration tooL
CONFIGURE THE GATEWAY
1) To configure Gateway, navigate to Manual Input
2) Enter the node ID, which can be found on backside of the Gateway and
select Program Node.
3) Restart the Gateway by switching off the power for a few seconds. The app
will detect that the SENSIT Gateway is starting up and will start the configuration sequence. The selected segment and GPS position will be programmed and saved in the List Configured Nodes.
4) When the app shows OK, the SENSIT Gateway is ready for use.
5) Repeat this process for all Gateways. Make sure to check the segment
number before configuring the Gateways.
CONFIGURE THE RELAY NODES
1) To configure the Relay Nodes, press the yellow button of the SENSIT
Configuration Tool. During 20 seconds, the SENSIT Configuration Tool is active (red LED blinks).
2) Move the SENSIT Configuration Tool up and down over the front surface of
the Relay Node. The Relay Node ID is detected and configuration is started automatically. During the configuration, the GPS position is stored in the app and the node segment is set.
3) After OK is indicated, the Relay node is ready for use.
4) Repeat this process for all Relay Nodes. Make sure to check the segment
number before configuring the Relay Nodes
CONFIGURE SENSIT
1) To configure the SENSIT sensors, start with the sensor in the first parking
bay on the map in the SIS.
2) Press the yellow button of the SENSIT Configuration Tool. During 20
seconds, the SENSIT Configuration Tool is active (red LED blinks).
3) Rotate the SENSIT Configuration Tool over the surface of the sensor.
4) The SENSIT is activated and the ID number will appear in the app. The ID
number and GPS coordinate are stored in the app and the sensor calibration is started.
5) When the display indicates OK, the sensor is ready for use.
6) Repeat this process for all SENSIT sensors by following the bay numbers
sequentially. Make sure to check the segment number before configuring the SENSIT sensors.
SIS SOFTWARE
After configuring the SENSIT components, the stored app data must be transmitted
to the SIS Software. Therefore go to ‘list configured nodes’, check the list and select ‘Export’. Select the media of your choice and send the data. The message contains a
file in CSV format which can be loaded into the SIS software.
Loading...
+ 76 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
