NEC V323-PC User Manual

User’s Manual

MultiSync V323

Index

DECLARATION OF CONFORMITY .............................................................................................................English-1

Important Information ...................................................................................................................................English-2

WARNING ....................................................................................................................................... English-2

CAUTION ........................................................................................................................................ English-2

Safety Precautions, Maintenance & Recommended Use............................................................................. English-3

Contents ....................................................................................................................................................... English-4

Installation .................................................................................................................................................... English-5

Attaching Mounting Accessories ..................................................................................................... English-6

Parts Name and Functions ........................................................................................................................... English-8

Control Panel .................................................................................................................................. English-8

Terminal Panel ................................................................................................................................English-9

Wireless Remote Control ................................................................................................................ English-10

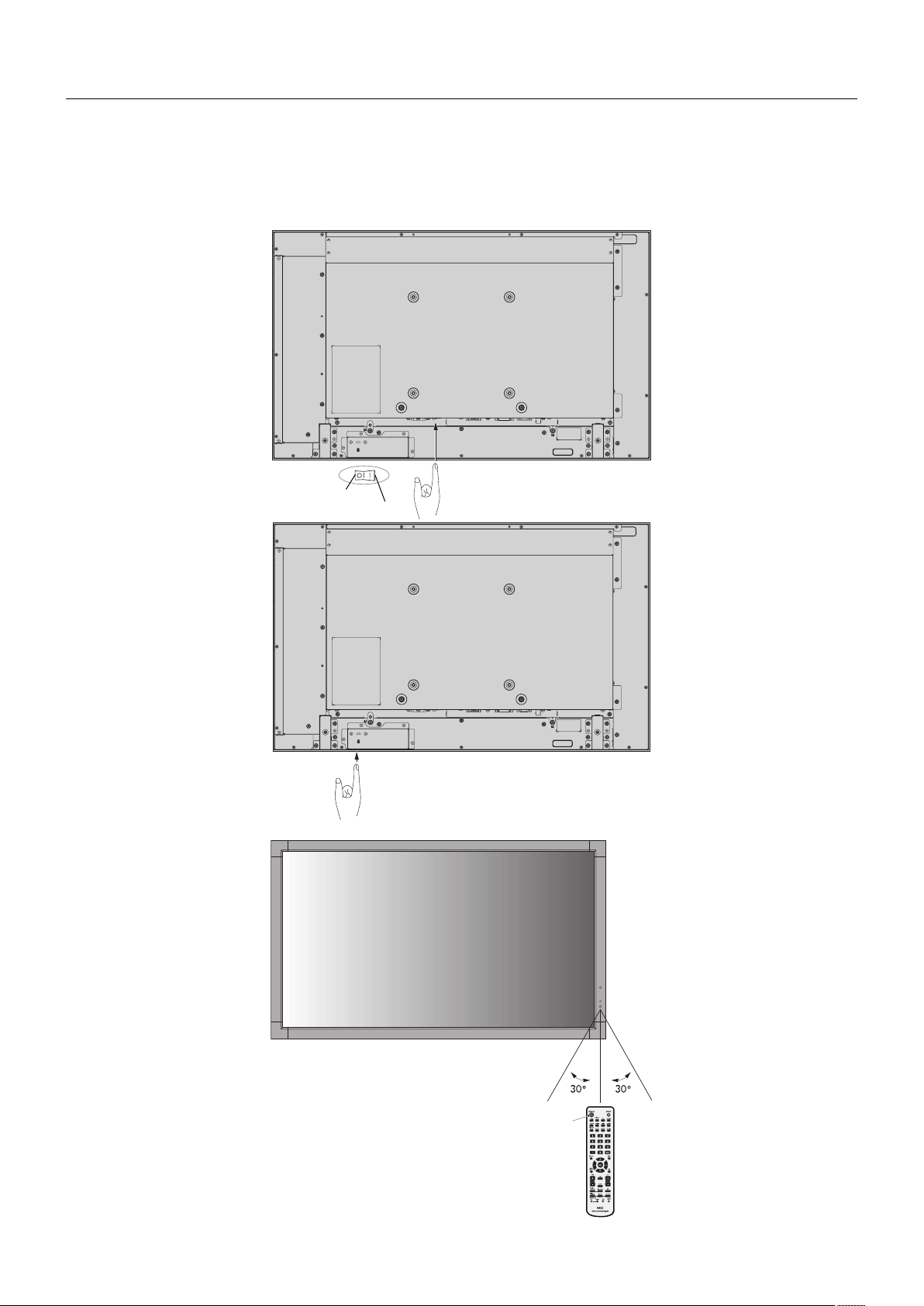

Operating Range for the Remote Control ....................................................................................... English-11

Setup ............................................................................................................................................................ English-12

Connections ................................................................................................................................................. English-14

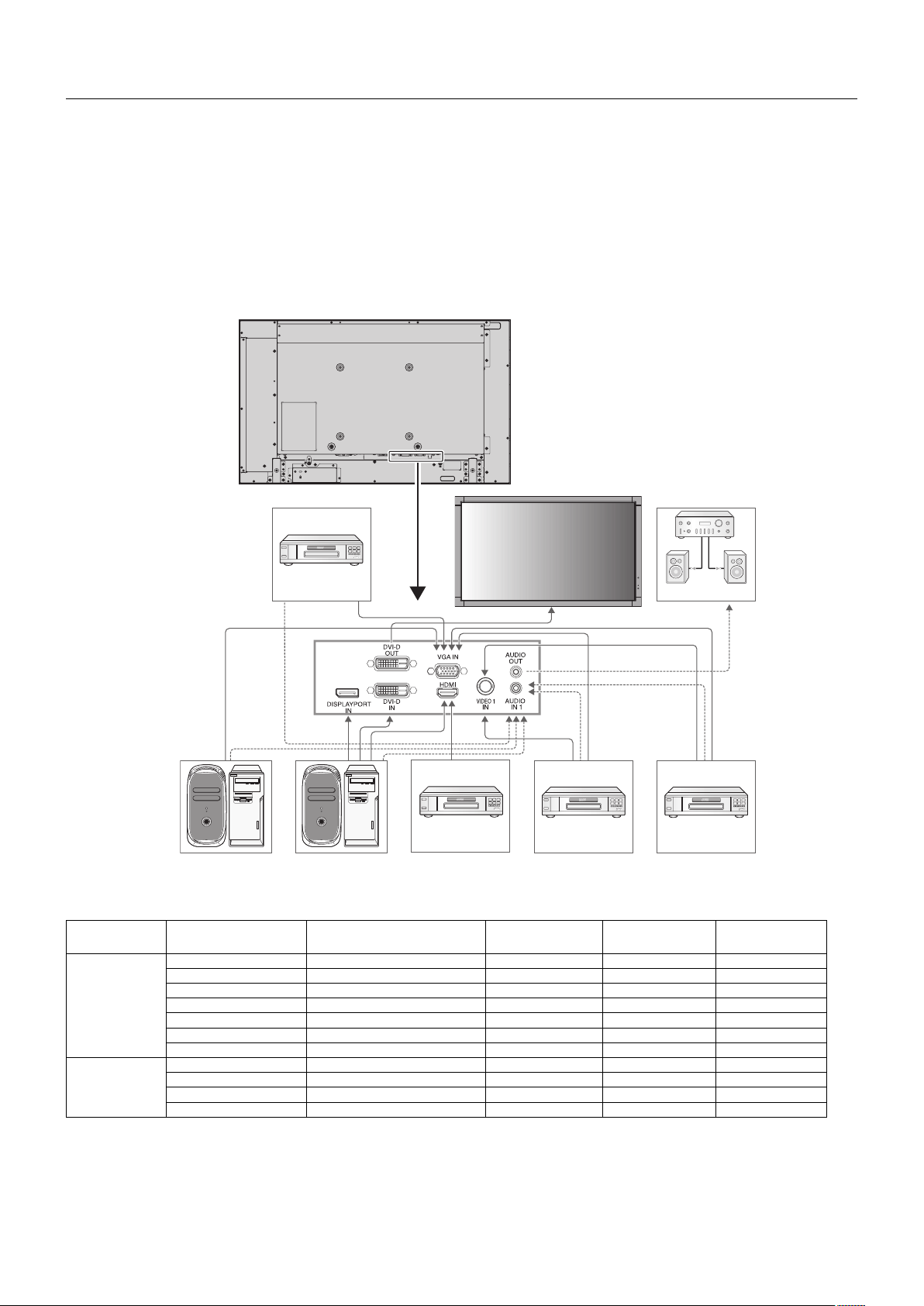

Wiring Diagram ............................................................................................................................... English-14

Connecting a Personal Computer ................................................................................................... English-15

Connecting a DVD Player or Computer with HDMI out ..................................................................English-15

Connecting a Computer with DisplayPort ....................................................................................... English-15

Basic Operation ............................................................................................................................................ English-16

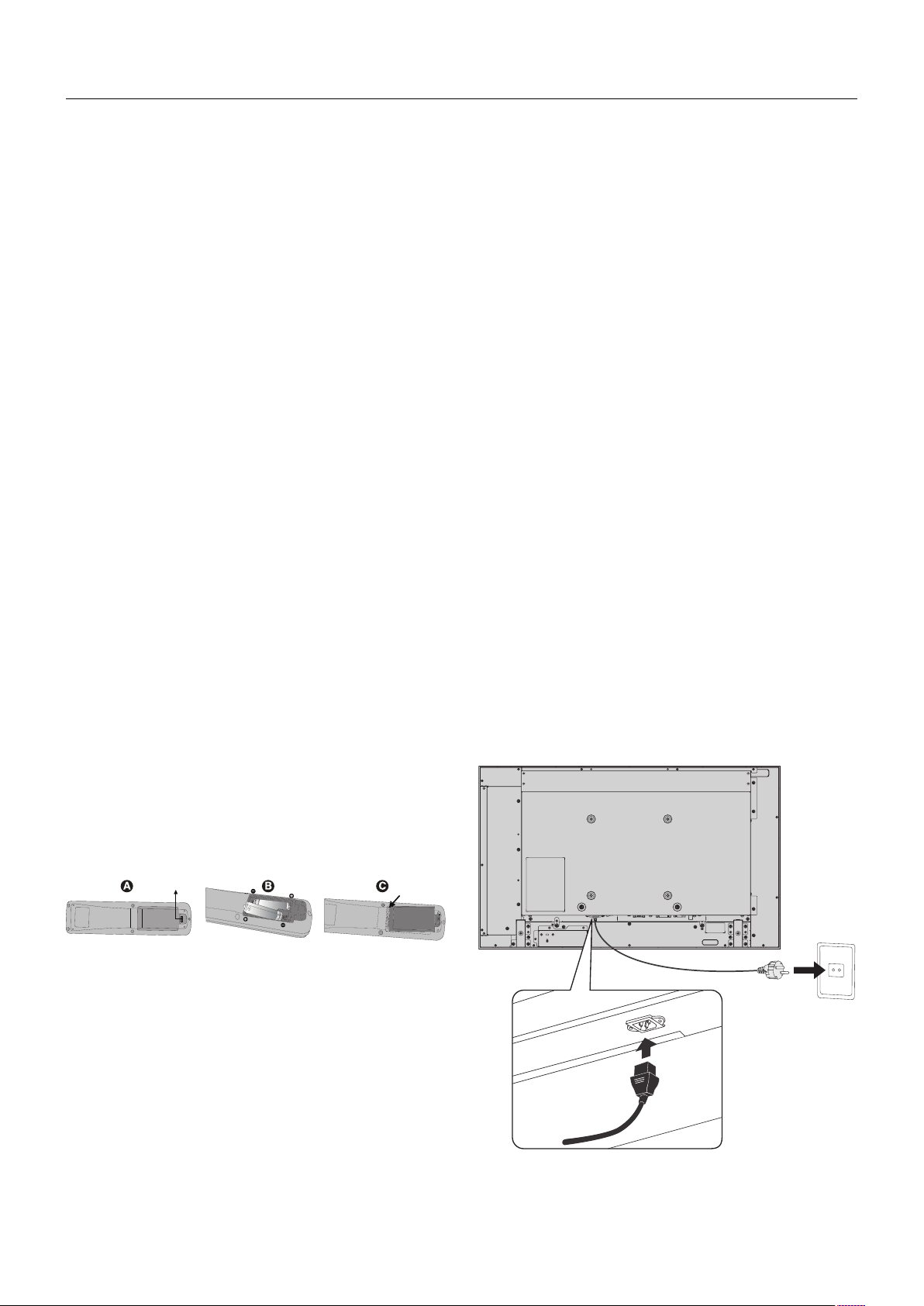

Power ON and OFF Modes ............................................................................................................English-16

Power Indicator ............................................................................................................................... English-17

Using Power Management ............................................................................................................. English-17

Selecting a video source ................................................................................................................. English-17

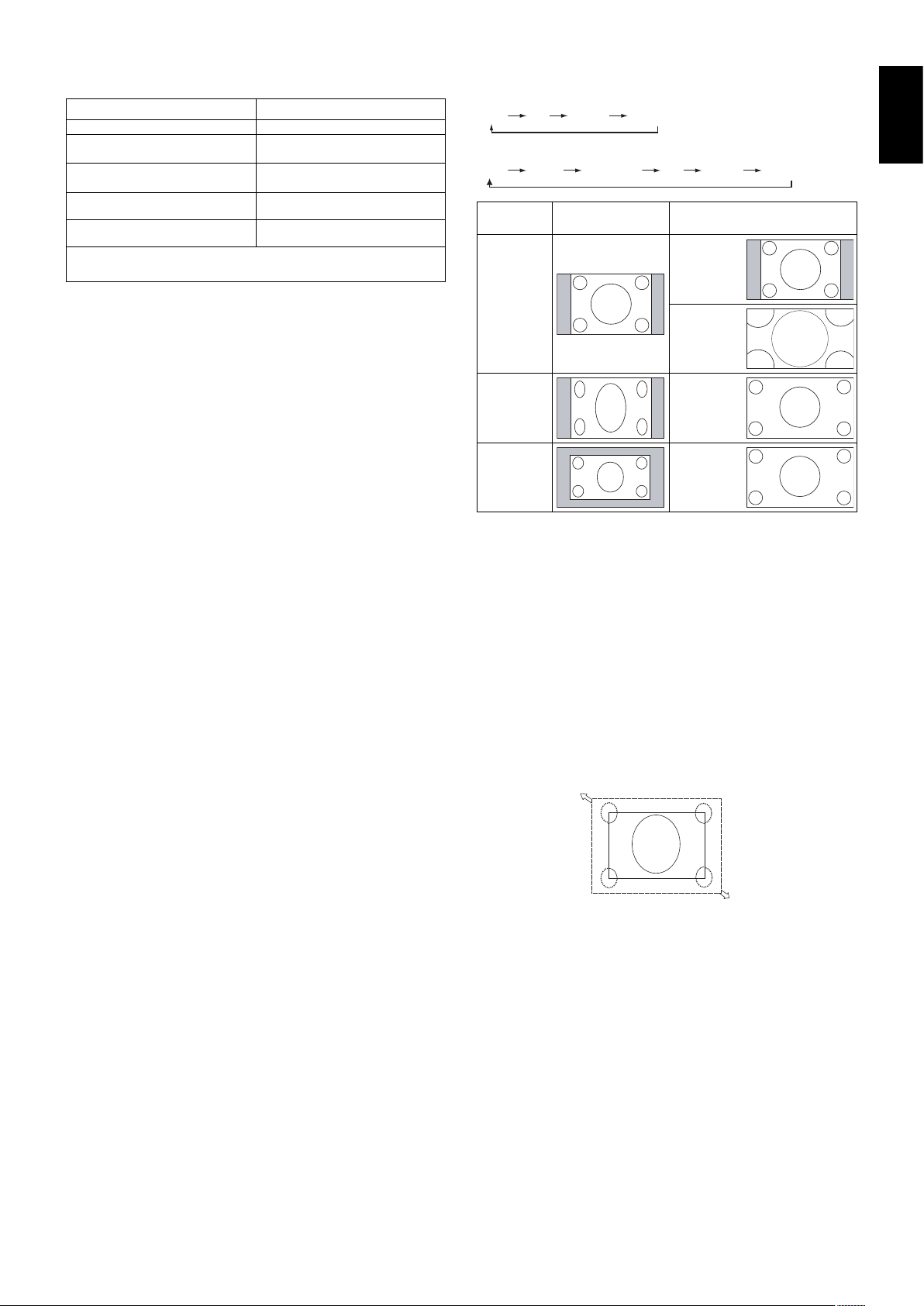

Picture Aspect ................................................................................................................................. English-17

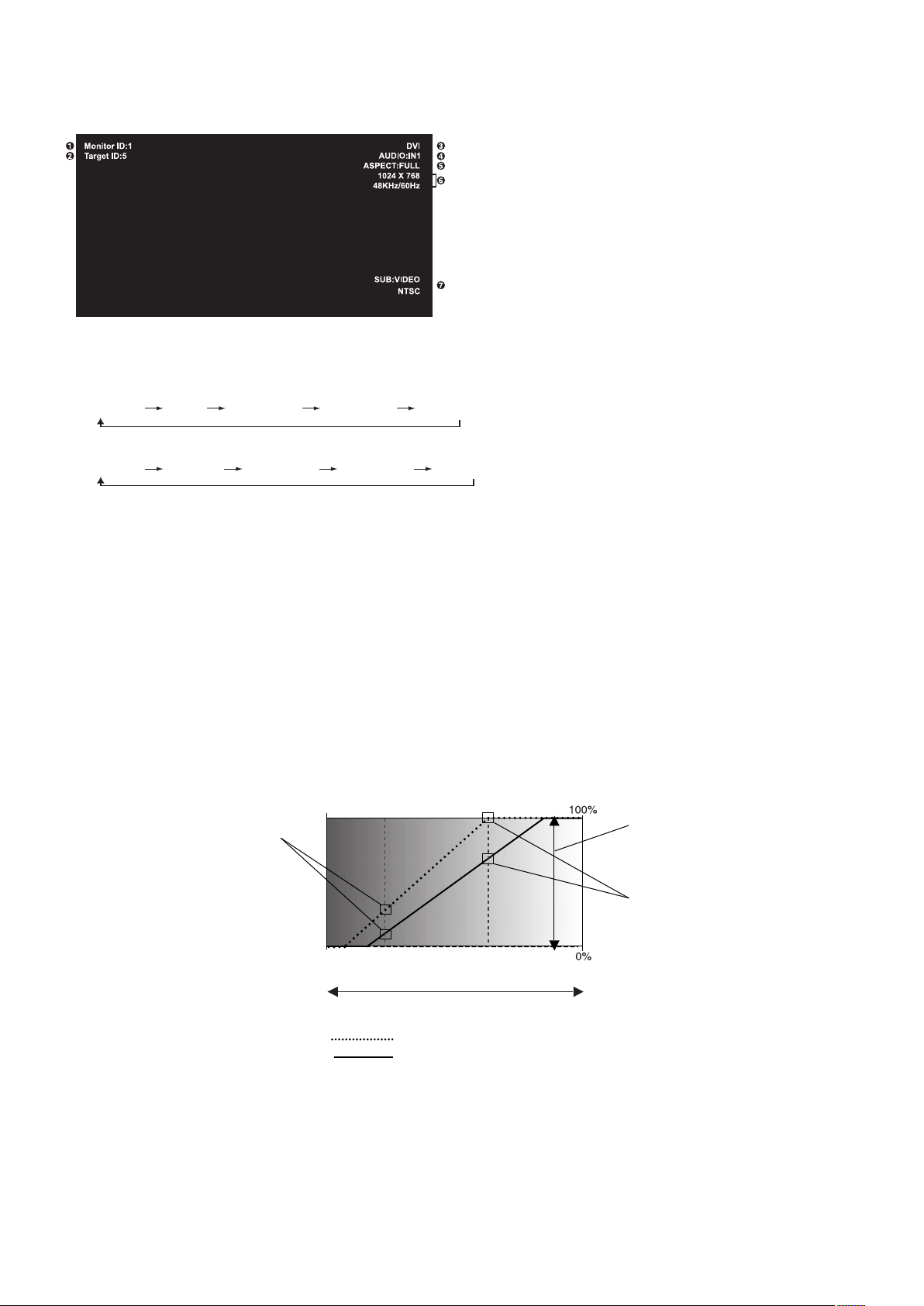

Information OSD ............................................................................................................................. English-18

Picture Mode ................................................................................................................................... English-18

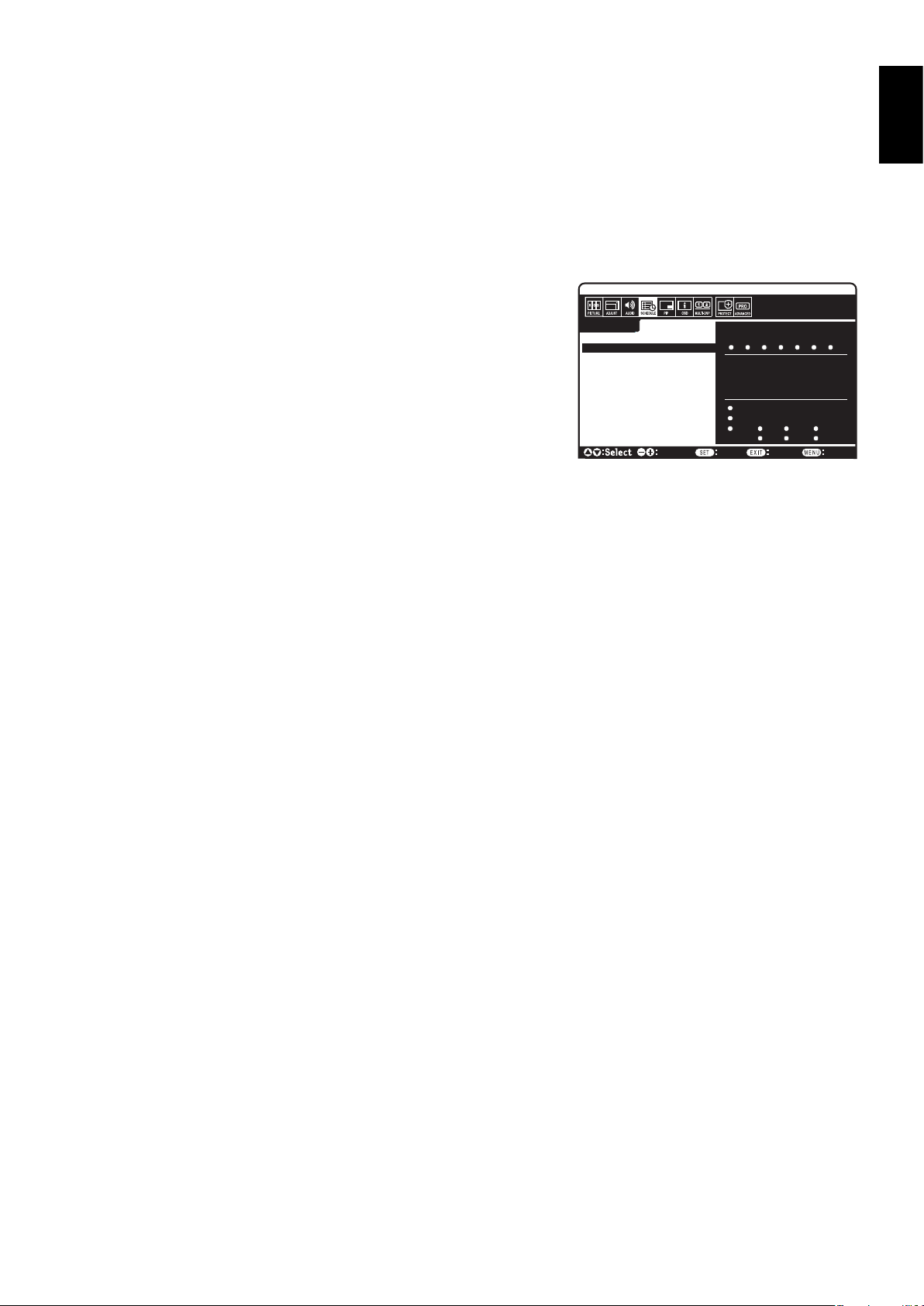

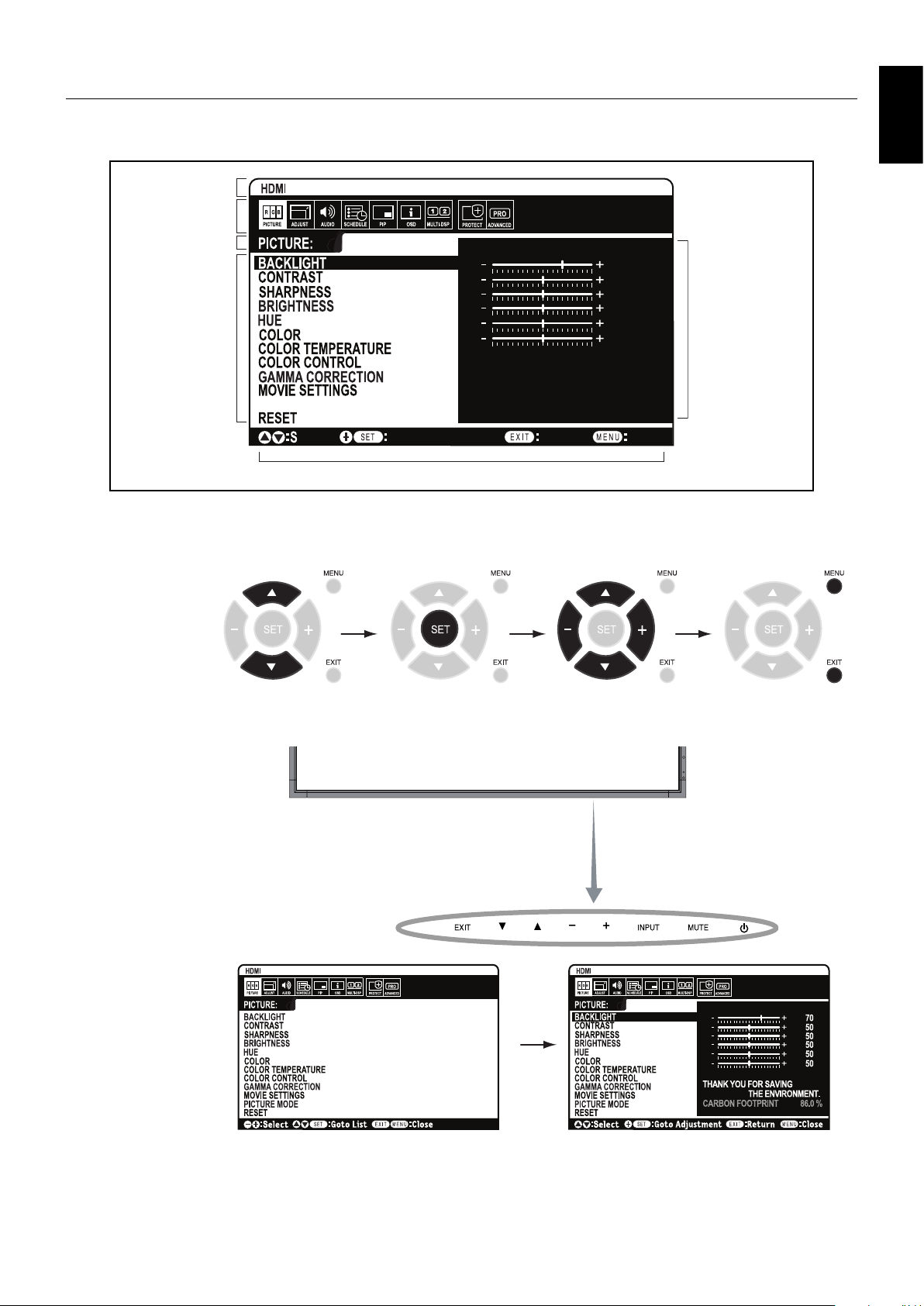

OSD (On-Screen-Display) Controls.............................................................................................................. English-19

PICTURE ........................................................................................................................................ English-20

ADJUST .......................................................................................................................................... English-20

AUDIO ............................................................................................................................................ English-21

SCHEDULE .................................................................................................................................... English-21

PIP .................................................................................................................................................. English-22

OSD ................................................................................................................................................ English-22

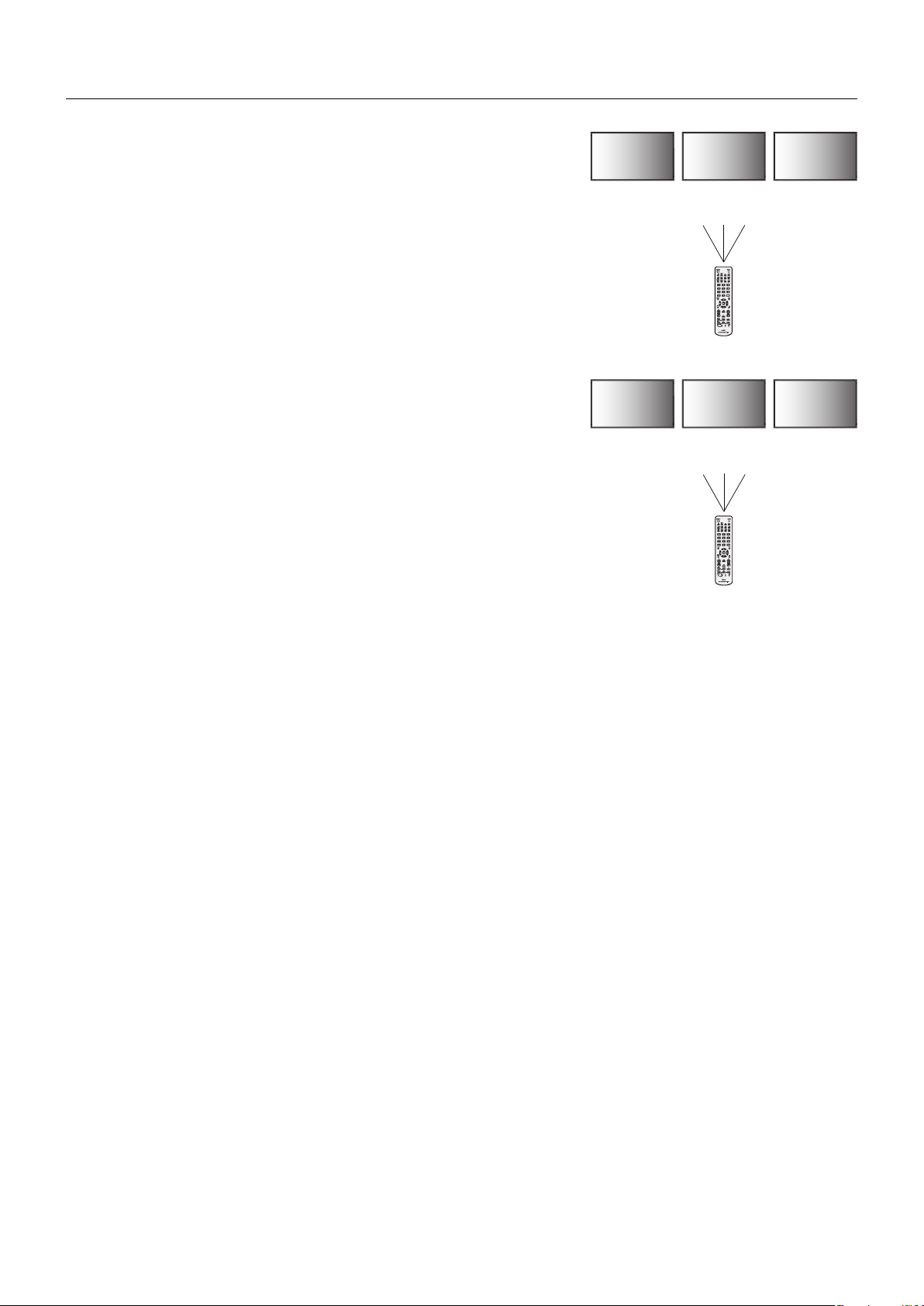

MULTI DISPLAY ............................................................................................................................. English-23

DISPLAY PROTECTION ................................................................................................................English-24

ADVANCED OPTION ..................................................................................................................... English-25

Remote Control Function .............................................................................................................................. English-28

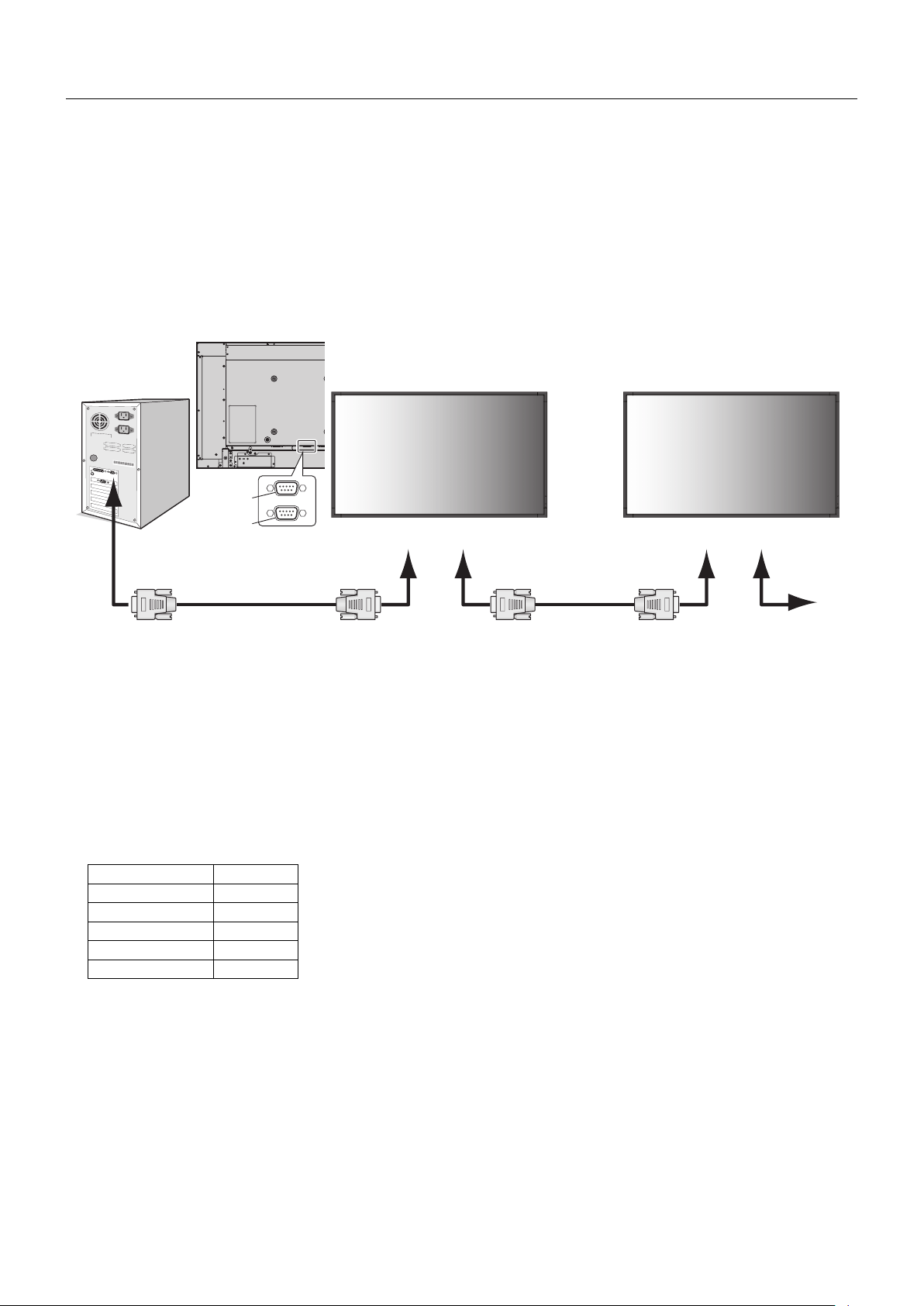

Controlling the LCD monitor via RS-232C Remote Control.......................................................................... English-30

Controlling the LCD monitor via LAN Control ................................................................................................ English-32

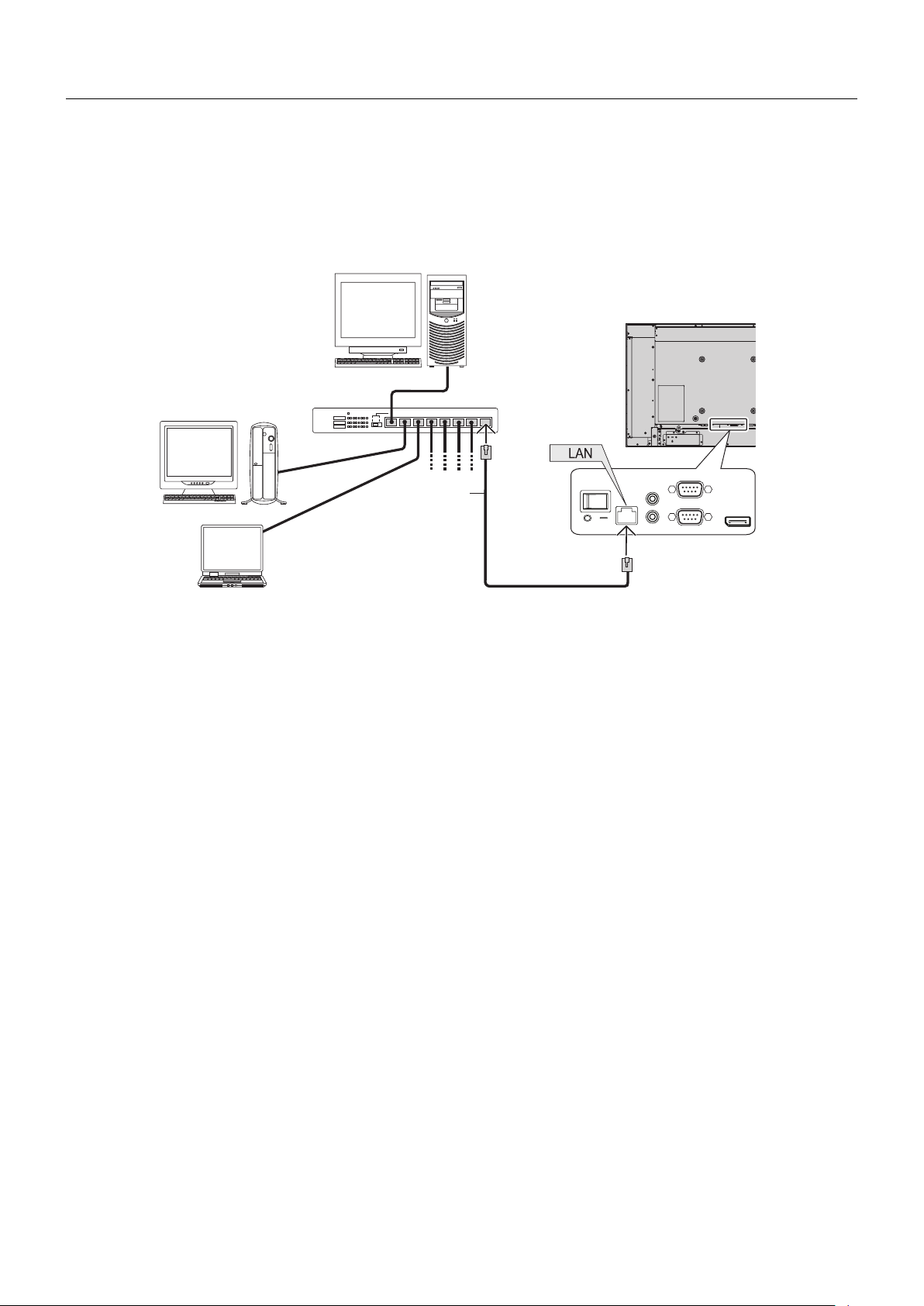

Connecting to a Network ................................................................................................................ English-32

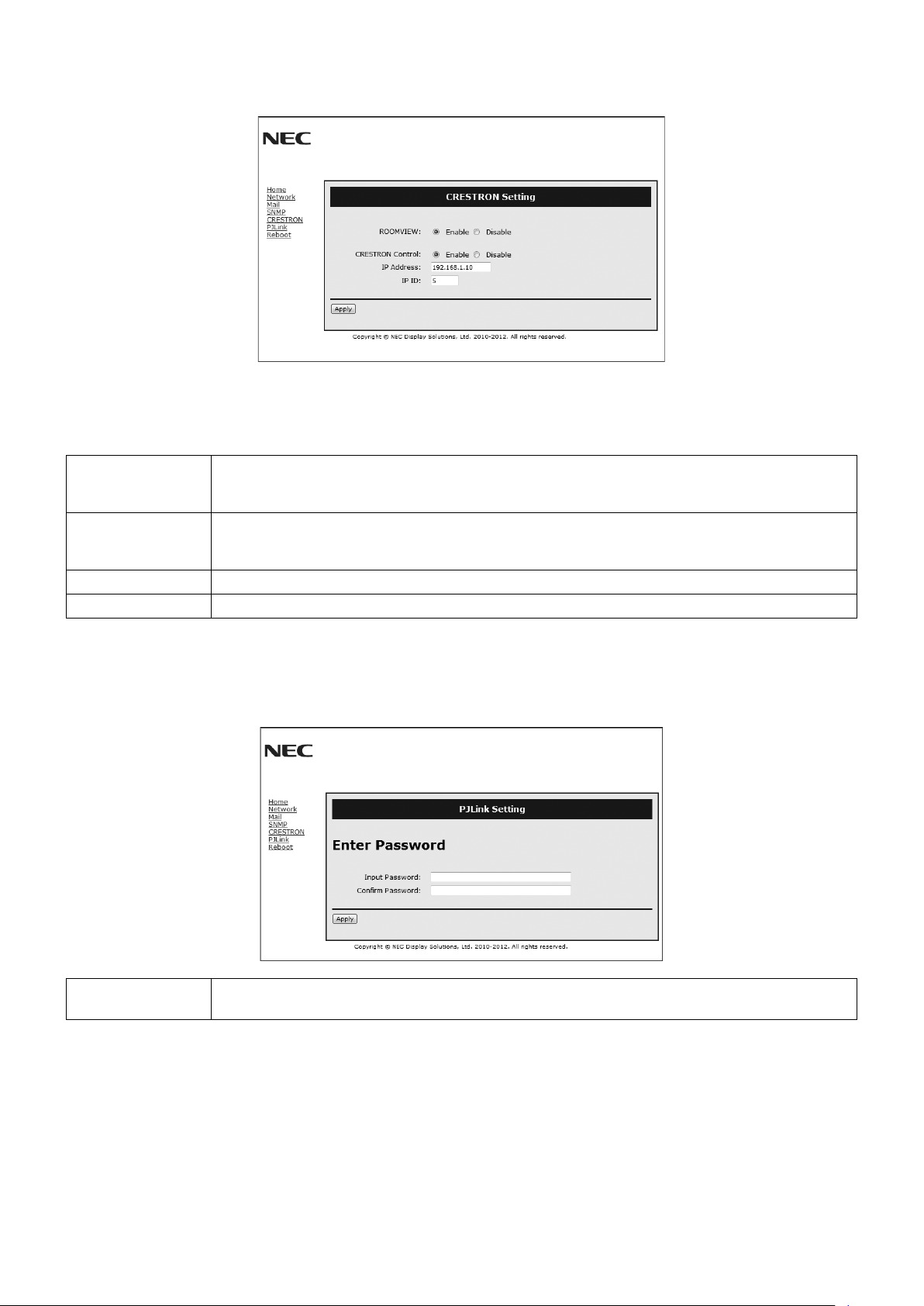

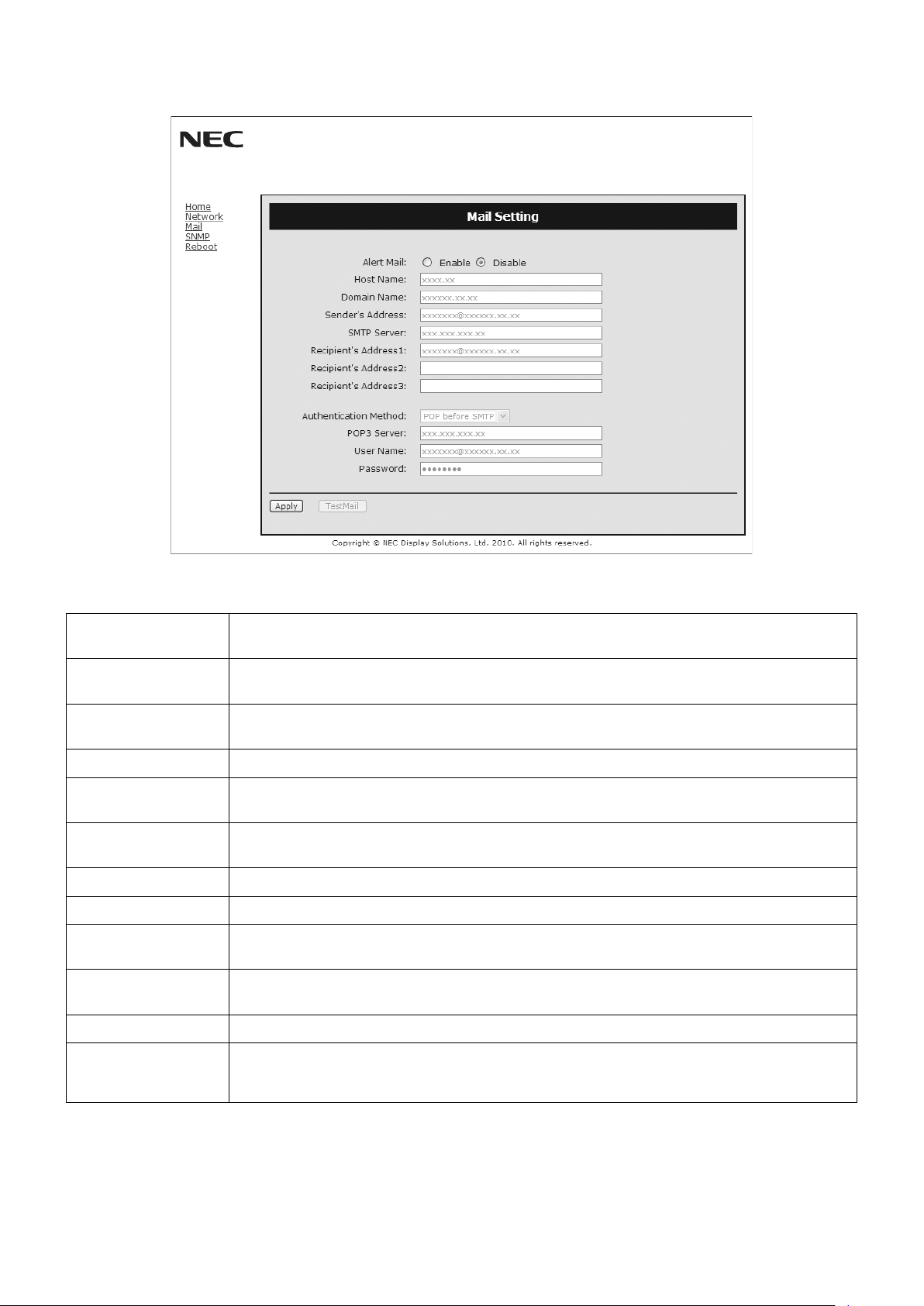

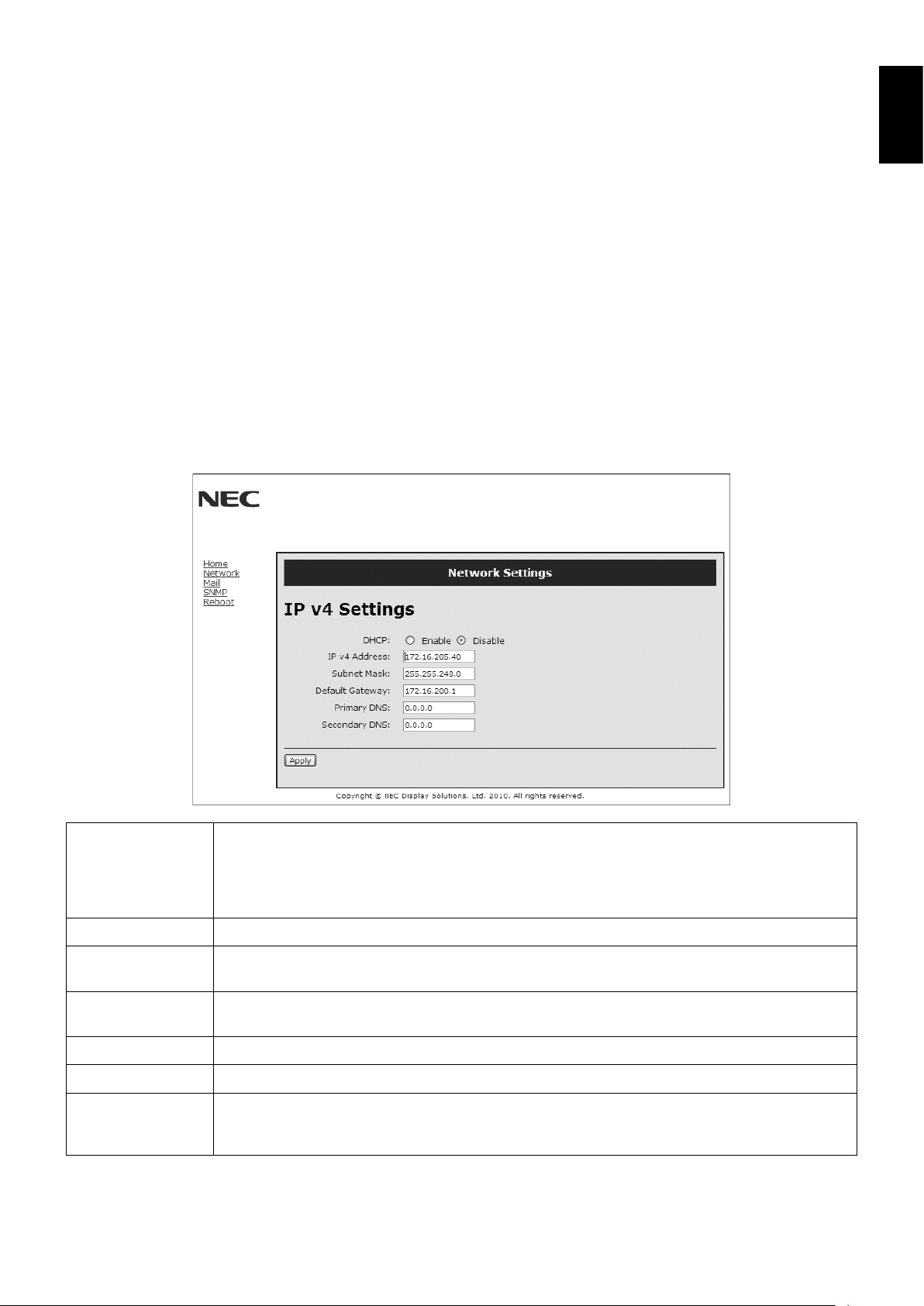

Network Setting by Using an HTTP Browser .................................................................................. English-32

Features ....................................................................................................................................................... English-37

Troubleshooting ............................................................................................................................................English-38

Speciﬁ cations ............................................................................................................................................... English-39

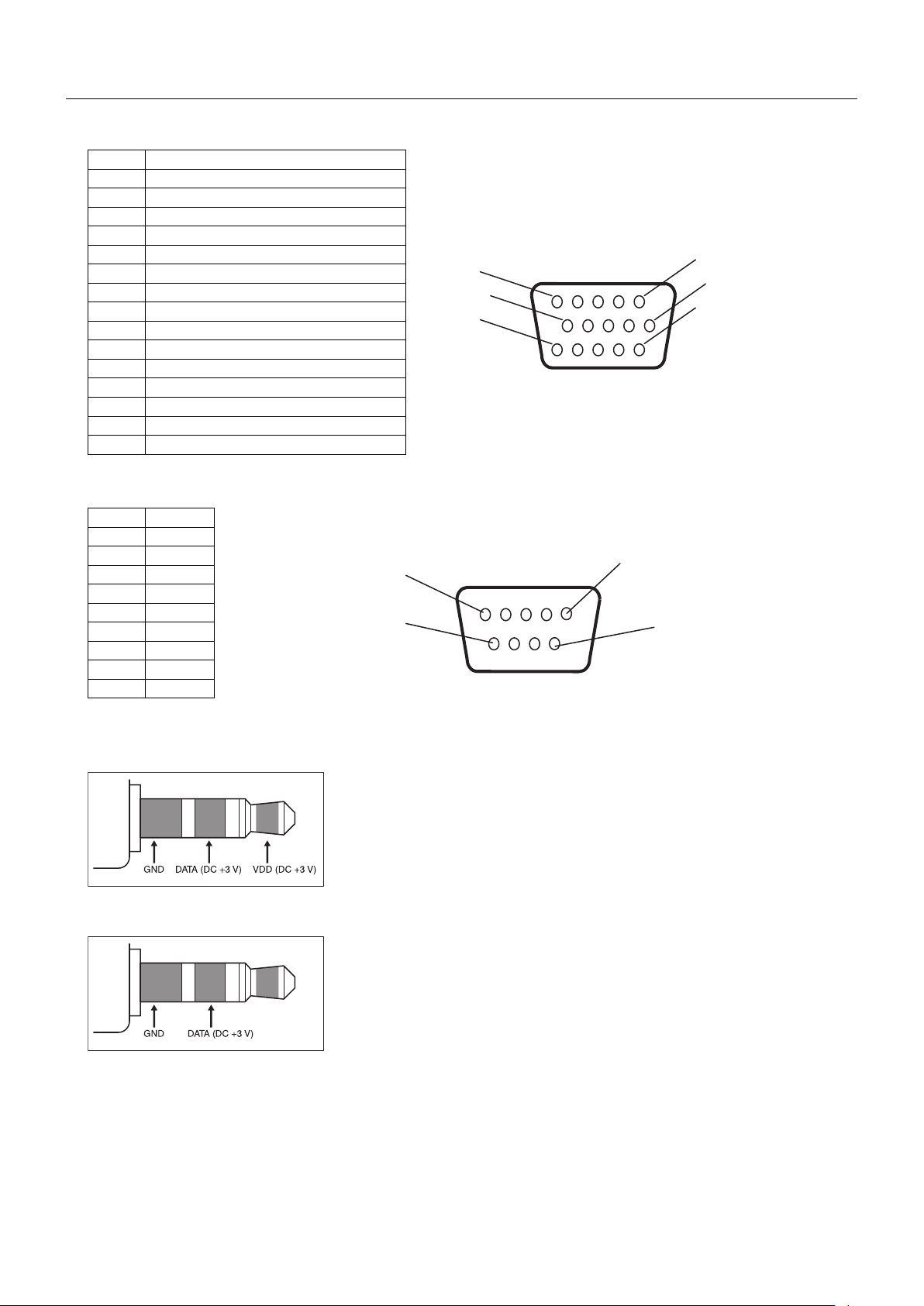

Pin Assignment ............................................................................................................................................. English-40

Manufacturer’s Recycling and Energy Information ....................................................................................... English-41

www.necdisplaysolutions.com

DECLARATION OF CONFORMITY

This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

U.S. Responsible Party: NEC Display Solutions of America, Inc. Address: 500 Park Boulevard, Suite 1100 Itasca, Illinois 60143 Tel. No.: (630) 467-3000

Type of Product: Display Monitor Equipment Classiﬁ cation: Class B Peripheral Model: MultiSync V323 (V323)

We hereby declare that the equipment speciÞ ed above

conforms to the technical standards as speciÞ ed in the FCC Rules.

FCC Information

1. Use the attached speciﬁ ed cables with the MultiSync V323 (V323) colour monitor so as not to interfere with radio and television reception.

(1) Please use the supplied power cord or equivalent to ensure FCC compliance. (2) Please use the supplied shielded video signal cable, Mini D-SUB 15 pin to Mini D-SUB 15 pin.

2. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult your dealer or an experienced radio/TV technician for help.

English

If necessary, the user should contact the dealer or an experienced radio/television technician for additional suggestions. The user may ﬁ nd the following booklet, prepared by the Federal Communications Commission, helpful: “How to Identify and Resolve Radio-TV Interference Problems.” This booklet is available from the U.S. Government Printing Ofﬁ ce, Washington, D.C., 20402, Stock No. 004-000-00345-4.

Windows is a registered trademark of Microsoft Corporation. NEC is a registered trademark of NEC Corporation. OmniColor is a registered trademark of NEC Display Solutions Europe GmbH in the countries of EU and Switzerland. All other brands and product names are trademarks or registered trademarks of their respective owners.

HDMI, the HDMI logo and High-Deﬁ nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

English-1

Important Information

WARNING

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE. ALSO, DO NOT USE THIS UNIT’S POLARIZED PLUG WITH AN EXTENSION CORD RECEPTACLE OR OTHER OUTLETS UNLESS THE PRONGS CAN BE FULLY INSERTED.

REFRAIN FROM OPENING THE CABINET AS THERE ARE HIGH VOLTAGE COMPONENTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, MAKE SURE POWER CORD IS UNPLUGGED FROM

WALL SOCKET. TO FULLY DISENGAGE THE POWER TO THE UNIT, PLEASE DISCONNECT THE POWER CORD FROM THE AC OUTLET. DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION: Please use the power cord provided with this monitor in accordance with the table below. If a power cord is not supplied with this equipment, please contact your supplier. For all other cases, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

This symbol warns user that uninsulated voltage within the unit may have sufﬁ cient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any part inside this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Plug Type North America

Plug Shape

Region

Voltage

* When operating the monitor with its AC 125-240V power supply, use a power supply cord that matches the power supply

voltage of the AC power outlet being used.

NOTE: This product can only be serviced in the country where it was purchased.

• The intended primary use of this product is as an Information Technical Equipment in an ofﬁ ce or domestic environment.

• The product is intended to be connected to a computer and is not intended for the display of television broadcast signals.

U.S.A./Canada

120* 230 220 100230

European

Continental

U.K. Chinese Japanese

U.K. China JapanEU (except U.K.)

English-2

Safety Precautions, Maintenance & Recommended Use

FOR OPTIMUM PERFORMANCE, PLEASE NOTE THE

FOLLOWING WHEN SETTING UP AND USING

THE MULTI-FUNCTION MONITOR:

• DO NOT OPEN THE MONITOR. There are no user

serviceable parts inside and opening or removing covers may expose you to dangerous shock hazards or other risks. Refer all servicing to qualiﬁ ed service personnel.

• Do not spill any liquids into the cabinet or use your monitor

near water.

• Do not insert objects of any kind into the cabinet slots,

as they may touch dangerous voltage points, which can be harmful or fatal or may cause electric shock, ﬁ re or equipment failure.

• Do not place any heavy objects on the power cord.

Damage to the cord may cause shock or ﬁ re.

• Do not place this product on a sloping or unstable cart, stand

or table, as the monitor may fall, causing serious damage to the monitor.

• Do not mount this product face up, face down or upside down

for an extended period of time as it may cause permanent damage to the screen.

• The power supply cord you use must have been approved by

and comply with the safety standards of your country. (Type H05VV-F 3G 1mm

• In UK, use a BS-approved power cord with molded plug

having a black (13A) fuse installed for use with this monitor.

• Do not place any objects onto the monitor and do not use the

monitor outdoors.

• Do not bend, crimp or otherwise damage the power cord.

• If glass is broken, handle with care.

• Do not cover vent on monitor.

• Do not use monitor in high temperature, humid, dusty, or oily

areas.

• If monitor or glass is broken, do not come in contact with the

liquid crystal and handle with care.

• Allow adequate ventilation around the monitor, so that heat

can properly dissipate. Do not block ventilated openings or place the monitor near a radiator or other heat sources. Do not put anything on top of the monitor.

• The power cable connector is the primary means of detaching

the system from the power supply. The monitor should be installed close to a power outlet, which is easily accessible.

• Handle with care when transporting. Save packaging for

transporting.

• If using the cooling fan continuously, it is recommended to

wipe holes clean a minimum of once a month.

• Please clean the holes of back cabinet to reject dirt and dust

at least once a year because of set reliability.

• When using a LAN cable, do not connect to a peripheral

device with wiring that might have excessive voltage.

• Do not use monitor under rapid temperature and humidity

change condition or avoid cold air from air-conditioning outlet directly, as it may shorten the lifetime of the monitor or cause condensation. If condensation happens, let the monitor stand unplugged until there is no condensation.

Connecting to a TV*

• Cable distribution system should be grounded (earthed) in

accordance with ANSI/NFPA 70, the National Electrical Code (NEC), in particular Section 820.93, Grounding of Outer Conductive Shield of a Coaxial Cable.

• The screen of the coaxial cable is intended to be connected

to earth in the building installation.

should be used in Europe)

Immediately unplug your monitor from the wall outlet and refer servicing to qualiﬁ ed service personnel under the following conditions:

• When the power supply cord or plug is damaged.

•

If liquid has been spilled, or objects have fallen into the monitor.

• If the monitor has been exposed to rain or water.

• If the monitor has been dropped or the cabinet damaged.

• If you notice any structural damage such as cracks or unnatural wobbling.

• If the monitor does not operate normally by following operating instructions.

Recommended Use

• For optimum performance, allow 20 minutes for warm-up.

• Rest your eyes periodically by focusing on an object at least 5 feet away. Blink often.

• Position the monitor at a 90° angle to windows and other light sources to minimize glare and reﬂ ections.

• Clean the LCD monitor surface with a lint-free, non-abrasive cloth. Avoid using any cleaning solution or glass cleaner!

• Adjust the monitor’s brightness, contrast and sharpness controls to enhance readability.

• Avoid displaying ﬁ xed patterns on the monitor for long periods of time to avoid image persistence (after image effects).

• Get regular eye checkups.

Ergonomics

To realize the maximum ergonomic beneﬁ ts, we recommend the following:

• Use the preset Size and Position controls with standard signals.

• Use the preset Color Setting.

• Use non-interlaced signals.

• Do not use primary color blue on a dark background, as it is difﬁ cult to see and may produce eye fatigue due to insufﬁ cient contrast.

Cleaning the LCD Panel

• When the liquid crystal panel is dusty, please gently wipe with a soft cloth.

• Please do not rub the LCD panel with hard material.

• Please do not apply pressure to the LCD surface.

• Please do not use OA cleaner as it will cause deterioration or discolor on the LCD surface.

Cleaning the Cabinet

• Unplug the power supply

• Gently wipe the cabinet with a soft cloth

• To clean the cabinet, dampen the cloth with a neutral detergent and water, wipe the cabinet and follow with a dry cloth.

NOTE: DO NOT clean with benzene thinner, alkaline detergent,

alcoholic system detergent, glass cleaner, wax, polish cleaner, soap powder, or insecticide. Rubber or vinyl should not be in contact with the cabinet for an extended period of time. These types of ﬂ uids and materials can cause the paint to deteriorate, crack or peel.

* The product you purchased may not have this feature.

English

English-3

Your new MultiSync monitor box* should contain the following:

• LCD monitor

• Power cord*

• Video Signal Cable

• Wireless Remote Control and AA Batteries

• Setup Manual

• CD-ROM

Video Signal Cable

(Mini D-SUB 15 pin to

Mini D-SUB 15 pin)

Power Cord*

Setup Manual

CD-ROM

Setup Manual

* Remember to save your original box and packing material to transport or ship the monitor.

Type and number of power cords included will depend on the where the LCD monitor is to be shipped. When more than one

power cord is included, please use a power cord that matches the AC voltage of the power outlet and has been approved by and complies with the safety standard of your particular country.

Wireless Remote Control

and AA Batteries

English-4

Installation

This device cannot be used or installed without the Tabletop Stand or other mounting accessory for support. For proper installation it is strongly recommended to use a trained, NEC authorized service person. Failure to follow NEC standard mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation. Failure to follow these recommendations could result in voiding the warranty.

Mounting

DO NOT mount the monitor yourself. Please ask dealer. For proper installation it is strongly recommended to use a trained, qualiﬁ ed technician. Please inspect the location where the unit is to be mounted. Mounting on wall or ceiling is the customer’s responsibility. Not all walls or ceilings are capable of supporting the weight of the unit. Product warranty does not cover damage caused by improper installation, remodelling, or natural disasters. Failure to comply with these recommendations could result in voiding the warranty.

DO NOT block ventilated openings with mounting accessories or other accessories.

For NEC Qualiﬁ ed Personnel:

To ensure safe installation, use two or more brackets to mount the unit. Mount the unit to at least two points on the installation location.

Please note the following when mounting on wall or ceiling

• When using mounting accessories other than those that are NEC approved, they must comply with the VESAcompatible (FDMlv1) mounting method.

• NEC strongly recommends using size M6 screws (10-12 mm + thickness of bracket and washers in length). If using screws longer than 10-12 mm, check the depth of the hole. (Recommended Fasten Force: 470 - 635N•cm). Bracket hole should be under φ 8.5 mm. NEC recommends mounting interfaces that comply with UL1678 standard in North America.

• Prior to mounting, inspect the installation location to insure that it is strong enough to support the weight of the unit so that the unit will be safe from harm.

• Refer to the instructions included with the mounting equipment for detailed information.

• Make sure there is no gap between the monitor and the bracket.

under

φ 8.5 mm

Unit

No gap

No thread

4 mm

10-12 mm

Mounting Bracket

Washers

Screw

Thickness of bracket and washers

Orientation

• When using the display in the portrait position, the monitor should be rotated clockwise so that the left side is moved to the top and the LED indicator light is on the bottom. This will allow for proper ventilation and will extend the lifetime of the monitor. Improper ventilation may shorten the lifetime of the monitor.

LED Indicator

* When using the display in the portrait position, the handles' position could be changed. For landscape position.

Mounting location

• The ceiling and wall must be strong enough to support the monitor and mounting accessories.

• DO NOT install in locations where a door or gate can hit the unit.

• DO NOT install in areas where the unit will be subjected to strong vibrations and dust.

• DO NOT install near where the main power supply enters the building.

• Do not install in where people can easily grab and hang onto the unit or the mounting apparatus.

• When mounting in a recessed area, as in a wall, leave at least 4 inches (100 mm) of space between the monitor and the wall for proper ventilation.

• Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus.

Mounting on ceiling

• Ensure that the ceiling is sturdy enough to support the weight of the unit and the mounting apparatus over time, against earthquakes, unexpected vibrations, and other external forces.

• Be sure the unit is mounted to a solid structure within the ceiling, such as a support beam. Secure the monitor using bolts, spring lock washers, washer and nut.

• DO NOT mount to areas that have no supporting internal structure. DO NOT use wood screws or anchor screws for mounting. DO NOT mount the unit to trim or to hanging ﬁ xtures.

English

Maintenance

• Periodically check for loose screws, gaps, distortions,

• Regularly check the mounting location for signs of

English-5

or other problems that may occur with the mounting apparatus. If a problem is detected, please refer to qualiﬁ ed personnel for service.

damage or weakness that may occur over time.

Attaching Mounting Accessories

The monitor is designed for use with the VESA mounting system.

1. Attach Mounting Accessories

Be careful to avoid tipping monitor when attaching accessories.

VESA Mounting Interface

200 mm

Mounting accessories can be attached with the monitor in the face down position. To avoid damaging the screen face, place the protective sheet on the table underneath the LCD. The protective sheet was wrapped around the LCD in the original packaging. Make sure there is nothing on the table that can damage the monitor.

When using mounting accessories other than NEC compliant and approved, they must comply with the VESA-compatible mounting method.

NOTE: • Do not leave the monitor in the face-up or

facedown position for more than one hour as this may result in a negative effect on the screen’s performance.

• Prior to installation, be sure to place the monitor on a ﬂ at area with adequate space.

3. Installing and removing optional table

top stand

CAUTION: Installing and removing the stand must be done

by two or more people.

To install, follow those instructions included with the stand or mounting apparatus. Use only those devices recommended by the manufacturer.

NOTE: Use ONLY the thumbscrews which are included

with the optional table top stand.

When installing the LCD monitor stand, handle the unit with care to avoid pinching your ﬁ ngers.

Optional table top stand

Table

Protective Sheet

NOTE: Install the stand in the direction of the arrow which

is imprinted on the surface of the stand. Use the ST-322 for V323.

4. Ventilation Requirements

When mounting in an enclosed space or recessed area, leave adequate room between the monitor and the enclosure to allow heat to disperse, as shown below.

2. Using Option Board

1. Turn off the main power switch.

2. Remove the attached slot cover by unscrewing the installed screws (Figure 1).

3. Insert option board in to the monitor.

NOTE: Please contact your supplier for available option

boards. Do not apply excessive force to manipulate the optional board before ﬁ xing it with screws.

Figure 1

Allow adequate ventilation or provide air conditioning around the monitor, so that heat can properly dissipate away from the unit and mounting apparatus; especially when you use monitors in multiple screen.

NOTE: The sound quality of the internal speakers will

differ according to the acoustics of the room.

English-6

5. Prevent Tipping

When using the display with the optional table top stand fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Fasten the cord or chain to the monitor using the provided clamps and screws.

200 mm

Screw Holes

English

Clamp*

Screw (M4)*

*: included in option stand.

Cord or chain

Before attaching the LCD monitor to the wall, make sure that the wall can support the weight of the monitor.

Be sure to remove the cord or chain from the wall before moving the LCD.

English-7

Parts Name and Functions

Control Panel

쐃 POWER button

Switches the power on/off. See also page 16.

쐇 MUTE button

Switches the audio mute ON/OFF.

쐋 INPUT button

Acts as SET button within OSD menu. (Toggle switches between [DVI], [DPORT], [VGA], [HDMI], [DVD/HD], [SCART], [VIDEO1], [VIDEO2] or [S-VIDEO]). These are available input only, shown as their factory preset name.

쐏 PLUS button

Acts as (+) button to increase the adjustment with OSD menu. Increases the audio output level when the OSD menu is turned off.

쐄 MINUS button

Acts as (-) button to decrease the adjustment with OSD menu. Decreases the audio output level when the OSD menu is turned off.

쐂 UP button

Activates the OSD menu when the OSD menu is turned-off. Acts as adjustment items within OSD menu.

button to move the highlighted area up to select

쐆 DOWN button

Activates the OSD menu when the OSD menu is turned-off. Acts as adjustment items within OSD menu.

button to move the highlighted area down to select

쐊 EXIT button

Activates the OSD menu when the OSD menu is turned-off. Acts as EXIT button within the OSD to move to previous menu.

쐎 Remote control sensor and Power Indicator

Receives the signal from the remote control (when using the wireless remote control). See also page 11. Glows green when the LCD monitor is in active mode*. Glows red when the LCD is in POWER OFF mode. Glows amber when the monitor is in Power Save Mode. Green and Amber blink alternately while in Power Standby mode with the “SCHEDULE SETTINGS” function enabled. When a component failure is detected within the monitor, the indicator will blink red. * If “OFF” is selected in “POWER INDICATOR” (see page 23), LED will not light when the LCD monitor is in active mode.

쐅 AMBIENT LIGHT SENSOR

Detects the level of ambient light, allowing the monitor to make automatic adjustments to the backlight setting, resulting in a more comfortable viewing experience. Do not cover this sensor. See page 18.

Control Key Lock Mode

This control completely locks out access to all Control Key functions. To activate the control key lock function, press

and and hold down simultaneously for more than

both 3 seconds. To resume user mode, press both and and hold simultaneously for more than 3 seconds.

English-8

Terminal Panel

English

쐃 AC IN connector

Connects with the supplied power cord.

쐇 Main Power Switch

On/Off switch to turn main power ON/OFF.

쐋 LAN port (RJ-45)

LAN connection. See page 32.

쐏 REMOTE IN/OUT

Use the optional wired remote control by connecting it to your monitor.

NOTE: When you use Remote IN/OUT, IR CONTROL in OSD menu should be NORMAL. NOTE: Do not use this connector unless speciﬁ ed.

쐄 RS-232C (D-Sub 9 pin)

IN connector: Connect RS-232C input from external equipment such as a PC in order to control RS-232C functions. OUT connector: Connect RS-232C output. To connect multiple MultiSync monitors via RS-232C daisy Chain.

쐂 DISPLAYPORT connector

To input DisplayPort signals.

쐆 DVI connector (DVI-D)

IN connector: To input digital RGB signals from a computer or HDTV device having a digital RGB output. * This connector does not support analog input. OUT connector: To output the DVI signal from either DVI IN or HDMI connection. To output the DVI signal from the HDMI connection, the HDMI input must be selected.

쐎 VGA IN (mini D-Sub 15 pin)

To input analog RGB signals from a personal computer or from other RGB equipment. This input can be used with an RGB, COMPONENT, SCART, VIDEO or S-VIDEO source. Please select signal type in TERMINAL SETTING. See page 25.

NOTE: When you use this connector for COMPONENT, SCART, VIDEO or S-VIDEO, please use a suitable signal cable. If you have any questions, please ask your dealer.

쐅 VIDEO1 IN connector (BNC)

To input a composite video signal.

쐈 AUDIO IN 1

To input audio signal from external equipment such as a computer, VCR or DVD player.

쐉 AUDIO OUT

To output the audio signal from the AUDIO IN 1, DPORT and HDMI to an external device (stereo receiver, ampliﬁ er, etc.).

씈 Kensington Lock

For security and theft prevention.

씉 Option board slot

Slot 2 type accessories are available. Please contact your supplier for detailed information.

NOTE: Please contact your supplier for available option board.

씊 Internal speaker

쐊 HDMI connector

To input digital HDMI signals.

English-9

Wireless Remote Control

쐏 ASPECT button

Selects picture aspect, [FULL], [WIDE], [DYNAMIC], [1:1], [ZOOM] and [NORMAL]. See page 17.

쐄 SOUND button

Artiﬁ cial surround sound for internal/external speakers. Audio out is disabled when surround is set to ON.

쐂 KEYPAD

Press buttons to set and change passwords, change channel and set REMOTE ID.

쐃 POWER button

Switches the power on/standby.

쐇 INPUT button

Selects input signal. DVI: DVI DISPLAYPORT: DPORT VGA: VGA HDMI: HDMI DVD/HD: DVD/HD, SCART VIDEO: VIDEO1, VIDEO2 S-VIDEO: S-VIDEO OPTION: Depends on your connection

쐋 PICTURE MODE button

Selects picture mode, [HIGHBRIGHT], [STANDARD], [sRGB], [CINEMA], [AMBIENT1], [AMBIENT2]. See page 18.

HIGHBRIGHT: for moving images such as DVD. STANDARD: for images. sRGB: for text based images. CINEMA: for movies. AMBIENT1 and AMBIENT2: activate auto dimming function. See page 18.

쐆 ENT button*

쐊 DISPLAY button

Turns on/off the information OSD. See page 18.

쐎 MENU button

Turns on/off the menu mode.

쐅 AUTO SETUP button

Enters auto setup menu. See page 20.

쐈 EXIT button

Returns to previous menu within OSD menu.

쐉 UP/DOWN button

Acts as to select adjustment items within OSD menu. Small screen which adjusted “PIP” mode moves up or down.

button to move the highlighted area up or down

씈 MINUS/PLUS (-/+) button

Increases or decreases the adjustment level within OSD menu settings. Small screen which adjusted “PIP” mode moves left or right.

씉 SET button

Makes selection.

씊 VOLUME UP/DOWN button

Increases or decreases audio output level.

씋 CH UP/DOWN button* 씌 GUIDE button*

씍 MUTE button

Turns on/off mute function.

씎 STILL button

ON/OFF button: Activates/deactivates still picture mode. STILL CAPTURE button: Captures still picture.

English-10

씏 PIP (Picture In Picture) button

DVI

DPORT

VGA

HDMI

DVD/HD

SCART

VIDEO1

VIDEO2

S-VIDEO

DVI

Yes

DPORT

Yes

VGA

Yes

HDMI

Yes

DVD/HD

Yes

SCART

Yes

VIDEO1

Yes

VIDEO2

Yes

S-VIDEO

Yes

ON/OFF button: Toggle switches between PIP, POP, PICTURE BY PICTURE-ASPECT and PICTURE BY PICTURE-FULL. See page 22.

INPUT button: Selects the “picture in picture” input signal. CHANGE button: Replaces to the main picture and sub

picture.

DVI

DPORT

DVINoNo

DPORT

VGA

HDMINoNo

DVD/HD

SCART

Main picture

VIDEO1 VIDEO2

S-VIDEO

YesNoNo Yes

Yes Yes Yes Yes Yes

Yes

YesNoNo Yes YesNoNo YesNoNo Yes YesNoNo YesNoNo

VGA YesNoNo Yes

YesNoNo

Yes

REMOTE ID button

Activates REMOTE ID function.

MTS button*

AUDIO INPUT button

Selects audio input source [IN1], [DPORT], [HDMI], [OPTION]*

button

Activates closed captioning. Note: VIDEO1, VIDEO2, S-VIDEO inputs only.

Sub picture

HDMI

DVD/HD

SCART

VIDEO1

VIDEO2

Yes

YesNoNoNoNo

Yes YesNoNoNoNo YesNoNoNoNoNoNoNoNoNoNo Yes

YesNoNoNoNoNoNoNoNo YesNoNoNoNoNoNoNoNoNoNo YesNoNoNoNoNoNoNoNoNoNo

Yes

Yes Yes YesNoNoNoNo Yes YesNoNoNoNo

Yes Yes

Yes

S-VIDEO

Yes Yes

Yes

Operating Range for the Remote Control

Point the top of the remote control toward the LCD monitor’s remote sensor during button operation.

Use the remote control within a distance of about 7 m (23 ft.) from remote control sensor or at a horizontal and vertical angle of within 30° within a distance of about 3.5 m (10 ft.).

Caution: Important, the remote control

system may not function when direct sunlight or strong illumination strikes the remote control sensor or when there is an object in the path.

English

*1: The product you purchased may not have this feature.

*2: This button’s action depends on which option board you use. Refer to the option board’s manual for further information.

Handling the remote control

• Do not subject to strong shock.

• Do not allow water or other liquid to splash the remote control. If the remote control gets wet, wipe it dry immediately.

• Avoid exposure to heat and steam.

• Other than to install the batteries, do not open the remote control.

English-11

+ 30 hidden pages
