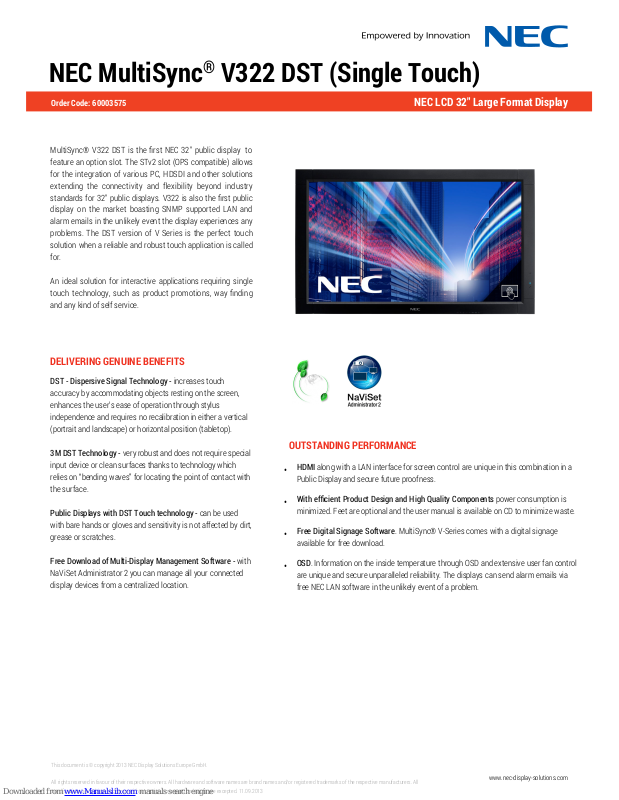

Page 1
NEC MultiSync® V322 DST (Single Touch)
Order Code: 60003575
NEC LCD 32" Large Format Display
MultiSync® V322 DST is the first NEC 32" public display to
feature an option slot. The STv2 slot (OPS compatible) allows
for the integration of various PC, HDSDI and other solutions
extending the connectivity and flexibility beyond industry
standards for 32" public displays. V322 is also the first public
display on the market boasting SNMP supported LAN and
alarm emails in the unlikely event the display experiences any
problems. The DST version of V Series is the perfect touch
solution when a reliable and robust touch application is called
for.
An ideal solution for interactive applications requiring single
touch technology, such as product promotions, way finding
and any kind of self service.
DELIVERING GENUINE BENEFITS
DST - Dispersive Signal Technology - increases touch
accuracy by accommodating objects resting on the screen,
enhances the user's ease of operation through stylus
independence and requires no recalibration in either a vertical
(portrait and landscape) or horizontal position (tabletop).
3M DST Technology - very robust and does not require special
input device or clean surfaces thanks to technology which
relies on “bending waves” for locating the point of contact with
the surface.
Public Displays with DST Touch technology - can be used
with bare hands or gloves and sensitivity is not affected by dirt,
grease or scratches.
Free Download of Multi-Display Management Software - with
NaViSet Administrator 2 you can manage all your connected
display devices from a centralized location.
OUTSTANDING PERFORMANCE
HDMI along with a LAN interface for screen control are unique in this combination in a
Public Display and secure future proofness.
•
With efficient Product Design and High Quality Components power consumption is
minimized. Feet are optional and the user manual is available on CD to minimize waste.
•
Free Digital Signage Software. MultiSync® V-Series comes with a digital signage
available for free download.
•
OSD. Information on the inside temperature through OSD and extensive user fan control
are unique and secure unparalleled reliability. The displays can send alarm emails via
free NEC LAN software in the unlikely event of a problem.
•
This document is © copyright 2013 NEC Display Solutions Europe GmbH.
All rights reserved in favour of their respective owners. All hardware and software names are brand names and/or registered trademarks of the respective manufacturers. All
specifications are subject to change without notice. Errors and omissions are excepted. 11.09.2013
www.nec-display-solutions.com
Page 2
NEC MultiSync® V322 DST (Single Touch)
1. Power (AC in)
2. Main switch (on/off)
3. LAN with SNMP
4. Remote Control in / out
5. External control RS-232 in / out
6. DisplayPort in
7. DVI in / out
8. HDMI in
9. RGB in
10. Composite in
11. Audio out
12. Audio in
SPECIAL CHARACTERISTICS
Advanced fan control, Copy display settings through RS232,
DICOM support, Hardware colour calibration possible, Input name
adjustment, Matrix memory, NaViSet Administrator 2, Optional
external programmable ambient light sensor, OSD rotation for
portrait mode, PIN as theft protection, Rapid input switching,
Scheduler, Screen saver functions, TileMatrix (10 x 10), User input
priority definition, Various picture in picture options
Energy Efficiency ECOMode
Ecological Materials Optional feet; Manuals on CD
Ecological Standards Energy Star 5.1
Technical Specification NEC MultiSync® V322 DST (Single Touch)
DISPLAY
Panel Technology
S-PVA with CCFL backlights
Active Screen Area (W x H) [mm]
697.7 x 392.3
Screen Size [inch/cm]
31.5 / 80
Aspect Ratio
16:9
Brightness (shipping) [cd/m2]
340, (420 max)
Contrast Ratio (typ.)
3000:1
Viewing Angle [°]
178 horizontal / 178 vertical (typ. at contrast ratio 10:1)
Response Time (typ.) [ms]
8 (grey-to-grey)
Panel Refresh Rate [Hz]
60
SYNCHRONISATION RATE
Horizontal Frequency [kHz]
31.5 - 91.1 (analog and digital)
Vertical Frequency [Hz]
50 - 85
RESOLUTION
Native Resolution
1366 x 768 at 60 Hz
Supported on digital and analogue inputs (PC)
1920 x 1080; 1680 x 1050; 1600 x 1200; 1400 x 1050; 1366 x 786; 1360 x 768;
1280 x 1024; 1280 x 960; 1280 x 800; 1280 x 768; 1280 x 720; 1024 x 768; 800 x
600; 720 x 576; 720 x 400; 640 x 480
Supported on digital inputs (Video)
1920 x 1080i (59.94/60)16:9; 1920 x 1080p (59.94/60)16:9; 1920 x 1080p (50)
16:9; 1920 x 1080p (23.97/24)16:9; 1920 x 1080p (25)16:9; 1920 x 1080p
(29.97/30)16:9; 1280 x 720p (50)16:9; 720 x 576p (50)16:9; 720 x 480p
(59.94/60)16:9
CONNECTIVITY
Input Video Analogue
D-Sub15 (PC RGB, Component, S-Video, Composite) Composite (BNC)
Input Video Digital
1 x DVI-D (with HDCP); 1 x HDMI 1.3 (with HDCP); 1 x DisplayPort (with HDCP)
Input Audio Analogue
1 x 3,5 mm jack
Input Audio Digital
DisplayPort; 1 x HDMI
Input Control
LAN 100Mbit; remote control wire (3,5mm jack); RS232
Output Video Digital
1 x DVI-D (with HDCP)
Output Audio Analogue
3,5mm jack
Output Control
remote control wire (3,5mm jack); RS232
Remote Control
LAN with SNMP; RS-232C (9-pin D-sub) Input and Output; Remote Control IR
(internal/external (optional) sensor)
OPTION SLOT
Slot Technology
STv2 (compatible with Intel / NEC OPS standard)
Inrush Current [A]
max. 10
Power Consumption [W]
max. 61
Voltage / Current [V/A]
16/4
ELECTRICAL
Power Consumption on Mode [W]
90 shipping; 192 (max.)
Power Savings Mode [W]
< 0.5 (ECO Standby); < 1
Power Management
VESA DPMS
ENVIRONMENTAL CONDITIONS
Operating Temperature [°C]
+5 to +40
Operating Humidity [%]
20 to 80
Storage Humidity [%]
10 to 90
Storage Temperature [°C]
-20 to +60
MECHANICAL
Dimensions (W x H x D) [mm]
Without stand: 786.8 x 476.2 x 100.5
Weight [kg]
Without stand: 14.1
Bezel Width [mm]
43.2 (left and right); 40.3 (top and bottom)
VESA Mounting [mm]
200 x 200 (FDMI); 4 holes; M6
AVAILABLE OPTIONS
Accessories
Feet (ST-322); Wall mount (PDW 32-70 L+P); Wall mount (PDW S 32-55 L/P)
Option Slot
Built-in PC; HD-SDI board
ADDITIONAL FEATURES
Safety and Ergonomics
CE; TÜV GS; C-tick; Energy Star 5.1; FCC Class B; UL/C-UL or CSA; PSB; VCCI;
RoHS
Plug and Play
VESA DDC2Bi
Audio
Integrated Speakers (8 W + 8 W)
Shipping Content
Display; Power Cable; VGA cable; Free LAN control software (download); Remote
Control
Warranty
3 years warranty incl. backlight
TOUCH
Protection Glass
Chemically-strengthened glass substrate
Input Method
Finger; Stylus; Gloves
Light Transmission [%]
92 (+/- 2%)
Reflection Rate [%]
Anti-glare tech (low reflection)
Driver
MicroTouch MT7 for MicroTouch DST driver for Microsoft®; Windows 7;
Windows® 2000/XP/VISTA; HID-compliant
Communication Protocol
USB-HID
